Kort testrapport Chuwi LapBook Air 14.1 (N3450, FHD) Laptop

Allen Ngo, 01-11-2017

Aantrekkelijk en traag. Chuwi's MacBook Air kloon ziet er zeker goed uit en kan makkelijk doorgaan voor een twee keer zo duur Ultrabook. Wanneer je wat beter kijkt zie je echter al snel de nodige tekortkomingen.

Chuwi LapBook 14 inch 2017 (LapBook Serie)

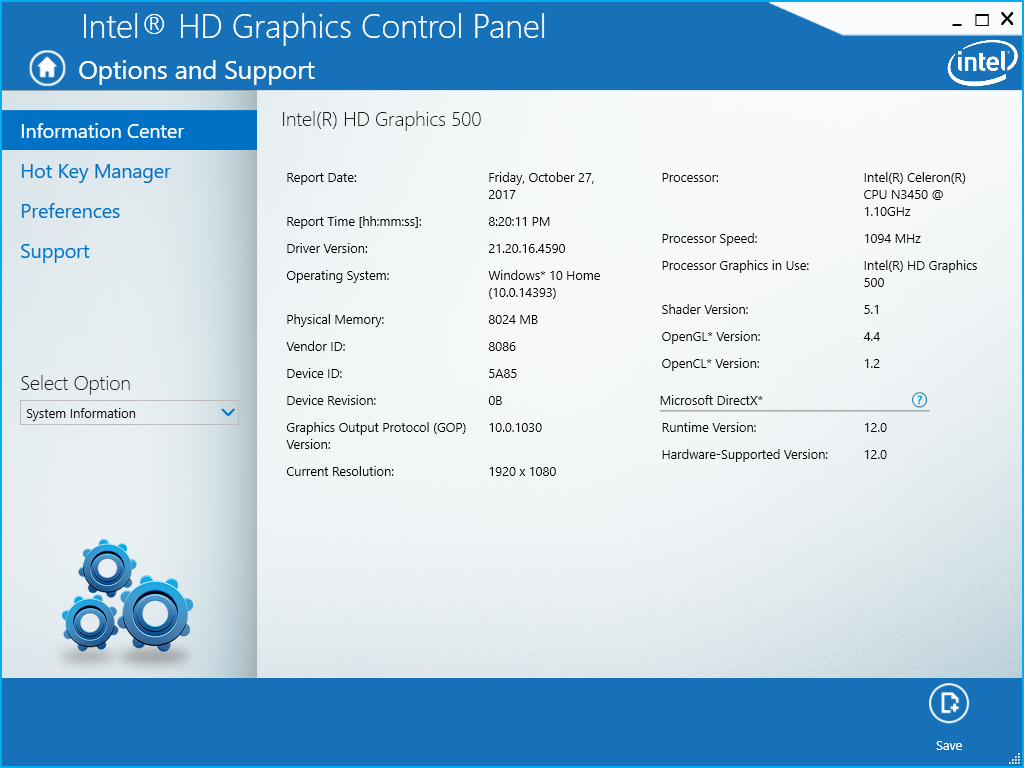

Grafische kaart

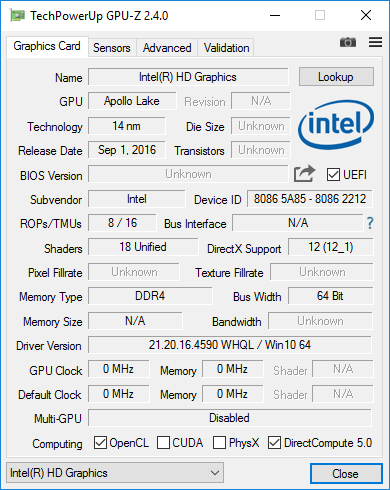

Intel HD Graphics 500, Core: 450 MHz, 21.20.16.4590
Geheugen
8192 MB

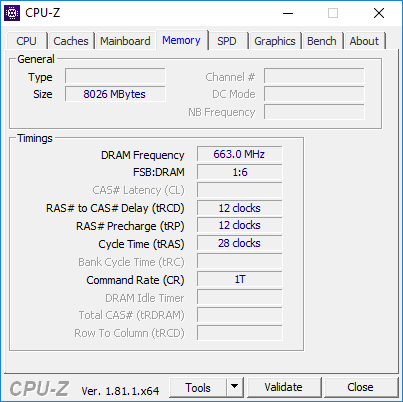

, DDR3L, 666.7 MHz, 7-12-12-28
Beeldscherm
14.1 inch 16:9, 1920x1080 pixel 156 PPI, Name: BOE06A8, IPS, glimmend: ja
Opslag
SanDisk DF4128, 128 GB
Geluidskaart
RealTek ALC269 @ Intel Apollo Lake SoC - High Definition Audio Controller
Verbindingen
2 USB 3.0, 1 HDMI, Audio Verbindingen: 3.5 mm, Card Reader: MicroSD-kaartlezer tot max. 128 GB
Netwerkmogelijkheden
Intel Dual Band Wireless-AC 3165 (a/b/g/n/ac), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 20.5 x 329.2 x 220.5
Batterij
38 Wh, 5000 mAh Lithium-Ion, 7.4V, Batterijduur: 4 h
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: FHD
Primary Camera: 2 MPix
Bijkomende functionaliteiten
Luidsprekers: Stereo, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, garantieinformatie, snelstarthandleiding, 12 Maanden Garantie, fanless
Gewicht
1.4 kg, Voeding: 223 g
Prijs
410 USD

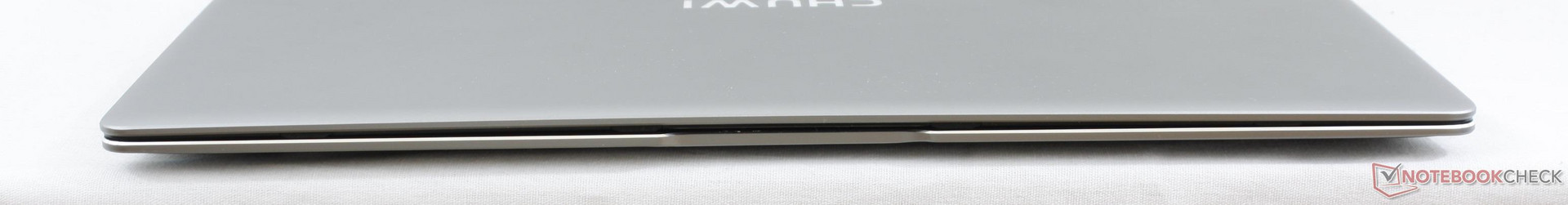

Front: No connectivity
Front: No connectivity

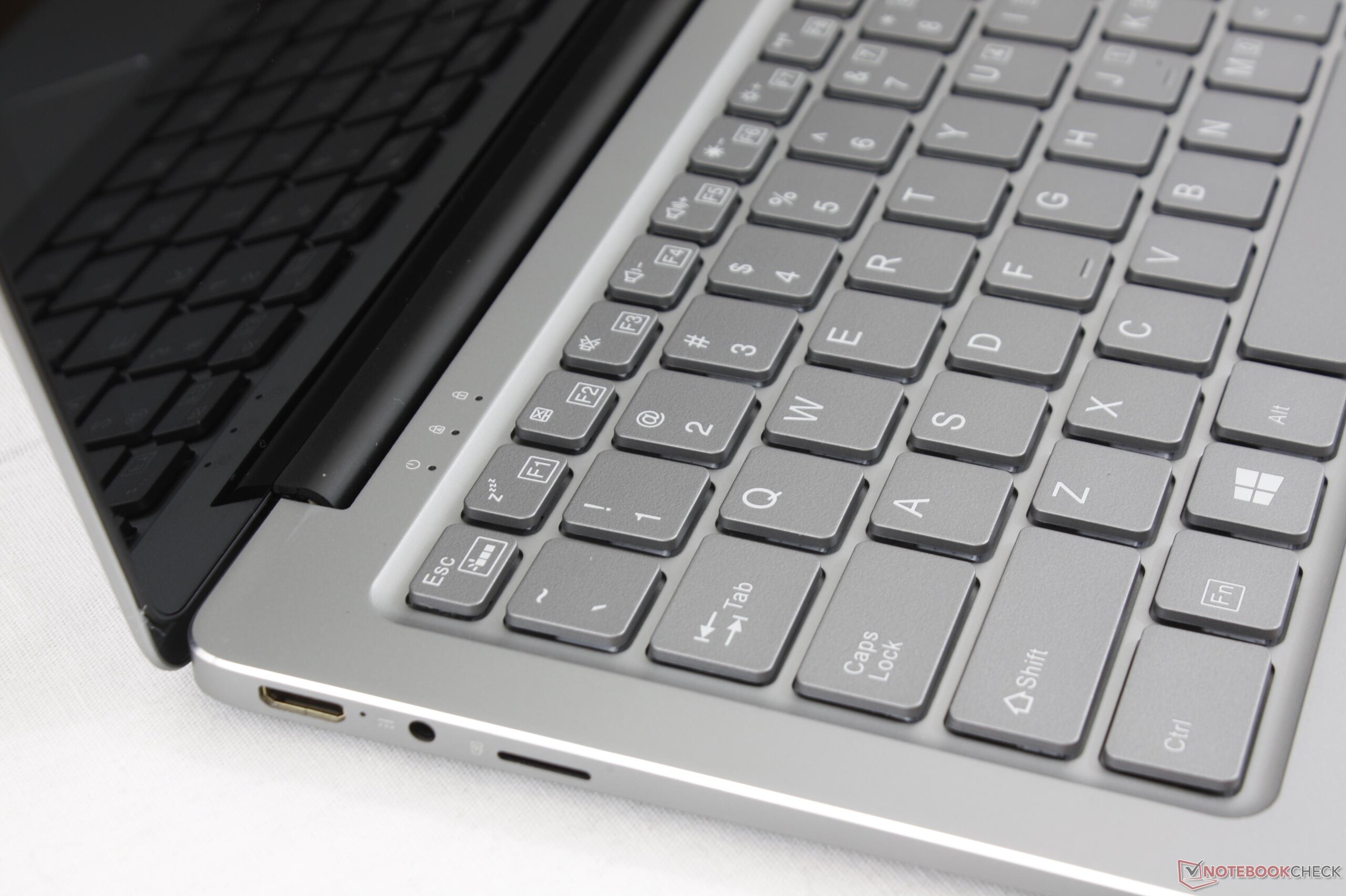

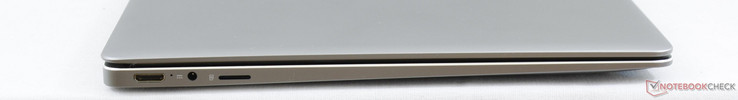

Left: Mini HDMI, AC adapter, MicroSD reader
Left: Mini HDMI, AC adapter, MicroSD reader

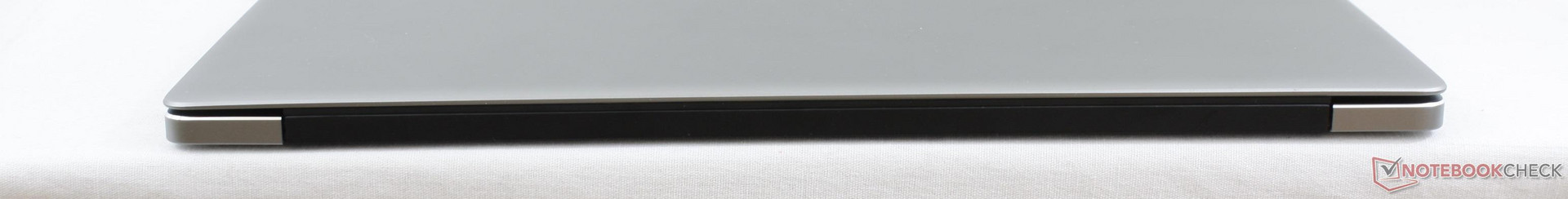

Rear: No connectivity
Rear: No connectivity

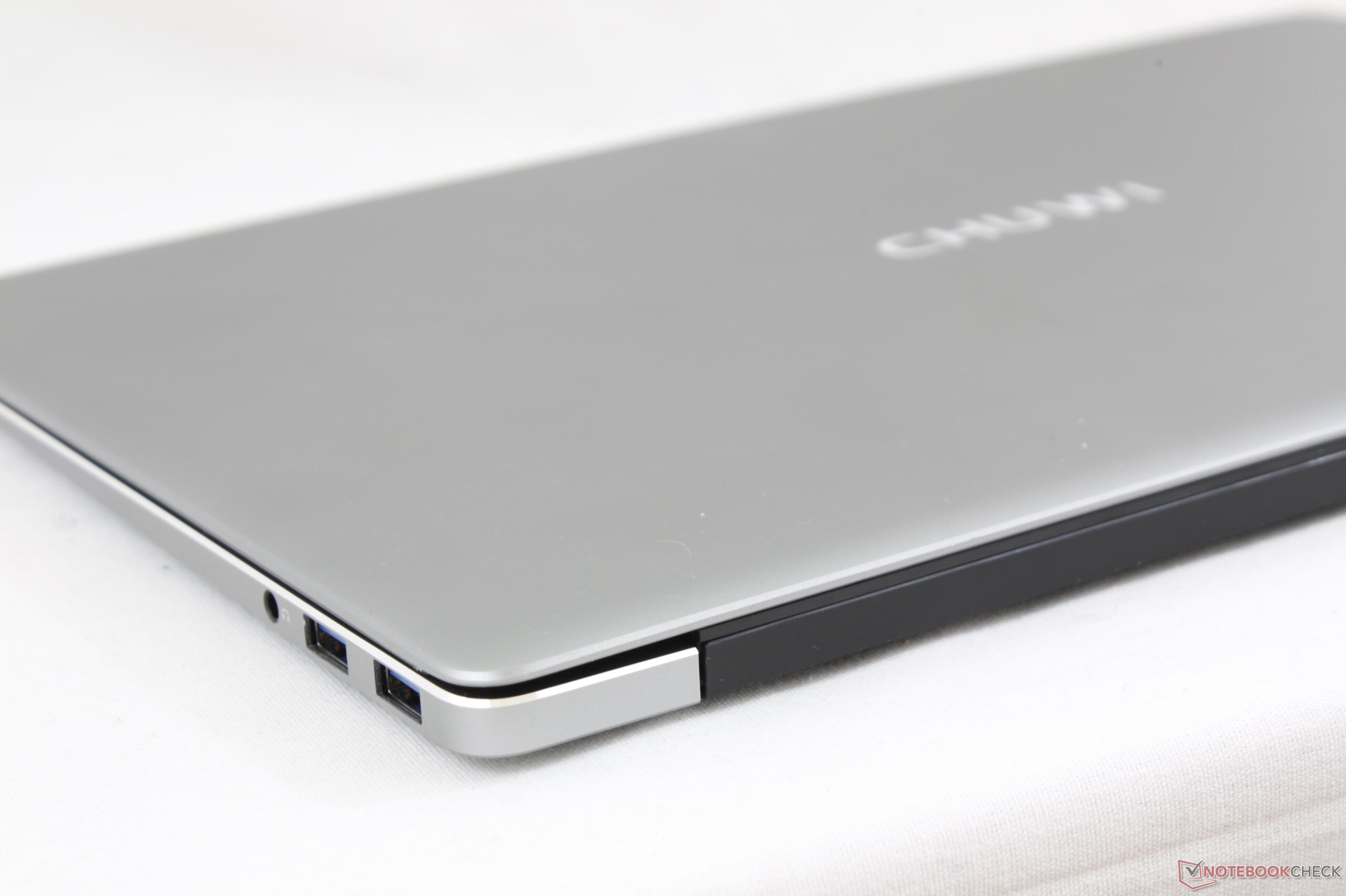

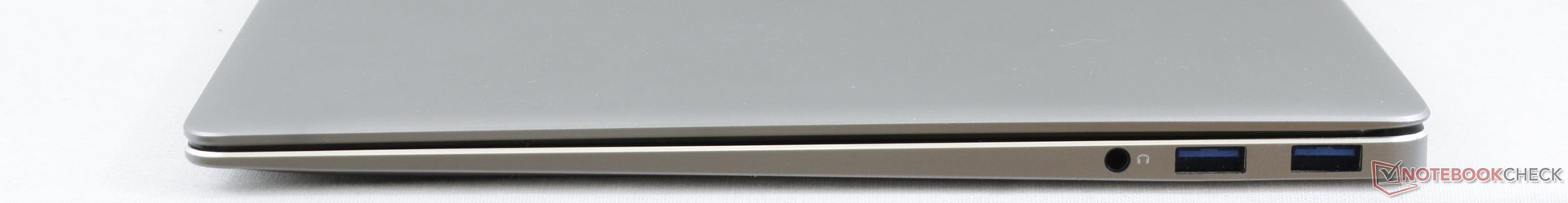

Right: 3.5 mm earphones, 2x USB 3.0
Right: 3.5 mm earphones, 2x USB 3.0
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell XPS 13 i7-8550U
159 MB/s ∼100% +320%
Samsung Notebook 9 NP900X3N-K01US
67.37 MB/s ∼42% +78%
Chuwi LapBook 14 inch 2017
37.86 MB/s ∼24%
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13 i7-8550U
190.59 MB/s ∼100% +329%
Samsung Notebook 9 NP900X3N-K01US
88.07 MB/s ∼46% +98%
Chuwi LapBook 14 inch 2017
44.46 MB/s ∼23%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Samsung Notebook 9 NP900X3N-K01US
Intel Dual Band Wireless-AC 8260
668 MBit/s ∼100% +91%
Dell XPS 13 i7-8550U
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
618 MBit/s ∼93% +77%
Chuwi LapBook 14 inch 2017
Intel Dual Band Wireless-AC 3165
349 MBit/s ∼52%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell XPS 13 i7-8550U
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
538 MBit/s ∼100% +73%
Samsung Notebook 9 NP900X3N-K01US
Intel Dual Band Wireless-AC 8260
517 MBit/s ∼96% +66%
Chuwi LapBook 14 inch 2017
Intel Dual Band Wireless-AC 3165
311 MBit/s ∼58%
239.1
cd/m²
245.2
cd/m²
243.7
cd/m²
233.6
cd/m²
247.7
cd/m²
244.4
cd/m²
236.4
cd/m²
241.7
cd/m²
253.1
cd/m²
Helderheidsverdeling
X-Rite i1Basic Pro 2
Maximum: 253.1 cd/m² Gemiddelde: 242.8 cd/m² Minimum: 5.46 cd/m²
Helderheidsverdeling: 92 %
Helderheid in Batterij-modus: 247.7 cd/m²
Contrast: 774:1 (Zwart: 0.32 cd/m²)
ΔE Color 6.4 | - Ø
ΔE Greyscale 4.5 | - Ø
62.9% sRGB (Argyll) 39.8% AdobeRGB 1998 (Argyll)
Gamma: 2.33
Chuwi LapBook 14 inch 2017
Name: BOE06A8, IPS, 14.1, 1920x1080
Lenovo Ideapad 110S-11IBR
Chi Mei CMN1132, TN LED, 11.6, 1366x768
Jumper EZbook 3
MS_9003, TN LED, 14.1, 1920x1080
HP Pavilion 14-al103ng
AU Optronics, IPS, 14, 1920x1080
Apple MacBook Air 13 inch 2015-03
Apple APP9CF0, TN LED, 13.3, 1440x900
Response Times
4247%
7%
-27%
Response Time Grey 50% / Grey 80% *
32.8 (12.8, 20)
46 (26, 20)
-40%
46 (25, 21)
-40%
53 (18, 35)
-62%
Response Time Black / White *
29.2 (16, 13.2)
30 (21, 9)
-3%
11.6 (7.7, 3.8)
60%
27 (8, 19)
8%
PWM Frequency
200 (20)
25770 (50)
12785%
200 (99)
0%
Screen
-38%
-87%
16%
6%
Brightness
243
230
-5%
341
40%
191
-21%
310
28%
Brightness Distribution
92
91
-1%
76
-17%
90
-2%
82
-11%
Black Level *
0.32
0.4
-25%
1.28
-300%
0.14
56%
0.405
-27%
Contrast
774
608
-21%
300
-61%
1429
85%
812
5%
Colorchecker DeltaE2000 *
6.4
11.24
-76%
8.7
-36%
5.06
21%
3.96
38%
Greyscale DeltaE2000 *
4.5
12.78
-184%
11.1
-147%
3.94
12%
3.51
22%
Gamma
2.33 103%
2.33 103%
2.2 109%
2.41 100%
3.83 63%
CCT
7318 89%
15436 42%
12445 52%
6159 106%
6711 97%
Color Space (Percent of AdobeRGB 1998)
39.8
41
3%
35
-12%
38.4
-4%
Color Space (Percent of sRGB)
62.9
64
2%
55
-13%
59.8
-5%
Totaal Gemiddelde (Programma / Instellingen)
2105% / 1130%
-40% / -56%
-6% / 7%
6% / 6%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

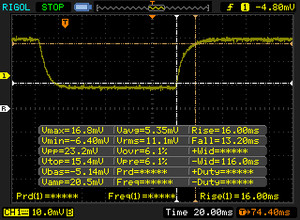

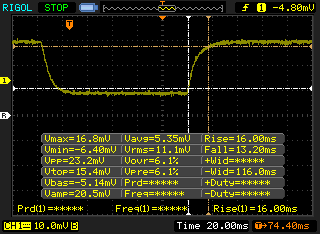

       Responstijd Zwart naar Wit
29.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 16 ms stijging
↘ 13.2 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 69 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (26.6 ms) van alle geteste toestellen.

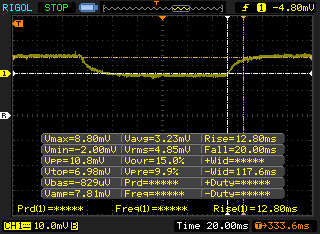

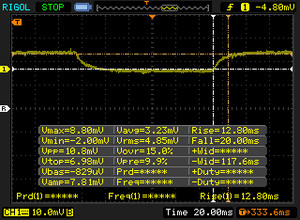

       Responstijd 50% Grijs naar 80% Grijs
32.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 12.8 ms stijging
↘ 20 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 19 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (42.5 ms) van alle geteste toestellen.

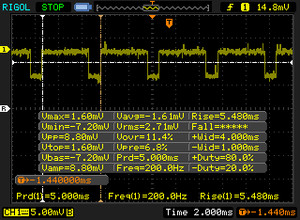

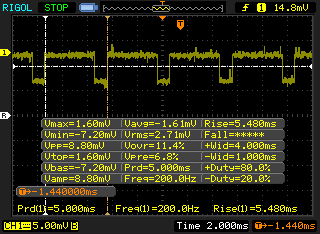

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 200 Hz20 % helderheid instelling

Het backlight van het scherm flikkert aan 200 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 20 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 200 Hz is redelijk laag en de meeste mensen die gevoelig zijn aan flickering kunnen dit dus waarnemen of geïrriteerde ogen krijgen (gebruikmakend van de vermelde helderheid en lager).

Ter vergelijking: 55 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9257 (minimum: 43 - maximum: 247500) Hz waargenomen.


0102030405060708090100110120130Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
99 Points ∼50% +175%
Acer TravelMate P249-M-3895
Intel Core i3-6100U
98 Points ∼49% +172%
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
86 Points ∼43% +139%
HP 15-bw077ax
AMD A9-9420
75 Points ∼38% +108%
HP Pavilion 15z-bw000
AMD A10-9620P
72 Points ∼36% +100%
Acer Spin 1 SP111-31-C79E
Intel Celeron N3450
48 Points ∼24% +33%
HP 15z-ba000
AMD A6-7310
44 Points ∼22% +22%
Lenovo Ideapad 110S-11IBR
Intel Celeron N3060
39 Points ∼20% +8%
Lenovo Yoga Book 2016 Windows 64GB LTE
Intel Atom x5-Z8550
36 Points ∼18% 0%
Chuwi LapBook 14 inch 2017
Intel Celeron N3450
36 Points ∼18%
CPU Multi 64Bit
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
256 Points ∼12% +100%
Acer TravelMate P249-M-3895
Intel Core i3-6100U
250 Points ∼12% +95%
HP Pavilion 15z-bw000
AMD A10-9620P
230 Points ∼11% +80%
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
223 Points ∼10% +74%
Acer Spin 1 SP111-31-C79E
Intel Celeron N3450
135 Points ∼6% +5%
Lenovo Yoga Book 2016 Windows 64GB LTE
Intel Atom x5-Z8550
134 Points ∼6% +5%
Chuwi LapBook 14 inch 2017
Intel Celeron N3450
128 Points ∼6%
HP 15-bw077ax
AMD A9-9420
124 Points ∼6% -3%
HP 15z-ba000
AMD A6-7310
119 Points ∼6% -7%
Lenovo Ideapad 110S-11IBR
Intel Celeron N3060
74 Points ∼3% -42%
Cinebench R11.5
CPU Single 64Bit
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
1.14 Points ∼50% +143%
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
1.03 Points ∼45% +119%
HP 15-bw077ax
AMD A9-9420
0.96 Points ∼42% +104%
HP Pavilion 15z-bw000
AMD A10-9620P
0.81 Points ∼36% +72%
HP 15z-ba000
AMD A6-7310
0.58 Points ∼26% +23%
Chuwi LapBook 14 inch 2017
Intel Celeron N3450
0.47 Points ∼21%
Lenovo Ideapad 110S-11IBR
Intel Celeron N3060
0.46 Points ∼20% -2%
CPU Multi 64Bit
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
2.85 Points ∼12% +75%
HP Pavilion 15z-bw000
AMD A10-9620P
2.66 Points ∼11% +63%
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
2.49 Points ∼10% +53%
HP 15z-ba000
AMD A6-7310
2.08 Points ∼9% +28%
Chuwi LapBook 14 inch 2017
Intel Celeron N3450
1.63 Points ∼7%
HP 15-bw077ax
AMD A9-9420
1.56 Points ∼7% -4%
Lenovo Ideapad 110S-11IBR
Intel Celeron N3060
0.8 Points ∼3% -51%
Cinebench R10
Rendering Single 32Bit
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
3871 Points ∼44% +218%
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
3725 Points ∼42% +206%
Acer TravelMate P249-M-3895
Intel Core i3-6100U
3714 Points ∼42% +205%
HP 15-bw077ax
AMD A9-9420
2761 Points ∼31% +126%
HP Pavilion 15z-bw000
AMD A10-9620P
2277 Points ∼26% +87%
HP 15z-ba000
AMD A6-7310
1761 Points ∼20% +44%
Acer Spin 1 SP111-31-C79E
Intel Celeron N3450
1451 Points ∼16% +19%
Lenovo Ideapad 110S-11IBR
Intel Celeron N3060
1267 Points ∼14% +4%
Chuwi LapBook 14 inch 2017
Intel Celeron N3450
1219 Points ∼14%
Rendering Multiple CPUs 32Bit
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
8718 Points ∼18% +120%
Acer TravelMate P249-M-3895
Intel Core i3-6100U
8426 Points ∼17% +113%
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
7580 Points ∼15% +92%
HP Pavilion 15z-bw000
AMD A10-9620P
7420 Points ∼15% +88%
HP 15-bw077ax
AMD A9-9420
4627 Points ∼9% +17%
HP 15z-ba000
AMD A6-7310
4373 Points ∼9% +11%
Acer Spin 1 SP111-31-C79E
Intel Celeron N3450
3959 Points ∼8% 0%
Chuwi LapBook 14 inch 2017
Intel Celeron N3450
3956 Points ∼8%
Lenovo Ideapad 110S-11IBR
Intel Celeron N3060
2397 Points ∼5% -39%
wPrime 2.0x - 1024m
Chuwi LapBook 14 inch 2017
Intel Celeron N3450
866.652 s * ∼10%
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
790 s * ∼9% +9%
HP 15-bw077ax
AMD A9-9420
747 s * ∼9% +14%
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
644.6 s * ∼8% +26%
HP Pavilion 15z-bw000
AMD A10-9620P
470.94 s * ∼6% +46%
Super Pi Mod 1.5 XS 32M - ---
Chuwi LapBook 14 inch 2017
Intel Celeron N3450
1566.11 Seconds * ∼7%
HP 15z-ba000
AMD A6-7310
1429.9 Seconds * ∼6% +9%
HP Pavilion 15z-bw000
AMD A10-9620P
977.05 Seconds * ∼4% +38%
HP 15-bw077ax
AMD A9-9420
908.1 Seconds * ∼4% +42%
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
849 Seconds * ∼4% +46%
Lenovo Thinkpad 13-20J1001BUS
Intel Core i3-7100U
817.6 Seconds * ∼4% +48%

* ... kleiner is beter

Cinebench R10 Shading 32Bit
2887
Cinebench R10 Rendering Multiple CPUs 32Bit
3956
Cinebench R10 Rendering Single 32Bit
1219
Cinebench R11.5 CPU Multi 64Bit
1.63 Points
Cinebench R11.5 OpenGL 64Bit
7.05 fps
Cinebench R11.5 CPU Single 64Bit
0.47 Points
Cinebench R15 CPU Single 64Bit
36 Points
Cinebench R15 Ref. Match 64Bit
97.7 %
Cinebench R15 OpenGL 64Bit
11.21 fps
Cinebench R15 CPU Multi 64Bit
128 Points
Help
PCMark 8
Work Score Accelerated v2
Acer Swift 3 SF315-51G-57E5
GeForce MX150, 8250U, Hynix HFS128G39TND
4992 Points ∼77% +96%
Apple MacBook Air 13 inch 2015-03
HD Graphics 6000, 5650U, Apple SSD SD0256F
4367 Points ∼67% +71%
Chuwi LapBook 14 inch 2017
HD Graphics 500, N3450, SanDisk DF4128
2552 Points ∼39%
Lenovo Yoga Book 2016 Windows 64GB LTE
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1247 Points ∼19% -51%
Creative Score Accelerated v2
Acer Swift 3 SF315-51G-57E5
GeForce MX150, 8250U, Hynix HFS128G39TND
5065 Points ∼54% +159%
Apple MacBook Air 13 inch 2015-03
HD Graphics 6000, 5650U, Apple SSD SD0256F
4432 Points ∼48% +127%
Chuwi LapBook 14 inch 2017
HD Graphics 500, N3450, SanDisk DF4128
1952 Points ∼21%
Home Score Accelerated v2
Acer Swift 3 SF315-51G-57E5
GeForce MX150, 8250U, Hynix HFS128G39TND
3935 Points ∼66% +134%
Apple MacBook Air 13 inch 2015-03
HD Graphics 6000, 5650U, Apple SSD SD0256F
3579 Points ∼60% +113%
Chuwi LapBook 14 inch 2017
HD Graphics 500, N3450, SanDisk DF4128
1682 Points ∼28%
Lenovo Yoga Book 2016 Windows 64GB LTE
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1296 Points ∼22% -23%
PCMark 8 Home Score Accelerated v2
1682 punten
PCMark 8 Creative Score Accelerated v2
1952 punten
PCMark 8 Work Score Accelerated v2
2552 punten
Help
Chuwi LapBook 14 inch 2017
SanDisk DF4128
Dell XPS 13 i7-8550U
Toshiba XG5 KXG50ZNV256G
Samsung Notebook 9 NP900X3N-K01US
Samsung CM871a MZNTY256HDHP
Lenovo Ideapad 110S-11IBR
SanDisk DF4032
Lenovo IdeaPad 320s-14IKB
Samsung PM961 NVMe MZVLW128HEGR
CrystalDiskMark 5.2
743%
402%
-8%
696%
Write 4K
11.87
121.5
924%
105.4
788%
13.87
17%
127.9
978%
Read 4K
11.45
24.92
118%
34.45
201%
12.23
7%
42.82
274%
Write Seq
106.1
345
225%
458.4
332%
101.7
-4%
794.5
649%
Read Seq
293.6
1313
347%
489.4
67%
165.1
-44%
1056
260%
Write 4K Q32T1
15.22
346.1
2174%
99.16
552%
13.63
-10%
176.8
1062%
Read 4K Q32T1
33.91
389.4
1048%
273.5
707%
36.23
7%
322.4
851%
Write Seq Q32T1
110.3
334.7
203%
512.1
364%
94.79
-14%
793.1
619%
Read Seq Q32T1
183
1840
905%
551.1
201%
147.5
-19%
1782
874%
SanDisk DF4128
CDM 5 Read Seq Q32T1: 183 MB/s
CDM 5 Write Seq Q32T1: 110.3 MB/s
CDM 5 Read 4K Q32T1: 33.91 MB/s
CDM 5 Write 4K Q32T1: 15.22 MB/s
CDM 5 Read Seq: 293.6 MB/s
CDM 5 Write Seq: 106.1 MB/s
CDM 5 Read 4K: 11.45 MB/s
CDM 5 Write 4K: 11.87 MB/s
3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC5i3RYK
Intel HD Graphics 5500, 5010U
6706 Points ∼4% +160%
Acer Spin 5 SP513-51
Intel HD Graphics 520, 6100U
6249 Points ∼4% +142%
Lenovo Thinkpad 13-20J1001BUS
Intel HD Graphics 620, 7100U
5854 Points ∼4% +127%
Fujitsu Lifebook U574
Intel HD Graphics 4400, 4200U
4921 Points ∼3% +91%
Lenovo Ideapad 320-17AST-80XW0013GE
AMD Radeon R2 (Stoney Ridge), E2-9000
3634 Points ∼2% +41%
HP 15-bw075ax
AMD Radeon R7 (Bristol Ridge), A12-9720P
3477 Points ∼2% +35%
Jumper EZbook 3
Intel HD Graphics 500, N3350
3052 Points ∼2% +18%
Chuwi Lapbook 12.3
Intel HD Graphics 500, N3450
2651 (min: 2630) Points ∼2% +3%
Chuwi LapBook 14 inch 2017
Intel HD Graphics 500, N3450
2578 Points ∼2%
Lenovo Yoga Book 2016 Windows 64GB LTE
Intel HD Graphics 400 (Braswell), Z8550
2455 Points ∼2% -5%
Lenovo Miix 3 10
Intel HD Graphics (Bay Trail), Z3735F
1190 Points ∼1% -54%
1280x720 offscreen Ice Storm Unlimited Graphics Score
Lenovo Thinkpad 13-20J1001BUS
Intel HD Graphics 620, 7100U
57706 Points ∼13% +199%
Lenovo Ideapad 320-17AST-80XW0013GE
AMD Radeon R2 (Stoney Ridge), E2-9000
38670 Points ∼9% +100%
HP 15-bw075ax
AMD Radeon R7 (Bristol Ridge), A12-9720P
34845 Points ∼8% +81%
Chuwi Lapbook 12.3
Intel HD Graphics 500, N3450
22807 Points ∼5% +18%
Jumper EZbook 3
Intel HD Graphics 500, N3350
20352 Points ∼4% +5%
Chuwi LapBook 14 inch 2017
Intel HD Graphics 500, N3450
19294 Points ∼4%
3DMark 11
1280x720 Performance Combined
Asus VivoBook X751BP-TY048T
AMD Radeon R5 (Stoney Ridge), A9-9420
1323 Points ∼8% +216%
Intel NUC5i3RYK
Intel HD Graphics 5500, 5010U
1206 Points ∼7% +188%
Acer Spin 5 SP513-51
Intel HD Graphics 520, 6100U
1100 Points ∼6% +163%
Lenovo Ideapad 320-17AST-80XW0013GE
AMD Radeon R2 (Stoney Ridge), E2-9000
718 Points ∼4% +71%
Fujitsu Lifebook U574
Intel HD Graphics 4400, 4200U
663 Points ∼4% +58%
Chuwi Lapbook 12.3
Intel HD Graphics 500, N3450
570 Points ∼3% +36%
Lenovo Yoga Book 2016 Windows 64GB LTE
Intel HD Graphics 400 (Braswell), Z8550
480 Points ∼3% +15%
Jumper EZbook 3
Intel HD Graphics 500, N3350
456 Points ∼3% +9%
Chuwi LapBook 14 inch 2017
Intel HD Graphics 500, N3450
419 Points ∼2%
Lenovo Miix 3 10
Intel HD Graphics (Bay Trail), Z3735F
219 Points ∼1% -48%
1280x720 Performance GPU
Asus VivoBook X751BP-TY048T
AMD Radeon R5 (Stoney Ridge), A9-9420
1356 Points ∼3% +248%
Acer Spin 5 SP513-51
Intel HD Graphics 520, 6100U
1213 Points ∼2% +211%
Intel NUC5i3RYK
Intel HD Graphics 5500, 5010U
1175 Points ∼2% +201%
Fujitsu Lifebook U574
Intel HD Graphics 4400, 4200U
750 Points ∼1% +92%
Lenovo Ideapad 320-17AST-80XW0013GE
AMD Radeon R2 (Stoney Ridge), E2-9000
747 Points ∼1% +92%
Chuwi Lapbook 12.3
Intel HD Graphics 500, N3450
584 Points ∼1% +50%
Jumper EZbook 3
Intel HD Graphics 500, N3350
458 Points ∼1% +17%
Lenovo Yoga Book 2016 Windows 64GB LTE
Intel HD Graphics 400 (Braswell), Z8550
418 Points ∼1% +7%
Chuwi LapBook 14 inch 2017
Intel HD Graphics 500, N3450
390 Points ∼1%
Lenovo Miix 3 10
Intel HD Graphics (Bay Trail), Z3735F
182 Points ∼0% -53%
3DMark 11 Performance
445 punten
3DMark Ice Storm Standard Score
20937 punten
3DMark Cloud Gate Standard Score
2152 punten
3DMark Fire Strike Score
271 punten
Help

Geluidsniveau

Onbelast
/ / dB (A)
Belasting
/ dB (A)



30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)
Chuwi LapBook 14 inch 2017
HD Graphics 500, N3450, SanDisk DF4128
Samsung Notebook 9 NP900X3N-K01US
HD Graphics 620, 7200U, Samsung CM871a MZNTY256HDHP
Lenovo Ideapad 110S-11IBR
HD Graphics 400 (Braswell), N3060, SanDisk DF4032
Lenovo IdeaPad 320s-14IKB
HD Graphics 610, 4415U, Samsung PM961 NVMe MZVLW128HEGR
Acer Swift 3 SF315-51G-57E5
GeForce MX150, 8250U, Hynix HFS128G39TND
Apple MacBook Air 13.3" 1.8 GHz (2017)
HD Graphics 6000, 5350U, Apple SSD SM0128G
Noise
off / environment *
28.4
30.5
Idle Minimum *
28.4
31.1
30.5
Idle Average *
28.4
31.1
30.5
Idle Maximum *
28.4
31.1
30.9
Load Average *
33.2
34.8
35.7
Load Maximum *
35.2
33.7
35.6

* ... kleiner is beter

Max. Belasting
 38.8 °C30 °C28.2 °C
 42.4 °C29.4 °C27.6 °C
 35.2 °C29.4 °C28.2 °C
Maximum: 42.4 °C
Gemiddelde: 32.1 °C
30.2 °C33.4 °C41 °C
30 °C32.8 °C45 °C
30 °C32.4 °C38.2 °C
Maximum: 45 °C
Gemiddelde: 34.8 °C
Stroomadapter (max.)  38 °C | Kamertemperatuur 22.6 °C | Fluke 62 Mini IR Thermometer
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.235.5253433.93132.233.14032.733.55032.6316330.230.88029.830.410028.92912528.527.916026.728.62002730.425025.234.631525.140.440024.84650023.850.663023.353.580023.559.110002358.5125022.754.9160022.650.9200022.451.4250022.455.5315022.453.4400022.355.6500022.547.6630022.544.1800022.444.21000022.641.91250022.547.61600022.637.3SPL3565.7N2.318.7median 22.7Chuwi LapBook 14 inch 2017median 47.6Delta1.58.435.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.4hearing rangehide median Pink Noise
Chuwi LapBook 14 inch 2017 audio analysis

(-) | not very loud speakers (59.12 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.8% lower than median
(±) | linearity of bass is average (10.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.9% higher than median
(±) | linearity of mids is average (13.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.9% away from median
(±) | linearity of highs is average (12.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (32.6% difference to median)
Compared to same class
» 92% of all tested devices in this class were better, 6% similar, 3% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 91% of all tested devices were better, 4% similar, 5% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.21 / 0.23 Watt
Inactiefdarkmidlight 3.6 / 6.2 / 6.5 Watt
Belasting midlight 13.5 / 14.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Chuwi LapBook 14 inch 2017
N3450, HD Graphics 500, SanDisk DF4128, IPS, 1920x1080, 14.1
Lenovo Ideapad 110S-11IBR
N3060, HD Graphics 400 (Braswell), SanDisk DF4032, TN LED, 1366x768, 11.6
Lenovo IdeaPad 320s-14IKB
4415U, HD Graphics 610, Samsung PM961 NVMe MZVLW128HEGR, IPS, 1920x1080, 14
Apple MacBook Air 13.3" 1.8 GHz (2017)
5350U, HD Graphics 6000, Apple SSD SM0128G, TN LED, 1440x900, 13.3
HP Pavilion 14-al103ng
7200U, HD Graphics 620, Western Digital Scorpio Blue WD5000LPCX-24C6HT0, IPS, 1920x1080, 14
Asus VivoBook E200HA-FD0041TS
Z8350, HD Graphics 400 (Braswell), Hynix HBG4a2 32 GB eMMC, TN LED, 1366x768, 11.6
Power Consumption
-27%
-24%
-68%
-69%
5%
Idle Minimum *
3.6
7
-94%
3.4
6%
3.4
6%
5.5
-53%
4.3
-19%
Idle Average *
6.2
8.2
-32%
6.3
-2%
6.3
-2%
8.2
-32%
6
3%
Idle Maximum *
6.5
8.5
-31%
6.7
-3%
7
-8%
8.9
-37%
6.3
3%
Load Average *
13.5
12.5
7%
24.5
-81%
34.5
-156%
29.1
-116%
11.4
16%
Load Maximum *
14.3
12.3
14%
20.2
-41%
40
-180%
29.4
-106%
10.8
24%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
11h 36min
Surfen met WLAN v1.3
6h 12min
Belast (maximale helderheid)
3h 19min
Chuwi LapBook 14 inch 2017
N3450, HD Graphics 500, 38 Wh
Samsung Notebook 9 NP900X3N-K01US
7200U, HD Graphics 620, 30 Wh
Lenovo Ideapad 110S-11IBR
N3060, HD Graphics 400 (Braswell), 39.1 Wh
Lenovo IdeaPad 320s-14IKB
4415U, HD Graphics 610, 30 Wh
Apple MacBook Air 13.3" 1.8 GHz (2017)
5350U, HD Graphics 6000, 54 Wh
Lenovo Yoga Book 2016 Windows 64GB LTE
Z8550, HD Graphics 400 (Braswell), 32 Wh
Batterijduur
-32%
3%
24%
72%
50%
Reader / Idle
696
695
0%
1153
66%
WiFi v1.3
372
279
-25%
384
3%
460
24%
638
72%
498
34%
Load
199
60
-70%

Pro

+ slank en aantrekkelijk ontwerp; goede stevigheid
+ secundair M.2 2242 SSD slot
+ vloeiende 4K60 videoweergave
+ MicroSD-kaartlezer; mini HDMI
+ scherp 1080p IPS beeldscherm
+ toegankelijke componenten
+ verlicht toetsenbord
+ geen systeemventilator
+ goedkoop

Contra

- matig-tot-zware backlight bleeding van beeldscherm
- matig kleurbereik, onnauwkeurige kleuren
- erg lage CPU en GPU prestaties
- sponzig toetsenbord en touchpad
- PWM op lagere helderheidsniveaus
- glanzend beeldscherm; forse weerspiegelingen
- oneven verlicht toetsenbord
- zwakke luidsprekers; lichte bas
- bouwkwaliteit issues
- langzame SSD
- erg langzaam opladen

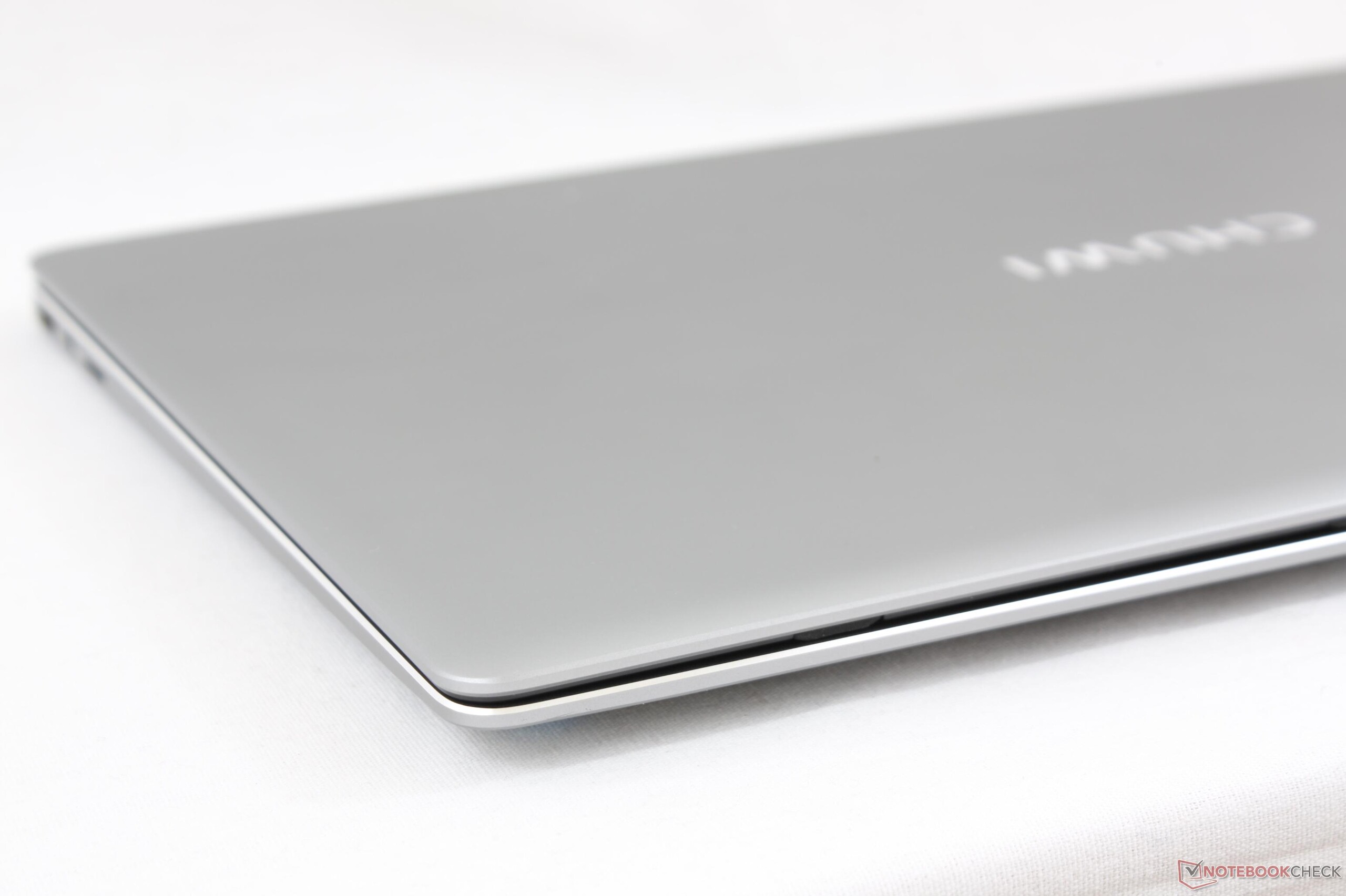

- deksel neigt te kraken
- iets fluitende condensatoren
- geen USB Type-C

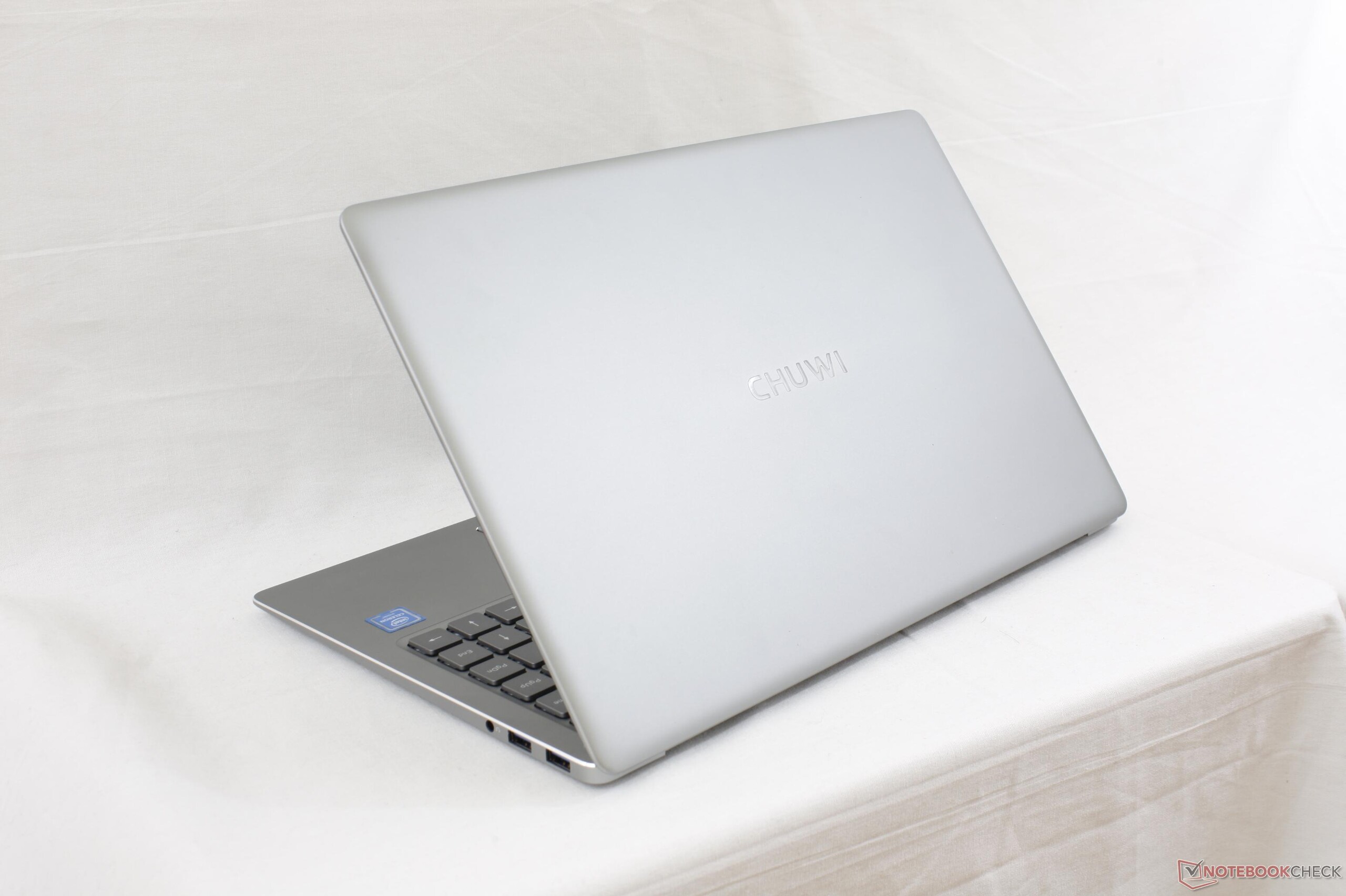

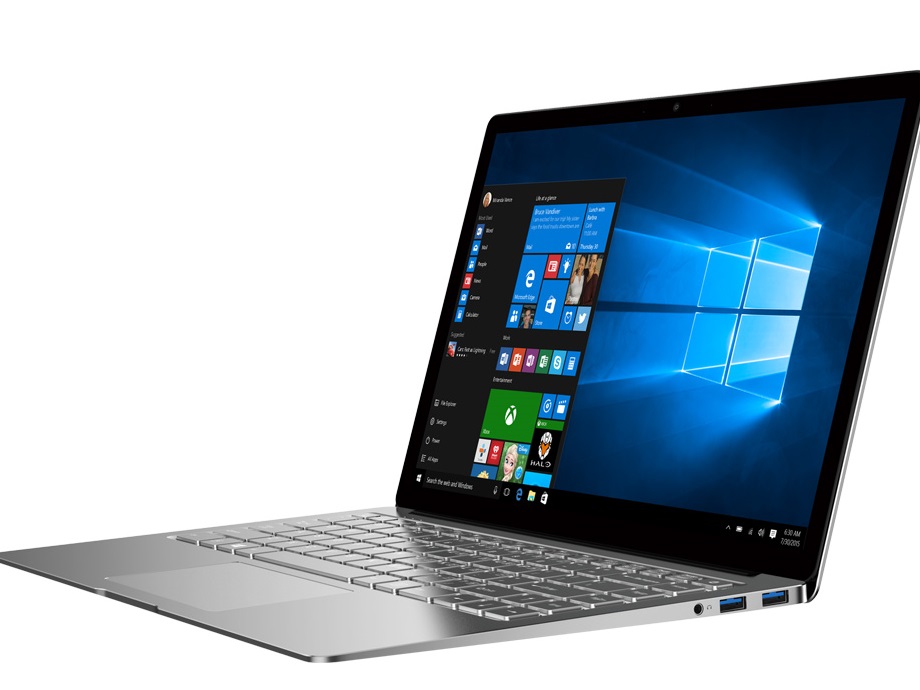

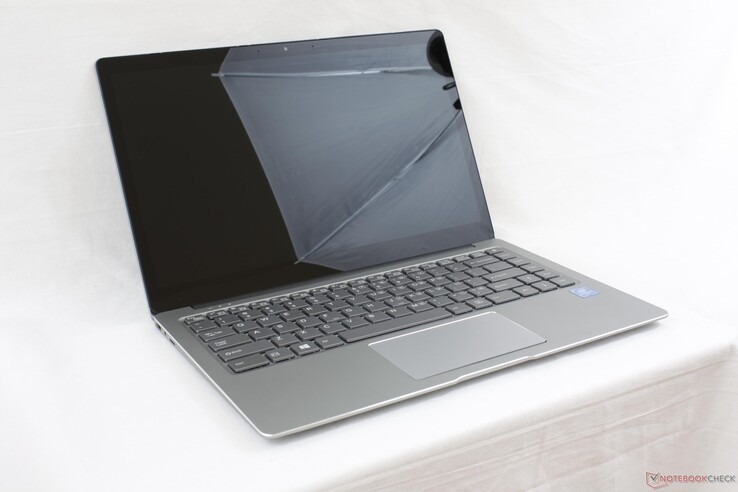

In review: Chuwi LapBook Air 14.1. Test model provided by Chuwi

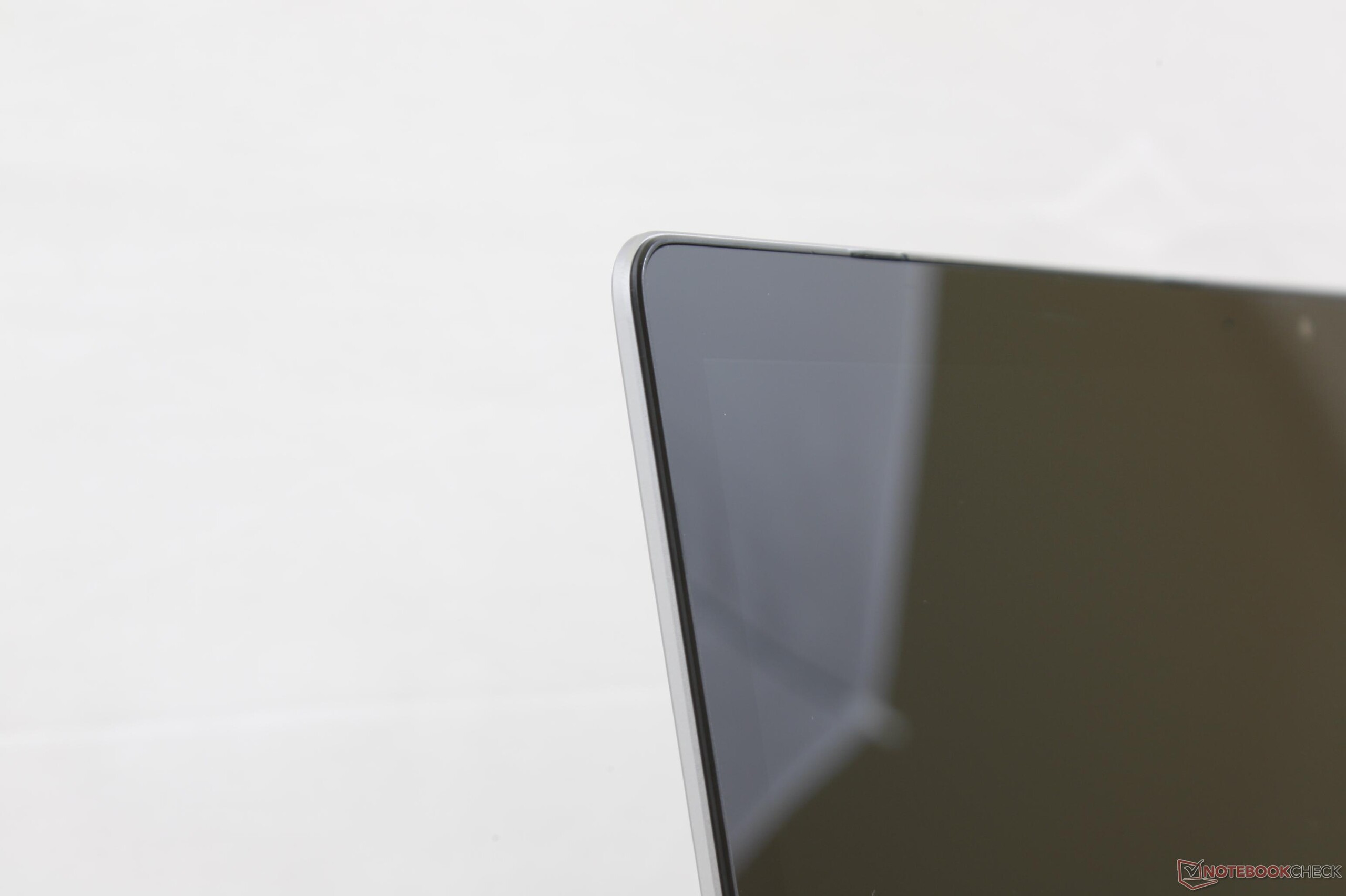

In review: Chuwi LapBook Air 14.1. Test model provided by Chuwi

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

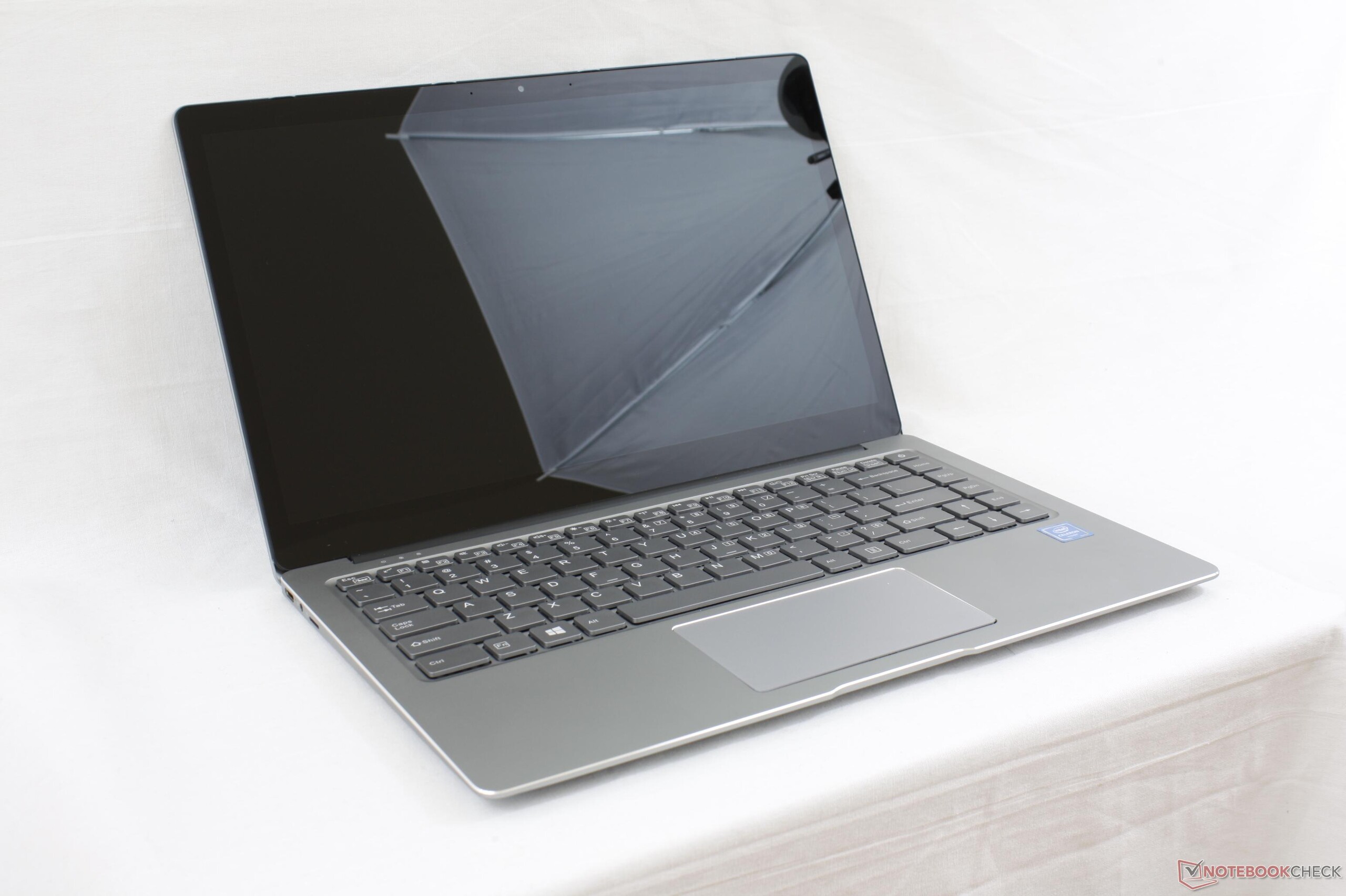

De LapBook Air ziet en voelt fantastisch aan gezien de lage € 400 adviesprijs. Het 1080p IPS beeldscherm is scherp, het tweede slot voor interne opslag is zeldzaam en er is zelfs een verlicht toetsenbord. Helaas heeft de fabrikant zwaar moeten besparen op bijna alle andere vlakken om de onmogelijk lage adviesprijs te behouden.

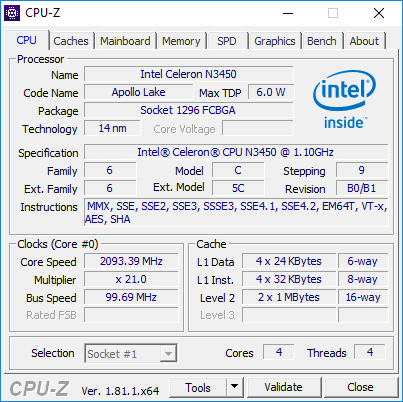

Om te beginnen is de kwaliteitscontrole niet van hetzelfde niveau als de bekendere alternatieven. Ons testmodel heeft last van matige backlight bleeding, oneven verlicht toetsenbord, een gebroken Ctrl-toets, een kapotte USB-poort, meerdere crashes en een gebogen rand. We adviseren nieuwe gebruikers dan ook met klem om alle poorten en toetsen te testen om te controleren dat deze werken. Ten tweede is er de passief gekoelde Celeron processor, primaire SSD en stroomadapter, die allen uiterst langzaam zijn. Gebruikers die iets meer prestaties willen zijn beter af met een oudere ULV Haswell notebook die waarschijnlijk een steviger toetsenbord heeft en nauwkeuriger touchpad. Als het primaire doel is om te streamen en onderweg video's af te spelen, dan is de LapBook Air niet slecht.

De LapBook zou zijn nut moeten bewijzen voor diegenen die enkel willen browsen, tekstverwerken en streamen.

Chuwi LapBook 14 inch 2017 - 31-10-2017 v6
Allen Ngo

Behuizing
72 /  98 → 74%
Toetsenbord
69%
Aanwijsapparaat
67%
Aansluitmogelijkheden
40 / 80 → 50%
Gewicht
70 / 78 → 82%
Batterij
88%
Beeldscherm
77%
Gaming-performance
41 / 68 → 61%
Applicatie-performance
48 / 87 → 55%
Temperatuur
90 / 91 → 99%
Luidheid
98%
Audio
30 / 91 → 33%
Camera
29 / 85 → 34%
Gemiddelde
63%
74%
Subnotebook - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Chuwi LapBook Air 14.1 (N3450, FHD) Laptop
Allen Ngo, 2017-11- 1 (Update: 2017-11- 2)
