KFA2 GeForce RTX 3080 SG 12GB Desktop Grafische Kaart Review: Een betere RTX 3080 dankzij meer VRAM en meer Shaders?

Meer dan alleen meer VRAM! Nvidia's GeForce RTX 3080 12 GB is de zoveelste high-end grafische kaart die de GeForce RTX 3080 moet opvolgen. Het is Nvidia's antwoord op herhaalde verzoeken om meer VRAM, en we nemen een kijkje naar deze nieuwste RTX incarnatie met nu 12 GB VRAM door een model gemaakt door KFA2 te reviewen.

Sebastian Bade (vertaald door DeepL / Ninh Duy), Published 16-06-2022 🇺🇸 🇩🇪 ...

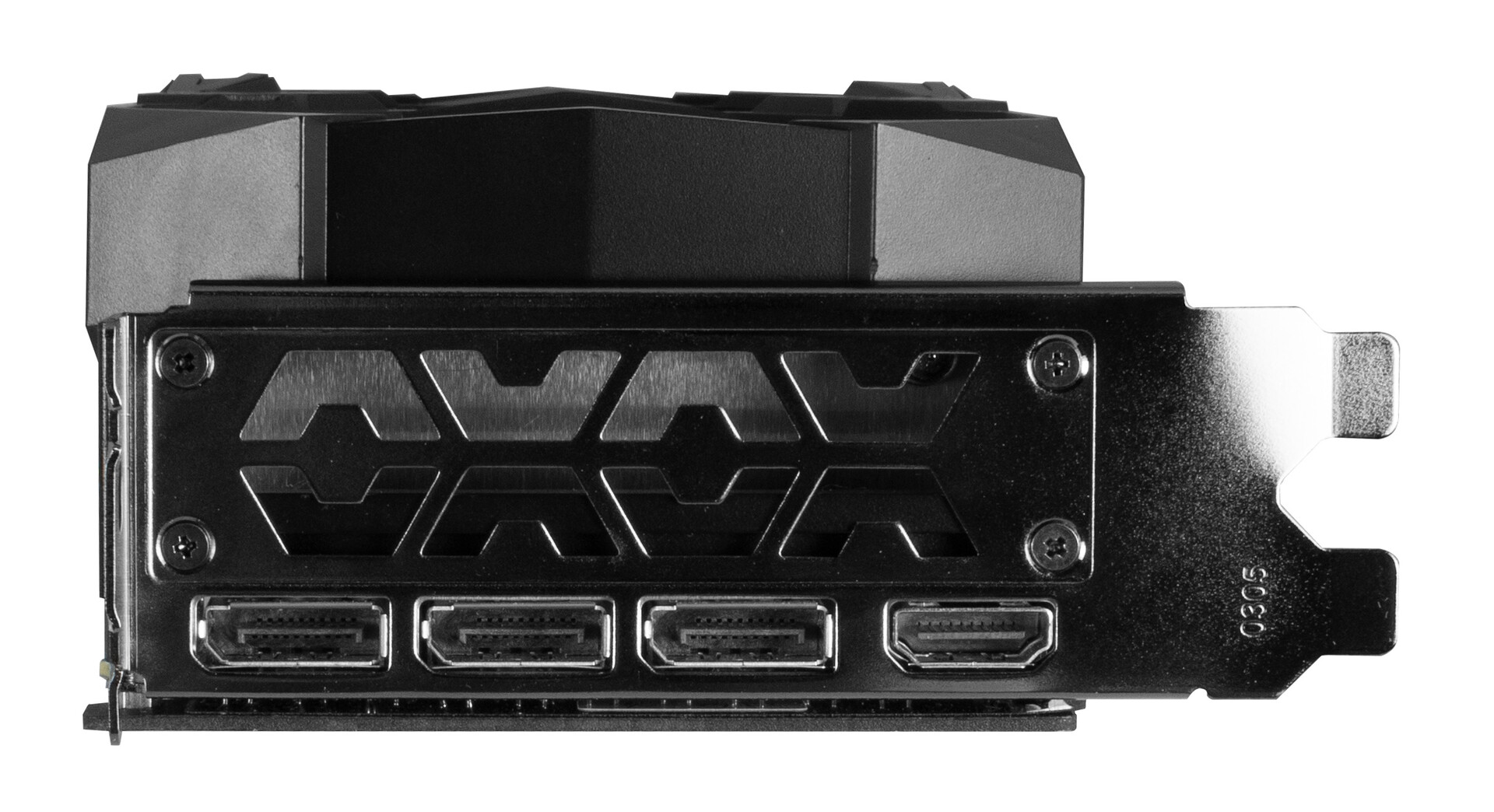

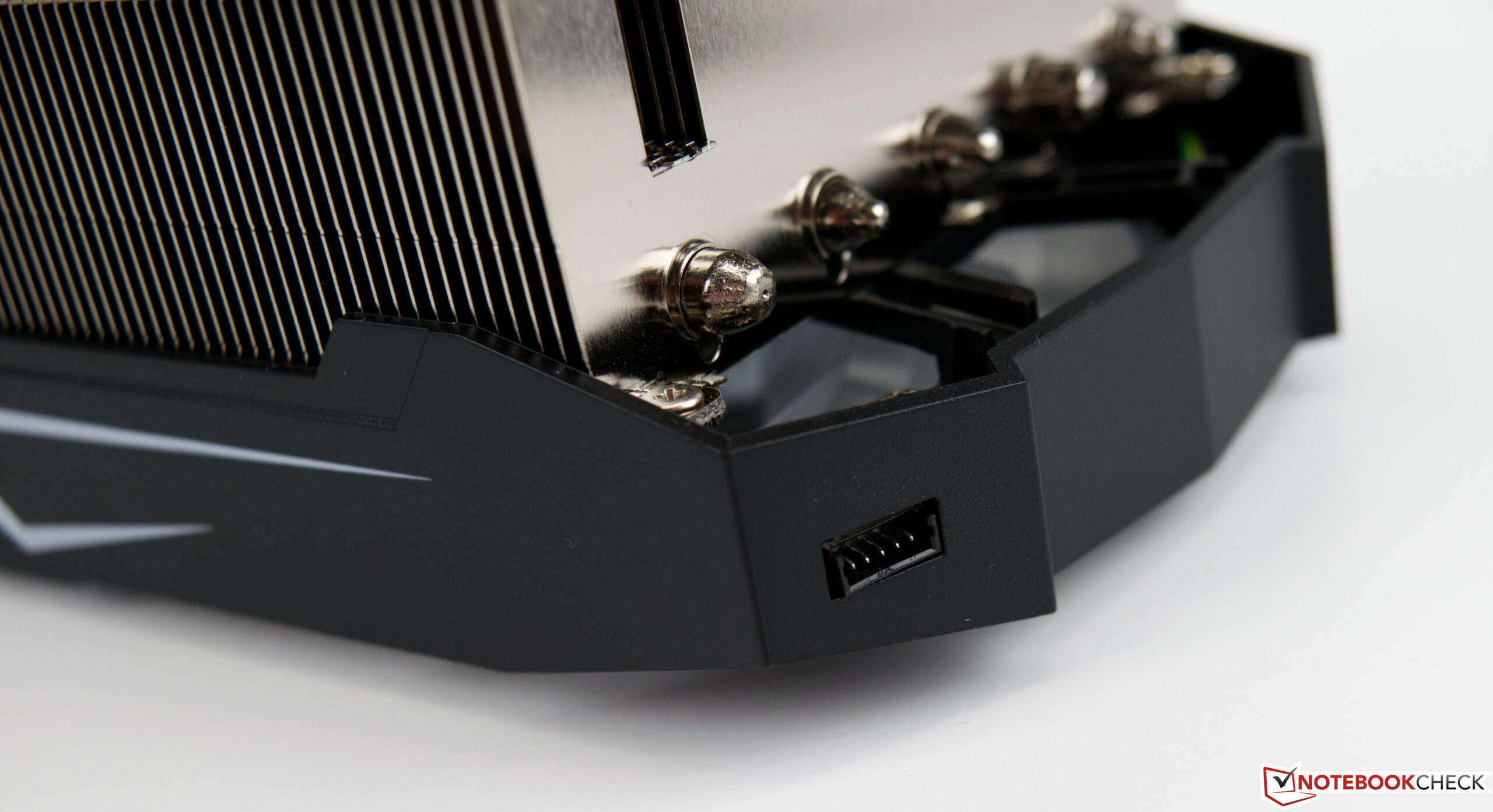

KFA2 GeForce RTX 3080 SG12 GB externe poorten (Bron: KFA2)

De RTX 3000-serie van Nvidia omvat grafische kaarten voor bijna het hele spelspectrum, van middenklasse tot high-end. Er worden regelmatig nieuwe modellen toegevoegd, zoals bijvoorbeeld de GeForce RTX 3080 12 GB. Na de RTX 3080's initiële release terug in september van 2020 riepen velen om meer VRAM, aangezien de originele kaart werd geleverd met slechts 10 GB. Hoewel dit perfect in orde was voor de meeste games op dat moment maakten veel gamers zich zorgen over de toekomstige mogelijkheden van hun GPU met nog uit te brengen toekomstige games.

De GeForce RTX 3080 12 GB is Nvidia's antwoord op deze herhaalde verzoeken om meer VRAM, want hij wordt geleverd met 2 GB meer dan de originele kaart. Hij beschikt ook over een bredere geheugenbusinterface, zonder welke hij in plaats daarvan maar liefst 20 GB RAM zou moeten hebben. Dit model verscheen regelmatig in de geruchtenmolen, maar is tot op heden nog niet uitgekomen.

Voor deze review ontvingen we een GeForce RTX 3080 12 GB van KFA2. Dit specifieke model is gebaseerd op de GA102 chip met een totaal van 8.960 shaders, wat de prestaties zou moeten verbeteren en helpen om de kloof met de Nvidia GeForce RTX 3080 Ti te dichten of op zijn minst te verkleinen. Bovendien wordt de KFA2 GeForce RTX 3080 SG 12 GB geleverd met een nogal volumineuze koeler, ontworpen om de 350 W aan warmte van de kaart betrouwbaar en snel af te voeren. Houd er rekening mee dat het ontwerp met drie sleuven veel ruimte in beslag neemt en misschien niet in uw kast past. De fraaie RGB-verlichting helpt de drie 92 mm ventilatoren en de "What's Your Game"-slogan die op de kaart is afgedrukt, te verlichten en te accentueren.

De prijzen voor deze kaart beginnen rond de 970 euro in Europa en rond de 1.200 dollar in de Verenigde Staten. Gezien de huidige problemen met de toeleveringsketen, vinden we dit een acceptabele prijs voor een high-end grafische kaart. De prijzen zijn de laatste weken ook licht gedaald, wat een veelbelovend teken is.

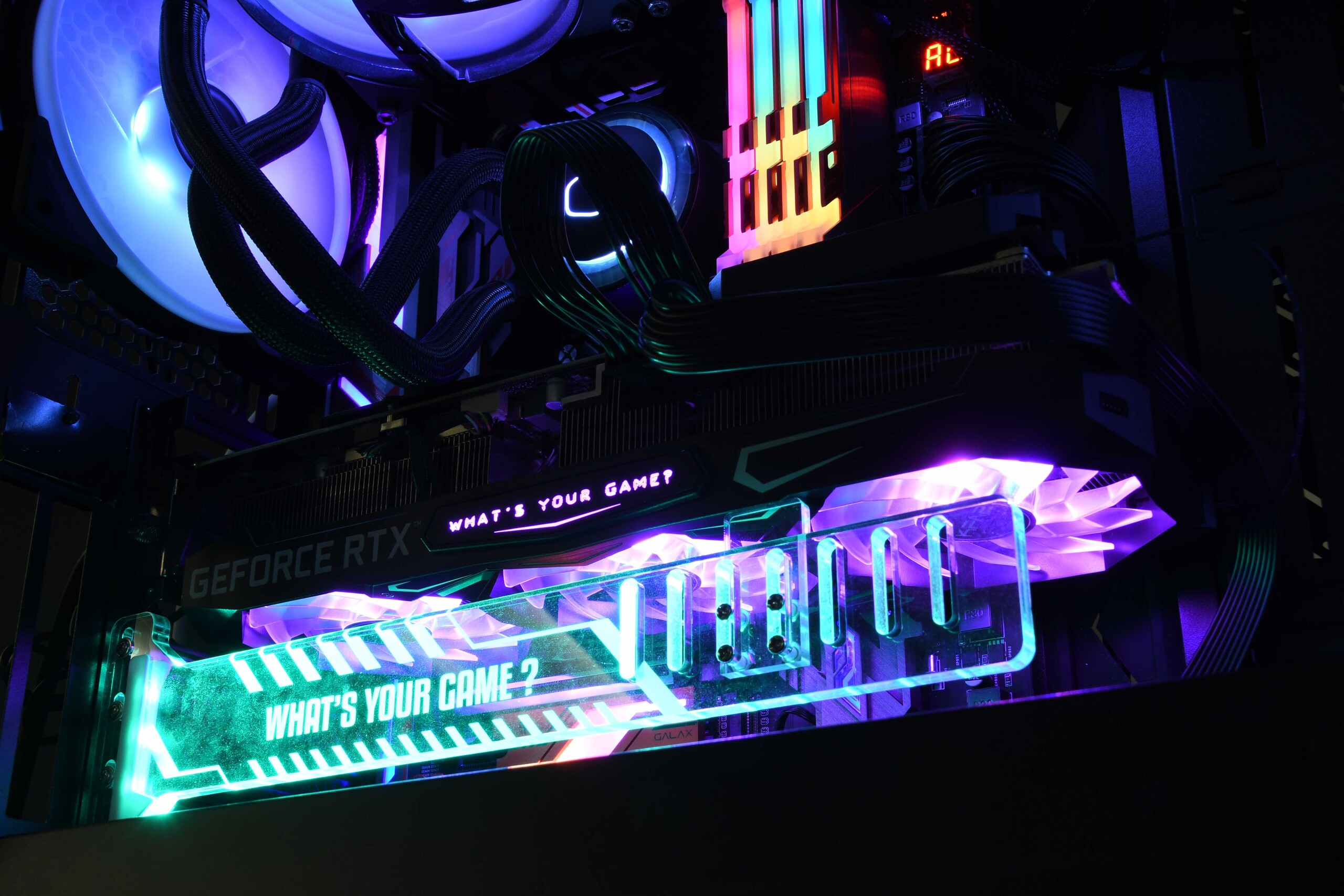

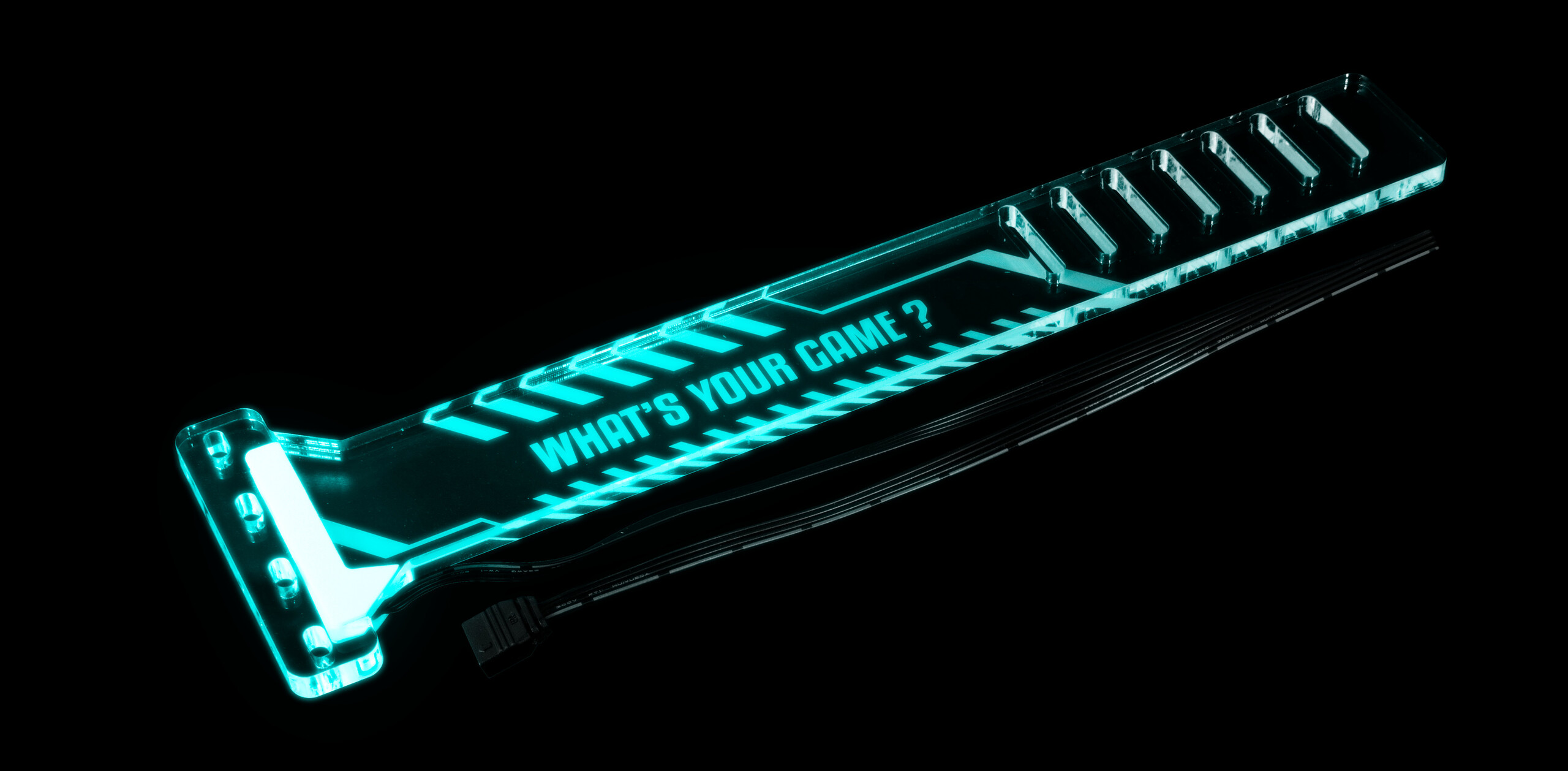

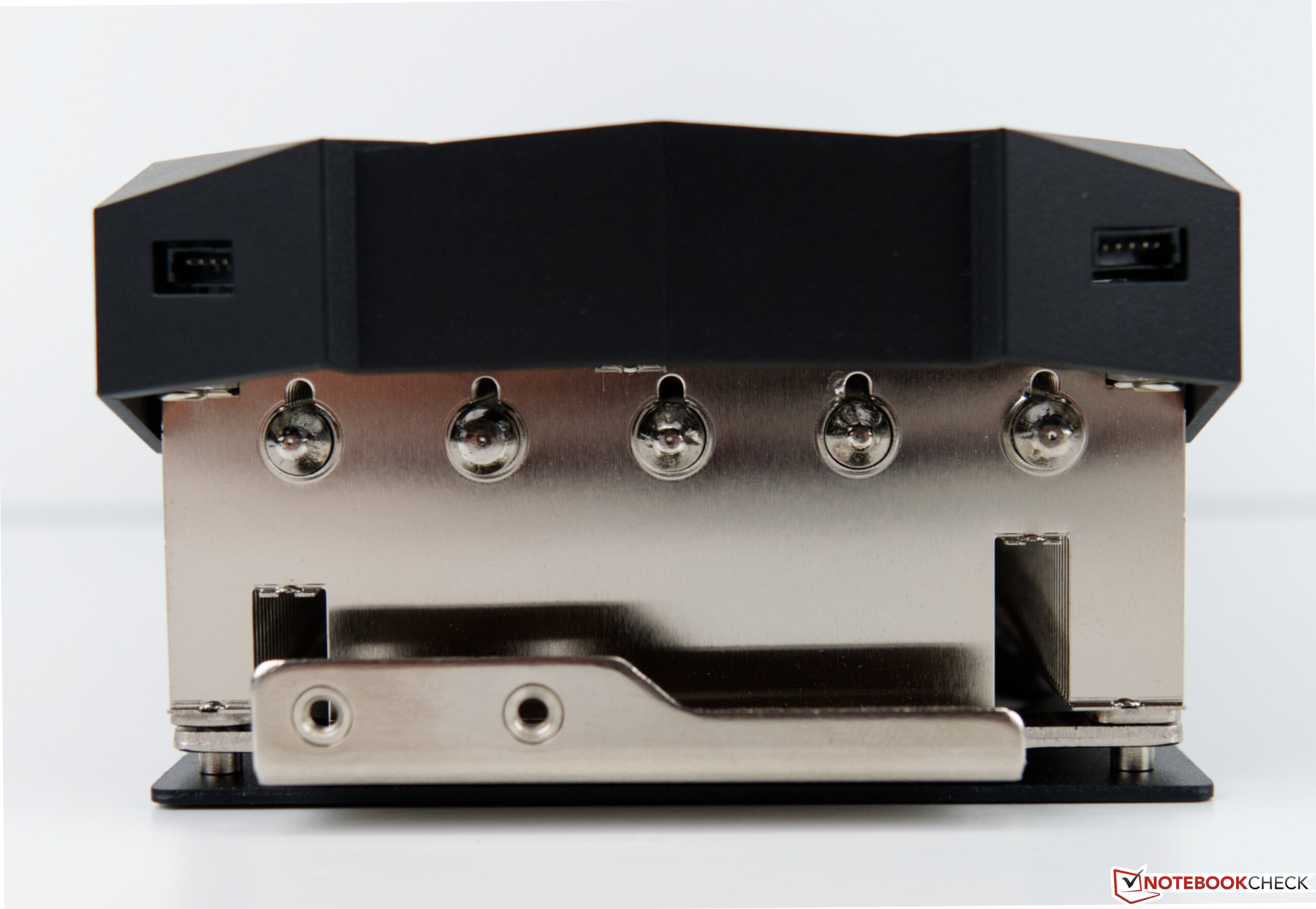

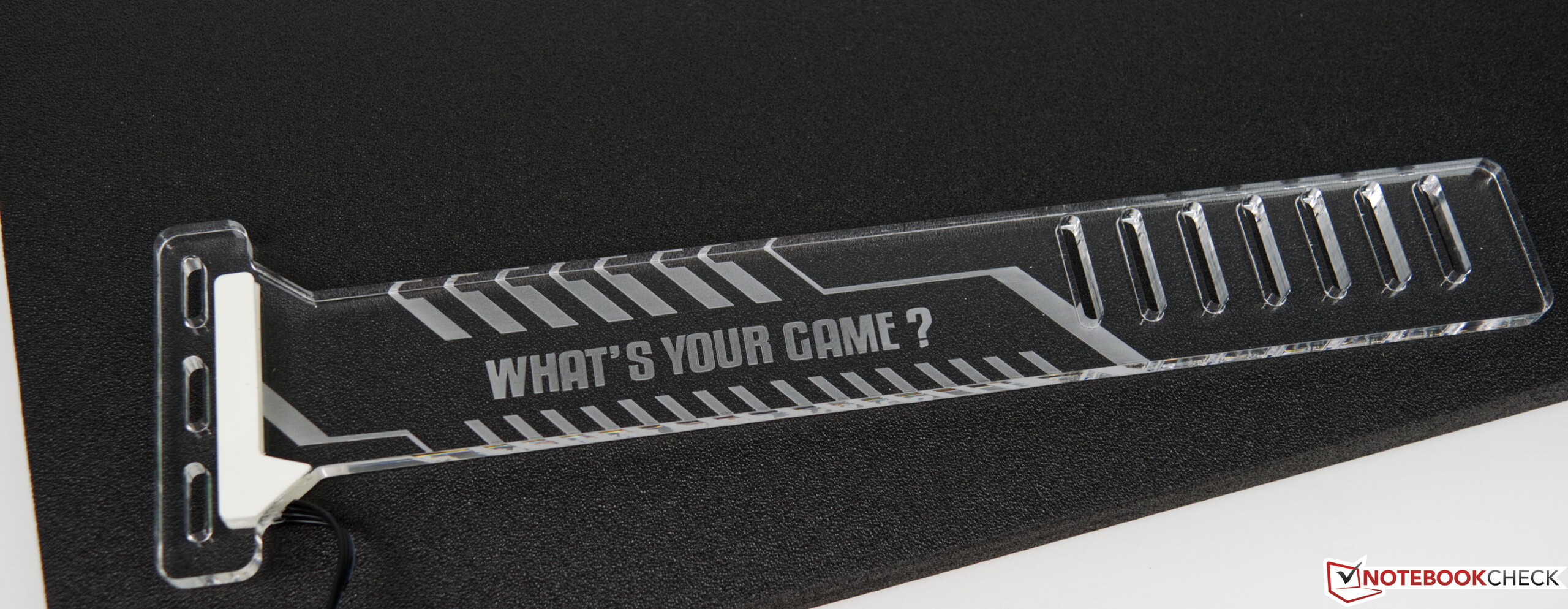

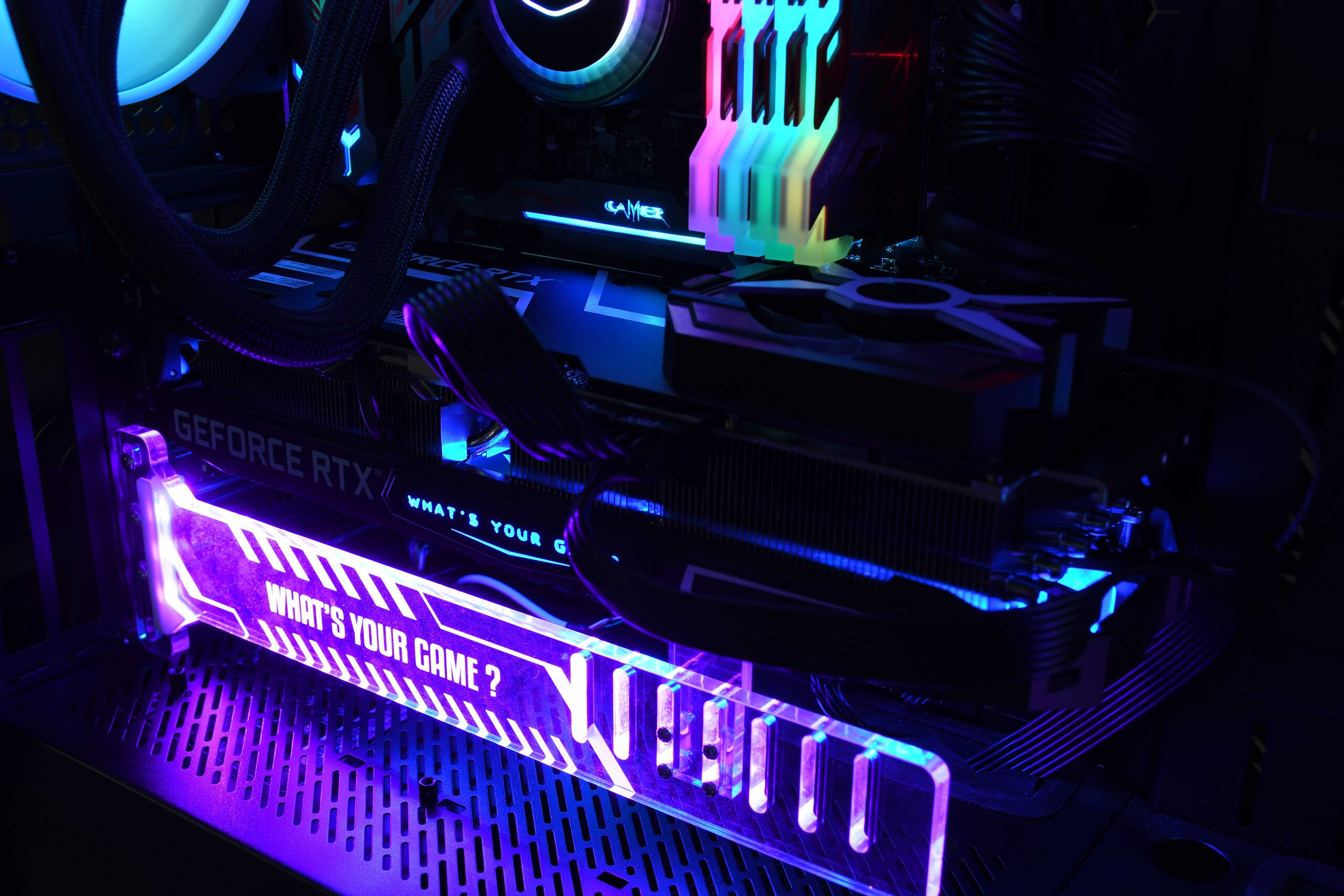

KFA2 GeForce RTX 3080 SG 12GB - steunbeugel

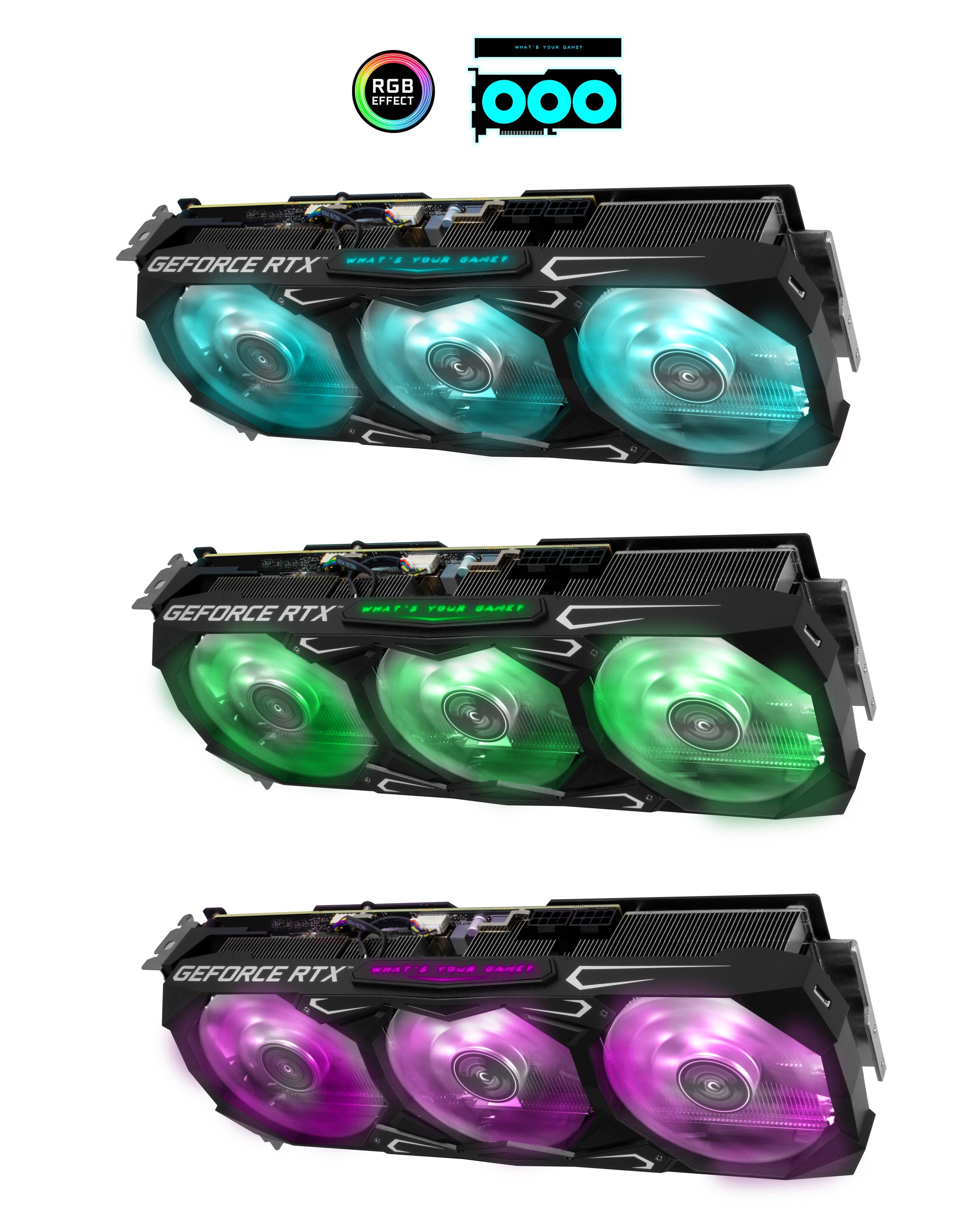

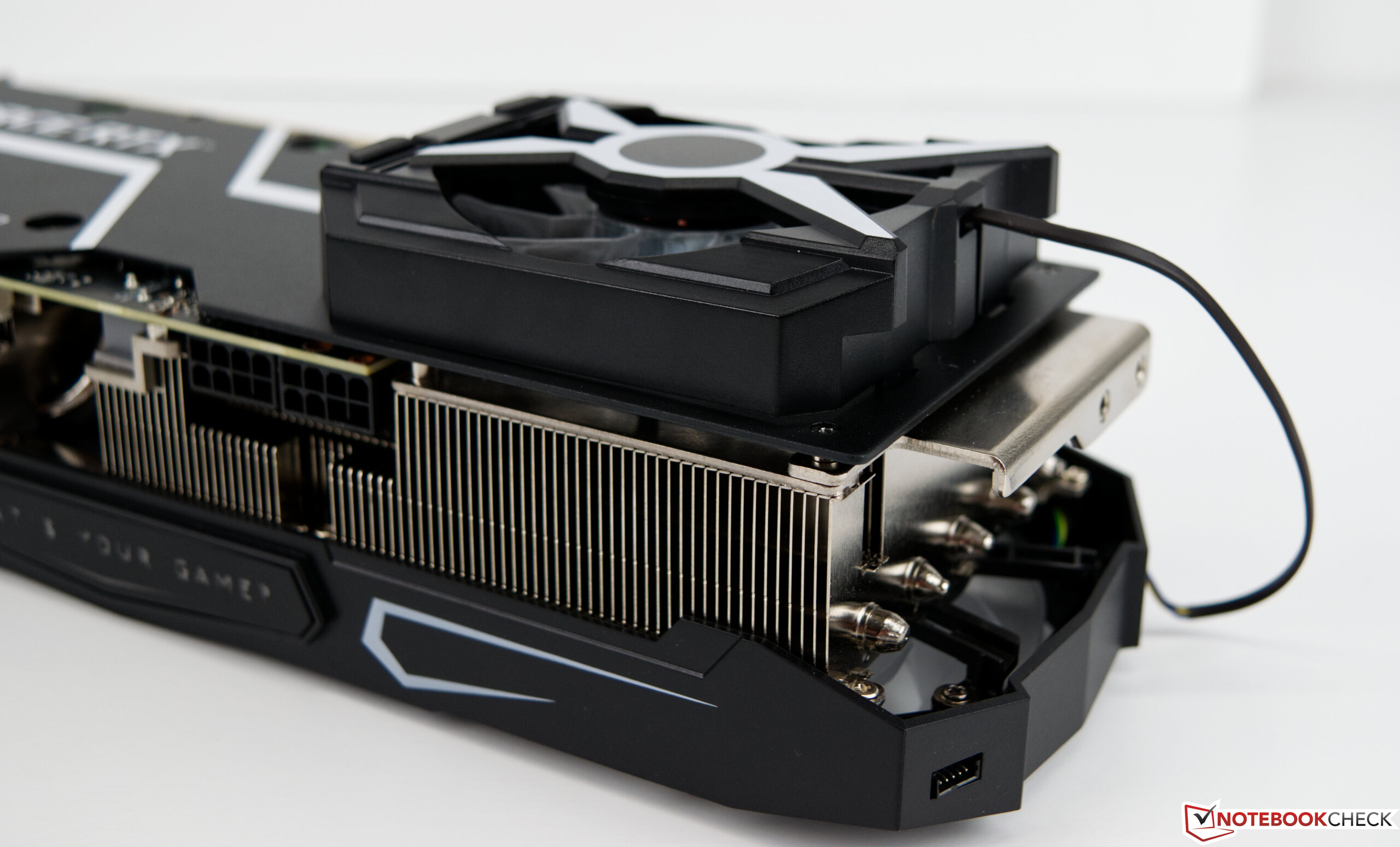

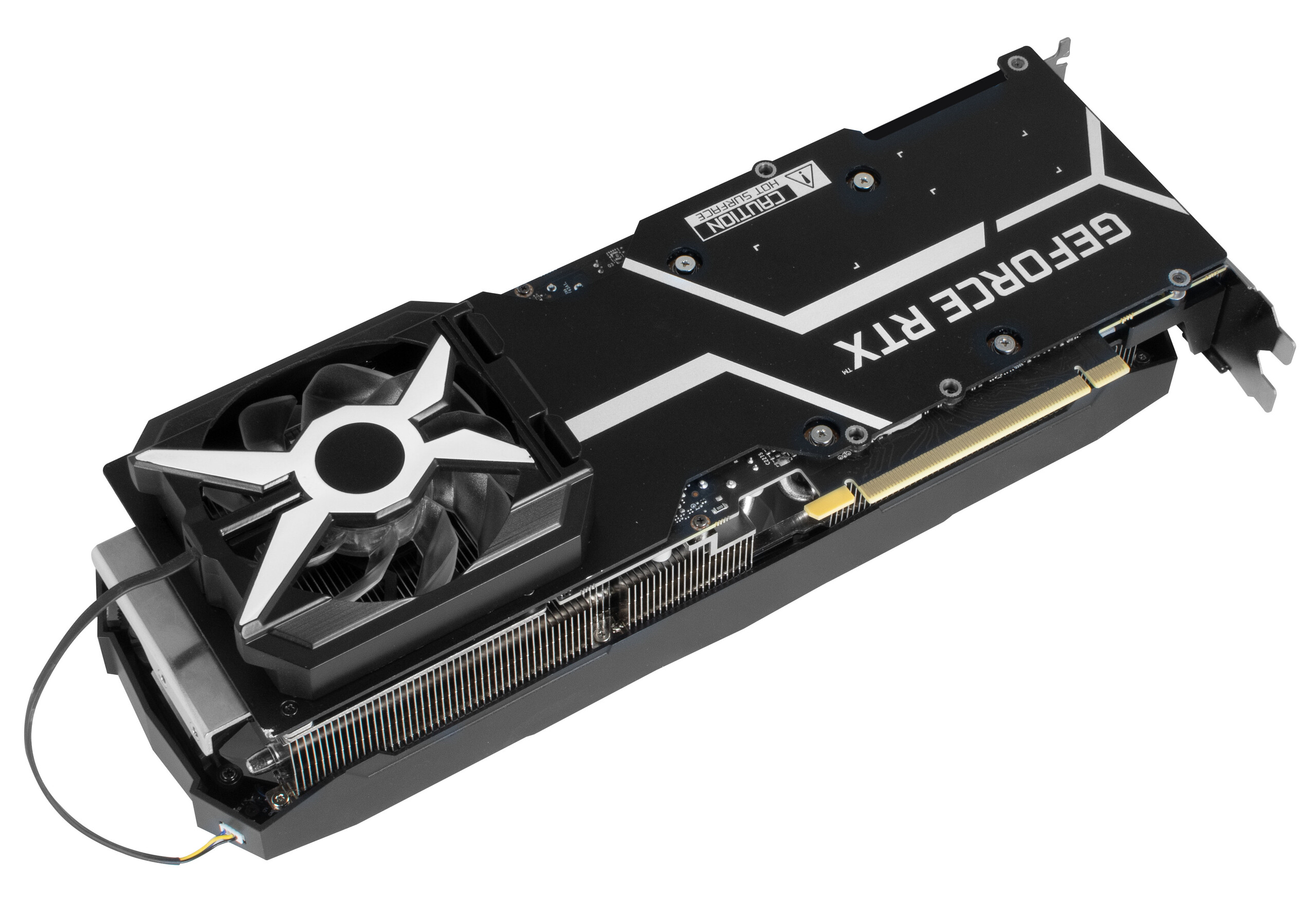

KFA2 GeForce RTX 3080 SG 12GB - optionele ventilator

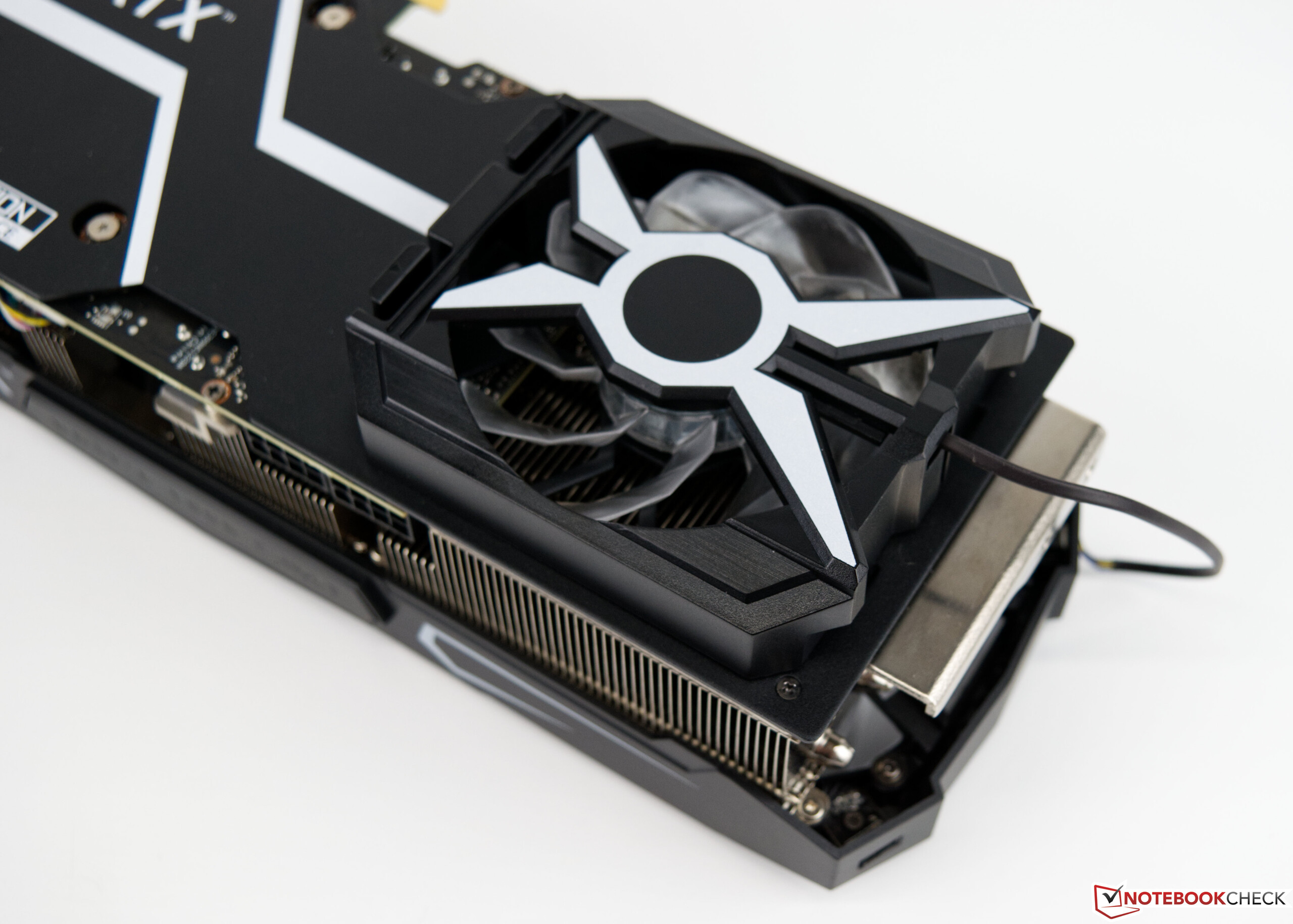

KFA2 GeForce RTX 3080 SG 12GB mit Lüfter optioneel

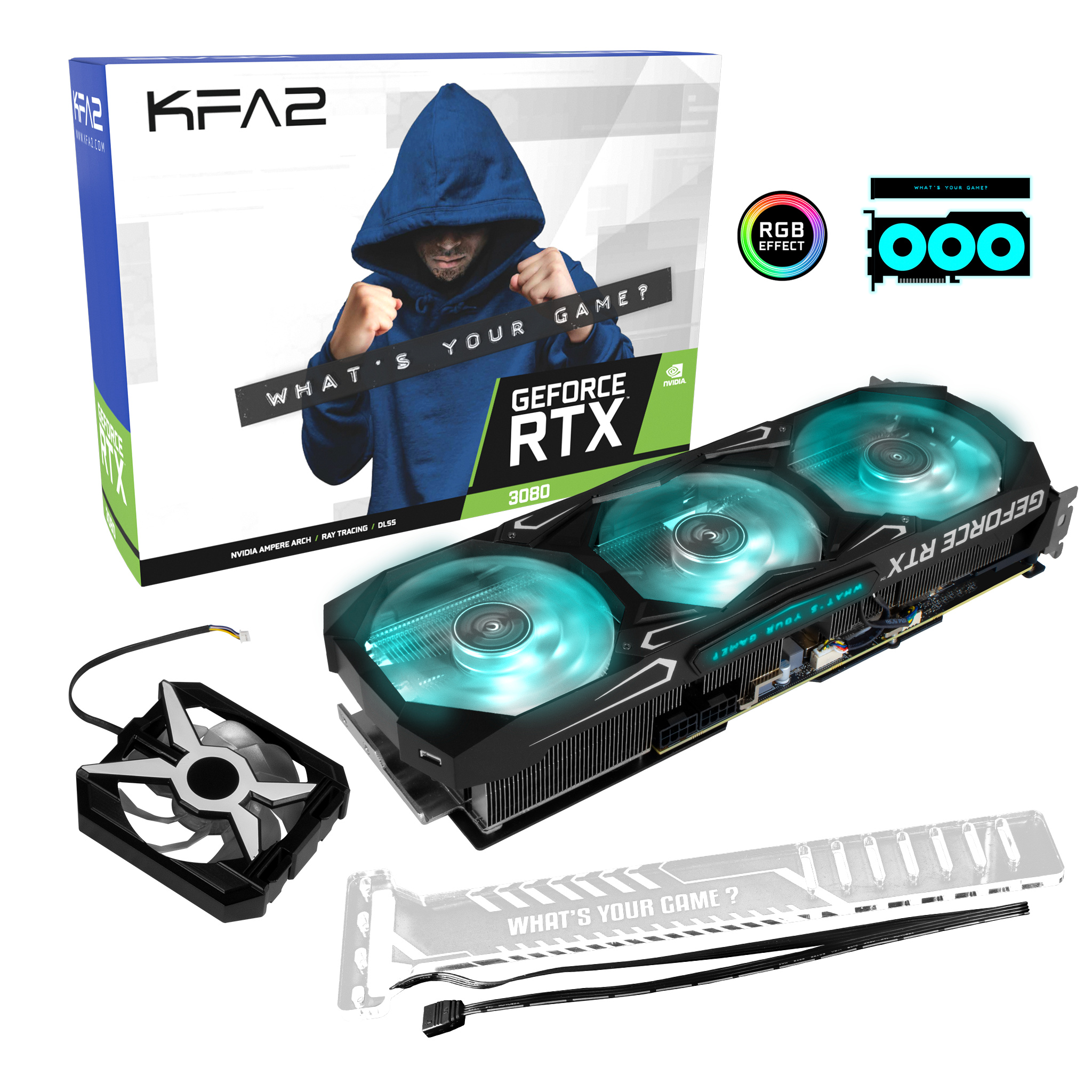

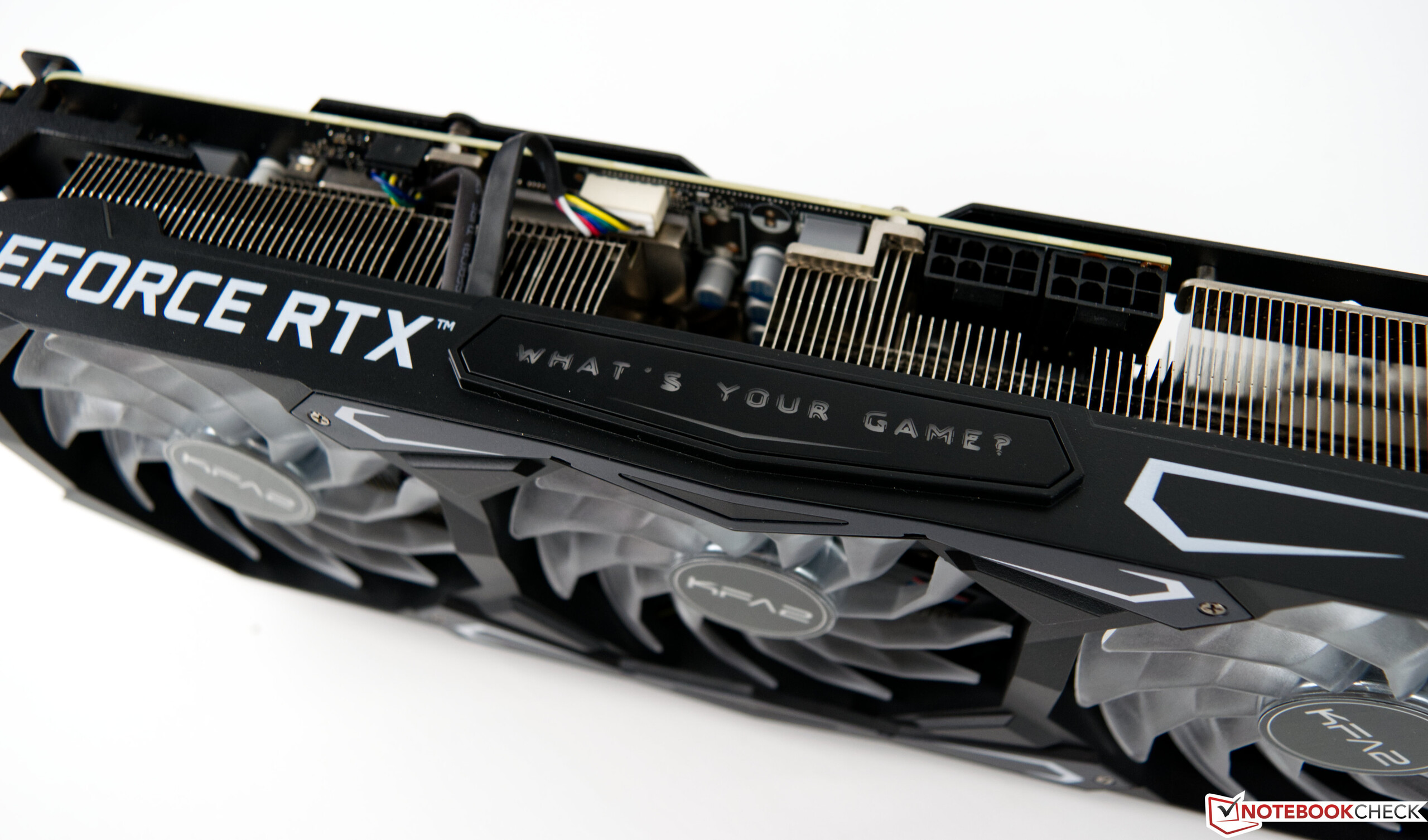

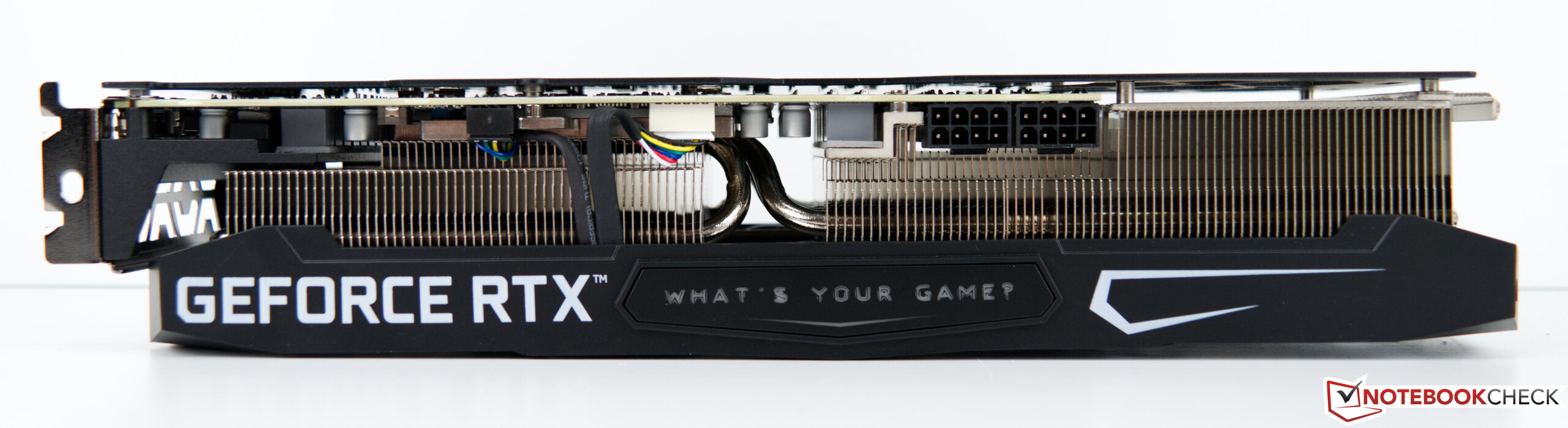

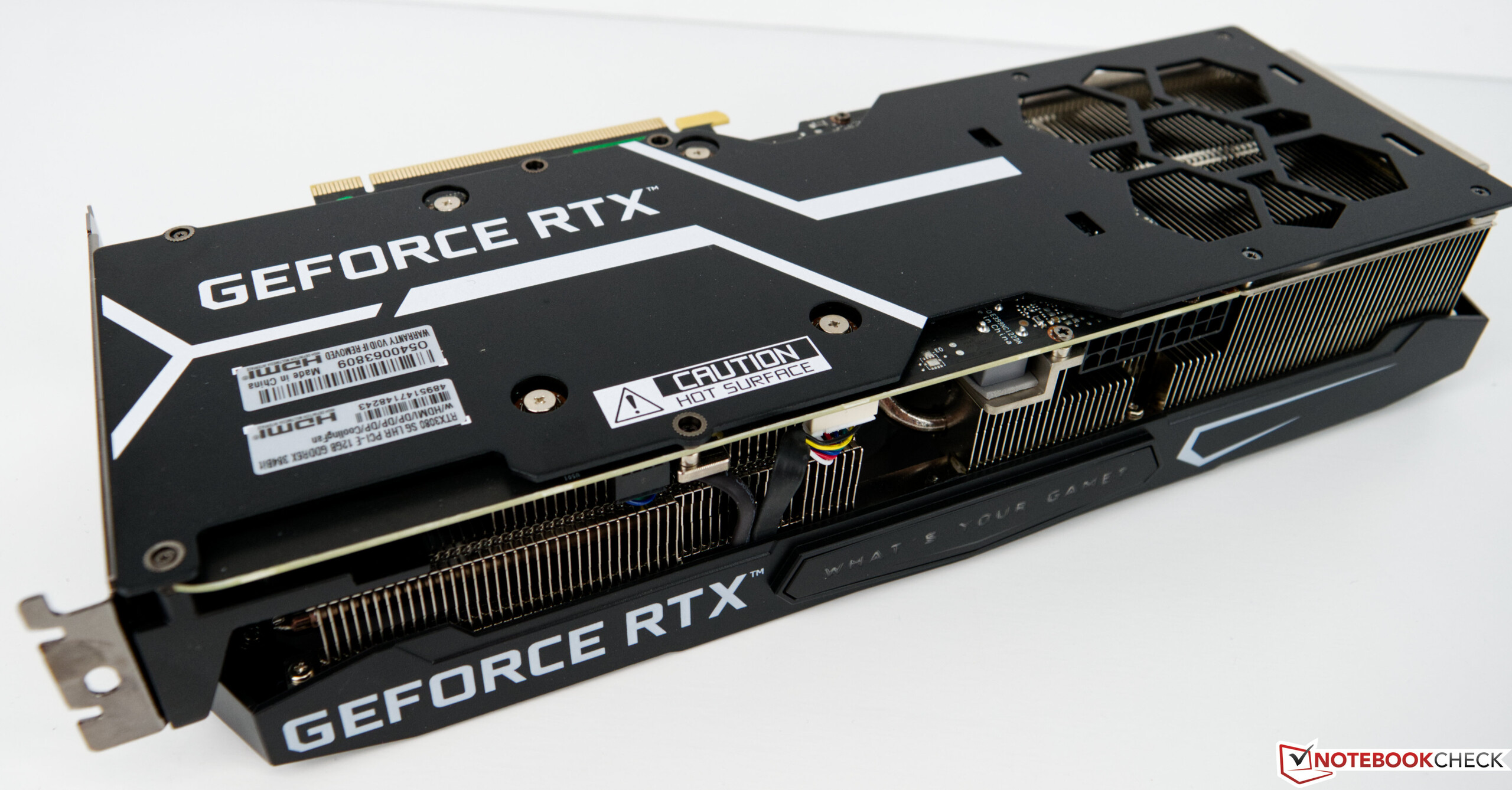

KFA2 GeForce RTX 3080 SG 12GB (Bron: KFA2)

Ons AMD Ryzen 9 5900X-gebaseerd Testsysteem

Ons testsysteem voor deze kaart is gebaseerd op AMD's huidige platform. Het bevat een Asus X570 ROG Crosshair VIII Hero WiFi moederbord, een AMD Ryzen 9 5900X om goede en overvloedige CPU prestaties te garanderen, een Alphacool Eisbear 360 AiO koeler, en 32 GB RAM geleverd door G.Skill. Het systeem voert zijn videosignaal uit naar een Acer Predator XB321HK monitor, die volledig UHD-geschikt is. We willen AMD bedanken voor het beschikbaar stellen van dit testplatform

Het volgende systeem is gebruikt om de onderstaande benchmarks uit te voeren

Lian Li O11 Dynamisch
AMD Ryzen 9 5900X
KFA2 GeForce RTX 3080 SG 12GB (Nvidia 512.70)
Asus X570 ROG Crosshair VIII Hero WiFi (BIOS 2402, standaardinstellingen, XMP 1 voor DDR4-4000)
Corsair RM1000X 1000 W voeding
G.Skill Trident Z Neo RGB DDR4-4000 geheugenkit 2 x 16 GB
Corsair MP600 2TB M.2 PCIe-4.0-SSD
Crucial MX500 2TB (voor games)

Die Grafikkarten der aktuellen RTX-3000-Serie

Configuratie	RTX 3090 Ti	RTX 3090	RTX 3080 Ti	RTX 3080 (12G)	RTX 3080 (10G)	RTX 3070 Ti	RTX 3070	RTX 3060 Ti	RTX 3060	RTX 3050
Chip	GA102	GA102	GA102	GA102	GA102	GA104	GA104	GA104	GA106	GA106
FinFET-proces	8 nm	8 nm	8 nm	8 nm	8 nm	8 nm	8 nm	8 nm	8 nm	8 nm
CUDA-kernen	10.752	10.496	10.240	8.960	8.704	6.144	5.888	4.864	3.854	2.560
Textuureenheden	336	328	320	280	272	192	184	152	112	80
Tensor cores	336 3. Gen.	328 3. Gen. Gen.	320 3. Gen.	280 3. Gen.	272 3. Gen.Gen.	192 3. Gen. Gen.	184 3. Gen.	152 3. Gen. Gen.	112 3. Gen. Gen.	80 3. Gen
RT cores	84	82	80	70	68	48	46	38	28	20
GPU-basisklok	1.560 MHz	1.395 MHz	1.365 MHz	1.260 MHz	1.440 MHz	1.575 MHz	1.500 MHz	1.410 MHz	1.320 MHz	1.552 MHz
GPU Boost Clock	1.860 MHz	1.695 MHz	1.665 MHz	1.710 MHz	1.710 MHz	1.770 MHz	1.750 MHz	1.665 MHz	1.777 MHz	1.777 MHz
Geheugen Bus	384 bit	384 bit	384 bit	384 bit	320 bit	256 bit	256 bit	256 bit	192 bit	128 bit
Geheugen Bandbreedte	1,008 GB/s	936 GB/s	912,4 GB/s	912,4 GB/s	760 GB/s	608,3 GB/s	448 GB/s	448 GB/s	360 GB/s	224 GB/s
Videogeheugen	24 GB GDDR6X	24 GB GDDR6X	12 GB GDDR6X	12 GB GDDR6X	10 GB GDDR6X	8 GB GDDR6	8 GB GDDR6	8 GB GDDR6	12 GB GDDR6	8 GB GDDR6
Energieverbruik	450 W	350 W	350 W	350 W	320 W	290 W	220 W	200 W	170 W	130 W

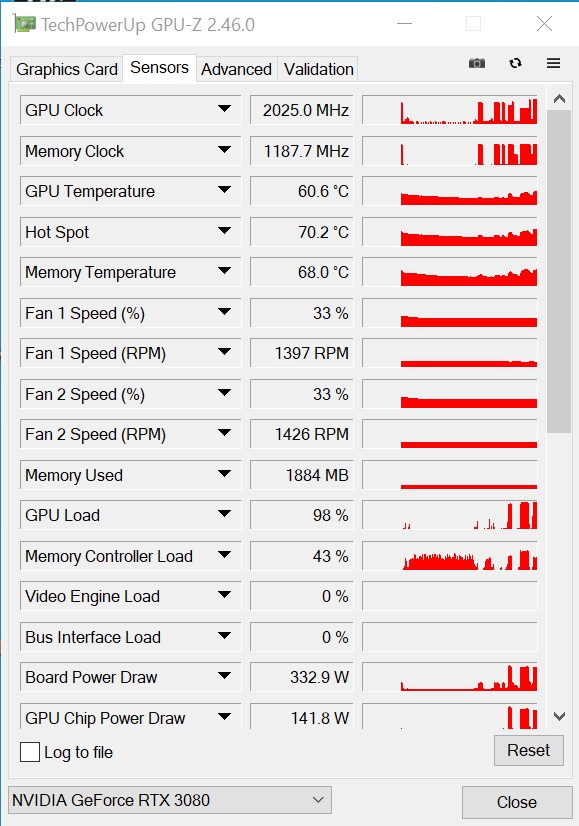

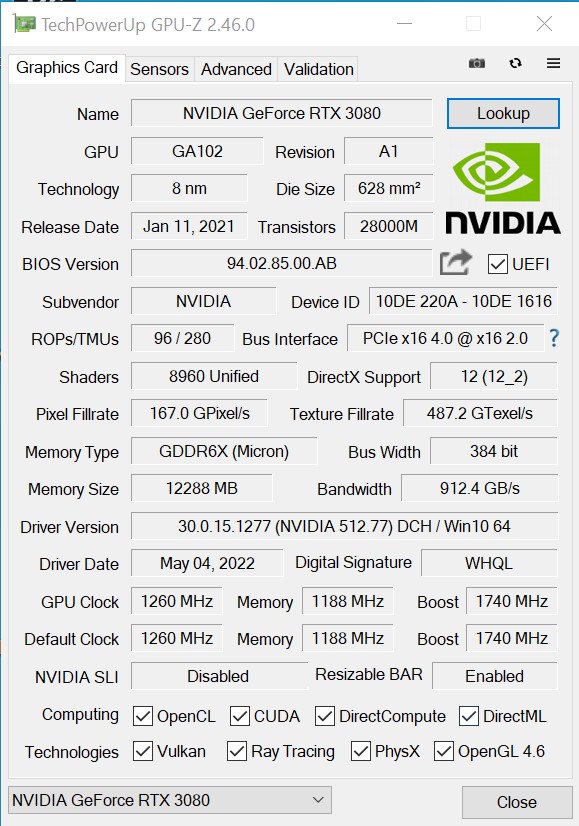

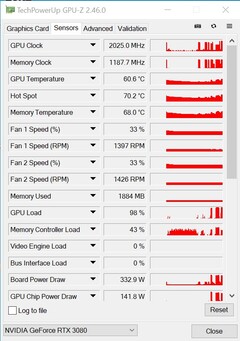

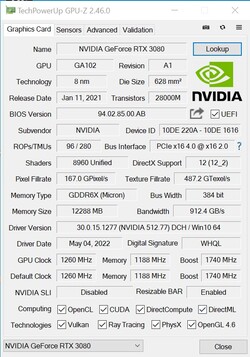

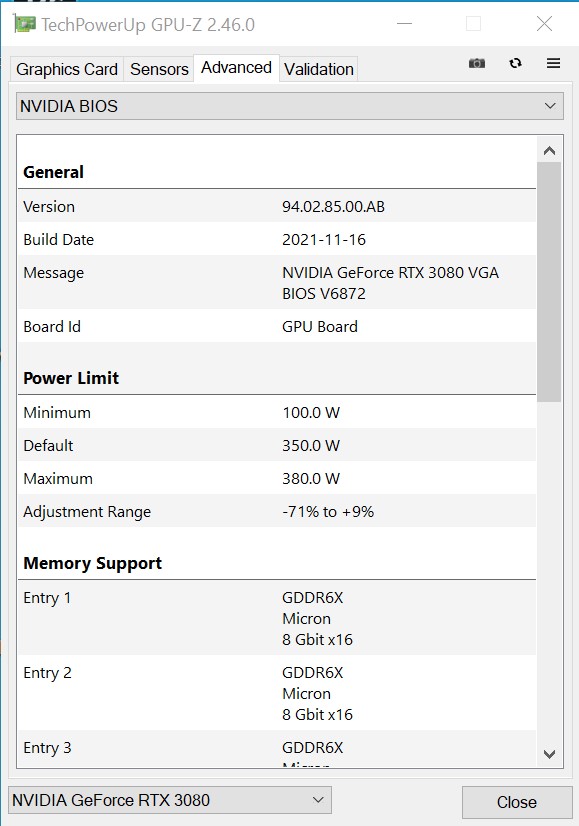

KFA2 GeForce RTX 3080 SG 12 GB Kloksnelheden

De boost kloksnelheden van onze KFA2 GeForce RTX 3080 SG 12 GB review unit lagen slechts iets boven Nvidia's specificaties. We moeten echter toevoegen dat de gespecificeerde 1.740 MHz boost consequent werd overtroffen in bijna elke test die we uitvoerden. Dit model ondersteunt een vermogenstoename van maximaal negen procent, wat resulteert in een totaal maximaal energieverbruik van 380 W.

Synthetische benchmarks

In onze synthetische benchmarks vinden we de KFA2 GeForce RTX 3080 SG 12 GB precies waar we dachten dat we zouden vinden: tussen de NVIDIA NVIDIA GeForce RTX 3080 GeForce RTX 3080 en de NVIDIA NVIDIA GeForce RTX 3090 GeForce RTX 3090. Houd in gedachten dat deze specifieke prestatiewinst te danken is aan de extra shader units van de kaart en minder aan het extra VRAM. In vergelijking met zijn AMD-gebaseerde concurrenten presteerde de KFA2 RTX 3080 SG 12 GB ongeveer even snel als een AMD Radeon RX 6800 XT

Performance Rating - Percent
NVIDIA GeForce RTX 3090	95.5 pt
Radeon RX 6900 XT	92.7 pt
KFA2 GeForce RTX 3080 SG 12GB	92.5 pt
Radeon RX 6800 XT	86.9 pt
NVIDIA GeForce RTX 3080	84.6 pt
Radeon RX 6800	77.8 pt
NVIDIA GeForce RTX 3070	69.5 pt
Radeon RX 6700 XT	64.6 pt
Radeon RX 6600 XT	53.3 pt
NVIDIA GeForce RTX 3060	47.9 pt

3DMark
1920x1080 Fire Strike Graphics
Radeon RX 6900 XT	50587 Points +14%
Radeon RX 6800 XT	49735 Points +12%
KFA2 GeForce RTX 3080 SG 12GB	44533 Points
Radeon RX 6800	43786 Points -2%
NVIDIA GeForce RTX 3090	42688 Points -4%
NVIDIA GeForce RTX 3080	37604 Points -16%
Radeon RX 6700 XT	35136 Points -21%
NVIDIA GeForce RTX 3070	31020 Points -30%
Radeon RX 6600 XT	28342 Points -36%
NVIDIA GeForce RTX 3060	21847 Points -51%
Fire Strike Extreme Graphics
Radeon RX 6900 XT	26650 Points +21%
Radeon RX 6800 XT	25015 Points +13%
NVIDIA GeForce RTX 3090	23114 Points +5%
KFA2 GeForce RTX 3080 SG 12GB	22078 Points
Radeon RX 6800	21510 Points -3%
NVIDIA GeForce RTX 3080	20007 Points -9%
Radeon RX 6700 XT	17009 Points -23%
NVIDIA GeForce RTX 3070	15722 Points -29%
Radeon RX 6600 XT	13122 Points -41%
NVIDIA GeForce RTX 3060	10330 Points -53%
3840x2160 Fire Strike Ultra Graphics
Radeon RX 6900 XT	13370 Points +18%
Radeon RX 6800 XT	12626 Points +11%
NVIDIA GeForce RTX 3090	12371 Points +9%
KFA2 GeForce RTX 3080 SG 12GB	11340 Points
NVIDIA GeForce RTX 3080	10645 Points -6%
Radeon RX 6800	10547 Points -7%
Radeon RX 6700 XT	8325 Points -27%
NVIDIA GeForce RTX 3070	8227 Points -27%
Radeon RX 6600 XT	6515 Points -43%
NVIDIA GeForce RTX 3060	5037 Points -56%
2560x1440 Time Spy Graphics
NVIDIA GeForce RTX 3090	19571 Points +9%
Radeon RX 6900 XT	18210 Points +1%
KFA2 GeForce RTX 3080 SG 12GB	17956 Points
NVIDIA GeForce RTX 3080	17604 Points -2%
Radeon RX 6800 XT	17603 Points -2%
Radeon RX 6800	16033 Points -11%
NVIDIA GeForce RTX 3070	13111 Points -27%
Radeon RX 6700 XT	11473 Points -36%
Radeon RX 6600 XT	9565 Points -47%
NVIDIA GeForce RTX 3060	8559 Points -52%

3DMark 11
1280x720 Performance GPU
Radeon RX 6900 XT	59119 Points +4%
NVIDIA GeForce RTX 3090	56689 Points 0%
KFA2 GeForce RTX 3080 SG 12GB	56634 Points
Radeon RX 6800	52384 Points -8%
Radeon RX 6800 XT	52046 Points -8%
NVIDIA GeForce RTX 3080	50087 Points -12%
Radeon RX 6700 XT	43888 Points -23%
NVIDIA GeForce RTX 3070	43005 Points -24%
Radeon RX 6600 XT	39051 Points -31%
NVIDIA GeForce RTX 3060	28072 Points -50%
1280x720 Performance
Radeon RX 6900 XT	42418 Points +2%
KFA2 GeForce RTX 3080 SG 12GB	41410 Points
Radeon RX 6800 XT	38057 Points -8%
NVIDIA GeForce RTX 3090	37897 Points -8%
Radeon RX 6800	37402 Points -10%
NVIDIA GeForce RTX 3080	35399 Points -15%
Radeon RX 6700 XT	34078 Points -18%
NVIDIA GeForce RTX 3070	33248 Points -20%
Radeon RX 6600 XT	31304 Points -24%
NVIDIA GeForce RTX 3060	26986 Points -35%

Unigine Superposition
1280x720 720p Low
KFA2 GeForce RTX 3080 SG 12GB	38209 Points
Radeon RX 6900 XT	37023 Points -3%
Radeon RX 6800 XT	36452 Points -5%
NVIDIA GeForce RTX 3060	34973 Points -8%
Radeon RX 6700 XT	34713 Points -9%
NVIDIA GeForce RTX 3070	34602 Points -9%
NVIDIA GeForce RTX 3090	33329 Points -13%
Radeon RX 6600 XT	33152 Points -13%
Radeon RX 6800	32455 Points -15%
NVIDIA GeForce RTX 3080	32183 Points -16%
1920x1080 1080p High
NVIDIA GeForce RTX 3090	25953 Points +8%
Radeon RX 6900 XT	25029 Points +4%
KFA2 GeForce RTX 3080 SG 12GB	24051 Points
Radeon RX 6800 XT	22265 Points -7%
NVIDIA GeForce RTX 3080	21912 Points -9%
Radeon RX 6800	19506 Points -19%
NVIDIA GeForce RTX 3070	17244 Points -28%
Radeon RX 6700 XT	15832 Points -34%
Radeon RX 6600 XT	13069 Points -46%
NVIDIA GeForce RTX 3060	11222 Points -53%
1920x1080 1080p Extreme
NVIDIA GeForce RTX 3090	12694 Points +11%
KFA2 GeForce RTX 3080 SG 12GB	11424 Points
NVIDIA GeForce RTX 3080	10822 Points -5%
Radeon RX 6900 XT	10683 Points -6%
Radeon RX 6800 XT	10046 Points -12%
NVIDIA GeForce RTX 3070	8365 Points -27%
Radeon RX 6800	8224 Points -28%
Radeon RX 6700 XT	6804 Points -40%
Radeon RX 6600 XT	5674 Points -50%
NVIDIA GeForce RTX 3060	5036 Points -56%
3840x2160 4k Optimized
NVIDIA GeForce RTX 3090	16868 Points +13%
KFA2 GeForce RTX 3080 SG 12GB	14986 Points
Radeon RX 6900 XT	14955 Points 0%
NVIDIA GeForce RTX 3080	14243 Points -5%
Radeon RX 6800 XT	13471 Points -10%
Radeon RX 6800	11757 Points -22%
NVIDIA GeForce RTX 3070	10673 Points -29%
Radeon RX 6700 XT	9106 Points -39%
Radeon RX 6600 XT	7098 Points -53%
NVIDIA GeForce RTX 3060	6774 Points -55%
7680x4320 8k Optimized
NVIDIA GeForce RTX 3090	7521 Points +15%
KFA2 GeForce RTX 3080 SG 12GB	6548 Points
NVIDIA GeForce RTX 3080	6346 Points -3%
Radeon RX 6900 XT	5764 Points -12%
Radeon RX 6800 XT	5256 Points -20%
Radeon RX 6800	4709 Points -28%
NVIDIA GeForce RTX 3070	4639 Points -29%
Radeon RX 6700 XT	3586 Points -45%
NVIDIA GeForce RTX 3060	2830 Points -57%
Radeon RX 6600 XT	2778 Points -58%

Unigine Heaven 4.0
Extreme Preset OpenGL
NVIDIA GeForce RTX 3090	273.7 fps +9%
KFA2 GeForce RTX 3080 SG 12GB	251.4 fps
NVIDIA GeForce RTX 3080	243.2 fps -3%
Radeon RX 6900 XT	206.5 (8.2^min - 453.7^max) fps -18%
Radeon RX 6800 XT	204 fps -19%
NVIDIA GeForce RTX 3070	192.9 fps -23%
Radeon RX 6800	178.1 fps -29%
Radeon RX 6700 XT	149.6 fps -40%
Radeon RX 6600 XT	119.3 fps -53%
NVIDIA GeForce RTX 3060	117.7 fps -53%
Extreme Preset DX11
NVIDIA GeForce RTX 3090	283.5 fps +3%
KFA2 GeForce RTX 3080 SG 12GB	274.3 fps
Radeon RX 6900 XT	259.5 (49.3^min - 537.2^max) fps -5%
NVIDIA GeForce RTX 3080	252.5 fps -8%
Radeon RX 6800 XT	247.9 fps -10%
Radeon RX 6800	221.1 fps -19%
NVIDIA GeForce RTX 3070	203.2 fps -26%
Radeon RX 6700 XT	184.4 fps -33%
Radeon RX 6600 XT	153.2 fps -44%
NVIDIA GeForce RTX 3060	133.2 fps -51%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
KFA2 GeForce RTX 3080 SG 12GB	203.8 fps
Radeon RX 6900 XT	200.8 (53.4^min - 359.1^max) fps -1%
NVIDIA GeForce RTX 3090	196 fps -4%
Radeon RX 6800 XT	190.6 fps -6%
NVIDIA GeForce RTX 3080	181.8 fps -11%
Radeon RX 6800	179.7 fps -12%
NVIDIA GeForce RTX 3070	157 fps -23%
Radeon RX 6700 XT	149.8 fps -26%
Radeon RX 6600 XT	110.1 fps -46%
NVIDIA GeForce RTX 3060	106.7 fps -48%
1920x1080 Extreme HD Preset OpenGL AA:x8
NVIDIA GeForce RTX 3090	187.8 fps +1%
KFA2 GeForce RTX 3080 SG 12GB	186.1 fps
NVIDIA GeForce RTX 3080	172 fps -8%
Radeon RX 6900 XT	167.4 (56.7^min - 375.7^max) fps -10%
Radeon RX 6800 XT	158.2 fps -15%
NVIDIA GeForce RTX 3070	142.9 fps -23%
Radeon RX 6800	137.2 fps -26%
Radeon RX 6700 XT	112.6 fps -39%
NVIDIA GeForce RTX 3060	91.9 fps -51%
Radeon RX 6600 XT	83.5 fps -55%

SiSoft Sandra 2016
Image Processing
Radeon RX 6800 XT	6196 MPix/s +39%
Radeon RX 6800	4709 MPix/s +6%
KFA2 GeForce RTX 3080 SG 12GB	4460.23 MPix/s
NVIDIA GeForce RTX 3090	4437 MPix/s -1%
NVIDIA GeForce RTX 3080	3813 MPix/s -15%
Radeon RX 6700 XT	3730 MPix/s -16%
Radeon RX 6600 XT	2820 MPix/s -37%
NVIDIA GeForce RTX 3070	2567 MPix/s -42%
NVIDIA GeForce RTX 3060	1642 MPix/s -63%
GP Cryptography (Higher Security AES256+SHA2-512)
NVIDIA GeForce RTX 3090	200.4 GB/s +24%
NVIDIA GeForce RTX 3080	174 GB/s +8%
KFA2 GeForce RTX 3080 SG 12GB	161.59 GB/s
Radeon RX 6800 XT	160.8 GB/s 0%
NVIDIA GeForce RTX 3070	117.8 GB/s -27%
Radeon RX 6700 XT	100.6 GB/s -38%
NVIDIA GeForce RTX 3060	65.7 GB/s -59%
GP Financial Analysis (FP High/Double Precision)
Radeon RX 6800	410 KOPT/s +64%
Radeon RX 6800 XT	381.8 KOPT/s +52%
NVIDIA GeForce RTX 3090	254.4 KOPT/s +2%
KFA2 GeForce RTX 3080 SG 12GB	250.41 KOPT/s
Radeon RX 6700 XT	226.2 KOPT/s -10%
NVIDIA GeForce RTX 3080	220.9 KOPT/s -12%
Radeon RX 6600 XT	182.4 KOPT/s -27%
NVIDIA GeForce RTX 3070	146.5 KOPT/s -41%
NVIDIA GeForce RTX 3060	86.4 KOPT/s -65%

3DMark 05 Standard		62003 punten
3DMark 06 Standard Score		48432 punten
3DMark Vantage P Result		102294 punten
3DMark 11 Performance		41410 punten
3DMark Ice Storm Standard Score		224001 punten
3DMark Cloud Gate Standard Score		74457 punten
3DMark Fire Strike Score		35922 punten
3DMark Fire Strike Extreme Score		21299 punten
3DMark Time Spy Score		16961 punten
Help

... in vergelijking

Gaming-benchmarks

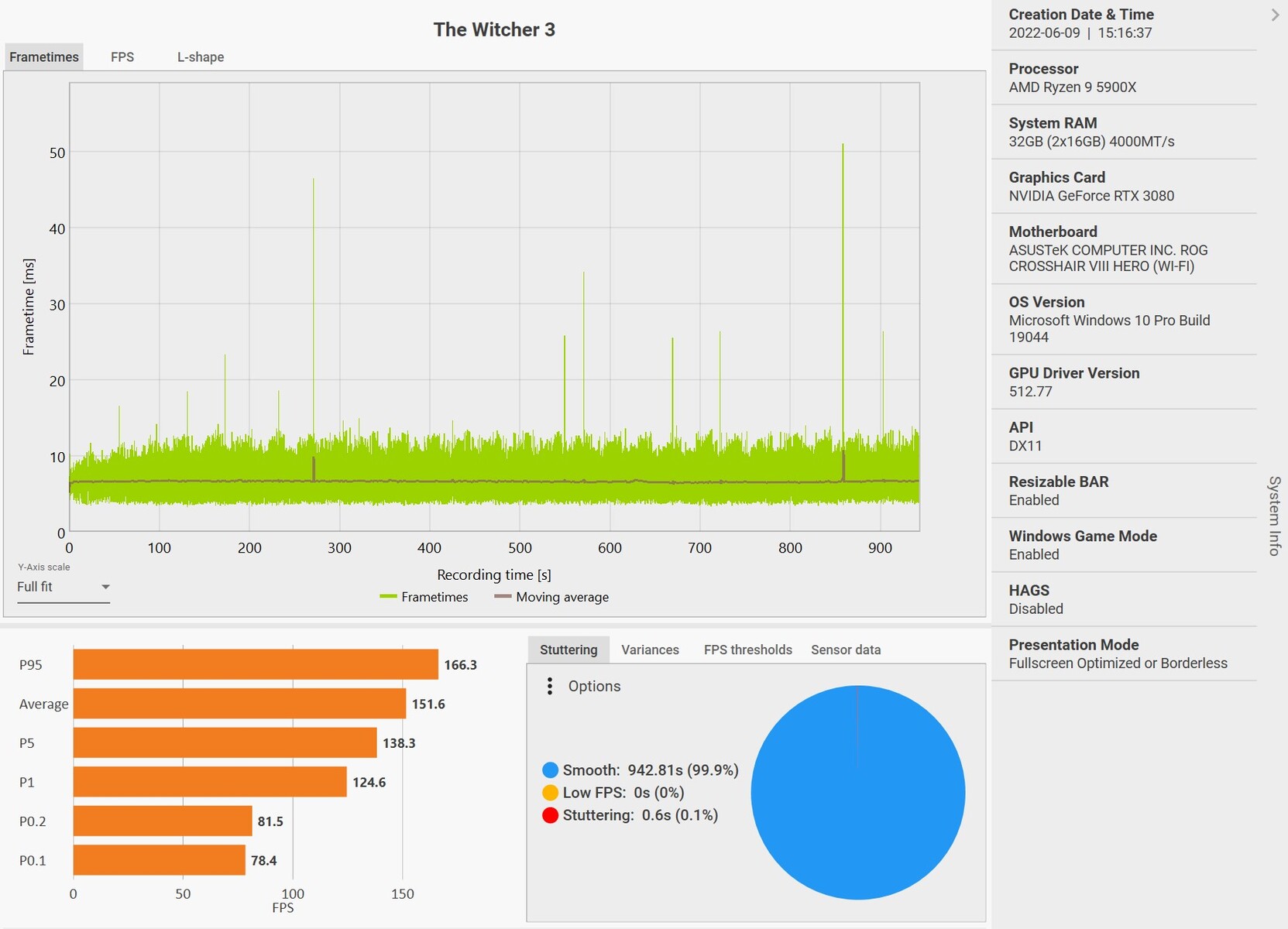

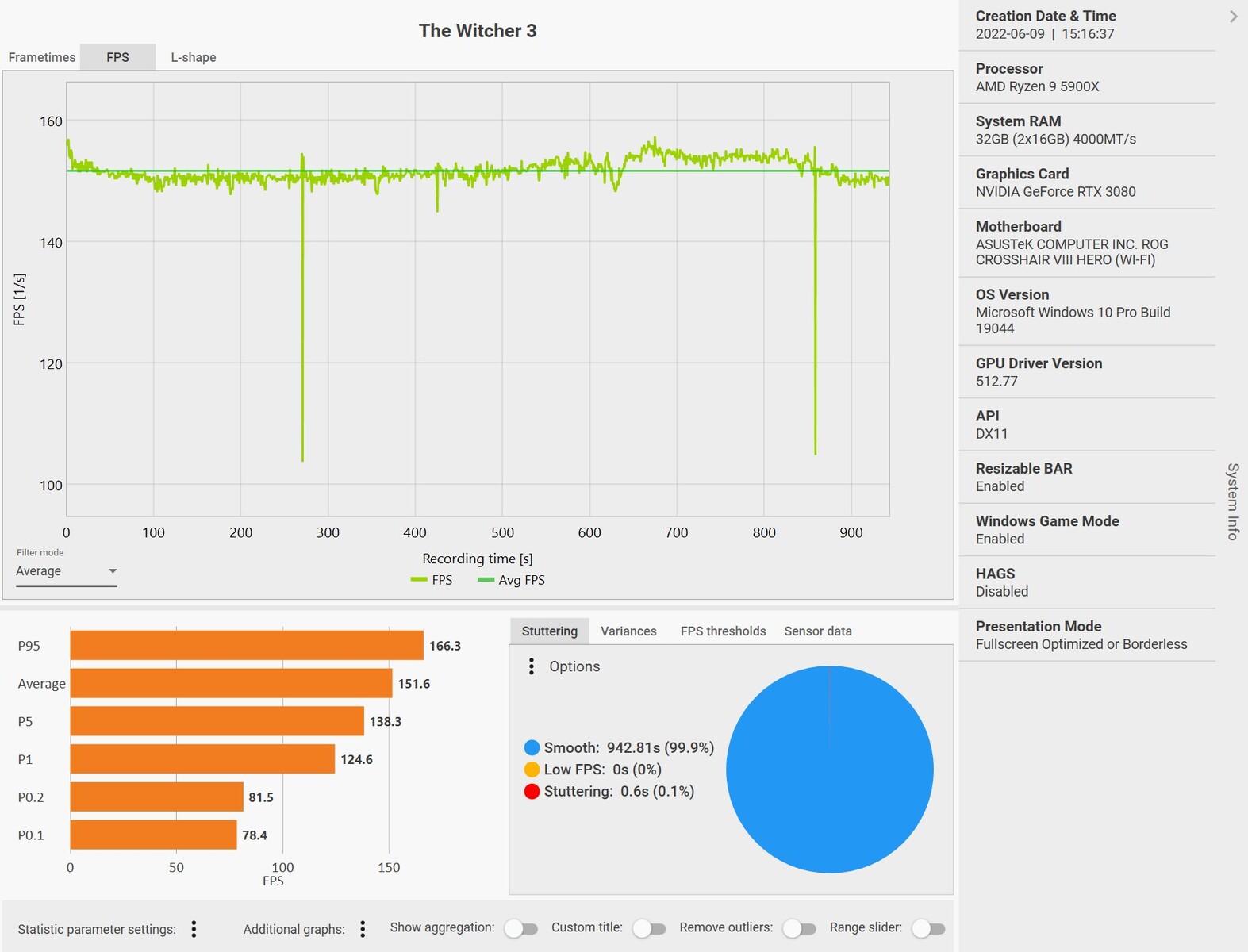

De Witcher 3 beeldsnelheden in de tijd (Ultra)

Onze gaming benchmarks werden over het algemeen zeer goed afgerond zonder enige problemen. Alle gebenchmarkte games kunnen vloeiend worden genoten in 2160p en maximale details, waarbij slechts enkele games er niet in slaagden een gemiddelde van 60 FPS te halen. Vergeleken met de Nvidia GeForce RTX 3080 presteerde deze nieuwe 12 GB kaart tussen de 10 en 15 % sneller, wat betekent dat de KFA2 RTX 3080 SG 12 GB niet alleen sneller is dan de AMD Radeon RX 6800 XT maar ook bijna op slagafstand van AMD's Radeon RX 6900 XT.

Dankzij de zeer hoge prestaties is de KFA2 GeForce RTX 3080 SG 12 GB praktisch gemaakt voor hoge-resolutie gaming in hoge details. Als je alleen in 1080p speelt, is een GeForce RTX 3080 12 GB misschien niet de juiste keuze voor jou. Als je echter wilt dat je GPU vele jaren meegaat, zou dit top-of-the-line model dat misschien wel kunnen zijn. De RTX 3080 profiteert absoluut enorm van de toegang tot 12 GB VRAM, en hij had vanaf het begin zo uitgebracht moeten worden. Desondanks bieden zijn concurrenten meer met maximaal 16 GB VRAM, en Nvidia's eigen onbetaalbaar dure RTX 3090 beschikt over maximaal 24 GB VRAM. Dit resulteert echter niet noodzakelijk in hogere prestaties, zoals hieronder te zien is. Hoewel de RTX 3090 iets sneller presteerde dan ons RTX 3080 12 GB review model, rechtvaardigen de verschillen tussen de twee niet de hogere prijs van de RTX 3090.

12 GB VRAM zijn een goed compromis en lang niet zo beperkend als eerdere modellen. In feite zijn ze meer dan genoeg, zoals onze The Witcher 3 (1080p, Ultra) opgenomen framerates lieten zien. Hoewel we twee kleine framedrops tegenkwamen, waren deze helemaal niet dramatisch en, nog belangrijker, helemaal niet merkbaar. Met andere woorden, ze hadden geen tastbaar effect op de spelervaring, en de benchmark werd afgesloten met een gemiddelde van 151 FPS.

Performance Rating - Percent
MSI GeForce RTX 3090 Suprim X	98.8 pt
KFA2 GeForce RTX 3080 SG	93.9 pt
AMD Radeon RX 6900 XT ^-2!	92.1 pt
MSI GeForce RTX 3080 Gaming X Trio	86.8 pt
AMD Radeon RX 6800 XT	84.8 pt
AMD Radeon RX 6800	75.1 pt
MSI GeForce RTX 3070 Ventus 3X	66.4 pt
AMD Radeon RX 6700 XT	57 pt
Inno3D GeForce RTX 3060 Twin X2	49.7 pt
AMD Radeon RX 6600 XT	42.8 pt

GTA V - 3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x
KFA2 GeForce RTX 3080 SG	169.6 (14.8^min, 125^P1 - 411^max) fps
MSI GeForce RTX 3090 Suprim X	164 (2.97^min, 111^P1 - 329^max) fps -3%
MSI GeForce RTX 3080 Gaming X Trio	150 (12.6^min, 100^P1 - 343^max) fps -12%
AMD Radeon RX 6800 XT	134 (15.5^min, 55.6^P1 - 252^max) fps -21%
AMD Radeon RX 6800	119 (7.07^min, 83.3^P1 - 222^max) fps -30%
MSI GeForce RTX 3070 Ventus 3X	117 (9.24^min, 76.9^P1 - 263^max) fps -31%
AMD Radeon RX 6700 XT	96.5 (5.12^min, 71.4^P1 - 220^max) fps -43%
Inno3D GeForce RTX 3060 Twin X2	82.8 (7.27^min, 62.5^P1 - 242^max) fps -51%
AMD Radeon RX 6600 XT	63.8 (8.29^min, 47.6^P1 - 159^max) fps -62%

The Witcher 3 - 3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
KFA2 GeForce RTX 3080 SG	131.8 (48.2^min, 72.3^P0.1, 107.3^P1 - 454^max) fps
MSI GeForce RTX 3090 Suprim X	128 (117^min - 138^max) fps -3%
AMD Radeon RX 6900 XT	122 (105^min, 105^P1 - 134^max) fps -7%
MSI GeForce RTX 3080 Gaming X Trio	114 (106^min - 122^max) fps -14%
AMD Radeon RX 6800 XT	110 (97^min - 117^max) fps -17%
AMD Radeon RX 6800	96.8 (59.9^min, 74.8^P0.1, 84.2^P1 - 212^max) fps -27%
MSI GeForce RTX 3070 Ventus 3X	90.9 (84^min - 101^max) fps -31%
Inno3D GeForce RTX 3060 Twin X2	90.3 (38.2^min, 59^P0.1, 65.7^P1 - 295^max) fps -31%
AMD Radeon RX 6700 XT	63 fps -52%
AMD Radeon RX 6600 XT	53.9 (39.4^min, 43.8^P0.1, 47.9^P1 - 97.2^max) fps -59%

Far Cry 5 - 3840x2160 Ultra Preset AA:T
MSI GeForce RTX 3090 Suprim X	106 (84^min - 123^max) fps +4%
KFA2 GeForce RTX 3080 SG	102 (93^min - 121^max) fps
AMD Radeon RX 6800 XT	95 (72^min - 124^max) fps -7%
MSI GeForce RTX 3080 Gaming X Trio	93 (78^min - 109^max) fps -9%
AMD Radeon RX 6800	90 (77^min - 109^max) fps -12%
MSI GeForce RTX 3070 Ventus 3X	70 (63^min - 84^max) fps -31%
AMD Radeon RX 6700 XT	70 (59^min - 91^max) fps -31%
AMD Radeon RX 6600 XT	51 (44^min - 65^max) fps -50%
Inno3D GeForce RTX 3060 Twin X2	48 (43^min - 59^max) fps -53%

F1 2020 - 3840x2160 Ultra High Preset AA:T AF:16x
MSI GeForce RTX 3090 Suprim X	144 (123^min - 166^max) fps +16%
AMD Radeon RX 6900 XT	137 (109^min - 165^max) fps +10%
AMD Radeon RX 6900 XT	136 (110^min - 161^max) fps +9%
AMD Radeon RX 6800 XT	128 (106^min - 152^max) fps +3%
KFA2 GeForce RTX 3080 SG	124.6 (107^min - 145^max) fps
MSI GeForce RTX 3080 Gaming X Trio	114 (100^min - 136^max) fps -9%
AMD Radeon RX 6800	107 (86^min - 128^max) fps -14%
MSI GeForce RTX 3070 Ventus 3X	88.7 (76^min - 101^max) fps -29%
AMD Radeon RX 6700 XT	83 fps -33%
AMD Radeon RX 6600 XT	65.8 (53^min - 80^max) fps -47%
Inno3D GeForce RTX 3060 Twin X2	60 (51^min - 71^max) fps -52%

Shadow of the Tomb Raider - 3840x2160 Highest Preset AA:T
MSI GeForce RTX 3090 Suprim X	95.6 fps +16%
MSI GeForce RTX 3080 Gaming X Trio	87.9 fps +6%
AMD Radeon RX 6900 XT	86 fps +4%
AMD Radeon RX 6900 XT	84 fps +2%
KFA2 GeForce RTX 3080 SG	82.7 fps
AMD Radeon RX 6800 XT	79.6 fps -4%
AMD Radeon RX 6800	69.6 fps -16%
MSI GeForce RTX 3070 Ventus 3X	63.5 fps -23%
AMD Radeon RX 6700 XT	54 fps -35%
Inno3D GeForce RTX 3060 Twin X2	42.3 fps -49%
AMD Radeon RX 6600 XT	39.8 fps -52%

GTA V
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
KFA2 GeForce RTX 3080 SG	128.2 (11.2^min, 83.3^P1 - 222^max) fps
AMD Radeon RX 6800 XT	121 (5.54^min, 58.8^P1 - 271^max) fps -6%
AMD Radeon RX 6800	118 (6.63^min, 58.8^P1 - 205^max) fps -8%
AMD Radeon RX 6700 XT	115 (7.08^min, 55.6^P1 - 210^max) fps -10%
MSI GeForce RTX 3090 Suprim X	114 (6.72^min, 71.4^P1 - 223^max) fps -11%
Inno3D GeForce RTX 3060 Twin X2	111 (4.48^min, 76.9^P1 - 235^max) fps -13%
MSI GeForce RTX 3070 Ventus 3X	108 (4.47^min, 71.4^P1 - 218^max) fps -16%
MSI GeForce RTX 3080 Gaming X Trio	104 (7.09^min, 62.5^P1 - 221^max) fps -19%
AMD Radeon RX 6600 XT	94.1 (5.25^min, 58.8^P1 - 252^max) fps -27%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
KFA2 GeForce RTX 3080 SG	182 (5.34^min, 142.9^P1 - 314^max) fps
Inno3D GeForce RTX 3060 Twin X2	180 (2.37^min, 125^P1 - 393^max) fps -1%
AMD Radeon RX 6800 XT	179 (3.18^min, 66.7^P1 - 513^max) fps -2%
AMD Radeon RX 6700 XT	179 (3.35^min, 83.3^P1 - 423^max) fps -2%
AMD Radeon RX 6800	177 (4.82^min, 83.3^P1 - 426^max) fps -3%
AMD Radeon RX 6600 XT	176 (3.61^min, 83.3^P1 - 450^max) fps -3%
MSI GeForce RTX 3090 Suprim X	175 (3^min, 125^P1 - 386^max) fps -4%
MSI GeForce RTX 3070 Ventus 3X	170 (3.14^min, 100^P1 - 356^max) fps -7%
MSI GeForce RTX 3080 Gaming X Trio	169 (3.6^min, 90.9^P1 - 375^max) fps -7%
3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x
KFA2 GeForce RTX 3080 SG	169.6 (14.8^min, 125^P1 - 411^max) fps
MSI GeForce RTX 3090 Suprim X	164 (2.97^min, 111^P1 - 329^max) fps -3%
MSI GeForce RTX 3080 Gaming X Trio	150 (12.6^min, 100^P1 - 343^max) fps -12%
AMD Radeon RX 6800 XT	134 (15.5^min, 55.6^P1 - 252^max) fps -21%
AMD Radeon RX 6800	119 (7.07^min, 83.3^P1 - 222^max) fps -30%
MSI GeForce RTX 3070 Ventus 3X	117 (9.24^min, 76.9^P1 - 263^max) fps -31%
AMD Radeon RX 6700 XT	96.5 (5.12^min, 71.4^P1 - 220^max) fps -43%
Inno3D GeForce RTX 3060 Twin X2	82.8 (7.27^min, 62.5^P1 - 242^max) fps -51%
AMD Radeon RX 6600 XT	63.8 (8.29^min, 47.6^P1 - 159^max) fps -62%

The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
KFA2 GeForce RTX 3080 SG	165.1 (57.2^min, 90.2^P0.1, 124.4^P1 - 369^max) fps
AMD Radeon RX 6900 XT	163.6 (139^min - 179^max) fps -1%
MSI GeForce RTX 3090 Suprim X	160 (140^min - 184^max) fps -3%
AMD Radeon RX 6800 XT	160 (138^min - 179^max) fps -3%
AMD Radeon RX 6800	156 (15.9^min, 87.6^P0.1, 128^P1 - 313^max) fps -6%
MSI GeForce RTX 3080 Gaming X Trio	145 (123^min - 154^max) fps -12%
MSI GeForce RTX 3070 Ventus 3X	121 (112^min - 134^max) fps -27%
AMD Radeon RX 6700 XT	117 fps -29%
AMD Radeon RX 6600 XT	98.9 (59.2^min, 69.1^P0.1, 83.7^P1 - 263^max) fps -40%
Inno3D GeForce RTX 3060 Twin X2	63.3 (22.3^min, 40.7^P0.1, 51.3^P1 - 358^max) fps -62%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
AMD Radeon RX 6900 XT	323 (269^min, 280.2^P1 - 350^max) fps +1%
KFA2 GeForce RTX 3080 SG	321 (39.5^min, 134.4^P0.1, 209^P1 - 678^max) fps
MSI GeForce RTX 3080 Gaming X Trio	320 (290^min - 353^max) fps 0%
AMD Radeon RX 6800 XT	294 (254^min - 323^max) fps -8%
MSI GeForce RTX 3090 Suprim X	292 (258^min - 325^max) fps -9%
AMD Radeon RX 6800	277 (64.9^min, 157^P0.1, 220^P1 - 431^max) fps -14%
Inno3D GeForce RTX 3060 Twin X2	179 (36.1^min, 119^P0.1, 148^P1 - 590^max) fps -44%
MSI GeForce RTX 3070 Ventus 3X	176 (161^min - 189^max) fps -45%
AMD Radeon RX 6600 XT	176 (21.5^min, 122^P0.1, 146^P1 - 403^max) fps -45%
AMD Radeon RX 6700 XT	174 fps -46%
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
KFA2 GeForce RTX 3080 SG	131.8 (48.2^min, 72.3^P0.1, 107.3^P1 - 454^max) fps
MSI GeForce RTX 3090 Suprim X	128 (117^min - 138^max) fps -3%
AMD Radeon RX 6900 XT	122 (105^min, 105^P1 - 134^max) fps -7%
MSI GeForce RTX 3080 Gaming X Trio	114 (106^min - 122^max) fps -14%
AMD Radeon RX 6800 XT	110 (97^min - 117^max) fps -17%
AMD Radeon RX 6800	96.8 (59.9^min, 74.8^P0.1, 84.2^P1 - 212^max) fps -27%
MSI GeForce RTX 3070 Ventus 3X	90.9 (84^min - 101^max) fps -31%
Inno3D GeForce RTX 3060 Twin X2	90.3 (38.2^min, 59^P0.1, 65.7^P1 - 295^max) fps -31%
AMD Radeon RX 6700 XT	63 fps -52%
AMD Radeon RX 6600 XT	53.9 (39.4^min, 43.8^P0.1, 47.9^P1 - 97.2^max) fps -59%

Far Cry 6
1920x1080 Ultra Graphics Quality + HD Textures AA:T
AMD Radeon RX 6800	116 (82^min - 157^max) fps +16%
AMD Radeon RX 6700 XT	102 (73^min - 131^max) fps +2%
KFA2 GeForce RTX 3080 SG	100.2 (81^min - 133^max) fps
AMD Radeon RX 6600 XT	99 fps -1%
Inno3D GeForce RTX 3060 Twin X2	88 (76^min - 105^max) fps -12%
1920x1080 High Graphics Quality AA:T
AMD Radeon RX 6800	126 (90^min - 168^max) fps +20%
AMD Radeon RX 6700 XT	112 (84^min - 146^max) fps +7%
AMD Radeon RX 6600 XT	108 fps +3%
KFA2 GeForce RTX 3080 SG	104.7 (88^min - 140^max) fps
Inno3D GeForce RTX 3060 Twin X2	101 (81^min - 119^max) fps -4%
3840x2160 Ultra Graphics Quality + HD Textures AA:T
AMD Radeon RX 6800	68.1 (59^min - 75^max) fps +19%
KFA2 GeForce RTX 3080 SG	57.2 (28^min - 69^max) fps
AMD Radeon RX 6700 XT	50 (38^min - 56^max) fps -13%
Inno3D GeForce RTX 3060 Twin X2	38 (25^min - 42^max) fps -34%
AMD Radeon RX 6600 XT	21 fps -63%

Far Cry 5
1920x1080 Ultra Preset AA:T
KFA2 GeForce RTX 3080 SG	151 (111^min - 207^max) fps
MSI GeForce RTX 3070 Ventus 3X	143 (108^min - 192^max) fps -5%
MSI GeForce RTX 3090 Suprim X	141 (106^min - 194^max) fps -7%
AMD Radeon RX 6700 XT	139 (104^min - 189^max) fps -8%
MSI GeForce RTX 3080 Gaming X Trio	135 (97^min - 188^max) fps -11%
AMD Radeon RX 6600 XT	133 (104^min - 170^max) fps -12%
Inno3D GeForce RTX 3060 Twin X2	132 (109^min - 150^max) fps -13%
AMD Radeon RX 6800 XT	130 (97^min - 185^max) fps -14%
AMD Radeon RX 6800	126 (96^min - 170^max) fps -17%
1920x1080 High Preset AA:T
KFA2 GeForce RTX 3080 SG	162 (126^min - 224^max) fps
MSI GeForce RTX 3070 Ventus 3X	154 (124^min - 205^max) fps -5%
MSI GeForce RTX 3090 Suprim X	153 (100^min - 215^max) fps -6%
AMD Radeon RX 6700 XT	149 (115^min - 204^max) fps -8%
MSI GeForce RTX 3080 Gaming X Trio	144 (112^min - 205^max) fps -11%
AMD Radeon RX 6600 XT	141 (114^min - 178^max) fps -13%
Inno3D GeForce RTX 3060 Twin X2	140 (119^min - 161^max) fps -14%
AMD Radeon RX 6800 XT	139 (109^min - 197^max) fps -14%
AMD Radeon RX 6800	134 (102^min - 182^max) fps -17%
3840x2160 Ultra Preset AA:T
MSI GeForce RTX 3090 Suprim X	106 (84^min - 123^max) fps +4%
KFA2 GeForce RTX 3080 SG	102 (93^min - 121^max) fps
AMD Radeon RX 6800 XT	95 (72^min - 124^max) fps -7%
MSI GeForce RTX 3080 Gaming X Trio	93 (78^min - 109^max) fps -9%
AMD Radeon RX 6800	90 (77^min - 109^max) fps -12%
MSI GeForce RTX 3070 Ventus 3X	70 (63^min - 84^max) fps -31%
AMD Radeon RX 6700 XT	70 (59^min - 91^max) fps -31%
AMD Radeon RX 6600 XT	51 (44^min - 65^max) fps -50%
Inno3D GeForce RTX 3060 Twin X2	48 (43^min - 59^max) fps -53%

Far Cry New Dawn
1920x1080 Ultra Preset
AMD Radeon RX 6900 XT	118 (81^min - 192^max) fps 0%
KFA2 GeForce RTX 3080 SG	118 (80^min - 202^max) fps
MSI GeForce RTX 3070 Ventus 3X	116 (77^min - 187^max) fps -2%
AMD Radeon RX 6700 XT	115 (78^min - 195^max) fps -3%
AMD Radeon RX 6800 XT	113 (78^min - 186^max) fps -4%
AMD Radeon RX 6600 XT	112 (77^min - 181^max) fps -5%
Inno3D GeForce RTX 3060 Twin X2	112 (83^min - 146^max) fps -5%
MSI GeForce RTX 3080 Gaming X Trio	108 (71^min - 183^max) fps -8%
AMD Radeon RX 6800	107 (71^min - 179^max) fps -9%
MSI GeForce RTX 3090 Suprim X	106 (69^min - 171^max) fps -10%
1920x1080 High Preset
KFA2 GeForce RTX 3080 SG	131 (98^min - 200^max) fps
MSI GeForce RTX 3070 Ventus 3X	130 (99^min - 188^max) fps -1%
AMD Radeon RX 6600 XT	127 (97^min - 190^max) fps -3%
AMD Radeon RX 6700 XT	126 (95^min - 192^max) fps -4%
Inno3D GeForce RTX 3060 Twin X2	126 (104^min - 154^max) fps -4%
AMD Radeon RX 6800 XT	124 (96^min - 185^max) fps -5%
AMD Radeon RX 6900 XT	123 (94^min - 184^max) fps -6%
MSI GeForce RTX 3080 Gaming X Trio	120 (90^min - 181^max) fps -8%
AMD Radeon RX 6800	118 (89^min - 183^max) fps -10%
MSI GeForce RTX 3090 Suprim X	117 (89^min - 179^max) fps -11%
3840x2160 Ultra Preset
AMD Radeon RX 6900 XT	101 (79^min - 135^max) fps +3%
KFA2 GeForce RTX 3080 SG	98 (79^min - 122^max) fps
MSI GeForce RTX 3090 Suprim X	96 (71^min - 125^max) fps -2%
AMD Radeon RX 6800 XT	94 (75^min - 129^max) fps -4%
MSI GeForce RTX 3080 Gaming X Trio	88 (71^min - 110^max) fps -10%
AMD Radeon RX 6800	86 (70^min - 115^max) fps -12%
MSI GeForce RTX 3070 Ventus 3X	72 (61^min - 86^max) fps -27%
AMD Radeon RX 6700 XT	70 (57^min - 91^max) fps -29%
AMD Radeon RX 6600 XT	53 (44^min - 69^max) fps -46%
Inno3D GeForce RTX 3060 Twin X2	50 (42^min - 60^max) fps -49%

Anno 1800
1920x1080 Ultra Graphics Quality (DX11)
AMD Radeon RX 6900 XT	87.1 (57.2^min, 57.6^P0.1, 68.1^P1 - 115^max) fps +69%
MSI GeForce RTX 3090 Suprim X	54.8 (41^min - 85^max) fps +6%
MSI GeForce RTX 3080 Gaming X Trio	54 (38^min - 82^max) fps +5%
MSI GeForce RTX 3070 Ventus 3X	52 (42^min - 66^max) fps +1%
KFA2 GeForce RTX 3080 SG	51.6 (21.1^min, 23.8^P0.1, 39.5^P1 - 71.3^max) fps
AMD Radeon RX 6800 XT	51.2 (45^min - 66^max) fps -1%
Inno3D GeForce RTX 3060 Twin X2	50.7 (20^min, 22.7^P0.1, 33.6^P1 - 69.6^max) fps -2%
AMD Radeon RX 6800	48.5 (18.2^min, 22.5^P0.1, 33.9^P1 - 73^max) fps -6%
AMD Radeon RX 6700 XT	45 fps -13%
AMD Radeon RX 6600 XT	41.4 (16.8^min, 17.6^P0.1, 35.9^P1 - 49.1^max) fps -20%
1920x1080 High Graphics Quality (DX11)
AMD Radeon RX 6900 XT	139 (73.6^min, 89.7^P0.1, 97.8^P1 - 191^max) fps +48%
MSI GeForce RTX 3090 Suprim X	105 (91^min - 121^max) fps +12%
Inno3D GeForce RTX 3060 Twin X2	105 (51.7^min, 62.1^P0.1, 83.6^P1 - 136^max) fps +12%
MSI GeForce RTX 3070 Ventus 3X	100 (85^min - 121^max) fps +6%
AMD Radeon RX 6800 XT	94.9 (84^min - 110^max) fps +1%
KFA2 GeForce RTX 3080 SG	94 (49.8^min, 66.4^P0.1, 76.6^P1 - 121.3^max) fps
MSI GeForce RTX 3080 Gaming X Trio	93.9 (85^min - 115^max) fps 0%
AMD Radeon RX 6800	90.2 (39.5^min, 62.7^P0.1, 70.5^P1 - 137^max) fps -4%
AMD Radeon RX 6600 XT	89.3 (52.8^min, 59.9^P0.1, 72^P1 - 119^max) fps -5%
AMD Radeon RX 6700 XT	87 fps -7%
3840x2160 Ultra Graphics Quality (DX11)
MSI GeForce RTX 3090 Suprim X	52.5 (42^min - 63^max) fps +10%
AMD Radeon RX 6900 XT	52 (27.3^min, 27.5^P0.1, 33.6^P1 - 75.8^max) fps +9%
KFA2 GeForce RTX 3080 SG	47.8 (21^min, 24^P0.1, 33.3^P1 - 65.9^max) fps
AMD Radeon RX 6800 XT	45.5 (42^min - 49^max) fps -5%
MSI GeForce RTX 3080 Gaming X Trio	43.2 (32^min - 52^max) fps -10%
AMD Radeon RX 6800	41.7 (31.6^min, 32.7^P0.1, 34^P1 - 56.4^max) fps -13%
MSI GeForce RTX 3070 Ventus 3X	35 (23^min - 40^max) fps -27%
AMD Radeon RX 6700 XT	29 fps -39%
Inno3D GeForce RTX 3060 Twin X2	22.8 (5.84^min, 7.82^P0.1, 14.2^P1 - 66.4^max) fps -52%
AMD Radeon RX 6600 XT	21.5 (18^min, 18.4^P0.1, 18.9^P1 - 27.6^max) fps -55%

Crysis Remastered
1920x1080 Very High Preset AA:SM
KFA2 GeForce RTX 3080 SG	162.3 (66.5^min, 114^P0.1, 137.7^P1 - 220^max) fps
MSI GeForce RTX 3090 Suprim X	102 (50.2^min, 53.2^P0.1, 66.9^P1 - 213^max) fps -37%
AMD Radeon RX 6800 XT	94.7 (36.3^min, 43^P0.1, 59.2^P1 - 225^max) fps -42%
AMD Radeon RX 6700 XT	88 fps -46%
AMD Radeon RX 6800	80.5 (36.5^min, 53.3^P0.1, 65.8^P1 - 123^max) fps -50%
MSI GeForce RTX 3070 Ventus 3X	75.8 (46.1^min, 48.5^P0.1, 54.2^P1 - 148^max) fps -53%
MSI GeForce RTX 3080 Gaming X Trio	62.1 (41.5^min, 41.8^P0.1, 44.5^P1 - 113^max) fps -62%
Inno3D GeForce RTX 3060 Twin X2	57.5 (32.2^min, 42.4^P0.1, 48.1^P1 - 113^max) fps -65%
AMD Radeon RX 6600 XT	50.7 (21.3^min, 34.1^P0.1, 42.8^P1 - 121^max) fps -69%
1920x1080 High Preset AA:SM
KFA2 GeForce RTX 3080 SG	176.6 (114.6^min, 123.7^P0.1, 141.1^P1 - 260^max) fps
AMD Radeon RX 6800 XT	152 (50.5^min, 58.8^P0.1, 85.4^P1 - 282^max) fps -14%
MSI GeForce RTX 3090 Suprim X	130 (41.5^min, 60.8^P0.1, 73.6^P1 - 262^max) fps -26%
AMD Radeon RX 6700 XT	112 fps -37%
AMD Radeon RX 6800	105 (33.4^min, 39^P0.1, 72.2^P1 - 174^max) fps -41%
MSI GeForce RTX 3080 Gaming X Trio	98.9 (41.2^min, 48.7^P0.1, 59^P1 - 216^max) fps -44%
MSI GeForce RTX 3070 Ventus 3X	97.7 (36.3^min, 39.8^P0.1, 53.2^P1 - 192^max) fps -45%
Inno3D GeForce RTX 3060 Twin X2	77.9 (42.6^min, 50^P0.1, 63.4^P1 - 180^max) fps -56%
AMD Radeon RX 6600 XT	67.5 (29.7^min, 37.1^P0.1, 53.5^P1 - 163^max) fps -62%
3840x2160 Very High Preset AA:SM
KFA2 GeForce RTX 3080 SG	72.7 (36.4^min, 56.1^P0.1, 61.1^P1 - 100.7^max) fps
MSI GeForce RTX 3090 Suprim X	64.9 (44.8^min, 49.4^P0.1, 54.6^P1 - 96.2^max) fps -11%
AMD Radeon RX 6800 XT	54.4 (34.7^min, 38.5^P0.1, 45.5^P1 - 74.7^max) fps -25%
MSI GeForce RTX 3080 Gaming X Trio	49.2 (36^min, 36.9^P0.1, 39^P1 - 61.3^max) fps -32%
MSI GeForce RTX 3070 Ventus 3X	38.9 (21.9^min, 28^P0.1, 31.1^P1 - 58.6^max) fps -46%
AMD Radeon RX 6700 XT	38 fps -48%
AMD Radeon RX 6800	30 (25.5^min, 25.5^P0.1, 27^P1 - 35.4^max) fps -59%
Inno3D GeForce RTX 3060 Twin X2	22.7 (17.4^min, 18.1^P0.1, 19.9^P1 - 26.7^max) fps -69%
AMD Radeon RX 6600 XT	15.6 (12^min, 12^P0.1, 13.6^P1 - 19.6^max) fps -79%

F1 2021
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
KFA2 GeForce RTX 3080 SG	201 (169^min, 155^P1 - 216^max) fps
AMD Radeon RX 6800	167 (131^min, 125^P1 - 188^max) fps -17%
AMD Radeon RX 6700 XT	143 (119^min, 120^P1 - 162^max) fps -29%
Inno3D GeForce RTX 3060 Twin X2	104 (88^min, 88^P1 - 117^max) fps -48%
AMD Radeon RX 6600 XT	97 fps -52%
1920x1080 High Preset AA:T AF:16x
KFA2 GeForce RTX 3080 SG	379 (268^min, 208^P1 - 440^max) fps
AMD Radeon RX 6800	357 (224^min, 211^P1 - 411^max) fps -6%
AMD Radeon RX 6700 XT	323 (242^min, 195^P1 - 362^max) fps -15%
AMD Radeon RX 6600 XT	229 fps -40%
Inno3D GeForce RTX 3060 Twin X2	212 (183^min, 170^P1 - 231^max) fps -44%
3840x2160 Ultra High Preset + Raytracing AA:T AF:16x
KFA2 GeForce RTX 3080 SG	93.5 (82^min, 82^P1 - 105^max) fps
AMD Radeon RX 6800	71.8 (61^min, 61^P1 - 82^max) fps -23%
AMD Radeon RX 6700 XT	56.3 (48^min, 48^P1 - 65^max) fps -40%
Inno3D GeForce RTX 3060 Twin X2	44 (38^min, 38^P1 - 50^max) fps -53%
AMD Radeon RX 6600 XT	31 fps -67%

F1 2020
1920x1080 Ultra High Preset AA:T AF:16x
AMD Radeon RX 6900 XT	291 (222^min - 355^max) fps +11%
AMD Radeon RX 6900 XT	275 (213^min - 338^max) fps +5%
AMD Radeon RX 6800 XT	279 (211^min - 345^max) fps +6%
MSI GeForce RTX 3090 Suprim X	266 (218^min - 321^max) fps +1%
KFA2 GeForce RTX 3080 SG	263 (215^min - 315^max) fps
AMD Radeon RX 6800	222 (161^min - 282^max) fps -16%
AMD Radeon RX 6700 XT	190 fps -28%
MSI GeForce RTX 3070 Ventus 3X	181 (145^min - 211^max) fps -31%
MSI GeForce RTX 3080 Gaming X Trio	179 (153^min - 213^max) fps -32%
AMD Radeon RX 6600 XT	157 (115^min - 193^max) fps -40%
Inno3D GeForce RTX 3060 Twin X2	142 (114^min - 171^max) fps -46%
1920x1080 High Preset AA:T AF:16x
AMD Radeon RX 6900 XT	395 (324^min - 460^max) fps +17%
AMD Radeon RX 6800 XT	387 (285^min - 448^max) fps +14%
KFA2 GeForce RTX 3080 SG	339 (264^min - 384^max) fps
MSI GeForce RTX 3090 Suprim X	322 (262^min - 365^max) fps -5%
AMD Radeon RX 6800	314 (230^min - 358^max) fps -7%
AMD Radeon RX 6700 XT	276 fps -19%
MSI GeForce RTX 3070 Ventus 3X	252 (188^min - 279^max) fps -26%
MSI GeForce RTX 3080 Gaming X Trio	249 (198^min - 283^max) fps -27%
AMD Radeon RX 6600 XT	233 (188^min - 269^max) fps -31%
Inno3D GeForce RTX 3060 Twin X2	208 (181^min - 235^max) fps -39%
3840x2160 Ultra High Preset AA:T AF:16x
MSI GeForce RTX 3090 Suprim X	144 (123^min - 166^max) fps +16%
AMD Radeon RX 6900 XT	137 (109^min - 165^max) fps +10%
AMD Radeon RX 6900 XT	136 (110^min - 161^max) fps +9%
AMD Radeon RX 6800 XT	128 (106^min - 152^max) fps +3%
KFA2 GeForce RTX 3080 SG	124.6 (107^min - 145^max) fps
MSI GeForce RTX 3080 Gaming X Trio	114 (100^min - 136^max) fps -9%
AMD Radeon RX 6800	107 (86^min - 128^max) fps -14%
MSI GeForce RTX 3070 Ventus 3X	88.7 (76^min - 101^max) fps -29%
AMD Radeon RX 6700 XT	83 fps -33%
AMD Radeon RX 6600 XT	65.8 (53^min - 80^max) fps -47%
Inno3D GeForce RTX 3060 Twin X2	60 (51^min - 71^max) fps -52%

Mafia Definitive Edition
1920x1080 High Preset
KFA2 GeForce RTX 3080 SG	162.7 (71.7^min, 80.5^P0.1, 103.9^P1 - 314^max) fps
MSI GeForce RTX 3090 Suprim X	157 (64.1^min, 76.8^P0.1, 100^P1 - 260^max) fps -4%
MSI GeForce RTX 3080 Gaming X Trio	144 (59.7^min, 73.4^P0.1, 93.2^P1 - 295^max) fps -11%
AMD Radeon RX 6900 XT	138 (32.8^min, 68.1^P0.1, 90.2^P1 - 334^max) fps -15%
MSI GeForce RTX 3070 Ventus 3X	132 (57.5^min, 71.1^P0.1, 88.3^P1 - 259^max) fps -19%
AMD Radeon RX 6800	132 (34.8^min, 55.7^P0.1, 77.6^P1 - 291^max) fps -19%
AMD Radeon RX 6800 XT	121 (23.7^min, 68^P0.1, 83.3^P1 - 223^max) fps -26%
AMD Radeon RX 6700 XT	112 fps -31%
AMD Radeon RX 6600 XT	106 (33.7^min, 59.1^P0.1, 73^P1 - 230^max) fps -35%
Inno3D GeForce RTX 3060 Twin X2	103 (45.2^min, 51.7^P0.1, 68.7^P1 - 247^max) fps -37%
1920x1080 Medium Preset
KFA2 GeForce RTX 3080 SG	179.1 (65.1^min, 90.3^P0.1, 114.3^P1 - 328^max) fps
MSI GeForce RTX 3090 Suprim X	161 (55.2^min, 75.7^P0.1, 104^P1 - 307^max) fps -10%
MSI GeForce RTX 3080 Gaming X Trio	159 (60.2^min, 70.6^P0.1, 103^P1 - 328^max) fps -11%
AMD Radeon RX 6900 XT	142 (24.3^min, 70.6^P0.1, 93.2^P1 - 330^max) fps -21%
AMD Radeon RX 6800	142 (36^min, 69.9^P0.1, 88^P1 - 309^max) fps -21%
MSI GeForce RTX 3070 Ventus 3X	140 (54.9^min, 70^P0.1, 93.4^P1 - 241^max) fps -22%
AMD Radeon RX 6800 XT	139 (24.5^min, 66.6^P0.1, 90.7^P1 - 298^max) fps -22%
AMD Radeon RX 6700 XT	124 fps -31%
AMD Radeon RX 6600 XT	118 (27.9^min, 68.1^P0.1, 85.6^P1 - 216^max) fps -34%
Inno3D GeForce RTX 3060 Twin X2	113 (48.1^min, 53.1^P0.1, 82.7^P1 - 218^max) fps -37%
3840x2160 High Preset
MSI GeForce RTX 3090 Suprim X	89.1 (42.7^min, 53.9^P0.1, 62.7^P1 - 175^max) fps +13%
KFA2 GeForce RTX 3080 SG	79.2 (38.9^min, 42.3^P0.1, 62^P1 - 175.6^max) fps
MSI GeForce RTX 3080 Gaming X Trio	78.1 (44.8^min, 50.5^P0.1, 54.7^P1 - 175^max) fps -1%
AMD Radeon RX 6900 XT	67 (32.3^min, 41.7^P0.1, 44.7^P1 - 211^max) fps -15%
AMD Radeon RX 6800 XT	62.6 (28^min, 37.6^P0.1, 49.2^P1 - 87.3^max) fps -21%
AMD Radeon RX 6800	57.3 (31.4^min, 33.3^P0.1, 34.5^P1 - 208^max) fps -28%
MSI GeForce RTX 3070 Ventus 3X	55.2 (19.3^min, 34.2^P0.1, 45.2^P1 - 133^max) fps -30%
AMD Radeon RX 6700 XT	43 fps -46%
Inno3D GeForce RTX 3060 Twin X2	37 (26.9^min, 28.4^P0.1, 32^P1 - 54.9^max) fps -53%
AMD Radeon RX 6600 XT	34 (18.6^min, 18.6^P0.1, 19.4^P1 - 169^max) fps -57%

Watch Dogs Legion
1920x1080 Ultra Preset (DX12)
AMD Radeon RX 6900 XT	121 (67.26^min, 95.56^P1 - 184.97^max) fps +27%
AMD Radeon RX 6900 XT	120 (81.32^min, 93.02^P1 - 209.32^max) fps +26%
AMD Radeon RX 6800 XT	112 (75.12^min, 87.97^P1 - 181.69^max) fps +18%
MSI GeForce RTX 3090 Suprim X	103 (30.26^min, 75.96^P1 - 155.81^max) fps +8%
MSI GeForce RTX 3080 Gaming X Trio	99.3 (13.98^min, 73.29^P1 - 167.32^max) fps +4%
KFA2 GeForce RTX 3080 SG	95.2 (35.72^min, 69.11^P1 - 145.12^max) fps
AMD Radeon RX 6800	87.7 (36.62^min, 64.1^P1 - 145.7^max) fps -8%
MSI GeForce RTX 3070 Ventus 3X	86 (37.65^min, 66.32^P1 - 130.48^max) fps -10%
AMD Radeon RX 6700 XT	84.1 (60.29^min, 67.02^P1 - 118.49^max) fps -12%
AMD Radeon RX 6600 XT	61 fps -36%
Inno3D GeForce RTX 3060 Twin X2	59.1 (17.01^min, 48.27^P1 - 100.5^max) fps -38%
1920x1080 High Preset (DX12)
AMD Radeon RX 6900 XT	170 (101.03^min, 125.43^P1 - 261.76^max) fps +58%
AMD Radeon RX 6800 XT	150 (79.26^min, 110.06^P1 - 227.35^max) fps +39%
AMD Radeon RX 6700 XT	134 (76.1^min, 102.89^P1 - 200.63^max) fps +24%
MSI GeForce RTX 3080 Gaming X Trio	113 (41.54^min, 82.63^P1 - 184.04^max) fps +5%
MSI GeForce RTX 3070 Ventus 3X	112 (18.04^min, 78.99^P1 - 177.29^max) fps +4%
MSI GeForce RTX 3090 Suprim X	111 (44.66^min, 83.58^P1 - 163.27^max) fps +3%
KFA2 GeForce RTX 3080 SG	107.8 (32.37^min, 79.28^P1 - 161.72^max) fps
AMD Radeon RX 6600 XT	104 fps -4%
AMD Radeon RX 6800	104 (55.63^min, 73.69^P1 - 162.54^max) fps -4%
Inno3D GeForce RTX 3060 Twin X2	94.7 (56.34^min, 74.21^P1 - 138.68^max) fps -12%
3840x2160 Ultra Preset (DX12)
MSI GeForce RTX 3090 Suprim X	60.3 (34.68^min, 51.05^P1 - 78.14^max) fps +9%
KFA2 GeForce RTX 3080 SG	55.2 (34.2^min, 46.23^P1 - 81.17^max) fps
AMD Radeon RX 6900 XT	53.6 (34.78^min, 44.93^P1 - 72.47^max) fps -3%
AMD Radeon RX 6900 XT	53.5 (33.75^min, 44.2^P1 - 82.3^max) fps -3%
MSI GeForce RTX 3080 Gaming X Trio	53.5 (33.98^min, 42.85^P1 - 79.6^max) fps -3%
AMD Radeon RX 6800 XT	49.3 (32.85^min, 41.54^P1 - 76.12^max) fps -11%
AMD Radeon RX 6800	44.5 (28.53^min, 36.73^P1 - 64.84^max) fps -19%
MSI GeForce RTX 3070 Ventus 3X	39.2 (17.54^min, 27.54^P1 - 81.17^max) fps -29%
AMD Radeon RX 6700 XT	35.3 (21.39^min, 30.37^P1 - 43.92^max) fps -36%
Inno3D GeForce RTX 3060 Twin X2	26.8 (16.98^min, 22.9^P1 - 32.91^max) fps -51%
AMD Radeon RX 6600 XT	24 fps -57%

Shadow of the Tomb Raider
1920x1080 Highest Preset AA:T
AMD Radeon RX 6900 XT	202 fps +3%
AMD Radeon RX 6900 XT	199 fps +1%
KFA2 GeForce RTX 3080 SG	196.1 fps
AMD Radeon RX 6800 XT	194 fps -1%
MSI GeForce RTX 3090 Suprim X	188 fps -4%
AMD Radeon RX 6800	182 fps -7%
MSI GeForce RTX 3080 Gaming X Trio	177 fps -10%
MSI GeForce RTX 3070 Ventus 3X	160 fps -18%
AMD Radeon RX 6700 XT	150 fps -24%
AMD Radeon RX 6600 XT	131 fps -33%
Inno3D GeForce RTX 3060 Twin X2	118 fps -40%
1920x1080 High Preset AA:SM
AMD Radeon RX 6900 XT	213 fps +3%
KFA2 GeForce RTX 3080 SG	207 fps
AMD Radeon RX 6800 XT	204 fps -1%
AMD Radeon RX 6800	196 fps -5%
MSI GeForce RTX 3080 Gaming X Trio	186 fps -10%
MSI GeForce RTX 3090 Suprim X	177 fps -14%
AMD Radeon RX 6700 XT	170 fps -18%
MSI GeForce RTX 3070 Ventus 3X	168 fps -19%
AMD Radeon RX 6600 XT	153 fps -26%
Inno3D GeForce RTX 3060 Twin X2	129 fps -38%
3840x2160 Highest Preset AA:T
MSI GeForce RTX 3090 Suprim X	95.6 fps +16%
MSI GeForce RTX 3080 Gaming X Trio	87.9 fps +6%
AMD Radeon RX 6900 XT	86 fps +4%
AMD Radeon RX 6900 XT	84 fps +2%
KFA2 GeForce RTX 3080 SG	82.7 fps
AMD Radeon RX 6800 XT	79.6 fps -4%
AMD Radeon RX 6800	69.6 fps -16%
MSI GeForce RTX 3070 Ventus 3X	63.5 fps -23%
AMD Radeon RX 6700 XT	54 fps -35%
Inno3D GeForce RTX 3060 Twin X2	42.3 fps -49%
AMD Radeon RX 6600 XT	39.8 fps -52%

	lage	gem.	hoge	ultra	QHD	4K
GTA V (2015)	186.9	186.1	182	128.2	129.5	169.6
The Witcher 3 (2015)	425	407	321	165.1		131.8
Dota 2 Reborn (2015)	211.4	186.6	175.8	160.95		156.4
Rise of the Tomb Raider (2016)	441	286	232	197.4		102.2
Final Fantasy XV Benchmark (2018)	223	196.5	156.2		125.5	76.7
X-Plane 11.11 (2018)	159.4	143.2	114.7			98.7
Far Cry 5 (2018)	194	171	162	151	147	102
Strange Brigade (2018)	545	422	356	314	236	141.5
Shadow of the Tomb Raider (2018)	236	209	207	196.1	146.7	82.7
Far Cry New Dawn (2019)	154	136	131	118	116	98
Metro Exodus (2019)	210	178	145	117.7	97.9	65.2
Anno 1800 (2019)	126.6	123.7	94	51.6	49.7	47.8
Control (2019)	240	220	166.8		112.1	57.9
Borderlands 3 (2019)	166.2	150	139.2	128.5	104	59.9
F1 2020 (2020)	412	351	339	263	206	124.6
Horizon Zero Dawn (2020)	216	200	175	155	132	80
Crysis Remastered (2020)	320	346	176.6	162.3	123.5	72.7
Mafia Definitive Edition (2020)	196.6	179.1	162.7		136	79.2
Watch Dogs Legion (2020)	123	118.1	107.8	95.2	83.5	55.2
Dirt 5 (2020)	303	227	194	154	125	83
Immortals Fenyx Rising (2020)	142	140	136	129	112	78
F1 2021 (2021)	509	463	379	201	157.3	93.5
New World (2021)	173.1	129.2	116.1	113.5	103.9	67.6
Far Cry 6 (2021)	150.4	113.4	104.7	100.2	92.2	57.2
Guardians of the Galaxy (2021)	139	148	147	143	141	100
Riders Republic (2021)	236	208	173	162	124	73
Forza Horizon 5 (2021)	257	171	159	106	94	71
Farming Simulator 22 (2021)	277	230	197	181.5	179.4	133.4
God of War (2022)	182.7	163	138.8	100.8	85.5	60.1
Rainbow Six Extraction (2022)	379	275	273	239	168	96
Dying Light 2 (2022)	157.8	132.9	116		86.5	50
Elden Ring (2022)	60	60	60	60	60	60
Ghostwire Tokyo (2022)	206	196.3	195.4	192.5	165.8	86.7
Tiny Tina's Wonderlands (2022)	276	237	183.7	152.7	112.6	63.9
Vampire Bloodhunt (2022)	408	300	294	277	214	115.8

Compute prestaties

In onze render tests presteerde de KFA2 GeForce RTX 3080 SG 12 GB zeer goed ten opzichte van zijn eigen interne concurrenten. Hij kwam op een steenworp afstand van de veel duurdere Nvidia GeForce RTX 3090, die slechts 7 % sneller was in ons prestatie klassement. Nvidia GPU's kunnen echter niet op tegen AMD's RDNA2-generatie GPU's, die het elke keer beter deed dan zijn concurrenten. Houd in gedachten dat uw individuele werklast van grote invloed is op de algehele rekenprestaties, en u moet dus naar elke afzonderlijke test kijken wanneer u een GPU kiest voor GPU-computing voor algemeen gebruik

Performance Rating - Percent
AMD Radeon RX 6900 XT, R9 5950X	90.9 pt
AMD Radeon RX 6800 XT, R9 5950X	83.9 pt
AMD Radeon RX 6800, R9 5900X	79.4 pt
MSI GeForce RTX 3090 Suprim X, R9 5900X	77.8 pt
KFA2 GeForce RTX 3080 SG, R9 5900X	72.9 pt
AMD Radeon RX 6700 XT, R9 5900X	69.6 pt
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	68.2 pt
AMD Radeon RX 6600 XT, R9 5900X	58.6 pt
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	56.9 pt
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	41.2 pt

ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
MSI GeForce RTX 3090 Suprim X, R9 5900X	17058 Points +9%
KFA2 GeForce RTX 3080 SG, R9 5900X	15594 Points
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	15508 Points -1%
AMD Radeon RX 6900 XT, R9 5950X	12255 Points -21%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	11510 Points -26%
AMD Radeon RX 6800 XT, R9 5950X	11304 Points -28%
AMD Radeon RX 6800, R9 5900X	9343 Points -40%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	7719 Points -51%
AMD Radeon RX 6700 XT, R9 5900X	7537 Points -52%
AMD Radeon RX 6600 XT, R9 5900X	6423 Points -59%
1024x600 Normal, Mandel Scalar
MSI GeForce RTX 3090 Suprim X, R9 5900X	11197 Points +15%
AMD Radeon RX 6900 XT, R9 5950X	10834 Points +12%
AMD Radeon RX 6800 XT, R9 5950X	10018 Points +3%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	9938 Points +2%
KFA2 GeForce RTX 3080 SG, R9 5900X	9698 Points
AMD Radeon RX 6800, R9 5900X	8520 Points -12%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	7042 Points -27%
AMD Radeon RX 6700 XT, R9 5900X	6430 Points -34%
AMD Radeon RX 6600 XT, R9 5900X	5413 Points -44%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	4218 Points -57%
1024x600 Normal, Mandel Vector
AMD Radeon RX 6900 XT, R9 5950X	8690 Points +4%
AMD Radeon RX 6800 XT, R9 5950X	8399 Points +1%
MSI GeForce RTX 3090 Suprim X, R9 5900X	8341 Points 0%
KFA2 GeForce RTX 3080 SG, R9 5900X	8326 Points
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	7540 Points -9%
AMD Radeon RX 6800, R9 5900X	7283 Points -13%
AMD Radeon RX 6700 XT, R9 5900X	5478 Points -34%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	5364 Points -36%
AMD Radeon RX 6600 XT, R9 5900X	4805 Points -42%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	4265 Points -49%
1024x600 Normal, Fluid 2DTexArr
MSI GeForce RTX 3090 Suprim X, R9 5900X	4560 Points +9%
KFA2 GeForce RTX 3080 SG, R9 5900X	4175 Points
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	4159 Points 0%
AMD Radeon RX 6800 XT, R9 5950X	3947 Points -5%
AMD Radeon RX 6900 XT, R9 5950X	3924 Points -6%
AMD Radeon RX 6800, R9 5900X	3144 Points -25%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	2666 Points -36%
AMD Radeon RX 6700 XT, R9 5900X	2430 Points -42%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	2007 Points -52%
AMD Radeon RX 6600 XT, R9 5900X	1627 Points -61%
1024x600 Normal, Fluid 3DTex
MSI GeForce RTX 3090 Suprim X, R9 5900X	5391 Points +10%
AMD Radeon RX 6800 XT, R9 5950X	5154 Points +5%
AMD Radeon RX 6900 XT, R9 5950X	5154 Points +5%
KFA2 GeForce RTX 3080 SG, R9 5900X	4900 Points
AMD Radeon RX 6800, R9 5900X	4674 Points -5%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	4450 Points -9%
AMD Radeon RX 6700 XT, R9 5900X	3317 Points -32%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	2749 Points -44%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	2067 Points -58%
AMD Radeon RX 6600 XT, R9 5900X	1705 Points -65%
1024x600 Normal, Score
MSI GeForce RTX 3090 Suprim X, R9 5900X	46547 Points +9%
KFA2 GeForce RTX 3080 SG, R9 5900X	42692 Points
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	41594 Points -3%
AMD Radeon RX 6900 XT, R9 5950X	40857 Points -4%
AMD Radeon RX 6800 XT, R9 5950X	38823 Points -9%
AMD Radeon RX 6800, R9 5900X	32965 Points -23%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	29330 Points -31%
AMD Radeon RX 6700 XT, R9 5900X	25193 Points -41%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	20577 Points -52%
AMD Radeon RX 6600 XT, R9 5900X	19973 Points -53%

LuxMark v2.0 64Bit
Room GPUs-only
KFA2 GeForce RTX 3080 SG, R9 5900X	5768 Samples/s
MSI GeForce RTX 3090 Suprim X, R9 5900X	5727 Samples/s -1%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	5198 Samples/s -10%
AMD Radeon RX 6900 XT, R9 5950X	5084 Samples/s -12%
AMD Radeon RX 6800 XT, R9 5950X	5057 Samples/s -12%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	4284 Samples/s -26%
AMD Radeon RX 6800, R9 5900X	3689 Samples/s -36%
AMD Radeon RX 6700 XT, R9 5900X	3291 Samples/s -43%
AMD Radeon RX 6600 XT, R9 5900X	2493 Samples/s -57%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	1679 Samples/s -71%
Sala GPUs-only
AMD Radeon RX 6900 XT, R9 5950X	31400 Samples/s +121%
AMD Radeon RX 6800 XT, R9 5950X	28023 Samples/s +97%
AMD Radeon RX 6800, R9 5900X	20840 Samples/s +47%
MSI GeForce RTX 3090 Suprim X, R9 5900X	14590 Samples/s +3%
AMD Radeon RX 6700 XT, R9 5900X	14554 Samples/s +2%
KFA2 GeForce RTX 3080 SG, R9 5900X	14204 Samples/s
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	12980 Samples/s -9%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	10096 Samples/s -29%
AMD Radeon RX 6600 XT, R9 5900X	7239 Samples/s -49%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	6807 Samples/s -52%

SPECviewperf 13
Solidworks (sw-04)
AMD Radeon RX 6900 XT, R9 5950X	214 fps +98%
AMD Radeon RX 6700 XT, R9 5900X	201 fps +86%
AMD Radeon RX 6800, R9 5900X	200 fps +85%
AMD Radeon RX 6800 XT, R9 5950X	193 fps +79%
AMD Radeon RX 6600 XT, R9 5900X	184 fps +70%
KFA2 GeForce RTX 3080 SG, R9 5900X	108 fps
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	97.4 fps -10%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	96.5 fps -11%
MSI GeForce RTX 3090 Suprim X, R9 5900X	95.3 fps -12%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	84.9 fps -21%
Siemens NX (snx-03)
AMD Radeon RX 6600 XT, R9 5900X	88.1 fps +235%
AMD Radeon RX 6700 XT, R9 5900X	87.8 fps +234%
AMD Radeon RX 6900 XT, R9 5950X	85.8 fps +226%
AMD Radeon RX 6800, R9 5900X	84.7 fps +222%
AMD Radeon RX 6800 XT, R9 5950X	81.4 fps +210%
MSI GeForce RTX 3090 Suprim X, R9 5900X	27.03 fps +3%
KFA2 GeForce RTX 3080 SG, R9 5900X	26.3 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	24.26 fps -8%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	23.25 fps -12%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	16.2 fps -38%
Showcase (showcase-02)
MSI GeForce RTX 3090 Suprim X, R9 5900X	241 fps +6%
AMD Radeon RX 6900 XT, R9 5950X	241 fps +6%
AMD Radeon RX 6800 XT, R9 5950X	232 fps +2%
KFA2 GeForce RTX 3080 SG, R9 5900X	228 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	204 fps -11%
AMD Radeon RX 6800, R9 5900X	194 fps -15%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	158 fps -31%
AMD Radeon RX 6700 XT, R9 5900X	150 fps -34%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	115 fps -50%
AMD Radeon RX 6600 XT, R9 5900X	111 fps -51%
Medical (medical-02)
AMD Radeon RX 6900 XT, R9 5950X	148 fps +45%
AMD Radeon RX 6800 XT, R9 5950X	130 fps +27%
AMD Radeon RX 6800, R9 5900X	113 fps +11%
MSI GeForce RTX 3090 Suprim X, R9 5900X	105 fps +3%
AMD Radeon RX 6700 XT, R9 5900X	104 fps +2%
KFA2 GeForce RTX 3080 SG, R9 5900X	102 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	99 fps -3%
AMD Radeon RX 6600 XT, R9 5900X	89.6 fps -12%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	81.4 fps -20%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	55 fps -46%
Maya (maya-05)
MSI GeForce RTX 3090 Suprim X, R9 5900X	469 fps +2%
KFA2 GeForce RTX 3080 SG, R9 5900X	460 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	440 fps -4%
AMD Radeon RX 6900 XT, R9 5950X	395 fps -14%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	363 fps -21%
AMD Radeon RX 6800, R9 5900X	356 fps -23%
AMD Radeon RX 6800 XT, R9 5950X	348 fps -24%
AMD Radeon RX 6700 XT, R9 5900X	325 fps -29%
AMD Radeon RX 6600 XT, R9 5900X	283 fps -38%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	261 fps -43%
Energy (energy-02)
AMD Radeon RX 6900 XT, R9 5950X	60.6 fps +61%
AMD Radeon RX 6800 XT, R9 5950X	58.4 fps +55%
AMD Radeon RX 6800, R9 5900X	49.7 fps +32%
MSI GeForce RTX 3090 Suprim X, R9 5900X	45.21 fps +20%
AMD Radeon RX 6700 XT, R9 5900X	40 fps +6%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	37.87 fps +1%
KFA2 GeForce RTX 3080 SG, R9 5900X	37.6 fps
AMD Radeon RX 6600 XT, R9 5900X	29.8 fps -21%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	28.83 fps -23%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	13.6 fps -64%
Creo (creo-02)
KFA2 GeForce RTX 3080 SG, R9 5900X	324 fps
MSI GeForce RTX 3090 Suprim X, R9 5900X	316 fps -2%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	295 fps -9%
AMD Radeon RX 6900 XT, R9 5950X	292 fps -10%
AMD Radeon RX 6800 XT, R9 5950X	276 fps -15%
AMD Radeon RX 6800, R9 5900X	269 fps -17%
AMD Radeon RX 6700 XT, R9 5900X	248 fps -23%
AMD Radeon RX 6600 XT, R9 5900X	242 fps -25%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	240 fps -26%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	181 fps -44%
Catia (catia-05)
AMD Radeon RX 6900 XT, R9 5950X	468 fps +127%
AMD Radeon RX 6800, R9 5900X	420 fps +104%
AMD Radeon RX 6800 XT, R9 5950X	412 fps +100%
AMD Radeon RX 6700 XT, R9 5900X	398 fps +93%
AMD Radeon RX 6600 XT, R9 5900X	353 fps +71%
MSI GeForce RTX 3090 Suprim X, R9 5900X	206 fps 0%
KFA2 GeForce RTX 3080 SG, R9 5900X	206 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	190 fps -8%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	176 fps -15%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	109 fps -47%
3ds Max (3dsmax-06)
KFA2 GeForce RTX 3080 SG, R9 5900X	334 fps
AMD Radeon RX 6900 XT, R9 5950X	317 fps -5%
AMD Radeon RX 6800, R9 5900X	309 fps -7%
MSI GeForce RTX 3090 Suprim X, R9 5900X	298 fps -11%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	294 fps -12%
AMD Radeon RX 6800 XT, R9 5950X	284 fps -15%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	269 fps -19%
AMD Radeon RX 6700 XT, R9 5900X	265 fps -21%
AMD Radeon RX 6600 XT, R9 5900X	237 fps -29%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	215 fps -36%

SPECviewperf 12
1900x1060 Solidworks (sw-03)
AMD Radeon RX 6900 XT, R9 5950X	167 fps +126%
AMD Radeon RX 6700 XT, R9 5900X	163 fps +121%
AMD Radeon RX 6800 XT, R9 5950X	150 fps +103%
AMD Radeon RX 6800, R9 5900X	149 fps +102%
AMD Radeon RX 6600 XT, R9 5900X	145 fps +96%
KFA2 GeForce RTX 3080 SG, R9 5900X	73.8 fps
MSI GeForce RTX 3090 Suprim X, R9 5900X	72.3 fps -2%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	69.9 fps -5%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	66 fps -11%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	56.1 fps -24%
1900x1060 Siemens NX (snx-02)
AMD Radeon RX 6700 XT, R9 5900X	49.6 fps +313%
AMD Radeon RX 6600 XT, R9 5900X	48.8 fps +307%
AMD Radeon RX 6900 XT, R9 5950X	47.7 fps +298%
AMD Radeon RX 6800, R9 5900X	46.2 fps +285%
AMD Radeon RX 6800 XT, R9 5950X	45.07 fps +276%
MSI GeForce RTX 3090 Suprim X, R9 5900X	14.91 fps +24%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	12.85 fps +7%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	12.82 fps +7%
KFA2 GeForce RTX 3080 SG, R9 5900X	12 fps
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	8.98 fps -25%
1900x1060 Showcase (showcase-01)
AMD Radeon RX 6900 XT, R9 5950X	241 fps +7%
MSI GeForce RTX 3090 Suprim X, R9 5900X	236 fps +4%
KFA2 GeForce RTX 3080 SG, R9 5900X	226 fps
AMD Radeon RX 6800 XT, R9 5950X	223 fps -1%
AMD Radeon RX 6800, R9 5900X	194 fps -14%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	180 fps -20%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	155 fps -31%
AMD Radeon RX 6700 XT, R9 5900X	150 fps -34%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	114 fps -50%
AMD Radeon RX 6600 XT, R9 5900X	111 fps -51%
1900x1060 Medical (medical-01)
AMD Radeon RX 6900 XT, R9 5950X	88.4 fps +119%
AMD Radeon RX 6800 XT, R9 5950X	77.3 fps +92%
AMD Radeon RX 6700 XT, R9 5900X	66.3 fps +65%
AMD Radeon RX 6800, R9 5900X	58.1 fps +44%
AMD Radeon RX 6600 XT, R9 5900X	54.9 fps +36%
MSI GeForce RTX 3090 Suprim X, R9 5900X	42.91 fps +6%
KFA2 GeForce RTX 3080 SG, R9 5900X	40.3 fps
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	38.26 fps -5%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	36.93 fps -8%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	36.5 fps -9%
1900x1060 Maya (maya-04)
MSI GeForce RTX 3090 Suprim X, R9 5900X	184 fps +32%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	173 fps +24%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	166 fps +19%
AMD Radeon RX 6900 XT, R9 5950X	151 fps +9%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	146 fps +5%
AMD Radeon RX 6700 XT, R9 5900X	145 fps +4%
KFA2 GeForce RTX 3080 SG, R9 5900X	139 fps
AMD Radeon RX 6600 XT, R9 5900X	124 fps -11%
AMD Radeon RX 6800, R9 5900X	124 fps -11%
AMD Radeon RX 6800 XT, R9 5950X	118 fps -15%
1900x1060 Energy (energy-01)
AMD Radeon RX 6900 XT, R9 5950X	30.8 fps +79%
AMD Radeon RX 6800 XT, R9 5950X	28.39 fps +65%
AMD Radeon RX 6800, R9 5900X	23.9 fps +39%
MSI GeForce RTX 3090 Suprim X, R9 5900X	20.41 fps +19%
AMD Radeon RX 6700 XT, R9 5900X	18.8 fps +9%
KFA2 GeForce RTX 3080 SG, R9 5900X	17.2 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	16.35 fps -5%
AMD Radeon RX 6600 XT, R9 5900X	14.7 fps -15%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	12.42 fps -28%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	9.89 fps -42%
1900x1060 Creo (creo-01)
AMD Radeon RX 6900 XT, R9 5950X	127 fps +71%
AMD Radeon RX 6700 XT, R9 5900X	120 fps +61%
AMD Radeon RX 6800, R9 5900X	120 fps +61%
AMD Radeon RX 6800 XT, R9 5950X	119 fps +60%
AMD Radeon RX 6600 XT, R9 5900X	111 fps +49%
MSI GeForce RTX 3090 Suprim X, R9 5900X	75.4 fps +1%
KFA2 GeForce RTX 3080 SG, R9 5900X	74.4 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	65.6 fps -12%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	59.8 fps -20%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	52.4 fps -30%
1900x1060 Catia (catia-04)
AMD Radeon RX 6900 XT, R9 5950X	292 fps +269%
AMD Radeon RX 6700 XT, R9 5900X	259 fps +227%
AMD Radeon RX 6800, R9 5900X	242 fps +206%
AMD Radeon RX 6800 XT, R9 5950X	238 fps +201%
AMD Radeon RX 6600 XT, R9 5900X	218 fps +176%
MSI GeForce RTX 3090 Suprim X, R9 5900X	134 fps +69%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	116 fps +47%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	112 fps +42%
KFA2 GeForce RTX 3080 SG, R9 5900X	79.1 fps
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	73.9 fps -7%
1900x1060 3ds Max (3dsmax-05)
KFA2 GeForce RTX 3080 SG, R9 5900X	334 fps
MSI GeForce RTX 3090 Suprim X, R9 5900X	322 fps -4%
AMD Radeon RX 6900 XT, R9 5950X	318 fps -5%
AMD Radeon RX 6800, R9 5900X	283 fps -15%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	276 fps -17%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	265 fps -21%
AMD Radeon RX 6700 XT, R9 5900X	253 fps -24%
AMD Radeon RX 6600 XT, R9 5900X	236 fps -29%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	217 fps -35%
AMD Radeon RX 6800 XT, R9 5950X	167 fps -50%

SPECviewperf 2020
3840x2160 Solidworks (solidworks-05)
MSI GeForce RTX 3090 Suprim X, R9 5900X	180 fps +3%
KFA2 GeForce RTX 3080 SG, R9 5900X	175 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	158 fps -10%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	124 fps -29%
AMD Radeon RX 6900 XT, R9 5950X	112 fps -36%
AMD Radeon RX 6800 XT, R9 5950X	108 fps -38%
AMD Radeon RX 6800, R9 5900X	97.5 fps -44%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	81.6 fps -53%
AMD Radeon RX 6700 XT, R9 5900X	80.2 fps -54%
AMD Radeon RX 6600 XT, R9 5900X	58.7 fps -66%
3840x2160 Siemens NX (snx-04)
AMD Radeon RX 6900 XT, R9 5950X	85 fps +290%
AMD Radeon RX 6700 XT, R9 5900X	85 fps +290%
AMD Radeon RX 6800 XT, R9 5950X	81.7 fps +275%
AMD Radeon RX 6600 XT, R9 5900X	81 fps +272%
AMD Radeon RX 6800, R9 5900X	81 fps +272%
MSI GeForce RTX 3090 Suprim X, R9 5900X	22.6 fps +4%
KFA2 GeForce RTX 3080 SG, R9 5900X	21.8 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	19.8 fps -9%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	19.15 fps -12%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	12.5 fps -43%
3840x2160 Medical (medical-03)
AMD Radeon RX 6900 XT, R9 5950X	30.4 fps +62%
AMD Radeon RX 6800 XT, R9 5950X	27.84 fps +48%
AMD Radeon RX 6800, R9 5900X	24.1 fps +28%
MSI GeForce RTX 3090 Suprim X, R9 5900X	21.19 fps +13%
AMD Radeon RX 6700 XT, R9 5900X	18.8 fps 0%
KFA2 GeForce RTX 3080 SG, R9 5900X	18.8 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	18.47 fps -2%
AMD Radeon RX 6600 XT, R9 5900X	15.9 fps -15%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	13.74 fps -27%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	8.57 fps -54%
3840x2160 Maya (maya-06)
MSI GeForce RTX 3090 Suprim X, R9 5900X	330 fps +5%
KFA2 GeForce RTX 3080 SG, R9 5900X	314 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	293 fps -7%
AMD Radeon RX 6900 XT, R9 5950X	266 fps -15%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	249 fps -21%
AMD Radeon RX 6800, R9 5900X	233 fps -26%
AMD Radeon RX 6800 XT, R9 5950X	224 fps -29%
AMD Radeon RX 6700 XT, R9 5900X	193 fps -39%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	162 fps -48%
AMD Radeon RX 6600 XT, R9 5900X	138 fps -56%
3840x2160 Energy (energy-03)
AMD Radeon RX 6800, R9 5900X	84.1 fps +126%
MSI GeForce RTX 3090 Suprim X, R9 5900X	61.1 fps +64%
AMD Radeon RX 6800 XT, R9 5950X	60.8 fps +63%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	51.7 fps +39%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	37.99 fps +2%
KFA2 GeForce RTX 3080 SG, R9 5900X	37.2 fps
AMD Radeon RX 6900 XT, R9 5950X	32.6 fps -12%
AMD Radeon RX 6700 XT, R9 5900X	25.7 fps -31%
AMD Radeon RX 6600 XT, R9 5900X	21.2 fps -43%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	15.2 fps -59%
3840x2160 Creo (creo-03)
KFA2 GeForce RTX 3080 SG, R9 5900X	90 fps
MSI GeForce RTX 3090 Suprim X, R9 5900X	85.1 fps -5%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	78.1 fps -13%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	77.6 fps -14%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	67.7 fps -25%
AMD Radeon RX 6800, R9 5900X	66.5 fps -26%
AMD Radeon RX 6900 XT, R9 5950X	65.4 fps -27%
AMD Radeon RX 6800 XT, R9 5950X	65 fps -28%
AMD Radeon RX 6700 XT, R9 5900X	61.1 fps -32%
AMD Radeon RX 6600 XT, R9 5900X	59.6 fps -34%
3840x2160 CATIA (catia-06)
MSI GeForce RTX 3090 Suprim X, R9 5900X	56.6 fps +5%
KFA2 GeForce RTX 3080 SG, R9 5900X	53.7 fps
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	50 fps -7%
AMD Radeon RX 6800, R9 5900X	45.3 fps -16%
AMD Radeon RX 6900 XT, R9 5950X	44.6 fps -17%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	43.15 fps -20%
AMD Radeon RX 6800 XT, R9 5950X	42.4 fps -21%
AMD Radeon RX 6700 XT, R9 5900X	39 fps -27%
AMD Radeon RX 6600 XT, R9 5900X	32.1 fps -40%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	28.6 fps -47%
3840x2160 3ds Max (3dsmax-07)
MSI GeForce RTX 3090 Suprim X, R9 5900X	135 fps +5%
KFA2 GeForce RTX 3080 SG, R9 5900X	128 fps
AMD Radeon RX 6900 XT, R9 5950X	121 fps -5%
AMD Radeon RX 6800 XT, R9 5950X	114 fps -11%
MSI GeForce RTX 3080 Gaming X Trio, R9 5900X	100 fps -22%
AMD Radeon RX 6800, R9 5900X	95.5 fps -25%
MSI GeForce RTX 3070 Ventus 3X, R9 5900X	84 fps -34%
AMD Radeon RX 6700 XT, R9 5900X	82.2 fps -36%
Inno3D GeForce RTX 3060 Twin X2, R9 5900X	65.7 fps -49%
AMD Radeon RX 6600 XT, R9 5900X	53.6 fps -58%

KFA2 GeForce RTX 3080 SG 12 GB Emissies

KFA2 GeForce RTX 3080 SG 12GB stresstest

De uitstoot is over het algemeen een gemengd beeld. Aan de ene kant is de koeler van de KFA2 goed gemaakt en wist hij de GeForce RTX 3080 GPU betrouwbaar en stil koel te houden. In feite konden we de ventilatoren nauwelijks horen vanuit een gesloten behuizing. Bij 1.920 rpm weten de drie 92 mm ventilatoren genoeg lucht door de koelribben te verplaatsen om de GA102 chip op 75 °C te houden en het VRAM op een iets hogere 86 °C onder belasting. Aan de andere kant was het stroomverbruik van de grafische kaart onder belasting immens. Het piekte op maar liefst 350 W, wat vergelijkbaar is met dat van een Nvidia GeForce RTX 3090 FE. De MSI GeForce RTX 3090 Suprim X wist dat te overtreffen en vereiste een nog hogere 420 W. Tijdens het gamen noteerden we een gemiddeld stroomverbruik van 518 W.

Merk op dat de KFA2 een extra optionele 80 mm ventilator bevat, die aan de bovenkant van de kaart kan worden gemonteerd om extra koeling te bieden voor de heat pipes langs de achterkant van de kaart. Als u ervoor kiest deze ventilator te installeren, moet u ervoor zorgen dat er voldoende ruimte is tussen de GPU en de RAM-sleuven. Ons specifieke testsysteem was niet compatibel met deze opstelling, en we konden de optionele ventilator dan ook niet monteren.

Stroomverbruik gehele systeem (ruststand)

Stroomverbruik gehele systeem (FurMark PT 100 %)

Stroomverbruik gehele systeem (De Witcher 3 Ultra)

Power Consumption: 1920x1080 The Witcher 3 ultra (external Monitor) | 1280x720 FurMark 1.19 GPU Stress Test (external Monitor)

Power Consumption / The Witcher 3 ultra (external Monitor)
MSI GeForce RTX 3090 Suprim X NVIDIA GeForce RTX 3090, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 105.9 W)	597 (577^min - 618^max) Watt * -15%
KFA2 GeForce RTX 3080 SG NVIDIA GeForce RTX 3080 12 GB, R9 5900X, Corsair MP600	518 (509^min, 510^P1 - 539^max) Watt *
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5 (Idle: 99.5 W)	505 (389^min - 543^max) Watt * +3%
MSI GeForce RTX 3080 Gaming X Trio NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 103 W)	498.3 (487^min - 523^max) Watt * +4%
AMD Radeon RX 6900 XT Radeon RX 6900 XT, R9 5950X (Idle: 99.15 W)	488.3 (459.99^min - 512.79^max) Watt * +6%
AMD Radeon RX 6800 Radeon RX 6800, R9 5900X, Corsair MP600 (Idle: 81.4 W)	383 (372^min, 376^P1 - 389^max) Watt * +26%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600 (Idle: 77.1 W)	369 (355^min - 377^max) Watt * +29%
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 91.46 W)	316.5 (309^min - 329^max) Watt * +39%
Inno3D GeForce RTX 3060 Twin X2 NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600 (Idle: 72 W)	307.5 (300^min - 328^max) Watt * +41%
AMD Radeon RX 6600 XT Radeon RX 6600 XT, R9 5900X, Corsair MP600 (Idle: 52 W)	299 (291^min, 295^P1 - 331^max) Watt * +42%

Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor)
MSI GeForce RTX 3090 Suprim X NVIDIA GeForce RTX 3090, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 105.9 W)	551 (521^min - 582^max) Watt * -13%
MSI GeForce RTX 3080 Gaming X Trio NVIDIA GeForce RTX 3080, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 103 W)	492 (485^min - 514^max) Watt * -1%
KFA2 GeForce RTX 3080 SG NVIDIA GeForce RTX 3080 12 GB, R9 5900X, Corsair MP600	487 (475^min, 477^P1 - 501^max) Watt *
AMD Radeon RX 6900 XT Radeon RX 6900 XT, R9 5950X (Idle: 99.15 W)	456.8 (378.13^min - 484.67^max) Watt * +6%
AMD Radeon RX 6800 XT Radeon RX 6800 XT, R9 5950X, Intel Optane 905P 480GB 2.5 (Idle: 99.5 W)	447.9 (413^min - 484^max) Watt * +8%
AMD Radeon RX 6800 Radeon RX 6800, R9 5900X, Corsair MP600 (Idle: 81.4 W)	363 (337^min, 347^P1 - 379^max) Watt * +25%
MSI GeForce RTX 3070 Ventus 3X NVIDIA GeForce RTX 3070, R9 5900X, Intel Optane 905P 480GB 2.5 (Idle: 91.46 W)	336.6 (330^min - 365^max) Watt * +31%
AMD Radeon RX 6700 XT Radeon RX 6700 XT, R9 5900X, Corsair MP600 (Idle: 77.1 W)	335.2 (317^min - 376^max) Watt * +31%
Inno3D GeForce RTX 3060 Twin X2 NVIDIA GeForce RTX 3060, R9 5900X, Corsair MP600 (Idle: 72 W)	302.1 (297^min - 322^max) Watt * +38%
AMD Radeon RX 6600 XT Radeon RX 6600 XT, R9 5900X, Corsair MP600 (Idle: 52 W)	281 (257^min, 274^P1 - 319^max) Watt * +42%

* ... kleiner is beter

Stroomgebruik

Inactief	77 / 88 / 106 Watt
Belasting	486 / 501 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Power Consumption (computer without display)

KFA2 GeForce RTX 3080 SG; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø487 (475-501)

KFA2 GeForce RTX 3080 SG; 1920x1080 The Witcher 3 ultra (external Monitor): Ø518 (509-539)

KFA2 GeForce RTX 3080 SG; Idle 1min (external Monitor): Ø88.3 (77.7-106.9)

Pro

+ zeer goede prestaties

+ 4K gaming-compatibel

+ krachtige koeler

+ relatief stil onder belasting

+ Raytracing + DLSS

+ ventilator stop modus

+ geweldige RGB-verlichting

+ optionele ventilator en steunbeugels inbegrepen

Contra

- zeer hoog stroomverbruik

- moederbord is mogelijk niet compatibel met geïnstalleerde extra ventilator

Verdict - Een betere Nvidia GeForce RTX 3080

In review: KFA2 GeForce RTX 3080 SG 12GB. Review unit ter beschikking gesteld door KFA2

De Nvidia GeForce RTX 3080 12 GB is de RTX 3080-chip waar velen om hebben gevraagd sinds de chip voor het eerst werd geïntroduceerd, en het kostte Nvidia 1,5 jaar om te luisteren en te beseffen dat er in feite een markt was voor een 12 GB-variant van zijn RTX 3080. Alleen de tijd zal leren of het al dan niet te laat kwam, gezien het feit dat de volgende generatie GPU's, de RTX 4000-serie, naar verluidt klaar is om binnenkort te lanceren. Dienovereenkomstig zijn de huidige high-end GPU's een harde verkoop, vooral omdat de meeste gamers die een RTX 3000-serie GPU wilden er al een hebben gekocht en upgrades binnen de 3000-serie niet per se aan te raden en de moeite waard zijn.

De KFA2 GeForce RTX 3080 SG 12 GB presteerde over het algemeen erg goed in onze benchmarks. Dit gold echter alleen voor zijn ruwe prestaties. Hij presteerde consistent beter dan een gewone GeForce RTX 3080 en presteerde iets slechter dan een GeForce RTX 3090.

Het stroomverbruik daarentegen was enorm. We moeten echter opmerken dat dit niet de schuld is van KFA2, aangezien andere bord partners vergelijkbare ontwerpen zullen produceren met identiek stroomverbruik. De koeler van de grafische kaart beviel ons goed, hoewel u er rekening mee moet houden dat dit ontwerp met drie sleuven een aanzienlijke hoeveelheid ruimte in beslag neemt en mogelijk niet compatibel is met uw moederbord.

De KFA2 GeForce RTX 3080 SG 12 GB is een betere GeForce RTX 3080 en beschikt over betrouwbare koeling en geweldige RGB-verlichting.

Als je in de markt bent voor een nieuwe GPU is de KFA2 GeForce RTX 3080 SG 12 GB misschien de moeite waard om eens nader te bekijken, omdat het de betere keuze is dan de gewone RTX 3080 dankzij de 12 GB aan VRAM. Prijzen beginnen rond de $1,200 op dit moment, en vergelijkbare kaarten gemaakt door Gigabyte,Zotac,Asus, of MSI zijn niet goedkoper.

Meer benchmarks en testresultaten voor de RTX 3080 12 GB zijn te vinden op onze GeForce RTX 3080 12 GB pagina.

Editor of the original article: Finn D Boerne - Translator - 450 articles published on Notebookcheck since 2017

Translator: Ninh Ngoc Duy - Editorial Assistant - 389263 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > KFA2 GeForce RTX 3080 SG 12GB Desktop Grafische Kaart Review: Een betere RTX 3080 dankzij meer VRAM en meer Shaders?

Sebastian Bade, 2022-06-16 (Update: 2022-06-16)
