Sneak Peek Acer Swift 5: Tiger Lake iGPU bedreigt Entry-Level GeForce

Veegt de Iris Graphics Xe de vloer met MX350 en Vega 7? Ondanks de beperkte koelmogelijkheden in een slechts 15 mm dunne behuizing lijkt Acer's Swift 5 met Intel's nieuwste Tiger Lake-CPU een enorme sprong voorwaarts in vergelijking met de Intel-processors van de 10e generatie. Nog belangrijker is dat de GPU-prestaties in een heel andere klasse lijken te liggen. Laptops met speciale GPU's op instapniveau zullen hier rekening mee moeten houden.
Sebastian Jentsch, 👁 Sebastian Jentsch,
Acer SF514-55T (Swift 5 Serie)
Processor
Intel Core i7-1165G7 4 x 2.8 - 4.7 GHz, Tiger Lake UP3
Grafische kaart
Intel Iris Xe Graphics G7 96EUs, Core: 400 MHz, Geheugen: 1600 MHz, DDR4, 27.20.100.8439
Geheugen
16384 MB
, Dual Channel
Beeldscherm
14 inch 16:9, 1920 x 1080 pixel 157 PPI, AUO B140HAN06.D, IPS, glimmend: ja, 60 Hz
Moederbord
Intel Tiger Lake-UP3 PCH-LP
Opslag
SK Hynix BC511 HFM512GDJTNI, 512 GB
, 385 GB beschikbaar
Geluidskaart
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Verbindingen

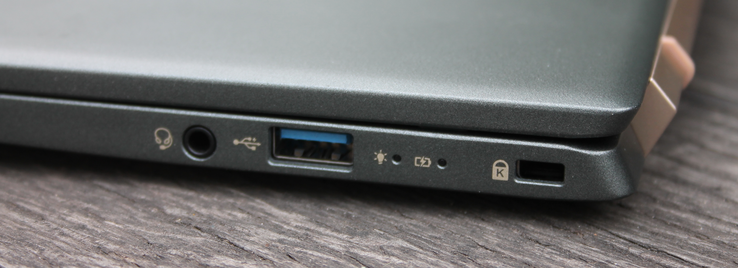

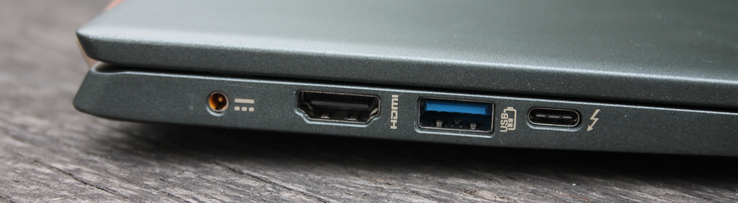

2 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 Kensington Lock, Audio Verbindingen: combo-audio, 1 Vingerafdruklezer
Netwerkmogelijkheden
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Afmetingen
hoogte x breedte x diepte (in mm): 14.95 x 319 x 208
Batterij
56 Wh Lithium-Ion
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Bijkomende functionaliteiten
Luidsprekers: Stereo, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 24 Maanden Garantie
Gewicht
1.029 kg
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

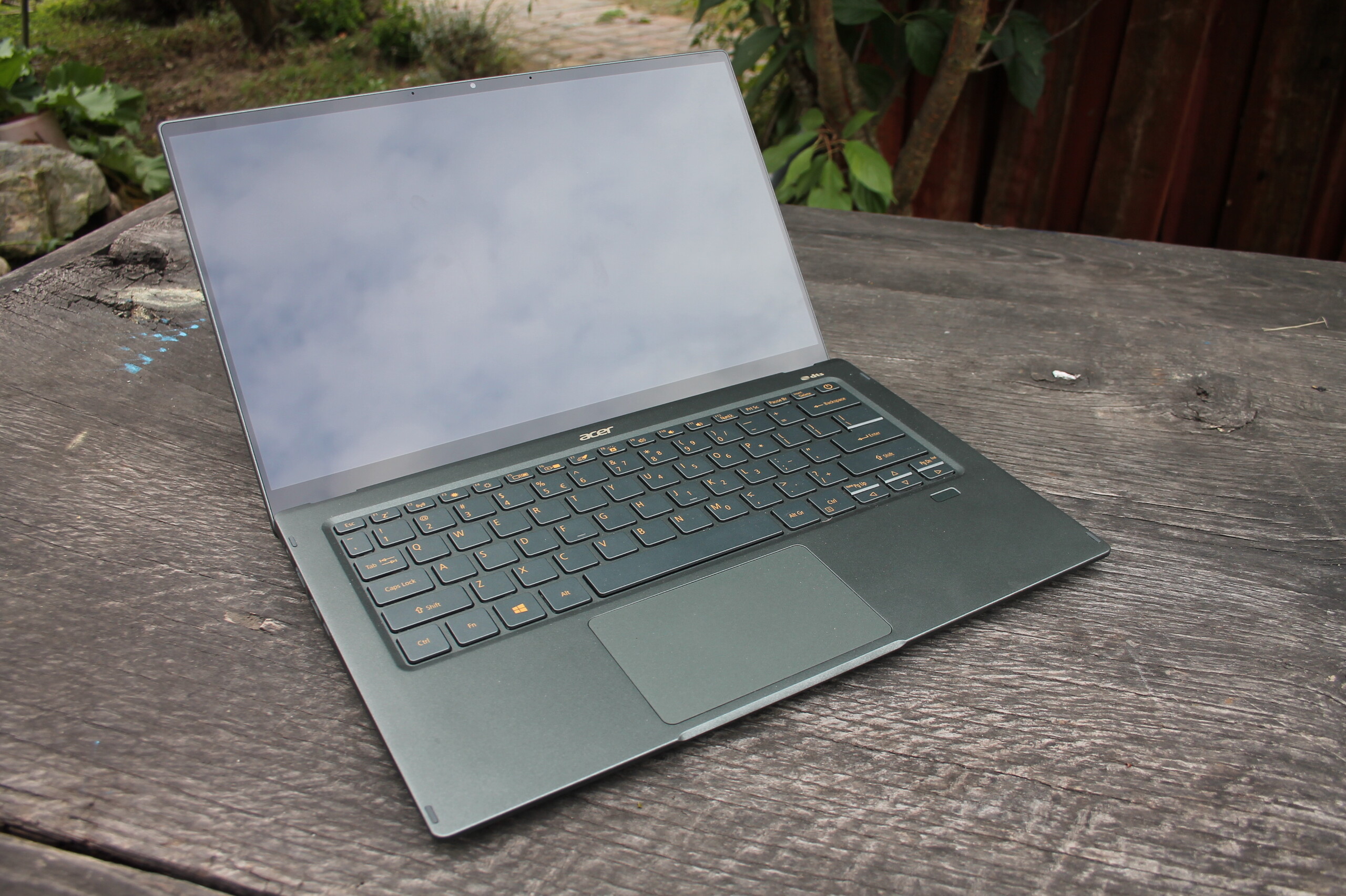

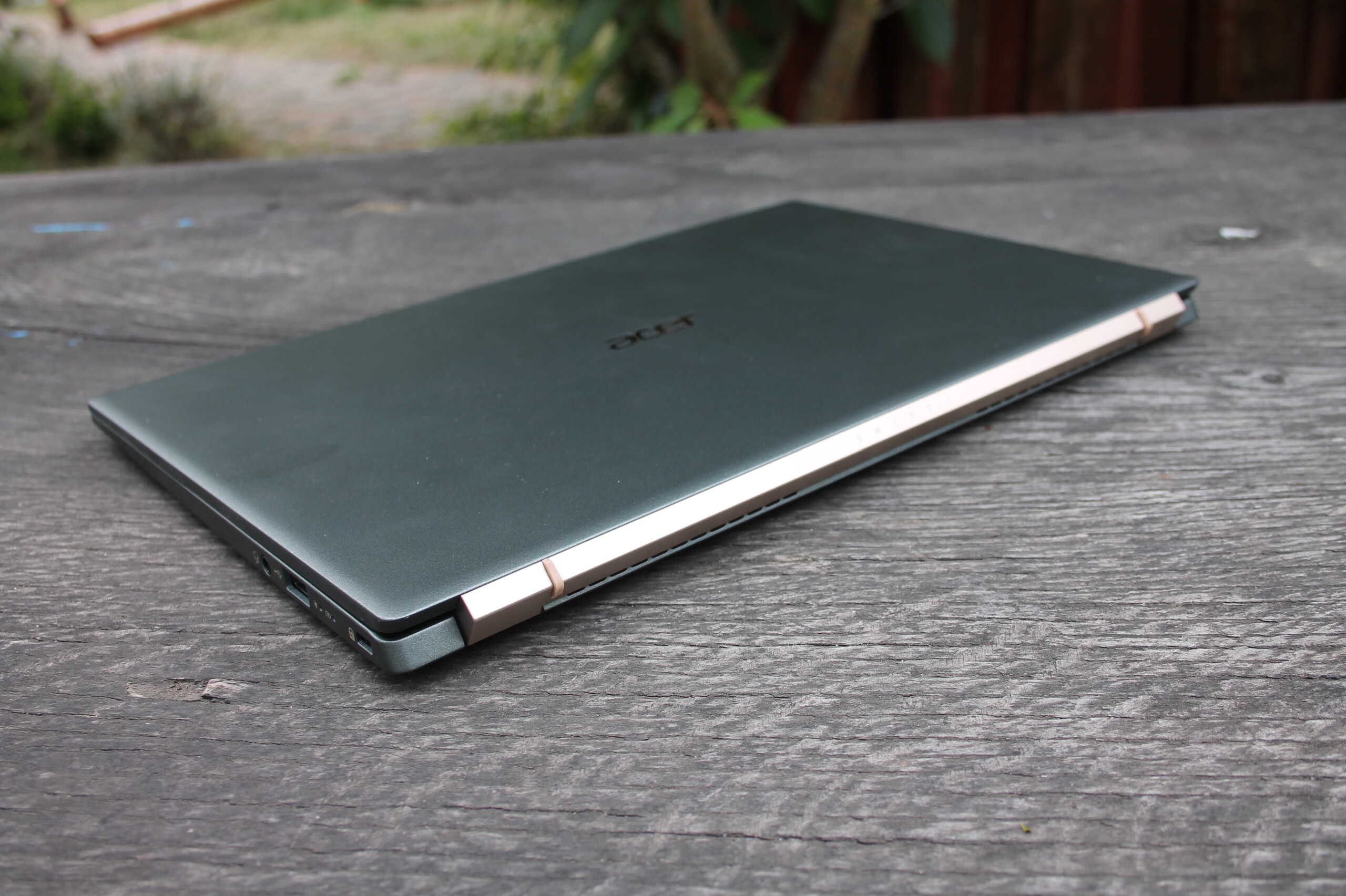

Acer Swift 5
Acer Swift 5
Acer Swift 5
Acer Swift 5
Acer Swift 5

Formaat Vergelijking

323 mm 211 mm 18 mm 994 g323.4 mm 218.9 mm 16.55 mm 1.2 kg323.5 mm 217.1 mm 14.9 mm 1.1 kg320 mm 203 mm 14.9 mm 995 g319 mm 199 mm 15.9 mm 1.2 kg319 mm 208 mm 14.95 mm 1 kg318.7 mm 210.5 mm 14.95 mm 943 g

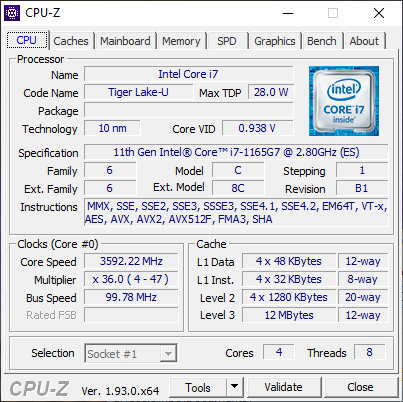

cpu-z: CPU
cpu-z: CPU

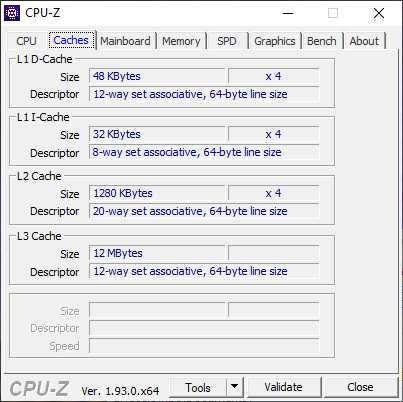

cpu-z: Cache
cpu-z: Cache

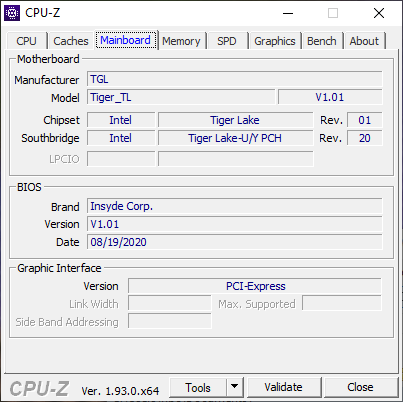

cpu-z: Mainboard
cpu-z: Mainboard

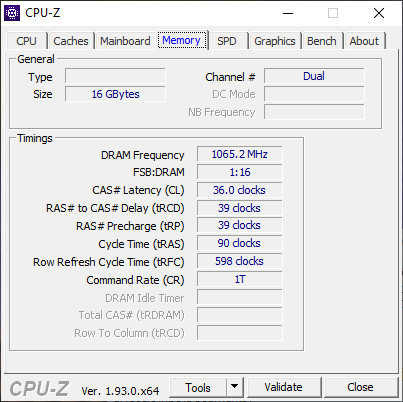

cpu-z: Memory
cpu-z: Memory

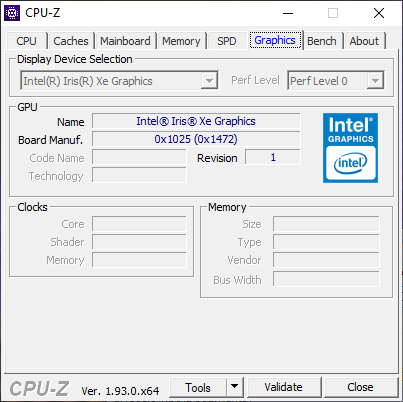

cpu-z: Graphics
cpu-z: Graphics

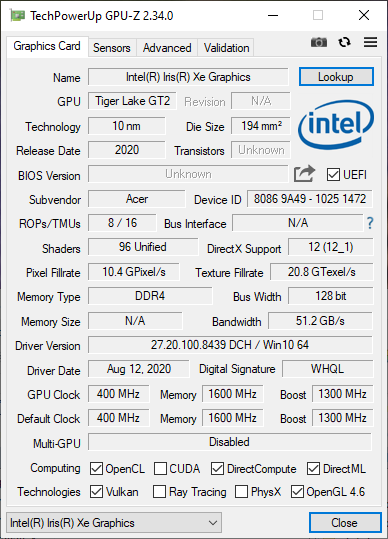

gpu-z
gpu-z

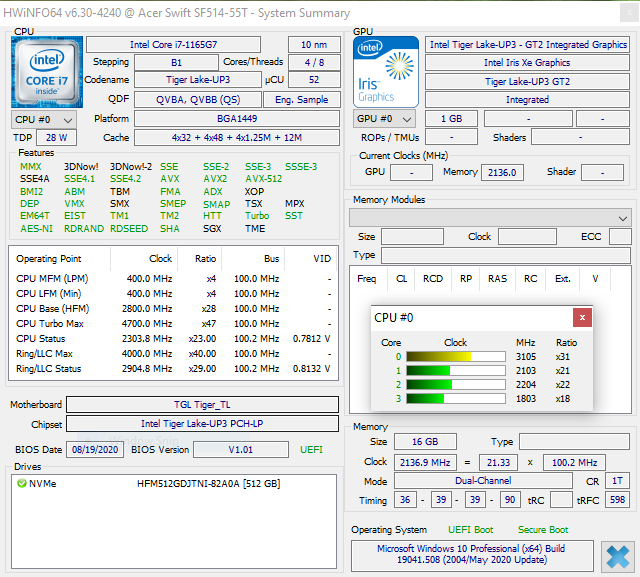

Hwinfo Summary
Hwinfo Summary

010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040Tooltip
Acer SF514-55T Intel Core i7-1165G7, Intel Core i7-1165G7: Ø679 (635.98-959.46)
Intel Reference Design Laptop 28W Intel Core i7-1185G7, Intel Core i7-1185G7: Ø853 (754.55-866.1)
Acer Swift 5 SF514-54T-501U Intel Core i5-1035G1, Intel Core i5-1035G1: Ø494 (437.21-504.69)
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00 Intel Core i7-10510U, Intel Core i7-10510U: Ø594 (493.81-731.25)
LG Gram 14Z90N Intel Core i7-1065G7, Intel Core i7-1065G7: Ø453 (446.17-494.8)
Asus Zenbook 14 UX433FN-A6023T Intel Core i7-8565U, Intel Core i7-8565U: Ø456 (442.93-580.91)
Asus ExpertBook B9450FA, i7-10510U Intel Core i7-10510U, Intel Core i7-10510U: Ø444 (412-561)
Acer Swift 3 SF314-42-R4XJ AMD Ryzen 7 4700U, AMD Ryzen 7 4700U: Ø932 (907.83-1035.01)
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.1 / 5.2: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Single Core) - CPU (Single Core)
Acer SF514-55T
Intel Core i7-1165G7
583 Points ∼100%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
580 Points ∼99% -1%
Average Intel Core i7-1165G7
  (480 - 583, n=4)
543 Points ∼93% -7%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
466 Points ∼80% -20%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
441 Points ∼76% -24%
Asus Zenbook 14 UX433FN-A6023T
Intel Core i7-8565U
365 Points ∼63% -37%
Average of class Subnotebook
  (73 - 583, n=68)
363 Points ∼62% -38%
LG Gram 14Z90N
Intel Core i7-1065G7
358 Points ∼61% -39%
Cinebench R20 / CPU (Multi Core) - CPU (Multi Core)
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
2401 Points ∼100% +14%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
2214 Points ∼92% +5%
Acer SF514-55T
Intel Core i7-1165G7
2108 Points ∼88%
Average Intel Core i7-1165G7
  (1285 - 2530, n=4)
1913 Points ∼80% -9%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
1428 Points ∼59% -32%
Average of class Subnotebook
  (110 - 2935, n=69)
1230 Points ∼51% -42%
Asus Zenbook 14 UX433FN-A6023T
Intel Core i7-8565U
1176 Points ∼49% -44%
LG Gram 14Z90N
Intel Core i7-1065G7
1081 Points ∼45% -49%
Cinebench R15 / CPU Single 64Bit - CPU Single 64Bit
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
224 Points ∼100% +7%
Average Intel Core i7-1165G7
  (210 - 220, n=4)
214 Points ∼96% +2%
Acer SF514-55T
Intel Core i7-1165G7
210 Points ∼94%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
183 Points ∼82% -13%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
180 Points ∼80% -14%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
170 Points ∼76% -19%
LG Gram 14Z90N
Intel Core i7-1065G7
166 Points ∼74% -21%
Asus Zenbook 14 UX433FN-A6023T
Intel Core i7-8565U
153 Points ∼68% -27%
Asus ExpertBook B9450FA, i7-10510U
Intel Core i7-10510U
141 Points ∼63% -33%
Average of class Subnotebook
  (20 - 210, n=327)
121 Points ∼54% -42%
Cinebench R15 / CPU Multi 64Bit - CPU Multi 64Bit
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
1035 Points ∼100% +49%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
966 Points ∼93% +39%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
866 (754.55min - 866.1max) Points ∼84% +24%
Average Intel Core i7-1165G7
  (606 - 1020, n=6)
782 Points ∼76% +12%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
731 Points ∼71% +5%
Acer SF514-55T
Intel Core i7-1165G7
696 (672.4min - 695.53max) Points ∼67%
Asus Zenbook 14 UX433FN-A6023T
Intel Core i7-8565U
581 Points ∼56% -17%
Asus ExpertBook B9450FA, i7-10510U
Intel Core i7-10510U
561 Points ∼54% -19%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
518 Points ∼50% -26%
LG Gram 14Z90N
Intel Core i7-1065G7
495 (446.17min - 494.8max) Points ∼48% -29%
Average of class Subnotebook
  (32 - 1287, n=342)
385 Points ∼37% -45%
Blender 2.79 / BMW27 CPU - BMW27 CPU
Average of class Subnotebook
  (4.2 - 6277, n=60)
1239 Seconds * ∼100% -88%
LG Gram 14Z90N
Intel Core i7-1065G7
1023 Seconds * ∼83% -55%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
912.4 Seconds * ∼74% -38%
Average Intel Core i7-1165G7
  (660 - 958, n=3)
771 Seconds * ∼62% -17%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
769 Seconds * ∼62% -17%
Acer SF514-55T
Intel Core i7-1165G7
660 Seconds * ∼53%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
545 Seconds * ∼44% +17%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
523.9 Seconds * ∼42% +21%
7-Zip 18.03 / 7z b 4 -mmt1 - 7z b 4 -mmt1
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
15198 MIPS ∼100% +185%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
5368 MIPS ∼35% +1%
Acer SF514-55T
Intel Core i7-1165G7
5326 MIPS ∼35%
Average Intel Core i7-1165G7
  (4651 - 5326, n=3)
5024 MIPS ∼33% -6%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4521 MIPS ∼30% -15%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
4292 MIPS ∼28% -19%
LG Gram 14Z90N
Intel Core i7-1065G7
4166 MIPS ∼27% -22%
Average of class Subnotebook
  (1653 - 15198, n=55)
4074 MIPS ∼27% -24%
7-Zip 18.03 / 7z b 4 - 7z b 4
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
26652 MIPS ∼100% +15%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
25086 MIPS ∼94% +9%
Acer SF514-55T
Intel Core i7-1165G7
23087 MIPS ∼87%
Average Intel Core i7-1165G7
  (15556 - 23087, n=3)
19893 MIPS ∼75% -14%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
18187 MIPS ∼68% -21%
Average of class Subnotebook
  (2692 - 37081, n=55)
15662 MIPS ∼59% -32%
LG Gram 14Z90N
Intel Core i7-1065G7
13432 MIPS ∼50% -42%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
3913 MIPS ∼15% -83%
Geekbench 5.1 / 5.2 / 64 Bit Single-Core Score - 64 Bit Single-Core Score
Acer SF514-55T
Intel Core i7-1165G7
1575 Points ∼100%
Average Intel Core i7-1165G7
  (1523 - 1575, n=4)
1559 Points ∼99% -1%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
1211 Points ∼77% -23%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
1101 Points ∼70% -30%
Average of class Subnotebook
  (310 - 1575, n=51)
987 Points ∼63% -37%
LG Gram 14Z90N
Intel Core i7-1065G7
948 Points ∼60% -40%
Geekbench 5.1 / 5.2 / 64 Bit Multi-Core Score - 64 Bit Multi-Core Score
Acer SF514-55T
Intel Core i7-1165G7
5926 Points ∼100%
Average Intel Core i7-1165G7
  (5441 - 5926, n=4)
5667 Points ∼96% -4%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
4792 Points ∼81% -19%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4122 Points ∼70% -30%
Average of class Subnotebook
  (591 - 5926, n=51)
3151 Points ∼53% -47%
LG Gram 14Z90N
Intel Core i7-1065G7
2464 Points ∼42% -58%
HWBOT x265 Benchmark v2.2 / 4k Preset - 4k Preset
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
7.81 fps ∼100% +40%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
6.46 fps ∼83% +16%
Acer SF514-55T
Intel Core i7-1165G7
5.58 fps ∼71%
Average Intel Core i7-1165G7
  (3.84 - 5.58, n=3)
4.92 fps ∼63% -12%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4.85 fps ∼62% -13%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
4.15 fps ∼53% -26%
Average of class Subnotebook
  (0.63 - 8.33, n=55)
4.02 fps ∼51% -28%
LG Gram 14Z90N
Intel Core i7-1065G7
3.67 fps ∼47% -34%
LibreOffice / 20 Documents To PDF - 20 Documents To PDF
Average of class Subnotebook
  (32.3 - 281, n=40)
84.4 s ∼100% +71%
LG Gram 14Z90N
Intel Core i7-1065G7
61.5 s ∼73% +24%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
59.83 s ∼71% +21%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
51.7 s ∼61% +5%
Average Intel Core i7-1165G7
  (47.9 - 56.7, n=3)
51.3 s ∼61% +4%
Acer SF514-55T
Intel Core i7-1165G7
49.4 s ∼59%
R Benchmark 2.5 / Overall mean - Overall mean
Average of class Subnotebook
  (0.554 - 2.43, n=45)
0.896 sec * ∼100% -62%
LG Gram 14Z90N
Intel Core i7-1065G7
0.761 sec * ∼85% -37%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
0.679 sec * ∼76% -23%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
0.629 sec * ∼70% -14%
Average Intel Core i7-1165G7
  (0.554 - 0.649, n=3)
0.599 sec * ∼67% -8%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
0.571 sec * ∼64% -3%
Acer SF514-55T
Intel Core i7-1165G7
0.554 sec * ∼62%

* ... kleiner is beter

Cinebench R10 Shading 64Bit
13142 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
40744 Points
Cinebench R10 Rendering Single CPUs 64Bit
11411 Points
Cinebench R10 Shading 32Bit
15497
Cinebench R10 Rendering Multiple CPUs 32Bit
28753
Cinebench R10 Rendering Single 32Bit
8894
Cinebench R11.5 CPU Multi 32Bit
8.82 Points
Cinebench R11.5 CPU Single 32Bit
2.27 Points
Cinebench R11.5 OpenGL 32Bit
68 fps
Cinebench R11.5 CPU Single 64Bit
2.49 Points
Cinebench R11.5 CPU Multi 64Bit
9.84 Points
Cinebench R11.5 OpenGL 64Bit
68.5 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
107 fps
Cinebench R15 CPU Multi 64Bit
696 Points
Cinebench R15 CPU Single 64Bit
210 Points
Help
PCMark 10
Digital Content Creation
Intel Reference Design Laptop 28W
Iris Xe G7 96EUs, i7-1185G7, Samsung PM981a MZVLB1T0HBLR
5075 Points ∼100% +4%
Acer SF514-55T
Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC511 HFM512GDJTNI
4891 Points ∼96%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
4709 Points ∼93% -4%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (4083 - 4891, n=3)
4479 Points ∼88% -8%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
3446 Points ∼68% -30%
LG Gram 14Z90N
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung SSD PM981 MZVLB256HAHQ
3285 Points ∼65% -33%
Asus Zenbook 14 UX433FN-A6023T
GeForce MX150, i7-8565U, Intel SSD 660p SSDPEKNW512G8
3194 Points ∼63% -35%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
3076 Points ∼61% -37%
Average of class Subnotebook
  (405 - 4905, n=141)
2673 Points ∼53% -45%
Asus ExpertBook B9450FA, i7-10510U
UHD Graphics 620, i7-10510U, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
2537 Points ∼50% -48%
Productivity
Intel Reference Design Laptop 28W
Iris Xe G7 96EUs, i7-1185G7, Samsung PM981a MZVLB1T0HBLR
8770 Points ∼100% +30%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
7676 Points ∼88% +14%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
7273 Points ∼83% +8%
LG Gram 14Z90N
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung SSD PM981 MZVLB256HAHQ
7057 Points ∼80% +5%
Acer SF514-55T
Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC511 HFM512GDJTNI
6745 Points ∼77%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (6560 - 6745, n=3)
6641 Points ∼76% -2%
Asus ExpertBook B9450FA, i7-10510U
UHD Graphics 620, i7-10510U, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
6554 Points ∼75% -3%
Asus Zenbook 14 UX433FN-A6023T
GeForce MX150, i7-8565U, Intel SSD 660p SSDPEKNW512G8
6072 Points ∼69% -10%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
5740 Points ∼65% -15%
Average of class Subnotebook
  (1014 - 7676, n=141)
5415 Points ∼62% -20%
Essentials
Intel Reference Design Laptop 28W
Iris Xe G7 96EUs, i7-1185G7, Samsung PM981a MZVLB1T0HBLR
10484 Points ∼100% +4%
Acer SF514-55T
Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC511 HFM512GDJTNI
10113 Points ∼96%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (9585 - 10113, n=3)
9857 Points ∼94% -3%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
9524 Points ∼91% -6%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
9244 Points ∼88% -9%
LG Gram 14Z90N
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung SSD PM981 MZVLB256HAHQ
8866 Points ∼85% -12%
Asus ExpertBook B9450FA, i7-10510U
UHD Graphics 620, i7-10510U, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
8839 Points ∼84% -13%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
8482 Points ∼81% -16%
Average of class Subnotebook
  (2062 - 10113, n=141)
7140 Points ∼68% -29%
Asus Zenbook 14 UX433FN-A6023T
GeForce MX150, i7-8565U, Intel SSD 660p SSDPEKNW512G8
7117 Points ∼68% -30%
Score
Intel Reference Design Laptop 28W
Iris Xe G7 96EUs, i7-1185G7, Samsung PM981a MZVLB1T0HBLR
5561 Points ∼100% +12%
Acer SF514-55T
Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC511 HFM512GDJTNI
4972 Points ∼89%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
4886 Points ∼88% -2%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (4601 - 4972, n=3)
4759 Points ∼86% -4%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
4527 Points ∼81% -9%
LG Gram 14Z90N
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung SSD PM981 MZVLB256HAHQ
4231 Points ∼76% -15%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
3807 Points ∼68% -23%
Asus ExpertBook B9450FA, i7-10510U
UHD Graphics 620, i7-10510U, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
3783 Points ∼68% -24%
Asus Zenbook 14 UX433FN-A6023T
GeForce MX150, i7-8565U, Intel SSD 660p SSDPEKNW512G8
3704 Points ∼67% -26%
Average of class Subnotebook
  (743 - 4972, n=144)
3330 Points ∼60% -33%
3DMark 11 - 1280x720 Performance GPU
Acer SF514-55T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
7001 Points ∼100%
Average Intel Iris Xe Graphics G7 96EUs
  (5018 - 7001, n=4)
6323 Points ∼90% -10%
Lenovo Yoga Slim 7-14IIL05
NVIDIA GeForce MX350, Intel Core i7-1065G7
6232 Points ∼89% -11%
MSI Prestige 14 A10RD
NVIDIA GeForce MX350, Intel Core i7-10510U
6135 Points ∼88% -12%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
4990 Points ∼71% -29%
MSI Prestige 14 A10RC
NVIDIA GeForce MX330, Intel Core i7-10510U
4829 Points ∼69% -31%
Asus Zenbook 14 UX433FN-A6023T
NVIDIA GeForce MX150, Intel Core i7-8565U
3560 Points ∼51% -49%
LG Gram 14Z90N
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
3150 Points ∼45% -55%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
2516 Points ∼36% -64%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
1978 Points ∼28% -72%
Asus ExpertBook B9450FA, i7-10510U
Intel UHD Graphics 620, Intel Core i7-10510U
1836 Points ∼26% -74%
Average of class Subnotebook
  (230 - 11501, n=413)
1526 Points ∼22% -78%
3DMark
2560x1440 Time Spy Graphics
Intel Reference Design Laptop 28W
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1618 Points ∼100% 0%
Acer SF514-55T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1614 Points ∼100%
Average Intel Iris Xe Graphics G7 96EUs
  (1089 - 1618, n=8)
1414 Points ∼87% -12%
Lenovo Yoga Slim 7-14IIL05
NVIDIA GeForce MX350, Intel Core i7-1065G7
1326 Points ∼82% -18%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
973 Points ∼60% -40%
Asus Zenbook 14 UX433FN-A6023T
NVIDIA GeForce MX150, Intel Core i7-8565U
862 Points ∼53% -47%
Average of class Subnotebook
  (85 - 3098, n=74)
647 Points ∼40% -60%
LG Gram 14Z90N
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
533 Points ∼33% -67%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
453 Points ∼28% -72%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
432 Points ∼27% -73%
1920x1080 Fire Strike Graphics
Acer SF514-55T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5774 Points ∼100%
Intel Reference Design Laptop 28W
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
5652 Points ∼98% -2%
Average Intel Iris Xe Graphics G7 96EUs
  (4600 - 5774, n=7)
5213 Points ∼90% -10%
MSI Prestige 14 A10RD
NVIDIA GeForce MX350, Intel Core i7-10510U
4340 Points ∼75% -25%
Lenovo Yoga Slim 7-14IIL05
NVIDIA GeForce MX350, Intel Core i7-1065G7
4332 Points ∼75% -25%
MSI Prestige 14 A10RC
NVIDIA GeForce MX330, Intel Core i7-10510U
3838 Points ∼66% -34%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
3134 Points ∼54% -46%
Asus Zenbook 14 UX433FN-A6023T
NVIDIA GeForce MX150, Intel Core i7-8565U
2874 Points ∼50% -50%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
1739 Points ∼30% -70%
LG Gram 14Z90N
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
1487 Points ∼26% -74%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
1366 Points ∼24% -76%
Asus ExpertBook B9450FA, i7-10510U
Intel UHD Graphics 620, Intel Core i7-10510U
1319 Points ∼23% -77%
Average of class Subnotebook
  (222 - 8093, n=293)
1225 Points ∼21% -79%
1280x720 Cloud Gate Standard Graphics
Average Intel Iris Xe Graphics G7 96EUs
  (27289 - 38040, n=3)
32236 Points ∼100% +3%
Acer SF514-55T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
31380 Points ∼97%
MSI Prestige 14 A10RD
NVIDIA GeForce MX350, Intel Core i7-10510U
24723 Points ∼77% -21%
MSI Prestige 14 A10RC
NVIDIA GeForce MX330, Intel Core i7-10510U
23580 Points ∼73% -25%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
22895 Points ∼71% -27%
Asus Zenbook 14 UX433FN-A6023T
NVIDIA GeForce MX150, Intel Core i7-8565U
18633 Points ∼58% -41%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
11934 Points ∼37% -62%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
10785 Points ∼33% -66%
Average of class Subnotebook
  (1484 - 31380, n=310)
8540 Points ∼26% -73%
LG Gram 14Z90N
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
7045 Points ∼22% -78%
3DMark 06 Score
24558 punten
3DMark Vantage P Result
23981 punten
3DMark 11 Performance
7490 punten
3DMark Ice Storm Standard Score
101475 punten
3DMark Cloud Gate Standard Score
18164 punten
3DMark Fire Strike Score
5283 punten
3DMark Time Spy Score
1775 punten
Help
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
16 (13min - 19max) fps ∼100% +7%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
15.8 (14min, 14P1 - 17max) fps ∼99% +5%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
15.8 (14min, 14P1 - 17max) fps ∼99% +5%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
15 (6min - 18max) fps ∼94%
Average Intel Iris Xe Graphics G7 96EUs
  (11.9 - 16, n=3)
14.3 fps ∼89% -5%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
14 (7min - 18max) fps ∼88% -7%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
11.2 (3min - 14max) fps ∼70% -25%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
10.7 fps ∼67% -29%
Average of class Subnotebook
  (3.1 - 29.8, n=30)
10.2 fps ∼64% -32%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
35.9 (31min - 41max) fps ∼100% +20%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
30 (25min - 34max) fps ∼84%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
27.5 (23min - 32max) fps ∼77% -8%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
27.4 fps ∼76% -9%
Average Intel Iris Xe Graphics G7 96EUs
  (10.6 - 35.9, n=4)
25.5 fps ∼71% -15%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
19.2 (4min - 25max) fps ∼53% -36%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
16.5 fps ∼46% -45%
Average of class Subnotebook
  (3.8 - 52.6, n=43)
16 fps ∼45% -47%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
7 fps ∼19% -77%
1366x768 Medium Graphics & Postprocessing
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
65.2 (58min - 72max) fps ∼100% +21%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
54 (43min - 60max) fps ∼83%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
47.2 (41min - 53max) fps ∼72% -13%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
46.5 fps ∼71% -14%
Average Intel Iris Xe Graphics G7 96EUs
  (21.4 - 65.2, n=4)
45.4 fps ∼70% -16%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
37 (33min - 42max) fps ∼57% -31%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
33.5 fps ∼51% -38%
Average of class Subnotebook
  (5.6 - 92, n=53)
24.5 fps ∼38% -55%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
17.9 fps ∼27% -67%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U, Intel UHD Graphics 620
12.1 fps ∼19% -78%
X-Plane 11.11
3840x2160 high (fps_test=3)
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
38.4 fps ∼100%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
29.4 fps ∼77% -23%
Average Intel Iris Xe Graphics G7 96EUs
  (12.1 - 38.4, n=2)
25.3 fps ∼66% -34%
Average of class Subnotebook
  (6.59 - 49.2, n=5)
25 fps ∼65% -35%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U, Intel UHD Graphics 620
6.59 fps ∼17% -83%
1920x1080 high (fps_test=3)
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
59.1 fps ∼100% +58%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
48.1 fps ∼81% +29%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
44.1 fps ∼75% +18%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
41.7 fps ∼71% +12%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
37.3 fps ∼63%
Average Intel Iris Xe Graphics G7 96EUs
  (21.8 - 41.7, n=5)
33.3 fps ∼56% -11%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
24.9 fps ∼42% -33%
Average of class Subnotebook
  (3.09 - 60.5, n=49)
18.9 fps ∼32% -49%
LG Gram 14Z90N
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
11.9 fps ∼20% -68%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U, Intel UHD Graphics 620
10.9 fps ∼18% -71%
1920x1080 med (fps_test=2)
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
65.1 fps ∼100% +56%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
56.2 fps ∼86% +35%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
50 fps ∼77% +20%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
45.6 fps ∼70% +10%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
41.6 fps ∼64%
Average Intel Iris Xe Graphics G7 96EUs
  (24.5 - 45.6, n=5)
36.8 fps ∼57% -12%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
28.1 fps ∼43% -32%
Average of class Subnotebook
  (3.42 - 71.5, n=52)
20.5 fps ∼31% -51%
LG Gram 14Z90N
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
11.7 fps ∼18% -72%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U, Intel UHD Graphics 620
10.3 fps ∼16% -75%
lage gem. hoge ultra4K
Counter-Strike: GO (2012) 268.2 167.2 155.6 95.9 fps
GTA V (2015) 87.9 74.4 25.2 11.1 fps
The Witcher 3 (2015) 79 54 30 15 fps
Dota 2 Reborn (2015) 86.2 69.2 50 47.7 19.7 fps
Overwatch (2016) 158.9 111.9 57.6 32 fps
Fortnite (2018) 56.9 30.1 21.2 14.7 fps
Final Fantasy XV Benchmark (2018) 44.1 24.7 15.1 fps
X-Plane 11.11 (2018) 55.6 41.6 37.3 38.4 fps
World of Tanks enCore (2018) 317.7 73.8 33.8 fps
Far Cry 5 (2018) 56 28 26 24 fps
Shadow of the Tomb Raider (2018) 56 26 24 21 fps
Assassin´s Creed Odyssey (2018) 32 25 22 14 fps
Battlefield V (2018) 64.8 39.2 34.1 31 fps
Farming Simulator 19 (2018) 144.7 80.3 46 29.1 fps
Apex Legends (2019) 111.2 47.1 34.5 34.7 fps
Far Cry New Dawn (2019) 49 28 27 24 fps
Metro Exodus (2019) 38.7 20 14.5 fps
Dirt Rally 2.0 (2019) 119.2 49.5 38 21.9 fps
The Division 2 (2019) 51 28 21 15 fps
Anno 1800 (2019) 79.2 29.3 15.1 9.1 fps
Rage 2 (2019) 63.9 29.4 23.7 23.1 fps
Total War: Three Kingdoms (2019) 93.7 31.7 19.4 13 fps
Control (2019) 59.7 19.6 13.5 fps
Borderlands 3 (2019) 50.4 24.9 15.6 11.6 fps
FIFA 20 (2019) 184.2 99.8 78.7 63.6 fps
GRID 2019 (2019) 85.3 42.9 34.7 29.7 fps
Call of Duty Modern Warfare 2019 (2019) 40.1 27.3 fps
Need for Speed Heat (2019) 37.1 28.3 25.8 23.2 fps
Star Wars Jedi Fallen Order (2019) 21.8 19 17.2 fps
Red Dead Redemption 2 (2019) 51.9 26.7 15.2 fps
Escape from Tarkov (2020) 77.3 38.2 30.8 29.1 fps
Hunt Showdown (2020) 60 28.3 fps
Doom Eternal (2020) 56.7 30.9 27.5 26.9 fps
Gears Tactics (2020) 142.1 50.1 32.1 19 fps
F1 2020 (2020) 89 47 37 24 fps
Death Stranding (2020) 49.3 30.7 29.3 28.5 fps
Flight Simulator 2020 (2020) 36.9 17.9 12.4 fps
Serious Sam 4 (2020) 63 20.8 17.8 12.3 fps
Mafia Definitive Edition (2020) 37.7 17.9 16.5 fps
Star Wars Squadrons (2020) 105.9 52.3 42.8 38.8 fps
Batterijduur
NBC WiFi Websurfing Battery Test 1.3
10h 51min
NBC WiFi Websurfing Battery Test 1.3 max Brightness
9h 21min
Acer SF514-55T
i7-1165G7, Iris Xe G7 96EUs, 56 Wh
Acer Swift 5 SF514-54T-501U
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU), 56 Wh
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
i7-10510U, UHD Graphics 620, 51 Wh
LG Gram 14Z90N
i7-1065G7, Iris Plus Graphics G7 (Ice Lake 64 EU), 72 Wh
Asus Zenbook 14 UX433FN-A6023T
i7-8565U, GeForce MX150, 50 Wh
Acer Swift 3 SF314-42-R4XJ
R7 4700U, Vega 7, 48.85 Wh
Average of class Subnotebook

Batterijduur
-28%
-7%
29%
-23%
10%
-24%
Reader / Idle
885
2735
1392
643 (87 - 2735, n=567)
WiFi v1.3
651
468
-28%
604
-7%
838
29%
499
-23%
715
10%
496 (206 - 991, n=272)
-24%
Load
134
95
211
114
123 (40 - 369, n=588)
H.264
485
770
968
514 (182 - 1312, n=137)

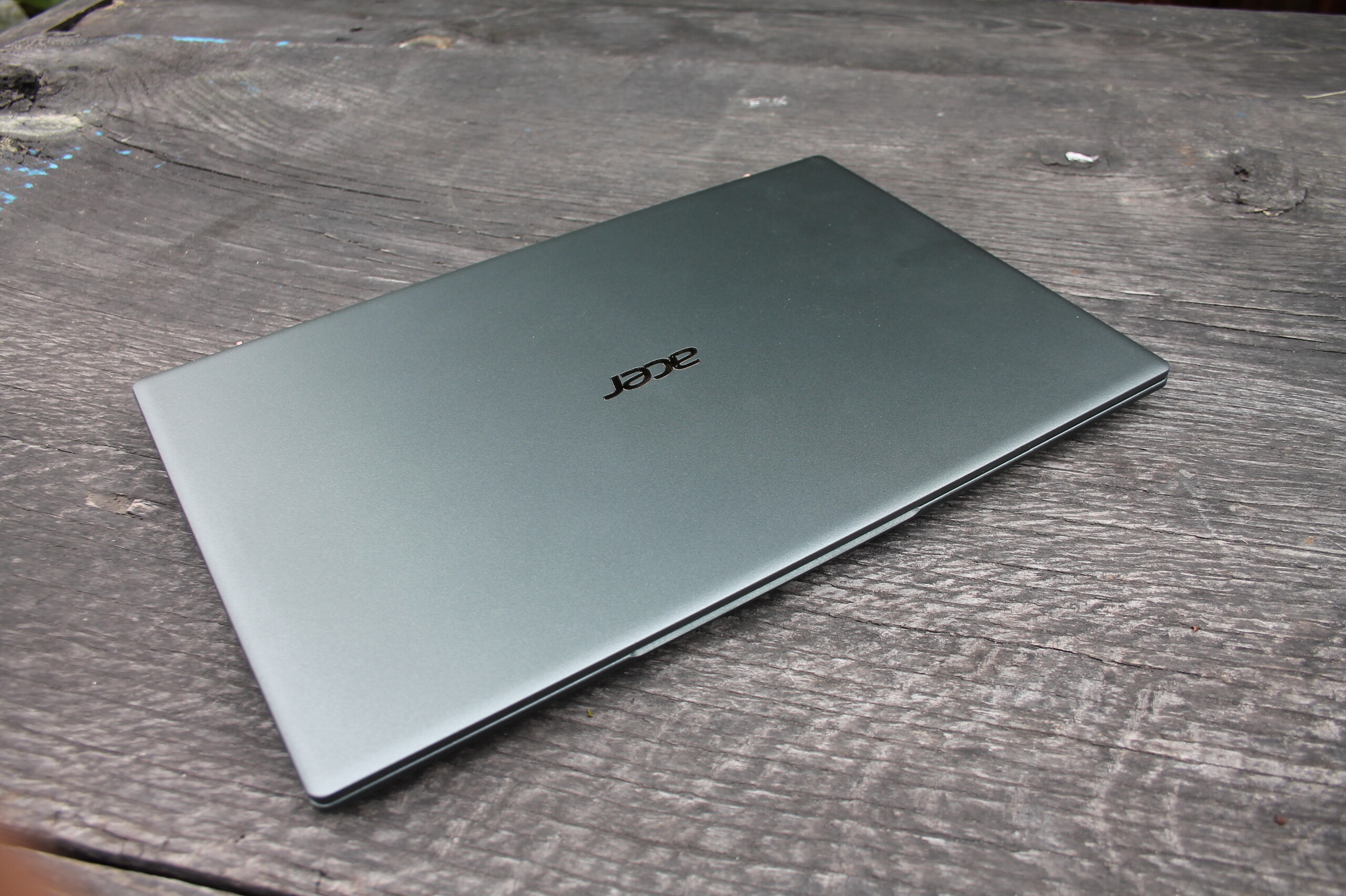

Acers Swift 5 met Intel Tiger Lake: Testtoestel voorzien door Acer Germany

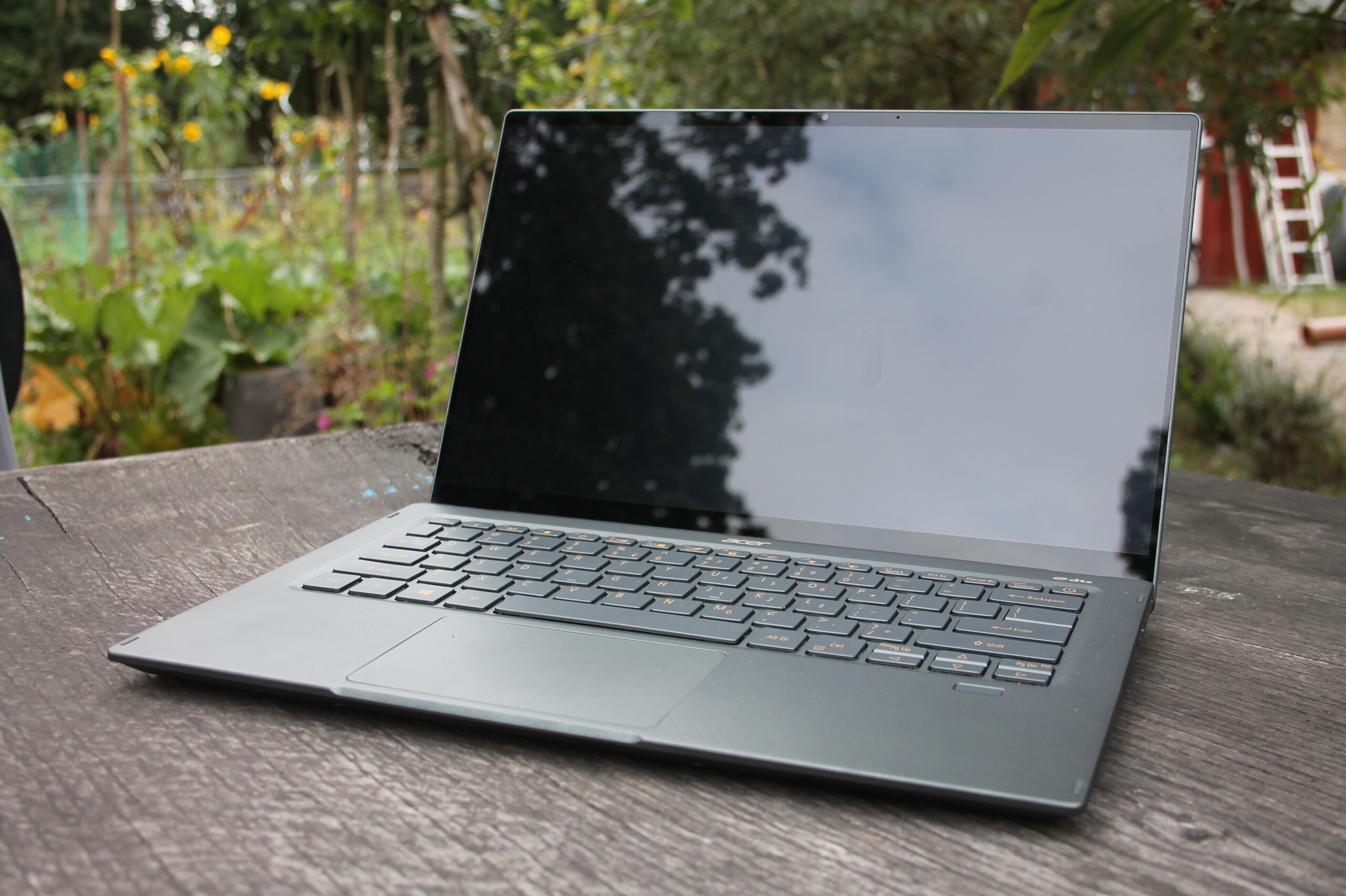

Acers Swift 5 met Intel Tiger Lake: Testtoestel voorzien door Acer Germany

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Net als zijn voorganger, de Acer Swift 5 SF514-54T-501U, zet de nieuwe Swift 5 de erfenis van Swift voort: "zo dun mogelijk, zo licht mogelijk en zo krachtig als redelijk".

In dit specifieke geval vertaalt "redelijk" zich naar een CPU die bijna net zo snel presteerde als een Ryzen 7 4700U, een van de snelste ultra-low-voltages chips (bij piekbelasting) die op het moment van schrijven beschikbaar was voor slanke en lichtgewicht subnotebooks.

Aanhoudende belasting schetst echter een ander beeld. De CPU is niet in staat zijn hoge turbo-boost voor langere tijd vast te houden en verliest ongeveer 30% van zijn topprestaties. Zelfs dan is hij nog steeds sneller dan een Core i7 van de 10e generatie - en als zodanig kan de Tiger Lake i7-1165G7 worden beschouwd als een uitstekende high-performance-CPU voor ultralichte notebooks. Hij is echter niet geschikt als workstation-SoC.

De geïntegreerde GPU legde de lat aanzienlijk hoger. De Intel Iris Xe G7 gaat op het vlak van games en benchmarks de strijd aan met een Radeon Vega 7- en Geforce MX330-/MX350 GPU. Voor de allereerste keer draaide de weliswaar oude maar zeer veeleisende game Witcher 3 soepel in hoge instellingen en FHD-resolutie op een geïntegreerde GPU. Wie had gedacht dat dat nog maar twee jaar geleden mogelijk zou zijn op een Intel-GPU?

De Intel Iris Xe G7 kan gelijke tred houden met een Radeon Vega 7- en MX330-/MX350-GPU in de eerste games en benchmarks.

Houd er rekening mee dat onze benchmarks en tests zijn uitgevoerd op een Acer Swift 5-preproductiemodel dat de fabrikant had goedgekeurd voor benchmarks. We verwachten echter geen significante veranderingen ten opzichte van het uiteindelijke retailproduct. Zijn hoge prestaties gecombineerd met een batterijduur van 11 uur, een helder touchscreen, een gloednieuwe Thunderbolt 4-poort en degelijke invoerapparaten maken dit een zeer krachtige subnotebook die nog heel wat jaren perfect dienst kan doen. Als de prijzen vergelijkbaar blijven met die van eerdere generaties, verwachten we ongeveer 1000 euro voor een toestel met een configuratie die vergelijkbaar is met ons preview-toestel - een koopje. Zodra we het definitieve Swift 5-productiemodel hebben ontvangen, zullen we het grondig onder de loep nemen en een volledige en uitgebreide beoordeling publiceren.

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Sneak Peek Acer Swift 5: Tiger Lake iGPU bedreigt Entry-Level GeForce
Sebastian Jentsch, 2020-09-30 (Update: 2020-10- 1)
