Kort testrapport ThinkPad X1 Carbon 2020: Vertrouwde business-laptop met een nieuwe adapter

Minimale update. Lenovo onthult de 8e generatie van zijn business-vlaggenschip ThinkPad X1 Carbon. Het is echter maar een piepkleine update en het lijkt erop dat je in eerste instantie alleen een nieuwe Intel Comet Lake-U-processor krijgt. AMD-processors zijn niet gepland voor deze generatie van de dure zakelijke notebook.
Andreas Osthoff, 👁 Andreas Osthoff, ✓ Felicitas Krohn, 🇺🇸 🇩🇪 ...
Business Comet Lake Laptop / Notebook ThinkPad Thunderbolt
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00 (ThinkPad X1 Carbon 2020 Serie)
Processor
Intel Core i7-10510U 4 x 1.8 - 4.8 GHz, Comet Lake-U
Grafische kaart
Intel UHD Graphics 620
Geheugen
16384 MB
, LPDDR3-2133, Dual-Channel, gesoldeerd
Beeldscherm
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, BOE NE140FHM-N61, IPS, glimmend: nee, 60 Hz
Moederbord
Intel Comet Lake-U PCH-LP Premium
Opslag
Samsung SSD PM981a MZVLB512HBJQ, 512 GB
, 441 GB beschikbaar
Geluidskaart
Intel Comet Lake PCH-LP - cAVS
Verbindingen
2 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Verbindingen: 3.5-mm stereo-klink, 1 Vingerafdruklezer, NFC
Netwerkmogelijkheden
Intel Comet Lake PCH-LP - I219-V gBE (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.0
Afmetingen
hoogte x breedte x diepte (in mm): 14.9 x 323.5 x 217.1
Batterij
51 Wh Lithium-Ion, 4 cellen
Camera
Webcam: 720p HD
Primary Camera: 0.9 MPix
Bijkomende functionaliteiten
Luidsprekers: Dolby Atmos, 2x 2W, 2x 0.8W, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 65W-voeding (USB-C), ThinkPad Ethernet Extension Adapter Gen2, 36 Maanden Garantie
Gewicht
1.082 kg, Voeding: 332 g
Prijs
1550 Euro
Links
Lenovo startpagina
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



, , , , , ,
zoekrelatie.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Evaluatie
Datum
Model
Gewicht
Hoogte
Formaat
Resolutie
Best Price
90 %
07-2020
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
i7-10510U, UHD Graphics 620		1.1 kg14.9 mm14.00"1920x1080
91 %
02-2019
HP Elitebook x360 1040 G5
i7-8650U, UHD Graphics 620		1.4 kg16.9 mm14.00"1920x1080
92 %
06-2020
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
i5-1038NG7, Iris Plus Graphics G7 (Ice Lake 64 EU)		1.4 kg15.6 mm13.30"2560x1600
87 %
09-2019
Dell Latitude 7400-8N6DH
i7-8665U, UHD Graphics 620		1.5 kg18.9 mm14.00"1920x1080
89 %
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
i7-10510U, UHD Graphics 620		1.2 kg15.4 mm14.00"3840x2160
ThinkPad X1 Carbon 2019 (links) vs. ThinkPad X1 Carbon 2020 (rechts)

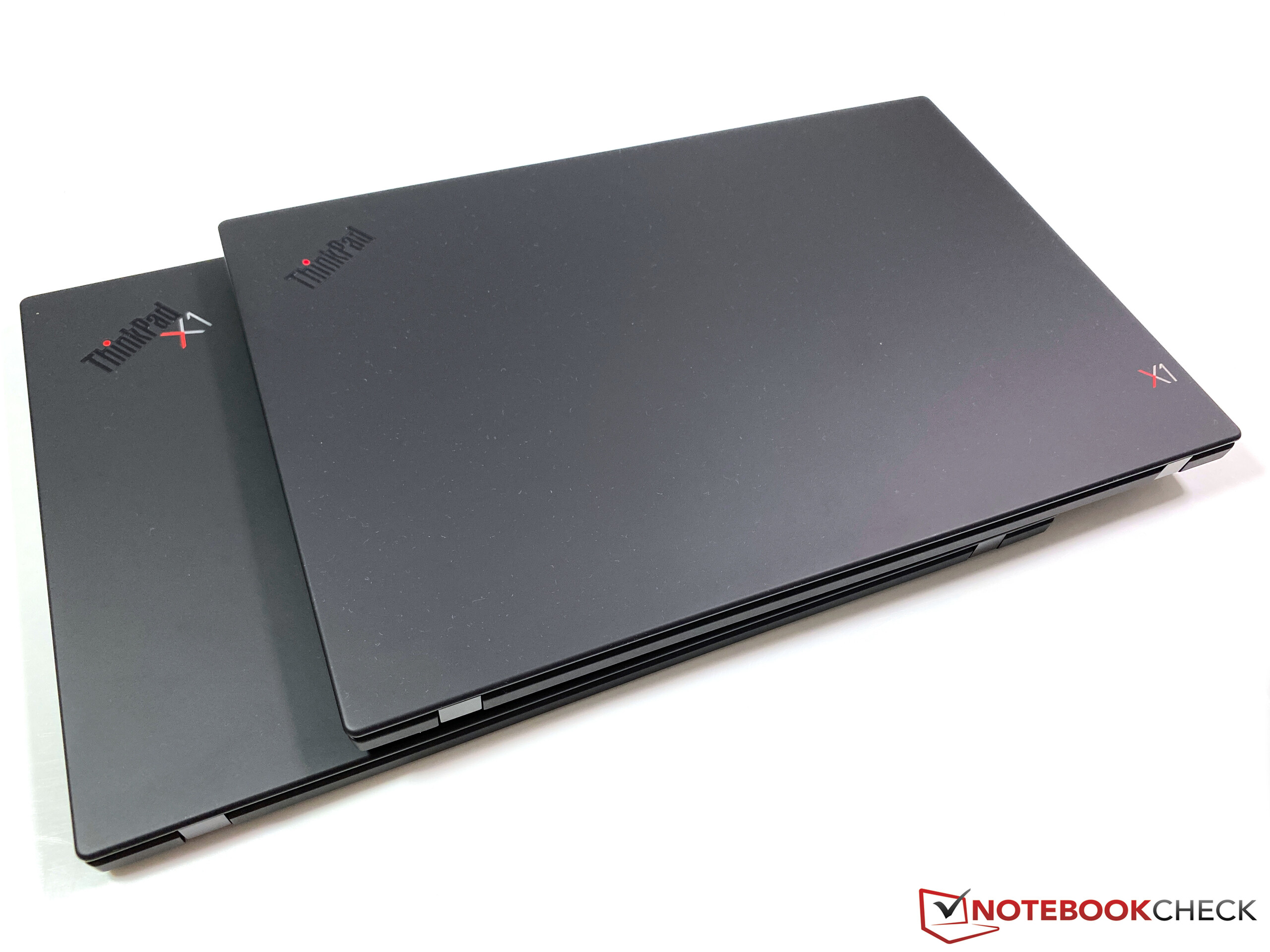

ThinkPad X1 Carbon 2019 (bovenkant) vs. ThinkPad X1 Carbon 2020 (onderkant)

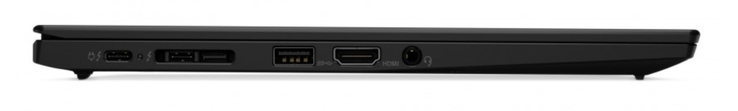

Links: Thunderbolt 3, Side-Dock (Thunderbolt 3 + LAN), USB-A (3.1 Gen.1), HDMI 1.4b, 3.5 mm stereo

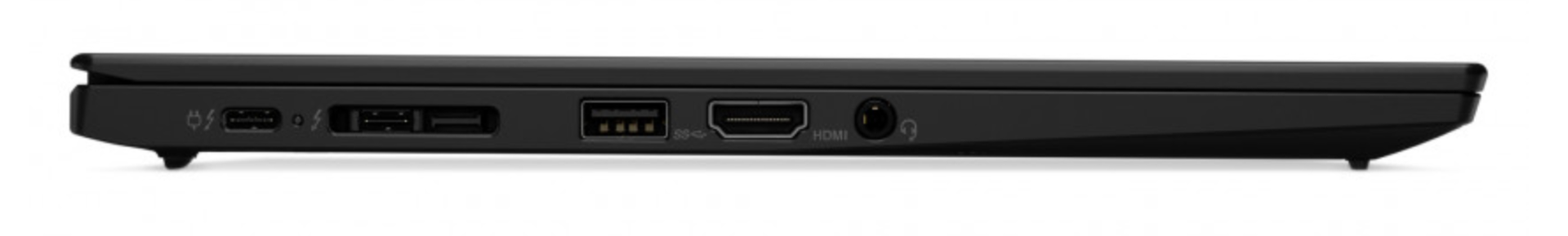

Links: Thunderbolt 3, Side-Dock (Thunderbolt 3 + LAN), USB-A (3.1 Gen.1), HDMI 1.4b, 3.5 mm stereo

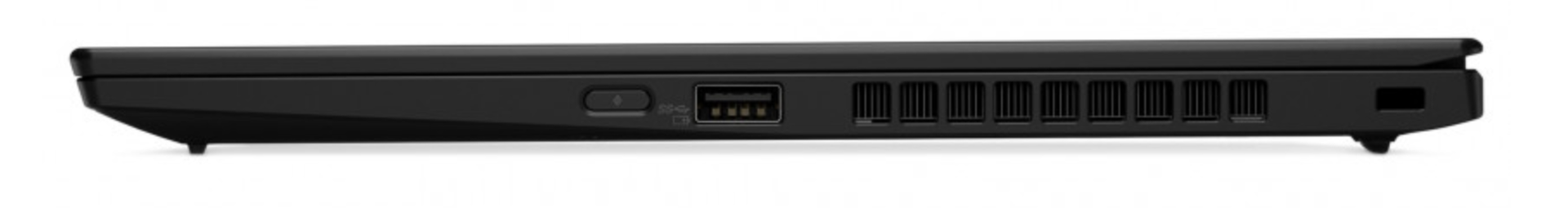

Rechts: Power-knop, USB-A (3.1 Gen.1 Always-On), Kensington
Rechts: Power-knop, USB-A (3.1 Gen.1 Always-On), Kensington
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
Intel Wireless-AC 9560
1166 (1012min - 1299max) MBit/s ∼100% +43%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=260)
1157 MBit/s ∼99% +42%
Average of class Subnotebook
  (49.8 - 1614, n=103, last 2 years)
886 MBit/s ∼76% +9%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Wi-Fi 6 AX201
813 (333min - 981max) MBit/s ∼70%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
802.11 a/b/g/n/ac
809 MBit/s ∼69% 0%
Dell Latitude 7400-8N6DH
Intel Wireless-AC 9560
663 MBit/s ∼57% -18%
HP Elitebook x360 1040 G5
Intel Dual Band Wireless-AC 8265
477 MBit/s ∼41% -41%
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Wi-Fi 6 AX201
1658 (1572min - 1712max) MBit/s ∼100%
Average Intel Wi-Fi 6 AX201
  (136 - 1743, n=260)
1248 MBit/s ∼75% -25%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
Intel Wireless-AC 9560
1130 (1072min - 1174max) MBit/s ∼68% -32%
Average of class Subnotebook
  (240 - 1658, n=103, last 2 years)
986 MBit/s ∼59% -41%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
802.11 a/b/g/n/ac
765 MBit/s ∼46% -54%
HP Elitebook x360 1040 G5
Intel Dual Band Wireless-AC 8265
654 MBit/s ∼39% -61%
Dell Latitude 7400-8N6DH
Intel Wireless-AC 9560
652 MBit/s ∼39% -61%
ColorChecker
18.5 ∆E
11.3 ∆E
12.7 ∆E
14.9 ∆E
11.6 ∆E
9 ∆E
10.7 ∆E
18.6 ∆E
16.9 ∆E
14.9 ∆E
7.6 ∆E
6.6 ∆E
18.5 ∆E
8.7 ∆E
21.5 ∆E
3.8 ∆E
14.7 ∆E
14.1 ∆E
2.3 ∆E
4.6 ∆E
6.2 ∆E
7.6 ∆E
10 ∆E
7.2 ∆E
ColorChecker Lenovo ThinkPad X1 Carbon 2020-20UAS04T00: 11.35 ∆E min: 2.33 - max: 21.51 ∆E
398
cd/m²		392
cd/m²		393
cd/m²
380
cd/m²		422
cd/m²		386
cd/m²
389
cd/m²		413
cd/m²		386
cd/m²
Helderheidsverdeling
BOE NE140FHM-N61
X-Rite i1Pro 2
Maximum: 422 cd/m² Gemiddelde: 395.4 cd/m² Minimum: 5.1 cd/m²
Helderheidsverdeling: 90 %
Helderheid in Batterij-modus: 421 cd/m²
Contrast: 1563:1 (Zwart: 0.27 cd/m²)
ΔE Color 4.7 | 0.59-29.43 Ø5.5, calibrated: 2
ΔE Greyscale 6.4 | 0.64-98 Ø5.7
91.5% sRGB (Argyll 1.6.3 3D)
59.5% AdobeRGB 1998 (Argyll 1.6.3 3D)
67.05% AdobeRGB 1998 (Argyll 2.2.0 3D)
91.62% sRGB (Argyll 2.2.0 3D)
68.94% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.12
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
BOE NE140FHM-N61, IPS, 1920x1080, 14.00		HP Elitebook x360 1040 G5
AU Optronics AUO533D, IPS, 1920x1080, 14.00		Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
APPA03D, IPS, 2560x1600, 13.30		Dell Latitude 7400-8N6DH
AU Optronics B140HAN, IPS, 1920x1080, 14.00		Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
BOE NV140QUM-N53, IPS, 3840x2160, 14.00
Display
-2%
27%
0%
18%
Display P3 Coverage
68.94
64.26
-7%
98.85
43%
66.07
-4%
82.97
20%
sRGB Coverage
91.62
94.14
3%
99.93
9%
95.33
4%
99.68
9%
AdobeRGB 1998 Coverage
67.05
65.46
-2%
86.39
29%
67.53
1%
83.06
24%
Response Times
-30%
1549%
-10%
-25%
Response Time Grey 50% / Grey 80% *
64.8 (30.8, 34)
70.8 (34.8, 36)
-9%
46 (22, 24)
29%
62 (29.6, 32.4)
4%
49.2 (22, 27.2)
24%
Response Time Black / White *
30.4 (10.8, 19.6)
34.4 (18.8, 15.6)
-13%
32.4 (18.4, 14)
-7%
37.6 (21.2, 16.4)
-24%
32.2 (19.2, 13.2)
-6%
PWM Frequency
2404 (50)
735.3 (100)
-69%
113600 (75)
4625%
201.6 (99)
-92%
Screen
12%
29%
5%
-13%
Brightness middle
422
416.3
-1%
512
21%
289
-32%
532
26%
Brightness
395
400
1%
491
24%
286
-28%
513
30%
Brightness Distribution
90
89
-1%
91
1%
91
1%
90
0%
Black Level *
0.27
0.29
-7%
0.32
-19%
0.16
41%
0.41
-52%
Contrast
1563
1436
-8%
1600
2%
1806
16%
1298
-17%
Colorchecker DeltaE2000 *
4.7
2.69
43%
1.7
64%
4.7
-0%
6.88
-46%
Colorchecker DeltaE2000 max. *
10
4.95
50%
3.4
66%
8.7
13%
12.65
-27%
Colorchecker DeltaE2000 calibrated *
2
2.13
-7%
1
50%
1.3
35%
2.52
-26%
Greyscale DeltaE2000 *
6.4
2.9
55%
1.9
70%
6.4
-0%
10.5
-64%
Gamma
2.12 104%
2.4 92%
2.19 100%
2.54 87%
1.98 111%
CCT
7106 91%
6623 98%
6817 95%
5977 109%
7394 88%
Color Space (Percent of AdobeRGB 1998)
59.5
60.1
1%
77.4
30%
61.2
3%
74.1
25%
Color Space (Percent of sRGB)
91.5
94.5
3%
99.9
9%
95.1
4%
99.7
9%
Totaal Gemiddelde (Programma / Instellingen)
-7% / 2%
535% / 297%
-2% / 2%
-7% / -10%

* ... kleiner is beter

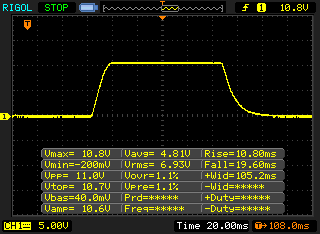

Responstijd Scherm

ℹ
De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.
   ↔    Responstijd Zwart naar Wit
30.4 ms ... stijging ↗ en daling ↘ gecombineerd↗ 10.8 ms stijging
↘ 19.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 76 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (23.9 ms) van alle geteste toestellen.

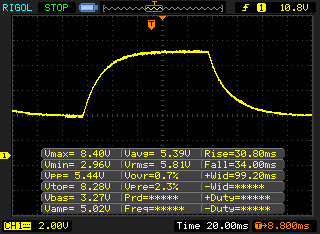

   ↔    Responstijd 50% Grijs naar 80% Grijs
64.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 30.8 ms stijging
↘ 34 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 97 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (37.8 ms) van alle geteste toestellen.

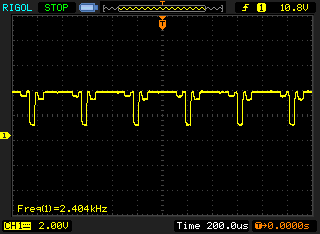

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 2404 Hz ≤ 50 % helderheid instelling

Het backlight van het scherm flikkert aan 2404 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 50 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 2404 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 52 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 15324 (minimum: 5 - maximum: 2500000) Hz waargenomen.

04080120160200240280320360400440480520560600640680720760731.25678.74667.36516.69593.52667.08515.31606.89668.39493.81597.74660.86504.76611.3600.04535.3636.72583.47525.59630.11601.1516.3624.05556.05537.42563.88524.28524.49526.12525.35524.18525.14525.47525.59524.82525.47525.25525.68525.36524.82524.5525.89525.58526.22523.53524.95518.24524.07520.98526.22524.49523.64524.6523.22524.95525.25524.18524.94525.47523.96525.69527.85517.71525.47518.97511.81525.8525.04525.68525.04524.39525.58525.79527.31524.71741.3725.23748.83755.4752.79761.08753.38760.95760.02753.74760.24759.84760.59761.24761.21760.14759.5762.01762.56755.56764.82763.59760.53759.79760.36761.69765.86760.64765.89766.2757.35766.12766.17766.31766.17765.14767.31768.15767.75766.31764.96763.45767.42767.19764.16667.87613.47606.06602.49576.71577.88572.33523.43560.55553.64528.94566.76528.83527.85528.72530.58534.8530.91528.28527.78528.07529.27527.31529.71528.61529.05527.42528.39530.04527.85528.39527.96525.47525.15528.94530.25530.15531.03531.02528.62776.19711.92695.8680.36639.66670.1667.82661.65660.5657.92581.41651.41663.01564.51566.56663.66659.53595.17541.65655.21662.46651.55515.74616.61669.39656.02511.53625.8664.18651.73486.69617.55667.13655.38527.09603.55668.46653.31519.1610.08665.23652.45523.31597.18669.33655.46580.96551.31654.94662.16701.36650.54649.59644.89643.24640.46638.96638.4601.91642.96640.17633.18606.81642.95637.99633.97579.89631.62637.1637.31580.95630.23640.24633.06574.56Tooltip
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00 Intel Core i7-10510U, Intel Core i7-10510U: Ø594 (493.81-731.25)
HP Elitebook x360 1040 G5 Intel Core i7-8650U, Intel Core i7-8650U: Ø525 (511.81-563.88)
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen Intel Core i5-1038NG7, Intel Core i5-1038NG7: Ø761 (725.23-768.15)
Dell Latitude 7400-8N6DH Intel Core i7-8665U, Intel Core i7-8665U: Ø544 (523.43-667.87)
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS Intel Core i7-10510U, Intel Core i7-10510U: Ø628 (486.69-776.19)
Lenovo ThinkPad X1 Carbon 2019-20QE000VGE Intel Core i7-8665U, Intel Core i7-8665U: Ø632 (574.56-701.36)
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Single Core)
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
Intel Core i7-10510U
447 Points ∼100% +1%
Dell Latitude 7400-8N6DH
Intel Core i7-8665U
445 Points ∼100% +1%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
441 Points ∼99%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Core i5-1038NG7
438 Points ∼98% -1%
Average Intel Core i7-10510U
  (362 - 497, n=36)
436 Points ∼98% -1%
Average of class Subnotebook
  (73 - 591, n=108, last 2 years)
433 Points ∼97% -2%
Cinebench R20 / CPU (Multi Core)
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Core i5-1038NG7
1998 Points ∼100% +40%
Average of class Subnotebook
  (110 - 4704, n=108, last 2 years)
1707 Points ∼85% +20%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
Intel Core i7-10510U
1654 Points ∼83% +16%
Dell Latitude 7400-8N6DH
Intel Core i7-8665U
1453 Points ∼73% +2%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
1428 Points ∼71%
Average Intel Core i7-10510U
  (1015 - 1897, n=37)
1411 Points ∼71% -1%
Cinebench R15 / CPU Single 64Bit
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
183 Points ∼100%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
Intel Core i7-10510U
182 Points ∼99% -1%
Dell Latitude 7400-8N6DH
Intel Core i7-8665U
181 Points ∼99% -1%
Average Intel Core i7-10510U
  (113 - 202, n=41)
178 Points ∼97% -3%
HP Elitebook x360 1040 G5
Intel Core i7-8650U
172 Points ∼94% -6%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Core i5-1038NG7
169 Points ∼92% -8%
Average of class Subnotebook
  (31 - 237, n=108, last 2 years)
169 Points ∼92% -8%
Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
Intel Core i7-10510U
776 Points ∼100% +6%
Average of class Subnotebook
  (82.3 - 2024, n=114, last 2 years)
775 Points ∼100% +6%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Core i5-1038NG7
768 (720min - 768max) Points ∼99% +5%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
731 Points ∼94%
Dell Latitude 7400-8N6DH
Intel Core i7-8665U
674 Points ∼87% -8%
Average Intel Core i7-10510U
  (482 - 856, n=44)
667 Points ∼86% -9%
HP Elitebook x360 1040 G5
Intel Core i7-8650U
564 Points ∼73% -23%
Blender 2.79 / BMW27 CPU
Average of class Subnotebook
  (4.2 - 6277, n=96, last 2 years)
875 Seconds * ∼100% -14%
Average Intel Core i7-10510U
  (628 - 1051, n=30)
799 Seconds * ∼91% -4%
Dell Latitude 7400-8N6DH
Intel Core i7-8665U
769 Seconds * ∼88% -0%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
769 Seconds * ∼88%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Core i5-1038NG7
4.2 Seconds * ∼0% +99%
7-Zip 18.03 / 7z b 4 -mmt1
Dell Latitude 7400-8N6DH
Intel Core i7-8665U
4726 MIPS ∼100% +5%
Average Intel Core i7-10510U
  (3747 - 4981, n=30)
4587 MIPS ∼97% +1%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4521 MIPS ∼96%
Average of class Subnotebook
  (1653 - 5800, n=98, last 2 years)
4322 MIPS ∼91% -4%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Core i5-1038NG7
4161 MIPS ∼88% -8%
7-Zip 18.03 / 7z b 4
Average of class Subnotebook
  (3267 - 54374, n=98, last 2 years)
21572 MIPS ∼100% +19%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Core i5-1038NG7
19485 MIPS ∼90% +7%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
18187 MIPS ∼84%
Dell Latitude 7400-8N6DH
Intel Core i7-8665U
17731 MIPS ∼82% -3%
Average Intel Core i7-10510U
  (12196 - 21298, n=30)
17693 MIPS ∼82% -3%
Geekbench 5.3 / 64 Bit Single-Core Score
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Core i5-1038NG7
1265 Points ∼100% +4%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
1211 Points ∼96%
Average Intel Core i7-10510U
  (977 - 1287, n=30)
1200 Points ∼95% -1%
Average of class Subnotebook
  (293 - 1740, n=100, last 2 years)
1180 Points ∼93% -3%
Geekbench 5.3 / 64 Bit Multi-Core Score
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Core i5-1038NG7
4564 Points ∼100% +11%
Average of class Subnotebook
  (591 - 7590, n=100, last 2 years)
4339 Points ∼95% +5%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4122 Points ∼90%
Average Intel Core i7-10510U
  (2474 - 4484, n=30)
3692 Points ∼81% -10%
HWBOT x265 Benchmark v2.2 / 4k Preset
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Core i5-1038NG7
5.99 fps ∼100% +24%
Average of class Subnotebook
  (0.65 - 14.8, n=94, last 2 years)
5.58 fps ∼93% +15%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4.85 fps ∼81%
Average Intel Core i7-10510U
  (3.41 - 6.04, n=30)
4.63 fps ∼77% -5%
Dell Latitude 7400-8N6DH
Intel Core i7-8665U
4.5 fps ∼75% -7%
LibreOffice / 20 Documents To PDF
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Core i5-1038NG7
88.6 s * ∼100% -71%
Average of class Subnotebook
  (12.9 - 281, n=88, last 2 years)
69.2 s * ∼78% -34%
Average Intel Core i7-10510U
  (50.7 - 77.8, n=26)
59.6 s * ∼67% -15%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
51.7 s * ∼58%
R Benchmark 2.5 / Overall mean
Average of class Subnotebook
  (0.501 - 2.21, n=94, last 2 years)
0.744 sec * ∼100% -10%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Core i5-1038NG7
0.702 sec * ∼94% -3%
Average Intel Core i7-10510U
  (0.637 - 0.81, n=27)
0.68 sec * ∼91% -0%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
0.679 sec * ∼91%

* ... kleiner is beter

Cinebench R15 CPU Single 64Bit
183 Points
Cinebench R15 CPU Multi 64Bit
731 Points
Cinebench R15 OpenGL 64Bit
58.5 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
PCMark 10 | PCMark 8
PCMark 10
Score
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
4527 Points ∼100%
Average Intel Core i7-10510U, Intel UHD Graphics 620
  (3783 - 4688, n=16)
4299 Points ∼95% -5%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
UHD Graphics 620, i7-10510U, WDC PC SN730 SDBPNTY-512G
4219 Points ∼93% -7%
Average of class Subnotebook
  (790 - 6414, n=104, last 2 years)
4191 Points ∼93% -7%
Dell Latitude 7400-8N6DH
UHD Graphics 620, i7-8665U, Samsung SSD PM981 MZVLB512HAJQ
4094 Points ∼90% -10%
HP Elitebook x360 1040 G5
UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ
4078 Points ∼90% -10%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Iris Plus Graphics G7 (Ice Lake 64 EU), i5-1038NG7, Apple SSD SM0512F
3222 Points ∼71% -29%
Essentials
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
9524 Points ∼100%
Average Intel Core i7-10510U, Intel UHD Graphics 620
  (8020 - 10546, n=16)
9266 Points ∼97% -3%
HP Elitebook x360 1040 G5
UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ
8992 Points ∼94% -6%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
UHD Graphics 620, i7-10510U, WDC PC SN730 SDBPNTY-512G
8892 Points ∼93% -7%
Dell Latitude 7400-8N6DH
UHD Graphics 620, i7-8665U, Samsung SSD PM981 MZVLB512HAJQ
8519 Points ∼89% -11%
Average of class Subnotebook
  (2544 - 10836, n=104, last 2 years)
8463 Points ∼89% -11%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Iris Plus Graphics G7 (Ice Lake 64 EU), i5-1038NG7, Apple SSD SM0512F
7827 Points ∼82% -18%
Productivity
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
7676 Points ∼100%
Average Intel Core i7-10510U, Intel UHD Graphics 620
  (6554 - 8036, n=16)
7243 Points ∼94% -6%
Dell Latitude 7400-8N6DH
UHD Graphics 620, i7-8665U, Samsung SSD PM981 MZVLB512HAJQ
7100 Points ∼92% -8%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
UHD Graphics 620, i7-10510U, WDC PC SN730 SDBPNTY-512G
7051 Points ∼92% -8%
HP Elitebook x360 1040 G5
UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ
6670 Points ∼87% -13%
Average of class Subnotebook
  (1304 - 9852, n=104, last 2 years)
6291 Points ∼82% -18%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Iris Plus Graphics G7 (Ice Lake 64 EU), i5-1038NG7, Apple SSD SM0512F
3568 Points ∼46% -54%
Digital Content Creation
Average of class Subnotebook
  (405 - 6709, n=104, last 2 years)
3825 Points ∼100% +11%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
3446 Points ∼90%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Iris Plus Graphics G7 (Ice Lake 64 EU), i5-1038NG7, Apple SSD SM0512F
3256 Points ∼85% -6%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
UHD Graphics 620, i7-10510U, WDC PC SN730 SDBPNTY-512G
3251 Points ∼85% -6%
Average Intel Core i7-10510U, Intel UHD Graphics 620
  (2465 - 4741, n=16)
3239 Points ∼85% -6%
Dell Latitude 7400-8N6DH
UHD Graphics 620, i7-8665U, Samsung SSD PM981 MZVLB512HAJQ
3080 Points ∼81% -11%
HP Elitebook x360 1040 G5
UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ
3069 Points ∼80% -11%
PCMark 8
Home Score Accelerated v2
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
4251 Points ∼100%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Iris Plus Graphics G7 (Ice Lake 64 EU), i5-1038NG7, Apple SSD SM0512F
3928 Points ∼92% -8%
Average Intel Core i7-10510U, Intel UHD Graphics 620
  (3157 - 4251, n=13)
3635 Points ∼86% -14%
Average of class Subnotebook
  (1083 - 5361, n=62, last 2 years)
3597 Points ∼85% -15%
Dell Latitude 7400-8N6DH
UHD Graphics 620, i7-8665U, Samsung SSD PM981 MZVLB512HAJQ
3547 Points ∼83% -17%
HP Elitebook x360 1040 G5
UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ
3308 Points ∼78% -22%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
UHD Graphics 620, i7-10510U, WDC PC SN730 SDBPNTY-512G
3182 Points ∼75% -25%
Work Score Accelerated v2
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
5296 Points ∼100%
Dell Latitude 7400-8N6DH
UHD Graphics 620, i7-8665U, Samsung SSD PM981 MZVLB512HAJQ
5195 Points ∼98% -2%
Average Intel Core i7-10510U, Intel UHD Graphics 620
  (3734 - 5366, n=13)
4987 Points ∼94% -6%
HP Elitebook x360 1040 G5
UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ
4558 Points ∼86% -14%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
UHD Graphics 620, i7-10510U, WDC PC SN730 SDBPNTY-512G
4396 Points ∼83% -17%
Average of class Subnotebook
  (2227 - 5628, n=59, last 2 years)
4348 Points ∼82% -18%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Iris Plus Graphics G7 (Ice Lake 64 EU), i5-1038NG7, Apple SSD SM0512F
2407 Points ∼45% -55%
PCMark 8 Home Score Accelerated v2
4251 punten
PCMark 8 Creative Score Accelerated v2
5447 punten
PCMark 8 Work Score Accelerated v2
5296 punten
PCMark 10 Score
4527 punten
Help
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
774.73 μs * ∼100%

* ... kleiner is beter

Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Samsung SSD PM981a MZVLB512HBJQ		HP Elitebook x360 1040 G5
Samsung SSD PM981 MZVLB512HAJQ		Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Apple SSD SM0512F		Dell Latitude 7400-8N6DH
Samsung SSD PM981 MZVLB512HAJQ		Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
WDC PC SN730 SDBPNTY-512G		Average Samsung SSD PM981a MZVLB512HBJQ

CrystalDiskMark 5.2 / 6
-8%
-39%
-12%
-1%
2%
Write 4K
185.02
122.7
-34%
28.16
-85%
118.6
-36%
151.5
-18%
139 (82.2 - 203, n=32)
-25%
Read 4K
50.61
46.57
-8%
17.5
-65%
44.68
-12%
45.83
-9%
48.2 (35.8 - 65.5, n=32)
-5%
Write Seq
1543.05
1725
12%
1195.04
-23%
1866
21%
2060
34%
2080 (931 - 2896, n=31)
35%
Read Seq
1509.27
2392
58%
1470.15
-3%
2173
44%
1973
31%
2078 (1136 - 2754, n=31)
38%
Write 4K Q32T1
488.83
470.6
-4%
204.99
-58%
330.9
-32%
489.8
0%
451 (326 - 640, n=32)
-8%
Read 4K Q32T1
579.21
313.2
-46%
692.18
20%
343.1
-41%
386.2
-33%
475 (332 - 707, n=32)
-18%
Write Seq Q32T1
2985.8
1869
-37%
1475.3
-51%
1927
-35%
2703
-9%
2905 (934 - 2994, n=32)
-3%
Read Seq Q32T1
3554.6
3380
-5%
1919.7
-46%
3528
-1%
3376
-5%
3507 (3246 - 3568, n=32)
-1%
AS SSD
-24%
-127%
-31%
-49%
-22%
Seq Read
2659
1815.96
-32%
1300
-51%
2380.71
-10%
1786.24
-33%
2355 (1658 - 2861, n=32)
-11%
Seq Write
2551
1269.89
-50%
1518
-40%
1290.23
-49%
1258.8
-51%
1984 (1200 - 2724, n=32)
-22%
4K Read
56.42
46.25
-18%
14.09
-75%
52.03
-8%
45.86
-19%
53.4 (42.1 - 60.3, n=32)
-5%
4K Write
158.04
104.06
-34%
24.25
-85%
134.82
-15%
147.92
-6%
132 (96.5 - 197, n=32)
-16%
4K-64 Read
1317.36
1341.64
2%
724.62
-45%
529.87
-60%
885.4
-33%
1205 (585 - 1633, n=32)
-9%
4K-64 Write
1785.92
1208.83
-32%
169.55
-91%
1176.9
-34%
949.77
-47%
1712 (1311 - 2009, n=32)
-4%
Access Time Read *
0.047
0.043
9%
0.172
-266%
0.05
-6%
0.058
-23%
0.0547 (0.035 - 0.079, n=32)
-16%
Access Time Write *
0.024
0.035
-46%
0.155
-546%
0.032
-33%
0.074
-208%
0.0551 (0.018 - 0.151, n=32)
-130%
Score Read
1640
1569
-4%
869
-47%
820
-50%
1110
-32%
1493 (843 - 1944, n=32)
-9%
Score Write
2199
1440
-35%
346
-84%
1441
-34%
1224
-44%
2043 (1598 - 2377, n=32)
-7%
Score Total
4682
3790
-19%
1667
-64%
2652
-43%
2885
-38%
4291 (2927 - 5192, n=32)
-8%
Copy ISO MB/s
2034.38
1719.1
1384.11
1896 (1358 - 2452, n=23)
Copy Program MB/s
450.29
499.61
525.29
547 (72.2 - 920, n=23)
Copy Game MB/s
1024.32
1090.64
1008.36
1200 (388 - 1725, n=23)
Totaal Gemiddelde (Programma / Instellingen)
-16% / -17%
-83% / -90%
-22% / -23%
-25% / -29%
-10% / -12%

* ... kleiner is beter

CrystalDiskMark 5.2 / 6
AS SSD
DiskSpd
hddimg
Samsung SSD PM981a MZVLB512HBJQ
CDM 5/6 Read Seq Q32T1: 3554.6 MB/s
CDM 5/6 Write Seq Q32T1: 2985.8 MB/s
CDM 5/6 Read 4K Q32T1: 579.21 MB/s
CDM 5/6 Write 4K Q32T1: 488.83 MB/s
CDM 5 Read Seq: 1509.27 MB/s
CDM 5 Write Seq: 1543.05 MB/s
CDM 5/6 Read 4K: 50.61 MB/s
CDM 5/6 Write 4K: 185.02 MB/s

Dauerleistung Lesen: DiskSpd Read Loop, Queue Depth 8

025050075010001250150017502000225025002750300032502581.673334.513334.723334.723334.723334.933334.933335.353335.353335.353335.353335.353335.563335.563335.563335.563335.773335.773335.773335.773335.983335.983336.193336.193336.193336.193336.43336.43336.43336.43336.43336.43336.613336.823336.823337.033345.613352.093354.6133593365.2833953403.583403.583404.213404.633404.843405.473407.983408.19Tooltip
: Ø3335 (2581.67-3408.19)
3DMark 11 | 3DMark
3DMark 11 - 1280x720 Performance GPU
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i5-1038NG7
4374 Points ∼100% +121%
Average of class Subnotebook
  (410 - 12199, n=100, last 2 years)
4360 Points ∼100% +120%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
1978 Points ∼45%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
Intel UHD Graphics 620, Intel Core i7-10510U
1977 Points ∼45% 0%
HP Elitebook x360 1040 G5
Intel UHD Graphics 620, Intel Core i7-8650U
1902 Points ∼43% -4%
Dell Latitude 7400-8N6DH
Intel UHD Graphics 620, Intel Core i7-8665U
1804 Points ∼41% -9%
Average Intel UHD Graphics 620
  (1144 - 2006, n=240)
1741 Points ∼40% -12%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Subnotebook
  (1652 - 53539, n=79, last 2 years)
18437 Points ∼100% +71%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i5-1038NG7
18163 Points ∼99% +68%
HP Elitebook x360 1040 G5
Intel UHD Graphics 620, Intel Core i7-8650U
10804 Points ∼59% 0%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
10785 Points ∼58%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
Intel UHD Graphics 620, Intel Core i7-10510U
9846 Points ∼53% -9%
Dell Latitude 7400-8N6DH
Intel UHD Graphics 620, Intel Core i7-8665U
9354 Points ∼51% -13%
Average Intel UHD Graphics 620
  (6205 - 11437, n=221)
9224 Points ∼50% -14%
1920x1080 Fire Strike Graphics
Average of class Subnotebook
  (313 - 8743, n=103, last 2 years)
2957 Points ∼100% +116%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i5-1038NG7
2883 Points ∼97% +111%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
1366 Points ∼46%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
Intel UHD Graphics 620, Intel Core i7-10510U
1343 Points ∼45% -2%
Dell Latitude 7400-8N6DH
Intel UHD Graphics 620, Intel Core i7-8665U
1173 Points ∼40% -14%
Average Intel UHD Graphics 620
  (557 - 1444, n=209)
1153 Points ∼39% -16%
2560x1440 Time Spy Graphics
Average of class Subnotebook
  (116 - 3276, n=87, last 2 years)
1015 Points ∼100% +135%
Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i5-1038NG7
825 Points ∼81% +91%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
432 Points ∼43%
Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
Intel UHD Graphics 620, Intel Core i7-10510U
422 Points ∼42% -2%
Dell Latitude 7400-8N6DH
Intel UHD Graphics 620, Intel Core i7-8665U
391 Points ∼39% -9%
Average Intel UHD Graphics 620
  (299 - 760, n=84)
384 Points ∼38% -11%
3DMark 11 Performance
2240 punten
3DMark Ice Storm Standard Score
71820 punten
3DMark Cloud Gate Standard Score
9816 punten
3DMark Fire Strike Score
1239 punten
3DMark Time Spy Score
497 punten
Help
lage gem. hoge ultra4K
The Witcher 3 (2015) 18.2 12.1 fps
Dota 2 Reborn (2015) 85.8 49.6 23 20.2 7.3 fps
X-Plane 11.11 (2018) 13.9 10.3 10.9 6.59 fps
Far Cry 5 (2018) 16 fps
F1 2019 (2019) 30 12 fps

Geluidsniveau

Onbelast
29.5 / 29.5 / 29.5 dB (A)
Belasting
31.6 / 33.9 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.5 dB(A)
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ		HP Elitebook x360 1040 G5
UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ		Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
Iris Plus Graphics G7 (Ice Lake 64 EU), i5-1038NG7, Apple SSD SM0512F		Dell Latitude 7400-8N6DH
UHD Graphics 620, i7-8665U, Samsung SSD PM981 MZVLB512HAJQ		Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
UHD Graphics 620, i7-10510U, WDC PC SN730 SDBPNTY-512G		Lenovo ThinkPad X1 Carbon 2019-20QE000VGE
UHD Graphics 620, i7-8665U, WDC PC SN720 SDAQNTW-512G
Noise
1%
-6%
0%
-2%
3%
off / environment *
29.5
28.3
4%
29.6
-0%
28.6
3%
28.2
4%
28.4
4%
Idle Minimum *
29.5
28.3
4%
29.6
-0%
28.6
3%
28.2
4%
28.4
4%
Idle Average *
29.5
28.3
4%
29.6
-0%
28.6
3%
28.2
4%
28.4
4%
Idle Maximum *
29.5
28.3
4%
29.6
-0%
29.1
1%
29.4
-0%
28.6
3%
Load Average *
31.6
32.6
-3%
34.4
-9%
31.5
-0%
31.5
-0%
31.5
-0%
Load Maximum *
33.9
36.6
-8%
42.1
-24%
36.9
-9%
41.2
-22%
33.1
2%
Witcher 3 ultra *
36.1

* ... kleiner is beter

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2029.230.930.428.62527.6272729.13127.729.629.4314028.330.63131.45027.12727.528.76323.624.92426.48024.824.424.125.210024.123.923.626.412523.523.523.223.216023.521.722.722.620023.122.122.522.825022.321.921.422.531522.121.72121.440021.721.320.420.450021.320.720.121.163020.720.61921.180020.920.218.719.9100020.719.918.320.2125021.620.117.721160022.820.517.222.3200023.320.516.722.5250023.420.616.323.2315023.520.516.123.4400023.620.316.123.4500021.218.216.221.1630017.916.816.117.8800016.416.51616.3100001616.21615.91250015.91615.915.71600015.415.915.715.5SPL33.931.929.533.5N1.91.61.31.9median 21.7median 20.5median 17.7median 21.1Delta2.31.72.81.6hearing rangehide median Fan NoiseLenovo ThinkPad X1 Carbon 2020-20UAS04T00
Max. Belasting
 38.7 °C45.2 °C43.8 °C
 32.4 °C43.2 °C40.7 °C
 27 °C28 °C28.8 °C
Maximum: 45.2 °C
Gemiddelde: 36.4 °C
45 °C45.7 °C40.2 °C
39.6 °C41.5 °C34.9 °C
29.9 °C30 °C28.3 °C
Maximum: 45.7 °C
Gemiddelde: 37.2 °C
Stroomadapter (max.)  39.3 °C | Kamertemperatuur 21.8 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 36.4 °C / 98 F, compared to the average of 30.6 °C / 87 F for the devices in the class Subnotebook.
(-) The maximum temperature on the upper side is 45.2 °C / 113 F, compared to the average of 35.7 °C / 96 F, ranging from 22 to 58.4 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 45.7 °C / 114 F, compared to the average of 39.5 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.1 °C / 75 F, compared to the device average of 30.6 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.8 °C / 83.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.4 °C / 83.1 F (-0.4 °C / -0.7 F).
Stroomgebruik
Uit / Standbydarklight 0.5 / 0.69 Watt
Inactiefdarkmidlight 2.96 / 5.9 / 9.1 Watt
Belasting midlight 42.1 / 65.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
i7-10510U, UHD Graphics 620, Samsung SSD PM981a MZVLB512HBJQ, IPS, 1920x1080, 14.00		HP Elitebook x360 1040 G5
i7-8650U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 14.00		Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
i5-1038NG7, Iris Plus Graphics G7 (Ice Lake 64 EU), Apple SSD SM0512F, IPS, 2560x1600, 13.30		Dell Latitude 7400-8N6DH
i7-8665U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 14.00		Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
i7-10510U, UHD Graphics 620, WDC PC SN730 SDBPNTY-512G, IPS, 3840x2160, 14.00		Average Intel UHD Graphics 620
 		Average of class Subnotebook

Power Consumption
1%
-22%
-6%
-31%
0%
-1%
Idle Minimum *
2.96
2.7
9%
3.8
-28%
3.9
-32%
3.5
-18%
3.79 (1 - 12.4, n=255)
-28%
3.93 (1.67 - 10.7, n=109, last 2 years)
-33%
Idle Average *
5.9
6.5
-10%
8.6
-46%
6.1
-3%
10.8
-83%
6.94 (2.8 - 15.7, n=257)
-18%
6.95 (4.6 - 13.6, n=109, last 2 years)
-18%
Idle Maximum *
9.1
11.5
-26%
10.3
-13%
8.2
10%
12.5
-37%
8.76 (3.8 - 30, n=255)
4%
8.83 (4.4 - 15.7, n=109, last 2 years)
3%
Load Average *
42.1
38.7
8%
52.1
-24%
41
3%
47.2
-12%
35 (8.1 - 51.6, n=255)
17%
35.4 (8.3 - 79.2, n=110, last 2 years)
16%
Load Maximum *
65.1
50.5
22%
65.2
-0%
69.7
-7%
68.8
-6%
47.3 (22 - 96.3, n=257)
27%
48.3 (14 - 101, n=109, last 2 years)
26%
Witcher 3 ultra *
48.2

* ... kleiner is beter

Batterijduur
NBC WiFi Websurfing Battery Test 1.3 (Edge 83.0.478.54)
10h 04min
NBC WiFi Websurfing Battery Test 1.3 max Brightness (Edge 83.0.478.54)
8h 19min
Big Buck Bunny H.264 1080p
12h 50min
Belast (maximale helderheid)
1h 35min
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
i7-10510U, UHD Graphics 620, 51 Wh		HP Elitebook x360 1040 G5
i7-8650U, UHD Graphics 620, 56 Wh		Apple MacBook Pro 13 2020 2GHz i5 10th-Gen
i5-1038NG7, Iris Plus Graphics G7 (Ice Lake 64 EU), 58 Wh		Dell Latitude 7400-8N6DH
i7-8665U, UHD Graphics 620, 60 Wh		Lenovo ThinkPad X1 Carbon G7 20R1-000YUS
i7-10510U, UHD Graphics 620, 51 Wh		Lenovo ThinkPad X1 Carbon 2019-20QES01L00
i7-8565U, UHD Graphics 620, 51 Wh		Average of class Subnotebook

Batterijduur
50%
5%
25%
-1%
-13%
10%
Reader / Idle
1673
1315 (467 - 2925, n=38, last 2 years)
H.264
770
687
-11%
862
12%
688
-11%
703 (263 - 1152, n=47, last 2 years)
-9%
WiFi v1.3
604
623
3%
728
21%
696
15%
598
-1%
562
-7%
583 (258 - 1223, n=115, last 2 years)
-3%
Load
95
187
97%
141
48%
76
-20%
136 (65 - 255, n=61, last 2 years)
43%

Pro

+ extreem compact en licht
+ goede systeemprestaties
+ stille ventilator
+ lange batterijduur
+ uitstekende luidsprekers
+ uitgebreide garantieopties
+ Wi-Fi 6
+ nog altijd een uitstekend toetsenbord...

Contra

- ...maar slechter dan dat van andere ThinkPads
- geen WWAN
- 1080p LowPower-schermen variëren onderling sterk in kwaliteit
- geen SD-lezer

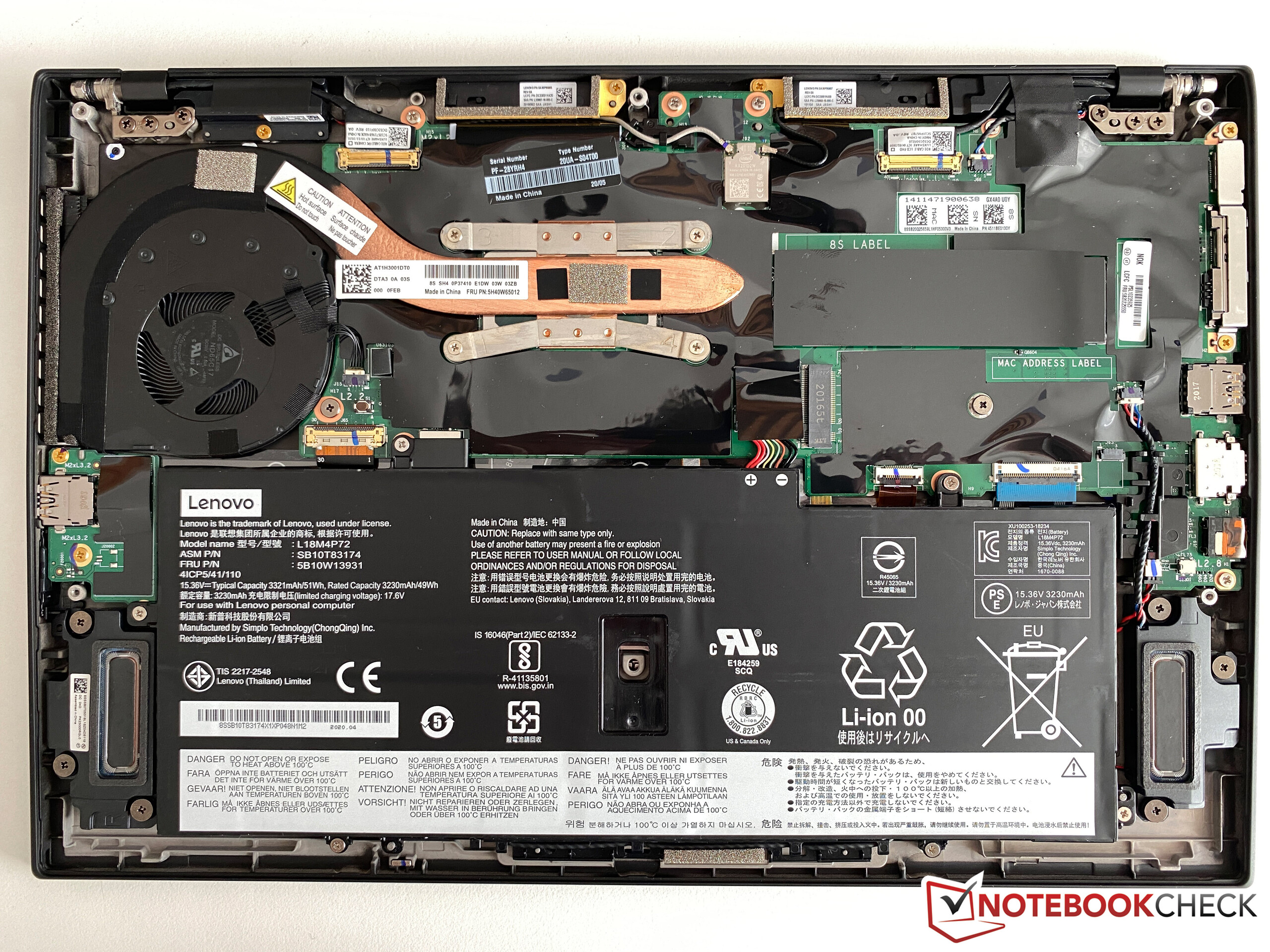

- zeer beperkt onderhoud
- LAN alleen via (meegeleverde) adapter

Conclusie - Kleine update zonder grote voordelen

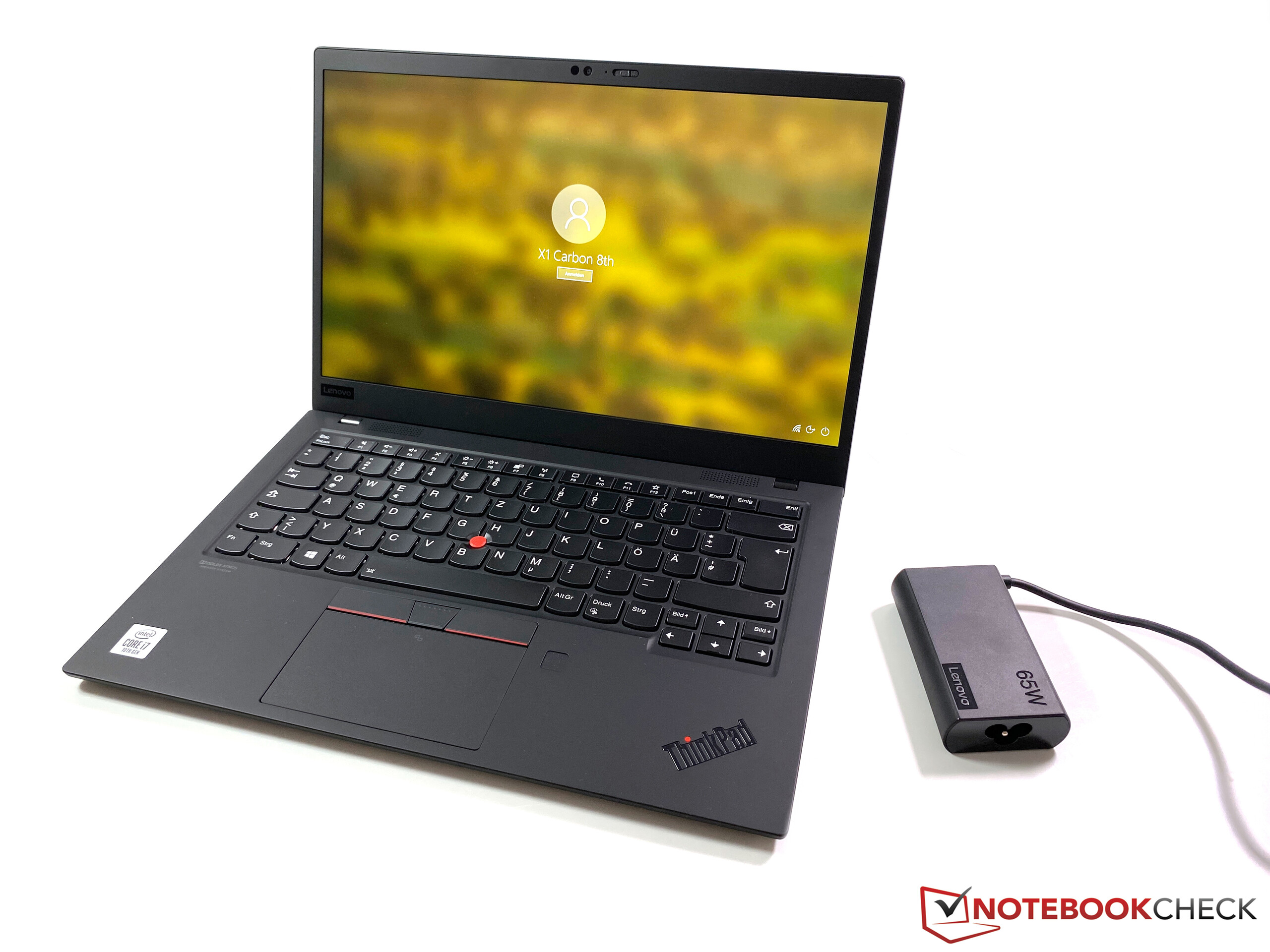

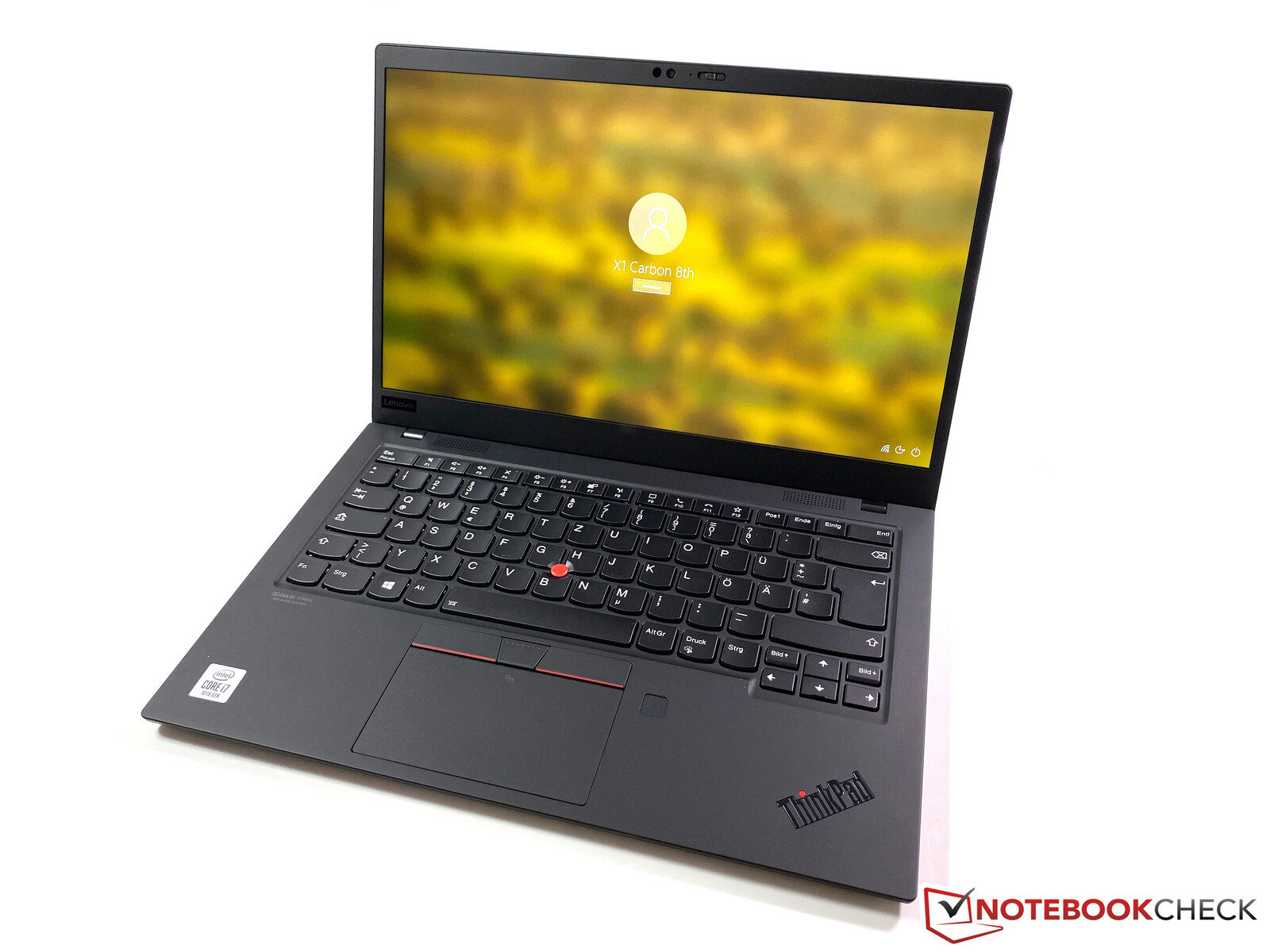

Getest: Lenovo ThinkPad X1 Carbon G8 2020. Testmodel voorzien door Campuspoint.
Getest: Lenovo ThinkPad X1 Carbon G8 2020. Testmodel voorzien door Campuspoint.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Nadat de ThinkPad X1 Carbon vorig jaar een grote update kreeg, krijgen klanten deze keer slechts een kleine update. Sommige regio's hadden de Comet Lake-processor al in de G7-generatie van 2019; de 8e generatie van de X1 Carbon maakt nu in elke regio gebruik van nieuwe processors. De verschillen op het vlak van processor- en grafische prestaties zijn echter praktisch onbestaande en rechtvaardigen geen upgrade. Het enige echte voordeel is de nieuwe Wi-Fi 6-module.

Hoewel er geen grote upgrades zijn, is de ThinkPad X1 Carbon nog steeds een uitstekende business-laptop met een extreem lichte en stevige behuizing. Een aantal problemen zijn eveneens gebleven, zoals de sterk variabele kwaliteit van de LowPower 1080p-schermen. Het toetsenbord is ook iets slechter sinds de update van de behuizing van vorig jaar. Misschien zijn we nu aan het muggenziften, maar de vlaggenschip-ThinkPad biedt niet meer het beste toetsenbord; zwaardere machines (zoals de T-serie) hebben op dit vlak een voordeel.

Lenovo gebruikt geen AMD-processors voor de X1-serie, dus de overstap naar de 8e generatie is slechts een kleine update. Het is nog steeds een zeer goede zakelijke laptop, maar Lenovo's nieuwe ThinkPad T14s (inclusief AMD-SoC) zou weleens de grootste concurrent kunnen zijn.

Is de upgrade dus geslaagd? De enige echte voordelen vergeleken met het model van 2019 zijn de Wi-Fi 6-module en de iets kleinere adapter, maar dit rechtvaardigt nauwelijks een upgrade. We willen ook graag de nieuwe ThinkPad T14s in handen krijgen. Deze heeft een nieuwe behuizing en zou nog dichter bij de X1 Carbon moeten aanleunen, maar Lenovo zal naast Intel-modellen ook versies met een AMD-CPU verkopen. Als we kijken naar de eerste resultaten van de goedkope ThinkPad E15 met de AMD 4000-CPU, zouden de AMD-gebaseerde T14's veel meer prestaties moeten bieden dan de X1 Carbon.

Download your licensed rating image as SVG / PNG

Lenovo ThinkPad X1 Carbon 2020-20UAS04T00 - 01-07-2020 v7
Andreas Osthoff

Behuizing
88 / 98 → 90%
Toetsenbord
90%
Aanwijsapparaat
89%
Aansluitmogelijkheden
70 / 75 → 93%
Gewicht
74 / 20-75 → 98%
Batterij
89%
Beeldscherm
86%
Gaming-performance
52 / 78 → 66%
Applicatie-performance
89 / 85 → 100%
Temperatuur
89%
Luidheid
98%
Audio
74 / 91 → 82%
Camera
38 / 85 → 45%
Gemiddelde
79%
90%
Subnotebook - Gewogen Gemiddelde

Pricecompare

Andreas Osthoff
Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1304 articles published on Notebookcheck since 2013
Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport ThinkPad X1 Carbon 2020: Vertrouwde business-laptop met een nieuwe adapter
Andreas Osthoff, 2020-07- 4 (Update: 2020-07- 4)
