Panasonic Toughbook FZ-55 MK2 robuuste laptop review: Iris Xe maakt het verschil

350 procent snellere grafische prestaties. De 2021 Toughbook FZ-55 MK2 is een uitstekend voorbeeld van hoe ver Intel is gekomen sinds zijn Whiskey Lake-U dagen op de originele 2019 Toughbook FZ-55 MK1. Als u de prestaties wilt maximaliseren zonder noodzakelijkerwijs meer stroom te verbruiken, dan is de FZ-55 Mark 2 een no-brainer.
Allen Ngo, 👁 Allen Ngo (vertaald door DeepL / Ninh Duy), 🇺🇸 🇫🇷 ...
, , , , , ,
zoekrelatie.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,


Terwijl de FZ-55 MK1 werd geleverd met Intel 8e generatie CPU's, wordt de nieuwste FZ-55 MK2 geleverd met Intel 11e generatie CPU's. De schijnbaar kleine upgrade is in feite heel belangrijk in termen van prestaties, zoals onze vergelijkende grafieken hieronder zullen laten zien

Naast de processorwissel wordt de FZ-55 MK2 geleverd met andere aanvullende updates, waaronder ondersteuning voor NVMe/OPAL SSD's, sneller 3200 MHz RAM, Wi-Fi 6, Thunderbolt 4, en band 48 CBRS WAN met dual SIM ondersteuning. Het fysieke chassis blijft identiek aan de FZ-55 MK1 en daarom raden we aan om onze originele review hier om meer te weten te komen over de functies

Concurrenten op dit gebied zijn andere robuuste 14-inch laptops zoals de Dell Latitude 5420, Durabook S14, of Getac S410

Meer Panasonic review

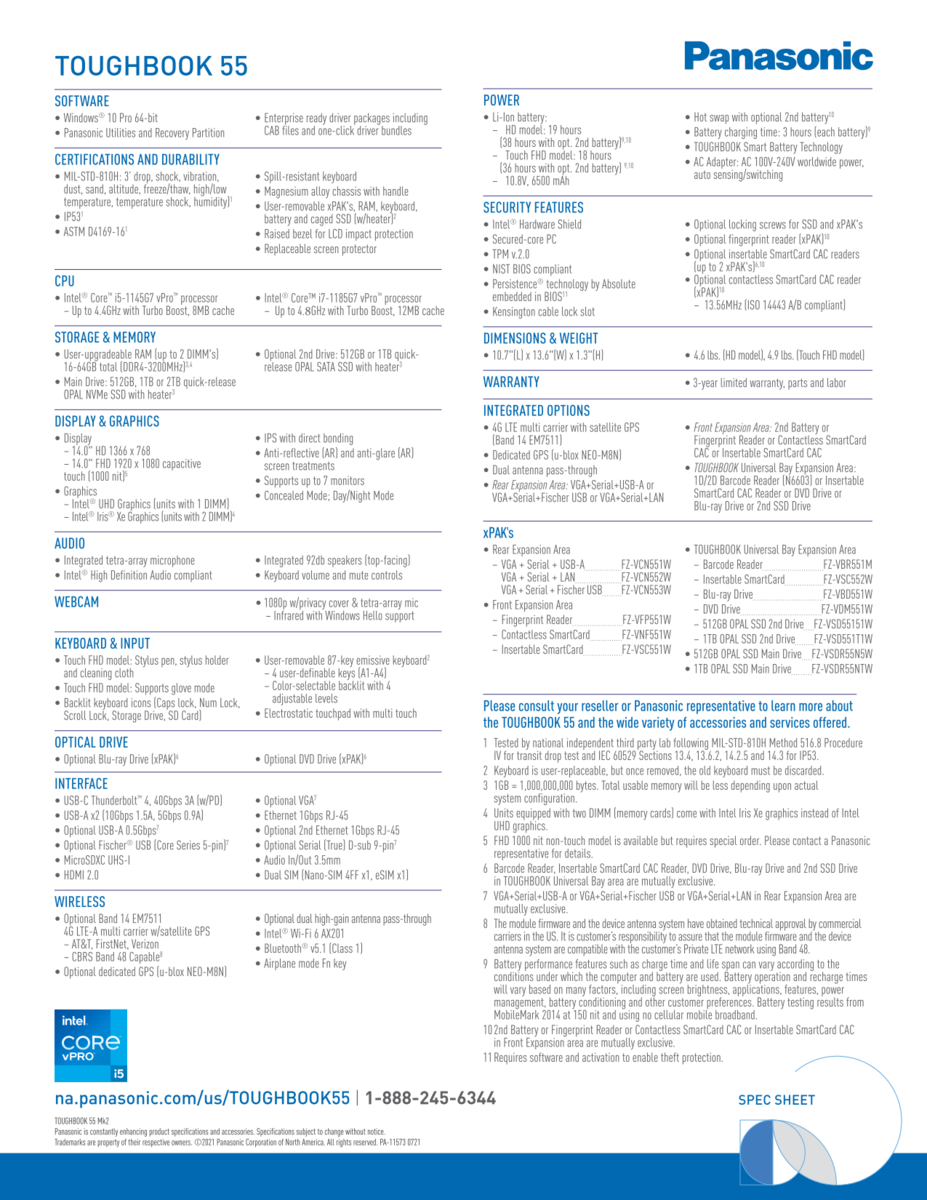

Toughbook FZ-55 Mark 2 specificatieblad (Bron: Panasonic)
Toughbook FZ-55 Mark 2 specificatieblad (Bron: Panasonic)

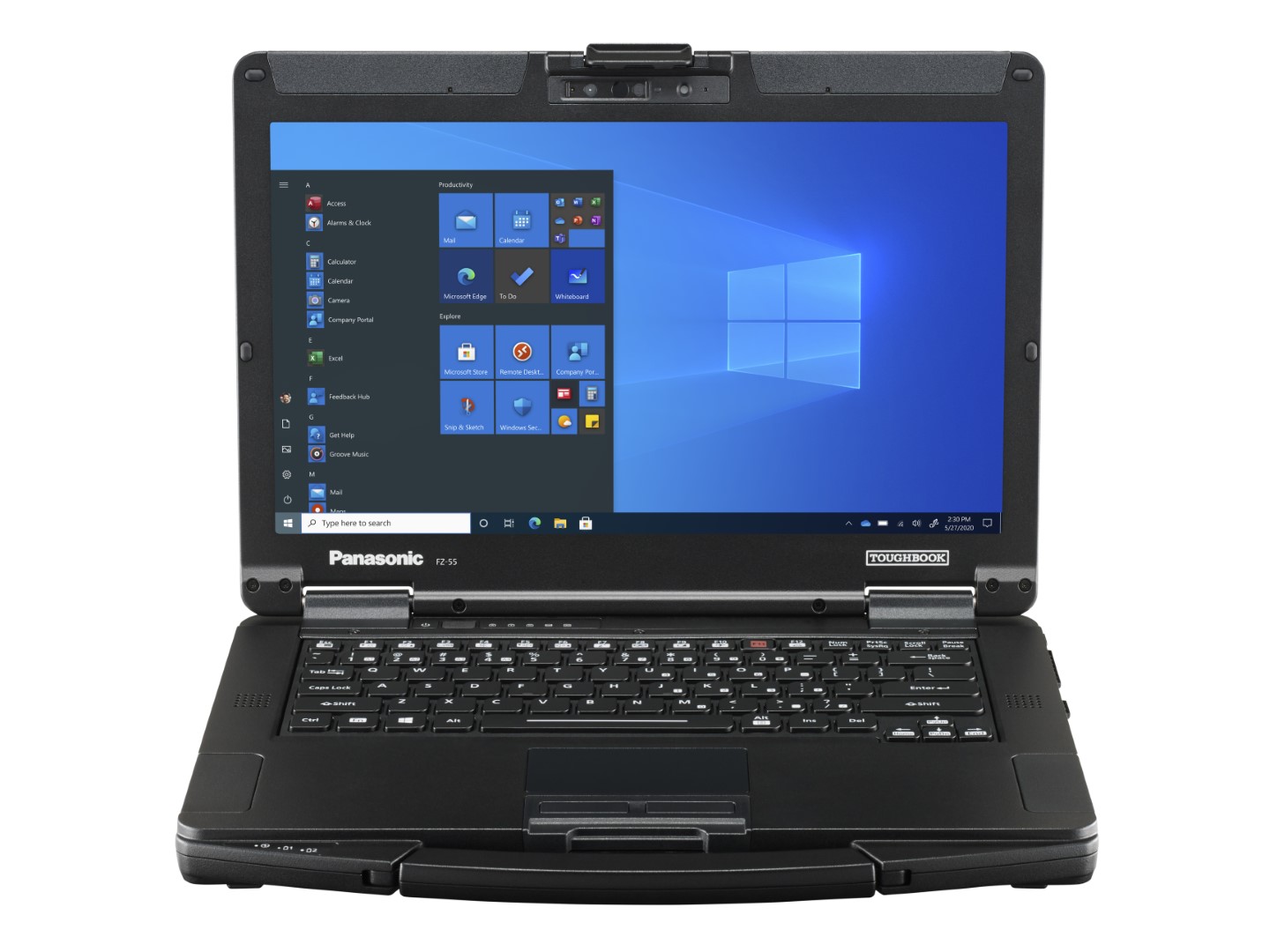

Panasonic Toughbook FZ-55 MK2

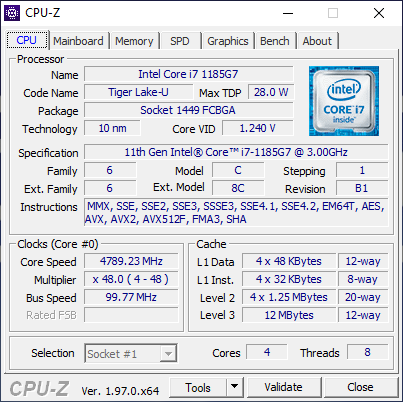

Processor
Intel Core i7-1185G7 4 x 3 - 4.8 GHz, 64 W PL2 / Short Burst, 25 W PL1 / Sustained, Tiger Lake UP3
Grafische kaart
Intel Iris Xe Graphics G7 96EUs, Core: 1350 MHz, Geheugen: 2000 MHz, DDR4, 27.20.100.9365

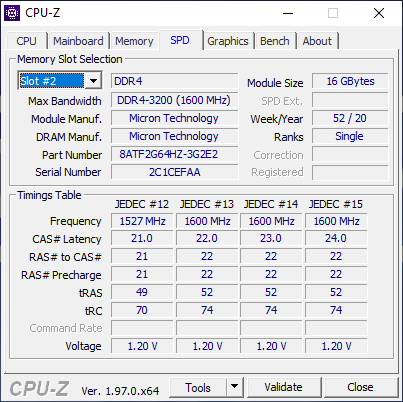

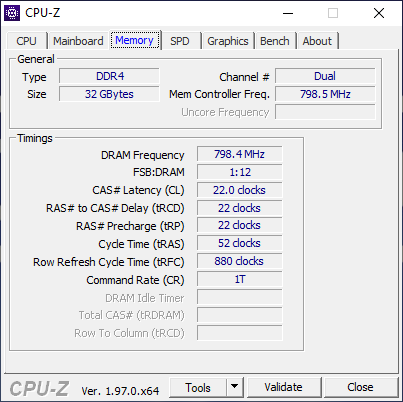

Geheugen
16384 MB
, Samsung DDR4-3200, 22-22-22-52, Dual-Channel
Beeldscherm
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, Capacitive, InfoVision M140NWF5 R3, IPS, IVO057D, glimmend: nee, 60 Hz
Moederbord
Intel Tiger Lake-UP3 PCH-LP
Opslag
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL, 512 GB
Geluidskaart
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Verbindingen
3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, 1 Docking Station Port, Audio Verbindingen: 3.5 mm combo, Card Reader: MicroSD reader
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.2
Afmetingen
hoogte x breedte x diepte (in mm): 33 x 346 x 272
Batterij
71 Wh Lithium-Ion, removeable
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 1080p
Bijkomende functionaliteiten
Luidsprekers: Stereo, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 36 Maanden Garantie, ruggedized, waterproof
Gewicht
2.318 kg, Voeding: 500 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



potential competitors in comparison

Evaluatie
Datum
Model
Gewicht
Hoogte
Formaat
Resolutie
Best Price
84 %
09-2021
Panasonic Toughbook FZ-55 MK2
i7-1185G7, Iris Xe G7 96EUs
2.3 kg33 mm14.00"1920x1080
81 %
10-2019
Panasonic Toughbook FZ-55
i5-8365U, UHD Graphics 620
2.2 kg33 mm14.00"1920x1080
89 %
Dell Latitude 5420 Rugged-P85G
i7-8650U, Radeon RX 540
2.8 kg32.9 mm14.00"1920x1080
04-2021
Durabook S14I
i7-1165G7, Iris Xe G7 96EUs
3 kg38.1 mm14.00"1920x1080
82 %
11-2018
Getac S410
i5-8550U, UHD Graphics 620
2.2 kg34.9 mm14.00"1366x768

Zaak

350 mm 282 mm 38.1 mm 3 kg350 mm 293 mm 34.9 mm 2.2 kg347 mm 244.5 mm 32.9 mm 2.8 kg346 mm 272 mm 33 mm 2.3 kg346 mm 272 mm 33 mm 2.2 kg

Connectiviteit

De poorten zijn identiek met de nieuwe toevoeging van Thunderbolt 4 en een snellere 10 Gbps USB-A poort langs de rechterrand. Gebruikers kunnen externe monitoren en GPU's opladen of aansluiten via USB-C, wat anders onmogelijk was op de FZ-55 MK1.

SD-kaartlezer

Er zijn geen wijzigingen aangebracht aan de MicroSD-lezer. Het verplaatsen van bestanden van onze UHS-II testkaart naar de desktop duurt nog steeds 2x tot 3x langer dan de kaartlezer op deDell Latitude 5420 Rugged.

SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Latitude 5420 Rugged-P85G
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
182.86 MB/s ∼100% +140%
Getac S410
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
81.1 MB/s ∼44% +7%
Panasonic Toughbook FZ-55 MK2
  (AV Pro V60)
76.12 MB/s ∼42%
Panasonic Toughbook FZ-55
  (Toshiba Exceria Pro M501 64 GB UHS-II)
73.8 MB/s ∼40% -3%
Durabook S14I
  (Angelbird 128GB AV Pro UHS-II)
20.1 MB/s ∼11% -74%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 5420 Rugged-P85G
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
228.78 MB/s ∼100% +160%
Panasonic Toughbook FZ-55 MK2
  (AV Pro V60)
87.9 MB/s ∼38%
Getac S410
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
85.5 MB/s ∼37% -3%
Panasonic Toughbook FZ-55
  (Toshiba Exceria Pro M501 64 GB UHS-II)
85.15 MB/s ∼37% -3%
Durabook S14I
  (Angelbird 128GB AV Pro UHS-II)
27.1 MB/s ∼12% -69%

Communicatie

Een Intel AX201 wordt standaard meegeleverd voor Wi-Fi 6-compatibiliteit ter vervanging van de oudere Wi-Fi 5 Intel 9560.

Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Panasonic Toughbook FZ-55 MK2
Intel Wi-Fi 6 AX201
1267 (1166min - 1329max) MBit/s ∼100%
Durabook S14I
Intel Wi-Fi 6 AX201
1246 (1055min - 1311max) MBit/s ∼98% -2%
Dell Latitude 5420 Rugged-P85G
Intel Dual Band Wireless-AC 8265
540 MBit/s ∼43% -57%
Getac S410
Intel Dual Band Wireless-AC 8265
538 MBit/s ∼42% -58%
iperf3 Client (receive) TCP 1 m 4M x10
Durabook S14I
Intel Wi-Fi 6 AX201
1517 (789min - 1593max) MBit/s ∼100% +4%
Panasonic Toughbook FZ-55 MK2
Intel Wi-Fi 6 AX201
1452 (1295min - 1544max) MBit/s ∼96%
Dell Latitude 5420 Rugged-P85G
Intel Dual Band Wireless-AC 8265
652 MBit/s ∼43% -55%
Getac S410
Intel Dual Band Wireless-AC 8265
650 MBit/s ∼43% -55%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500147914561539145814751472145313991461145414001474147414681426146013001428148115441481146914741422129514481456147314371480147914561539145814751472145313991461145414001474147414681426146013001428148115441481146914741422129514481456147314371480125012631324128113071248132912091227123112741243128511661267127212831265131212731279127312831256128012631228132112571250Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1451 (1295-1544)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1267 (1166-1329)

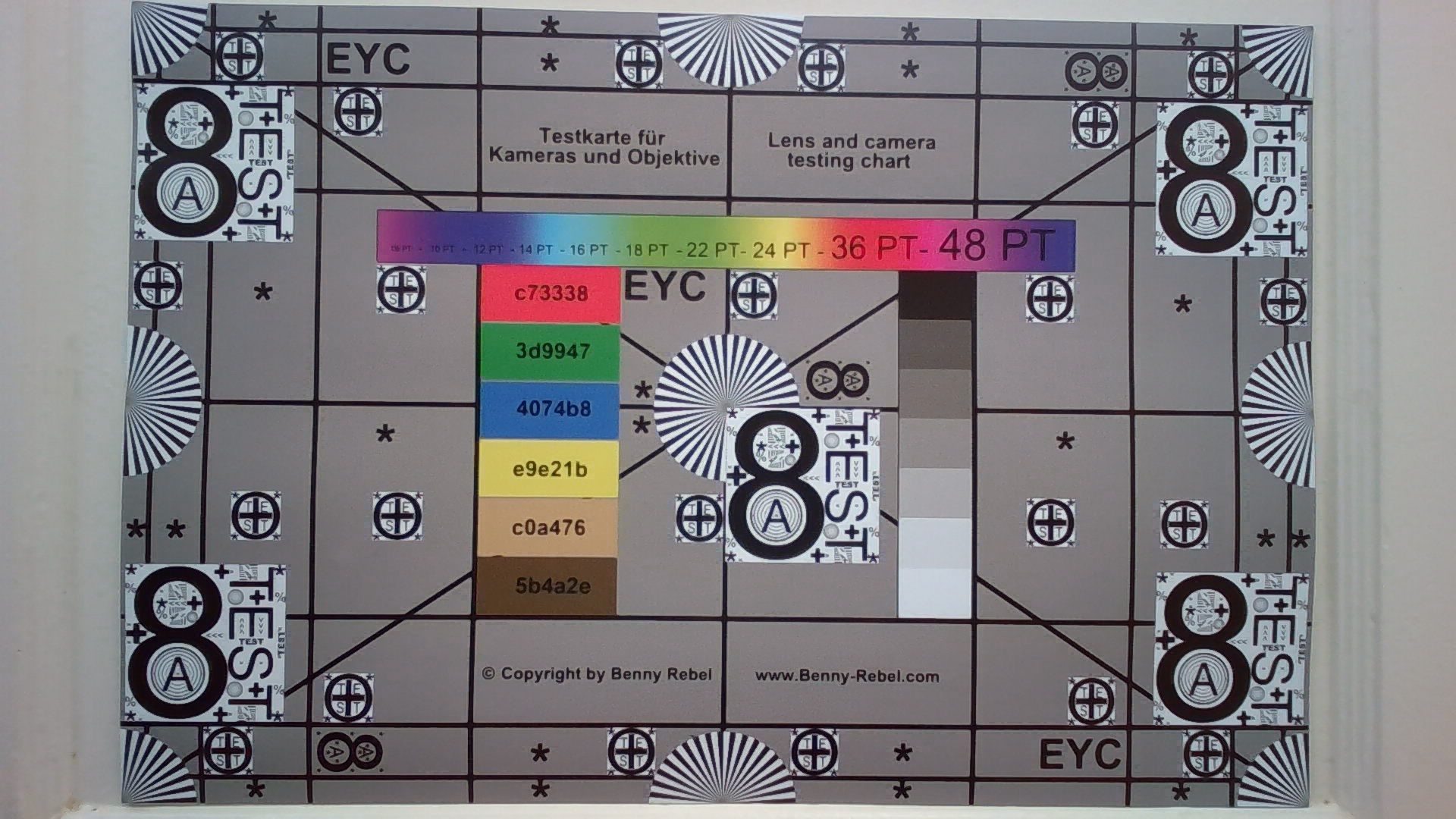

Webcam

Een groot slot dat het deksel in gesloten toestand vastklikt, hangt over de webcam die helaas veel omgevingslicht kan blokkeren. Het beeld van de webcam kan er daardoor donkerder uitzien dan op de meeste andere laptops het geval zou zijn.

ColorChecker
7.8 ∆E
8.6 ∆E
5.6 ∆E
1.7 ∆E
4.3 ∆E
4.6 ∆E
13 ∆E
9.1 ∆E
7.6 ∆E
5.7 ∆E
6.4 ∆E
8.2 ∆E
11.6 ∆E
7.9 ∆E
5.1 ∆E
9.2 ∆E
4.6 ∆E
11.4 ∆E
13.1 ∆E
8.5 ∆E
5.4 ∆E
7.3 ∆E
8.3 ∆E
9 ∆E
ColorChecker Panasonic Toughbook FZ-55 MK2: 7.67 ∆E min: 1.73 - max: 13.14 ∆E

Accessoires en garantie

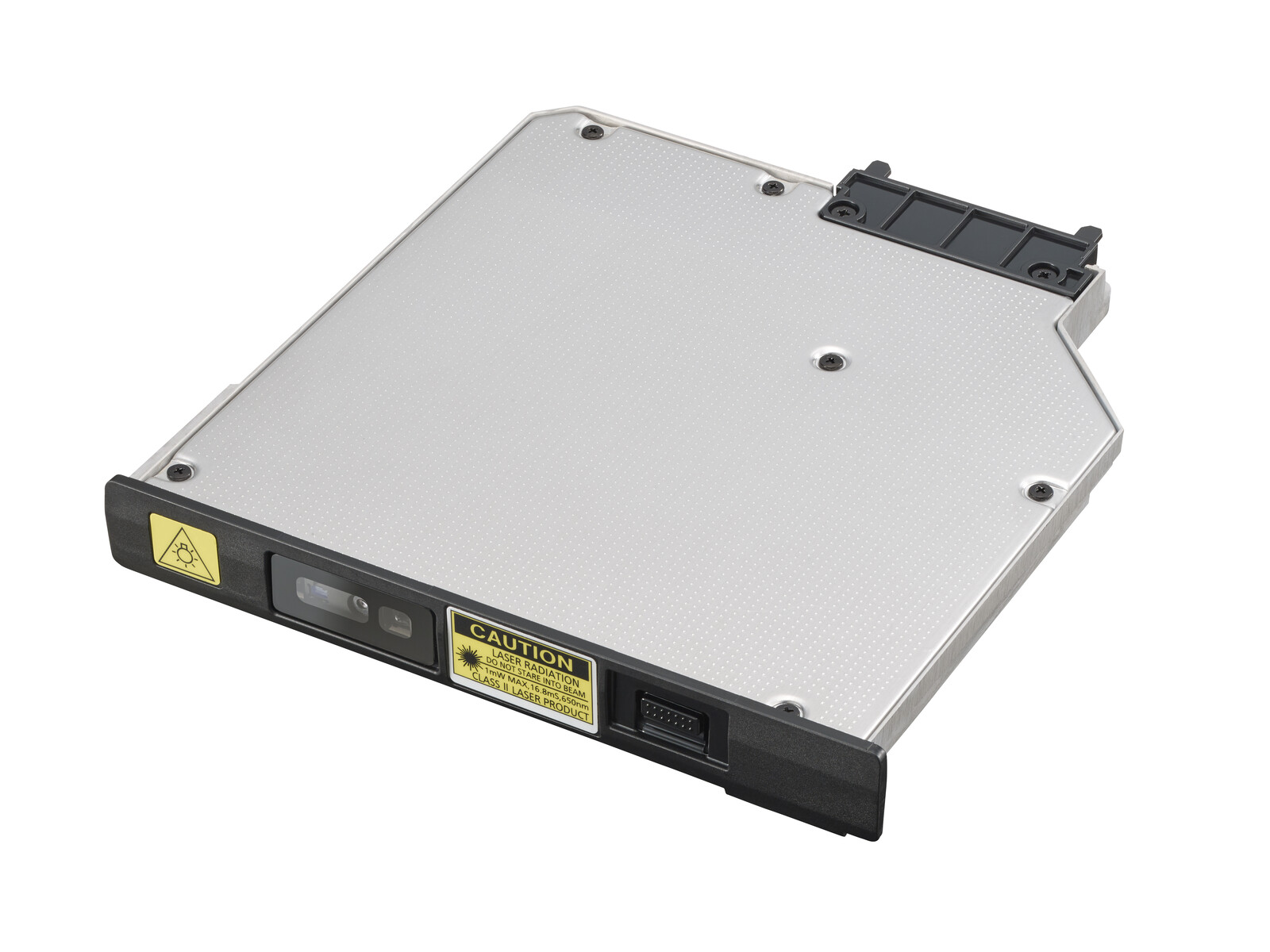

Hoewel de verwijderbare xPAK-uitbreidingsitems achterwaarts compatibel blijven, heeft Panasonic nieuwe geïntroduceerd voor extra functionaliteit indien gewenst. Een daarvan is een next-gen Radeon xPAK die later volgend jaar op de markt komt voor verbeterde grafische prestaties en die compatibel zal zijn met onze FZ-55 MK2

Een standaard garantie van 36 maanden is van toepassing.

Weergave

De Toughbook FZ-55 MK2 maakt gebruik van hetzelfde InfoVision M140NWF5 R3 IPS-paneel als op de FZ-55 MK1, wat betekent dat de kijkervaring in wezen identiek blijft. De kleurruimte is zeer smal met slechts 52 procent van sRGB, vergeleken met >95 procent op traditionele Ultrabooks. Verwacht dus niet dat de kleuren knallen of nauwkeurig genoeg zijn voor serieuze videobewerking

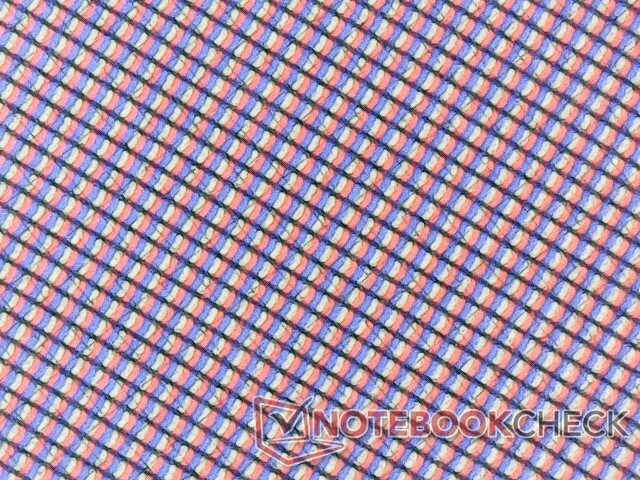

Minimale korreligheid op het halfglanzende aanraakscherm. Er is geen glazen deklaag
Minimale korreligheid op het halfglanzende aanraakscherm. Er is geen glazen deklaag

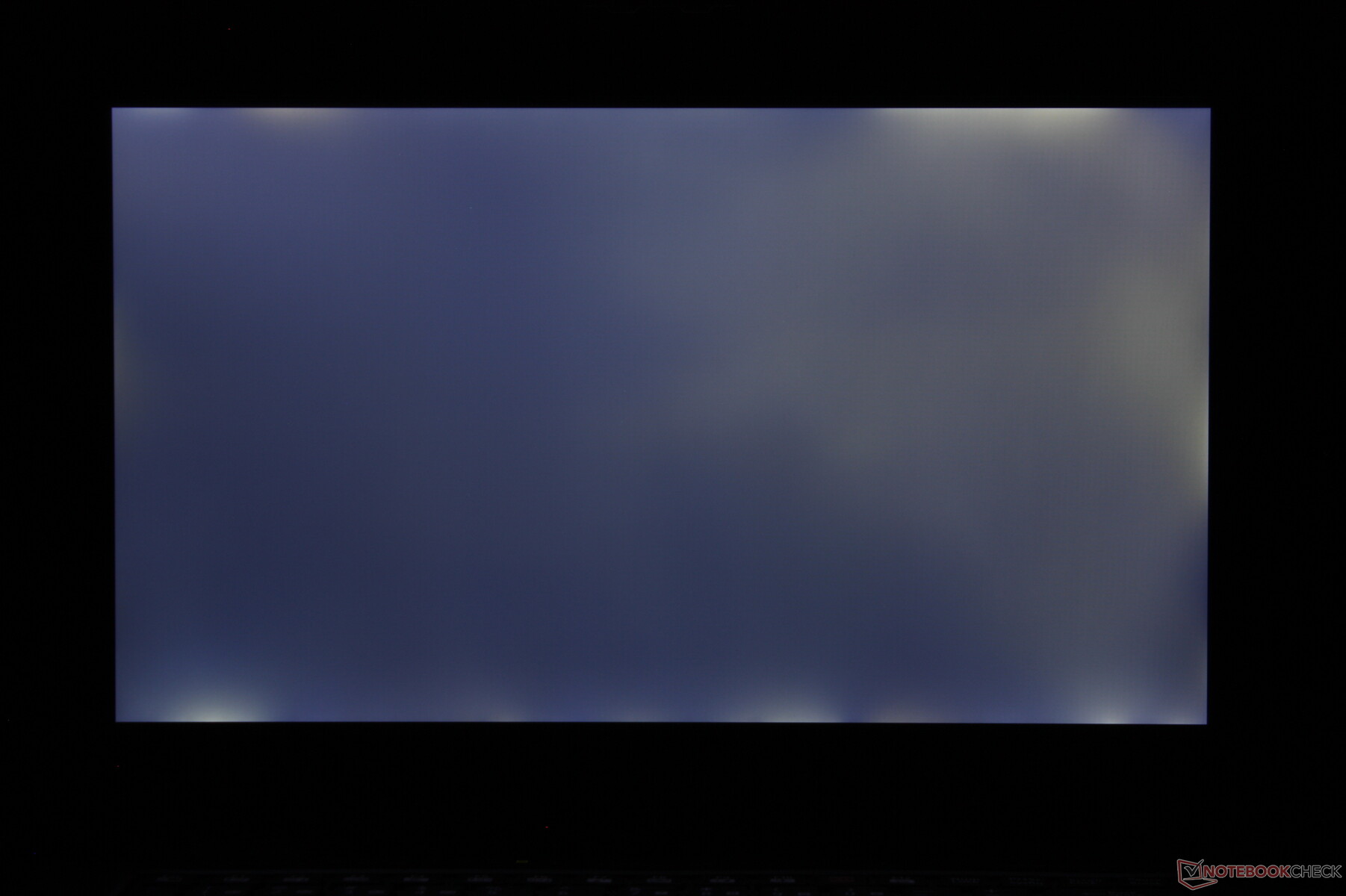

Het scherm mag dan superhelder zijn met 1000 nits, maar de zware achtergrondverlichting is voor verbetering vatbaar
Het scherm mag dan superhelder zijn met 1000 nits, maar de zware achtergrondverlichting is voor verbetering vatbaar
1049.2
cd/m²
1155.4
cd/m²
1064.1
cd/m²
961.2
cd/m²
1061.1
cd/m²
935.3
cd/m²
873.8
cd/m²
939.3
cd/m²
932.1
cd/m²
Helderheidsverdeling
InfoVision M140NWF5 R3
X-Rite i1Pro 2
Maximum: 1155.4 cd/m² Gemiddelde: 996.8 cd/m² Minimum: 1.06 cd/m²
Helderheidsverdeling: 76 %
Helderheid in Batterij-modus: 1061.1 cd/m²
Contrast: 1516:1 (Zwart: 0.7 cd/m²)
ΔE Color 4.64 | 0.59-29.43 Ø5.5, calibrated: 2.52
ΔE Greyscale 2.8 | 0.64-98 Ø5.7
36% AdobeRGB 1998 (Argyll 2.2.0 3D)
52.2% sRGB (Argyll 2.2.0 3D)
34.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.08
Panasonic Toughbook FZ-55 MK2
InfoVision M140NWF5 R3, IPS, 14.00, 1920x1080
Panasonic Toughbook FZ-55
InfoVision M140NWF5 R3, IPS, 14.00, 1920x1080
Dell Latitude 5420 Rugged-P85G
AU Optronics AUO523D, IPS, 14.00, 1920x1080
Durabook S14I
KD140N0730A01, TN, 14.00, 1920x1080
Getac S410
CMN N140BGE-E33, TN PED, 14.00, 1366x768
Display
9%
78%
25%
16%
Display P3 Coverage
34.8
38.09
9%
62.55
80%
43.55
25%
40.46
16%
sRGB Coverage
52.2
56.99
9%
92.37
77%
65.44
25%
60.86
17%
AdobeRGB 1998 Coverage
36
39.38
9%
64.17
78%
45
25%
41.8
16%
Response Times
-15%
-48%
-0%
12%
Response Time Grey 50% / Grey 80% *
28.4 (14, 14.4)
42 (20.8, 21.2)
-48%
68 (34, 34)
-139%
30.4 (16.8, 13.6)
-7%
41.2 (21.6, 19.6)
-45%
Response Time Black / White *
30 (16, 14)
29.6 (13.2, 16.4)
1%
33.6 (18.8, 14.8)
-12%
11.8 (8.2, 3.6)
61%
14 (9.6, 4.4)
53%
PWM Frequency
684.9 (99)
694.4 (99)
1%
735.3 (100)
7%
304.9 (100)
-55%
877.2 (99)
28%
Screen
-22%
-6%
-96%
-99%
Brightness middle
1061.1
1037
-2%
1111.7
5%
1180.7
11%
265.1
-75%
Brightness
997
1015
2%
1026
3%
1102
11%
246
-75%
Brightness Distribution
76
76
0%
80
5%
89
17%
81
7%
Black Level *
0.7
0.6
14%
0.81
-16%
1.91
-173%
0.58
17%
Contrast
1516
1728
14%
1372
-9%
618
-59%
457
-70%
Colorchecker DeltaE2000 *
4.64
5.71
-23%
3.83
17%
13.45
-190%
14.24
-207%
Colorchecker DeltaE2000 max. *
20.92
26.27
-26%
7.85
62%
22.52
-8%
26.66
-27%
Colorchecker DeltaE2000 calibrated *
2.52
4.52
-79%
2.98
-18%
3.19
-27%
3.94
-56%
Greyscale DeltaE2000 *
2.8
5.5
-96%
5.6
-100%
15.4
-450%
14.2
-407%
Gamma
2.08 106%
2.04 108%
2.306 95%
1.97 112%
2.03 108%
CCT
6364 102%
5783 112%
7676 85%
21134 31%
17152 38%
Color Space (Percent of AdobeRGB 1998)
36.4
59
41.6
38.7
Color Space (Percent of sRGB)
57
93
65.5
61
Totaal Gemiddelde (Programma / Instellingen)
-9% / -14%
8% / 3%
-24% / -53%
-24% / -54%

* ... kleiner is beter

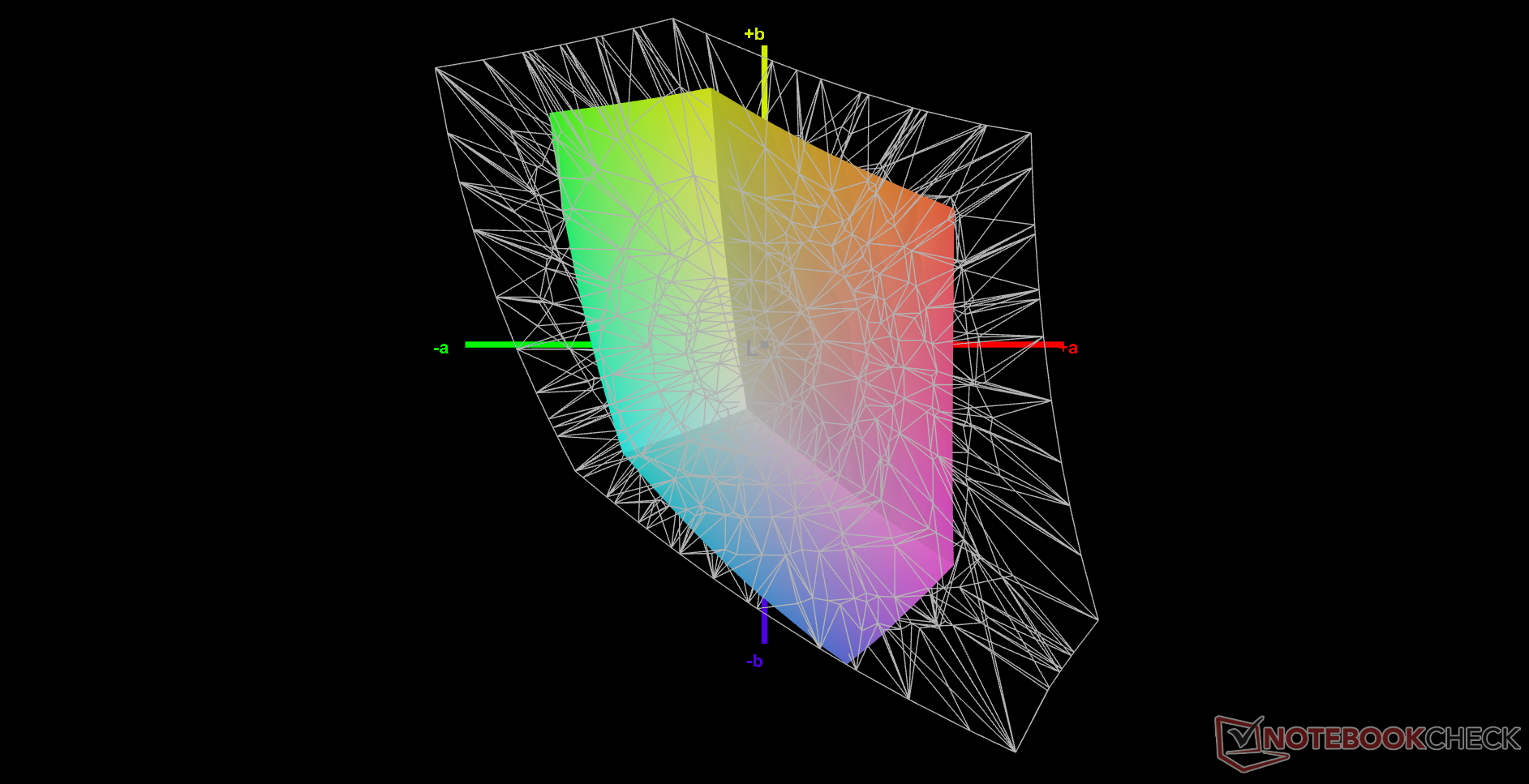

vs. sRGB
vs. sRGB

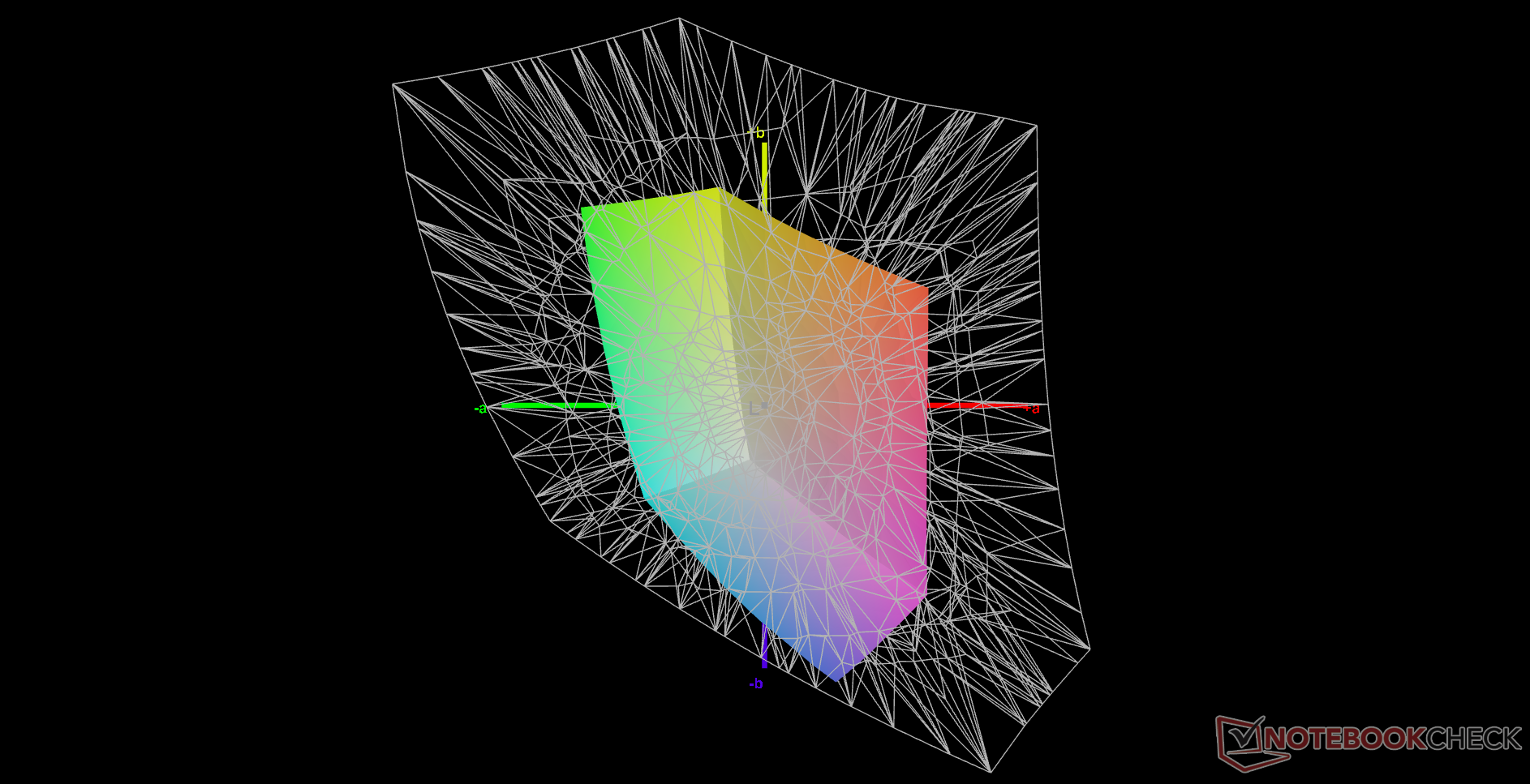

vs. DCI-P3
vs. DCI-P3

Kalibratie van het beeldscherm zal de grijstinten en de kleuren bij lagere verzadigingsniveaus verbeteren, maar de hierboven vermelde beperkte kleurruimte betekent dat kleuren bij hogere verzadigingsniveaus altijd relatief onnauwkeurig zullen zijn ten opzichte van de sRGB-norm.

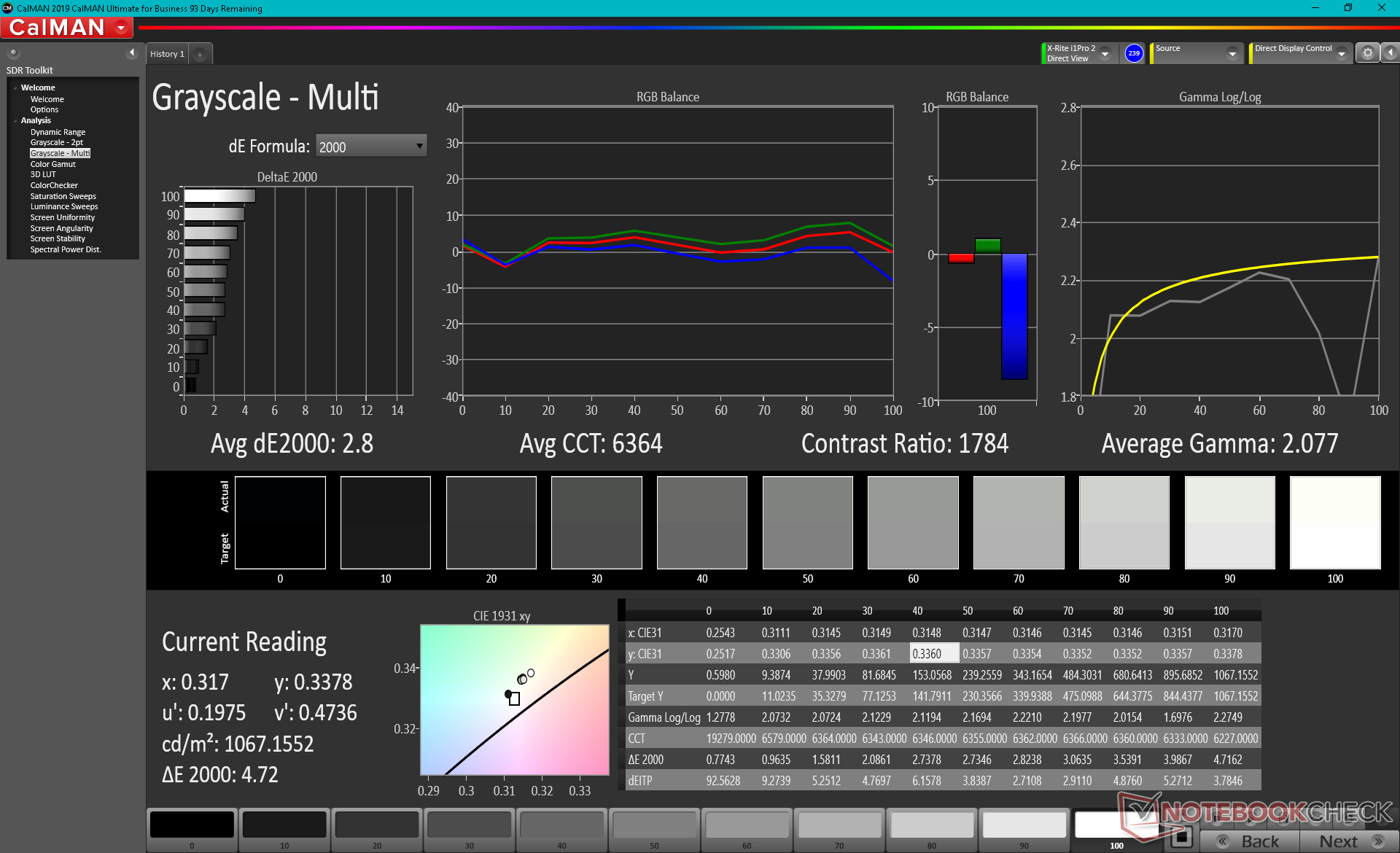

Grijstinten vóór kalibratie
Grijstinten vóór kalibratie

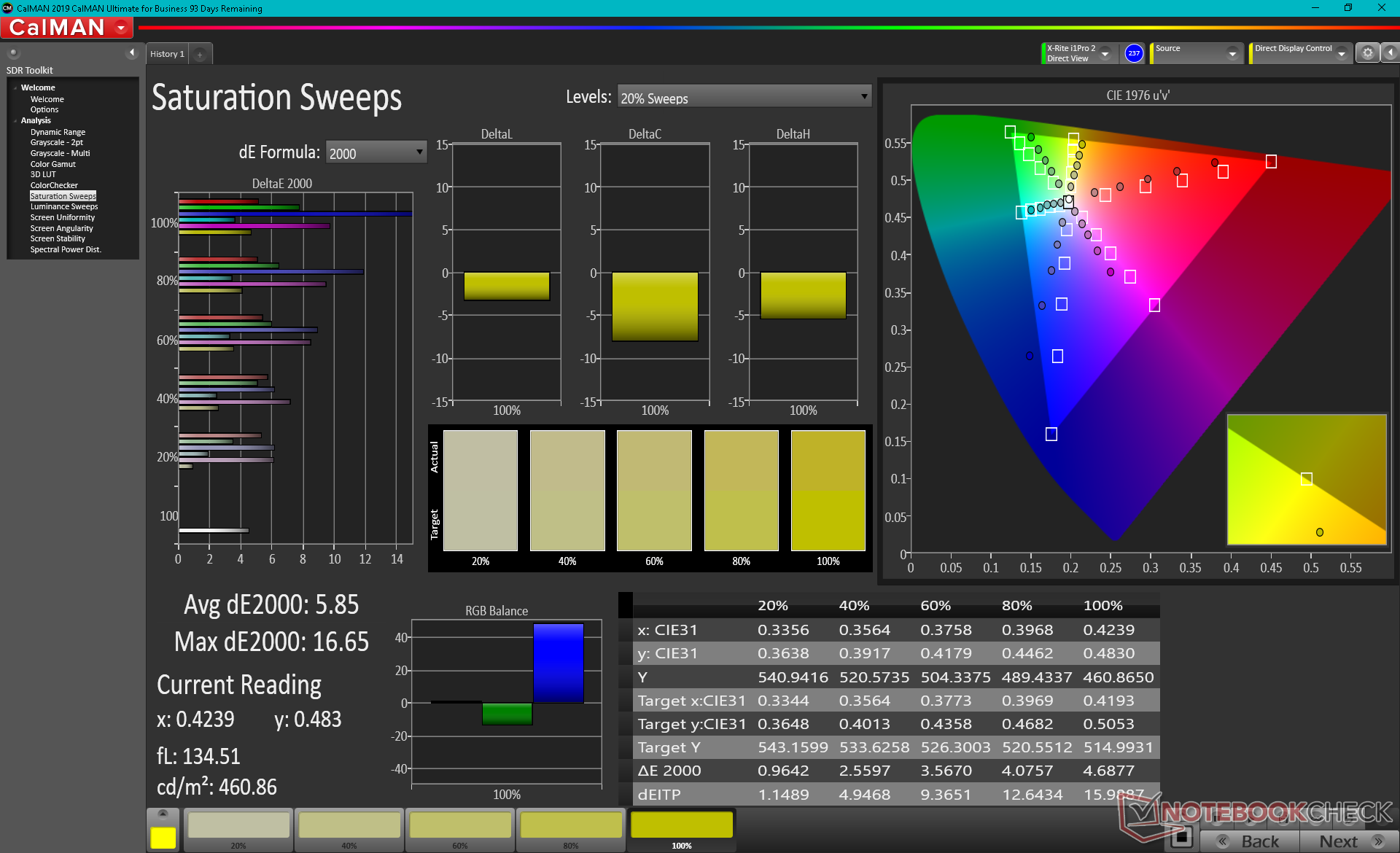

Saturatie Sweeps voor kalibratie
Saturatie Sweeps voor kalibratie
ColorChecker vóór kalibratie
ColorChecker vóór kalibratie
Grijswaarden na kalibratie
Grijswaarden na kalibratie

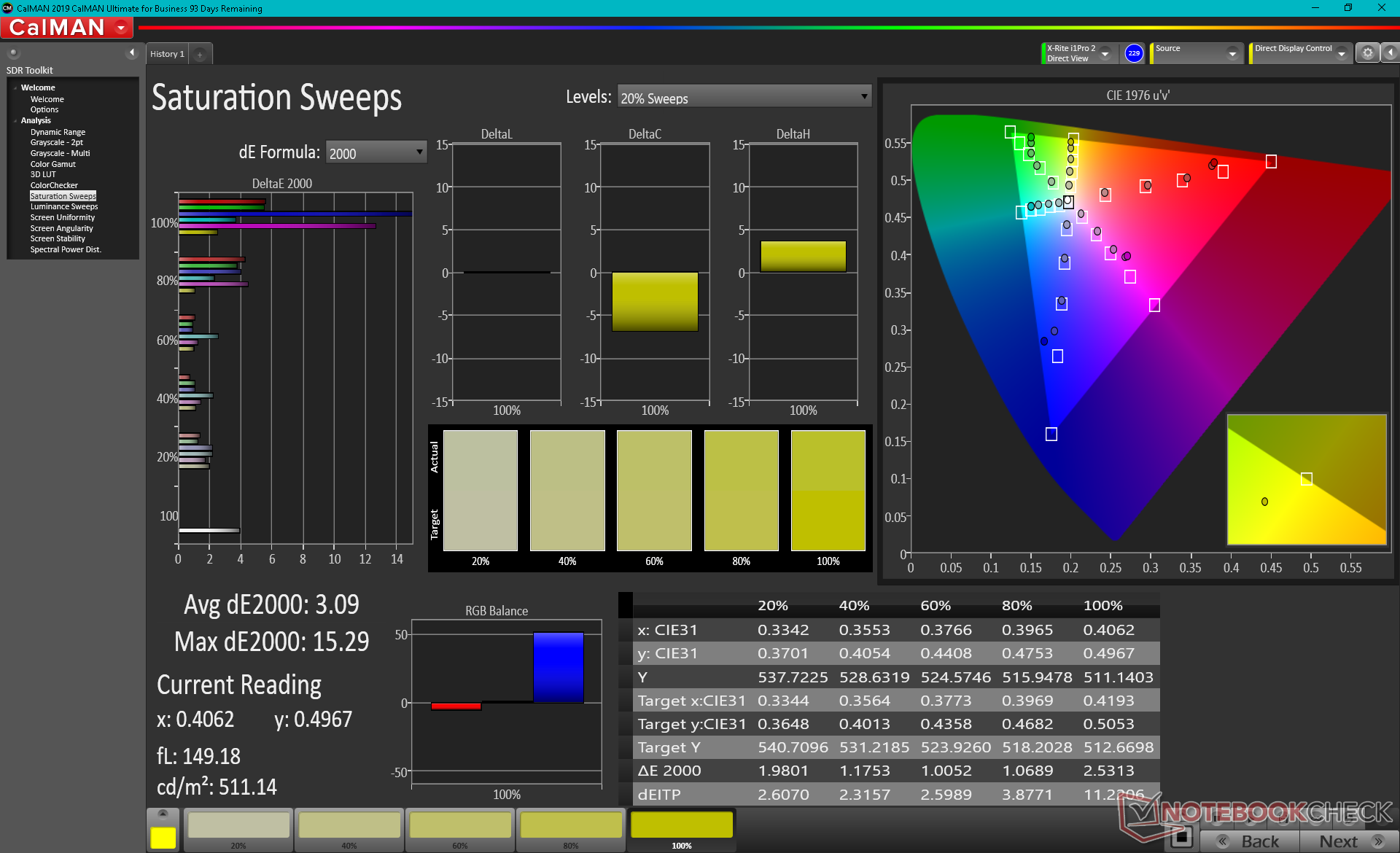

Saturatie Sweeps na kalibratie
Saturatie Sweeps na kalibratie

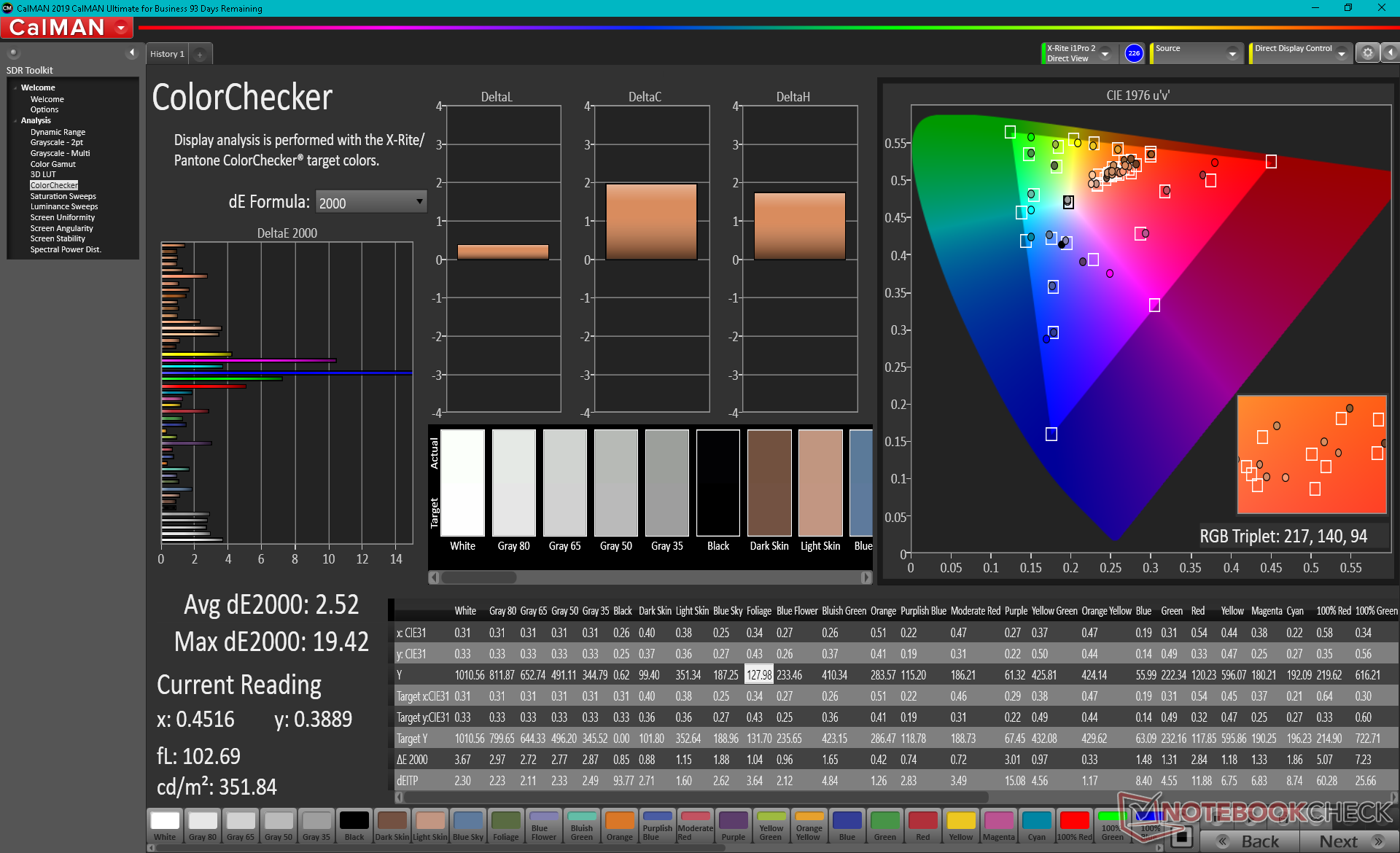

ColorChecker na kalibratie
ColorChecker na kalibratie

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

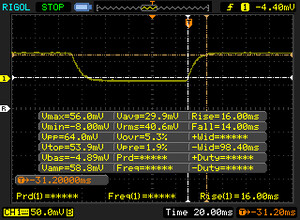

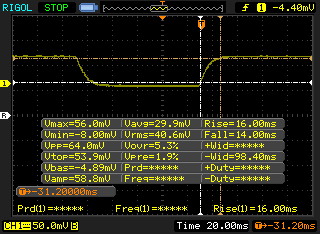

       Responstijd Zwart naar Wit
30 ms ... stijging ↗ en daling ↘ gecombineerd↗ 16 ms stijging
↘ 14 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 73 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (23.9 ms) van alle geteste toestellen.

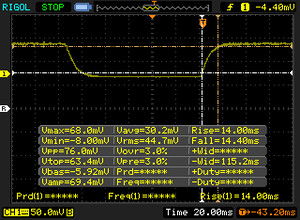

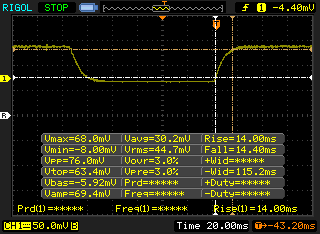

       Responstijd 50% Grijs naar 80% Grijs
28.4 ms ... stijging ↗ en daling ↘ gecombineerd↗ 14 ms stijging
↘ 14.4 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 22 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (37.8 ms) van alle geteste toestellen.

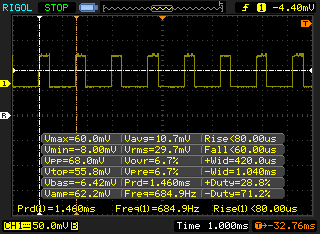

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 684.9 Hz ≤ 99 % helderheid instelling

Het backlight van het scherm flikkert aan 684.9 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 99 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 684.9 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 52 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 15324 (minimum: 5 - maximum: 2500000) Hz waargenomen.

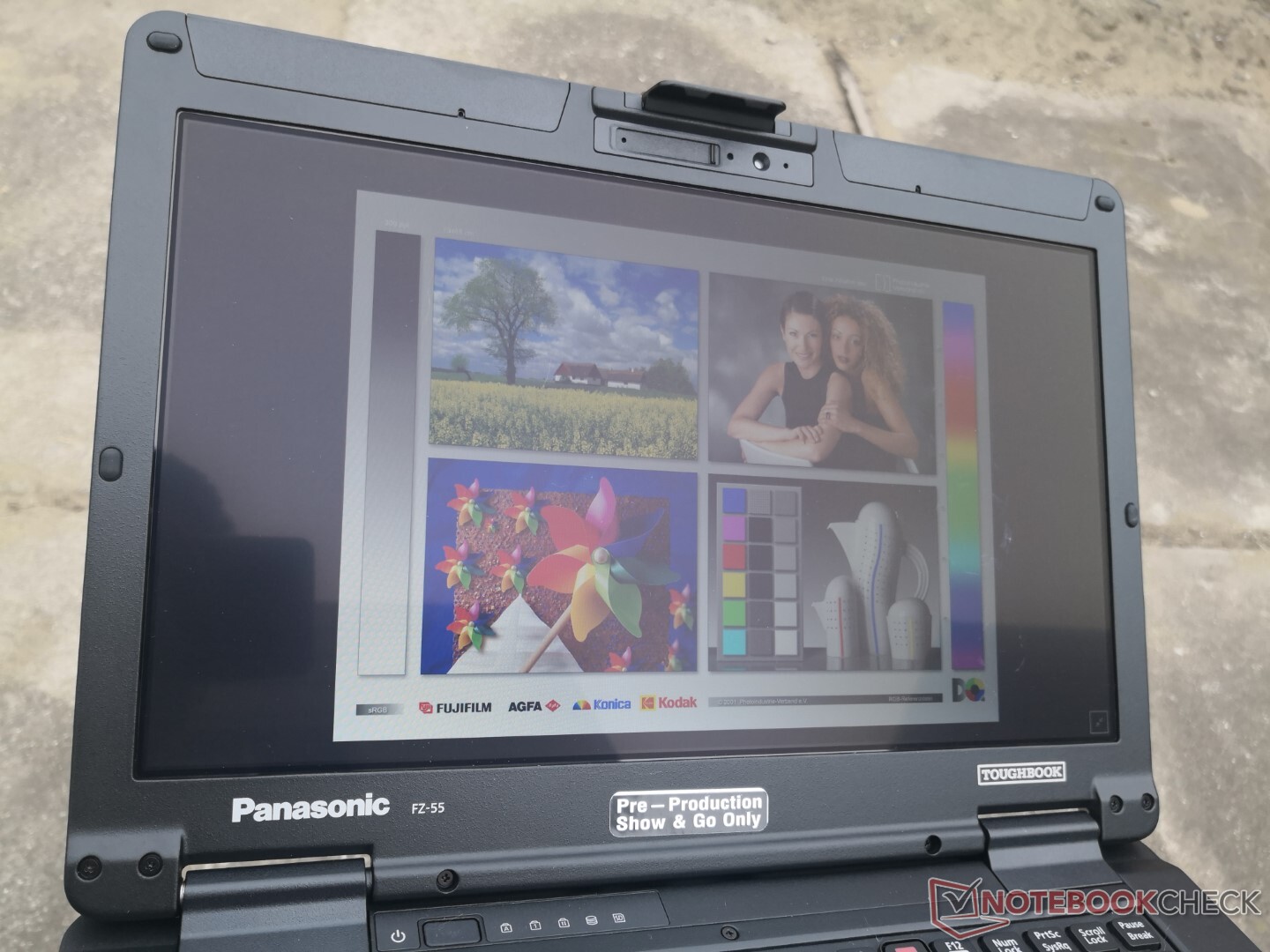

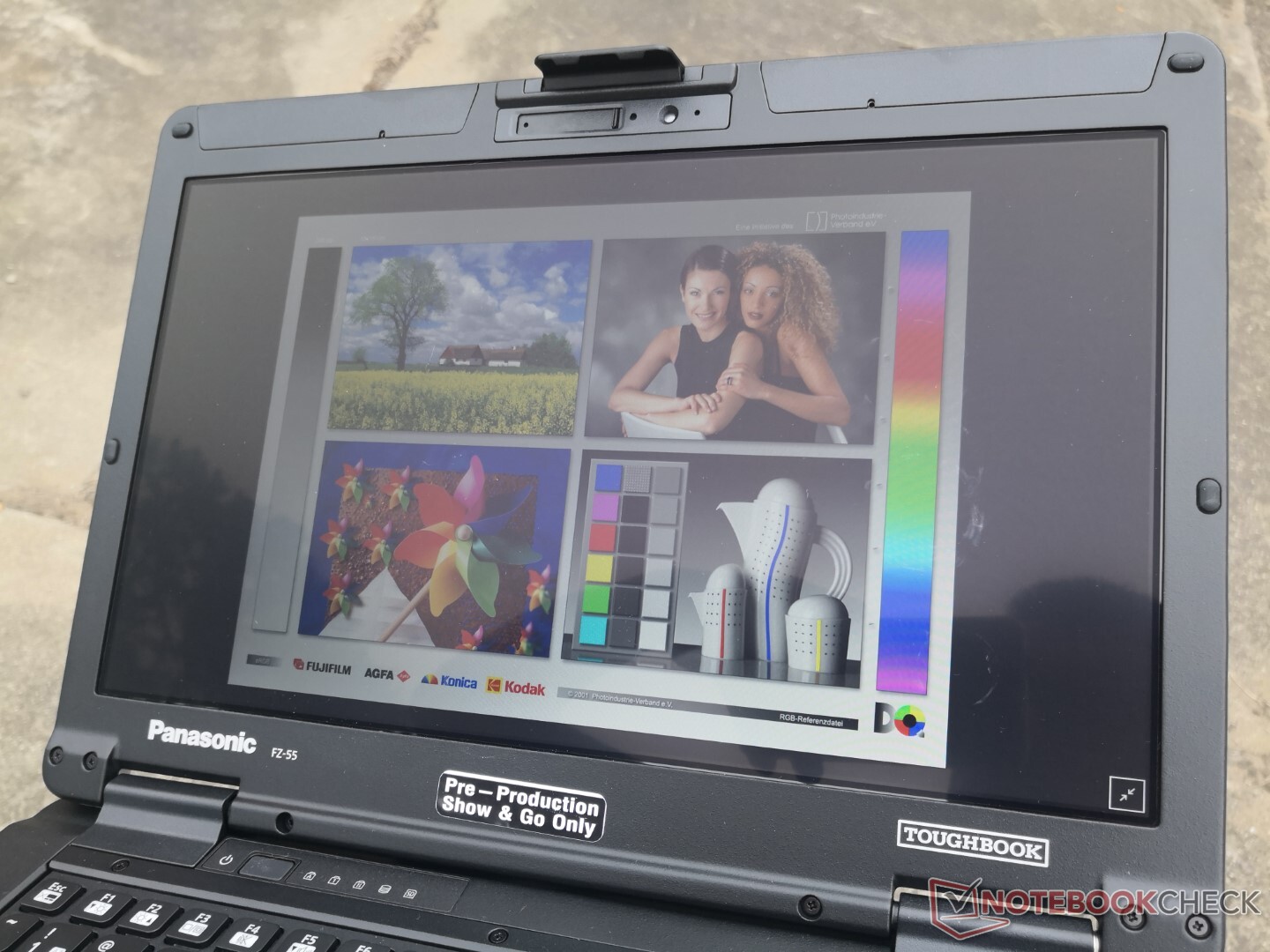

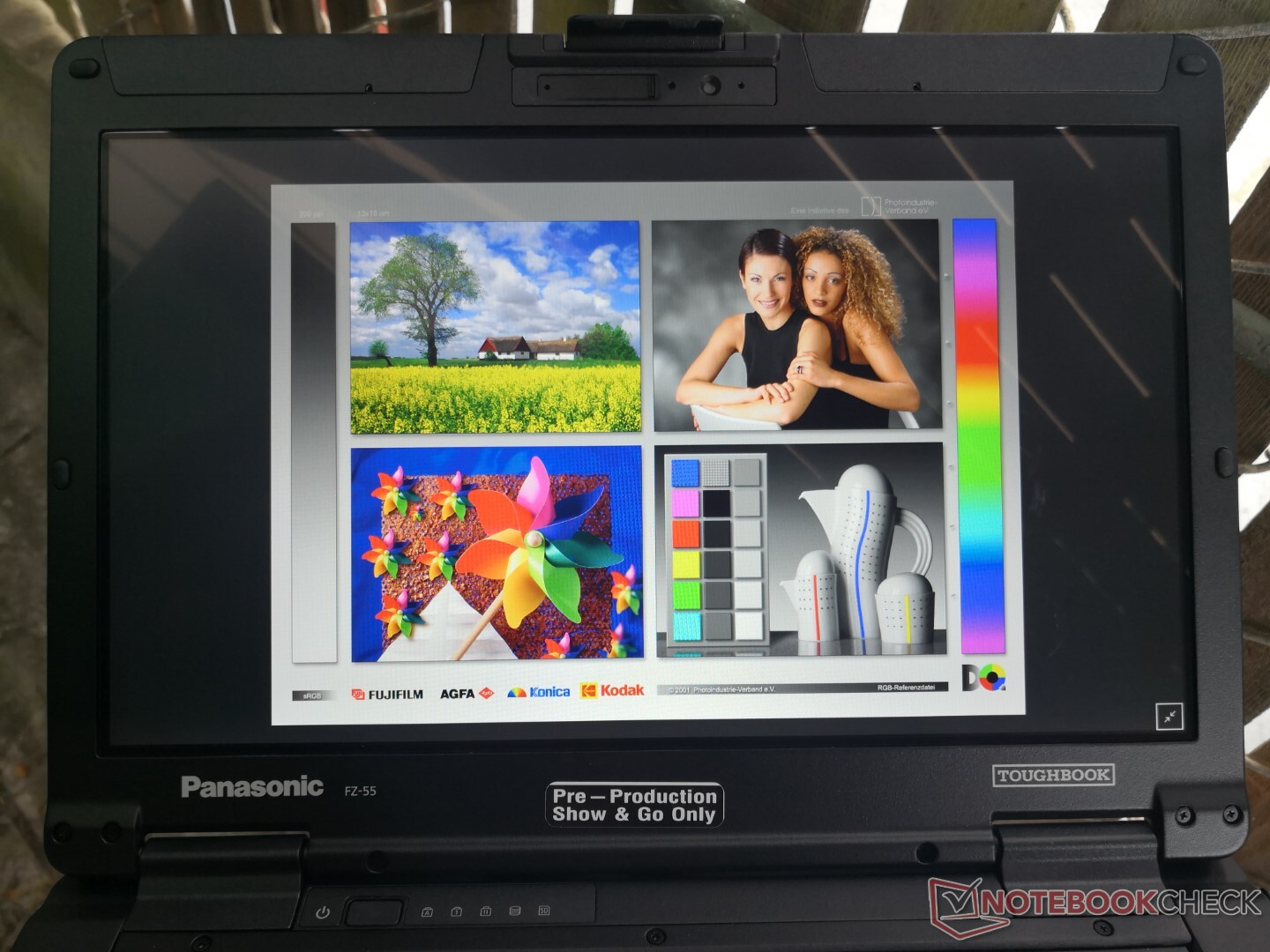

Het scherm is in de meeste buitenomstandigheden goed afleesbaar dankzij de extra heldere 1000-nit achtergrondverlichting. Direct zonlicht moet echter nog steeds worden vermeden, anders worden kleuren nog steeds uitgebleekt. Verblinding is verder minimaal en gemakkelijker te controleren dan op een typische Ultrabook.

Buiten op een heldere bewolkte dag
Buiten op een heldere bewolkte dag
Buiten in de schaduw
Buiten in de schaduw
Buiten op een heldere bewolkte dag
Buiten op een heldere bewolkte dag

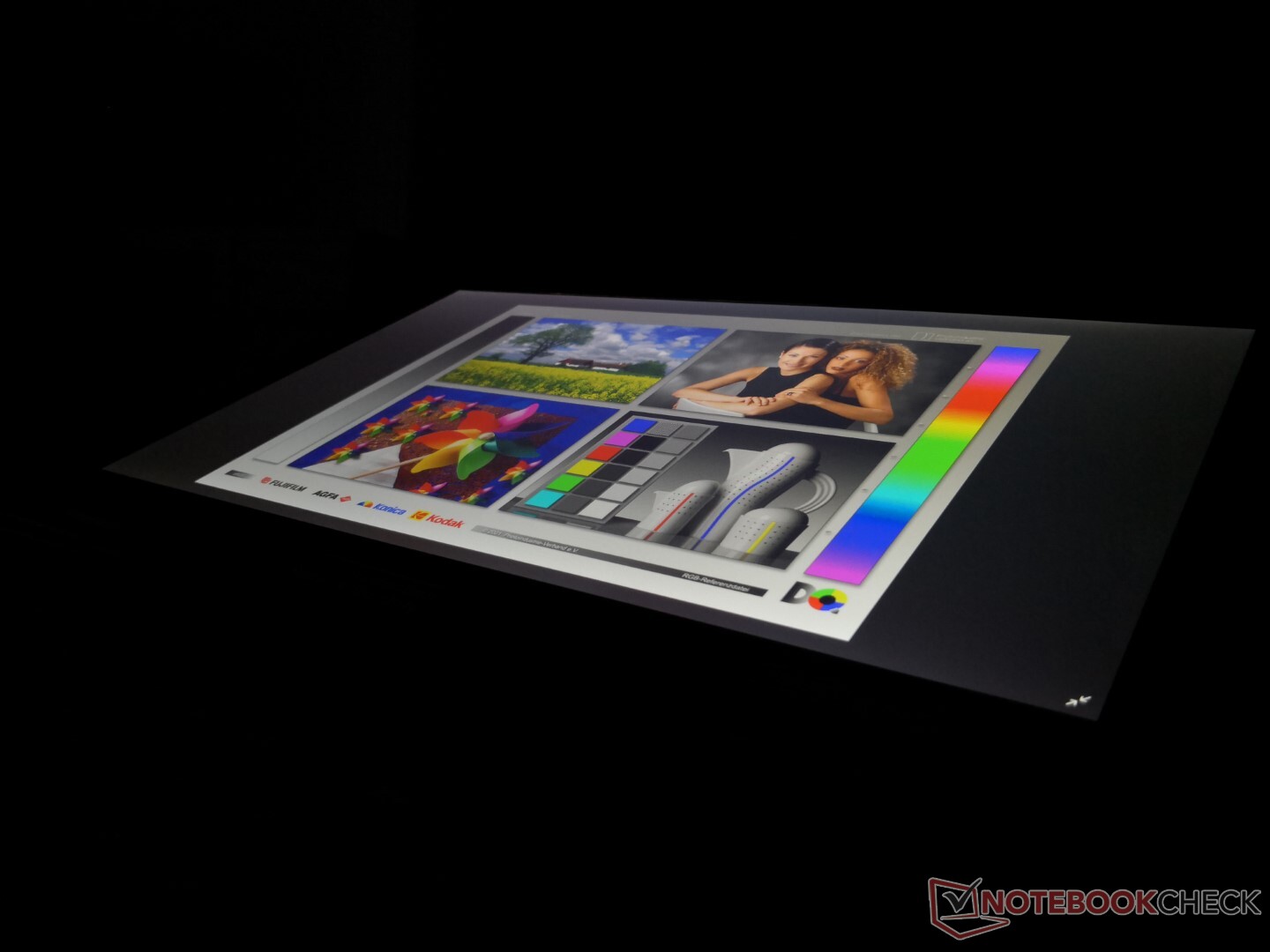

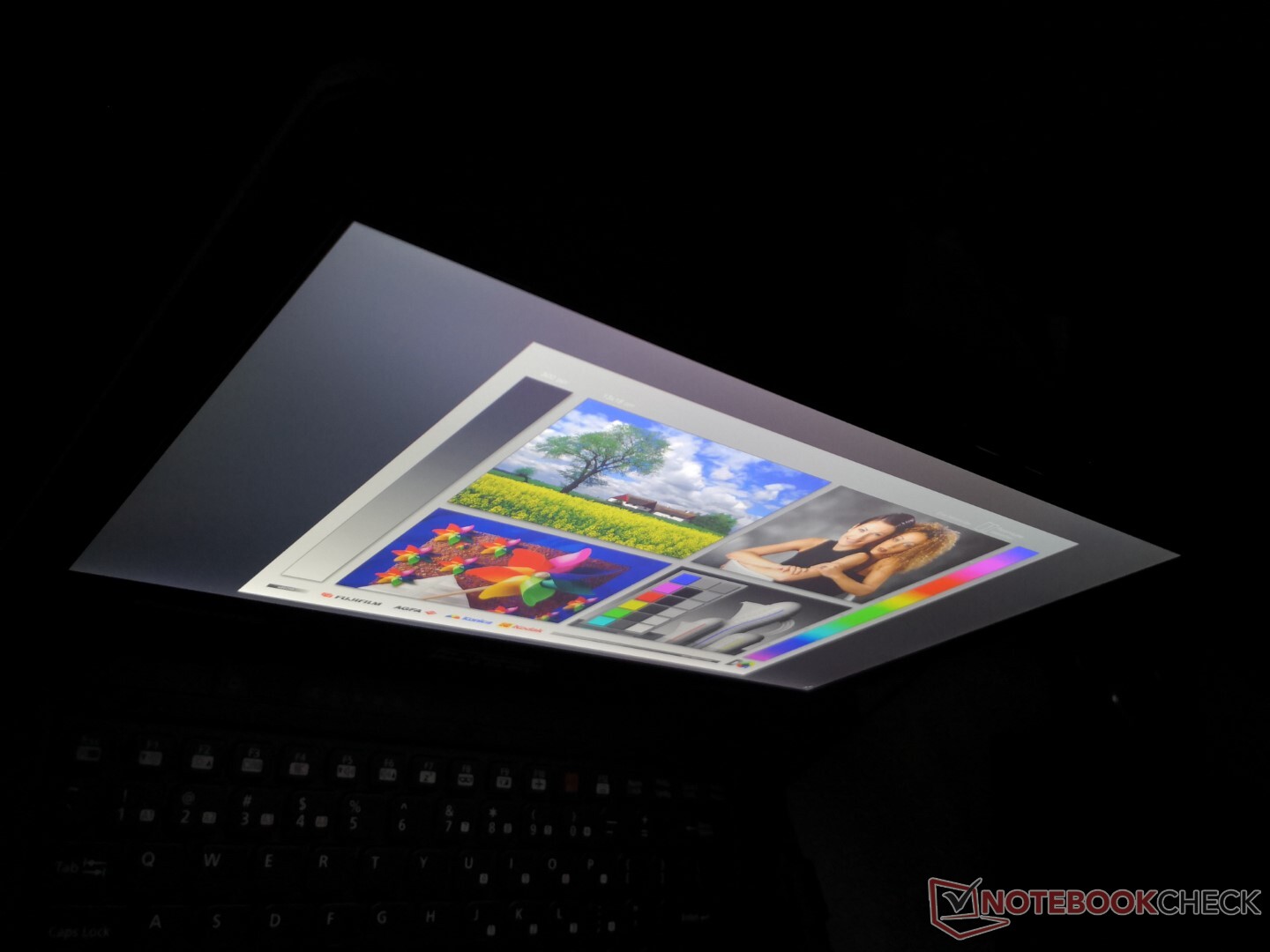

Brede IPS-kijkhoeken
Brede IPS-kijkhoeken

Prestaties



Processor

CPU prestaties zijn ongeveer 15 procent langzamer dan de Core i7-1165G7 vanwege de prestatie-overhead die nodig is om vPro-functies te ondersteunen. In vergelijking met andere i7-1185G7 laptops zijn de prestaties echter waar we ze verwachten te zijn. Upgraden van de Core i5-8365 in de originele FZ-55 MK1 levert een verbetering op van 30 tot 40 procent in zowel single- als multi-threaded werkbelastingen.

Cinebench R15 Multi Loop

050100150200250300350400450500550600650700750800850900950794.99789.97792.97804.93808.37808.87807.54807.41810.13811.41807.67807.1809.11804.88804.49806.71808.67811.26808.21802.25808.02807.04808.98807.64805.1806.31804.31807.79808.75808.9805.25808.29801.23806.73807.88805.35810.67811.18807.8808.52808.98805.88811.61805.98808.82806.48808.29807.31809.36809.42755.62721.83723.29717.71715.72716.86721.63720.55719.59720.86722.01719.2719.55720.25719.27716.65721.36722.58720.56717.97717.4721.79717.3720.71717.89722.32720.03720.03720.68720.68717.99720.99716.87721.84720.32720.5715.03721.24721.75718.84719.18719.24665.15715.22722.52717.28665.88712.26722.39706.19882.92887.53865.35887.19892.08895.07855.61873.06894.55896.84893.08862.31888.53814.03854.45878.64895.76891.72891.15892.1893.62895.07895.68860.6877.39888.2811.64843.05868.17888.75752.53787.18827.63859.14887.19899.28901.65877.48900.19831.08859.9882.13900.92785.45820.41853.95881.19900.21769.01809.34960.68948.11941.82945.85944.6942.37947.33947.35945.38945.92944.91947.87944.82947.78945.09946.59944.13947.13943.22946.59948.2945.94941.29947.87947.24949.28948.38945.47944.98946.48939.14942.77943.02947.19945.43945.81945.87939.81946.01944.26946.41945.22946.16946.9945.67948.59945.49948.27943.69948.2794.99789.97792.97804.93808.37808.87807.54807.41810.13811.41807.67807.1809.11804.88804.49806.71808.67811.26808.21802.25808.02807.04808.98807.64805.1806.31804.31807.79808.75808.9805.25808.29801.23806.73807.88805.35810.67811.18807.8808.52808.98805.88811.61805.98808.82806.48808.29807.31809.36809.42755.62721.83723.29717.71715.72716.86721.63720.55719.59720.86722.01719.2719.55720.25719.27716.65721.36722.58720.56717.97717.4721.79717.3720.71717.89722.32720.03720.03720.68720.68717.99720.99716.87721.84720.32720.5715.03721.24721.75718.84719.18719.24665.15715.22722.52717.28665.88712.26722.39706.19882.92887.53865.35887.19892.08895.07855.61873.06894.55896.84893.08862.31888.53814.03854.45878.64895.76891.72891.15892.1893.62895.07895.68860.6877.39888.2811.64843.05868.17888.75752.53787.18827.63859.14887.19899.28901.65877.48900.19831.08859.9882.13900.92785.45820.41853.95881.19900.21769.01809.34960.68948.11941.82945.85944.6942.37947.33947.35945.38945.92944.91947.87944.82947.78945.09946.59944.13947.13943.22946.59948.2945.94941.29947.87947.24949.28948.38945.47944.98946.48939.14942.77943.02947.19945.43945.81945.87939.81946.01944.26946.41945.22946.16946.9945.67948.59945.49948.27943.69948.2794.99789.97792.97804.93808.37808.87807.54807.41810.13811.41807.67807.1809.11804.88804.49806.71808.67811.26808.21802.25808.02807.04808.98807.64805.1806.31804.31807.79808.75808.9805.25808.29801.23806.73807.88805.35810.67811.18807.8808.52808.98805.88811.61805.98808.82806.48808.29807.31809.36809.42755.62721.83723.29717.71715.72716.86721.63720.55719.59720.86722.01719.2719.55720.25719.27716.65721.36722.58720.56717.97717.4721.79717.3720.71717.89722.32720.03720.03720.68720.68717.99720.99716.87721.84720.32720.5715.03721.24721.75718.84719.18719.24665.15715.22722.52717.28665.88712.26722.39706.19882.92887.53865.35887.19892.08895.07855.61873.06894.55896.84893.08862.31888.53814.03854.45878.64895.76891.72891.15892.1893.62895.07895.68860.6877.39888.2811.64843.05868.17888.75752.53787.18827.63859.14887.19899.28901.65877.48900.19831.08859.9882.13900.92785.45820.41853.95881.19900.21769.01809.34960.68948.11941.82945.85944.6942.37947.33947.35945.38945.92944.91947.87944.82947.78945.09946.59944.13947.13943.22946.59948.2945.94941.29947.87947.24949.28948.38945.47944.98946.48939.14942.77943.02947.19945.43945.81945.87939.81946.01944.26946.41945.22946.16946.9945.67948.59945.49948.27943.69948.2Tooltip
Panasonic Toughbook FZ-55 MK2 Intel Core i7-1185G7; CPU Multi 64Bit: Ø807 (789.97-811.61)
HP EliteBook 840 G8 3E4Q6AA Intel Core i7-1185G7; CPU Multi 64Bit: Ø718 (665.15-755.62)
MSI Summit E14 A11SCS Intel Core i7-1185G7; CPU Multi 64Bit: Ø866 (752.53-901.65)
ADATA XPG Xenia 14 Intel Core i7-1165G7; CPU Multi 64Bit: Ø946 (939.14-960.68)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
3203 Points ∼100% +56%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
3184 Points ∼99% +55%
ADATA XPG Xenia 14
Intel Core i7-1165G7
2414 Points ∼75% +18%
Average Intel Core i7-1185G7
  (1425 - 2493, n=21)
2056 Points ∼64% 0%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7
2052 Points ∼64%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
1684 Points ∼53% -18%
Infinix INBook X1 Pro
Intel Core i7-1065G7
1640 Points ∼51% -20%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
1399 Points ∼44% -32%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
1394 Points ∼44% -32%
Asus VivoBook 14 X403FA
Intel Core i5-8265U
1350 Points ∼42% -34%
Cinebench R20 / CPU (Single Core)
ADATA XPG Xenia 14
Intel Core i7-1165G7
572 Points ∼100% +5%
Average Intel Core i7-1185G7
  (489 - 593, n=21)
558 Points ∼98% +2%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
548 Points ∼96% +1%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7
545 Points ∼95%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
518 Points ∼91% -5%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
469 Points ∼82% -14%
Infinix INBook X1 Pro
Intel Core i7-1065G7
463 Points ∼81% -15%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
446 Points ∼78% -18%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
435 Points ∼76% -20%
Asus VivoBook 14 X403FA
Intel Core i5-8265U
399 Points ∼70% -27%
Cinebench R23 / CPU (Multi Core)
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
8300 Points ∼100% +57%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
8201 Points ∼99% +55%
ADATA XPG Xenia 14
Intel Core i7-1165G7
6223 (6058.33min - 6223.36max) Points ∼75% +18%
Average Intel Core i7-1185G7
  (3610 - 6383, n=17)
5378 Points ∼65% +2%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7
5291 (5195.32min - 5290.58max) Points ∼64%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
4665 Points ∼56% -12%
Infinix INBook X1 Pro
Intel Core i7-1065G7
4281 (3308.99min - 4281.37max) Points ∼52% -19%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
3800 Points ∼46% -28%
Cinebench R23 / CPU (Single Core)
ADATA XPG Xenia 14
Intel Core i7-1165G7
1490 Points ∼100% +5%
Average Intel Core i7-1185G7
  (1251 - 1525, n=17)
1450 Points ∼97% +2%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7
1418 Points ∼95%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
1405 Points ∼94% -1%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
1351 Points ∼91% -5%
Infinix INBook X1 Pro
Intel Core i7-1065G7
1212 Points ∼81% -15%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
1162 Points ∼78% -18%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
1119 Points ∼75% -21%
Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
1417 (1362.63min - 1416.53max) Points ∼100% +75%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
1398 (1385.52min - 1397.87max) Points ∼99% +72%
ADATA XPG Xenia 14
Intel Core i7-1165G7
961 (939.14min - 960.68max) Points ∼68% +18%
Average Intel Core i7-1185G7
  (617 - 1066, n=25)
872 Points ∼62% +7%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
852 (647.22min - 852.42max) Points ∼60% +5%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7
812 (789.97min - 811.61max) Points ∼57%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
680.19 (525.27min - 680.19max) Points ∼48% -16%
Infinix INBook X1 Pro
Intel Core i7-1065G7
663 (525.18min - 663.12max) Points ∼47% -18%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
632 (547.77min - 632.01max) Points ∼45% -22%
Asus VivoBook 14 X403FA
Intel Core i5-8265U
622 Points ∼44% -23%
Panasonic Toughbook FZ-55
Intel Core i5-8365U
578 Points ∼41% -29%
Cinebench R15 / CPU Single 64Bit
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
227 Points ∼100% +1%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7
225 Points ∼99%
ADATA XPG Xenia 14
Intel Core i7-1165G7
223 Points ∼98% -1%
Average Intel Core i7-1185G7
  (168 - 230, n=20)
216 Points ∼95% -4%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
200 Points ∼88% -11%
Infinix INBook X1 Pro
Intel Core i7-1065G7
182 Points ∼80% -19%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
180 Points ∼79% -20%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
178 Points ∼78% -21%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
170 Points ∼75% -24%
Panasonic Toughbook FZ-55
Intel Core i5-8365U
168 Points ∼74% -25%
Asus VivoBook 14 X403FA
Intel Core i5-8265U
152 Points ∼67% -32%
Blender 2.79 / BMW27 CPU
Asus VivoBook 14 X403FA
Intel Core i5-8265U
815 Seconds * ∼100% -44%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
802 Seconds * ∼98% -41%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
766.2 Seconds * ∼94% -35%
Infinix INBook X1 Pro
Intel Core i7-1065G7
710 Seconds * ∼87% -25%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
672 Seconds * ∼82% -19%
Average Intel Core i7-1185G7
  (478 - 745, n=21)
586 Seconds * ∼72% -3%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7
567 Seconds * ∼70%
ADATA XPG Xenia 14
Intel Core i7-1165G7
494 Seconds * ∼61% +13%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
364 Seconds * ∼45% +36%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
352 Seconds * ∼43% +38%
7-Zip 18.03 / 7z b 4 -mmt1
ADATA XPG Xenia 14
Intel Core i7-1165G7
5371 MIPS ∼100% +2%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7
5266 MIPS ∼98%
Average Intel Core i7-1185G7
  (3678 - 5507, n=20)
5110 MIPS ∼95% -3%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
5050 MIPS ∼94% -4%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
4812 MIPS ∼90% -9%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
4417 MIPS ∼82% -16%
Infinix INBook X1 Pro
Intel Core i7-1065G7
4389 MIPS ∼82% -17%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
4169 MIPS ∼78% -21%
Asus VivoBook 14 X403FA
Intel Core i5-8265U
4029 MIPS ∼75% -23%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
3755 MIPS ∼70% -29%
7-Zip 18.03 / 7z b 4
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
41491 MIPS ∼100% +74%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
38553 MIPS ∼93% +62%
ADATA XPG Xenia 14
Intel Core i7-1165G7
26938 MIPS ∼65% +13%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7
23797 MIPS ∼57%
Average Intel Core i7-1185G7
  (18812 - 27693, n=20)
23381 MIPS ∼56% -2%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
21900 MIPS ∼53% -8%
Infinix INBook X1 Pro
Intel Core i7-1065G7
20740 MIPS ∼50% -13%
Asus VivoBook 14 X403FA
Intel Core i5-8265U
17467 MIPS ∼42% -27%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
16883 MIPS ∼41% -29%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
16748 MIPS ∼40% -30%
Geekbench 5.3 / 64 Bit Single-Core Score
Average Intel Core i7-1185G7
  (882 - 1626, n=16)
1484 Points ∼100%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
1399 Points ∼94%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
1354 Points ∼91%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
1235 Points ∼83%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
1163 Points ∼78%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
1124 Points ∼76%
Infinix INBook X1 Pro
Intel Core i7-1065G7
882 Points ∼59%
ADATA XPG Xenia 14
Intel Core i7-1165G7
882 Points ∼59%
Geekbench 5.3 / 64 Bit Multi-Core Score
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
6153 Points ∼100%
Average Intel Core i7-1185G7
  (3323 - 5944, n=16)
5380 Points ∼87%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
5137 Points ∼83%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
4703 Points ∼76%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
3986 Points ∼65%
Infinix INBook X1 Pro
Intel Core i7-1065G7
3323 Points ∼54%
ADATA XPG Xenia 14
Intel Core i7-1165G7
3323 Points ∼54%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
2839 Points ∼46%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
9.89 fps ∼100% +44%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
9.54 fps ∼96% +39%
ADATA XPG Xenia 14
Intel Core i7-1165G7
8.02 fps ∼81% +17%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7
6.87 fps ∼69%
Average Intel Core i7-1185G7
  (5.02 - 8.13, n=20)
6.6 fps ∼67% -4%
Infinix INBook X1 Pro
Intel Core i7-1065G7
5.6 fps ∼57% -18%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
5.57 fps ∼56% -19%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
4.82 fps ∼49% -30%
Asus VivoBook 14 X403FA
Intel Core i5-8265U
4.6 fps ∼47% -33%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
4.52 fps ∼46% -34%
LibreOffice / 20 Documents To PDF
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
69.6 s * ∼100% -41%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
62.3 s * ∼90% -26%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
58.4 s * ∼84% -18%
Infinix INBook X1 Pro
Intel Core i7-1065G7
57 s * ∼82% -15%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
51.9 s * ∼75% -5%
Average Intel Core i7-1185G7
  (41.3 - 61.7, n=19)
50.9 s * ∼73% -3%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
50.7 s * ∼73% -3%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7
49.4 s * ∼71%
ADATA XPG Xenia 14
Intel Core i7-1165G7
45.7 s * ∼66% +7%
R Benchmark 2.5 / Overall mean
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
0.851 sec * ∼100% -49%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
0.701 sec * ∼82% -23%
Infinix INBook X1 Pro
Intel Core i7-1065G7
0.671 sec * ∼79% -17%
Schenker VIA 14 Late 2020
Intel Core i5-1135G7
0.636 sec * ∼75% -11%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Ryzen 7 PRO 4750U
0.621 sec * ∼73% -9%
Average Intel Core i7-1185G7
  (0.55 - 0.615, n=20)
0.583 sec * ∼69% -2%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7
0.572 sec * ∼67%
ADATA XPG Xenia 14
Intel Core i7-1165G7
0.558 sec * ∼66% +2%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
0.557 sec * ∼65% +3%

* ... kleiner is beter

Cinebench R15 CPU Multi 64Bit
812 Points
Cinebench R15 OpenGL 64Bit
100 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
225 Points
Help

Systeemprestaties

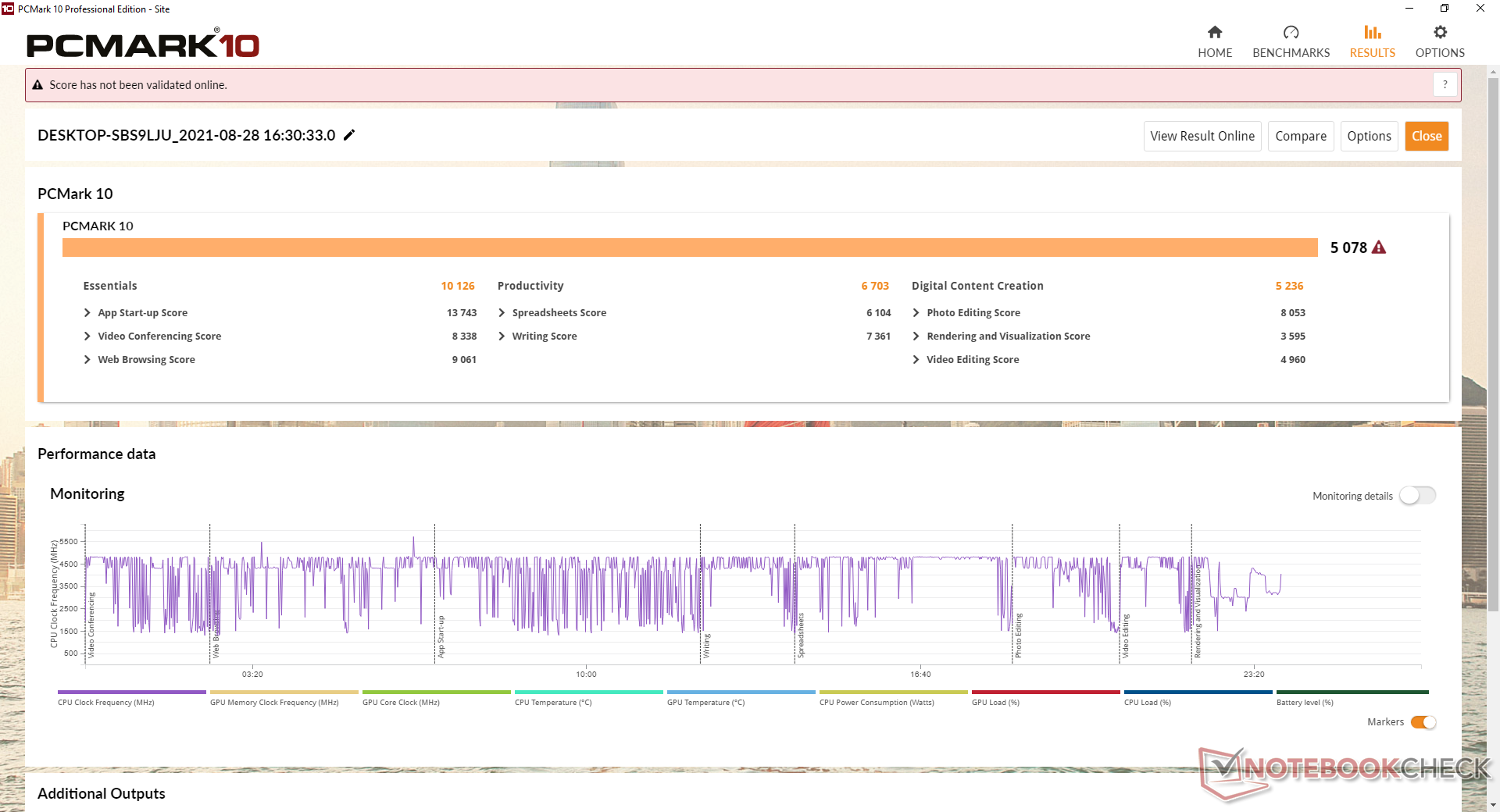

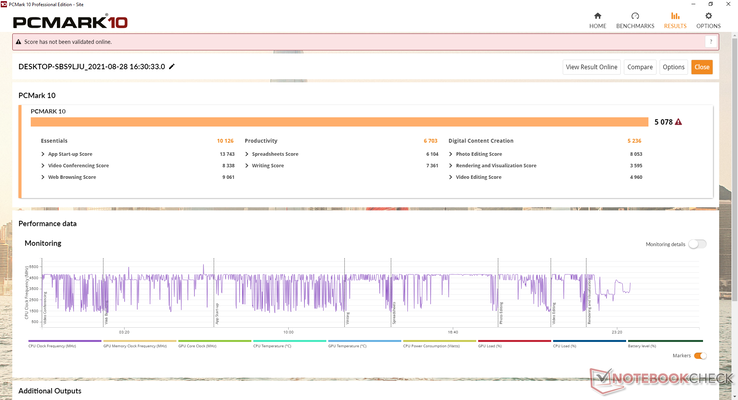

PCMark 10 scores zijn consistent hoger dan op de originele MK1, vooral in Digital Content Creation waar grafische prestaties het belangrijkst zijn.

PCMark 10 / Score
Panasonic Toughbook FZ-55 MK2
Iris Xe G7 96EUs, i7-1185G7, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
5078 Points ∼100%
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (4746 - 5561, n=13)
4982 Points ∼98% -2%
Durabook S14I
Iris Xe G7 96EUs, i7-1165G7, UDinfo M2P M2P80DE512GBAEP
4826 Points ∼95% -5%
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, i7-8650U, SK hynix PC401 NVMe 500 GB
4451 Points ∼88% -12%
Getac S410
UHD Graphics 620, i5-8550U, CUKUSA 1 TB SATA SSD Q0526A
3958 Points ∼78% -22%
Panasonic Toughbook FZ-55
UHD Graphics 620, i5-8365U, Samsung SSD PM871b MZNLN256HAJQ
3751 Points ∼74% -26%
PCMark 10 / Essentials
Panasonic Toughbook FZ-55 MK2
Iris Xe G7 96EUs, i7-1185G7, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
10126 Points ∼100%
Durabook S14I
Iris Xe G7 96EUs, i7-1165G7, UDinfo M2P M2P80DE512GBAEP
10076 Points ∼100% 0%
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (8279 - 10664, n=13)
9834 Points ∼97% -3%
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, i7-8650U, SK hynix PC401 NVMe 500 GB
8503 Points ∼84% -16%
Getac S410
UHD Graphics 620, i5-8550U, CUKUSA 1 TB SATA SSD Q0526A
8274 Points ∼82% -18%
Panasonic Toughbook FZ-55
UHD Graphics 620, i5-8365U, Samsung SSD PM871b MZNLN256HAJQ
7842 Points ∼77% -23%
PCMark 10 / Productivity
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, i7-8650U, SK hynix PC401 NVMe 500 GB
7328 Points ∼100% +9%
Durabook S14I
Iris Xe G7 96EUs, i7-1165G7, UDinfo M2P M2P80DE512GBAEP
6976 Points ∼95% +4%
Getac S410
UHD Graphics 620, i5-8550U, CUKUSA 1 TB SATA SSD Q0526A
6958 Points ∼95% +4%
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (6340 - 8770, n=13)
6847 Points ∼93% +2%
Panasonic Toughbook FZ-55 MK2
Iris Xe G7 96EUs, i7-1185G7, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
6703 Points ∼91%
Panasonic Toughbook FZ-55
UHD Graphics 620, i5-8365U, Samsung SSD PM871b MZNLN256HAJQ
6002 Points ∼82% -10%
PCMark 10 / Digital Content Creation
Panasonic Toughbook FZ-55 MK2
Iris Xe G7 96EUs, i7-1185G7, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
5236 Points ∼100%
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (4424 - 5542, n=13)
5002 Points ∼96% -4%
Durabook S14I
Iris Xe G7 96EUs, i7-1165G7, UDinfo M2P M2P80DE512GBAEP
4341 Points ∼83% -17%
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, i7-8650U, SK hynix PC401 NVMe 500 GB
3843 Points ∼73% -27%
Panasonic Toughbook FZ-55
UHD Graphics 620, i5-8365U, Samsung SSD PM871b MZNLN256HAJQ
3403 Points ∼65% -35%
Getac S410
UHD Graphics 620, i5-8550U, CUKUSA 1 TB SATA SSD Q0526A
2924 Points ∼56% -44%
PCMark 10 Score
5078 punten
Help

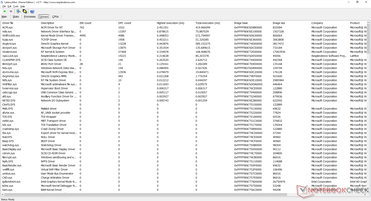

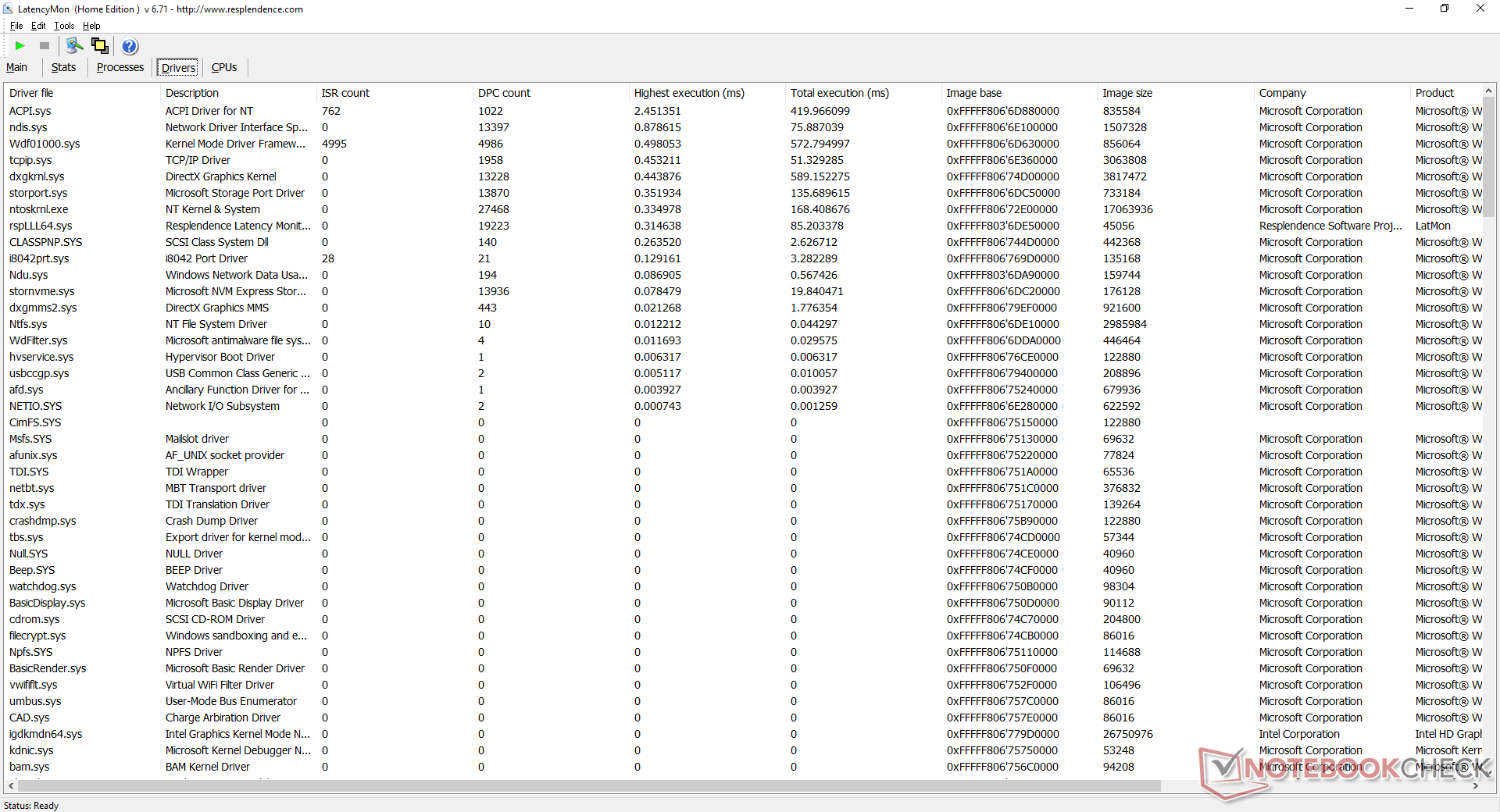

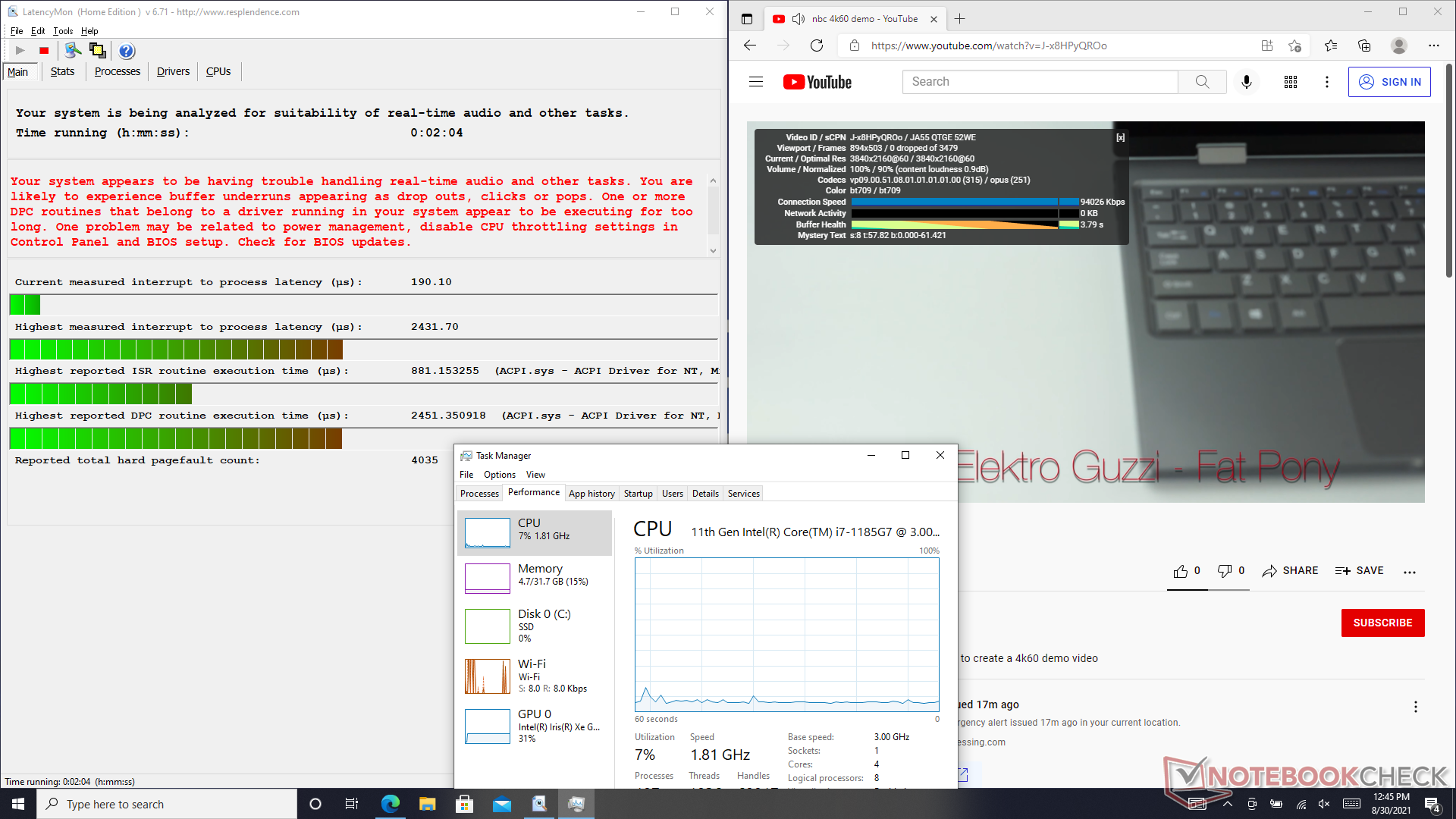

DPC latentie

LatencyMon onthult latentieproblemen bij het openen van meerdere browsertabbladen op onze startpagina. Het afspelen van 4K-video's met 60 FPS verloopt verder vloeiend en zonder wegvallende frames.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP EliteBook 840 G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
3846.2 μs * ∼100% -58%
MSI Prestige 14 Evo A11MO-026US
Iris Xe G7 96EUs, i7-1195G7, Samsung PM9A1 MZVL2512HCJQ
2509 μs * ∼65% -3%
Panasonic Toughbook FZ-55 MK2
Iris Xe G7 96EUs, i7-1185G7, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
2431.7 μs * ∼63%
Dell Latitude 9420 2-in-1
Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G
501.8 μs * ∼13% +79%
ADATA XPG Xenia 14
Iris Xe G7 96EUs, i7-1165G7, ADATA XPG Gammix S50 Lite 512GB
272.1 μs * ∼7% +89%

* ... kleiner is beter

Opslagapparaten

Onze MK2-testunit is uitgerust met een Toshiba BG4-serie SSD in plaats van de Samsung in onze originele MK1-unit. Deze specifieke Toshiba-drive is een echte NVMe SSD in tegenstelling tot de SATA III-beperkte Samsung voor aanzienlijk snellere lees- en schrijfsnelheden

Gebruikers kunnen maximaal twee schijven installeren: een NVMe M.2 2280 SSD en een tweede SATA SSD elk met ondersteuning voor OPAL en verwarmers.

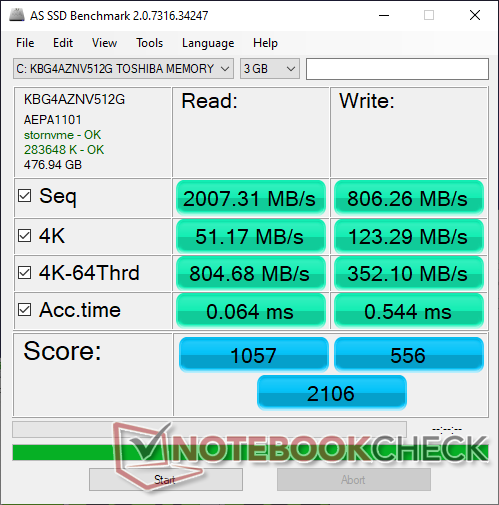

AS SSD
AS SSD

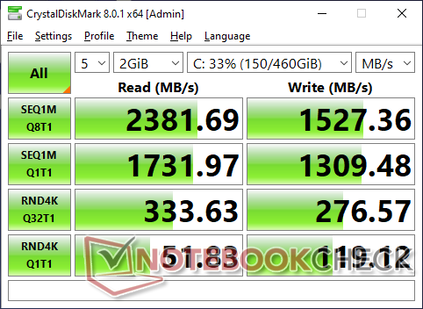

CDM 8
CDM 8
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
Panasonic Toughbook FZ-55
Samsung SSD PM871b MZNLN256HAJQ
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
Getac S410
CUKUSA 1 TB SATA SSD Q0526A
AS SSD
-41%
22%
37%
-16%
Seq Read
2007.31
437.71
-78%
2053.85
2%
2184.39
9%
484.2
-76%
Seq Write
806.26
387.3
-52%
652.54
-19%
1441.3
79%
396.13
-51%
4K Read
51.17
26.18
-49%
39.34
-23%
35.98
-30%
34.9
-32%
4K Write
123.29
60.32
-51%
96.39
-22%
260.14
111%
74.1
-40%
4K-64 Read
804.68
369.84
-54%
676.65
-16%
396.5
-51%
382.32
-52%
4K-64 Write
352.1
313.71
-11%
981.79
179%
1056.95
200%
329.01
-7%
Access Time Read *
0.064
0.089
-39%
0.044
31%
0.051
20%
0.058
9%
Access Time Write *
0.544
0.058
89%
0.051
91%
0.106
81%
0.045
92%
Score Read
1057
440
-58%
921
-13%
651
-38%
466
-56%
Score Write
556
413
-26%
1143
106%
1461
163%
443
-20%
Score Total
2106
1083
-49%
2475
18%
2418
15%
1154
-45%
Copy ISO MB/s
1044.99
553.43
-47%
1622.33
55%
1537.65
47%
2150.99
106%
Copy Program MB/s
854.01
204.71
-76%
378.14
-56%
570.17
-33%
422.77
-50%
Copy Game MB/s
1127.05
385.86
-66%
792.9
-30%
565.67
-50%
1045.14
-7%
CrystalDiskMark 5.2 / 6
-54%
-18%
48%
-52%
Write 4K
117.1
55.44
-53%
98.76
-16%
260.4
122%
73.99
-37%
Read 4K
51.34
31.11
-39%
38.51
-25%
52.95
3%
31.85
-38%
Write Seq
1384
460.9
-67%
843.3
-39%
1665
20%
460.6
-67%
Read Seq
1716
481.9
-72%
1282
-25%
1541
-10%
514.2
-70%
Write 4K Q32T1
282.6
234.6
-17%
355.5
26%
637.8
126%
211.4
-25%
Read 4K Q32T1
332
181.7
-45%
241.4
-27%
683.3
106%
203.5
-39%
Write Seq Q32T1
1519
527.8
-65%
892.5
-41%
1656
9%
522.9
-66%
Read Seq Q32T1
2347
547.5
-77%
2478
6%
2490
6%
553.8
-76%
Totaal Gemiddelde (Programma / Instellingen)
-48% / -46%
2% / 7%
43% / 41%
-34% / -29%

* ... kleiner is beter

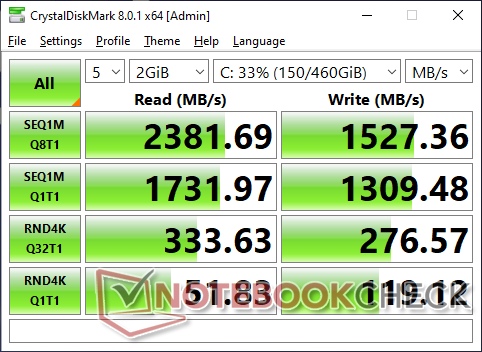

Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
CDM 5/6 Read Seq Q32T1: 2347 MB/s
CDM 5/6 Write Seq Q32T1: 1519 MB/s
CDM 5/6 Read 4K Q32T1: 332 MB/s
CDM 5/6 Write 4K Q32T1: 282.6 MB/s
CDM 5 Read Seq: 1716 MB/s
CDM 5 Write Seq: 1384 MB/s
CDM 5/6 Read 4K: 51.34 MB/s
CDM 5/6 Write 4K: 117.1 MB/s

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

01252503755006257508751000112512501375150016251750187520002125225023751779.011889.941904.421911.761923.511925.241931.091945.411946.761949.721952.951971.111988.952009.072011.82074.292114.072123.162125.22134.692137.132149.162150.632158.062172.862180.412185.652213.312276.942288.22297.012326.162331.822337.222362.432363.062366.012368.522383.412395.612411.932419.662419.662420.082421.122421.162422.422422.632424.282424.7Tooltip
: Ø2185 (1779.01-2424.7)

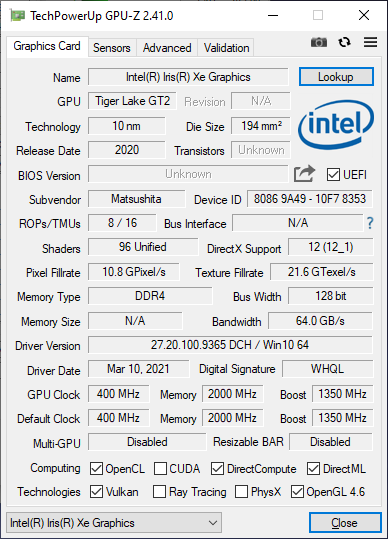

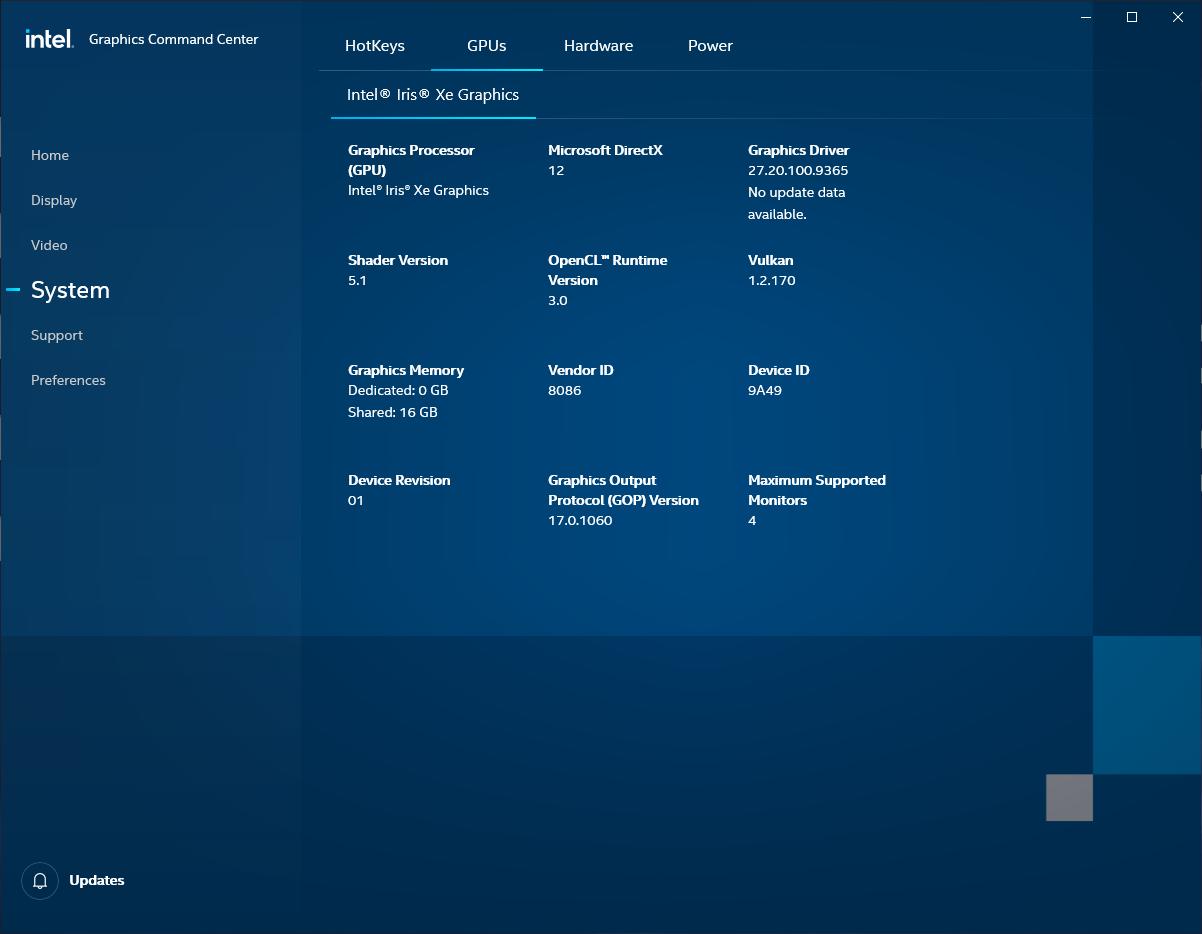

GPU prestatie

De grafische prestaties zijn uitstekend met resultaten die op één lijn liggen met de gemiddelde Iris Xe 96 EU's in onze database. Gebruikers krijgen een 300 tot 400 procent boost in grafische prestaties in vergelijking met de oudere UHD Graphics 620 in de 2019 Toughbook FZ-55 MK1.

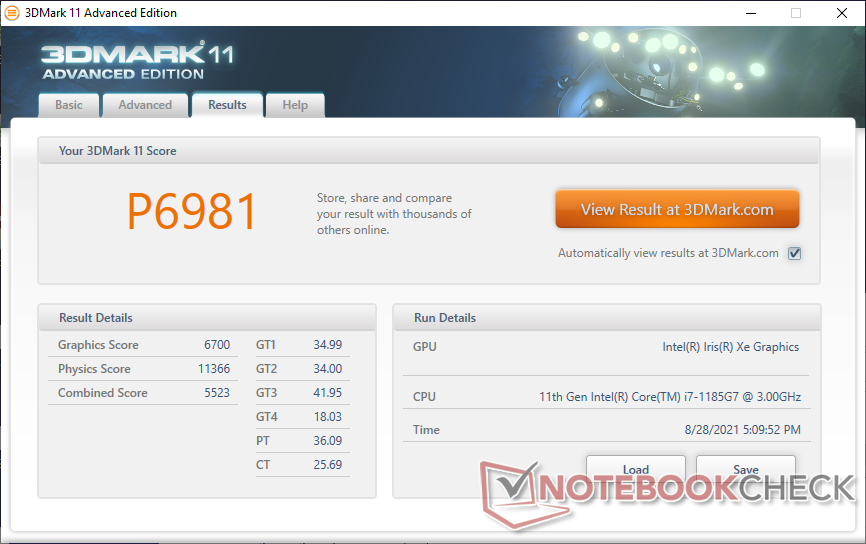

3DMark 11
3DMark 11

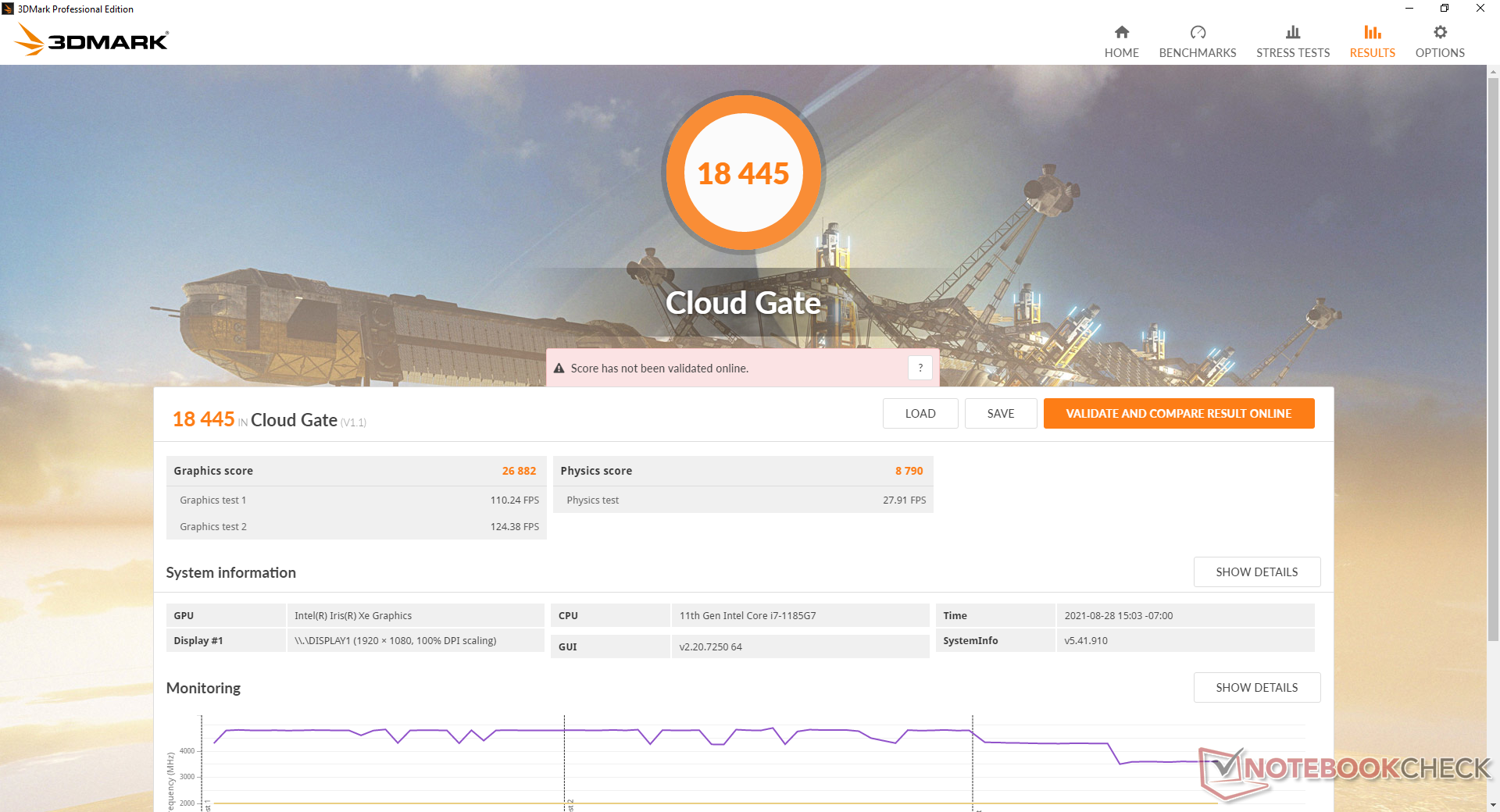

Cloud Gate
Cloud Gate

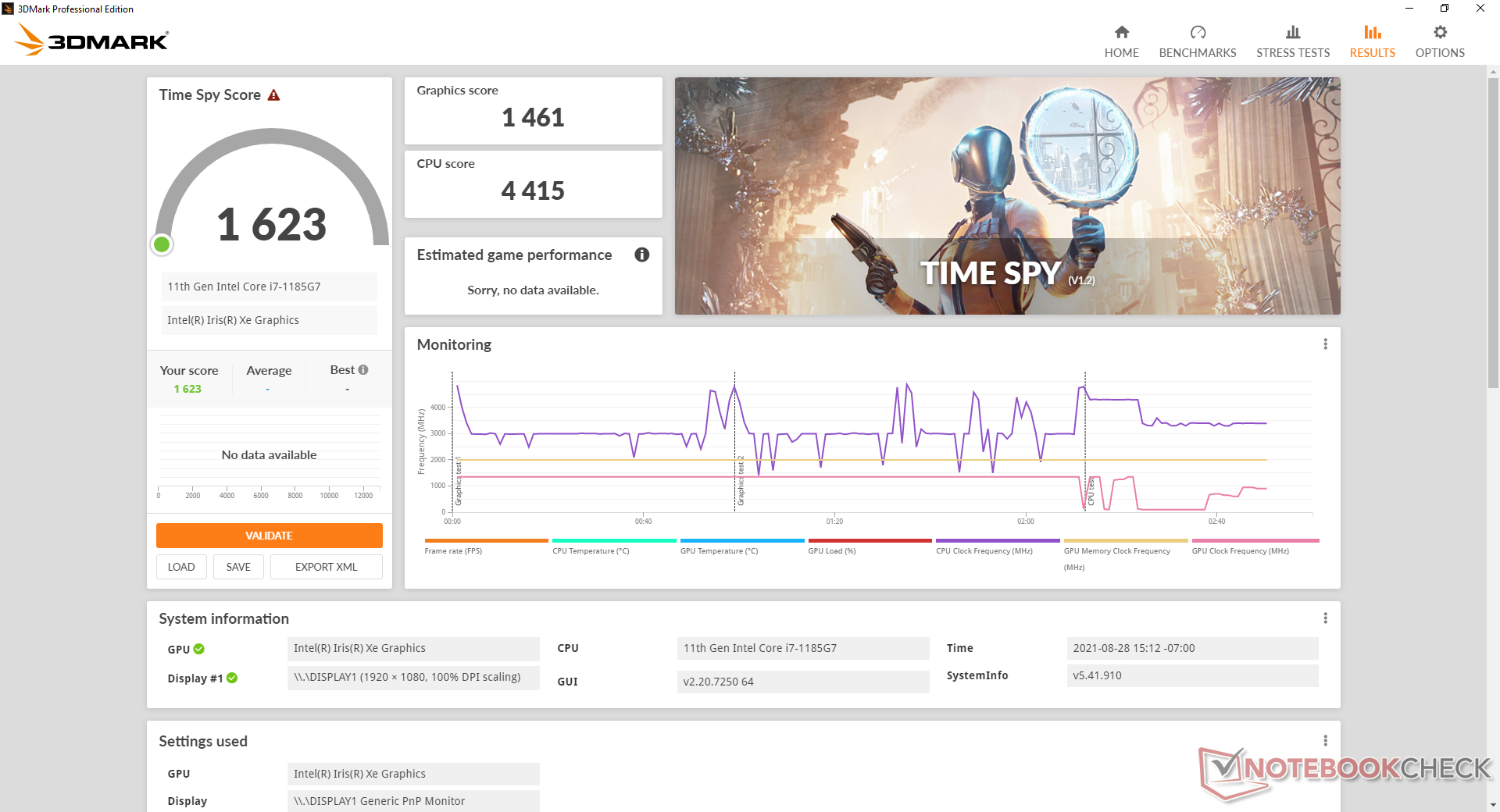

Time Spy
Time Spy

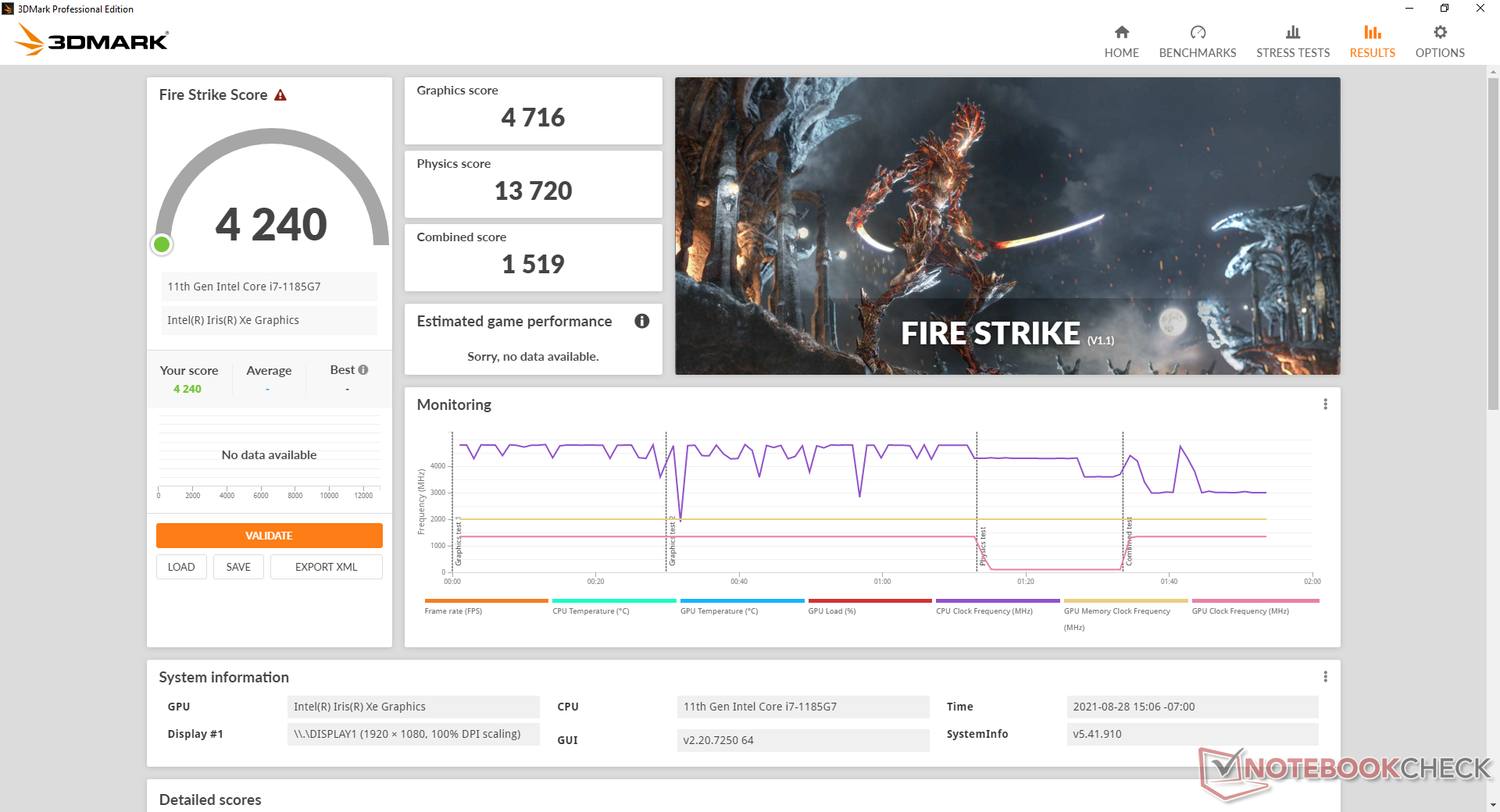

Fire Strike
Fire Strike

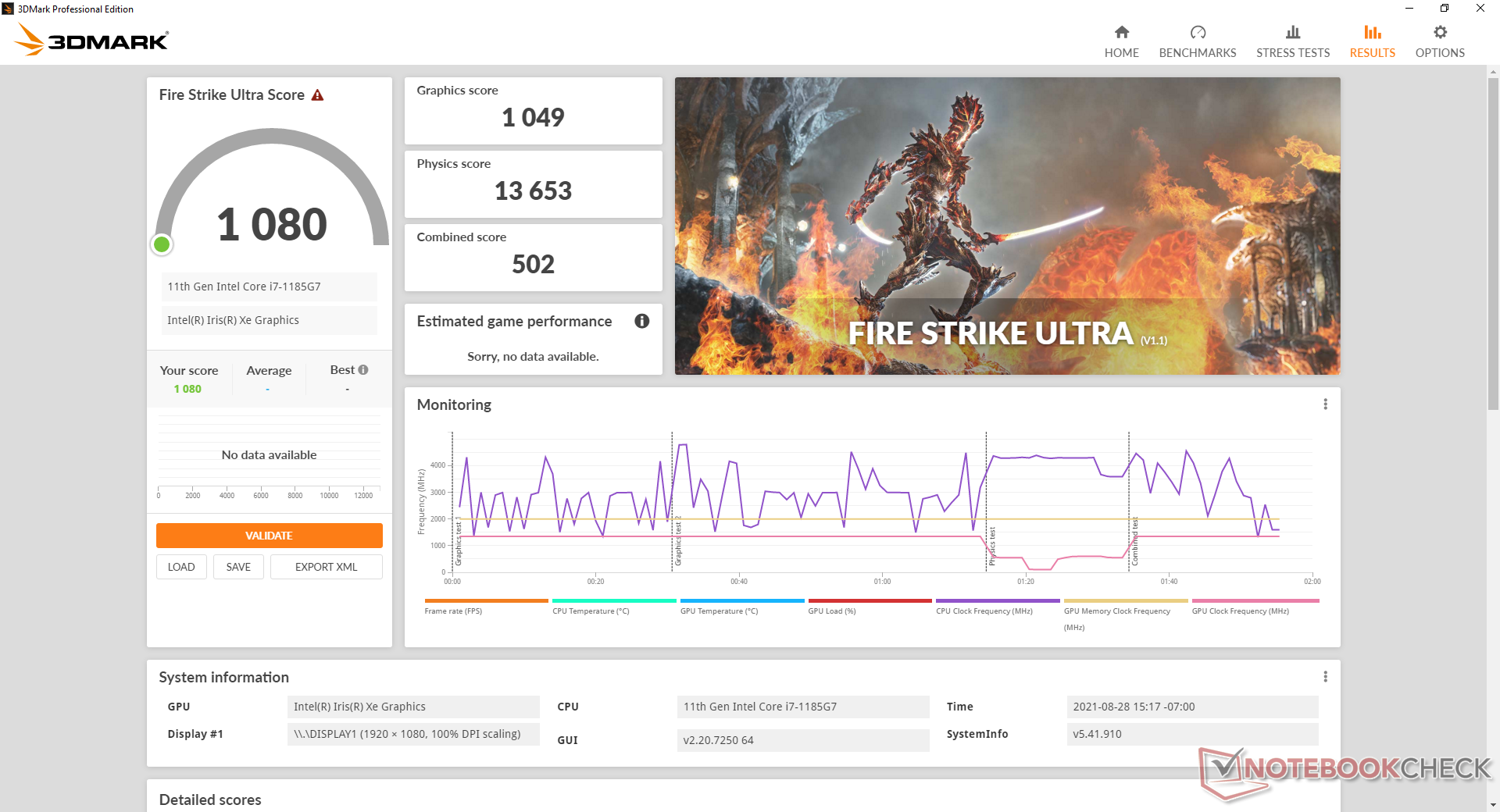

Fire Strike Ultra
Fire Strike Ultra

3DMark
1920x1080 Fire Strike Graphics
MSI Summit E14 A11SCS
NVIDIA GeForce GTX 1650 Ti Max-Q, i7-1185G7
8114 Points ∼100% +72%
Dell Latitude 9420 2-in-1
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
5740 Points ∼71% +22%
MSI Prestige 14 Evo A11MO-026US
Intel Iris Xe Graphics G7 96EUs, i7-1195G7
5580 Points ∼69% +18%
Average Intel Iris Xe Graphics G7 96EUs
  (3113 - 5909, n=64)
4919 Points ∼61% +4%
Panasonic Toughbook FZ-55 MK2
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
4716 Points ∼58%
Dell Latitude 5420 Rugged-P85G
AMD Radeon RX 540, i7-8650U
3853 Points ∼47% -18%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, R7 PRO 4750U
3572 Points ∼44% -24%
Durabook S14I
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
3279 Points ∼40% -30%
Schenker VIA 14 Late 2020
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
3089 Points ∼38% -34%
Asus ZenBook 14 UX434FL-DB77
NVIDIA GeForce MX250, i7-8565U
2945 Points ∼36% -38%
Infinix INBook X1 Pro
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
2586 Points ∼32% -45%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), R7 PRO 5850U
2534 Points ∼31% -46%
Acer Spin 3 SP314-54N-56S5
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4
2207 Points ∼27% -53%
Asus VivoBook 14 X403FA
Intel UHD Graphics 620, i5-8265U
1281 Points ∼16% -73%
Panasonic Toughbook FZ-55
Intel UHD Graphics 620, i5-8365U
1046 Points ∼13% -78%
2560x1440 Time Spy Graphics
MSI Summit E14 A11SCS
NVIDIA GeForce GTX 1650 Ti Max-Q, i7-1185G7
2886 Points ∼100% +98%
MSI Prestige 14 Evo A11MO-026US
Intel Iris Xe Graphics G7 96EUs, i7-1195G7
1819 Points ∼63% +25%
Dell Latitude 9420 2-in-1
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
1682 Points ∼58% +15%
Panasonic Toughbook FZ-55 MK2
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
1461 Points ∼51%
Average Intel Iris Xe Graphics G7 96EUs
  (994 - 1819, n=64)
1453 Points ∼50% -1%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, R7 PRO 4750U
1091 Points ∼38% -25%
Durabook S14I
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
1032 Points ∼36% -29%
Schenker VIA 14 Late 2020
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
1009 Points ∼35% -31%
Asus ZenBook 14 UX434FL-DB77
NVIDIA GeForce MX250, i7-8565U
886 Points ∼31% -39%
Infinix INBook X1 Pro
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
851 Points ∼29% -42%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), R7 PRO 5850U
800 Points ∼28% -45%
Dell Latitude 5420 Rugged-P85G
AMD Radeon RX 540, i7-8650U
566 Points ∼20% -61%
Asus VivoBook 14 X403FA
Intel UHD Graphics 620, i5-8265U
404 Points ∼14% -72%
Panasonic Toughbook FZ-55
Intel UHD Graphics 620, i5-8365U
355 Points ∼12% -76%
2560x1440 Time Spy Score
MSI Summit E14 A11SCS
NVIDIA GeForce GTX 1650 Ti Max-Q, i7-1185G7
3015 Points ∼100% +86%
MSI Prestige 14 Evo A11MO-026US
Intel Iris Xe Graphics G7 96EUs, i7-1195G7
2007 Points ∼67% +24%
Dell Latitude 9420 2-in-1
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
1856 Points ∼62% +14%
Panasonic Toughbook FZ-55 MK2
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
1623 Points ∼54%
Average Intel Iris Xe Graphics G7 96EUs
  (1121 - 2007, n=62)
1608 Points ∼53% -1%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, R7 PRO 4750U
1246 Points ∼41% -23%
Durabook S14I
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
1137 Points ∼38% -30%
Schenker VIA 14 Late 2020
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
1122 Points ∼37% -31%
Asus ZenBook 14 UX434FL-DB77
NVIDIA GeForce MX250, i7-8565U
990 Points ∼33% -39%
Infinix INBook X1 Pro
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
963 Points ∼32% -41%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), R7 PRO 5850U
917 Points ∼30% -43%
Dell Latitude 5420 Rugged-P85G
AMD Radeon RX 540, i7-8650U
643 Points ∼21% -60%
Asus VivoBook 14 X403FA
Intel UHD Graphics 620, i5-8265U
463 Points ∼15% -71%
Panasonic Toughbook FZ-55
Intel UHD Graphics 620, i5-8365U
407 Points ∼13% -75%
3DMark 11
1280x720 Performance GPU
MSI Summit E14 A11SCS
NVIDIA GeForce GTX 1650 Ti Max-Q, i7-1185G7
11538 Points ∼100% +72%
MSI Prestige 14 Evo A11MO-026US
Intel Iris Xe Graphics G7 96EUs, i7-1195G7
7014 Points ∼61% +5%
Dell Latitude 9420 2-in-1
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
6987 Points ∼61% +4%
Panasonic Toughbook FZ-55 MK2
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
6700 Points ∼58%
Average Intel Iris Xe Graphics G7 96EUs
  (4841 - 7090, n=58)
6423 Points ∼56% -4%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, R7 PRO 4750U
5401 Points ∼47% -19%
Schenker VIA 14 Late 2020
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
5190 Points ∼45% -23%
Durabook S14I
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
5173 Points ∼45% -23%
Dell Latitude 5420 Rugged-P85G
AMD Radeon RX 540, i7-8650U
4983 Points ∼43% -26%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), R7 PRO 5850U
4370 Points ∼38% -35%
Infinix INBook X1 Pro
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
4132 Points ∼36% -38%
Asus ZenBook 14 UX434FL-DB77
NVIDIA GeForce MX250, i7-8565U
3585 Points ∼31% -46%
Acer Spin 3 SP314-54N-56S5
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4
3334 Points ∼29% -50%
Asus VivoBook 14 X403FA
Intel UHD Graphics 620, i5-8265U
1845 Points ∼16% -72%
Getac S410
Intel UHD Graphics 620, i5-8550U
1766 Points ∼15% -74%
Panasonic Toughbook FZ-55
Intel UHD Graphics 620, i5-8365U
1724 Points ∼15% -74%
1280x720 Performance Combined
MSI Summit E14 A11SCS
NVIDIA GeForce GTX 1650 Ti Max-Q, i7-1185G7
9720 Points ∼100% +76%
Dell Latitude 9420 2-in-1
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
6987 Points ∼72% +27%
MSI Prestige 14 Evo A11MO-026US
Intel Iris Xe Graphics G7 96EUs, i7-1195G7
6554 Points ∼67% +19%
Dell Latitude 5420 Rugged-P85G
AMD Radeon RX 540, i7-8650U
5853 Points ∼60% +6%
Panasonic Toughbook FZ-55 MK2
Intel Iris Xe Graphics G7 96EUs, i7-1185G7
5523 Points ∼57%
Average Intel Iris Xe Graphics G7 96EUs
  (2912 - 7160, n=57)
5347 Points ∼55% -3%
Lenovo ThinkPad P14s Gen1-20Y10002GE
AMD Radeon RX Vega 7, R7 PRO 4750U
4272 Points ∼44% -23%
Asus ZenBook 14 UX434FL-DB77
NVIDIA GeForce MX250, i7-8565U
3943 Points ∼41% -29%
Schenker VIA 14 Late 2020
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
3558 Points ∼37% -36%
Infinix INBook X1 Pro
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
3544 Points ∼36% -36%
Durabook S14I
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
3036 Points ∼31% -45%
Acer Spin 3 SP314-54N-56S5
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4
2719 Points ∼28% -51%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 5000), R7 PRO 5850U
2387 Points ∼25% -57%
Asus VivoBook 14 X403FA
Intel UHD Graphics 620, i5-8265U
1775 Points ∼18% -68%
Getac S410
Intel UHD Graphics 620, i5-8550U
1758 Points ∼18% -68%
Panasonic Toughbook FZ-55
Intel UHD Graphics 620, i5-8365U
1363 Points ∼14% -75%
3DMark 11 Performance
6981 punten
3DMark Cloud Gate Standard Score
18445 punten
3DMark Fire Strike Score
4240 punten
3DMark Time Spy Score
1623 punten
Help

Witcher 3 FPS Chart

051015202530354045505560657075808590949393949393929292929391938593929493939393919293939393939392949394939393939393939393939293949291929293929393939393939392949393949392939293939392939392939494949494939294939494959594959394949495959495949595949493949393949494939594939494949394949493939394949491929292939493939493949393949393929392949293939393929392939393949394949495949394959595959495959493949394949593959594959593949494939595959595959395949494949495939494939494949394949494939293939494949493949494949494939394949394939191949393949292929292939392949393939393939394939393939393949393939392939293929192919292939293929393929293929393929392939393929392939192919291929192929392929392939293929293929392929392929292939293939193929392939392929393929392919192919293929191919192919393929293929392939293929392929292929392939292929393929392929392929292939292929192929091929092939292929292949392919293929292929392919191929292939192939292929292929392929392929292919292929291929292929292919190919092929292919292929392919391909190909091919292929292929291929192919191929291929292929192919291919291919291929292929291929192919291919290919290909090909091919191919191909091909191909290929191919091909190909191908990898990909091909190899190919091909190909190909091909189919191919189908990899091919090919090929091929090919191909189898990909191919091909090919090919091909190919190909190918990919190919090909190919089908989899090898989918990909090909091909190909090909090909090899090909089919089918990908889898988909090909190899090899189899090909089908990898989899089908890899089889089898988908989898989889089899089898989898989908890898890898989888989898887888989898988898990898989898988878888888888898889888888888889888988898888898988888988898889888889888988888988898789898888888887878788878989888888888988898988888889888889888985888888888889888889898889898889888789888889888988888988898888898688898888898888888889888888898889878989888988888889878788888888888888898888898988898889888788868688868788878888878888888888888887898789878889878888888888888888888788888988888888888888888988888889888988898888898888898888878687888988898889888987898888888987898988898889888888898888898888888787888787888988888889898888898889888989888989888988898989889087898988898989888988888889898887888889878989898887888989898989888889898989898989898889898988898888888888878887898988898989898988898889898990898989899089908989898990908990899089899090908889898888909090899090898989899088888888899089908990909190908990908990889090919091909290909090919091898890909189919190919090919090919190909091909091919091909190919191929091919191909090919091919190919190909190919090909190909091919091909090909191899089899090909190919190919190919190919090919090909090919090909089909090919190909190909091899090899089888990919190908989898890909190899091909091909089919190899090919090909091898889899088908989909090909190909090899089909090908990919090909091909090919091908991899091919091909091919090909190919090899191919189919090908990909091908990909091899190899089908990909090899091909190919190919090909190909090909190919091909191909190909090909089898990899091909091909090909190909090909191908990919090909190909090919090919091919190919090919091919190919090909190898990899090919090919091909190919090909091919190919090919091909191919089919190899090909091919092909191919291919191919192929291929192909191919192919290919291929192929191909291919192929190909090909191929192909192919292919292919290899090919192919191919291919192929191919191919291919191909291929191919292919191919191929191929191919191918991919291908990909091929191919192919192919192919191929290939192929192929291929292899292919289919190919191909091919292909291919191919291929291929192919191929290909190919091929191929192919191929192929192919091929192919090909091909291919192919291919291929291929291929291929192919292909191929190909191929192929190899190919092919292919292929192929192919292929291919292929391929192929292929292919292929191929291929292929292919291929292939391939394929393939293929492939292939293919292939293929393939293919092919192929392929392939392939293929293929293939293929293939293939293929191919293919191929391939393929393939393949293939392939393919393929191929293929393929191929293939292939392939493939293949294929392939393929293939393939393939394929291929292939392939392939392929292949493939394939493949294939393939493939493949394939394929391919293949493939494929293939393949393939393939493949494939493939493939394949394929493949393939394929493939394939394939393949494949394939494939394939391939394939393949393929293929294949394949394939493949493949493949394949493949394949394939394939494949394949394949293929393939494939394949494939493959493949394Tooltip
: Ø91 (85-95)
lage gem. hoge ultra
The Witcher 3 (2015) 94.5 56.7 30.5 15.4 fps
Dota 2 Reborn (2015) 84.2 86.7 53.9 48.6 fps
Final Fantasy XV Benchmark (2018) 41.7 22 15.7 fps
X-Plane 11.11 (2018) 27 24.8 22.3 fps

Emissions

Systeemgeluid

Het systeem is stil bij de meeste dagelijkse werkzaamheden zoals tekstverwerking, surfen op het web of videostreaming. Verwacht echter af en toe een pulsering tot 28,7 dB(A) die slechts een seconde of zo aanhoudt voordat het weer stil wordt. Bij extreme belasting, zoals Prime95, kan de ventilator tot 42 dB(A) luider worden.

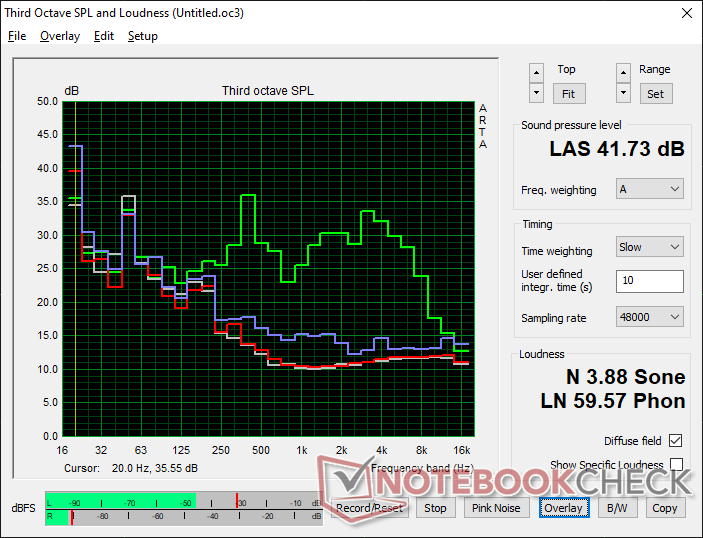

Profiel van het ventilatorgeluid (Wit: Achtergrond, Rood: Stationair systeem, Blauw: 3DMark 06, Groen: Prime95 stress). We kunnen geen elektronische ruis of spoelgejank waarnemen van ons apparaat
Profiel van het ventilatorgeluid (Wit: Achtergrond, Rood: Stationair systeem, Blauw: 3DMark 06, Groen: Prime95 stress). We kunnen geen elektronische ruis of spoelgejank waarnemen van ons apparaat
Panasonic Toughbook FZ-55 MK2
Iris Xe G7 96EUs, i7-1185G7, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
Panasonic Toughbook FZ-55
UHD Graphics 620, i5-8365U, Samsung SSD PM871b MZNLN256HAJQ
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, i7-8650U, SK hynix PC401 NVMe 500 GB
Durabook S14I
Iris Xe G7 96EUs, i7-1165G7, UDinfo M2P M2P80DE512GBAEP
Getac S410
UHD Graphics 620, i5-8550U, CUKUSA 1 TB SATA SSD Q0526A
Noise
-17%
-13%
-13%
-11%
off / environment *
23.8
29
-22%
28.3
-19%
25.2
-6%
28.4
-19%
Idle Minimum *
24
29
-21%
28.3
-18%
25.2
-5%
28.4
-18%
Idle Average *
24
29.6
-23%
28.3
-18%
25.2
-5%
28.4
-18%
Idle Maximum *
24
30.5
-27%
28.3
-18%
34.5
-44%
28.4
-18%
Load Average *
26.7
30.3
-13%
29.9
-12%
34.5
-29%
30.3
-13%
Load Maximum *
41.7
39
6%
38
9%
36.2
13%
33.3
20%

* ... kleiner is beter

Geluidsniveau

Onbelast
24 / 24 / 24 dB (A)
Belasting
26.7 / 41.7 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm afstand)   environment noise: 23.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2043.339.634.435.62530.526.128.227.33127.626.324.527.54024.922.227.224.45033.23335.833.76325.725.725.826.78026.82423.423.510022.220.821.925.312520.719.121.222.916023.421.92324.720023.822.421.726.125017.315.615.425.531517.416.814.628.540017.713.813.635.950016.212.912.328.963015.111.510.727.680014.310.610.823100015.210.410.125.5125014.910.310.128.5160015.310.410.130.4200013.910.510.730.3250012.210.810.628.6315012.8111133.5400014.611.511.232.1500012.911.811.529.9630013.111.811.628.280001311.811.723.91000013.11211.717.61250014.71211.615.41600013.711.110.712.7SPL26.72423.841.7N0.90.60.53.9median 14.9median 11.8median 11.6median 27.6Delta2.22.92.32.9hearing rangehide median Fan NoisePanasonic Toughbook FZ-55 MK2

Temperatuur

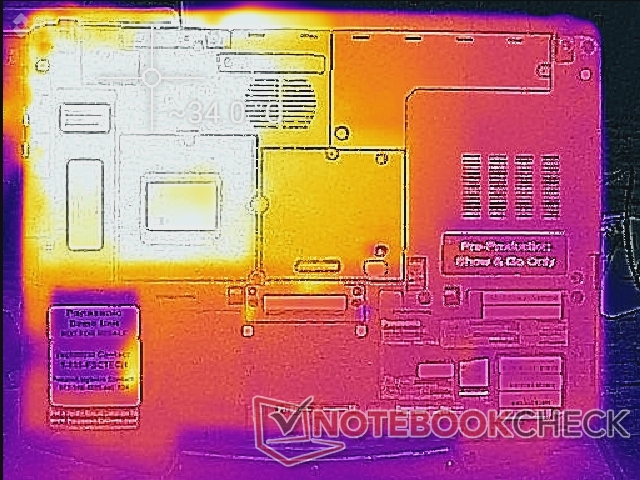

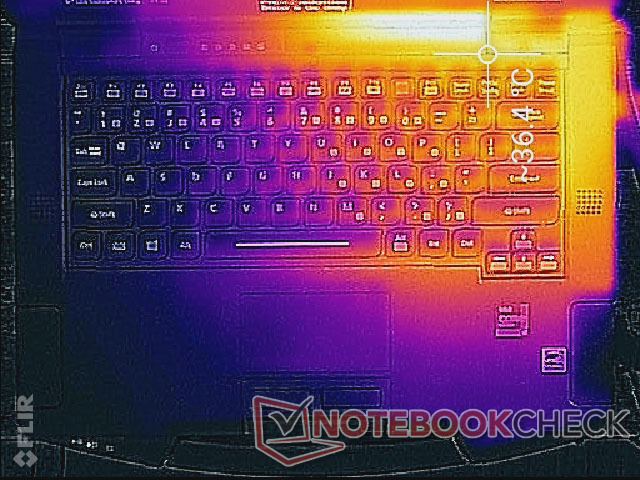

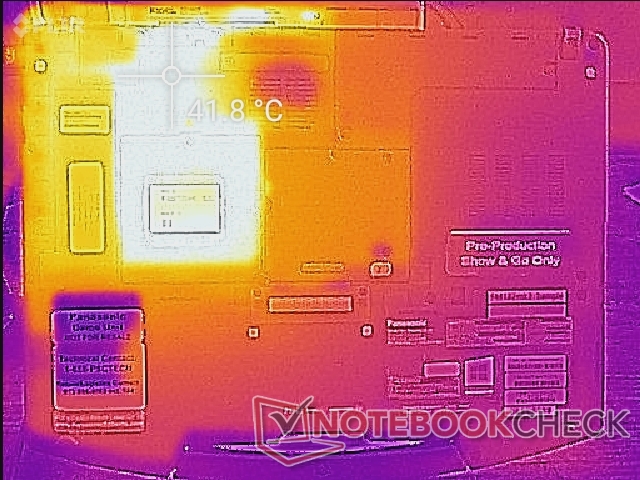

Oppervlaktetemperaturen zullen altijd warmer zijn op de rechterhelft van de laptop dan op de linker, vanwege de manier waarop de processor en de koeloplossing binnenin zijn gepositioneerd. We zijn in staat om een maximum van ongeveer 42 C te meten op de onderste hotspot.
