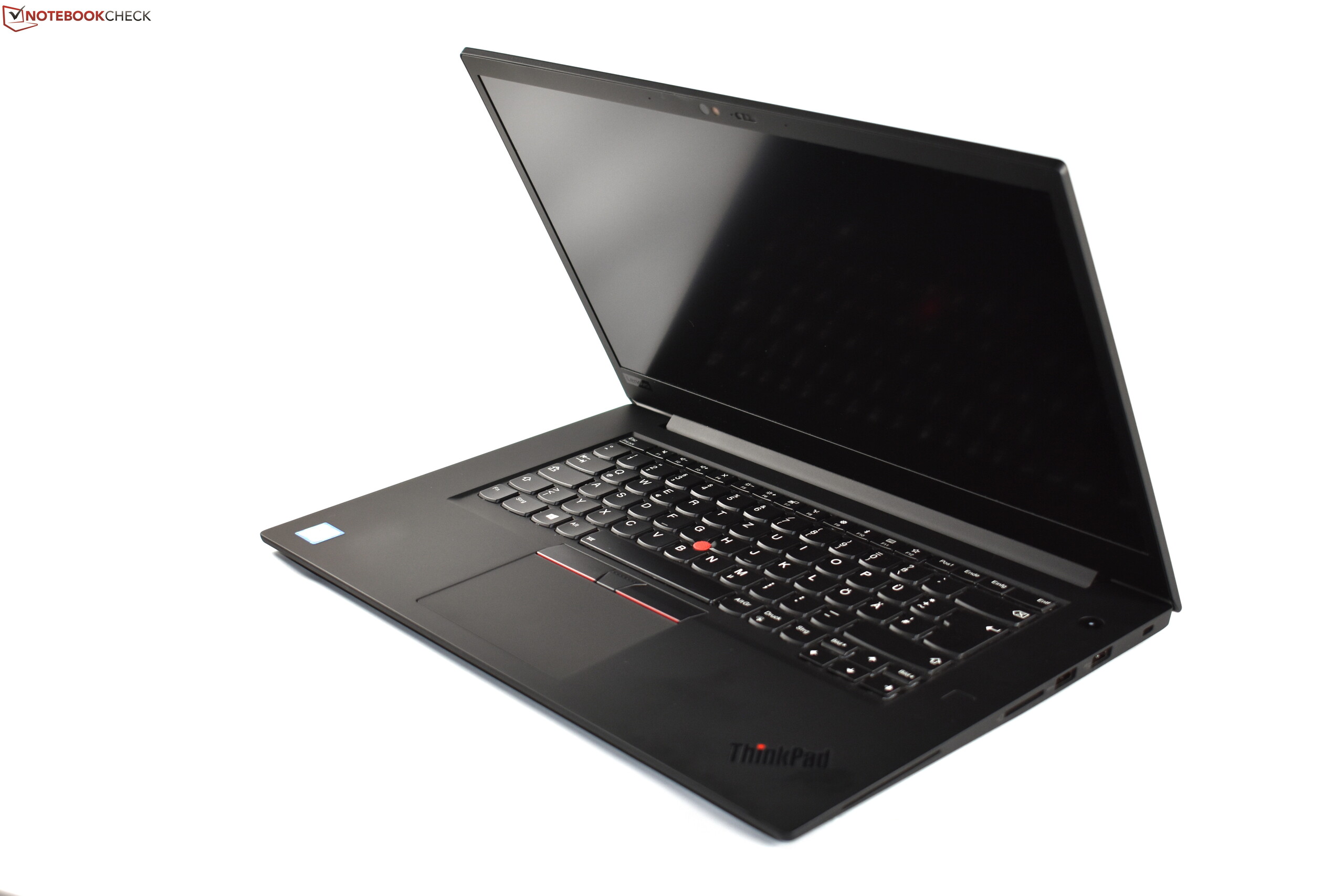

Kort testrapport Lenovo ThinkPad P1 2019 Laptop: Dun werkstation met sterkere GPU en zwakkere CPU

Benjamin Herzig, 👁 Andreas Osthoff, Felicitas Krohn, 25-08-2019

Turing update met zwakkere CPU. Lenovo heeft de tweede generatie van zijn slanke, hoogwaardige ThinkPad P1-werkstation op de markt gebracht. Aan boord zijn de nieuwste Nvidia Quadro GPU's op basis van Turing, aanzienlijk helderdere beeldscherm-opties en de nieuwste Intel-processors. De Lenovo ThinkPad P1 Gen 2 vertoont echter enkele zwakke punten in de CPU-prestaties.

Lenovo ThinkPad P1 2019-20QT000RGE (ThinkPad P1 2019 Serie)
Processor
Intel Core i7-9850H
Grafische kaart
NVIDIA Quadro T1000 (Laptop) - 4096 MB, Core: 1455 MHz, Geheugen: 1751 MHz, 1FB9, 431.40, Optimus
Geheugen
16384 MB
, DDR4-2400, 1 van 2 slots bezet
Beeldscherm
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, N156HCE-GN1, IPS LED, glimmend: nee, HDR
Moederbord
Intel CM246
Opslag
WDC PC SN720 SDAQNTW-512G, 512 GB
, M.2 2280, PCIE NVMe, 1 van 2 M.2-2280 slots bezet, 437 GB beschikbaar
Geluidskaart
Intel Cannon Lake-H/S - cAVS (Audio, Voice, Speech)
Verbindingen
2 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Verbindingen: audio combinatiepoort, Card Reader: 3-in-1 SD, 1 SmartCard, 1 Vingerafdruklezer, Lenovo Ethernet connector
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Afmetingen
hoogte x breedte x diepte (in mm): 18.4 x 361.8 x 245.7
Batterij
80 Wh Lithium-Ion
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p met infrarood + ThinkShutter
Bijkomende functionaliteiten

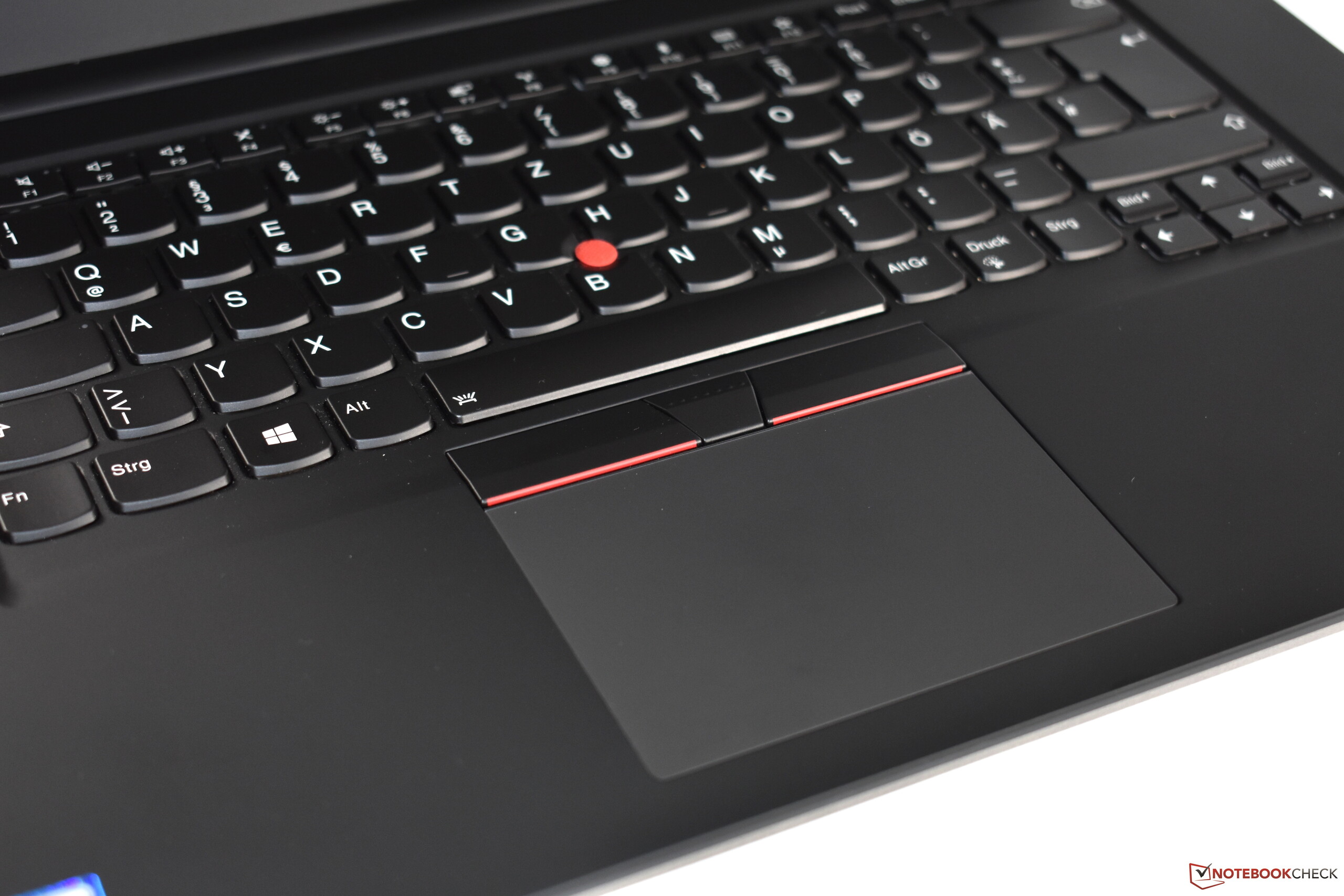

Luidsprekers: 2 Watt stereo, Toetsenbord: 6 rijen chiclet met 1.7 mm drukafstand, Toetsenbordverlichting: ja, 135 Watt stroomadapter, Lenovo Ethernet verlengkabel, Lenovo Vantage, Microsoft Office testversie, 36 Maanden Garantie
Gewicht
1.718 kg, Voeding: 478 g
Prijs
2399 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

361.8 mm 245.7 mm 18.4 mm 1.7 kg360 mm 254 mm 18.9 mm 2.1 kg357 mm 235 mm 17 mm 2 kg357 mm 235.3 mm 16.82 mm 2 kg

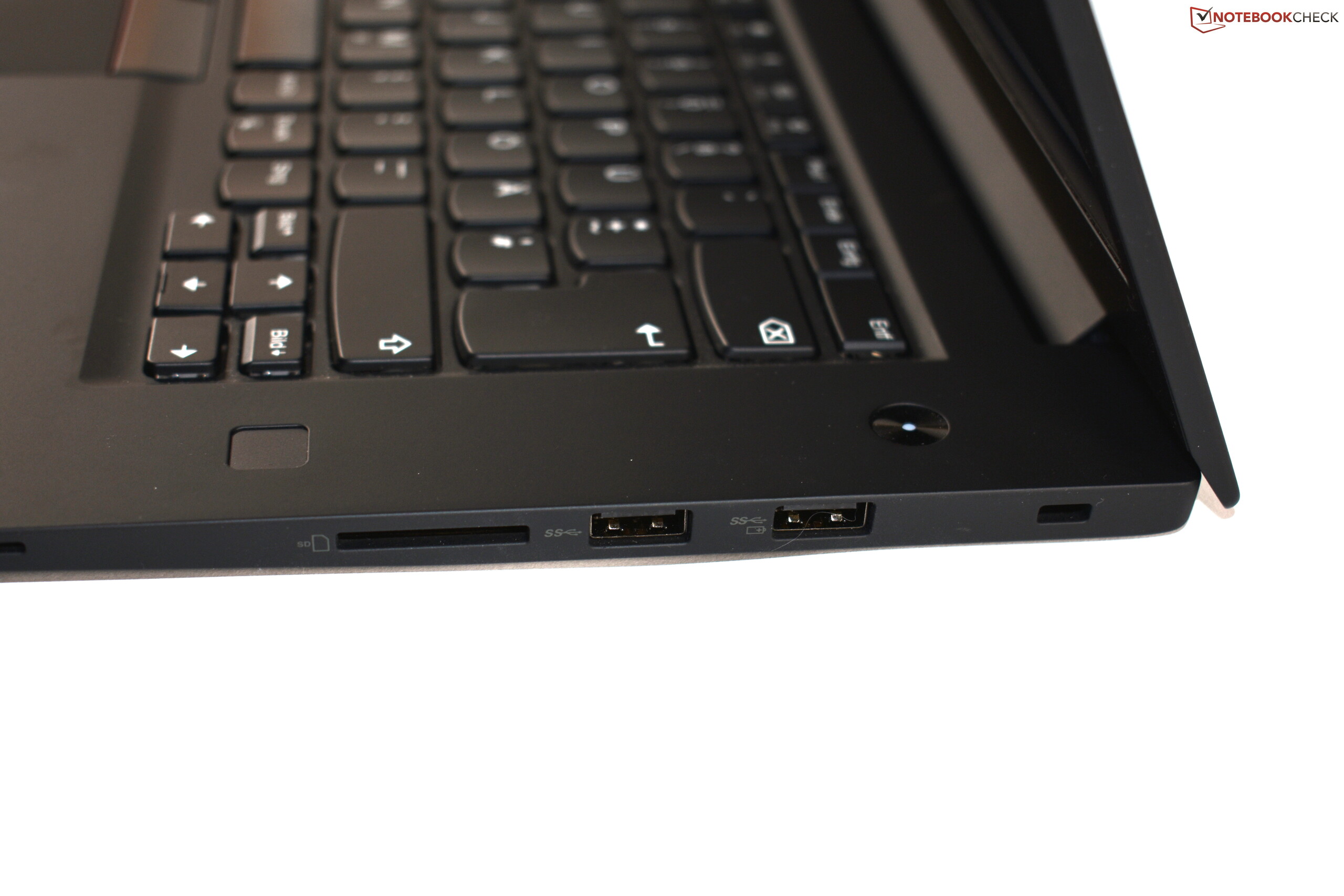

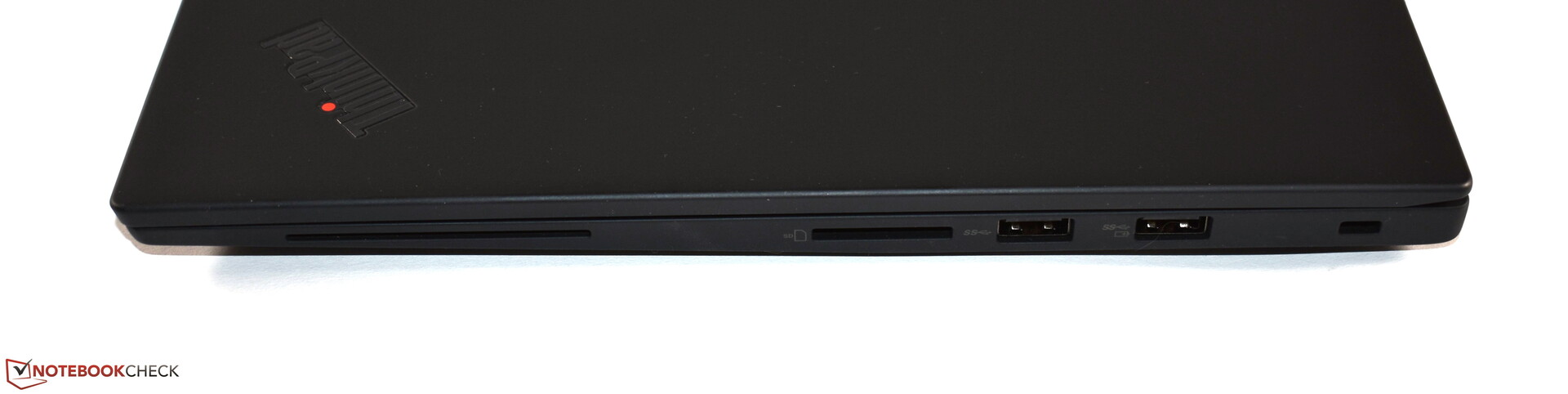

Rechterkant: smart card lezer, SD kaartlezer, 2x USB 3.0 Type A, Kensington lock
Rechterkant: smart card lezer, SD kaartlezer, 2x USB 3.0 Type A, Kensington lock

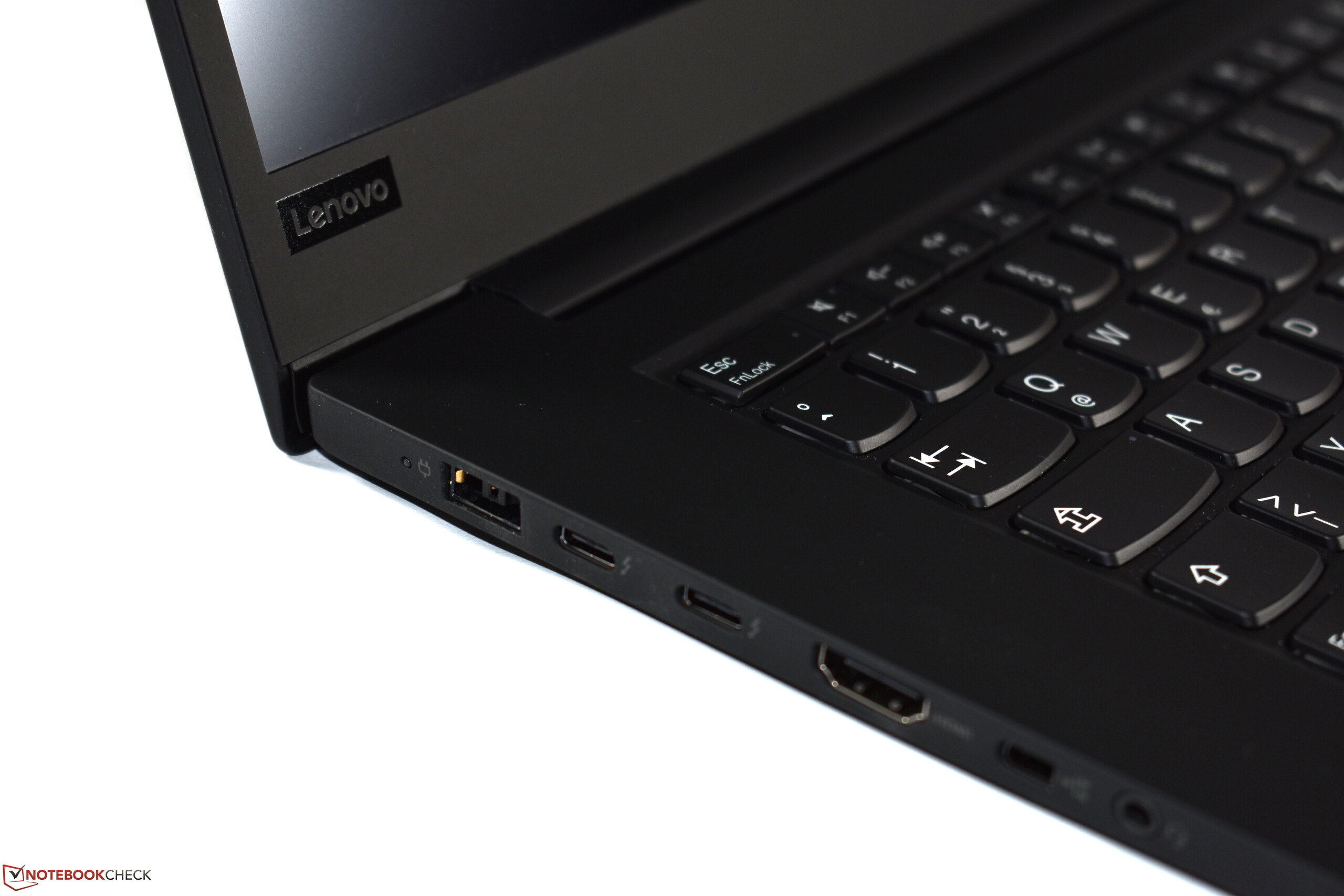

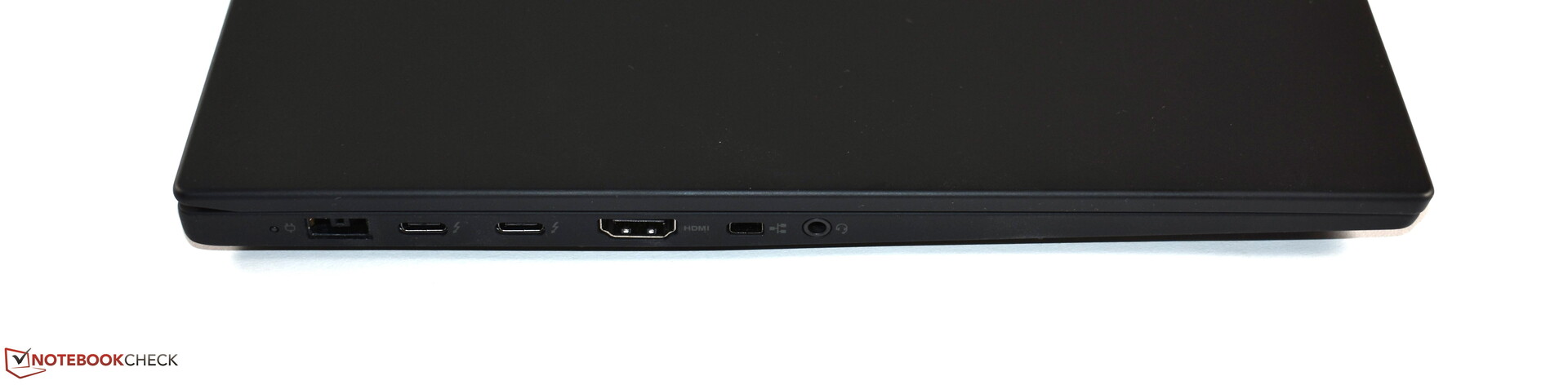

Linkerkant: stroomaansluiting, 2x Thunderbolt 3, HDMI, mini-Ethernet, audiopoort
Linkerkant: stroomaansluiting, 2x Thunderbolt 3, HDMI, mini-Ethernet, audiopoort
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad P1 2019-20QT000RGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
181 MB/s ∼100%
HP ZBook Studio G5-4QH10EA
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
174 MB/s ∼96% -4%
Dell XPS 15 7590 9980HK GTX 1650
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
172.4 MB/s ∼95% -5%
Dell Precision 5530 Xeon E-2176M
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
166.23 MB/s ∼92% -8%
Average of class Workstation
  (17.2 - 213, n=61)
138 MB/s ∼76% -24%
maximum AS SSD Seq Read Test (1GB)
HP ZBook Studio G5-4QH10EA
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
211.6 MB/s ∼100% +7%
Lenovo ThinkPad P1 2019-20QT000RGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
198.2 MB/s ∼94%
Dell XPS 15 7590 9980HK GTX 1650
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
192.1 MB/s ∼91% -3%
Dell Precision 5530 Xeon E-2176M
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
190.7 MB/s ∼90% -4%
Average of class Workstation
  (18.4 - 255, n=61)
172 MB/s ∼81% -13%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Dell XPS 15 7590 9980HK GTX 1650
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
674 MBit/s ∼100% +8%
HP ZBook Studio G5-4QH10EA
Intel Wireless-AC 9560
666 (min: 328, max: 700) MBit/s ∼99% +7%
Dell Precision 5530 Xeon E-2176M
Intel Wireless-AC 9260
663 MBit/s ∼98% +6%
Average of class Workstation
  (292 - 1485, n=50)
627 MBit/s ∼93% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Wi-Fi 6 AX200
625 MBit/s ∼93%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Wi-Fi 6 AX200
706 MBit/s ∼100%
Dell Precision 5530 Xeon E-2176M
Intel Wireless-AC 9260
648 MBit/s ∼92% -8%
Dell XPS 15 7590 9980HK GTX 1650
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
644 MBit/s ∼91% -9%
HP ZBook Studio G5-4QH10EA
Intel Wireless-AC 9560
633 (min: 606, max: 660) MBit/s ∼90% -10%
Average of class Workstation
  (83 - 1470, n=50)
562 MBit/s ∼80% -20%
511
cd/m²
496
cd/m²
481
cd/m²
563
cd/m²
542
cd/m²
521
cd/m²
573
cd/m²
524
cd/m²
537
cd/m²
Helderheidsverdeling
N156HCE-GN1
X-Rite i1Pro 2
Maximum: 573 cd/m² Gemiddelde: 527.6 cd/m² Minimum: 10 cd/m²
Helderheidsverdeling: 84 %
Helderheid in Batterij-modus: 521 cd/m²
Contrast: 1322:1 (Zwart: 0.41 cd/m²)
ΔE Color 3.5 | 0.6-29.43 Ø6, calibrated: 1.3
ΔE Greyscale 4.8 | 0.64-98 Ø6.2
91.1% sRGB (Argyll 3D) 58.8% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.33
Lenovo ThinkPad P1 2019-20QT000RGE
N156HCE-GN1, , 1920x1080, 15.6
Lenovo ThinkPad X1 Extreme-20MF000RGE
NV156FHM-N61, , 1920x1080, 15.6
Dell XPS 15 7590 i5 iGPU FHD
LQ156M1, , 1920x1080, 15.6
Dell Precision 5530 Xeon E-2176M
Sharp SHP148D / LQ156D1, , 3840x2160, 15.6
HP ZBook Studio G5-4QH10EA
AUO30EB, , 3840x2160, 15.6
Dell XPS 15 7590 9980HK GTX 1650
Samsung 156WR04, SDCA029, , 3840x2160, 15.6
Response Times
-76%
-93%
-92%
-106%
25%
Response Time Grey 50% / Grey 80% *
34.4 (17.2, 17.2)
52.8 (27.6, 25.2)
-53%
52.8 (25.6, 27.2)
-53%
48 (24.4, 23.6)
-40%
60.8 (30, 30.8)
-77%
2.3 (1.1, 1.2)
93%
Response Time Black / White *
14 (4.4, 9.6)
36 (19.6, 16.4)
-157%
32 (16.4, 15.6)
-129%
33.6 (19.6, 14)
-140%
32.8 (16.4, 16.4)
-134%
2.4 (1.1, 1.3)
83%
PWM Frequency
26040 (70)
21370 (99)
-18%
1020 (25)
-96%
1000
-96%
59.52 (100)
-100%
Screen
-26%
14%
-12%
-5%
-8%
Brightness middle
542
331
-39%
588
8%
451.7
-17%
417
-23%
421.2
-22%
Brightness
528
305
-42%
555
5%
440
-17%
412
-22%
417
-21%
Brightness Distribution
84
84
0%
89
6%
90
7%
85
1%
94
12%
Black Level *
0.41
0.24
41%
0.4
2%
0.4
2%
0.29
29%
Contrast
1322
1379
4%
1470
11%
1129
-15%
1438
9%
Colorchecker DeltaE2000 *
3.5
5.6
-60%
2.5
29%
3.11
11%
4.4
-26%
6.06
-73%
Colorchecker DeltaE2000 max. *
7.8
9.9
-27%
6.3
19%
8.62
-11%
6.7
14%
11.89
-52%
Colorchecker DeltaE2000 calibrated *
1.3
3
-131%
0.6
54%
3.07
-136%
1.9
-46%
Greyscale DeltaE2000 *
4.8
6.3
-31%
4.5
6%
3.7
23%
5
-4%
2.8
42%
Gamma
2.33 94%
2.33 94%
2.2 100%
2.11 104%
2.28 96%
2.15 102%
CCT
7690 85%
7152 91%
6836 95%
6492 100%
7575 86%
6235 104%
Color Space (Percent of AdobeRGB 1998)
58.8
58
-1%
63.2
7%
69
17%
62.3
6%
81
38%
Color Space (Percent of sRGB)
91.1
88.6
-3%
98
8%
98
8%
96
5%
99.6
9%
Totaal Gemiddelde (Programma / Instellingen)
-51% / -37%
-40% / -9%
-52% / -29%
-56% / -21%
9% / 1%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

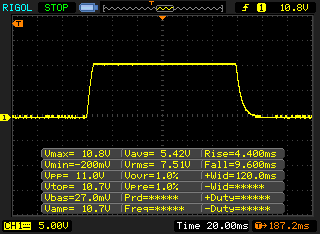

       Responstijd Zwart naar Wit
14 ms ... stijging ↗ en daling ↘ gecombineerd↗ 4.4 ms stijging
↘ 9.6 ms daling
Het scherm vertoonde prima responstijden in onze tests maar is misschien wat te traag voor competitieve games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 16 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (24.9 ms) van alle geteste toestellen.

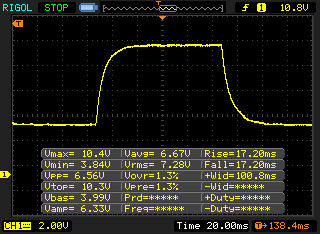

       Responstijd 50% Grijs naar 80% Grijs
34.4 ms ... stijging ↗ en daling ↘ gecombineerd↗ 17.2 ms stijging
↘ 17.2 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 27 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (39.6 ms) van alle geteste toestellen.

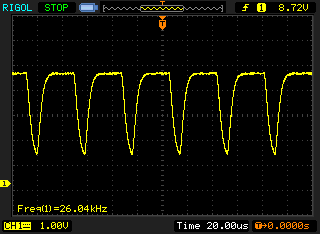

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.

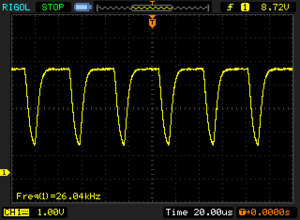

Screen flickering / PWM waargenomen 26040 Hz ≤ 70 % helderheid instelling

Het backlight van het scherm flikkert aan 26040 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 70 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 26040 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9279 (minimum: 43 - maximum: 142900) Hz waargenomen.

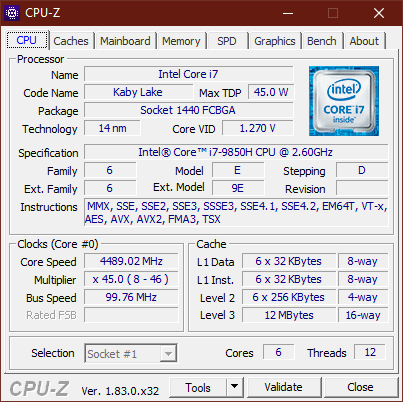

CPU-Z
CPU-Z

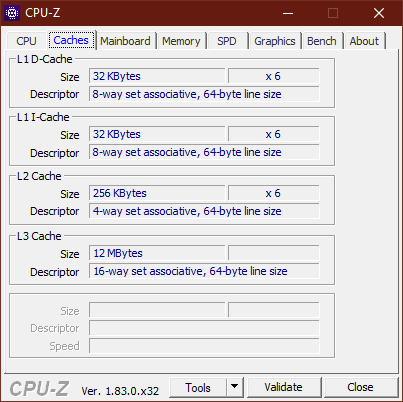

CPU-Z Caches
CPU-Z Caches

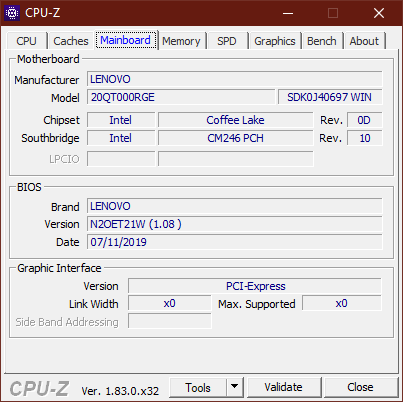

CPU-Z Mainboard
CPU-Z Mainboard

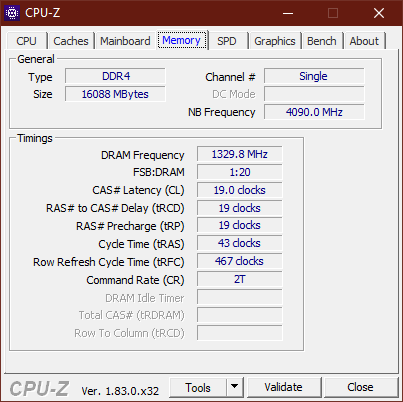

CPU-Z Memory
CPU-Z Memory

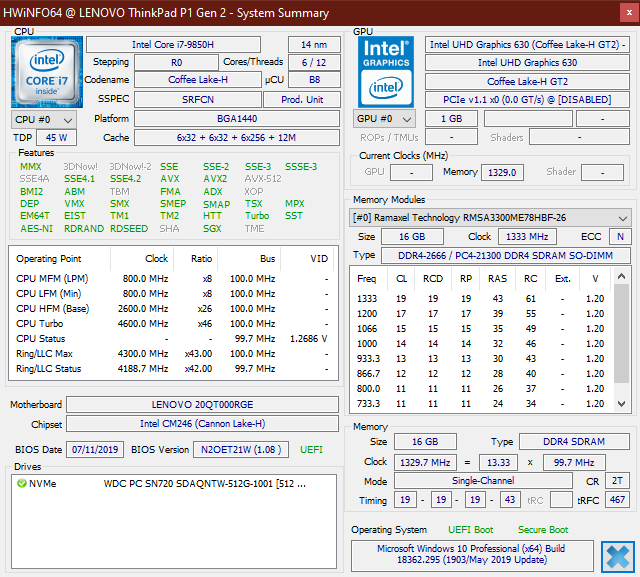

HWiNFO
HWiNFO
GPU-Z Intel UHD Graphics 620
GPU-Z Intel UHD Graphics 620
LatencyMon
LatencyMon

010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130114011501160117011801190120012101220123012401250126012701280129013001310132013301340135013601370138013901400141014201430144014501460147014801490150015101520153015401550156015701580159016001610Tooltip
Lenovo ThinkPad P1 2019-20QT000RGE Intel Core i7-9850H, Intel Core i7-9850H: Ø961 (896-1114)
Lenovo ThinkPad P1-20MD002LUS Intel Xeon E-2176M, Intel Xeon E-2176M: Ø1026 (1012.5-1120.61)
Dell Precision 5530 Xeon E-2176M Intel Xeon E-2176M, Intel Xeon E-2176M: Ø1024 (1006.14-1126.25)
HP ZBook Studio G5-4QH10EA Intel Core i7-8750H, Intel Core i7-8750H: Ø1018 (1008.9-1100.84)
Dell XPS 15 7590 9980HK GTX 1650 Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1314 (1090.6-1600.38)
Cinebench R15
CPU Single 64Bit
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK
201 Points ∼100% +4%
Average Intel Core i7-9850H
  (192 - 197, n=3)
194 Points ∼97% +1%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H
193 Points ∼96%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
189 Points ∼94% -2%
Lenovo ThinkPad P1-20MD002LUS
Intel Xeon E-2176M
187 Points ∼93% -3%
HP ZBook Studio G5-4QH10EA
Intel Core i7-8750H
175 Points ∼87% -9%
Dell XPS 15 7590 i5 iGPU FHD
Intel Core i5-9300H
175 Points ∼87% -9%
Lenovo ThinkPad X1 Extreme-20MF000RGE
Intel Core i5-8300H
174 Points ∼87% -10%
Average of class Workstation
  (117 - 214, n=96)
159 Points ∼79% -18%
CPU Multi 64Bit
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK
1305 (min: 1090.6, max: 1369.3, 99th percentile: 1367.66) Points ∼100% +36%
HP ZBook Studio G5-4QH10EA
Intel Core i7-8750H
1127 Points ∼86% +17%
Lenovo ThinkPad P1-20MD002LUS
Intel Xeon E-2176M
1118 Points ∼86% +16%
Average Intel Core i7-9850H
  (961 - 1272, n=3)
1114 Points ∼85% +16%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
1095 Points ∼84% +14%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H
961 (min: 896, max: 1114) Points ∼74%
Lenovo ThinkPad X1 Extreme-20MF000RGE
Intel Core i5-8300H
850 Points ∼65% -12%
Dell XPS 15 7590 i5 iGPU FHD
Intel Core i5-9300H
787 (min: 771.02, max: 810.57) Points ∼60% -18%
Average of class Workstation
  (260 - 1623, n=98)
749 Points ∼57% -22%
Cinebench R10 Rendering Single 32Bit
7169
Cinebench R10 Rendering Single CPUs 64Bit
9224 Points
Cinebench R10 Shading 32Bit
6818
Cinebench R10 Rendering Multiple CPUs 32Bit
31938
Cinebench R10 Rendering Multiple CPUs 64Bit
42090 Points
Cinebench R10 Shading 64Bit
6818 Points
Cinebench R11.5 CPU Multi 64Bit
12.47 Points
Cinebench R11.5 OpenGL 64Bit
123.99 fps
Cinebench R11.5 CPU Single 64Bit
2.13 Points
Cinebench R15 CPU Single 64Bit
193 Points
Cinebench R15 Ref. Match 64Bit
100 %
Cinebench R15 OpenGL 64Bit
166 fps
Cinebench R15 CPU Multi 64Bit
961 Points
Help
PCMark 10
Digital Content Creation
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 (Laptop), 9980HK, Toshiba XG6 KXG60ZNV1T02
6110 Points ∼100% +21%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
5736 Points ∼94% +14%
Average of class Workstation
  (2329 - 8528, n=41)
5078 Points ∼83% +1%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
5033 Points ∼82%
Average Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)

5033 Points ∼82% 0%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4741 Points ∼78% -6%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
4709 Points ∼77% -6%
Lenovo ThinkPad X1 Extreme-20MF000RGE
GeForce GTX 1050 Ti Max-Q, 8300H, Samsung SSD PM981 MZVLB256HAHQ
4415 Points ∼72% -12%
Dell XPS 15 7590 i5 iGPU FHD
UHD Graphics 630, 9300H, Toshiba XG6 KXG60ZNV512G
3096 Points ∼51% -38%
Productivity
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 (Laptop), 9980HK, Toshiba XG6 KXG60ZNV1T02
7494 Points ∼100% +3%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
7281 Points ∼97% +1%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
7243 Points ∼97%
Average Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)

7243 Points ∼97% 0%
Average of class Workstation
  (3998 - 8307, n=41)
7044 Points ∼94% -3%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
6824 Points ∼91% -6%
Lenovo ThinkPad X1 Extreme-20MF000RGE
GeForce GTX 1050 Ti Max-Q, 8300H, Samsung SSD PM981 MZVLB256HAHQ
6775 Points ∼90% -6%
Dell XPS 15 7590 i5 iGPU FHD
UHD Graphics 630, 9300H, Toshiba XG6 KXG60ZNV512G
6771 Points ∼90% -7%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
6573 Points ∼88% -9%
Essentials
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 (Laptop), 9980HK, Toshiba XG6 KXG60ZNV1T02
9701 Points ∼100% +1%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
9566 Points ∼99%
Average Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)

9566 Points ∼99% 0%
Dell XPS 15 7590 i5 iGPU FHD
UHD Graphics 630, 9300H, Toshiba XG6 KXG60ZNV512G
9000 Points ∼93% -6%
Average of class Workstation
  (5223 - 9917, n=41)
8514 Points ∼88% -11%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
8479 Points ∼87% -11%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
8321 Points ∼86% -13%
Lenovo ThinkPad X1 Extreme-20MF000RGE
GeForce GTX 1050 Ti Max-Q, 8300H, Samsung SSD PM981 MZVLB256HAHQ
8090 Points ∼83% -15%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
7739 Points ∼80% -19%
Score
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 (Laptop), 9980HK, Toshiba XG6 KXG60ZNV1T02
5469 Points ∼100% +8%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
5072 Points ∼93% +1%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
5046 Points ∼92%
Average Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)

5046 Points ∼92% 0%
Average of class Workstation
  (2817 - 6255, n=42)
4778 Points ∼87% -5%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
4618 Points ∼84% -8%
Lenovo ThinkPad X1 Extreme-20MF000RGE
GeForce GTX 1050 Ti Max-Q, 8300H, Samsung SSD PM981 MZVLB256HAHQ
4467 Points ∼82% -11%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4462 Points ∼82% -12%
Dell XPS 15 7590 i5 iGPU FHD
UHD Graphics 630, 9300H, Toshiba XG6 KXG60ZNV512G
4105 Points ∼75% -19%
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad X1 Extreme-20MF000RGE
GeForce GTX 1050 Ti Max-Q, 8300H, Samsung SSD PM981 MZVLB256HAHQ
5357 Points ∼100% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
5332 Points ∼100%
Average Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)

5332 Points ∼100% 0%
Dell XPS 15 7590 i5 iGPU FHD
UHD Graphics 630, 9300H, Toshiba XG6 KXG60ZNV512G
5070 Points ∼95% -5%
Average of class Workstation
  (3311 - 5655, n=78)
4828 Points ∼90% -9%
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 (Laptop), 9980HK, Toshiba XG6 KXG60ZNV1T02
4762 Points ∼89% -11%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
4666 Points ∼87% -12%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4453 Points ∼83% -16%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
4404 Points ∼82% -17%
Home Score Accelerated v2
Dell XPS 15 7590 i5 iGPU FHD
UHD Graphics 630, 9300H, Toshiba XG6 KXG60ZNV512G
4175 Points ∼100% +5%
Lenovo ThinkPad X1 Extreme-20MF000RGE
GeForce GTX 1050 Ti Max-Q, 8300H, Samsung SSD PM981 MZVLB256HAHQ
4150 Points ∼99% +4%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
3986 Points ∼95%
Average Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)

3986 Points ∼95% 0%
Average of class Workstation
  (2320 - 5505, n=79)
3980 Points ∼95% 0%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
3831 Points ∼92% -4%
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 (Laptop), 9980HK, Toshiba XG6 KXG60ZNV1T02
3799 Points ∼91% -5%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
3536 Points ∼85% -11%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
3433 Points ∼82% -14%
PCMark 8 Home Score Accelerated v2
3986 punten
PCMark 8 Creative Score Accelerated v2
3897 punten
PCMark 8 Work Score Accelerated v2
5332 punten
Help
Lenovo ThinkPad P1 2019-20QT000RGE
WDC PC SN720 SDAQNTW-512G
Lenovo ThinkPad P1-20MD002LUS
Samsung SSD PM981 MZVLB2T0HMLB
Dell Precision 5530 Xeon E-2176M
SK hynix PC400 512 GB
HP ZBook Studio G5-4QH10EA
Samsung SSD PM981 MZVLB512HAJQ
Dell XPS 15 7590 9980HK GTX 1650
Toshiba XG6 KXG60ZNV1T02
Average WDC PC SN720 SDAQNTW-512G

CrystalDiskMark 5.2 / 6
-21%
-23%
-26%
-7%
-1%
Write 4K
162.2
108
-33%
97.75
-40%
102.7
-37%
104.3
-36%
157 (112 - 197, n=3)
-3%
Read 4K
43.71
37.24
-15%
41.21
-6%
38.32
-12%
45.23
3%
45.7 (42 - 51.3, n=3)
5%
Write Seq
2441
1476
-40%
1312
-46%
1417
-42%
1729
-29%
2040 (1715 - 2441, n=3)
-16%
Read Seq
1753
1367
-22%
1667
-5%
1289
-26%
1861
6%
2094 (1753 - 2464, n=3)
19%
Write 4K Q32T1
397.6
302.4
-24%
449.5
13%
278.9
-30%
509.2
28%
382 (318 - 429, n=3)
-4%
Read 4K Q32T1
519.7
375
-28%
327.4
-37%
348.8
-33%
388.5
-25%
490 (407 - 542, n=3)
-6%
Write Seq Q32T1
2519
2433
-3%
1385
-45%
1895
-25%
2813
12%
2525 (2519 - 2534, n=3)
0%
Read Seq Q32T1
3448
3493
1%
2948
-15%
3352
-3%
2906
-16%
3456 (3438 - 3481, n=3)
0%
WDC PC SN720 SDAQNTW-512G
Sequential Read: 2475 MB/s
Sequential Write: 2239 MB/s
512K Read: 1240 MB/s
512K Write: 1255 MB/s
4K Read: 42.85 MB/s
4K Write: 166.5 MB/s
4K QD32 Read: 541.1 MB/s
4K QD32 Write: 412.3 MB/s
3DMark 11 - 1280x720 Performance GPU
Dell XPS 15 7590 9980HK GTX 1650
NVIDIA GeForce GTX 1650 (Laptop), Intel Core i9-9980HK
12388 Points ∼100% +19%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
10407 Points ∼84%
Average NVIDIA Quadro T1000 (Laptop)

10407 Points ∼84% 0%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
8201 Points ∼66% -21%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
8148 Points ∼66% -22%
Average of class Workstation
  (841 - 25266, n=110)
6412 Points ∼52% -38%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
5982 Points ∼48% -43%
3DMark
2560x1440 Time Spy Graphics
Dell XPS 15 7590 9980HK GTX 1650
NVIDIA GeForce GTX 1650 (Laptop), Intel Core i9-9980HK
3353 Points ∼100% +18%
Average of class Workstation
  (566 - 6999, n=30)
2961 Points ∼88% +4%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
2834 Points ∼85%
Average NVIDIA Quadro T1000 (Laptop)

2834 Points ∼85% 0%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
2049 Points ∼61% -28%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
2046 Points ∼61% -28%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
1395 Points ∼42% -51%
1920x1080 Fire Strike Graphics
Dell XPS 15 7590 9980HK GTX 1650
NVIDIA GeForce GTX 1650 (Laptop), Intel Core i9-9980HK
8532 Points ∼100% +13%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
7558 Points ∼89%
Average NVIDIA Quadro T1000 (Laptop)

7558 Points ∼89% 0%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
6742 Points ∼79% -11%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
6741 Points ∼79% -11%
Average of class Workstation
  (752 - 18544, n=102)
5170 Points ∼61% -32%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
4756 Points ∼56% -37%
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
48965 Points ∼100%
Average NVIDIA Quadro T1000 (Laptop)

48965 Points ∼100% 0%
Dell XPS 15 7590 9980HK GTX 1650
NVIDIA GeForce GTX 1650 (Laptop), Intel Core i9-9980HK
45246 Points ∼92% -8%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
42598 Points ∼87% -13%
Average of class Workstation
  (5836 - 119052, n=103)
33360 Points ∼68% -32%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
28679 Points ∼59% -41%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
21391 Points ∼44% -56%
LuxMark v2.0 64Bit
Room GPUs-only
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
1444 Samples/s ∼100%
Average NVIDIA Quadro T1000 (Laptop)

1444 Samples/s ∼100% 0%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
1277 Samples/s ∼88% -12%
Average of class Workstation
  (49 - 2840, n=86)
875 Samples/s ∼61% -39%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
870 Samples/s ∼60% -40%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
712 Samples/s ∼49% -51%
Sala GPUs-only
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
2969 Samples/s ∼100%
Average NVIDIA Quadro T1000 (Laptop)

2969 Samples/s ∼100% 0%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
2747 Samples/s ∼93% -7%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
2617 Samples/s ∼88% -12%
Average of class Workstation
  (48 - 5927, n=87)
1634 Samples/s ∼55% -45%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
1260 Samples/s ∼42% -58%
SPECviewperf 12
1900x1060 Medical (medical-01)
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
26.61 fps ∼100% +6%
Average NVIDIA Quadro T1000 (Laptop)

25 fps ∼94% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
24.99 fps ∼94%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
22.84 fps ∼86% -9%
Average of class Workstation
  (0.99 - 79.4, n=85)
22.3 fps ∼84% -11%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
14.89 fps ∼56% -40%
1900x1060 Maya (maya-04)
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
59.21 fps ∼100% +25%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
47.5 fps ∼80%
Average NVIDIA Quadro T1000 (Laptop)

47.5 fps ∼80% 0%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
47.2 fps ∼80% -1%
Average of class Workstation
  (5.4 - 148, n=86)
45.4 fps ∼77% -4%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
36.99 fps ∼62% -22%
1900x1060 Energy (energy-01)
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
6.43 fps ∼100% +11%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
5.79 fps ∼90%
Average NVIDIA Quadro T1000 (Laptop)

5.79 fps ∼90% 0%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
5.27 fps ∼82% -9%
Average of class Workstation
  (0.06 - 16.9, n=86)
4.52 fps ∼70% -22%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
3.66 fps ∼57% -37%
1900x1060 Creo (creo-01)
Average NVIDIA Quadro T1000 (Laptop)

75 fps ∼100% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
74.99 fps ∼100%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
64.99 fps ∼87% -13%
Average of class Workstation
  (14 - 160, n=86)
55.7 fps ∼74% -26%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
55.69 fps ∼74% -26%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
51.22 fps ∼68% -32%
1900x1060 Catia (catia-04)
Average NVIDIA Quadro T1000 (Laptop)

82.4 fps ∼100% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
82.39 fps ∼100%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
69.61 fps ∼84% -16%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
64.5 fps ∼78% -22%
Average of class Workstation
  (13.4 - 197, n=86)
61.4 fps ∼75% -25%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
54.04 fps ∼66% -34%
1900x1060 3ds Max (3dsmax-05)
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
85.53 fps ∼100%
Average NVIDIA Quadro T1000 (Laptop)

85.5 fps ∼100% 0%
Average of class Workstation
  (11.4 - 151, n=19)
55.7 fps ∼65% -35%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
50.84 fps ∼59% -41%
SPECviewperf 13
Solidworks (sw-04)
Average of class Workstation
  (37.3 - 189, n=21)
96.6 fps ∼100% +8%
Average NVIDIA Quadro T1000 (Laptop)

89.2 fps ∼92% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
89.18 fps ∼92%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
76.64 fps ∼79% -14%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
72.76 fps ∼75% -18%
Siemens NX (snx-03)
Average of class Workstation
  (36.4 - 396, n=21)
162 fps ∼100% +27%
Average NVIDIA Quadro T1000 (Laptop)

128 fps ∼79% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
127.83 fps ∼79%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
102.92 fps ∼64% -19%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
102.58 fps ∼63% -20%
Showcase (showcase-02)
Average of class Workstation
  (12.6 - 94, n=21)
44 fps ∼100% +25%
Average NVIDIA Quadro T1000 (Laptop)

35.3 fps ∼80% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
35.27 fps ∼80%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
29.94 fps ∼68% -15%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
27.23 fps ∼62% -23%
Medical (medical-02)
Average NVIDIA Quadro T1000 (Laptop)

33.5 fps ∼100% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
33.45 fps ∼100%
Average of class Workstation
  (6.8 - 79, n=21)
29.7 fps ∼89% -11%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
16.21 fps ∼48% -52%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
13.58 fps ∼41% -59%
Maya (maya-05)
Average of class Workstation
  (29.4 - 255, n=21)
117 fps ∼100% +16%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
101.04 fps ∼86%
Average NVIDIA Quadro T1000 (Laptop)

101 fps ∼86% 0%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
81.45 fps ∼70% -19%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
70.99 fps ∼61% -30%
Energy (energy-02)
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
12 fps ∼100%
Average NVIDIA Quadro T1000 (Laptop)

12 fps ∼100% 0%
Average of class Workstation
  (0.72 - 36.2, n=21)
11.1 fps ∼93% -7%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
4.97 fps ∼41% -59%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
3.28 fps ∼27% -73%
Creo (creo-02)
Average of class Workstation
  (27.8 - 248, n=21)
115 fps ∼100% +15%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
99.93 fps ∼87%
Average NVIDIA Quadro T1000 (Laptop)

99.9 fps ∼87% 0%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
74.08 fps ∼64% -26%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
66.94 fps ∼58% -33%
Catia (catia-05)
Average of class Workstation
  (27.7 - 302, n=21)
132 fps ∼100% +9%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
121.33 fps ∼92%
Average NVIDIA Quadro T1000 (Laptop)

121 fps ∼92% 0%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
96.37 fps ∼73% -21%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
78.13 fps ∼59% -36%
3ds Max (3dsmax-06)
Average of class Workstation
  (20 - 173, n=21)
85.2 fps ∼100% +2%
Average NVIDIA Quadro T1000 (Laptop)

83.9 fps ∼98% 0%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
83.89 fps ∼98%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
63.78 fps ∼75% -24%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
50.71 fps ∼60% -40%
3DMark 06 Standard
33809 punten
3DMark Vantage P Result
31509 punten
3DMark 11 Performance
10211 punten
3DMark Ice Storm Standard Score
76341 punten
3DMark Cloud Gate Standard Score
23601 punten
3DMark Fire Strike Score
6812 punten
3DMark Time Spy Score
3006 punten
Help
The Witcher 3 - 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK, NVIDIA GeForce GTX 1650 (Laptop)
64.8 fps ∼100% +23%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
52.7 fps ∼81%
Average NVIDIA Quadro T1000 (Laptop)

52.7 fps ∼81% 0%
Lenovo ThinkPad X1 Extreme-20MF000RGE
Intel Core i5-8300H, NVIDIA GeForce GTX 1050 Ti Max-Q
45.1 fps ∼70% -14%
Average of class Workstation
  (8 - 141, n=61)
41.1 fps ∼63% -22%
Lenovo ThinkPad P1-20MD002LUS
Intel Xeon E-2176M, NVIDIA Quadro P2000 Max-Q
32 fps ∼49% -39%
HP ZBook Studio G5-4QH10EA
Intel Core i7-8750H, NVIDIA Quadro P1000
29.5 fps ∼46% -44%
0510152025303540Tooltip
Lenovo ThinkPad P1 2019-20QT000RGE Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G; The Witcher 3: Ø29.7 (28-32)
lage gem. hoge ultra4K
BioShock Infinite (2013) 280.38 209.96 184.69 72.92 fps
The Witcher 3 (2015) 156.2 94.1 52.7 30.9 fps
Dota 2 Reborn (2015) 134 115 113 106 47.9 fps
Rainbow Six Siege (2015) 190.3 159.6 111.6 97.9 fps
Rise of the Tomb Raider (2016) 136.16 85.97 53.41 43.8 fps
For Honor (2017) 163.4 66.7 63.9 48.8 fps
Ghost Recon Wildlands (2017) 94 47.2 43.9 24.2 fps
Rocket League (2017) 246.4 150.7 117 fps
Final Fantasy XV Benchmark (2018) 77.4 41.9 31.1 fps
Kingdom Come: Deliverance (2018) 93.7 49.3 40.5 30.7 fps
X-Plane 11.11 (2018) 91 78 69 fps
Shadow of the Tomb Raider (2018) 88 46 40 35 fps
FIFA 19 (2018) 148 119.2 113.5 110.8 fps
Assassin´s Creed Odyssey (2018) 57 40 35 29 fps
Battlefield V (2018) 61.5 43.2 37.8 35 fps
Farming Simulator 19 (2018) 182.4 106.7 86.3 66.5 fps
Apex Legends (2019) 143.7 73.8 57.8 55.9 fps
Far Cry New Dawn (2019) 77 48 46 43 fps
Dirt Rally 2.0 (2019) 185.2 80.7 63.7 36.3 fps
The Division 2 (2019) 39 36 29 fps
Anno 1800 (2019) 69.6 52.8 37.2 20 fps
F1 2019 (2019) 118 73 61 49 fps

Geluidsniveau

Onbelast
28.8 / 28.8 / 28.8 dB (A)
Belasting
36.1 / 36.7 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 28.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.830.931.130.128.22528.129.530.427.529.63126.524.625.324.928.84024.822.724.823.728.65027.926.525.625.430.46325.524.722.923.826.68024.723.623.223.424.810023.823.223.423.62312524.323.923.223.224.116022.922.221.521.923.320024.421.32421.423.725024.721.924.421.424.331523.722.523.320.323.340024.220.622.719.823.950024.821.223.21924.763024.121.423.718.624.180023.920.722.518.123.3100023.820.423.117.723.8125025.321.324.617.325.3160025.821.924.416.526.1200026.821.625.41626.8250025.520.624.515.825.2315025.620.825.115.525.3400026.219.826.615.326.250002417.623.915.323.9630022.416.822.415.322.2800019.515.619.915.219.51000018.315.218.514.918.11250016.41516.714.816.41600015.514.815.814.715.4SPL36.732.336.128.836.6N2.61.72.41.22.5median 24.1median 20.8median 23.3median 17.3median 23.9Delta1.71.91.42.71.3hearing rangehide median Fan NoiseLenovo ThinkPad P1 2019-20QT000RGE
Max. Belasting
 41.9 °C44.7 °C42.7 °C
 39.3 °C42.3 °C39.7 °C
 28.1 °C28.3 °C28.9 °C
Maximum: 44.7 °C
Gemiddelde: 37.3 °C
41.8 °C49.4 °C43.7 °C
36.5 °C39.8 °C38.7 °C
30.2 °C31.2 °C30.1 °C
Maximum: 49.4 °C
Gemiddelde: 37.9 °C
Stroomadapter (max.)  37.3 °C | Kamertemperatuur 21.9 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 37.3 °C / 99 F, compared to the average of 31.2 °C / 88 F for the devices in the class Workstation.
(±) The maximum temperature on the upper side is 44.7 °C / 112 F, compared to the average of 37.2 °C / 99 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 49.4 °C / 121 F, compared to the average of 40.4 °C / 105 F
(+) In idle usage, the average temperature for the upper side is 23.6 °C / 74 F, compared to the device average of 31.2 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 36.7 °C / 98 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.1 °C / 86.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-2.3 °C / -4.2 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.130.42527.531.33124.927.64023.726.95025.426.16323.824.68023.427.610023.636.212523.241.616021.944.320021.451.725021.456.531520.359.840019.859.65001958.763018.664.380018.167.2100017.763.9125017.365.5160016.561.420001662.4250015.860.7315015.558.5400015.362.7500015.357.4630015.356.5800015.258.51000014.951.11250014.8541600014.746.2SPL28.874N1.234median 17.3median 58.5Delta2.74.936.937.136.933.331.933.334.533.134.534323431.231.431.232.130.932.133.930.333.93629.9363928.63946.62846.648.127.248.152.826.552.85825.25859.825.459.860.625.160.660.22460.269.123.669.168.523.568.562.523.662.559.923.359.957.423.157.458.723.158.759.42359.454.223.154.252.92352.954.123.154.155.82355.856.322.956.352.522.952.545.422.845.473.735.673.731.42.531.4median 56.3median 23.5median 56.34.81.94.8hearing rangehide median Pink NoiseLenovo ThinkPad P1 2019-20QT000RGELenovo ThinkPad P1-20MD002LUS
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad P1 2019-20QT000RGE audio analysis

(±) | speaker loudness is average but good (74 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.6% lower than median
(±) | linearity of bass is average (13% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.4% away from median
(+) | mids are linear (5.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.4% away from median
(±) | linearity of highs is average (8.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14% difference to median)
Compared to same class
» 11% of all tested devices in this class were better, 2% similar, 87% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 11% of all tested devices were better, 3% similar, 86% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Lenovo ThinkPad P1-20MD002LUS audio analysis

(±) | speaker loudness is average but good (73.65 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.1% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.9% higher than median
(±) | linearity of mids is average (8.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (5.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.1% difference to median)
Compared to same class
» 51% of all tested devices in this class were better, 9% similar, 40% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 31% of all tested devices were better, 7% similar, 62% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.09 / 0.78 Watt
Inactiefdarkmidlight 13.7 / 17.5 / 20.9 Watt
Belasting midlight 77.2 / 123.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad P1 2019-20QT000RGE
9850H, Quadro T1000 (Laptop), WDC PC SN720 SDAQNTW-512G, IPS LED, 1920x1080, 15.6
Lenovo ThinkPad X1 Extreme-20MF000RGE
8300H, GeForce GTX 1050 Ti Max-Q, Samsung SSD PM981 MZVLB256HAHQ, IPS LED, 1920x1080, 15.6
Lenovo ThinkPad P1-20MD002LUS
E-2176M, Quadro P2000 Max-Q, Samsung SSD PM981 MZVLB2T0HMLB, IPS, 3840x2160, 15.6
Dell Precision 5530 Xeon E-2176M
E-2176M, Quadro P2000, SK hynix PC400 512 GB, IGZO, 3840x2160, 15.6
HP ZBook Studio G5-4QH10EA
8750H, Quadro P1000, Samsung SSD PM981 MZVLB512HAJQ, IPS LED, 3840x2160, 15.6
Dell XPS 15 7590 9980HK GTX 1650
9980HK, GeForce GTX 1650 (Laptop), Toshiba XG6 KXG60ZNV1T02, OLED, 3840x2160, 15.6
Average NVIDIA Quadro T1000 (Laptop)

Average of class Workstation

Power Consumption
35%
21%
5%
23%
11%
0%
-7%
Idle Minimum *
13.7
4.14
70%
7.1
48%
9.8
28%
6.8
50%
6.2
55%
13.7
-0%
13.3 (2.4 - 65.2, n=132)
3%
Idle Average *
17.5
7.3
58%
14.4
18%
16.8
4%
11.3
35%
9.6
45%
17.5
-0%
19.2 (4.94 - 69, n=131)
-10%
Idle Maximum *
20.9
11.5
45%
14.6
30%
16.9
19%
14.3
32%
21.2
-1%
20.9
-0%
22.6 (7.1 - 73.1, n=132)
-8%
Load Average *
77.2
78.8
-2%
93.9
-22%
102.3
-33%
78
-1%
104.3
-35%
77.2
-0%
87.5 (34.4 - 185, n=130)
-13%
Load Maximum *
123.7
118
5%
88.3
29%
114.5
7%
126
-2%
135.3
-9%
124
-0%
132 (43.5 - 336, n=130)
-7%
Witcher 3 ultra *
82
77.9
76.5
64
91.7

* ... kleiner is beter

Batterijduur
NBC WiFi Websurfing Battery Test 1.3 (Edge)
8h 52min
NBC WiFi Websurfing Battery Test 1.3 max Brightness
6h 42min
Big Buck Bunny H.264 1080p
9h 20min
Belast (maximale helderheid)
1h 19min
Lenovo ThinkPad P1 2019-20QT000RGE
9850H, Quadro T1000 (Laptop), 80 Wh
Lenovo ThinkPad X1 Extreme-20MF000RGE
8300H, GeForce GTX 1050 Ti Max-Q, 80 Wh
Dell XPS 15 7590 i5 iGPU FHD
9300H, UHD Graphics 630, 97 Wh
Lenovo ThinkPad P1-20MD002LUS
E-2176M, Quadro P2000 Max-Q, 80 Wh
Dell Precision 5530 Xeon E-2176M
E-2176M, Quadro P2000, 97 Wh
HP ZBook Studio G5-4QH10EA
8750H, Quadro P1000, 97 Wh
Average of class Workstation

Batterijduur
16%
58%
-40%
17%
24%
-10%
Reader / Idle
1261
991
1036
618 (63 - 2360, n=121)
H.264
560
576
3%
1053
88%
544
-3%
414 (123 - 1131, n=63)
-26%
WiFi v1.3
532
562
6%
844
59%
320
-40%
501
-6%
582
9%
419 (106 - 974, n=72)
-21%
Load
79
110
39%
100
27%
110
39%
131
66%
91.4 (22 - 323, n=120)
16%

Pro

+ hoogwaardige en robuuste aluminium / GVK-behuizing
+ uitstekende invoerapparaten
+ goede variëteit aan verbindingen
+ mat FHD-HDR LCD met zeer hoge helderheid
+ stil koelsysteem
+ eenvoudig onderhoud/upgrades
+ aanzienlijk betere GPU-prestaties dan de ThinkPad P1 2018
+ tot 64 GB RAM
+ twee PCIe x4 M.2-slots
+ drie jaar garantie

Contra

- slechtere CPU-prestaties dan het voorgaande model
- minder dan 100% sRGB dekking
- elektronisch gezoem
- geen WWAN
- middelmatige batterijduur
- erg duur
Getest: Lenovo ThinkPad P1 (2019). Testmodel geleverd door campuspoint.
Getest: Lenovo ThinkPad P1 (2019). Testmodel geleverd door campuspoint.

Voor het volledige, Engelse testrapport, klik hier.

Aangezien de Lenovo ThinkPad P1 2019 slechts een update is van zijn directe voorganger, de ThinkPad P1 2018, lijkt ons oordeel over beide apparaten grotendeels op elkaar. De enige verschillen liggen in enkele details.

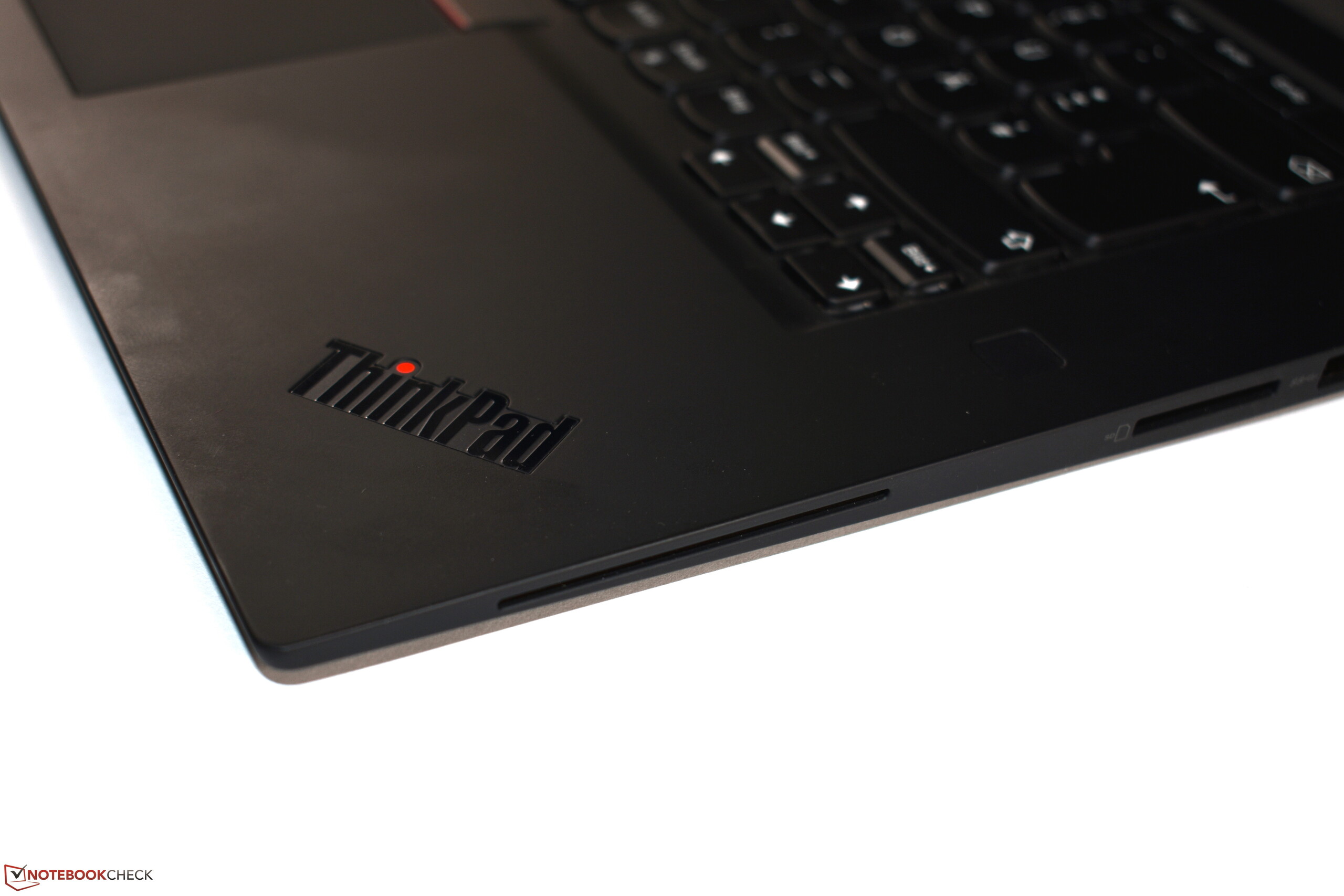

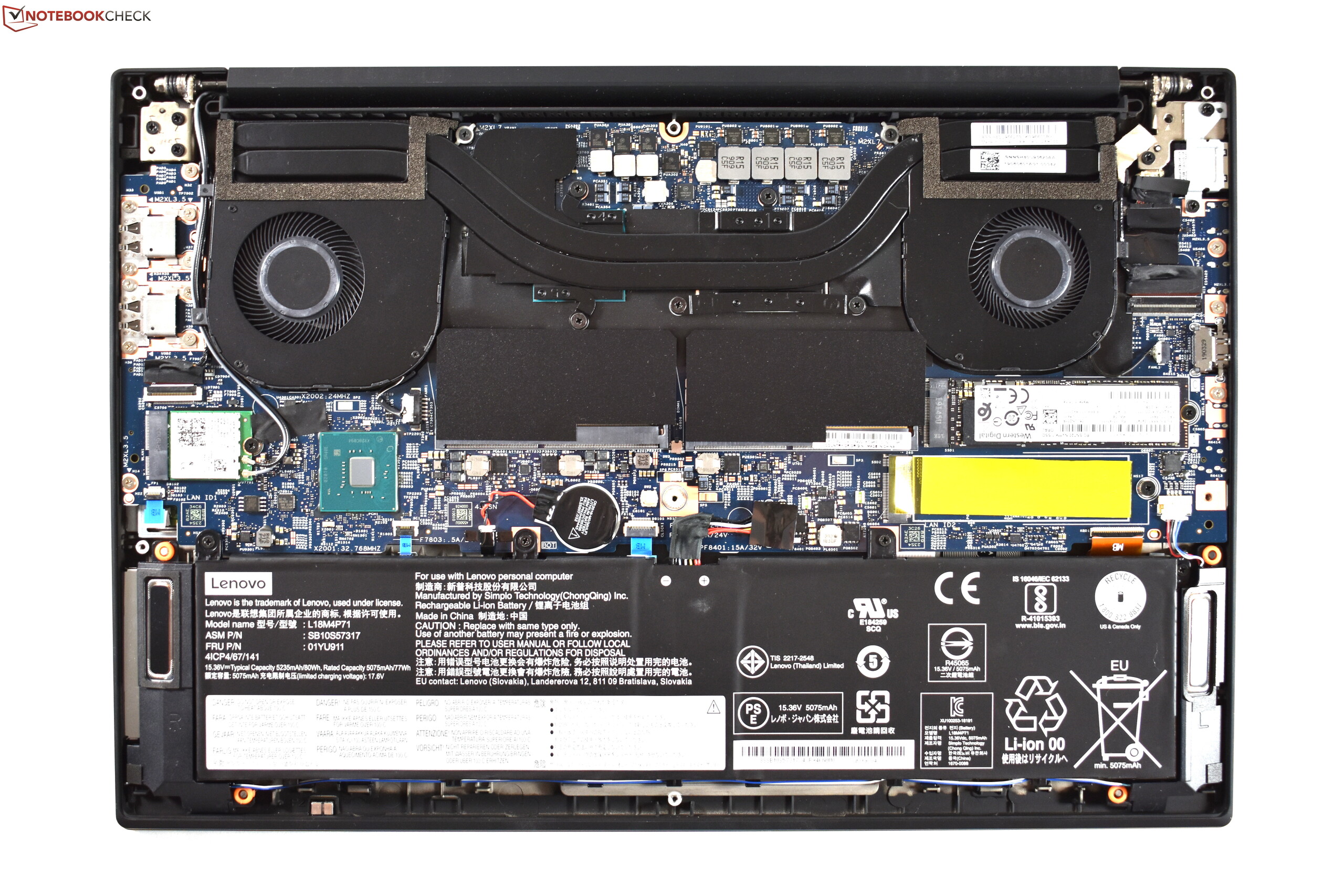

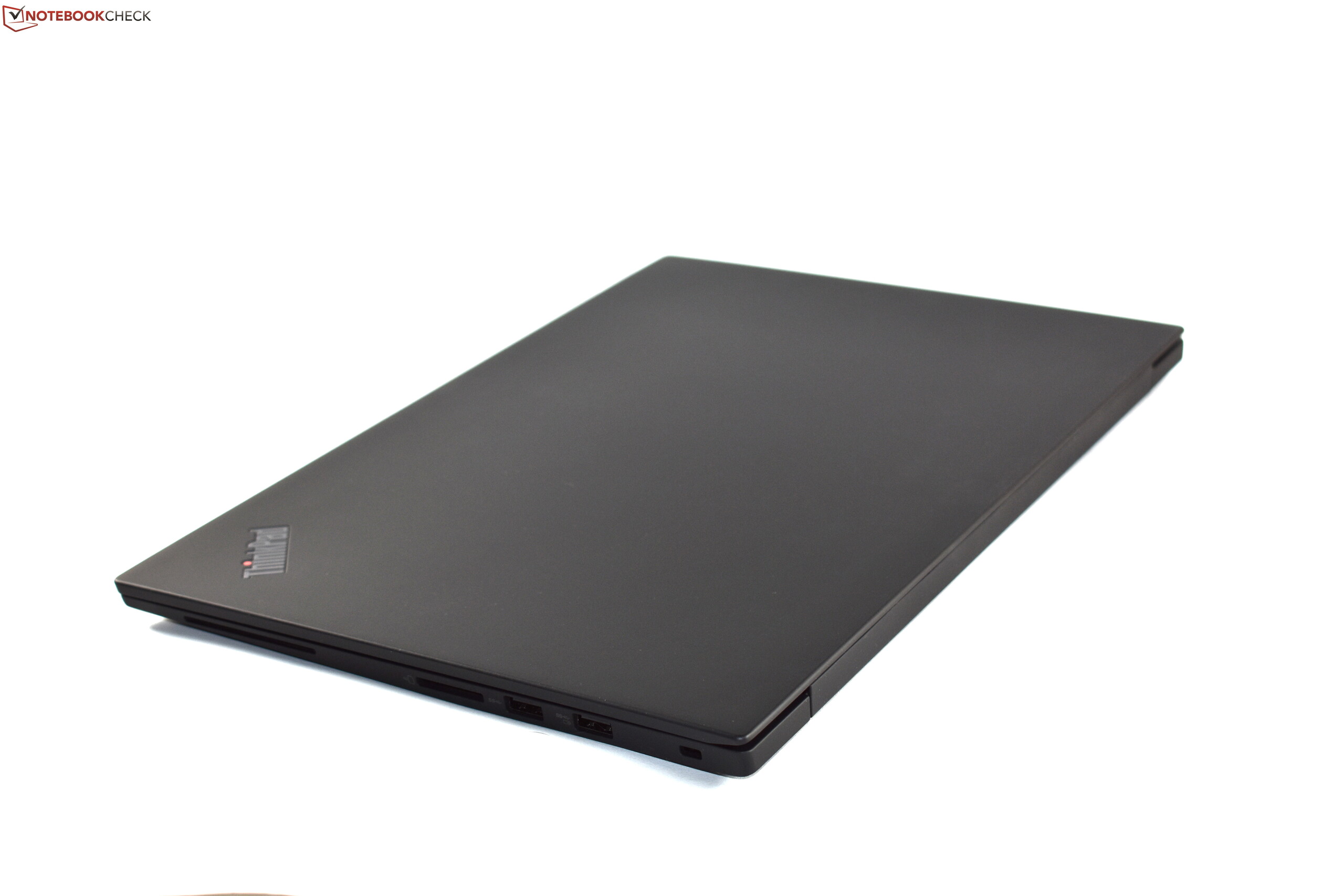

De behuizing, gemaakt van koolstof, magnesium en aluminium, is nog steeds van hoge kwaliteit en in tegenstelling tot de voorganger met een touchscreen kraakt het scherm niet. De matte, zwarte behuizing bevat uitstekende invoerapparaten en talloze verbindingsmogelijkheden. Bovendien blijft de ThinkPad P1 Gen 2 eenvoudig te onderhouden en te upgraden (2x SO-DIMM RAM, 2x 2280-M.2 SSD). Nieuw zijn enkele beeldscherm-opties, zoals het Full HD HDR-beeldscherm van ons testmodel, dat ons overtuigt met een extreem hoge helderheid van meer dan 500 cd/m². Het is jammer dat het niet 100% van de sRGB-kleurruimte dekt. Ook nieuw is de Quadro T1000, die als instapmodel GPU voor de ThinkPad P1 Gen 2 nog steeds sneller is dan de Nvidia Quadro P2000 Max-Q van de voorganger. Andere positieve punten zijn het stille koelsysteem en de garantieperiode van drie jaar.

De CPU-prestaties vallen op als belangrijk negatief punt van de ThinkPad P1 Gen 2. Het is niet verschrikkelijk; sterker nog, de ThinkPad P1 2019 is een zeer krachtige laptop. Echter, we moeten er wel op wijzen dat de CPU-prestaties van het vorige model hoger zijn. In dit opzicht is de nieuwe ThinkPad P1 dus helemaal geen upgrade. Bijkomende negatieve punten zijn het ontbreken van een WWAN-optie, de middelmatige batterijduur, de hoge aanschafprijs en het vervelende elektronische gezoem.

Slechtere CPU maar betere GPU en aanzienlijk helderder beeldscherm: de wijzigingen van de ThinkPad P1 (2019) ten opzichte van zijn voorganger kunnen op deze manier worden samengevat.

Worse CPU but better GPU and significantly brighter display: The changes of the ThinkPad P1 (2019) compared to its predecessor can be summarized in this way.

Als je de negatieve aspecten met de positieve eigenschappen vergelijkt, hebben de positieve punten duidelijk de winnende hand. Kopers krijgen een extreem hoogwaardig en zeer goed uitgerust mobiel werkstation met een ongelooflijk helder beeldscherm. Vergeleken met de ThinkPad P1 2018 en veel oudere mobiele werkstations met vergelijkbare hardware, is vooral de Nvidia Quadro T1000 een goede prestatie-upgrade, terwijl de CPU-prestaties de zwakke plek van de ThinkPad P1 2019 zijn.

Lenovo ThinkPad P1 2019-20QT000RGE - 22-10-2019 v7
Benjamin Herzig

Behuizing
91 / 98 → 93%
Toetsenbord
95%
Aanwijsapparaat
91%
Aansluitmogelijkheden
73 / 80 → 92%
Gewicht
66 / 10-66 → 100%
Batterij
83 / 95 → 87%
Beeldscherm
88%
Gaming-performance
78%
Applicatie-performance
89%
Temperatuur
87 / 95 → 92%
Luidheid
85 / 90 → 94%
Audio
64%
Camera
45 / 85 → 53%
Gemiddelde
80%
88%
Workstation - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Lenovo ThinkPad P1 2019 Laptop: Dun werkstation met sterkere GPU en zwakkere CPU
Benjamin Herzig, 2019-08-25 (Update: 2019-08-26)
