Kort testrapport Fujitsu Celsius H980 (Core i7-8750H, NVIDIA Quadro P3200) Workstation

Sebastian Bade, 👁 Andreas Osthoff, Felicitas Krohn, 10-02-2019

Een XXL werkstation. Fujitsu heeft zijn Celsius werkstations een upgrade gegeven naar Intel Coffee Lake processoren. De Celsius H980 is ook uitgerust met een nVidia Quadro P3200 GPU. Lees verder om uit te vinden of het Japanse bedrijf de koelingsproblematiek van de Celsius H970 heeft kunnen oplossen en hoe diens opvolger het doet in onze tests.

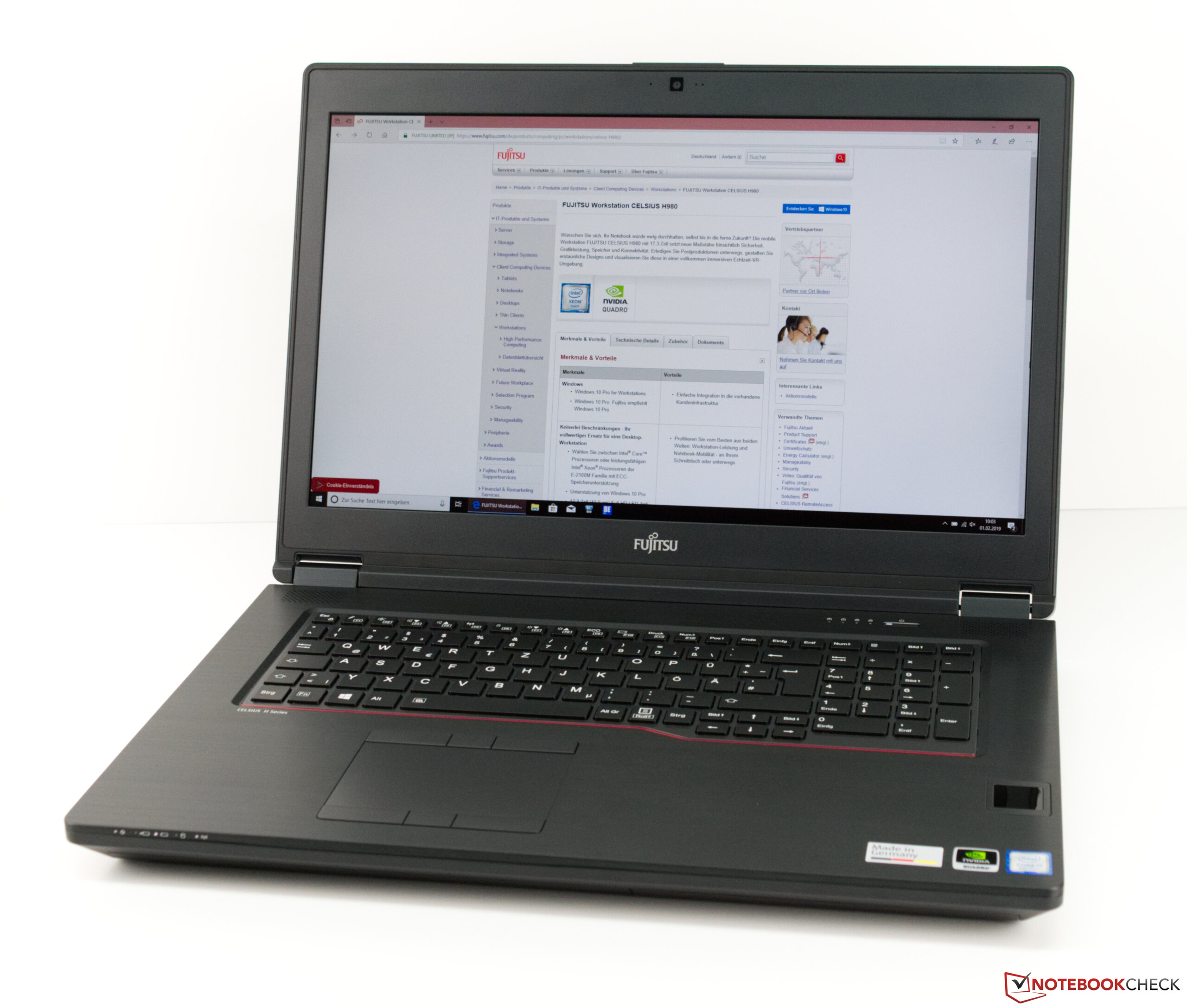

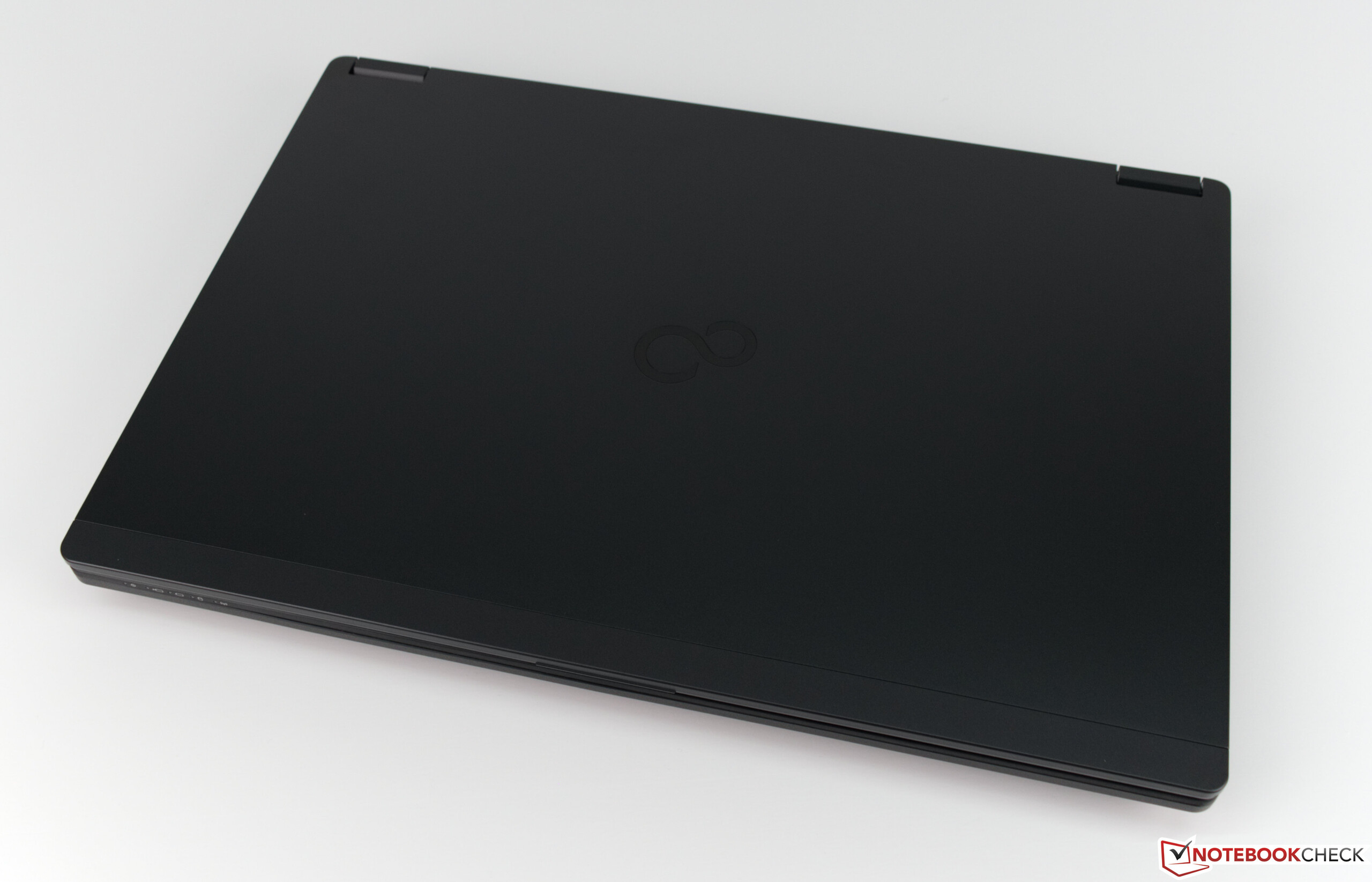

Fujitsu Celsius H980
Grafische kaart
NVIDIA Quadro P3200 - 6144 MB, Core: 1328 - 1543 MHz, Geheugen: 7012 MHz, GP104, 397.93, Optimus
Geheugen
16384 MB
, DDR4-2400, dual channel, 2 van 4 SO-DIMM sloten bezet, max. 64 GB
Beeldscherm
17.3 inch 16:9, 1920 x 1080 pixel 127 PPI, LG Philips, LP173WF4-SPF5, IPS, glimmend: nee
Moederbord
Intel QM370
Opslag

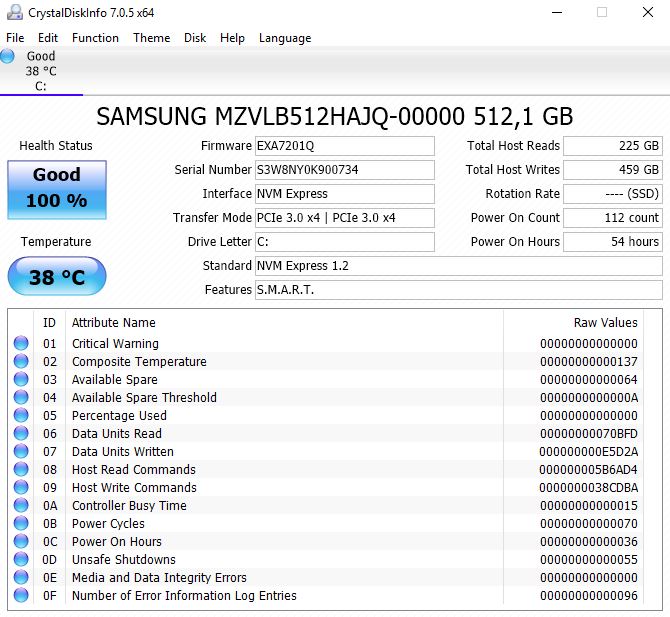

Samsung SSD PM981 MZVLB512HAJQ, 512 GB
, 432 GB beschikbaar
Verbindingen
3 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 VGA, 3 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5-mm combo audio aansluiting, Card Reader: 3-in-1 SD/SDHC/SDXC, 1 SmartCard, 1 Vingerafdruklezer
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000/2500/5000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5
Afmetingen
hoogte x breedte x diepte (in mm): 30 x 418 x 288

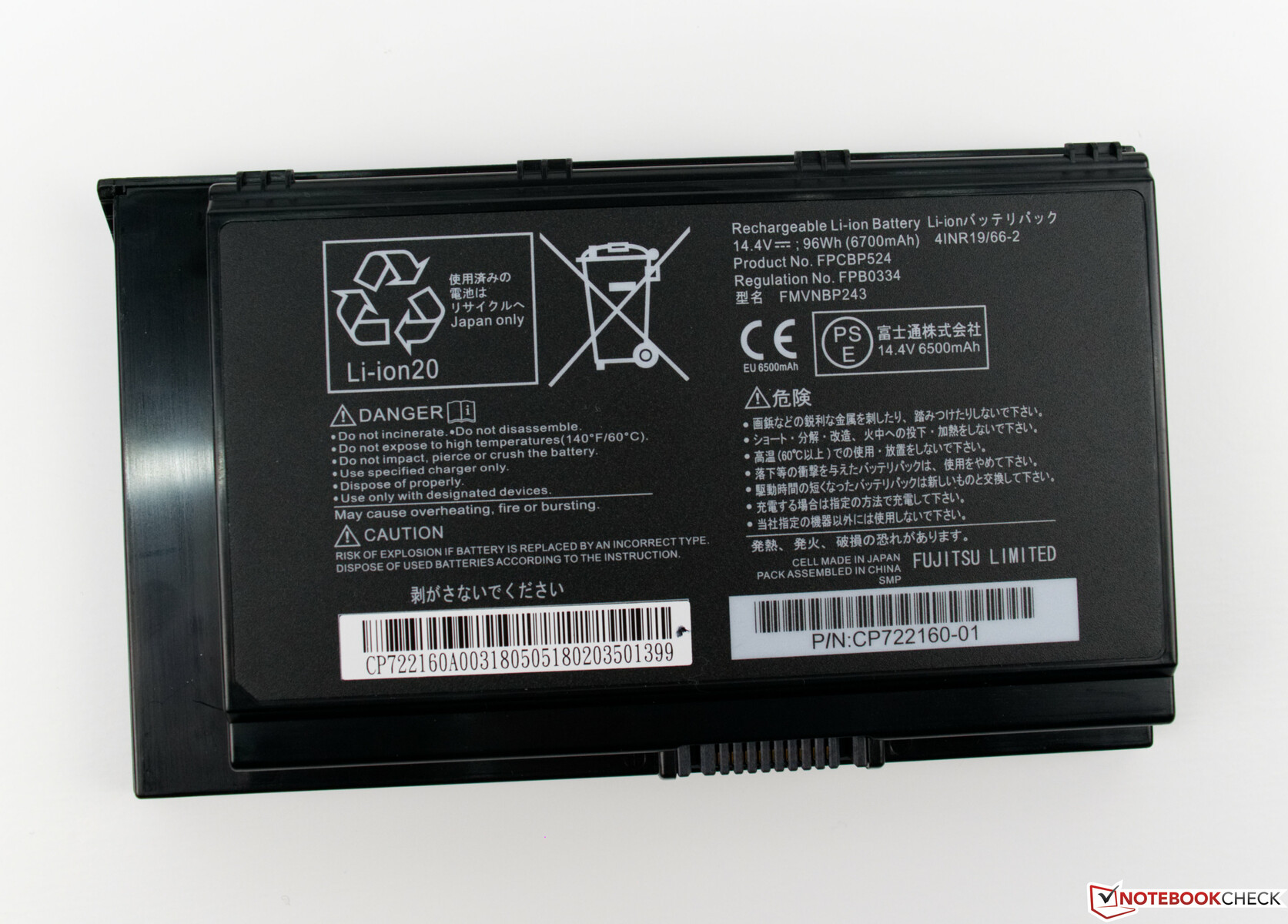

Batterij
96 Wh, 6700 mAh Lithium-Ion, removeable
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit

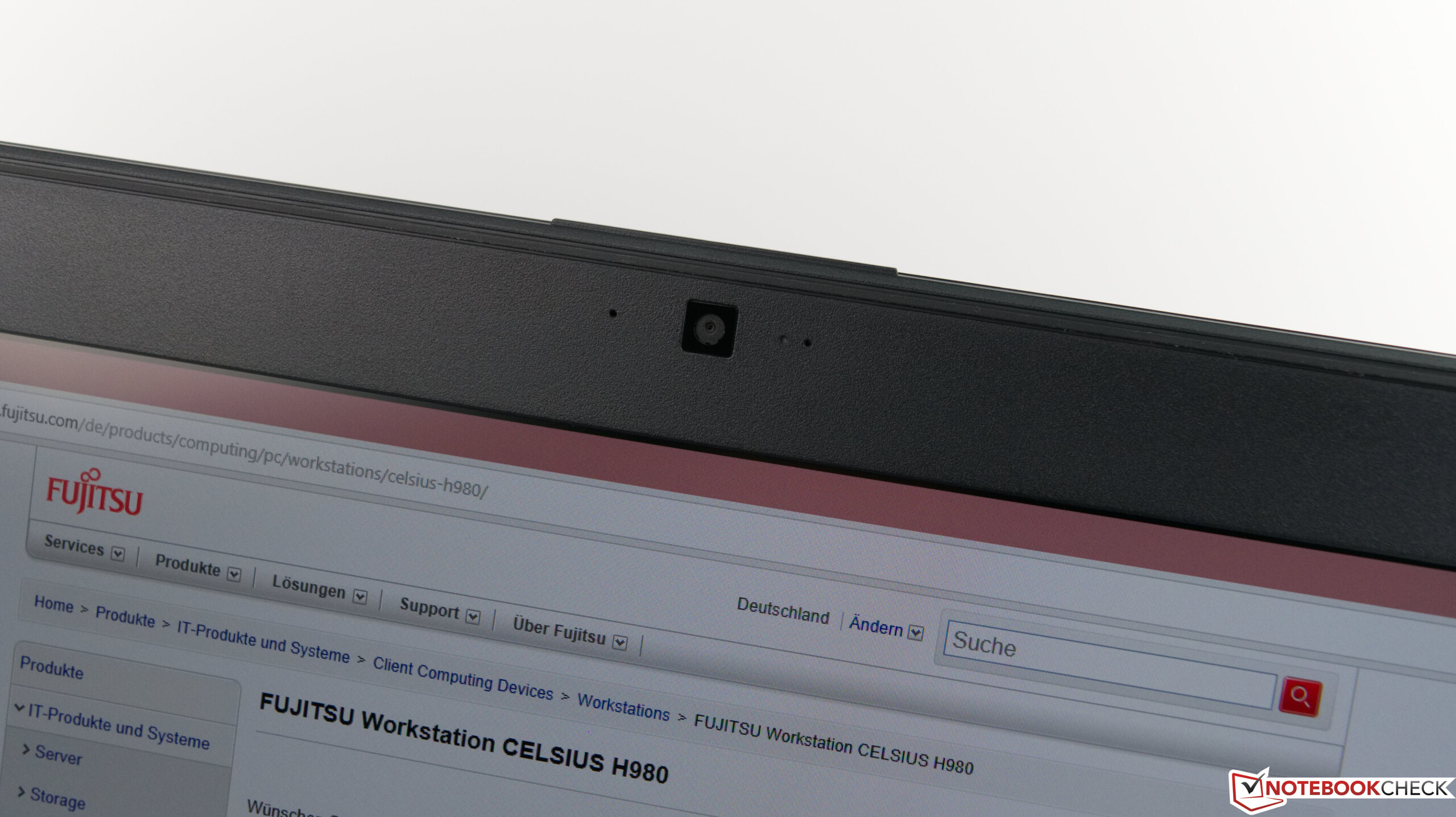

Camera
Webcam: 720p
Bijkomende functionaliteiten
Luidsprekers: stereo luidsprekers, Toetsenbord: 6-rij met verlichte toetsen en numpad, Toetsenbordverlichting: ja, hersteld-DVD, driver-DVD, Fujitsu Battery Utility, Microsoft Office Trial, CyberLink YouCam 6, 36 Maanden Garantie
Gewicht
3.493 kg, Voeding: 1.342 kg
Prijs
3899 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980
Fujitsu Celsius H980

Size Comparison

417 mm 281 mm 35 mm 3.6 kg416 mm 288 mm 33 mm 3.3 kg418 mm 288 mm 30 mm 3.5 kg418 mm 288 mm 30 mm 3 kg416 mm 281 mm 29.4 mm 3.4 kg

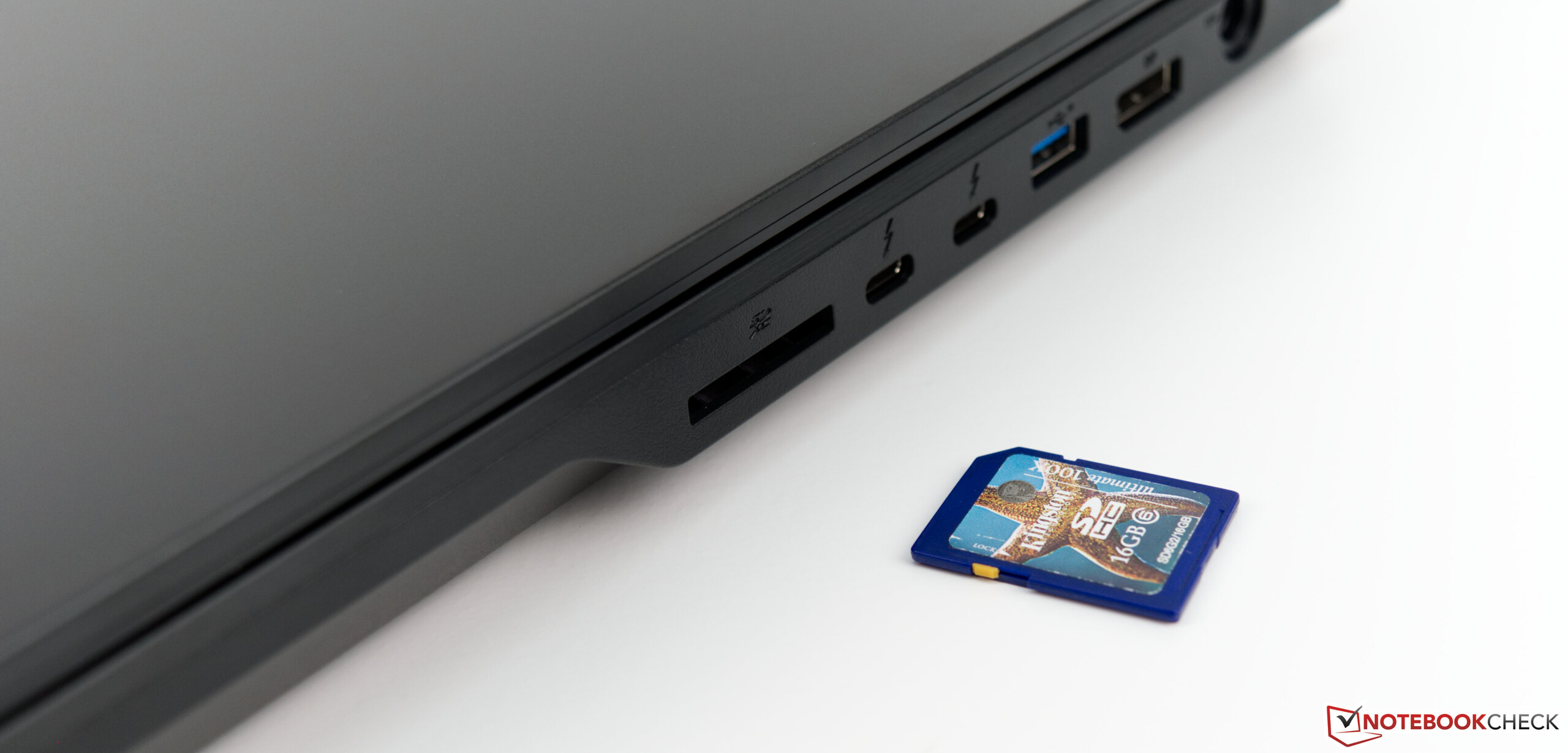

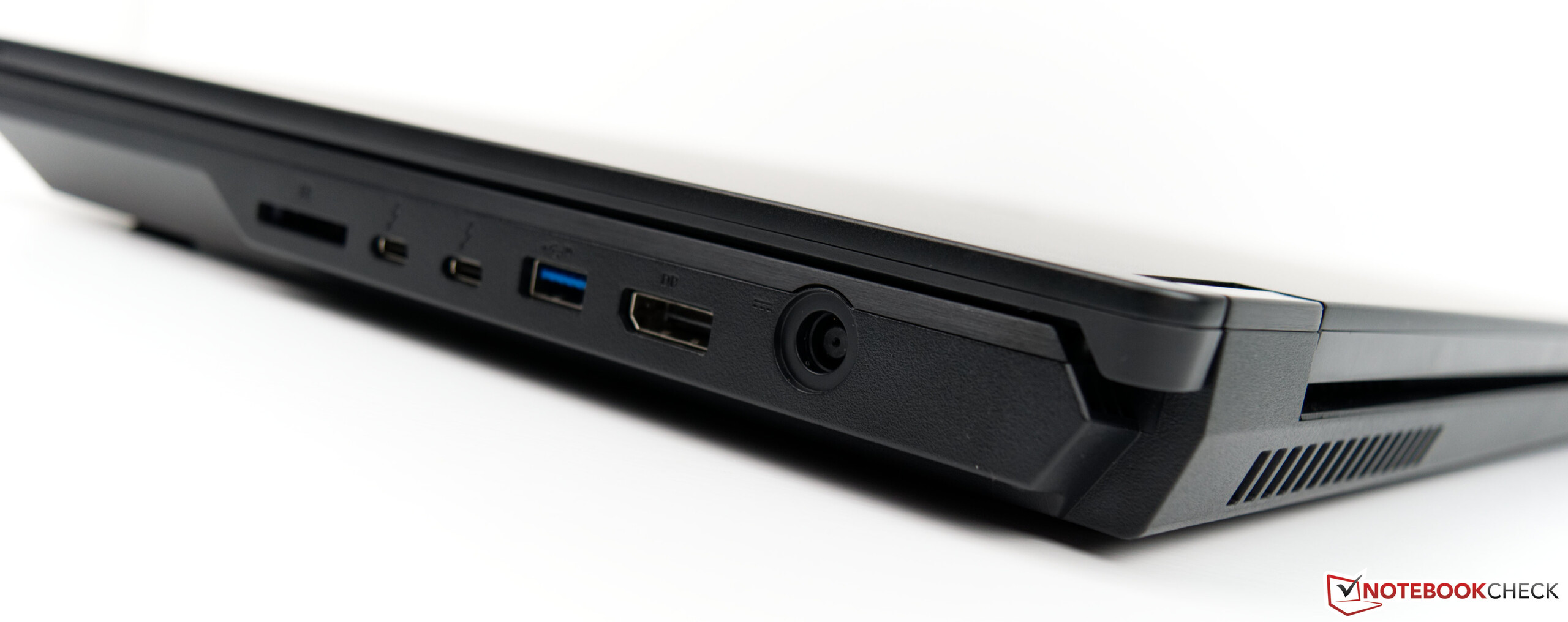

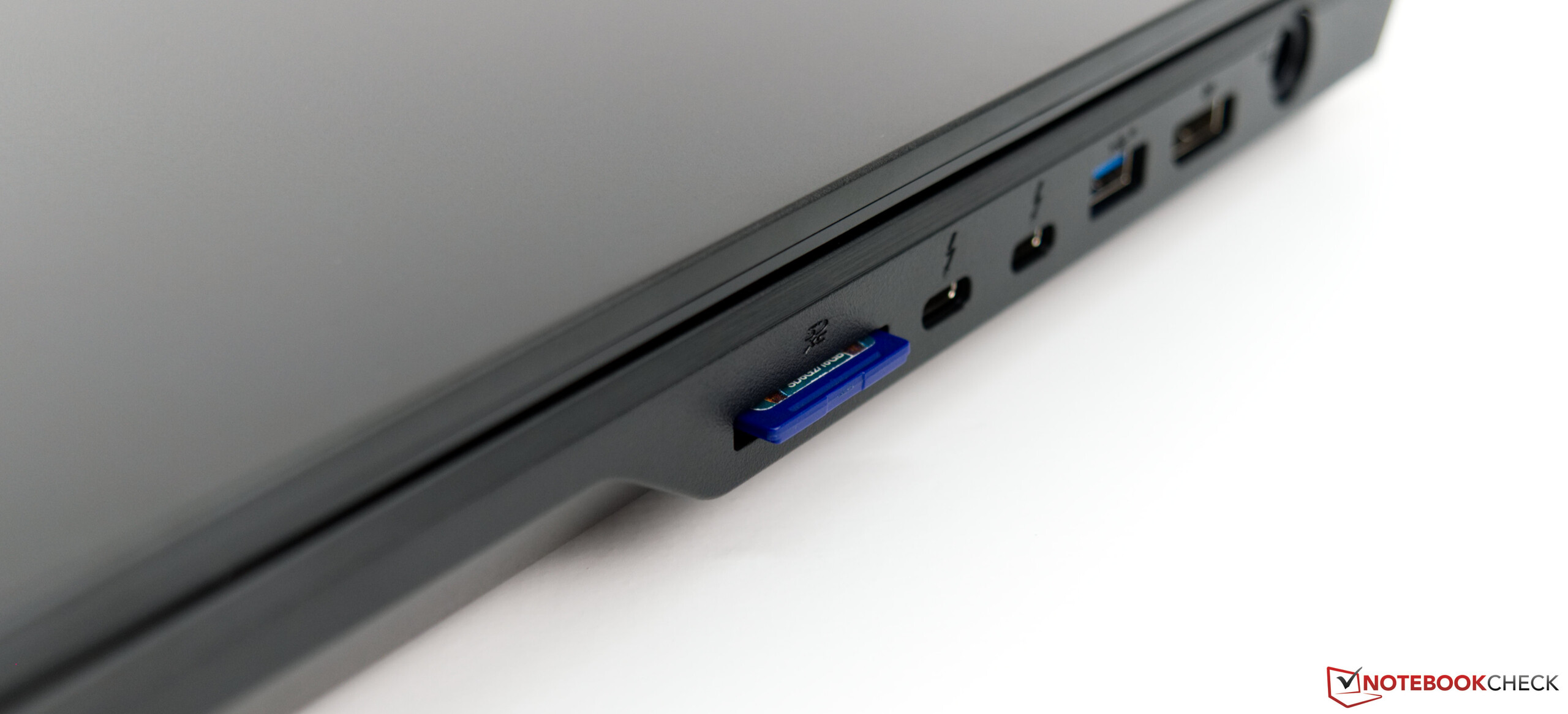

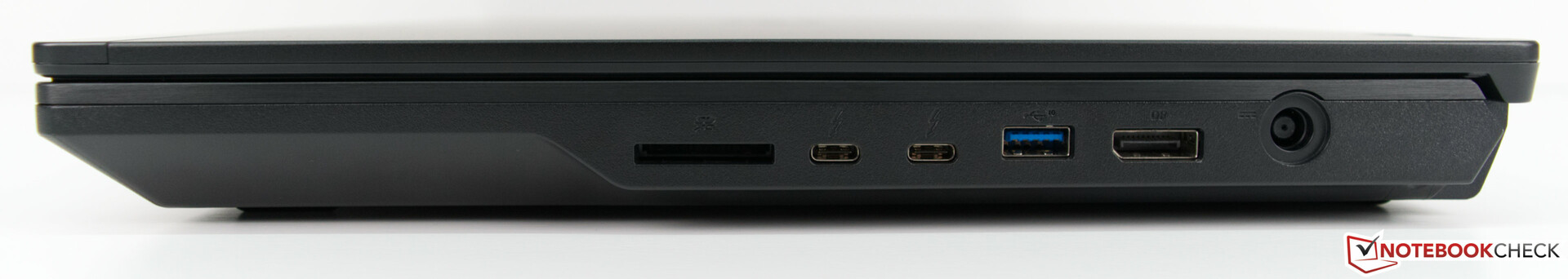

Right-hand side: SD card slot, 2 x Thunderbolt 3 ports, USB 3.0 Type-A, DisplayPort, Charging port
Right-hand side: SD card slot, 2 x Thunderbolt 3 ports, USB 3.0 Type-A, DisplayPort, Charging port

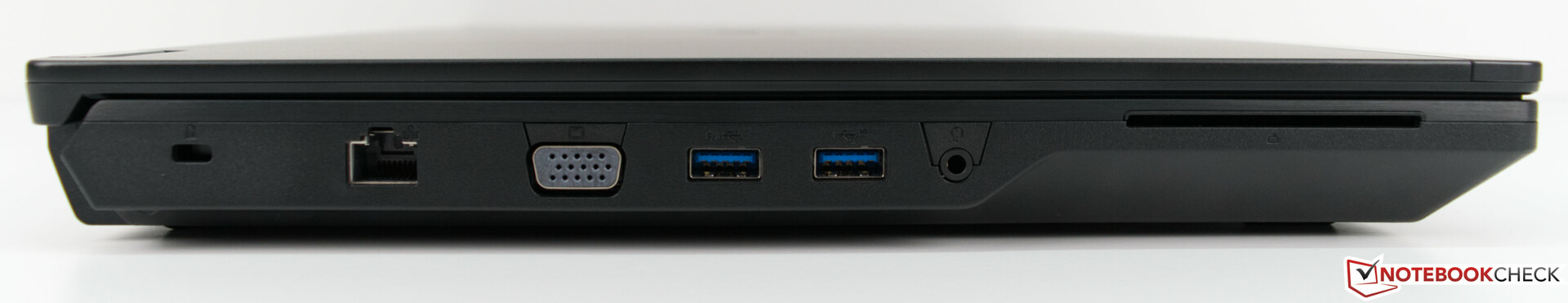

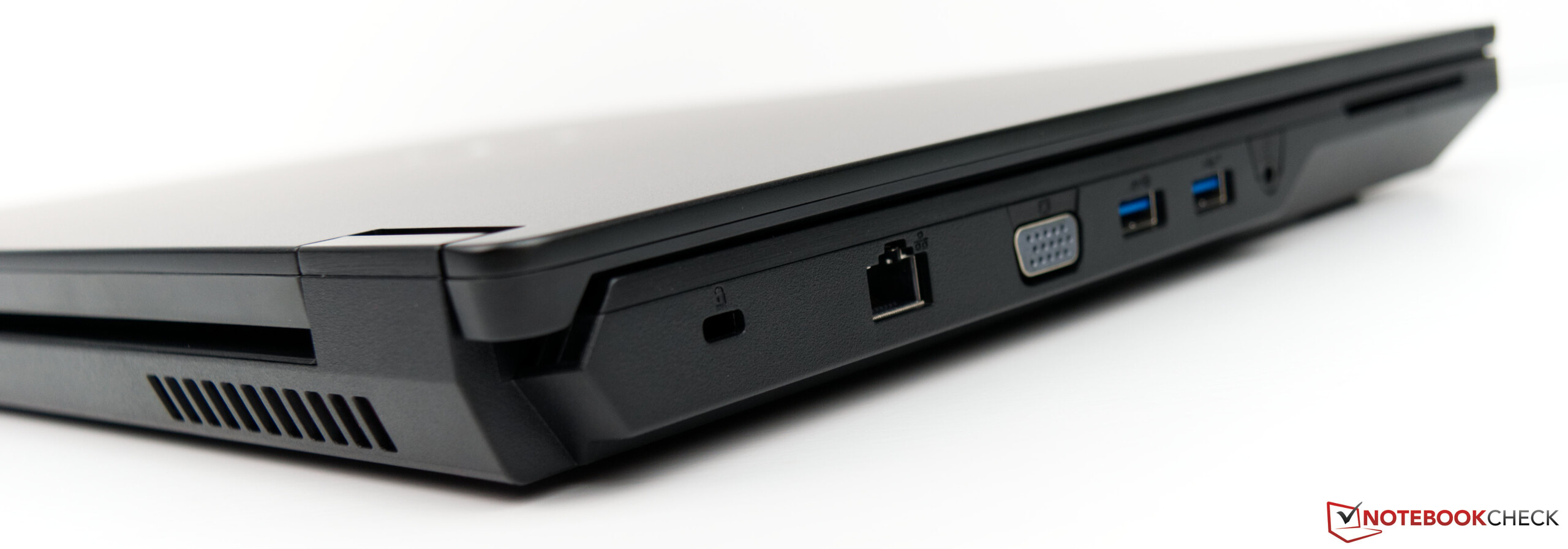

Left-hand side: Kensington lock slot, VGA, 2 x USB 3.0 Type-A, 3.5 mm combined headphone and microphone jack, smart card reader
Left-hand side: Kensington lock slot, VGA, 2 x USB 3.0 Type-A, 3.5 mm combined headphone and microphone jack, smart card reader

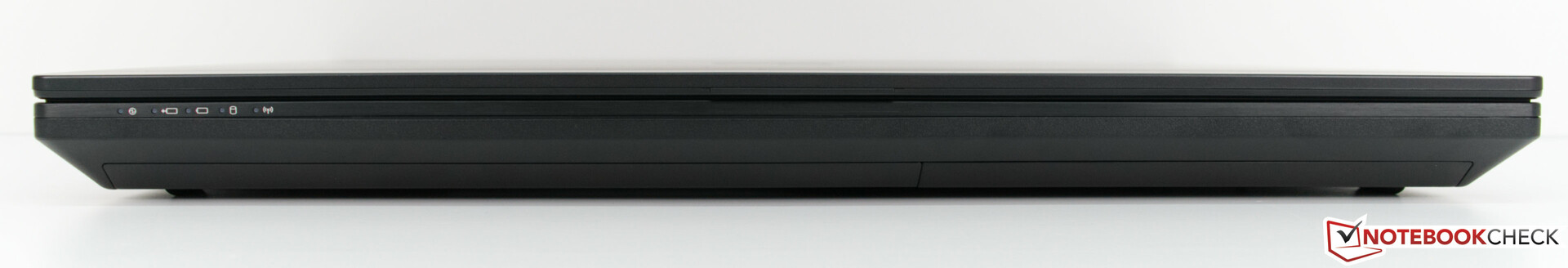

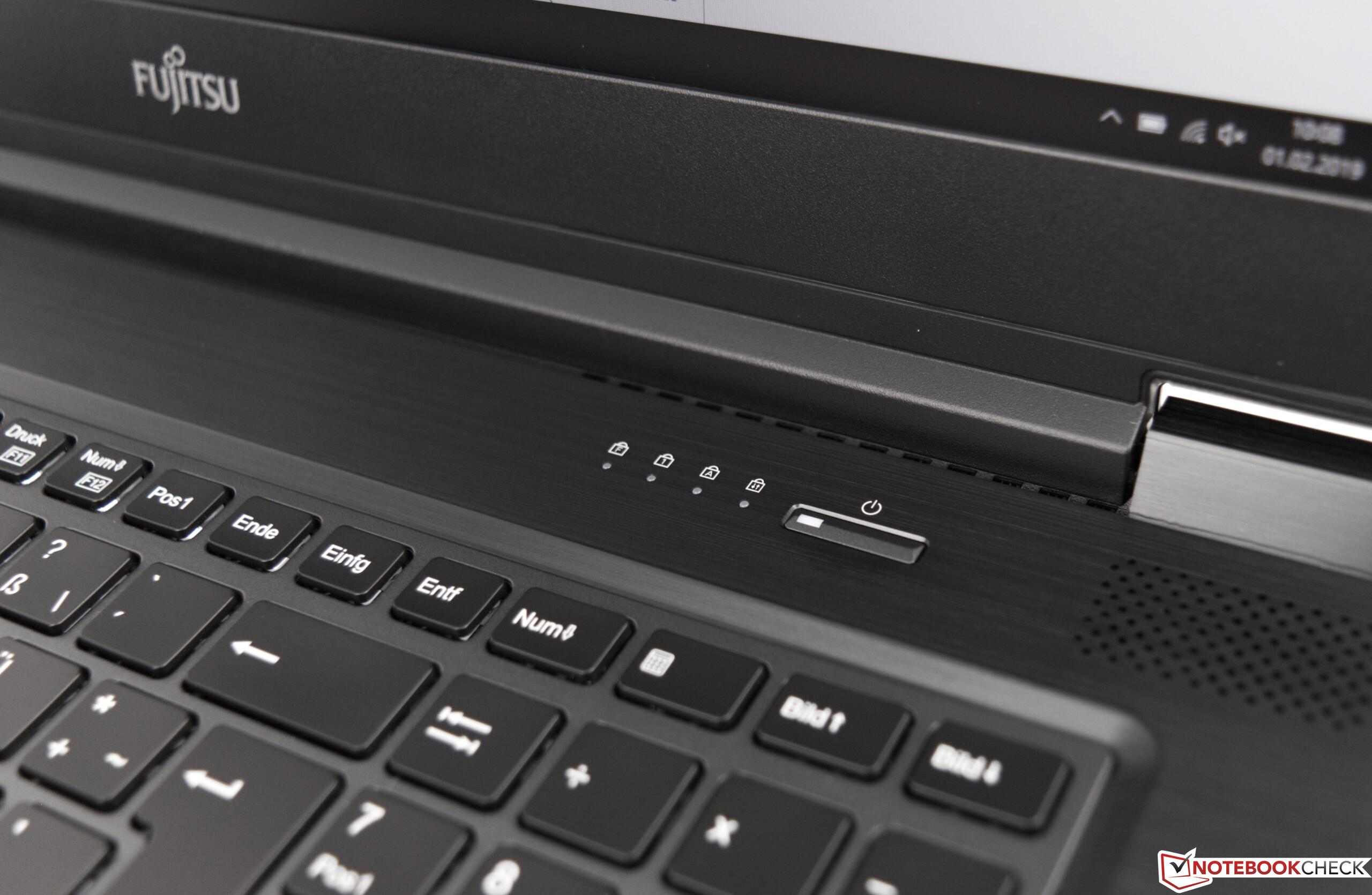

Front: Status LEDs
Front: Status LEDs

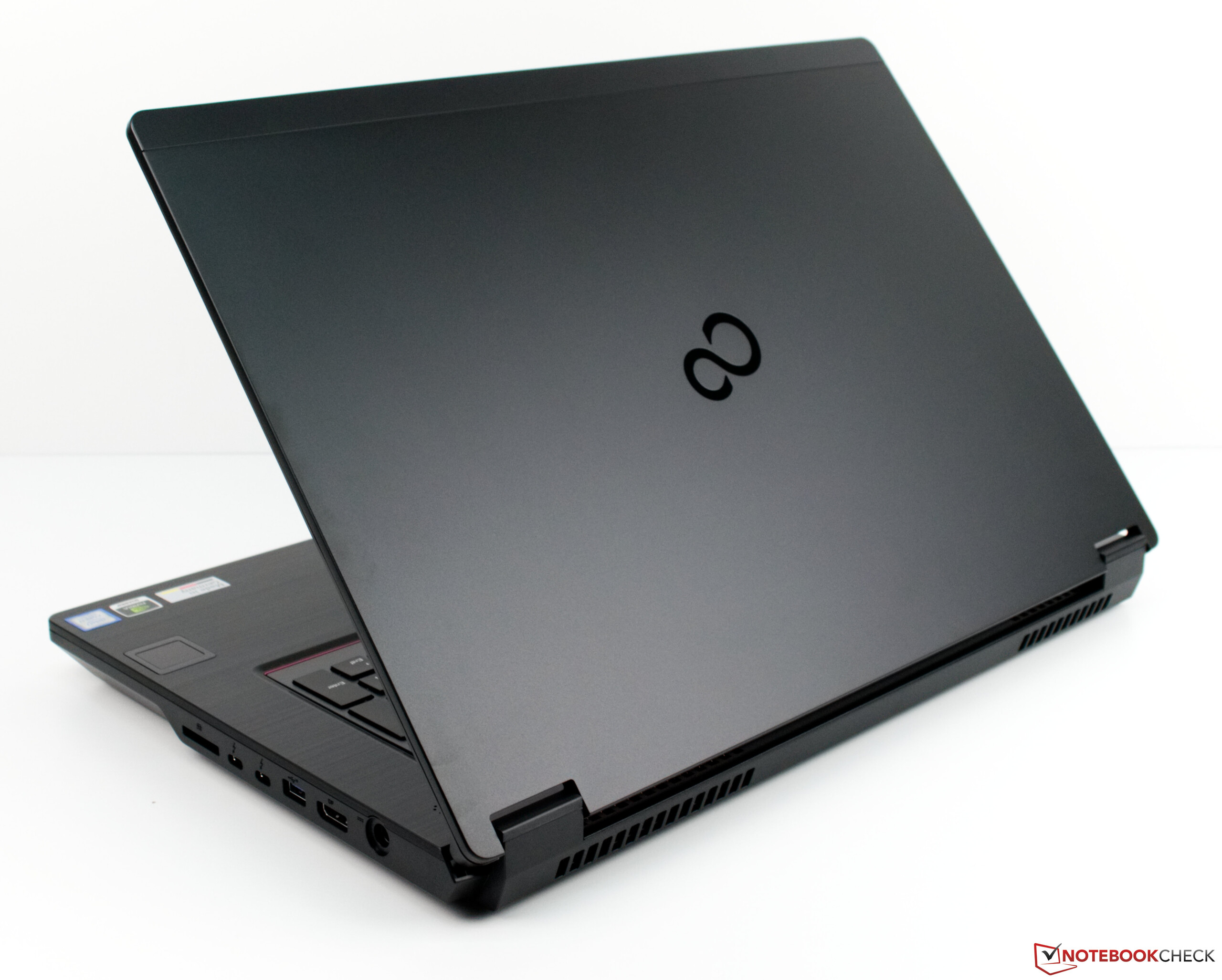

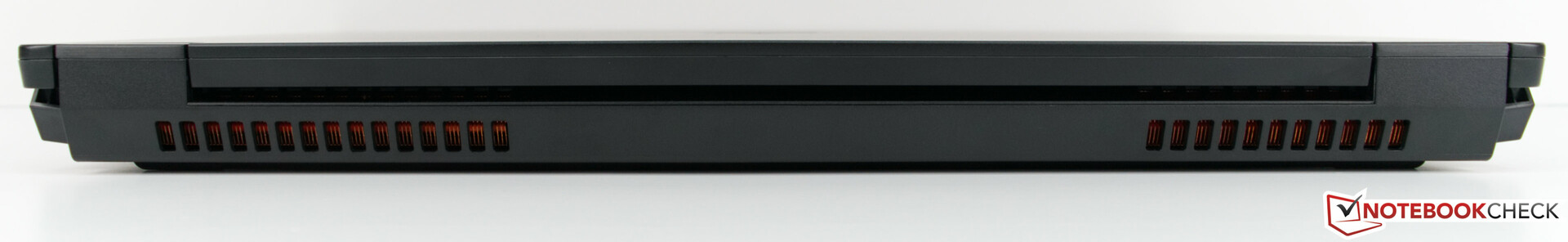

Rear: Ventilation grilles
Rear: Ventilation grilles
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
HP ZBook 17 G5-2ZC48EA
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
177 MB/s ∼100% +20%
Lenovo ThinkPad P72-20MB000EGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
171 MB/s ∼97% +16%
Fujitsu Celsius H980
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
148 MB/s ∼84%
Fujitsu Celsius H970
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
140 MB/s ∼79% -5%
Average of class Workstation
  (17.2 - 213, n=57)
138 MB/s ∼78% -7%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad P72-20MB000EGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
203.3 MB/s ∼100% +15%
HP ZBook 17 G5-2ZC48EA
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
202.7 MB/s ∼100% +15%
Fujitsu Celsius H980
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
176.9 MB/s ∼87%
Fujitsu Celsius H970
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
175.5 MB/s ∼86% -1%
Average of class Workstation
  (18.4 - 255, n=57)
174 MB/s ∼86% -2%

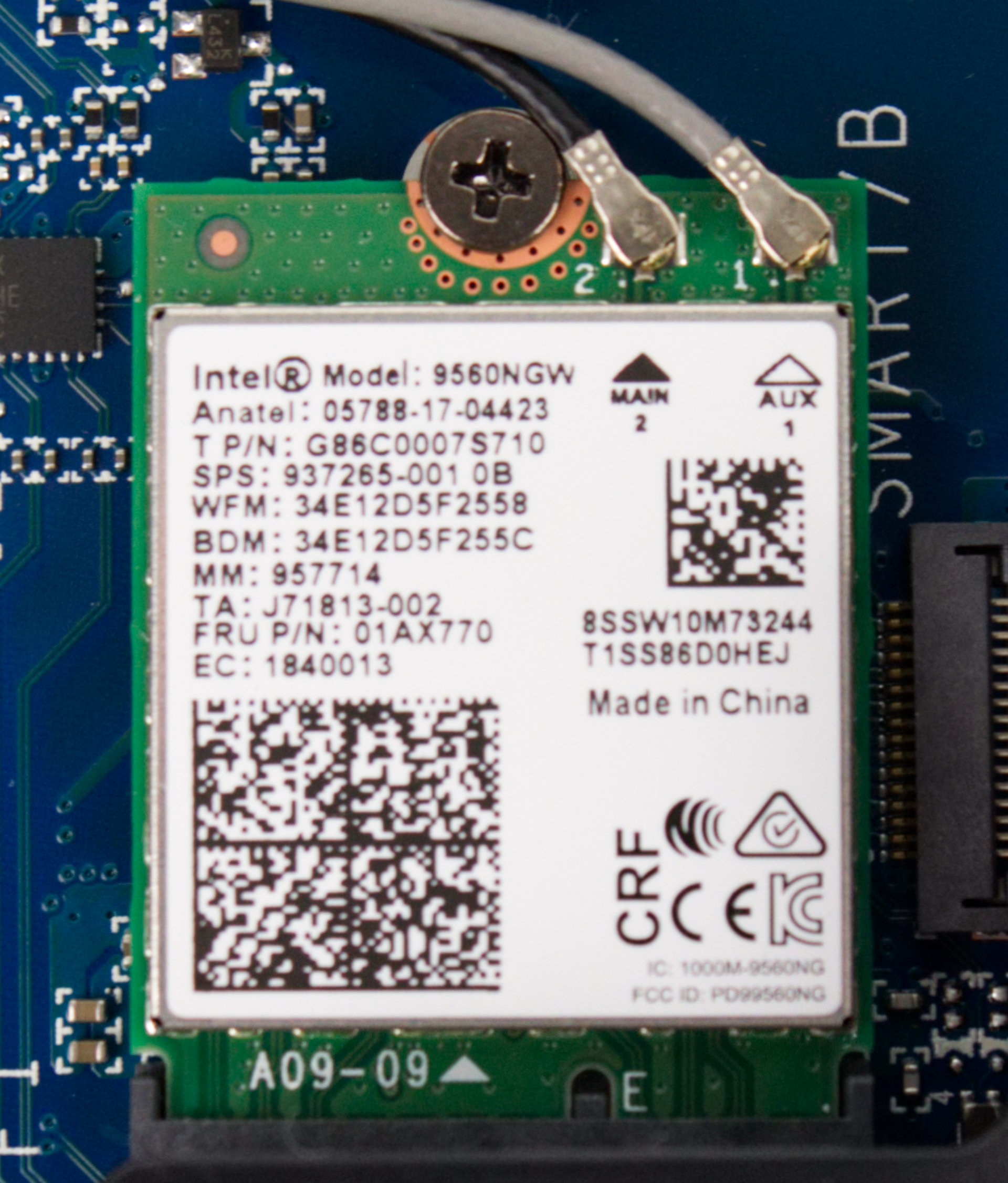

Networking
iperf3 Client (receive) TCP 1 m 4M x10
Fujitsu Celsius H980
Intel Wireless-AC 9560
693 (min: 345, max: 697) MBit/s ∼100%
Lenovo ThinkPad P72-20MB000EGE
Intel Wireless-AC 9560
681 (min: 341, max: 686) MBit/s ∼98% -2%
Fujitsu Celsius H970
Intel Dual Band Wireless-AC 8265
676 MBit/s ∼98% -2%
HP ZBook 17 G5-2ZC48EA
Intel Wireless-AC 9560
657 MBit/s ∼95% -5%
Average of class Workstation
  (292 - 705, n=42)
611 MBit/s ∼88% -12%
Dell Precision 7720
Intel Dual Band Wireless-AC 8265
587 MBit/s ∼85% -15%
iperf3 Client (transmit) TCP 1 m 4M x10
HP ZBook 17 G5-2ZC48EA
Intel Wireless-AC 9560
679 MBit/s ∼100% +4%
Fujitsu Celsius H980
Intel Wireless-AC 9560
652 (min: 330, max: 712) MBit/s ∼96%
Lenovo ThinkPad P72-20MB000EGE
Intel Wireless-AC 9560
642 (min: 629, max: 650) MBit/s ∼95% -2%
Average of class Workstation
  (83 - 706, n=42)
532 MBit/s ∼78% -18%
Dell Precision 7720
Intel Dual Band Wireless-AC 8265
518 MBit/s ∼76% -21%
Fujitsu Celsius H970
Intel Dual Band Wireless-AC 8265
504 MBit/s ∼74% -23%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø681 (345-697)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø641 (330-712)
396
cd/m²
403
cd/m²
397
cd/m²
393
cd/m²
400
cd/m²
406
cd/m²
374
cd/m²
400
cd/m²
378
cd/m²
Helderheidsverdeling
LG Philips, LP173WF4-SPF5
X-Rite i1Pro 2
Maximum: 406 cd/m² Gemiddelde: 394.1 cd/m² Minimum: 21.4 cd/m²
Helderheidsverdeling: 92 %
Helderheid in Batterij-modus: 401 cd/m²
Contrast: 784:1 (Zwart: 0.51 cd/m²)
ΔE Color 5.3 | 0.6-29.43 Ø6, calibrated: 3.8
ΔE Greyscale 5.5 | 0.64-98 Ø6.3
84.9% sRGB (Argyll 3D) 55.8% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.17
Fujitsu Celsius H980
LG Philips, LP173WF4-SPF5, IPS, 1920x1080, 17.3
Fujitsu Celsius H970
LP173WF4-SPF3, IPS LED, 1920x1080, 17.3
Dell Precision 7720
SHP1446 (LQ173D1), IGZO, 3840x2160, 17.3
Lenovo ThinkPad P72-20MB000EGE
LP173WF4_SPF7, IPS, 1920x1080, 17.3
HP ZBook 17 G5-2ZC48EA
AUO B173HW01 V0, , 1920x1080, 17.3
Response Times
1%
-86%
-16%
-17%
Response Time Grey 50% / Grey 80% *
38 (19.2, 18.8)
32 (14.8, 17.2)
16%
60 (26.8, 33.2)
-58%
40.8 (22, 18.8)
-7%
42.4 (21.2, 21.2)
-12%
Response Time Black / White *
23.2 (10, 13.2)
26.4 (14.8, 11.6)
-14%
46.4 (28.4, 18)
-100%
28.8 (15.6, 13.2)
-24%
28.4 (15.6, 12.8)
-22%
PWM Frequency
120500 (99)
1020 (20)
-99%
Screen
2%
24%
12%
14%
Brightness middle
400
368
-8%
464
16%
338
-15%
335
-16%
Brightness
394
360
-9%
441
12%
317
-20%
326
-17%
Brightness Distribution
92
91
-1%
89
-3%
86
-7%
92
0%
Black Level *
0.51
0.3
41%
0.45
12%
0.28
45%
0.22
57%
Contrast
784
1227
57%
1031
32%
1207
54%
1523
94%
Colorchecker DeltaE2000 *
5.3
6.4
-21%
3.2
40%
4.3
19%
4.7
11%
Colorchecker DeltaE2000 max. *
9.3
10.1
-9%
6.1
34%
10.2
-10%
8.7
6%
Colorchecker DeltaE2000 calibrated *
3.8
3.7
3%
2.7
29%
Greyscale DeltaE2000 *
5.5
7.2
-31%
4.2
24%
2.2
60%
6.5
-18%
Gamma
2.17 101%
2.02 109%
2.01 109%
2.17 101%
2.23 99%
CCT
6686 97%
6882 94%
6736 96%
6621 98%
6108 106%
Color Space (Percent of AdobeRGB 1998)
55.8
55.5
-1%
88.1
58%
55.8
0%
58.7
5%
Color Space (Percent of sRGB)
84.9
84.4
-1%
100
18%
84.7
0%
89.7
6%
Totaal Gemiddelde (Programma / Instellingen)
2% / 2%
-31% / -1%
-2% / 8%
-2% / 9%

* ... kleiner is beter

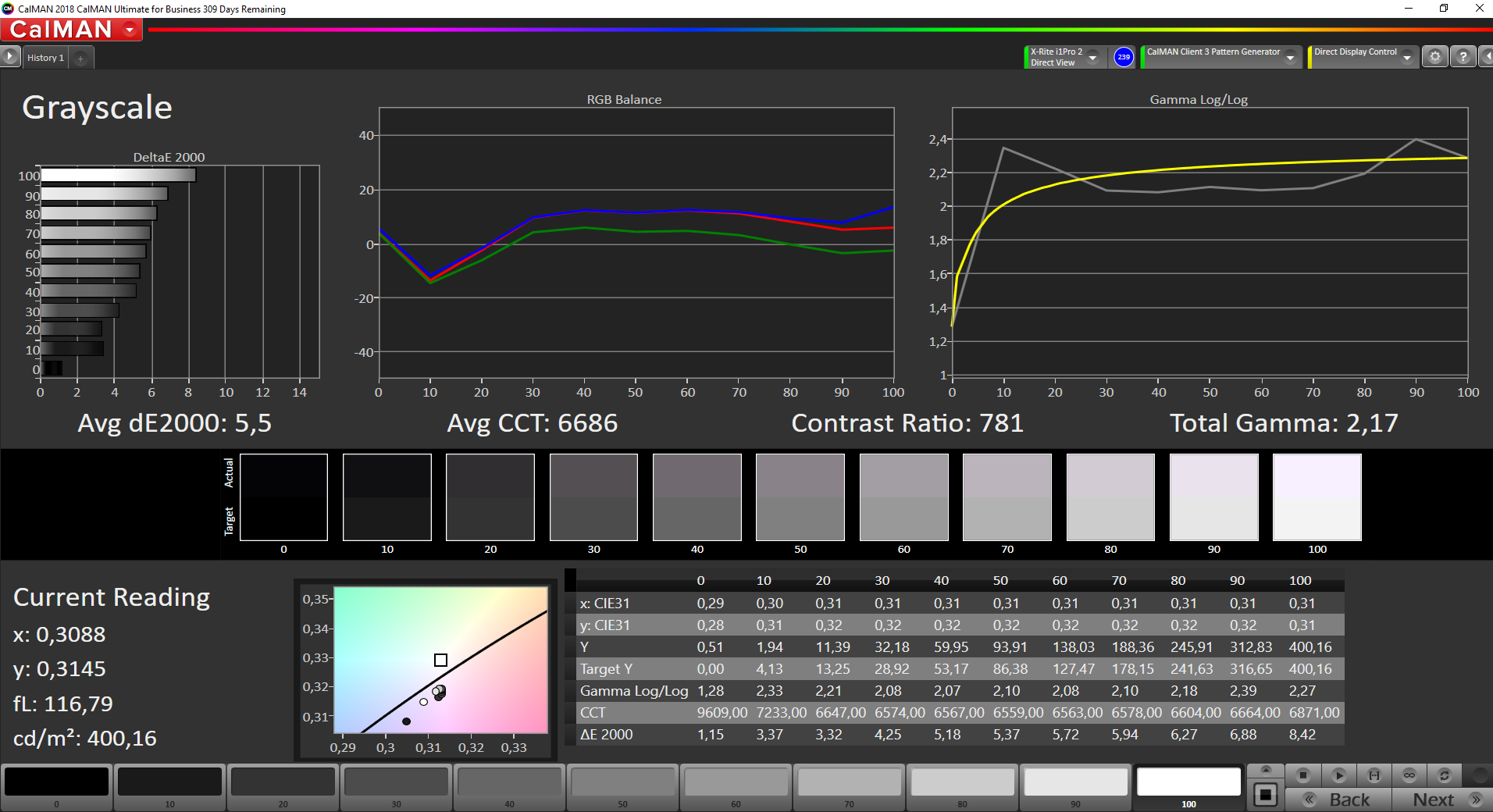

CalMAN: Greyscale - uncalibrated
CalMAN: Greyscale - uncalibrated

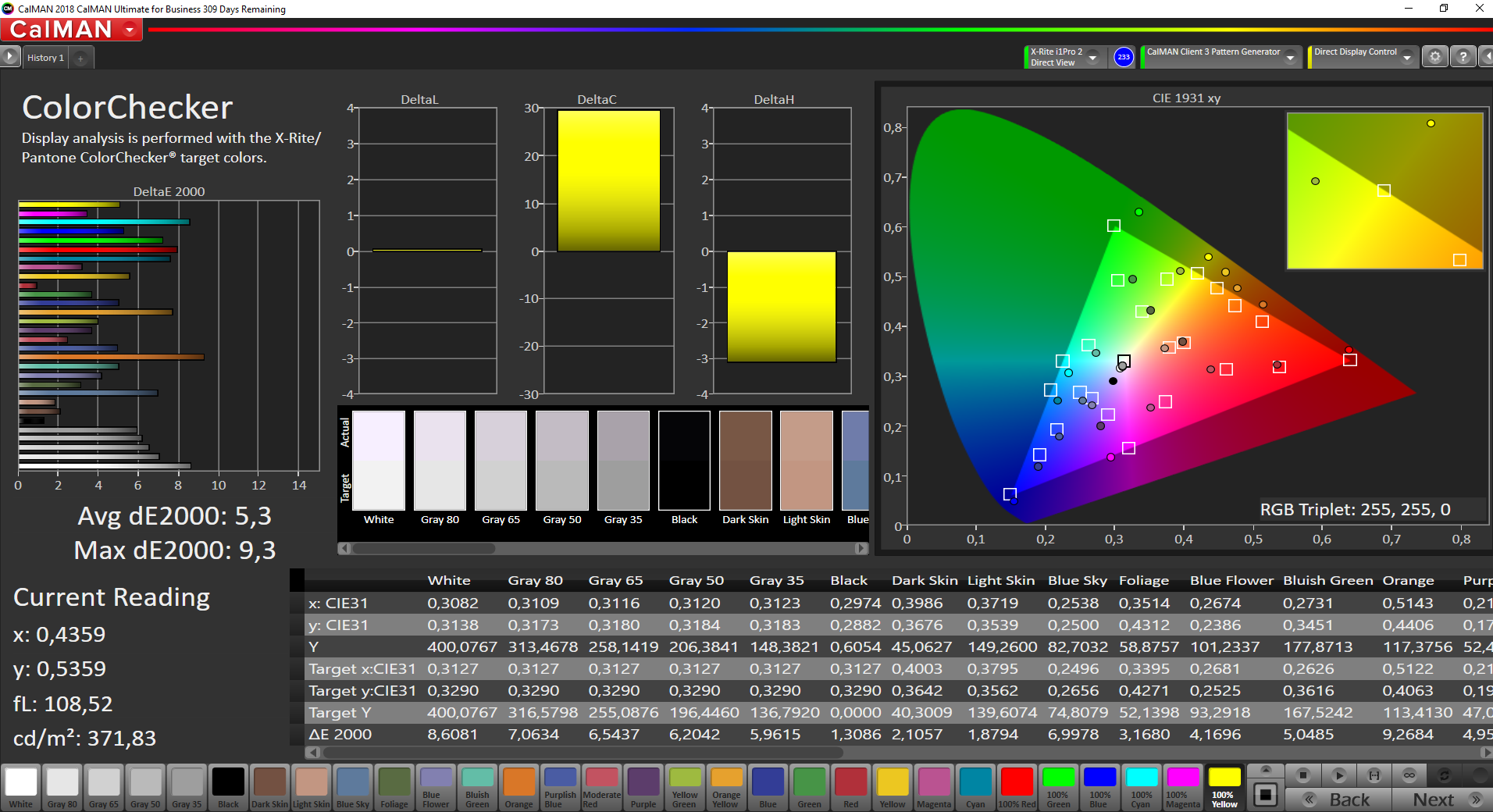

CalMAN: ColorChecker - uncalibrated
CalMAN: ColorChecker - uncalibrated

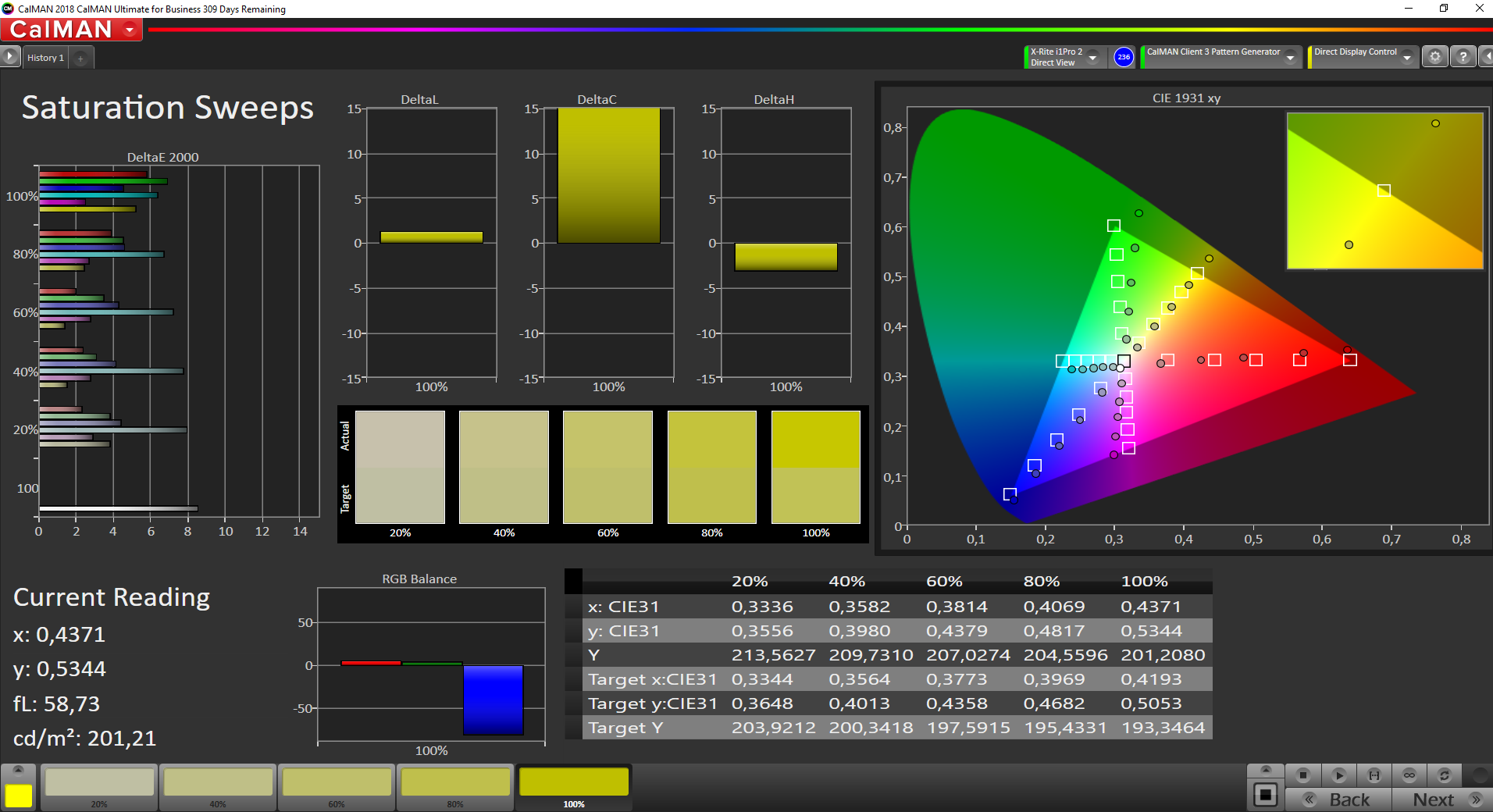

CalMAN: Colour Saturation – uncalibrated
CalMAN: Colour Saturation – uncalibrated

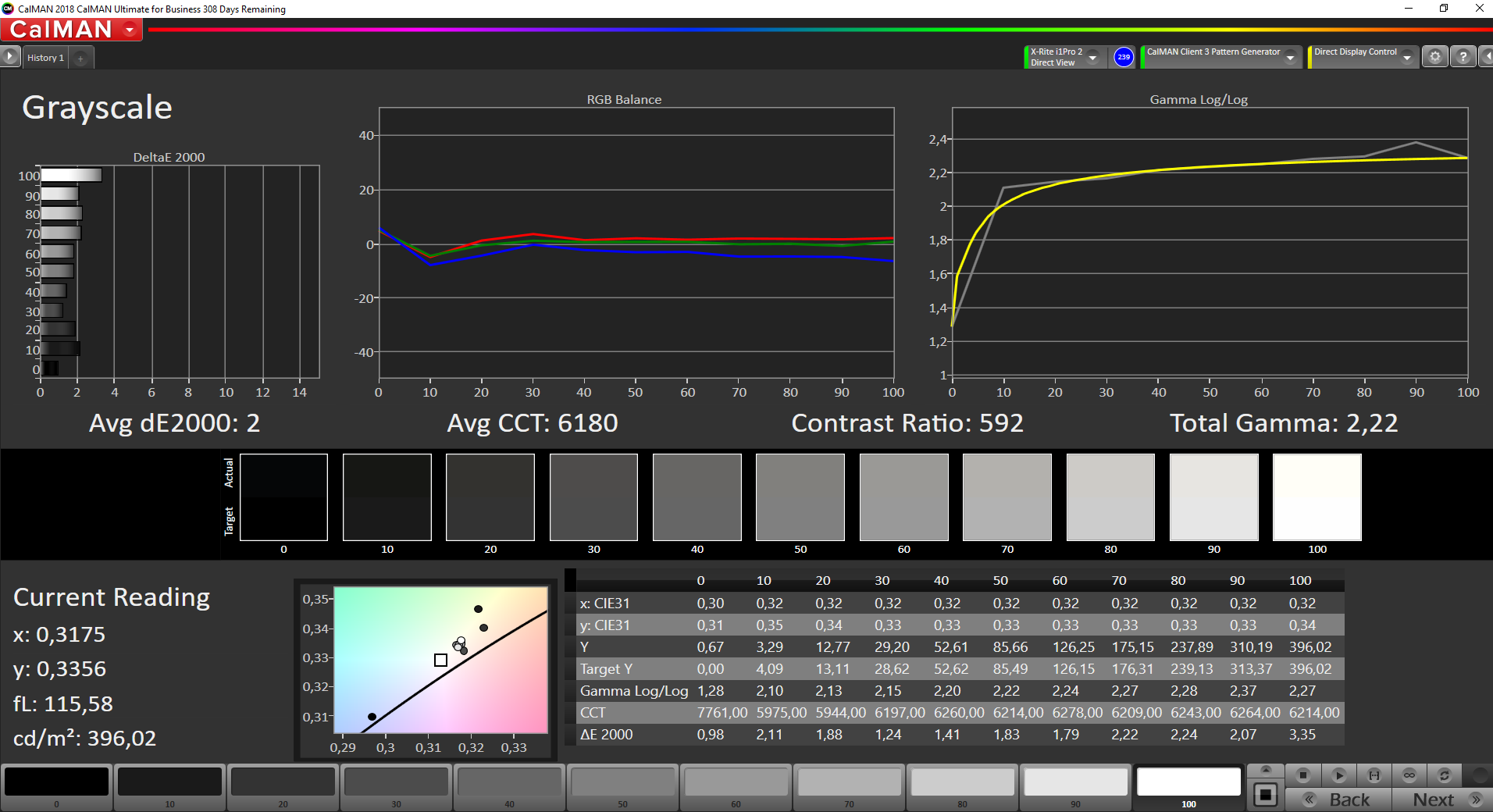

CalMAN: Greyscale - calibrated
CalMAN: Greyscale - calibrated

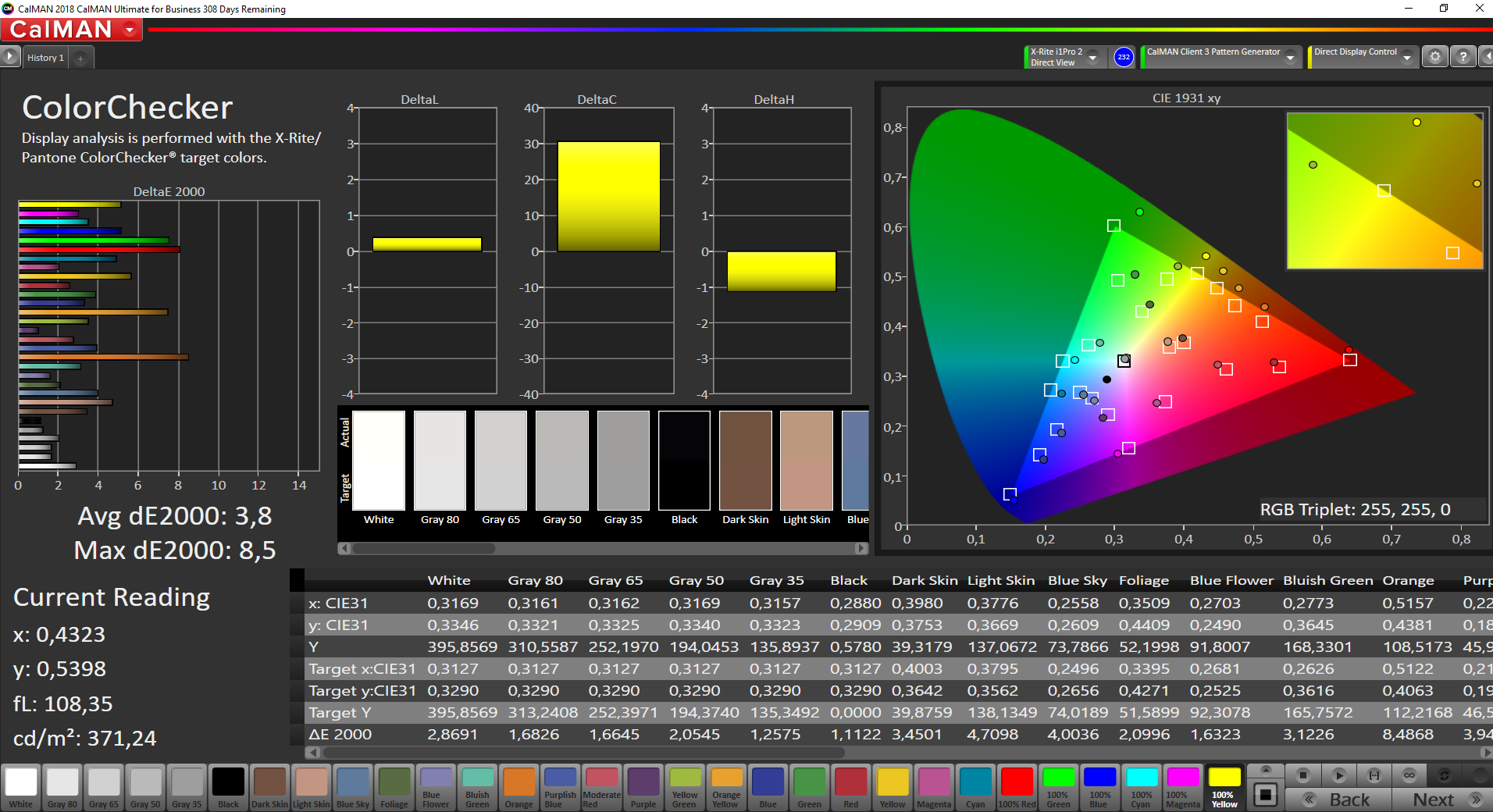

CalMAN: ColorChecker - calibrated
CalMAN: ColorChecker - calibrated

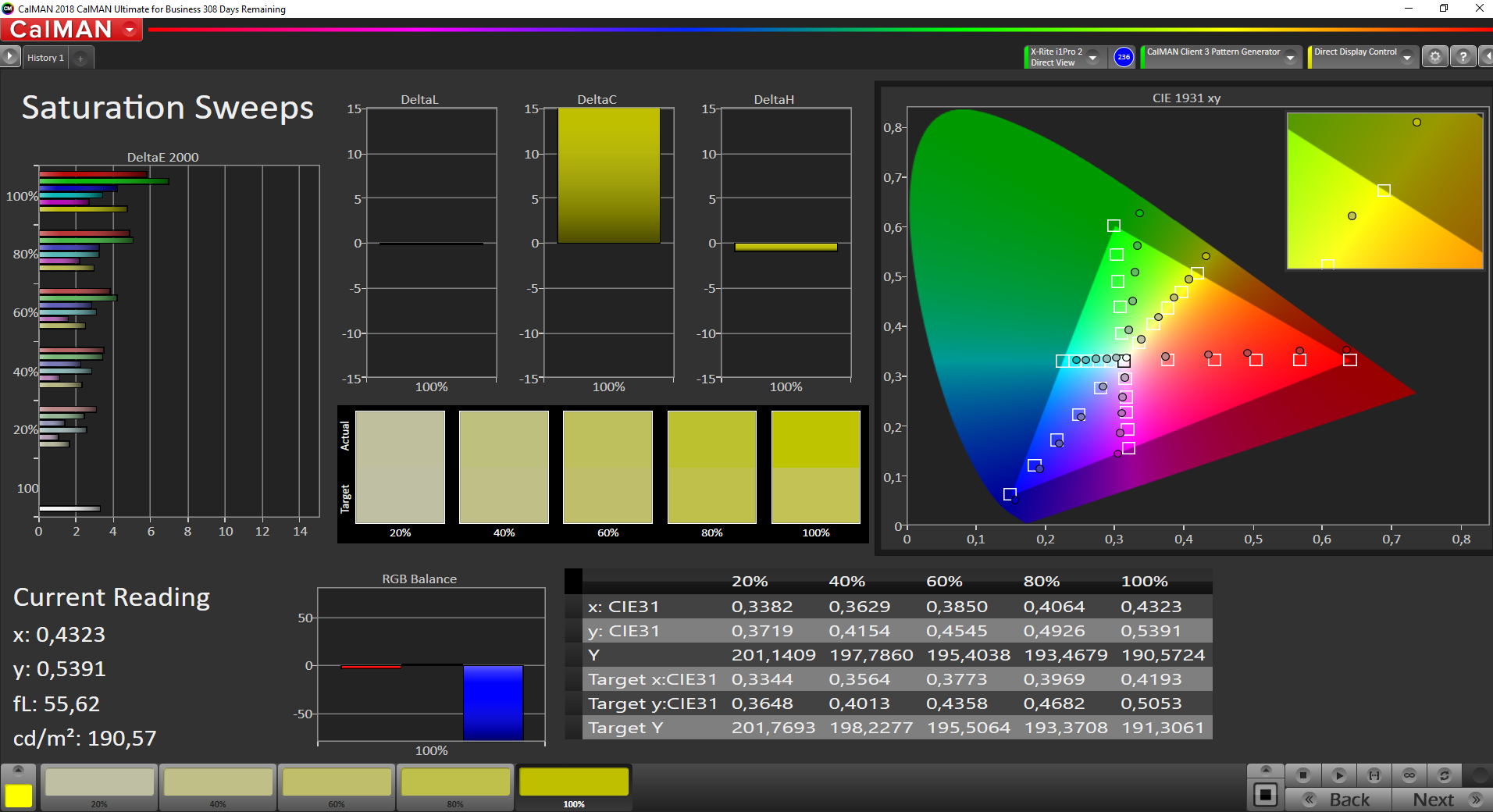

CalMAN: Saturation - calibrated
CalMAN: Saturation - calibrated

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

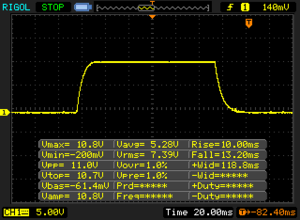

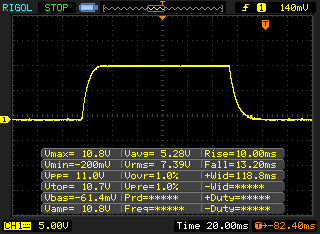

       Responstijd Zwart naar Wit
23.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 10 ms stijging
↘ 13.2 ms daling
Het scherm vertoonde prima responstijden in onze tests maar is misschien wat te traag voor competitieve games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 33 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (25 ms) van alle geteste toestellen.

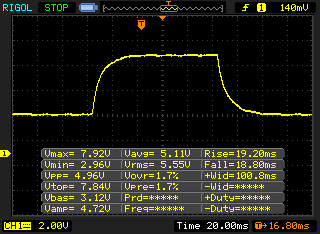

       Responstijd 50% Grijs naar 80% Grijs
38 ms ... stijging ↗ en daling ↘ gecombineerd↗ 19.2 ms stijging
↘ 18.8 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 36 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (39.8 ms) van alle geteste toestellen.

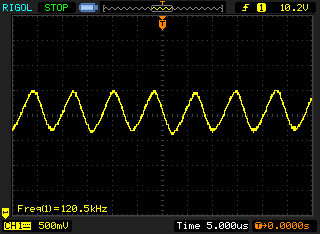

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 120500 Hz ≤ 99 % helderheid instelling

Het backlight van het scherm flikkert aan 120500 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 99 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 120500 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9394 (minimum: 43 - maximum: 142900) Hz waargenomen.

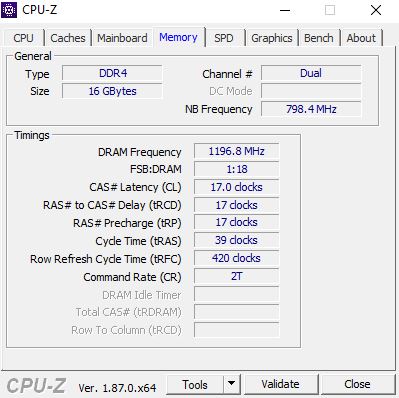

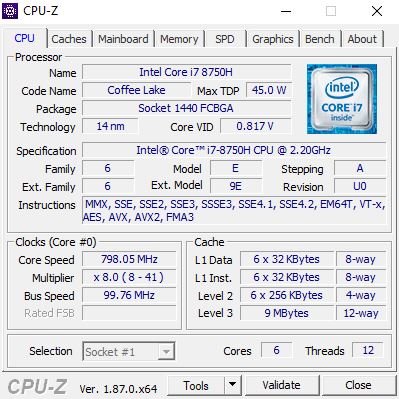

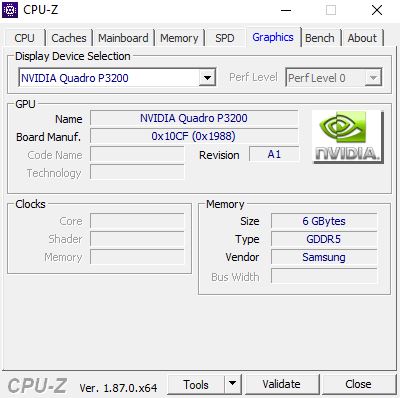

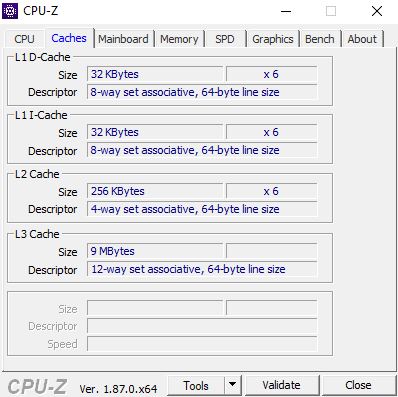

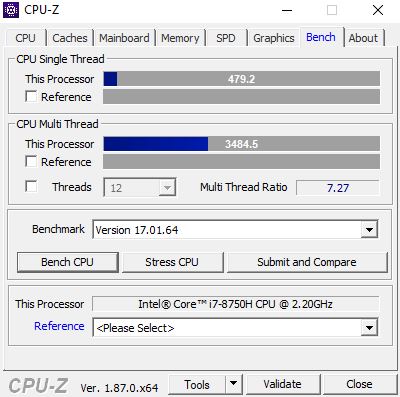

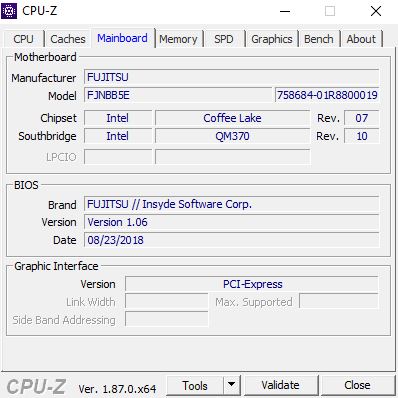

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

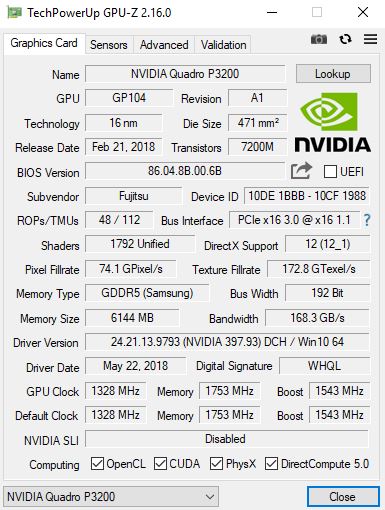

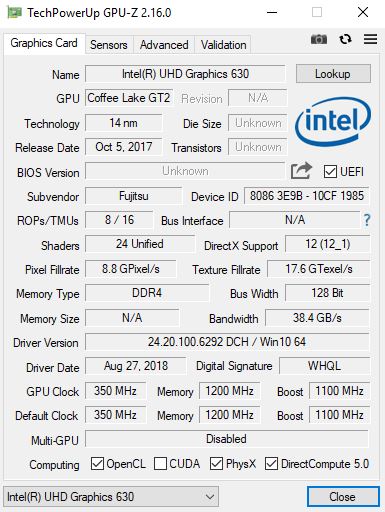

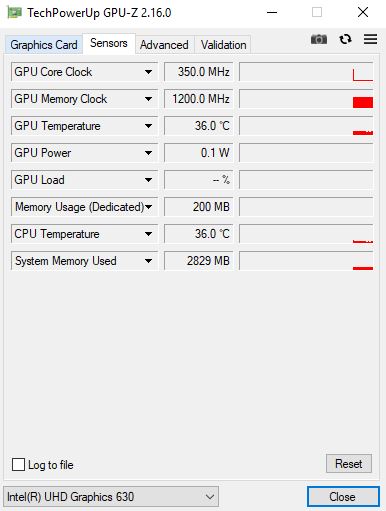

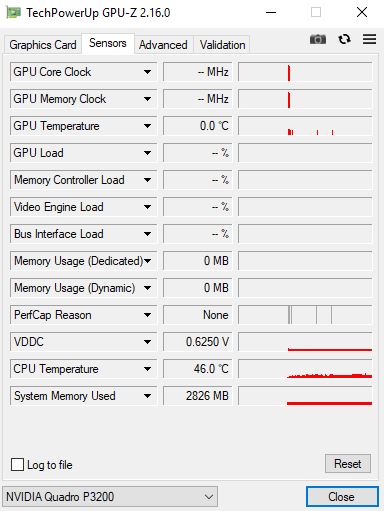

GPU-Z
GPU-Z
GPU-Z
GPU-Z

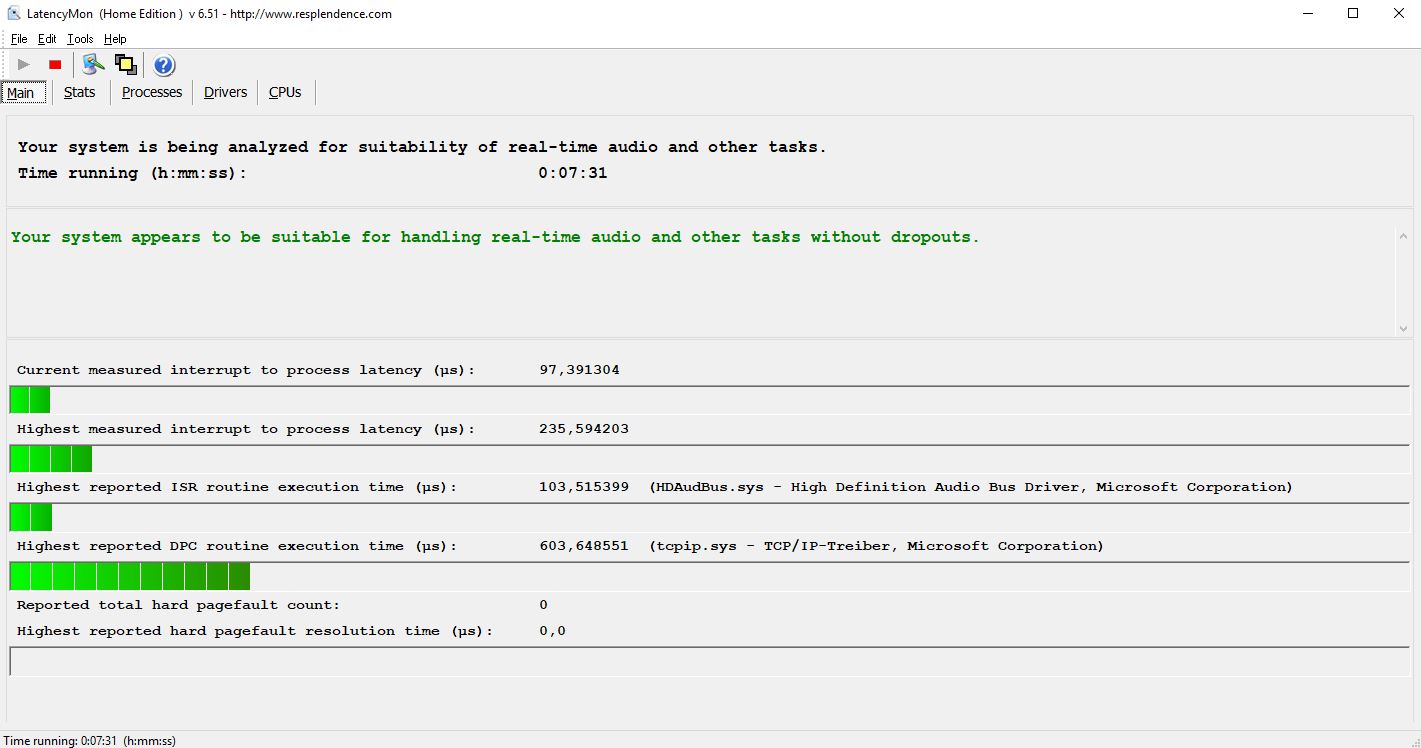

DPC-Latenzen

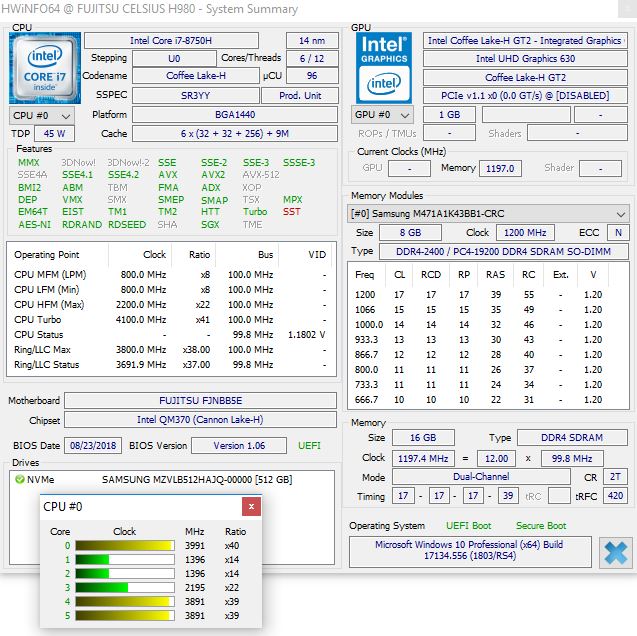

HWiNFO

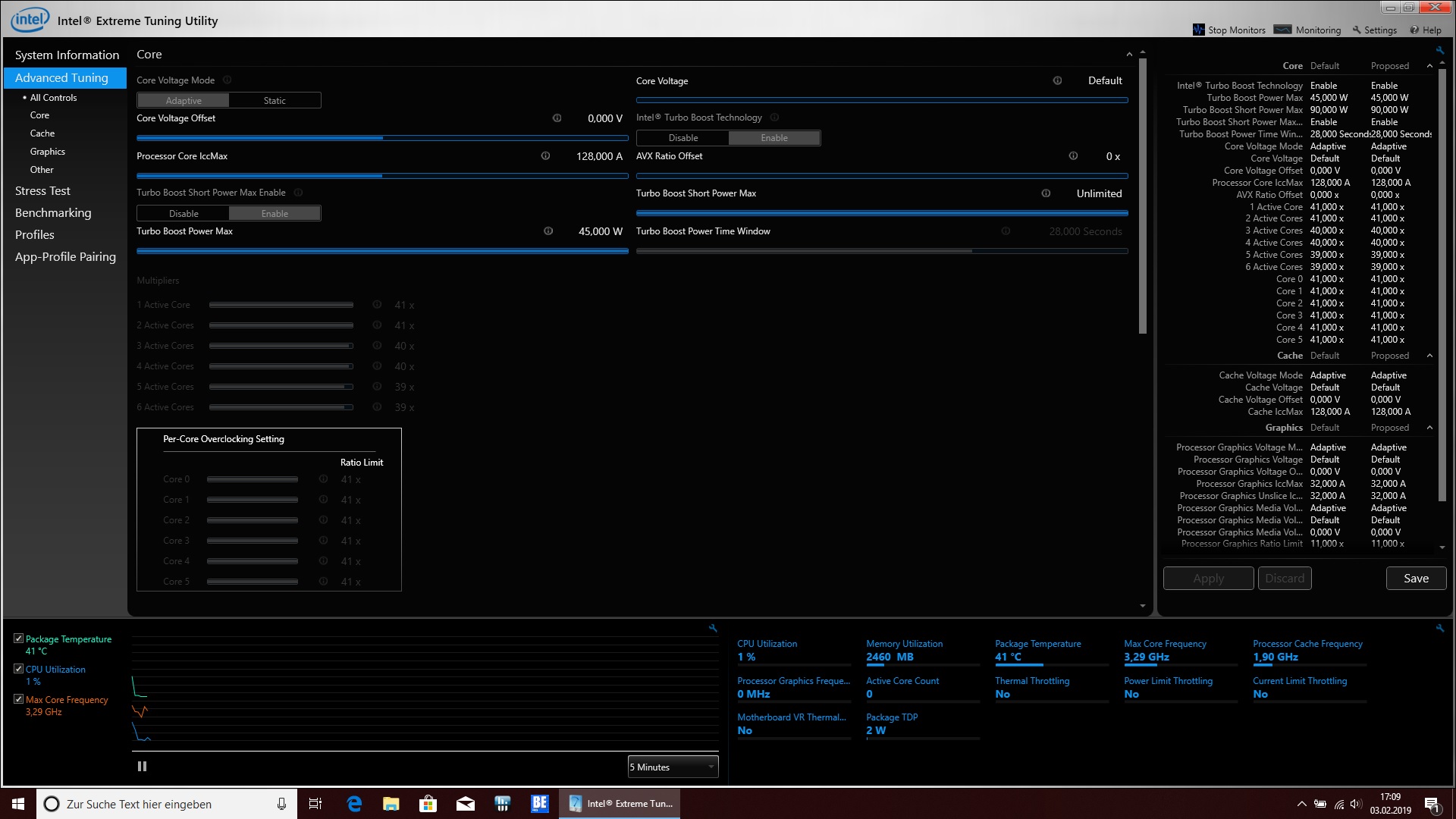

Intel Extreme Utility

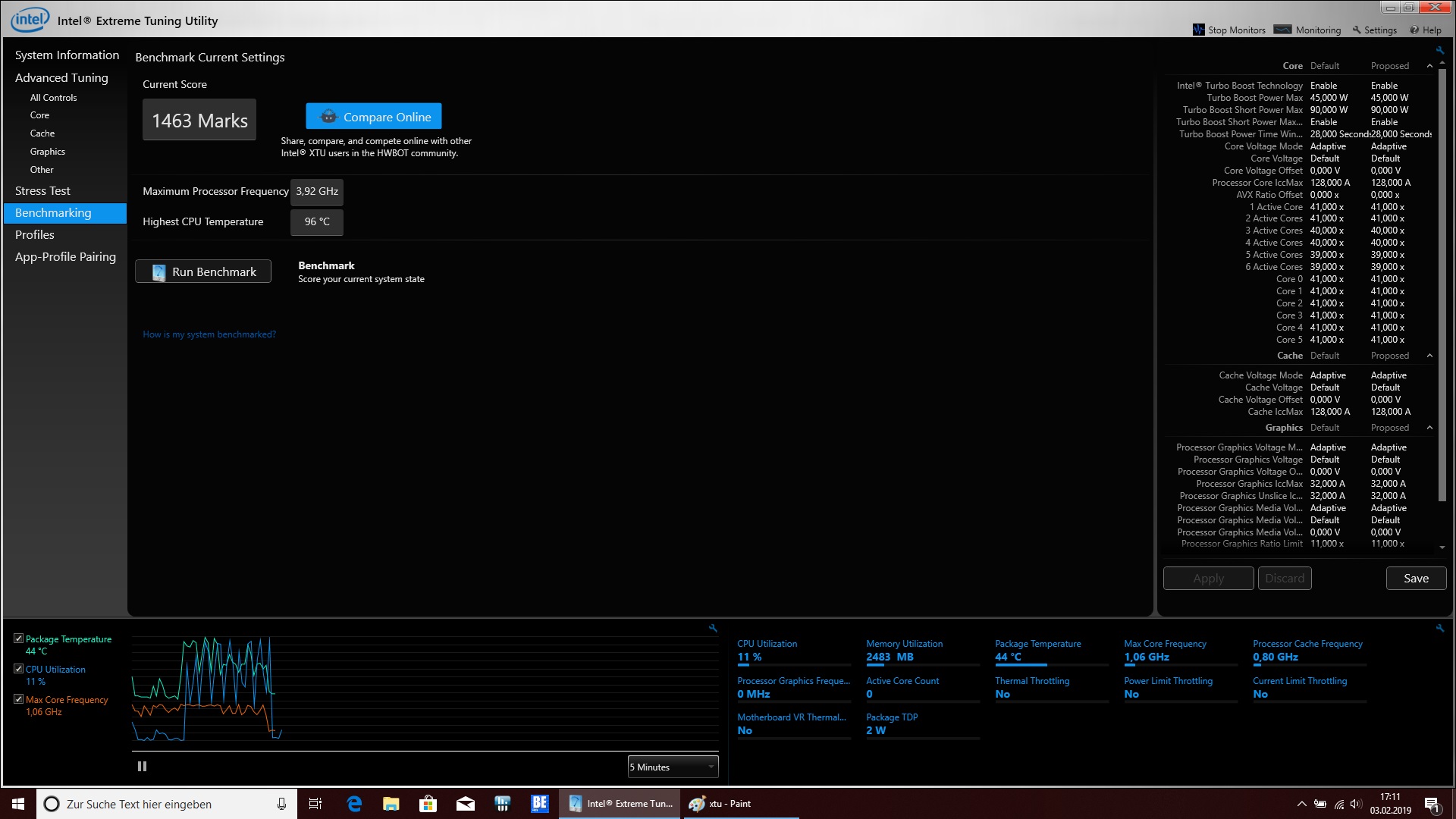

Intel Extreme Utility (Benchmark)
010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130114011501160117011801190120012101220123012401250126012701280Tooltip
Fujitsu Celsius H980 Intel Core i7-8750H, Intel Core i7-8750H: Ø1034 (1025.75-1058.79)
Fujitsu Celsius H970 Intel Xeon E3-1535M v6, Intel Xeon E3-1535M v6: Ø652 (625-675)
Dell Precision 7720 Intel Xeon E3-1535M v6, Intel Xeon E3-1535M v6: Ø848 (836.51-852.66)
Lenovo ThinkPad P72-20MB000EGE Intel Core i7-8850H, Intel Core i7-8850H; Undervolting: Ø1267 (1252.58-1272.26)
Lenovo ThinkPad P72-20MB000EGE Intel Core i7-8850H, Intel Core i7-8850H; Default: Ø1147 (1115.23-1244.83)
HP ZBook 17 G5-2ZC48EA Intel Core i7-8850H, Intel Core i7-8850H: Ø1062 (1050.28-1181.65)

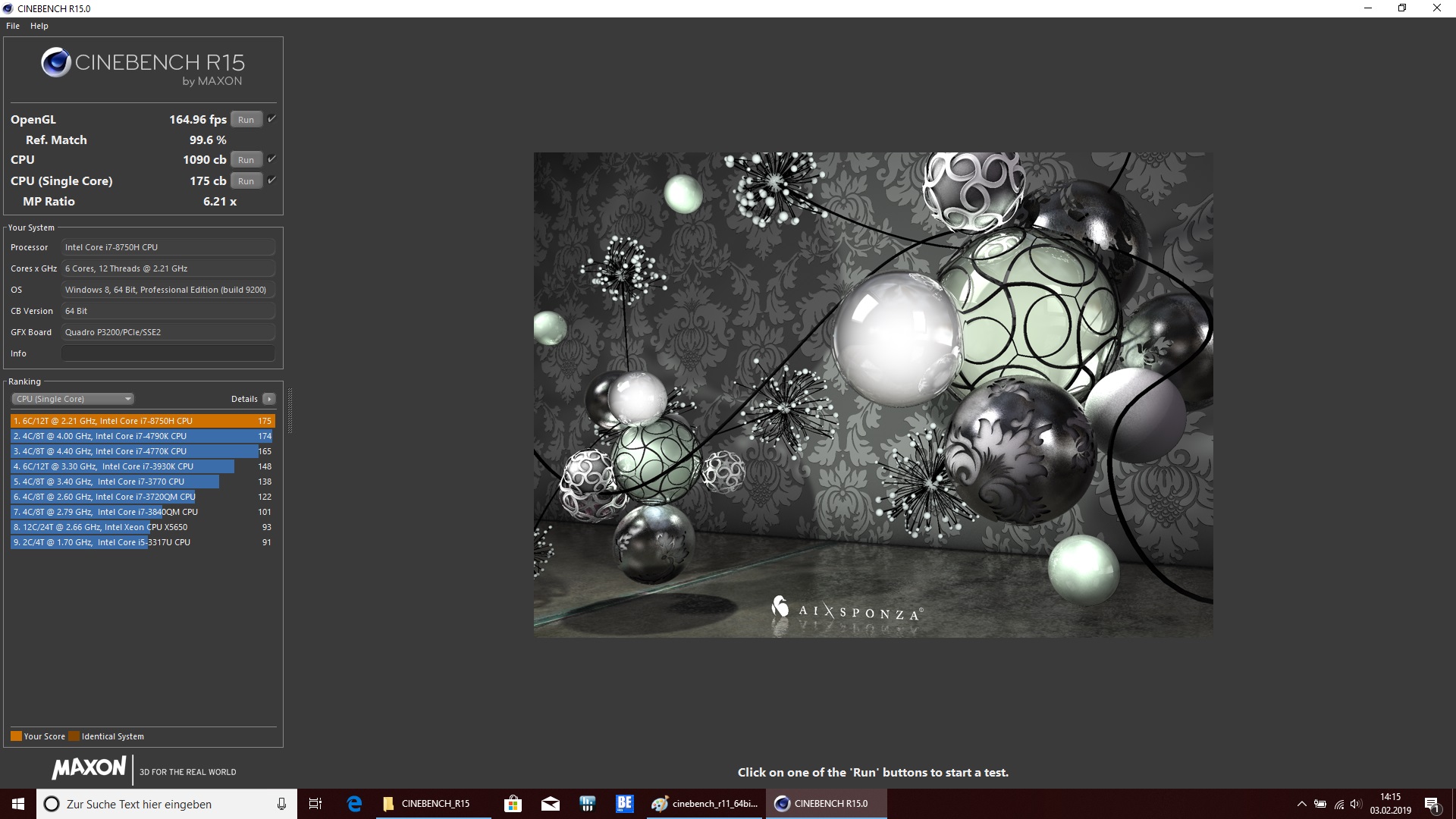

Cinebench R15
CPU Single 64Bit
Eurocom Tornado F7W
Intel Core i9-9900K
214 Points ∼100% +22%
Lenovo ThinkPad P72-20MB000EGE
Intel Core i7-8850H
184 Points ∼86% +5%
HP ZBook 17 G5-2ZC48EA
Intel Core i7-8850H
181 Points ∼85% +3%
Dell Precision 7720
Intel Xeon E3-1535M v6
179 Points ∼84% +2%
Fujitsu Celsius H980
Intel Core i7-8750H
175 Points ∼82%
Average Intel Core i7-8750H
  (163 - 177, n=85)
172 Points ∼80% -2%
Fujitsu Celsius H970
Intel Xeon E3-1535M v6
171 Points ∼80% -2%
Average of class Workstation
  (117 - 214, n=90)
157 Points ∼73% -10%
CPU Multi 64Bit
Eurocom Tornado F7W
Intel Core i9-9900K
1623 Points ∼100% +49%
Lenovo ThinkPad P72-20MB000EGE
Intel Core i7-8850H
1267 Points ∼78% +16%
Lenovo ThinkPad P72-20MB000EGE
Intel Core i7-8850H
1262 Points ∼78% +16%
HP ZBook 17 G5-2ZC48EA
Intel Core i7-8850H
1200 Points ∼74% +10%
Average Intel Core i7-8750H
  (863 - 1251, n=92)
1109 Points ∼68% +2%
Fujitsu Celsius H980
Intel Core i7-8750H
1090 Points ∼67%
Dell Precision 7720
Intel Xeon E3-1535M v6
848 Points ∼52% -22%
Average of class Workstation
  (260 - 1623, n=92)
741 Points ∼46% -32%
Fujitsu Celsius H970
Intel Xeon E3-1535M v6
675 Points ∼42% -38%

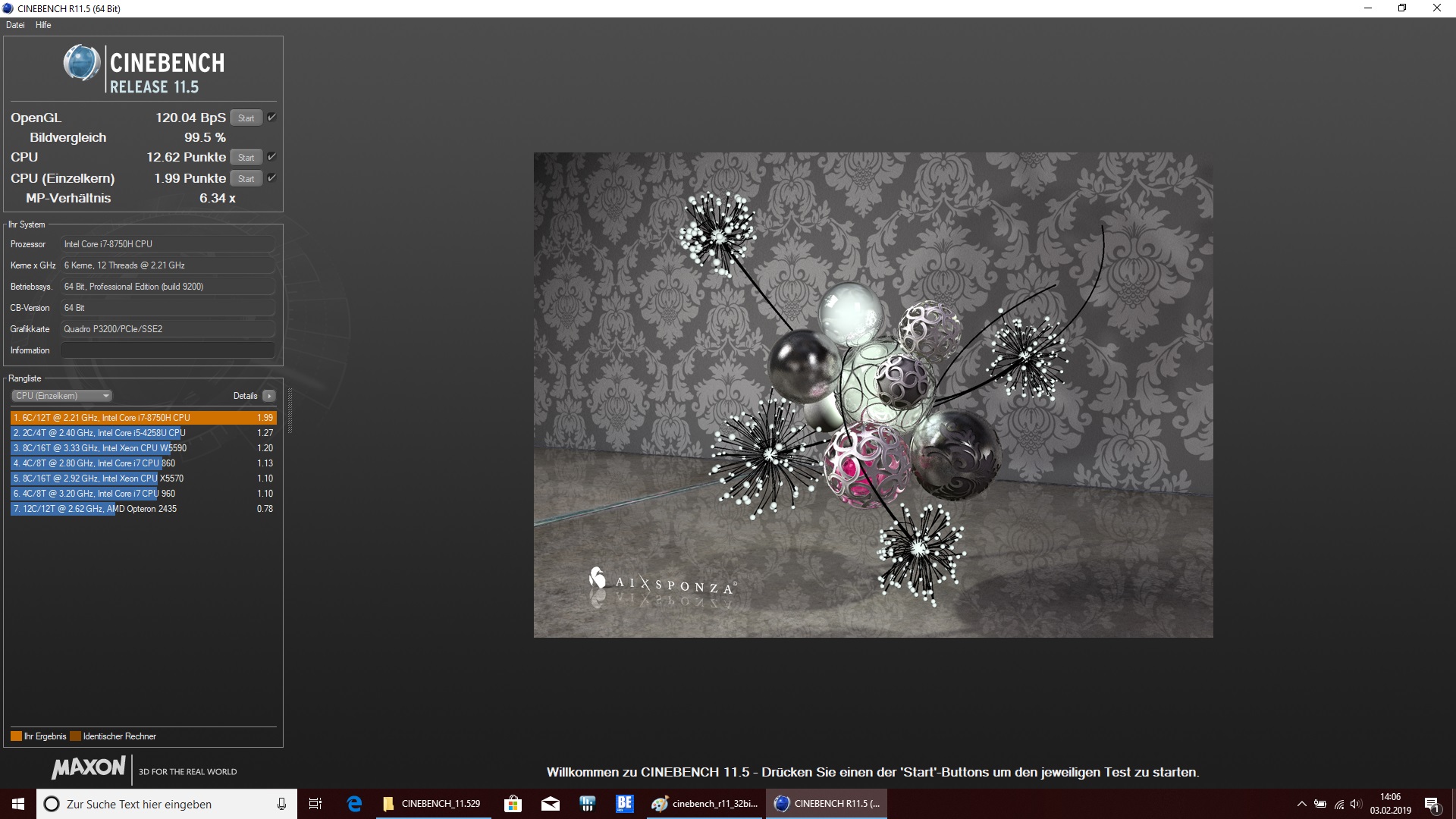

Cinebench R11.5
CPU Single 64Bit
Eurocom Tornado F7W
Intel Core i9-9900K
2.43 Points ∼100% +22%
Fujitsu Celsius H980
Intel Core i7-8750H
1.99 Points ∼82%
Average Intel Core i7-8750H
  (1.89 - 2, n=40)
1.967 Points ∼81% -1%
Fujitsu Celsius H970
Intel Xeon E3-1535M v6
1.92 Points ∼79% -4%
Average of class Workstation
  (1.09 - 2.43, n=87)
1.7 Points ∼70% -15%
Lenovo ThinkPad P72-20MB000EGE
Intel Core i7-8850H
1.09 Points ∼45% -45%
CPU Multi 64Bit
Eurocom Tornado F7W
Intel Core i9-9900K
17.37 Points ∼100% +38%
Lenovo ThinkPad P72-20MB000EGE
Intel Core i7-8850H
13.93 Points ∼80% +10%
Fujitsu Celsius H980
Intel Core i7-8750H
12.62 Points ∼73%
Average Intel Core i7-8750H
  (9.54 - 13.5, n=41)
12.2 Points ∼70% -3%
Fujitsu Celsius H970
Intel Xeon E3-1535M v6
7.48 Points ∼43% -41%
Average of class Workstation
  (2.16 - 17.4, n=105)
6.94 Points ∼40% -45%
Cinebench R10
Rendering Single CPUs 64Bit
Average Intel Core i7-8750H
  (8472 - 8665, n=5)
8542 Points ∼100% +1%
Fujitsu Celsius H980
Intel Core i7-8750H
8472 Points ∼99%
Fujitsu Celsius H970
Intel Xeon E3-1535M v6
8325 Points ∼97% -2%
Average of class Workstation
  (3552 - 9224, n=72)
6193 Points ∼73% -27%
Rendering Multiple CPUs 64Bit
Fujitsu Celsius H980
Intel Core i7-8750H
46384 Points ∼100%
Average Intel Core i7-8750H
  (33944 - 46384, n=5)
42290 Points ∼91% -9%
Fujitsu Celsius H970
Intel Xeon E3-1535M v6
28617 Points ∼62% -38%
Average of class Workstation
  (7542 - 46384, n=72)
21740 Points ∼47% -53%

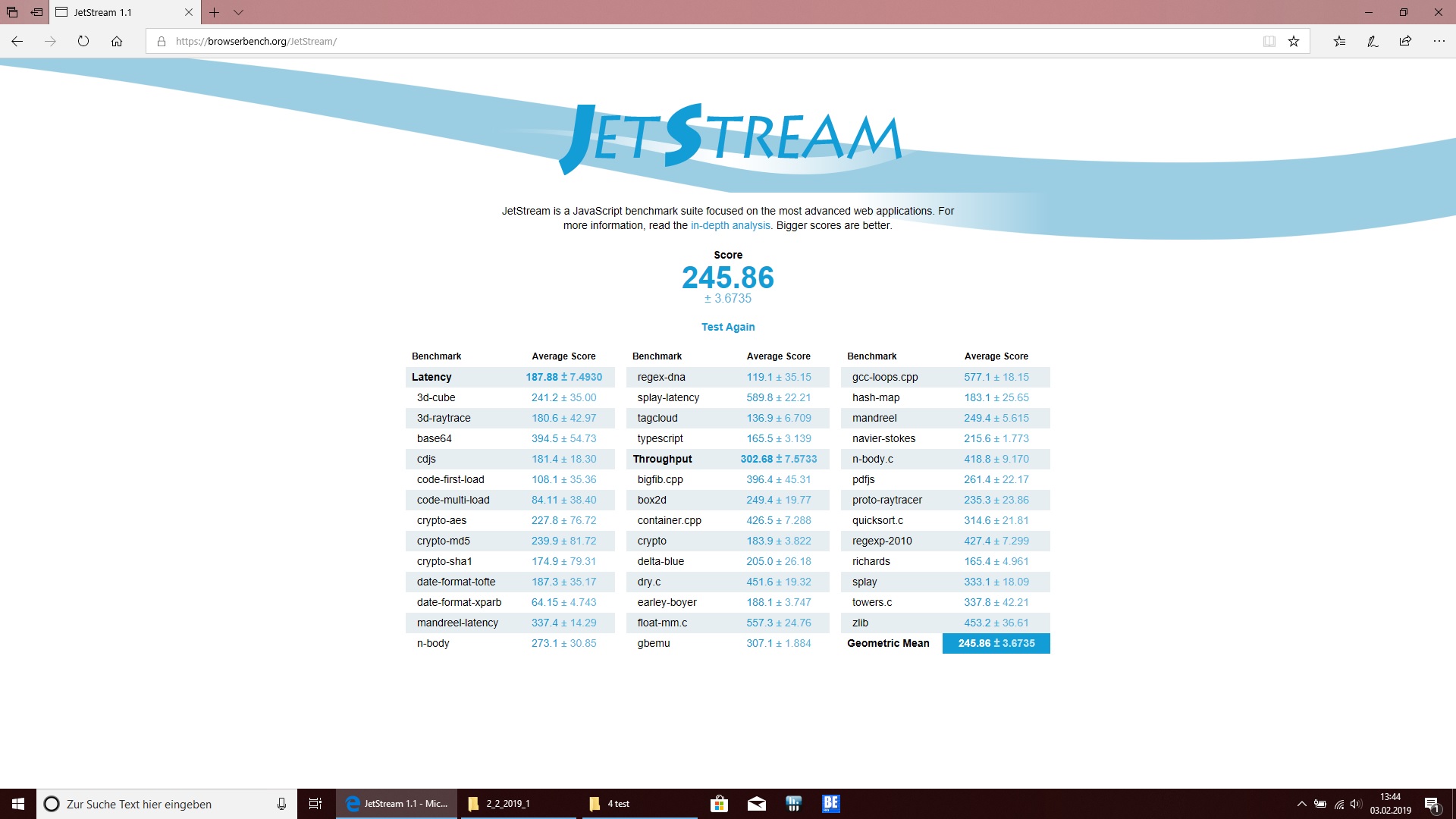

JetStream 1.1 - Total Score
Eurocom Tornado F7W
Intel Core i9-9900K
315.56 Points ∼100% +28%
Dell Precision 7720
Intel Xeon E3-1535M v6
294.7 Points ∼93% +20%
Fujitsu Celsius H970
Intel Xeon E3-1535M v6
279.55 Points ∼89% +14%
HP ZBook 17 G5-2ZC48EA
Intel Core i7-8850H
259.9 Points ∼82% +6%
Average of class Workstation
  (199 - 316, n=39)
255 Points ∼81% +4%
Lenovo ThinkPad P72-20MB000EGE
Intel Core i7-8850H
254.1 Points ∼81% +3%
Average Intel Core i7-8750H
  (205 - 299, n=48)
247 Points ∼78% 0%
Fujitsu Celsius H980
Intel Core i7-8750H
245.86 Points ∼78%

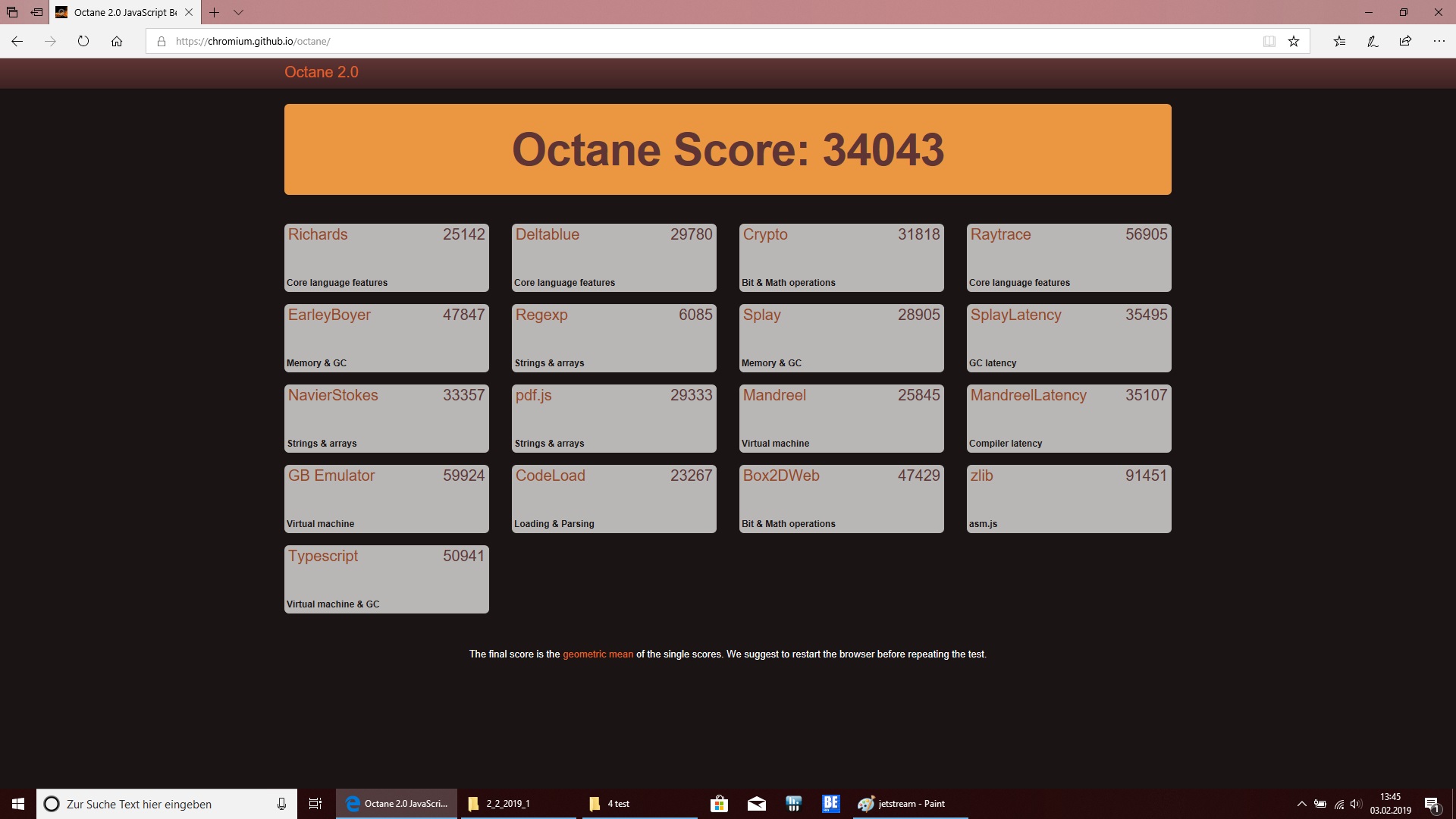

Octane V2 - Total Score
Fujitsu Celsius H970
Intel Xeon E3-1535M v6
44371 Points ∼100% +30%
Dell Precision 7720
Intel Xeon E3-1535M v6
41579 Points ∼94% +22%
HP ZBook 17 G5-2ZC48EA
Intel Core i7-8850H
35247 Points ∼79% +4%
Average of class Workstation
  (14774 - 44371, n=39)
35070 Points ∼79% +3%
Lenovo ThinkPad P72-20MB000EGE
Intel Core i7-8850H
34141 Points ∼77% 0%
Average Intel Core i7-8750H
  (27460 - 44549, n=46)
34141 Points ∼77% 0%
Fujitsu Celsius H980
Intel Core i7-8750H
34043 Points ∼77%

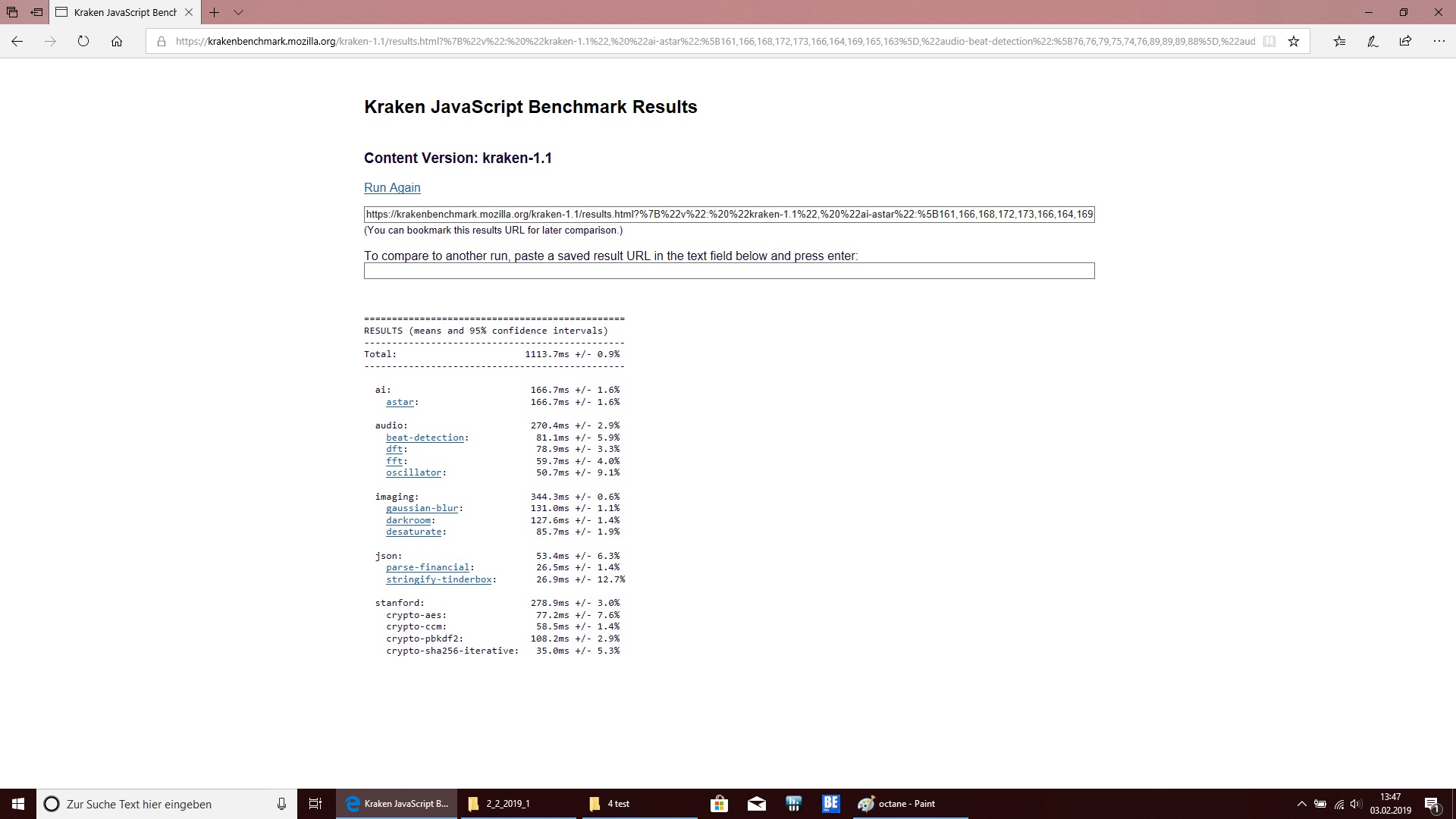

Mozilla Kraken 1.1 - Total Score
Lenovo ThinkPad P72-20MB000EGE
Intel Core i7-8850H
1116.8 ms * ∼100% -0%
Fujitsu Celsius H980
Intel Core i7-8750H
1113.7 ms * ∼100%
Average Intel Core i7-8750H
  (695 - 1272, n=49)
1107 ms * ∼99% +1%
Average of class Workstation
  (847 - 2263, n=41)
1097 ms * ∼98% +1%
HP ZBook 17 G5-2ZC48EA
Intel Core i7-8850H
1070.4 ms * ∼96% +4%
Fujitsu Celsius H970
Intel Xeon E3-1535M v6
870.6 ms * ∼78% +22%
Dell Precision 7720
Intel Xeon E3-1535M v6
861.5 ms * ∼77% +23%
Blender 2.79 - ---
Average of class Workstation
  (276 - 626, n=11)
471 Seconds * ∼100% -6%
Average Intel Core i7-8750H
  (396 - 486, n=6)
456 Seconds * ∼97% -3%
Fujitsu Celsius H980
Intel Core i7-8750H
444.4 Seconds * ∼94%
Eurocom Tornado F7W
Intel Core i9-9900K
276.1 Seconds * ∼59% +38%

* ... kleiner is beter

Cinebench R10
Cinebench R10
Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15
Jetstream 1.1
Jetstream 1.1
Octane V2
Octane V2
Mozilla Kraken 1.1
Mozilla Kraken 1.1

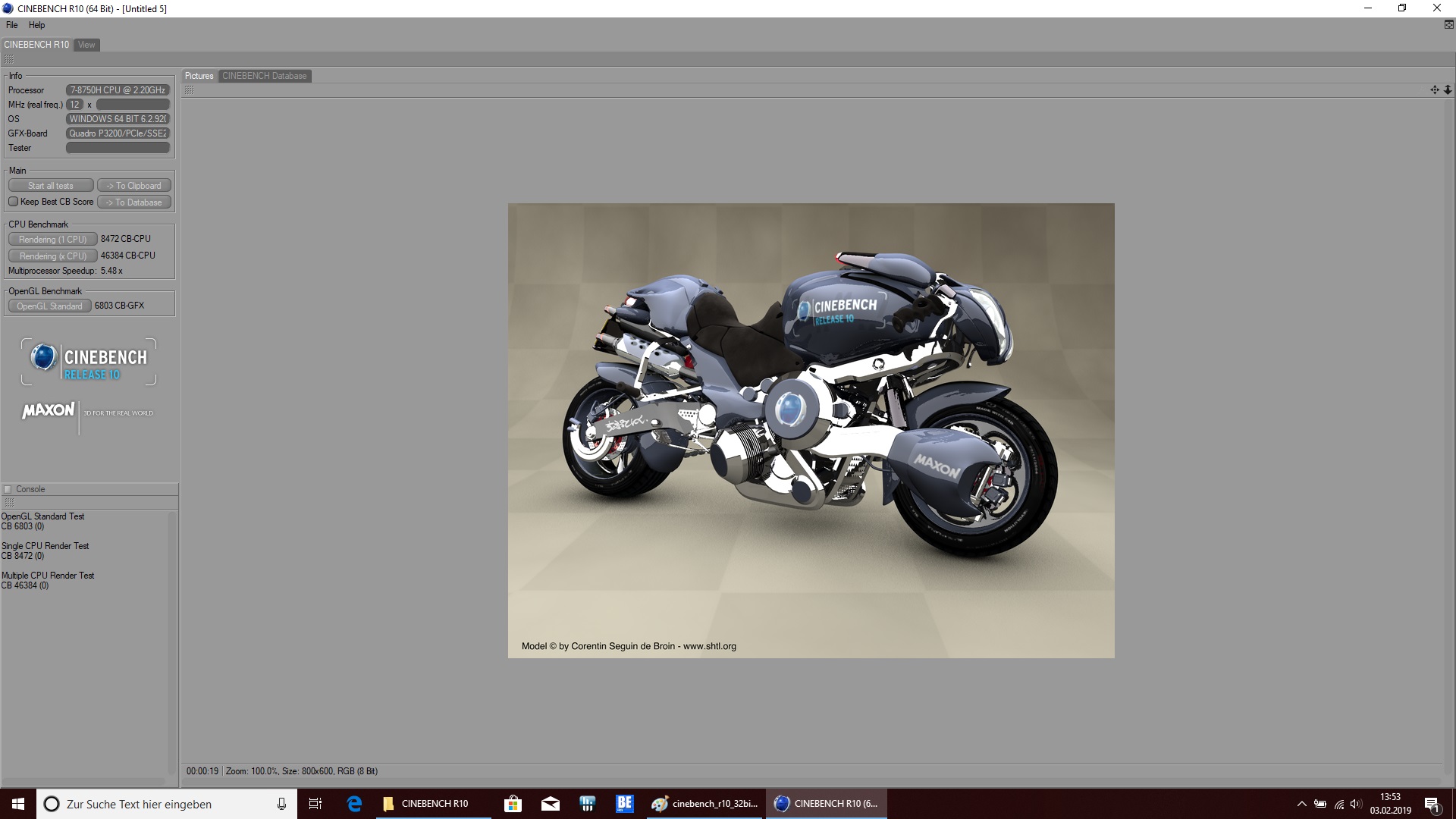

Cinebench R10 Rendering Single CPUs 64Bit
8472 Points
Cinebench R10 Shading 32Bit
6739
Cinebench R10 Rendering Multiple CPUs 32Bit
35116
Cinebench R10 Rendering Single 32Bit
6561
Cinebench R10 Shading 64Bit
6803 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
46384 Points
Cinebench R11.5 OpenGL 64Bit
120.04 fps
Cinebench R11.5 CPU Single 64Bit
1.99 Points
Cinebench R11.5 OpenGL 32Bit
118.86 fps
Cinebench R11.5 CPU Multi 32Bit
11.35 Points
Cinebench R11.5 CPU Single 32Bit
1.78 Points
Cinebench R11.5 CPU Multi 64Bit
12.62 Points
Cinebench R15 CPU Single 64Bit
175 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
164.96 fps
Cinebench R15 CPU Multi 64Bit
1090 Points
Help
PCMark 10
Digital Content Creation
Eurocom Tornado F7W
Quadro P5200, 9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0)
8122 Points ∼100% +23%
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
6622 Points ∼82%
Average Intel Core i7-8750H, NVIDIA Quadro P3200

6622 Points ∼82% 0%
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
6437 Points ∼79% -3%
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
6058 Points ∼75% -9%
Fujitsu Celsius H970
Quadro P4000, E3-1535M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5523 Points ∼68% -17%
Average of class Workstation
  (2466 - 8528, n=34)
5078 Points ∼63% -23%
Productivity
Eurocom Tornado F7W
Quadro P5200, 9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0)
8307 Points ∼100% +15%
Fujitsu Celsius H970
Quadro P4000, E3-1535M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
7734 Points ∼93% +7%
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
7544 Points ∼91% +5%
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
7459 Points ∼90% +4%
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
7203 Points ∼87%
Average Intel Core i7-8750H, NVIDIA Quadro P3200

7203 Points ∼87% 0%
Average of class Workstation
  (4897 - 8307, n=34)
7049 Points ∼85% -2%
Essentials
Eurocom Tornado F7W
Quadro P5200, 9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0)
9847 Points ∼100% +23%
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
9121 Points ∼93% +14%
Average of class Workstation
  (7172 - 9847, n=34)
8512 Points ∼86% +6%
Fujitsu Celsius H970
Quadro P4000, E3-1535M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
8140 Points ∼83% +1%
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
8077 Points ∼82% +1%
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
8032 Points ∼82%
Average Intel Core i7-8750H, NVIDIA Quadro P3200

8032 Points ∼82% 0%
Score
Eurocom Tornado F7W
Quadro P5200, 9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0)
6255 Points ∼100% +20%
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
5335 Points ∼85% +2%
HP ZBook 17 G5-2ZC48EA
Quadro P3200, 8850H, Toshiba XG5 KXG50ZNV256G
5287 Points ∼85% +2%
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
5248 Points ∼84% +1%
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
5206 Points ∼83%
Average Intel Core i7-8750H, NVIDIA Quadro P3200

5206 Points ∼83% 0%
Fujitsu Celsius H970
Quadro P4000, E3-1535M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5041 Points ∼81% -3%
Average of class Workstation
  (3281 - 6255, n=35)
4775 Points ∼76% -8%
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
5503 Points ∼100% +7%
Fujitsu Celsius H970
Quadro P4000, E3-1535M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5277 Points ∼96% +3%
HP ZBook 17 G5-2ZC48EA
Quadro P3200, 8850H, Toshiba XG5 KXG50ZNV256G
5276 Points ∼96% +3%
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
5132 Points ∼93%
Average Intel Core i7-8750H, NVIDIA Quadro P3200

5132 Points ∼93% 0%
Average of class Workstation
  (3311 - 5655, n=72)
4816 Points ∼88% -6%
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
4460 Points ∼81% -13%
Home Score Accelerated v2
Eurocom Tornado F7W
Quadro P5200, 9900K, 3x Samsung SSD 970 Pro 512GB (RAID 0)
5130 Points ∼100% +17%
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
4550 Points ∼89% +4%
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4376 Points ∼85%
Average Intel Core i7-8750H, NVIDIA Quadro P3200

4376 Points ∼85% 0%
HP ZBook 17 G5-2ZC48EA
Quadro P3200, 8850H, Toshiba XG5 KXG50ZNV256G
4332 Points ∼84% -1%
Average of class Workstation
  (2320 - 5505, n=73)
3982 Points ∼78% -9%
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
3772 Points ∼74% -14%
PCMark 8 Home Score Accelerated v2
4376 punten
PCMark 8 Work Score Accelerated v2
5132 punten
Help
AS SSD
AS SSD

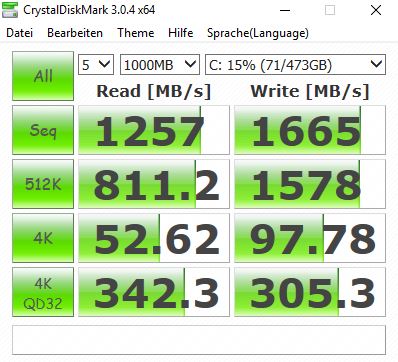

CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
Fujitsu Celsius H980
Samsung SSD PM981 MZVLB512HAJQ
Fujitsu Celsius H970
Samsung SM961 MZVKW512HMJP m.2 PCI-e
Dell Precision 7720
Toshiba NVMe THNSN5512GPU7
Lenovo ThinkPad P72-20MB000EGE
Lenovo LENSE20256GMSP34MEAT2TA
HP ZBook 17 G5-2ZC48EA
Toshiba XG5 KXG50ZNV256G
Average Samsung SSD PM981 MZVLB512HAJQ

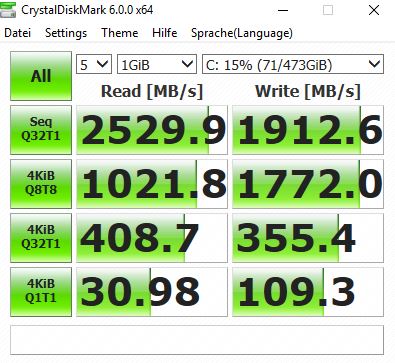

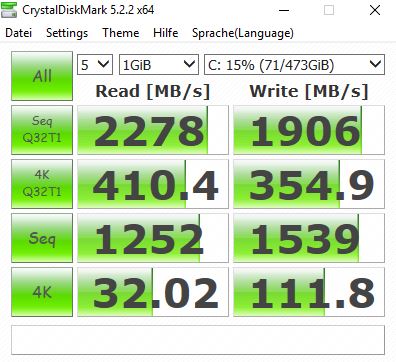

CrystalDiskMark 5.2 / 6
33%
15%
8%
12%
Write 4K
111.8
176.1
58%
169.16
51%
101.04
-10%
123 (90.4 - 166, n=47)
10%
Read 4K
32.02
44.53
39%
46.03
44%
45.37
42%
43 (28 - 61.3, n=46)
34%
Write Seq
1539
1637
6%
1234.23
-20%
1408.54
-8%
1552 (112 - 2714, n=47)
1%
Read Seq
1252
1714
37%
1853.87
48%
2129.47
70%
1703 (501 - 2665, n=47)
36%
Write 4K Q32T1
355.4
534.1
50%
364.81
3%
320.28
-10%
410 (198 - 1707, n=47)
15%
Read 4K Q32T1
408.7
635.1
55%
551.68
35%
348.3
-15%
403 (268 - 1015, n=47)
-1%
Write Seq Q32T1
1912.6
1632
-15%
1087.7
-43%
1529.2
-20%
1966 (1714 - 2994, n=47)
3%
Read Seq Q32T1
2529.9
3310
31%
2582.2
2%
2957
17%
3047 (1772 - 3562, n=47)
20%
Write 4K Q8T8
1772
1392 (409 - 1814, n=10)
-21%
Read 4K Q8T8
1021.8
1268 (527 - 1620, n=10)
24%

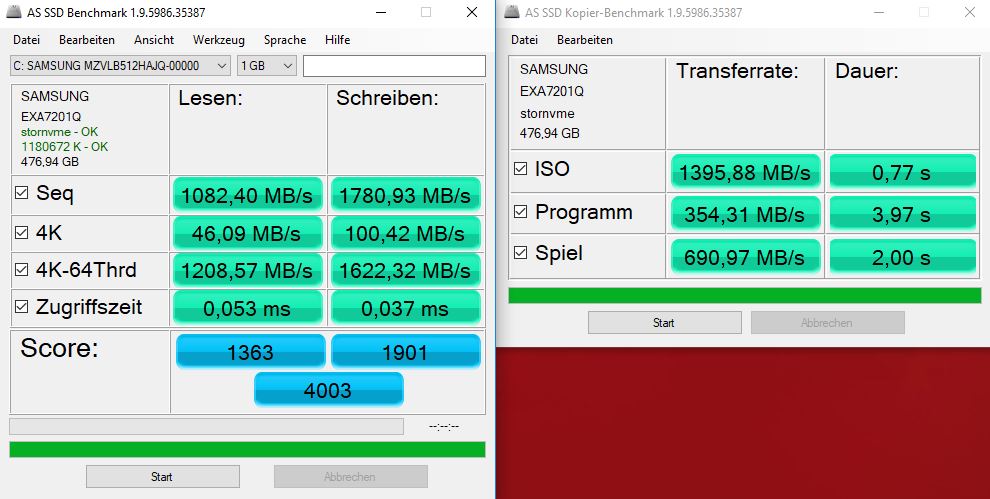

AS SSD
3%
2%
1%
Copy Game MB/s
690.97
838.78
21%
909.14
32%
990 (547 - 1584, n=34)
43%
Copy Program MB/s
354.31
297.54
-16%
519.85
47%
429 (206 - 713, n=34)
21%
Copy ISO MB/s
1395.88
1721.74
23%
1545.31
11%
1679 (917 - 3259, n=34)
20%
Score Total
4003
3509
-12%
2305
-42%
3940 (2348 - 5316, n=45)
-2%
Score Write
1901
1210
-36%
791
-58%
1747 (147 - 2992, n=45)
-8%
Score Read
1363
1557
14%
1044
-23%
1458 (820 - 2125, n=45)
7%
Access Time Write *
0.037
0.048
-30%
0.037
-0%
0.0954 (0.026 - 2.52, n=45)
-158%
Access Time Read *
0.053
0.05
6%
0.044
17%
0.0494 (0.029 - 0.073, n=45)
7%
4K-64 Write
1622.32
971.07
-40%
539.68
-67%
1480 (96.2 - 2716, n=45)
-9%
4K-64 Read
1208.57
1245.7
3%
703.5
-42%
1212 (530 - 1823, n=45)
0%
4K Write
100.42
78.05
-22%
105.76
5%
108 (1.76 - 142, n=45)
8%
4K Read
46.09
38.88
-16%
46.64
1%
49.7 (31.7 - 61, n=45)
8%
Seq Write
1780.93
1609.28
-10%
1451
-19%
1591 (487 - 2330, n=45)
-11%
Seq Read
1082.4
2725.76
152%
2935
171%
1964 (1049 - 2806, n=45)
81%
Totaal Gemiddelde (Programma / Instellingen)
18% / 14%
15% / 15%
5% / 5%
7% / 5%

* ... kleiner is beter

Samsung SSD PM981 MZVLB512HAJQ
Sequential Read: 1257 MB/s
Sequential Write: 1665 MB/s
512K Read: 811.2 MB/s
512K Write: 1578 MB/s
4K Read: 52.62 MB/s
4K Write: 97.78 MB/s
4K QD32 Read: 342.3 MB/s
4K QD32 Write: 305.3 MB/s
3DMark 11 - 1280x720 Performance GPU
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
19569 Points ∼100% +16%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
17021 Points ∼87% +1%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
16805 Points ∼86%
Average NVIDIA Quadro P3200
  (14673 - 17021, n=4)
16233 Points ∼83% -3%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
15433 Points ∼79% -8%
Average of class Workstation
  (841 - 25266, n=104)
6179 Points ∼32% -63%
3DMark
2560x1440 Time Spy Graphics
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
4378 Points ∼100% +1%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
4356 Points ∼99%
Average NVIDIA Quadro P3200
  (3732 - 4378, n=3)
4155 Points ∼95% -5%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
3960 Points ∼90% -9%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
2898 Points ∼66% -33%
Average of class Workstation
  (355 - 6851, n=23)
2862 Points ∼65% -34%
1920x1080 Fire Strike Graphics
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
14666 Points ∼100% +17%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
12555 Points ∼86% 0%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
12554 Points ∼86%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
12259 Points ∼84% -2%
Average NVIDIA Quadro P3200
  (11316 - 12558, n=4)
12246 Points ∼83% -2%
Average of class Workstation
  (752 - 18544, n=96)
4988 Points ∼34% -60%
1280x720 Cloud Gate Standard Graphics
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
86679 Points ∼100% +5%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
84059 Points ∼97% +2%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
82300 Points ∼95%
Average NVIDIA Quadro P3200
  (57501 - 84059, n=4)
76643 Points ∼88% -7%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
53834 Points ∼62% -35%
Average of class Workstation
  (5836 - 119052, n=96)
31936 Points ∼37% -61%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
148.39 fps ∼100% +2%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
144.9 fps ∼98%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
142.34 fps ∼96% -2%
Average NVIDIA Quadro P3200
  (102 - 148, n=5)
130 fps ∼88% -10%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
117.45 fps ∼79% -19%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
117.07 fps ∼79% -19%
Average of class Workstation
  (15.6 - 212, n=78)
77.4 fps ∼52% -47%
1900x1060 Siemens NX (snx-02)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
157.44 fps ∼100% +17%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
134.52 fps ∼85%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
130.1 fps ∼83% -3%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
126.25 fps ∼80% -6%
Average NVIDIA Quadro P3200
  (108 - 135, n=5)
124 fps ∼79% -8%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
83.11 fps ∼53% -38%
Average of class Workstation
  (4.87 - 218, n=78)
59.8 fps ∼38% -56%
1900x1060 Showcase (showcase-01)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
68.76 fps ∼100% +16%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
67.16 fps ∼98% +14%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
59.94 fps ∼87% +2%
Average NVIDIA Quadro P3200
  (58.5 - 59.9, n=5)
59.1 fps ∼86% 0%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
59.05 fps ∼86%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
58.52 fps ∼85% -1%
Average of class Workstation
  (3.93 - 98, n=76)
31.1 fps ∼45% -47%
1900x1060 Medical (medical-01)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
62.74 fps ∼100% +29%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
48.7 fps ∼78%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
47.28 fps ∼75% -3%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
47.1 fps ∼75% -3%
Average NVIDIA Quadro P3200
  (43.7 - 48.7, n=5)
46.2 fps ∼74% -5%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
39.4 fps ∼63% -19%
Average of class Workstation
  (0.99 - 79.4, n=78)
22.3 fps ∼36% -54%
1900x1060 Maya (maya-04)
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
92.73 fps ∼100% +3%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
90.3 fps ∼97%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
88.79 fps ∼96% -2%
Average NVIDIA Quadro P3200
  (64.9 - 92.7, n=5)
79.8 fps ∼86% -12%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
77.88 fps ∼84% -14%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
69.43 fps ∼75% -23%
Average of class Workstation
  (5.4 - 148, n=79)
46 fps ∼50% -49%
1900x1060 Energy (energy-01)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
14.22 fps ∼100% +33%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
10.72 fps ∼75%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
10.61 fps ∼75% -1%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
10.51 fps ∼74% -2%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
10.29 fps ∼72% -4%
Average NVIDIA Quadro P3200
  (9.04 - 10.7, n=5)
10.2 fps ∼72% -5%
Average of class Workstation
  (0.06 - 16.9, n=79)
4.5 fps ∼32% -58%
1900x1060 Creo (creo-01)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
117.15 fps ∼100% +7%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
112.57 fps ∼96% +3%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
109.47 fps ∼93%
Average NVIDIA Quadro P3200
  (97.2 - 113, n=5)
106 fps ∼90% -3%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
97.2 fps ∼83% -11%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
97.14 fps ∼83% -11%
Average of class Workstation
  (14 - 160, n=79)
55.2 fps ∼47% -50%
1900x1060 Catia (catia-04)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
139.86 fps ∼100% +12%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
126.84 fps ∼91% +1%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
125.36 fps ∼90%
Average NVIDIA Quadro P3200
  (105 - 127, n=5)
117 fps ∼84% -7%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
115.22 fps ∼82% -8%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
107.5 fps ∼77% -14%
Average of class Workstation
  (13.4 - 197, n=79)
61.9 fps ∼44% -51%
1900x1060 3ds Max (3dsmax-05)
Average NVIDIA Quadro P3200
  (110 - 110, n=2)
110 fps ∼100% 0%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
109.97 fps ∼100%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
93.62 fps ∼85% -15%
Average of class Workstation
  (11.4 - 110, n=15)
55.2 fps ∼50% -50%
SPECviewperf 13
Solidworks (sw-04)
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
133.5 fps ∼100% +2%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
131.52 fps ∼99%
Average NVIDIA Quadro P3200
  (109 - 134, n=4)
121 fps ∼91% -8%
Average of class Workstation
  (64.6 - 189, n=14)
109 fps ∼82% -17%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
108.54 fps ∼81% -17%
Siemens NX (snx-03)
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
243.53 fps ∼100%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
238.9 fps ∼98% -2%
Average NVIDIA Quadro P3200
  (204 - 244, n=4)
229 fps ∼94% -6%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
228.36 fps ∼94% -6%
Average of class Workstation
  (65.8 - 396, n=14)
190 fps ∼78% -22%
Showcase (showcase-02)
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
59.17 fps ∼100% +1%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
58.85 fps ∼99%
Average NVIDIA Quadro P3200
  (58.4 - 59.2, n=4)
58.8 fps ∼99% 0%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
58.4 fps ∼99% -1%
Average of class Workstation
  (19.3 - 94, n=14)
47.7 fps ∼81% -19%
Medical (medical-02)
Average NVIDIA Quadro P3200
  (27.5 - 37.9, n=4)
31.6 fps ∼100% +2%
Average of class Workstation
  (10.3 - 73.2, n=14)
31.3 fps ∼99% +1%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
30.91 fps ∼98%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
29.9 fps ∼95% -3%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
27.49 fps ∼87% -11%
Maya (maya-05)
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
168.57 fps ∼100%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
163.9 fps ∼97% -3%
Average NVIDIA Quadro P3200
  (148 - 169, n=4)
158 fps ∼94% -6%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
150.25 fps ∼89% -11%
Average of class Workstation
  (56.3 - 255, n=14)
134 fps ∼79% -21%
Energy (energy-02)
Average NVIDIA Quadro P3200
  (8.39 - 25.2, n=4)
12.6 fps ∼100% +48%
Average of class Workstation
  (3.15 - 36, n=14)
11.3 fps ∼90% +33%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
8.5 fps ∼67%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
8.41 fps ∼67% -1%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
8.39 fps ∼67% -1%
Creo (creo-02)
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
165.3 fps ∼100% +4%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
158.84 fps ∼96%
Average NVIDIA Quadro P3200
  (146 - 165, n=4)
156 fps ∼94% -2%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
146.44 fps ∼89% -8%
Average of class Workstation
  (55.9 - 248, n=14)
130 fps ∼79% -18%
Catia (catia-05)
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
200.5 fps ∼100% +5%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
190.79 fps ∼95%
Average NVIDIA Quadro P3200
  (169 - 201, n=4)
185 fps ∼92% -3%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
168.94 fps ∼84% -11%
Average of class Workstation
  (55 - 302, n=14)
153 fps ∼76% -20%
3ds Max (3dsmax-06)
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
107.52 fps ∼100%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
105.9 fps ∼98% -2%
Average NVIDIA Quadro P3200
  (92.5 - 108, n=4)
103 fps ∼96% -4%
Average of class Workstation
  (44.4 - 173, n=14)
92.7 fps ∼86% -14%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
92.5 fps ∼86% -14%
LuxMark v2.0 64Bit
Room GPUs-only
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
2337 Samples/s ∼100% +7%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
2181 Samples/s ∼93%
Average NVIDIA Quadro P3200
  (1842 - 2206, n=5)
2052 Samples/s ∼88% -6%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
1863 Samples/s ∼80% -15%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
1847 Samples/s ∼79% -15%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
1842 Samples/s ∼79% -16%
Average of class Workstation
  (49 - 2840, n=81)
832 Samples/s ∼36% -62%
Sala GPUs-only
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
4383 Samples/s ∼100%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
4357 Samples/s ∼99% -1%
Average NVIDIA Quadro P3200
  (3612 - 4383, n=5)
4038 Samples/s ∼92% -8%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
3635 Samples/s ∼83% -17%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
3612 Samples/s ∼82% -18%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
3564 Samples/s ∼81% -19%
Average of class Workstation
  (48 - 5927, n=82)
1549 Samples/s ∼35% -65%
Unigine Heaven 4.0
Extreme Preset OpenGL
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
88.2 fps ∼100% +21%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
73 fps ∼83%
Average NVIDIA Quadro P3200
  (70.3 - 73, n=3)
71.6 fps ∼81% -2%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
71.4 fps ∼81% -2%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
70.3 fps ∼80% -4%
Average of class Workstation
  (6.8 - 104, n=25)
36.1 fps ∼41% -51%
Extreme Preset DX11
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
100.3 fps ∼100% +30%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
77.2 fps ∼77%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
75.7 fps ∼75% -2%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
75.6 fps ∼75% -2%
Average NVIDIA Quadro P3200
  (71.4 - 77.2, n=4)
75 fps ∼75% -3%
Average of class Workstation
  (8.1 - 123, n=33)
40.7 fps ∼41% -47%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
73.9 fps ∼100% +23%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
63 fps ∼85% +5%
Average NVIDIA Quadro P3200
  (57.1 - 63, n=3)
60 fps ∼81% 0%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
59.9 fps ∼81%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
57.1 fps ∼77% -5%
Average of class Workstation
  (6.1 - 89.9, n=38)
30.9 fps ∼42% -48%
1920x1080 Extreme HD Preset OpenGL AA:x8
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
55.4 fps ∼100% +10%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
50.2 fps ∼91%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
49.7 fps ∼90% -1%
Average NVIDIA Quadro P3200
  (49.3 - 50.2, n=3)
49.7 fps ∼90% -1%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
49.3 fps ∼89% -2%
Average of class Workstation
  (5.6 - 75.8, n=37)
25.1 fps ∼45% -50%
SiSoft Sandra 2016
Image Processing
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
820.96 MPix/s ∼100%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
819.22 MPix/s ∼100% 0%
Average NVIDIA Quadro P3200
  (691 - 830, n=4)
790 MPix/s ∼96% -4%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
785.7 MPix/s ∼96% -4%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
690.6 MPix/s ∼84% -16%
Average of class Workstation
  (95.8 - 1240, n=36)
348 MPix/s ∼42% -58%
GP Cryptography (Higher Security AES256+SHA2-512)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
33.08 GB/s ∼100% +10%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
30.16 GB/s ∼91% +1%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
30 GB/s ∼91%
Average NVIDIA Quadro P3200
  (28.1 - 30.2, n=4)
29.3 GB/s ∼89% -2%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
28.1 GB/s ∼85% -6%
Average of class Workstation
  (3.92 - 58, n=36)
14.3 GB/s ∼43% -52%
GP Financial Analysis (FP High/Double Precision)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
100.48 KOPT/s ∼100% +16%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
86.37 KOPT/s ∼86%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
86.14 KOPT/s ∼86% 0%
Average NVIDIA Quadro P3200
  (84.5 - 86.6, n=4)
85.9 KOPT/s ∼85% -1%
HP ZBook 17 G5-2ZC48EA
NVIDIA Quadro P3200, Intel Core i7-8850H
84.5 KOPT/s ∼84% -2%
Average of class Workstation
  (11.8 - 111, n=36)
39.9 KOPT/s ∼40% -54%
ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
3518 Points ∼100%
Average NVIDIA Quadro P3200
  (3204 - 3518, n=3)
3311 Points ∼94% -6%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
3210 Points ∼91% -9%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
2934 Points ∼83% -17%
Average of class Workstation
  (336 - 6306, n=37)
1846 Points ∼52% -48%
1024x600 Normal, Mandel Scalar
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
2016 Points ∼100%
Average NVIDIA Quadro P3200
  (1837 - 2016, n=3)
1919 Points ∼95% -5%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
1837 Points ∼91% -9%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
1767 Points ∼88% -12%
Average of class Workstation
  (194 - 3664, n=37)
1156 Points ∼57% -43%
1024x600 Normal, Mandel Vector
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
1983 Points ∼100%
Average NVIDIA Quadro P3200
  (1821 - 1983, n=3)
1899 Points ∼96% -4%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
1821 Points ∼92% -8%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
1786 Points ∼90% -10%
Average of class Workstation
  (160 - 3371, n=37)
1106 Points ∼56% -44%
1024x600 Normal, Fluid 2DTexArr
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
1065 Points ∼100% +17%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
910 Points ∼85%
Average NVIDIA Quadro P3200
  (892 - 910, n=3)
899 Points ∼84% -1%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
895 Points ∼84% -2%
Average of class Workstation
  (101 - 1710, n=37)
570 Points ∼54% -37%
1024x600 Normal, Fluid 3DTex
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
1058 Points ∼100% +17%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
908 Points ∼86%
Average NVIDIA Quadro P3200
  (891 - 908, n=3)
898 Points ∼85% -1%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
891 Points ∼84% -2%
Average of class Workstation
  (86 - 1957, n=37)
579 Points ∼55% -36%
1024x600 Normal, Score
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
9335 Points ∼100%
Average NVIDIA Quadro P3200
  (8654 - 9335, n=3)
8927 Points ∼96% -4%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
8654 Points ∼93% -7%
Fujitsu Celsius H970
NVIDIA Quadro P4000, Intel Xeon E3-1535M v6
8609 Points ∼92% -8%
Average of class Workstation
  (388 - 15892, n=39)
4908 Points ∼53% -47%
3DMark 11 Performance
15178 punten
3DMark Ice Storm Standard Score
90781 punten
3DMark Cloud Gate Standard Score
34178 punten
3DMark Fire Strike Score
11114 punten
3DMark Fire Strike Extreme Score
5856 punten
3DMark Time Spy Score
4593 punten
Help
lage gem. hoge ultra
BioShock Infinite (2013) 284.9246.5231.5112.3fps
Dota 2 Reborn (2015) 129.6121.2114.7107.8fps
Rise of the Tomb Raider (2016) 1821448673fps
X-Plane 11.11 (2018) 1008672fps
Far Cry 5 (2018) 120797470fps

Geluidsniveau

Onbelast
29.6 / 32.5 / 32.5 dB (A)
Belasting
34.9 / 49.1 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.6 dB(A)
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
Fujitsu Celsius H970
Quadro P4000, E3-1535M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
HP ZBook 17 G5-2ZC48EA
Quadro P3200, 8850H, Toshiba XG5 KXG50ZNV256G
Noise
-6%
4%
10%
5%
off / environment *
29.6
30.2
-2%
29.5
-0%
28.6
3%
28.7
3%
Idle Minimum *
29.6
30.2
-2%
29.5
-0%
28.6
3%
28.7
3%
Idle Average *
32.5
32.8
-1%
29.5
9%
28.6
12%
28.7
12%
Idle Maximum *
32.5
32.8
-1%
29.5
9%
28.6
12%
30.9
5%
Load Average *
34.9
47.3
-36%
35
-0%
31.9
9%
37.3
-7%
Load Maximum *
49.1
47.3
4%
47.8
3%
37.7
23%
41.4
16%
Witcher 3 ultra *
41
35.7
41.1

* ... kleiner is beter

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.33134.832.428.32527.626.226.92826.23127.928.529.730.630.14025.828.226.927.227.35028.223.524.324.8336344.124.126.824.825.68038.122.922.423.923.910027.725.223.424.225.712527.425.322.623.524.316029.12423.725.125.920029.123.72223.227.425028.7242223.524.931531.724.221.22325.540033.825.5212428.75003626.720.724.330.36303525.62022.62980034.424.919.22229.2100035.625.418.822.529.4125037.326.21824.430.5160036.523.717.120.130.4200040.123.216.619.831.3250041.223.216.220.430315039.120.216.117.626.5400037.117.915.716.624.4500035.817.415.71622.1630033.216.915.515.820.480002916.515.315.617.71000026.416.915.415.516.71250022.317.515.315.316.31600020.417.41515.116.1SPL49.134.929.632.540.1N6.52.11.31.73.2median 33.8median 23.7median 18median 22median 25.9Delta43.433.54.2hearing rangehide median Fan NoiseFujitsu Celsius H980
Max. Belasting
 40.7 °C41.8 °C37.4 °C
 33.8 °C37.3 °C35.8 °C
 23.1 °C23.6 °C23.8 °C
Maximum: 41.8 °C
Gemiddelde: 33 °C
40 °C46.2 °C41.9 °C
26.1 °C35.9 °C36.1 °C
26.4 °C22.4 °C21.8 °C
Maximum: 46.2 °C
Gemiddelde: 33 °C
Stroomadapter (max.)  35.9 °C | Kamertemperatuur 20 °C | Voltcraft IR-900
