Kort testrapport Dell Latitude 5490 (Core i7-8650U, Touchscreen) Laptop

Steve Schardein, 28-05-2018

Sneller maar dimmer... De nieuwe Core i7-8650U en NVMe SSD Latitude 5490 configuratie biedt nog betere prestaties dan voorheen - maar deze komen niet zonder nadelen. We beoordelen kundig de verhoudingen in ons testrapport.

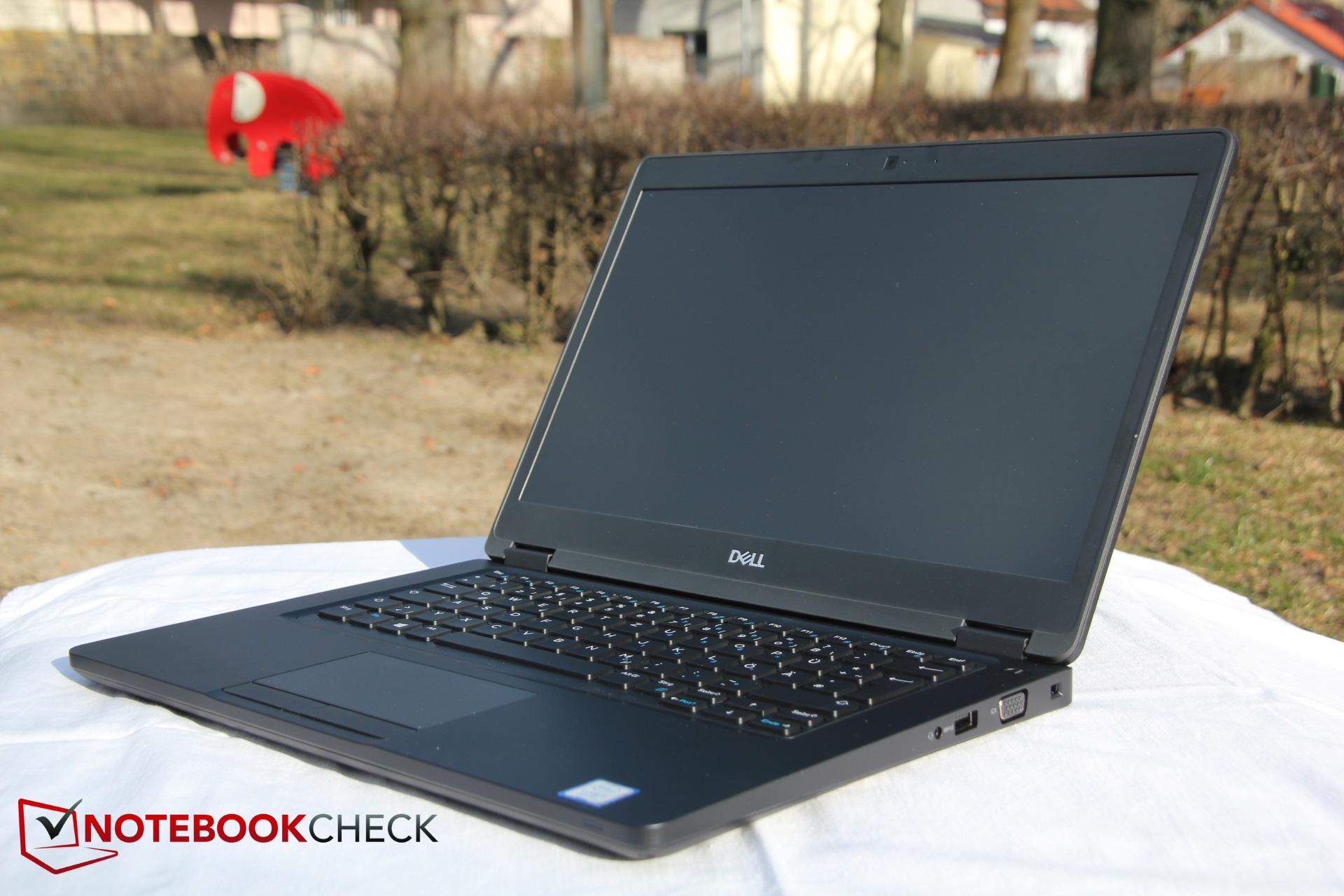

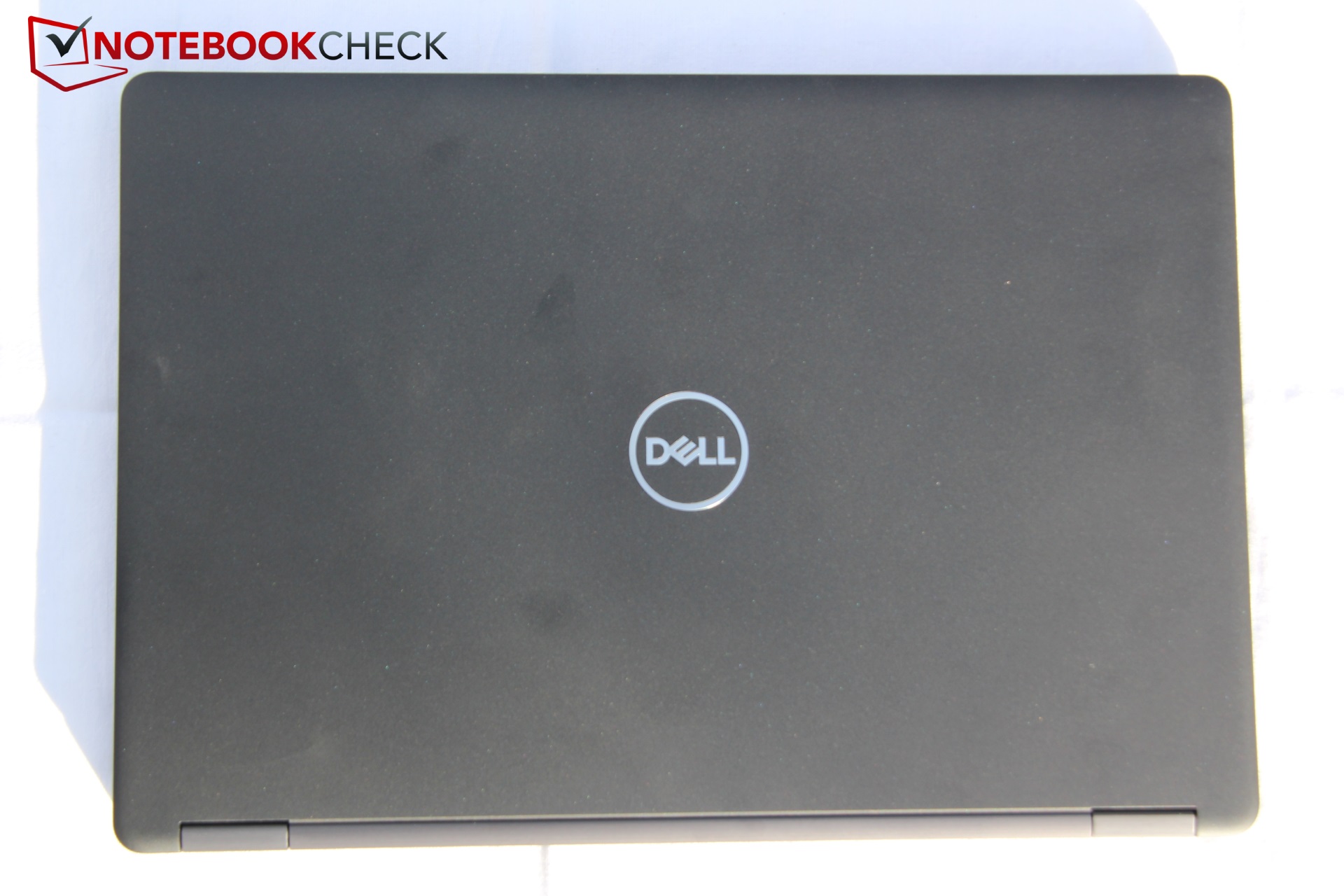

Dell Latitude 5490 (Latitude 5490 Serie)

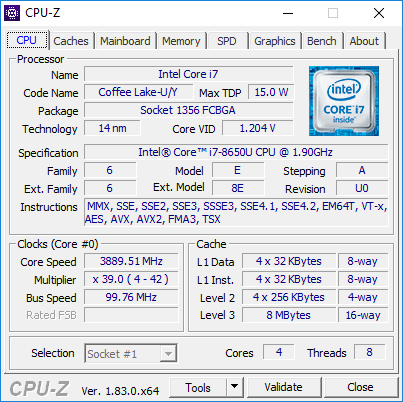

Processor
Intel Core i7-8650U
Grafische kaart
Intel UHD Graphics 620, Core: 300-1150 MHz, 22.20.16.4799
Geheugen
8192 MB
, DDR4
Beeldscherm
14 inch 16:9, 1920 x 1080 pixel 157 PPI, yes; 10-point multi-touch, AUO133D, IPS, glimmend: ja
Moederbord
Intel Sunrise Point-LP
Opslag
Samsung PM961 MZVLW256HEHP, 256 GB
Geluidskaart
Realtek ALC256 @ Intel Sunrise Point-LP PCH - High Definition Audio Controller
Verbindingen
4 USB 3.0, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5 mm combo audio, Card Reader: full SD, 1 SmartCard, 1 Vingerafdruklezer
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac)
Afmetingen
hoogte x breedte x diepte (in mm): 21 x 333 x 229
Batterij
68 Wh Lithium-Polymer
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Primary Camera: 1 MPix
Bijkomende functionaliteiten
Luidsprekers: Stereo 2.0, down-firing, Toetsenbordverlichting: ja, 12 Maanden Garantie
Gewicht
1.694 kg, Voeding: 315 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



334.4 mm 228.9 mm 22.5 mm 1.8 kg338 mm 237 mm 18.9 mm 1.5 kg336.6 mm 232.5 mm 19.95 mm 1.7 kg333 mm 229 mm 21 mm 1.7 kg333 mm 229 mm 21 mm 1.7 kg
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sorteer op waarde)
Dell Latitude 5490
10 fps ∼4%
HP EliteBook 840 G4-Z2V49ET ABD
6.4 fps ∼2% -36%
Lenovo ThinkPad T470-20HD002HGE
6.4 fps ∼2% -36%
1366x768 High Preset (sorteer op waarde)
Dell Latitude 5490
29 fps ∼8%
HP EliteBook 840 G4-Z2V49ET ABD
19.8 fps ∼6% -32%
Lenovo ThinkPad T470-20HD002HGE
19.9 fps ∼6% -31%
1366x768 Medium Preset (sorteer op waarde)
Dell Latitude 5490
35 fps ∼9%
HP EliteBook 840 G4-Z2V49ET ABD
24.3 fps ∼6% -31%
Lenovo ThinkPad T470-20HD002HGE
23.9 fps ∼6% -32%
1280x720 Very Low Preset (sorteer op waarde)
Dell Latitude 5490
64 fps ∼14%
HP EliteBook 840 G4-Z2V49ET ABD
40.5 fps ∼9% -37%
Lenovo ThinkPad T470-20HD002HGE
40.5 fps ∼9% -37%

Legende


Dell Latitude 5490 Intel Core i7-8650U, Intel UHD Graphics 620, Samsung PM961 MZVLW256HEHP

Dell Latitude 5490-TD70X Intel Core i5-8350U, Intel UHD Graphics 620, Toshiba KSG60ZMV512G

Dell Latitude 5480 Intel Core i7-7600U, Intel HD Graphics 620, Toshiba SG5 256GB THNSNK256GVN8

HP EliteBook 840 G4-Z2V49ET ABD Intel Core i5-7200U, Intel HD Graphics 620, Samsung PM961 MZVLW256HEHP

Lenovo ThinkPad T470-20HD002HGE Intel Core i5-7200U, Intel HD Graphics 620, Samsung PM961 NVMe MZVLW512HMJP
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Latitude 5490-TD70X
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
166.4 MB/s ∼100% +7%
Dell Latitude 5490
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
154.92 MB/s ∼93%
Dell Latitude 5480
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
131.3 MB/s ∼79% -15%
Lenovo ThinkPad T470-20HD002HGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
76.6 MB/s ∼46% -51%
HP EliteBook 840 G4-Z2V49ET ABD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
74.9 MB/s ∼45% -52%
Average of class Office
  (10.2 - 191, n=265)
60.2 MB/s ∼36% -61%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 5480
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
251.9 MB/s ∼100% +22%
Dell Latitude 5490-TD70X
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
208.2 MB/s ∼83% +1%
Dell Latitude 5490
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
206.83 MB/s ∼82%
Lenovo ThinkPad T470-20HD002HGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
88.74 MB/s ∼35% -57%
HP EliteBook 840 G4-Z2V49ET ABD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
83.7 MB/s ∼33% -60%
Average of class Office
  (9.5 - 255, n=240)
76.5 MB/s ∼30% -63%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad T470-20HD002HGE
Intel Dual Band Wireless-AC 8265
657 MBit/s ∼100% +1%
Dell Latitude 5490
Intel Dual Band Wireless-AC 8265
653 MBit/s ∼99%
Dell Latitude 5480
Qualcomm QCA6174
645 MBit/s ∼98% -1%
Dell Latitude 5490-TD70X
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
607 MBit/s ∼92% -7%
HP EliteBook 840 G4-Z2V49ET ABD
Intel Dual Band Wireless-AC 8265 (jseb)
579 MBit/s ∼88% -11%
Average of class Office
  (5 - 688, n=208)
460 MBit/s ∼70% -30%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell Latitude 5490
Intel Dual Band Wireless-AC 8265
524 MBit/s ∼100%
Lenovo ThinkPad T470-20HD002HGE
Intel Dual Band Wireless-AC 8265
512 MBit/s ∼98% -2%
Dell Latitude 5490-TD70X
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
511 MBit/s ∼98% -2%
HP EliteBook 840 G4-Z2V49ET ABD
Intel Dual Band Wireless-AC 8265 (jseb)
509 MBit/s ∼97% -3%
Average of class Office
  (34 - 688, n=208)
435 MBit/s ∼83% -17%
Dell Latitude 5480
Qualcomm QCA6174
314 MBit/s ∼60% -40%
211.9
cd/m²
210.4
cd/m²
203.8
cd/m²
214.8
cd/m²
200.6
cd/m²
198
cd/m²
209.8
cd/m²
201.3
cd/m²
187.8
cd/m²
Helderheidsverdeling
X-Rite i1Pro Basic 2
Maximum: 214.8 cd/m² Gemiddelde: 204.3 cd/m² Minimum: 12.35 cd/m²
Helderheidsverdeling: 87 %
Helderheid in Batterij-modus: 200.6 cd/m²
Contrast: 1254:1 (Zwart: 0.16 cd/m²)
ΔE Color 8.36 | 0.6-29.43 Ø6.1, calibrated: 4.6
ΔE Greyscale 7.7 | 0.64-98 Ø6.3
54.2% sRGB (Argyll 3D) 34.5% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.773
Dell Latitude 5490
AUO133D, IPS, 14, 1920x1080
Dell Latitude 5490-TD70X
AU Optronics AUO263D, IPS, 14, 1920x1080
Dell Latitude 5480
LG Philips LGD0553, IPS, 14, 1920x1080
HP EliteBook 840 G4-Z2V49ET ABD
AUO123D, TN, 14, 1920x1080
Lenovo ThinkPad T480-20L6S01V00
Lenovo LP140WF6-SPB7, IPS, 14, 1920x1080
Lenovo ThinkPad T470-20HD002HGE
N140HCA-EAB, IPS, 14, 1920x1080
Response Times
-35%
-3%
-7%
-4%
-31%
Response Time Grey 50% / Grey 80% *
30.4 (16.8, 13.6)
46.9 (23.6, 23.3)
-54%
32.8 (14, 18.8)
-8%
39 (20, 19, Plateau)
-28%
35.6 (17.6, 18)
-17%
41.6 (20.4, 21.2)
-37%
Response Time Black / White *
27.2 (16.4, 10.8)
31.2 (18, 13.2)
-15%
26.4 (5.2, 21.2)
3%
23 (6, 17, Plateau)
15%
24.8 (13.2, 11.6)
9%
34 (9.6, 24.4)
-25%
PWM Frequency
Screen
11%
11%
-28%
14%
11%
Brightness middle
200.6
227
13%
215.9
8%
346
72%
307
53%
306
53%
Brightness
204
211
3%
205
0%
317
55%
295
45%
287
41%
Brightness Distribution
87
88
1%
90
3%
86
-1%
90
3%
88
1%
Black Level *
0.16
0.19
-19%
0.22
-38%
0.86
-438%
0.25
-56%
0.3
-88%
Contrast
1254
1195
-5%
981
-22%
402
-68%
1228
-2%
1020
-19%
Colorchecker DeltaE2000 *
8.36
5.6
33%
5.1
39%
8.64
-3%
5.7
32%
6.2
26%
Colorchecker DeltaE2000 max. *
25.63
22.4
13%
15.6
39%
13.58
47%
21.3
17%
13.6
47%
Colorchecker DeltaE2000 calibrated *
4.6
4.7
-2%
Greyscale DeltaE2000 *
7.7
2.4
69%
4
48%
11.24
-46%
3.7
52%
5.8
25%
Gamma
2.773 79%
2.44 90%
2.41 91%
2.62 84%
2.11 104%
2.04 108%
CCT
6397 102%
6506 100%
6856 95%
12530 52%
7353 88%
6277 104%
Color Space (Percent of AdobeRGB 1998)
34.5
34.5
0%
41.96
22%
52
51%
37.4
8%
39.62
15%
Color Space (Percent of sRGB)
54.2
54.4
0%
61.15
13%
80
48%
58.7
8%
61.44
13%
Totaal Gemiddelde (Programma / Instellingen)
-12% / 3%
4% / 9%
-18% / -25%
5% / 12%
-10% / 4%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

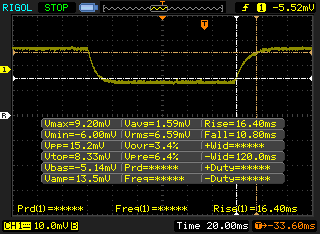

       Responstijd Zwart naar Wit
27.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 16.4 ms stijging
↘ 10.8 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 56 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (25.2 ms) van alle geteste toestellen.

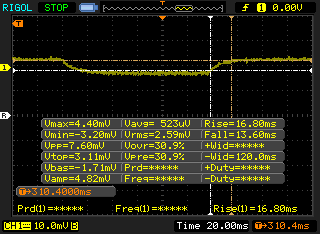

       Responstijd 50% Grijs naar 80% Grijs
30.4 ms ... stijging ↗ en daling ↘ gecombineerd↗ 16.8 ms stijging
↘ 13.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 18 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (40.3 ms) van alle geteste toestellen.

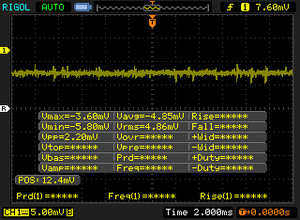

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9533 (minimum: 43 - maximum: 142900) Hz waargenomen.

Cinebench R15
CPU Single 64Bit
Dell Latitude 5490
Intel Core i7-8650U
178 Points ∼82%
Average Intel Core i7-8650U
  (128 - 178, n=17)
165 Points ∼76% -7%
Dell Latitude 5480
Intel Core i7-7600U
161 Points ∼74% -10%
Lenovo ThinkPad T480-20L6S01V00
Intel Core i7-8550U
161 Points ∼74% -10%
Dell Latitude 5490-TD70X
Intel Core i5-8350U
142 Points ∼65% -20%
Lenovo ThinkPad T470-20HD002HGE
Intel Core i5-7200U
126 Points ∼58% -29%
HP EliteBook 840 G4-Z2V49ET ABD
Intel Core i5-7200U
119 Points ∼55% -33%
Average of class Office
  (20 - 191, n=516)
111 Points ∼51% -38%
CPU Multi 64Bit
Lenovo ThinkPad T480-20L6S01V00
Intel Core i7-8550U
657 Points ∼15% +1%
Dell Latitude 5490
Intel Core i7-8650U
651 Points ∼15%
Dell Latitude 5490-TD70X
Intel Core i5-8350U
599 Points ∼14% -8%
Average Intel Core i7-8650U
  (447 - 675, n=19)
580 Points ∼13% -11%
Dell Latitude 5480
Intel Core i7-7600U
355 Points ∼8% -45%
Average of class Office
  (36 - 1050, n=522)
335 Points ∼8% -49%
HP EliteBook 840 G4-Z2V49ET ABD
Intel Core i5-7200U
329 Points ∼8% -49%
Lenovo ThinkPad T470-20HD002HGE
Intel Core i5-7200U
326 Points ∼7% -50%
Cinebench R11.5
CPU Single 64Bit
Dell Latitude 5490
Intel Core i7-8650U
2.04 Points ∼84%
Average Intel Core i7-8650U
  (1.67 - 2.04, n=9)
1.899 Points ∼78% -7%
Dell Latitude 5480
Intel Core i7-7600U
1.87 Points ∼77% -8%
Dell Latitude 5490-TD70X
Intel Core i5-8350U
1.62 Points ∼66% -21%
Lenovo ThinkPad T470-20HD002HGE
Intel Core i5-7200U
1.46 Points ∼60% -28%
Lenovo ThinkPad T480-20L6S01V00
Intel Core i7-8550U
1.43 Points ∼59% -30%
Average of class Office
  (0.23 - 2.07, n=423)
1.128 Points ∼46% -45%
CPU Multi 64Bit
Dell Latitude 5490-TD70X
Intel Core i5-8350U
7.33 Points ∼27% +5%
Dell Latitude 5490
Intel Core i7-8650U
6.97 Points ∼26%
Lenovo ThinkPad T480-20L6S01V00
Intel Core i7-8550U
6.92 Points ∼26% -1%
Average Intel Core i7-8650U
  (5.04 - 7.24, n=9)
6.35 Points ∼23% -9%
Dell Latitude 5480
Intel Core i7-7600U
3.98 Points ∼15% -43%
Lenovo ThinkPad T470-20HD002HGE
Intel Core i5-7200U
3.67 Points ∼14% -47%
Average of class Office
  (0.26 - 11.6, n=595)
2.76 Points ∼10% -60%
wPrime 2.0x - 1024m
Average of class Office
  (206 - 4269, n=384)
843 s * ∼10% -152%
Dell Latitude 5480
Intel Core i7-7600U
465.67 s * ∼6% -39%
Dell Latitude 5490-TD70X
Intel Core i5-8350U
355.162 s * ∼4% -6%
Dell Latitude 5490
Intel Core i7-8650U
334.6 s * ∼4%
Average Intel Core i7-8650U
  (268 - 335, n=3)
302 s * ∼4% +10%
Super Pi Mod 1.5 XS 32M - ---
Average Intel Core i7-8650U
  (8 - 7939, n=23)
1601 Seconds * ∼7% -220%
Average of class Office
  (-1 - 107890, n=6017)
1570 Seconds * ∼7% -213%
Dell Latitude 5490-TD70X
Intel Core i5-8350U
693.93 Seconds * ∼3% -39%
Dell Latitude 5480
Intel Core i7-7600U
511.67 Seconds * ∼2% -2%
Dell Latitude 5490
Intel Core i7-8650U
501 Seconds * ∼2%

* ... kleiner is beter

Cinebench R11.5 CPU Single 64Bit
2.04 Points
Cinebench R11.5 CPU Multi 64Bit
6.97 Points
Cinebench R11.5 OpenGL 64Bit
54.5 fps
Cinebench R15 CPU Single 64Bit
178 Points
Cinebench R15 CPU Multi 64Bit
651 Points
Cinebench R15 OpenGL 64Bit
56.16 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660Tooltip
Cinebench R15 CPU Multi 64 Bit
PCMark 8
Work Score Accelerated v2
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
5200 Points ∼80%
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
5025 Points ∼77% -3%
Dell Latitude 5480
HD Graphics 620, 7600U, Toshiba SG5 256GB THNSNK256GVN8
4992 Points ∼77% -4%
Average Intel Core i7-8650U, Intel UHD Graphics 620
  (3926 - 5200, n=8)
4789 Points ∼74% -8%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
4774 Points ∼73% -8%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
4667 Points ∼72% -10%
HP EliteBook 840 G4-Z2V49ET ABD
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
4572 Points ∼70% -12%
Average of class Office
  (1226 - 5428, n=334)
4000 Points ∼61% -23%
Creative Score Accelerated v2
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
5225 Points ∼55%
Dell Latitude 5480
HD Graphics 620, 7600U, Toshiba SG5 256GB THNSNK256GVN8
4923 Points ∼52% -6%
Average Intel Core i7-8650U, Intel UHD Graphics 620
  (4454 - 5225, n=6)
4895 Points ∼51% -6%
HP EliteBook 840 G4-Z2V49ET ABD
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
4352 Points ∼46% -17%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
4347 Points ∼46% -17%
Average of class Office
  (869 - 5918, n=243)
3374 Points ∼35% -35%
Home Score Accelerated v2
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
4065 Points ∼67%
Dell Latitude 5480
HD Graphics 620, 7600U, Toshiba SG5 256GB THNSNK256GVN8
3913 Points ∼64% -4%
Average Intel Core i7-8650U, Intel UHD Graphics 620
  (3216 - 4103, n=10)
3722 Points ∼61% -8%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
3695 Points ∼61% -9%
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3675 Points ∼60% -10%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
3507 Points ∼58% -14%
HP EliteBook 840 G4-Z2V49ET ABD
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
3486 Points ∼57% -14%
Average of class Office
  (1169 - 4770, n=390)
3042 Points ∼50% -25%
PCMark 10 - Score
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
4066 Points ∼52%
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3686 Points ∼47% -9%
Average Intel Core i7-8650U, Intel UHD Graphics 620
  (2403 - 4078, n=10)
3686 Points ∼47% -9%
Average of class Office
  (803 - 4597, n=134)
3196 Points ∼41% -21%
PCMark 8 Home Score Accelerated v2
4065 punten
PCMark 8 Creative Score Accelerated v2
5225 punten
PCMark 8 Work Score Accelerated v2
5200 punten
Help
Dell Latitude 5490
Samsung PM961 MZVLW256HEHP
Dell Latitude 5490-TD70X
Toshiba KSG60ZMV512G
HP EliteBook 840 G4-Z2V49ET ABD
Samsung PM961 MZVLW256HEHP
Lenovo ThinkPad T480-20L6S01V00
Samsung SSD PM981 MZVLB512HAJQ
Average Samsung PM961 MZVLW256HEHP

AS SSD
-20%
64%
-457%
-33%
Copy Game MB/s
273.57
504.95
85%
355.12
30%
675.5
147%
537 (225 - 1115, n=37)
96%
Copy Program MB/s
214.01
212.96
0%
269.68
26%
254.84
19%
343 (75 - 780, n=37)
60%
Copy ISO MB/s
514.39
426.58
-17%
735.23
43%
921.19
79%
1004 (420 - 1912, n=37)
95%
Score Total
1834
1067
-42%
3006
64%
2348
28%
2565 (35 - 4653, n=61)
40%
Score Write
449
381
-15%
767
71%
147
-67%
587 (48 - 1029, n=61)
31%
Score Read
916
455
-50%
1524
66%
1480
62%
1378 (363 - 2545, n=61)
50%
Access Time Write *
0.037
0.052
-41%
0.027
27%
2.515
-6697%
0.4637 (0.023 - 4.15, n=61)
-1153%
Access Time Read *
0.067
0.07
-4%
0.044
34%
0.041
39%
0.0678 (0.04 - 0.49, n=61)
-1%
4K-64 Write
300.86
259.55
-14%
510.02
70%
96.18
-68%
419 (15.3 - 1652, n=61)
39%
4K-64 Read
793.16
383.56
-52%
1214.58
53%
1277.96
61%
1112 (199 - 2280, n=61)
40%
4K Write
93.58
91.72
-2%
140.21
50%
1.76
-98%
91.6 (1.16 - 161, n=61)
-2%
4K Read
45.99
23.75
-48%
49.21
7%
58.03
26%
45.1 (20.7 - 54.1, n=61)
-2%
Seq Write
541.43
300.62
-44%
1166.63
115%
487.08
-10%
960 (223 - 1395, n=61)
77%
Seq Read
768.44
473.11
-38%
2602.67
239%
1441.21
88%
2019 (768 - 2834, n=61)
163%

* ... kleiner is beter

Samsung PM961 MZVLW256HEHP
CDM 5/6 Read Seq Q32T1: 875.4 MB/s
CDM 5/6 Write Seq Q32T1: 796 MB/s
CDM 5/6 Read 4K Q32T1: 268.8 MB/s
CDM 5/6 Write 4K Q32T1: 443.3 MB/s
CDM 5 Read Seq: 764.3 MB/s
CDM 5 Write Seq: 564.4 MB/s
CDM 5/6 Read 4K: 39.46 MB/s
CDM 5/6 Write 4K: 98.69 MB/s
3DMark 11
1280x720 Performance Combined
Lenovo ThinkPad T480-20L6S01V00
NVIDIA GeForce MX150, 8550U
4211 Points ∼19% +145%
Dell Latitude 5490
Intel UHD Graphics 620, 8650U
1722 Points ∼8%
Dell Latitude 5480
Intel HD Graphics 620, 7600U
1536 Points ∼7% -11%
Average Intel UHD Graphics 620
  (959 - 1968, n=148)
1524 Points ∼7% -11%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, 8350U
1284 Points ∼6% -25%
Lenovo ThinkPad T470-20HD002HGE
Intel HD Graphics 620, 7200U
1207 Points ∼5% -30%
Average of class Office
  (169 - 4957, n=636)
1174 Points ∼5% -32%
HP EliteBook 840 G4-Z2V49ET ABD
Intel HD Graphics 620, 7200U
1141 Points ∼5% -34%
1280x720 Performance GPU
Lenovo ThinkPad T480-20L6S01V00
NVIDIA GeForce MX150, 8550U
4300 Points ∼8% +144%
Dell Latitude 5490
Intel UHD Graphics 620, 8650U
1761 Points ∼3%
Average Intel UHD Graphics 620
  (1235 - 1979, n=148)
1703 Points ∼3% -3%
Dell Latitude 5480
Intel HD Graphics 620, 7600U
1685 Points ∼3% -4%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, 8350U
1617 Points ∼3% -8%
Lenovo ThinkPad T470-20HD002HGE
Intel HD Graphics 620, 7200U
1432 Points ∼3% -19%
HP EliteBook 840 G4-Z2V49ET ABD
Intel HD Graphics 620, 7200U
1413 Points ∼3% -20%
Average of class Office
  (185 - 5332, n=637)
1280 Points ∼3% -27%
3DMark
1920x1080 Fire Strike Graphics
Lenovo ThinkPad T480-20L6S01V00
NVIDIA GeForce MX150, 8550U
3585 Points ∼9% +214%
Dell Latitude 5490
Intel UHD Graphics 620, 8650U
1141 Points ∼3%
Average Intel UHD Graphics 620
  (557 - 1399, n=118)
1114 Points ∼3% -2%
Dell Latitude 5480
Intel HD Graphics 620, 7600U
1027 Points ∼3% -10%
Average of class Office
  (138 - 4109, n=460)
989 Points ∼2% -13%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, 8350U
981 Points ∼2% -14%
Lenovo ThinkPad T470-20HD002HGE
Intel HD Graphics 620, 7200U
818 Points ∼2% -28%
HP EliteBook 840 G4-Z2V49ET ABD
Intel HD Graphics 620, 7200U
738 Points ∼2% -35%
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad T480-20L6S01V00
NVIDIA GeForce MX150, 8550U
21893 Points ∼12% +127%
Dell Latitude 5490
Intel UHD Graphics 620, 8650U
9663 Points ∼5%
Average Intel UHD Graphics 620
  (6910 - 11294, n=134)
9092 Points ∼5% -6%
Dell Latitude 5480
Intel HD Graphics 620, 7600U
8740 Points ∼5% -10%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, 8350U
8226 Points ∼4% -15%
HP EliteBook 840 G4-Z2V49ET ABD
Intel HD Graphics 620, 7200U
6864 Points ∼4% -29%
Average of class Office
  (1208 - 27117, n=506)
6863 Points ∼4% -29%
Lenovo ThinkPad T470-20HD002HGE
Intel HD Graphics 620, 7200U
6824 Points ∼4% -29%
3DMark 06 Standard
11732 punten
3DMark 11 Performance
1989 punten
3DMark Cloud Gate Standard Score
8914 punten
3DMark Fire Strike Score
1062 punten
Help
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sorteer op waarde)
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
10 fps ∼4%
HP EliteBook 840 G4-Z2V49ET ABD
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
6.4 fps ∼2% -36%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
6.4 fps ∼2% -36%
Average Intel UHD Graphics 620
  (4.5 - 17, n=126)
9.07 fps ∼3% -9%
Average of class Office
  (1.8 - 54.8, n=239)
10.7 fps ∼4% +7%
1366x768 High Preset (sorteer op waarde)
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
29 fps ∼8%
HP EliteBook 840 G4-Z2V49ET ABD
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
19.8 fps ∼6% -32%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
19.9 fps ∼6% -31%
Average Intel UHD Graphics 620
  (8.1 - 34.5, n=135)
26.8 fps ∼8% -8%
Average of class Office
  (6.23 - 128, n=332)
26.6 fps ∼8% -8%
1366x768 Medium Preset (sorteer op waarde)
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
35 fps ∼9%
HP EliteBook 840 G4-Z2V49ET ABD
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
24.3 fps ∼6% -31%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
23.9 fps ∼6% -32%
Average Intel UHD Graphics 620
  (11.5 - 45.5, n=136)
32 fps ∼8% -9%
Average of class Office
  (7.18 - 145, n=353)
30.8 fps ∼8% -12%
1280x720 Very Low Preset (sorteer op waarde)
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
64 fps ∼14%
HP EliteBook 840 G4-Z2V49ET ABD
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
40.5 fps ∼9% -37%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
40.5 fps ∼9% -37%
Average Intel UHD Graphics 620
  (18.3 - 83, n=136)
59.7 fps ∼13% -7%
Average of class Office
  (12.2 - 204, n=355)
54.7 fps ∼12% -15%
lage gem. hoge ultra
BioShock Infinite (2013) 64352910fps

Geluidsniveau

Onbelast
27.8 / 27.8 / 31 dB (A)
Belasting
34.2 / 42.7 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   BK Precision 732A (15 cm afstand)   environment noise: 27.8 dB(A)
Dell Latitude 5490
UHD Graphics 620, 8650U, Samsung PM961 MZVLW256HEHP
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
Dell Latitude 5480
HD Graphics 620, 7600U, Toshiba SG5 256GB THNSNK256GVN8
HP EliteBook 840 G4-Z2V49ET ABD
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
Noise
-2%
-8%
-2%
1%
5%
off / environment *
27.8
28.8
-4%
31
-12%
29
-4%
28
-1%
Idle Minimum *
27.8
28.8
-4%
29.6
-6%
31
-12%
29
-4%
28
-1%
Idle Average *
27.8
28.8
-4%
29.6
-6%
31
-12%
29
-4%
28
-1%
Idle Maximum *
31
30.9
-0%
29.6
5%
31
-0%
29
6%
29.4
5%
Load Average *
34.2
35.6
-4%
42
-23%
33.5
2%
35.6
-4%
31.4
8%
Load Maximum *
42.7
41.4
3%
47.1
-10%
33.7
21%
35.6
17%
34.6
19%
Witcher 3 ultra *
32.5

* ... kleiner is beter

Max. Belasting
 39.6 °C39.8 °C34.2 °C
 43.4 °C39.4 °C29.4 °C
 28.2 °C28.2 °C27.4 °C
Maximum: 43.4 °C
Gemiddelde: 34.4 °C
28.4 °C39 °C41.8 °C
27.8 °C40 °C47.8 °C
26.8 °C28.6 °C31 °C
Maximum: 47.8 °C
Gemiddelde: 34.6 °C
Stroomadapter (max.)  41 °C | Kamertemperatuur 23 °C | Fluke 62 Mini IR Thermometer
(±) The average temperature for the upper side under maximal load is 34.4 °C / 94 F, compared to the average of 29.4 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 43.4 °C / 110 F, compared to the average of 33.9 °C / 93 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 47.8 °C / 118 F, compared to the average of 36.4 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.3 °C / 79 F, compared to the device average of 29.4 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.2 °C / 82.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.2 °C / 82.8 F (0 °C / 0 F).

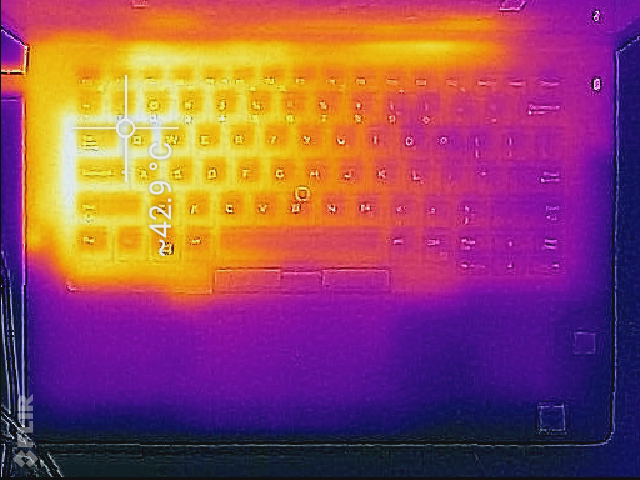

Thermal profile, max load, top
Thermal profile, max load, top

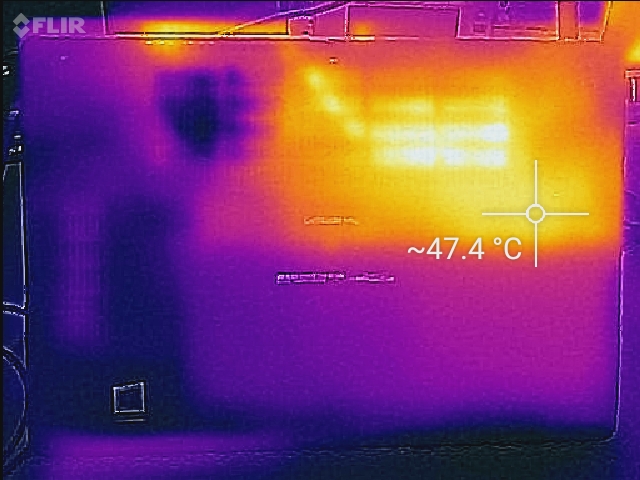

Thermal profile, max load, underside
Thermal profile, max load, underside

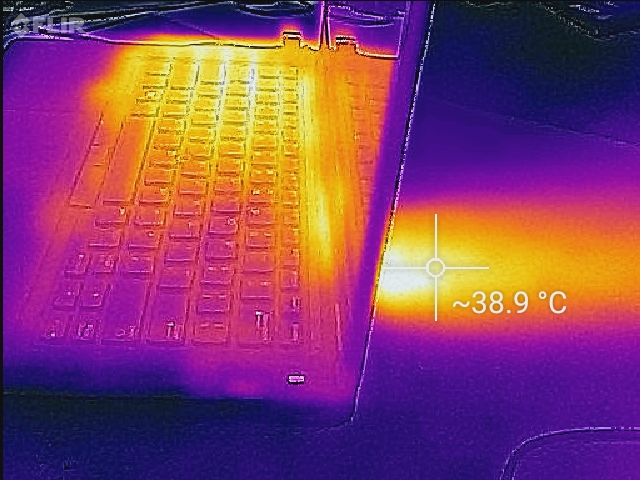

Thermal profile, max load, side
Thermal profile, max load, side
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.139.837.12534.834.734.83135.13335.14033.634.233.65032.733.432.76331.231.931.28032.530.632.510039.13139.112544.129.244.11604928.8492005228.45225053.927.853.93155326.95340055.42655.450060.125.360.163067.525.367.580073.424.573.4100067.524.267.5125064.923.664.9160065.223.965.220006423.46425006423.46431506423.264400064.423.264.4500066.52366.5630065.623.165.6800067.123.267.11000067.123.267.11250060.523.160.5160006223.262SPL78.33678.3N43.82.643.8median 64median 23.9median 64Delta6.11.86.13336.432.635.528.436.629.234.626.23225.934.926.138.325.936.924.339.922.741.62245.324.550.52159.519.262.21862.218.668.618.573.420.369.216.56814.66614.962.814.466.514.771.315.160.214.867.11569.915.357.215.257.614.960.914.953.828.879.71.247.3median 16.5median 62.23.17.1hearing rangehide median Pink NoiseDell Latitude 5490Lenovo ThinkPad T470-20HD002HGE
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Dell Latitude 5490 audio analysis

(±) | speaker loudness is average but good (78.32 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.5% lower than median
(±) | linearity of bass is average (9.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.9% away from median
(±) | linearity of mids is average (9.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.5% away from median
(+) | highs are linear (1.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.2% difference to median)
Compared to same class
» 13% of all tested devices in this class were better, 4% similar, 83% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 16% of all tested devices were better, 4% similar, 80% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Lenovo ThinkPad T470-20HD002HGE audio analysis

(±) | speaker loudness is average but good (80.44 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.6% lower than median
(±) | linearity of bass is average (8.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.3% away from median
(+) | mids are linear (6.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.4% higher than median
(±) | linearity of highs is average (13.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.3% difference to median)
Compared to same class
» 23% of all tested devices in this class were better, 8% similar, 69% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 26% of all tested devices were better, 6% similar, 68% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.25 / 0.74 Watt
Inactiefdarkmidlight 3.9 / 6.2 / 7.7 Watt
Belasting midlight 43.9 / 47.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Dell Latitude 5490
8650U, UHD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 14
Dell Latitude 5490-TD70X
8350U, UHD Graphics 620, Toshiba KSG60ZMV512G, IPS, 1920x1080, 14
Dell Latitude 5480
7600U, HD Graphics 620, Toshiba SG5 256GB THNSNK256GVN8, IPS, 1920x1080, 14
HP EliteBook 840 G4-Z2V49ET ABD
7200U, HD Graphics 620, Samsung PM961 MZVLW256HEHP, TN, 1920x1080, 14
Lenovo ThinkPad T470-20HD002HGE
7200U, HD Graphics 620, Samsung PM961 NVMe MZVLW512HMJP, IPS, 1920x1080, 14
Power Consumption
0%
-3%
19%
19%
Idle Minimum *
3.9
3.3
15%
6.64
-70%
2.9
26%
3.21
18%
Idle Average *
6.2
5.54
11%
6.67
-8%
5.6
10%
6.15
1%
Idle Maximum *
7.7
6.59
14%
7.78
-1%
8.15
-6%
6.82
11%
Load Average *
43.9
42.4
3%
30.83
30%
30.6
30%
28.5
35%
Load Maximum *
47.7
67.6
-42%
31.7
34%
31
35%
34.5
28%

* ... kleiner is beter

Batterijduur
NBC WiFi Websurfing Battery Test 1.3
11h 35min
Dell Latitude 5490
8650U, UHD Graphics 620, 68 Wh
Dell Latitude 5490-TD70X
8350U, UHD Graphics 620, 68 Wh
Dell Latitude 5480
7600U, HD Graphics 620, 68 Wh
HP EliteBook 840 G4-Z2V49ET ABD
7200U, HD Graphics 620, 51 Wh
Lenovo ThinkPad T470-20HD002HGE
7200U, HD Graphics 620, 48 Wh
Batterijduur
29%
39%
-18%
-37%
Reader / Idle
1556
1448
1155
WiFi v1.3
695
897
29%
964
39%
571
-18%
438
-37%
Load
97
159
184
110

Pro

+ extreem snelle CPU prestaties
+ goede opslagprestaties van NVMe SSD
+ stevige bouw ondanks plastic constructie
+ fantastische invoerapparaten
+ snelle SD-kaartlezer
+ relatief stille werking
+ erg goede batterijlevensduur
+ robuuste beveilgingsopties

Contra

- zwak, dim beeldscherm is bijna onbruikbaar in heldere omgevingen
- ietwat zwaar voor het formaat en klasse
- geen Thunderbolt 3
- bij belasting relatief luid

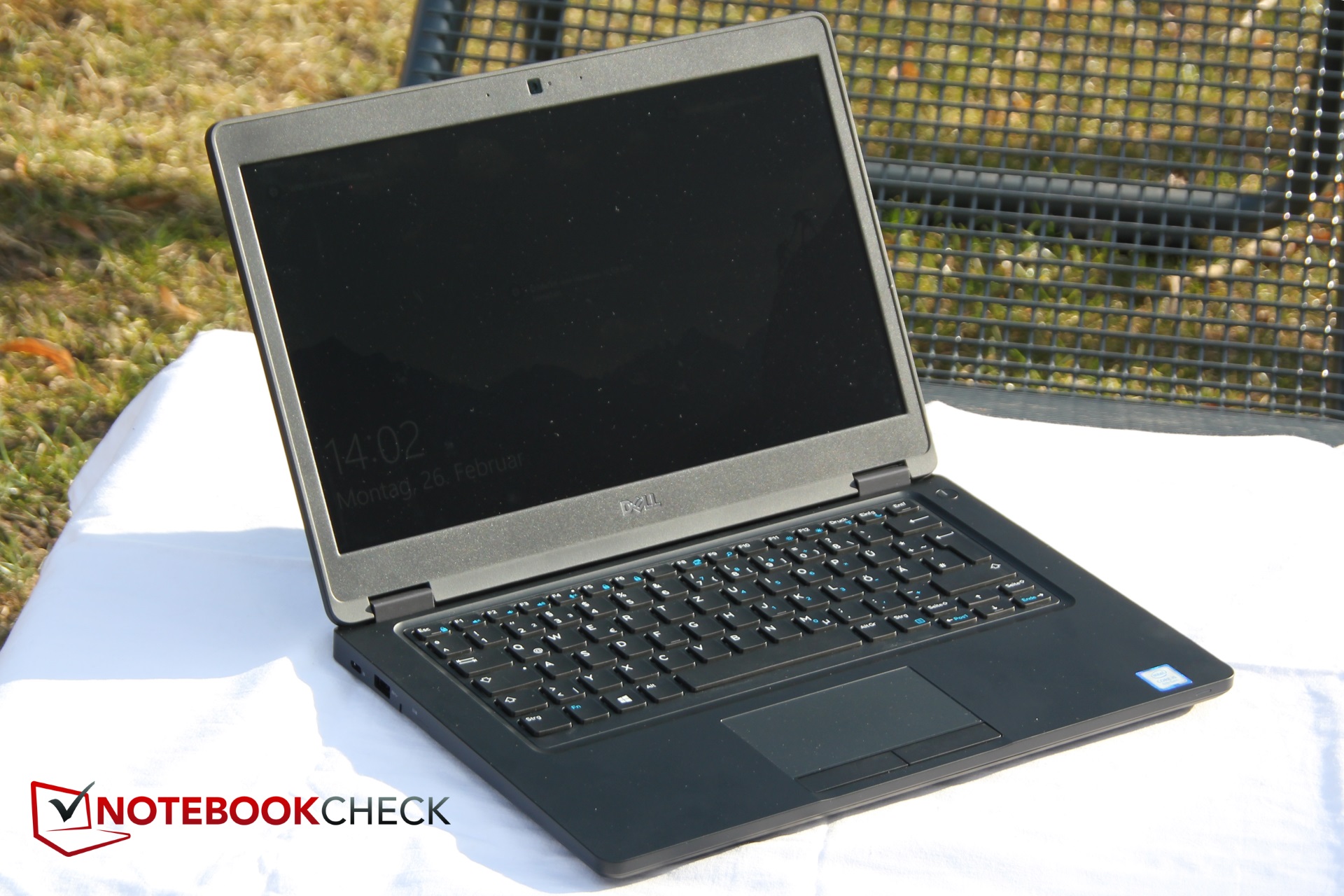

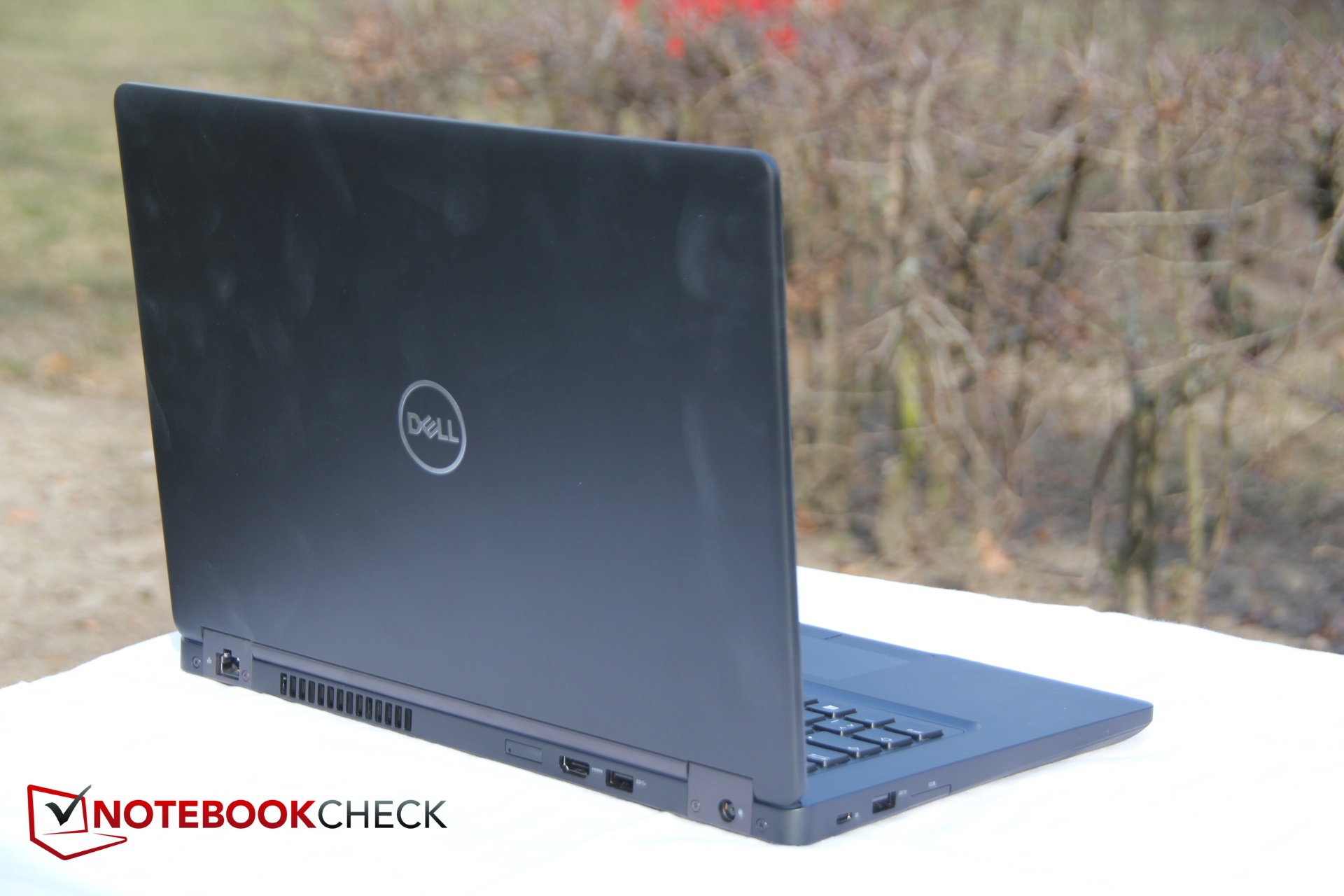

In review: Dell Latitude 5490. Test model provided by Dell US
In review: Dell Latitude 5490. Test model provided by Dell US

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Voor een productie-gerichte machine zonder fratsen voldoet de Latitude 5490 zeker aan de meeste eisen. Het beschikt over sterke systeemprestaties, een stevige, goed gebouwde behuizing, uitgebreid aanbod van poorten, uitstekende invoerapparaten en uitzonderlijke batterijlevensduur. Ook is het bij typisch gebruik voornamelijk stil en onopvallend - dus erg geschikt voor een kantooromgeving. De voordelen die deze $ 1788 configuratie biedt boven diegene die we eerder in maart testten zijn veel betere single-core prestaties en iets betere multi-core prestaties, een betere NVMe SSD, meer beveiligingsfuncties, een verlicht toetsenbord en een touchscherm. Dit zijn allemaal (even de kosten buiten beschouwing gelaten - daar komen we zo op terug) welkome zaken, behalve het touchscherm. Touchscherm technologie maakt een toch al slecht beeldscherm nog slechter door een zwak, dim anti-glans paneel te vervangen door een zwak, dim en soms bijna onbruikbaar, uiterst reflecterend paneel. We hebben het eerder al gezegd, maar de 5490 smeekt om een veel helderder beeldscherm met een anti-glans afwerking.

Geen notebook is perfect, en qua prestaties en batterijduur heeft de Latitude 5490 weinig concurrentie in zijn klasse. Was het beeldscherm beter geweest, dan hadden het notebook volmondig kunnen aanraden.

Naast dit grootste punt van kritiek zijn er nog enkele andere issues: de notebook is relatief zwaar, Thunderbolt 3 ontbreekt en het stroomverbruik en temperatuurontwikkeling zijn ook niet optimaal. Sommige concurrenten - zoals zowel de HP EliteBook 840 G4 en Lenovo ThinkPad T480 - hebben het op deze punten beter voor elkaar. Dell's eigen Latitude 7490 en 7390 zijn ook uitstekende (zij het duurdere) alternatieven met erg weinig tekortkomingen. Echter geen notebook is perfect, en qua prestaties en batterijduur heeft de Latitude 5490 weinig concurrentie in zijn klasse. Was het beeldscherm beter geweest, dan hadden het notebook volmondig kunnen aanraden.

Dell Latitude 5490 - 12-05-2018 v6
Steve Schardein

Behuizing
81 / 98 → 82%
Toetsenbord
92%
Aanwijsapparaat
Aansluitmogelijkheden
63 / 80 → 79%
Gewicht
67 / 20-67 → 99%
Batterij
94%
Beeldscherm
70%
Gaming-performance
64 / 68 → 94%
Applicatie-performance
94 / 92 → 100%
Temperatuur
89%
Luidheid
92%
Audio
64%
Camera
46 / 85 → 54%
Gemiddelde
76%
86%
Office - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Dell Latitude 5490 (Core i7-8650U, Touchscreen) Laptop
Steve Schardein, 2018-05-28 (Update: 2018-05-28)
