Kort testrapport Chuwi GBox CWI560 (Celeron N4100) Mini PC

Affordable streamer. Een no-nonsense kant-en-klaar voor streamen mini-PC voor $ 200. De Chuwi GBox is uitgerust met alle essentiële benodigdheden om in elke budget home theater opstelling te passen.
Chuwi GBox CWI560
Processor
Intel Celeron N4100 4 x 1.1 - 2.4 GHz, Gemini Lake
Grafische kaart
Intel UHD Graphics 600, Core: 300 MHz, 23.20.16.4973
Geheugen
4 GB
, LPDDR4
Moederbord
Gemini Lake
Opslag
SanDisk DA4064, 64 GB
Geluidskaart
Intel Gemini Lake SoC - High Definition Audio Controller
Verbindingen

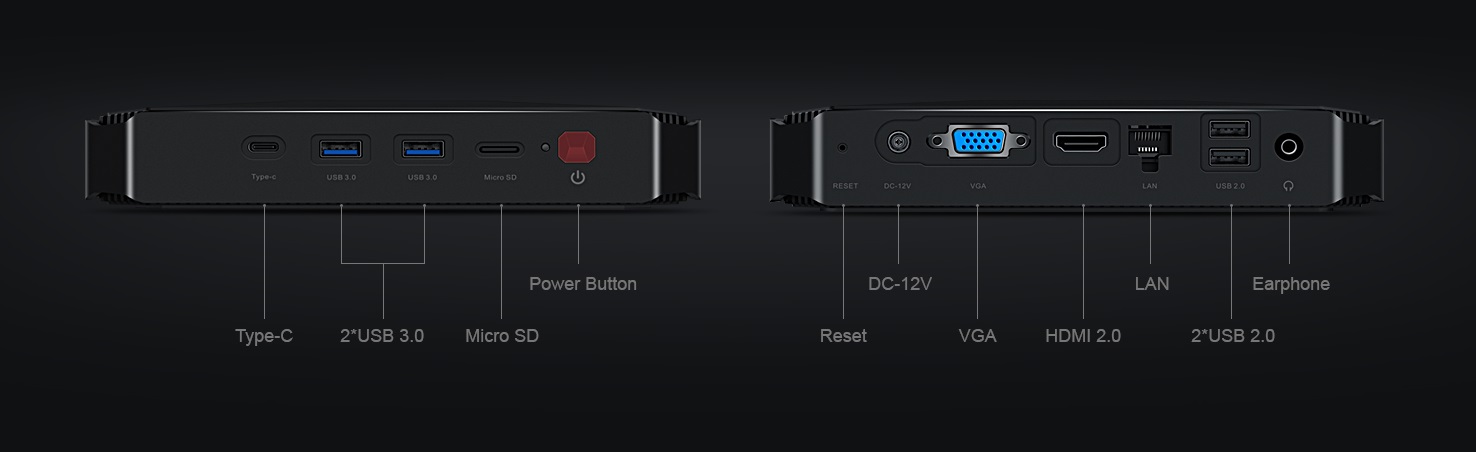

2 USB 2.0, 3 USB 3.0, 1 VGA, 1 HDMI, Audio Verbindingen: 3.5 mm earphones, Card Reader: MicroSD
Netwerkmogelijkheden
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 37.3 x 187.6 x 138.3
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Bijkomende functionaliteiten
Bevestigingsbeugel, afstandsbediening, handleiding, garantiekaart, 12 Maanden Garantie
Gewicht
558 g, Voeding: 165 g
Prijs
200 USD
Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.



(Source: Chuwi)
(Source: Chuwi)
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell XPS 13 9370 i7 UHD
  (Toshiba Exceria Pro UHS-II)
156.4 MB/s +736%
Zotac ZBOX-CI660 Nano
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
35 MB/s +87%
Chuwi GBox CWI560
  (Toshiba Exceria Pro M501 UHS-II)
18.7 MB/s
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13 9370 i7 UHD
  (Toshiba Exceria Pro UHS-II)
207.2 MB/s +896%
Zotac ZBOX-CI660 Nano
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
37.73 MB/s +81%
Chuwi GBox CWI560
  (Toshiba Exceria Pro M501 UHS-II)
20.8 MB/s
Networking
iperf3 transmit AX12
Dell XPS 13 9370 i7 UHD
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
504 MBit/s +122%
Chuwi GBox CWI560
Intel Dual Band Wireless-AC 3165
227 MBit/s
Zotac ZBOX-CI660 Nano
Intel Dual Band Wireless-AC 3165
218 MBit/s -4%
iperf3 receive AX12
Dell XPS 13 9370 i7 UHD
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
665 MBit/s +104%
Chuwi GBox CWI560
Intel Dual Band Wireless-AC 3165
326 MBit/s
Zotac ZBOX-CI660 Nano
Intel Dual Band Wireless-AC 3165
301 MBit/s -8%

0102030405060708090100110120130140150160170180190Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Zotac ZBOX-CI660 Nano
Intel Core i7-8550U
156 Points +129%
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
139 Points +104%
Lenovo IdeaPad 320s-14IKB
Intel Core i5-7200U
128 Points +88%
Intel NUC7CJYH
Intel Celeron J4005
77 Points +13%
Acer Swift 1 SF114-32-P8GG
Intel Pentium Silver N5000
73 Points +7%
Chuwi LapBook SE
Intel Celeron N4100
69.8 Points +3%
Chuwi GBox CWI560
Intel Celeron N4100
68 Points
Lenovo Flex 6-11IGM
Intel Celeron N4000
65 Points -4%
Microsoft Surface Go MHN-00003
Intel Pentium Gold 4415Y
65 Points -4%
Trekstor Primebook C13
Intel Celeron N3350
45 Points -34%
Chuwi Hi12
Intel Atom x5-Z8300
31 Points -54%
Lenovo IdeaPad Miix 320-10ICR Pro LTE
Intel Atom x5-Z8350
28 Points -59%
CPU Multi 64Bit
Intel Skull Canyon NUC6i7KYK
Intel Core i7-6770HQ
711 Points +278%
Zotac ZBOX-CI660 Nano
Intel Core i7-8550U
702 Points +273%
Lenovo IdeaPad 320s-14IKB
Intel Core i5-7200U
331 Points +76%
Acer Swift 1 SF114-32-P8GG
Intel Pentium Silver N5000
236 Points +26%
Chuwi GBox CWI560
Intel Celeron N4100
188 Points
Microsoft Surface Go MHN-00003
Intel Pentium Gold 4415Y
164 Points -13%
Chuwi LapBook SE
Intel Celeron N4100
161 (150.45min - 161.13max) Points -14%
Intel NUC7CJYH
Intel Celeron J4005
144 Points -23%
Lenovo Flex 6-11IGM
Intel Celeron N4000
138 Points -27%
Chuwi Hi12
Intel Atom x5-Z8300
99 Points -47%
Lenovo IdeaPad Miix 320-10ICR Pro LTE
Intel Atom x5-Z8350
92 Points -51%
Trekstor Primebook C13
Intel Celeron N3350
88 Points -53%
Chuwi Hi10 Pro
Intel Atom x5-Z8300
85 Points -55%
Cinebench R10 Rendering Multiple CPUs 32Bit
5102
Cinebench R10 Rendering Single 32Bit
2049
Cinebench R10 Shading 32Bit
3549
Cinebench R11.5 CPU Multi 64Bit
2.18 Points
Cinebench R11.5 OpenGL 64Bit
7.95 fps
Cinebench R11.5 CPU Single 64Bit
0.83 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
10.61 fps
Cinebench R15 CPU Multi 64Bit
188 Points
Cinebench R15 CPU Single 64Bit
68 Points
Help
PCMark 10 - Score
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
3837 Points +131%
Dell XPS 13 9370 i7 UHD
UHD Graphics 620, i5-8550U, Toshiba XG5 KXG50ZNV512G
3728 Points +125%
Chuwi GBox CWI560
UHD Graphics 600, Celeron N4100, SanDisk DA4064
1658 Points
Chuwi LapBook SE
UHD Graphics 600, Celeron N4100, SanDisk DF4032
1502 Points -9%
Chuwi Lapbook 12.3
HD Graphics 500, Celeron N3450, 64 GB eMMC Flash
1269 (1261min - 1270max) Points -23%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
1136 Points -31%
PCMark 8 - Home Score Accelerated v2
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
3594 Points +74%
Dell XPS 13 9370 i7 UHD
UHD Graphics 620, i5-8550U, Toshiba XG5 KXG50ZNV512G
3371 Points +63%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
2084 Points +1%
Chuwi GBox CWI560
UHD Graphics 600, Celeron N4100, SanDisk DA4064
2062 Points
Chuwi Lapbook 12.3
HD Graphics 500, Celeron N3450, 64 GB eMMC Flash
1461 (1450min - 1461max) Points -29%
PCMark 8 Home Score Accelerated v2
2062 punten
PCMark 10 Score
1658 punten
Help
Chuwi GBox CWI560
SanDisk DA4064
Intel NUC7CJYH
SanDisk Ultra II
Lenovo Flex 6-11IGM
SanDisk DF4064
Teclast Tbook 16 Power
64 GB eMMC Flash
Trekstor Primebook C13
SanDisk DF4064
CrystalDiskMark 5.2 / 6
121%
-30%
-81%
-36%
Write 4K
38
61.1
61%
14.29
-62%
1.95
-95%
13.16
-65%
Read 4K
23.84
31.99
34%
13.12
-45%
7.77
-67%
5.04
-79%
Write Seq
226.7
421.7
86%
117.9
-48%
27.89
-88%
117
-48%
Read Seq
271.8
427.4
57%
295.7
9%
74.7
-73%
264.7
-3%
Write 4K Q32T1
44.74
97
117%
13.82
-69%
2.17
-95%
16.58
-63%
Read 4K Q32T1
53.2
121.9
129%
37.36
-30%
11.62
-78%
33.3
-37%
Write Seq Q32T1
129.4
504
289%
105.5
-18%
18.4
-86%
111.2
-14%
Read Seq Q32T1
189.4
551
191%
240.7
27%
68.9
-64%
226.3
19%
Write 4K Q8T8
183.1
Read 4K Q8T8
221.3
SanDisk DA4064
CDM 5/6 Read Seq Q32T1: 189.4 MB/s
CDM 5/6 Write Seq Q32T1: 129.4 MB/s
CDM 5/6 Read 4K Q32T1: 53.2 MB/s
CDM 5/6 Write 4K Q32T1: 44.74 MB/s
CDM 5 Read Seq: 271.8 MB/s
CDM 5 Write Seq: 226.7 MB/s
CDM 5/6 Read 4K: 23.84 MB/s
CDM 5/6 Write 4K: 38 MB/s
3DMark 11
1280x720 Performance GPU
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
3220 Points +565%
Lenovo IdeaPad 330-15ARR 81D2005CUS
AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U
2294 Points +374%
Lenovo IdeaPad 320s-14IKB
NVIDIA GeForce 920MX, i5-7200U
1887 Points +290%
Zotac ZBOX-CI660 Nano
Intel UHD Graphics 620, i5-8550U
1769 Points +265%
Microsoft Surface Go MHN-00003
Intel UHD Graphics 615, Pentium 4415Y
1257 Points +160%
Chuwi Lapbook 12.3
Intel HD Graphics 500, Celeron N3450
584 Points +21%
Intel NUC7CJYH
Intel UHD Graphics 600, Celeron J4005
579 Points +20%
Gemiddeld Intel UHD Graphics 600
  (410 - 854, n=27)
558 Points +15%
Trekstor Primebook C13
Intel HD Graphics 500, Celeron N3350
543 Points +12%
Lenovo Flex 6-11IGM
Intel UHD Graphics 600, Celeron N4000
513 Points +6%
Chuwi GBox CWI560
Intel UHD Graphics 600, Celeron N4100
484 Points
Teclast Tbook 16 Power
Intel HD Graphics 405 (Braswell), Z8750
408 Points -16%
Chuwi Hi12
Intel HD Graphics (Cherry Trail), Z8300
299 Points -38%
Lenovo IdeaPad Miix 320-10ICR Pro LTE
Intel HD Graphics 400 (Braswell), Z8350
297 Points -39%
1280x720 Performance Combined
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
2784 Points +526%
Lenovo IdeaPad 320s-14IKB
NVIDIA GeForce 920MX, i5-7200U
2224 Points +400%
Zotac ZBOX-CI660 Nano
Intel UHD Graphics 620, i5-8550U
1410 Points +217%
Lenovo IdeaPad 330-15ARR 81D2005CUS
AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U
1232 Points +177%
Microsoft Surface Go MHN-00003
Intel UHD Graphics 615, Pentium 4415Y
1134 Points +155%
Intel NUC7CJYH
Intel UHD Graphics 600, Celeron J4005
593 Points +33%
Trekstor Primebook C13
Intel HD Graphics 500, Celeron N3350
571 Points +28%
Chuwi Lapbook 12.3
Intel HD Graphics 500, Celeron N3450
570 Points +28%
Gemiddeld Intel UHD Graphics 600
  (362 - 983, n=27)
552 Points +24%
Lenovo Flex 6-11IGM
Intel UHD Graphics 600, Celeron N4000
521 Points +17%
Chuwi GBox CWI560
Intel UHD Graphics 600, Celeron N4100
445 Points
Teclast Tbook 16 Power
Intel HD Graphics 405 (Braswell), Z8750
363 Points -18%
Chuwi Hi12
Intel HD Graphics (Cherry Trail), Z8300
360 Points -19%
Lenovo IdeaPad Miix 320-10ICR Pro LTE
Intel HD Graphics 400 (Braswell), Z8350
357 Points -20%
3DMark 11 Performance
542 punten
Help
Stroomgebruik
Uit / Standbydarklight 0.21 / 0.37 Watt
Inactiefdarkmidlight 1.9 / 2 / 2.9 Watt
Belasting midlight 8.6 / 9.5 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Chuwi GBox CWI560
Celeron N4100, UHD Graphics 600, SanDisk DA4064, , x,
Chuwi Lapbook 12.3
Celeron N3450, HD Graphics 500, 64 GB eMMC Flash, IPS, 2736x1824, 12.30
Chuwi Hi12
Z8300, HD Graphics (Cherry Trail), Hynix HCG8E 64 GB, IPS, 2160x1440, 12.00
NVIDIA Shield Android TV
X1, Tegra X1 Maxwell GPU, 16 GB iNAND Flash, , 1920x1080, 0.00
Intel Skull Canyon NUC6i7KYK
6770HQ, Iris Pro Graphics 580, Samsung SSD 850 EVO m.2 120GB, , x, 0.00
Zotac ZBOX-CI660 Nano
i5-8550U, UHD Graphics 620, OCZ Vertex OCZSSD2-1VTX120G, , x,
Lenovo Flex 6-11IGM
Celeron N4000, UHD Graphics 600, SanDisk DF4064, TN LED, 1366x768, 11.60
Lenovo IdeaPad Miix 320-10ICR Pro LTE
Z8350, HD Graphics 400 (Braswell), SanDisk DF4128, IPS, 1920x1200, 10.10
Power Consumption
-191%
1%
-67%
-570%
-435%
-87%
-77%
Idle Minimum *
1.9
5.9
-211%
1.7
11%
3.6
-89%
14.8
-679%
9.7
-411%
2.7
-42%
3
-58%
Idle Average *
2
7.7
-285%
1.7
15%
4.4
-120%
15.7
-685%
9.8
-390%
4.5
-125%
5.3
-165%
Idle Maximum *
2.9
8.6
-197%
3.3
-14%
4.6
-59%
15.8
-445%
11.8
-307%
5.7
-97%
6.4
-121%
Load Average *
8.6
18.2
-112%
7.9
8%
10
-16%
62.7
-629%
51.6
-500%
13.7
-59%
10.9
-27%
Load Maximum *
9.5
23.6
-148%
10.8
-14%
14.5
-53%
48.5
-411%
63.2
-565%
20.3
-114%
11
-16%

* ... kleiner is beter

Pro

+ kan lichte Turbo Boost kloksnelheden volhouden
+ uitbreidbare microSD en SATA-opslag
+ vloeiende 4K weergave
+ geïntegreerde VGA-poort
+ erg energiezuinig
+ aantrekkelijk ontwerp
+ stevige bouwkwaliteit
+ afstandsbediening meegeleverd
+ goedkoop
+ passief gekoeld

Contra

- geen Thunderbolt 3, DisplayPort of optische-uitgang
- Enkel microSD-kaartlezer
- koper betaald voor verzekerd verzenden
- installeren Windows Updates mislukt
- beperkte rekenkracht CPU & GPU
- kan niet verticaal geplaatst worden
- had kleiner formaat gekund
- 1x1 WLAN

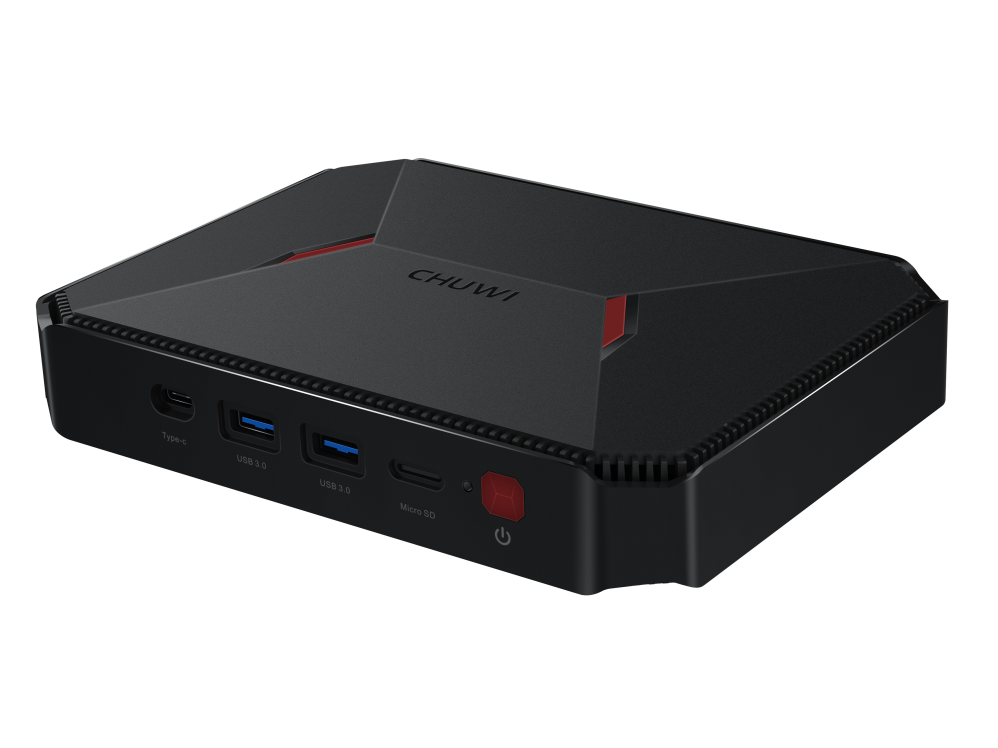

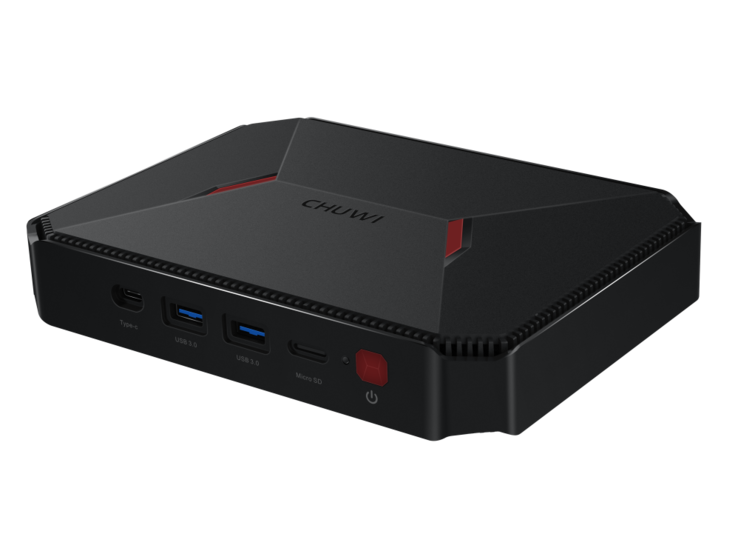

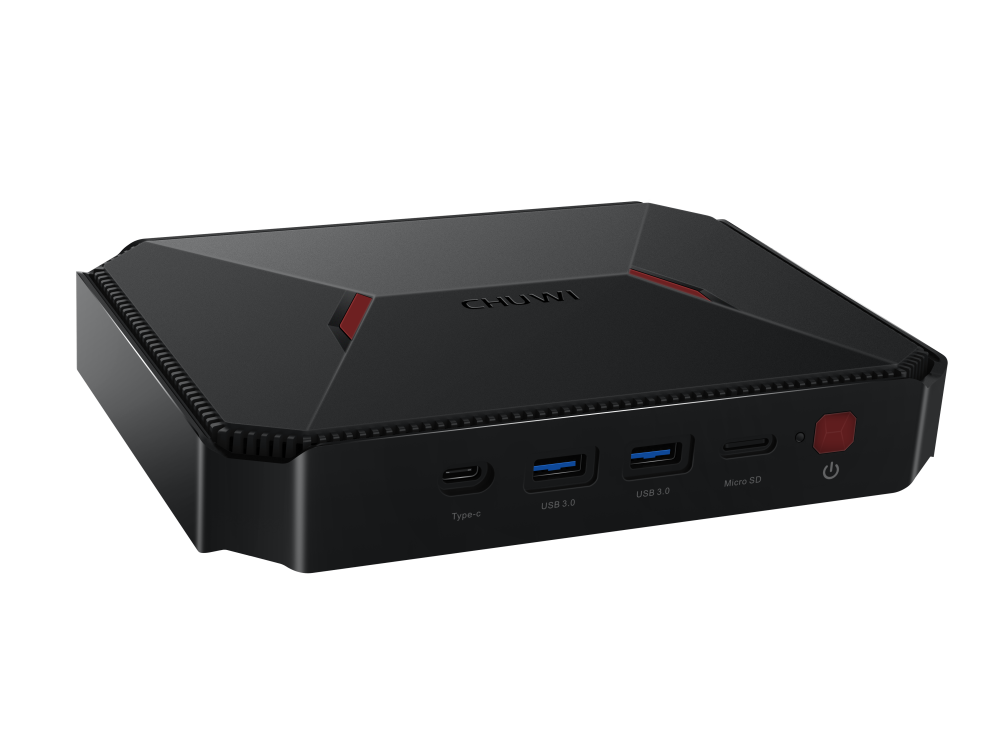

In review: Chuwi GBox CWI560. Test model provided by Chuwi
In review: Chuwi GBox CWI560. Test model provided by Chuwi

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

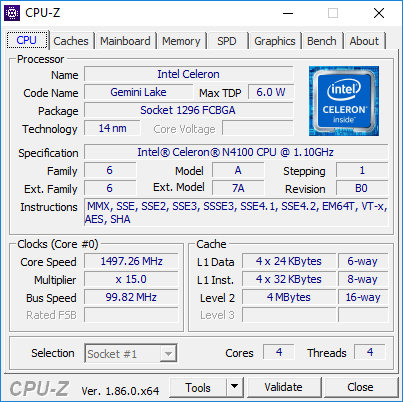

Voor $ 200 biedt de Chuwi Gbox je een behoorlijke hoeveelheid hardware. Het systeem komt uitgerust met gesoldeerd RAM, uitbreidbare opslag, Windows 10 Home voorgeïnstalleerd, een afstandsbediening en Intel's nieuwe Gemini Lake platform. De Intel NUC-, Zotac ZBox- en Gigabyte Brix-series worden vaak verkocht als barebone kit, die door de aparte aanschaf van RAM, opslag en Windows een hogere prijs hebben. Tegelijkertijd bieden streaming boxes zoals de nvidia Shield niet de veelzijdigheid van een Windows/Linux besturingssysteem.

Het grootste nadeel van de GBox is hetzelfde als andere Chuwi apparaten zoals de LapBook of Hi10-tablet. De processor prestaties zijn niet niet echt van hetzelfde niveau als wat gebruikers gewend zijn van desktops en de meeste Ultrabooks. Dit is een machine voor streamen, browsen of tekstverwerken, want zelfs licht multitasken resulteert al in frame-drops en merkbaar vertraagd systeem.

Als er een tweede generatie GBox komt, dan hopen we dat deze een geïntegreerde voeding met USB Type-C aansluiting heeft, een volwaardige SD-kaartlezer en de optie voor verticale plaatsing.

Goed voor makkelijke home theater opstelling met een beperkt budget. Als Android TV niet aantrekkelijk is, dan kan de Chuwi GBox de klus klaren als basis Windows 10 HTPC. De energiezuinige Celeron processor beperkt het systeem tot hooguit licht multitasken.

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Chuwi GBox CWI560 (Celeron N4100) Mini PC
Allen Ngo, 2018-09-26 (Update: 2018-09-29)
