Kort testrapport Acer TravelMate X514: een kleine 14-inch notebook gericht op professionals

Mike Wobker, 👁 Sebastian Jentsch, ✓ Felicitas Krohn, 16-11-2019

Ultramobiel en super-lichtgewicht. Acer promoot de TravelMate X514-51 met name als zijnde klein en lichtgewicht, en het notebook stelt op die vlakken niet teleur. Onze tests zullen uitwijzen of deze Whiskey Lake notebook ook op andere vlakken mee kan komen.

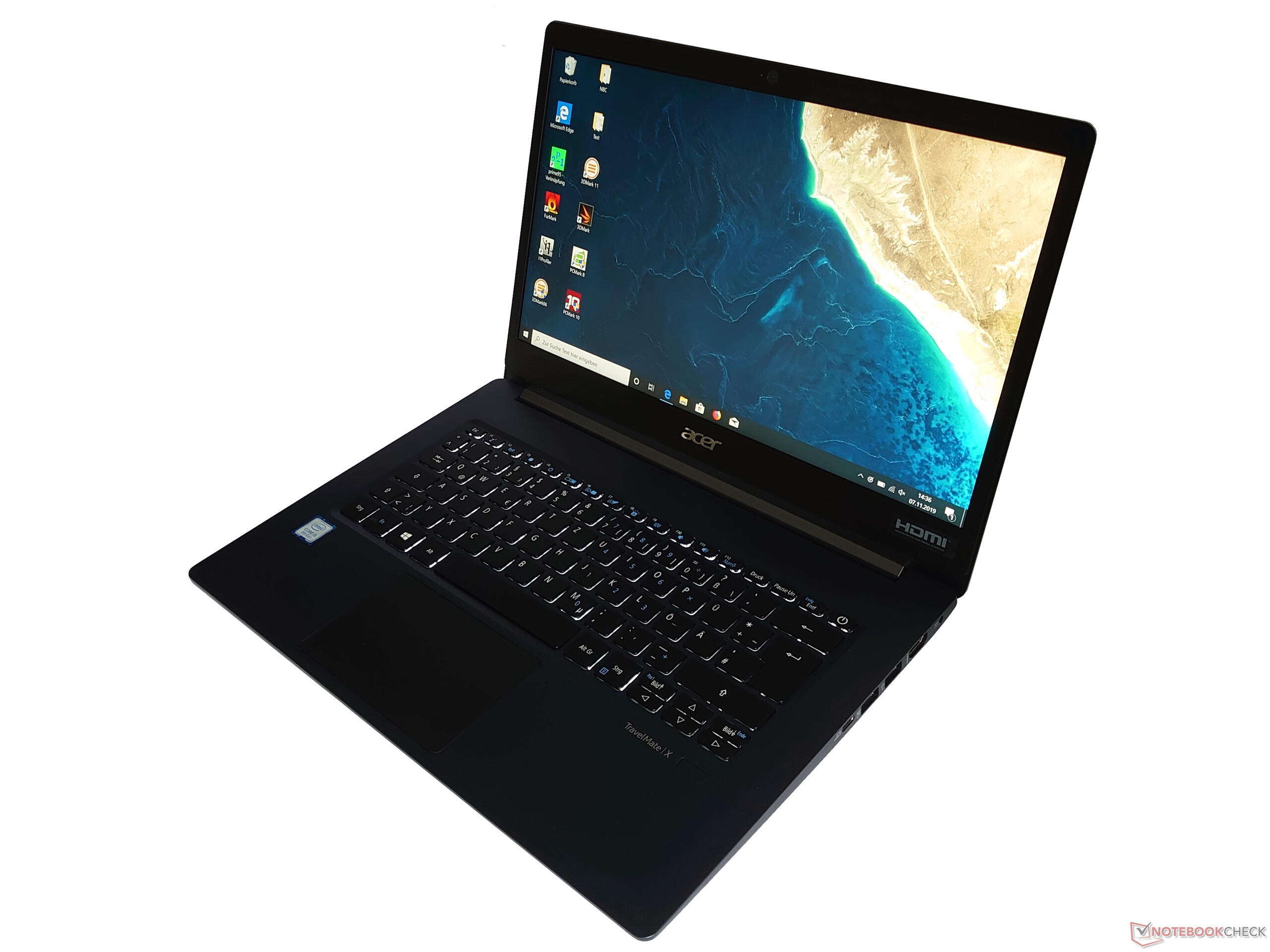

Acer TravelMate X514-51-511Q (TravelMate X Serie)
Processor
Intel Core i5-8265U
Grafische kaart
Intel UHD Graphics 620
Geheugen
8192 MB
, Dual-Channel
Beeldscherm
14 inch 16:9, 1920 x 1080 pixel 157 PPI, Chi mei CMN14D5, IPS, glimmend: nee
Moederbord
Intel Cannon Lake-U PCH-LP Premium
Opslag
Kingston RBUSNS8154P3256GJ1, 256 GB
, , 210 GB beschikbaar
Geluidskaart
Intel Cannon Lake-LP - cAVS
Verbindingen
3 USB 3.0, 1 HDMI, 1 Kensington Lock, Audio Verbindingen: 3.5 mm jack, 1 Vingerafdruklezer
Netwerkmogelijkheden
Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5
Afmetingen
hoogte x breedte x diepte (in mm): 15 x 329 x 228
Batterij
36 Wh, 4670 mAh Lithium-Polymer
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 0.9 MP, 16:9 (1,280 x 720)
Bijkomende functionaliteiten
Luidsprekers: Stereo, Toetsenbord: chiclet, Toetsenbordverlichting: ja, 36 Maanden Garantie
Gewicht
980 g, Voeding: 158 g
Prijs
1000 Euro
Links
Acer startpagina
Acer laptopsectie
TravelMate X (Series)
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



EvaluatieDatumModelGewichtHoogteFormaatResolutieBest Price
84%11-2019Acer TravelMate X514-51-511Q
8265U, UHD Graphics 620		980 g15 mm14"1920x1080
88%09-2019Lenovo ThinkPad T495s-20QKS01E00
PRO 3700U, Vega 10		1.3 kg16.1 mm14"1920x1080
86%05-2019Acer Swift 3 SF314-55G-768V
8565U, GeForce MX250		1.5 kg14.9 mm14"1920x1080
85%Asus VivoBook 14 F412FJ-EB084T
8265U, GeForce MX230		1.5 kg19 mm14"1920x1080
85%04-2019Dell Latitude 14 5495
2700U, Vega 10		1.7 kg22.45 mm14"1920x1080

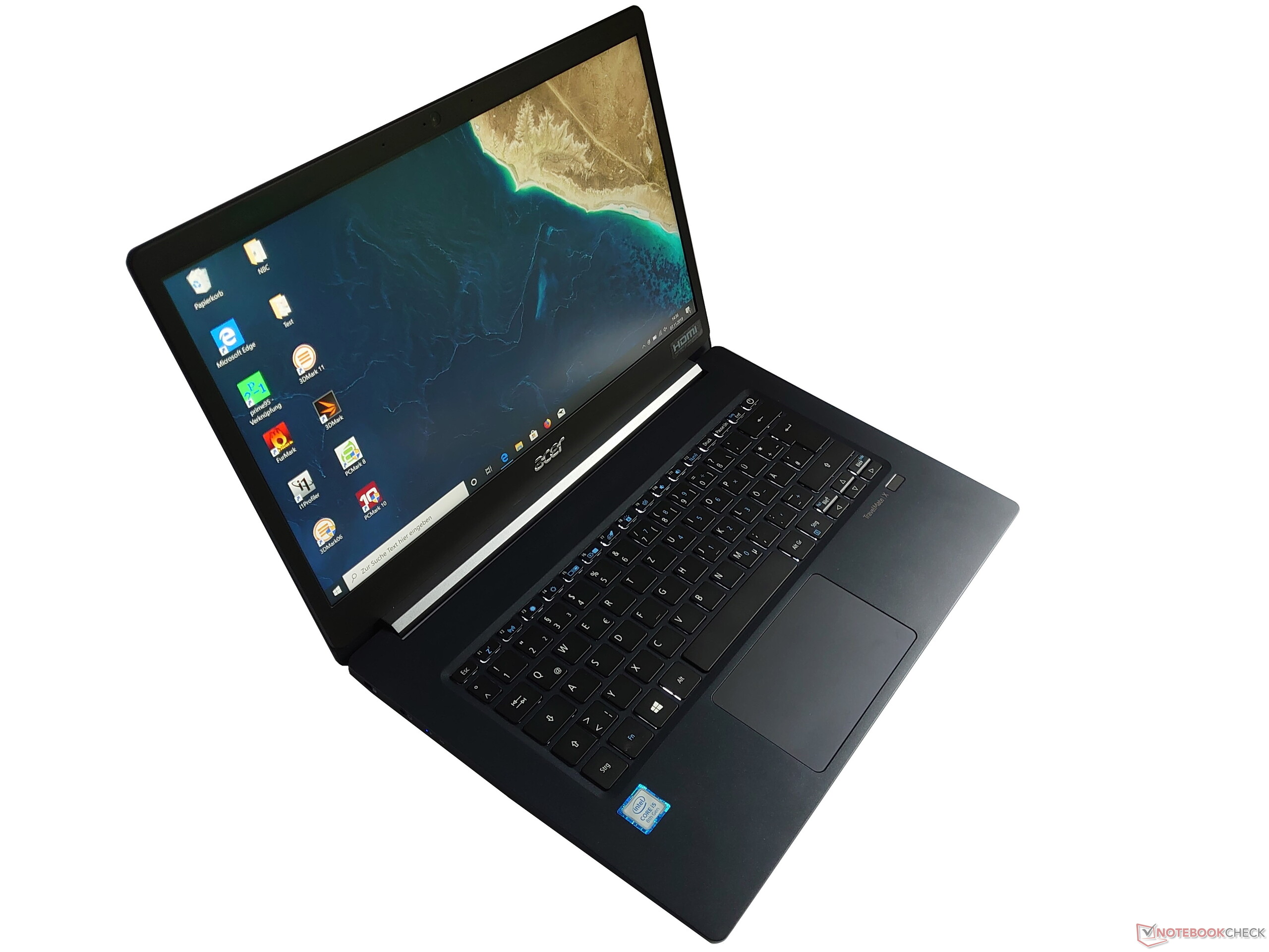

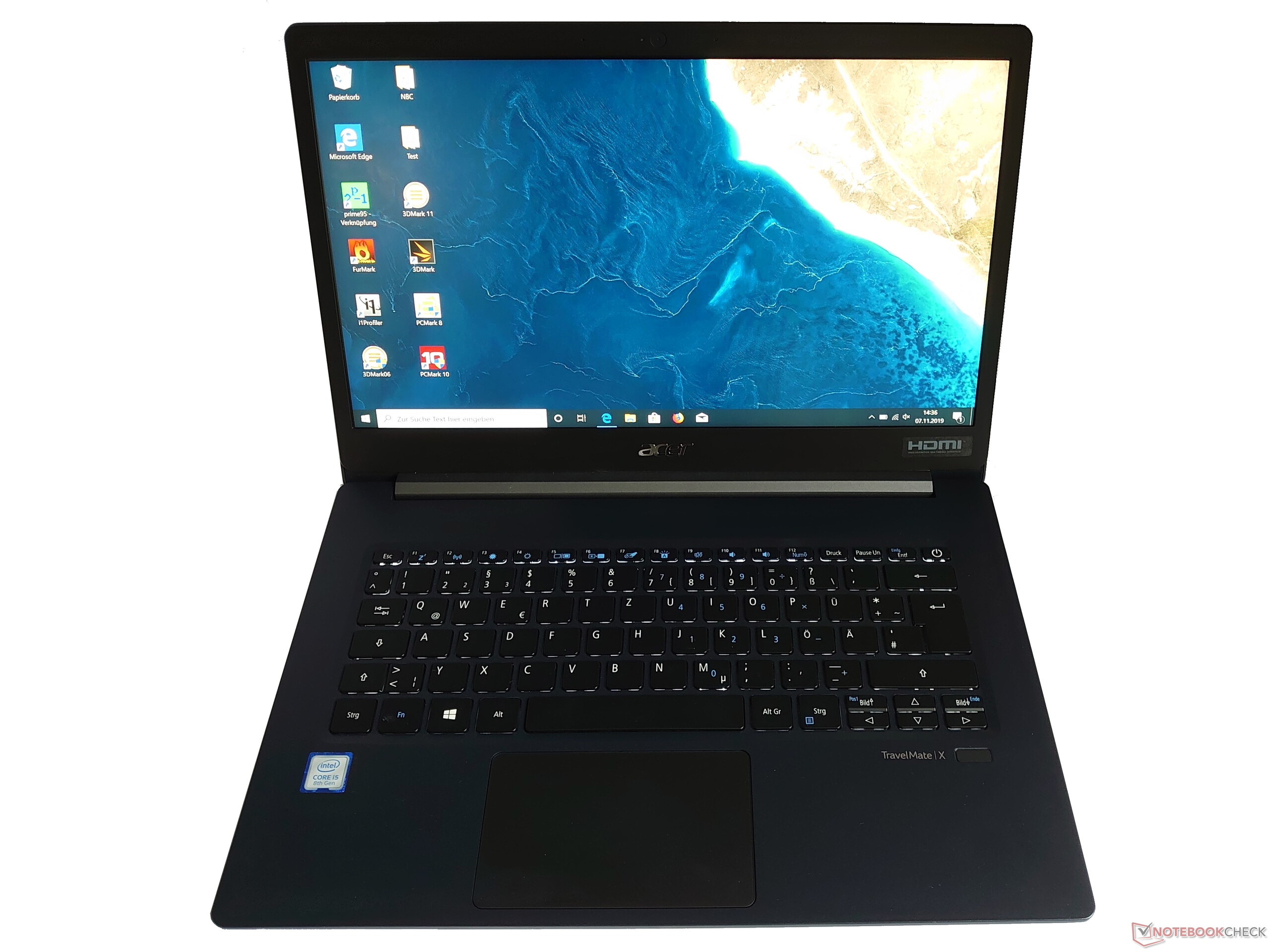

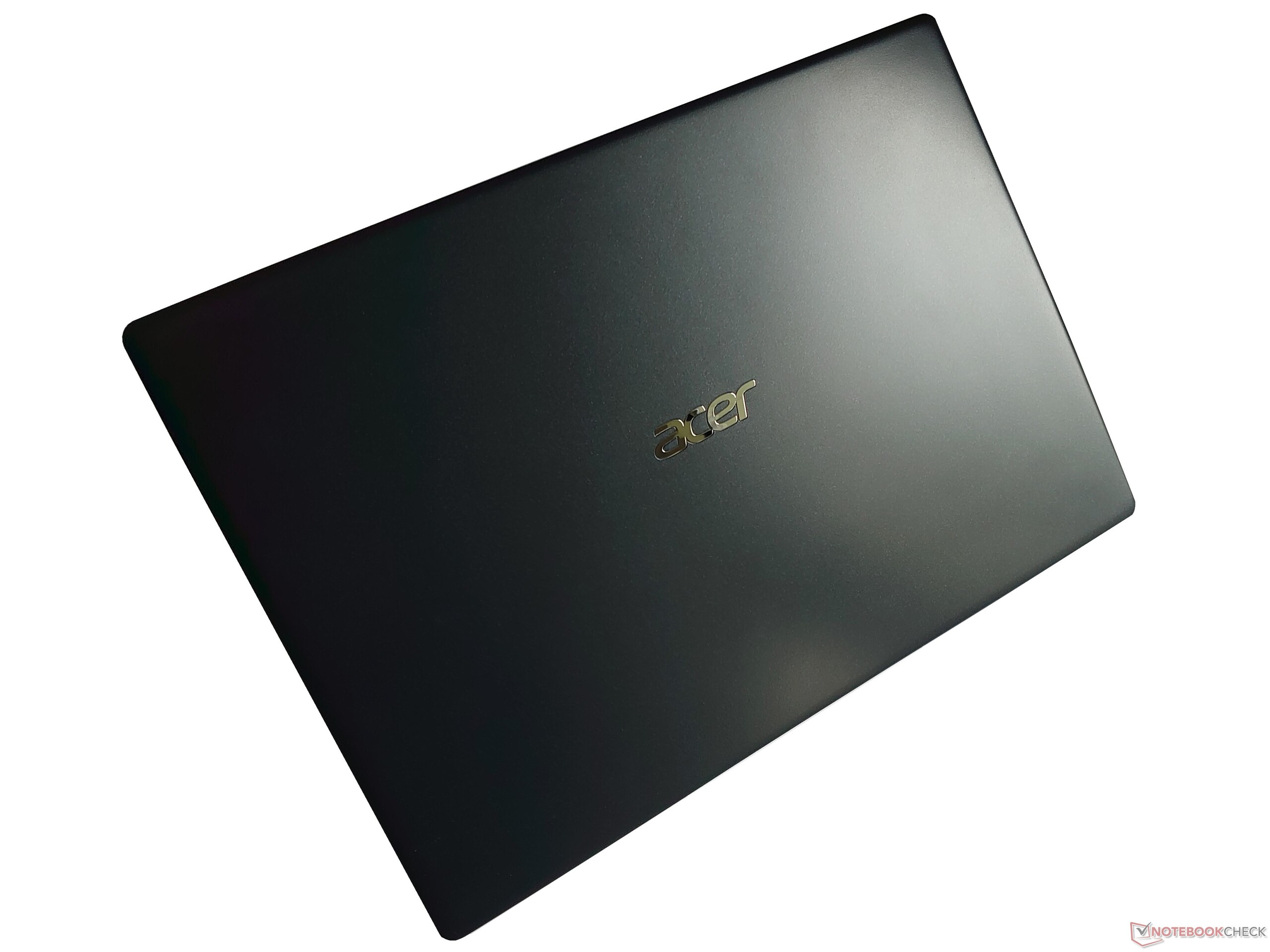

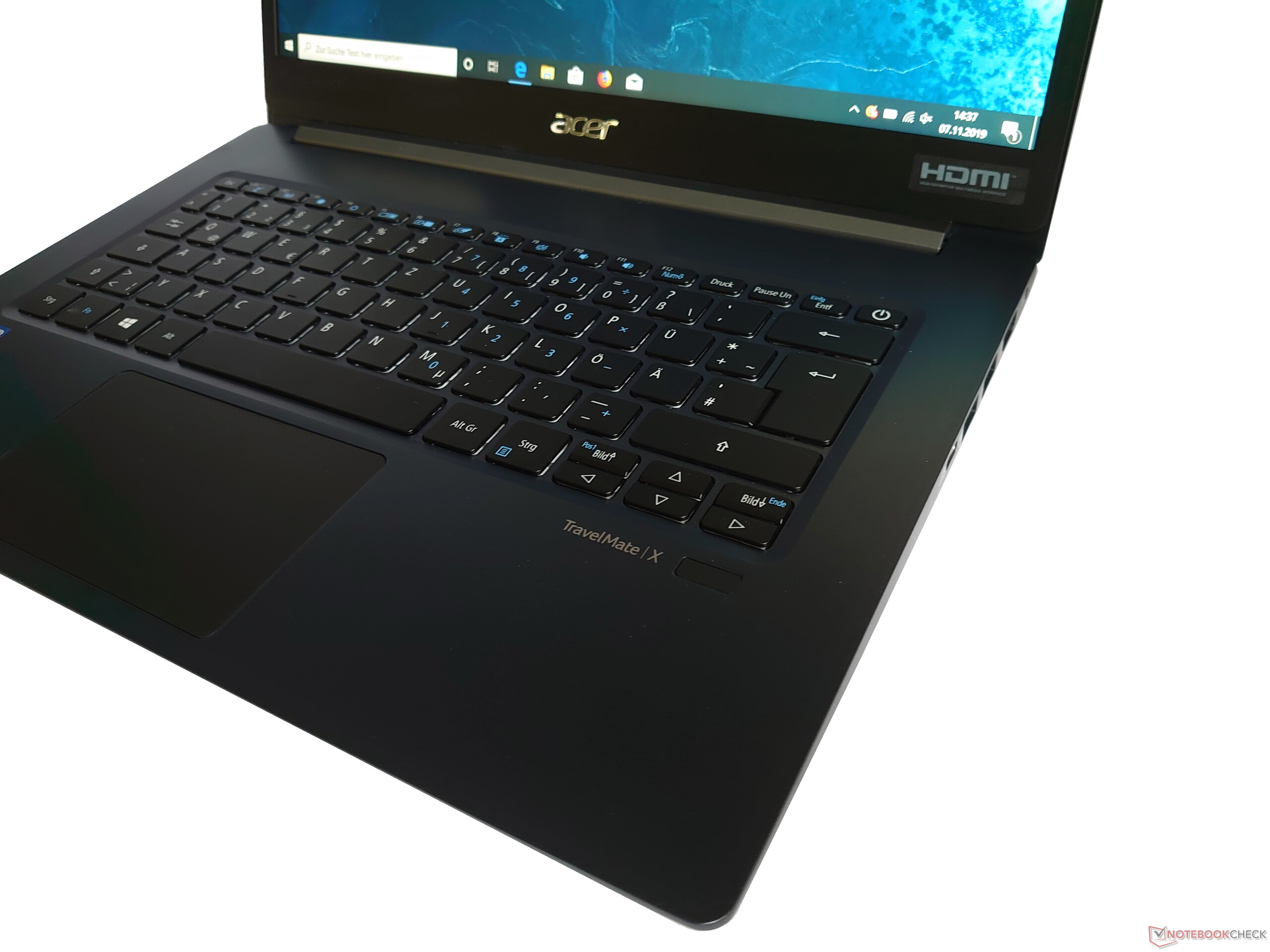

Acer TravelMate X514-51-511Q
Acer TravelMate X514-51-511Q
Acer TravelMate X514-51-511Q
Acer TravelMate X514-51-511Q
Acer TravelMate X514-51-511Q
Acer TravelMate X514-51-511Q
Acer TravelMate X514-51-511Q

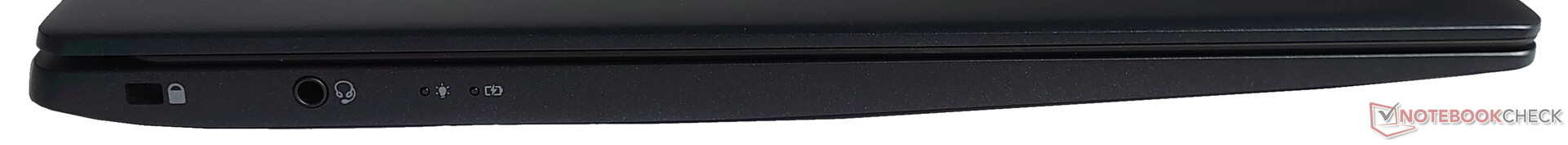

Left-hand side: Cable lock slot, 3.5 mm jack
Left-hand side: Cable lock slot, 3.5 mm jack

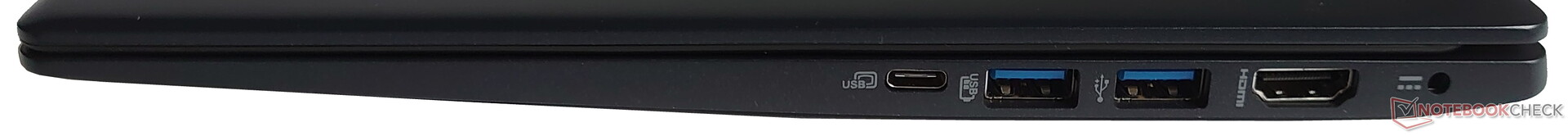

Right-hand side: 1x USB 3.1 Gen1 Type-C, 2x USB 3.0 Type-A, HDMI, proprietary power connector
Right-hand side: 1x USB 3.1 Gen1 Type-C, 2x USB 3.0 Type-A, HDMI, proprietary power connector
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad T495s-20QKS01E00
Intel Wireless-AC 9260
618 MBit/s ∼100% +32%
Asus VivoBook 14 F412FJ-EB084T
Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC
616 (min: 569, max: 634) MBit/s ∼100% +31%
Acer Swift 3 SF314-55G-768V
Intel Wireless-AC 9560
615 (min: 517, max: 654) MBit/s ∼100% +31%
Average of class Subnotebook
  (30.9 - 968, n=129)
539 MBit/s ∼87% +15%
Acer TravelMate X514-51-511Q
Intel Wireless-AC 9560
469 (min: 256, max: 561) MBit/s ∼76%
Dell Latitude 14 5495
Atheros/Qualcomm QCA6174
452 (min: 329, max: 553) MBit/s ∼73% -4%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus VivoBook 14 F412FJ-EB084T
Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC
675 (min: 561, max: 737) MBit/s ∼100% +4%
Lenovo ThinkPad T495s-20QKS01E00
Intel Wireless-AC 9260
658 MBit/s ∼97% +1%
Acer TravelMate X514-51-511Q
Intel Wireless-AC 9560
649 (min: 588, max: 677) MBit/s ∼96%
Acer Swift 3 SF314-55G-768V
Intel Wireless-AC 9560
637 (min: 467, max: 709) MBit/s ∼94% -2%
Dell Latitude 14 5495
Atheros/Qualcomm QCA6174
541 (min: 318, max: 616) MBit/s ∼80% -17%
Average of class Subnotebook
  (36 - 1416, n=129)
539 MBit/s ∼80% -17%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740Tooltip
Acer TravelMate X514-51-511Q Intel Wireless-AC 9560; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø469 (256-561)
Acer Swift 3 SF314-55G-768V Intel Wireless-AC 9560; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø615 (517-654)
Asus VivoBook 14 F412FJ-EB084T Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø616 (569-634)
Dell Latitude 14 5495 Atheros/Qualcomm QCA6174; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø452 (329-553)
Acer TravelMate X514-51-511Q Intel Wireless-AC 9560; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø649 (588-677)
Acer Swift 3 SF314-55G-768V Intel Wireless-AC 9560; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø637 (467-709)
Asus VivoBook 14 F412FJ-EB084T Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø675 (561-737)
Dell Latitude 14 5495 Atheros/Qualcomm QCA6174; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø541 (318-616)
257
cd/m²		267
cd/m²		250
cd/m²
269
cd/m²		295
cd/m²		275
cd/m²
273
cd/m²		305
cd/m²		296
cd/m²
Helderheidsverdeling
Chi mei CMN14D5
X-Rite i1Pro 2
Maximum: 305 cd/m² Gemiddelde: 276.3 cd/m² Minimum: 17 cd/m²
Helderheidsverdeling: 82 %
Helderheid in Batterij-modus: 288 cd/m²
Contrast: 1372:1 (Zwart: 0.215 cd/m²)
ΔE Color 2.6 | 0.6-29.43 Ø6
ΔE Greyscale 3.4 | 0.64-98 Ø6.2
99% sRGB (Argyll 3D) 63% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.08
Acer TravelMate X514-51-511Q
Chi mei CMN14D5, IPS, 1920x1080, 14		Lenovo ThinkPad T495s-20QKS01E00
B140HAN05.7, IPS, 1920x1080, 14		Acer Swift 3 SF314-55G-768V
Chi Mei CMN14D5, IPS, 1920x1080, 14		Asus VivoBook 14 F412FJ-EB084T
AU Optronics AUO403D B140HAN04.0, IPS, 1920x1080, 14		Dell Latitude 14 5495
CMN14C9, IPS LED, 1920x1080, 14
Response Times
-46%
-1%
-4%
3295%
Response Time Grey 50% / Grey 80% *
40 (21, 19)
60.8 (30.8, 30)
-52%
40 (22, 18)
-0%
40 (19, 21)
-0%
41 (24, 17)
-3%
Response Time Black / White *
27 (16, 11)
37.6 (19.6, 18)
-39%
28 (15, 13)
-4%
29 (17, 12)
-7%
30 (19, 11)
-11%
PWM Frequency
250 (10)
250
0%
25000 (30)
9900%
Screen
1%
-14%
-12%
-27%
Brightness middle
295
380
29%
323
9%
267
-9%
212
-28%
Brightness
276
381
38%
299
8%
257
-7%
200
-28%
Brightness Distribution
82
87
6%
87
6%
91
11%
89
9%
Black Level *
0.215
0.22
-2%
0.35
-63%
0.2
7%
0.23
-7%
Contrast
1372
1727
26%
923
-33%
1335
-3%
922
-33%
Colorchecker DeltaE2000 *
2.6
4
-54%
3.13
-20%
3.79
-46%
4.34
-67%
Colorchecker DeltaE2000 max. *
5.6
5.7
-2%
6.96
-24%
8.18
-46%
9.01
-61%
Greyscale DeltaE2000 *
3.4
4.4
-29%
4.32
-27%
1.49
56%
2.81
17%
Gamma
2.08 106%
2.54 87%
2.29 96%
2.48 89%
2.22 99%
CCT
7192 90%
6963 93%
7436 87%
6659 98%
6286 103%
Color Space (Percent of AdobeRGB 1998)
63
62.2
-1%
64
2%
38
-40%
39
-38%
Color Space (Percent of sRGB)
99
96.6
-2%
99
0%
59
-40%
61
-38%
Colorchecker DeltaE2000 calibrated *
1.2
0.9
4.71
Totaal Gemiddelde (Programma / Instellingen)
-23% / -7%
-8% / -11%
-8% / -10%
1634% / 739%

* ... kleiner is beter

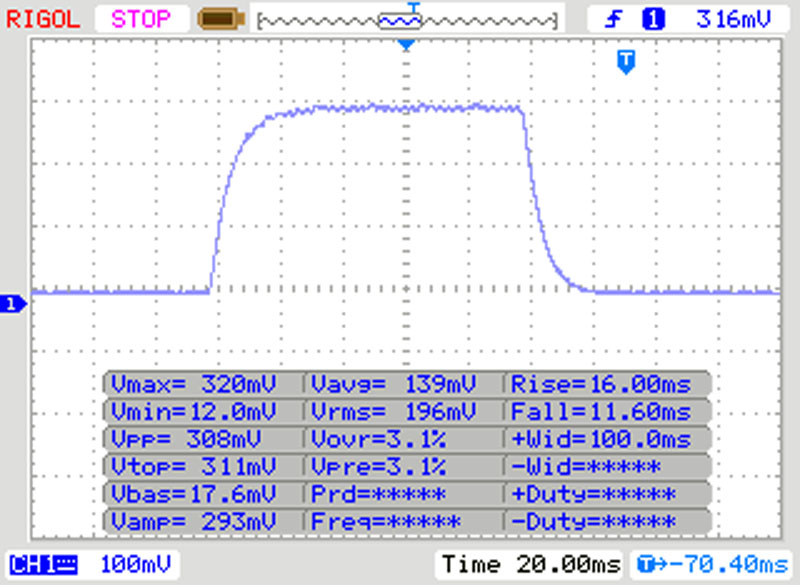

Responstijd Scherm

ℹ
De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.
   ↔    Responstijd Zwart naar Wit
27 ms ... stijging ↗ en daling ↘ gecombineerd↗ 16 ms stijging
↘ 11 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 54 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (24.9 ms) van alle geteste toestellen.

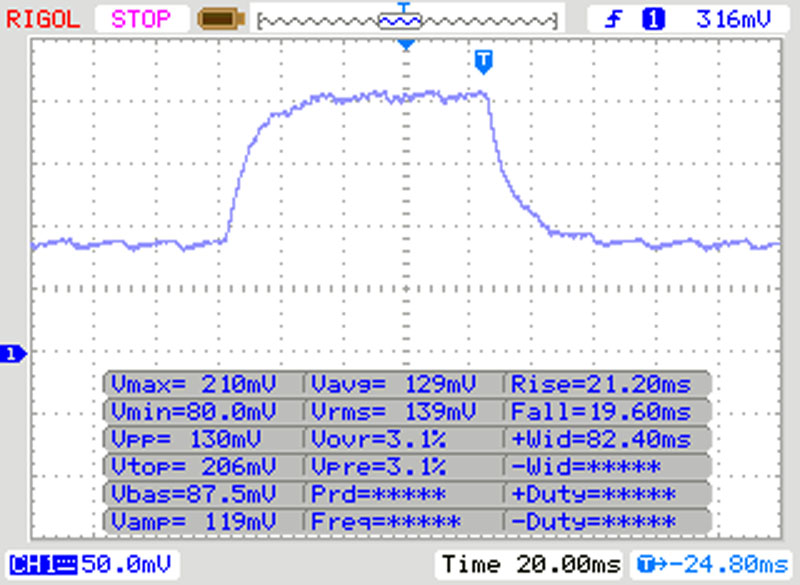

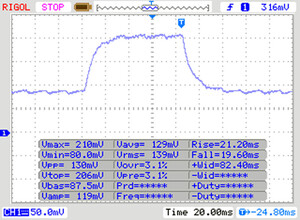

   ↔    Responstijd 50% Grijs naar 80% Grijs
40 ms ... stijging ↗ en daling ↘ gecombineerd↗ 21 ms stijging
↘ 19 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 45 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (39.5 ms) van alle geteste toestellen.

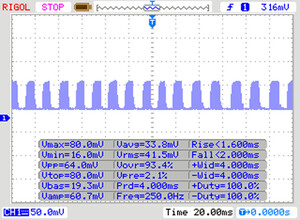

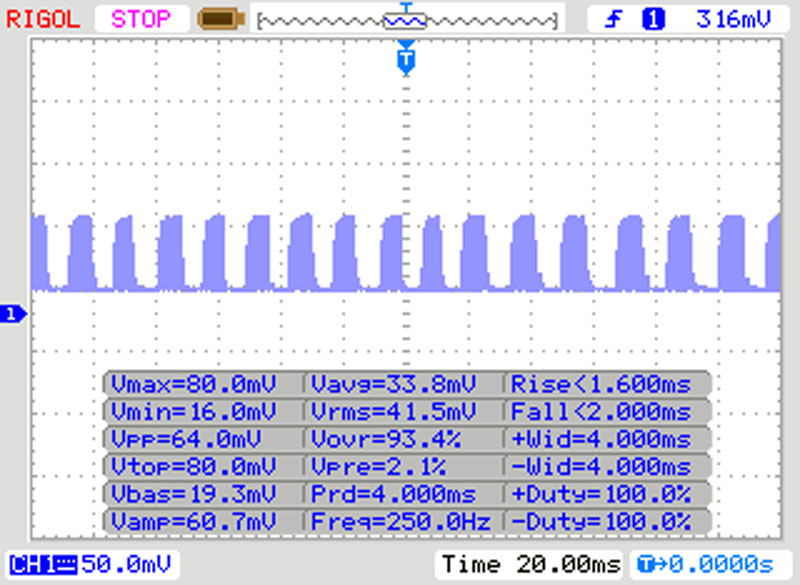

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 250 Hz ≤ 10 % helderheid instelling

Het backlight van het scherm flikkert aan 250 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 10 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 250 Hz is redelijk laag en de meeste mensen die gevoelig zijn aan flickering kunnen dit dus waarnemen of geïrriteerde ogen krijgen (gebruikmakend van de vermelde helderheid en lager).

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 13573 (minimum: 43 - maximum: 2500000) Hz waargenomen.


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670Tooltip
Acer TravelMate X514-51-511Q Intel Core i5-8265U, Intel Core i5-8265U: Ø462 (454.47-500.69)
Lenovo ThinkPad T495s-20QKS01E00 AMD Ryzen 7 PRO 3700U, AMD Ryzen 7 PRO 3700U: Ø578 (565.26-658.27)
Acer Swift 3 SF314-55G-768V Intel Core i7-8565U, Intel Core i7-8565U: Ø525 (504.86-564.35)
Asus VivoBook 14 F412FJ-EB084T Intel Core i5-8265U, Intel Core i5-8265U: Ø503 (492.9-621.35)
Dell Latitude 14 5495 AMD Ryzen 7 2700U, AMD Ryzen 7 2700U: Ø620 (605-670)
Cinebench R15
CPU Single 64Bit
Acer Swift 3 SF314-55G-768V
Intel Core i7-8565U
180 Points ∼100% +11%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U
162 Points ∼90%
Asus VivoBook 14 F412FJ-EB084T
Intel Core i5-8265U
161 Points ∼89% -1%
Average Intel Core i5-8265U
  (111 - 164, n=31)
155 Points ∼86% -4%
Lenovo ThinkPad T495s-20QKS01E00
AMD Ryzen 7 PRO 3700U
149 Points ∼83% -8%
Dell Latitude 14 5495
AMD Ryzen 7 2700U
148 Points ∼82% -9%
Average of class Subnotebook
  (20 - 185, n=282)
117 Points ∼65% -28%
CPU Multi 64Bit
Dell Latitude 14 5495
AMD Ryzen 7 2700U
670 Points ∼100% +34%
Lenovo ThinkPad T495s-20QKS01E00
AMD Ryzen 7 PRO 3700U
658 Points ∼98% +31%
Asus VivoBook 14 F412FJ-EB084T
Intel Core i5-8265U
623 Points ∼93% +24%
Average Intel Core i5-8265U
  (457 - 750, n=34)
594 Points ∼89% +19%
Acer Swift 3 SF314-55G-768V
Intel Core i7-8565U
564 Points ∼84% +13%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U
501 Points ∼75%
Average of class Subnotebook
  (32 - 1051, n=292)
346 Points ∼52% -31%
Cinebench R15 CPU Single 64Bit
162 Points
Cinebench R15 CPU Multi 64Bit
501 Points
Cinebench R15 OpenGL 64Bit
47.13 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
PCMark 10 | PCMark 8
PCMark 10
Digital Content Creation
Acer Swift 3 SF314-55G-768V
GeForce MX250, 8565U, WDC PC SN520 SDAPNUW-512G
3470 Points ∼100% +24%
Lenovo ThinkPad T495s-20QKS01E00
Vega 10, PRO 3700U, Samsung PM981a MZVLB1T0HBLR
3407 Points ∼98% +22%
Average Intel Core i5-8265U, Intel UHD Graphics 620
  (2067 - 3210, n=25)
2929 Points ∼84% +5%
Acer TravelMate X514-51-511Q
UHD Graphics 620, 8265U, Kingston RBUSNS8154P3256GJ1
2795 Points ∼81%
Asus VivoBook 14 F412FJ-EB084T
GeForce MX230, 8265U, Kingston RBU-SNS8180DS3512GJ
2685 Points ∼77% -4%
Average of class Subnotebook
  (534 - 4338, n=97)
2523 Points ∼73% -10%
Dell Latitude 14 5495
Vega 10, 2700U, Intel SSDSCKKF256G8
2206 Points ∼64% -21%
Productivity
Acer Swift 3 SF314-55G-768V
GeForce MX250, 8565U, WDC PC SN520 SDAPNUW-512G
7037 Points ∼100% +10%
Asus VivoBook 14 F412FJ-EB084T
GeForce MX230, 8265U, Kingston RBU-SNS8180DS3512GJ
6755 Points ∼96% +6%
Acer TravelMate X514-51-511Q
UHD Graphics 620, 8265U, Kingston RBUSNS8154P3256GJ1
6382 Points ∼91%
Average Intel Core i5-8265U, Intel UHD Graphics 620
  (2941 - 6556, n=25)
6048 Points ∼86% -5%
Lenovo ThinkPad T495s-20QKS01E00
Vega 10, PRO 3700U, Samsung PM981a MZVLB1T0HBLR
5670 Points ∼81% -11%
Average of class Subnotebook
  (1014 - 7281, n=97)
5281 Points ∼75% -17%
Dell Latitude 14 5495
Vega 10, 2700U, Intel SSDSCKKF256G8
3571 Points ∼51% -44%
Essentials
Asus VivoBook 14 F412FJ-EB084T
GeForce MX230, 8265U, Kingston RBU-SNS8180DS3512GJ
7981 Points ∼100% +1%
Acer TravelMate X514-51-511Q
UHD Graphics 620, 8265U, Kingston RBUSNS8154P3256GJ1
7867 Points ∼99%
Average Intel Core i5-8265U, Intel UHD Graphics 620
  (5073 - 8689, n=25)
7796 Points ∼98% -1%
Lenovo ThinkPad T495s-20QKS01E00
Vega 10, PRO 3700U, Samsung PM981a MZVLB1T0HBLR
7480 Points ∼94% -5%
Acer Swift 3 SF314-55G-768V
GeForce MX250, 8565U, WDC PC SN520 SDAPNUW-512G
7446 Points ∼93% -5%
Average of class Subnotebook
  (2062 - 9664, n=97)
6902 Points ∼86% -12%
Dell Latitude 14 5495
Vega 10, 2700U, Intel SSDSCKKF256G8
5957 Points ∼75% -24%
Score
Acer Swift 3 SF314-55G-768V
GeForce MX250, 8565U, WDC PC SN520 SDAPNUW-512G
4061 Points ∼100% +9%
Asus VivoBook 14 F412FJ-EB084T
GeForce MX230, 8265U, Kingston RBU-SNS8180DS3512GJ
3764 Points ∼93% +1%
Lenovo ThinkPad T495s-20QKS01E00
Vega 10, PRO 3700U, Samsung PM981a MZVLB1T0HBLR
3762 Points ∼93% +1%
Acer TravelMate X514-51-511Q
UHD Graphics 620, 8265U, Kingston RBUSNS8154P3256GJ1
3725 Points ∼92%
Average Intel Core i5-8265U, Intel UHD Graphics 620
  (2247 - 3985, n=25)
3702 Points ∼91% -1%
Average of class Subnotebook
  (743 - 4609, n=100)
3200 Points ∼79% -14%
Dell Latitude 14 5495
Vega 10, 2700U, Intel SSDSCKKF256G8
2585 Points ∼64% -31%
PCMark 8
Work Score Accelerated v2
Acer Swift 3 SF314-55G-768V
GeForce MX250, 8565U, WDC PC SN520 SDAPNUW-512G
5174 Points ∼100% +10%
Lenovo ThinkPad T495s-20QKS01E00
Vega 10, PRO 3700U, Samsung PM981a MZVLB1T0HBLR
5077 Points ∼98% +8%
Acer TravelMate X514-51-511Q
UHD Graphics 620, 8265U, Kingston RBUSNS8154P3256GJ1
4698 Points ∼91%
Average Intel Core i5-8265U, Intel UHD Graphics 620
  (3132 - 4927, n=21)
4665 Points ∼90% -1%
Average of class Subnotebook
  (1283 - 5363, n=221)
4067 Points ∼79% -13%
Dell Latitude 14 5495
Vega 10, 2700U, Intel SSDSCKKF256G8
2438 Points ∼47% -48%
Home Score Accelerated v2
Lenovo ThinkPad T495s-20QKS01E00
Vega 10, PRO 3700U, Samsung PM981a MZVLB1T0HBLR
4161 Points ∼100% +31%
Acer Swift 3 SF314-55G-768V
GeForce MX250, 8565U, WDC PC SN520 SDAPNUW-512G
3581 Points ∼86% +13%
Average Intel Core i5-8265U, Intel UHD Graphics 620
  (2747 - 4244, n=22)
3444 Points ∼83% +9%
Dell Latitude 14 5495
Vega 10, 2700U, Intel SSDSCKKF256G8
3256 Points ∼78% +3%
Acer TravelMate X514-51-511Q
UHD Graphics 620, 8265U, Kingston RBUSNS8154P3256GJ1
3170 Points ∼76%
Average of class Subnotebook
  (1027 - 4211, n=249)
3046 Points ∼73% -4%
PCMark 8 Home Score Accelerated v2
3170 punten
PCMark 8 Work Score Accelerated v2
4698 punten
Help
Acer TravelMate X514-51-511Q
Kingston RBUSNS8154P3256GJ1		Lenovo ThinkPad T495s-20QKS01E00
Samsung PM981a MZVLB1T0HBLR		Acer Swift 3 SF314-55G-768V
WDC PC SN520 SDAPNUW-512G		Asus VivoBook 14 F412FJ-EB084T
Kingston RBU-SNS8180DS3512GJ		Dell Latitude 14 5495
Intel SSDSCKKF256G8		Average Kingston RBUSNS8154P3256GJ1

CrystalDiskMark 5.2 / 6
51%
37%
-55%
-52%
-5%
Write 4K
122.3
142.26
16%
185.5
52%
55.04
-55%
48.45
-60%
97.4 (72.1 - 122, n=5)
-20%
Read 4K
45.51
46.69
3%
50.17
10%
28.79
-37%
25.11
-45%
35.1 (27.9 - 45.5, n=5)
-23%
Write Seq
667.1
1175
76%
307.5
-54%
341.2
-49%
675 (271 - 849, n=5)
1%
Read Seq
713
1132
59%
430
-40%
520.6
-27%
905 (713 - 1137, n=5)
27%
Write 4K Q32T1
411.8
268.25
-35%
472.6
15%
149.5
-64%
202
-51%
421 (236 - 868, n=5)
2%
Read 4K Q32T1
559.3
359.57
-36%
642.1
15%
207.2
-63%
243.5
-56%
647 (349 - 1580, n=5)
16%
Write Seq Q32T1
891.8
3033.1
240%
1453
63%
389.2
-56%
320.8
-64%
642 (253 - 892, n=5)
-28%
Read Seq Q32T1
1639
3561.2
117%
1738
6%
497.1
-70%
555.2
-66%
1346 (412 - 1639, n=5)
-18%
Write 4K Q8T8
1491.11
247.5
647
Read 4K Q8T8
1499.09
253.4
685
AS SSD
93%
42%
-139%
-73%
-18%
Copy Game MB/s
690.59
260.04
446 (381 - 479, n=3)
Copy Program MB/s
267.06
152.14
399 (315 - 532, n=3)
Copy ISO MB/s
1130.75
441.25
772 (586 - 1121, n=3)
Score Total
2411
5169
114%
3397
41%
782
-68%
751
-69%
1923 (821 - 2411, n=5)
-20%
Score Write
796
1986
149%
1514
90%
153
-81%
288
-64%
688 (294 - 799, n=5)
-14%
Score Read
1073
2118
97%
1242
16%
411
-62%
309
-71%
826 (360 - 1073, n=5)
-23%
Access Time Write *
0.044
0.041
7%
0.03
32%
0.4
-809%
0.101
-130%
0.05 (0.044 - 0.059, n=5)
-14%
Access Time Read *
0.04
0.432
0.128
0.1195 (0.072 - 0.173, n=4)
4K-64 Write
603.72
1649.64
173%
1210.98
101%
87.19
-86%
225.18
-63%
527 (190 - 650, n=5)
-13%
4K-64 Read
896.38
1806.32
102%
1050.98
17%
325.38
-64%
238.42
-73%
674 (259 - 896, n=5)
-25%
4K Write
114.43
105.35
-8%
167.94
47%
26.46
-77%
34.58
-70%
92.7 (67.1 - 114, n=5)
-19%
4K Read
54.84
45.52
-17%
47.35
-14%
36.4
-34%
19.76
-64%
37.4 (25.4 - 54.8, n=5)
-32%
Seq Write
774.82
2314
199%
1352.25
75%
392.72
-49%
286.49
-63%
690 (219 - 836, n=5)
-11%
Seq Read
1222.37
2661
118%
1437.82
18%
487.61
-60%
507.15
-59%
1148 (748 - 1416, n=5)
-6%
Totaal Gemiddelde (Programma / Instellingen)
72% / 77%
40% / 40%
-97% / -102%
-63% / -64%
-12% / -12%

* ... kleiner is beter

CrystalDiskMark 3.0
CrystalDiskMark 5.2 / 6
AS SSD
hddimg
Kingston RBUSNS8154P3256GJ1
Sequential Read: 733 MB/s
Sequential Write: 670.9 MB/s
512K Read: 577.3 MB/s
512K Write: 640.1 MB/s
4K Read: 41.12 MB/s
4K Write: 95.01 MB/s
4K QD32 Read: 410.1 MB/s
4K QD32 Write: 302.8 MB/s
3DMark 11 | 3DMark
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad T495s-20QKS01E00
AMD Radeon RX Vega 10, AMD Ryzen 7 PRO 3700U
3781 Points ∼100% +117%
Acer Swift 3 SF314-55G-768V
NVIDIA GeForce MX250, Intel Core i7-8565U
3593 Points ∼95% +106%
Asus VivoBook 14 F412FJ-EB084T
NVIDIA GeForce MX230, Intel Core i5-8265U
3318 Points ∼88% +91%
Dell Latitude 14 5495
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
3080 Points ∼81% +77%
Acer TravelMate X514-51-511Q
Intel UHD Graphics 620, Intel Core i5-8265U
1740 Points ∼46%
Average Intel UHD Graphics 620
  (1235 - 2006, n=175)
1718 Points ∼45% -1%
Average of class Subnotebook
  (230 - 10699, n=370)
1330 Points ∼35% -24%
3DMark
2560x1440 Time Spy Graphics
Lenovo ThinkPad T495s-20QKS01E00
AMD Radeon RX Vega 10, AMD Ryzen 7 PRO 3700U
737 Points ∼100%
Asus VivoBook 14 F412FJ-EB084T
NVIDIA GeForce MX230, Intel Core i5-8265U
710 Points ∼96%
Average of class Subnotebook
  (85 - 2840, n=44)
564 Points ∼77%
Average Intel UHD Graphics 620
  (299 - 433, n=35)
361 Points ∼49%
1920x1080 Fire Strike Graphics
Acer Swift 3 SF314-55G-768V
NVIDIA GeForce MX250, Intel Core i7-8565U
2977 Points ∼100% +160%
Lenovo ThinkPad T495s-20QKS01E00
AMD Radeon RX Vega 10, AMD Ryzen 7 PRO 3700U
2385 Points ∼80% +108%
Asus VivoBook 14 F412FJ-EB084T
NVIDIA GeForce MX230, Intel Core i5-8265U
2369 Points ∼80% +107%
Dell Latitude 14 5495
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
1835 Points ∼62% +60%
Acer TravelMate X514-51-511Q
Intel UHD Graphics 620, Intel Core i5-8265U
1144 Points ∼38%
Average Intel UHD Graphics 620
  (557 - 1401, n=146)
1128 Points ∼38% -1%
Average of class Subnotebook
  (222 - 3726, n=249)
1066 Points ∼36% -7%
1280x720 Cloud Gate Standard Graphics
Acer Swift 3 SF314-55G-768V
NVIDIA GeForce MX250, Intel Core i7-8565U
20283 Points ∼100% +118%
Lenovo ThinkPad T495s-20QKS01E00
AMD Radeon RX Vega 10, AMD Ryzen 7 PRO 3700U
16495 Points ∼81% +77%
Asus VivoBook 14 F412FJ-EB084T
NVIDIA GeForce MX230, Intel Core i5-8265U
15299 Points ∼75% +64%
Dell Latitude 14 5495
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
10773 Points ∼53% +16%
Acer TravelMate X514-51-511Q
Intel UHD Graphics 620, Intel Core i5-8265U
9324 Points ∼46%
Average Intel UHD Graphics 620
  (6910 - 11436, n=164)
9144 Points ∼45% -2%
Average of class Subnotebook
  (1484 - 22615, n=277)
7759 Points ∼38% -17%
3DMark 11 Performance
1917 punten
3DMark Cloud Gate Standard Score
7933 punten
3DMark Fire Strike Score
1035 punten
Help
BioShock Infinite | Dota 2 Reborn | Anno 1800
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF)
Acer Swift 3 SF314-55G-768V
Intel Core i7-8565U, NVIDIA GeForce MX250
32.27 fps ∼100% +259%
Asus VivoBook 14 F412FJ-EB084T
Intel Core i5-8265U, NVIDIA GeForce MX230
27.96 fps ∼87% +211%
Lenovo ThinkPad T495s-20QKS01E00
AMD Ryzen 7 PRO 3700U, AMD Radeon RX Vega 10
22 fps ∼68% +145%
Dell Latitude 14 5495
AMD Ryzen 7 2700U, AMD Radeon RX Vega 10
14.4 fps ∼45% +60%
Average of class Subnotebook
  (2.8 - 70.3, n=141)
11.5 fps ∼36% +28%
Average Intel UHD Graphics 620
  (4.5 - 17, n=153)
9.15 fps ∼28% +2%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U, Intel UHD Graphics 620
8.98 fps ∼28%
1366x768 High Preset
Acer Swift 3 SF314-55G-768V
Intel Core i7-8565U, NVIDIA GeForce MX250
83.98 fps ∼100% +178%
Asus VivoBook 14 F412FJ-EB084T
Intel Core i5-8265U, NVIDIA GeForce MX230
70.18 fps ∼84% +132%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U, Intel UHD Graphics 620
30.26 fps ∼36%
Average of class Subnotebook
  (6.96 - 169, n=183)
29 fps ∼35% -4%
Average Intel UHD Graphics 620
  (8.1 - 35.9, n=162)
27.2 fps ∼32% -10%
1366x768 Medium Preset
Acer Swift 3 SF314-55G-768V
Intel Core i7-8565U, NVIDIA GeForce MX250
98.43 fps ∼100% +187%
Asus VivoBook 14 F412FJ-EB084T
Intel Core i5-8265U, NVIDIA GeForce MX230
82.8 fps ∼84% +141%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U, Intel UHD Graphics 620
34.3 fps ∼35%
Average of class Subnotebook
  (8 - 187, n=193)
33.4 fps ∼34% -3%
Average Intel UHD Graphics 620
  (11.5 - 45.5, n=163)
32.5 fps ∼33% -5%
1280x720 Very Low Preset
Acer Swift 3 SF314-55G-768V
Intel Core i7-8565U, NVIDIA GeForce MX250
175.53 fps ∼100% +193%
Asus VivoBook 14 F412FJ-EB084T
Intel Core i5-8265U, NVIDIA GeForce MX230
151.46 fps ∼86% +153%
Lenovo ThinkPad T495s-20QKS01E00
AMD Ryzen 7 PRO 3700U, AMD Radeon RX Vega 10
106.4 fps ∼61% +78%
Dell Latitude 14 5495
AMD Ryzen 7 2700U, AMD Radeon RX Vega 10
85.7 fps ∼49% +43%
Average Intel UHD Graphics 620
  (18.3 - 90.2, n=163)
60.4 fps ∼34% +1%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U, Intel UHD Graphics 620
59.88 fps ∼34%
Average of class Subnotebook
  (16.9 - 231, n=195)
58.3 fps ∼33% -3%
Dota 2 Reborn
1920x1080 high (2/3)
Acer Swift 3 SF314-55G-768V
Intel Core i7-8565U, NVIDIA GeForce MX250
60.7 (min: 54.2) fps ∼100% +204%
Lenovo ThinkPad T495s-20QKS01E00
AMD Ryzen 7 PRO 3700U, AMD Radeon RX Vega 10
36.5 (min: 33.9) fps ∼60% +83%
Average of class Subnotebook
  (6.5 - 60.7, n=21)
26.8 fps ∼44% +34%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U, Intel UHD Graphics 620
20 (min: 18.8) fps ∼33%
Average Intel UHD Graphics 620
  (17.9 - 23.4, n=29)
20 fps ∼33% 0%
1366x768 med (1/3)
Acer Swift 3 SF314-55G-768V
Intel Core i7-8565U, NVIDIA GeForce MX250
98.7 (min: 83.8) fps ∼100% +111%
Lenovo ThinkPad T495s-20QKS01E00
AMD Ryzen 7 PRO 3700U, AMD Radeon RX Vega 10
63 (min: 57) fps ∼64% +35%
Average of class Subnotebook
  (14.3 - 98.7, n=21)
48.5 fps ∼49% +4%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U, Intel UHD Graphics 620
46.7 (min: 42.4) fps ∼47%
Average Intel UHD Graphics 620
  (35.2 - 56.5, n=29)
44.7 fps ∼45% -4%
1280x720 min (0/3) fastest
Acer Swift 3 SF314-55G-768V
Intel Core i7-8565U, NVIDIA GeForce MX250
118 (min: 103) fps ∼100% +60%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U, Intel UHD Graphics 620
73.9 (min: 65.2) fps ∼63%
Lenovo ThinkPad T495s-20QKS01E00
AMD Ryzen 7 PRO 3700U, AMD Radeon RX Vega 10
73 (min: 65.4) fps ∼62% -1%
Average Intel UHD Graphics 620
  (60.4 - 90, n=29)
72.2 fps ∼61% -2%
Average of class Subnotebook
  (15.9 - 118, n=21)
65.8 fps ∼56% -11%
Anno 1800
1920x1080 Medium Graphics Quality (DX11)
Average of class Subnotebook
  (4.6 - 22.7, n=3)
11 fps ∼100% +93%
Average Intel UHD Graphics 620
  (5.7 - 8, n=2)
6.85 fps ∼62% +20%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U, Intel UHD Graphics 620
5.7 fps ∼52%
1280x720 Low Graphics Quality (DX11)
Average of class Subnotebook
  (5.8 - 56.3, n=4)
24.1 fps ∼100% +21%
Average Intel UHD Graphics 620
  (19.9 - 23.8, n=2)
21.9 fps ∼91% +10%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U, Intel UHD Graphics 620
19.9 fps ∼83%
lage gem. hoge ultra
BioShock Infinite (2013) 59.88 34.3 30.26 8.98 fps
Dota 2 Reborn (2015) 73.9 46.7 20 17.7 fps
Anno 1800 (2019) 19.9 5.7 fps

Geluidsniveau

Onbelast
30.4 / 30.4 / 30.4 dB (A)
Belasting
34.1 / 34.4 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 30.4 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.733.632.734.436.72539.633.735.537.439.63143.840.937.640.143.84034.434.633.132.334.45033.833.930.231.333.86330.329.229.228.430.38027.226.527.726.827.210025.926.325.627.325.912526.426.425.825.826.416024.82523.523.724.820023.623.623.222.623.625023.222.622.122.223.231522.72221.720.922.740021.521.520.720.221.550020.620.52019.520.663019.819.91919.219.880020.520.318.518.220.5100020.821.5181820.8125020.820.817.91820.8160022.322.618.117.522.3200024.424.617.917.524.4250025.225.717.817.725.2315023.123.117.717.823.1400021.822.618.11821.850002121.918.11821630020.320.418.218.220.3800019.719.718.418.419.71000018.818.918.418.418.81250018.518.218.318.118.51600018.518.218.218.218.5SPL34.234.430.630.434.2N221.51.42median 21.5median 21.9median 18.4median 18.2median 21.5Delta1.61.61.921.6hearing rangehide median Fan NoiseAcer TravelMate X514-51-511Q
Max. Belasting
 32.7 °C44.2 °C44.9 °C
 28.5 °C31.6 °C37 °C
 26.4 °C26.9 °C29.2 °C
Maximum: 44.9 °C
Gemiddelde: 33.5 °C
42 °C44.2 °C33 °C
35.1 °C35 °C29.5 °C
29.4 °C29 °C27.9 °C
Maximum: 44.2 °C
Gemiddelde: 33.9 °C
Stroomadapter (max.)  49.8 °C | Kamertemperatuur 23.1 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 33.5 °C / 92 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 44.9 °C / 113 F, compared to the average of 35.8 °C / 96 F, ranging from 22 to 57 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 44.2 °C / 112 F, compared to the average of 40 °C / 104 F
(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.2 °C / 84.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.6 °C / 83.5 F (-0.6 °C / -1.1 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.334.434.32536.537.436.53140.940.140.94034.532.334.5503531.3356330.628.430.68027.426.827.410027.727.327.712527.725.827.716033.123.733.120036.422.636.425048.922.248.931551.320.951.340055.320.255.350058.119.558.16305819.25880065.618.265.6100066.81866.81250641864160062.417.562.4200063.217.563.2250057.117.757.1315055.117.855.1400053.71853.7500054.91854.9630055.518.255.5800053.518.453.51000049.818.449.81250044.918.144.91600042.618.242.6SPL72.830.472.8N28.71.428.7median 54.9median 18.2median 54.9Delta6.126.135.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseAcer TravelMate X514-51-511QApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer TravelMate X514-51-511Q audio analysis

(-) | not very loud speakers (66.78 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.4% lower than median
(±) | linearity of bass is average (10.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.8% higher than median
(±) | linearity of mids is average (7.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.5% away from median
(+) | highs are linear (6.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.7% difference to median)
Compared to same class
» 71% of all tested devices in this class were better, 6% similar, 23% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 60% of all tested devices were better, 7% similar, 33% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 1% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.17 / 0.4 Watt
Inactiefdarkmidlight 2.3 / 4.6 / 5.8 Watt
Belasting midlight 22.4 / 29 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Acer TravelMate X514-51-511Q
8265U, UHD Graphics 620, Kingston RBUSNS8154P3256GJ1, IPS, 1920x1080, 14		Lenovo ThinkPad T495s-20QKS01E00
PRO 3700U, Vega 10, Samsung PM981a MZVLB1T0HBLR, IPS, 1920x1080, 14		Acer Swift 3 SF314-55G-768V
8565U, GeForce MX250, WDC PC SN520 SDAPNUW-512G, IPS, 1920x1080, 14		Asus VivoBook 14 F412FJ-EB084T
8265U, GeForce MX230, Kingston RBU-SNS8180DS3512GJ, IPS, 1920x1080, 14		Dell Latitude 14 5495
2700U, Vega 10, Intel SSDSCKKF256G8, IPS LED, 1920x1080, 14		Average Intel UHD Graphics 620
 		Average of class Subnotebook

Power Consumption
-75%
-109%
-68%
-49%
-57%
-100%
Idle Minimum *
2.3
4.7
-104%
7.4
-222%
3.7
-61%
4.3
-87%
3.84 (1 - 12.4, n=185)
-67%
6.6 (1 - 36, n=607)
-187%
Idle Average *
4.6
7.28
-58%
9.9
-115%
6.1
-33%
6.6
-43%
7.04 (3.7 - 15.5, n=185)
-53%
9.81 (2.06 - 39, n=607)
-113%
Idle Maximum *
5.8
9.48
-63%
11.7
-102%
8.3
-43%
7.7
-33%
8.82 (3.8 - 16.6, n=185)
-52%
12.1 (3.9 - 55, n=607)
-109%
Load Average *
22.4
35.3
-58%
29
-29%
43
-92%
32
-43%
35.2 (8.1 - 51.6, n=185)
-57%
33.5 (6.3 - 75, n=597)
-50%
Load Maximum *
29
55.5
-91%
52
-79%
61.6
-112%
40
-38%
44.9 (22 - 79, n=185)
-55%
40.6 (7.6 - 111, n=600)
-40%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
17h 55min
NBC WiFi Websurfing Battery Test 1.3
6h 18min
Belast (maximale helderheid)
1h 28min
Acer TravelMate X514-51-511Q
8265U, UHD Graphics 620, 36 Wh		Lenovo ThinkPad T495s-20QKS01E00
PRO 3700U, Vega 10, 57 Wh		Acer Swift 3 SF314-55G-768V
8565U, GeForce MX250, 50.7 Wh		Asus VivoBook 14 F412FJ-EB084T
8265U, GeForce MX230, 37 Wh		Dell Latitude 14 5495
2700U, Vega 10, 61 Wh		Average of class Subnotebook

Batterijduur
79%
12%
-12%
35%
8%
Reader / Idle
1075
968
-10%
1089
1%
622 (87 - 2557, n=553)
-42%
WiFi v1.3
378
675
79%
484
28%
331.3
-12%
562
49%
475 (206 - 806, n=224)
26%
Load
88
104
18%
136
55%
122 (40 - 347, n=561)
39%

Pro

+ compact
+ lichtgewicht
+ vloeiende systeemprestaties
+ kleurechtheid beeldscherm
+ tweede M.2 2280 slot

Contra

- batterijduur zou beter kunnen
- slechts enkele poorten
- lage maximale helderheid

Verdict - A good office laptop for use on the move

The Acer TravelMate X514-51-511Q laptop review. Test device courtesy of by Cyberport.
The Acer TravelMate X514-51-511Q laptop review. Test device courtesy of by Cyberport.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

De TravelMate X514 voldoet aan zijn verwachtingen, en dat is waarschijnlijk ook de intentie van Acer geweest. De notebook vindt een goed balans tussen compact en lichtgewicht zijn terwijl deze wel voldoende kracht heeft voor algemene kantoor applicaties. De batterijduur van het toestel is voldoende, zonder een grote accu te gebruiken die voor een toename in gewicht zou zorgen.

Het beeldscherm heeft plus- en minpunten. Aan de ene kant geeft het beeldscherm levendige kleuren weer terwijl deze wel kleurechtheid behoud. Aan de andere kant is zijn maximale helderheid veel te laag voor een notebook dat ontworpen is om onderweg gebruikt te worden. Dit vonden we jammer.

De Acer TravelMate X514-51-511Q is een competente lichtgewicht en compacte zakelijke notebook die het goed doet op de meeste vlakken.

Alhoewel er wel wat nadelen zijn met zo een compact ontwerp. Ten eerste heeft Acer zakelijke features weggelaten zoals een Ethernet poort. Je zal dus een adapter bij de hand moeten hebben als je een bedrade internet aansluiting wilt. Overigens heeft Acer het toestel uitgerust met een relatief kleine accu. Deze zal niet de hele dag meegaan met intensieve belastingen. Hoewel de 36Wh batterij bijdraagt aan lage gewicht van het notebook. LG heeft zijn 14-inch Gram-serie wel kunnen uitrusten met merkbaar grotere batterijen terwijl deze notebooks wel onder de 1 kg blijven.

Acer TravelMate X514-51-511Q - 11-11-2019 v7
Mike Wobker

Behuizing
84 / 98 → 86%
Toetsenbord
84%
Aanwijsapparaat
88%
Aansluitmogelijkheden
43 / 75 → 57%
Gewicht
75 / 20-75 → 100%
Batterij
70%
Beeldscherm
86%
Gaming-performance
50 / 78 → 65%
Applicatie-performance
78 / 85 → 91%
Temperatuur
91%
Luidheid
97%
Audio
50 / 91 → 55%
Camera
36 / 85 → 42%
Gemiddelde
72%
84%
Subnotebook - Gewogen Gemiddelde

Linked Articles

Acer TravelMate X514-51-511Q (TravelMate X Serie)
Testrapport
•
Kort testrapport Acer TravelMa...
|
Testrapport
•
Kort testrapport Acer TravelMa...
|
Testrapport
•
Kort testrapport Acer TravelMa...
|
Testrapport
•
Kort testrapport Acer TravelMa...

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Acer TravelMate X514: een kleine 14-inch notebook gericht op professionals
Mike Wobker, 2019-11-16 (Update: 2019-11-24)
