KFA2 GeForce RTX 4090 SG review: Compromisloos 4K gamen met het nieuwe Nvidia-vlaggenschip

Ongeëvenaarde snelheid! Nvidia's huidige GeForce RTX 4090 grafische kaart biedt een prestatie die we nog niet eerder hebben gezien en overtreft het vorige topmodel aanzienlijk. In deze review onderzoeken we de KFA2 GeForce RTX 4090 SG en vergelijken we ook de prestaties van de verschillende RTX-4090 modellen met elkaar.

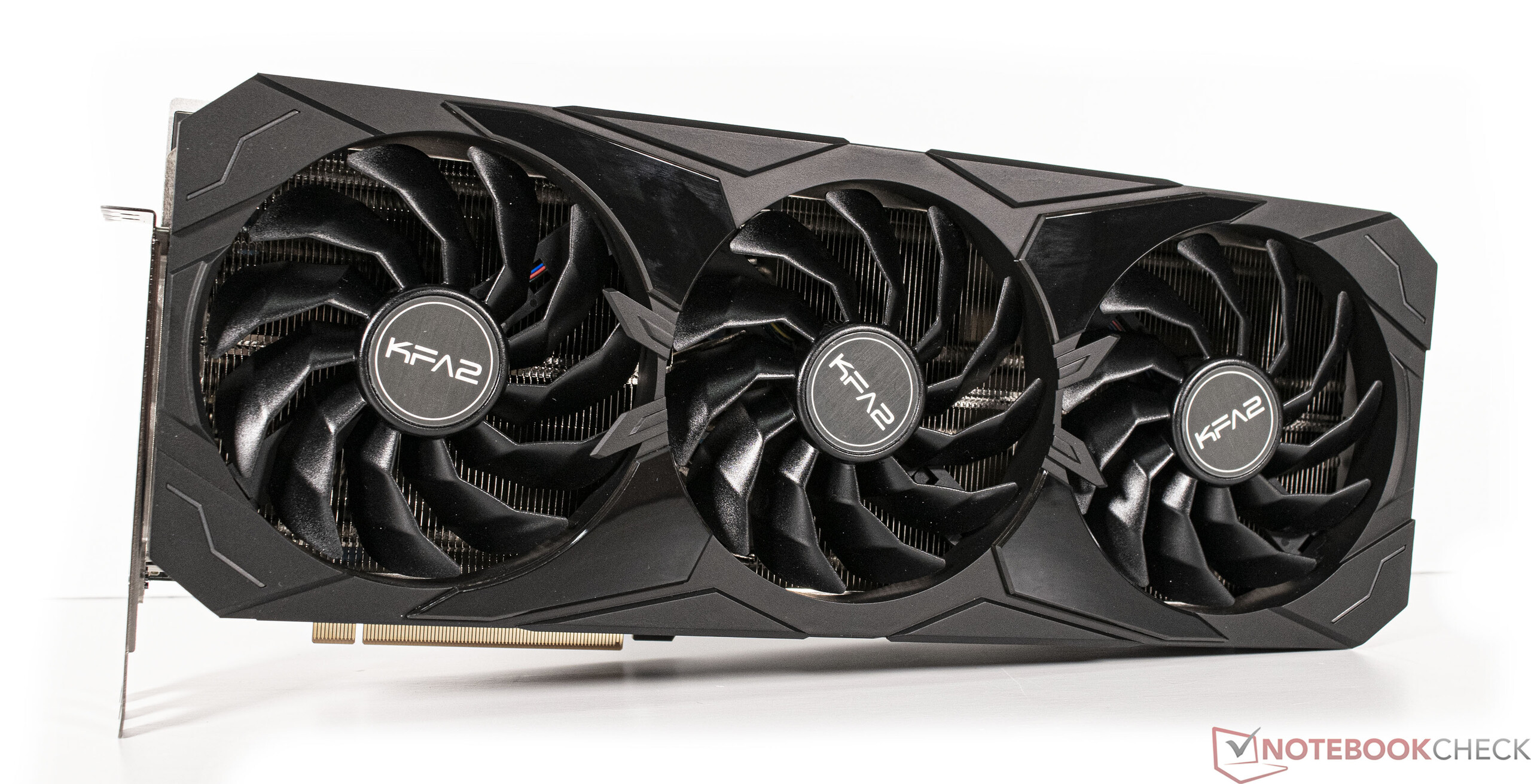

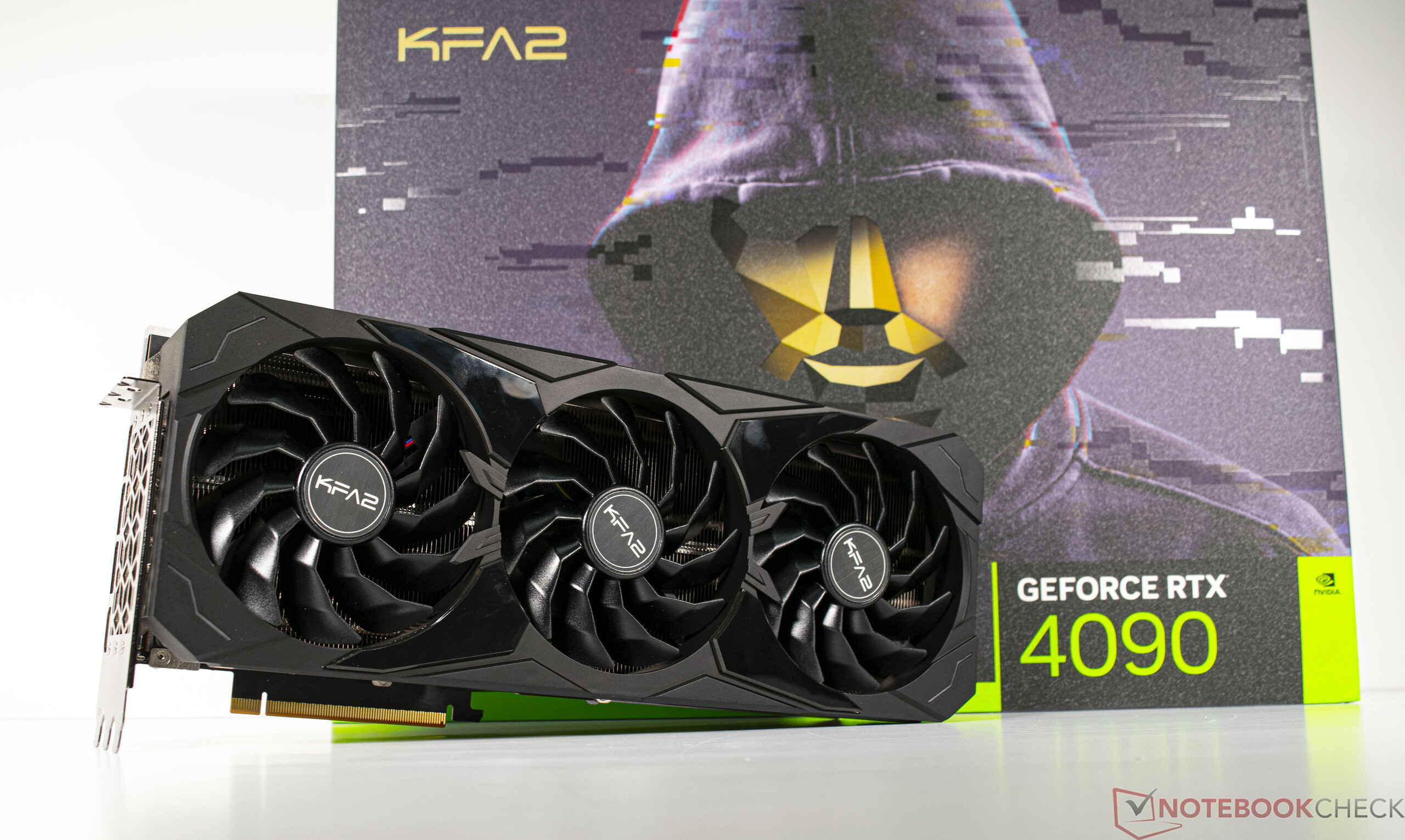

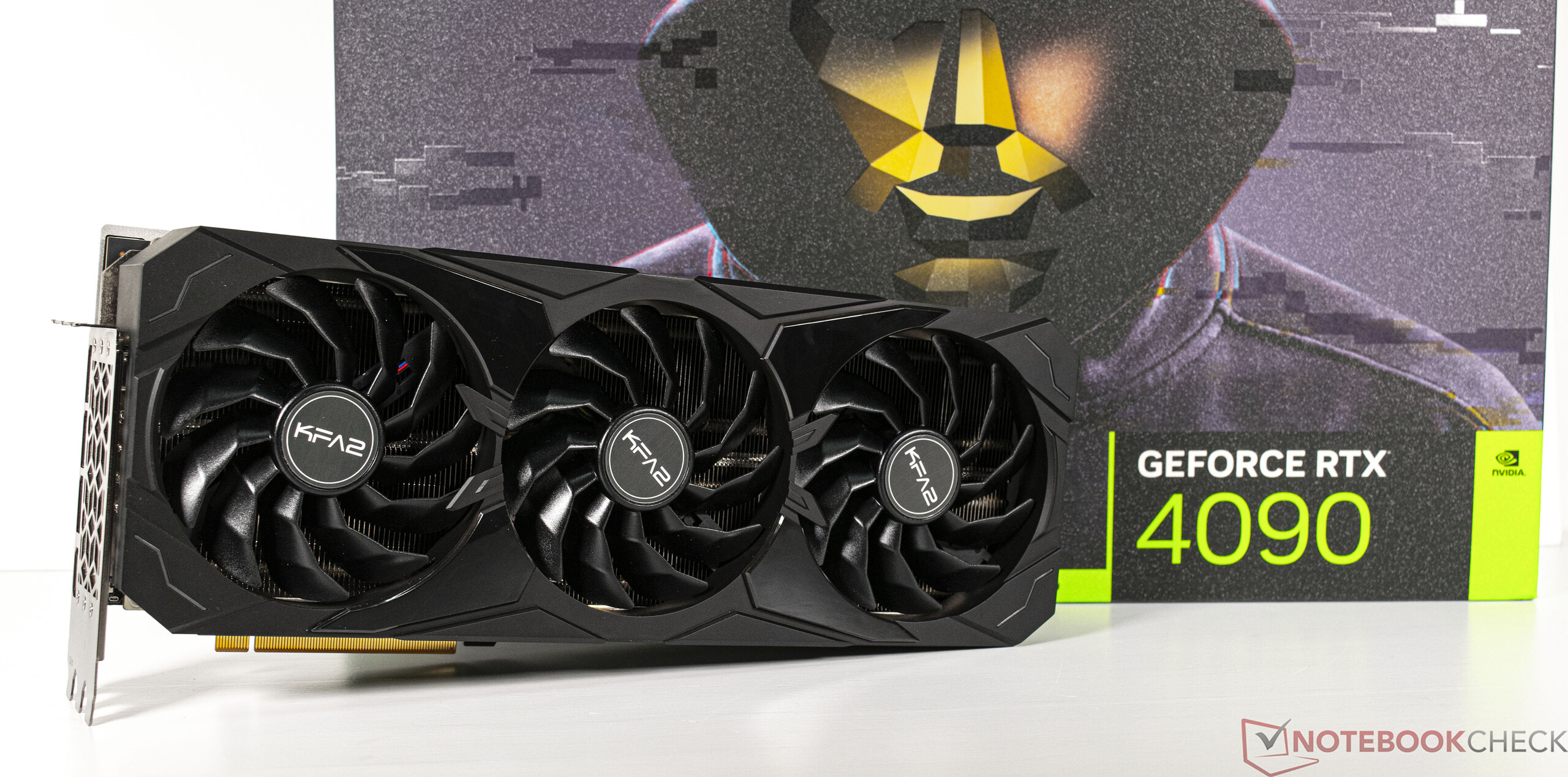

KFA2 GeForce RTX 4090 voor serieus gamen
KFA2 GeForce RTX 4090 voor serieus gamen

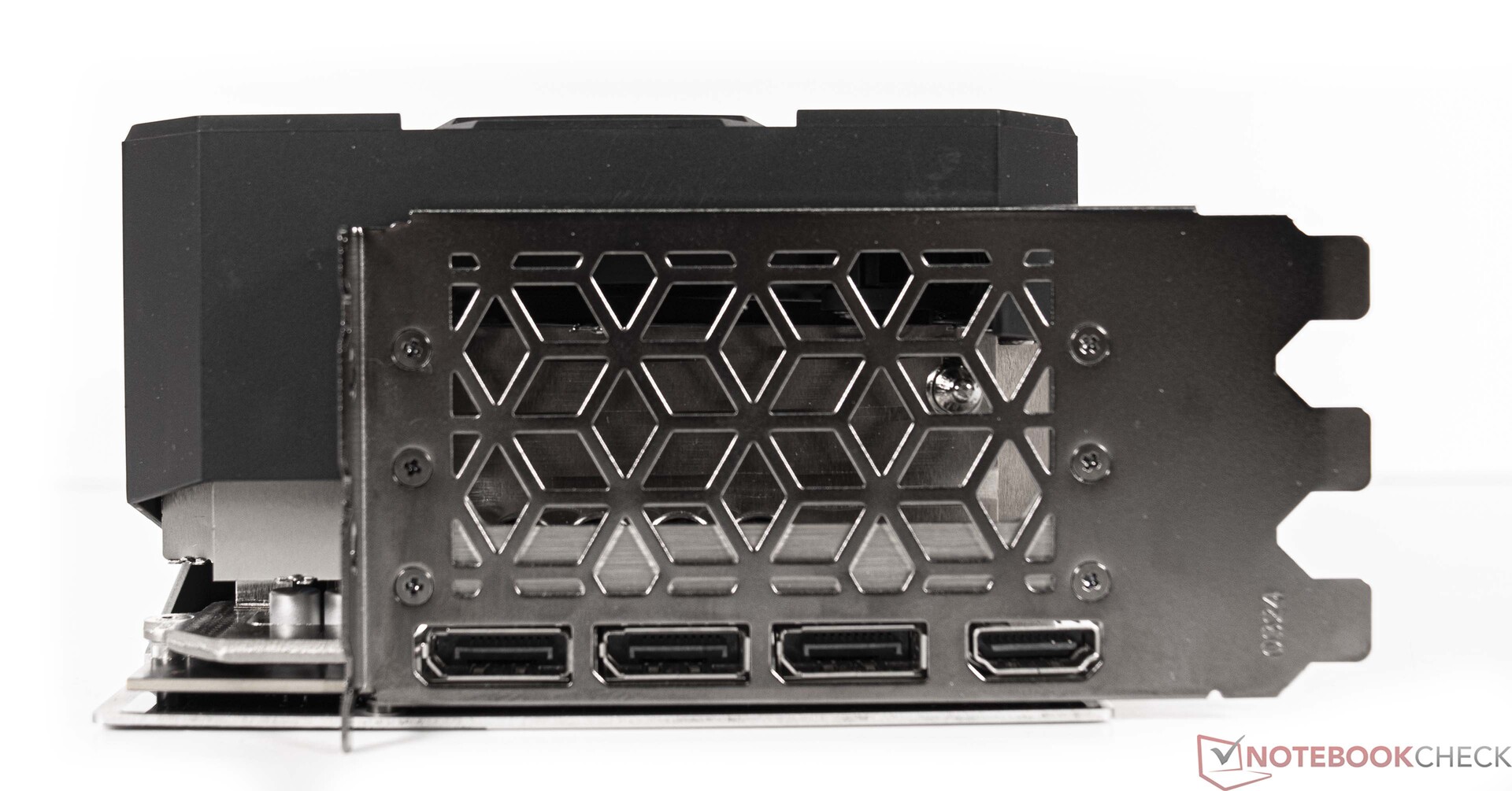

De externe aansluitingen van de KFA2 GeForce RTX 4090 SG
De externe aansluitingen van de KFA2 GeForce RTX 4090 SG

Het huidige topmodel van Nvidia levert indrukwekkende prestaties. We zagen dit al in de vorm van de Palit GeForce RTX 4090 GameRock OCen de Nvidia GeForce RTX 4090 Founders Edition. Met de versie van KFA2 bekijken we een extra model uit de huidige high-end klasse

Voor deze test gebruiken we de KFA2 GeForce RTX 4090 SG. De fabrikant beschouwt de grafische kaart op hetzelfde niveau met de Asus GeForce RTX 4090 Strix en de MSI GeForce RTX 4090 Suprim X, beide de topmodellen van de respectievelijke fabrikant. Helaas kunnen we u geen directe vergelijking bieden met die concurrenten en de KFA2 GeForce RTX 4090 SG, omdat we nog geen van beide modellen in handen hebben kunnen krijgen. Het KFA2-model is erg groot, wat eigenlijk ook geldt voor alle modellen van de RTX 4090. Het Quad Slot ontwerp neemt veel ruimte in de kast in beslag en belooft een stille grafische kaart onder belasting. Voor de ventilatoren gebruikt de fabrikant drie grote axiale ventilatoren met een diameter van 102 mm (~4 in). Ze zijn opnieuw ontworpen en bieden tot 25% meer volumedoorvoer. Het stroomverbruik bedraagt 450 watt, waarmee ook het referentiemodel van Nvidia wordt gevolgd. Zoals bij alle modellen van de GeForce RTX 4090 grafische kaart wordt voor de voeding de nieuwe 12VHPWR-aansluiting gebruikt. De bijbehorende adapter voor 4x 6 + 2 Pin PCIe wordt meegeleverd.

Extern biedt de KFA2 GeForce RTX 4090 SG 1x HDMI 2.1a en 3x DisplayPort 1.4a aansluitingen.

De specs van de GeForce grafische kaarten in vergelijking

Apparatuur RTX 4090 (FE) RTX 4080 RTX 3090 Ti RTX 3090 (FE) RTX 3080 Ti (FE) RTX 3080 (FE) Titan RTX
Chip AD102 AD103 GA102 GA102 GA102 GA102 TU102
FinFET-proces 4 nm 4 nm 8 nm 8 nm 8 nm 8 nm 12 nm
CUDA cores 16384 9728 10.752 10.496 10.240 8.704 4.608
Textuureenheden 512 304 336 328 320 272 288
Tensor Cores 512 Gen. 4 304 Gen. 4 336 Gen. 3 328 Gen. 3 320 Gen. 3 272 Gen. 3 576 Gen. 2
RT-kernen 128 76 84 82 80 68 72
GPU-basisklok 2.235 MHz 2.205 1.560 MHz 1.395 MHz 1.365 MHz 1.440 MHz 1.350 MHz
GPU Boost Clock 2.520 MHz 2.505 1.860 MHz 1.695 MHz 1.665 MHz 1.710 MHz 1.770 MHz
Geheugenbus 384 bit 256 bit 384 bit 384 bit 384 bit 320 bit 384 bit
Geheugenbandbreedte 1.008 GB/s 735,7 GB/s 1.008 GB/s 936 GB/s 912,4 GB/s 760 GB/s 672 GB/s
Videogeheugen 24 GB GDDR6X 16 GB GDDR6X 24 GB GDDR6X 24 GB GDDR6X 12 GB GDDR6X 10 GB GDDR6X 24 GB GDDR6
Energieverbruik 450 W 320 W 450 W 350 W 350 W 320 W 280 W

Ons testsysteem gebaseerd op AMD Ryzen 9 7950X

Een huidig AMD platform gebaseerd op de Gigabyte X670E Aorus Master dient als ons testsysteem. De CPU (AMD Ryzen 9 7950X) biedt goede prestaties, en we gebruiken een AiO oplossing van Alphacool (Alphacool Eisbear Aurora 360 mm) voor de koeling. Het 32-GB werkgeheugen komt van G.Skill en wordt uitgevoerd met het bijbehorende EXPO profiel. Voor de monitor gebruiken we de Gigabyte M32U.

Gigabyte X670E Aorus Master
Gigabyte X670E Aorus Master
AMD Ryzen 9 7950X
AMD Ryzen 9 7950X
G.Skill Trident Z5 Neo
G.Skill Trident Z5 Neo

Het testsysteem in detail

We gebruiken het volgende systeem voor de onderstaande benchmarks:

  • Lian-Li O11 Dynamisch
  • AMD Ryzen 9 7950X
  • Gigabyte X670E Aorus Master, BIOS: F8a
  • Alphacool Eisbear 360 AiO
  • Corsair RM 1000x Netzteil
  • G.Skill Trident Z5 Neo DDR5-6000 2x 16 GB, EXPO (DDR5-6000 CL30-38-38-96)
  • Corsair MP600 2 TB
  • Crucial MX500 2 TB
  • Microsoft Windows 11 Professional 64-Bit (versie 22H2)

Details over de KFA2 GeForce RTX 4090 SG

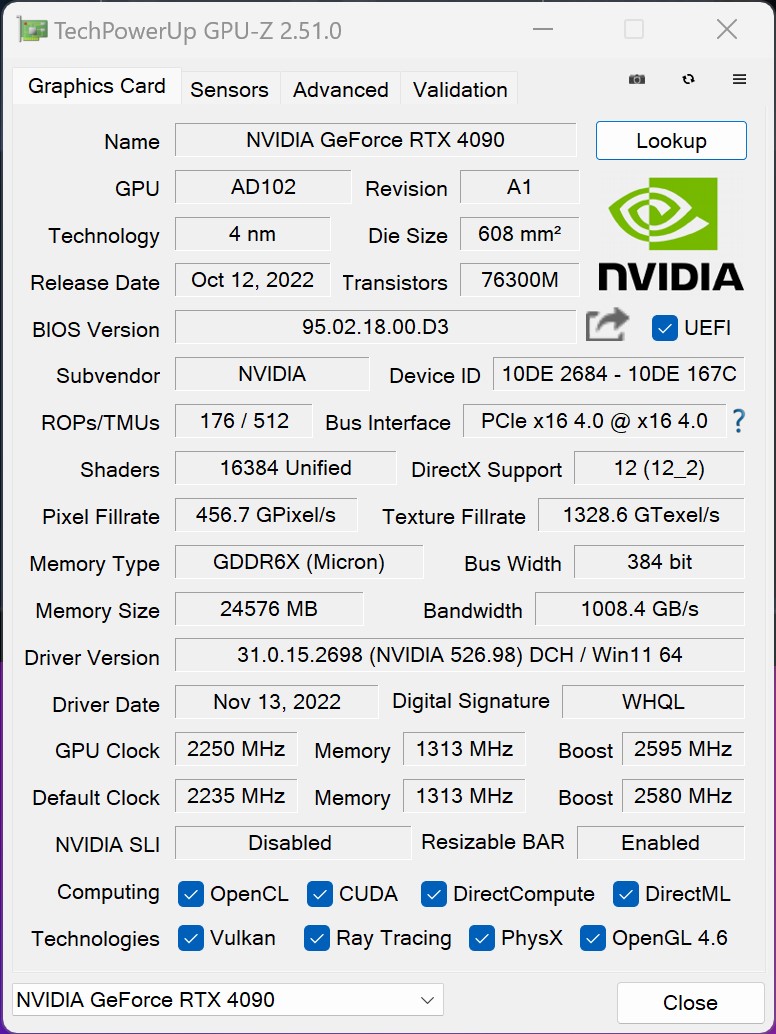

GPU-Z
GPU-Z
GPU-Z - 1 Klik OC
GPU-Z - 1 Klik OC

Wat betreft de kloksnelheden houdt KFA2 zich precies aan de richtlijnen van de fabrikant in de GeForce RTX 4090 SG. Hiermee worden op papier maximaal 2.580 MHz voor de Boost gespecificeerd voor de GPU. Dit is echter slechts een aanbeveling, en in de praktijk observeren we aanzienlijk hogere kloksnelheden gedurende onze games tests. Met 2.730 tot 2.760 MHz draait de AD102 van de KFA2 GeForce RTX 4090 SG meestal boven de gespecificeerde Boost-snelheid. Met de Xtreme Tuner biedt de fabrikant een kleine tool om alle belangrijke waarden van de grafische kaart uit te lezen. Zo kun je er bijvoorbeeld de verlichting mee regelen of de ventilator curve aanpassen. Voor de test hebben we geen van de voorgedefinieerde waarden veranderd. De 1 Click OC functie, die vaak gebruikt wordt in KFA2 modellen, is echter meer een illusie dan een echt voordeel. Een verhoging van de GPU kloksnelheid met slechts 15 MHz maakt in de praktijk geen verschil. We zouden willen dat deze functie een significantere verbetering zou brengen.

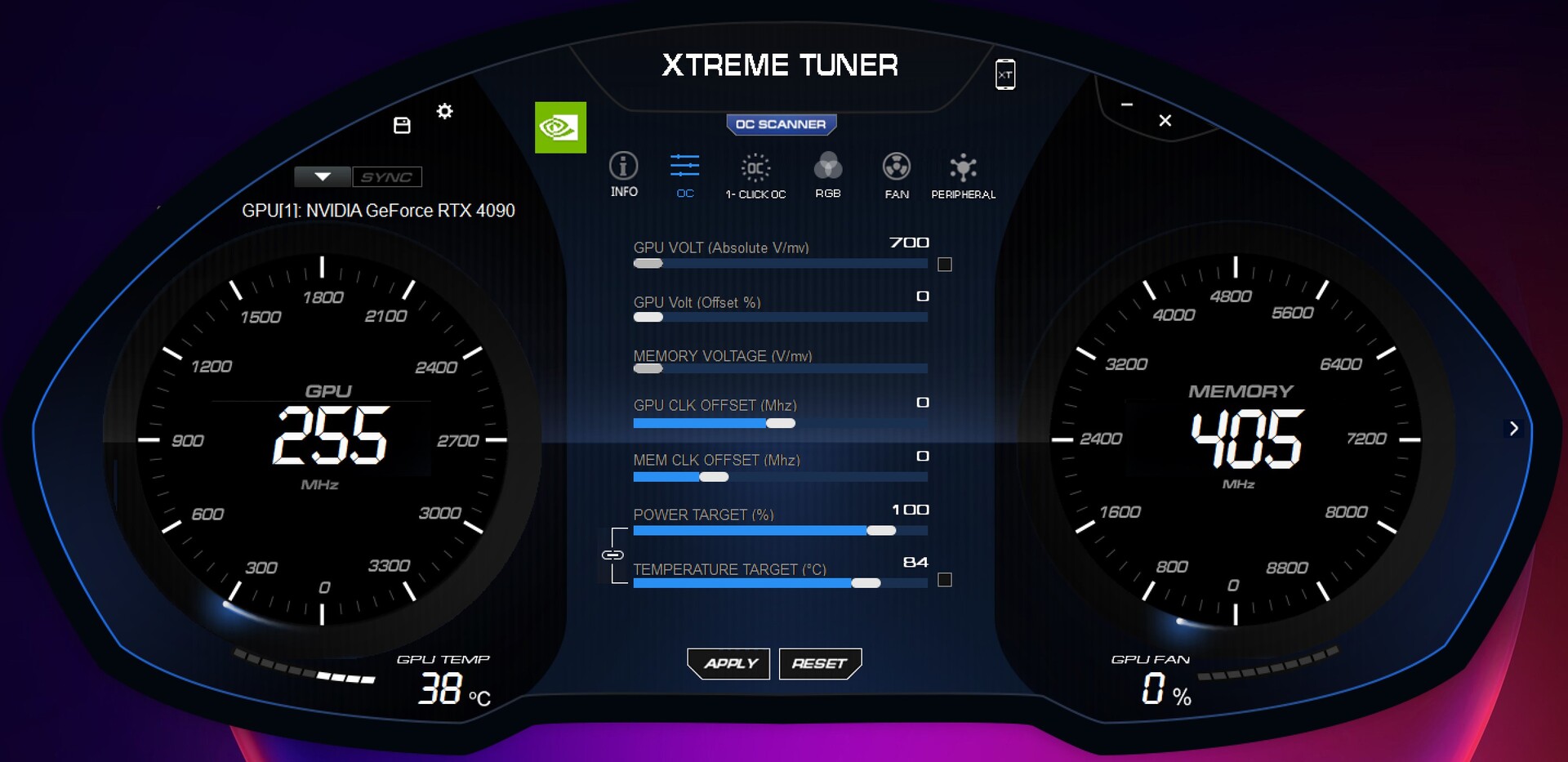

Xtreme Tuner (hoofdmenu)
Xtreme Tuner (hoofdmenu)

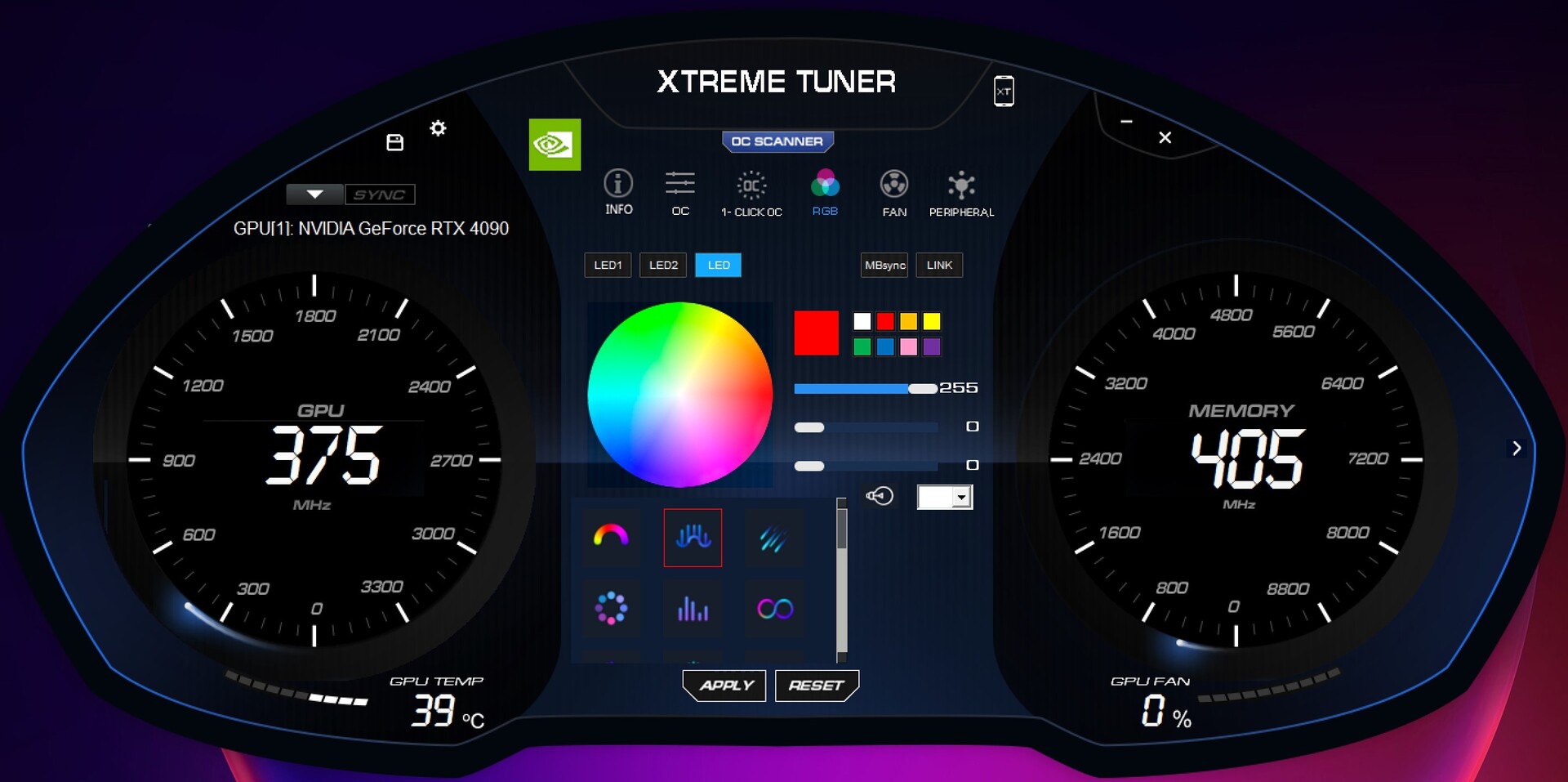

Xtreme Tuner (RGB-besturing)
Xtreme Tuner (RGB-besturing)

Synthetische benchmarks

In de synthetische tests zien we vrijwel identieke prestaties in vergelijking met de Palit GeForce RTX 4090 GameRock OC, maar onze testunit plaatst zich nog steeds iets achter de Palit grafische kaart. Subjectief gezien bieden beide modellen dezelfde snelheid. De prestatieverhoging in directe vergelijking met de Nvidia GeForce RTX 3090is zeer groot (met 90 tegenover 57 punten). Tegelijkertijd doet de Nvidia Titan RTX het ook redelijk goed. In navolging van de Quadro-serie weet de grafische kaart hier in de rendertests aanzienlijk betere prestaties neer te zetten dankzij de optimalisaties in het stuurprogramma.

Vergeleken met AMD ligt de KFA2 GeForce RTX 4090 SG ook gemakkelijk voor. De vergelijking met de Sapphire AMD Radeon RX 6950 XT laat een prestatievoordeel zien van gemiddeld 53%. Met de AMD Radeon RX 7900 XTX is de opvolger echter al in zicht. Medio december zou die er moeten zijn, en kan de volgende strijd tussen het rode en het groene kamp beginnen.

Performance Rating - Percent
Palit GeForce RTX 4090 GameRock OC
90.9 pt
KFA2 GeForce RTX 4090 SG
89.9 pt
Nvidia Titan RTX
60.4 pt
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
58.7 pt
NVIDIA GeForce RTX 3090 Founders Edition
57.1 pt
KFA2 GeForce RTX 3080 SG
47 pt
3DMark
2560x1440 Time Spy Graphics
Palit GeForce RTX 4090 GameRock OC
36836 Points +2%
KFA2 GeForce RTX 4090 SG
36252 Points
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
21719 Points -40%
NVIDIA GeForce RTX 3090 Founders Edition
19467 Points -46%
KFA2 GeForce RTX 3080 SG
17956 Points -50%
Nvidia Titan RTX
15106 Points -58%
Fire Strike Extreme Graphics
Palit GeForce RTX 4090 GameRock OC
46270 Points +2%
KFA2 GeForce RTX 4090 SG
45470 Points
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
29704 Points -35%
NVIDIA GeForce RTX 3090 Founders Edition
24730 Points -46%
KFA2 GeForce RTX 3080 SG
22078 Points -51%
Nvidia Titan RTX
17759 Points -61%
3840x2160 Fire Strike Ultra Graphics
Palit GeForce RTX 4090 GameRock OC
25018 Points +2%
KFA2 GeForce RTX 4090 SG
24633 Points
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
14978 Points -39%
NVIDIA GeForce RTX 3090 Founders Edition
12587 Points -49%
KFA2 GeForce RTX 3080 SG
11340 Points -54%
Nvidia Titan RTX
8755 Points -64%
1920x1080 Fire Strike Graphics
Palit GeForce RTX 4090 GameRock OC
72678 Points +1%
KFA2 GeForce RTX 4090 SG
72165 Points
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
60092 Points -17%
NVIDIA GeForce RTX 3090 Founders Edition
48831 Points -32%
KFA2 GeForce RTX 3080 SG
44533 Points -38%
Nvidia Titan RTX
37257 Points -48%
Unigine Superposition
7680x4320 8k Optimized
Palit GeForce RTX 4090 GameRock OC
13082 Points +1%
KFA2 GeForce RTX 4090 SG
12979 Points
NVIDIA GeForce RTX 3090 Founders Edition
7051 Points -46%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
6645 Points -49%
KFA2 GeForce RTX 3080 SG
6548 Points -50%
Nvidia Titan RTX
5402 Points -58%
3840x2160 4k Optimized
Palit GeForce RTX 4090 GameRock OC
33943 Points +1%
KFA2 GeForce RTX 4090 SG
33581 Points
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
17725 Points -47%
NVIDIA GeForce RTX 3090 Founders Edition
16188 Points -52%
KFA2 GeForce RTX 3080 SG
14986 Points -55%
Nvidia Titan RTX
12050 Points -64%
1920x1080 1080p Extreme
Palit GeForce RTX 4090 GameRock OC
21824 Points +3%
KFA2 GeForce RTX 4090 SG
21288 Points
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
12079 Points -43%
NVIDIA GeForce RTX 3090 Founders Edition
12059 Points -43%
KFA2 GeForce RTX 3080 SG
11424 Points -46%
Nvidia Titan RTX
9014 Points -58%
1920x1080 1080p High
Palit GeForce RTX 4090 GameRock OC
46814 Points +3%
KFA2 GeForce RTX 4090 SG
45619 Points
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
28478 Points -38%
NVIDIA GeForce RTX 3090 Founders Edition
26320 Points -42%
KFA2 GeForce RTX 3080 SG
24051 Points -47%
Nvidia Titan RTX
20335 Points -55%
1280x720 720p Low
Palit GeForce RTX 4090 GameRock OC
51741 Points +2%
Nvidia Titan RTX
50876 Points 0%
KFA2 GeForce RTX 4090 SG
50650 Points
NVIDIA GeForce RTX 3090 Founders Edition
50487 Points 0%
KFA2 GeForce RTX 3080 SG
38209 Points -25%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
33955 Points -33%
Unigine Heaven 4.0
Extreme Preset DX11
Palit GeForce RTX 4090 GameRock OC
491.5 fps +1%
KFA2 GeForce RTX 4090 SG
486.9 fps
NVIDIA GeForce RTX 3090 Founders Edition
309.7 fps -36%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
293.8 fps -40%
KFA2 GeForce RTX 3080 SG
274.3 fps -44%
Nvidia Titan RTX
248.1 fps -49%
Extreme Preset OpenGL
Palit GeForce RTX 4090 GameRock OC
450.4 fps +1%
KFA2 GeForce RTX 4090 SG
447.1 fps
NVIDIA GeForce RTX 3090 Founders Edition
274.7 fps -39%
KFA2 GeForce RTX 3080 SG
251.4 fps -44%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
222.7 fps -50%
Nvidia Titan RTX
218 fps -51%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
KFA2 GeForce RTX 4090 SG
276 fps
Palit GeForce RTX 4090 GameRock OC
270.7 fps -2%
NVIDIA GeForce RTX 3090 Founders Edition
235.4 fps -15%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
209.2 fps -24%
KFA2 GeForce RTX 3080 SG
203.8 fps -26%
Nvidia Titan RTX
191.4 fps -31%
1920x1080 Extreme HD Preset OpenGL AA:x8
Palit GeForce RTX 4090 GameRock OC
288 fps 0%
KFA2 GeForce RTX 4090 SG
288 fps
NVIDIA GeForce RTX 3090 Founders Edition
205.8 fps -29%
KFA2 GeForce RTX 3080 SG
186.1 fps -35%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
176.9 fps -39%
Nvidia Titan RTX
160.8 fps -44%
3DMark 11
1280x720 Performance GPU
Palit GeForce RTX 4090 GameRock OC
107723 Points +1%
KFA2 GeForce RTX 4090 SG
106709 Points
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
70480 Points -34%
NVIDIA GeForce RTX 3090 Founders Edition
62735 Points -41%
KFA2 GeForce RTX 3080 SG
56634 Points -47%
Nvidia Titan RTX
50900 Points -52%
1280x720 Performance
Palit GeForce RTX 4090 GameRock OC
69323 Points 0%
KFA2 GeForce RTX 4090 SG
69012 Points
NVIDIA GeForce RTX 3090 Founders Edition
48185 Points -30%
Nvidia Titan RTX
44979 Points -35%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
44827 Points -35%
KFA2 GeForce RTX 3080 SG
41410 Points -40%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Nvidia Titan RTX
207 fps +63%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
157 fps +24%
KFA2 GeForce RTX 4090 SG
127 fps
Palit GeForce RTX 4090 GameRock OC
126 fps -1%
NVIDIA GeForce RTX 3090 Founders Edition
105 fps -17%
KFA2 GeForce RTX 3080 SG
73.8 fps -42%
1900x1060 Siemens NX (snx-02)
Nvidia Titan RTX
283 fps +972%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
49.4 fps +87%
Palit GeForce RTX 4090 GameRock OC
27.1 fps +3%
KFA2 GeForce RTX 4090 SG
26.4 fps
NVIDIA GeForce RTX 3090 Founders Edition
16.4 fps -38%
KFA2 GeForce RTX 3080 SG
12 fps -55%
1900x1060 Showcase (showcase-01)
Palit GeForce RTX 4090 GameRock OC
457 fps +2%
KFA2 GeForce RTX 4090 SG
448 fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
308 fps -31%
NVIDIA GeForce RTX 3090 Founders Edition
262 fps -42%
KFA2 GeForce RTX 3080 SG
226 fps -50%
Nvidia Titan RTX
197 fps -56%
1900x1060 Medical (medical-01)
Palit GeForce RTX 4090 GameRock OC
119 fps +1%
KFA2 GeForce RTX 4090 SG
118 fps
Nvidia Titan RTX
101 fps -14%
NVIDIA GeForce RTX 3090 Founders Edition
85.8 fps -27%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
58.3 fps -51%
KFA2 GeForce RTX 3080 SG
40.3 fps -66%
1900x1060 Maya (maya-04)
Palit GeForce RTX 4090 GameRock OC
317 fps 0%
KFA2 GeForce RTX 4090 SG
316 fps
NVIDIA GeForce RTX 3090 Founders Edition
302 fps -4%
Nvidia Titan RTX
260 fps -18%
KFA2 GeForce RTX 3080 SG
139 fps -56%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
90.7 fps -71%
1900x1060 Energy (energy-01)
Palit GeForce RTX 4090 GameRock OC
54.7 fps +1%
KFA2 GeForce RTX 4090 SG
54.2 fps
Nvidia Titan RTX
28.8 fps -47%
NVIDIA GeForce RTX 3090 Founders Edition
25.6 fps -53%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
23 fps -58%
KFA2 GeForce RTX 3080 SG
17.2 fps -68%
1900x1060 Creo (creo-01)
Nvidia Titan RTX
197 fps +73%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
115 fps +1%
Palit GeForce RTX 4090 GameRock OC
115 fps +1%
KFA2 GeForce RTX 4090 SG
114 fps
NVIDIA GeForce RTX 3090 Founders Edition
93.7 fps -18%
KFA2 GeForce RTX 3080 SG
74.4 fps -35%
1900x1060 Catia (catia-04)
Nvidia Titan RTX
332 fps +31%
Palit GeForce RTX 4090 GameRock OC
257 fps +1%
KFA2 GeForce RTX 4090 SG
254 fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
199 fps -22%
NVIDIA GeForce RTX 3090 Founders Edition
167 fps -34%
KFA2 GeForce RTX 3080 SG
79.1 fps -69%
1900x1060 3ds Max (3dsmax-05)
Palit GeForce RTX 4090 GameRock OC
571 fps +2%
KFA2 GeForce RTX 4090 SG
561 fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
484 fps -14%
NVIDIA GeForce RTX 3090 Founders Edition
389 fps -31%
KFA2 GeForce RTX 3080 SG
334 fps -40%
Nvidia Titan RTX
315 fps -44%
SPECviewperf 13
Solidworks (sw-04)
Nvidia Titan RTX
218 fps +20%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
210 fps +15%
Palit GeForce RTX 4090 GameRock OC
186 fps +2%
KFA2 GeForce RTX 4090 SG
182 fps
NVIDIA GeForce RTX 3090 Founders Edition
151 fps -17%
KFA2 GeForce RTX 3080 SG
108 fps -41%
Siemens NX (snx-03)
Nvidia Titan RTX
512 fps +969%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
89.7 fps +87%
Palit GeForce RTX 4090 GameRock OC
49.1 fps +3%
KFA2 GeForce RTX 4090 SG
47.9 fps
NVIDIA GeForce RTX 3090 Founders Edition
29.7 fps -38%
KFA2 GeForce RTX 3080 SG
26.3 fps -45%
Showcase (showcase-02)
Palit GeForce RTX 4090 GameRock OC
455 fps +2%
KFA2 GeForce RTX 4090 SG
448 fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
312 fps -30%
NVIDIA GeForce RTX 3090 Founders Edition
262 fps -42%
KFA2 GeForce RTX 3080 SG
228 fps -49%
Nvidia Titan RTX
198 fps -56%
Medical (medical-02)
Palit GeForce RTX 4090 GameRock OC
186 fps +2%
KFA2 GeForce RTX 4090 SG
182 fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
157 fps -14%
NVIDIA GeForce RTX 3090 Founders Edition
106 fps -42%
KFA2 GeForce RTX 3080 SG
102 fps -44%
Nvidia Titan RTX
92 fps -49%
Maya (maya-05)
Palit GeForce RTX 4090 GameRock OC
715 fps 0%
KFA2 GeForce RTX 4090 SG
715 fps
NVIDIA GeForce RTX 3090 Founders Edition
556 fps -22%
Nvidia Titan RTX
499 fps -30%
KFA2 GeForce RTX 3080 SG
460 fps -36%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
372 fps -48%
Energy (energy-02)
Palit GeForce RTX 4090 GameRock OC
126 fps +2%
KFA2 GeForce RTX 4090 SG
123 fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
60.3 fps -51%
Nvidia Titan RTX
51.8 fps -58%
NVIDIA GeForce RTX 3090 Founders Edition
43.8 fps -64%
KFA2 GeForce RTX 3080 SG
37.6 fps -69%
Creo (creo-02)
Palit GeForce RTX 4090 GameRock OC
552 fps +1%
KFA2 GeForce RTX 4090 SG
544 fps
NVIDIA GeForce RTX 3090 Founders Edition
392 fps -28%
Nvidia Titan RTX
386 fps -29%
KFA2 GeForce RTX 3080 SG
324 fps -40%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
323 fps -41%
Catia (catia-05)
Nvidia Titan RTX
534 fps +35%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
450 fps +14%
Palit GeForce RTX 4090 GameRock OC
402 fps +2%
KFA2 GeForce RTX 4090 SG
396 fps
NVIDIA GeForce RTX 3090 Founders Edition
252 fps -36%
KFA2 GeForce RTX 3080 SG
206 fps -48%
3ds Max (3dsmax-06)
Palit GeForce RTX 4090 GameRock OC
563 fps +1%
KFA2 GeForce RTX 4090 SG
558 fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
483 fps -13%
NVIDIA GeForce RTX 3090 Founders Edition
387 fps -31%
KFA2 GeForce RTX 3080 SG
334 fps -40%
Nvidia Titan RTX
321 fps -42%
SPECviewperf 2020
3840x2160 3ds Max (3dsmax-07)
KFA2 GeForce RTX 4090 SG
231 fps
Palit GeForce RTX 4090 GameRock OC
228 fps -1%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
144 fps -38%
NVIDIA GeForce RTX 3090 Founders Edition
141 fps -39%
KFA2 GeForce RTX 3080 SG
128 fps -45%
Nvidia Titan RTX
118 fps -49%
3840x2160 CATIA (catia-06)
Palit GeForce RTX 4090 GameRock OC
95.3 fps +1%
KFA2 GeForce RTX 4090 SG
94.7 fps
Nvidia Titan RTX
90.9 fps -4%
NVIDIA GeForce RTX 3090 Founders Edition
58.5 fps -38%
KFA2 GeForce RTX 3080 SG
53.7 fps -43%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
53 fps -44%
3840x2160 Creo (creo-03)
Nvidia Titan RTX
135 fps +2%
Palit GeForce RTX 4090 GameRock OC
133 fps 0%
KFA2 GeForce RTX 4090 SG
133 fps
NVIDIA GeForce RTX 3090 Founders Edition
115 fps -14%
KFA2 GeForce RTX 3080 SG
90 fps -32%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
73.1 fps -45%
3840x2160 Energy (energy-03)
Palit GeForce RTX 4090 GameRock OC
141 fps +3%
KFA2 GeForce RTX 4090 SG
137 fps
NVIDIA GeForce RTX 3090 Founders Edition
96.6 fps -29%
Nvidia Titan RTX
93.9 fps -31%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
47.6 fps -65%
KFA2 GeForce RTX 3080 SG
37.2 fps -73%
3840x2160 Maya (maya-06)
KFA2 GeForce RTX 4090 SG
525 fps
Palit GeForce RTX 4090 GameRock OC
498 fps -5%
NVIDIA GeForce RTX 3090 Founders Edition
356 fps -32%
KFA2 GeForce RTX 3080 SG
314 fps -40%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
296 fps -44%
Nvidia Titan RTX
274 fps -48%
3840x2160 Medical (medical-03)
Palit GeForce RTX 4090 GameRock OC
45.9 fps +2%
KFA2 GeForce RTX 4090 SG
44.8 fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
34.4 fps -23%
NVIDIA GeForce RTX 3090 Founders Edition
20 fps -55%
KFA2 GeForce RTX 3080 SG
18.8 fps -58%
Nvidia Titan RTX
16.5 fps -63%
3840x2160 Siemens NX (snx-04)
Nvidia Titan RTX
375 fps +812%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
88.6 fps +116%
Palit GeForce RTX 4090 GameRock OC
41.3 fps 0%
KFA2 GeForce RTX 4090 SG
41.1 fps
NVIDIA GeForce RTX 3090 Founders Edition
24.7 fps -40%
KFA2 GeForce RTX 3080 SG
21.8 fps -47%
ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
Palit GeForce RTX 4090 GameRock OC
34332 Points +3%
KFA2 GeForce RTX 4090 SG
33298 Points
NVIDIA GeForce RTX 3090 Founders Edition
17713 Points -47%
KFA2 GeForce RTX 3080 SG
15594 Points -53%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
13580 Points -59%
Nvidia Titan RTX
10129 Points -70%
1024x600 Normal, Mandel Scalar
Palit GeForce RTX 4090 GameRock OC
22889 Points +2%
KFA2 GeForce RTX 4090 SG
22402 Points
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
11854 Points -47%
NVIDIA GeForce RTX 3090 Founders Edition
11270 Points -50%
KFA2 GeForce RTX 3080 SG
9698 Points -57%
Nvidia Titan RTX
6406 Points -71%
1024x600 Normal, Mandel Vector
Palit GeForce RTX 4090 GameRock OC
17336 Points +2%
KFA2 GeForce RTX 4090 SG
16935 Points
NVIDIA GeForce RTX 3090 Founders Edition
9861 Points -42%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
9555 Points -44%
KFA2 GeForce RTX 3080 SG
8326 Points -51%
Nvidia Titan RTX
5440 Points -68%
1024x600 Normal, Fluid 2DTexArr
Palit GeForce RTX 4090 GameRock OC
6891 Points +1%
KFA2 GeForce RTX 4090 SG
6792 Points
NVIDIA GeForce RTX 3090 Founders Edition
4517 Points -33%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
4455 Points -34%
KFA2 GeForce RTX 3080 SG
4175 Points -39%
Nvidia Titan RTX
3828 Points -44%
1024x600 Normal, Fluid 3DTex
Palit GeForce RTX 4090 GameRock OC
10724 Points +1%
KFA2 GeForce RTX 4090 SG
10589 Points
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
5515 Points -48%
NVIDIA GeForce RTX 3090 Founders Edition
5501 Points -48%
KFA2 GeForce RTX 3080 SG
4900 Points -54%
Nvidia Titan RTX
4027 Points -62%
1024x600 Normal, Score
Palit GeForce RTX 4090 GameRock OC
92171 Points +2%
KFA2 GeForce RTX 4090 SG
90016 Points
NVIDIA GeForce RTX 3090 Founders Edition
48862 Points -46%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
44959 Points -50%
KFA2 GeForce RTX 3080 SG
42692 Points -53%
Nvidia Titan RTX
29830 Points -67%
LuxMark v2.0 64Bit
Sala GPUs-only
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
31954 Samples/s +20%
Palit GeForce RTX 4090 GameRock OC
27201 Samples/s +2%
KFA2 GeForce RTX 4090 SG
26576 Samples/s
NVIDIA GeForce RTX 3090 Founders Edition
14990 Samples/s -44%
KFA2 GeForce RTX 3080 SG
14204 Samples/s -47%
Nvidia Titan RTX
10996 Samples/s -59%
Room GPUs-only
Palit GeForce RTX 4090 GameRock OC
12316 Samples/s +1%
KFA2 GeForce RTX 4090 SG
12190 Samples/s
NVIDIA GeForce RTX 3090 Founders Edition
5948 Samples/s -51%
KFA2 GeForce RTX 3080 SG
5768 Samples/s -53%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
5097 Samples/s -58%
Nvidia Titan RTX
4703 Samples/s -61%

Compute Benchmarks and Professional Applications

ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
NVIDIA GeForce RTX 4090
34332 Points +3%
KFA2 GeForce RTX 4090 SG
33298 Points
NVIDIA GeForce RTX 3090
17713 Points -47%
NVIDIA GeForce RTX 3080 12 GB
15594 Points -53%
AMD Radeon RX 6950 XT
13580 Points -59%
AMD Radeon RX 6900 XT
12255 Points -63%
NVIDIA Titan RTX
10129 Points -70%
1024x600 Normal, Mandel Scalar
NVIDIA GeForce RTX 4090
22889 Points +2%
KFA2 GeForce RTX 4090 SG
22402 Points
AMD Radeon RX 6950 XT
11854 Points -47%
NVIDIA GeForce RTX 3090
11270 Points -50%
AMD Radeon RX 6900 XT
10834 Points -52%
NVIDIA GeForce RTX 3080 12 GB
9698 Points -57%
NVIDIA Titan RTX
6406 Points -71%
1024x600 Normal, Mandel Vector
NVIDIA GeForce RTX 4090
17336 Points +2%
KFA2 GeForce RTX 4090 SG
16935 Points
NVIDIA GeForce RTX 3090
9861 Points -42%
AMD Radeon RX 6950 XT
9555 Points -44%
AMD Radeon RX 6900 XT
8690 Points -49%
NVIDIA GeForce RTX 3080 12 GB
8326 Points -51%
NVIDIA Titan RTX
5440 Points -68%
1024x600 Normal, Fluid 2DTexArr
NVIDIA GeForce RTX 4090
6891 Points +1%
KFA2 GeForce RTX 4090 SG
6792 Points
NVIDIA GeForce RTX 3090
4517 Points -33%
AMD Radeon RX 6950 XT
4455 Points -34%
NVIDIA GeForce RTX 3080 12 GB
4175 Points -39%
AMD Radeon RX 6900 XT
3924 Points -42%
NVIDIA Titan RTX
3828 Points -44%
1024x600 Normal, Fluid 3DTex
NVIDIA GeForce RTX 4090
10724 Points +1%
KFA2 GeForce RTX 4090 SG
10589 Points
AMD Radeon RX 6950 XT
5515 Points -48%
NVIDIA GeForce RTX 3090
5501 Points -48%
AMD Radeon RX 6900 XT
5154 Points -51%
NVIDIA GeForce RTX 3080 12 GB
4900 Points -54%
NVIDIA Titan RTX
4027 Points -62%
1024x600 Normal, Score
NVIDIA GeForce RTX 4090
92171 Points +2%
KFA2 GeForce RTX 4090 SG
90016 Points
NVIDIA GeForce RTX 3090
48862 Points -46%
AMD Radeon RX 6950 XT
44959 Points -50%
NVIDIA GeForce RTX 3080 12 GB
42692 Points -53%
AMD Radeon RX 6900 XT
40857 Points -55%
NVIDIA Titan RTX
29830 Points -67%
LuxMark v2.0 64Bit
Sala GPUs-only
AMD Radeon RX 6950 XT
31954 Samples/s +20%
AMD Radeon RX 6900 XT
31400 Samples/s +18%
NVIDIA GeForce RTX 4090
27201 Samples/s +2%
KFA2 GeForce RTX 4090 SG
26576 Samples/s
NVIDIA GeForce RTX 3090
14990 Samples/s -44%
NVIDIA GeForce RTX 3080 12 GB
14204 Samples/s -47%
NVIDIA Titan RTX
10996 Samples/s -59%
Room GPUs-only
NVIDIA GeForce RTX 4090
12316 Samples/s +1%
KFA2 GeForce RTX 4090 SG
12190 Samples/s
NVIDIA GeForce RTX 3090
5948 Samples/s -51%
NVIDIA GeForce RTX 3080 12 GB
5768 Samples/s -53%
AMD Radeon RX 6950 XT
5097 Samples/s -58%
AMD Radeon RX 6900 XT
5084 Samples/s -58%
NVIDIA Titan RTX
4703 Samples/s -61%
SPECviewperf 2020
3840x2160 3ds Max (3dsmax-07)
KFA2 GeForce RTX 4090 SG
231 fps
NVIDIA GeForce RTX 4090
228 fps -1%
NVIDIA GeForce RTX 3090 Ti
145 fps -37%
AMD Radeon RX 6950 XT
144 fps -38%
NVIDIA GeForce RTX 3090
141 fps -39%
NVIDIA GeForce RTX 3080 12 GB
128 fps -45%
AMD Radeon RX 6900 XT
121 fps -48%
NVIDIA Titan RTX
118 fps -49%
3840x2160 CATIA (catia-06)
NVIDIA GeForce RTX 4090
95.3 fps +1%
KFA2 GeForce RTX 4090 SG
94.7 fps
NVIDIA Titan RTX
90.9 fps -4%
NVIDIA GeForce RTX 3090 Ti
58.6 fps -38%
NVIDIA GeForce RTX 3090
58.5 fps -38%
NVIDIA GeForce RTX 3080 12 GB
53.7 fps -43%
AMD Radeon RX 6950 XT
53 fps -44%
AMD Radeon RX 6900 XT
44.6 fps -53%
3840x2160 Creo (creo-03)
NVIDIA Titan RTX
135 fps +2%
NVIDIA GeForce RTX 4090
133 fps 0%
KFA2 GeForce RTX 4090 SG
133 fps
NVIDIA GeForce RTX 3090
115 fps -14%
NVIDIA GeForce RTX 3080 12 GB
90 fps -32%
NVIDIA GeForce RTX 3090 Ti
84.5 fps -36%
AMD Radeon RX 6950 XT
73.1 fps -45%
AMD Radeon RX 6900 XT
65.4 fps -51%
3840x2160 Energy (energy-03)
NVIDIA GeForce RTX 4090
141 fps +3%
KFA2 GeForce RTX 4090 SG
137 fps
NVIDIA GeForce RTX 3090
96.6 fps -29%
NVIDIA Titan RTX
93.9 fps -31%
AMD Radeon RX 6950 XT
47.6 fps -65%
NVIDIA GeForce RTX 3080 12 GB
37.2 fps -73%
AMD Radeon RX 6900 XT
32.6 fps -76%
NVIDIA GeForce RTX 3090 Ti
31.6 fps -77%
3840x2160 Maya (maya-06)
KFA2 GeForce RTX 4090 SG
525 fps
NVIDIA GeForce RTX 4090
498 fps -5%
NVIDIA GeForce RTX 3090
356 fps -32%
NVIDIA GeForce RTX 3090 Ti
353 fps -33%
NVIDIA GeForce RTX 3080 12 GB
314 fps -40%
AMD Radeon RX 6950 XT
296 fps -44%
NVIDIA Titan RTX
274 fps -48%
AMD Radeon RX 6900 XT
266 fps -49%
3840x2160 Medical (medical-03)
NVIDIA GeForce RTX 4090
45.9 fps +2%
KFA2 GeForce RTX 4090 SG
44.8 fps
AMD Radeon RX 6950 XT
34.4 fps -23%
AMD Radeon RX 6900 XT
30.4 fps -32%
NVIDIA GeForce RTX 3090 Ti
22.2 fps -50%
NVIDIA GeForce RTX 3090
20 fps -55%
NVIDIA GeForce RTX 3080 12 GB
18.8 fps -58%
NVIDIA Titan RTX
16.5 fps -63%
3840x2160 Siemens NX (snx-04)
NVIDIA Titan RTX
375 fps +812%
AMD Radeon RX 6950 XT
88.6 fps +116%
AMD Radeon RX 6900 XT
85 fps +107%
NVIDIA GeForce RTX 4090
41.3 fps 0%
KFA2 GeForce RTX 4090 SG
41.1 fps
NVIDIA GeForce RTX 3090
24.7 fps -40%
NVIDIA GeForce RTX 3090 Ti
23.7 fps -42%
NVIDIA GeForce RTX 3080 12 GB
21.8 fps -47%
3840x2160 Solidworks (solidworks-05)
NVIDIA GeForce RTX 3090 Ti
197 fps
NVIDIA GeForce RTX 3090
189 fps
NVIDIA GeForce RTX 3080 12 GB
175 fps
NVIDIA Titan RTX
158 fps
AMD Radeon RX 6950 XT
125 fps
AMD Radeon RX 6900 XT
112 fps
SPECviewperf 13
Solidworks (sw-04)
NVIDIA Titan RTX
218 fps +20%
AMD Radeon RX 6900 XT
214 fps +18%
AMD Radeon RX 6950 XT
210 fps +15%
NVIDIA GeForce RTX 4090
186 fps +2%
KFA2 GeForce RTX 4090 SG
182 fps
NVIDIA GeForce RTX 3090
151 fps -17%
NVIDIA GeForce RTX 3090 Ti
118 fps -35%
NVIDIA GeForce RTX 3080 12 GB
108 fps -41%
Siemens NX (snx-03)
NVIDIA Titan RTX
512 fps +969%
AMD Radeon RX 6950 XT
89.7 fps +87%
AMD Radeon RX 6900 XT
85.8 fps +79%
NVIDIA GeForce RTX 4090
49.1 fps +3%
KFA2 GeForce RTX 4090 SG
47.9 fps
NVIDIA GeForce RTX 3090
29.7 fps -38%
NVIDIA GeForce RTX 3090 Ti
28 fps -42%
NVIDIA GeForce RTX 3080 12 GB
26.3 fps -45%
Showcase (showcase-02)
NVIDIA GeForce RTX 4090
455 fps +2%
KFA2 GeForce RTX 4090 SG
448 fps
AMD Radeon RX 6950 XT
312 fps -30%
NVIDIA GeForce RTX 3090 Ti
265 fps -41%
NVIDIA GeForce RTX 3090
262 fps -42%
AMD Radeon RX 6900 XT
241 fps -46%
NVIDIA GeForce RTX 3080 12 GB
228 fps -49%
NVIDIA Titan RTX
198 fps -56%
Medical (medical-02)
NVIDIA GeForce RTX 4090
186 fps +2%
KFA2 GeForce RTX 4090 SG
182 fps
AMD Radeon RX 6950 XT
157 fps -14%
AMD Radeon RX 6900 XT
148 fps -19%
NVIDIA GeForce RTX 3090 Ti
113 fps -38%
NVIDIA GeForce RTX 3090
106 fps -42%
NVIDIA GeForce RTX 3080 12 GB
102 fps -44%
NVIDIA Titan RTX
92 fps -49%
Maya (maya-05)
NVIDIA GeForce RTX 4090
715 fps 0%
KFA2 GeForce RTX 4090 SG
715 fps
NVIDIA GeForce RTX 3090
556 fps -22%
NVIDIA Titan RTX
499 fps -30%
NVIDIA GeForce RTX 3090 Ti
493 fps -31%
NVIDIA GeForce RTX 3080 12 GB
460 fps -36%
AMD Radeon RX 6900 XT
395 fps -45%
AMD Radeon RX 6950 XT
372 fps -48%
Energy (energy-02)
NVIDIA GeForce RTX 4090
126 fps +2%
KFA2 GeForce RTX 4090 SG
123 fps
AMD Radeon RX 6900 XT
60.6 fps -51%
AMD Radeon RX 6950 XT
60.3 fps -51%
NVIDIA Titan RTX
51.8 fps -58%
NVIDIA GeForce RTX 3090 Ti
48.4 fps -61%
NVIDIA GeForce RTX 3090
43.8 fps -64%
NVIDIA GeForce RTX 3080 12 GB
37.6 fps -69%
Creo (creo-02)
NVIDIA GeForce RTX 4090
552 fps +1%
KFA2 GeForce RTX 4090 SG
544 fps
NVIDIA GeForce RTX 3090
392 fps -28%
NVIDIA Titan RTX
386 fps -29%
NVIDIA GeForce RTX 3090 Ti
353 fps -35%
NVIDIA GeForce RTX 3080 12 GB
324 fps -40%
AMD Radeon RX 6950 XT
323 fps -41%
AMD Radeon RX 6900 XT
292 fps -46%
Catia (catia-05)
NVIDIA Titan RTX
534 fps +35%
AMD Radeon RX 6900 XT
468 fps +18%
AMD Radeon RX 6950 XT
450 fps +14%
NVIDIA GeForce RTX 4090
402 fps +2%
KFA2 GeForce RTX 4090 SG
396 fps
NVIDIA GeForce RTX 3090
252 fps -36%
NVIDIA GeForce RTX 3090 Ti
230 fps -42%
NVIDIA GeForce RTX 3080 12 GB
206 fps -48%
3ds Max (3dsmax-06)
NVIDIA GeForce RTX 4090
563 fps +1%
KFA2 GeForce RTX 4090 SG
558 fps
AMD Radeon RX 6950 XT
483 fps -13%
NVIDIA GeForce RTX 3090
387 fps -31%
NVIDIA GeForce RTX 3090 Ti
373 fps -33%
NVIDIA GeForce RTX 3080 12 GB
334 fps -40%
NVIDIA Titan RTX
321 fps -42%
AMD Radeon RX 6900 XT
317 fps -43%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
NVIDIA Titan RTX
207 fps +63%
AMD Radeon RX 6900 XT
167 fps +31%
AMD Radeon RX 6950 XT
157 fps +24%
KFA2 GeForce RTX 4090 SG
127 fps
NVIDIA GeForce RTX 4090
126 fps -1%
NVIDIA GeForce RTX 3090
105 fps -17%
NVIDIA GeForce RTX 3090 Ti
85.7 fps -33%
NVIDIA GeForce RTX 3080 12 GB
73.8 fps -42%
1900x1060 Siemens NX (snx-02)
NVIDIA Titan RTX
283 fps +972%
AMD Radeon RX 6950 XT
49.4 fps +87%
AMD Radeon RX 6900 XT
47.7 fps +81%
NVIDIA GeForce RTX 4090
27.1 fps +3%
KFA2 GeForce RTX 4090 SG
26.4 fps
NVIDIA GeForce RTX 3090
16.4 fps -38%
NVIDIA GeForce RTX 3090 Ti
15.6 fps -41%
NVIDIA GeForce RTX 3080 12 GB
12 fps -55%
1900x1060 Showcase (showcase-01)
NVIDIA GeForce RTX 4090
457 fps +2%
KFA2 GeForce RTX 4090 SG
448 fps
AMD Radeon RX 6950 XT
308 fps -31%
NVIDIA GeForce RTX 3090 Ti
265 fps -41%
NVIDIA GeForce RTX 3090
262 fps -42%
AMD Radeon RX 6900 XT
241 fps -46%
NVIDIA GeForce RTX 3080 12 GB
226 fps -50%
NVIDIA Titan RTX
197 fps -56%
1900x1060 Medical (medical-01)
NVIDIA GeForce RTX 4090
119 fps +1%
KFA2 GeForce RTX 4090 SG
118 fps
NVIDIA Titan RTX
101 fps -14%
AMD Radeon RX 6900 XT
88.4 fps -25%
NVIDIA GeForce RTX 3090 Ti
87.1 fps -26%
NVIDIA GeForce RTX 3090
85.8 fps -27%
AMD Radeon RX 6950 XT
58.3 fps -51%
NVIDIA GeForce RTX 3080 12 GB
40.3 fps -66%
1900x1060 Maya (maya-04)
NVIDIA GeForce RTX 4090
317 fps 0%
KFA2 GeForce RTX 4090 SG
316 fps
NVIDIA GeForce RTX 3090
302 fps -4%
NVIDIA Titan RTX
260 fps -18%
NVIDIA GeForce RTX 3090 Ti
197 fps -38%
AMD Radeon RX 6900 XT
151 fps -52%
NVIDIA GeForce RTX 3080 12 GB
139 fps -56%
AMD Radeon RX 6950 XT
90.7 fps -71%
1900x1060 Energy (energy-01)
NVIDIA GeForce RTX 4090
54.7 fps +1%
KFA2 GeForce RTX 4090 SG
54.2 fps
AMD Radeon RX 6900 XT
30.8 fps -43%
NVIDIA Titan RTX
28.8 fps -47%
NVIDIA GeForce RTX 3090 Ti
27.6 fps -49%
NVIDIA GeForce RTX 3090
25.6 fps -53%
AMD Radeon RX 6950 XT
23 fps -58%
NVIDIA GeForce RTX 3080 12 GB
17.2 fps -68%
1900x1060 Creo (creo-01)
NVIDIA Titan RTX
197 fps +73%
AMD Radeon RX 6900 XT
127 fps +11%
AMD Radeon RX 6950 XT
115 fps +1%
NVIDIA GeForce RTX 4090
115 fps +1%
KFA2 GeForce RTX 4090 SG
114 fps
NVIDIA GeForce RTX 3090
93.7 fps -18%
NVIDIA GeForce RTX 3090 Ti
76.4 fps -33%
NVIDIA GeForce RTX 3080 12 GB
74.4 fps -35%
1900x1060 Catia (catia-04)
NVIDIA Titan RTX
332 fps +31%
AMD Radeon RX 6900 XT
292 fps +15%
NVIDIA GeForce RTX 4090
257 fps +1%
KFA2 GeForce RTX 4090 SG
254 fps
AMD Radeon RX 6950 XT
199 fps -22%
NVIDIA GeForce RTX 3090
167 fps -34%
NVIDIA GeForce RTX 3090 Ti
150 fps -41%
NVIDIA GeForce RTX 3080 12 GB
79.1 fps -69%
1900x1060 3ds Max (3dsmax-05)
NVIDIA GeForce RTX 4090
571 fps +2%
KFA2 GeForce RTX 4090 SG
561 fps
AMD Radeon RX 6950 XT
484 fps -14%
NVIDIA GeForce RTX 3090
389 fps -31%
NVIDIA GeForce RTX 3090 Ti
371 fps -34%
NVIDIA GeForce RTX 3080 12 GB
334 fps -40%
AMD Radeon RX 6900 XT
318 fps -43%
NVIDIA Titan RTX
315 fps -44%
Blender - v3.3 Classroom CUDA
NVIDIA Titan RTX
31 Seconds *
Geekbench 5.5
OpenCL Score
NVIDIA GeForce RTX 4090
354266 Points +1%
KFA2 GeForce RTX 4090 SG
351918 Points
NVIDIA GeForce RTX 3090 Ti
242815 Points -31%
NVIDIA GeForce RTX 3090
214334 Points -39%
NVIDIA GeForce RTX 3080 12 GB
201306 Points -43%
AMD Radeon RX 6950 XT
190428 Points -46%
AMD Radeon RX 6900 XT
172661 Points -51%
NVIDIA Titan RTX
145407 Points -59%
Vulkan Score
NVIDIA GeForce RTX 3090 Ti
160904 Points +44%
NVIDIA GeForce RTX 4090
139130 Points +24%
KFA2 GeForce RTX 4090 SG
112022 Points
NVIDIA Titan RTX
94363 Points -16%
NVIDIA GeForce RTX 3090
91596 Points -18%
AMD Radeon RX 6900 XT
88587 Points -21%
AMD Radeon RX 6950 XT
87497 Points -22%
NVIDIA GeForce RTX 3080 12 GB
62742 Points -44%
V-Ray 5 Benchmark
GPU CUDA
NVIDIA GeForce RTX 4090
4393 mpaths +1%
KFA2 GeForce RTX 4090 SG
4332 mpaths
NVIDIA GeForce RTX 3090
2102 mpaths -51%
NVIDIA GeForce RTX 3080 12 GB
383 mpaths -91%
AMD Radeon RX 6950 XT
383 mpaths -91%
GPU RTX
NVIDIA GeForce RTX 4090
6053 mpaths +1%
KFA2 GeForce RTX 4090 SG
6010 mpaths
NVIDIA GeForce RTX 3090
2979 mpaths -50%

* ... kleiner is beter

Benchmarks voor games

De KFA2 GeForce RTX 4090 SG is in staat om de hoge prestaties in de synthetische benchmarks ook om te zetten in zeer hoge gaming prestaties. Wanneer hij niet beperkt wordt door de CPU, is er een prestatieverhoging van meer dan 80% ten opzichte van de Nvidia GeForce RTX 3090is mogelijk. In het verleden hebben we slechts zelden zo'n hoge prestatieverhoging gezien tussen twee GPU-architecturen. KFA2 en Palit zitten weer op ooghoogte, en we kunnen geen significante verschillen zien tussen de twee modellen.

De speciale RTX 4000 functies zoals DLSS 3.0 inclusief Frame Generation (FG) zorgen voor een extra boost in veel games. Als voorbeeld kunnen we Cyberpunk 2077 noemen. In native 4K-resolutie en de Raytracing Ultra preset haalt zelfs de KFA2 GeForce RTX 4090 SG gemiddeld slechts 44 FPS. Maar met DLSS geactiveerd zijn meer dan 100 FPS geen probleem meer. Hiermee biedt Nvidia een geweldige functie, die in de nabije toekomst echt het verschil kan maken in de aankoopbeslissing. Anderzijds heeft AMD met FSR een soortgelijke functie in de maak. Uiteindelijk hangt het dus af van de gamefabrikanten en of ze deze functies in hun games integreren. Een lijst van spellen die DLSS 3.0 al ondersteunen of dat in de toekomst van plan zijn vind je hier.

GTA V - 3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x
KFA2 GeForce RTX 4090 SG
187.8 (4.41min, 200P1 - 611max) fps
Palit GeForce RTX 4090 GameRock OC
187.5 (2.97min, 200P1 - 593max) fps 0%
NVIDIA GeForce RTX 3090 Founders Edition
182.5 (2.85min, 142.9P1 - 284max) fps -3%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
173.1 (2.93min, 100P1 - 384max) fps -8%
KFA2 GeForce RTX 3080 SG
169.6 (14.8min, 125P1 - 411max) fps -10%
Nvidia Titan RTX
140.8 (6.17min, 100P1 - 320max) fps -25%
The Witcher 3 - 3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
KFA2 GeForce RTX 4090 SG
286 (92.1min, 181.2P0.1, 243P1 - 863max) fps
Palit GeForce RTX 4090 GameRock OC
284 (88.3min, 166.6P0.1, 240P1 - 831max) fps -1%
NVIDIA GeForce RTX 3090 Founders Edition
155.5 (28min, 94.5P0.1, 133.8P1 - 704max) fps -46%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
139.7 (10.4min, 105.6P0.1, 118.6P1 - 388max) fps -51%
KFA2 GeForce RTX 3080 SG
131.8 (48.2min, 72.3P0.1, 107.3P1 - 454max) fps -54%
AMD Radeon RX 6900 XT
122 (105min, 105P1 - 134max) fps -57%
Nvidia Titan RTX
107.1 (11min, 80.3P0.1, 94.1P1 - 583max) fps -63%
Final Fantasy XV Benchmark - 3840x2160 High Quality
Palit GeForce RTX 4090 GameRock OC
161.1 fps +3%
KFA2 GeForce RTX 4090 SG
156.7 fps
NVIDIA GeForce RTX 3090 Founders Edition
87.1 fps -44%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
86 fps -45%
KFA2 GeForce RTX 3080 SG
76.7 fps -51%
Nvidia Titan RTX
65.2 fps -58%
Strange Brigade - 3840x2160 ultra AA:ultra AF:16
Palit GeForce RTX 4090 GameRock OC
281 (31.7min, 239P1 - 482max) fps +1%
KFA2 GeForce RTX 4090 SG
277 (59.7min, 234P1 - 631max) fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
168.6 (37.6min, 139.6P1 - 268max) fps -39%
NVIDIA GeForce RTX 3090 Founders Edition
163.2 (60.1min, 136.1P1 - 584max) fps -41%
KFA2 GeForce RTX 3080 SG
141.5 (44.1min, 113.4P1 - 188.6max) fps -49%
Nvidia Titan RTX
115 (67.4min, 100P1 - 517max) fps -58%
Far Cry 5 - 3840x2160 Ultra Preset AA:T
Palit GeForce RTX 4090 GameRock OC
175 (140min - 212max) fps 0%
KFA2 GeForce RTX 4090 SG
175 (135min - 211max) fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
121 (106min - 147max) fps -31%
NVIDIA GeForce RTX 3090 Founders Edition
107 (96min - 128max) fps -39%
KFA2 GeForce RTX 3080 SG
102 (93min - 121max) fps -42%
Nvidia Titan RTX
82 (73min - 99max) fps -53%
Far Cry New Dawn - 3840x2160 Ultra Preset
Palit GeForce RTX 4090 GameRock OC
145 (104min - 215max) fps 0%
KFA2 GeForce RTX 4090 SG
145 (105min - 214max) fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
111 (75min - 167max) fps -23%
NVIDIA GeForce RTX 3090 Founders Edition
108 (93min - 129max) fps -26%
AMD Radeon RX 6900 XT
101 (79min - 135max) fps -30%
KFA2 GeForce RTX 3080 SG
98 (79min - 122max) fps -32%
Nvidia Titan RTX
83 (70min - 100max) fps -43%
Far Cry 6 - 3840x2160 Ultra Graphics Quality + HD Textures AA:T
Palit GeForce RTX 4090 GameRock OC
136.9 (122min - 148max) fps +1%
KFA2 GeForce RTX 4090 SG
134.9 (118min - 147max) fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
86.5 (78min - 100max) fps -36%
NVIDIA GeForce RTX 3090 Founders Edition
84.9 (78min - 92max) fps -37%
Nvidia Titan RTX
63.6 (56min - 69max) fps -53%
KFA2 GeForce RTX 3080 SG
57.2 (28min - 69max) fps -58%
Metro Exodus - 3840x2160 Ultra Quality AF:16x
Palit GeForce RTX 4090 GameRock OC
139.7 (76.95min - 229.15max) fps +1%
KFA2 GeForce RTX 4090 SG
138.5 (77.47min - 228.36max) fps
NVIDIA GeForce RTX 3090 Founders Edition
75.9 (48.64min - 130.4max) fps -45%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
75 (50.07min - 98.87max) fps -46%
AMD Radeon RX 6900 XT
66.7 (42.71min - 92.25max) fps -52%
KFA2 GeForce RTX 3080 SG
65.2 (41.36min - 117.12max) fps -53%
Nvidia Titan RTX
56.8 (35.78min - 93.88max) fps -59%
F1 2020 - 3840x2160 Ultra High Preset AA:T AF:16x
Palit GeForce RTX 4090 GameRock OC
286 (245min - 335max) fps 0%
KFA2 GeForce RTX 4090 SG
285 (240min - 333max) fps
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
150.1 (119min - 178max) fps -47%
NVIDIA GeForce RTX 3090 Founders Edition
143.6 (121min - 170max) fps -50%
AMD Radeon RX 6900 XT
137 (109min - 165max) fps -52%
AMD Radeon RX 6900 XT
136 (110min - 161max) fps -52%
KFA2 GeForce RTX 3080 SG
124.6 (107min - 145max) fps -56%
Nvidia Titan RTX
103.4 (89min - 121max) fps -64%
F1 2021 - 3840x2160 Ultra High Preset + Raytracing AA:T AF:16x
Palit GeForce RTX 4090 GameRock OC
199.1 (168min, 166P1 - 223max) fps +2%
KFA2 GeForce RTX 4090 SG
195.1 (165min, 163P1 - 220max) fps
NVIDIA GeForce RTX 3090 Founders Edition
102.7 (90min, 89P1 - 116max) fps -47%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
99.7 (85min, 85P1 - 113max) fps -49%
KFA2 GeForce RTX 3080 SG
93.5 (82min, 82P1 - 105max) fps -52%
Nvidia Titan RTX
73.2 (64min, 64P1 - 84max) fps -62%
F1 22 - 3840x2160 Ultra High Preset AA:T AF:16x
Palit GeForce RTX 4090 GameRock OC
82.5 (72min, 71P1 - 96max) fps 0%
KFA2 GeForce RTX 4090 SG
82.5 (70min, 71P1 - 95max) fps
NVIDIA GeForce RTX 3090 Founders Edition
42.6 (36min, 28P1 - 49max) fps -48%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
35.8 (24min, 25P1 - 47max) fps -57%
Nvidia Titan RTX
29.3 (25min, 24P1 - 34max) fps -64%
Borderlands 3 - 3840x2160 Badass Overall Quality (DX11)
Palit GeForce RTX 4090 GameRock OC
135 fps +1%
KFA2 GeForce RTX 4090 SG
134.1 fps
NVIDIA GeForce RTX 3090 Founders Edition
72.8 fps -46%
KFA2 GeForce RTX 3080 SG
59.9 fps -55%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
59.9 fps -55%
AMD Radeon RX 6900 XT
59.8 fps -55%
AMD Radeon RX 6900 XT
57.1 fps -57%
Nvidia Titan RTX
49.7 fps -63%
Cyberpunk 2077 1.6 - 3840x2160 Ultra Preset
KFA2 GeForce RTX 4090 SG
83.7 (69.6min - 112.6max) fps
Palit GeForce RTX 4090 GameRock OC
78 (48.3min - 106.8max) fps -7%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
43.2 fps -48%
Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x
KFA2 GeForce RTX 4090 SG
158.3 (96.3min - 221.34max) fps
Palit GeForce RTX 4090 GameRock OC
157.3 (96.47min - 223.46max) fps -1%
NVIDIA GeForce RTX 3090 Founders Edition
121 (68.44min - 191.24max) fps -24%
KFA2 GeForce RTX 3080 SG
101.5 (53.72min - 159.41max) fps -36%
Nvidia Titan RTX
91.8 (51.42min - 144.89max) fps -42%
AMD Radeon RX 6900 XT
90.5 (55.53min - 126.79max) fps -43%
Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T
KFA2 GeForce RTX 4090 SG
136.4 (112min - 201max) fps
Palit GeForce RTX 4090 GameRock OC
133.4 (108min - 196max) fps -2%
NVIDIA GeForce RTX 3090 Founders Edition
127.5 (109min - 159max) fps -7%
Nvidia Titan RTX
109.3 (98min - 132max) fps -20%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
101.6 (24min - 161max) fps -26%
Cyberpunk 2077 1.6
1920x1080 Ray Tracing Ultra Preset (DLSS off)
KFA2 GeForce RTX 4090 SG
125.6 (59.2min - 164.5max) fps
Palit GeForce RTX 4090 GameRock OC
118.6 (69.3min - 161.9max) fps -6%
3840x2160 Ray Tracing Ultra Preset (DLSS off)
KFA2 GeForce RTX 4090 SG
43.5 (33.1min - 56.5max) fps
Palit GeForce RTX 4090 GameRock OC
42.5 (31.9min - 56.3max) fps -2%
lage gem. hoge ultraQHD4K
GTA V (2015) 188.2 188.4 187.1 163.3 166 187.8
The Witcher 3 (2015) 809 730 629 306 286
Dota 2 Reborn (2015) 294 260 255 233 234
Rise of the Tomb Raider (2016) 493 395 374 376 244
Final Fantasy XV Benchmark (2018) 234 234 226 219 156.7
X-Plane 11.11 (2018) 210 193.6 145.1 126
Far Cry 5 (2018) 246 216 208 191 189 175
Strange Brigade (2018) 710 582 568 562 504 277
Shadow of the Tomb Raider (2018) 350 317 319 308 282 186.4
Far Cry New Dawn (2019) 201 176 170 153 152 145
Metro Exodus (2019) 305 265 231 195.3 183.2 138.5
Borderlands 3 (2019) 238 215 198.7 189.4 184.3 134.1
F1 2020 (2020) 120 119.6 475 423 409 285
Dirt 5 (2020) 381 349 222 198 194 159
F1 2021 (2021) 672 637 521 274 263 195.1
Far Cry 6 (2021) 227 197.8 177.3 168.6 162.5 134.9
Forza Horizon 5 (2021) 328 259 253 194 184 159
God of War (2022) 277 274 248 204 177.1 125
GRID Legends (2022) 355 318 283 267 266 198.6
Cyberpunk 2077 1.6 (2022) 225 222 214 211 164.5 83.7
Tiny Tina's Wonderlands (2022) 430 355 308 285 227 129.5
F1 22 (2022) 440 418 409 207 156.2 82.5
The Quarry (2022) 425 334 284 252 192.4 75.3
FIFA 23 (2022) 304 303 300 302 302 299
A Plague Tale Requiem (2022) 179.2 173.6 165 155.3 125 73.5
Uncharted Legacy of Thieves Collection (2022) 151 152.3 146 149.2 145.2 100.5
Call of Duty Modern Warfare 2 2022 (2022) 315 285 246 245 194 131
Spider-Man Miles Morales (2022) 198.2 187.2 178.9 176.8 172.5 126.2

Emissies van de KFA2 GeForce RTX 4090 SG

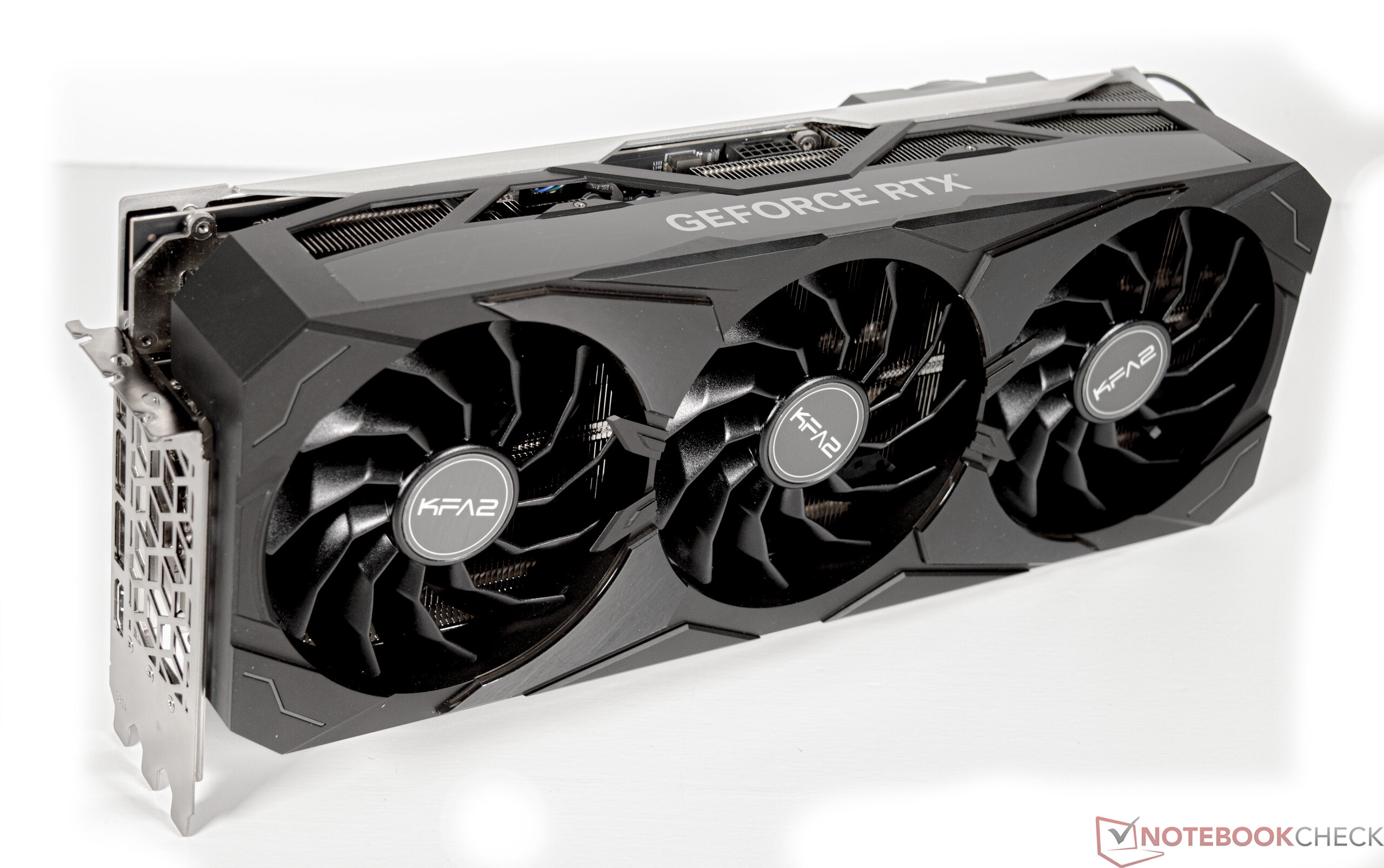

3x 102-mm ventilatoren voor de KFA2 GeForce RTX 4090 SG
3x 102-mm ventilatoren voor de KFA2 GeForce RTX 4090 SG
Herwerkt ventilatorontwerp van de KFA2 GeForce RTX 4090 SG
Herwerkt ventilatorontwerp van de KFA2 GeForce RTX 4090 SG

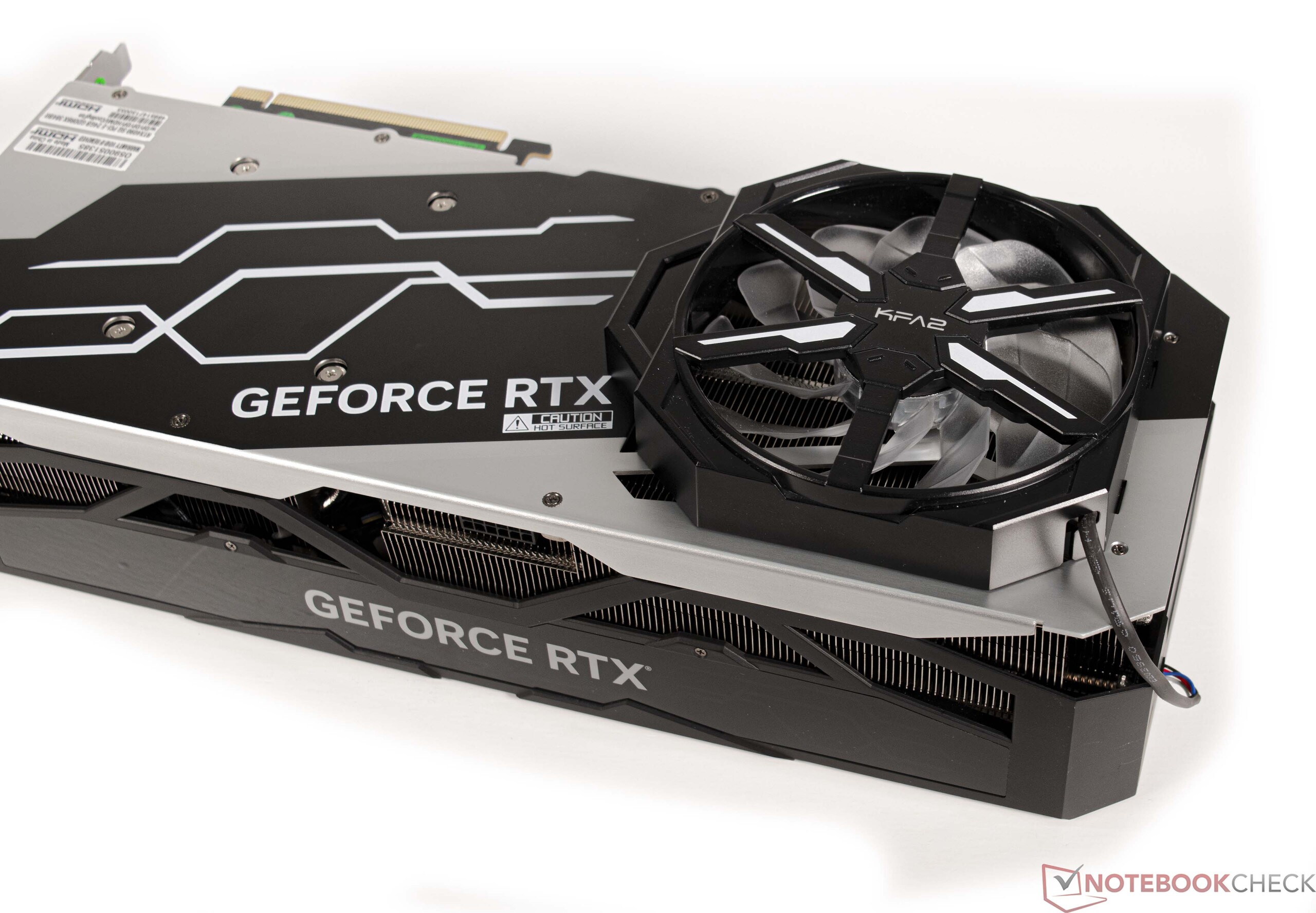

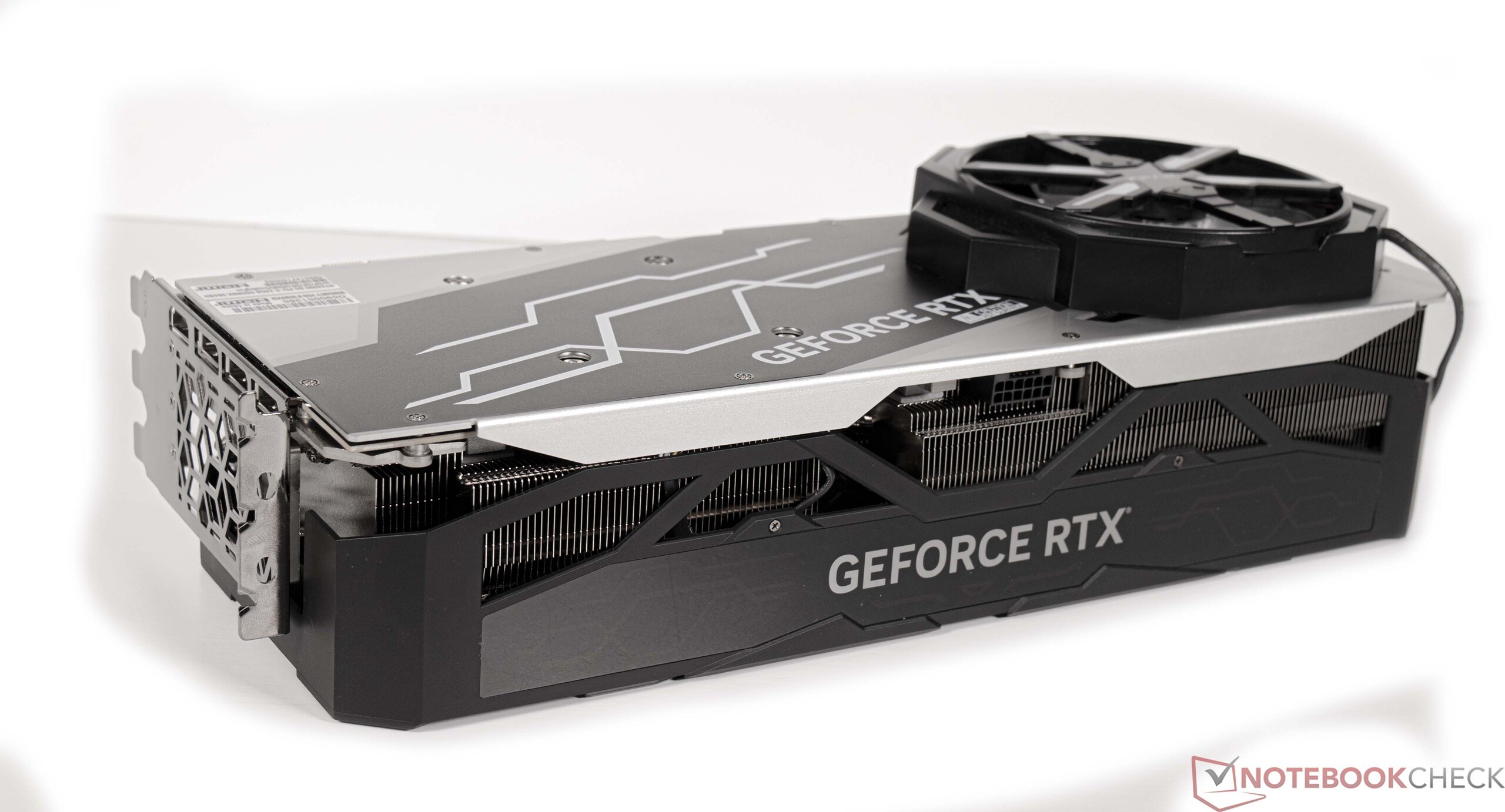

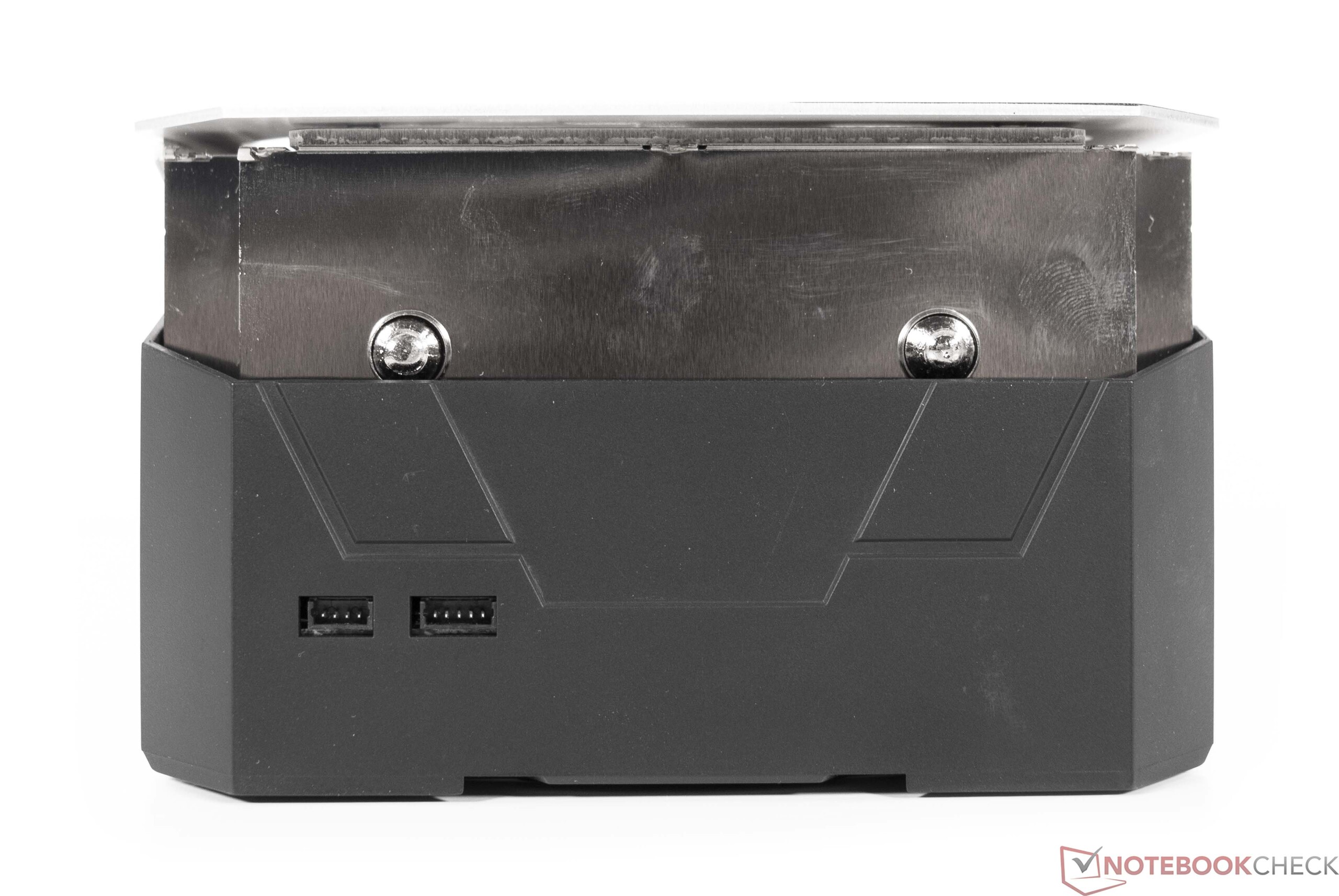

Optionele extra ventilator voor de achterkant
Optionele extra ventilator voor de achterkant

Het stroomverbruik van de KFA2 GeForce RTX 4090 SG is geen uitzondering in vergelijking met andere GeForce RTX-4090 modellen. De standaard vermogensgrens is met 450 watt even hoog als die van andere RTX-4090-modellen. Er zijn echter enkele afwijkingen tussen de verschillende modellen in de optionele vermogensdoelstelling. Met 13% extra kun je de vermogenslimiet van de KFA2 GeForce RTX 4090 SG verhogen tot ongeveer 510 watt. Nvidia's Founders Edition staat zelfs tot 600 watt toe, en de Palit GeForce RTX 4090 GameRock OC slechts 500 watt. Maar in de praktijk speelt dit geen grote rol, want alleen in de meest zeldzame gevallen wordt de vermogenslimiet van 450 watt zelfs bereikt. Het verbruik in de FurMark stresstest ligt iets hoger dan 370 watt. Op dat moment blijft de GPU-temperatuur een koele 65 °C (145 °F), en de ventilatorsnelheid is slechts 1.300 toeren per minuut. Met 39 dB(A) is de grafische kaart rustig hoorbaar.

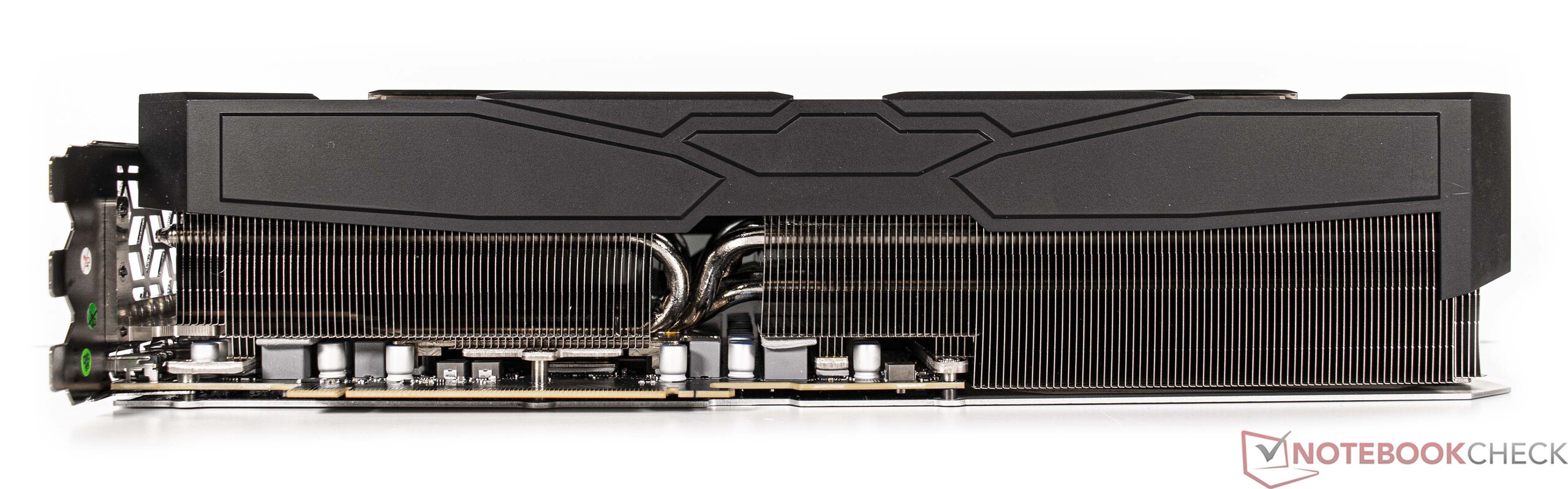

De KFA2 GeForce RTX 4090 SG gebruikt een enorm koellichaam met drie grote 102-mm (~4 in) axiale ventilatoren. Optioneel kunt u ook een extra 102-mm ventilator aan de achterkant installeren. Je moet je echter vergewissen van de compatibiliteit met het gebruikte moederbord. In ons geval konden we de extra ventilator niet installeren, omdat de RAM banken van de Gigabyte X670E Aorus Master dit verhinderden.

Als we dit vergelijken met het stroomverbruik van het hele testsysteem, is het ongeveer 546 watt tijdens het gamen. Dit is slechts iets meer dan in vergelijking met de Nvidia GeForce RTX 3090 Founders Edition. Tegelijkertijd meten we nog steeds een aanzienlijke prestatieverhoging, dus de GeForce RTX 4090 neemt een enorme stap vooruit in termen van de prestaties per watt. We meten ook enkele verbruikspieken tot 700 watt voor ons testsysteem. KFA2 specificeert een voedingscapaciteit van minstens 850 watt voor de GeForce RTX 4090 SG. Sommige andere fabrikanten daarentegen specificeren minstens 1.000 watt, wat naar onze mening een beetje te hoog is.

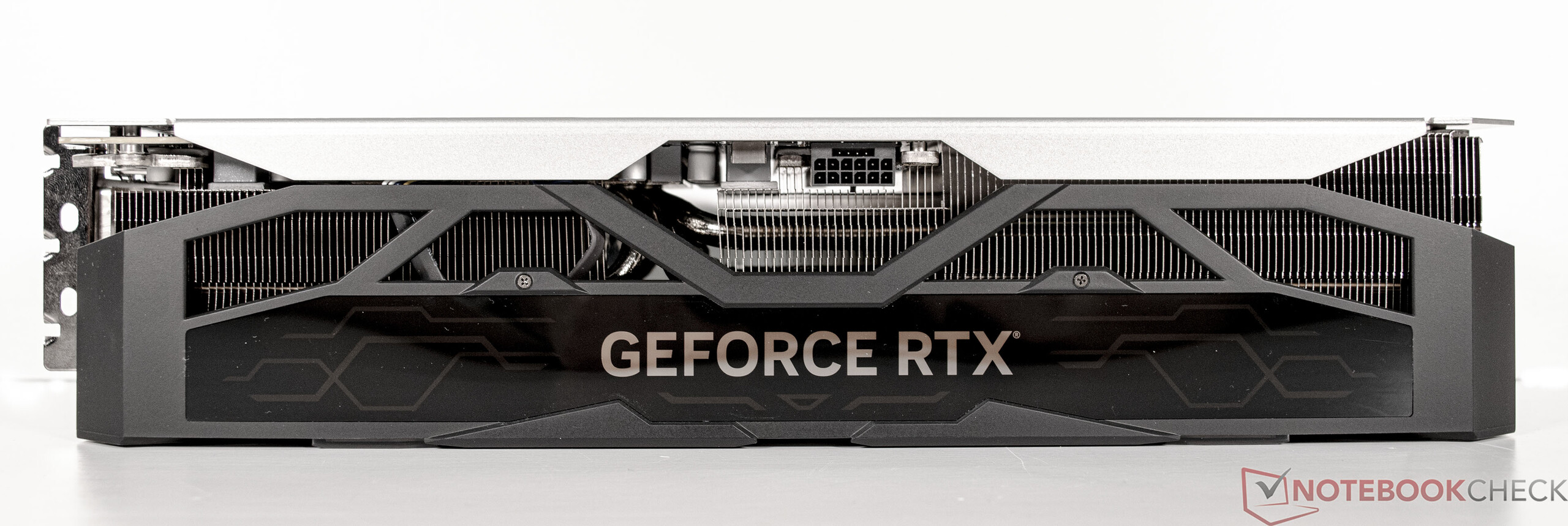

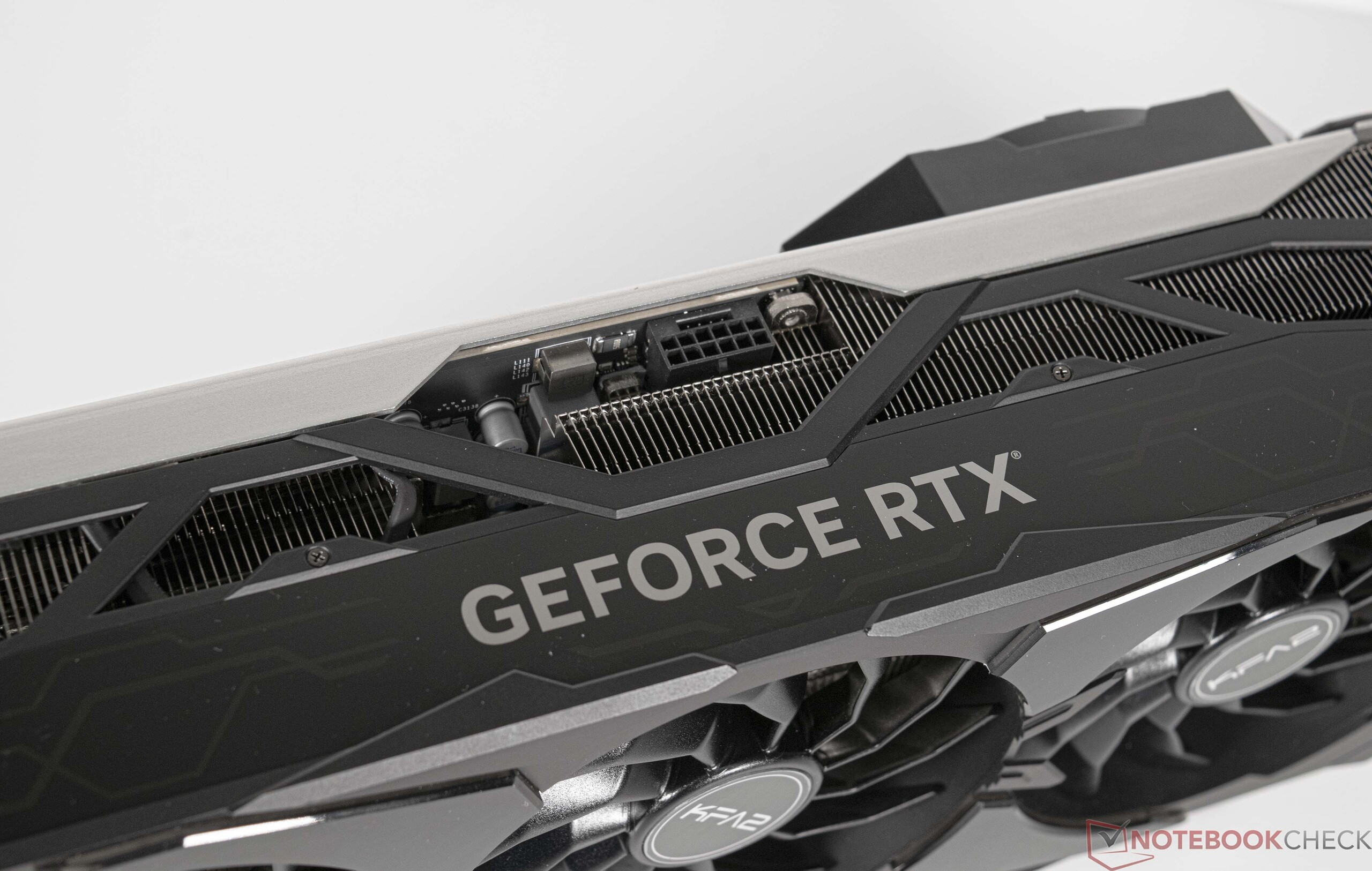

Wat betreft de 12VHPWR aansluiting, willen we er hier op wijzen dat je ervoor moet zorgen dat de stekker volledig en correct in de connector zit. Maar er waren geen problemen in dit opzicht met een van de RTX-4090 modellen die we tot nu toe hebben getest.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.736.136.634.638.72542.243.143.137.942.23136.73936.236.936.74031.131.930.135.531.1503131.829.933.6316329.630.828.629.929.6803133.327.9283110028.831.926.926.528.81252931.324.723.72916029.932.525.324.529.920030.232.423.923.130.225028.337.6222228.331537.33821.221.637.340030.2362120.630.250027.132.72019.627.163024.230.619.51924.28002530.718.819.125100021.32618.518.921.3125020.224.818.218.120.2160019.42417.71819.4200018.72217.717.418.7250019.119.517.717.419.1315020.918.717.617.520.9400018.918.81817.818.9500020.220.217.917.820.2630019.418.818.117.919.4800019.51918.418.119.51000020.419.218.718.420.41250019.419.218.818.819.41600020.22020.119.120.2SPL35.839.430.730.535.8N2.43.11.51.42.4median 20.9median 24.8median 18.8median 18.9median 20.9Delta3.96.521.23.9hearing rangehide median Fan NoiseKFA2 GeForce RTX 4090 SG

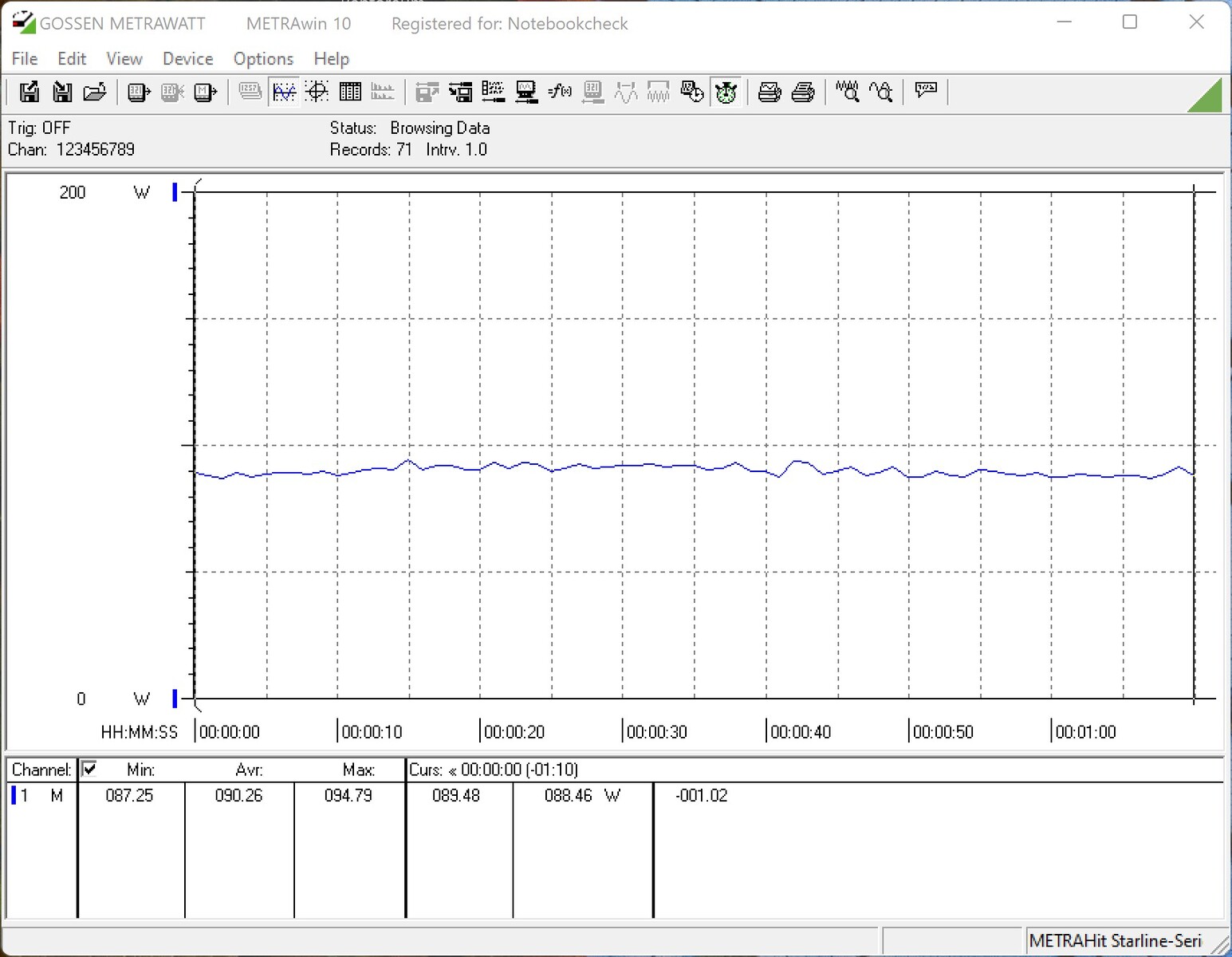

Stroomverbruik van ons testsysteem (inactief)
Stroomverbruik van ons testsysteem (inactief)
Stroomverbruik van ons testsysteem (FurMark PT 100%)
Stroomverbruik van ons testsysteem (FurMark PT 100%)
Stroomverbruik van ons testsysteem (FurMark PT 113%)
Stroomverbruik van ons testsysteem (FurMark PT 113%)

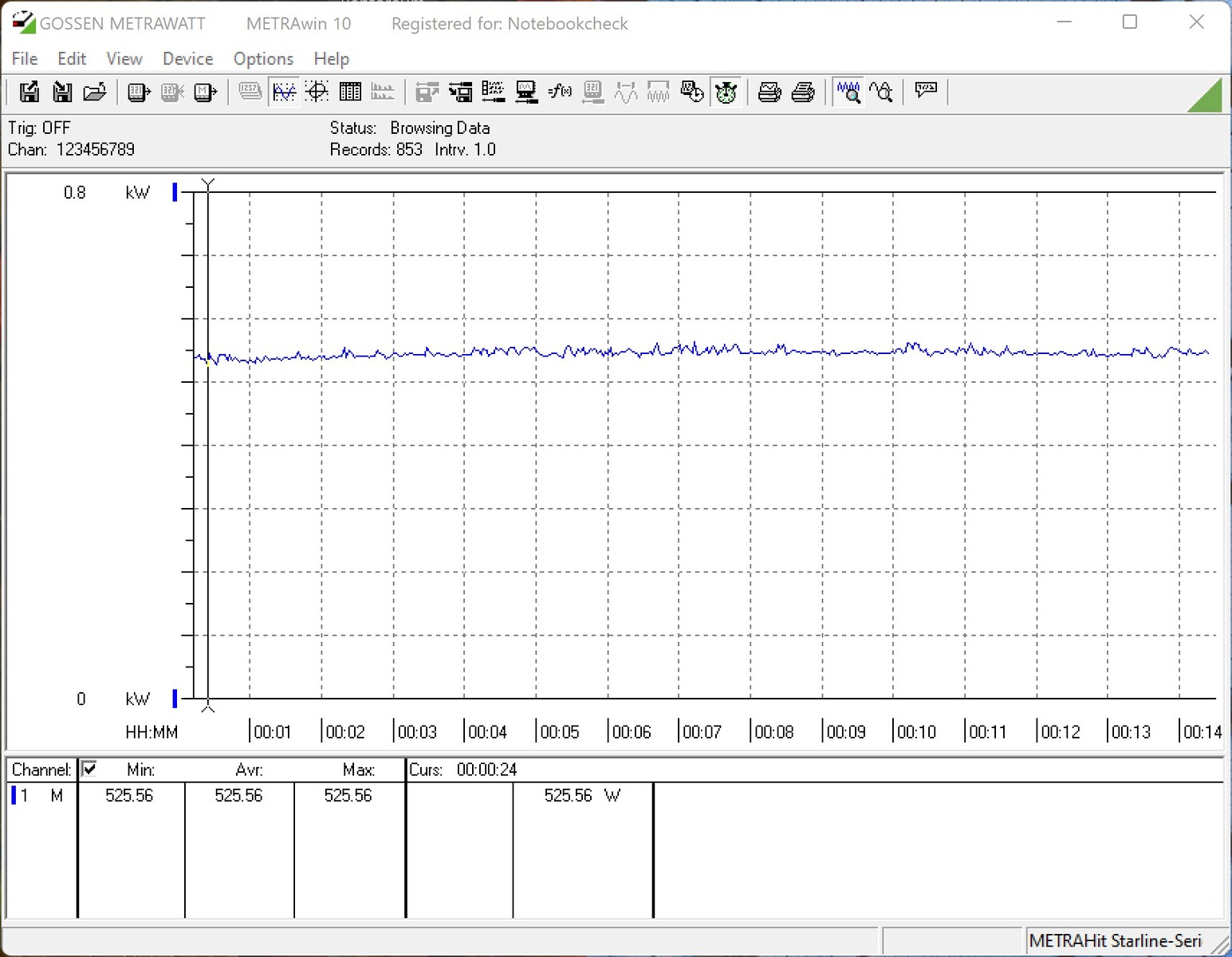

Stroomverbruik van ons testsysteem (tijdens het gamen - De Witcher 3 Ultra Preset)
Stroomverbruik van ons testsysteem (tijdens het gamen - De Witcher 3 Ultra Preset)

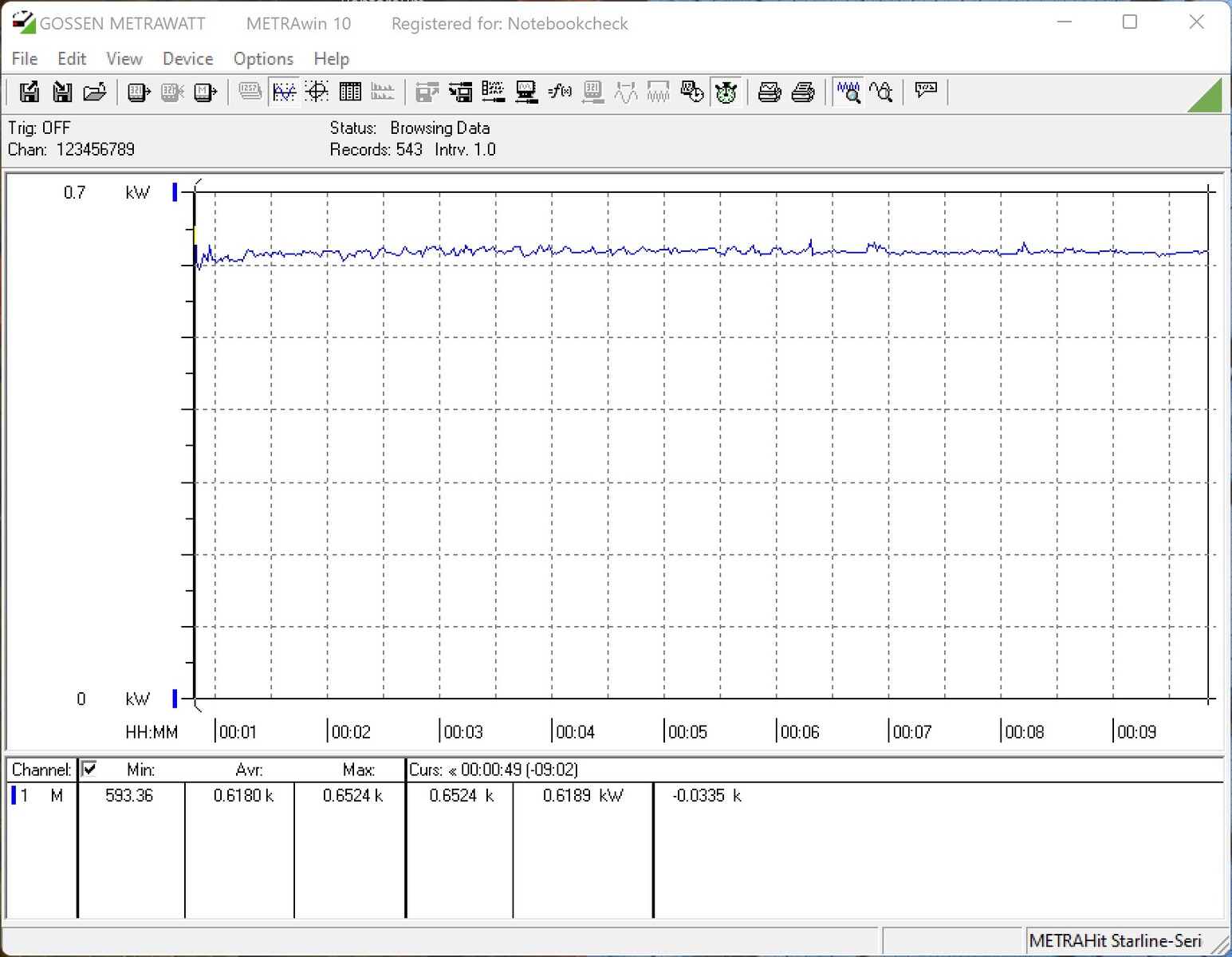

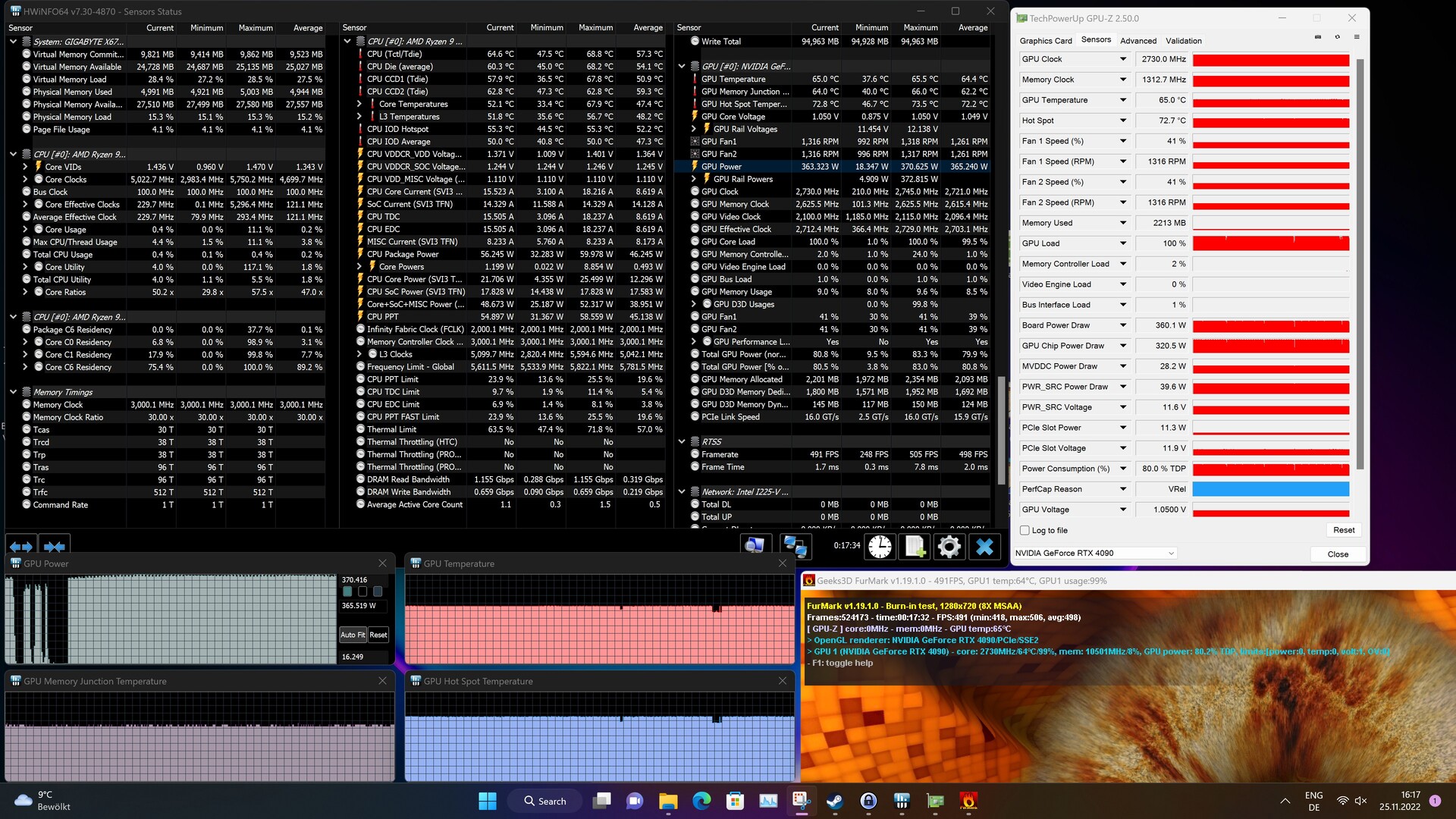

Stresstest FurMark (PT 100%)
Stresstest FurMark (PT 100%)
Power Consumption / The Witcher 3 ultra (external Monitor)
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure, AMD Ryzen 9 5900X
589 (583min, 584P1 - 598max) Watt * -8%
AMD Ryzen 7 5800X3D
AMD Ryzen 7 5800X3D, AMD Ryzen 7 5800X3D (Idle: 102 W)
561 (533min, 542P1 - 582max) Watt * -3%
KFA2 GeForce RTX 4090 SG
KFA2 GeForce RTX 4090 SG, AMD Ryzen 9 7950X
546 (526min, 532P1 - 564max) Watt *
NVIDIA GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090 Founders Edition, AMD Ryzen 9 7950X
538 (532min, 532P1 - 570max) Watt * +1%
Palit GeForce RTX 4090 GameRock OC
Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 9 7950X
531.8 (520min - 571max) Watt * +3%
KFA2 GeForce RTX 3080 SG
KFA2 GeForce RTX 3080 SG, AMD Ryzen 9 5900X
518 (509min, 510P1 - 539max) Watt * +5%
AMD Radeon RX 6900 XT
AMD Radeon RX 6900 XT, AMD Ryzen 9 5950X (Idle: 99.15 W)
488.3 (459.99min - 512.79max) Watt * +11%
Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor)
KFA2 GeForce RTX 4090 SG
KFA2 GeForce RTX 4090 SG, AMD Ryzen 9 7950X
618 (593min, 605P1 - 652max) Watt *
Palit GeForce RTX 4090 GameRock OC
Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 9 7950X
611 (597.78min - 648.9max) Watt * +1%
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure
Sapphire AMD Radeon RX 6950 XT Nitro+ Pure, AMD Ryzen 9 5900X
564 (525min, 551P1 - 601max) Watt * +9%
NVIDIA GeForce RTX 3090 Founders Edition
NVIDIA GeForce RTX 3090 Founders Edition, AMD Ryzen 9 7950X
516 (512min, 514P1 - 541max) Watt * +17%
KFA2 GeForce RTX 3080 SG
KFA2 GeForce RTX 3080 SG, AMD Ryzen 9 5900X
487 (475min, 477P1 - 501max) Watt * +21%
AMD Radeon RX 6900 XT
AMD Radeon RX 6900 XT, AMD Ryzen 9 5950X (Idle: 99.15 W)
456.8 (378.13min - 484.67max) Watt * +26%

* ... kleiner is beter

Power Consumption With External Monitor

03570105140175210245280315350385420455490525560595630Tooltip
KFA2 GeForce RTX 4090 SG; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø618 (593-652)
KFA2 GeForce RTX 4090 SG; 1920x1080 The Witcher 3 ultra (external Monitor): Ø546 (526-564)
KFA2 GeForce RTX 4090 SG; Idle 1min (external Monitor): Ø90.2 (87.3-94.8)

Pro

+ extreme 3D-prestaties
+ moderne 4 nm architectuur
+ 24-GB VRAM + DLSS + Raytracing in de nieuwste revisie
+ Ventilator Stop modus
+ aantrekkelijk ontwerp
+ extreem groot en krachtig koelsysteem
+ optionele 4e ventilator
+ robuuste GPU-bevestiging met RGB-verlichting

Contra

- hoog stroomverbruik
- nadelige positie van de voedingsconnector
- zeer groot (zorg ervoor dat de behuizing compatibel is)
- geen DisplayPort 2.1
- extreem duur

Verdict - Extreem krachtig, stil en koel

Testen van de KFA2 GeForce RTX 4090 SG: testunit ter beschikking gesteld door KFA2 Duitsland
Testen van de KFA2 GeForce RTX 4090 SG: testunit ter beschikking gesteld door KFA2 Duitsland
Testen van de KFA2 GeForce RTX 4090 SG: testunit ter beschikking gesteld door KFA2 Duitsland

Wie op zoek is naar de snelste grafische kaart komt momenteel niet om een Nvidia GeForce RTX 4090 heen. Slechts zelden vinden we zo'n grote prestatiesprong tussen twee opeenvolgende generaties. Nvidia heeft ook het stroomverbruik met 100 watt verhoogd, wat overeenkomt met dat van het topmodel tot nu toe, de Nvidia GeForce RTX 3090 Ti. Het maximum van 450 watt voor de GPU kwamen we echter maar zelden tegen, wat ook betekent dat de GeForce RTX 4090 momenteel niet in alle games ten volle wordt benut. De KFA2 GeForce RTX 4090 SG is hier geen uitzondering en biedt dezelfde prestaties als onze veelgebruikte testunit, de Palit GeForce RTX 4090 GameRock OC. Door het zeer grote koellichaam en de drie grote ventilatoren blijven de temperaturen altijd binnen het groene bereik. Gimmicks zoals RGB zijn ook inbegrepen en kunnen gemakkelijk worden geregeld met de eigen software. Hetzelfde geldt voor de ventilatoren die zelfs uitgeschakeld blijven in 2D gebruik of bij lage belasting.

De KFA2 GeForce RTX 4090 SG is een zeer goede grafische kaart die overal indruk maakt met zeer hoge gaming prestaties. Een extreem groot koellichaam, maximaal vier ventilatoren en veel RGB-verlichting trekken de aandacht bij het KFA2-model.

Sommige spoel whine is een beetje te aanwezig en meer hoorbaar in subjectieve vergelijking dan met de concurrent van Palit. We zouden dit echter nog steeds niet vervelend willen noemen. Hoewel je van mening kunt verschillen over de gebruikte 12VHPWR aansluiting, hebben wij tot nu toe geen problemen ondervonden. De positionering van de 12VHPWR-aansluiting is niet optimaal, aangezien de grote adapter, die niet direct naast de grafische kaart moet worden gebogen, in veel gevallen voor wat ruimteproblemen zorgt.

De RTX 4090 heeft momenteel geen directe concurrenten, waardoor nu alleen de verschillende fabrikanten met elkaar moeten concurreren. Volgens hun eigen aankondigingen concurreert de KFA2 met het Strix model van Asus en het Suprim X model van MSI. Als je naar de directe prestatiegegevens kijkt, zijn er hier geen significante voordelen in termen van prestatie technologie. Dit betekent dat de fabrikanten momenteel alleen de aandacht kunnen trekken met de omvang van de prestaties, de visuals en de prijs. AMD kan zijn topmodel momenteel niet bijbenen, en we moeten geduldig wachten tot de AMD Radeon RX 7900 XTX beschikbaar komt.

Prijs en beschikbaarheid

Er zijn momenteel geen problemen met de beschikbaarheid van de grafische kaarten (in Duitsland), ook al liggen de prijzen veel hoger in vergelijking met de door Nvidia opgegeven MSRP (1.949 euro, ~$2018). Bijvoorbeeld, de KFA2 GeForce RTX 4090 SG is momenteel verkrijgbaar voor 2.749 euro bij Amazon (in Duitsland).hij lijkt moeilijker te vinden in de VS: terwijl hij niet vermeld staat bij Amazon, en Ebay hem als "uitverkocht" laat zien, is hij bij een online discounter te koop voor $1400. Het lijkt op sommige markten te worden verkocht onder het merk "Galax".

Transparantie

Notebookcheck kreeg voor deze test de KFA2 GeForce RTX 4090 SG in bruikleen. De fabrikant ontving voor de publicatie geen versie van de voltooide review.

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > KFA2 GeForce RTX 4090 SG review: Compromisloos 4K gamen met het nieuwe Nvidia-vlaggenschip
Sebastian Bade, 2022-11-30 (Update: 2022-11-30)
