Face-off: Microsoft Surface Pro 4 Core i7 vs. Surface Pro 4 Core i5 vs. Surface Pro 4 Core m3

Zelfde gezicht, snellere hardware. Is de de meest high-end Surface Pro 4 echt de investering waard? We geven je de ruwe benchmarks zodat je dit voor jezelf kan uitmaken.

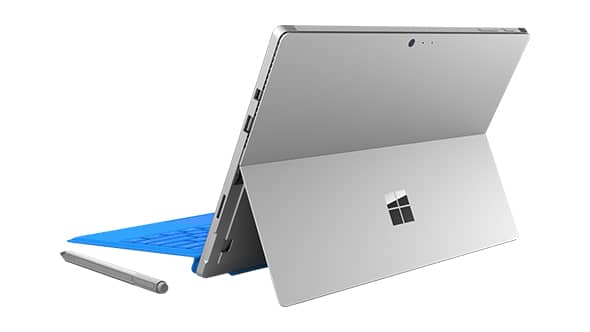

Microsoft Surface Pro 4 Core i7 (Surface Serie)
Processor
Intel Core i7-6650U 2 x 2.2 - 3.4 GHz, Skylake
Geheugen
8192 MB
, Dual Channel 1866 MHz
Beeldscherm
12.30 inch 3:2, 2736 x 1824 pixel, 10-Finger-Multitouch, Samsung 123YL01-001 ID: SDC3853, IPS, glimmend: ja
Moederbord
Intel Skylake-U Premium PCH
Opslag
Samsung MZFLV256 NVMe, 256 GB
, 87 GB beschikbaar
Geluidskaart
Intel Skylake-U/Y PCH - High Definition Audio
Verbindingen
1 USB 3.0, 1 DisplayPort, Audio Verbindingen: 3.5 mm combo, Card Reader: micro-SD, Sensoren: Omgevingslicht, Gyroscoop
Netwerkmogelijkheden
Marvell AVASTAR Wireless-AC Network Controller (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.0
Afmetingen
hoogte x breedte x diepte (in mm): 8.4 x 292.1 x 201.4
Batterij
38 Wh Lithium-Ion, vast geïntegreerd, Batterijduur: 9 h
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: Rear: 8 MP, Front: 5 MP
Bijkomende functionaliteiten
Luidsprekers: Stereo, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, Surface Pen, Type Cover, Office 365, 12 Maanden Garantie
Gewicht
1.092 kg, Voeding: 204 g
Prijs
1249 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



449.3
cd/m²
474.6
cd/m²
441.2
cd/m²
422.8
cd/m²
436.7
cd/m²
417.2
cd/m²
413.8
cd/m²
430.1
cd/m²
413.5
cd/m²
Helderheidsverdeling
Samsung 123YL01-001 ID: SDC3853
X-Rite i1Pro Basic 2
Maximum: 474.6 cd/m² Gemiddelde: 433.2 cd/m²
Helderheidsverdeling: 87 %
Helderheid in Batterij-modus: 436.7 cd/m²
Contrast: 1340:1 (Zwart: 0.326 cd/m²)
ΔE Color 1.82 | 0.6-29.43 Ø5.7
ΔE Greyscale 1.44 | 0.64-98 Ø5.9
97.5% sRGB (Argyll 3D) 62.3% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.1
Microsoft Surface Pro 4 Core i7
12.30, 2736x1824
Microsoft Surface Pro 4, Core i5, 128GB
12.30, 2736x1824
Microsoft Surface Pro 4, Core m3
12.30, 2736x1824
Microsoft Surface Pro 3
12.00, 2160x1440
Microsoft Surface 3
10.80, 1920x1280
Response Times
-28%
-27%
Response Time Grey 50% / Grey 80% *
48.4 (20.4, 28)
46 (17.2, 28.8, plateau, spikes in between)
5%
46 (17.2, 28.8)
5%
Response Time Black / White *
35.6 (8, 27.6)
31.2 (6, 25.2, Spikes in between)
12%
31 (6, 25.2)
13%
PWM Frequency
10420
50 (50)
-100%
50 (50)
-100%
Screen
-31%
-28%
-72%
-21%
Brightness middle
436.7
413
-5%
389.2
-11%
355.3
-19%
399
-9%
Brightness
433
396
-9%
392
-9%
338
-22%
380
-12%
Brightness Distribution
87
87
0%
92
6%
91
5%
90
3%
Black Level *
0.326
0.36
-10%
0.27
17%
0.33
-1%
0.49
-50%
Contrast
1340
1147
-14%
1441
8%
1077
-20%
814
-39%
Colorchecker DeltaE2000 *
1.82
3.09
-70%
3.61
-98%
4.72
-159%
1.66
9%
Greyscale DeltaE2000 *
1.44
3.92
-172%
3.8
-164%
6.53
-353%
2.75
-91%
Gamma
2.1 105%
2.3 96%
2.16 102%
2.17 101%
2.22 99%
CCT
6560 99%
7333 89%
5969 109%
6707 97%
6358 102%
Color Space (Percent of AdobeRGB 1998)
62.3
61
-2%
63
1%
59.37
-5%
64.4
3%
Color Space (Percent of sRGB)
97.5
97
-1%
97
-1%
98.8
1%
Colorchecker DeltaE2000 max. *
3.24
Totaal Gemiddelde (Programma / Instellingen)
-30% / -31%
-28% / -28%
-72% / -72%
-21% / -21%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

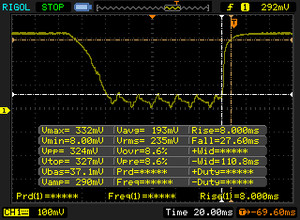

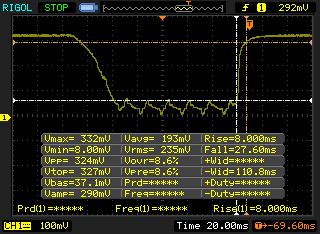

       Responstijd Zwart naar Wit
35.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 8 ms stijging
↘ 27.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 91 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (24.3 ms) van alle geteste toestellen.

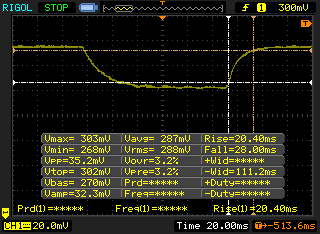

       Responstijd 50% Grijs naar 80% Grijs
48.4 ms ... stijging ↗ en daling ↘ gecombineerd↗ 20.4 ms stijging
↘ 28 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 79 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (38.6 ms) van alle geteste toestellen.
Cinebench R11.5
CPU Single 64Bit (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
1.51 Points ∼48%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
1.4 Points ∼45% -7%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
1.12 Points ∼36% -26%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
0.98 Points ∼31% -35%
CPU Multi 64Bit (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
3.8 Points ∼8%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3.4 Points ∼7% -11%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
2.77 Points ∼6% -27%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2.27 Points ∼5% -40%
OpenGL 64Bit (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
47.51 fps ∼21%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
27.43 fps ∼12% -42%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
19.48 fps ∼9% -59%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
26.43 fps ∼12% -44%
Cinebench R15
CPU Single 64Bit (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
132 Points ∼49%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
122 Points ∼45% -8%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
88 Points ∼32% -33%
CPU Multi 64Bit (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
342 Points ∼8%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
306 Points ∼7% -11%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
206 Points ∼5% -40%
OpenGL 64Bit (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
60.14 fps ∼17%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
36.87 fps ∼10% -39%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
33.48 fps ∼9% -44%
Cinebench R10
Shading 64Bit (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
8183 Points ∼31%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
7574 Points ∼28% -7%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
7154 Points ∼27% -13%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
6386 Points ∼24% -22%
Rendering Multiple CPUs 64Bit (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
14833 Points ∼14%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
13382 Points ∼13% -10%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
10262 Points ∼10% -31%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
8886 Points ∼8% -40%
Rendering Single CPUs 64Bit (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
6787 Points ∼51%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
6050 Points ∼46% -11%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
5619 Points ∼42% -17%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
4297 Points ∼32% -37%
wPrime 2.10 - 1024m (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
445.593 s * ∼5%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
746 s * ∼9% -67%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
787.585 s * ∼9% -77%
Super Pi Mod 1.5 XS 32M - 32M (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
612.745 s * ∼3%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
674 s * ∼3% -10%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
898 s * ∼4% -47%
TrueCrypt
Serpent Mean 100MB (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
0.201 GB/s ∼8%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
0.139 GB/s ∼6% -31%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
0.128 GB/s ∼5% -36%
Twofish Mean 100MB (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
0.344 GB/s ∼9%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
0.247 GB/s ∼7% -28%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
0.205 GB/s ∼6% -40%
AES Mean 100MB (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
2 GB/s ∼7%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
1.5 GB/s ∼6% -25%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
1.2 GB/s ∼4% -40%

* ... kleiner is beter

PCMark 7 - Score (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
5799 Points ∼63%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
5229 Points ∼57% -10%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
5135 Points ∼56% -11%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
5066 Points ∼55% -13%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
4274 Points ∼47% -26%
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
3029 Points ∼33% -48%
PCMark 8
Work Score Accelerated v2 (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
4052 Points ∼59%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3697 Points ∼54% -9%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
3644 Points ∼53% -10%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
3186 Points ∼47% -21%
Creative Score Accelerated v2 (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
4431 Points ∼38%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3736 Points ∼32% -16%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
3694 Points ∼32% -17%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2968 Points ∼25% -33%
Home Score Accelerated v2 (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
3394 Points ∼54%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
2770 Points ∼44% -18%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
2814 Points ∼45% -17%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2426 Points ∼39% -29%
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
1677 Points ∼27% -51%
Microsoft Surface Pro 4 Core i7Microsoft Surface Pro 4, Core i5, 128GBMicrosoft Surface Pro 4, Core m3Microsoft Surface Pro 3Microsoft Surface 3
CrystalDiskMark 3.0
-30%
-36%
-16%
-84%
Write 4k QD32
292.3
153.6
-47%
149.2
-49%
294.4
1%
11.2
-96%
Read 4k QD32
393.1
368.3
-6%
243.7
-38%
345
-12%
27.94
-93%
Write 4k
106.3
101.5
-5%
68.02
-36%
76.2
-28%
9.52
-91%
Read 4k
40.75
28.51
-30%
30.14
-26%
20.81
-49%
12.64
-69%
Write 512
304.3
154.2
-49%
158.2
-48%
324.6
7%
39.9
-87%
Read 512
396.7
266.3
-33%
313.1
-21%
357.8
-10%
133.7
-66%
Write Seq
304
154.2
-49%
158.2
-48%
324
7%
47.99
-84%
Read Seq
833.7
666
-20%
662.5
-21%
501.2
-40%
149.3
-82%
AS SSD
-44%
-44%
-49%
Copy Game MB/s
273.92
105.58
-61%
101.27
-63%
Copy Program MB/s
209.75
63.52
-70%
65.85
-69%
Copy ISO MB/s
409.87
121.9
-70%
120.9
-71%
Score Total
2518
1190
-53%
1759
-30%
965
-62%
Score Write
385
239
-38%
189
-51%
319
-17%
Score Read
1445
645
-55%
1060
-27%
430
-70%
Access Time Write *
0.036
0.037
-3%
0.043
-19%
0.075
-108%
Access Time Read *
0.047
0.079
-68%
0.083
-77%
0.087
-85%
4K-64 Write
268.69
138.54
-48%
112
-58%
215.04
-20%
4K-64 Read
1280.48
528.04
-59%
943.76
-26%
358.34
-72%
4K Write
89.23
86.52
-3%
63.18
-29%
73.65
-17%
4K Read
33.47
34.24
2%
31.39
-6%
22
-34%
Seq Write
274.8
142.52
-48%
138.05
-50%
303.05
10%
Seq Read
1312.22
831.78
-37%
844.83
-36%
493.72
-62%
Totaal Gemiddelde (Programma / Instellingen)
-37% / -39%
-40% / -41%
-33% / -35%
-84% / -84%

* ... kleiner is beter

3DMark 11
1280x720 Performance Combined (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
2255 Points ∼9%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
2580 Points ∼11% +14%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
1509 Points ∼6% -33%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
1370 Points ∼6% -39%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
746 Points ∼3% -67%
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
554 Points ∼2% -75%
1280x720 Performance Physics (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
4919 Points ∼18%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
4199 Points ∼15% -15%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3984 Points ∼15% -19%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
3067 Points ∼11% -38%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
2635 Points ∼10% -46%
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
1879 Points ∼7% -62%
1280x720 Performance GPU (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
2450 Points ∼4%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
2548 Points ∼4% +4%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
1402 Points ∼2% -43%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
1206 Points ∼2% -51%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
791 Points ∼1% -68%
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
494 Points ∼1% -80%
1280x720 Performance (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
2624 Points ∼6%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
2711 Points ∼6% +3%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
1565 Points ∼4% -40%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
1344 Points ∼3% -49%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
877 Points ∼2% -67%
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
562 Points ∼1% -79%
3DMark
1920x1080 Fire Strike Combined (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
553 Points ∼3%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
772 Points ∼4% +40%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
309 Points ∼2% -44%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
265 Points ∼2% -52%
1920x1080 Fire Strike Physics (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
5372 Points ∼14%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
4778 Points ∼12% -11%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
4750 Points ∼12% -12%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
3140 Points ∼8% -42%
1920x1080 Fire Strike Graphics (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
1477 Points ∼3%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
2031 Points ∼4% +38%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
905 Points ∼2% -39%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
810 Points ∼2% -45%
1920x1080 Fire Strike Score (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
1395 Points ∼4%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
1886 Points ∼5% +35%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
844 Points ∼2% -39%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
740 Points ∼2% -47%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
483 Points ∼1% -65%
1280x720 Cloud Gate Standard Physics (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
3639 Points ∼9%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
3362 Points ∼9% -8%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3342 Points ∼8% -8%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2238 Points ∼6% -38%
1280x720 Cloud Gate Standard Graphics (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
11650 Points ∼6%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
11340 Points ∼6% -3%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
7455 Points ∼4% -36%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
6597 Points ∼3% -43%
1280x720 Cloud Gate Standard Score (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
7822 Points ∼10%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
7424 Points ∼10% -5%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
5853 Points ∼8% -25%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
4604 Points ∼6% -41%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
4146 Points ∼6% -47%
1280x720 Ice Storm Standard Physics (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
44259 Points ∼28%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
38206 Points ∼25% -14%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
38764 Points ∼25% -12%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
25720 Points ∼17% -42%
1280x720 Ice Storm Standard Graphics (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
91565 Points ∼12%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
54088 Points ∼7% -41%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
56071 Points ∼7% -39%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
51362 Points ∼7% -44%
1280x720 Ice Storm Standard Score (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
73990 Points ∼7%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
49514 Points ∼4% -33%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
51010 Points ∼5% -31%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
42046 Points ∼4% -43%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
29229 Points ∼3% -60%
ComputeMark v2.1 - 1024x600 Normal, Score (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
1625 Points ∼3%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
1676 Points ∼4% +3%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
741 Points ∼2% -54%
LuxMark v2.0 64Bit
Room GPUs-only (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
305 Samples/s ∼3%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
513 Samples/s ∼5% +68%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
193 Samples/s ∼2% -37%
Sala GPUs-only (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
762 Samples/s ∼2%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
1065 Samples/s ∼3% +40%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
427 Samples/s ∼1% -44%
3DMark 11 Performance
2624 punten
3DMark Ice Storm Standard Score
73990 punten
3DMark Cloud Gate Standard Score
7822 punten
3DMark Fire Strike Score
1395 punten
3DMark Fire Strike Extreme Score
598 punten
Help
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
11.5 fps ∼4%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
20.8 fps ∼8% +81%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
7 fps ∼3% -39%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
4.34 fps ∼2% -62%
1366x768 High Preset (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
41.2 fps ∼10%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
56.5 fps ∼14% +37%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
22.7 fps ∼6% -45%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
22.66 fps ∼6% -45%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
16.07 fps ∼4% -61%
1366x768 Medium Preset (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
49.1 fps ∼11%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
64.8 fps ∼15% +32%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
30 fps ∼7% -39%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
26.93 fps ∼6% -45%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
19.46 fps ∼4% -60%
1280x720 Very Low Preset (sorteer op waarde)
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
86.8 fps ∼16%
Microsoft Surface Book Core i5
Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe
94.2 fps ∼18% +9%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
58.1 fps ∼11% -33%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
52.42 fps ∼10% -40%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
38.73 fps ∼7% -55%
Microsoft Surface Pro 4 Core i7Microsoft Surface Pro 4, Core i5, 128GBMicrosoft Surface Pro 4, Core m3Microsoft Surface Pro 3Microsoft Surface Book Core i5
Noise
-6%
-1%
-0%
off / environment *
Idle Minimum *
28.4
31.5
-11%
30.1
-6%
29.5
-4%
Idle Average *
28.6
31.5
-10%
30.2
-6%
29.6
-3%
Idle Maximum *
28.7
31.5
-10%
30.4
-6%
29.7
-3%
Load Average *
40.8
40.5
1%
31.9
22%
37.5
8%
Load Maximum *
41.4
40.7
2%
44.4
-7%
40.9
1%

* ... kleiner is beter

Geluidsniveau

Onbelast
28.4 / 28.6 / 28.7 dB (A)
Belasting
40.8 / 41.4 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Fluke 62 Mini IR Thermometer (15 cm afstand)
Max. Belasting
 43.8 °C45.4 °C43.2 °C
 39.4 °C43.6 °C38.6 °C
 36 °C39.8 °C36 °C
Maximum: 45.4 °C
Gemiddelde: 40.6 °C
40.8 °C43.2 °C41.8 °C
37 °C42.2 °C39.8 °C
35.8 °C37.4 °C37.4 °C
Maximum: 43.2 °C
Gemiddelde: 39.5 °C
Stroomadapter (max.)  44 °C | Kamertemperatuur 19 °C | Fluke 62 Mini IR Thermometer
(-) The average temperature for the upper side under maximal load is 40.6 °C / 105 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(-) The maximum temperature on the upper side is 45.4 °C / 114 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 43.2 °C / 110 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.5 °C / 74 F, compared to the device average of 30.3 °C / 87 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 39.8 °C / 103.6 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-11 °C / -19.8 F).
Microsoft Surface Pro 4 Core i7
38 Wh
Microsoft Surface Pro 4, Core i5, 128GB
38 Wh
Microsoft Surface Pro 4, Core m3
38 Wh
Microsoft Surface Pro 3
42 Wh
Microsoft Surface 3
28 Wh
Batterijduur
41%
54%
63%
65%
Reader / Idle
654
899
37%
791
21%
1096
68%
828
27%
WiFi v1.3
293
427
46%
488
67%
437
49%
Load
79
111
41%
138
75%
124
57%
173
119%
WiFi
504
425
Batterijduur
Inactief (zonder WLAN, minimale helderheid)
10h 54min
NBC WiFi Websurfing Battery Test 1.3
4h 53min
Belast (maximale helderheid)
1h 19min

Pro

+ geen grote problemen met throttling
+ sterkere GPU-prestaties
+ gekalibreerd scherm
+ snellere SSD-prestaties

Contra

- slechts kleine verbetering in CPU-prestaties t.o.v. Core i5
- kortere batterijduur
- actieve koeling
- lichte backlight-bleeding
In review: Microsoft Surface Pro 4 Core i7.
In review: Microsoft Surface Pro 4 Core i7.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

De Surface Pro 4 Core i7 SKU biedt slechts iets snellere CPU-prestaties ten opzichte van zijn tegenhanger met i5. Voor tekstverwerking en browsen zal het verschil in performance voor de meeste gebruikers verwaarloosbaar zijn.

De Core i7 zal echter vooral interessant zijn voor power users die gebruik kunnen maken van de extra GPU-performance geleverd door de Iris 540 (i.p.v. HD 520). De ruwe grafische prestaties volstaan niet om moderne games vloeiend te spelen in de originele schermresolutie, maar de rekenkracht zal zeker van pas komen in licht tot matig zwaar werk in Photoshop of videobewerking. Het vooraf gekalibreerde scherm en de snellere prestaties van de SSD van 256 GB vergeleken met de Core i5 en Core m3 SKU's maken het model met Core i7 professioneler dan gewoon een simpele CPU-upgrade.

Het meer accurate scherm, de snellere SSD en het ontbreken van serieuze throttling-problemen t.o.v. de goedkopere configuraties zullen power users zeker weten te bekoren, maar bieden beperkte voordelen voor gebruiker die vooral lichte office-taken uitvoeren.

Microsoft Surface Pro 4 Core i7 - 18-04-2016 v5.1(old)
Allen Ngo

Behuizing
86 / 98 → 88%
Toetsenbord
87%
Aanwijsapparaat
92%
Aansluitmogelijkheden
49 / 80 → 61%
Gewicht
78 / 35-78 → 100%
Batterij
83%
Beeldscherm
89%
Gaming-performance
64 / 68 → 93%
Applicatie-performance
85 / 87 → 98%
Temperatuur
82%
Luidheid
87%
Audio
60 / 91 → 66%
Camera
77 / 85 → 91%
Gemiddelde
78%
88%
Convertible - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Face-off: Microsoft Surface Pro 4 Core i7 vs. Surface Pro 4 Core i5 vs. Surface Pro 4 Core m3
Allen Ngo, 2016-01- 3 (Update: 2020-06- 8)
Allen Ngo
Editor of the original article: Allen Ngo - US Editor in Chief
