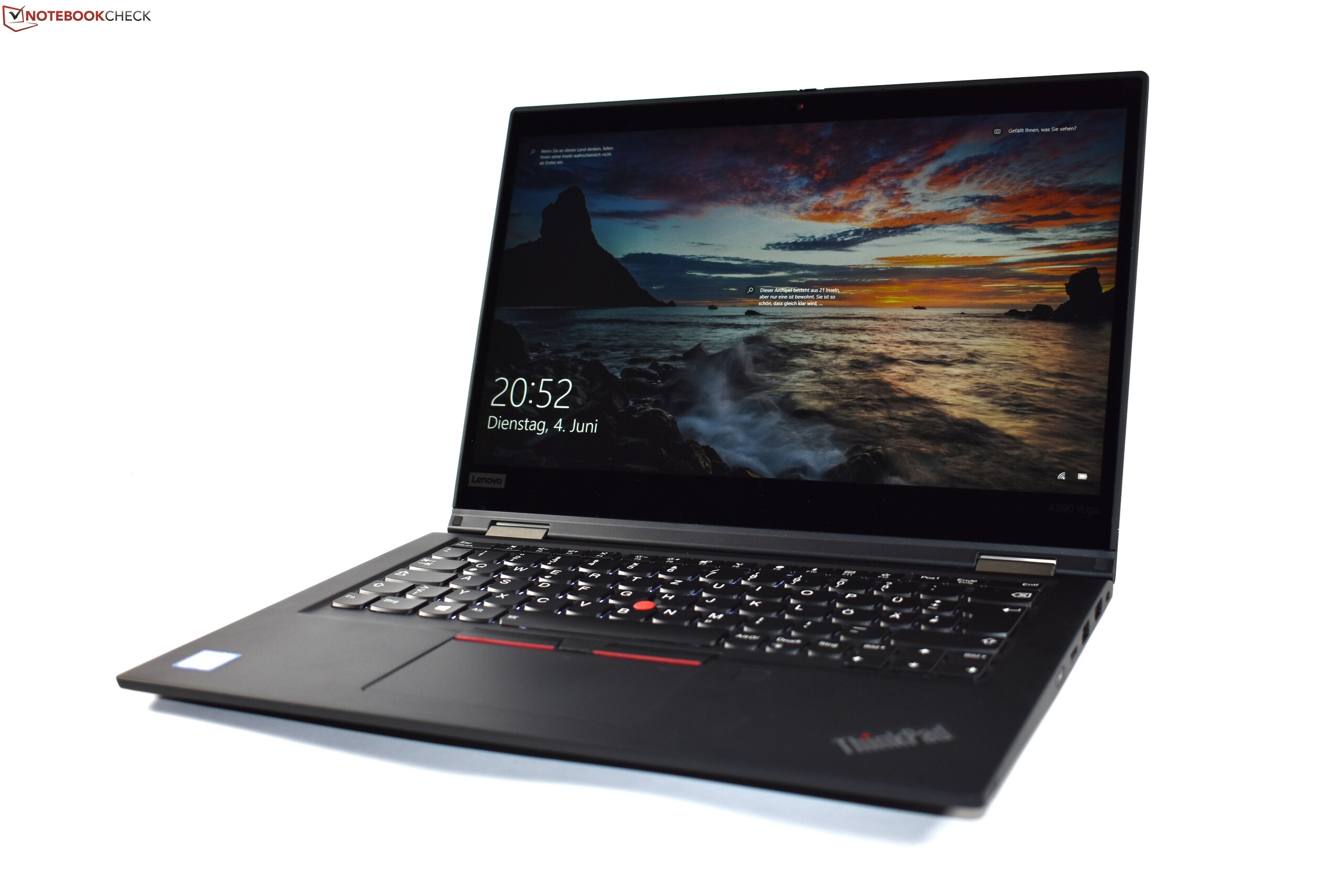

Kort testrapport Lenovo ThinkPad X390 Yoga (i7, FHD) Convertible

Vingervlug en chique. Voor het eerst sinds 2015 introduceert Lenovo een nieuwe behuizing voor zijn zakelijke ThinkPad Yoga convertible. De Lenovo ThinkPad X390 Yoga is slanker dan zijn voorganger en biedt verbeterde CPU prestaties. De convertible ontbeert verscheidene features die beschikbaar zijn in de normale ThinkPad X390. We hebben de convertible met Intel Whiskey Lake processor uitvoerig getest.

Lenovo ThinkPad X390 Yoga-20NQS05R00
Processor
Intel Core i7-8565U
Grafische kaart
Geheugen
16384 MB
, DDR4-2400, gesoldeerd
Beeldscherm
13.3 inch 16:9, 1920 x 1080 pixel 166 PPI, 10-punts multitouch beeldscherm, native pen support, LP133WF7-SPA1, IPS LED, glimmend: ja
Moederbord
Intel Cannon Lake-U PCH-LP Premium
Opslag
Intel SSD Pro 7600p SSDPEKKF512G8L, 512 GB
, M.2 2280, PCIe NVMe, 452 GB beschikbaar
Geluidskaart
Intel Cannon Lake-H/S - cAVS (Audio, Voice, Speech)
Verbindingen
3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Verbindingen: 3.5mm combo aansluiting, Card Reader: microSD, 1 SmartCard, NFC, Sensoren: 3D versnellingssensor, 3D gyroscoop
Netwerkmogelijkheden
Intel Ethernet Connection I219-V (10/100/1000MBit), Intel Wireless-AC 9560 (a/b/g/n/ac), Bluetooth 5.0
Afmetingen
hoogte x breedte x diepte (in mm): 15.95 x 310.4 x 219
Batterij
50 Wh Lithium-Ion
Camera
Webcam: 720p met infrarood
Bijkomende functionaliteiten
Luidsprekers: 2 watt stereo, Toetsenbord: smal, 6-rij chiclet, Toetsenbordverlichting: ja, 65 watt, USB-C stroomadapter, ThinkPad Pen Pro 7, 36 Maanden Garantie
Gewicht
1.251 kg, Voeding: 341 g
Prijs
1399 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

333 mm 229 mm 17.05 mm 1.4 kg313.5 mm 222.2 mm 18.2 mm 1.4 kg310.4 mm 219 mm 15.95 mm 1.3 kg306 mm 211 mm 20 mm 1.4 kg305.8 mm 205 mm 15.8 mm 1.3 kg

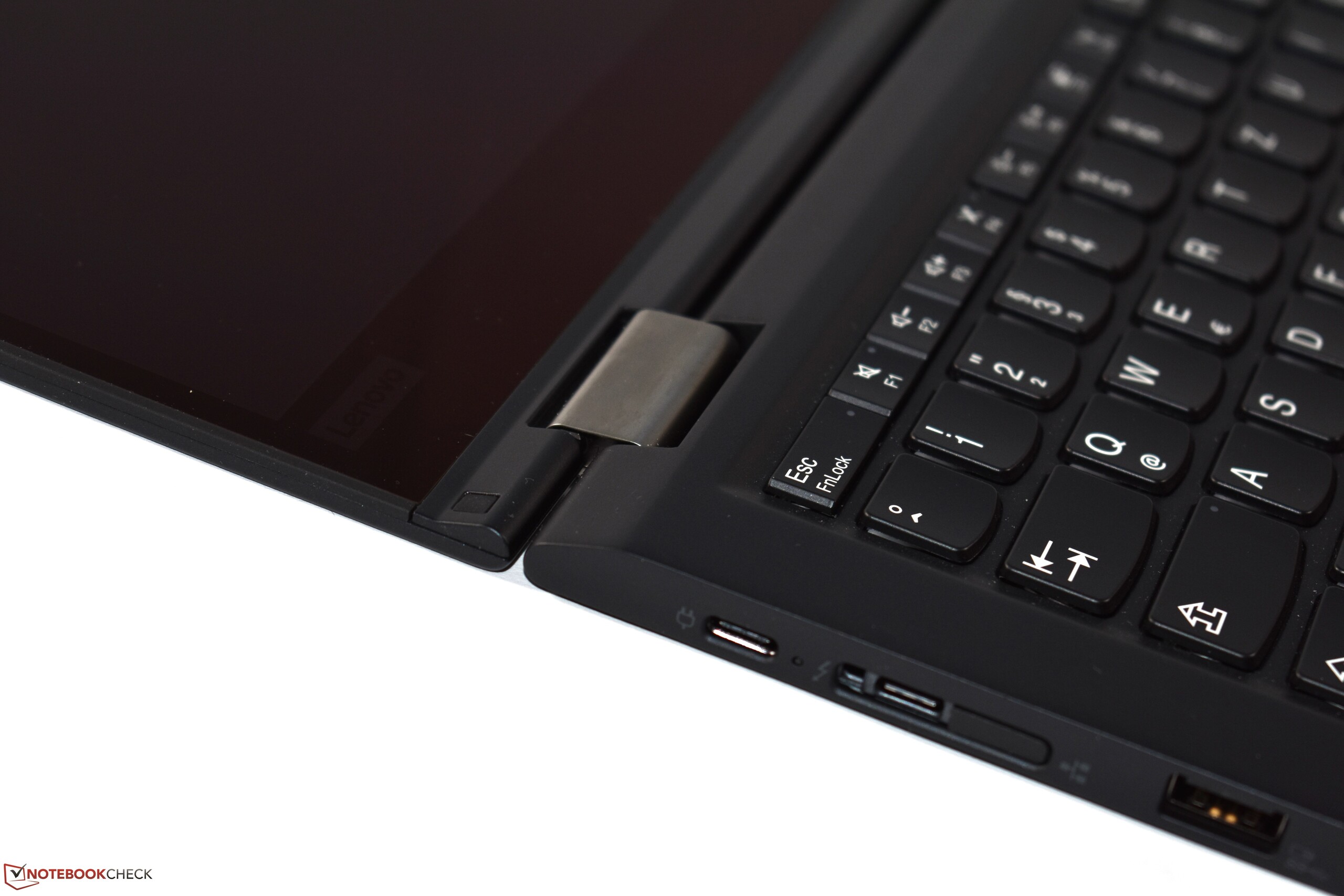

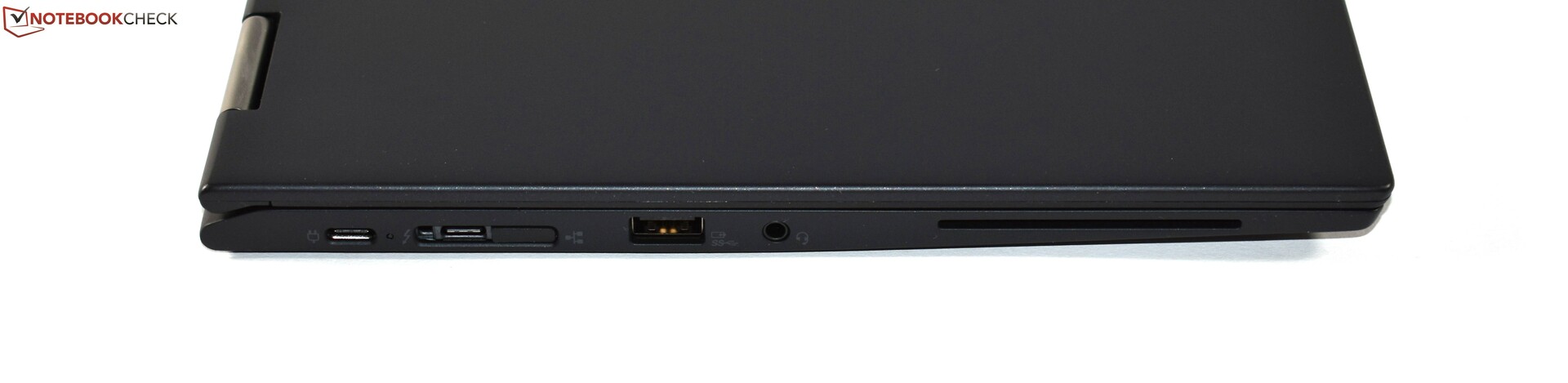

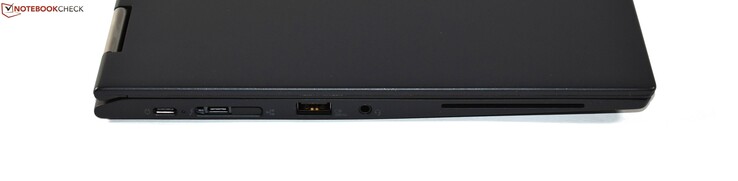

left: USB 3.1 Gen 1 Type C, Thunderbolt 3, miniEthernet, USB 3.0 Type A, combined audio jack, smart card reader
left: USB 3.1 Gen 1 Type C, Thunderbolt 3, miniEthernet, USB 3.0 Type A, combined audio jack, smart card reader

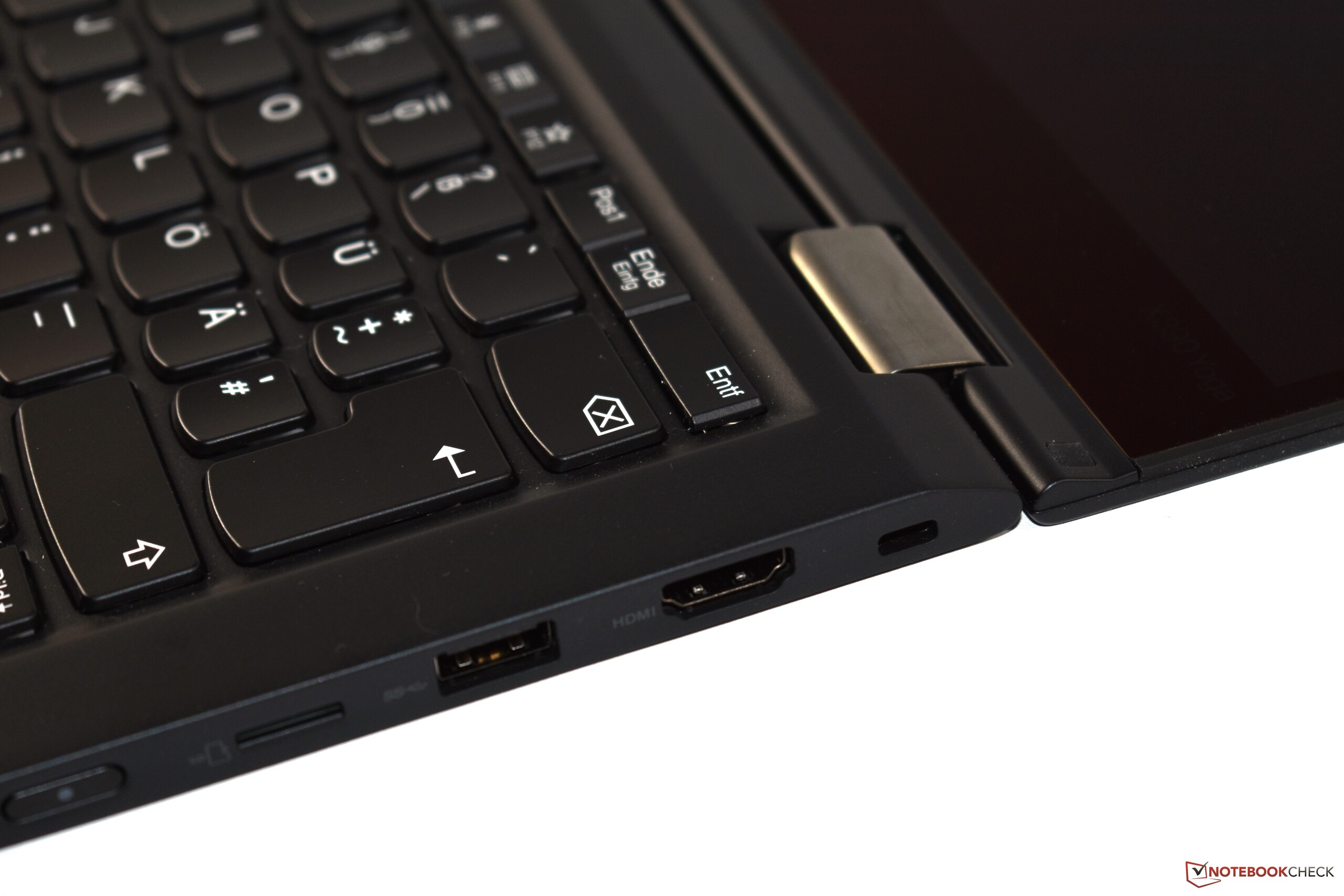

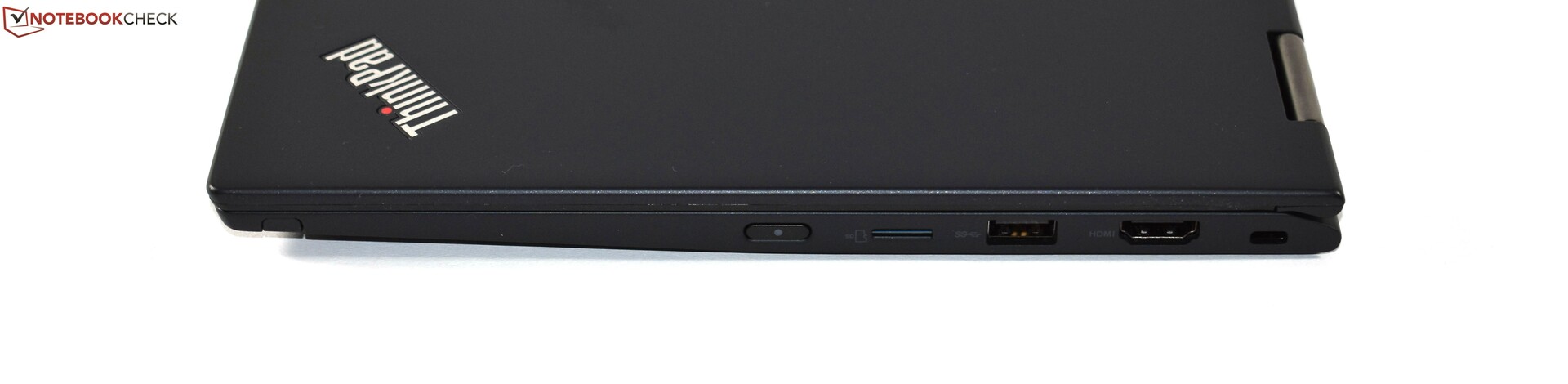

right: Digitizer pen, microSD card reader, USB 3.0 Type A, HDMI, Kensington Lock
right: Digitizer pen, microSD card reader, USB 3.0 Type A, HDMI, Kensington Lock
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
  (Toshiba Exceria Pro M501)
191.1 MB/s ∼100% +135%
Dell Latitude 7390 2-in-1
  (Toshiba Exceria Pro M501 UHS-II)
166.24 MB/s ∼87% +104%
Lenovo ThinkPad X390 Yoga-20NQS05R00
  (Toshiba Exceria Pro M501)
81.4 MB/s ∼43%
Lenovo ThinkPad X380 Yoga 20LJS02W00
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
61.9 MB/s ∼32% -24%
Average of class Convertible
  (7.5 - 197, n=122)
60 MB/s ∼31% -26%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 7390 2-in-1
  (Toshiba Exceria Pro M501 UHS-II)
229.6 MB/s ∼100% +171%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
  (Toshiba Exceria Pro M501)
223.9 MB/s ∼98% +165%
Lenovo ThinkPad X380 Yoga 20LJS02W00
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.8 MB/s ∼38% +4%
Lenovo ThinkPad X390 Yoga-20NQS05R00
  (Toshiba Exceria Pro M501)
84.6 MB/s ∼37%
Average of class Convertible
  (21.7 - 246, n=120)
74.5 MB/s ∼32% -12%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad X390 Yoga-20NQS05R00
Intel Wireless-AC 9560
644 MBit/s ∼100%
Dell Latitude 7390 2-in-1
Intel Dual Band Wireless-AC 8265
639 MBit/s ∼99% -1%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Dual Band Wireless-AC 8265
633 MBit/s ∼98% -2%
HP EliteBook x360 1030 G3
Intel Dual Band Wireless-AC 8265
627 MBit/s ∼97% -3%
Lenovo ThinkPad X380 Yoga 20LJS02W00
Intel Dual Band Wireless-AC 8265
517 MBit/s ∼80% -20%
Average of class Convertible
  (28.7 - 678, n=135)
486 MBit/s ∼75% -25%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkPad X390 Yoga-20NQS05R00
Intel Wireless-AC 9560
680 MBit/s ∼100%
Lenovo ThinkPad X380 Yoga 20LJS02W00
Intel Dual Band Wireless-AC 8265
666 MBit/s ∼98% -2%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Dual Band Wireless-AC 8265
511 MBit/s ∼75% -25%
HP EliteBook x360 1030 G3
Intel Dual Band Wireless-AC 8265
502 MBit/s ∼74% -26%
Dell Latitude 7390 2-in-1
Intel Dual Band Wireless-AC 8265
495 MBit/s ∼73% -27%
Average of class Convertible
  (36.4 - 685, n=135)
495 MBit/s ∼73% -27%
286
cd/m²
299
cd/m²
295
cd/m²
303
cd/m²
319
cd/m²
312
cd/m²
317
cd/m²
316
cd/m²
311
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 319 cd/m² Gemiddelde: 306.4 cd/m² Minimum: 2.9 cd/m²
Helderheidsverdeling: 90 %
Helderheid in Batterij-modus: 318 cd/m²
Contrast: 2127:1 (Zwart: 0.15 cd/m²)
ΔE Color 6.1 | 0.6-29.43 Ø6.1, calibrated: 1
ΔE Greyscale 8.6 | 0.64-98 Ø6.3
96.8% sRGB (Argyll 3D) 61.9% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.62
Lenovo ThinkPad X390 Yoga-20NQS05R00
LP133WF7-SPA1, , 1920x1080, 13.3
Lenovo ThinkPad X380 Yoga 20LJS02W00
Lenovo M133NWF4 R3, , 1920x1080, 13.3
HP EliteBook x360 1030 G3
Chi Mei CMN1380, , 1920x1080, 13.3
Dell Latitude 7390 2-in-1
AUO462D, , 1920x1080, 13.3
Lenovo ThinkPad X390-20Q1S02M00
LP133WF7-SPB1, , 1920x1080, 13.3
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
Lenovo LEN40A9, , 1920x1080, 14
Response Times
11%
26%
10%
-4%
19%
Response Time Grey 50% / Grey 80% *
59.2 (30, 29.2)
50 (24, 26)
16%
39.2 (20.4, 18.8)
34%
48.8 (23.6, 25.2)
18%
57.6 (28.4, 29.2)
3%
40.4 (22.4, 18)
32%
Response Time Black / White *
30.8 (16.8, 14)
29 (15, 14)
6%
25.6 (14, 11.6)
17%
30.4 (16.4, 14)
1%
34 (18.4, 15.6)
-10%
28.8 (17.2, 11.6)
6%
PWM Frequency
1000 (90)
26040 (62)
Screen
-2%
0%
-37%
12%
-30%
Brightness middle
319
314
-2%
470.1
47%
318.2
0%
356
12%
267.2
-16%
Brightness
306
302
-1%
443
45%
312
2%
336
10%
239
-22%
Brightness Distribution
90
84
-7%
88
-2%
83
-8%
88
-2%
75
-17%
Black Level *
0.15
0.16
-7%
0.38
-153%
0.3
-100%
0.16
-7%
0.27
-80%
Contrast
2127
1963
-8%
1237
-42%
1061
-50%
2225
5%
990
-53%
Colorchecker DeltaE2000 *
6.1
5.73
6%
2.47
60%
4.25
30%
3.6
41%
3.5
43%
Colorchecker DeltaE2000 max. *
9.7
10.43
-8%
5.73
41%
9.49
2%
5.5
43%
6.4
34%
Colorchecker DeltaE2000 calibrated *
1
1.52
-52%
4.38
-338%
1.1
-10%
3.81
-281%
Greyscale DeltaE2000 *
8.6
7.39
14%
3.7
57%
2.1
76%
4.7
45%
1.3
85%
Gamma
2.62 84%
2.14 103%
2.35 94%
2.311 95%
2.48 89%
2.146 103%
CCT
6613 98%
6351 102%
7373 88%
6588 99%
6374 102%
6523 100%
Color Space (Percent of AdobeRGB 1998)
61.9
61
-1%
62
0%
56
-10%
61.3
-1%
56
-10%
Color Space (Percent of sRGB)
96.8
96
-1%
98.2
1%
85
-12%
95.7
-1%
86
-11%
Totaal Gemiddelde (Programma / Instellingen)
5% / 1%
13% / 4%
-14% / -30%
4% / 10%
-6% / -22%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

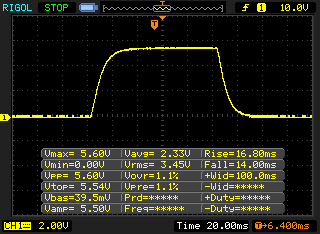

       Responstijd Zwart naar Wit
30.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 16.8 ms stijging
↘ 14 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 78 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (25.1 ms) van alle geteste toestellen.

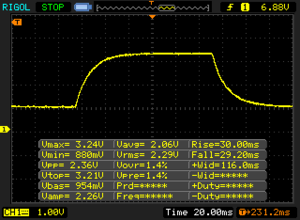

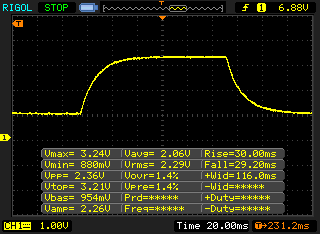

       Responstijd 50% Grijs naar 80% Grijs
59.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 30 ms stijging
↘ 29.2 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 94 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (40.2 ms) van alle geteste toestellen.

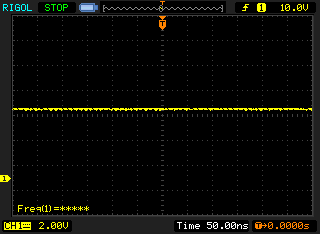

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9429 (minimum: 43 - maximum: 142900) Hz waargenomen.

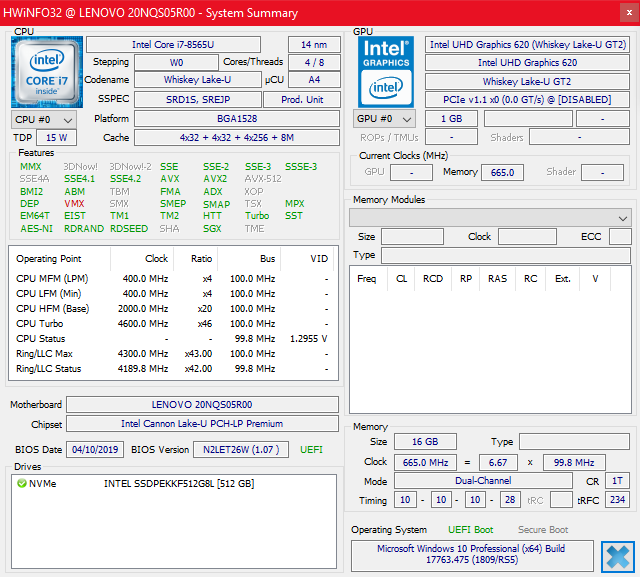

HWiNFO
HWiNFO

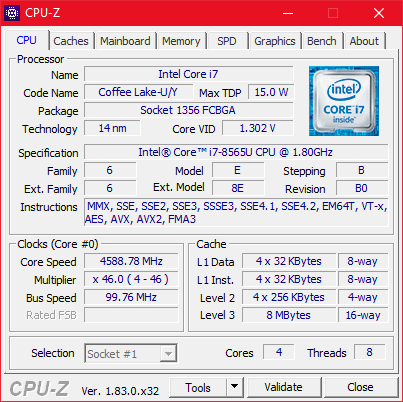

CPU-Z
CPU-Z

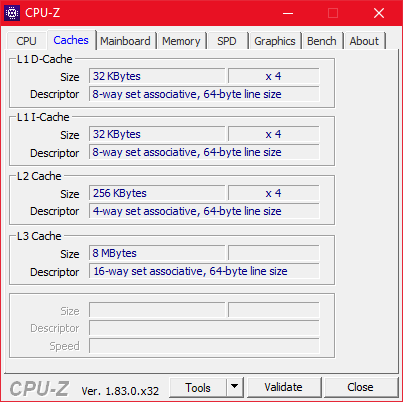

CPU-Z Caches
CPU-Z Caches

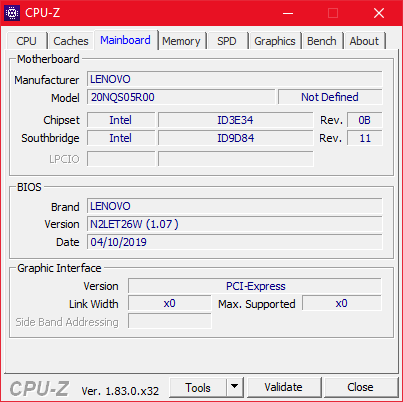

CPU-Z Mainboard
CPU-Z Mainboard

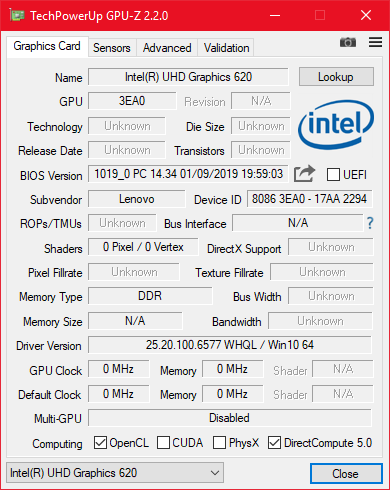

GPU-Z
GPU-Z

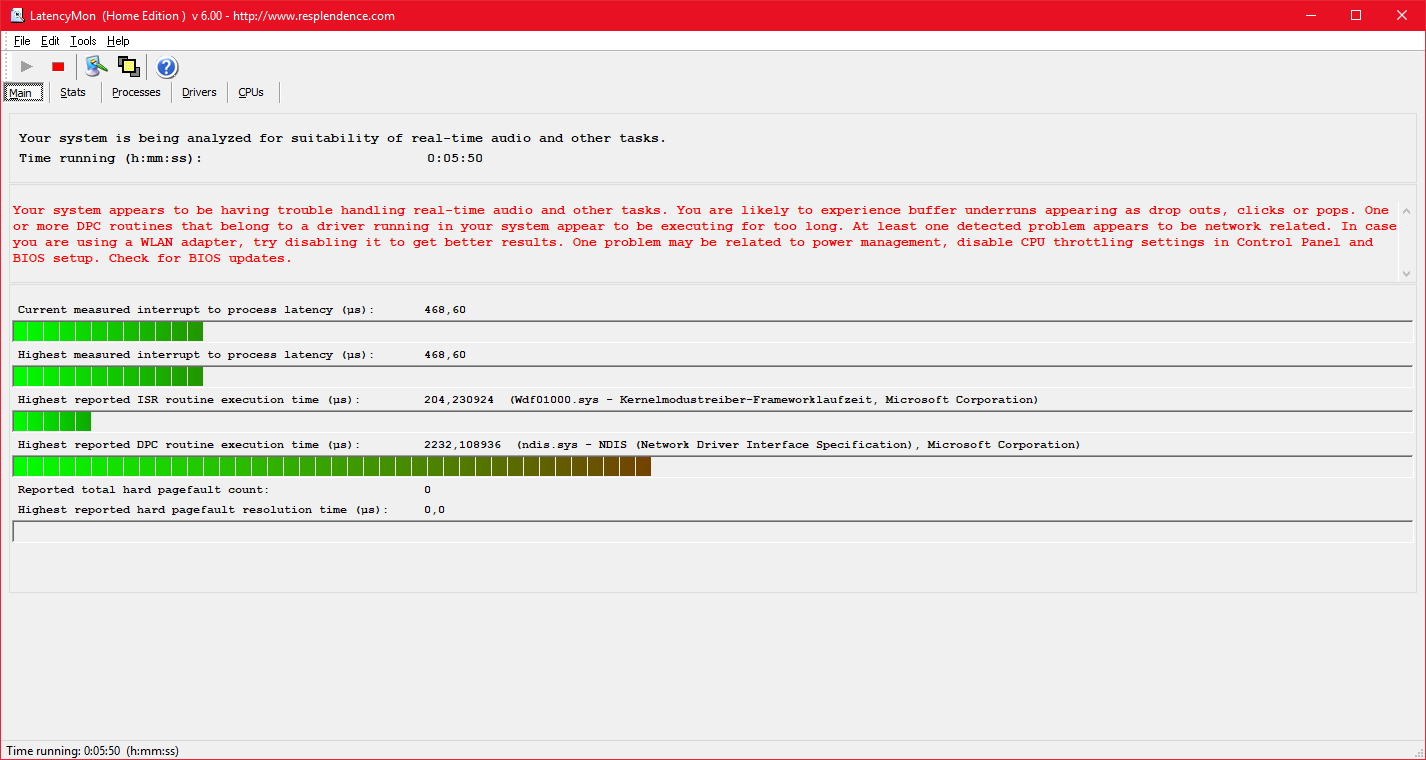

LatencyMon
LatencyMon


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690Tooltip
Lenovo ThinkPad X390 Yoga-20NQS05R00 Intel Core i7-8565U, Intel Core i7-8565U: Ø517 (498.14-623.19)
Lenovo ThinkPad X380 Yoga 20LJS02W00 Intel Core i7-8550U, Intel Core i7-8550U: Ø382 (318.22-509.19)
HP EliteBook x360 1030 G3 Intel Core i5-8250U, Intel Core i5-8250U: Ø483 (463.47-532.04)
Dell Latitude 7390 2-in-1 Intel Core i7-8650U, Intel Core i7-8650U: Ø545 (526.15-584.27)
Lenovo ThinkPad X1 Yoga 2018-20LES01W00 Intel Core i7-8550U, Intel Core i7-8550U: Ø607 (551.32-678.21)
Lenovo ThinkPad X390-20Q1S02M00 Intel Core i5-8265U, Intel Core i5-8265U: Ø569 (552-686)
Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad X390 Yoga-20NQS05R00
Intel Core i7-8565U
179 Points ∼100%
Average Intel Core i7-8565U
  (73.1 - 193, n=35)
170 Points ∼95% -5%
Dell Latitude 7390 2-in-1
Intel Core i7-8650U
169 Points ∼94% -6%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Core i7-8550U
168 Points ∼94% -6%
Lenovo ThinkPad X390-20Q1S02M00
Intel Core i5-8265U
158 Points ∼88% -12%
Lenovo ThinkPad X380 Yoga 20LJS02W00
Intel Core i7-8550U
155 Points ∼87% -13%
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
Intel Core i5-8250U
141 Points ∼79% -21%
HP EliteBook x360 1030 G3
Intel Core i5-8250U
141 Points ∼79% -21%
Average of class Convertible
  (19 - 179, n=291)
104 Points ∼58% -42%
CPU Multi 64Bit
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Core i7-8550U
699 Points ∼100% +36%
Lenovo ThinkPad X390-20Q1S02M00
Intel Core i5-8265U
683 Points ∼98% +33%
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
Intel Core i5-8250U
670 Points ∼96% +31%
Average Intel Core i7-8565U
  (361 - 815, n=36)
598 Points ∼86% +17%
Dell Latitude 7390 2-in-1
Intel Core i7-8650U
560 Points ∼80% +9%
Lenovo ThinkPad X390 Yoga-20NQS05R00
Intel Core i7-8565U
513 (min: 498.14, max: 623.19) Points ∼73%
Lenovo ThinkPad X380 Yoga 20LJS02W00
Intel Core i7-8550U
509 Points ∼73% -1%
HP EliteBook x360 1030 G3
Intel Core i5-8250U
493 Points ∼71% -4%
Average of class Convertible
  (33 - 761, n=298)
291 Points ∼42% -43%
Cinebench R15 CPU Multi 64Bit
513 Points
Cinebench R15 OpenGL 64Bit
50.9 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
179 Points
Help
PCMark 10
Digital Content Creation
Lenovo ThinkPad X390-20Q1S02M00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
3050 Points ∼100% +1%
Lenovo ThinkPad X390 Yoga-20NQS05R00
UHD Graphics 620, 8565U, Intel SSD Pro 7600p SSDPEKKF512G8L
3005 Points ∼99%
Average Intel Core i7-8565U, Intel UHD Graphics 620
  (2264 - 3370, n=16)
2948 Points ∼97% -2%
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
2941 Points ∼96% -2%
HP EliteBook x360 1030 G3
UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ
2855 Points ∼94% -5%
Dell Latitude 7390 2-in-1
UHD Graphics 620, 8650U, SK hynix PC401 NVMe 500 GB
2733 Points ∼90% -9%
Lenovo ThinkPad X380 Yoga 20LJS02W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
2467 Points ∼81% -18%
Average of class Convertible
  (605 - 4342, n=88)
2445 Points ∼80% -19%
Productivity
Lenovo ThinkPad X390 Yoga-20NQS05R00
UHD Graphics 620, 8565U, Intel SSD Pro 7600p SSDPEKKF512G8L
7066 Points ∼100%
Lenovo ThinkPad X380 Yoga 20LJS02W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
6791 Points ∼96% -4%
Average Intel Core i7-8565U, Intel UHD Graphics 620
  (3381 - 7588, n=16)
6705 Points ∼95% -5%
Lenovo ThinkPad X390-20Q1S02M00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
6273 Points ∼89% -11%
Dell Latitude 7390 2-in-1
UHD Graphics 620, 8650U, SK hynix PC401 NVMe 500 GB
6006 Points ∼85% -15%
HP EliteBook x360 1030 G3
UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ
5739 Points ∼81% -19%
Average of class Convertible
  (1121 - 7077, n=90)
5180 Points ∼73% -27%
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
5099 Points ∼72% -28%
Essentials
Lenovo ThinkPad X390 Yoga-20NQS05R00
UHD Graphics 620, 8565U, Intel SSD Pro 7600p SSDPEKKF512G8L
9029 Points ∼100%
HP EliteBook x360 1030 G3
UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ
8356 Points ∼93% -7%
Average Intel Core i7-8565U, Intel UHD Graphics 620
  (5450 - 9029, n=16)
8200 Points ∼91% -9%
Lenovo ThinkPad X390-20Q1S02M00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
7982 Points ∼88% -12%
Lenovo ThinkPad X380 Yoga 20LJS02W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
7763 Points ∼86% -14%
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
7509 Points ∼83% -17%
Dell Latitude 7390 2-in-1
UHD Graphics 620, 8650U, SK hynix PC401 NVMe 500 GB
7213 Points ∼80% -20%
Average of class Convertible
  (2489 - 9291, n=90)
6846 Points ∼76% -24%
Score
Lenovo ThinkPad X390 Yoga-20NQS05R00
UHD Graphics 620, 8565U, Intel SSD Pro 7600p SSDPEKKF512G8L
4134 Points ∼100%
Average Intel Core i7-8565U, Intel UHD Graphics 620
  (2486 - 4172, n=16)
3903 Points ∼94% -6%
Lenovo ThinkPad X390-20Q1S02M00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
3832 Points ∼93% -7%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3829 Points ∼93% -7%
HP EliteBook x360 1030 G3
UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ
3695 Points ∼89% -11%
Lenovo ThinkPad X380 Yoga 20LJS02W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3632 Points ∼88% -12%
Dell Latitude 7390 2-in-1
UHD Graphics 620, 8650U, SK hynix PC401 NVMe 500 GB
3520 Points ∼85% -15%
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
3461 Points ∼84% -16%
Average of class Convertible
  (872 - 4347, n=91)
3121 Points ∼75% -25%
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad X390 Yoga-20NQS05R00
UHD Graphics 620, 8565U, Intel SSD Pro 7600p SSDPEKKF512G8L
5071 Points ∼100%
Dell Latitude 7390 2-in-1
UHD Graphics 620, 8650U, SK hynix PC401 NVMe 500 GB
4978 Points ∼98% -2%
Lenovo ThinkPad X390-20Q1S02M00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
4896 Points ∼97% -3%
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
4823 Points ∼95% -5%
Average Intel Core i7-8565U, Intel UHD Graphics 620
  (3596 - 5189, n=14)
4755 Points ∼94% -6%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
4719 Points ∼93% -7%
Lenovo ThinkPad X380 Yoga 20LJS02W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
4656 Points ∼92% -8%
HP EliteBook x360 1030 G3
UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ
4336 Points ∼86% -14%
Average of class Convertible
  (1007 - 5281, n=220)
3700 Points ∼73% -27%
Home Score Accelerated v2
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
3946 Points ∼100% +8%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3824 Points ∼97% +4%
Dell Latitude 7390 2-in-1
UHD Graphics 620, 8650U, SK hynix PC401 NVMe 500 GB
3760 Points ∼95% +3%
Lenovo ThinkPad X380 Yoga 20LJS02W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3687 Points ∼93% +1%
Lenovo ThinkPad X390 Yoga-20NQS05R00
UHD Graphics 620, 8565U, Intel SSD Pro 7600p SSDPEKKF512G8L
3668 Points ∼93%
Lenovo ThinkPad X390-20Q1S02M00
UHD Graphics 620, 8265U, Intel SSD Pro 7600p SSDPEKKF512G8L
3629 Points ∼92% -1%
Average Intel Core i7-8565U, Intel UHD Graphics 620
  (2577 - 4179, n=15)
3564 Points ∼90% -3%
HP EliteBook x360 1030 G3
UHD Graphics 620, 8250U, Samsung PM871b MZNLN128HAHQ
3453 Points ∼88% -6%
Average of class Convertible
  (741 - 4741, n=267)
2773 Points ∼70% -24%
PCMark 8 Home Score Accelerated v2
3668 punten
PCMark 8 Work Score Accelerated v2
5071 punten
Help
Lenovo ThinkPad X390 Yoga-20NQS05R00
Intel SSD Pro 7600p SSDPEKKF512G8L
Lenovo ThinkPad X380 Yoga 20LJS02W00
Samsung SSD PM981 MZVLB512HAJQ
HP EliteBook x360 1030 G3
Samsung PM871b MZNLN128HAHQ
Dell Latitude 7390 2-in-1
SK hynix PC401 NVMe 500 GB
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Samsung SSD PM981 MZVLB512HAJQ
Lenovo ThinkPad X390-20Q1S02M00
Intel SSD Pro 7600p SSDPEKKF512G8L
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
Samsung SSD PM981 MZVLB512HAJQ
Average Intel SSD Pro 7600p SSDPEKKF512G8L

CrystalDiskMark 5.2 / 6
3%
-65%
-8%
6%
-11%
-20%
-9%
Write 4K
144.1
135.9
-6%
64.28
-55%
131.7
-9%
138.8
-4%
120.7
-16%
122.1
-15%
129 (121 - 144, n=3)
-10%
Read 4K
63.53
34.13
-46%
46.01
-28%
45.21
-29%
58.52
-8%
44.38
-30%
55.9 (45.6 - 63.5, n=3)
-12%
Write Seq
1496
1683
13%
466.4
-69%
1256
-16%
1896
27%
1491
0%
1253
-16%
1495 (1491 - 1497, n=3)
0%
Read Seq
2677
2195
-18%
498.3
-81%
1852
-31%
2070
-23%
2760
3%
1232
-54%
2607 (2385 - 2760, n=3)
-3%
Write 4K Q32T1
357.4
437.3
22%
193.3
-46%
600.4
68%
483.3
35%
237.5
-34%
198.2
-45%
279 (238 - 357, n=3)
-22%
Read 4K Q32T1
482.3
338.8
-30%
179.7
-63%
387.7
-20%
451.8
-6%
336.1
-30%
288.8
-40%
385 (336 - 482, n=3)
-20%
Write Seq Q32T1
1558
1994
28%
396.8
-75%
1374
-12%
2066
33%
1512
-3%
2007
29%
1533 (1512 - 1558, n=3)
-2%
Read Seq Q32T1
3021
3407
13%
547.2
-82%
2585
-14%
3423
13%
3154
4%
3409
13%
3030 (2915 - 3154, n=3)
0%
Intel SSD Pro 7600p SSDPEKKF512G8L
Sequential Read: 2819 MB/s
Sequential Write: 1437 MB/s
512K Read: 1125 MB/s
512K Write: 951.7 MB/s
4K Read: 75.14 MB/s
4K Write: 200.8 MB/s
4K QD32 Read: 626.8 MB/s
4K QD32 Write: 552 MB/s
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel UHD Graphics 620, Intel Core i7-8550U
1869 Points ∼100% +3%
Lenovo ThinkPad X390-20Q1S02M00
Intel UHD Graphics 620, Intel Core i5-8265U
1841 Points ∼99% +2%
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
Intel UHD Graphics 620, Intel Core i5-8250U
1814 Points ∼97% 0%
Lenovo ThinkPad X390 Yoga-20NQS05R00
Intel UHD Graphics 620, Intel Core i7-8565U
1806 Points ∼97%
HP EliteBook x360 1030 G3
Intel UHD Graphics 620, Intel Core i5-8250U
1738 Points ∼93% -4%
Average Intel UHD Graphics 620
  (1235 - 1979, n=153)
1705 Points ∼91% -6%
Lenovo ThinkPad X380 Yoga 20LJS02W00
Intel UHD Graphics 620, Intel Core i7-8550U
1614 Points ∼86% -11%
Dell Latitude 7390 2-in-1
Intel UHD Graphics 620, Intel Core i7-8650U
1600 Points ∼86% -11%
Average of class Convertible
  (173 - 7483, n=319)
1229 Points ∼66% -32%
3DMark
1920x1080 Fire Strike Graphics
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel UHD Graphics 620, Intel Core i7-8550U
1288 Points ∼100% +1%
Lenovo ThinkPad X390 Yoga-20NQS05R00
Intel UHD Graphics 620, Intel Core i7-8565U
1278 Points ∼99%
Lenovo ThinkPad X390-20Q1S02M00
Intel UHD Graphics 620, Intel Core i5-8265U
1266 Points ∼98% -1%
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
Intel UHD Graphics 620, Intel Core i5-8250U
1208 Points ∼94% -5%
Average Intel UHD Graphics 620
  (557 - 1401, n=122)
1117 Points ∼87% -13%
Dell Latitude 7390 2-in-1
Intel UHD Graphics 620, Intel Core i7-8650U
1018 Points ∼79% -20%
Average of class Convertible
  (132 - 5965, n=228)
990 Points ∼77% -23%
Lenovo ThinkPad X380 Yoga 20LJS02W00
Intel UHD Graphics 620, Intel Core i7-8550U
862 Points ∼67% -33%
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel UHD Graphics 620, Intel Core i7-8550U
10493 Points ∼100% +2%
Lenovo ThinkPad X390 Yoga-20NQS05R00
Intel UHD Graphics 620, Intel Core i7-8565U
10322 Points ∼98%
Lenovo ThinkPad X390-20Q1S02M00
Intel UHD Graphics 620, Intel Core i5-8265U
10126 Points ∼97% -2%
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
Intel UHD Graphics 620, Intel Core i5-8250U
9946 Points ∼95% -4%
HP EliteBook x360 1030 G3
Intel UHD Graphics 620, Intel Core i5-8250U
9478 Points ∼90% -8%
Average Intel UHD Graphics 620
  (6910 - 11436, n=139)
9101 Points ∼87% -12%
Dell Latitude 7390 2-in-1
Intel UHD Graphics 620, Intel Core i7-8650U
8995 Points ∼86% -13%
Lenovo ThinkPad X380 Yoga 20LJS02W00
Intel UHD Graphics 620, Intel Core i7-8550U
6910 Points ∼66% -33%
Average of class Convertible
  (1023 - 37388, n=279)
6597 Points ∼63% -36%
3DMark 11 Performance
2020 punten
3DMark Cloud Gate Standard Score
8504 punten
3DMark Fire Strike Score
1152 punten
Help
lage gem. hoge ultra
BioShock Infinite (2013) 73.8337.4731.2510.51fps
The Witcher 3 (2015) 17.7fps
Dota 2 Reborn (2015) 7047.920.518.7fps
Rise of the Tomb Raider (2016) 23.314.2fps
X-Plane 11.11 (2018) 26.817.415.8fps

Geluidsniveau

Onbelast
29.2 / 29.2 / 29.2 dB (A)
Belasting
35 / 35 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.2 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2026.630.927.62524.726.328.53126.628.326.34026.527.1275024.429.225.4632222.2258023.221.924.71002324.923.312522.520.823.116023.121.522.120022.62222.325022.121.322.531521.920.721.840021.820.621.450022.220.321.263021.918.920.580020.818.919.7100020.717.919.7125020.917.819.6160023.616.821200024.116.12125002616.123315026.115.822.3400023.615.520.2500021.115.518.8630020.315.416.9800018.515.416.31000016.515.315.71250015.715.115.41600015.31515.2SPL3529.232.4N2.11.21.7median 21.9median 17.8median 21Delta1.62.62.129.424.830.729.423.323.526.425.725.628.527.730.324.924.925.62623.52624.124.321.822.323.923.523.82223.423.922.420.82223.322.321.321.722.321.822.522.72221.421.922.721.822.122.121.821.421.220.520.620.921.220.520.320.821.120.519.520.920.619.919.420.520.219.718.920.321.219.918.22121.519.617.421.422.219.91722.122.219.516.422.225.321.916.125.123.619.715.52424.820.715.524.523.620.215.723.324.518.215.423.62017.115.619.718.116.715.417.416.716.115.31616.616.315.115.334.831.929.234.62.11.61.22.1median 21.5median 19.9median 17.4median 21.41.20.72.51.2hearing rangehide median Fan NoiseLenovo ThinkPad X390 Yoga-20NQS05R00Lenovo ThinkPad X390-20Q1S02M00
Max. Belasting
 40.2 °C41.7 °C35.8 °C
 38.7 °C40.3 °C31.9 °C
 26 °C25.1 °C24.6 °C
Maximum: 41.7 °C
Gemiddelde: 33.8 °C
31.7 °C50.1 °C46.4 °C
31.6 °C39.9 °C39.2 °C
23.9 °C24.7 °C25.3 °C
Maximum: 50.1 °C
Gemiddelde: 34.8 °C
Stroomadapter (max.)  33.9 °C | Kamertemperatuur 20.3 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 33.8 °C / 93 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 41.7 °C / 107 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 50.1 °C / 122 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.3 °C / 78 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26 °C / 78.8 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 29 °C / 84.2 F (+3 °C / 5.4 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.931.32526.329.73128.333.24027.129.35029.225.26322.228.48021.92610024.927.412520.82916021.535.82002242.725021.345.931520.749.240020.654.150020.353.663018.953.580018.960.2100017.966.5125017.869160016.865.9200016.160250016.155.2315015.855.6400015.558.5500015.554.3630015.457.7800015.4611000015.352.11250015.150.5160001550.2SPL29.274.1N1.230.1median 17.8median 54.1Delta2.65.535.841.735.935.531.633.332.333.130.432.130.730.730.630.828.94228.251.127.460.426.463.825.468.425.670.824.969.324.667.623.965.123.568.923.56823.367.723.465.52361.223.167.22362.72368.722.974.82380.422.878.822.972.222.770.622.767.435.484.82.461.5median 23.4median 67.71.13.2hearing rangehide median Pink NoiseLenovo ThinkPad X390 Yoga-20NQS05R00HP EliteBook x360 1030 G3
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad X390 Yoga-20NQS05R00 audio analysis

(±) | speaker loudness is average but good (74.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.8% lower than median
(±) | linearity of bass is average (10.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.5% higher than median
(±) | linearity of mids is average (10.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.8% away from median
(±) | linearity of highs is average (11% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.8% difference to median)
Compared to same class
» 51% of all tested devices in this class were better, 6% similar, 43% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 47% of all tested devices were better, 9% similar, 45% worse
» The best had a delta of 3%, average was 21%, worst was 53%

HP EliteBook x360 1030 G3 audio analysis

(±) | speaker loudness is average but good (80.43 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 9.6% lower than median
(-) | bass is not linear (15% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.8% away from median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6% higher than median
(±) | linearity of highs is average (11.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.4% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 3% similar, 95% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 5% of all tested devices were better, 2% similar, 94% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.43 / 0.74 Watt
Inactiefdarkmidlight 3.46 / 5.88 / 9.12 Watt
Belasting midlight 45.6 / 65.9 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad X390 Yoga-20NQS05R00
8565U, UHD Graphics 620, Intel SSD Pro 7600p SSDPEKKF512G8L, IPS LED, 1920x1080, 13.3
Lenovo ThinkPad X380 Yoga 20LJS02W00
8550U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 13.3
HP EliteBook x360 1030 G3
8250U, UHD Graphics 620, Samsung PM871b MZNLN128HAHQ, IPS, 1920x1080, 13.3
Dell Latitude 7390 2-in-1
8650U, UHD Graphics 620, SK hynix PC401 NVMe 500 GB, IPS, 1920x1080, 13.3
Lenovo ThinkPad X390-20Q1S02M00
8265U, UHD Graphics 620, Intel SSD Pro 7600p SSDPEKKF512G8L, IPS LED, 1920x1080, 13.3
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
8250U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 14
Average Intel UHD Graphics 620

Average of class Convertible

Power Consumption
19%
9%
28%
3%
13%
5%
4%
Idle Minimum *
3.46
4
-16%
3.8
-10%
2.6
25%
3.4
2%
3
13%
3.9 (1 - 12.4, n=161)
-13%
4.69 (1 - 23, n=366)
-36%
Idle Average *
5.88
4.9
17%
7.5
-28%
5.7
3%
5.6
5%
5.4
8%
7.15 (4.3 - 15.5, n=161)
-22%
7.85 (1.3 - 32.3, n=366)
-34%
Idle Maximum *
9.12
6.9
24%
8.6
6%
6
34%
8.7
5%
7.5
18%
9 (5.2 - 16.6, n=161)
1%
9.36 (1.8 - 61, n=366)
-3%
Load Average *
45.6
36
21%
33.1
27%
29.2
36%
43.6
4%
40.1
12%
35.3 (12.9 - 51.6, n=161)
23%
26.3 (1.4 - 94, n=364)
42%
Load Maximum *
65.9
34.4
48%
31.8
52%
38.8
41%
65
1%
57.1
13%
43.6 (22 - 79, n=161)
34%
31.2 (6.8 - 117, n=365)
53%

* ... kleiner is beter

Batterijduur
NBC WiFi Websurfing Battery Test 1.3 (Edge)
8h 12min
Big Buck Bunny H.264 1080p
10h 00min
Belast (maximale helderheid)
1h 31min
Lenovo ThinkPad X390 Yoga-20NQS05R00
8565U, UHD Graphics 620, 50 Wh
Lenovo ThinkPad X380 Yoga 20LJS02W00
8550U, UHD Graphics 620, 51 Wh
HP EliteBook x360 1030 G3
8250U, UHD Graphics 620, 56.2 Wh
Dell Latitude 7390 2-in-1
8650U, UHD Graphics 620, 60 Wh
Lenovo ThinkPad X390-20Q1S02M00
8265U, UHD Graphics 620, 48 Wh
Lenovo ThinkPad X1 Yoga 2018-20LD0015US
8250U, UHD Graphics 620, 54 Wh
Average of class Convertible

Batterijduur
16%
65%
30%
10%
40%
9%
Reader / Idle
1250
1381
1218
764 (117 - 1985, n=287)
H.264
600
550
-8%
764
27%
446 (206 - 1070, n=110)
-26%
WiFi v1.3
492
511
4%
602
22%
553
12%
499
1%
651
32%
453 (153 - 1010, n=241)
-8%
Load
91
138
52%
189
108%
135
48%
94
3%
135
48%
146 (49 - 677, n=278)
60%

Pro

+ lichte en stabiele behuizing
+ erg comfortabel toetsenbord
+ invoerapparaten: hoge kwaliteit en brede keuze
+ verbeterde selectie poorten vergeleken met voorganger
+ veel enterprise functies
+ hoog contrast beeldscherm met goed kleurbereik
+ betere CPU prestaties bij continue belasting dan de X380 Yoga
+ ingetogen ventilatoren
+ genereuze garantie

Contra

- geen "Lift&Lock" toetsenbord meer
- kleinere toetsenbord layout dan grotere ThinkPads
- achteraf geen WWAN te plaatsen
- hoorbaar fluitende spoelen
- glanzend beeldscherm
- ontbrekende opties (helderder beeldscherm, 32 GB RAM)
- beeldscherm: lange responstijden
Review: Lenovo ThinkPad X390 Yoga, test unit provided by campuspoint
Review: Lenovo ThinkPad X390 Yoga, test unit provided by campuspoint

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

De ThinkPad X390 Yoga bouwt voort op de gerenommeerde ThinkPad convertible-tradities. De 13.3-inch Ultrabook heeft veel te bieden. We moeten echter ook enkele minpunten benoemen.

Zo is er bijvoorbeeld het ontbreken van een "Lift&Lock"-toetsenbord, die de toetsen beschermd in tablet modus. Dat is jammer, want het was een unieke eigenschap in deze markt. Het is ook niet meer mogelijk om achteraf WWAN toe te voegen. We bemerkten een hinderlijk fluitende spoel en hadden ook graag gezien dat Lenovo een helderder beeldscherm had gebruikt - zeker gezien de glanzende afwerking daarvan. Verder lijkt het erop dat er geen optie komt met 32 GB RAM, in tegenstelling tot de normale ThinkPad X390. Dit is een behoorlijk minpunt omdat het RAM gesoldeerd is en dus niet zelf te vervangen. Tot slot stelt de responstijd van het beeldscherm ook teleur.

Pluspunten zijn er ook. Er is de vernieuwde behuizing, die nog steeds stabiel en robuust is, maar nu dunner en lichter is dan de voorganger. Hoewel het toetsenbord niet meer een "Lift&Lock"-mechanisme heeft, is deze zonder twijfel van hoge kwaliteit - als je in elk geval de iets kleiner dan gebruikelijke layout kunt accepteren. De verschillende muis-alternatieven (touchpad, TrackPoint, touchscherm en actieve stylus) zijn allen prettig in gebruik. Een ander pluspunt van de ThinkPad convertible is de selectie van poorten. Er is nu een extra USB Type-C poort. Dit laat gebruikers docking stations gebruiken die ook compatibel zijn met andere ThinkPads - een belangrijke feature voor grotere zakelijke bedrijven. Op de glanzende afwerking na is het beeldscherm van de X390 Yoga erg goed met een hoog contrast ratio en goed kleurbereik. De CPU prestaties zijn ook verbeterd. Deze zijn nog steeds niet erg indrukwekkend en kunnen andere ThinkPads niet bijhouden, maar de prestaties kunnen nu langer volgehouden worden dan zijn voorganger, de X380 Yoga, kon. Andere voordelen van de X390 Yoga zijn de ingetogen ventilatoren en de genereuze garantie.

De ThinkPad X390 Yoga is een convertible van hoge kwaliteit die zich richt op het zakelijke segment. Met name de goede invoerapparaten maken de convertible aantrekkelijk.

De pluspunten van de Lenovo ThinkPad X390 Yoga wegen overduidelijk zwaarder dan de genoemde tekortkomingen en we kunnen de convertible dan ook van harte aanraden. De concurrentie in de vorm van de Dell Latitude 7390 2-in-1 en HP EliteBook x360 1030 G3 hebben ook veel te bieden en zijn in sommige opzichten zelfs beter dan de ThinkPad. De HP EliteBook heeft bijvoorbeeld een helderder beeldscherm en betere batterijduur. De ThinkPad Yoga blijft de beste wat betreft invoerapparaten en ook de zakelijke features zoals smartcard slot en mechanische docking poort maken het notebook met name voor het zakelijke segment tot een erg interessante optie.

Lenovo ThinkPad X390 Yoga-20NQS05R00 - 11-06-2019 v6
Benjamin Herzig

Behuizing
90 / 98 → 92%
Toetsenbord
91%
Aanwijsapparaat
91%
Aansluitmogelijkheden
74 / 80 → 92%
Gewicht
72 / 35-78 → 86%
Batterij
91%
Beeldscherm
85%
Gaming-performance
59 / 68 → 87%
Applicatie-performance
89 / 87 → 100%
Temperatuur
90%
Luidheid
87%
Audio
44 / 91 → 48%
Camera
42 / 85 → 50%
Gemiddelde
77%
87%
Convertible - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Lenovo ThinkPad X390 Yoga (i7, FHD) Convertible
Benjamin Herzig, 2019-06-15 (Update: 2019-06-15)
