Kort testrapport Lenovo ThinkPad X1 Yoga 2018 (i7-8550U, HDR WQHD) Convertible

Het nieuwste van het nieuwste. Lenovo's nieuwe, stijlvolle (en dure) convertible in de ThinkPad zakelijke familie heeft een stevige configuratie gekregen. Een van de hoogtepunten is uiteraard het HDR-geschikte Dolby Vision beeldscherm maar ook de moderne selectie van aansluitingen straalt positief af op deze convertible. De fabrikant heeft (bijna) geen fouten gemaakt - slechts aan het einde van de tests vonden we een klein punt van kritiek.

Lenovo ThinkPad X1 Yoga 2018-20LES01W00 (ThinkPad X1 Yoga 2018 Serie)

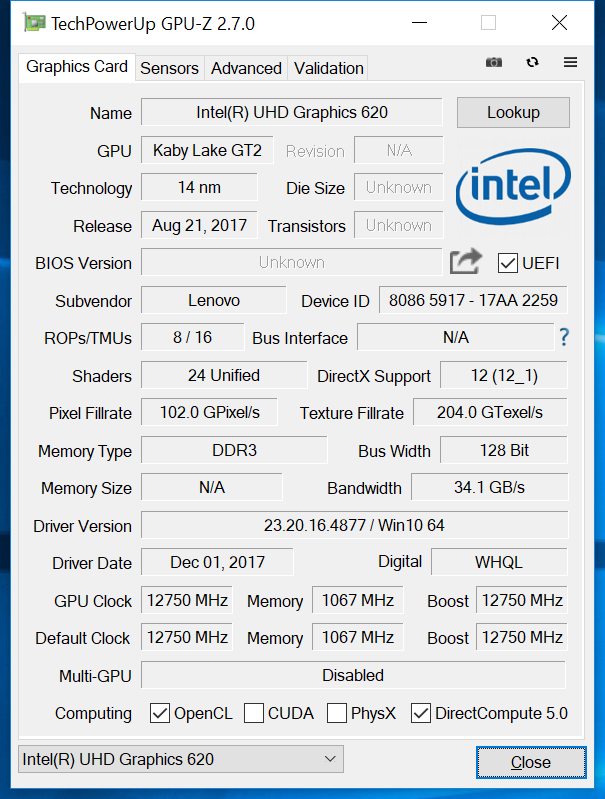

Grafische kaart
Intel UHD Graphics 620, Core: 300 - 1150 MHz, gedeeld geheugen, 23.20.16.4877

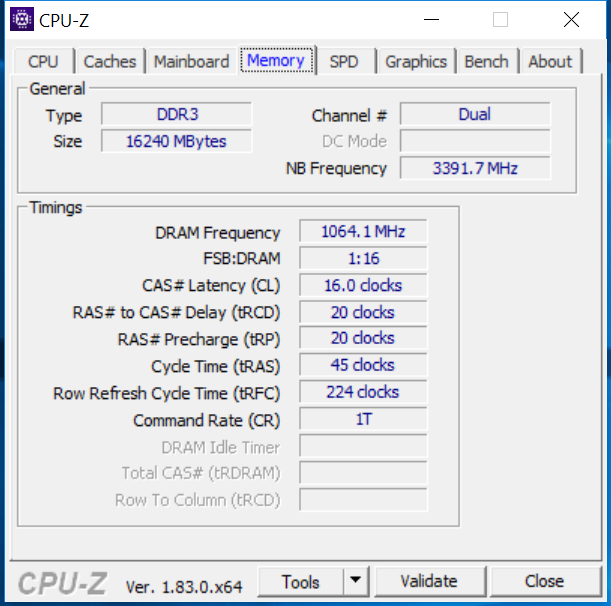

Geheugen
16384 MB
, 2x 8 GB LPDDR3-1866, dual-channel, gesoldeerd, niet uitbreidbaar
Beeldscherm
14 inch 16:9, 2560 x 1440 pixel 210 PPI, 10 multi-touch punten, Lenovo 40AE / B140QAN02.0, IPS Dolby Vision HDR, glimmend: ja

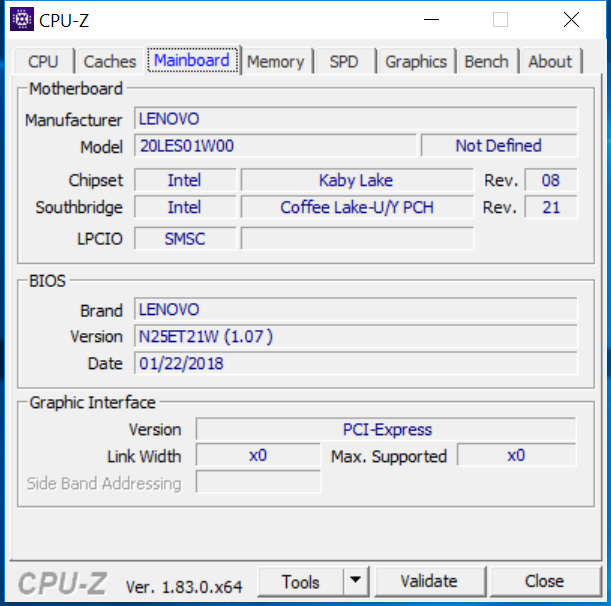

Moederbord
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Opslag
Samsung SSD PM981 MZVLB512HAJQ-000L7, 512 GB
, 456 GB beschikbaar
Geluidskaart
Intel Kaby Lake-U/Y PCH - High Definition Audio
Verbindingen
2 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5-mm combo audio aansluiting, Card Reader: SD, SDHC, SDXC, UHS-II, 1 Vingerafdruklezer, NFC, Brightness Sensor
Netwerkmogelijkheden
Intel Ethernet Connection I219-V (10/100/1000MBit), Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 17.05 x 333 x 229
Batterij
54 Wh Lithium-Polymer, 4-cellen
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 720p, 0.9 MP
Bijkomende functionaliteiten
Luidsprekers: stereo, down-firing (notebook-mode), Toetsenbord: chiclet, Toetsenbordverlichting: ja, Stylus, USB-Type-C-naar-Type-A adapter, Mini-Ethernet-naar-Ethernet-(RJ45) adapter, 36 Maanden Garantie
Gewicht
1.423 kg, Voeding: 356 g
Prijs
2000 EUR



Lenovo ThinkPad X1 Yoga 2018
Lenovo ThinkPad X1 Yoga 2018
Lenovo ThinkPad X1 Yoga 2018
Lenovo ThinkPad X1 Yoga 2018
Lenovo ThinkPad X1 Yoga 2018
Lenovo ThinkPad X1 Yoga 2018
Lenovo ThinkPad X1 Yoga 2018
Lenovo ThinkPad X1 Yoga 2018
Lenovo ThinkPad X1 Yoga 2018
Lenovo ThinkPad X1 Yoga 2018
Lenovo ThinkPad X1 Yoga 2018
Lenovo ThinkPad X1 Yoga 2018
Lenovo ThinkPad X1 Yoga 2018

Size Comparison

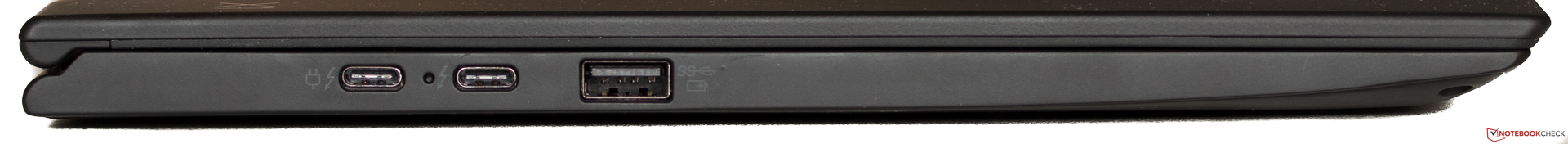

2x USB 3.2 Gen2 Type C with DisplayPort + Thunderbolt 3 (4 lanes, 40 GBit/s, DisplayPort ALT mode, battery charging function), USB 3.0
2x USB 3.2 Gen2 Type C with DisplayPort + Thunderbolt 3 (4 lanes, 40 GBit/s, DisplayPort ALT mode, battery charging function), USB 3.0

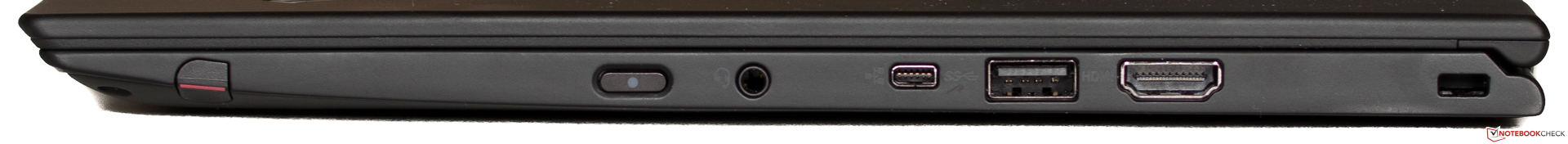

slot for stylus (included), on/off button, audio in/out, mini-Gigabit-Ethernet port (adapter included), USB 3.0, HDMI, Kensington Lock
slot for stylus (included), on/off button, audio in/out, mini-Gigabit-Ethernet port (adapter included), USB 3.0, HDMI, Kensington Lock
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
  (Toshiba Exceria Pro M501)
191.1 MB/s ∼100%
Microsoft Surface Book 2
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
159.2 MB/s ∼83% -17%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
  (Toshiba Exceria Pro M401)
76.3 MB/s ∼40% -60%
Average of class Convertible
  (7.5 - 197, n=95)
58.9 MB/s ∼31% -69%
maximum AS SSD Seq Read Test (1GB)
Microsoft Surface Book 2
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
234.4 MB/s ∼100% +5%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
  (Toshiba Exceria Pro M501)
223.9 MB/s ∼96%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
  (Toshiba Exceria Pro M401)
87.5 MB/s ∼37% -61%
Average of class Convertible
  (24 - 246, n=93)
75.7 MB/s ∼32% -66%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel Dual Band Wireless-AC 8265
678 MBit/s ∼100% +7%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Dual Band Wireless-AC 8265
633 MBit/s ∼93%
HP EliteBook x360 1030 G2
Intel Dual Band Wireless-AC 8265
613 MBit/s ∼90% -3%
Microsoft Surface Book 2
Marvell AVASTAR Wireless-AC Network Controller
515 MBit/s ∼76% -19%
Toshiba Portege X20W-D-10R
Intel Dual Band Wireless-AC 8265
500 MBit/s ∼74% -21%
Average of class Convertible
  (38.3 - 678, n=99)
474 MBit/s ∼70% -25%
iperf3 Client (transmit) TCP 1 m 4M x10
Toshiba Portege X20W-D-10R
Intel Dual Band Wireless-AC 8265
663 MBit/s ∼100% +30%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel Dual Band Wireless-AC 8265
514 MBit/s ∼78% +1%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Dual Band Wireless-AC 8265
511 MBit/s ∼77%
Microsoft Surface Book 2
Marvell AVASTAR Wireless-AC Network Controller
498 MBit/s ∼75% -3%
Average of class Convertible
  (39.2 - 685, n=99)
482 MBit/s ∼73% -6%
HP EliteBook x360 1030 G2
Intel Dual Band Wireless-AC 8265
455 MBit/s ∼69% -11%
483
cd/m²
521
cd/m²
484
cd/m²
499
cd/m²
562
cd/m²
506
cd/m²
550
cd/m²
561
cd/m²
531
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 562 cd/m² Gemiddelde: 521.9 cd/m² Minimum: 7.1 cd/m²
Helderheidsverdeling: 86 %
Helderheid in Batterij-modus: 567 cd/m²
Contrast: 1873:1 (Zwart: 0.3 cd/m²)
ΔE Color 2.8 | 0.4-29.43 Ø6.3
ΔE Greyscale 4.5 | 0.64-98 Ø6.5
100% sRGB (Argyll 3D) 88.9% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.16
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Lenovo 40AE / B140QAN02.0, , 2560x1440, 14
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
LEN4140, , 2560x1440, 14
HP EliteBook x360 1030 G2
CMN1374, , 1920x1080, 13.3
Microsoft Surface Book 2
Panasonic MEI96A2 , , 3000x2000, 13.5
Toshiba Portege X20W-D-10R
Toshiba TOS508F, , 1920x1080, 12.5
Response Times
91%
-5%
-9%
-41%
Response Time Grey 50% / Grey 80% *
56.8 (21.2, 35.6)
3.6 (1.6, 2)
94%
55.2 (21.2, 34)
3%
52.8 (25.2, 27.6)
7%
67 (33, 34)
-18%
Response Time Black / White *
24 (6.8, 17.2)
3.2 (2, 1.2)
87%
27.2 (7.6, 19.6)
-13%
30 (16.4, 13.6)
-25%
39 (22, 17)
-63%
PWM Frequency
240.4 (80)
Screen
-29%
-36%
7%
-30%
Brightness middle
562
243
-57%
262
-53%
385
-31%
442
-21%
Brightness
522
240
-54%
256
-51%
372
-29%
410
-21%
Brightness Distribution
86
95
10%
83
-3%
89
3%
86
0%
Black Level *
0.3
0.25
17%
0.21
30%
0.22
27%
Contrast
1873
1048
-44%
1833
-2%
2009
7%
Colorchecker DeltaE2000 *
2.8
5.3
-89%
5.13
-83%
1.6
43%
5.22
-86%
Colorchecker DeltaE2000 max. *
5.8
8.9
-53%
9.46
-63%
4.5
22%
11.84
-104%
Greyscale DeltaE2000 *
4.5
3.7
18%
6.23
-38%
1.5
67%
7.88
-75%
Gamma
2.16 111%
1.78 135%
2.45 98%
2.22 108%
2.51 96%
CCT
7205 90%
6202 105%
6413 101%
6502 100%
6756 96%
Color Space (Percent of AdobeRGB 1998)
88.9
84.8
-5%
57.84
-35%
64
-28%
64
-28%
Color Space (Percent of sRGB)
100
100
0%
88.57
-11%
95.9
-4%
97
-3%
Totaal Gemiddelde (Programma / Instellingen)
31% / -5%
-21% / -31%
-1% / 4%
-36% / -32%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

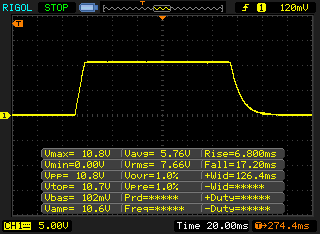

       Responstijd Zwart naar Wit
24 ms ... stijging ↗ en daling ↘ gecombineerd↗ 6.8 ms stijging
↘ 17.2 ms daling
Het scherm vertoonde prima responstijden in onze tests maar is misschien wat te traag voor competitieve games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 32 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (25.8 ms) van alle geteste toestellen.

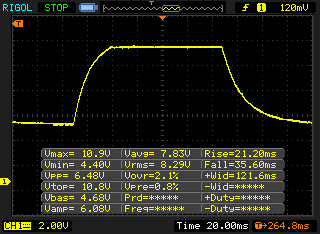

       Responstijd 50% Grijs naar 80% Grijs
56.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 21.2 ms stijging
↘ 35.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 93 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (41.3 ms) van alle geteste toestellen.

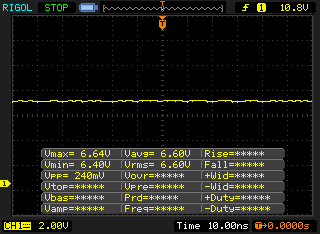

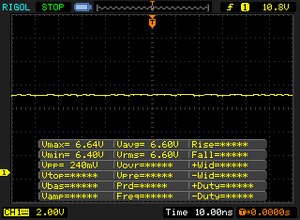

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 53 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8813 (minimum: 43 - maximum: 142900) Hz waargenomen.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Microsoft Surface Book 2
Intel Core i7-8650U
177 Points ∼100% +5%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Core i7-8550U
168 Points ∼95%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel Core i7-7600U
160 Points ∼90% -5%
Average Intel Core i7-8550U
  (108 - 172, n=53)
160 Points ∼90% -5%
Toshiba Portege X20W-D-10R
Intel Core i7-7600U
156 Points ∼88% -7%
HP EliteBook x360 1030 G2
Intel Core i5-7300U
144 Points ∼81% -14%
Average of class Convertible
  (19 - 177, n=255)
99.6 Points ∼56% -41%
CPU Multi 64Bit
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Core i7-8550U
699 Points ∼100%
Microsoft Surface Book 2
Intel Core i7-8650U
673 Points ∼96% -4%
Average Intel Core i7-8550U
  (301 - 761, n=55)
571 Points ∼82% -18%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel Core i7-7600U
373 Points ∼53% -47%
HP EliteBook x360 1030 G2
Intel Core i5-7300U
346 Points ∼49% -51%
Toshiba Portege X20W-D-10R
Intel Core i7-7600U
319 Points ∼46% -54%
Average of class Convertible
  (33 - 761, n=261)
267 Points ∼38% -62%
Cinebench R15 CPU Single 64Bit
168 Points
Cinebench R15 CPU Multi 64Bit
699 Points
Cinebench R15 OpenGL 64Bit
57.43 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
HD Graphics 620, 7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
4852 Points ∼100% +3%
HP EliteBook x360 1030 G2
HD Graphics 620, 7300U, Sandisk SD8TN8U-256G-1006
4803 Points ∼99% +2%
Toshiba Portege X20W-D-10R
HD Graphics 620, 7600U, Toshiba SG5 THNSNK512GVN8
4797 Points ∼99% +2%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ-000L7
4719 Points ∼97%
Average Intel Core i7-8550U, Intel UHD Graphics 620
  (3518 - 5154, n=17)
4545 Points ∼94% -4%
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
4522 (min: 4500, max: 4528) Points ∼93% -4%
Average of class Convertible
  (1007 - 5281, n=188)
3622 Points ∼75% -23%
Home Score Accelerated v2
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
HD Graphics 620, 7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
3860 Points ∼100% +1%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ-000L7
3824 Points ∼99%
HP EliteBook x360 1030 G2
HD Graphics 620, 7300U, Sandisk SD8TN8U-256G-1006
3774 Points ∼98% -1%
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
3694 (min: 3691, max: 3696) Points ∼96% -3%
Toshiba Portege X20W-D-10R
HD Graphics 620, 7600U, Toshiba SG5 THNSNK512GVN8
3654 Points ∼95% -4%
Average Intel Core i7-8550U, Intel UHD Graphics 620
  (3255 - 4017, n=19)
3632 Points ∼94% -5%
Average of class Convertible
  (858 - 4741, n=231)
2725 Points ∼71% -29%
PCMark 8 Home Score Accelerated v2
3824 punten
PCMark 8 Work Score Accelerated v2
4719 punten
Help
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Samsung SSD PM981 MZVLB512HAJQ-000L7
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
HP EliteBook x360 1030 G2
Sandisk SD8TN8U-256G-1006
Microsoft Surface Book 2
Samsung PM961 MZVLW256HEHP
Toshiba Portege X20W-D-10R
Toshiba SG5 THNSNK512GVN8
Average Samsung SSD PM981 MZVLB512HAJQ-000L7

CrystalDiskMark 3.0
12%
-60%
-31%
-58%
1%
Write 4k QD32
474.5
506.6
7%
225.2
-53%
337.08
-29%
208.1
-56%
427 (265 - 706, n=10)
-10%
Read 4k QD32
425.4
631.7
48%
311.3
-27%
465.5
9%
322.5
-24%
386 (311 - 447, n=10)
-9%
Write 4k
140
182.2
30%
56.48
-60%
148.47
6%
89.36
-36%
134 (101 - 161, n=10)
-4%
Read 4k
61.36
58.23
-5%
29.43
-52%
43.64
-29%
25.24
-59%
62 (55.3 - 66.9, n=10)
1%
Write 512
1413
1292
-9%
372.5
-74%
337.86
-76%
266.6
-81%
1488 (565 - 1932, n=10)
5%
Read 512
719.3
1040
45%
312.3
-57%
654.05
-9%
404.4
-44%
1128 (419 - 1840, n=10)
57%
Write Seq
1889
1693
-10%
443.6
-77%
341.2
-82%
277.3
-85%
1541 (924 - 2100, n=10)
-18%
Read Seq
2317
2004
-14%
467.1
-80%
1370.2
-41%
469
-80%
1984 (922 - 2588, n=10)
-14%
Samsung SSD PM981 MZVLB512HAJQ-000L7
Sequential Read: 2317 MB/s
Sequential Write: 1889 MB/s
512K Read: 719.3 MB/s
512K Write: 1413 MB/s
4K Read: 61.36 MB/s
4K Write: 140 MB/s
4K QD32 Read: 425.4 MB/s
4K QD32 Write: 474.5 MB/s
3DMark 11 - 1280x720 Performance GPU
Microsoft Surface Book 2
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8650U
7483 (min: 7472, max: 7485) Points ∼100% +300%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel UHD Graphics 620, Intel Core i7-8550U
1869 Points ∼25%
Average Intel UHD Graphics 620
  (1235 - 1915, n=83)
1650 Points ∼22% -12%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel HD Graphics 620, Intel Core i7-7600U
1633 Points ∼22% -13%
Toshiba Portege X20W-D-10R
Intel HD Graphics 620, Intel Core i7-7600U
1553 Points ∼21% -17%
HP EliteBook x360 1030 G2
Intel HD Graphics 620, Intel Core i5-7300U
1476 Points ∼20% -21%
Average of class Convertible
  (173 - 7483, n=284)
1155 Points ∼15% -38%
3DMark
1920x1080 Fire Strike Graphics
Microsoft Surface Book 2
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8650U
5787 Points ∼100% +349%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel UHD Graphics 620, Intel Core i7-8550U
1288 Points ∼22%
Average Intel UHD Graphics 620
  (819 - 1336, n=72)
1070 Points ∼18% -17%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel HD Graphics 620, Intel Core i7-7600U
1000 Points ∼17% -22%
HP EliteBook x360 1030 G2
Intel HD Graphics 620, Intel Core i5-7300U
972 Points ∼17% -25%
Average of class Convertible
  (132 - 5965, n=202)
949 Points ∼16% -26%
1280x720 Cloud Gate Standard Graphics
Microsoft Surface Book 2
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8650U
29376 Points ∼100% +180%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel UHD Graphics 620, Intel Core i7-8550U
10493 Points ∼36%
Average Intel UHD Graphics 620
  (6910 - 10493, n=76)
8674 Points ∼30% -17%
HP EliteBook x360 1030 G2
Intel HD Graphics 620, Intel Core i5-7300U
8220 Points ∼28% -22%
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
Intel HD Graphics 620, Intel Core i7-7600U
8075 Points ∼27% -23%
Toshiba Portege X20W-D-10R
Intel HD Graphics 620, Intel Core i7-7600U
7562 Points ∼26% -28%
Average of class Convertible
  (1023 - 37388, n=246)
6282 Points ∼21% -40%
3DMark 11 Performance
2081 punten
3DMark Cloud Gate Standard Score
9415 punten
3DMark Fire Strike Score
1178 punten
Help
lage gem. hoge ultra
Rise of the Tomb Raider (2016) 21.3fps
Battlefield 1 (2016) 29.718.9fps
Farming Simulator 17 (2016) 45.625.2fps

Geluidsniveau

Onbelast
29.1 / 29.1 / 31.3 dB (A)
Belasting
37.6 / 37.6 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.1 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.434.134.132.72537.932.931.631.93141.735.435.541.44037.332.132.436.25030.731.732.327.96329.22628.326.1803025.427.325.810027.625.425.725.812526.725.223.924.916024.324.622.625.220024.222.120.824.225021.621.621.123.231522.52120.224.14002319.11925.250023.618.518.62663021.918.717.524.180020.817.616.922.2100022.71817.124.712502317.116.225.6160023.616.515.925.6200025.616.516.126.9250025.716.816.128.3315025.416.716.227.6400024.416.716.427.9500020.517.216.623.6630019.517.616.921800018.91817.319.51000019.218.517.418.71250019.118.517.417.91600023.222.61818.4SPL35.429.829.137.6N2.21.31.22.7median 23Lenovo ThinkPad X1 Yoga 2018-20LES01W00median 18.5median 17.4median 24.7Delta1.421.61.833.730.636.331.332.135.73229.933.930.630.434.229.228.730.328.427.230.328.128.328.426.825.52925.12528.22323.325.123.62325.322.722.124.421.32125.220.119.522.921.118.923.620.518.22420.717.624.220.31723.919.516.72420.616.425.222.416.428.723.616.229.523.316.429.622.316.630.319.616.826.419.216.82517.517.12117.117.118.81716.917.617.317.217.633.229.438.91.81.33median 20.7Lenovo ThinkPad X1 Yoga 2017 20JES03T00median 17.1median 251.72.21.430.732.830.232.531.230.132.131.340.14030.129.228.127.935.735.734.534.225.42428.325.227.724.430.422.727.421.825.520.723.920.224.61925.918.624.418.924.418.624.718.923.818.722.518.522.2192219.920.319.519.819.320.420.1202119.620.23632.12.61.7median 24.4HP EliteBook x360 1030 G2median 20.12.72.730.829.629.9322830.828.932.63434.334.631.432.632.43028.928.529.228.527.127.626.427.727.927.927.926.926.828.428.128.427.827.327.730.925.727.126.824.926.527.52725.627.825.92525.526.126.328.324.32627.528.926.828.226.32424.224.22323.424.823.922.823.521.92324.524.222.322.422.322.921.92324.123.621.721.221.720.822.425.523.321.62120.219.920.729.121.319.619.418.818.618.426.122.220.419.518.118.117.927.822.420.918.917.417.417.730.621.818.81816.917.217.131.122.919.718.616.51716.832.724.821.218.417.316.816.634.926.922.420.218.316.916.337.127.523.820.818.417.416.537.629.424.220.417.818.116.239.327.722.318.617.817.916.338.328.321.418.617.617.216.840.22518.51817.81817.137.122.318.618.418.118.617.339.620.31819.819.320.417.937.118.617.918.418.218.417.929.818.21818.318.518.717.826.718.318.220.520.520.618.223.337.833.431.430.230.229.4492.61.81.51.41.41.36.3median 23.3Microsoft Surface Book 2median 21.2median 19.5median 18.3median 18.4median 17.8median 30.62.31.81.41.31.62.25.333.832.331.230.333.833.132.331.932.233.137.33640.335.137.329.12934.228.329.129.631.234.431.429.627.32827.527.527.326.227.826.425.826.225.725.827.125.325.72525.424.424.12523.723.924.123.523.722.723.722.422.122.722.322.322.221.722.321.821.521.321.121.820.520.820.320.620.519.620.219.32019.619.119.418.819.419.119.419.118.618.719.420.120.117.918.620.119.619.917.71819.618.318.217.61818.318.718.817.717.618.718.818.917.817.718.819.219.817.917.819.218.418.418.218.218.418.518.218.418.318.518.518.418.518.418.518.818.518.418.418.818.818.718.818.618.818.418.718.618.518.419.118.919.118.619.131.231.330.530.631.21.61.61.41.41.6median 19.2Toshiba Portege X20W-D-10Rmedian 19.4median 18.6median 18.6median 19.21.31.31.81.71.3hearing rangehide median Fan Noise
Max. Belasting
 36.3 °C43.4 °C40.8 °C
 31.2 °C38.5 °C34.7 °C
 26 °C25.1 °C24.8 °C
Maximum: 43.4 °C
Gemiddelde: 33.4 °C
36.9 °C42.1 °C36.7 °C
28.2 °C36.8 °C32.6 °C
24.8 °C26 °C26.3 °C
Maximum: 42.1 °C
Gemiddelde: 32.3 °C
Stroomadapter (max.)  34.8 °C | Kamertemperatuur 19.9 °C | Voltcraft IR-900
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.134.12531.630.53135.532.74032.430.55032.3336328.3258027.325.810025.724.912523.92316022.628.220020.840.225021.147.231520.256.24001959.650018.661.763017.557.180016.965.2100017.166.9125016.262.2160015.957.8200016.158.4250016.156.5315016.252.9400016.459.7500016.659.6630016.959.5800017.359.91000017.4561250017.452.2160001847.9SPL29.172.5N1.230.6median 17.4Lenovo ThinkPad X1 Yoga 2018-20LES01W00median 57.1Delta1.66.63234.33333.132.333.131.230.52927.32830.428.532.825.530.825.333.323.635.72440.923.146.221.950.119.953.319.560.418.958.21860.717.958.617.459.816.865.216.862.316.563.316.560.216.758.216.86117.158.717.464.317.1621747.217.341.529.873.31.331.9median 17.4Lenovo ThinkPad X1 Yoga 2017 20JES03T00median 58.62.273641.837.137.74535.835.347.750.746.655.659.5596056.562.668.973.870.277.375.873.478.27774.672.169.767.8626086.363.8median 67.8HP EliteBook x360 1030 G28.430.833.932.632.627.129.226.928.627.728.427.527.226.127.526.832.523.440.824.543.22348.822.454.920.757.818.456.417.958.717.759.117.160.716.860.116.659.716.361.116.564.716.262.916.366.516.86217.165.217.359.717.95517.951.617.846.718.24929.474.21.333.1median 17.8Microsoft Surface Book 2median 58.72.25.131.830.331.83232.23236.335.136.329.328.329.328.431.428.427.627.527.626.725.826.725.825.325.825.624.125.624.923.524.926.122.126.138.421.738.448.421.148.454.620.654.654.52054.555.919.455.961.218.761.257.618.657.658.51858.562.51862.564.717.664.765.417.765.462.317.862.362.118.262.159.418.359.457.118.457.155.218.455.249.818.649.855.718.555.755.918.655.973.130.673.129.21.429.2median 55.9Toshiba Portege X20W-D-10Rmedian 18.6median 55.98.41.78.4hearing rangehide median Pink Noise
Lenovo ThinkPad X1 Yoga 2018-20LES01W00 audio analysis

(±) | speaker loudness is average but good (72.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.5% lower than median
(-) | bass is not linear (15.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4% away from median
(±) | linearity of mids is average (9.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.3% difference to median)
Compared to same class
» 42% of all tested devices in this class were better, 11% similar, 47% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 43% of all tested devices were better, 9% similar, 48% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Lenovo ThinkPad X1 Yoga 2017 20JES03T00 audio analysis

(±) | speaker loudness is average but good (73.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.1% lower than median
(±) | linearity of bass is average (8.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.6% away from median
(±) | linearity of mids is average (8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(+) | highs are linear (6.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.2% difference to median)
Compared to same class
» 35% of all tested devices in this class were better, 8% similar, 56% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 38% of all tested devices were better, 5% similar, 56% worse
» The best had a delta of 3%, average was 21%, worst was 53%

HP EliteBook x360 1030 G2 audio analysis

(+) | speakers can play relatively loud (86.3 dB)
Analysis not possible as minimum curve is missing or too high

Microsoft Surface Book 2 audio analysis

(±) | speaker loudness is average but good (74.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.4% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.9% away from median
(+) | mids are linear (3.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(±) | linearity of highs is average (9.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.4% difference to median)
Compared to same class
» 13% of all tested devices in this class were better, 6% similar, 81% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 18% of all tested devices were better, 4% similar, 78% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Toshiba Portege X20W-D-10R audio analysis

(-) | not very loud speakers (64 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.3% lower than median
(±) | linearity of bass is average (11.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.5% away from median
(±) | linearity of mids is average (7.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (6.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.2% difference to median)
Compared to same class
» 64% of all tested devices in this class were better, 9% similar, 27% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 66% of all tested devices were better, 7% similar, 27% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.36 / 1.6 Watt
Inactiefdarkmidlight 3.4 / 8.8 / 11.9 Watt
Belasting midlight 50.4 / 71.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
8550U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ-000L7, IPS Dolby Vision HDR, 2560x1440, 14
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
7600U, HD Graphics 620, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0), OLED, 2560x1440, 14
HP EliteBook x360 1030 G2
7300U, HD Graphics 620, Sandisk SD8TN8U-256G-1006, IPS, 1920x1080, 13.3
Microsoft Surface Book 2
8650U, GeForce GTX 1050 (Notebook), Samsung PM961 MZVLW256HEHP, IPS, 3000x2000, 13.5
Toshiba Portege X20W-D-10R
7600U, HD Graphics 620, Toshiba SG5 THNSNK512GVN8, IPS, 1920x1080, 12.5
Power Consumption
5%
34%
-33%
41%
Idle Minimum *
3.4
4.9
-44%
3.2
6%
4.7
-38%
3.4
-0%
Idle Average *
8.8
7.6
14%
5.5
37%
10.6
-20%
5.8
34%
Idle Maximum *
11.9
13.8
-16%
6.5
45%
12.3
-3%
6.7
44%
Load Average *
50.4
33.4
34%
29.7
41%
81
-61%
21.4
58%
Load Maximum *
71.2
46.5
35%
41.3
42%
100.3
-41%
21.6
70%
Witcher 3 ultra *
97

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
20h 03min
NBC WiFi Websurfing Battery Test 1.3
8h 37min
Big Buck Bunny H.264 1080p
9h 21min
Belast (maximale helderheid)
1h 31min
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
8550U, UHD Graphics 620, 54 Wh
Lenovo ThinkPad X1 Yoga 2017 20JES03T00
7600U, HD Graphics 620, 56 Wh
HP EliteBook x360 1030 G2
7300U, HD Graphics 620, 57 Wh
Microsoft Surface Book 2
8650U, GeForce GTX 1050 (Notebook), 75 Wh
Toshiba Portege X20W-D-10R
7600U, HD Graphics 620, 44 Wh
Average of class Convertible

Batterijduur
-15%
56%
56%
29%
-2%
Reader / Idle
1203
784
-35%
1387
15%
1469
22%
1001
-17%
757 (117 - 1985, n=266)
-37%
H.264
561
408
-27%
659
17%
933
66%
446 (206 - 1070, n=94)
-20%
WiFi v1.3
517
368
-29%
630
22%
663
28%
719
39%
443 (153 - 1010, n=199)
-14%
Load
91
120
32%
244
168%
190
109%
150
65%
149 (49 - 677, n=255)
64%
Witcher 3 ultra
230
173 (115 - 230, n=2)

Pro

+ goede configuratie van model
+ flexibel dankzij verschillende modi
+ stabiele, hoge bouwkwaliteit behuizing
+ voelt erg comfortabel
+ toetsen van toetsenbord intrekbaak
+ fantastische selectie poorten
+ TPM
+ vingerafdrukscanner
+ bruikbare accessoires zoals adapters meegeleverd
+ 3 jaar on-site garantie
+ uitstekende invoerapparaten + TrackPoint
+ HDR/Dolby Vision
+ extreem helder, goed beeldscherm
+ geen PWM (in tegenstelling tot voorganger)
+ erg snelle NVMe PCIe SSD
+ stil, koel

Contra

- duur
- niet bijzonder lichtgewicht of compact
- HDR/Dolby Vision kan nog niet geactiveerd worden
- reflecterend beeldscherm
- lichte clouding op donker beeld
- probleem met linker luidspreker
- relatief hoog stroomverbruik
- batterijlevensduur is niet ideaal
The Lenovo ThinkPad X1 Yoga 2018 - test unit provided by campuspoint.de
The Lenovo ThinkPad X1 Yoga 2018 - test unit provided by campuspoint.de

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Ons Campuspoint model van de nieuwe Lenovo ThinkPad X1 Yoga is te koop voor € 1.800 op het moment van schrijven. In de VS verkoopt het model voor net geen $ 2.000 - voor hetzelfde geld kun je een snelle game notebook aanschaffen. Als je het geld overhebt voor dit notebook, zul je beloont worden met een aantrekkelijke, flexibel, snelle en bijzonder goed uitgeruste convertible. Het innovatieve beeldscherm voldoet aan alle eisen en de uitgebreide, moderne selectie van poorten die bijna zijn gelijke niet kent bij andere apparaten en moet in al je noden kunnen voorzien. Details zoals het toetsenbord met intrekbare toetsen, de ThinkShutter webcam deksel en de meegeleverde adapters maken duidelijk dat Lenovo constant de ThinkPad-serie verbeterd.

Als ons testmodel geleverd was met Windows 10 Pro met de BitLocker opslag encryptie feature, dan was de beveiliging compleet geweest. Mobiele zakelijke gebruikers zullen naast de 3 jaar on-site garantie ook de voor ThinkPad modellen zo typische invoerapparaten weten te waarderen. Als je nog geen ervaring hebt met deze familie, dan zul je even moeten wennen aan de eigenaardigheden van de toets-indeling.

Het enige nadeel is dat de batterij levensduur niet echt het niveau van de rest haalt. Dit is de prijs die je betaald voor vier "echte" core - hoewel deze in vergelijking met oudere HyperThreading-dual-cores (zoals de i5-7200U) nauwelijks een echt voordeel bieden voor kantoorgebruikers.

Een convertible met Dolby Vision HDR en een poort selectie die 2x Thunderbolt 3 poorten (via USB Type-C) omvat - deze eigenschappen maken van de Lenovo ThinkPad X1 Yoga 2018 een uniek apparaat.

Natuurlijk kunnen we dit notebook adviseren, ondanks het probleem met de luidspreker. Dat is namelijk een specifiek, eenmalig probleem met ons testmodel.

Lenovo ThinkPad X1 Yoga 2018-20LES01W00 - 13-03-2018 v6
Sven Kloevekorn

Behuizing
87 / 98 → 88%
Toetsenbord
92%
Aanwijsapparaat
96%
Aansluitmogelijkheden
74 / 80 → 92%
Gewicht
70 / 35-78 → 81%
Batterij
91%
Beeldscherm
88%
Gaming-performance
60 / 68 → 88%
Applicatie-performance
92 / 87 → 100%
Temperatuur
93%
Luidheid
94%
Audio
60 / 91 → 66%
Camera
42 / 85 → 50%
Gemiddelde
80%
88%
Convertible - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Lenovo ThinkPad X1 Yoga 2018 (i7-8550U, HDR WQHD) Convertible
Sven Kloevekorn, 2018-03-23 (Update: 2018-03-24)
