Kort testrapport Lenovo ThinkPad X1 Carbon G6 2018 (i5-8350U, Full-HD Touch, 256GB) Laptop

De betere en goedkopere X1. We testen de Lenovo ThinkPad X1 Carbon G6 op ons kantoor en vergelijken hem met zijn met WQHD HDR en Core i7 uitgeruste zustermodellen. De G6 is het instapmodel van de huidige Carbon X1-apparaten met touchscreen. De G6 heeft geen last van de thermische problemen die bij de zustermodellen voorkomen dankzij de minder krachtige CPU, maar dit gaat ten koste van het WQHD HDR-beeldscherm. Ondanks dit nadeel biedt de G6 een betere algehele ervaring dan de duurdere zustermodellen.

Lenovo ThinkPad X1 Carbon G6-20KG0025UK

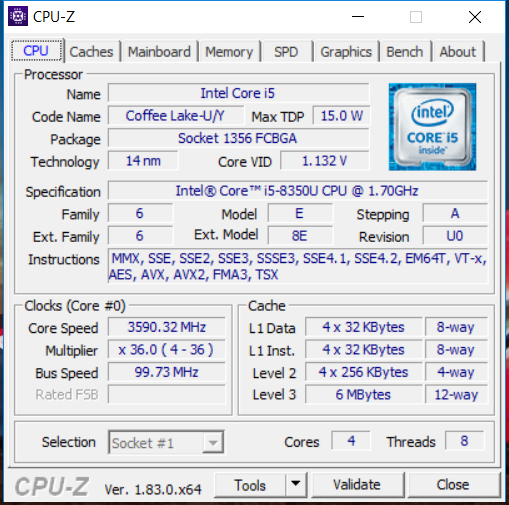

Processor
Intel Core i5-8350U
Grafische kaart
Intel UHD Graphics 620, Core: 300 - 1150 MHz, gedeeld geheugen, 24.20.100.6168
Geheugen
8192 MB
, LPDDR3 2133 MHz: Dual-channel
Beeldscherm
14 inch 16:9, 1920 x 1080 pixel 157 PPI, 10 points, Lenovo LEN40A9 / AUO B140HAK02.3, IPS, glimmend: nee
Moederbord
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Opslag
Lenovo LENSE20256GMSP34MEAT2TA, 256 GB
Geluidskaart
Intel Kaby Lake-U/Y PCH - High Definition Audio
Verbindingen
2 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5 mm gecombineerde audiopoort, Card Reader: SD/SDHC/SDXC/MMC, 1 Vingerafdruklezer, NFC, Brightness Sensor, NFC
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 15 x 323 x 217
Batterij
57 Wh Lithium-Polymer
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p met ThinkShutter
Bijkomende functionaliteiten
Luidsprekers: Stereo luidsprekers onder de voorste rand. , Toetsenbord: Chiclet, Toetsenbordverlichting: ja, Ethernet adapter, 36 Maanden Garantie
Gewicht
1.13 kg
Prijs
2000 EUR



Lenovo ThinkPad X1 Carbon G6
Lenovo ThinkPad X1 Carbon G6
Lenovo ThinkPad X1 Carbon G6
Lenovo ThinkPad X1 Carbon G6
Lenovo ThinkPad X1 Carbon G6
Lenovo ThinkPad X1 Carbon G6
Lenovo ThinkPad X1 Carbon G6
Lenovo ThinkPad X1 Carbon G6
Lenovo ThinkPad X1 Carbon G6
Lenovo ThinkPad X1 Carbon G6
Lenovo ThinkPad X1 Carbon G6

Size Comparison

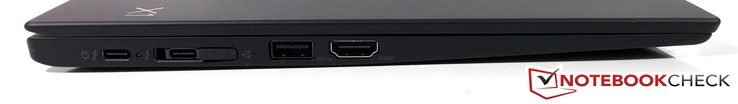

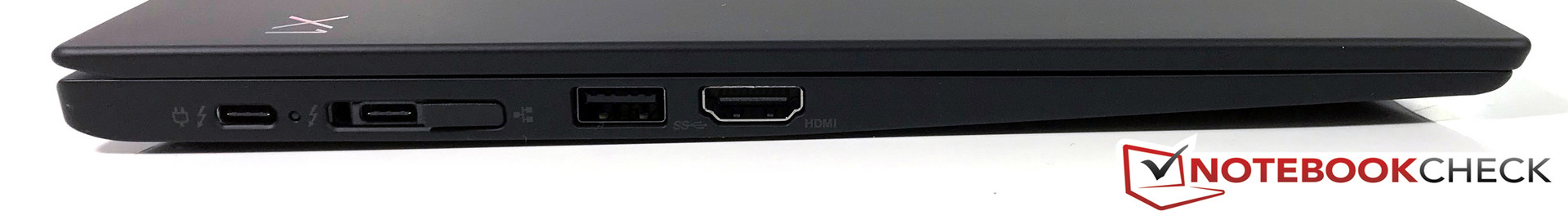

Linkerkant: USB Type-C Thunderbolt 3 x2, Dock aansluiting (geïntegeerd met tweede USB Type-C poort), USB Type-A 3.0, HDMI 1.4b
Linkerkant: USB Type-C Thunderbolt 3 x2, Dock aansluiting (geïntegeerd met tweede USB Type-C poort), USB Type-A 3.0, HDMI 1.4b

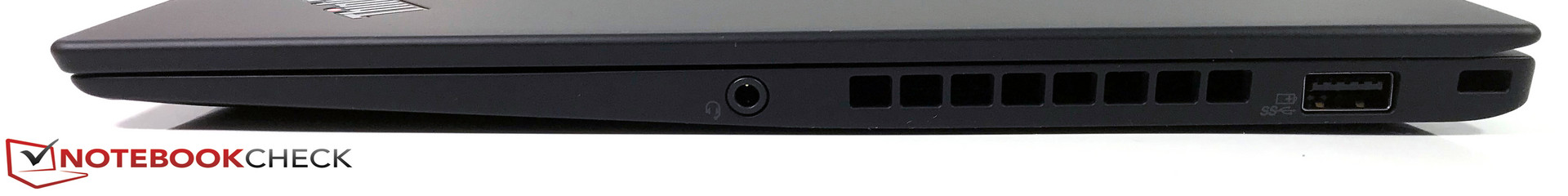

Rechterkant: 3.5 mm poort, USB Type-A 3.0, beveiligingspoort
Rechterkant: 3.5 mm poort, USB Type-A 3.0, beveiligingspoort

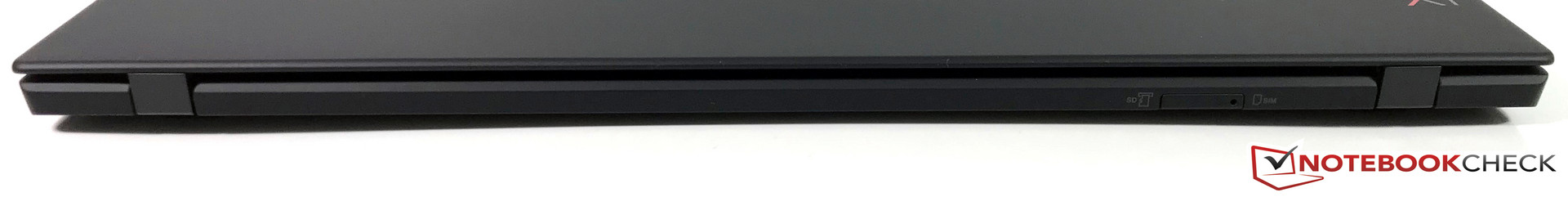

Achterkant: Micro-SIM/microSD kaartslot
Achterkant: Micro-SIM/microSD kaartslot
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Dell Latitude 7490
Intel Dual Band Wireless-AC 8265
650 MBit/s ∼100% +20%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
Intel Dual Band Wireless-AC 8265
540 MBit/s ∼83%
HP EliteBook 840 G5-3JX61EA
Intel Dual Band Wireless-AC 8265
524 MBit/s ∼81% -3%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
Intel Dual Band Wireless-AC 8265
517 MBit/s ∼80% -4%
Average of class Office
  (5 - 688, n=161)
462 MBit/s ∼71% -14%
HP EliteBook 745 G5 3UN74EA
Intel Dual Band Wireless-AC 8265
409 MBit/s ∼63% -24%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
Intel Dual Band Wireless-AC 8265
674 MBit/s ∼100% +36%
HP EliteBook 840 G5-3JX61EA
Intel Dual Band Wireless-AC 8265
663 MBit/s ∼98% +34%
HP EliteBook 745 G5 3UN74EA
Intel Dual Band Wireless-AC 8265
593 MBit/s ∼88% +20%
Dell Latitude 7490
Intel Dual Band Wireless-AC 8265
513 MBit/s ∼76% +4%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
Intel Dual Band Wireless-AC 8265
494 MBit/s ∼73%
Average of class Office
  (34 - 688, n=161)
430 MBit/s ∼64% -13%
291
cd/m²
302
cd/m²
284
cd/m²
286
cd/m²
298
cd/m²
278
cd/m²
286
cd/m²
280
cd/m²
275
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 302 cd/m² Gemiddelde: 286.7 cd/m² Minimum: 4.4 cd/m²
Helderheidsverdeling: 91 %
Helderheid in Batterij-modus: 304 cd/m²
Contrast: 1490:1 (Zwart: 0.2 cd/m²)
ΔE Color 2.19 | 0.4-29.43 Ø6.3, calibrated: 1.67
ΔE Greyscale 1.97 | 0.64-98 Ø6.5
95% sRGB (Argyll 3D) 62% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.43
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
Lenovo LEN40A9 / AUO B140HAK02.3, , 1920x1080, 14
HP EliteBook 840 G5-3JX61EA
IVO M140NVF7 R0, , 1920x1080, 14
Dell Latitude 7490
AUO503D (D04YD_B140HAN), , 1920x1080, 14
HP EliteBook 745 G5 3UN74EA
AUO383D, , 1920x1080, 14
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
B140HAN03_1, , 1920x1080, 14
Response Times
7%
-16%
6%
-21%
Response Time Grey 50% / Grey 80% *
40 (18, 22)
33 (15, 18)
17%
41.6 (22, 19.6)
-4%
35 (17, 18)
12%
48 (22, 26)
-20%
Response Time Black / White *
25 (14, 11)
26 (15, 11)
-4%
32 (16.4, 15.6)
-28%
25 (15, 10)
-0%
30.4 (18.8, 11.6)
-22%
PWM Frequency
3125 (90)
Screen
-18%
-55%
-18%
-25%
Brightness middle
298
655
120%
308.6
4%
421
41%
278
-7%
Brightness
287
630
120%
294
2%
398
39%
271
-6%
Brightness Distribution
91
93
2%
89
-2%
86
-5%
91
0%
Black Level *
0.2
0.56
-180%
0.23
-15%
0.27
-35%
0.16
20%
Contrast
1490
1170
-21%
1342
-10%
1559
5%
1738
17%
Colorchecker DeltaE2000 *
2.19
3.27
-49%
6.07
-177%
4.08
-86%
4.5
-105%
Colorchecker DeltaE2000 max. *
4.39
5.92
-35%
10.58
-141%
7.48
-70%
8.4
-91%
Colorchecker DeltaE2000 calibrated *
1.67
3.22
-93%
1.67
-0%
Greyscale DeltaE2000 *
1.97
2.85
-45%
7.3
-271%
2.92
-48%
3.2
-62%
Gamma
2.43 91%
2.45 90%
2.061 107%
2.32 95%
2.02 109%
CCT
6571 99%
6065 107%
7269 89%
7043 92%
7042 92%
Color Space (Percent of AdobeRGB 1998)
62
57
-8%
62
0%
57
-8%
57
-8%
Color Space (Percent of sRGB)
95
88
-7%
97
2%
87
-8%
87.5
-8%
Totaal Gemiddelde (Programma / Instellingen)
-6% / -14%
-36% / -49%
-6% / -14%
-23% / -24%

* ... kleiner is beter

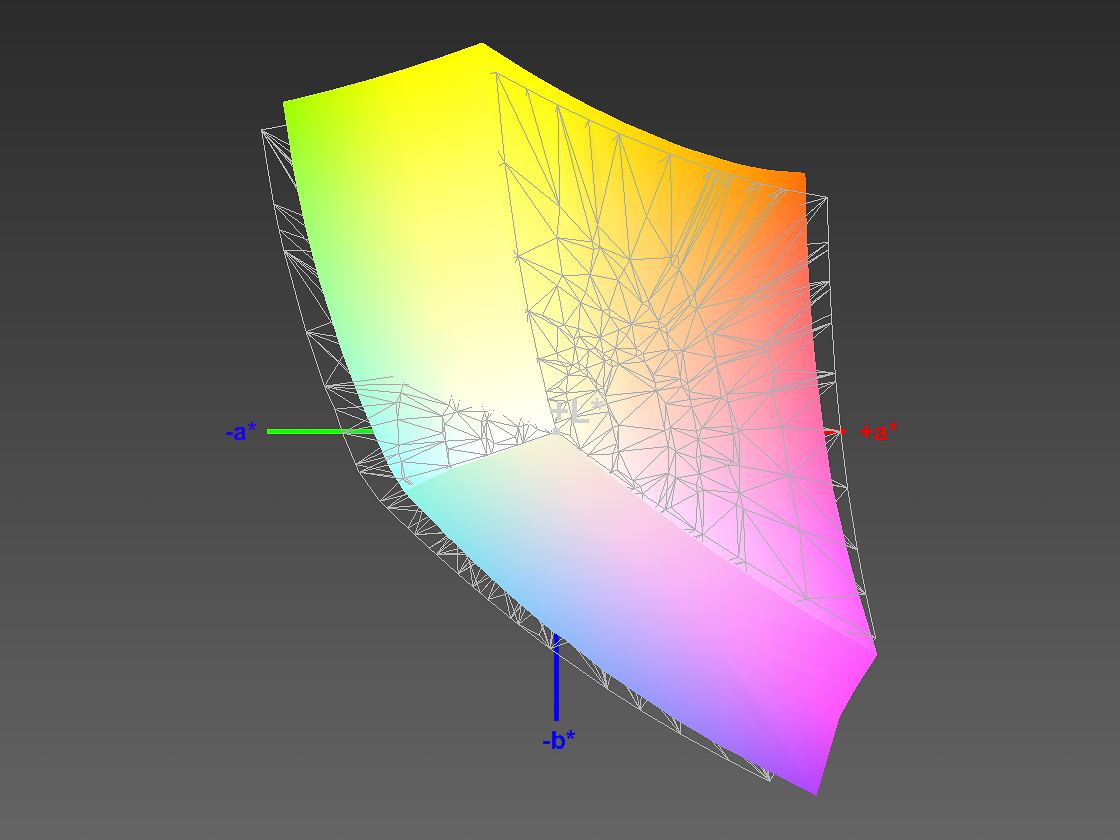

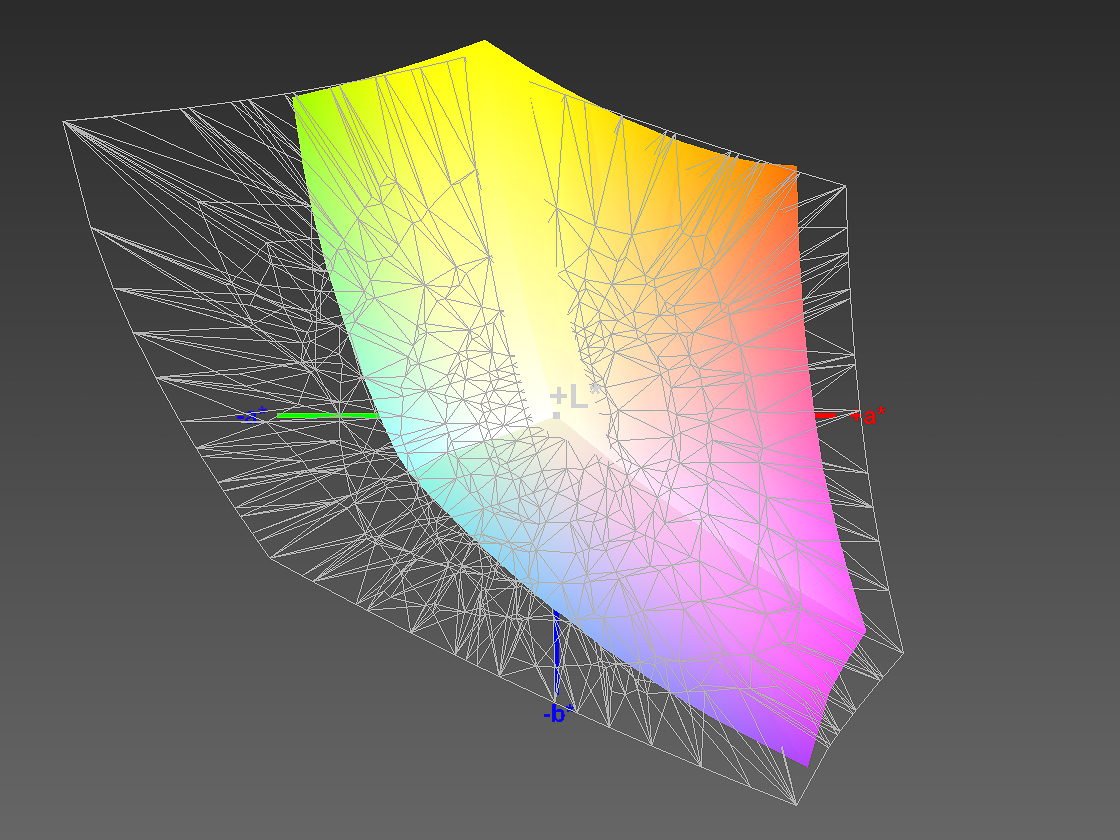

AdobeRGB accuracy
AdobeRGB accuracy
sRGB accuracy
sRGB accuracy

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

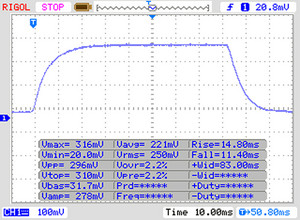

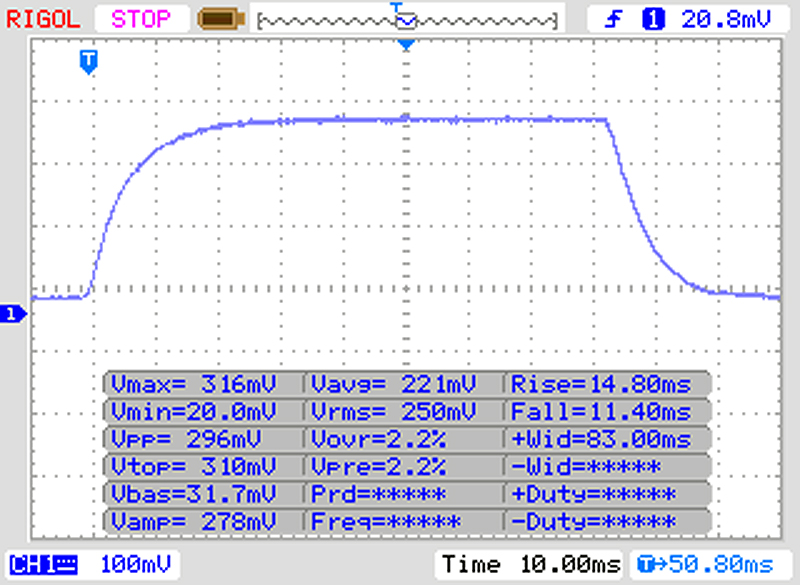

       Responstijd Zwart naar Wit
25 ms ... stijging ↗ en daling ↘ gecombineerd↗ 14 ms stijging
↘ 11 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 40 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (25.7 ms) van alle geteste toestellen.

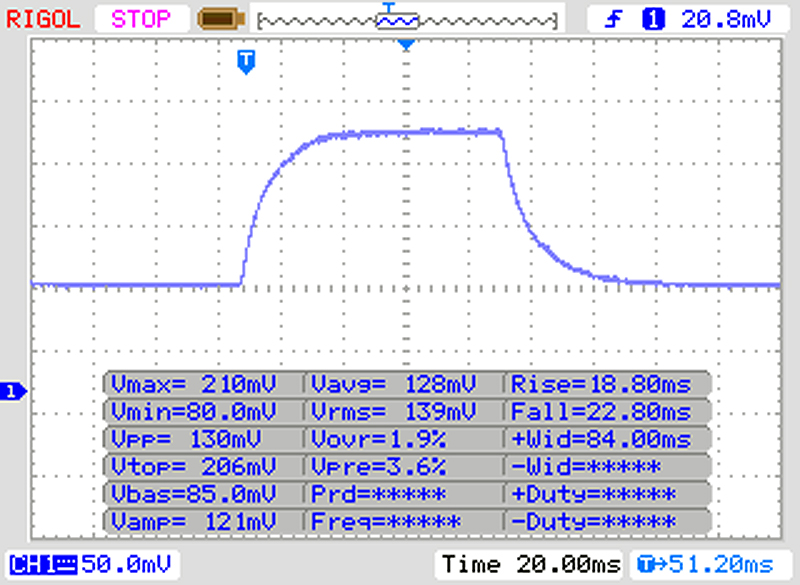

       Responstijd 50% Grijs naar 80% Grijs
40 ms ... stijging ↗ en daling ↘ gecombineerd↗ 18 ms stijging
↘ 22 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 44 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (41.2 ms) van alle geteste toestellen.

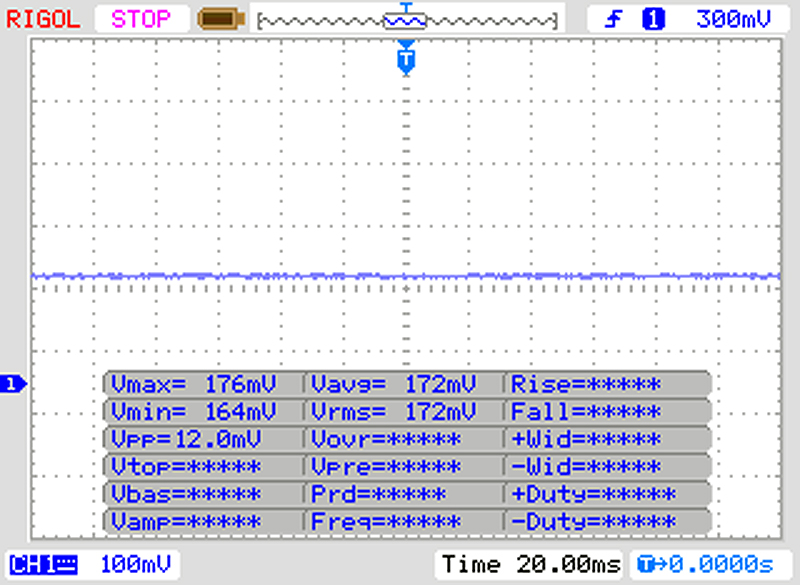

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 53 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8898 (minimum: 43 - maximum: 142900) Hz waargenomen.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630Tooltip
Cinebench R15 CPU Single 64 Bit
Cinebench R15
CPU Single 64Bit
HP EliteBook 840 G5-3JX61EA
Intel Core i7-8550U
167 Points ∼100% +11%
Dell Latitude 7490
Intel Core i5-8350U
153 Points ∼92% +2%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
Intel Core i5-8350U
150 Points ∼90%
Average Intel Core i5-8350U
  (128 - 153, n=7)
147 Points ∼88% -2%
HP EliteBook 745 G5 3UN74EA
AMD Ryzen 7 2700U
143 Points ∼86% -5%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
Intel Core i5-7200U
126 Points ∼75% -16%
Average of class Office
  (20 - 178, n=462)
108 Points ∼65% -28%
CPU Multi 64Bit
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
Intel Core i5-8350U
631 Points ∼100%
HP EliteBook 745 G5 3UN74EA
AMD Ryzen 7 2700U
630 Points ∼100% 0%
Dell Latitude 7490
Intel Core i5-8350U
569 Points ∼90% -10%
HP EliteBook 840 G5-3JX61EA
Intel Core i7-8550U
554 Points ∼88% -12%
Average Intel Core i5-8350U
  (332 - 631, n=7)
539 Points ∼85% -15%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
Intel Core i5-7200U
321 Points ∼51% -49%
Average of class Office
  (36 - 1131, n=466)
315 Points ∼50% -50%
Cinebench R15 CPU Single 64Bit
150 Points
Cinebench R15 CPU Multi 64Bit
631 Points
Help
PCMark 8
Work Score Accelerated v2
HP EliteBook 840 G5-3JX61EA
UHD Graphics 620, 8550U, Toshiba KXG50ZNV1T02
5004 Points ∼100% +9%
Dell Latitude 7490
UHD Graphics 620, 8350U, Toshiba KSG60ZMV256G
4906 Points ∼98% +7%
Average Intel Core i5-8350U, Intel UHD Graphics 620
  (4600 - 4906, n=5)
4762 Points ∼95% +4%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
HD Graphics 620, 7200U, Toshiba THNSF5256GPUK
4602 Points ∼92% 0%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
UHD Graphics 620, 8350U, Lenovo LENSE20256GMSP34MEAT2TA
4600 Points ∼92%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
4403 Points ∼88% -4%
Average of class Office
  (1226 - 5428, n=296)
3944 Points ∼79% -14%
Home Score Accelerated v2
HP EliteBook 840 G5-3JX61EA
UHD Graphics 620, 8550U, Toshiba KXG50ZNV1T02
3966 Points ∼100% +7%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
HD Graphics 620, 7200U, Toshiba THNSF5256GPUK
3824 Points ∼96% +4%
Dell Latitude 7490
UHD Graphics 620, 8350U, Toshiba KSG60ZMV256G
3723 Points ∼94% +1%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
UHD Graphics 620, 8350U, Lenovo LENSE20256GMSP34MEAT2TA
3690 Points ∼93%
Average Intel Core i5-8350U, Intel UHD Graphics 620
  (3063 - 3776, n=6)
3591 Points ∼91% -3%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
3155 Points ∼80% -14%
Average of class Office
  (1169 - 4458, n=340)
3008 Points ∼76% -18%
PCMark 10 - Score
HP EliteBook 840 G5-3JX61EA
UHD Graphics 620, 8550U, Toshiba KXG50ZNV1T02
3906 Points ∼100% +4%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
UHD Graphics 620, 8350U, Lenovo LENSE20256GMSP34MEAT2TA
3764 Points ∼96%
Dell Latitude 7490
UHD Graphics 620, 8350U, Toshiba KSG60ZMV256G
3564 Points ∼91% -5%
Average Intel Core i5-8350U, Intel UHD Graphics 620
  (3004 - 3764, n=5)
3529 Points ∼90% -6%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
HD Graphics 620, 7200U, Toshiba THNSF5256GPUK
3214 Points ∼82% -15%
Average of class Office
  (803 - 4666, n=83)
3180 Points ∼81% -16%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
2712 Points ∼69% -28%
PCMark 8 Home Score Accelerated v2
3690 punten
PCMark 8 Work Score Accelerated v2
4600 punten
Help
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
Lenovo LENSE20256GMSP34MEAT2TA
HP EliteBook 840 G5-3JX61EA
Toshiba KXG50ZNV1T02
Dell Latitude 7490
Toshiba KSG60ZMV256G
HP EliteBook 745 G5 3UN74EA
Toshiba XG5 KXG50ZNV256G
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
Toshiba THNSF5256GPUK
Average Lenovo LENSE20256GMSP34MEAT2TA

CrystalDiskMark 3.0
45%
-11%
17%
-15%
Write 4k QD32
184.7
391.5
112%
208.4
13%
241.2
31%
140 (118 - 185, n=3)
-24%
Read 4k QD32
306.1
312.1
2%
310.6
1%
477.3
56%
318 (257 - 390, n=3)
4%
Write 4k
94.09
110.1
17%
97.08
3%
128.5
37%
87.3 (72.6 - 95.2, n=3)
-7%
Read 4k
34.87
32.84
-6%
24.9
-29%
34.63
-1%
30.5 (25.7 - 34.9, n=3)
-13%
Write 512
243.3
623.1
156%
298.1
23%
311
28%
160 (115 - 243, n=3)
-34%
Read 512
1227
992.9
-19%
823.4
-33%
971.7
-21%
1037 (872 - 1227, n=3)
-15%
Write Seq
479
906.7
89%
269.7
-44%
648.2
35%
426 (161 - 639, n=3)
-11%
Read Seq
1880
2087
11%
1549
-18%
1277
-32%
1485 (1280 - 1880, n=3)
-21%
Lenovo LENSE20256GMSP34MEAT2TA
Sequential Read: 1880 MB/s
Sequential Write: 479 MB/s
512K Read: 1227 MB/s
512K Write: 243.3 MB/s
4K Read: 34.87 MB/s
4K Write: 94.09 MB/s
4K QD32 Read: 306.1 MB/s
4K QD32 Write: 184.7 MB/s
3DMark 11 - 1280x720 Performance GPU
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
2885 Points ∼100% +54%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
Intel UHD Graphics 620, Intel Core i5-8350U
1868 Points ∼65%
HP EliteBook 840 G5-3JX61EA
Intel UHD Graphics 620, Intel Core i7-8550U
1849 Points ∼64% -1%
Average Intel UHD Graphics 620
  (1235 - 1915, n=86)
1657 Points ∼57% -11%
Dell Latitude 7490
Intel UHD Graphics 620, Intel Core i5-8350U
1648 Points ∼57% -12%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
Intel HD Graphics 620, Intel Core i5-7200U
1555 Points ∼54% -17%
Average of class Office
  (185 - 6874, n=587)
1218 Points ∼42% -35%
3DMark
1920x1080 Fire Strike Graphics
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
1738 Points ∼100% +35%
HP EliteBook 840 G5-3JX61EA
Intel UHD Graphics 620, Intel Core i7-8550U
1336 Points ∼77% +4%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
Intel UHD Graphics 620, Intel Core i5-8350U
1283 Points ∼74%
Average Intel UHD Graphics 620
  (557 - 1336, n=75)
1069 Points ∼62% -17%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
Intel HD Graphics 620, Intel Core i5-7200U
1037 Points ∼60% -19%
Dell Latitude 7490
Intel UHD Graphics 620, Intel Core i5-8350U
1001 Points ∼58% -22%
Average of class Office
  (138 - 5677, n=423)
940 Points ∼54% -27%
1280x720 Cloud Gate Standard Graphics
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
10604 Points ∼100% +4%
HP EliteBook 840 G5-3JX61EA
Intel UHD Graphics 620, Intel Core i7-8550U
10331 Points ∼97% +1%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
Intel UHD Graphics 620, Intel Core i5-8350U
10234 Points ∼97%
Average Intel UHD Graphics 620
  (6910 - 10493, n=79)
8733 Points ∼82% -15%
Dell Latitude 7490
Intel UHD Graphics 620, Intel Core i5-8350U
7943 Points ∼75% -22%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
Intel HD Graphics 620, Intel Core i5-7200U
7725 Points ∼73% -25%
Average of class Office
  (1208 - 34926, n=467)
6564 Points ∼62% -36%
3DMark 11 Performance
2065 punten
3DMark Cloud Gate Standard Score
9353 punten
3DMark Fire Strike Score
1141 punten
Help
Rainbow Six Siege
1366x768 Medium Preset AA:T AF:2x
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
UHD Graphics 620, 8350U, Lenovo LENSE20256GMSP34MEAT2TA
28.8 fps ∼100%
Average of class Office
  (3.2 - 93.5, n=21)
28.7 fps ∼100% 0%
Average Intel UHD Graphics 620
  (16.1 - 28.8, n=4)
24 fps ∼83% -17%
1024x768 Low Preset AA:T AF:Linear
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
UHD Graphics 620, 8350U, Lenovo LENSE20256GMSP34MEAT2TA
48.4 fps ∼100%
Average of class Office
  (7.3 - 108, n=21)
45.5 fps ∼94% -6%
Average Intel UHD Graphics 620
  (28.2 - 48.4, n=4)
38.7 fps ∼80% -20%
Rise of the Tomb Raider - 1024x768 Lowest Preset
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
33.5 fps ∼100% +40%
Average of class Office
  (6.2 - 111, n=91)
26.8 fps ∼80% +12%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
UHD Graphics 620, 8350U, Lenovo LENSE20256GMSP34MEAT2TA
23.9 fps ∼71%
Average Intel UHD Graphics 620
  (10.4 - 111, n=42)
21.9 fps ∼65% -8%
Dell Latitude 7490
UHD Graphics 620, 8350U, Toshiba KSG60ZMV256G
17 fps ∼51% -29%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
HD Graphics 620, 7200U, Toshiba THNSF5256GPUK
16.9 fps ∼50% -29%
Farming Simulator 17
1920x1080 Very High Preset AA:4xMS AF:4x
Average of class Office
  (7.6 - 28.2, n=8)
17.7 fps ∼100% +44%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
UHD Graphics 620, 8350U, Lenovo LENSE20256GMSP34MEAT2TA
12.3 fps ∼69%
Average Intel UHD Graphics 620
  (10 - 12.6, n=3)
11.6 fps ∼66% -6%
1920x1080 High Preset AA:2xMS AF:2x
Average of class Office
  (14.8 - 42.8, n=16)
24.5 fps ∼100% +10%
Average Intel UHD Graphics 620
  (18.8 - 25.4, n=7)
22.6 fps ∼92% +1%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
UHD Graphics 620, 8350U, Lenovo LENSE20256GMSP34MEAT2TA
22.3 fps ∼91%
1366x768 Medium Preset
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
UHD Graphics 620, 8350U, Lenovo LENSE20256GMSP34MEAT2TA
67.9 fps ∼100%
Average of class Office
  (24.8 - 99.6, n=24)
54.5 fps ∼80% -20%
Average Intel UHD Graphics 620
  (8 - 67.9, n=8)
49.2 fps ∼72% -28%
1280x720 Low Preset
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
UHD Graphics 620, 8350U, Lenovo LENSE20256GMSP34MEAT2TA
95.2 fps ∼100%
Average of class Office
  (38 - 146, n=20)
85.1 fps ∼89% -11%
Average Intel UHD Graphics 620
  (19 - 95.9, n=5)
72.4 fps ∼76% -24%
lage gem. hoge ultra
Rainbow Six Siege (2015) 48.428.8fps
Rise of the Tomb Raider (2016) 23.912.2fps
Farming Simulator 17 (2016) 95.267.922.312.3fps

Geluidsniveau

Onbelast
30.25 / 30.25 / 30.25 dB (A)
Belasting
31.3 / 31.3 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 30.25 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.43332.933.42532.53440.132.53136.43939.436.44031.332.230.531.350343834.7346328.73329.928.78026.126.326.626.1100272624.92712527.224.625.427.216024.523.223.924.520023.822.622.823.825022.121.82222.131520.921.921.320.940020.720.619.920.750020.219.519.320.26301919.518.91980019.218.918.519.2100019.419.41819.4125019.619.517.619.61600202017.520200020.119.917.420.1250019.218.917.419.2315019.219.117.519.2400018.218.317.618.2500018.218.117.918.2630017.9181817.98000181818181000017.9181817.91250017.917.917.917.91600017.917.917.917.9SPL31.331.330.331.3N1.41.41.21.4median 19.4Lenovo ThinkPad X1 Carbon G6-20KG0025UKmedian 19.5median 18median 19.4Delta1.81.81.41.830.633.232.330.630.932.132.730.935.634.634.335.632.129.530.232.135.33332.735.327.729.626.227.726.526.826.926.526.124.624.526.125.424.125.225.424.323.722.724.323.723.822.123.723.122.72223.123.222.120.123.221.22119.721.22120.519.22119.520.318.919.521.421.318.321.421.321.617.821.32221.917.62223.323.617.323.323.323.317.523.324.124.317.724.122.622.717.922.620.220.317.920.219.819.618.119.81918.618.41919.118.718.519.119.218.718.519.219.118.618.419.119.918.818.519.933.833.830.333.81.81.81.21.8median 21.4HP EliteBook 840 G5-3JX61EAmedian 21.6median 18.5median 21.41.81.71.11.839.336.332.739.339.237.53539.248.443.237.248.435.337.531.835.332.732.230.332.730.129.230.830.12730.126.62727.227.827.527.226.728.225.526.72525.124.32523.124.723.323.123.724.422.623.722.723.721.822.72222.220.7222121.519.92120.921.719.420.923.623.718.623.624.224.518.424.223.924.117.823.925.725.417.625.7262617.72626.326.517.626.326.12618.126.122.722.918.222.721.721.918.521.719.819.918.519.819.11918.719.11919.118.81919.119.118.919.119.820.219.119.835.93630.735.92.22.21.32.2median 23.1HP EliteBook 745 G5 3UN74EAmedian 23.7median 18.8median 23.12.12.11.82.132.73130.130.931.731.529.629.528.430.529.528.227.727.929.429.627.427.227.429.526.226.525.225.926.726.323.525.124.228.226.224.924.425.126.923.223.422.322.322.822.823.221.221.322.92221.120.319.820.822.520.920.419.52121.419.320.219.220.320.218.518.617.819.819.718.317.917.518.92018.417.917.419.119.718.918.416.519.221.119.718.717.120.620.82018.817.121.223.722.420.81723.923.822.621.216.923.625.724.322.317.425.725.723.922.317.725.426.924.622.218.12726.723.320.31826.424.62219.818.124.322.120.31917.7222019.118.417.319.818.818.417.81718.818.217.817.616.418.11818.218.115.917.836.134.232.529.635.92.31.91.61.22.2median 22Lenovo ThinkPad X1 Carbon 2017-20HR0021GEmedian 20.3median 19.8median 17.5median 2122.21.40.92.2hearing rangehide median Fan Noise
Max. Belasting
 32.5 °C40.7 °C38.6 °C
 30.1 °C38.8 °C36.7 °C
 27 °C25.8 °C27.4 °C
Maximum: 40.7 °C
Gemiddelde: 33.1 °C
40 °C41.6 °C33.8 °C
27.4 °C33.2 °C29.9 °C
27.6 °C27.3 °C27.3 °C
Maximum: 41.6 °C
Gemiddelde: 32 °C
Stroomadapter (max.)  31.6 °C | Kamertemperatuur 21.4 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.632.934.62541.740.141.73139.239.439.24031.230.531.25035.434.735.46330.329.930.38027.426.627.410026.624.926.612528.625.428.616026.523.926.520026.622.826.625034.22234.231540.721.340.740044.619.944.650050.319.350.363055.318.955.380061.618.561.6100063.41863.4125059.917.659.9160056.617.556.6200056.517.456.5250058.417.458.4315055.817.555.8400061.817.661.8500064.317.964.3630063.81863.8800061.51861.51000055.11855.11250054.217.954.21600046.617.946.6SPL72.330.372.3N26.41.226.4median 55.3Lenovo ThinkPad X1 Carbon G6-20KG0025UKmedian 18median 55.3Delta9.91.49.932.232.332.231.332.731.335.734.335.731.630.231.634.932.734.929.226.229.22726.92726.124.526.130.525.230.539.722.739.744.622.144.640.52240.55220.15266.919.766.967.819.267.870.118.970.167.418.367.471.817.871.871.317.671.372.317.372.370.517.570.574.217.774.272.817.972.873.217.973.27518.17574.718.474.773.318.573.37218.57268.218.468.259.718.559.784.430.384.457.61.257.6median 70.1HP EliteBook 840 G5-3JX61EAmedian 18.5median 70.110.31.110.336.241.636.234.73734.734.633.634.634.434.234.433.233.533.23234.13232.233.932.240.130.440.144.229.244.247.729.447.749.427.649.454.227.454.256.226.856.256.725.856.757.425.757.459.925.159.964.824.564.868.324.468.362.724.262.767246766.923.966.968.924.168.964.42464.458.623.858.665.223.665.263.823.563.866.223.566.265.323.465.357.723.457.762.223.562.277.336.377.340.52.740.5median 62.2Dell Latitude 7490median 24.2median 62.25.81.45.8hearing rangehide median Pink Noise
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad X1 Carbon G6-20KG0025UK audio analysis

(-) | not very loud speakers (64.29 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.7% lower than median
(±) | linearity of bass is average (8.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(±) | linearity of mids is average (9.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.9% away from median
(±) | linearity of highs is average (8.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (26.9% difference to median)
Compared to same class
» 87% of all tested devices in this class were better, 3% similar, 11% worse
» The best had a delta of 8%, average was 20%, worst was 51%
Compared to all devices tested
» 78% of all tested devices were better, 5% similar, 16% worse
» The best had a delta of 3%, average was 21%, worst was 53%

HP EliteBook 840 G5-3JX61EA audio analysis

(±) | speaker loudness is average but good (74.98 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 31.2% lower than median
(±) | linearity of bass is average (11.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.7% away from median
(+) | mids are linear (6.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(+) | highs are linear (2.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20% difference to median)
Compared to same class
» 46% of all tested devices in this class were better, 11% similar, 43% worse
» The best had a delta of 8%, average was 20%, worst was 51%
Compared to all devices tested
» 41% of all tested devices were better, 8% similar, 51% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Dell Latitude 7490 audio analysis

(±) | speaker loudness is average but good (77.31 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.6% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.9% away from median
(±) | linearity of mids is average (7.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.4% away from median
(±) | linearity of highs is average (8.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.2% difference to median)
Compared to same class
» 19% of all tested devices in this class were better, 6% similar, 75% worse
» The best had a delta of 8%, average was 20%, worst was 51%
Compared to all devices tested
» 21% of all tested devices were better, 5% similar, 74% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.3 / 2.7 Watt
Inactiefdarkmidlight 4.7 / 7.3 / 9.4 Watt
Belasting midlight 28 / 28.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
8350U, UHD Graphics 620, Lenovo LENSE20256GMSP34MEAT2TA, IPS, 1920x1080, 14
HP EliteBook 840 G5-3JX61EA
8550U, UHD Graphics 620, Toshiba KXG50ZNV1T02, IPS, 1920x1080, 14
Dell Latitude 7490
8350U, UHD Graphics 620, Toshiba KSG60ZMV256G, IPS, 1920x1080, 14
HP EliteBook 745 G5 3UN74EA
2700U, Vega 10, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 14
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
7200U, HD Graphics 620, Toshiba THNSF5256GPUK, IPS, 1920x1080, 14
Average Intel UHD Graphics 620

Average of class Office

Power Consumption
-13%
11%
-19%
-8%
-9%
-55%
Idle Minimum *
4.7
3.8
19%
2
57%
4.9
-4%
3.8
19%
3.84 (2 - 8.5, n=87)
18%
7.83 (0.77 - 32, n=900)
-67%
Idle Average *
7.3
8.3
-14%
4.7
36%
8.1
-11%
7.1
3%
7 (4.3 - 11.8, n=87)
4%
11.7 (4.2 - 42, n=900)
-60%
Idle Maximum *
9.4
10.7
-14%
5.7
39%
10.6
-13%
8.3
12%
8.64 (5.2 - 13.1, n=87)
8%
14.1 (5 - 67, n=900)
-50%
Load Average *
28
35.5
-27%
38.4
-37%
32.2
-15%
34.2
-22%
35.4 (15 - 51.1, n=87)
-26%
37.4 (7.43 - 99.3, n=885)
-34%
Load Maximum *
28.2
37
-31%
38.9
-38%
42.3
-50%
43.3
-54%
41.5 (22 - 71.2, n=87)
-47%
46 (12.2 - 129, n=887)
-63%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
24h 28min
Surfen met WLAN
0h 00min
NBC WiFi Websurfing Battery Test 1.3
10h 21min
Big Buck Bunny H.264 1080p
10h 57min
Belast (maximale helderheid)
1h 51min
Lenovo ThinkPad X1 Carbon G6-20KG0025UK
8350U, UHD Graphics 620, 57 Wh
HP EliteBook 840 G5-3JX61EA
8550U, UHD Graphics 620, 50 Wh
Dell Latitude 7490
8350U, UHD Graphics 620, 60 Wh
HP EliteBook 745 G5 3UN74EA
2700U, Vega 10, 50 Wh
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE
7200U, HD Graphics 620, 57 Wh
Average of class Office

Batterijduur
-29%
-12%
-36%
-15%
-36%
Reader / Idle
1468
639
-56%
819
-44%
556 (101 - 1857, n=764)
-62%
H.264
657
426
-35%
573
-13%
411 (139 - 791, n=146)
-37%
WiFi v1.3
621
444
-29%
548
-12%
394
-37%
547
-12%
409 (105 - 964, n=279)
-34%
Load
111
95
-14%
122
10%
101 (37 - 259, n=710)
-9%

Pro

+ premium, dunne en lichte behuizing
+ helder, contrastrijk touchscreen met een hoge kleurruimte-dekking
+ moderne aansluitingen en normale USB Type A-poorten
+ goede systeemprestaties
+ uitstekend toetsenbord
+ indrukwekkende batterijlevensduur
+ drie jaar garantie
+ snelle kaartlezer
+ loopt koel en uiterst stil

Contra

- SD-kaartsleuf is moeilijk te bereiken
- de kaartsleuf ondersteunt alleen microSD
- niet geconfigureerd voor WWAN
- beperkte onderhoudsmogelijkheden
- LAN-verbinding alleen via de meegeleverde adapter
- extreme prestatievermindering tijdens stresstests

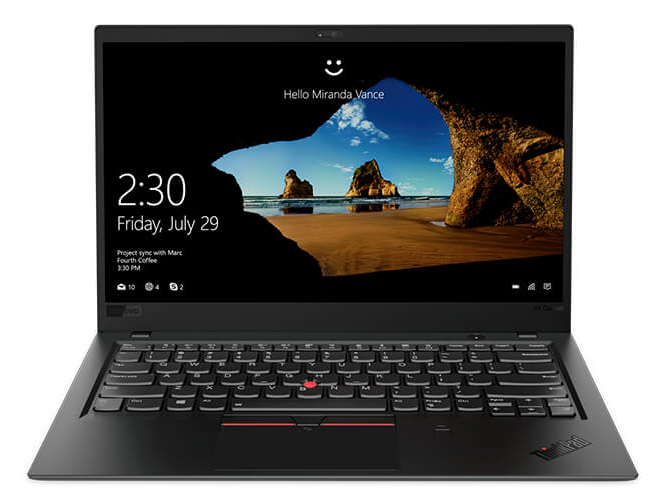

De Lenovo ThinkPad X1 Carbon G6 2018, testmodel geleverd door Lenovo Germany.
De Lenovo ThinkPad X1 Carbon G6 2018, testmodel geleverd door Lenovo Germany.

De Lenovo ThinkPad X1 Carbon G6 2018 is een uitstekende zakelijke notebook die onze beoordeling van 92% verdient. Het enige nadeel is de exorbitante prijs. We raden de Carbon G6 echter nog steeds aan, omdat hij uitblonk in vrijwel elke test waaraan we hem onderworpen hebben.

Voor het volledige, Engelse testrapport, klik hier.

De Carbon G6 is uitgerust met premium hardware. Het apparaat heeft een indrukwekkend beeldscherm, de nieuwste poorten, een uitstekende batterijlevensduur en drie jaar fabrieksgarantie. De Carbon G6 vertegenwoordigt echt het beste van wat Lenovo momenteel biedt.

Het heeft ook voordelen om een 1080p-paneel te verkiezen boven het optionele WQHD HDR paneel. Het 1080p-paneel heeft een matte afwerking in vergelijking met de glanzende afwerking van de HDR, wat handig is wanneer u het apparaat buitenshuis gebruikt. Als u een scherm met een lagere resolutie gebruikt, verlengt u de levensduur van de batterij en kunt u het apparaat koeler laten werken omdat het minder rekenkracht vraagt om het scherm aan te sturen. We zouden zelfs om dezelfde redenen het 1080p-touchscreen aanbevelen. Bovendien is een WQHD-resolutie niet essentieel voor kantoorwerk.

De keuze voor een Core i5-8350U-processor boven een Core i7-versie is ook een verstandige zet, omdat de eerste vaak beter presteert dan de laatstgenoemde, terwijl hij helpt het apparaat koel te houden en de levensduur van de batterij verlengt.

Lenovo ThinkPad X1 Carbon G6-20KG0025UK - 11-09-2018 v6
Sven Kloevekorn

Behuizing
92 / 98 → 94%
Toetsenbord
95%
Aanwijsapparaat
92%
Aansluitmogelijkheden
78 / 80 → 97%
Gewicht
73 / 20-67 → 100%
Batterij
93%
Beeldscherm
92%
Gaming-performance
47 / 68 → 69%
Applicatie-performance
84 / 92 → 91%
Temperatuur
92%
Luidheid
95%
Audio
77%
Camera
50 / 85 → 59%
Gemiddelde
81%
92%
Office - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Lenovo ThinkPad X1 Carbon G6 2018 (i5-8350U, Full-HD Touch, 256GB) Laptop
Sven Kloevekorn, 2018-09-14 (Update: 2018-09-14)
