Kort testrapport Lenovo ThinkPad P70-20ER000XUS Workstation

Prijzig maar krachtig. Lenovo's nieuwste P70 configuratie beschikt over een Intel Xeon Skylake CPU en verhoogt de GPU naar een nVidia M4000M. Ook wordt er NVMe SSD opslag geïntroduceerd. Wat voor effect hebben deze upgrades op de prestaties? En is dit werkstation het overwegen waard?
Steve Schardein, 🇺🇸 🇩🇪 ...
Lenovo ThinkPad P70-20ER000XUS (ThinkPad P70 Serie)
Processor
Intel Xeon E3-1505M v5 4 x 2.8 - 3.7 GHz, Skylake
Grafische kaart
NVIDIA Quadro M4000M - 4096 MB, Core: 1013 MHz, Geheugen: 5012 MHz, 21.21.13.6926 - nVIDIA ForceWare 369.26
Geheugen
16384 MB
, DDR4-2133 MHz
Beeldscherm
17.30 inch 16:9, 3840 x 2160 pixel 255 PPI, nee, Panasonic VVX17P051J00 / LEN4123, IPS, glimmend: nee
Moederbord
Intel Sunrise Point CM236
Opslag
Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), 512 GB
Verbindingen
1 Express Kaart 34mm, 4 USB 3.0, 2 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Verbindingen: 3.5 mm combo audio, Card Reader: SDXC, 1 SmartCard, 1 Vingerafdruklezer, Sensoren: X-Rite Pantone Color Calibrator
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.1
Afmetingen
hoogte x breedte x diepte (in mm): 32 x 415 x 277
Batterij
96 Wh, 6200 mAh Lithium-Ion, removeable
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Primary Camera: 1 MPix
Bijkomende functionaliteiten

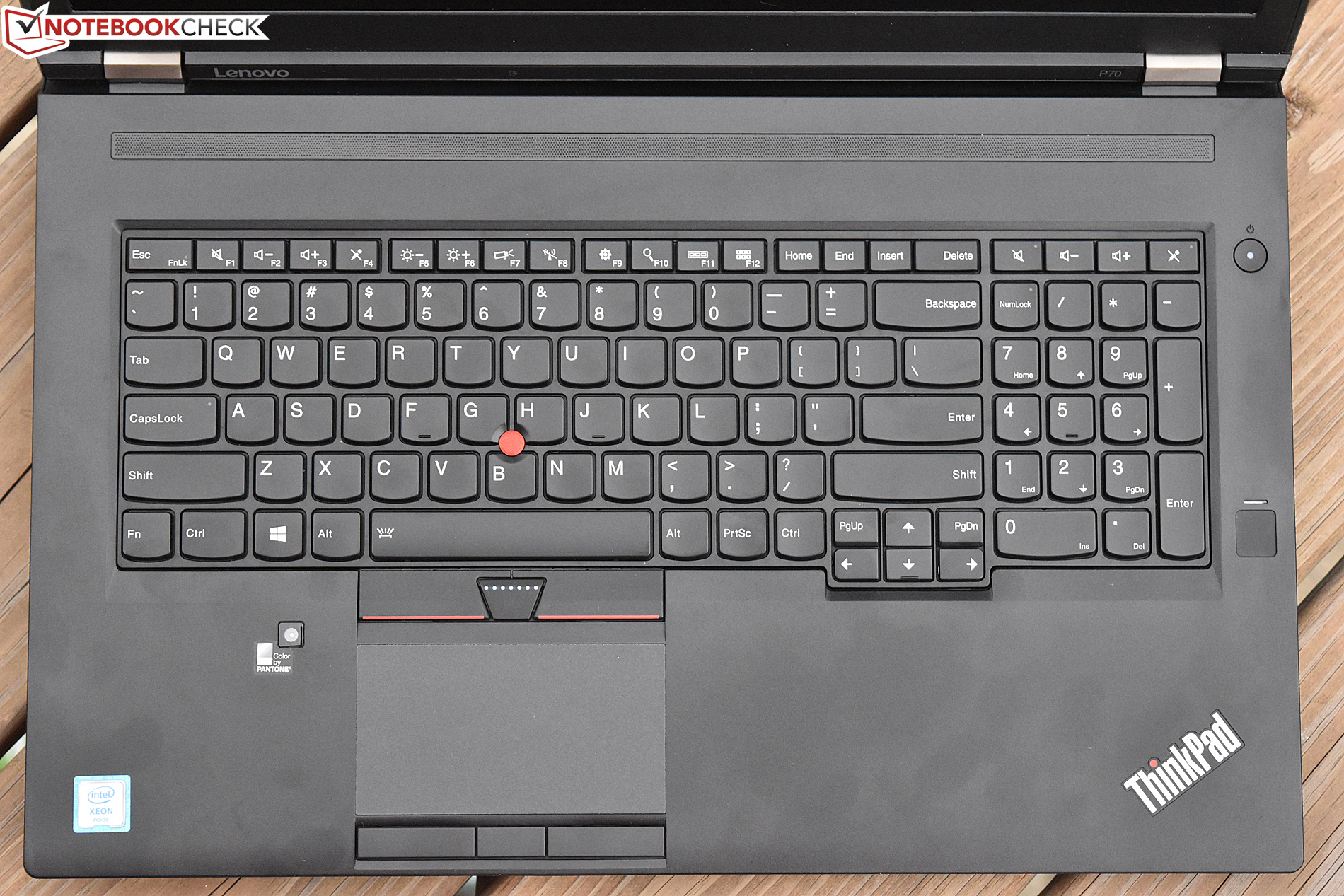

Luidsprekers: 2.0, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 12 Maanden Garantie
Gewicht

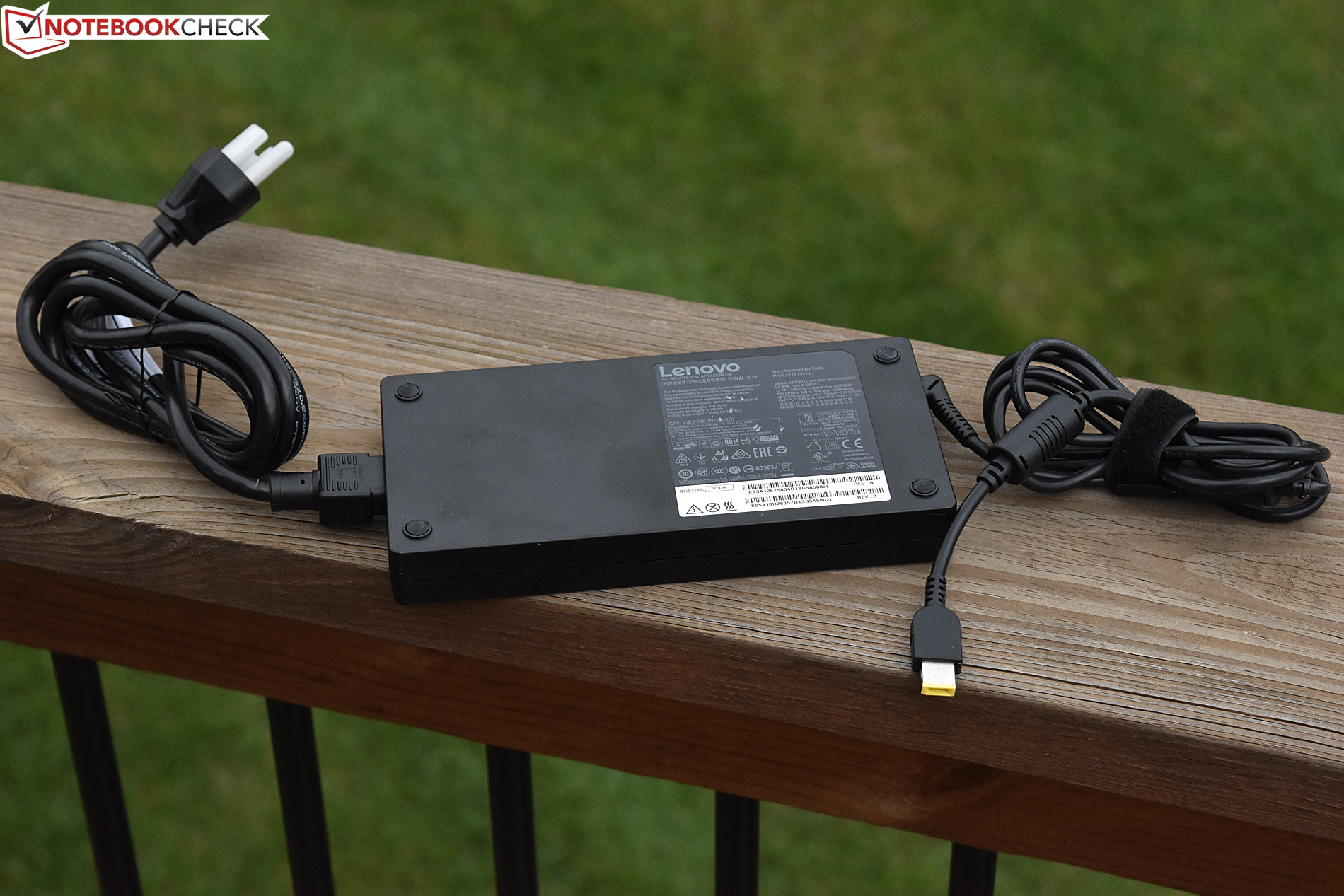

3.65 kg, Voeding: 974 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



315.5
cd/m²
351.4
cd/m²
312.5
cd/m²
302.2
cd/m²
332
cd/m²
302.3
cd/m²
305
cd/m²
325.2
cd/m²
302.8
cd/m²
Helderheidsverdeling
Panasonic VVX17P051J00 / LEN4123
X-Rite i1Pro 2
Maximum: 351.4 cd/m² Gemiddelde: 316.5 cd/m² Minimum: 3.6 cd/m²
Helderheidsverdeling: 86 %
Helderheid in Batterij-modus: 332 cd/m²
Contrast: 836:1 (Zwart: 0.397 cd/m²)
ΔE Color 3.15 | 0.59-29.43 Ø5.6
ΔE Greyscale 3.72 | 0.64-98 Ø5.9
100% sRGB (Argyll 3D) 74.3% AdobeRGB 1998 (Argyll 3D)
Gamma: 1.86
Lenovo ThinkPad P70-20ER000XUS
Panasonic VVX17P051J00 / LEN4123, IPS, 17.30, 3840x2160
HP ZBook 17 G3 TZV66eA
SDC3854, IPS, 17.30, 1920x1080
Dell Precision 7710
SDC8151, VHN17_173HL, IPS LED, 17.30, 1920x1080
Lenovo ThinkPad P70
LEN4123, IPS, 17.30, 3840x2160
MSI WT72-6QM
LG Philips LP173WF4-SPF1, IPS, 17.30, 1920x1080
Response Times
-20%
-29%
-8%
-26%
Response Time Grey 50% / Grey 80% *
34.8 (15.2, 19.6)
50.4 (17.2, 33.2)
-45%
50 (17, 33)
-44%
44 (17.2, 26.8)
-26%
42 (13, 29)
-21%
Response Time Black / White *
26.8 (4, 22.8)
28.4 (7.2, 21.2)
-6%
36 (11, 25)
-34%
27.6 (4.8, 22.8)
-3%
26 (7, 19)
3%
PWM Frequency
219.3 (99)
200 (40)
-9%
198 (25)
-10%
228 (95)
4%
86 (10, 15)
-61%
Screen
11%
1%
-6%
-22%
Brightness middle
332
252
-24%
332
0%
365
10%
303
-9%
Brightness
317
243
-23%
307
-3%
341
8%
298
-6%
Brightness Distribution
86
86
0%
83
-3%
85
-1%
94
9%
Black Level *
0.397
0.21
47%
0.33
17%
0.4
-1%
0.46
-16%
Contrast
836
1200
44%
1006
20%
913
9%
659
-21%
Colorchecker DeltaE2000 *
3.15
2.2
30%
3
5%
3.8
-21%
5.77
-83%
Colorchecker DeltaE2000 max. *
5.55
3.8
32%
Greyscale DeltaE2000 *
3.72
2.7
27%
4
-8%
6.09
-64%
4.87
-31%
Gamma
1.86 118%
2.28 96%
2 110%
2.3 96%
1.99 111%
CCT
6103 107%
6686 97%
7089 92%
6332 103%
7363 88%
Color Space (Percent of AdobeRGB 1998)
74.3
62
-17%
62
-17%
76.01
2%
56.04
-25%
Color Space (Percent of sRGB)
100
96
-4%
97
-3%
99.97
0%
85.27
-15%
Totaal Gemiddelde (Programma / Instellingen)
-5% / 4%
-14% / -7%
-7% / -7%
-24% / -23%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

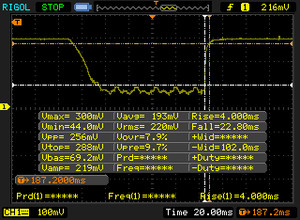

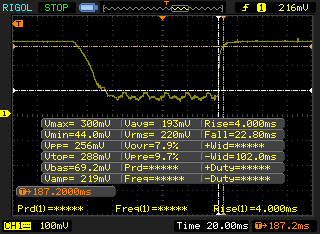

       Responstijd Zwart naar Wit
26.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 4 ms stijging
↘ 22.8 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 54 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (24.2 ms) van alle geteste toestellen.

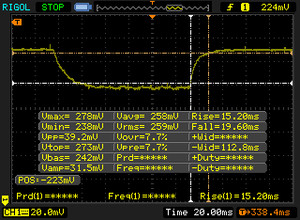

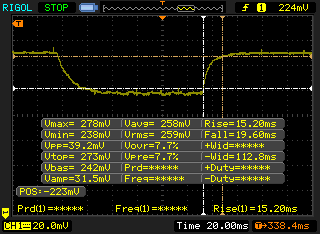

       Responstijd 50% Grijs naar 80% Grijs
34.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 15.2 ms stijging
↘ 19.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 30 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (38.5 ms) van alle geteste toestellen.

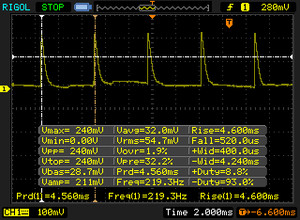

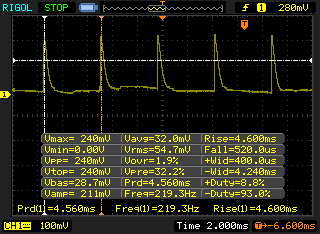

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 219.3 Hz ≤ 99 % helderheid instelling

Het backlight van het scherm flikkert aan 219.3 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 99 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 219.3 Hz is redelijk laag en de meeste mensen die gevoelig zijn aan flickering kunnen dit dus waarnemen of geïrriteerde ogen krijgen (gebruikmakend van de vermelde helderheid en lager).

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9717 (minimum: 5 - maximum: 151500) Hz waargenomen.

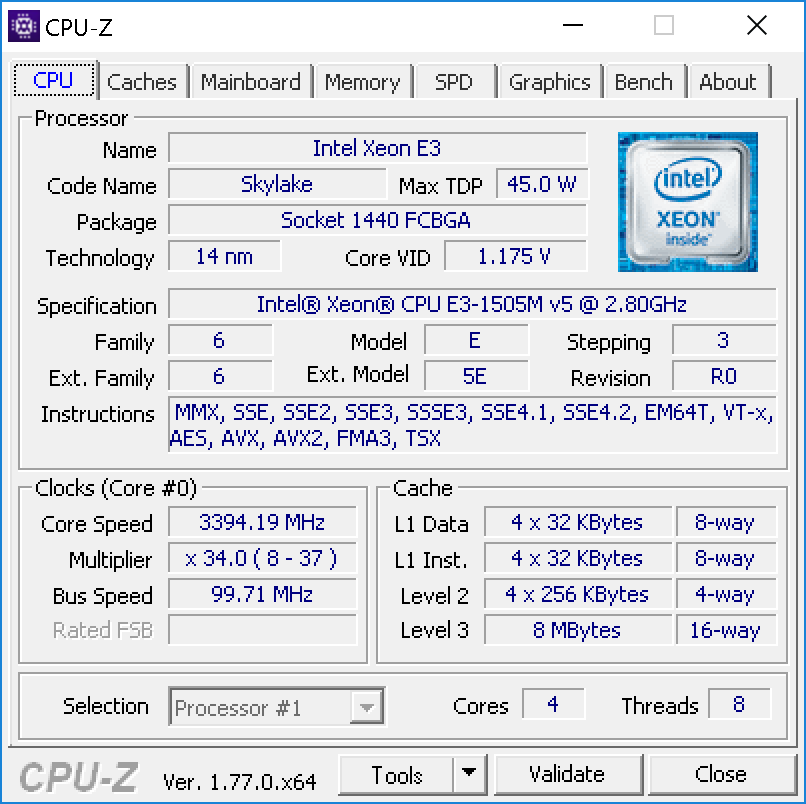

CPU-Z CPU
CPU-Z CPU

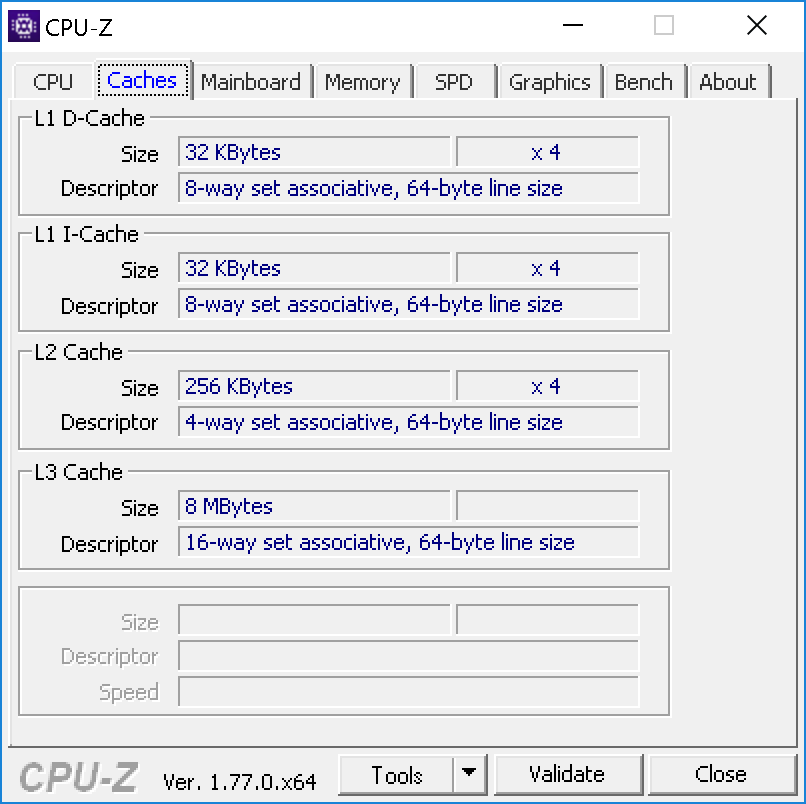

CPU-Z Caches
CPU-Z Caches

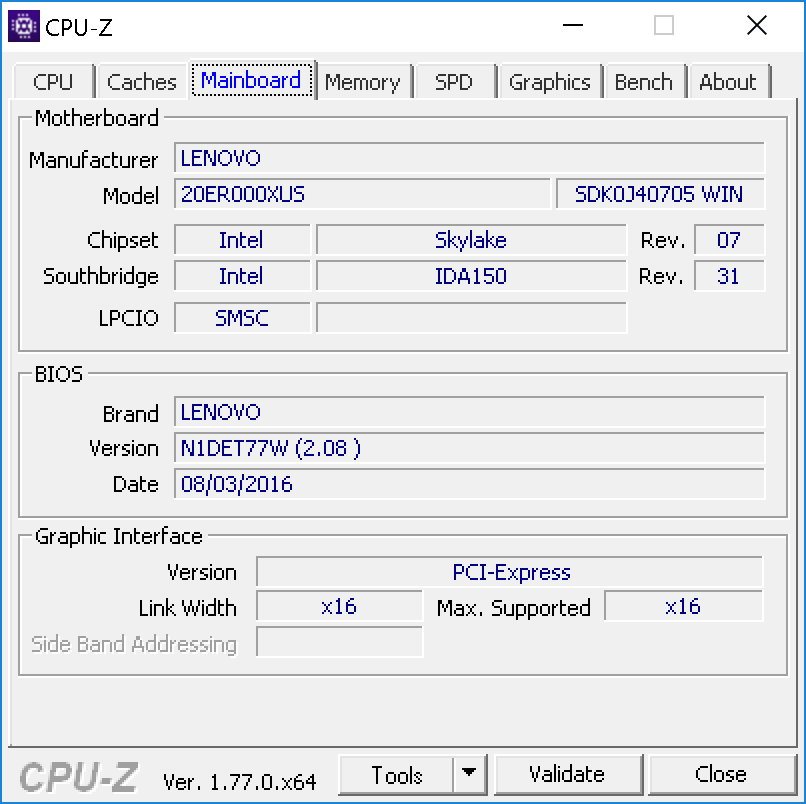

CPU-Z Mainboard
CPU-Z Mainboard

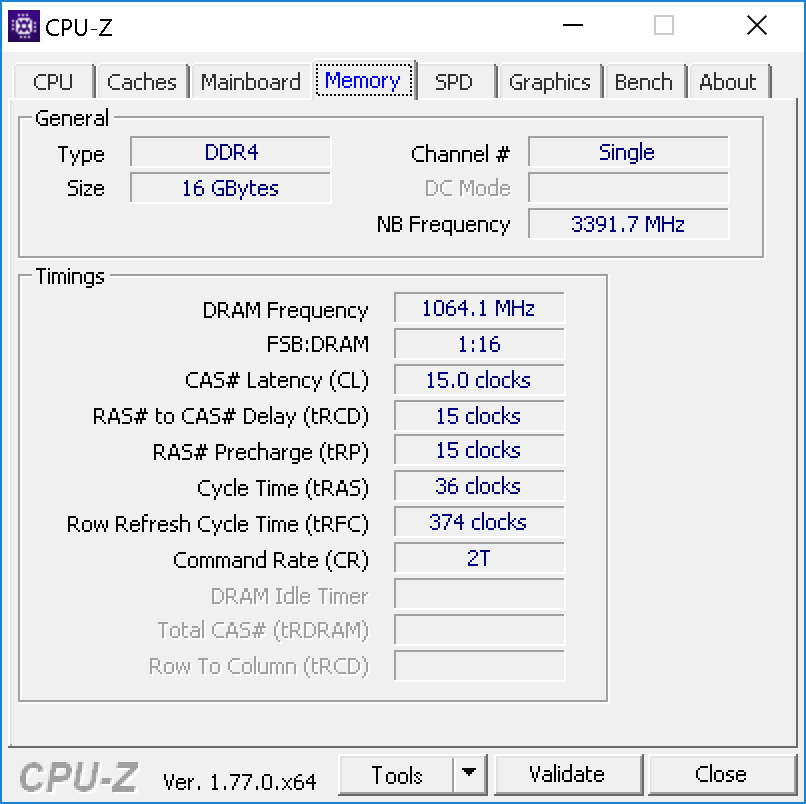

CPU-Z Memory
CPU-Z Memory

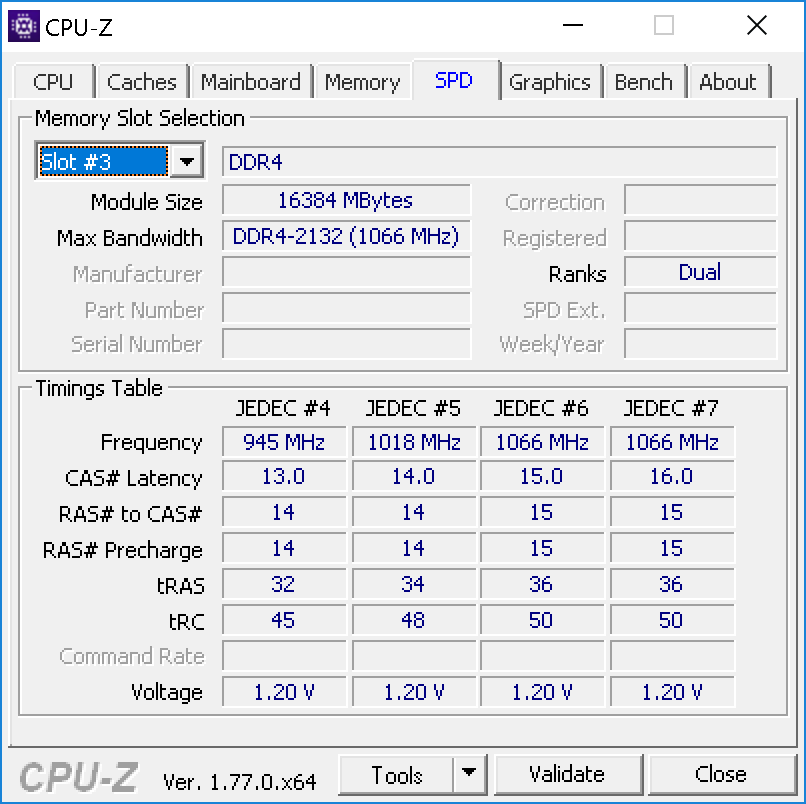

CPU-Z RAM SPD
CPU-Z RAM SPD

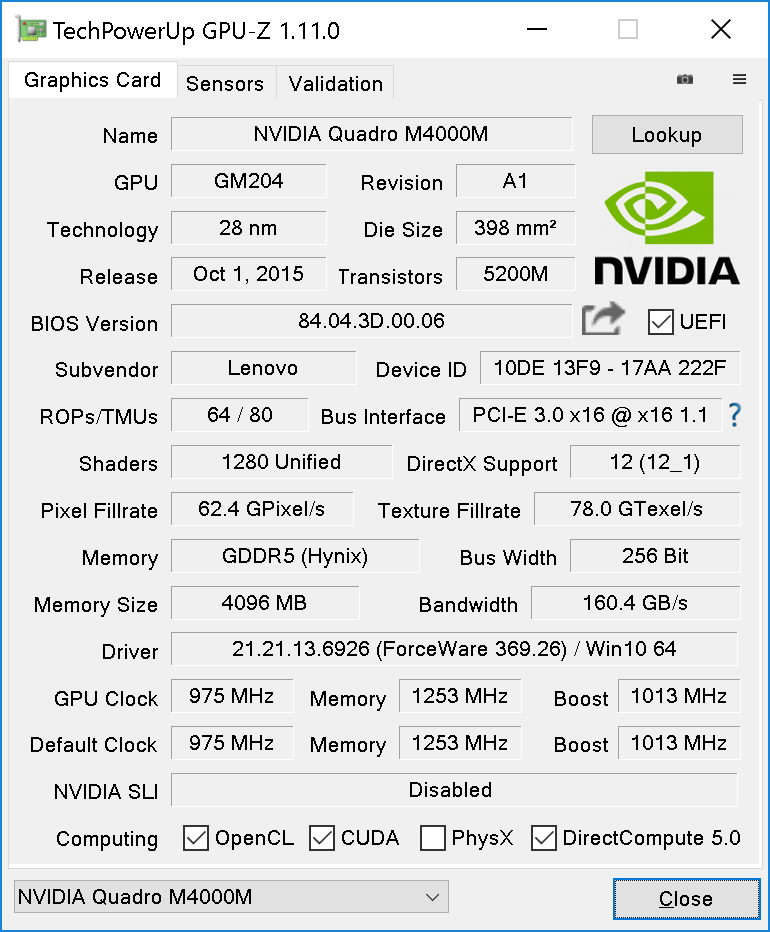

GPU-Z
GPU-Z

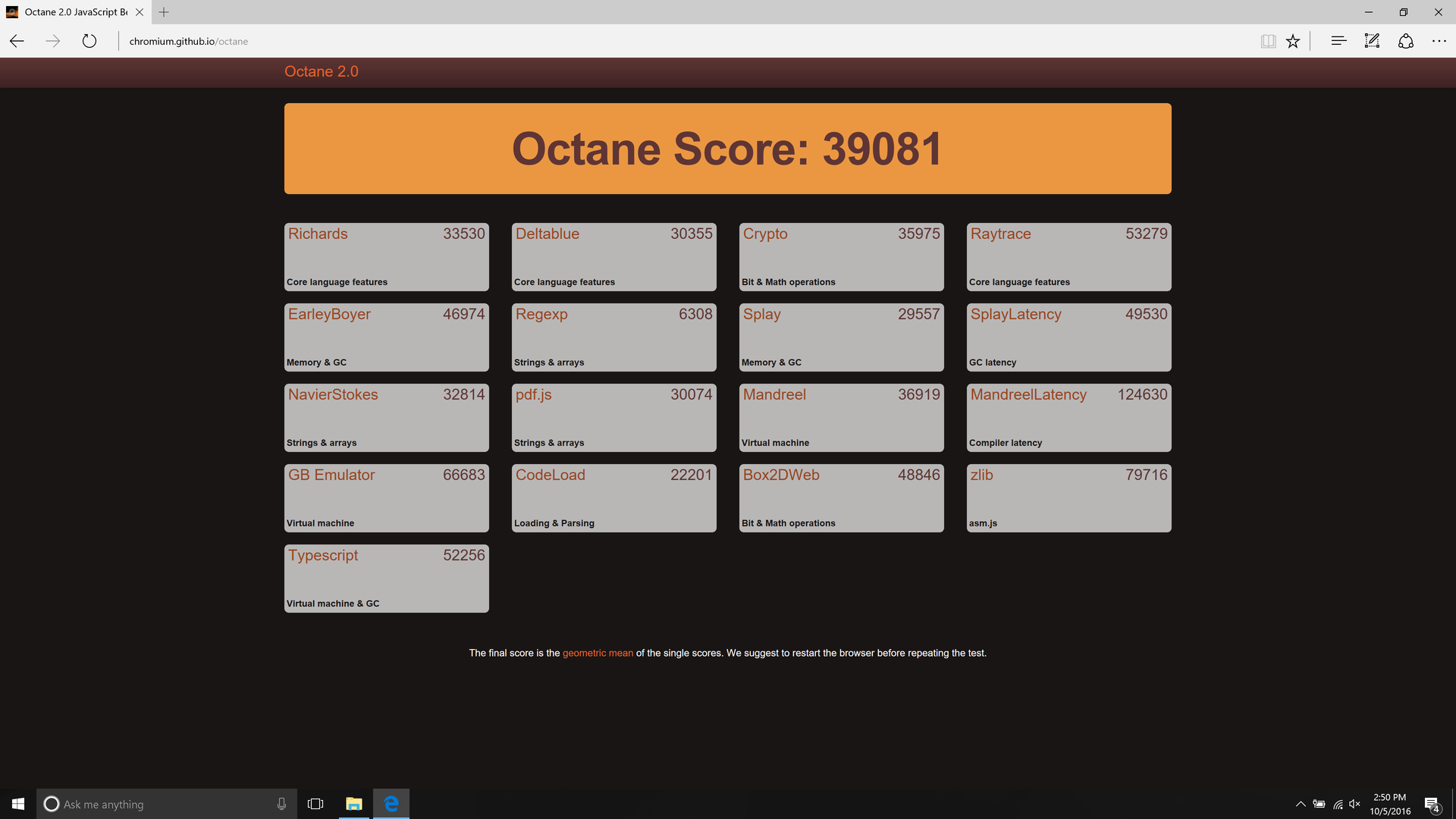

Octane v2
Octane v2

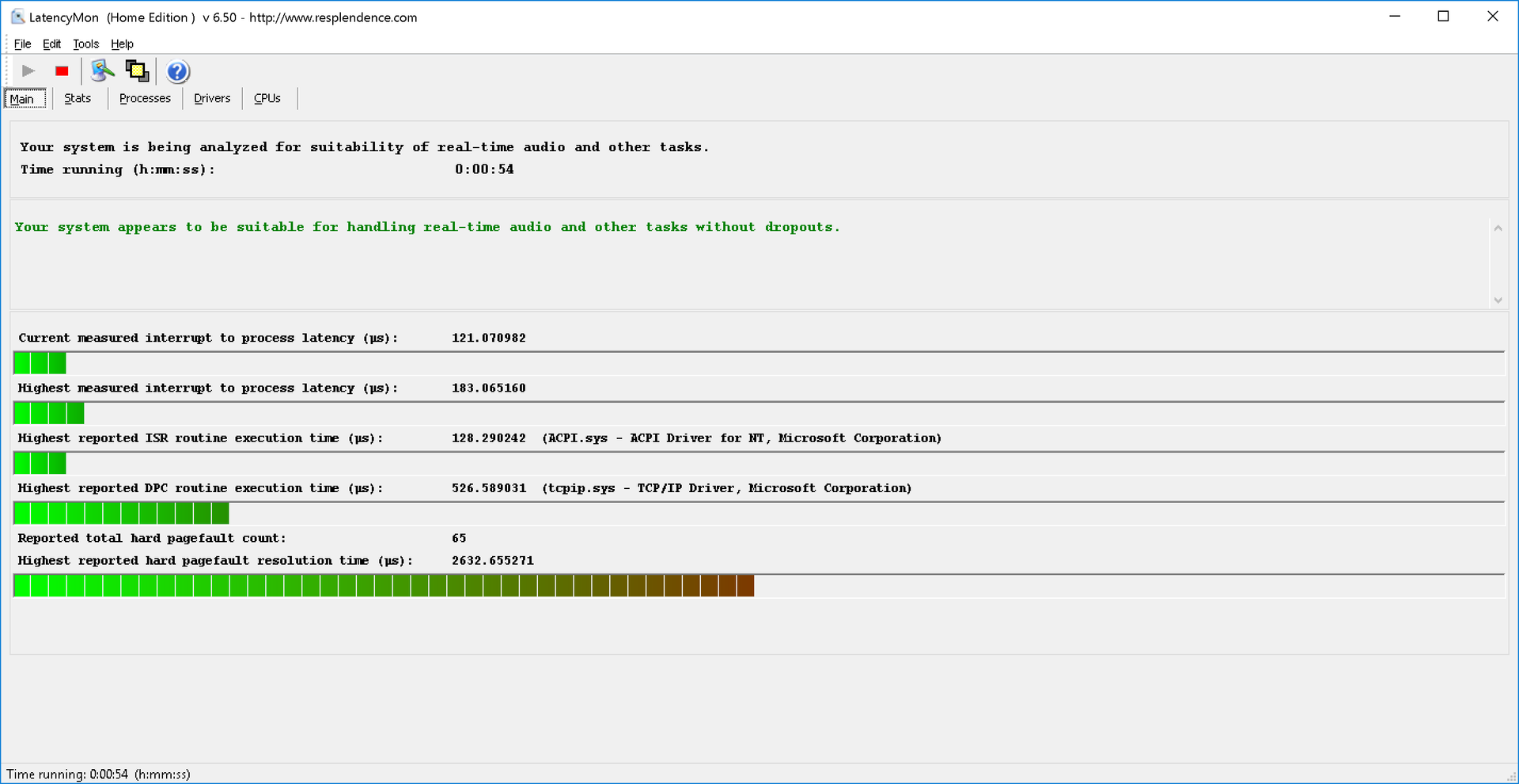

LatencyMon
LatencyMon
Cinebench R11.5
CPU Single 64Bit
Dell Precision 7710
Intel Xeon E3-1535M v5
1.84 Points ∼59% +8%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
1.83 Points ∼58% +7%
MSI WT72-6QM
Intel Xeon E3-1505M v5
1.77 Points ∼56% +4%
Lenovo ThinkPad P70-20ER000XUS
Intel Xeon E3-1505M v5
1.71 Points ∼54%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
1.7 Points ∼54% -1%
CPU Multi 64Bit
Dell Precision 7710
Intel Xeon E3-1535M v5
8.24 Points ∼17% +4%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
8.16 Points ∼16% +3%
Lenovo ThinkPad P70-20ER000XUS
Intel Xeon E3-1505M v5
7.94 Points ∼16%
MSI WT72-6QM
Intel Xeon E3-1505M v5
7.85 Points ∼16% -1%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
7.63 Points ∼15% -4%
Cinebench R15
CPU Single 64Bit
Dell Precision 7710
Intel Xeon E3-1535M v5
162 Points ∼60% +9%
MSI WT72-6QM
Intel Xeon E3-1505M v5
157 Points ∼58% +5%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
156 Points ∼57% +5%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
153 Points ∼56% +3%
Lenovo ThinkPad P70-20ER000XUS
Intel Xeon E3-1505M v5
149 Points ∼55%
CPU Multi 64Bit
Dell Precision 7710
Intel Xeon E3-1535M v5
746 Points ∼17% +3%
HP ZBook 17 G3 TZV66eA
Intel Xeon E3-1535M v5
742 Points ∼17% +2%
Lenovo ThinkPad P70-20ER000XUS
Intel Xeon E3-1505M v5
725 Points ∼16%
MSI WT72-6QM
Intel Xeon E3-1505M v5
724 Points ∼16% 0%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
699 Points ∼16% -4%
wPrime 2.10 - 1024m
Lenovo ThinkPad P70-20ER000XUS
Intel Xeon E3-1505M v5
234.4 s * ∼3%
Lenovo ThinkPad P70
Intel Core i7-6820HQ
230.77 s * ∼3% +2%
Dell Precision 7710
Intel Xeon E3-1535M v5
214.5 s * ∼3% +8%
Super Pi Mod 1.5 XS 32M - 32M
Lenovo ThinkPad P70
Intel Core i7-6820HQ
561 s * ∼2% -0%
Lenovo ThinkPad P70-20ER000XUS
Intel Xeon E3-1505M v5
559 s * ∼2%
MSI WT72-6QM
Intel Xeon E3-1505M v5
528.8 s * ∼2% +5%
Dell Precision 7710
Intel Xeon E3-1535M v5
511 s * ∼2% +9%

* ... kleiner is beter

Cinebench R11.5 OpenGL 64Bit
89.35 fps
Cinebench R11.5 CPU Multi 64Bit
7.94 Points
Cinebench R11.5 CPU Single 64Bit
1.71 Points
Cinebench R15 OpenGL 64Bit
93.23 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 CPU Multi 64Bit
725 Points
Cinebench R15 CPU Single 64Bit
149 Points
Help
SPECviewperf 12
1900x1060 Solidworks (sw-03)
MSI WT72-6QM
101.01 fps ∼100% +4%
Lenovo ThinkPad P70-20ER000XUS
97.11 fps ∼96%
HP ZBook 17 G3 TZV66eA
84.84 fps ∼84% -13%
Dell Precision 7710
73 fps ∼72% -25%
Lenovo ThinkPad P70
52.35 fps ∼52% -46%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad P70-20ER000XUS
127.75 fps ∼100%
MSI WT72-6QM
86.87 fps ∼68% -32%
HP ZBook 17 G3 TZV66eA
65.79 fps ∼51% -49%
Dell Precision 7710
63 fps ∼49% -51%
Lenovo ThinkPad P70
39.84 fps ∼31% -69%
1900x1060 Showcase (showcase-01)
MSI WT72-6QM
44.14 fps ∼100% +9%
HP ZBook 17 G3 TZV66eA
43.81 fps ∼99% +9%
Lenovo ThinkPad P70-20ER000XUS
40.33 fps ∼91%
Lenovo ThinkPad P70
39.81 fps ∼90% -1%
Dell Precision 7710
37 fps ∼84% -8%
1900x1060 Medical (medical-01)
MSI WT72-6QM
31.35 fps ∼100% +20%
Dell Precision 7710
27 fps ∼86% +4%
Lenovo ThinkPad P70-20ER000XUS
26.06 fps ∼83%
HP ZBook 17 G3 TZV66eA
22.34 fps ∼71% -14%
Lenovo ThinkPad P70
17.46 fps ∼56% -33%
1900x1060 Maya (maya-04)
MSI WT72-6QM
69.57 fps ∼100% +9%
Lenovo ThinkPad P70-20ER000XUS
64.04 fps ∼92%
HP ZBook 17 G3 TZV66eA
50.38 fps ∼72% -21%
Dell Precision 7710
46 fps ∼66% -28%
Lenovo ThinkPad P70
23.08 fps ∼33% -64%
1900x1060 Energy (energy-01)
MSI WT72-6QM
6.86 fps ∼100% +14%
Lenovo ThinkPad P70-20ER000XUS
6.04 fps ∼88%
HP ZBook 17 G3 TZV66eA
4.85 fps ∼71% -20%
Lenovo ThinkPad P70
4.68 fps ∼68% -23%
Dell Precision 7710
3.17 fps ∼46% -48%
1900x1060 Creo (creo-01)
MSI WT72-6QM
81.34 fps ∼100% +4%
Lenovo ThinkPad P70-20ER000XUS
78.36 fps ∼96%
HP ZBook 17 G3 TZV66eA
64.76 fps ∼80% -17%
Dell Precision 7710
50 fps ∼61% -36%
Lenovo ThinkPad P70
42.17 fps ∼52% -46%
1900x1060 Catia (catia-04)
MSI WT72-6QM
94.45 fps ∼100% +7%
Lenovo ThinkPad P70-20ER000XUS
88.09 fps ∼93%
HP ZBook 17 G3 TZV66eA
77.86 fps ∼82% -12%
Dell Precision 7710
58 fps ∼61% -34%
Lenovo ThinkPad P70
45.24 fps ∼48% -49%
SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P70-20ER000XUS
111.36 fps ∼100%
Lenovo ThinkPad P70
67.36 fps ∼60% -40%
MSI WT72-6QM
61.76 fps ∼55% -45%
HP ZBook 17 G3 TZV66eA
49.91 fps ∼45% -55%
Dell Precision 7710
49 fps ∼44% -56%
1920x1080 Tcvis
Lenovo ThinkPad P70-20ER000XUS
58.13 fps ∼100%
HP ZBook 17 G3 TZV66eA
56.28 fps ∼97% -3%
MSI WT72-6QM
55.94 fps ∼96% -4%
Lenovo ThinkPad P70
41.16 fps ∼71% -29%
Dell Precision 7710
36 fps ∼62% -38%
1920x1080 SolidWorks
Dell Precision 7710
74 fps ∼100% +21%
Lenovo ThinkPad P70-20ER000XUS
61.34 fps ∼83%
MSI WT72-6QM
49.26 fps ∼67% -20%
HP ZBook 17 G3 TZV66eA
48.01 fps ∼65% -22%
Lenovo ThinkPad P70
35.28 fps ∼48% -42%
1920x1080 Pro/ENGINEER
HP ZBook 17 G3 TZV66eA
22.46 fps ∼100% +20%
Lenovo ThinkPad P70-20ER000XUS
18.79 fps ∼84%
MSI WT72-6QM
17.87 fps ∼80% -5%
Lenovo ThinkPad P70
16.08 fps ∼72% -14%
Dell Precision 7710
11.7 fps ∼52% -38%
1920x1080 Maya
Lenovo ThinkPad P70-20ER000XUS
109.16 fps ∼100%
Dell Precision 7710
106 fps ∼97% -3%
Lenovo ThinkPad P70
85.96 fps ∼79% -21%
MSI WT72-6QM
71.59 fps ∼66% -34%
HP ZBook 17 G3 TZV66eA
57.76 fps ∼53% -47%
1920x1080 Lightwave
Dell Precision 7710
84 fps ∼100% +10%
Lenovo ThinkPad P70-20ER000XUS
76.25 fps ∼91%
MSI WT72-6QM
59.58 fps ∼71% -22%
HP ZBook 17 G3 TZV66eA
51.87 fps ∼62% -32%
Lenovo ThinkPad P70
35.34 fps ∼42% -54%
1920x1080 Ensight
Lenovo ThinkPad P70-20ER000XUS
110.21 fps ∼100%
MSI WT72-6QM
73.98 fps ∼67% -33%
Dell Precision 7710
70 fps ∼64% -36%
Lenovo ThinkPad P70
59.49 fps ∼54% -46%
HP ZBook 17 G3 TZV66eA
59.1 fps ∼54% -46%
1920x1080 Catia
Lenovo ThinkPad P70-20ER000XUS
82.32 fps ∼100%
Dell Precision 7710
61 fps ∼74% -26%
MSI WT72-6QM
55.25 fps ∼67% -33%
HP ZBook 17 G3 TZV66eA
53.44 fps ∼65% -35%
Lenovo ThinkPad P70
43.12 fps ∼52% -48%

Legende


Lenovo ThinkPad P70-20ER000XUS Intel Xeon E3-1505M v5, NVIDIA Quadro M4000M, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)

MSI WT72-6QM Intel Xeon E3-1505M v5, NVIDIA Quadro M5000M, Toshiba NVMe THNSN5256GPU7

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

HP ZBook 17 G3 TZV66eA Intel Xeon E3-1535M v5, NVIDIA Quadro M3000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH
PCMark 8
Work Score Accelerated v2
MSI WT72-6QM
Quadro M5000M, E3-1505M v5, Toshiba NVMe THNSN5256GPU7
5655 Points ∼83% +31%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5417 Points ∼79% +26%
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5271 Points ∼77% +22%
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
4411 Points ∼65% +2%
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4307 Points ∼63%
Creative Score Accelerated v2
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
6007 Points ∼52%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
5668 Points ∼49% -6%
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4564 Points ∼39% -24%
Home Score Accelerated v2
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4770 Points ∼76% +17%
MSI WT72-6QM
Quadro M5000M, E3-1505M v5, Toshiba NVMe THNSN5256GPU7
4731 Points ∼75% +16%
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
4133 Points ∼66% +2%
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4062 Points ∼65%
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
3345 Points ∼53% -18%
PCMark 8 Home Score Accelerated v2
4062 punten
PCMark 8 Creative Score Accelerated v2
6007 punten
PCMark 8 Work Score Accelerated v2
4307 punten
Help
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
MSI WT72-6QM
Quadro M5000M, E3-1505M v5, Toshiba NVMe THNSN5256GPU7
AS SSD
-11%
-10%
-60%
-19%
Score Total
2630
2302
-12%
2435
-7%
1012
-62%
2433
-7%
Score Write
627
449
-28%
517
-18%
384
-39%
651
4%
Score Read
1341
1248
-7%
1304
-3%
412
-69%
1237
-8%
Access Time Write *
0.026
0.025
4%
0.022
15%
0.056
-115%
0.04
-54%
Access Time Read *
0.047
0.041
13%
0.069
-47%
0.069
-47%
0.092
-96%
4K-64 Write
349.3
230.45
-34%
275
-21%
255.54
-27%
473.5
36%
4K-64 Read
1082
1037.36
-4%
1064
-2%
341.67
-68%
935.3
-14%
4K Write
131.87
148.18
12%
179
36%
82.69
-37%
96.4
-27%
4K Read
48.38
51.1
6%
51
5%
22.61
-53%
37.5
-22%
Seq Write
1458.42
703.32
-52%
626
-57%
458.15
-69%
809.8
-44%
Seq Read
2103.83
1596.24
-24%
1886
-10%
477.84
-77%
2637.8
25%

* ... kleiner is beter

Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Overdrachtssnelheid Minimum: 924.2 MB/s
Overdrachtssnelheid Maximum: 1155.6 MB/s
Overdrachtssnelheid Gemiddeld: 1121.3 MB/s
Toegangstijd:
Pieksnelheid: 203 MB/s
CPU-gebruik: 8.5 %
3DMark 11
1280x720 Performance Combined
MSI WT72-6QM
NVIDIA Quadro M5000M, E3-1505M v5
9356 Points ∼39% +19%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
8654 Points ∼36% +10%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M, 6820HQ
8644 Points ∼36% +10%
Dell Precision 7710
AMD FirePro W7170M, E3-1535M v5
8311 Points ∼34% +5%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, E3-1505M v5
7892 Points ∼33%
1280x720 Performance GPU
MSI WT72-6QM
NVIDIA Quadro M5000M, E3-1505M v5
11820 Points ∼20% +15%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, E3-1505M v5
10259 Points ∼17%
Dell Precision 7710
AMD FirePro W7170M, E3-1535M v5
9708 Points ∼16% -5%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
8313 Points ∼14% -19%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M, 6820HQ
8264 Points ∼14% -19%
3DMark
1920x1080 Fire Strike Graphics
MSI WT72-6QM
NVIDIA Quadro M5000M, E3-1505M v5
9087 Points ∼18% +18%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, E3-1505M v5
7723 Points ∼15%
Dell Precision 7710
AMD FirePro W7170M, E3-1535M v5
6935 Points ∼14% -10%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
6658 Points ∼13% -14%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M, 6820HQ
6415 Points ∼13% -17%
1280x720 Cloud Gate Standard Graphics
MSI WT72-6QM
NVIDIA Quadro M5000M, E3-1505M v5
61789 Points ∼30% +26%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
50666 Points ∼25% +3%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, E3-1505M v5
49204 Points ∼24%
Dell Precision 7710
AMD FirePro W7170M, E3-1535M v5
43124 Points ∼21% -12%
Lenovo ThinkPad P70
NVIDIA Quadro M3000M, 6820HQ
38539 Points ∼19% -22%
1920x1080 Ice Storm Extreme Graphics
MSI WT72-6QM
NVIDIA Quadro M5000M, E3-1505M v5
251633 Points ∼34% +43%
Lenovo ThinkPad P70-20ER000XUS
NVIDIA Quadro M4000M, E3-1505M v5
176003 Points ∼24%
3DMark 11 Performance
9549 punten
3DMark Ice Storm Standard Score
121354 punten
3DMark Cloud Gate Standard Score
21920 punten
3DMark Fire Strike Score
6937 punten
3DMark Fire Strike Extreme Score
3694 punten
Help
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sorteer op waarde)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
85 fps ∼32%
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
69.8 fps ∼26% -18%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
66 fps ∼25% -22%
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
69.7 fps ∼26% -18%
1366x768 High Preset (sorteer op waarde)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
181 fps ∼44%
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
166.7 fps ∼41% -8%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
158 fps ∼39% -13%
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
163.8 fps ∼40% -10%
1366x768 Medium Preset (sorteer op waarde)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
196 fps ∼44%
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
182.7 fps ∼41% -7%
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
178 fps ∼40% -9%
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
176 fps ∼40% -10%
Rise of the Tomb Raider
3840x2160 High Preset AA:FX AF:4x (sorteer op waarde)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
20 fps ∼16%
1920x1080 Very High Preset AA:FX AF:16x (sorteer op waarde)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
48 fps ∼19%
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
33.4 fps ∼13% -30%
1920x1080 High Preset AA:FX AF:4x (sorteer op waarde)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
55 fps ∼20%
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
40.2 fps ∼15% -27%
1366x768 Medium Preset AF:2x (sorteer op waarde)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
90 fps ∼28%
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
69.9 fps ∼21% -22%
lage gem. hoge ultra4K
BioShock Infinite (2013) 196 181 85 fps
Rise of the Tomb Raider (2016) 90 55 48 20 fps

Geluidsniveau

Onbelast
28.8 / 28.8 / 28.8 dB (A)
Belasting
40.5 / 45.7 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   BK Precision 732A (15 cm afstand)   environment noise: 28.8 dB(A)
Lenovo ThinkPad P70-20ER000XUS
Quadro M4000M, E3-1505M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
Dell Precision 7710
FirePro W7170M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
Lenovo ThinkPad P70
Quadro M3000M, 6820HQ, Samsung SSD PM871 MZNLN512HCJH
MSI WT72-6QM
Quadro M5000M, E3-1505M v5, Toshiba NVMe THNSN5256GPU7
Noise
-7%
-4%
1%
-6%
off / environment *
28.8
30
-4%
30
-4%
30
-4%
Idle Minimum *
28.8
30
-4%
30
-4%
30
-4%
33.3
-16%
Idle Average *
28.8
30
-4%
30
-4%
30
-4%
33.4
-16%
Idle Maximum *
28.8
30
-4%
30
-4%
30
-4%
33.5
-16%
Load Average *
40.5
48.9
-21%
43.2
-7%
36.5
10%
38.8
4%
Load Maximum *
45.7
48.9
-7%
47.13
-3%
40.8
11%
40.2
12%

* ... kleiner is beter

Max. Belasting
 45.6 °C47.8 °C52 °C
 38 °C40 °C39.4 °C
 32.6 °C35.6 °C34.6 °C
Maximum: 52 °C
Gemiddelde: 40.6 °C
51 °C47.6 °C45.2 °C
34.8 °C38 °C34.4 °C
29.2 °C32 °C31.2 °C
Maximum: 51 °C
Gemiddelde: 38.2 °C
Stroomadapter (max.)  45.4 °C | Kamertemperatuur 25 °C | Fluke 62 Mini IR Thermometer
(-) The average temperature for the upper side under maximal load is 40.6 °C / 105 F, compared to the average of 31.6 °C / 89 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 52 °C / 126 F, compared to the average of 37.7 °C / 100 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 51 °C / 124 F, compared to the average of 41.1 °C / 106 F
(±) In idle usage, the average temperature for the upper side is 33.9 °C / 93 F, compared to the device average of 31.6 °C / 89 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35.6 °C / 96.1 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-7.8 °C / -14.1 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.836.2253736.63134.233.74034.633.75032.232.86332.732.48032.232.410031.231.812529.732.516030.640.420028.750.525028.557.531527.46140027.15950026.862.963024.565.880023.664.110002361.7125022.861.1160022.562.320002260.5250021.956.4315021.952400021.857.1500021.859.5630021.657800021.649.31000021.540.71250021.535.91600021.530.2SPL35.272.1N2.529.9median 22.8median 57.1Delta2.48.135.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseLenovo ThinkPad P70-20ER000XUSApple MacBook 12 (Early 2016) 1.1 GHz
Lenovo ThinkPad P70-20ER000XUS audio analysis

(±) | speaker loudness is average but good (72.07 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.9% lower than median
(±) | linearity of bass is average (14.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(+) | mids are linear (6.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(±) | linearity of highs is average (14.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.2% difference to median)
Compared to same class
» 86% of all tested devices in this class were better, 5% similar, 8% worse
» The best had a delta of 6%, average was 18%, worst was 31%
Compared to all devices tested
» 76% of all tested devices were better, 6% similar, 19% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 7%, average was 19%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Stroomgebruik
Uit / Standbydarklight 0.34 / 0.61 Watt
Inactiefdarkmidlight 22.8 / 29.7 / 31.1 Watt
Belasting midlight 124.2 / 177.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad P70-20ER000XUS
E3-1505M v5, Quadro M4000M, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), IPS, 3840x2160, 17.30
HP ZBook 17 G3 TZV66eA
E3-1535M v5, Quadro M3000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e, IPS, 1920x1080, 17.30
Dell Precision 7710
E3-1535M v5, FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e, IPS LED, 1920x1080, 17.30
Lenovo ThinkPad P70
6820HQ, Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH, IPS, 3840x2160, 17.30
MSI WT72-6QM
E3-1505M v5, Quadro M5000M, Toshiba NVMe THNSN5256GPU7, IPS, 1920x1080, 17.30
Power Consumption
39%
19%
32%
0%
Idle Minimum *
22.8
6.7
71%
6.04
74%
12.1
47%
24.8
-9%
Idle Average *
29.7
12.5
58%
15.2
49%
19.7
34%
29.7
-0%
Idle Maximum *
31.1
13.2
58%
42.3
-36%
20.5
34%
30.1
3%
Load Average *
124.2
128.2
-3%
112.8
9%
94.3
24%
105.2
15%
Load Maximum *
177.4
158.9
10%
182.2
-3%
139.6
21%
192.2
-8%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
4h 52min
NBC WiFi Websurfing Battery Test 1.3
3h 11min
Belast (maximale helderheid)
0h 52min
Lenovo ThinkPad P70-20ER000XUS
E3-1505M v5, Quadro M4000M, 96 Wh
HP ZBook 17 G3 TZV66eA
E3-1535M v5, Quadro M3000M, 96 Wh
Dell Precision 7710
E3-1535M v5, FirePro W7170M, 72 Wh
Lenovo ThinkPad P70
6820HQ, Quadro M3000M, 96 Wh
MSI WT72-6QM
E3-1505M v5, Quadro M5000M,  Wh
Batterijduur
130%
106%
57%
38%
Reader / Idle
292
956
227%
775
165%
464
59%
413
41%
WiFi v1.3
191
290
52%
365
91%
361
89%
245
28%
Load
52
110
112%
85
63%
64
23%
76
46%

Pro

+ grote rekenprestaties van zowel de CPU als de GPU
+ krachtige werkstation prestaties
+ extreem snelle opslag
+ solide bouwkwaliteit
+ ECC geheugen voor grotere stabiliteit
+ stil bij lage belasting

Contra

- hoge temperaturen bij geen belasting
- hoog stroomverbruik bij geen belasting
- zwakke batterijlevensduur
- slechte luidsprekers
- vreemde stresstest resultaten waarbij GPU prestaties duikelen tijdens CPU belasting
- wederom lage PWM frequentie op alle helderheidsniveaus lager dan maximaal
The Lenovo P70-20ER000XUS
The Lenovo P70-20ER000XUS

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Er zijn veel variabelen die een werkstation goed maken, maar in de basis zijn de belangrijkste criteria algemene stabiliteit, CPU/GPU-prestaties en prestaties van het opslagsysteem. De Lenovo P70-20ER000XUS onthult zichzelf als meer dan capabel in al deze categorieën. De stevige $3.849 prijskaart wordt gerechtvaardigd met de sterke benchmarkresultaten en stabiele werking. Vergeleken met de vorige P70 configuratie die we enkele maanden geleden testten, verbeterd deze de opslagprestaties met een nieuwe NVMe SSD, een krachtiger (en meer stroomverbruikende) nVidia Quadro M4000M GPU, en een ietwat laterale upgrade naar een Xeon CPU. Met deze laatste upgrade is het mogelijk geworden om ECC RAM te gebruiken (waarvan 16 GB voorgeïnstalleerd is) voor verbeterde stabiliteit.

Is deze configuratie het overwegen waard wanneer ook naar de concurrentie gekeken wordt? Samengevat, ja - mits de unieke voordelen (en de benoemde nadelen) passen bij de specifieke eisen van de koper. Werkstations, vaak aangeprezen als apparaten zonder compromissen, zijn dat zeker niet: beter is te stellen dat er geen compromissen gesloten worden met betrekking op de prestaties - maar op andere gebieden zijn er altijd afwegingen. Als de M4000M het werk aankan, ECC RAM een aantrekkelijke eigenschap is en batterijlevensduur minder belangrijk is, dan is de P70 een excellente kandidaat met een bijbehorende prijs.

Lenovo ThinkPad P70-20ER000XUS - 17-10-2016 v5.1(old)
Steve Schardein

Behuizing
87 / 98 → 89%
Toetsenbord
94%
Aanwijsapparaat
89%
Aansluitmogelijkheden
78 / 81 → 96%
Gewicht
52 / 10-66 → 75%
Batterij
70%
Beeldscherm
88%
Gaming-performance
92%
Applicatie-performance
93%
Temperatuur
83 / 95 → 87%
Luidheid
87 / 90 → 97%
Audio
30%
Camera
71 / 85 → 84%
Gemiddelde
79%
89%
Workstation - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Lenovo ThinkPad P70-20ER000XUS Workstation
Steve Schardein, 2016-10-15 (Update: 2020-06- 8)
Steve Schardein
Editor of the original article: Steve Schardein - Review Editor - @othersteve - 98 articles published on Notebookcheck since 2012
contact me via: @othersteve, LinkedIn
