Kort testrapport Intel Frost Canyon NUC met Comet Lake i5 SoC

Kleine zakelijke PC! Intel's nieuwste NUC-serie is klein maar krachtig. Het beschikt over gloednieuwe, krachtiger hardware in de welbekende behuizing. Lees in ons testrapport wat de consequenties zijn van deze upgrades en wat de nieuwe Comet Lake SoC te bieden heeft.
Sebastian Bade, Andrea Grüblinger,
Intel NUC10i5FNK
Processor
Intel Core i5-10210U 4 x 1.6 - 4.2 GHz, Comet Lake-U
Grafische kaart
Intel UHD Graphics 620, 26.20.100.7262 DCH
Geheugen
8192 MB

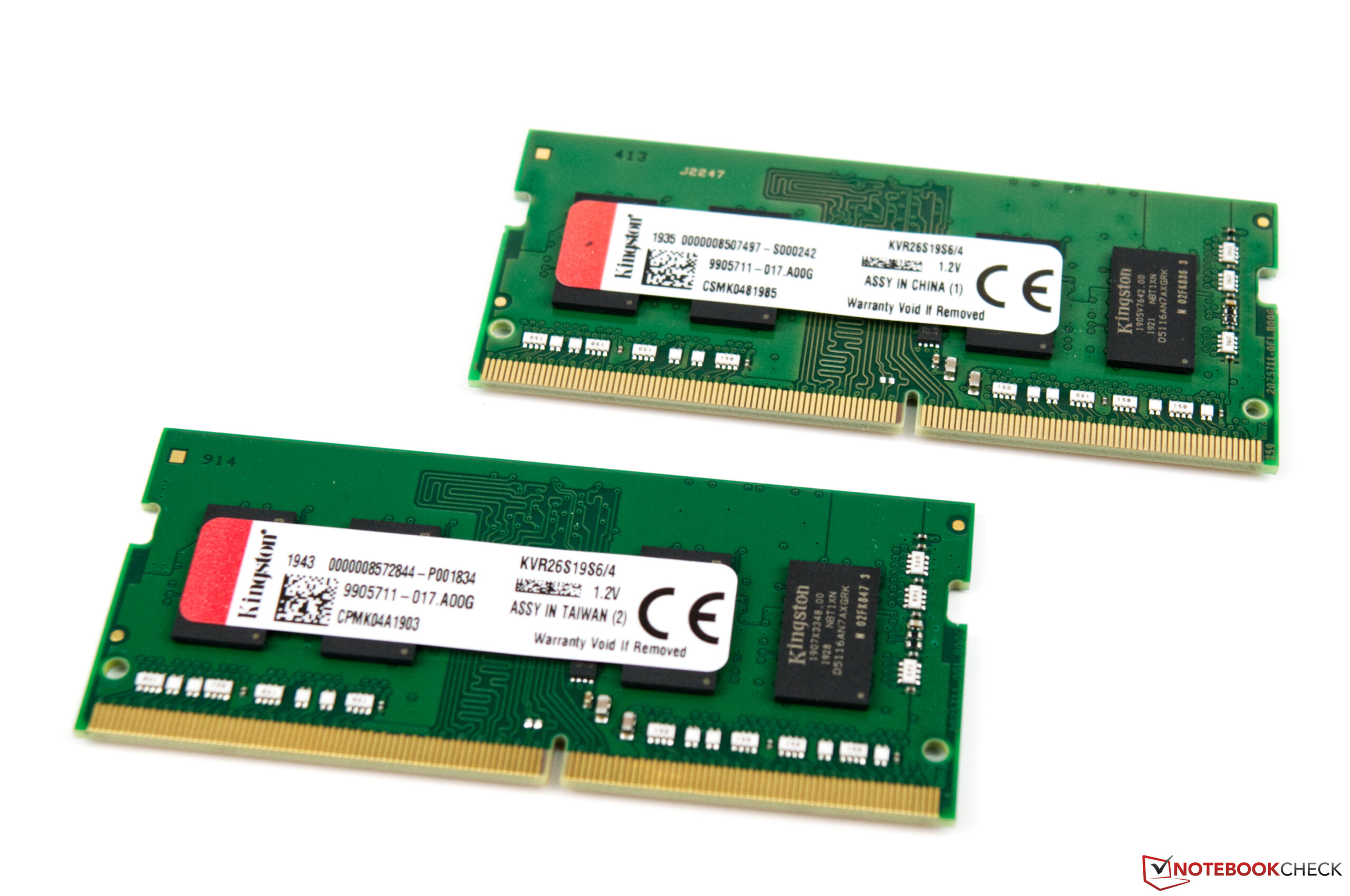

, DDR4-2666, dual-cannel, 2 van 2 bezet, max. 64 GB
Moederbord
Intel Comet Lake-U PCH-LP Premium
Opslag

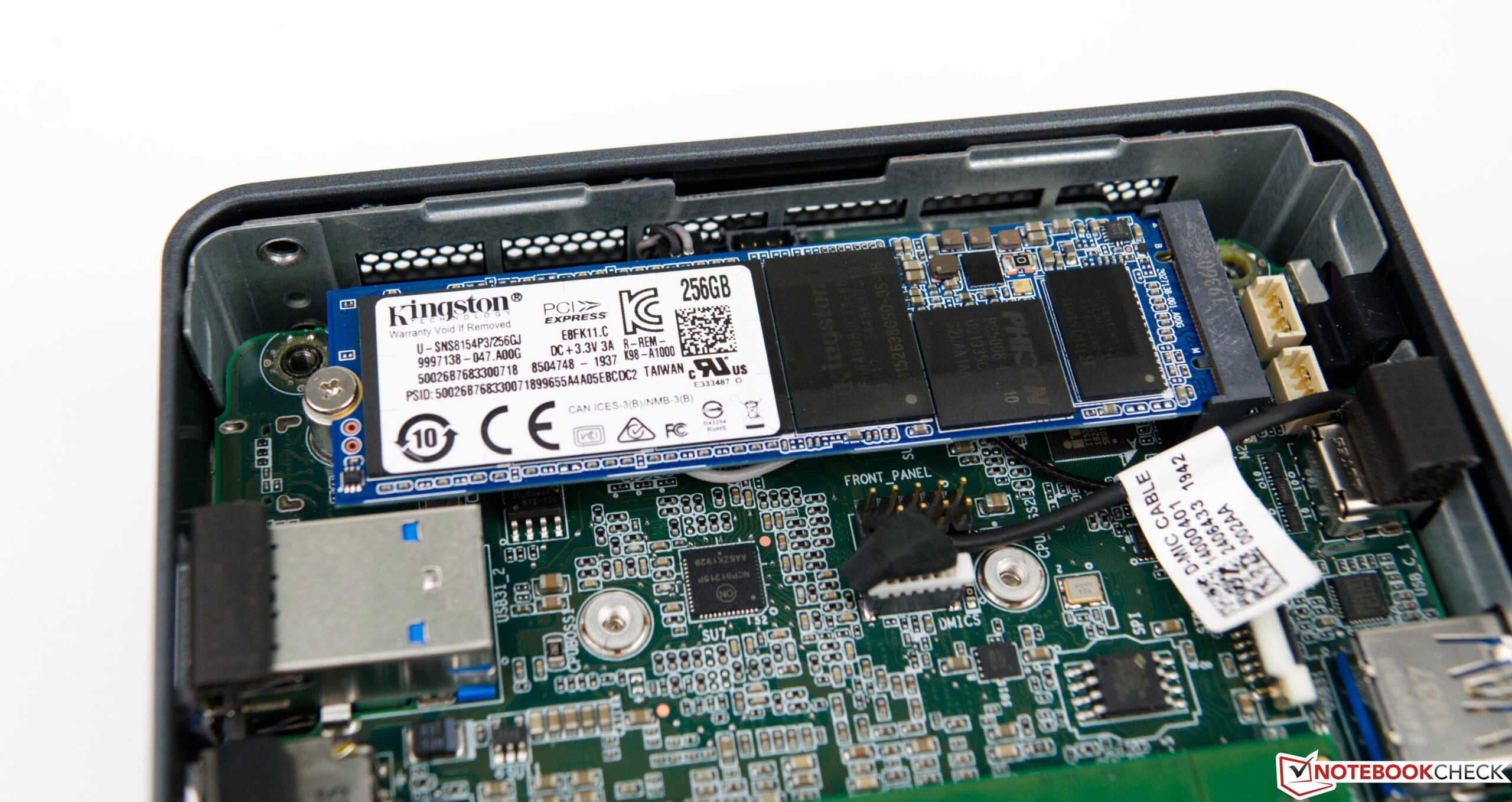

Kingston RBUSNS8154P3256GJ1, 256 GB
, 200 GB beschikbaar
Geluidskaart
Realtek Audio
Verbindingen
4 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5-mm koptelefoon jack, Card Reader: SD
Netwerkmogelijkheden
Intel Ethernet Connection I219-V (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5
Afmetingen
hoogte x breedte x diepte (in mm): 36 x 117 x 112
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Bijkomende functionaliteiten
36 Maanden Garantie
Gewicht
493 g, Voeding: 315 g
Prijs
749 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

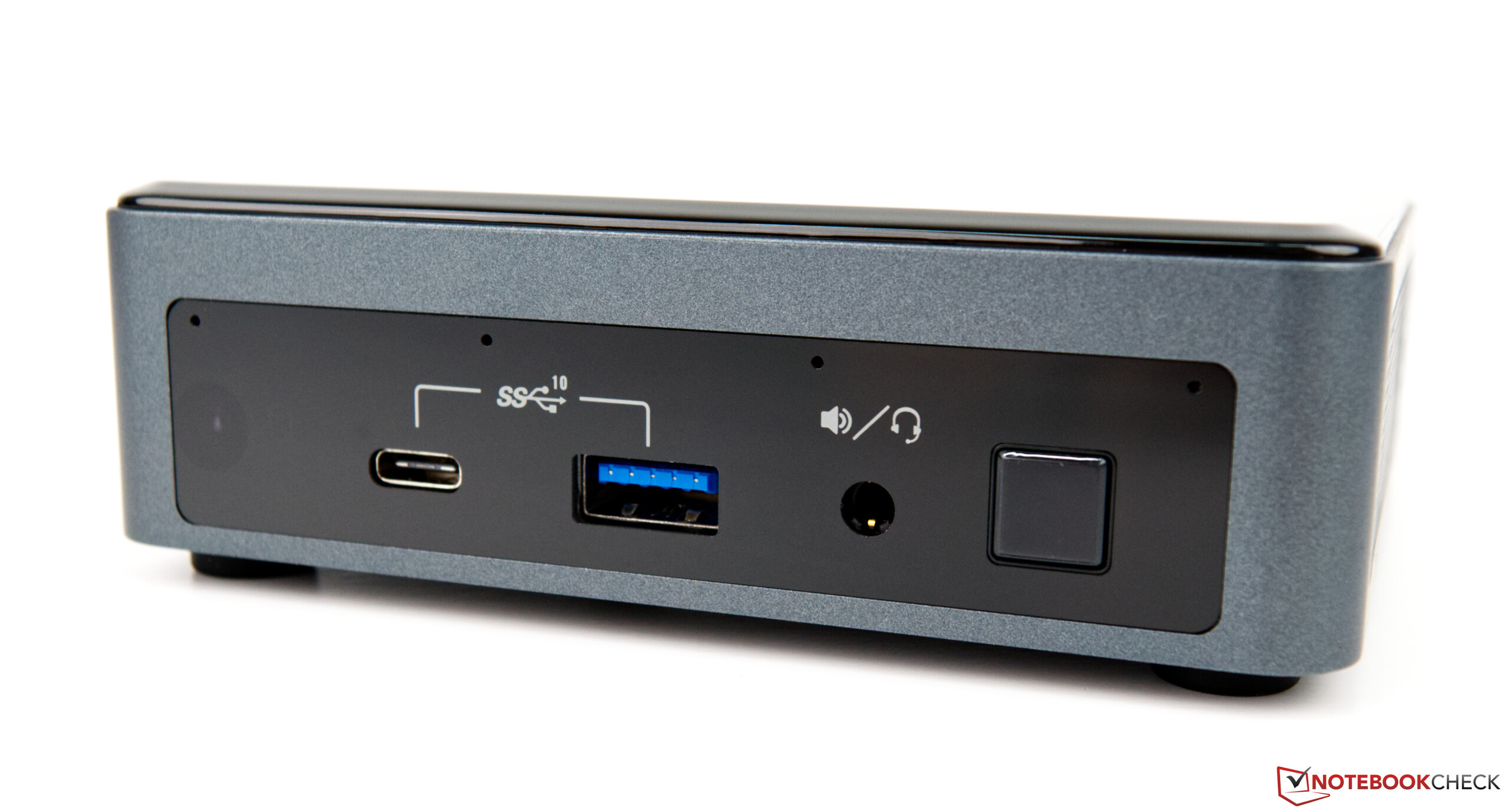

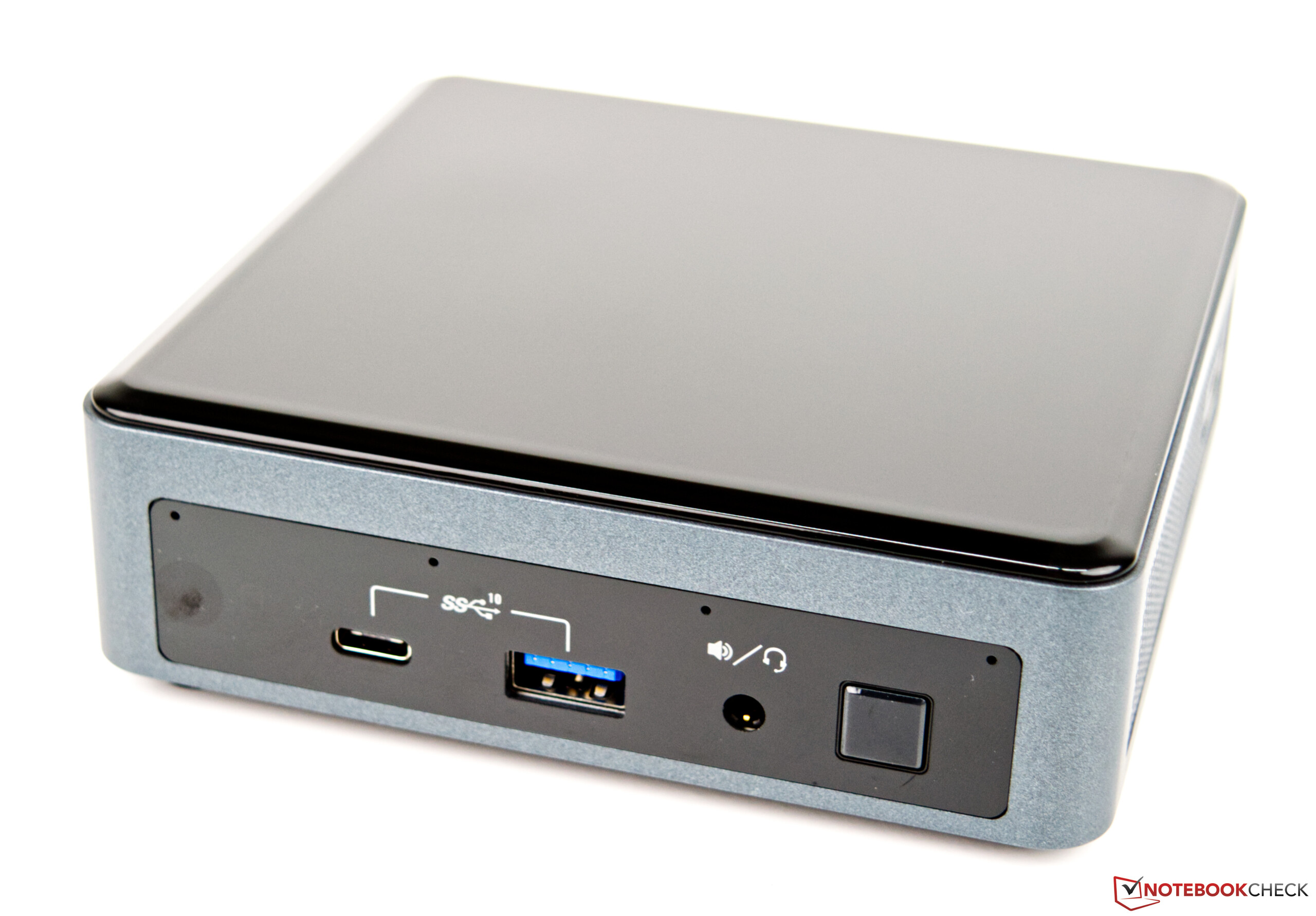

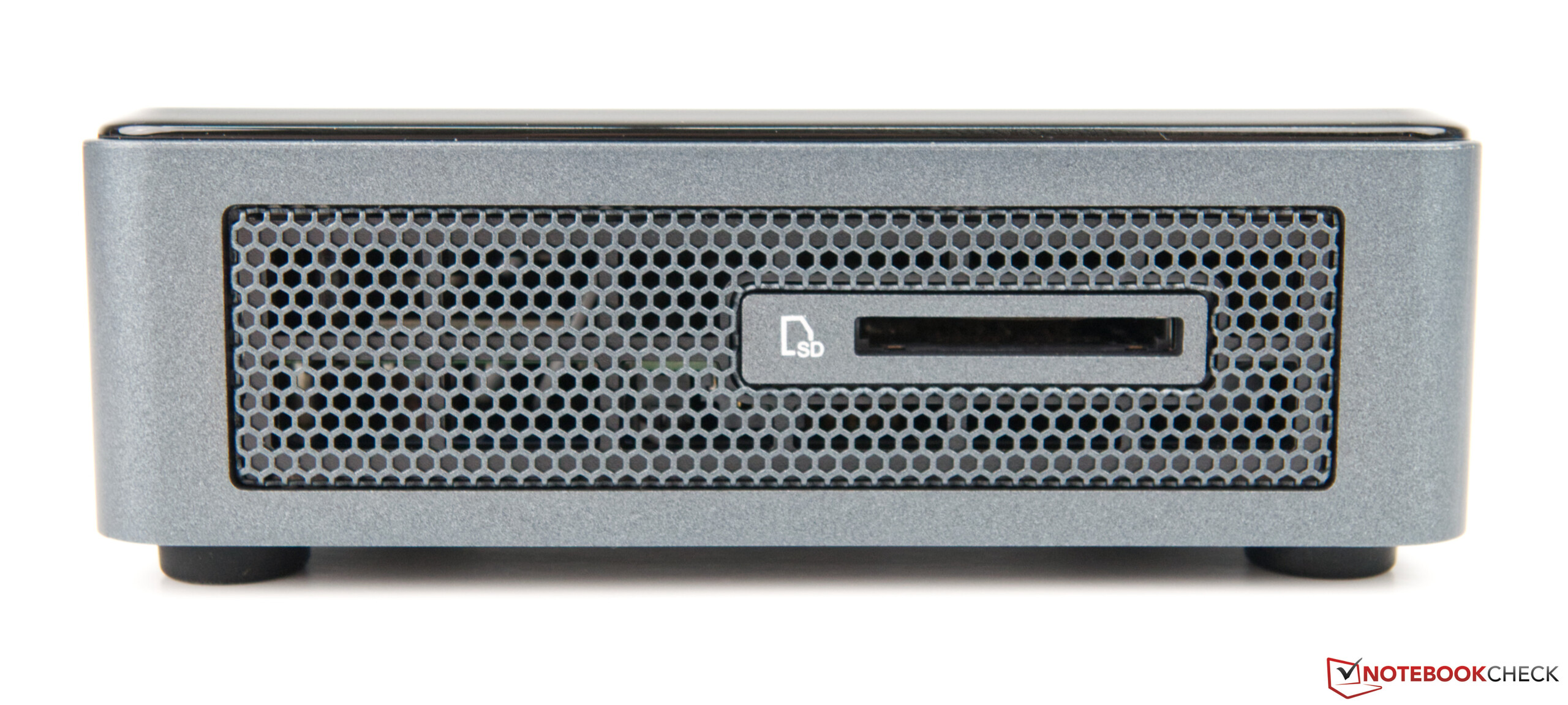

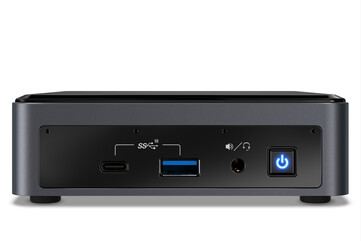

Intel NUC (NUC10i5FNKPA) front (source: Intel)
Front (source: Intel)

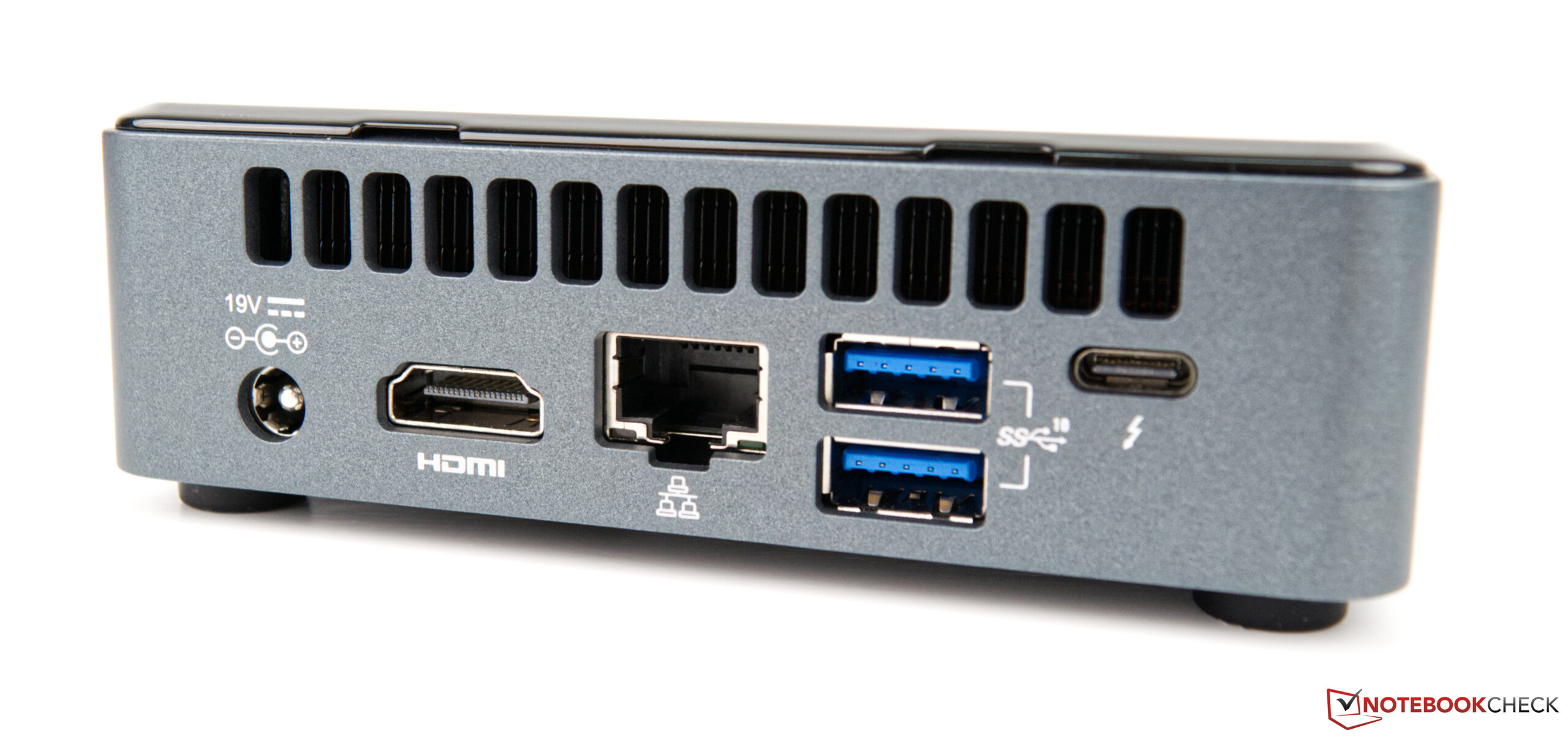

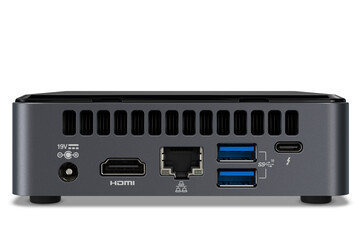

Intel NUC (NUC10i5FNKPA) rear (source: Intel)
Rear (source: Intel)
Intel NUC (NUC10i5FNKPA) (source: Intel)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)

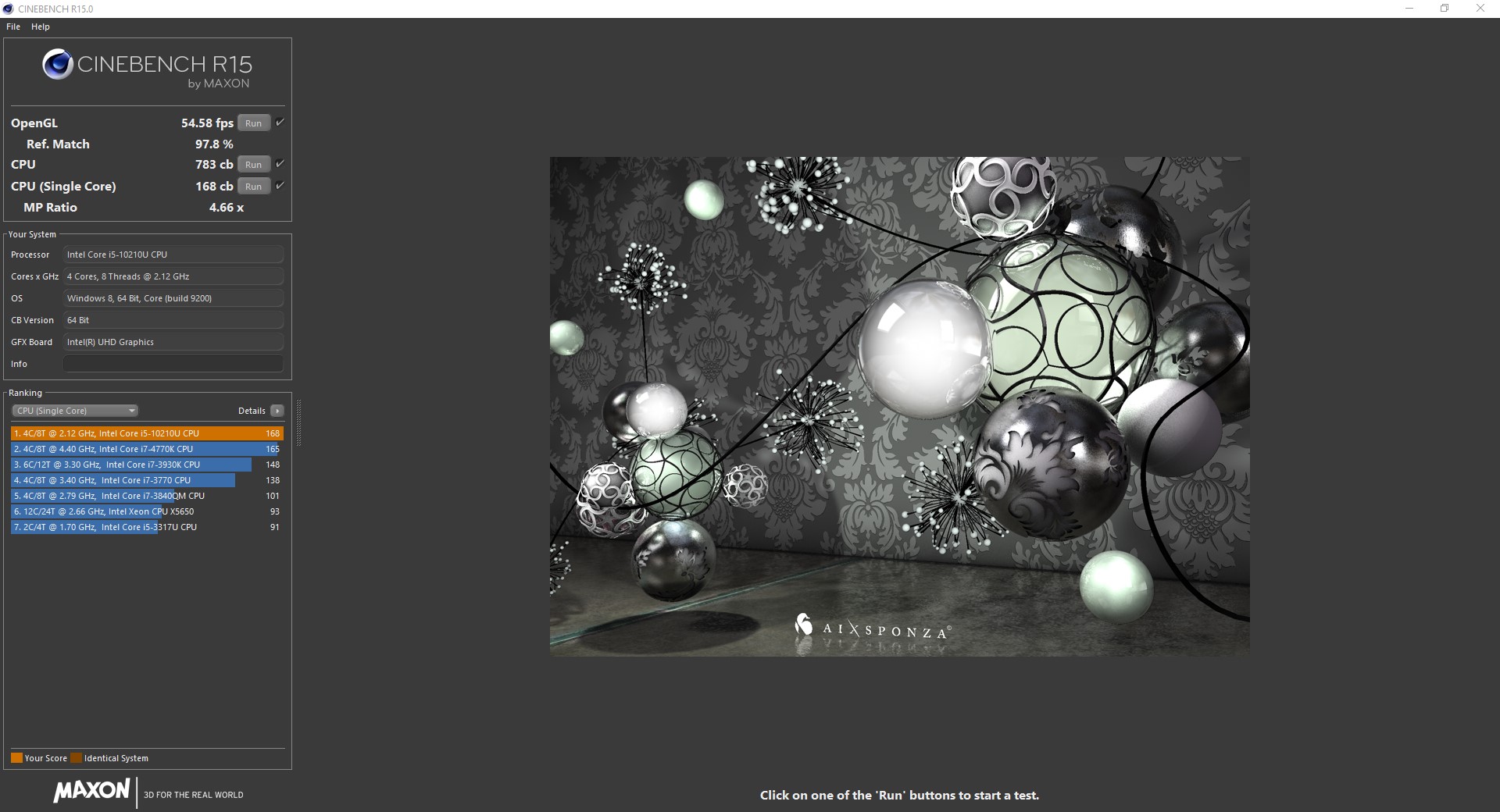

Cinebench R15
CPU Single 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
194 Points ∼100% +15%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
168 Points ∼87%
Average Intel Core i5-10210U
  (154 - 174, n=28)
167 Points ∼86% -1%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
165 Points ∼85% -2%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
117 Points ∼60% -30%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
108 Points ∼56% -36%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
84 Points ∼43% -50%
CPU Multi 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
1067 Points ∼100% +35%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
790 Points ∼74%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
687 Points ∼64% -13%
Average Intel Core i5-10210U
  (478 - 790, n=28)
616 Points ∼58% -22%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
298 Points ∼28% -62%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
261 Points ∼24% -67%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
220 Points ∼21% -72%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
211 (209.9min - 211.39max) Points ∼20% -73%

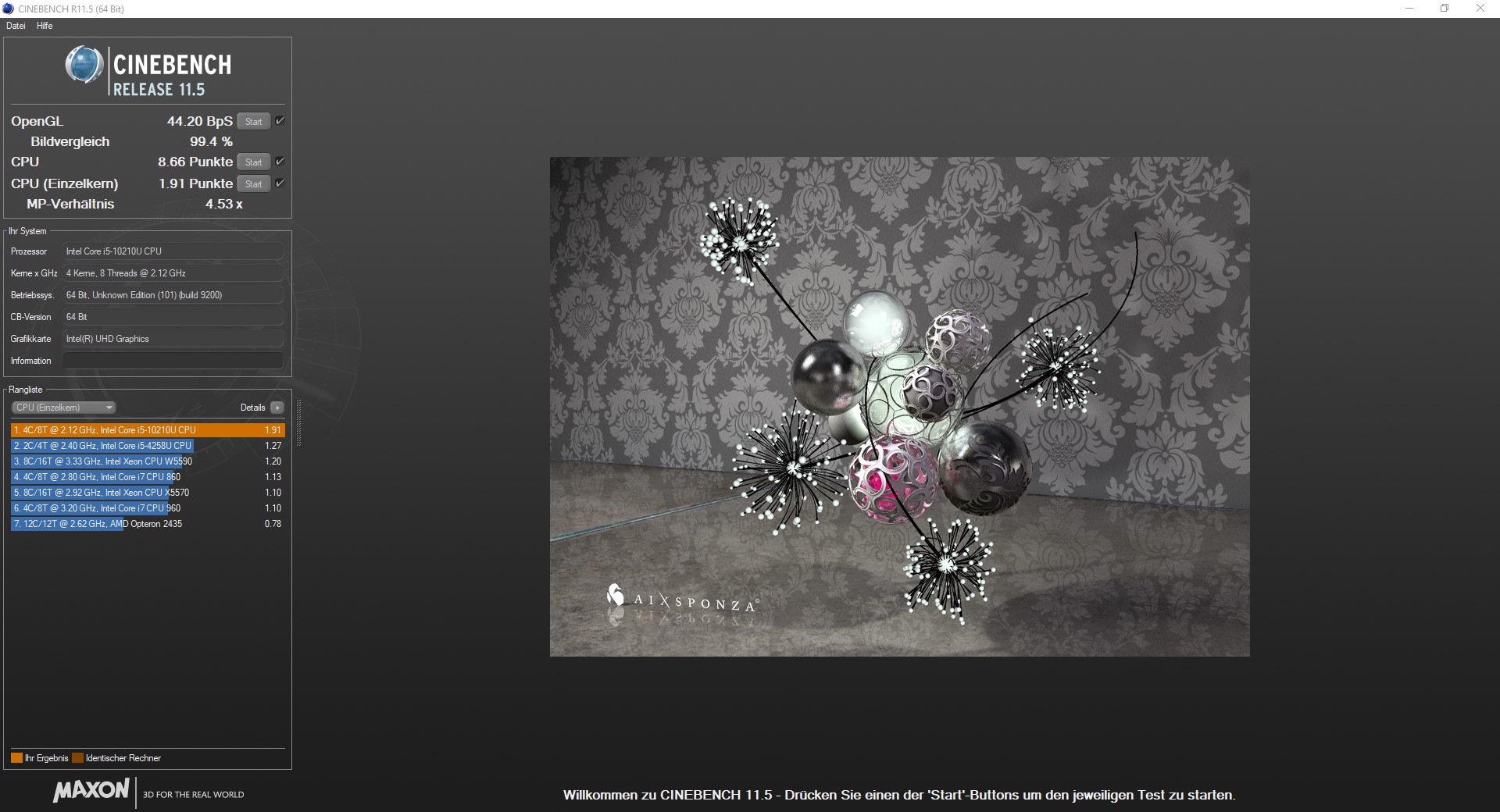

Cinebench R11.5
CPU Single 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
2.19 Points ∼100% +15%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1.91 Points ∼87%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
1.88 Points ∼86% -2%
Average Intel Core i5-10210U
  (1.71 - 1.91, n=4)
1.85 Points ∼84% -3%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
1.33 Points ∼61% -30%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1.28 Points ∼58% -33%
CPU Multi 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
10.89 Points ∼100% +26%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
8.66 Points ∼80%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
7.55 Points ∼69% -13%
Average Intel Core i5-10210U
  (5.69 - 8.66, n=4)
7.34 Points ∼67% -15%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
3.26 Points ∼30% -62%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
2.86 Points ∼26% -67%
Blender 2.79 - BMW27 CPU
Average Intel Core i5-10210U
  (585 - 1004, n=17)
822 Seconds * ∼100% -41%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
676.2 Seconds * ∼82% -16%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
584.9 Seconds * ∼71%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
468.3 Seconds * ∼57% +20%
wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
731.5 s * ∼100% -236%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
620 s * ∼85% -185%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
558 s * ∼76% -156%
Average Intel Core i5-10210U

218 s * ∼30% -0%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
217.837 s * ∼30%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
177.37 s * ∼24% +19%
32m
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
23.1 s * ∼100% -241%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
19.5 s * ∼84% -188%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
18 s * ∼78% -165%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
6.78 s * ∼29%
Average Intel Core i5-10210U

6.78 s * ∼29% -0%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
5.103 s * ∼22% +25%
X264 HD Benchmark 4.0
Pass 2
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
60.55 (60.4min - 73.5max) fps ∼100% +23%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
49.35 (49.1min - 51.6max) fps ∼82%
Average Intel Core i5-10210U
  (33.4 - 49.4, n=3)
42.2 fps ∼70% -14%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
19.3 fps ∼32% -61%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
16.46 fps ∼27% -67%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
13.75 fps ∼23% -72%
Pass 1
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
206 (204min - 208max) fps ∼100% +12%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
184.5 (184min - 186max) fps ∼90%
Average Intel Core i5-10210U
  (149 - 185, n=3)
168 fps ∼82% -9%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
105 fps ∼51% -43%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
88.46 fps ∼43% -52%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
74 fps ∼36% -60%
TrueCrypt
Serpent Mean 100MB
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
0.57 GB/s ∼100% +19%
Average Intel Core i5-10210U
  (0.48 - 0.491, n=2)
0.4855 GB/s ∼85% +1%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
0.48 GB/s ∼84%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
0.166 GB/s ∼29% -65%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
0.142 GB/s ∼25% -70%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
0.133 GB/s ∼23% -72%
Twofish Mean 100MB
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
1 GB/s ∼100% +27%
Average Intel Core i5-10210U
  (0.79 - 0.802, n=2)
0.796 GB/s ∼80% +1%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
0.79 GB/s ∼79%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
0.283 GB/s ∼28% -64%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
0.245 GB/s ∼25% -69%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
0.199 GB/s ∼20% -75%
AES Mean 100MB
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4.7 GB/s ∼100%
Average Intel Core i5-10210U
  (4.6 - 4.7, n=2)
4.65 GB/s ∼99% -1%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4.6 GB/s ∼98% -2%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
1.7 GB/s ∼36% -64%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1.5 GB/s ∼32% -68%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
1.3 GB/s ∼28% -72%
Geekbench 4.4
64 Bit Multi-Core Score
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
22969 Points ∼100% +65%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
16172 Points ∼70% +16%
Average Intel Core i5-10210U
  (12471 - 16818, n=10)
14619 Points ∼64% +5%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
13949 Points ∼61%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
5066 Points ∼22% -64%
64 Bit Single-Core Score
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
5271 Points ∼100% +43%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
4871 Points ∼92% +32%
Average Intel Core i5-10210U
  (3680 - 5077, n=10)
4615 Points ∼88% +25%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
3680 Points ∼70%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
2613 Points ∼50% -29%

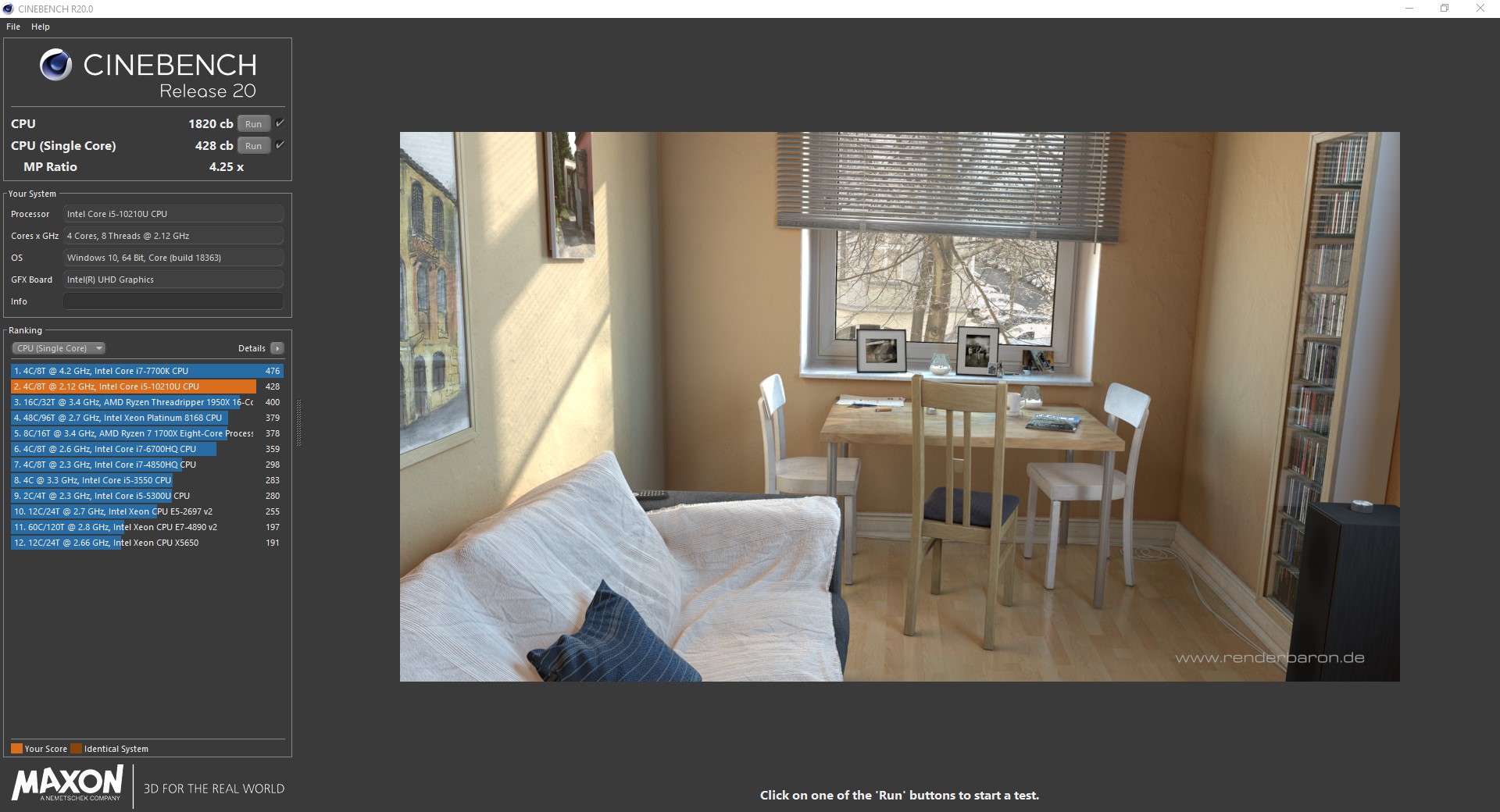

Cinebench R20
CPU (Single Core)
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
480 Points ∼100% +12%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
428 Points ∼89%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
418 Points ∼87% -2%
Average Intel Core i5-10210U
  (351 - 428, n=23)
413 Points ∼86% -4%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
200 Points ∼42% -53%
CPU (Multi Core)
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
2303 Points ∼100% +27%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1820 Points ∼79%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
1581 Points ∼69% -13%
Average Intel Core i5-10210U
  (1105 - 1820, n=23)
1310 Points ∼57% -28%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
491 Points ∼21% -73%
HWBOT x265 Benchmark v2.2 - 4k Preset
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
7.95 fps ∼100% +27%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
6.28 fps ∼79%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
5.16 fps ∼65% -18%
Average Intel Core i5-10210U
  (3.35 - 6.28, n=17)
4.41 fps ∼55% -30%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
0 fps ∼0% -100%

* ... kleiner is beter

Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070Tooltip
Intel NUC10i5FNK Intel Core i5-10210U, Intel Core i5-10210U: Ø755 (749.68-790.62)
Intel NUC10i7FNH Intel Core i7-10710U, Intel Core i7-10710U: Ø946 (834.01-1067.02)
PCMark 10
Productivity
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
6876 Points ∼100% +6%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
6874 Points ∼100% +6%
Average Intel Core i5-10210U
  (6099 - 7332, n=26)
6757 Points ∼98% +4%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
6494 Points ∼94%
Average Intel Core i5-8265U
  (2941 - 6755, n=36)
6114 Points ∼89% -6%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
4084 Points ∼59% -37%
Score
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4418 Points ∼100% +10%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
4248 Points ∼96% +6%
Average Intel Core i5-10210U
  (3752 - 4742, n=26)
4083 Points ∼92% +2%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4019 Points ∼91%
Average Intel Core i5-8265U
  (2247 - 4192, n=36)
3744 Points ∼85% -7%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
2391 Points ∼54% -41%
PCMark 8
Storage Score v2
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
5088 Points ∼100% +20%
Average Intel Core i5-8265U
  (4832 - 4999, n=4)
4923 Points ∼97% +16%
Average Intel Core i5-10210U
  (4233 - 5088, n=4)
4809 Points ∼95% +14%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4729 Points ∼93% +12%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4233 Points ∼83%
Work Score Accelerated v2
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
5102 Points ∼100% +19%
Average Intel Core i5-10210U
  (4286 - 5114, n=20)
4898 Points ∼96% +14%
Average Intel Core i5-8265U
  (3132 - 5223, n=29)
4723 Points ∼93% +10%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4631 Points ∼91% +8%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
4588 Points ∼90% +7%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4286 Points ∼84%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
4046 Points ∼79% -6%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
3732 Points ∼73% -13%
Creative Score Accelerated v2
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
5312 Points ∼100% +6%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
5005 Points ∼94%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4853 Points ∼91% -3%
Average Intel Core i5-10210U
  (3462 - 5440, n=8)
4592 Points ∼86% -8%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
4395 Points ∼83% -12%
Average Intel Core i5-8265U
  (3473 - 5959, n=12)
4373 Points ∼82% -13%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
3594 Points ∼68% -28%
Home Score Accelerated v2
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
4227 Points ∼100% +20%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
3938 Points ∼93% +12%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
3667 Points ∼87% +4%
Average Intel Core i5-10210U
  (3182 - 4284, n=20)
3628 Points ∼86% +3%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
3526 Points ∼83%
Average Intel Core i5-8265U
  (2747 - 4244, n=30)
3505 Points ∼83% -1%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
3062 Points ∼72% -13%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
2901 Points ∼69% -18%

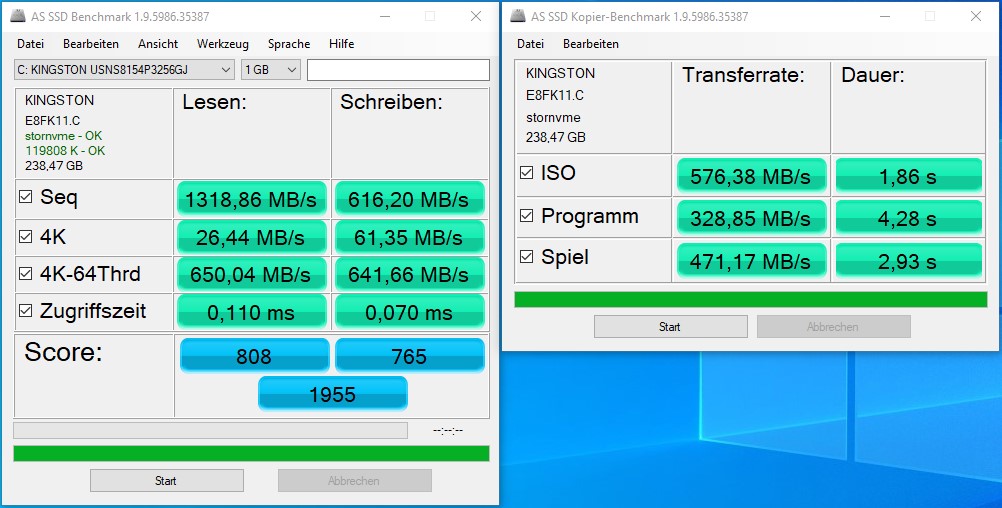

AS SSD
AS SSD

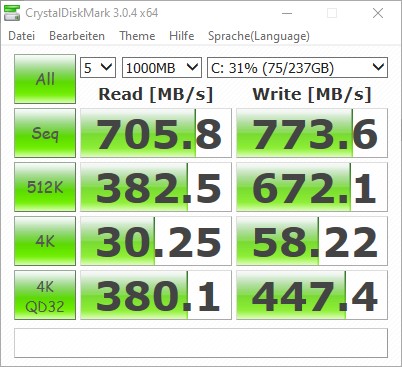

CrystalDiskMark 3
CrystalDiskMark 3

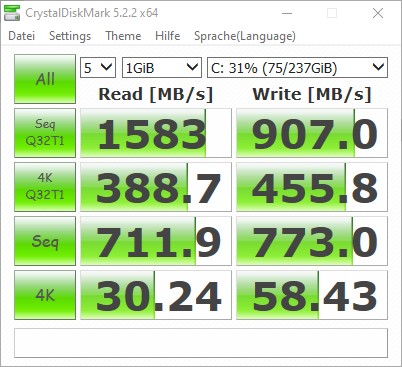

CrystalDiskMark 5
CrystalDiskMark 5

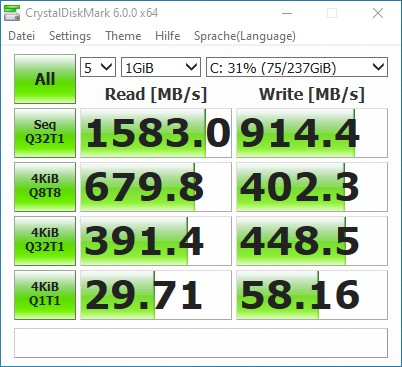

CrystalDiskMark 6
CrystalDiskMark 6
Kingston RBUSNS8154P3256GJ1
Sequential Read: 705.8 MB/s
Sequential Write: 773.6 MB/s
512K Read: 382.5 MB/s
512K Write: 672.1 MB/s
4K Read: 30.25 MB/s
4K Write: 58.22 MB/s
4K QD32 Read: 380.1 MB/s
4K QD32 Write: 447.4 MB/s
3DMark 11 - 1280x720 Performance GPU
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
2322 Points ∼100% +25%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
1983 Points ∼85% +7%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
1914 Points ∼82% +3%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1853 Points ∼80%
Average Intel UHD Graphics 620
  (1235 - 2006, n=225)
1743 Points ∼75% -6%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1458 Points ∼63% -21%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
1175 Points ∼51% -37%
3DMark
1920x1080 Fire Strike Graphics
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
1479 Points ∼100% +23%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
1418 Points ∼96% +18%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
1309 Points ∼89% +9%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1202 Points ∼81%
Average Intel UHD Graphics 620
  (557 - 1418, n=195)
1152 Points ∼78% -4%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1033 Points ∼70% -14%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
770 Points ∼52% -36%
1920x1080 Ice Storm Extreme Graphics
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
48446 Points ∼100% +20%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
47803 Points ∼99% +18%
Average Intel UHD Graphics 620
  (29002 - 59483, n=65)
43433 Points ∼90% +7%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
40670 Points ∼84% 0%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
40532 Points ∼84%
1280x720 Ice Storm Standard Graphics
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
79747 Points ∼100% +37%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
76488 Points ∼96% +31%
Average Intel UHD Graphics 620
  (13790 - 102010, n=60)
68581 Points ∼86% +18%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
61979 Points ∼78% +6%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
58199 Points ∼73%
3DMark 11 Performance
2064 punten
3DMark Ice Storm Standard Score
56938 punten
3DMark Cloud Gate Standard Score
8987 punten
3DMark Fire Strike Score
1113 punten
3DMark Fire Strike Extreme Score
526 punten
3DMark Time Spy Score
456 punten
Help
lage gem. hoge ultra4K
Dota 2 Reborn (2015) 78.8 48.9 20.4 18.1 6.6 fps
X-Plane 11.11 (2018) 10.7 8.95 8.77 6.03 fps
Ghost Recon Breakpoint (2019) 11 5 fps
Star Wars Jedi Fallen Order (2019) 6.55 fps

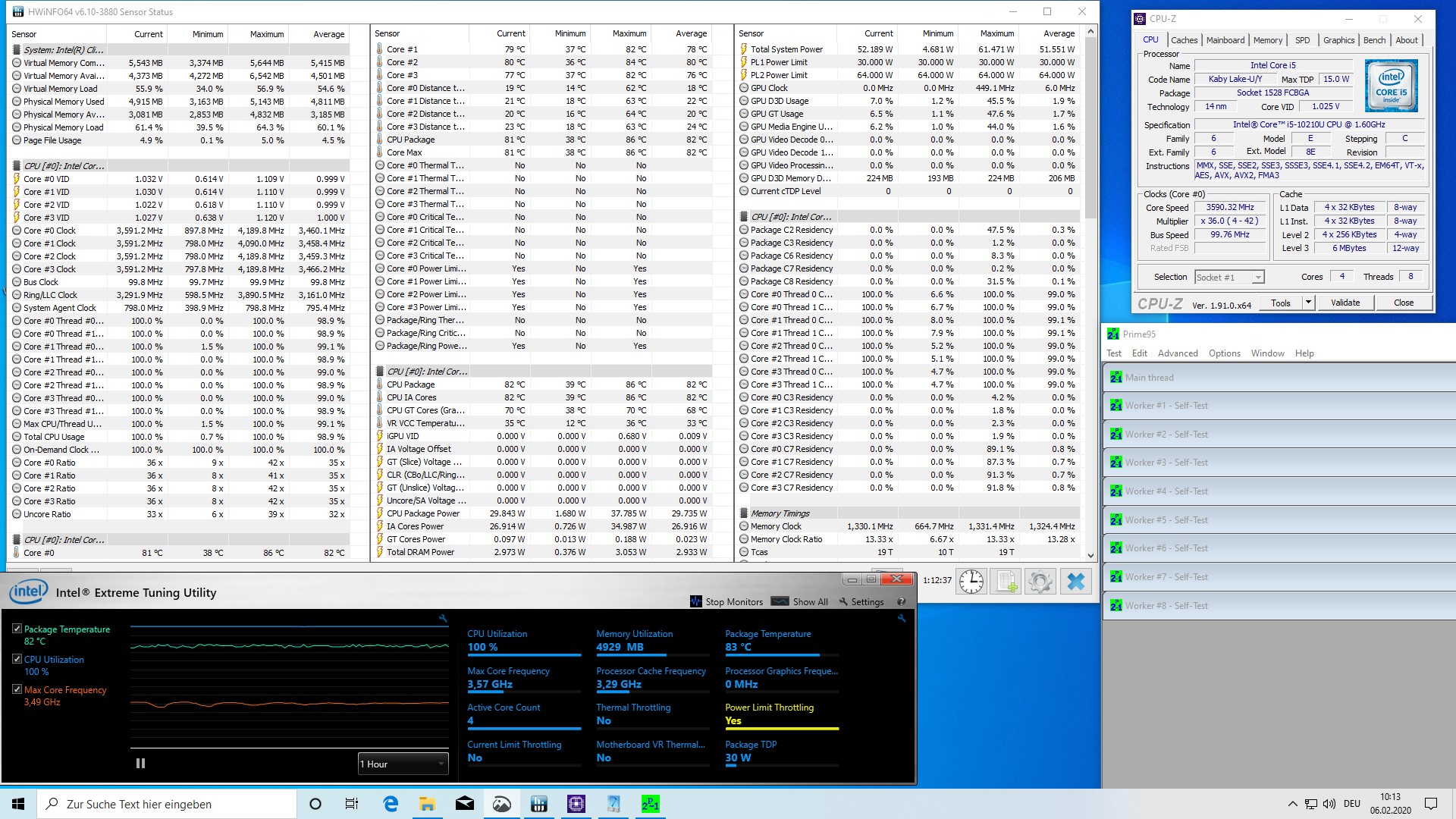

Stress test: Prime95 solo
Stress test: Prime95 solo

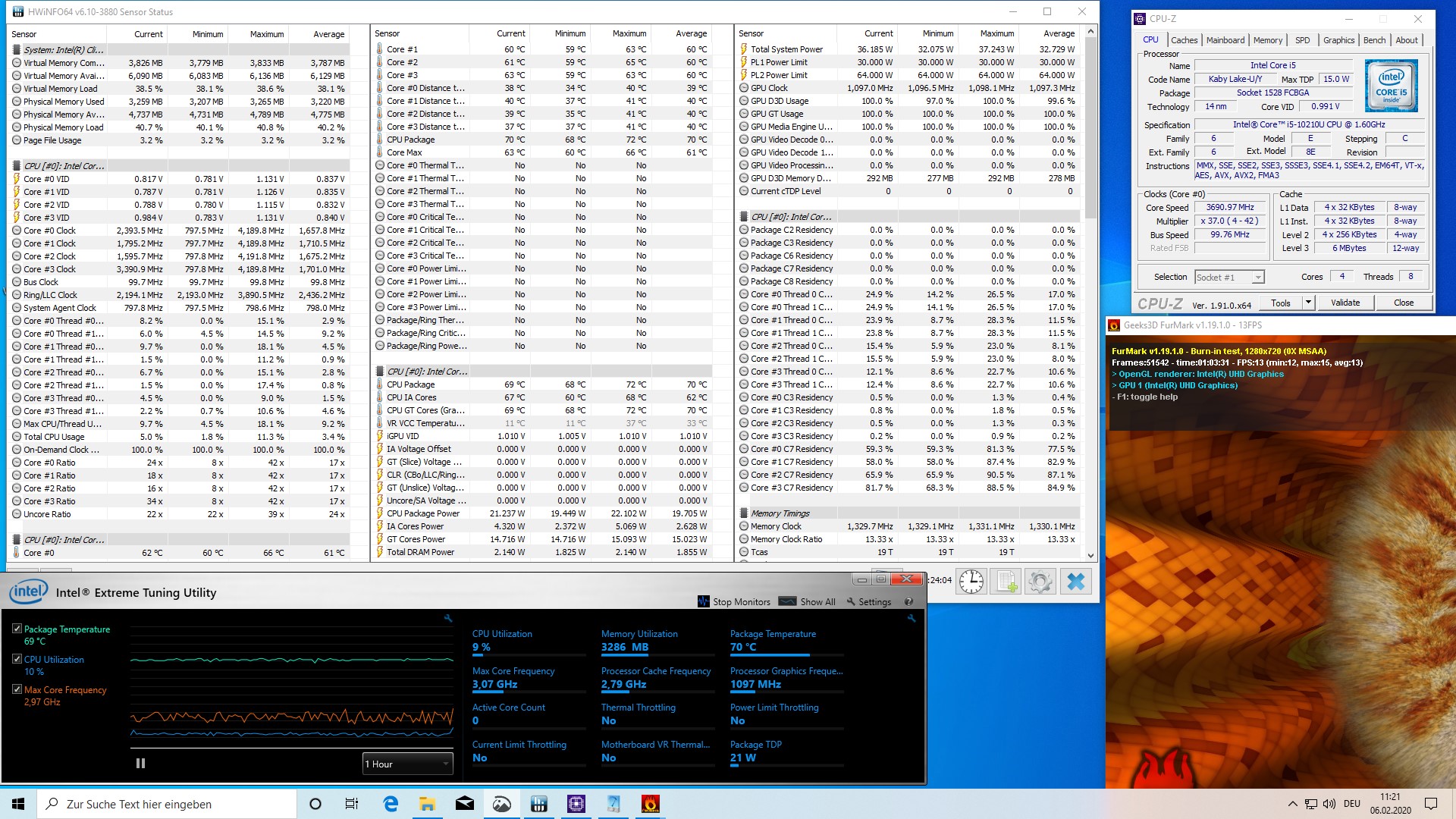

Stress test: FurMark solo
Stress test: FurMark solo

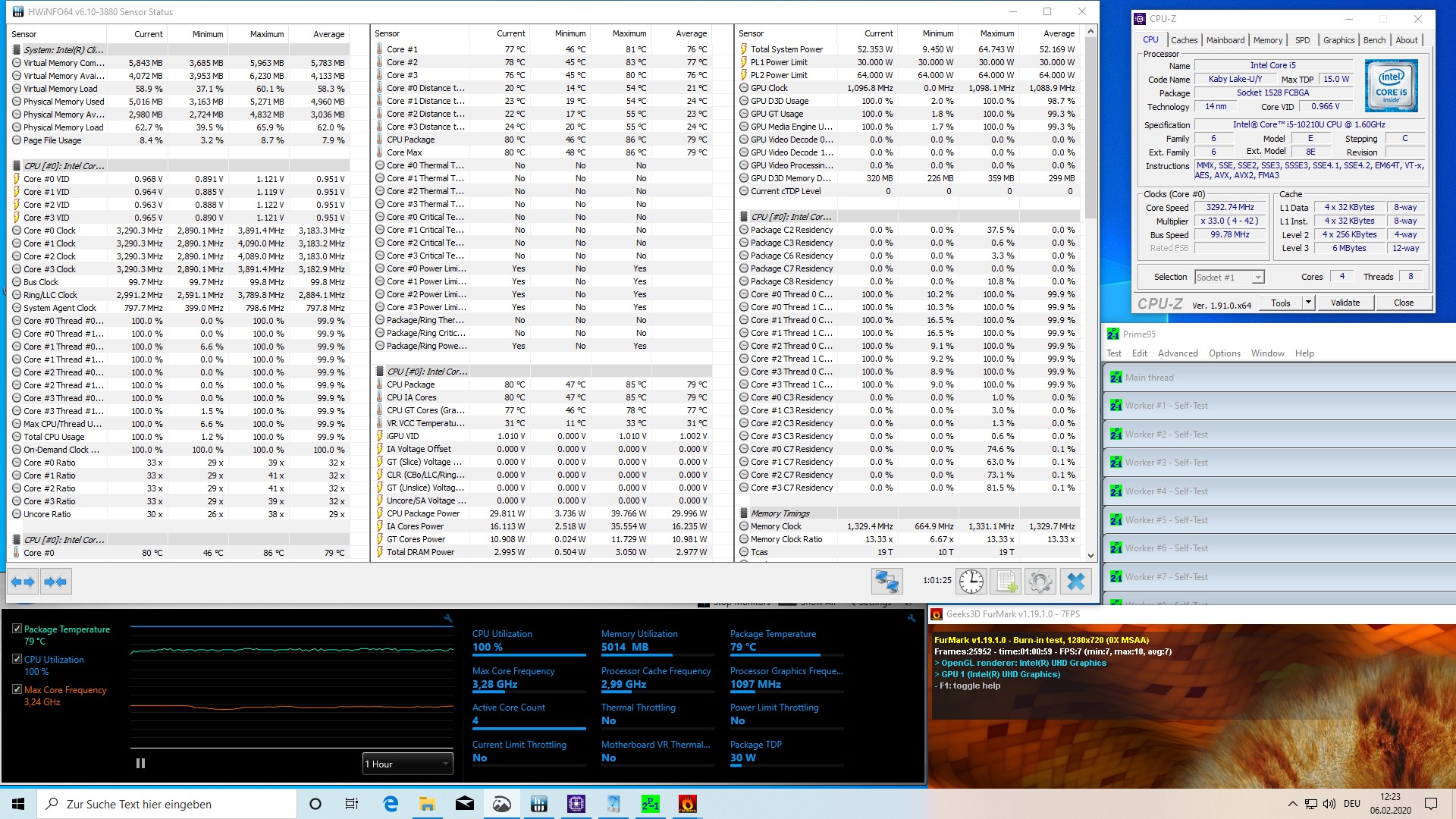

Stress test: FurMark+Prime95
Stress test: FurMark+Prime95

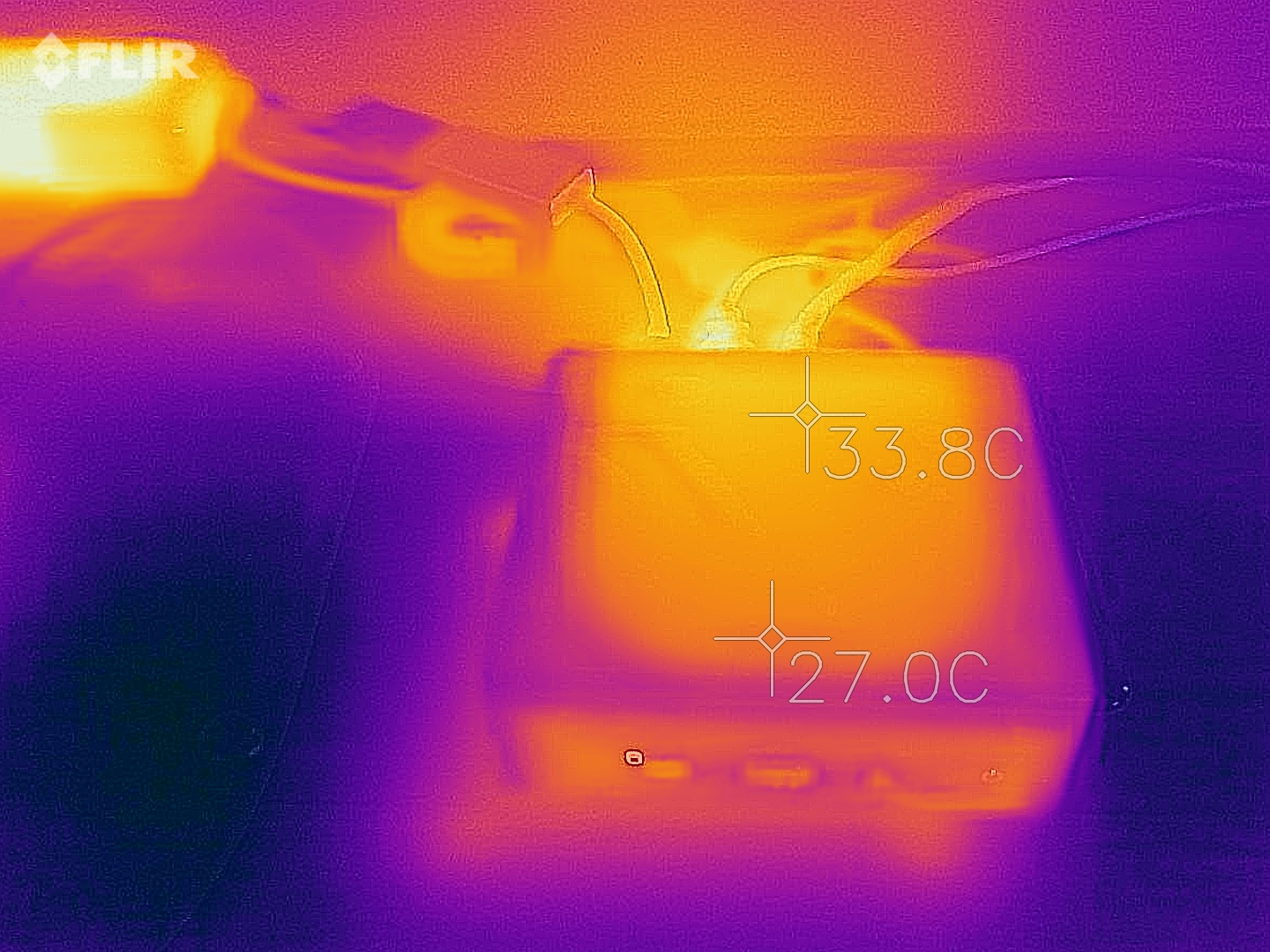

Heatmap top (load)
Heatmap top (load)
Heatmap rear (load)
Heatmap rear (load)
Heatmap power supply (load)
Heatmap power supply (load)
Stroomgebruik
Uit / Standbydarklight 0.69 / Watt
Inactiefdarkmidlight / 15.7 / Watt
Belasting midlight / 58.6 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy

Pro

+ robuuste behuizing
+ energiebesparend ontwerp
+ laag stroomverbruik
+ fatsoenlijke systeemprestaties
+ Wi-Fi 6 en Bluetooth 5
+ USB Type-C met Thunderbolt 3
+ 36 maanden garantie
+ SD-kaartlezer

Contra

- hinderlijk ventilator geluid
- relatief duur in de geteste configuratie

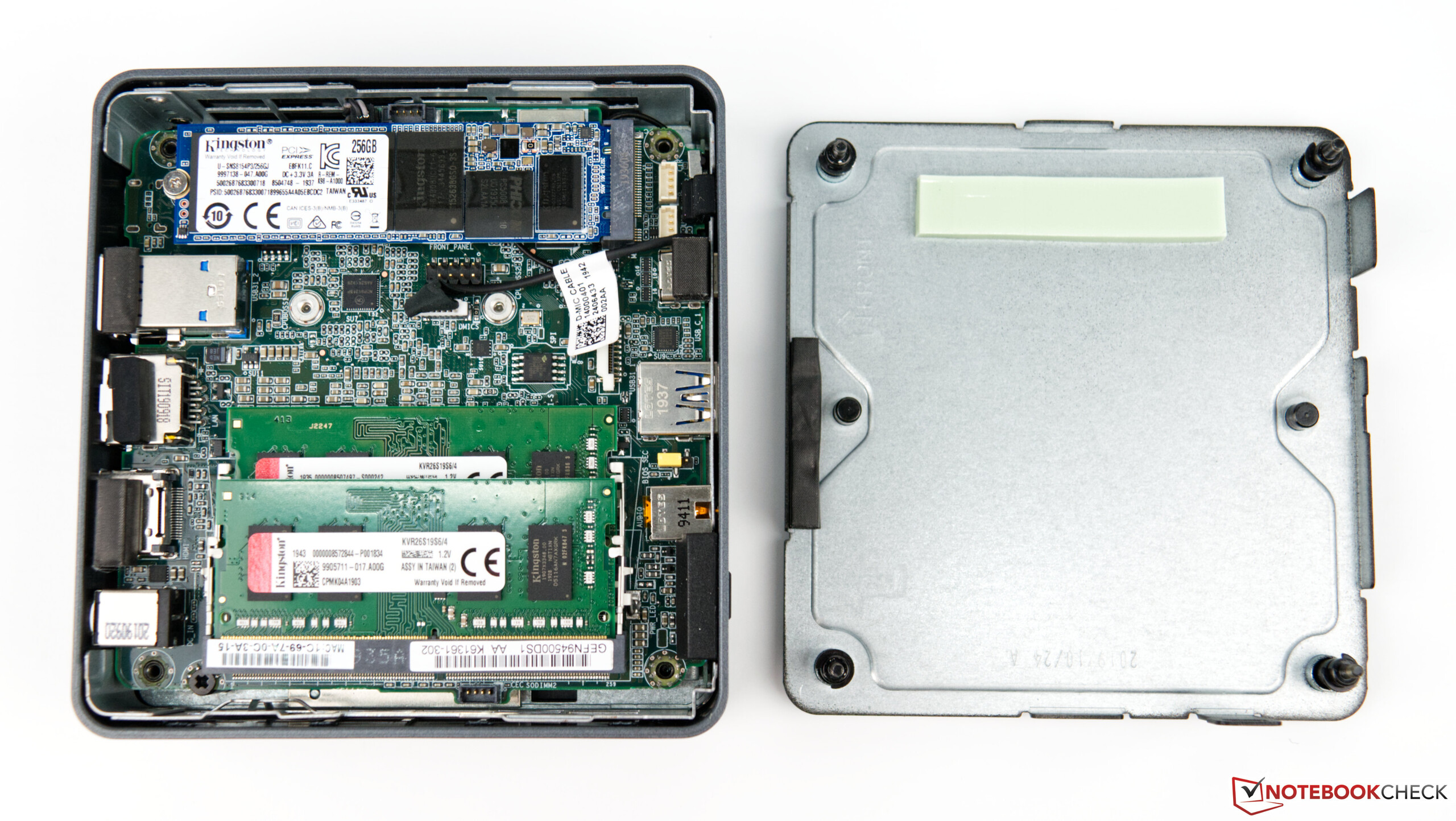

- slechts een opslagslot beschikbaar
Intel NUC NUC10i5FNK. Review unit courtesy of Intel Germany
Intel NUC NUC10i5FNK. Review unit courtesy of Intel Germany

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Intel's Comet Lake-gebaseerde NUC is een zeer kleine en vooral energie efficiënte mini PC met voldoende prestaties. Ons NUC105i5FNK testmodel is te koop voor iets meer dan € 800 en beschikt over een Intel Core i5-10210U, 8GB RAM, een 256GB SSD en een Windows 10 licentie. Hiermee is het systeem in principe klaar voor gebruik. Als je echter liever zelf de componenten wilt installeren kan je de NUC ook bestellen zonder SSD, RAM en een Windows licentie. Op die manier geef je nog maar € 500 uit.

Als je op zoek bent naar een kleine mini PC kan je niet verkeerd gaan met Intel’s NUC NUC10i5FNK. Up-to-date componenten en krachtige prestaties zorgen voor een aantrekkelijk totaalplaatje, ook op langere termijn.

Met betrekking tot prestaties, is de compacte PC uitgerust met up-to-date hardware, zoals de nieuwste Wi-Fi technologie en Intel’s Comet Lake SoC (Intel Core i5-10210U). In totaal 4 microfoons en een infrarood ontvanger maken dit toestel bijzonder interessant als een streaming box. Het toestel heeft genoeg externe poorten ondanks het gebrek aan een tweede HDMI poort, die plaats moest maken voor een Thunderbolt 3 poort. Deze is moderner en veelzijdiger toepasbaar. Een SD-kaartlezer is nog steeds inbegrepen, deze ondersteund zelfs UHS-II.

De uitstraling van het toestel samen met de bouwkwaliteit zijn uitstekend. Dat gezegd hebbende hadden we toch liever een mat oppervlak aan de bovenkant gezien. De glanzende bovenkant ziet er zonder twijfel fantastisch uit, maar deze zal waarschijnlijk niet zo lang mooi blijven. Een andere nadeel was het koelsysteem. Aan de ene kant werkte het erg goed onder belasting en hield de SoC de hele tijd koel. Aan de andere kant is het koelsysteem zeer luid omdat de ventilator altijd aan staat, zelfs bij lage belasting. Gelukkig wordt het geluid alleen echt irritant onder zwaardere belasting.

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Intel Frost Canyon NUC met Comet Lake i5 SoC
Sebastian Bade, 2020-02-13 (Update: 2020-02-17)
