Kort testrapport CAT S42 Smartphone: Stevige, wasbare smartphone met grip

Nu met een lagere prijs. Het vorige model kostte ongeveer 500 euro. De CAT S42 is echter twee keer zo goedkoop. Dit is mogelijk omdat CAT de productiekosten heeft verlaagd, vooral als het gaat om het scherm en de batterij. Lees ons testrapport om erachter te komen of de robuuste, waterdichte smartphone zijn geld waard is of niet.
Florian Schmitt, 👁 Florian Schmitt, T. Hinum,

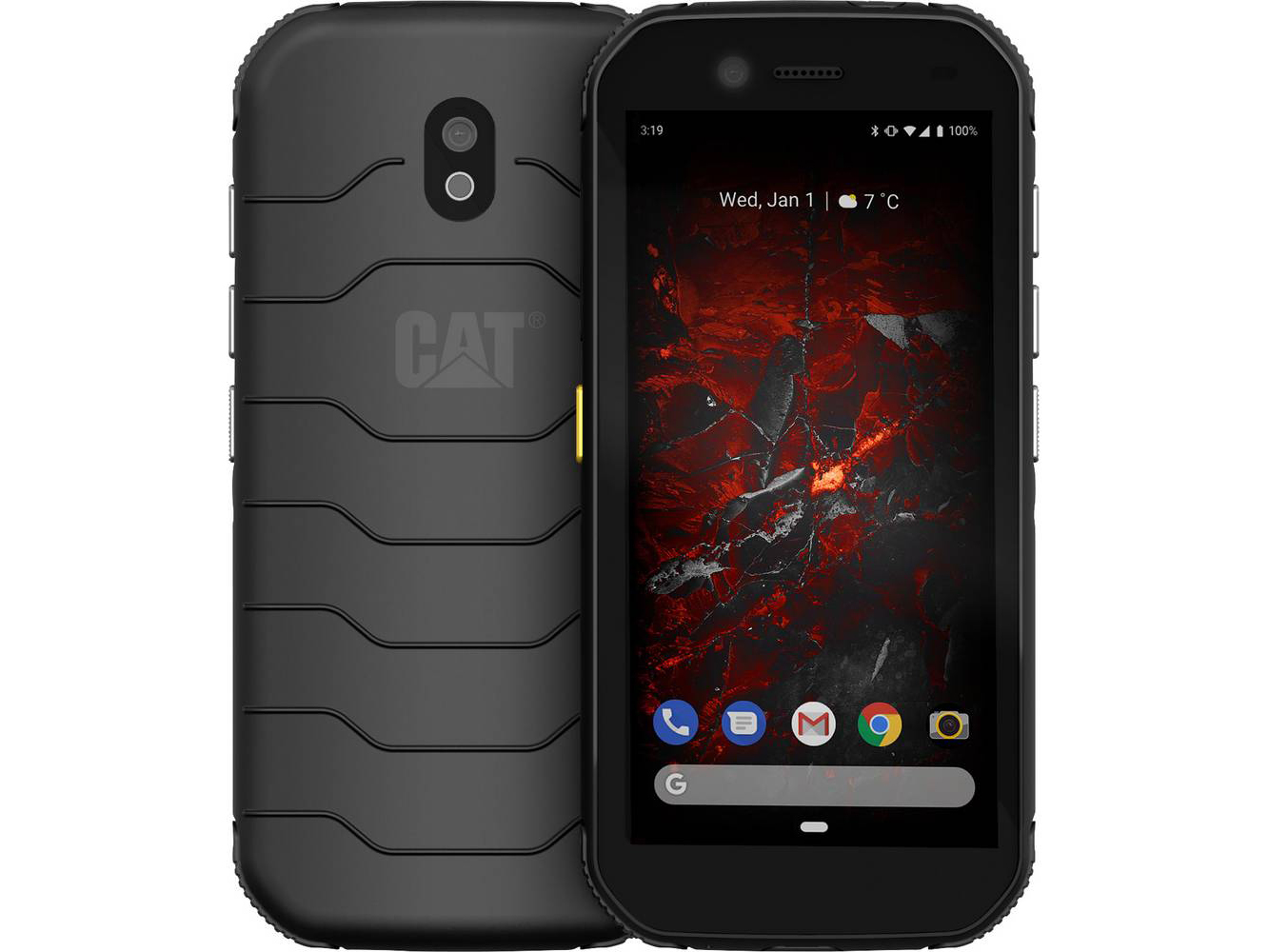

CAT S42 (S Serie)
Processor
Mediatek Helio A20 MT6761D 4 x 1.8 GHz, Cortex-A53
Grafische kaart
PowerVR GE8300
Geheugen
3072 MB
Beeldscherm
5.5 inch 18:9, 1440 x 720 pixel 293 PPI, capacitief touchscreen, IPS, glimmend: ja, 60 Hz
Opslag
32 GB eMMC Flash, 32 GB
, 25 GB beschikbaar
Verbindingen
1 USB 2.0, Audio Verbindingen: gecombineerde 3.5-mm-audioklink, Card Reader: microSD, discreet, NFC, Brightness Sensor, Sensoren: bewegingssensor, afstandssensor, kompas
Netwerkmogelijkheden
802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5.0, 2G (850/​900/​1800/​1900), 3G (B1/​B2/​B4/​B5/​B8), 4G (B1/​B2/​B3/​B4/​B5/​B7/​B8/​B20/​B28) , Dual SIM, LTE, GPS
Afmetingen
hoogte x breedte x diepte (in mm): 12.7 x 161.3 x 77.2
Batterij
4200 mAh Lithium-Ion
Besturingssysteem
Android 10
Camera
Primary Camera: 13 MPix f/​2.0, fasedetectie-autofocus, Dual-LED-flash, video-opname @1080p/​30fps
Secondary Camera: 5 MPix
Bijkomende functionaliteiten
Luidsprekers: Mono-luidspreker aan onderzijde, Toetsenbord: virtueel, oplader, USB-kabel, 24 Maanden Garantie, IP68-gecertificeerd, MIL-STD-810G-gecertificeerd, LED-indicator (voor/​meerkleurig), fanless, ruggedized, waterproof
Gewicht
220 g, Voeding: 62 g
Prijs
249 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Concurrentie

Evaluatie
Datum
Model
Gewicht
Drive
Formaat
Resolutie
Best Price
73 %
08-2020
CAT S42
Helio A20 MT6761D, PowerVR GE8300
220 g32 GB eMMC Flash5.5"1440x720
73 %
09-2017
CAT S41
Helio P20 MT6757, Mali-T880 MP2
218 g32 GB eMMC Flash5"1920x1080
76 %
10-2019
Gigaset GX290
Helio P23 MT6763V, Mali-G71 MP2
279 g32 GB eMMC Flash6.1"1560x720
74 %
08-2019
Samsung Galaxy XCover 4s
Exynos 7884B, Mali-G71 MP2
172 g32 GB eMMC Flash5"1280x720
74 %
10-2019
Blackview BV9100
Helio P35 MT6765, PowerVR GE8320
408 g64 GB eMMC Flash6.3"2340x1080
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Blackview BV9100
PowerVR GE8320, Helio P35 MT6765, 64 GB eMMC Flash
354 (341min - 364max) MBit/s ∼100% +9%
CAT S42
PowerVR GE8300, Helio A20 MT6761D, 32 GB eMMC Flash
324 (318min - 336max) MBit/s ∼92%
Average of class Smartphone
  (5.9 - 1414, n=590)
277 MBit/s ∼78% -15%
Samsung Galaxy XCover 4s
Mali-G71 MP2, Exynos 7884B, 32 GB eMMC Flash
274 (197min - 295max) MBit/s ∼77% -15%
Gigaset GX290
Mali-G71 MP2, Helio P23 MT6763V, 32 GB eMMC Flash
110 (95min - 119max) MBit/s ∼31% -66%
CAT S41
Mali-T880 MP2, Helio P20 MT6757, 32 GB eMMC Flash
38.1 MBit/s ∼11% -88%
iperf3 Client (transmit) TCP 1 m 4M x10
CAT S42
PowerVR GE8300, Helio A20 MT6761D, 32 GB eMMC Flash
329 (326min - 335max) MBit/s ∼100%
Blackview BV9100
PowerVR GE8320, Helio P35 MT6765, 64 GB eMMC Flash
292 (238min - 329max) MBit/s ∼89% -11%
Samsung Galaxy XCover 4s
Mali-G71 MP2, Exynos 7884B, 32 GB eMMC Flash
263 (227min - 296max) MBit/s ∼80% -20%
Average of class Smartphone
  (9.4 - 1599, n=590)
263 MBit/s ∼80% -20%
Gigaset GX290
Mali-G71 MP2, Helio P23 MT6763V, 32 GB eMMC Flash
109 (87min - 114max) MBit/s ∼33% -67%
CAT S41
Mali-T880 MP2, Helio P20 MT6757, 32 GB eMMC Flash
38.7 MBit/s ∼12% -88%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø324 (318-336)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø329 (326-335)

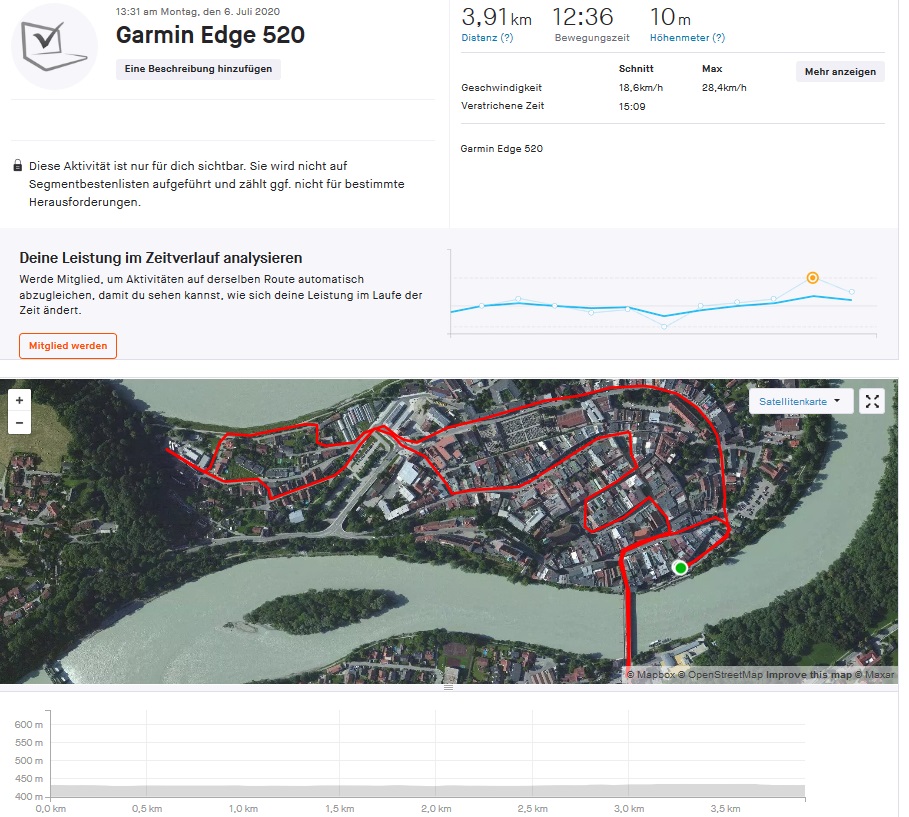

Geolocatie: Garmin Edge 520 (overzicht)
Geolocatie: Garmin Edge 520 (overzicht)

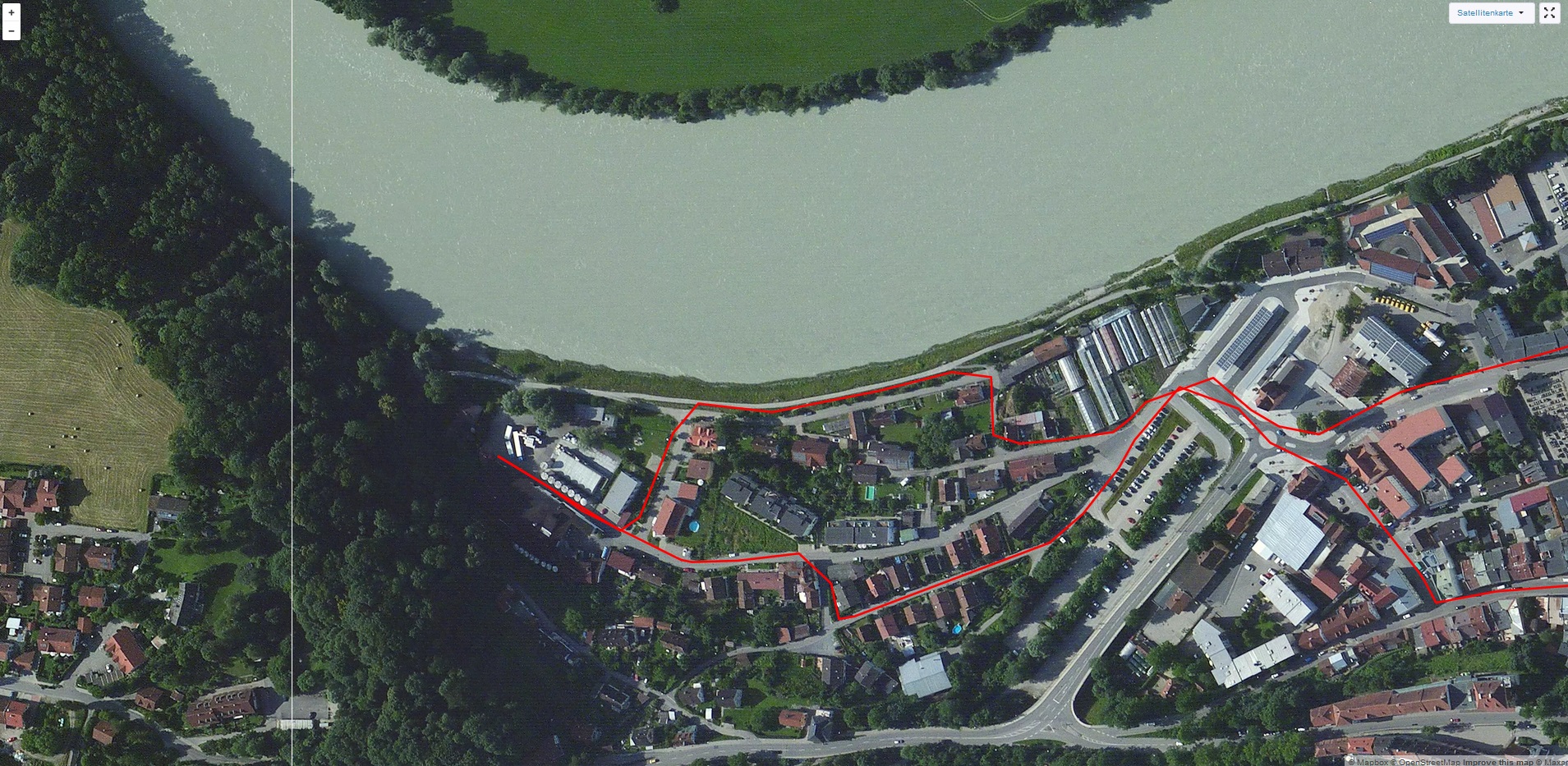

Geolocatie: Garmin Edge 520 (bocht)
Geolocatie: Garmin Edge 520 (bocht)

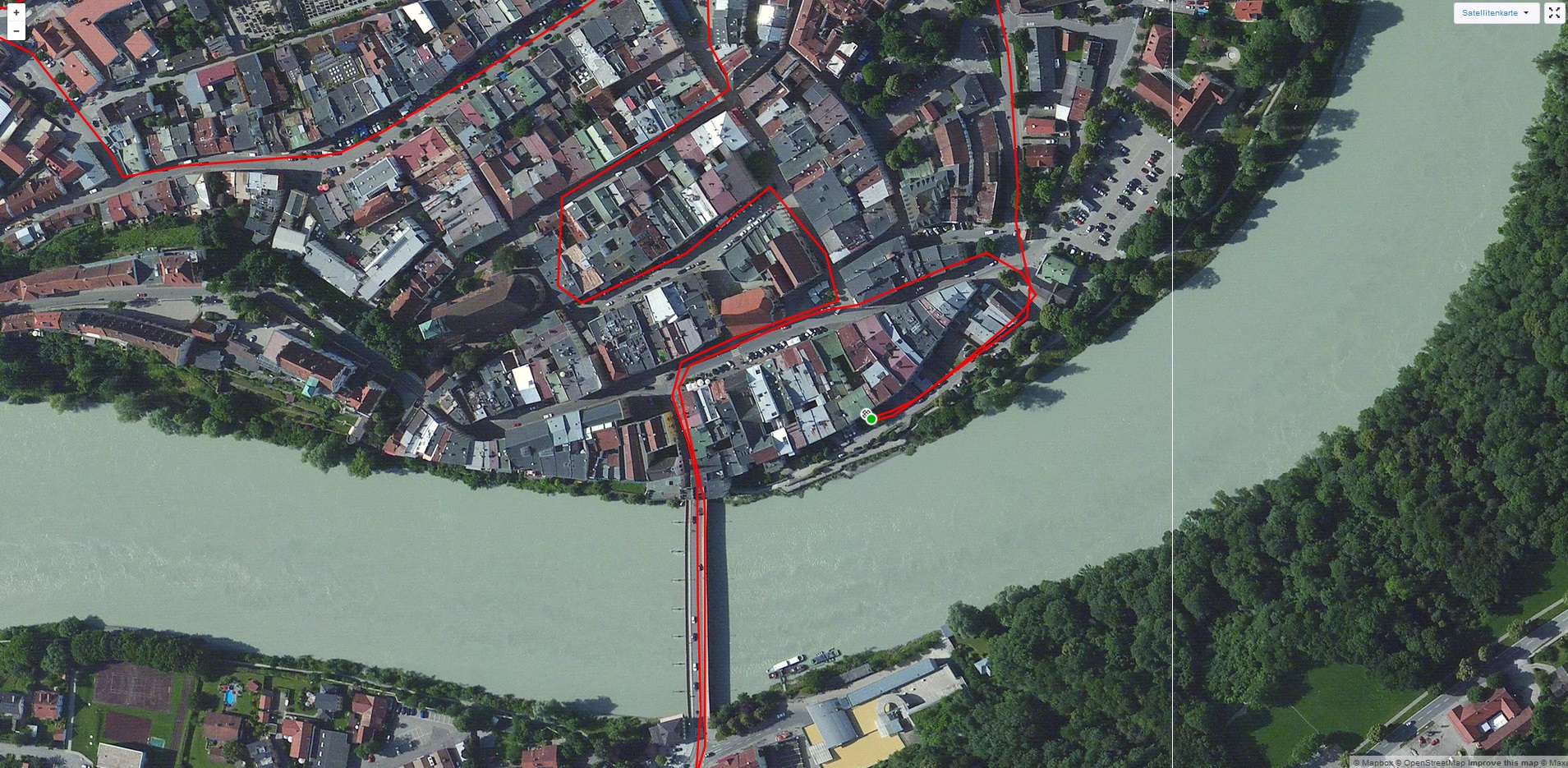

Geolocatie: Garmin Edge 520 (brug)
Geolocatie: Garmin Edge 520 (brug)

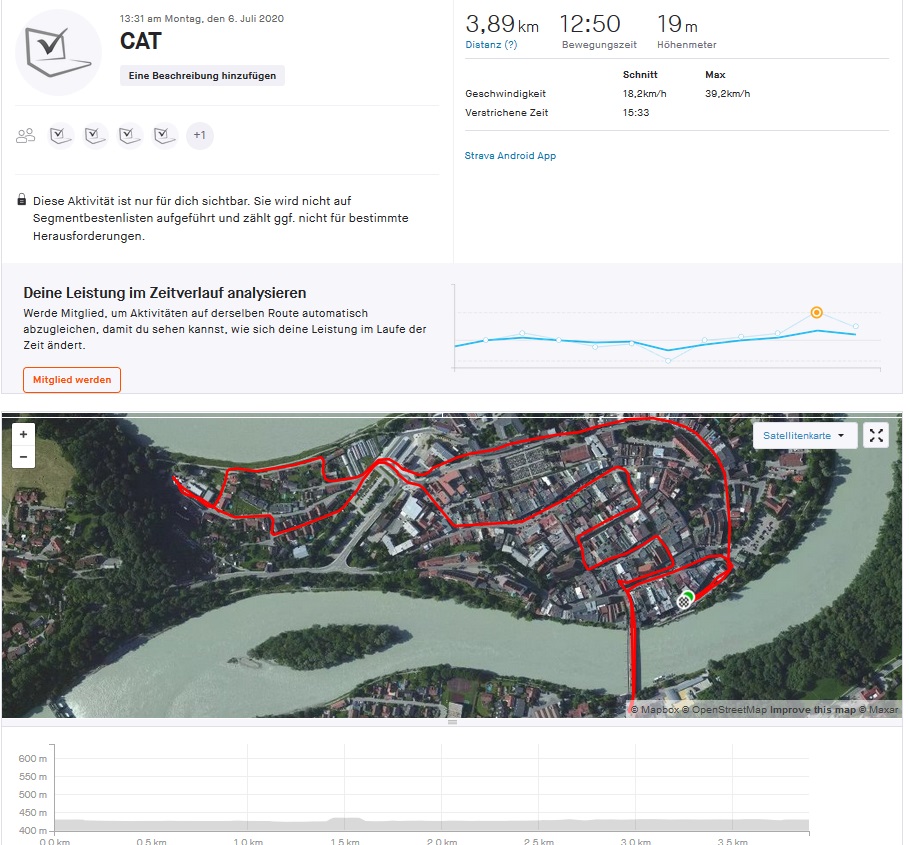

Geolocatie: CAT S42 (overzicht)
Geolocatie: CAT S42 (overzicht)

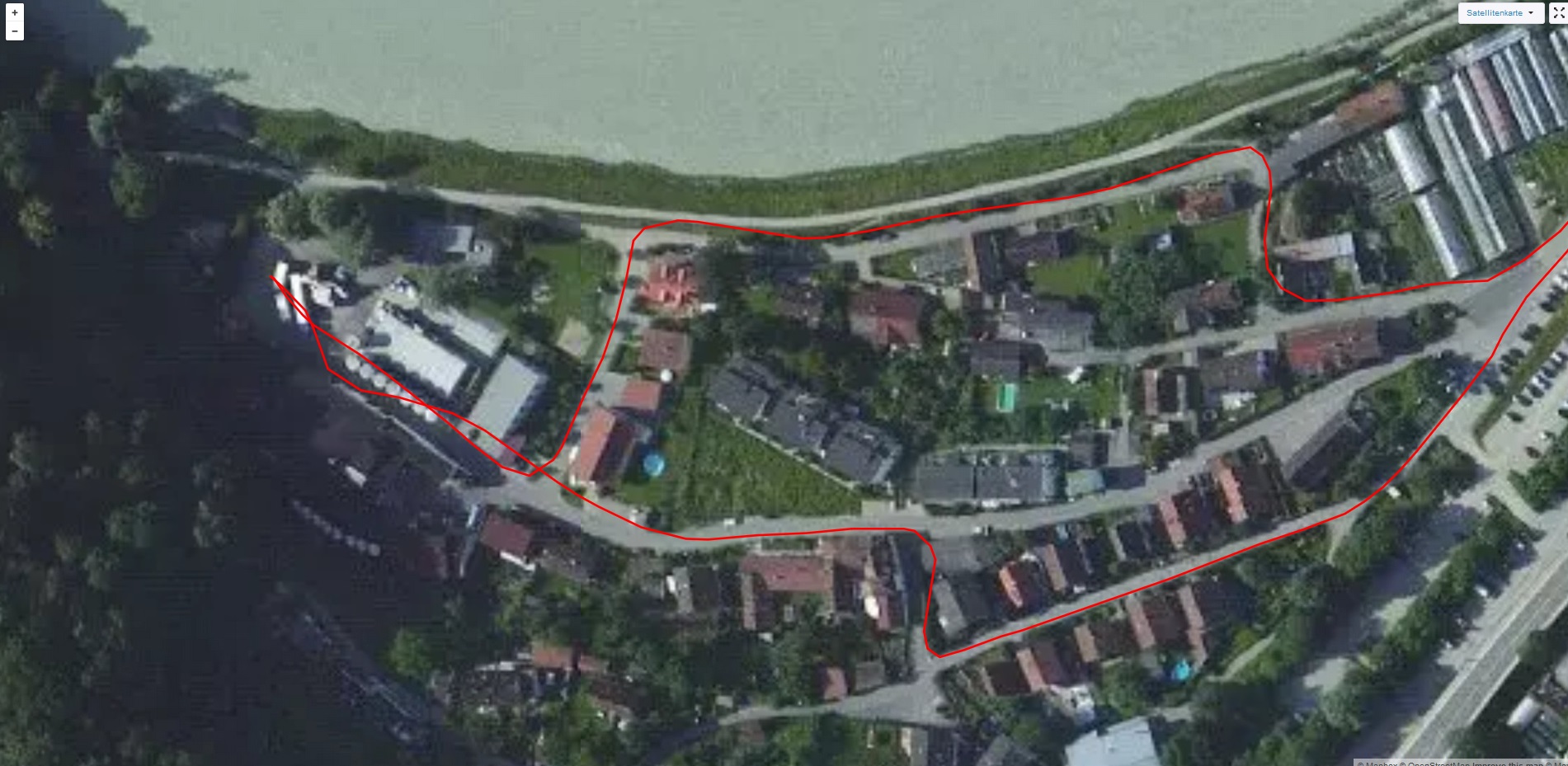

Geolocatie: CAT S42 (bocht)
Geolocatie: CAT S42 (bocht)

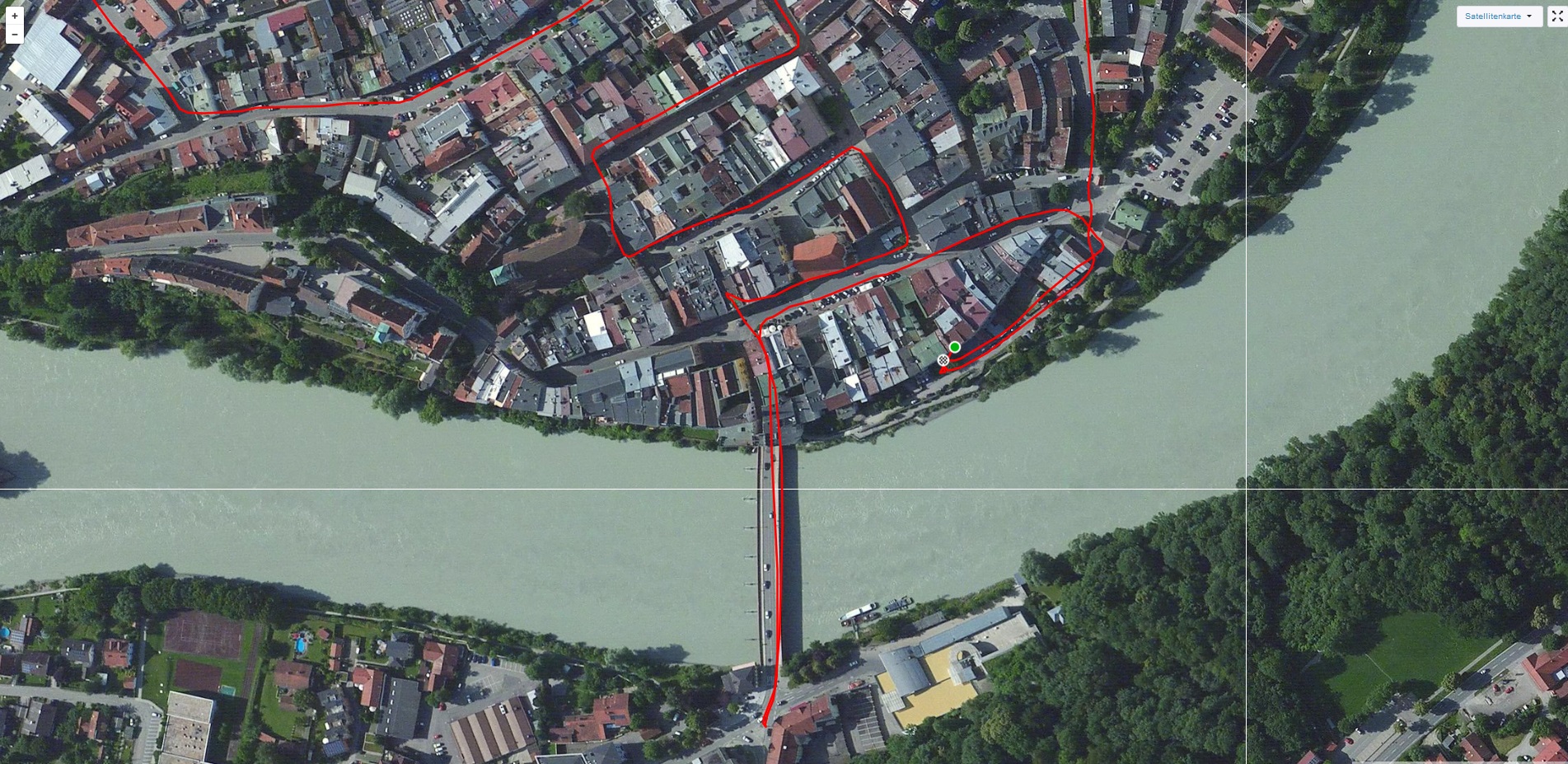

Geolocatie: CAT S42 (brug)
Geolocatie: CAT S42 (brug)

Beeldvergelijking

Bekijk een scène en navigeer binnen het eerste beeld. Eén klik wijzigt het zoomniveau. Eén klik op het ingezoomde beeld opent het origineel in een nieuw venster. Het eerste beeld toont de verschaalde foto van het testtoestel.

Main lens - flowerMain lens - surroundingsMain lens - low light
klik om beelden te laden
ColorChecker
28.4 ∆E
51.7 ∆E
37.5 ∆E
36.9 ∆E
42.7 ∆E
60.4 ∆E
51.3 ∆E
33.1 ∆E
39.3 ∆E
25.8 ∆E
61.7 ∆E
61.9 ∆E
28.4 ∆E
47.2 ∆E
34.4 ∆E
72.2 ∆E
40.5 ∆E
42.3 ∆E
76.1 ∆E
67.8 ∆E
49.6 ∆E
36.1 ∆E
23.5 ∆E
13.2 ∆E
ColorChecker CAT S42: 44.25 ∆E min: 13.2 - max: 76.13 ∆E
ColorChecker
6.1 ∆E
10.5 ∆E
12.2 ∆E
7.2 ∆E
11.7 ∆E
9.1 ∆E
9.5 ∆E
10.8 ∆E
9.7 ∆E
4.7 ∆E
6.1 ∆E
6.9 ∆E
5.1 ∆E
7.3 ∆E
6.8 ∆E
4.7 ∆E
7.7 ∆E
6.8 ∆E
0 ∆E
5 ∆E
8 ∆E
4.9 ∆E
4.9 ∆E
7.9 ∆E
ColorChecker CAT S42: 7.23 ∆E min: 0 - max: 12.19 ∆E
528
cd/m²
541
cd/m²
541
cd/m²
537
cd/m²
541
cd/m²
536
cd/m²
515
cd/m²
528
cd/m²
517
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 541 cd/m² Gemiddelde: 531.6 cd/m² Minimum: 11.05 cd/m²
Helderheidsverdeling: 95 %
Helderheid in Batterij-modus: 541 cd/m²
Contrast: 1040:1 (Zwart: 0.52 cd/m²)
ΔE Color 5.89 | 0.6-29.43 Ø5.8
ΔE Greyscale 5.6 | 0.64-98 Ø6
91.1% sRGB (Calman 2D)
Gamma: 2.272
CAT S42
IPS, 1440x720, 5.5
CAT S41
IPS, 1920x1080, 5
Gigaset GX290
IPS, 1560x720, 6.1
Samsung Galaxy XCover 4s
IPS (PLS), 1280x720, 5
Blackview BV9100
IPS, 2340x1080, 6.3
Screen
-10%
-17%
-7%
-8%
Brightness middle
541
537
-1%
635
17%
525
-3%
448
-17%
Brightness
532
506
-5%
615
16%
513
-4%
432
-19%
Brightness Distribution
95
86
-9%
91
-4%
90
-5%
92
-3%
Black Level *
0.52
0.9
-73%
0.39
25%
0.52
-0%
0.34
35%
Contrast
1040
597
-43%
1628
57%
1010
-3%
1318
27%
Colorchecker DeltaE2000 *
5.89
5.02
15%
10.5
-78%
6
-2%
6.7
-14%
Colorchecker DeltaE2000 max. *
11.35
7.98
30%
17.9
-58%
10.9
4%
12.9
-14%
Greyscale DeltaE2000 *
5.6
5.3
5%
11.8
-111%
7.8
-39%
8.7
-55%
Gamma
2.272 97%
2.154 102%
1.86 118%
2.53 87%
2.15 102%
CCT
7884 82%
7226 90%
9570 68%
8605 76%
8026 81%

* ... kleiner is beter

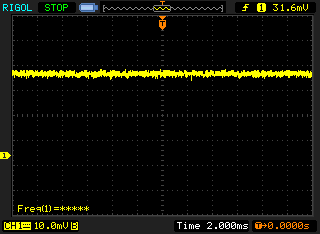

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 17612 (minimum: 5 - maximum: 2500000) Hz waargenomen.

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

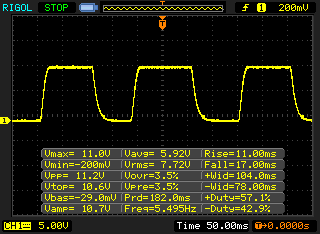

       Responstijd Zwart naar Wit
28 ms ... stijging ↗ en daling ↘ gecombineerd↗ 11 ms stijging
↘ 17 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 60 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (24.4 ms) van alle geteste toestellen.

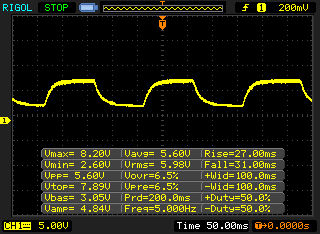

       Responstijd 50% Grijs naar 80% Grijs
58 ms ... stijging ↗ en daling ↘ gecombineerd↗ 27 ms stijging
↘ 31 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 93 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (38.8 ms) van alle geteste toestellen.
Geekbench 5.1 / 5.2
64 Bit Multi-Core Score (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
421 Points ∼22%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
834 Points ∼43% +98%
Average Mediatek Helio A20 MT6761D

421 Points ∼22% 0%
Average of class Smartphone
  (421 - 3531, n=109)
1942 Points ∼100% +361%
64 Bit Single-Core Score (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
134 Points ∼24%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
156 Points ∼28% +16%
Average Mediatek Helio A20 MT6761D

134 Points ∼24% 0%
Average of class Smartphone
  (124 - 1342, n=109)
551 Points ∼100% +311%
PCMark for Android
Work 2.0 performance score (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
4889 Points ∼83%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
Points ∼0% -100%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
5133 Points ∼87% +5%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
5309 Points ∼90% +9%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
5290 Points ∼89% +8%
Average Mediatek Helio A20 MT6761D

4889 Points ∼83% 0%
Average of class Smartphone
  (2630 - 15299, n=512)
5918 Points ∼100% +21%
Work performance score (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
6771 Points ∼100%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
4778 Points ∼71% -29%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
6316 Points ∼93% -7%
Average Mediatek Helio A20 MT6761D

6771 Points ∼100% 0%
Average of class Smartphone
  (1077 - 19989, n=670)
6486 Points ∼96% -4%
3DMark
2560x1440 Sling Shot Extreme (ES 3.1) Unlimited Physics (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
874 Points ∼40%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
1340 Points ∼61% +53%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
1536 Points ∼70% +76%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
1554 Points ∼71% +78%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
1202 Points ∼55% +38%
Average Mediatek Helio A20 MT6761D

874 Points ∼40% 0%
Average of class Smartphone
  (573 - 5780, n=515)
2200 Points ∼100% +152%
2560x1440 Sling Shot Extreme (ES 3.1) Unlimited Graphics (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
219 Points ∼10%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
633 Points ∼30% +189%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
430 Points ∼20% +96%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
498 Points ∼24% +127%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
464 Points ∼22% +112%
Average Mediatek Helio A20 MT6761D

219 Points ∼10% 0%
Average of class Smartphone
  (75 - 9567, n=515)
2109 Points ∼100% +863%
2560x1440 Sling Shot Extreme (ES 3.1) Unlimited (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
263 Points ∼13%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
717 Points ∼36% +173%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
512 Points ∼26% +95%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
588 Points ∼30% +124%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
537 Points ∼27% +104%
Average Mediatek Helio A20 MT6761D

263 Points ∼13% 0%
Average of class Smartphone
  (93 - 8269, n=516)
1970 Points ∼100% +649%
2560x1440 Sling Shot OpenGL ES 3.0 Unlimited Physics (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
865 Points ∼41%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
1338 Points ∼63% +55%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
1571 Points ∼74% +82%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
1768 Points ∼84% +104%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
1201 Points ∼57% +39%
Average Mediatek Helio A20 MT6761D

865 Points ∼41% 0%
Average of class Smartphone
  (375 - 5765, n=546)
2112 Points ∼100% +144%
2560x1440 Sling Shot OpenGL ES 3.0 Unlimited Graphics (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
408 Points ∼14%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
889 Points ∼31% +118%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
636 Points ∼23% +56%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
826 Points ∼29% +102%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
759 Points ∼27% +86%
Average Mediatek Helio A20 MT6761D

408 Points ∼14% 0%
Average of class Smartphone
  (70 - 20154, n=546)
2826 Points ∼100% +593%
2560x1440 Sling Shot OpenGL ES 3.0 Unlimited (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
462 Points ∼19%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
961 Points ∼40% +108%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
733 Points ∼31% +59%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
937 Points ∼39% +103%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
827 Points ∼35% +79%
Average Mediatek Helio A20 MT6761D

462 Points ∼19% 0%
Average of class Smartphone
  (88 - 10699, n=546)
2374 Points ∼100% +414%
2560x1440 Sling Shot Extreme (ES 3.1) Physics (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
850 Points ∼41%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
1529 Points ∼73% +80%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
1489 Points ∼71% +75%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
1747 Points ∼84% +106%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
1117 Points ∼54% +31%
Average Mediatek Helio A20 MT6761D

850 Points ∼41% 0%
Average of class Smartphone
  (435 - 5209, n=596)
2084 Points ∼100% +145%
2560x1440 Sling Shot Extreme (ES 3.1) Graphics (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
201 Points ∼11%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
613 Points ∼34% +205%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
445 Points ∼25% +121%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
555 Points ∼31% +176%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
410 Points ∼23% +104%
Average Mediatek Helio A20 MT6761D

201 Points ∼11% 0%
Average of class Smartphone
  (53 - 8469, n=596)
1777 Points ∼100% +784%
2560x1440 Sling Shot Extreme (ES 3.1) (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
242 Points ∼14%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
707 Points ∼42% +192%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
527 Points ∼31% +118%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
654 Points ∼39% +170%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
477 Points ∼28% +97%
Average Mediatek Helio A20 MT6761D

242 Points ∼14% 0%
Average of class Smartphone
  (68 - 7400, n=597)
1694 Points ∼100% +600%
2560x1440 Sling Shot OpenGL ES 3.0 Physics (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
838 Points ∼43%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
1261 Points ∼65% +50%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
1483 Points ∼76% +77%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
1756 Points ∼90% +110%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
1118 Points ∼57% +33%
Average Mediatek Helio A20 MT6761D

838 Points ∼43% 0%
Average of class Smartphone
  (293 - 5274, n=638)
1949 Points ∼100% +133%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
384 Points ∼16%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
909 Points ∼39% +137%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
633 Points ∼27% +65%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
766 Points ∼33% +99%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
654 Points ∼28% +70%
Average Mediatek Helio A20 MT6761D

384 Points ∼16% 0%
Average of class Smartphone
  (43 - 12611, n=637)
2339 Points ∼100% +509%
2560x1440 Sling Shot OpenGL ES 3.0 (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
437 Points ∼22%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
969 Points ∼48% +122%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
725 Points ∼36% +66%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
876 Points ∼44% +100%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
720 Points ∼36% +65%
Average Mediatek Helio A20 MT6761D

437 Points ∼22% 0%
Average of class Smartphone
  (55 - 9549, n=640)
2011 Points ∼100% +360%
1280x720 offscreen Ice Storm Unlimited Physics (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
14322 Points ∼84%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
12063 Points ∼70% -16%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
12304 Points ∼72% -14%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
13610 Points ∼79% -5%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
17147 Points ∼100% +20%
Average Mediatek Helio A20 MT6761D

14322 Points ∼84% 0%
Average of class Smartphone
  (735 - 58293, n=784)
15422 Points ∼90% +8%
1280x720 offscreen Ice Storm Unlimited Graphics Score (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
7435 Points ∼28%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
13844 Points ∼52% +86%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
10913 Points ∼41% +47%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
13711 Points ∼52% +84%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
11243 Points ∼42% +51%
Average Mediatek Helio A20 MT6761D

7435 Points ∼28% 0%
Average of class Smartphone
  (536 - 209431, n=782)
26542 Points ∼100% +257%
1280x720 offscreen Ice Storm Unlimited Score (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
8325 Points ∼40%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
13404 Points ∼65% +61%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
11194 Points ∼54% +34%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
13688 Points ∼66% +64%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
12175 Points ∼59% +46%
Average Mediatek Helio A20 MT6761D

8325 Points ∼40% 0%
Average of class Smartphone
  (662 - 112989, n=782)
20755 Points ∼100% +149%
GFXBench (DX / GLBenchmark) 2.7
1920x1080 T-Rex HD Offscreen C24Z16 (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
13 fps ∼29%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
23 fps ∼51% +77%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
21 fps ∼47% +62%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
25 fps ∼56% +92%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
19 fps ∼42% +46%
Average Mediatek Helio A20 MT6761D

13 fps ∼29% 0%
Average of class Smartphone
  (0.5 - 322, n=786)
44.9 fps ∼100% +245%
T-Rex HD Onscreen C24Z16 (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
18 fps ∼44%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
23 fps ∼56% +28%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
32 fps ∼78% +78%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
41 fps ∼100% +128%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
18 fps ∼44% 0%
Average Mediatek Helio A20 MT6761D

18 fps ∼44% 0%
Average of class Smartphone
  (1 - 138, n=795)
31 fps ∼76% +72%
GFXBench 3.0
off screen Manhattan Offscreen OGL (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
5.9 fps ∼22%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
10 fps ∼38% +69%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
11 fps ∼42% +86%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
13 fps ∼49% +120%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
9.8 fps ∼37% +66%
Average Mediatek Helio A20 MT6761D

5.9 fps ∼22% 0%
Average of class Smartphone
  (0.8 - 175, n=691)
26.5 fps ∼100% +349%
on screen Manhattan Onscreen OGL (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
11 fps ∼41%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
10 fps ∼37% -9%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
20 fps ∼74% +82%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
27 fps ∼100% +145%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
9.1 fps ∼34% -17%
Average Mediatek Helio A20 MT6761D

11 fps ∼41% 0%
Average of class Smartphone
  (1.2 - 115, n=699)
22.3 fps ∼83% +103%
GFXBench 3.1
off screen Manhattan ES 3.1 Offscreen (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
4 fps ∼19%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
6.8 fps ∼32% +70%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
6.6 fps ∼31% +65%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
8.1 fps ∼38% +103%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
6.3 fps ∼30% +58%
Average Mediatek Helio A20 MT6761D

4 fps ∼19% 0%
Average of class Smartphone
  (0.87 - 117, n=554)
21.3 fps ∼100% +433%
on screen Manhattan ES 3.1 Onscreen (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
8.1 fps ∼42%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
6.8 fps ∼35% -16%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
14 fps ∼72% +73%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
19 fps ∼98% +135%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
6 fps ∼31% -26%
Average Mediatek Helio A20 MT6761D

8.1 fps ∼42% 0%
Average of class Smartphone
  (1.2 - 110, n=556)
19.4 fps ∼100% +140%
GFXBench
Aztec Ruins High Tier Onscreen (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
2.5 fps ∼22%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
3.8 fps ∼34% +52%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
6.4 fps ∼57% +156%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
2.2 fps ∼19% -12%
Average Mediatek Helio A20 MT6761D

2.5 fps ∼22% 0%
Average of class Smartphone
  (0.61 - 60, n=308)
11.3 fps ∼100% +352%
2560x1440 Aztec Ruins High Tier Offscreen (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
0.73 fps ∼9%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
1.4 fps ∼17% +92%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
1.8 fps ∼22% +147%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
1.4 fps ∼17% +92%
Average Mediatek Helio A20 MT6761D

0.73 fps ∼9% 0%
Average of class Smartphone
  (0.21 - 101, n=306)
8.05 fps ∼100% +1003%
Aztec Ruins Normal Tier Onscreen (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
4 fps ∼24%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
6.5 fps ∼39% +63%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
10 fps ∼60% +150%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
3.5 fps ∼21% -12%
Average Mediatek Helio A20 MT6761D

4 fps ∼24% 0%
Average of class Smartphone
  (1.4 - 60, n=312)
16.8 fps ∼100% +320%
1920x1080 Aztec Ruins Normal Tier Offscreen (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
2 fps ∼10%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
3.9 fps ∼20% +95%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
5 fps ∼26% +150%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
3.8 fps ∼20% +90%
Average Mediatek Helio A20 MT6761D

2 fps ∼10% 0%
Average of class Smartphone
  (0.6 - 257, n=311)
19.4 fps ∼100% +870%
off screen Car Chase Offscreen (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
1.8 fps ∼13%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
4 fps ∼28% +122%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
4 fps ∼28% +122%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
4.3 fps ∼30% +139%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
2.6 fps ∼18% +44%
Average Mediatek Helio A20 MT6761D

1.8 fps ∼13% 0%
Average of class Smartphone
  (0.6 - 73, n=479)
14.3 fps ∼100% +694%
on screen Car Chase Onscreen (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
3.3 fps ∼26%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
4 fps ∼31% +21%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
8 fps ∼63% +142%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
12 fps ∼94% +264%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
2.8 fps ∼22% -15%
Average Mediatek Helio A20 MT6761D

3.3 fps ∼26% 0%
Average of class Smartphone
  (1.1 - 60, n=483)
12.7 fps ∼100% +285%
AnTuTu v8 - Total Score (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
77514 Points ∼24%
Gigaset GX290
Mediatek Helio P23 MT6763V, Mali-G71 MP2, 3072
95354 Points ∼30% +23%
Blackview BV9100
Mediatek Helio P35 MT6765, PowerVR GE8320, 4096
101535 Points ∼32% +31%
Average Mediatek Helio A20 MT6761D

77514 Points ∼24% 0%
Average of class Smartphone
  (53335 - 607937, n=108)
317934 Points ∼100% +310%
BaseMark OS II
Web (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
854 Points ∼87%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
731 Points ∼75% -14%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
977 Points ∼100% +14%
Average Mediatek Helio A20 MT6761D

854 Points ∼87% 0%
Average of class Smartphone
  (7 - 1745, n=725)
818 Points ∼84% -4%
Graphics (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
478 Points ∼19%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
1126 Points ∼45% +136%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
1113 Points ∼45% +133%
Average Mediatek Helio A20 MT6761D

478 Points ∼19% 0%
Average of class Smartphone
  (18 - 16996, n=725)
2491 Points ∼100% +421%
Memory (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
1018 Points ∼51%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
1269 Points ∼64% +25%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
1985 Points ∼100% +95%
Average Mediatek Helio A20 MT6761D

1018 Points ∼51% 0%
Average of class Smartphone
  (21 - 8874, n=725)
1850 Points ∼93% +82%
System (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
1542 Points ∼44%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
2372 Points ∼68% +54%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
3507 Points ∼100% +127%
Average Mediatek Helio A20 MT6761D

1542 Points ∼44% 0%
Average of class Smartphone
  (369 - 14189, n=725)
3444 Points ∼98% +123%
Overall (sorteer op waarde)
CAT S42
Mediatek Helio A20 MT6761D, PowerVR GE8300, 3072
895 Points ∼51%
CAT S41
Mediatek Helio P20 (LP4) MT6757, Mali-T880 MP2, 3072
1255 Points ∼72% +40%
Samsung Galaxy XCover 4s
Samsung Exynos 7884B, Mali-G71 MP2, 3072
1658 Points ∼95% +85%
Average Mediatek Helio A20 MT6761D

895 Points ∼51% 0%
Average of class Smartphone
  (1 - 6273, n=725)
1754 Points ∼100% +96%
Jetstream 2 - Total Score
Average of class Smartphone (9.13 - 140, n=185)
40.6 Points ∼100% +184%
Samsung Galaxy XCover 4s (Chrome 75)
22.457 Points ∼55% +57%
Average Mediatek Helio A20 MT6761D
14.3 Points ∼35% 0%
CAT S42 (Chrome 80)
14.282 Points ∼35%
JetStream 1.1 - Total Score
Average of class Smartphone (10 - 302, n=616)
47.1 Points ∼100% +109%
Samsung Galaxy XCover 4s (Chrome 75)
37.945 Points ∼81% +68%
CAT S41 (Chrome 67)
26.675 Points ∼57% +18%
CAT S42 (Chrome 80)
22.543 Points ∼48%
Average Mediatek Helio A20 MT6761D
22.5 Points ∼48% 0%
Speedometer 2.0 - Result
Average of class Smartphone (6.42 - 158, n=168)
42.9 runs/min ∼100% +235%
Samsung Galaxy XCover 4s
22.15 runs/min ∼52% +73%
CAT S42 (Chome 80)
12.8 runs/min ∼30%
Average Mediatek Helio A20 MT6761D
12.8 runs/min ∼30% 0%
WebXPRT 3 - ---
Average of class Smartphone (19 - 184, n=252)
69.8 Points ∼100% +168%
Samsung Galaxy XCover 4s
48 Points ∼69% +85%
CAT S42 (Chrome 80)
26 Points ∼37%
Average Mediatek Helio A20 MT6761D
26 Points ∼37% 0%
Octane V2 - Total Score
Average of class Smartphone (894 - 49388, n=783)
7840 Points ∼100% +97%
Samsung Galaxy XCover 4s (Chrome 75)
7065 Points ∼90% +78%
CAT S41 (Chrome 67)
5024 Points ∼64% +27%
CAT S42 (Chrome 80)
3971 Points ∼51%
Average Mediatek Helio A20 MT6761D
3971 Points ∼51% 0%
Mozilla Kraken 1.1 - Total Score
CAT S42 (Chrome 80)
11842.1 ms * ∼100%
Average Mediatek Helio A20 MT6761D
11842 ms * ∼100% -0%
CAT S41 (Chrome 67)
10444.4 ms * ∼88% +12%
Average of class Smartphone (1914 - 59466, n=809)
9777 ms * ∼83% +17%
Samsung Galaxy XCover 4s (Chrome 75)
5826.7 ms * ∼49% +51%

* ... kleiner is beter

CAT S42CAT S41Gigaset GX290Samsung Galaxy XCover 4sBlackview BV9100Average 32 GB eMMC FlashAverage of class Smartphone
AndroBench 3-5
-27%
-20%
-7%
-8%
-10%
24%
Sequential Write 256KB SDCard
62.5 (Toshiba Exceria Pro M501)
5
-92%
74.3 (Toshiba Exceria Pro M501)
19%
64.25 (Toshiba Exceria Pro M501)
3%
60.66 (Toshiba Exceria Pro M501)
-3%
52.2 (3.4 - 87.1, n=167)
-16%
51.1 (1.7 - 87.1, n=530)
-18%
Sequential Read 256KB SDCard
83.1 (Toshiba Exceria Pro M501)
23.87
-71%
81.05 (Toshiba Exceria Pro M501)
-2%
79.55 (Toshiba Exceria Pro M501)
-4%
81.92 (Toshiba Exceria Pro M501)
-1%
71.1 (8.2 - 96.5, n=167)
-14%
69.1 (8.1 - 96.5, n=530)
-17%
Random Write 4KB
14.8
12.99
-12%
10.95
-26%
10.38
-30%
14.61
-1%
19.2 (0.75 - 89.5, n=210)
30%
35.5 (0.14 - 319, n=881)
140%
Random Read 4KB
51.6
65.47
27%
33.33
-35%
59.56
15%
37.23
-28%
41.1 (3.59 - 117, n=210)
-20%
58.9 (1.59 - 324, n=881)
14%
Sequential Write 256KB
121.1
117.16
-3%
33.77
-72%
85.4
-29%
106.23
-12%
96.7 (14.8 - 189, n=210)
-20%
127 (2.99 - 911, n=881)
5%
Sequential Read 256KB
287.9
253.02
-12%
275.59
-4%
298.6
4%
279.67
-3%
239 (25.8 - 452, n=210)
-17%
339 (12.1 - 1802, n=881)
18%
010203040506070Tooltip
; Arena of Valor; min; 1.35.1.12: Ø57.7 (1-61)
; Arena of Valor; high HD; 1.35.1.12: Ø51.3 (25-61)
; Asphalt 9: Legends; High Quality; 2.3.4a: Ø15 (3-28)
; Asphalt 9: Legends; Standard / low; 2.3.4a: Ø26 (4-31)
Max. Belasting
 35.9 °C32.5 °C33.3 °C
 34.9 °C32.7 °C33.6 °C
 34.9 °C32.8 °C32.9 °C
Maximum: 35.9 °C
Gemiddelde: 33.7 °C
30.3 °C31.8 °C35.6 °C
30.9 °C32.3 °C34.4 °C
30.9 °C32.1 °C33.3 °C
Maximum: 35.6 °C
Gemiddelde: 32.4 °C
Stroomadapter (max.)  39.6 °C | Kamertemperatuur 22 °C | Fluke t3000FC (calibrated), Voltcraft IR-260
(±) The average temperature for the upper side under maximal load is 33.7 °C / 93 F, compared to the average of 33 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 35.9 °C / 97 F, compared to the average of 35.4 °C / 96 F, ranging from 22.4 to 51.7 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 35.6 °C / 96 F, compared to the average of 33.9 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 30.2 °C / 86 F, compared to the device average of 33 °C / 91 F.
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.8432539.941.13131.934.34038.934.65043.7386329.829.78025.926.210026.326.112524.925.116021.630.12001935.225018.942.531518.149.240016.655.350016.25963014.960.98001561.9100015.668.4125014.969160014.966200015.668.4250014.666.4315014.268.2400014.168.3500014.464.4630014.669800014.973.91000015.274.21250015.464.71600015.756SPL68.559.568.76666.36470.627.580.4N22.312.922.418.319.715.825.3146.5median 15.4median 64.4Delta2.111.332.334.125.630.125.733.227.429.73738.823.327.921.422.921.72519.932.417.434.51741.116.445.414.548.914.25714.159.212.662.312.565.61265.311.864.911.66911.472.511.371.711.470.911.169.411.261.711.357.211.263.211.365.311.353.311.345.865.824.180.117.80.643.4median 11.8median 61.71.78.6hearing rangehide median Pink NoiseCAT S42CAT S41
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
CAT S42 audio analysis

(±) | speaker loudness is average but good (80.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.7% lower than median
(±) | linearity of bass is average (8.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.3% away from median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (5.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.6% difference to median)
Compared to same class
» 36% of all tested devices in this class were better, 12% similar, 51% worse
» The best had a delta of 13%, average was 24%, worst was 65%
Compared to all devices tested
» 60% of all tested devices were better, 8% similar, 32% worse
» The best had a delta of 3%, average was 21%, worst was 65%

CAT S41 audio analysis

(±) | speaker loudness is average but good (80.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.8% lower than median
(±) | linearity of bass is average (8.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.6% away from median
(+) | mids are linear (6.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.2% higher than median
(+) | highs are linear (6.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21% difference to median)
Compared to same class
» 22% of all tested devices in this class were better, 11% similar, 66% worse
» The best had a delta of 13%, average was 24%, worst was 65%
Compared to all devices tested
» 49% of all tested devices were better, 9% similar, 42% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Stroomgebruik
Uit / Standbydarklight 0 / 0.1 Watt
Inactiefdarkmidlight 1.5 / 2 / 3 Watt
Belasting midlight 3.6 / 4.9 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
CAT S42
4200 mAh
CAT S41
5000 mAh
Gigaset GX290
6200 mAh
Samsung Galaxy XCover 4s
2800 mAh
Blackview BV9100
13000 mAh
Average Mediatek Helio A20 MT6761D

Average of class Smartphone

Power Consumption
-8%
4%
30%
18%
0%
9%
Idle Minimum *
1.5
1.4
7%
0.89
41%
0.65
57%
1.01
33%
1.5
-0%
0.89 (0.2 - 3.4, n=884)
41%
Idle Average *
2
2.2
-10%
2.09
-5%
1.62
19%
2
-0%
2
-0%
1.756 (0.6 - 6.2, n=883)
12%
Idle Maximum *
3
2.8
7%
2.15
28%
1.66
45%
2.01
33%
3
-0%
2.04 (0.74 - 6.6, n=884)
32%
Load Average *
3.6
4.1
-14%
4.49
-25%
3.03
16%
2.9
19%
3.6
-0%
4.1 (0.8 - 10.8, n=878)
-14%
Load Maximum *
4.9
6.4
-31%
5.78
-18%
4.34
11%
4.74
3%
4.9
-0%
6.08 (1.2 - 14.2, n=878)
-24%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
20h 43min
NBC WiFi Websurfing Battery Test 1.3
13h 56min
Big Buck Bunny H.264 1080p
15h 02min
Belast (maximale helderheid)
4h 13min
CAT S42
4200 mAh
CAT S41
5000 mAh
Gigaset GX290
6200 mAh
Samsung Galaxy XCover 4s
2800 mAh
Blackview BV9100
13000 mAh
Batterijduur
14%
57%
-21%
139%
Reader / Idle
1243
1199
-4%
H.264
902
598
-34%
WiFi v1.3
836
953
14%
1316
57%
619
-26%
2000
139%
Load
253
200
-21%

Pro

+ stevige, wasbare behuizing
+ water- en stofdicht
+ snelle Wi-Fi
+ geen oververhitting
+ degelijke batterijduur
+ geen PWM

Contra

- middelmatige camera
- relatief slechte prestaties
- geen biometrische authenticatie
- verouderde beveiligingspatches
- bloatware
- geluidskwaliteit met de over-geaccentueerde hoge tonen
- geen aptX, geen Widevine L1

Conclusie - Stevige smartphone met plus- en minpunten

Getest: CAT S42. Testtoestel voorzien door: CAT Phones Germany.
Getest: CAT S42. Testtoestel voorzien door: CAT Phones Germany.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Het is een slimme zet dat CAT zijn S42 goedkoper heeft gemaakt. In de afgelopen jaren is de concurrentie op het gebied van robuuste smartphones toegenomen en zijn goedkope smartphones krachtiger geworden. Gebruikers zullen het echter op hun beurt moeten doen met een HD-scherm en een kleinere batterij.

Voor degenen die denken dat de CAT S41 een betere keuze is, hebben we het volgende te zeggen: de CAT S42 is aanzienlijk goedkoper, ook al is het voorgangermodel nu bijna twee jaar oud. Bovendien biedt het snellere Wi-Fi en moderne software. Wij vinden het echter jammer dat de hardware navigatieknoppen weg moesten.

Dikke randen in 2020 zijn geen mooi gezicht. Het gewicht is echter niet te hoog voor een robuuste smartphone in deze prijsklasse. We houden van het temperatuurbeheer en de zeer degelijke batterijduur.

Een robuuste, goedkope smartphone met een goede batterijduur, snelle Wi-Fi, een laag prestatieniveau en een middelmatige camera: de CAT S42 is een allegaartje.

De CAT S42 is de moeite waard voor wie op zoek is naar een goedkope smartphone die zware omstandigheden aankan. Potentiële kopers moeten zich echter bewust zijn van de matige cameraprestaties, de slechte geluidskwaliteit en de slechte systeemprestaties.

De fabrikant zou meer aandacht moeten besteden aan de beveiligingspatches, omdat deze op het moment van schrijven verouderd zijn. Dit is erg problematisch voor een zakelijk apparaat als de CAT S42.

CAT S42 - 11-08-2020 v7
Florian Schmitt

Behuizing
80%
Toetsenbord
65 / 75 → 87%
Aanwijsapparaat
89%
Aansluitmogelijkheden
43 / 70 → 62%
Gewicht
88%
Batterij
90%
Beeldscherm
83%
Gaming-performance
3 / 64 → 5%
Applicatie-performance
42 / 86 → 49%
Temperatuur
92%
Luidheid
100%
Audio
64 / 90 → 71%
Camera
39%
Gemiddelde
68%
73%
Smartphone - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport CAT S42 Smartphone: Stevige, wasbare smartphone met grip
Florian Schmitt, 2020-08-16 (Update: 2020-08-16)
