Kort testrapport Asus ZenBook UX3410UA Notebook

Andreas Osthoff (vertaald door Siemon Boes), 23-01-2017

De ZenBook nu in 14 inch. Asus breidt zijn ZenBook-serie uit met de 14-inch UX3410UA en past een 14-inch-scherm in een 13-inch-behuizing. Het aantrekkelijke design is onveranderd gebleven en het scherm en de algemene prestaties zijn meer dan toereikend. Alleen de huidige staat van de ventilator tast de goede indruk wat aan.

Asus Zenbook UX3410UA (Zenbook UX3410UA Serie)
Grafische kaart
Intel HD Graphics 620

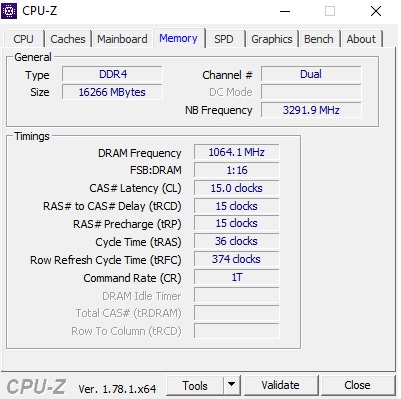

Geheugen
16384 MB
, DDR4 (8 GB geïnstalleerd)
Beeldscherm
14 inch 16:9, 1920 x 1080 pixel 157 PPI, ChiMei N140HCE-EN1, IPS, glimmend: nee
Moederbord
Intel Kaby Lake-U Premium PCH
Opslag
SanDisk SD8SN8U512G1002, 512 GB
, 440 GB beschikbaar
Geluidskaart
Intel Kaby Lake-U/Y PCH - High Definition Audio
Verbindingen
2 USB 2.0, 2 USB 3.0, 1 HDMI, 1 DisplayPort, Audio Verbindingen: 3.5 mm Headset, Card Reader: SD, Brightness Sensor
Netwerkmogelijkheden
Intel Dual Band Wireless-AC 8260 (a/b/g/n/ac), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 18.95 x 323 x 223
Batterij
48 Wh Lithium-Ion, 3 cellen
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Bijkomende functionaliteiten
Luidsprekers: harman/kardon Audio System, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 45-Watt-voeding, beschermhoes, Asus Tools, Office 365 (testversie), McAfee LiveSafe (testversie), Team Viewer, Evernote, WPS Office, Cyberlink PhotoDirector & PowerDirector, 24 Maanden Garantie
Gewicht
1.335 kg, Voeding: 175 g
Prijs
1199 Euro



Size Comparison

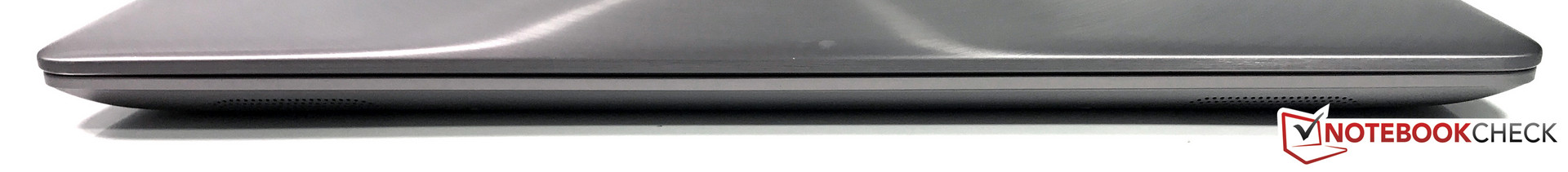

Front: Speakers
Front: Speakers

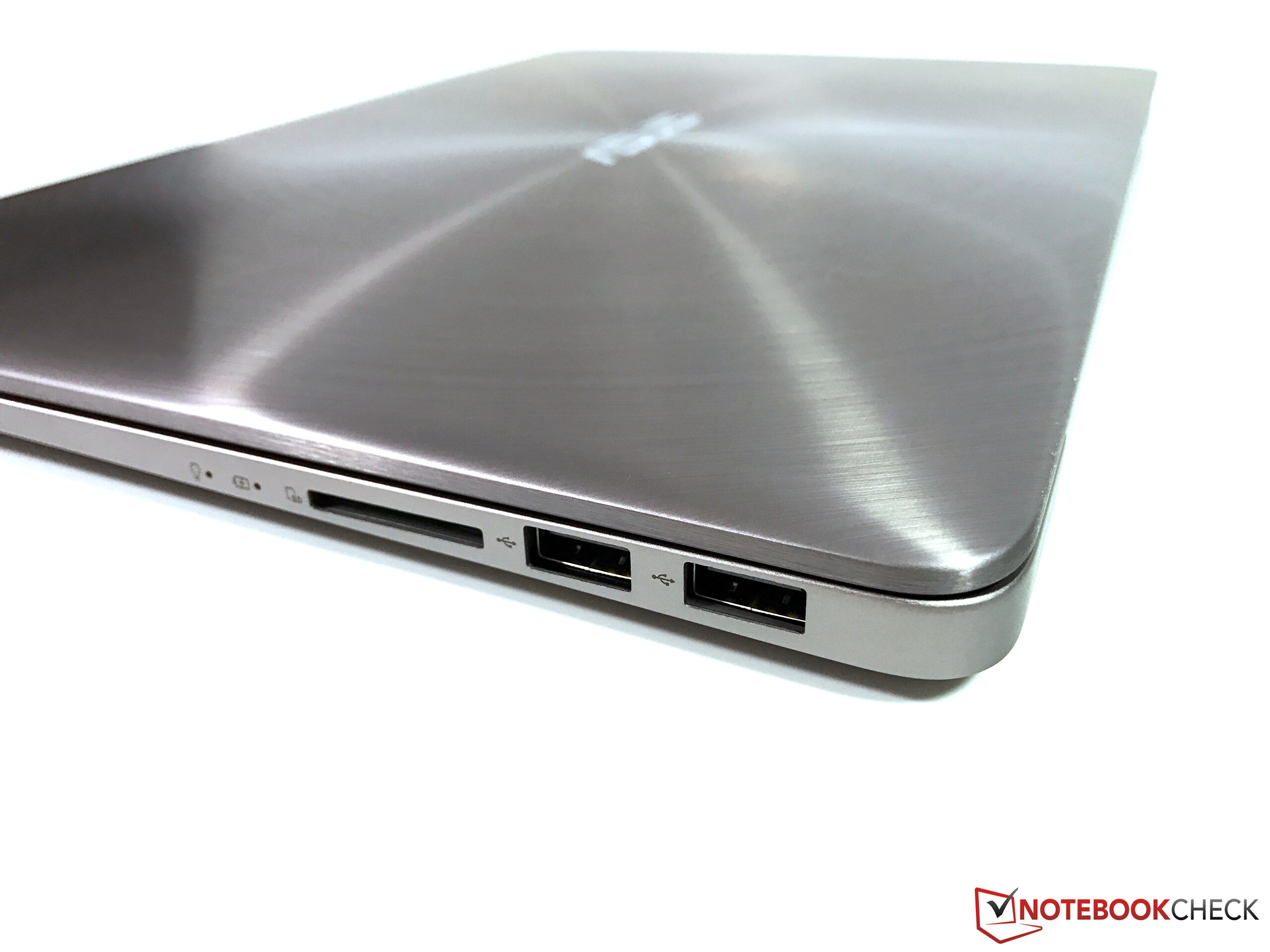

Right side: SD-card reader, 2x USB 2.0
Right side: SD-card reader, 2x USB 2.0

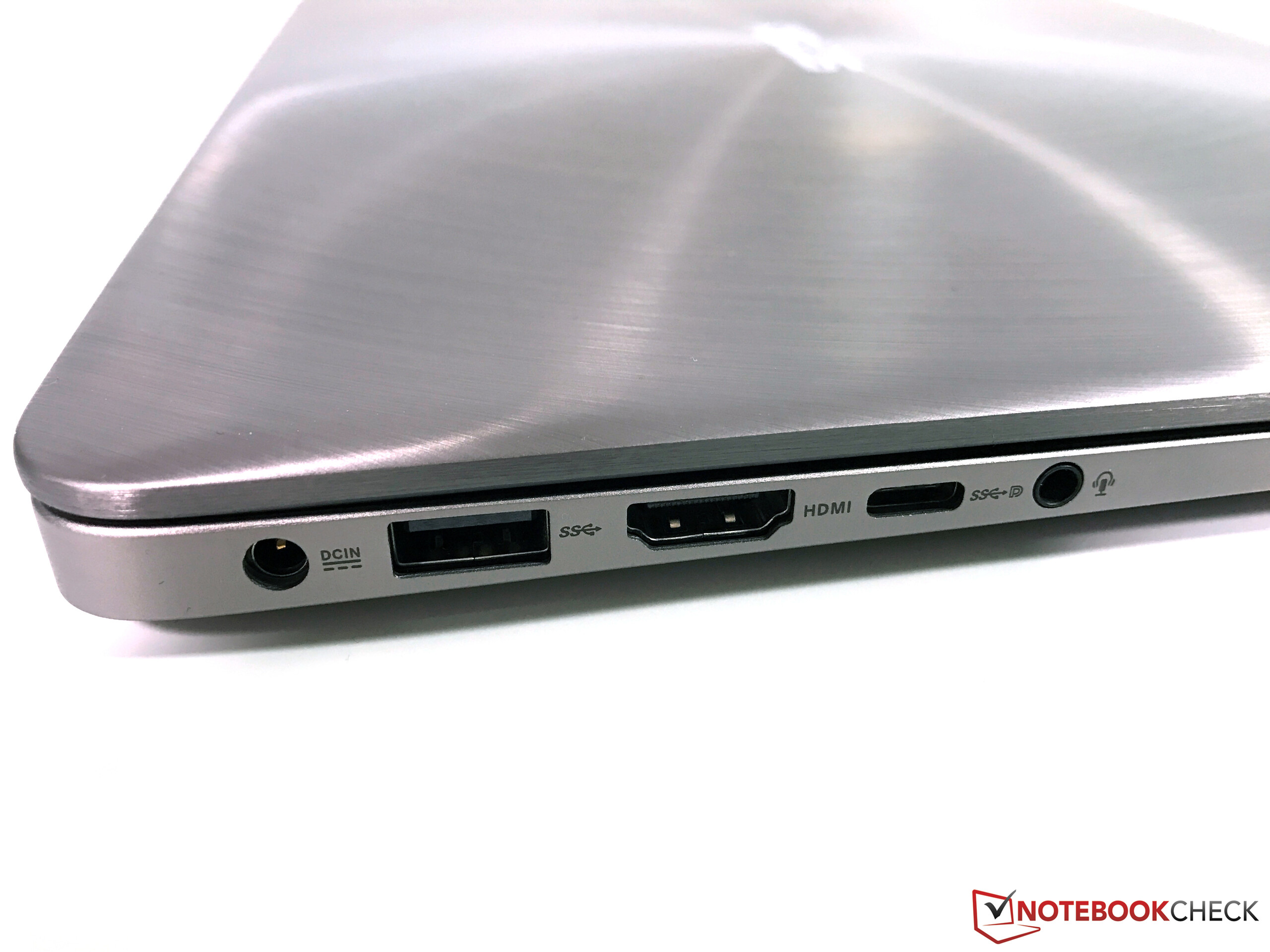

Left side: Power, USB 3.0, USB 3.1 Type-C (Gen.1 + DisplayPort), 3.5 mm audio
Left side: Power, USB 3.0, USB 3.1 Type-C (Gen.1 + DisplayPort), 3.5 mm audio
Rear: No ports
Rear: No ports
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Apple MacBook Pro 13 2016 (2.9 GHz)
Broadcom BCM15700A2 802.11ac
950 MBit/s ∼100% +194%
Dell XPS 13 9360 QHD+ i7
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
674 MBit/s ∼71% +109%
Acer Aspire VX5-591G-D0DD
Intel Dual Band Wireless-AC 7265
647 MBit/s ∼68% +100%
Asus Zenbook UX3410UA
Intel Dual Band Wireless-AC 8260
323 MBit/s ∼34%
MSI GE72VR-6RF16H21
Intel Dual Band Wireless-AC 3165
308 MBit/s ∼32% -5%
iperf3 Client (transmit) TCP 1 m 4M x10
Apple MacBook Pro 13 2016 (2.9 GHz)
Broadcom BCM15700A2 802.11ac
949 MBit/s ∼100% +102%
Dell XPS 13 9360 QHD+ i7
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
587 MBit/s ∼62% +25%
Acer Aspire VX5-591G-D0DD
Intel Dual Band Wireless-AC 7265
524 MBit/s ∼55% +12%
Asus Zenbook UX3410UA
Intel Dual Band Wireless-AC 8260
469 MBit/s ∼49%
MSI GE72VR-6RF16H21
Intel Dual Band Wireless-AC 3165
299 MBit/s ∼32% -36%

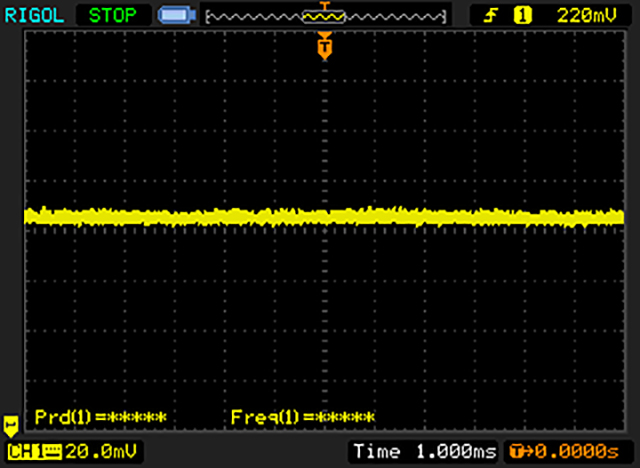

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 54 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 10727 (minimum: 43 - maximum: 588200) Hz waargenomen.

349
cd/m²
380
cd/m²
374
cd/m²
345
cd/m²
376
cd/m²
362
cd/m²
333
cd/m²
345
cd/m²
331
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 380 cd/m² Gemiddelde: 355 cd/m² Minimum: 21.8 cd/m²
Helderheidsverdeling: 87 %
Helderheid in Batterij-modus: 376 cd/m²
Contrast: 1175:1 (Zwart: 0.32 cd/m²)
ΔE Color 3.2 | 0.8-29.43 Ø6.3
ΔE Greyscale 4.4 | 0.64-98 Ø6.6
98.98% sRGB (Argyll 3D) 63.78% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.12
Asus Zenbook UX3410UA
ChiMei N140HCE-EN1, , 1920x1080, 14
Asus Zenbook UX310UQ-GL011T
AU Optronics AUO142D, , 1920x1080, 13.3
Acer Swift 5 SF514-51-59AV
AU Optronics B140HAN3.2, , 1920x1080, 14
Acer TravelMate X3 X349-M-7261
AU Optronics B140HAN02.1, , 1920x1080, 14
Lenovo Yoga 710-14IKB 80V4002HGE
AU Optronics B140HAN03.0, , 1920x1080, 14
Response Times
6%
-19%
-5%
-29%
Response Time Grey 50% / Grey 80% *
33 (14, 19)
39 (20, 19)
-18%
51 (20, 31)
-55%
42 (15, 27)
-27%
53 (17, 36, Plateau)
-61%
Response Time Black / White *
34 (15, 19)
24 (7, 17)
29%
28 (7, 21)
18%
28 (8, 20)
18%
33 (7, 26)
3%
PWM Frequency
50 (30)
50 (10)
Screen
-26%
-22%
-21%
-34%
Brightness middle
376
247
-34%
393
5%
230
-39%
340
-10%
Brightness
355
240
-32%
338
-5%
226
-36%
302
-15%
Brightness Distribution
87
90
3%
79
-9%
86
-1%
77
-11%
Black Level *
0.32
0.43
-34%
0.29
9%
0.2
37%
0.31
3%
Contrast
1175
574
-51%
1355
15%
1150
-2%
1097
-7%
Colorchecker DeltaE2000 *
3.2
4.74
-48%
6.17
-93%
5.07
-58%
6.75
-111%
Colorchecker DeltaE2000 max. *
7.1
9.14
-29%
11.21
-58%
10.07
-42%
12.4
-75%
Greyscale DeltaE2000 *
4.4
4.87
-11%
6.8
-55%
3.64
17%
8.47
-93%
Gamma
2.12 113%
2.57 93%
2.27 106%
2.46 98%
2.22 108%
CCT
7440 87%
7450 87%
6873 95%
6521 100%
6557 99%
Color Space (Percent of AdobeRGB 1998)
63.78
57
-11%
51
-20%
35
-45%
58
-9%
Color Space (Percent of sRGB)
98.98
88
-11%
91
-8%
55
-44%
89
-10%
Totaal Gemiddelde (Programma / Instellingen)
-10% / -21%
-21% / -21%
-13% / -19%
-32% / -33%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

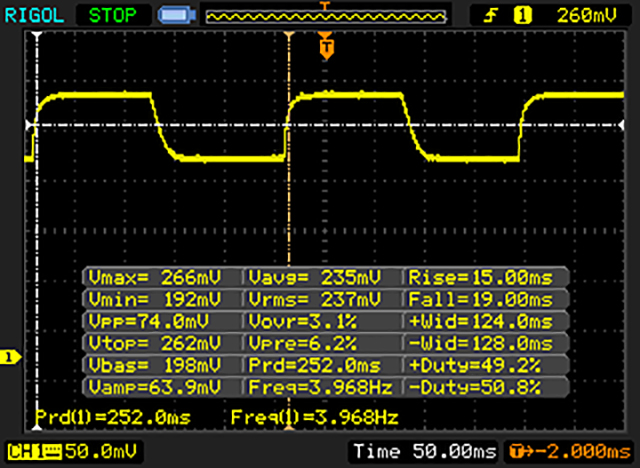

       Responstijd Zwart naar Wit
34 ms ... stijging ↗ en daling ↘ gecombineerd↗ 15 ms stijging
↘ 19 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 87 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (26 ms) van alle geteste toestellen.

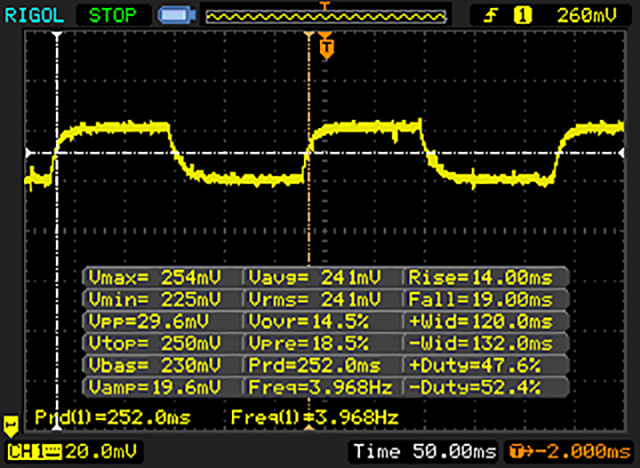

       Responstijd 50% Grijs naar 80% Grijs
33 ms ... stijging ↗ en daling ↘ gecombineerd↗ 14 ms stijging
↘ 19 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 20 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (41.6 ms) van alle geteste toestellen.

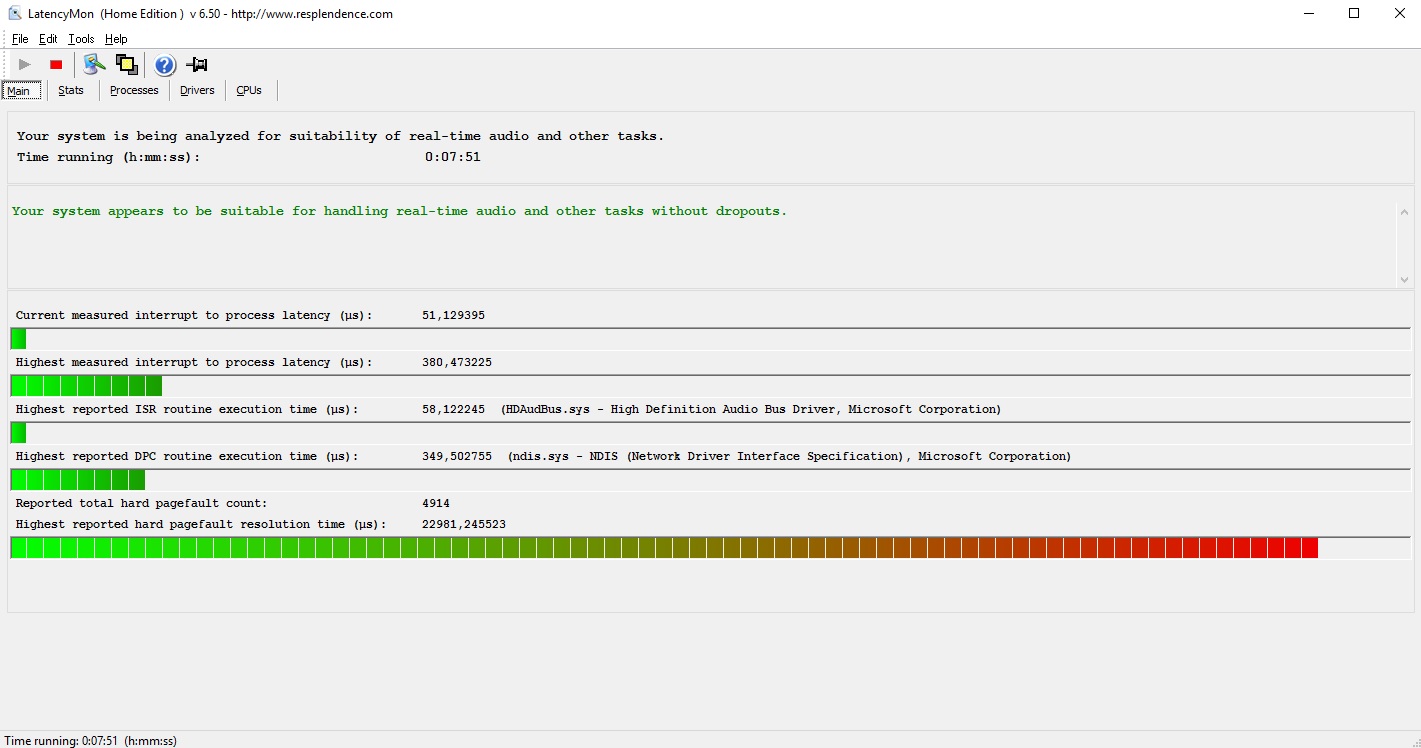

LatencyMon with active wireless modules
LatencyMon with active wireless modules


Cinebench R15
CPU Single 64Bit
HP Envy x360 15t-w200
Intel Core i7-7500U
146 Points ∼100% +3%
Asus Zenbook UX3410UA
Intel Core i7-7500U
142 Points ∼97%
Dell XPS 13 9360 QHD+ i7
Intel Core i7-7500U
137 Points ∼94% -4%
Acer TravelMate X3 X349-M-7261
Intel Core i7-6500U
130 Points ∼89% -8%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
130 Points ∼89% -8%
Acer Swift 5 SF514-51-59AV
Intel Core i5-7200U
128 Points ∼88% -10%
Lenovo Yoga 710-14IKB 80V4002HGE
Intel Core i5-7200U
118 Points ∼81% -17%
Acer Swift 7 SF713-51
Intel Core i5-7Y54
111 Points ∼76% -22%
CPU Multi 64Bit
Asus Zenbook UX3410UA
Intel Core i7-7500U
368 Points ∼100%
HP Envy x360 15t-w200
Intel Core i7-7500U
349 Points ∼95% -5%
Dell XPS 13 9360 QHD+ i7
Intel Core i7-7500U
334 Points ∼91% -9%
Lenovo Yoga 710-14IKB 80V4002HGE
Intel Core i5-7200U
328 Points ∼89% -11%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
327 Points ∼89% -11%
Acer TravelMate X3 X349-M-7261
Intel Core i7-6500U
324 Points ∼88% -12%
Acer Swift 5 SF514-51-59AV
Intel Core i5-7200U
320 Points ∼87% -13%
Acer Swift 7 SF713-51
Intel Core i5-7Y54
207 Points ∼56% -44%
Cinebench R15 CPU Single 64Bit
142 Points
Cinebench R15 CPU Multi 64Bit
368 Points
Cinebench R15 OpenGL 64Bit
50.67 fps
Cinebench R15 Ref. Match 64Bit
97.7 %
Help
PCMark 8
Work Score Accelerated v2
Asus Zenbook UX3410UA
HD Graphics 620, 7500U, SanDisk SD8SN8U512G1002
5033 Points ∼100%
Asus Zenbook UX310UQ-GL011T
GeForce 940MX, 6500U, SanDisk SD8SNAT256G1002
4603 Points ∼91% -9%
Acer TravelMate X3 X349-M-7261
HD Graphics 520, 6500U, Liteonit CV3-8D512
4361 Points ∼87% -13%
Home Score Accelerated v2
Asus Zenbook UX3410UA
HD Graphics 620, 7500U, SanDisk SD8SN8U512G1002
3965 Points ∼100%
Asus Zenbook UX310UQ-GL011T
GeForce 940MX, 6500U, SanDisk SD8SNAT256G1002
3769 Points ∼95% -5%
Acer TravelMate X3 X349-M-7261
HD Graphics 520, 6500U, Liteonit CV3-8D512
3545 Points ∼89% -11%
Acer Swift 5 SF514-51-59AV
HD Graphics 620, 7200U, SK Hynix HFS256G39TND-N210A
3370 Points ∼85% -15%
Lenovo Yoga 710-14IKB 80V4002HGE
HD Graphics 620, 7200U, Samsung MZYTY256HDHP
3268 Points ∼82% -18%
PCMark 8 Home Score Accelerated v2
3965 punten
PCMark 8 Work Score Accelerated v2
5033 punten
Help
Asus Zenbook UX3410UA
SanDisk SD8SN8U512G1002
Asus Zenbook UX310UQ-GL011T
SanDisk SD8SNAT256G1002
Acer Swift 5 SF514-51-59AV
SK Hynix HFS256G39TND-N210A
Acer TravelMate X3 X349-M-7261
Liteonit CV3-8D512
Lenovo Yoga 710-14IKB 80V4002HGE
Samsung MZYTY256HDHP
CrystalDiskMark 3.0
-18%
-6%
8%
3%
Write 4k QD32
249.3
200.2
-20%
242.5
-3%
280.6
13%
152.2
-39%
Read 4k QD32
351
147.4
-58%
277.1
-21%
368.5
5%
378.9
8%
Write 4k
56.45
72.07
28%
77.35
37%
67.48
20%
91.23
62%
Read 4k
27.53
22.03
-20%
29.65
8%
33.44
21%
34.35
25%
Write 512
419.7
272.8
-35%
258.5
-38%
355.1
-15%
219.9
-48%
Read 512
328
318.6
-3%
355
8%
399.1
22%
386.2
18%
Write Seq
461.7
319.2
-31%
258.1
-44%
449.8
-3%
452.3
-2%
Read Seq
494.5
468.1
-5%
516.6
4%
484.1
-2%
490.5
-1%
SanDisk SD8SN8U512G1002
Sequential Read: 494.5 MB/s
Sequential Write: 461.7 MB/s
512K Read: 328 MB/s
512K Write: 419.7 MB/s
4K Read: 27.53 MB/s
4K Write: 56.45 MB/s
4K QD32 Read: 351 MB/s
4K QD32 Write: 249.3 MB/s
3DMark 11 - 1280x720 Performance GPU
Asus Zenbook UX310UQ-GL011T
NVIDIA GeForce 940MX, Intel Core i7-6500U
2321 Points ∼100% +39%
HP ProBook 440 G4-Y8B51EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
2206 Points ∼95% +32%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Intel Iris Graphics 540, Intel Core i7-6560U
1947 Points ∼84% +17%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1747 Points ∼75% +5%
Asus Zenbook UX3410UA
Intel HD Graphics 620, Intel Core i7-7500U
1666 Points ∼72%
Acer Swift 5 SF514-51-59AV
Intel HD Graphics 620, Intel Core i5-7200U
1529 Points ∼66% -8%
Acer TravelMate X3 X349-M-7261
Intel HD Graphics 520, Intel Core i7-6500U
1481 Points ∼64% -11%
HP ProBook 430 G4-Y8B47EA
Intel HD Graphics 620, Intel Core i7-7500U
1463 Points ∼63% -12%
Lenovo Yoga 710-14IKB 80V4002HGE
Intel HD Graphics 620, Intel Core i5-7200U
1403 Points ∼60% -16%
3DMark
1920x1080 Fire Strike Graphics
HP ProBook 440 G4-Y8B51EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
1621 Points ∼100% +46%
Asus Zenbook UX310UQ-GL011T
NVIDIA GeForce 940MX, Intel Core i7-6500U
1589 Points ∼98% +43%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1282 Points ∼79% +15%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Intel Iris Graphics 540, Intel Core i7-6560U
1194 Points ∼74% +7%
Asus Zenbook UX3410UA
Intel HD Graphics 620, Intel Core i7-7500U
1114 Points ∼69%
Acer TravelMate X3 X349-M-7261
Intel HD Graphics 520, Intel Core i7-6500U
864 Points ∼53% -22%
Lenovo Yoga 710-14IKB 80V4002HGE
Intel HD Graphics 620, Intel Core i5-7200U
777 Points ∼48% -30%
HP ProBook 430 G4-Y8B47EA
Intel HD Graphics 620, Intel Core i7-7500U
765 Points ∼47% -31%
1280x720 Cloud Gate Standard Graphics
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Intel Iris Graphics 540, Intel Core i7-6560U
9788 Points ∼100% +5%
Asus Zenbook UX3410UA
Intel HD Graphics 620, Intel Core i7-7500U
9307 Points ∼95%
HP ProBook 440 G4-Y8B51EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
9056 Points ∼93% -3%
Asus Zenbook UX310UQ-GL011T
NVIDIA GeForce 940MX, Intel Core i7-6500U
8519 Points ∼87% -8%
Acer Swift 5 SF514-51-59AV
Intel HD Graphics 620, Intel Core i5-7200U
8219 Points ∼84% -12%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
7733 Points ∼79% -17%
Acer TravelMate X3 X349-M-7261
Intel HD Graphics 520, Intel Core i7-6500U
7407 Points ∼76% -20%
HP ProBook 430 G4-Y8B47EA
Intel HD Graphics 620, Intel Core i7-7500U
6881 Points ∼70% -26%
Lenovo Yoga 710-14IKB 80V4002HGE
Intel HD Graphics 620, Intel Core i5-7200U
6670 Points ∼68% -28%
3DMark 11 Performance
1863 punten
3DMark Cloud Gate Standard Score
7237 punten
3DMark Fire Strike Score
1019 punten
Help
lage gem. hoge ultra
Tomb Raider (2013) 100.147.229.413.5fps
BioShock Infinite (2013) 62.932.728.59.2fps
Battlefield 4 (2013) 49.232.923.6fps
The Witcher 3 (2015) 15.810.3fps
Rise of the Tomb Raider (2016) 21.513.3fps

Geluidsniveau

Onbelast
29.9 / 29.9 / 35.2 dB (A)
Belasting
43.5 / 43.8 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.9 dB(A)
Asus Zenbook UX3410UA
7500U, HD Graphics 620
Asus Zenbook UX310UQ-GL011T
6500U, GeForce 940MX
Acer Swift 5 SF514-51-59AV
7200U, HD Graphics 620
Acer TravelMate X3 X349-M-7261
6500U, HD Graphics 520
Lenovo Yoga 710-14IKB 80V4002HGE
7200U, HD Graphics 620
Noise
5%
10%
8%
7%
off / environment *
29.9
30.5
-2%
30.5
-2%
31.15
-4%
30.16
-1%
Idle Minimum *
29.9
30.5
-2%
30.5
-2%
31.5
-5%
30.16
-1%
Idle Average *
29.9
30.5
-2%
30.5
-2%
31.5
-5%
30.16
-1%
Idle Maximum *
35.2
31.5
11%
30.5
13%
31.5
11%
30.5
13%
Load Average *
43.5
36.2
17%
32.25
26%
31.7
27%
37.2
14%
Load Maximum *
43.8
40
9%
32.6
26%
34.1
22%
37
16%

* ... kleiner is beter

Max. Belasting
 32.9 °C39.4 °C38.5 °C
 34.4 °C33.8 °C28.7 °C
 29.3 °C31.5 °C27.3 °C
Maximum: 39.4 °C
Gemiddelde: 32.9 °C
33.9 °C35.2 °C33.2 °C
29 °C32.8 °C33 °C
27.5 °C28.9 °C30 °C
Maximum: 35.2 °C
Gemiddelde: 31.5 °C
Stroomadapter (max.)  49.5 °C | Kamertemperatuur 21.3 °C | Voltcraft IR-260
The maximum temp on the upper side is 39.4 °C, compared to the average of 35.9 °C ranging from 21.1 °C to 71 °C for class Subnotebook.
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.638.52525.433.43125.3284032.932.85033.648.26331.634.58028.430.81002737.712520.835.81602244.620021.350.825020.855.231521.255.240019.457.950019.557.163017.760.880017.964.7100017.863.8125017.363.7160017.465.3200016.764250017.265.9315018.265.2400017.968.8500017.669630017.769.7800017.8701000017.970.61250018.169.91600018.261SPL3078.9N1.343.9median 17.9Asus Zenbook UX3410UAmedian 63.8Delta1.35.334.734.634.73539.63539.539.939.53635.23640.132.340.12928.22929.92629.937.22637.241.825.441.841.723.341.737.223.837.244.322.744.351.921.651.956.120.256.157.619.657.656.318.656.365.218.665.265.31865.364.117.464.166.917.966.964.117.564.16717.86763.817.963.858.71858.757.118.357.161.418.461.461.218.461.256.818.456.852.318.252.347.618.447.675.430.575.434.51.434.5median 57.1Acer Swift 5 SF514-51-59AVmedian 18.4median 57.18.828.8hearing rangehide median Pink Noise
Asus Zenbook UX3410UA audio analysis

(±) | speaker loudness is average but good (78.89 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.2% lower than median
(±) | linearity of bass is average (10.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(+) | mids are linear (4.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.7% away from median
(+) | highs are linear (2.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.5% difference to median)
Compared to same class
» 29% of all tested devices in this class were better, 13% similar, 58% worse
» The best had a delta of 9%, average was 19%, worst was 47%
Compared to all devices tested
» 18% of all tested devices were better, 5% similar, 77% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Acer Swift 5 SF514-51-59AV audio analysis

(-) | not very loud speakers (66 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.7% lower than median
(±) | linearity of bass is average (13.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.3% higher than median
(±) | linearity of mids is average (7.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.9% away from median
(±) | linearity of highs is average (8.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.3% difference to median)
Compared to same class
» 58% of all tested devices in this class were better, 7% similar, 35% worse
» The best had a delta of 9%, average was 19%, worst was 47%
Compared to all devices tested
» 39% of all tested devices were better, 5% similar, 56% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.14 / 0.44 Watt
Inactiefdarkmidlight 3.7 / 6 / 6.78 Watt
Belasting midlight 37.3 / 47.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus Zenbook UX3410UA
7500U, HD Graphics 620, 1920x1080, 14
Asus Zenbook UX310UQ-GL011T
6500U, GeForce 940MX, 1920x1080, 13.3
Acer Swift 5 SF514-51-59AV
7200U, HD Graphics 620, 1920x1080, 14
Acer TravelMate X3 X349-M-7261
6500U, HD Graphics 520, 1920x1080, 14
Lenovo Yoga 710-14IKB 80V4002HGE
7200U, HD Graphics 620, 1920x1080, 14
Power Consumption
-8%
-4%
-8%
3%
Idle Minimum *
3.7
3
19%
3.6
3%
4.9
-32%
3.7
-0%
Idle Average *
6
5.6
7%
7
-17%
7.3
-22%
7.16
-19%
Idle Maximum *
6.78
6.8
-0%
9.3
-37%
9.4
-39%
8.3
-22%
Load Average *
37.3
48.7
-31%
37
1%
26
30%
30.4
18%
Load Maximum *
47.4
63
-33%
32.6
31%
36
24%
30.3
36%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
17h 43min
NBC WiFi Websurfing Battery Test 1.3 (Edge 38.14393.0.0)
7h 23min
Big Buck Bunny H.264 1080p
10h 07min
Belast (maximale helderheid)
1h 38min
Asus Zenbook UX3410UA
7500U, HD Graphics 620, 48 Wh
Asus Zenbook UX310UQ-GL011T
6500U, GeForce 940MX, 48 Wh
Acer Swift 5 SF514-51-59AV
7200U, HD Graphics 620, 53.9 Wh
Acer TravelMate X3 X349-M-7261
6500U, HD Graphics 520, 48.9 Wh
Lenovo Yoga 710-14IKB 80V4002HGE
7200U, HD Graphics 620, 53 Wh
Batterijduur
-8%
3%
-18%
8%
Reader / Idle
1063
878
-17%
1014
-5%
675
-37%
957
-10%
H.264
607
419
-31%
555
-9%
400
-34%
520
-14%
WiFi v1.3
443
486
10%
549
24%
392
-12%
561
27%
Load
98
103
5%
100
2%
109
11%
126
29%

Pro

+ uitstekend IPS-scherm
+ compacte en stevige behuizing
+ aantrekkelijk design
+ hoge systeemprestaties
+ prima invoerapparatuur
+ handige batterijduur

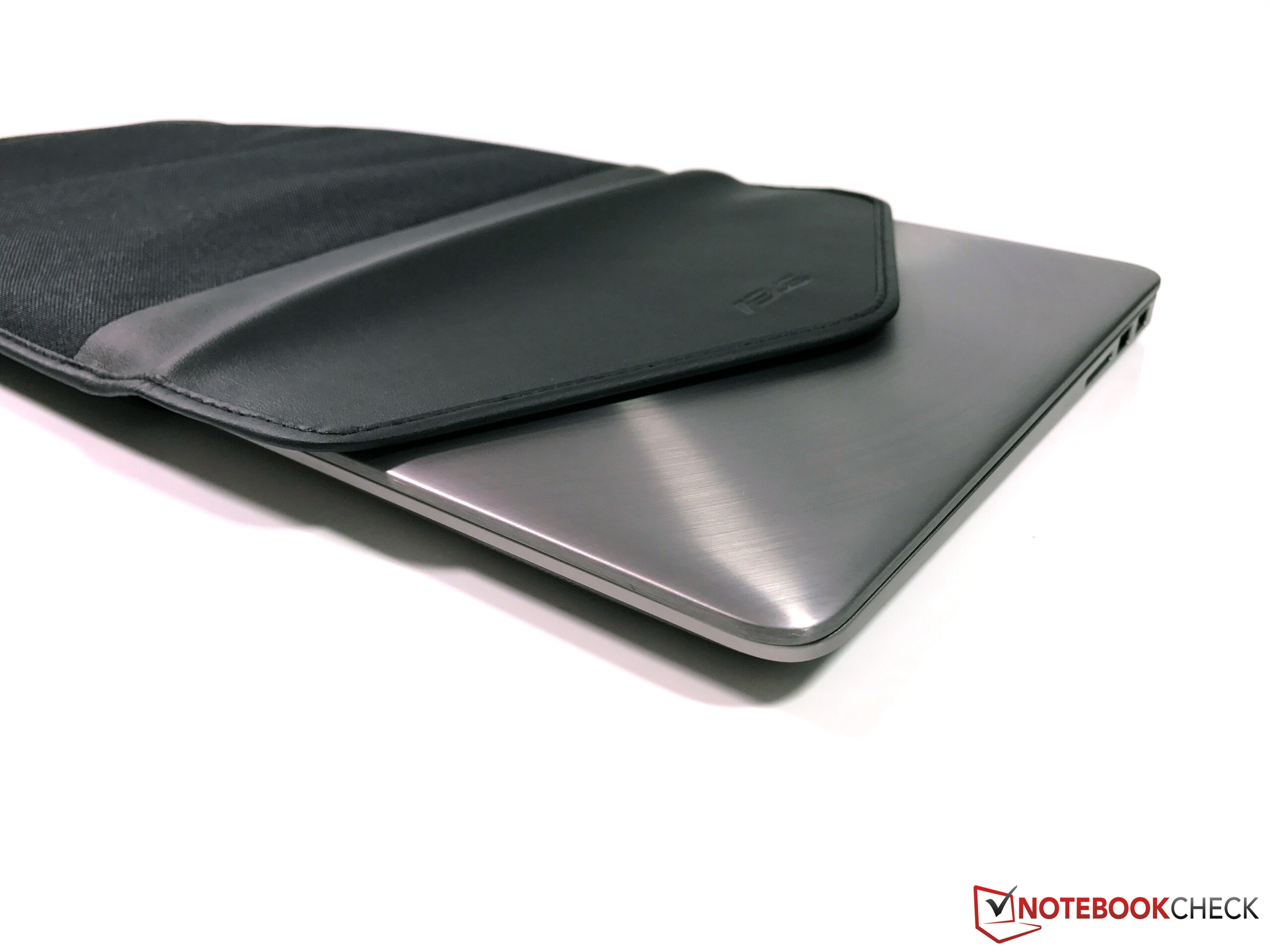

+ beschermhoes inbegrepen

Contra

- 2x USB 2.0
- trage SD-kaartlezer
- toetsenbord zou meer feedback mogen geven
- ietwat wiebelend scherm en beperkte max. openingshoek
- luide ventilator; vaak actief bij lichte werklasten
In review: Asus ZenBook UX3410UA-GV078T. Test model courtesy of Asus Germany.
In review: Asus ZenBook UX3410UA-GV078T. Test model courtesy of Asus Germany.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

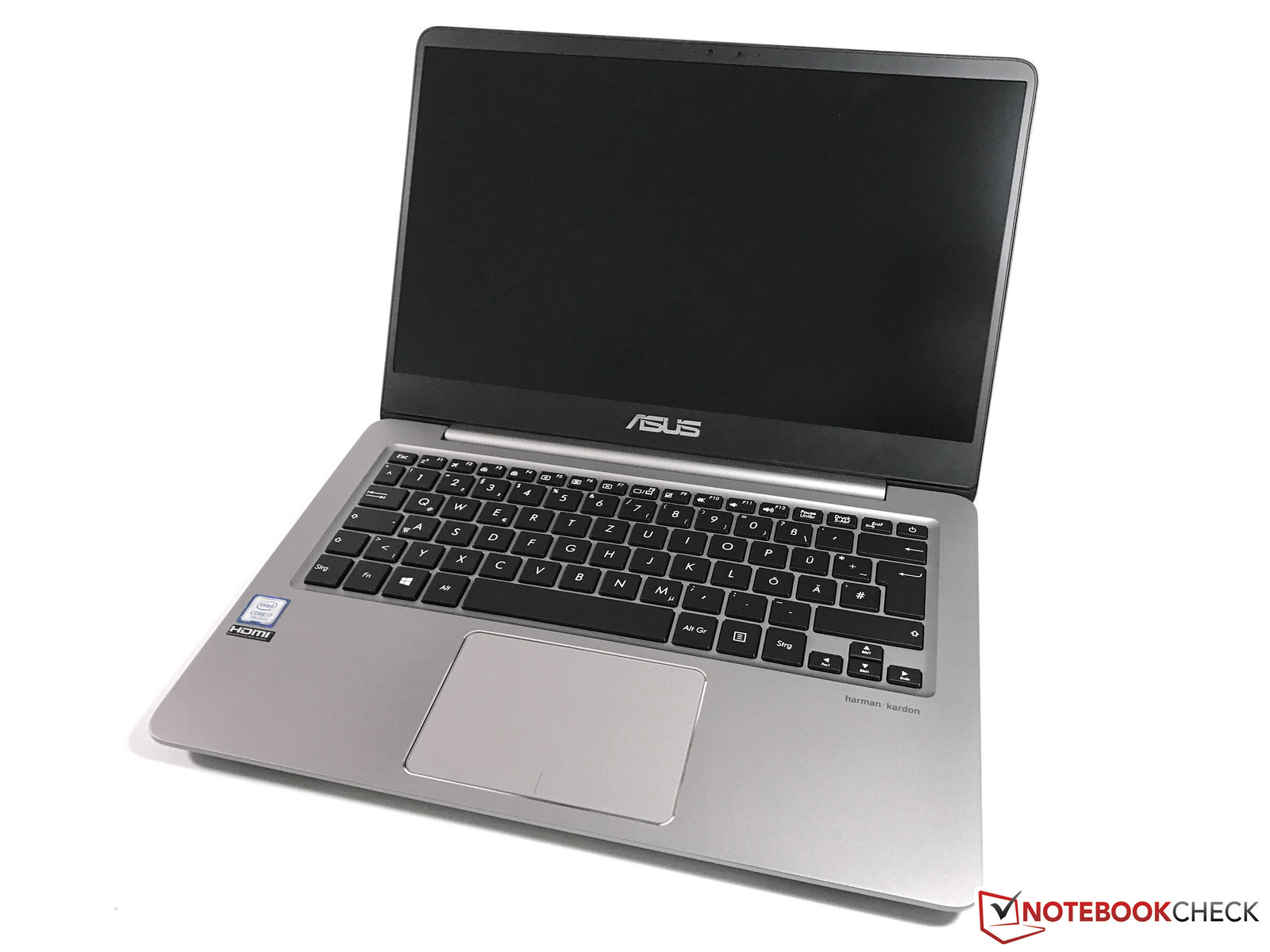

De nieuwe Asus ZenBook UX3410UA volgt de trend van steeds groeiende schermen. Het 14-inch-paneel past perfect in de 13.3-inch-behuizing en ten opzichte van de gewone ZenBook UX310 zijn er nauwelijks negatieve aspecten, afgezien van de iets kortere WiFi-batterijduur. In tegendeel: de stabiliteit is nog beter dankzij de iets dikkere schermbehuizing en het uitstekende IPS-paneel verslaat met gemak het TN-scherm van de UX310 in elke opzicht.

De ZenBook UX3410UA is nog aantrekkelijker met het grotere scherm. Asus maakt ook gebruik van een erg goed ontspiegeld FHD-IPS-paneel.

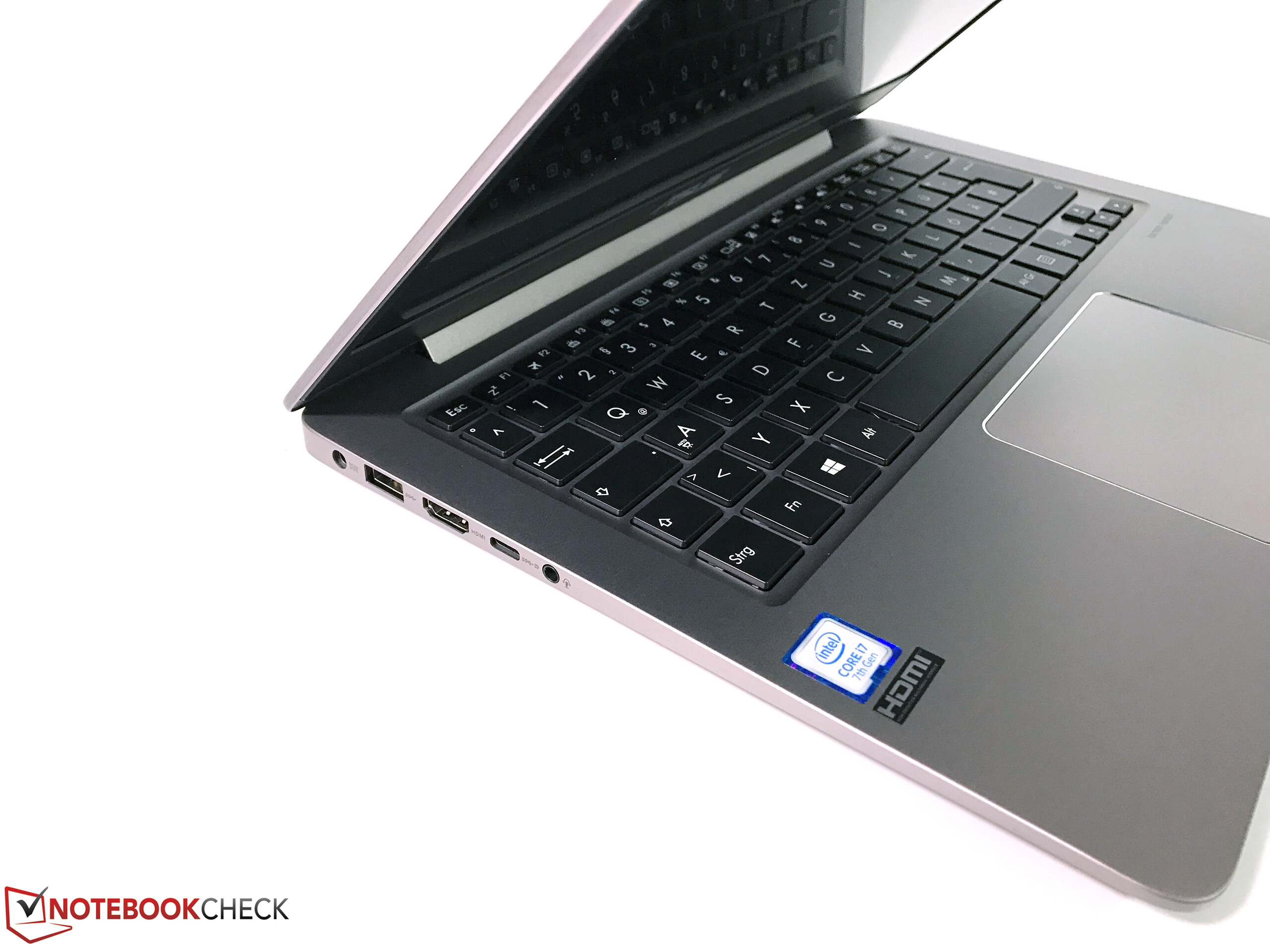

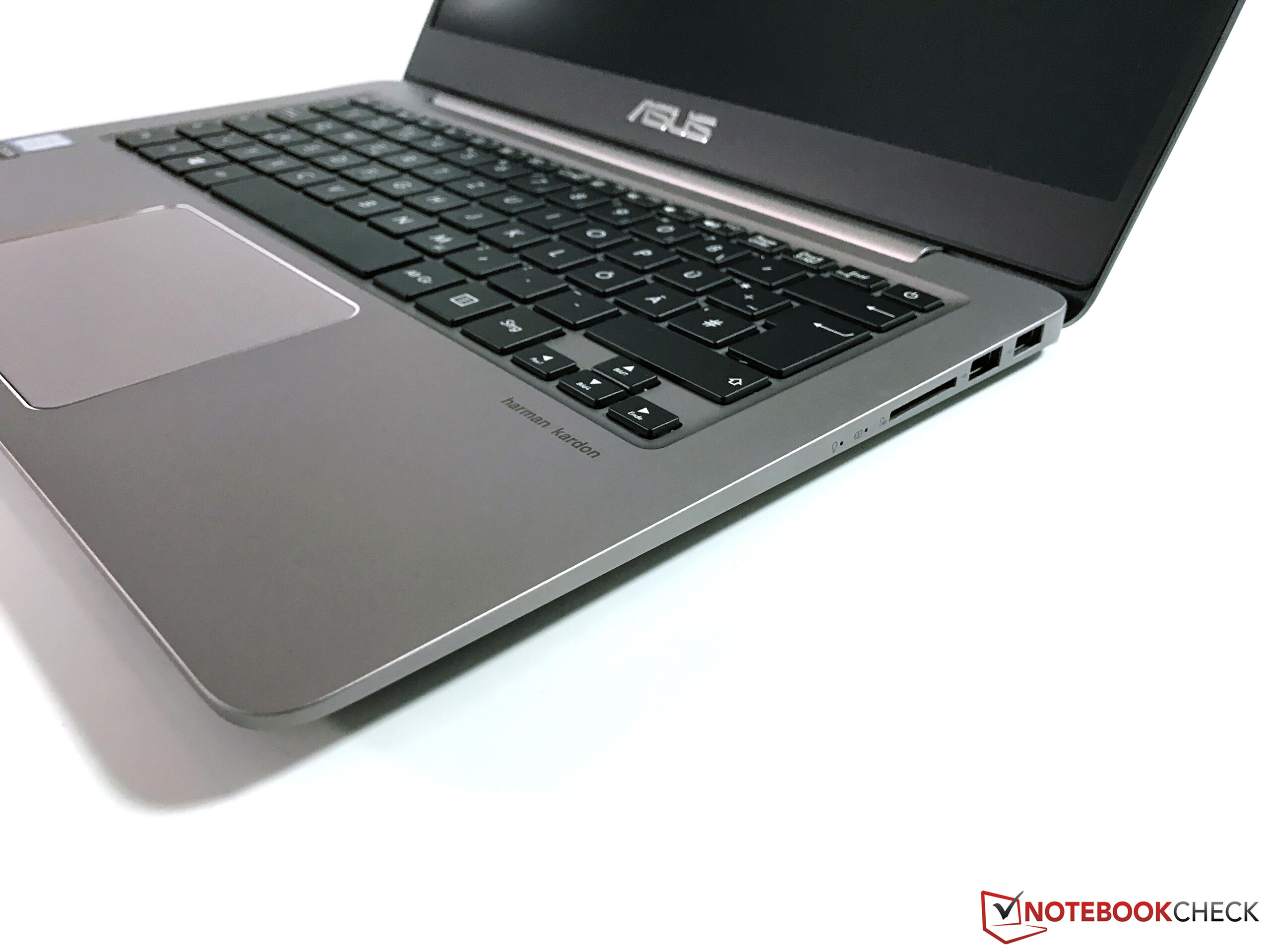

De ZenBook weet ook op andere vlakken te overtuigen. De aluminium behuizing is elegant en stevig, het performance-gedrag van de processor is uitstekend en de invoerapparatuur is eveneens erg degelijk. Vier USB-poorten zijn lovenswaardig, al verwachten we geen trage USB 2.0-poorten in een toestel van 1200 euro. De geïntegreerde kaartlezer is ook wat aan de trage kant.

We waren minder overtuigd door de ventilator, die redelijk luid kan zijn en reeds bij lichte werklasten begint te draaien. Dit is misschien te wijten aan ons vroege testmodel en we hopen dan ook dat een software-update de situatie kan verbeteren. De identieke koeling in de gewone ZenBook UX310UQ is merkbaar stiller, ondanks de discrete grafische kaart in dit toestel.

Asus Zenbook UX3410UA - 20-01-2017 v6
Andreas Osthoff

Behuizing
82 /  98 → 83%
Toetsenbord
81%
Aanwijsapparaat
75%
Aansluitmogelijkheden
54 / 80 → 68%
Gewicht
71 / 35-78 → 84%
Batterij
90%
Beeldscherm
90%
Gaming-performance
57 / 68 → 84%
Applicatie-performance
89 / 87 → 100%
Temperatuur
93 / 91 → 100%
Luidheid
83%
Audio
61 / 91 → 67%
Camera
59 / 85 → 69%
Gemiddelde
76%
85%
Subnotebook - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Asus ZenBook UX3410UA Notebook
Andreas Osthoff, 2017-01-23 (Update: 2017-02-10)
