Kort testrapport Asus AsusPro P4540UQ (7200U, 940MX, Full-HD) Laptop

Sascha Mölck, Stefanie Voigt (vertaald door Siemon Boes), 15-04-2017

Onvermoeibaar. Asus is ook actief op het vlak van business-notebooks. De goed uitgeruste 15.6-inch AsusPro P454UQ daagt de gevestigde concurrentie uit. Wat batterijduur betreft behaalt Asus alvast een overwinning.

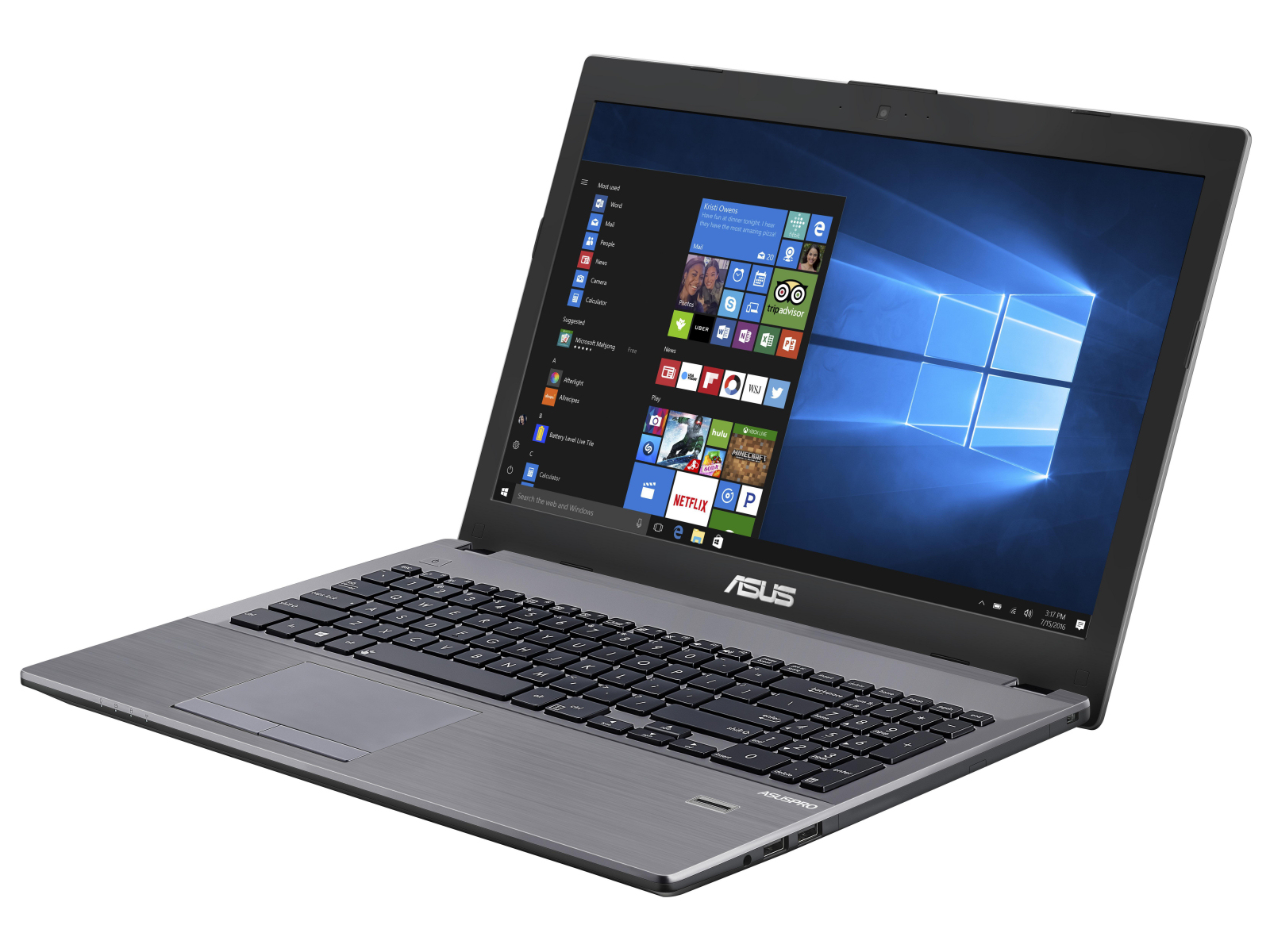

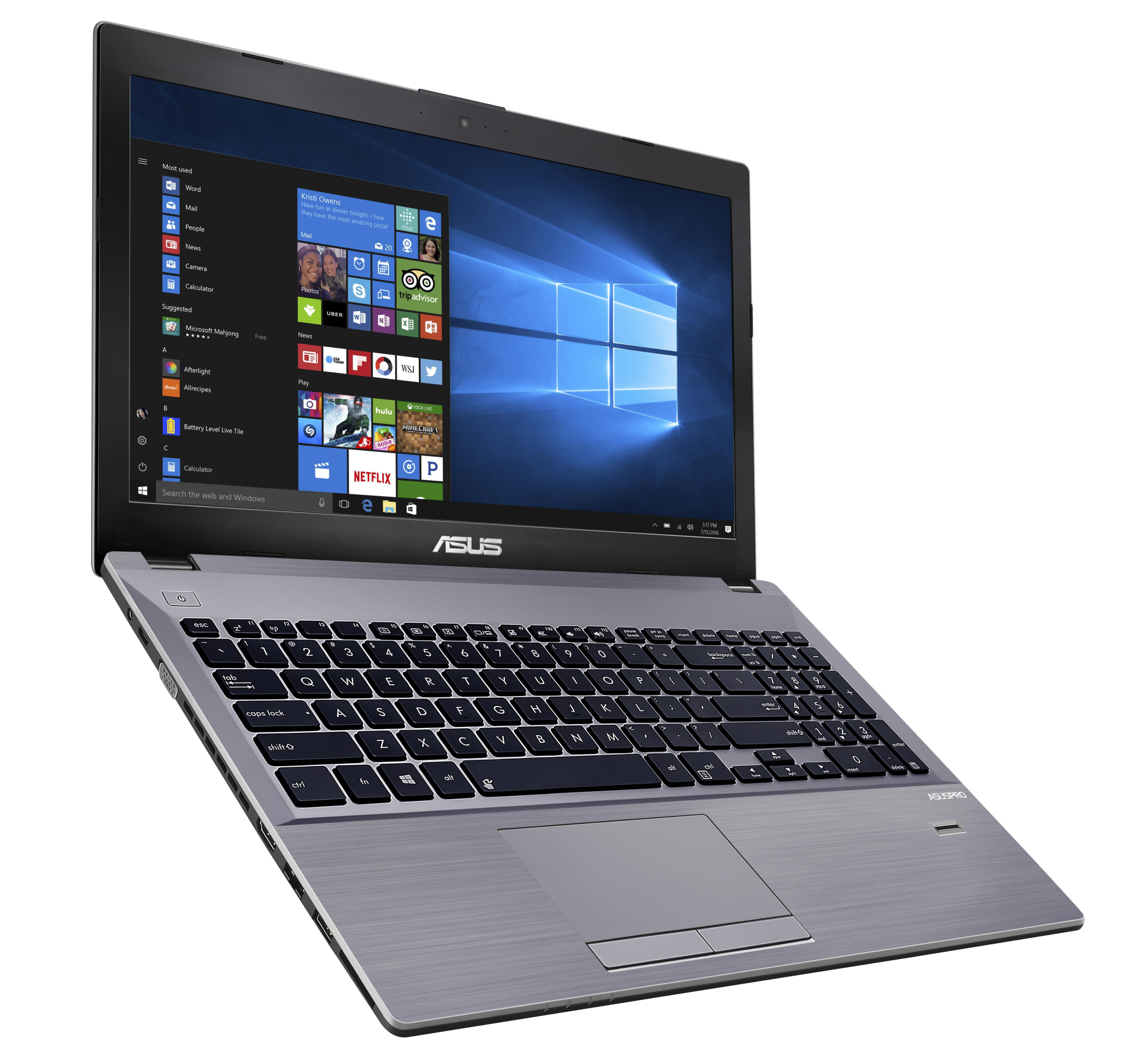

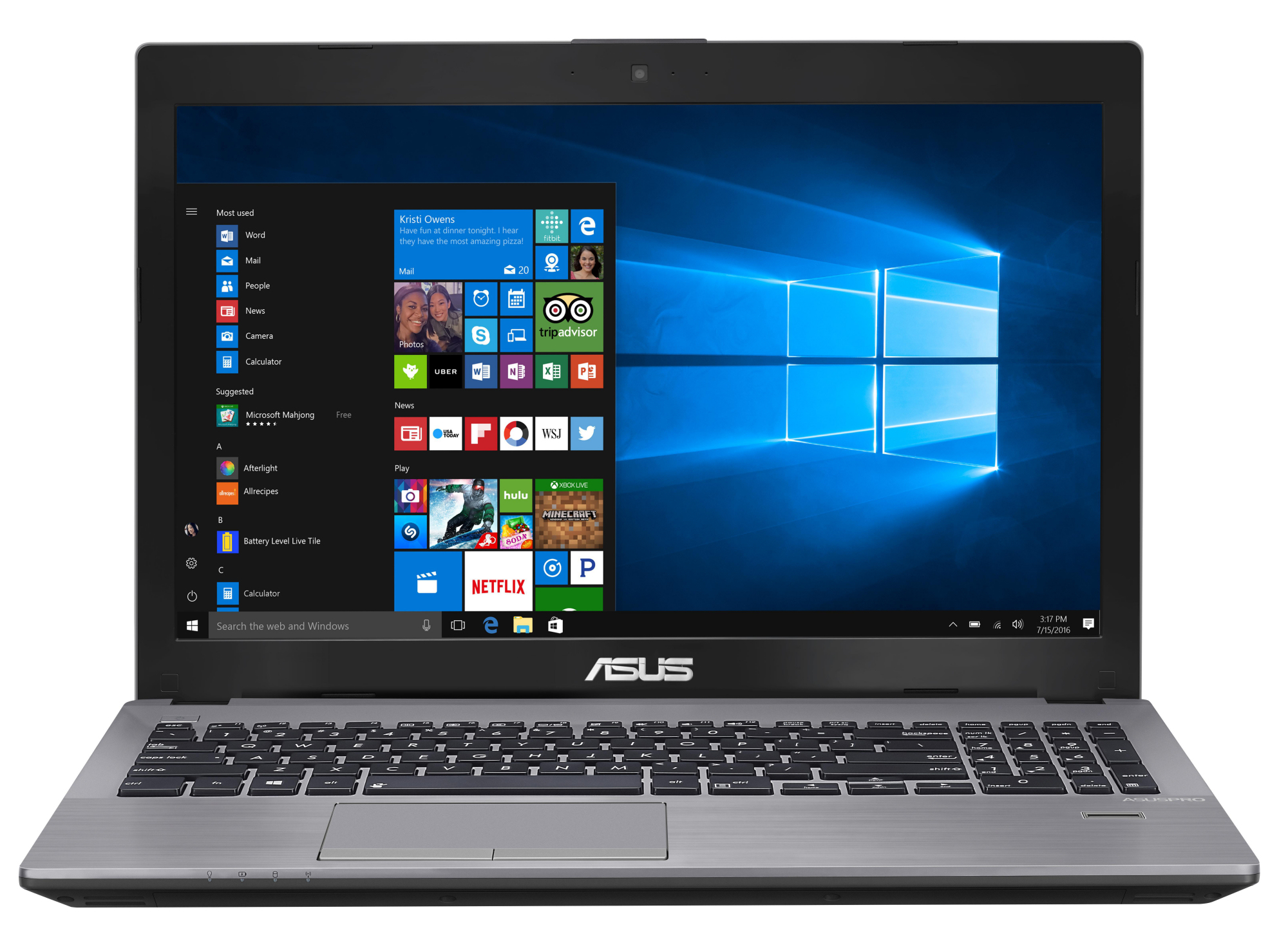

Asus AsusPro P4540UQ-FY0056R (ASUSPRO Serie)
Processor
Intel Core i5-7200U
Grafische kaart
NVIDIA GeForce 940MX - 4096 MB, Core: 1083-1163 MHz, Geheugen: 1000 MHz, GDDR5, 64-Bit-connectie, ForceWare 378.92, Optimus
Geheugen
8192 MB
, DDR4-2400, Single-Channel, 2 geheugensleuf (één sleuf bezet)
Beeldscherm
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, LG Philips LP156WF6-SPB6, IPS, glimmend: nee
Moederbord
Intel Kaby Lake-U Premium PCH
Opslag
SK Hynix HFS256G39TND-N210A, 256 GB
, 190 GB beschikbaar
Geluidskaart
Realtek ALC255 @ Intel Sunrise Point PCH - High Definition Audio Controller
Verbindingen
4 USB 3.0, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Verbindingen: Audiokombo, Card Reader: SD, 1 Vingerafdruklezer, TPM 2.0
Netwerkmogelijkheden
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Intel Dual Band Wireless-AC 8260 (a/b/g/n/ac), Bluetooth 4.1
Optische drive
Slimtype DVD A DA8AESH
Afmetingen
hoogte x breedte x diepte (in mm): 24.5 x 380 x 256

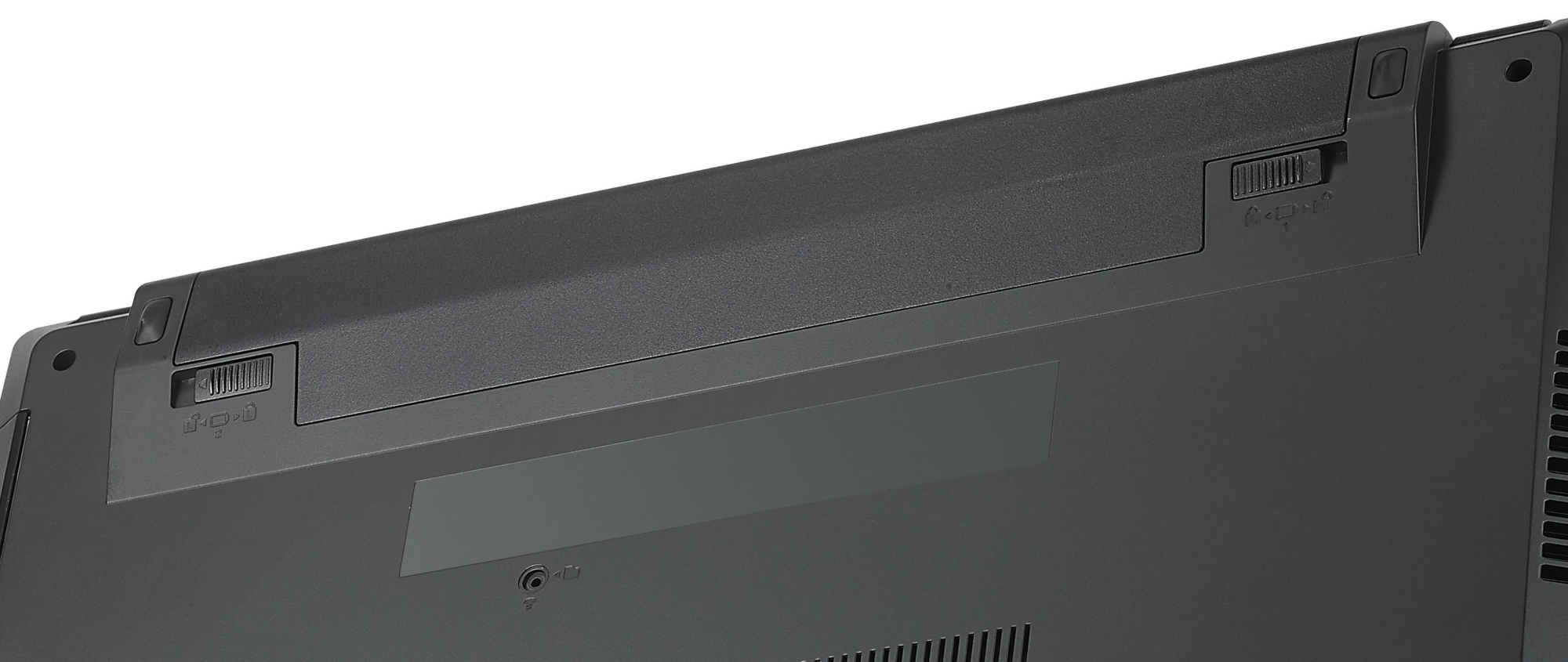

Batterij
72 Wh, 6700 mAh Lithium-Ion, removeable, 10.8 V
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Bijkomende functionaliteiten
Luidsprekers: Stereo, Toetsenbord: Chiclet, Toetsenbordverlichting: nee, Cyberlink PhotoDirector 5, Cyberlink PowerDirector 12, MS Office 365 (testversie), 24 Maanden Garantie
Gewicht
2.4 kg, Voeding: 377 g
Prijs
899 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

382 mm 263 mm 24 mm 2 kg382 mm 259 mm 24 mm 2.3 kg380 mm 256 mm 24.5 mm 2.4 kg379 mm 261 mm 25.4 mm 2.3 kg380 mm 252.5 mm 19.2 mm 1.9 kg

Connectivity

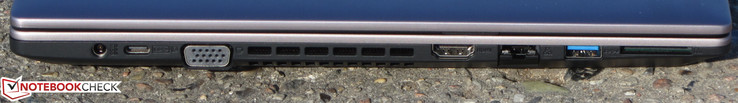

Left side: power port, USB 3.1 Gen 1 (Type-C), VGA, HDMI, Gigabit-Ethernet, USB 3.1 Gen 1 (Type-A), card reader (SD)

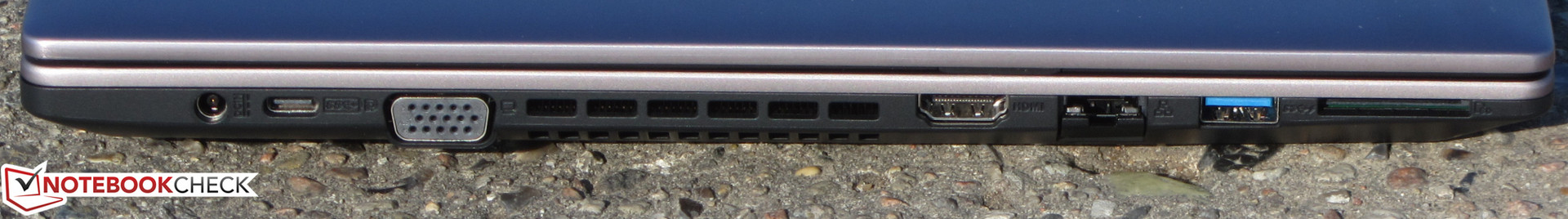

Left side: power port, USB 3.1 Gen 1 (Type-C), VGA, HDMI, Gigabit-Ethernet, USB 3.1 Gen 1 (Type-A), card reader (SD)

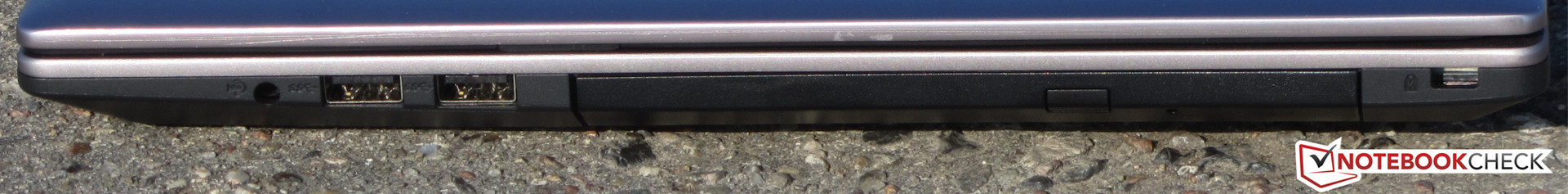

Ride side: combo audio, 2x USB 3.1 Gen 1 (Type-A), DVD-burner, slot for cable lock
Ride side: combo audio, 2x USB 3.1 Gen 1 (Type-A), DVD-burner, slot for cable lock
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
HP ProBook 450 G4 Y8B60EA

72.7 MB/s ∼100% 0%
Asus AsusPro P4540UQ-FY0056R

72.6 MB/s ∼100%
Acer TravelMate P259-MG-71UU

68.1 MB/s ∼94% -6%
Lenovo ThinkPad E570-20H6S00000

62.5 MB/s ∼86% -14%
Dell Vostro 15-5568

25.2 MB/s ∼35% -65%
maximum AS SSD Seq Read Test (1GB)
HP ProBook 450 G4 Y8B60EA

89 MB/s ∼100%
Lenovo ThinkPad E570-20H6S00000

81.71 MB/s ∼92%
Dell Vostro 15-5568

25.5 MB/s ∼29%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Acer TravelMate P259-MG-71UU
Intel Dual Band Wireless-AC 7265
628 MBit/s ∼100% +28%
Lenovo ThinkPad E570-20H6S00000
Atheros/Qualcomm QCA6174
495 MBit/s ∼79% +1%
Asus AsusPro P4540UQ-FY0056R
Intel Dual Band Wireless-AC 8260
490 MBit/s ∼78%
Dell Vostro 15-5568
Intel Dual Band Wireless-AC 3165
205 MBit/s ∼33% -58%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus AsusPro P4540UQ-FY0056R
Intel Dual Band Wireless-AC 8260
663 MBit/s ∼100%
Acer TravelMate P259-MG-71UU
Intel Dual Band Wireless-AC 7265
583 MBit/s ∼88% -12%
Lenovo ThinkPad E570-20H6S00000
Atheros/Qualcomm QCA6174
434 MBit/s ∼65% -35%
Dell Vostro 15-5568
Intel Dual Band Wireless-AC 3165
268 MBit/s ∼40% -60%
273
cd/m²
271
cd/m²
286
cd/m²
265
cd/m²
276
cd/m²
298
cd/m²
270
cd/m²
298
cd/m²
313
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 313 cd/m² Gemiddelde: 283.3 cd/m² Minimum: 16 cd/m²
Helderheidsverdeling: 85 %
Helderheid in Batterij-modus: 296 cd/m²
Contrast: 1022:1 (Zwart: 0.27 cd/m²)
ΔE Color 3.92 | 0.6-29.43 Ø6.1
ΔE Greyscale 2.6 | 0.64-98 Ø6.3
83.7% sRGB (Argyll 3D) 54.5% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.53
Asus AsusPro P4540UQ-FY0056R
IPS, 1920x1080, 15.6
HP ProBook 450 G4 Y8B60EA
TN LED, 1920x1080, 15.6
Lenovo ThinkPad E570-20H6S00000
IPS LED, 1920x1080, 15.6
Acer TravelMate P259-MG-71UU
TN LED, 1920x1080, 15.6
Dell Vostro 15-5568
TN LED, 1920x1080, 15.6
Response Times
-46%
-3%
6%
-10%
Response Time Grey 50% / Grey 80% *
38 (20, 18)
51 (23, 28)
-34%
44.8 (16.4, 28.4)
-18%
43 (20, 23)
-13%
47.6 (24.4, 23.2)
-25%
Response Time Black / White *
29 (17, 12)
30 (10, 20)
-3%
25.6 (6.8, 18.8)
12%
22 (6, 16)
24%
27.2 (10, 17.2)
6%
PWM Frequency
21000 (90)
50 (40)
-100%
Screen
-84%
-15%
-84%
-82%
Brightness middle
276
214
-22%
242
-12%
180
-35%
229
-17%
Brightness
283
201
-29%
243
-14%
178
-37%
222
-22%
Brightness Distribution
85
77
-9%
75
-12%
93
9%
82
-4%
Black Level *
0.27
0.43
-59%
0.24
11%
0.45
-67%
0.56
-107%
Contrast
1022
498
-51%
1008
-1%
400
-61%
409
-60%
Colorchecker DeltaE2000 *
3.92
10.68
-172%
4.65
-19%
9.91
-153%
10.36
-164%
Colorchecker DeltaE2000 max. *
9.13
18.07
-98%
9.64
-6%
18.19
-99%
14.95
-64%
Greyscale DeltaE2000 *
2.6
11.32
-335%
3.39
-30%
11.25
-333%
10.9
-319%
Gamma
2.53 87%
2.26 97%
2.7 81%
2.35 94%
2.21 100%
CCT
6561 99%
12204 53%
6246 104%
12115 54%
10084 64%
Color Space (Percent of AdobeRGB 1998)
54.5
38
-30%
36.69
-33%
37
-32%
37.69
-31%
Color Space (Percent of sRGB)
83.7
59
-30%
57.66
-31%
58
-31%
57.92
-31%
Totaal Gemiddelde (Programma / Instellingen)
-65% / -75%
-9% / -13%
-39% / -69%
-46% / -70%

* ... kleiner is beter

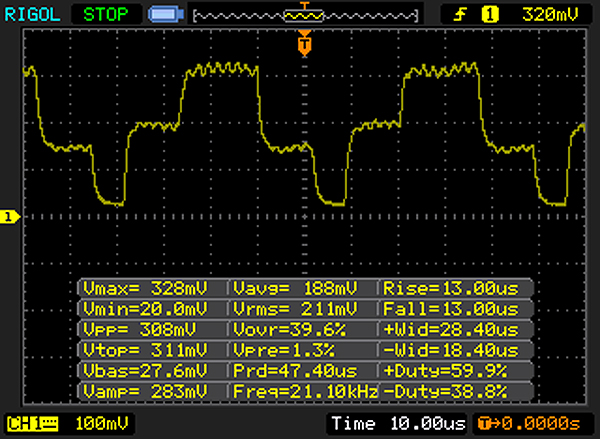

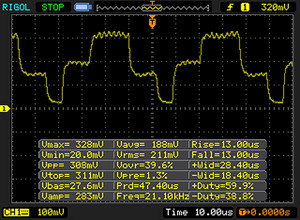

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 21000 Hz ≤ 90 % helderheid instelling

Het backlight van het scherm flikkert aan 21000 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 90 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 21000 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9447 (minimum: 43 - maximum: 142900) Hz waargenomen.

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

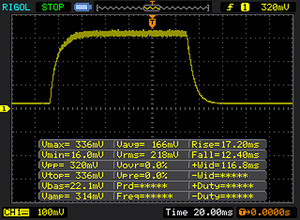

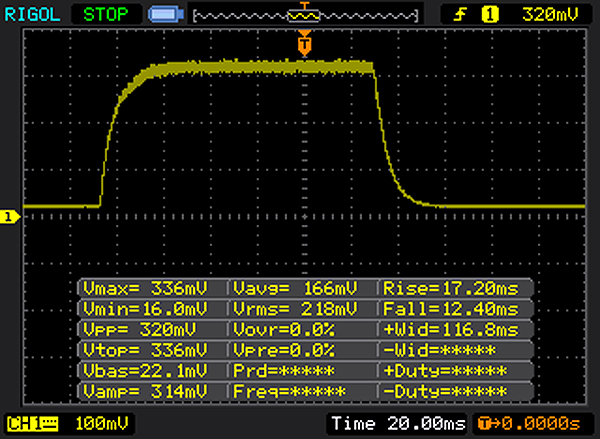

       Responstijd Zwart naar Wit
29 ms ... stijging ↗ en daling ↘ gecombineerd↗ 17 ms stijging
↘ 12 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 68 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (25.2 ms) van alle geteste toestellen.

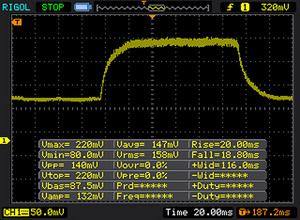

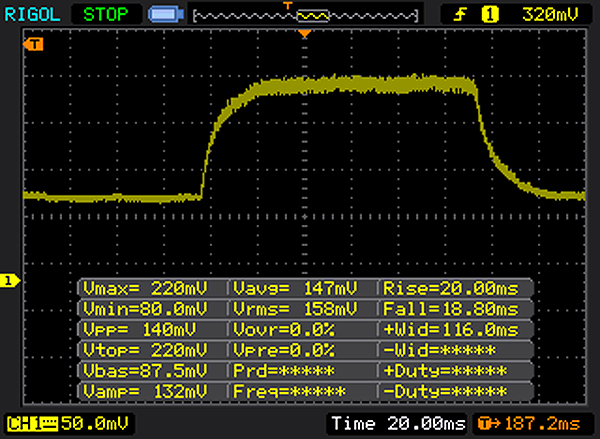

       Responstijd 50% Grijs naar 80% Grijs
38 ms ... stijging ↗ en daling ↘ gecombineerd↗ 20 ms stijging
↘ 18 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 36 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (40.2 ms) van alle geteste toestellen.
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R10 Rendering Single 32Bit
5001
Cinebench R10 Rendering Multiple CPUs 32Bit
10893
Cinebench R10 Shading 32Bit
6326
Cinebench R15 CPU Single 64Bit
128 Points
Cinebench R15 CPU Multi 64Bit
320 Points
Cinebench R15 OpenGL 64Bit
71.13 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Help
Cinebench R15
CPU Single 64Bit
HP ProBook 450 G4 Y8B60EA
Intel Core i7-7500U
146 Points ∼67% +14%
Acer TravelMate P259-MG-71UU
Intel Core i7-6500U
130 Points ∼60% +2%
Dell Vostro 15-5568
Intel Core i5-7200U
129 Points ∼59% +1%
Lenovo ThinkPad E570-20H6S00000
Intel Core i5-7200U
129 Points ∼59% +1%
Asus AsusPro P4540UQ-FY0056R
Intel Core i5-7200U
128 Points ∼59%
CPU Multi 64Bit
HP ProBook 450 G4 Y8B60EA
Intel Core i7-7500U
355 Points ∼8% +11%
Lenovo ThinkPad E570-20H6S00000
Intel Core i5-7200U
330 Points ∼8% +3%
Acer TravelMate P259-MG-71UU
Intel Core i7-6500U
329 Points ∼8% +3%
Asus AsusPro P4540UQ-FY0056R
Intel Core i5-7200U
320 Points ∼7%
Dell Vostro 15-5568
Intel Core i5-7200U
319 Points ∼7% 0%
Cinebench R10
Rendering Single 32Bit
Asus AsusPro P4540UQ-FY0056R
Intel Core i5-7200U
5001 Points ∼46%
Acer TravelMate P259-MG-71UU
Intel Core i7-6500U
4860 Points ∼45% -3%
Rendering Multiple CPUs 32Bit
Acer TravelMate P259-MG-71UU
Intel Core i7-6500U
11200 Points ∼23% +3%
Asus AsusPro P4540UQ-FY0056R
Intel Core i5-7200U
10893 Points ∼22%
Geekbench 3
32 Bit Multi-Core Score
Acer TravelMate P259-MG-71UU
Intel Core i7-6500U
6904 Points ∼22% +7%
Asus AsusPro P4540UQ-FY0056R
Intel Core i5-7200U
6427 Points ∼21%
32 Bit Single-Core Score
Acer TravelMate P259-MG-71UU
Intel Core i7-6500U
3239 Points ∼67% +13%
Asus AsusPro P4540UQ-FY0056R
Intel Core i5-7200U
2863 Points ∼59%
Geekbench 4.0
64 Bit Multi-Core Score
Acer TravelMate P259-MG-71UU
Intel Core i7-6500U
7550 Points ∼27% +12%
Asus AsusPro P4540UQ-FY0056R
Intel Core i5-7200U
6766 Points ∼25%
64 Bit Single-Core Score
Acer TravelMate P259-MG-71UU
Intel Core i7-6500U
3872 Points ∼67% +8%
Asus AsusPro P4540UQ-FY0056R
Intel Core i5-7200U
3572 Points ∼62%
JetStream 1.1 - Total Score
HP ProBook 450 G4 Y8B60EA
Intel Core i7-7500U
238.56 Points ∼68% +11%
Dell Vostro 15-5568
Intel Core i5-7200U
218 Points ∼62% +2%
Asus AsusPro P4540UQ-FY0056R
Intel Core i5-7200U
214.39 Points ∼61%
Lenovo ThinkPad E570-20H6S00000
Intel Core i5-7200U
208.94 Points ∼59% -3%
Acer TravelMate P259-MG-71UU
Intel Core i7-6500U
126.59 Points ∼36% -41%
PCMark 8 Home Score Accelerated v2
3428 punten
PCMark 8 Creative Score Accelerated v2
4256 punten
PCMark 8 Work Score Accelerated v2
4478 punten
Help
PCMark 8
Work Score Accelerated v2
HP ProBook 450 G4 Y8B60EA
GeForce 930MX, 7500U, SanDisk SD8SNAT256G1002
4725 Points ∼73% +6%
Acer TravelMate P259-MG-71UU
GeForce 940MX, 6500U, Liteonit CV3-8D256
4699 Points ∼72% +5%
Lenovo ThinkPad E570-20H6S00000
GeForce GTX 950M, 7200U, Toshiba THNSF5256GPUK
4666 Points ∼72% +4%
Dell Vostro 15-5568
HD Graphics 620, 7200U, SanDisk X400 256GB, SATA (SD8SB8U-256G)
4573 Points ∼70% +2%
Asus AsusPro P4540UQ-FY0056R
GeForce 940MX, 7200U, SK Hynix HFS256G39TND-N210A
4478 Points ∼69%
Home Score Accelerated v2
Acer TravelMate P259-MG-71UU
GeForce 940MX, 6500U, Liteonit CV3-8D256
3823 Points ∼63% +12%
Lenovo ThinkPad E570-20H6S00000
GeForce GTX 950M, 7200U, Toshiba THNSF5256GPUK
3550 Points ∼58% +4%
Asus AsusPro P4540UQ-FY0056R
GeForce 940MX, 7200U, SK Hynix HFS256G39TND-N210A
3428 Points ∼56%
Dell Vostro 15-5568
HD Graphics 620, 7200U, SanDisk X400 256GB, SATA (SD8SB8U-256G)
3331 Points ∼55% -3%
HP ProBook 450 G4 Y8B60EA
GeForce 930MX, 7500U, SanDisk SD8SNAT256G1002
3163 Points ∼52% -8%
SK Hynix HFS256G39TND-N210A
Sequential Read: 498.4 MB/s
Sequential Write: 257.1 MB/s
512K Read: 309.3 MB/s
512K Write: 264.2 MB/s
4K Read: 30.6 MB/s
4K Write: 77.29 MB/s
4K QD32 Read: 357.4 MB/s
4K QD32 Write: 254.5 MB/s
Asus AsusPro P4540UQ-FY0056R
SK Hynix HFS256G39TND-N210A
HP ProBook 450 G4 Y8B60EA
SanDisk SD8SNAT256G1002
Lenovo ThinkPad E570-20H6S00000
Toshiba THNSF5256GPUK
Acer TravelMate P259-MG-71UU
Liteonit CV3-8D256
Dell Vostro 15-5568
SanDisk X400 256GB, SATA (SD8SB8U-256G)
AS SSD
-15%
71%
5%
10%
Score Total
977
607
-38%
1578
62%
869
-11%
917
-6%
Score Write
316
300
-5%
369
17%
260
-18%
253
-20%
Score Read
442
204
-54%
813
84%
398
-10%
435
-2%
Access Time Write *
0.224
0.159
29%
0.036
84%
0.057
75%
0.083
63%
Access Time Read *
0.084
0.141
-68%
0.06
29%
0.091
-8%
0.098
-17%
4K-64 Write
233.59
195.5
-16%
232.51
0%
163.65
-30%
156.39
-33%
4K-64 Read
364.52
137.12
-62%
653.5
79%
328.49
-10%
357.92
-2%
4K Write
63.46
73.41
16%
73.1
15%
62.92
-1%
50.3
-21%
4K Read
27.19
17.96
-34%
37.12
37%
29.56
9%
26.84
-1%
Seq Write
190.78
315.86
66%
635.81
233%
333.54
75%
465.22
144%
Seq Read
502.41
493.84
-2%
1226.97
144%
402.9
-20%
502.49
0%

* ... kleiner is beter

3DMark 11 Performance
2800 punten
3DMark Ice Storm Standard Score
51531 punten
3DMark Cloud Gate Standard Score
7704 punten
3DMark Fire Strike Score
1916 punten
3DMark Time Spy Score
633 punten
Help
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad E570-20H6S00000
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
4243 Points ∼8% +60%
Acer TravelMate P259-MG-71UU
NVIDIA GeForce 940MX, Intel Core i7-6500U
2821 Points ∼6% +7%
Asus AsusPro P4540UQ-FY0056R
NVIDIA GeForce 940MX, Intel Core i5-7200U
2645 Points ∼5%
Lenovo ThinkPad E470-20H2S00400
NVIDIA GeForce 940MX, Intel Core i5-7200U
2556 Points ∼5% -3%
Dell Vostro 15 5568
NVIDIA GeForce 940MX, Intel Core i7-7500U
2511 Points ∼5% -5%
Asus Vivobook F556UQ-XO626D
NVIDIA GeForce 940MX, Intel Core i5-6198DU
2481 Points ∼5% -6%
MSI CX62 7QL
NVIDIA GeForce 940MX, Intel Core i5-7200U
2411 Points ∼5% -9%
HP ProBook 450 G4 Y8B60EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
2092 Points ∼4% -21%
Dell Vostro 15-5568
Intel HD Graphics 620, Intel Core i5-7200U
1384 Points ∼3% -48%
3DMark - 1920x1080 Fire Strike Score
Lenovo ThinkPad E570-20H6S00000
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
3244 Points ∼12% +69%
Acer TravelMate P259-MG-71UU
NVIDIA GeForce 940MX, Intel Core i7-6500U
2025 Points ∼8% +6%
Asus AsusPro P4540UQ-FY0056R
NVIDIA GeForce 940MX, Intel Core i5-7200U
1916 Points ∼7%
Dell Vostro 15 5568
NVIDIA GeForce 940MX, Intel Core i7-7500U
1834 Points ∼7% -4%
Lenovo ThinkPad E470-20H2S00400
NVIDIA GeForce 940MX, Intel Core i5-7200U
1528 Points ∼6% -20%
MSI CX62 7QL
NVIDIA GeForce 940MX, Intel Core i5-7200U
1473 Points ∼6% -23%
HP ProBook 450 G4 Y8B60EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
1454 Points ∼5% -24%
Dell Vostro 15-5568
Intel HD Graphics 620, Intel Core i5-7200U
716 Points ∼3% -63%
lage gem. hoge ultra
BioShock Infinite (2013) 11163.35520.2fps
Dota 2 Reborn (2015) 105.989.853.147.7fps
Resident Evil 7 (2017) 7034.319.75.7fps
For Honor (2017) 50.718.217.412.9fps
Ghost Recon Wildlands (2017) 32.212.511.36fps
Mass Effect Andromeda (2017) 31.214.59.88.6fps
BioShock Infinite - 1366x768 High Preset
Lenovo ThinkPad E570-20H6S00000
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
86.79 fps ∼25% +58%
Acer TravelMate P259-MG-71UU
NVIDIA GeForce 940MX, Intel Core i7-6500U
61.9 fps ∼18% +13%
Asus AsusPro P4540UQ-FY0056R
NVIDIA GeForce 940MX, Intel Core i5-7200U
55 fps ∼16%
Dell Vostro 15 5568
NVIDIA GeForce 940MX, Intel Core i7-7500U
52 fps ∼15% -5%
MSI CX62 7QL
NVIDIA GeForce 940MX, Intel Core i5-7200U
44 fps ∼13% -20%
Lenovo ThinkPad E470-20H2S00400
NVIDIA GeForce 940MX, Intel Core i5-7200U
43.1 fps ∼12% -22%
HP ProBook 450 G4 Y8B60EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
41.77 fps ∼12% -24%
Asus Vivobook F556UQ-XO626D
NVIDIA GeForce 940MX, Intel Core i5-6198DU
39.5 fps ∼11% -28%
Dell Vostro 15-5568
Intel HD Graphics 620, Intel Core i5-7200U
18.8 fps ∼5% -66%

Geluidsniveau

Onbelast
30.3 / 30.3 / 30.3 dB (A)
DVD
36.5 / dB (A)
Belasting
35.4 / 37.2 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 30.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.838.536.137.238.82533.133.634.634.433.13133.633.528.229.133.64031.431.630.131.531.45031.132.930.230.231.16332.532.333.132.732.58030.829.927.427.630.810034.429.629.926.434.412527.527.625.424.827.516027.626.925.724.227.620025.526.425.924.825.525025.425.422.422.125.431524.524.623.222.424.540024.624.721.520.924.650023.323.520.720.423.363022.923.919.819.722.980023.424.719.218.923.4100025.326.918.518.225.3125025.627.317.717.725.6160025.828.417.817.525.8200024.627.417.517.224.6250024.327.317.517.124.3315022.125.317.217.422.1400020.121.817.417.320.1500019.820.717.317.419.8630019.319.917.317.319.380001919.217.417.4191000019.119.117.317.519.11250019.31917.317.319.31600019.519.11817.419.5SPL35.437.330.530.335.4N2.32.61.51.42.3median 24.3median 24.7median 18median 17.7median 24.3Delta1.83.32.62.61.8hearing rangehide median Fan NoiseAsus AsusPro P4540UQ-FY0056R
Max. Belasting
 34.3 °C31.4 °C24.5 °C
 38 °C35.3 °C24.6 °C
 29 °C31.4 °C24.7 °C
Maximum: 38 °C
Gemiddelde: 30.4 °C
23.7 °C31.9 °C34.5 °C
23.2 °C35.4 °C39.1 °C
23 °C31.1 °C31 °C
Maximum: 39.1 °C
Gemiddelde: 30.3 °C
Stroomadapter (max.)  35.3 °C | Kamertemperatuur 21 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 30.4 °C / 87 F, compared to the average of 29.4 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 38 °C / 100 F, compared to the average of 33.9 °C / 93 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 39.1 °C / 102 F, compared to the average of 36.4 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 22 °C / 72 F, compared to the device average of 29.4 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.4 °C / 88.5 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-3.3 °C / -5.9 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2039.637.239.62540.534.440.53138.329.138.34043.231.543.25040.930.240.96343.532.743.58044.127.644.110044.526.444.512546.324.846.316049.324.249.320053.624.853.625053.622.153.631557.522.457.540057.920.957.950058.120.458.16306019.76080059.218.959.2100059.618.259.6125059.217.759.2160063.117.563.120006617.266250069.217.169.2315071.917.471.9400077.817.377.8500078.917.478.9630076.317.376.3800071.317.471.31000067.117.567.11250069.617.369.6160007217.472SPL84.630.384.6N52.51.452.5median 60median 17.7median 60Delta6.62.66.635.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseAsus AsusPro P4540UQ-FY0056RApple MacBook 12 (Early 2016) 1.1 GHz
Asus AsusPro P4540UQ-FY0056R audio analysis

(±) | speaker loudness is average but good (78 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 9.1% lower than median
(+) | bass is linear (5.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.9% away from median
(+) | mids are linear (3.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 13.3% higher than median
(±) | linearity of highs is average (8.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19% difference to median)
Compared to same class
» 35% of all tested devices in this class were better, 8% similar, 57% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 36% of all tested devices were better, 7% similar, 58% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.4 / 0.7 Watt
Inactiefdarkmidlight 4.9 / 8.1 / 9.4 Watt
Belasting midlight 50 / 63.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Batterijduur
NBC WiFi Websurfing Battery Test 1.3 (Edge 38)
11h 28min
Battery Runtime - WiFi Websurfing 1.3
Asus AsusPro P4540UQ-FY0056R
7200U, GeForce 940MX, 72 Wh
688 min ∼26%
HP ProBook 450 G4 Y8B60EA
7500U, GeForce 930MX, 45 Wh
513 min ∼19% -25%
Lenovo ThinkPad E570-20H6S00000
7200U, GeForce GTX 950M, 41 Wh
462 min ∼18% -33%
Dell Vostro 15-5568
7200U, HD Graphics 620, 42 Wh
357 min ∼14% -48%
Acer TravelMate P259-MG-71UU
6500U, GeForce 940MX, 41 Wh
280 min ∼11% -59%

Pro

+ ontspiegeld IPS-scherm
+ Full-HD-resolutie
+ stil in gebruik
+ warmt weinig op
+ SSD
+ onderhoudsklep
+ uitstekende batterijduur

Contra

- geen toetsenbordverlichting
Onder de loep: Asus AsusPro P4540UQ-FY0056R. Testmodel via Campuspoint.de
Onder de loep: Asus AsusPro P4540UQ-FY0056R. Testmodel via Campuspoint.de

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

De Asus AsusPro P4540UQ is uitgerust met een Core i5-processor van de Kaby-Lake-generatie, die voor de meeste gebruikers perfect toereikend zou moeten zijn. De GeForce-GPU laat toe om ook enkele games te spelen. Ondanks de degelijke rekenkracht warmt het toestel nauwelijks op en blijft hij steeds stil in gebruik.

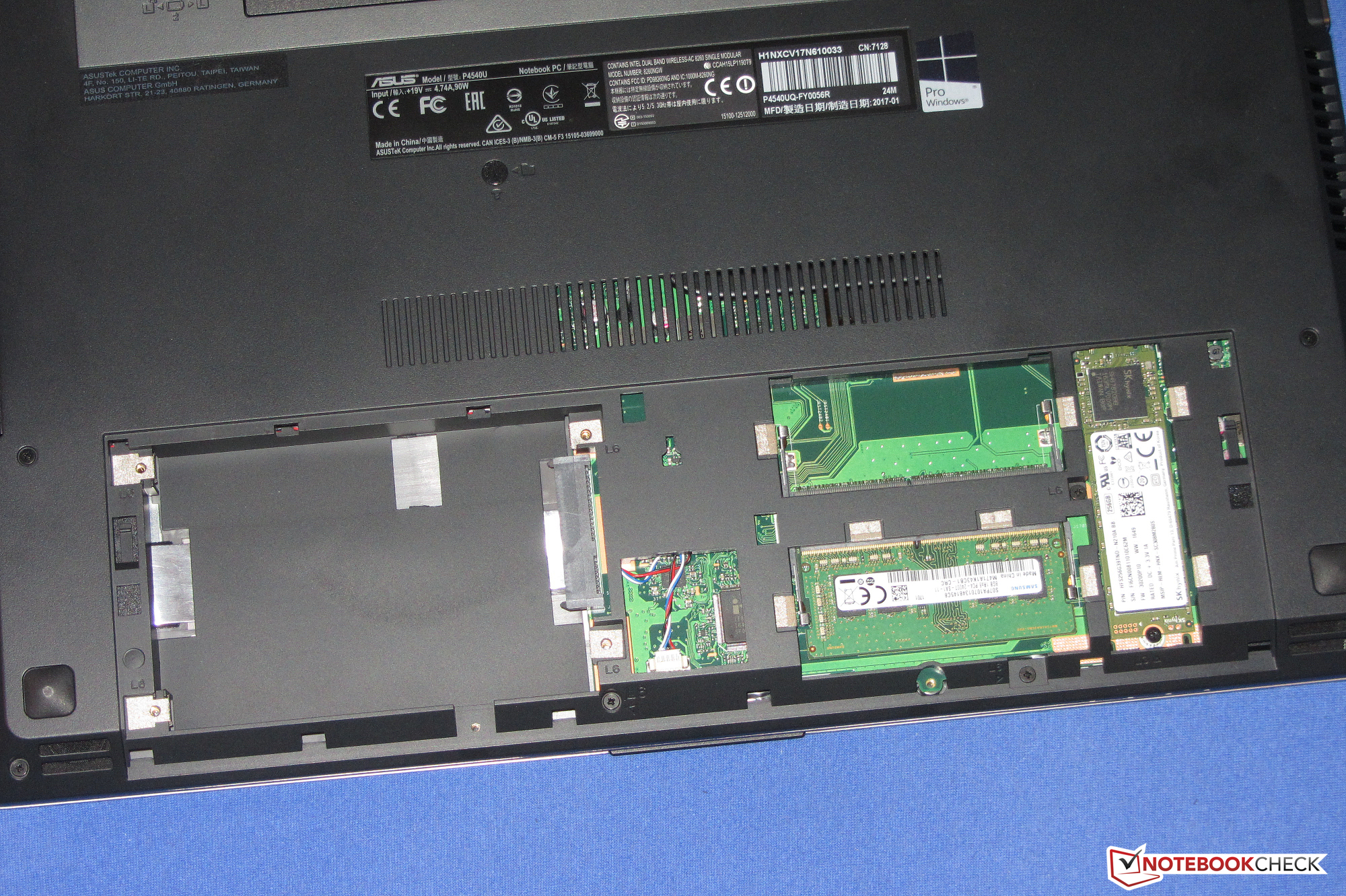

Een solid-state drive zorgt voor een vlotte werking van het systeem. Dankzij de onderhoudsklep is het eenvoudig om de SSD te vervangen. Het is ook mogelijk om een extra 2.5-inch-HDD te installeren in de laptop. Hiervoor is het echter noodzakelijk om over een passende installatie-frame te beschikken. Het ontspiegelde IPS-scherm van de computer weet te overtuigen met stabiele kijkhoeken en degelijke helderheid. De uitstekende batterijduur is ook het vermelden waard.

Asus kan met de AsusPro P4540UQ inderdaad concurreren met de gevestigde toppers.

Wie zien vooral ruimte voor verbetering in het toetsenbord. Niet dat deze echt slecht is, maar hij is niet van dezelfde kwaliteit als de toetsenborden die we zien in de HP ProBook 450 G4 en de Lenovo Thinkpad E570. Daarnaast mist de Asus toetsenbordverlichting. Op dit vlak brengt de concurrentie het er echter niet veel beter vanaf.

Asus AsusPro P4540UQ-FY0056R - 06-04-2017 v6
Sascha Mölck

Behuizing
80 / 98 → 82%
Toetsenbord
74%
Aanwijsapparaat
81%
Aansluitmogelijkheden
56 / 80 → 70%
Gewicht
60 / 20-67 → 86%
Batterij
94%
Beeldscherm
88%
Gaming-performance
68 / 68 → 99%
Applicatie-performance
84 / 92 → 91%
Temperatuur
95%
Luidheid
92%
Audio
56%
Camera
40 / 85 → 47%
Gemiddelde
74%
84%
Office - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Asus AsusPro P4540UQ (7200U, 940MX, Full-HD) Laptop
Sascha Mölck, 2017-04-15 (Update: 2017-04-15)
