Kort testrapport Toshiba Portege Z20t-B Convertible

Duur uithoudingswonder. Toshiba vraagt een hoge prijs van 2000 euro (~$2138) voor de topconfiguratie van zijn nieuwste business-convertible - in plaats krijgt de gebruiker een toestel met uitgebreide featues en een enorme batterijduur. Dankzij het ontspiegelde touchscreen kan de Portege Z20t ook buitenshuis gebruikt worden.
PT15BE-00E00FGR (Portege Z20 Serie)
Processor

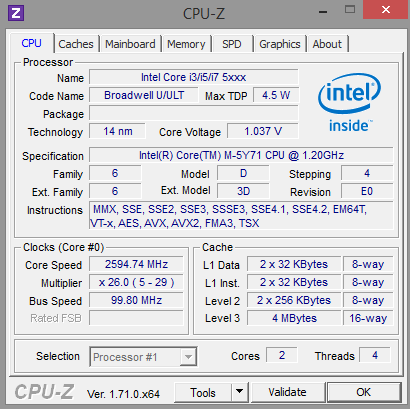

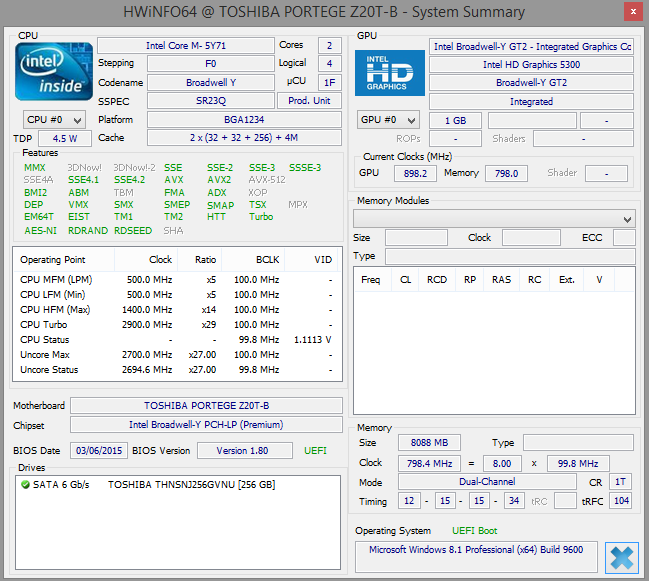

Intel Core M-5Y71 2 x 1.2 - 2.9 GHz, Broadwell
Grafische kaart
Intel HD Graphics 5300, Core: 900 MHz, Geheugen: 800 MHz, Dual-Channel Memory, 10.18.10.3977
Geheugen
8 GB

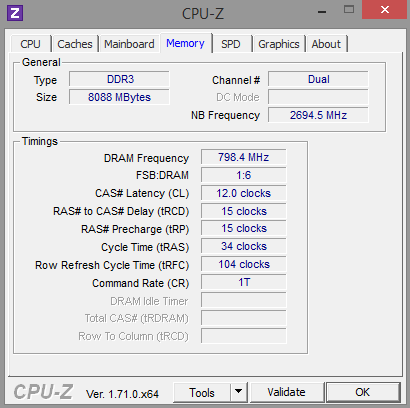

, Dual-Channel LPDDR3-1600, onboard, niet uitbreidbaar
Beeldscherm
12.50 inch 16:9, 1920 x 1080 pixel, capacitief (10 vingers) + digitizer, ingebouwde pen ondersteuning, Toshiba TOS508F, IPS-Paneel, LED-Backlight, glimmend: nee, afneembaar scherm

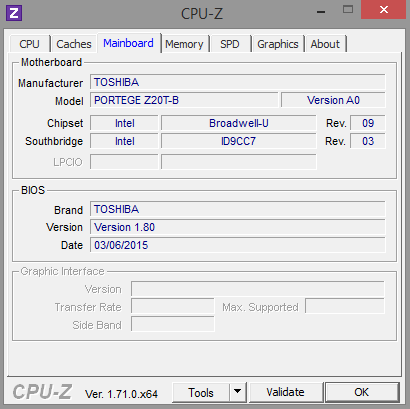

Moederbord
Intel Broadwell-Y PCH-LP (Premium)
Opslag
Toshiba HG6 THNSNJ256GVNU, 256 GB
, 198 GB beschikbaar
Geluidskaart
Intel Broadwell PCH-LP - High Definition Audio Controller
Verbindingen

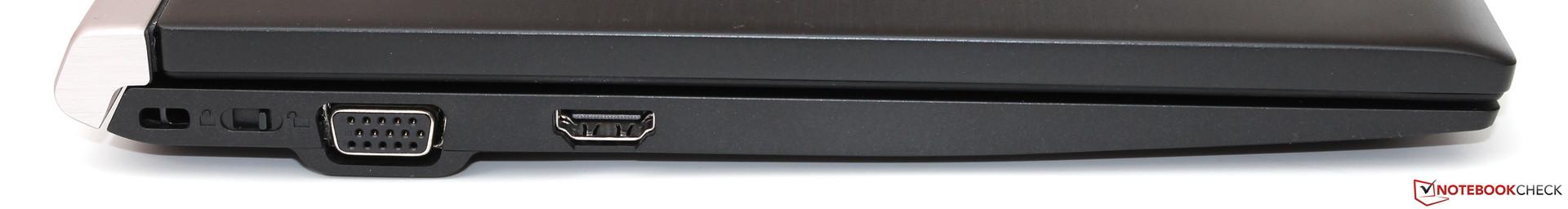

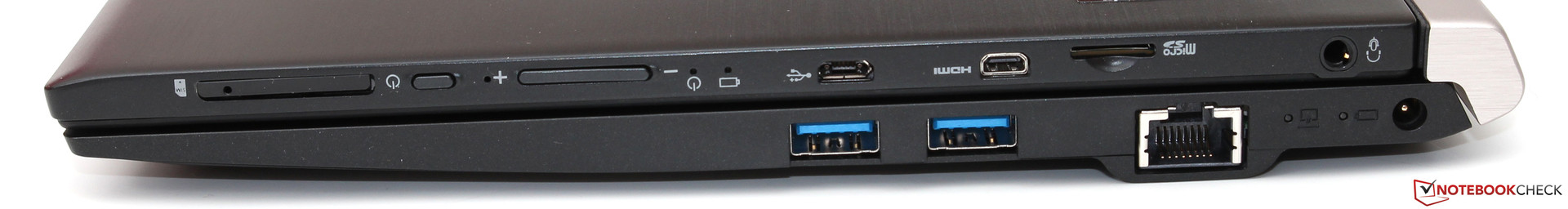

1 USB 2.0, 2 USB 3.0, 1 VGA, 1 HDMI, 1 Kensington Lock, 1 Docking Station Port, Audio Verbindingen: Koptelefoon-poort (3.5 millimeter-klink), Card Reader: MicroSD, Helderheidssensor, Sensoren: 3D Acceleratiesensor, Omgevingslichtsensor, Gyroscoop, VGA, RJ45 Ethernet
Netwerkmogelijkheden
Intel I218-LM Gigabit (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0, Sierra Wireless EM7305 Mobile Broadband 3G/LTE (4G), LTE
Afmetingen
hoogte x breedte x diepte (in mm): 21 x 309 x 215
Batterij
72 Wh Lithium-Polymer, 36 Wh (tablet) + 36 Wh (dock)
Besturingssysteem
Microsoft Windows 8.1 Pro 64 Bit

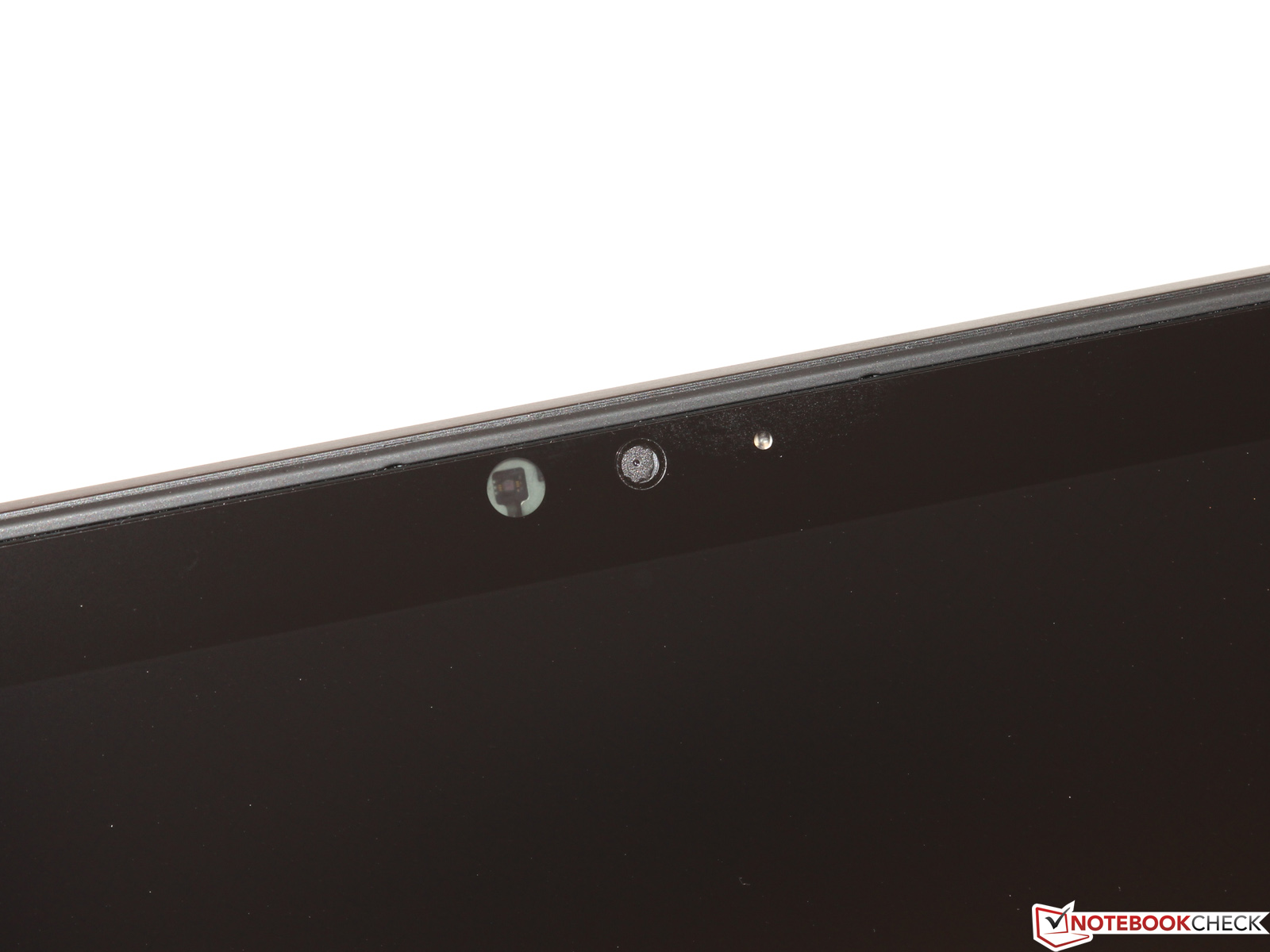

Camera

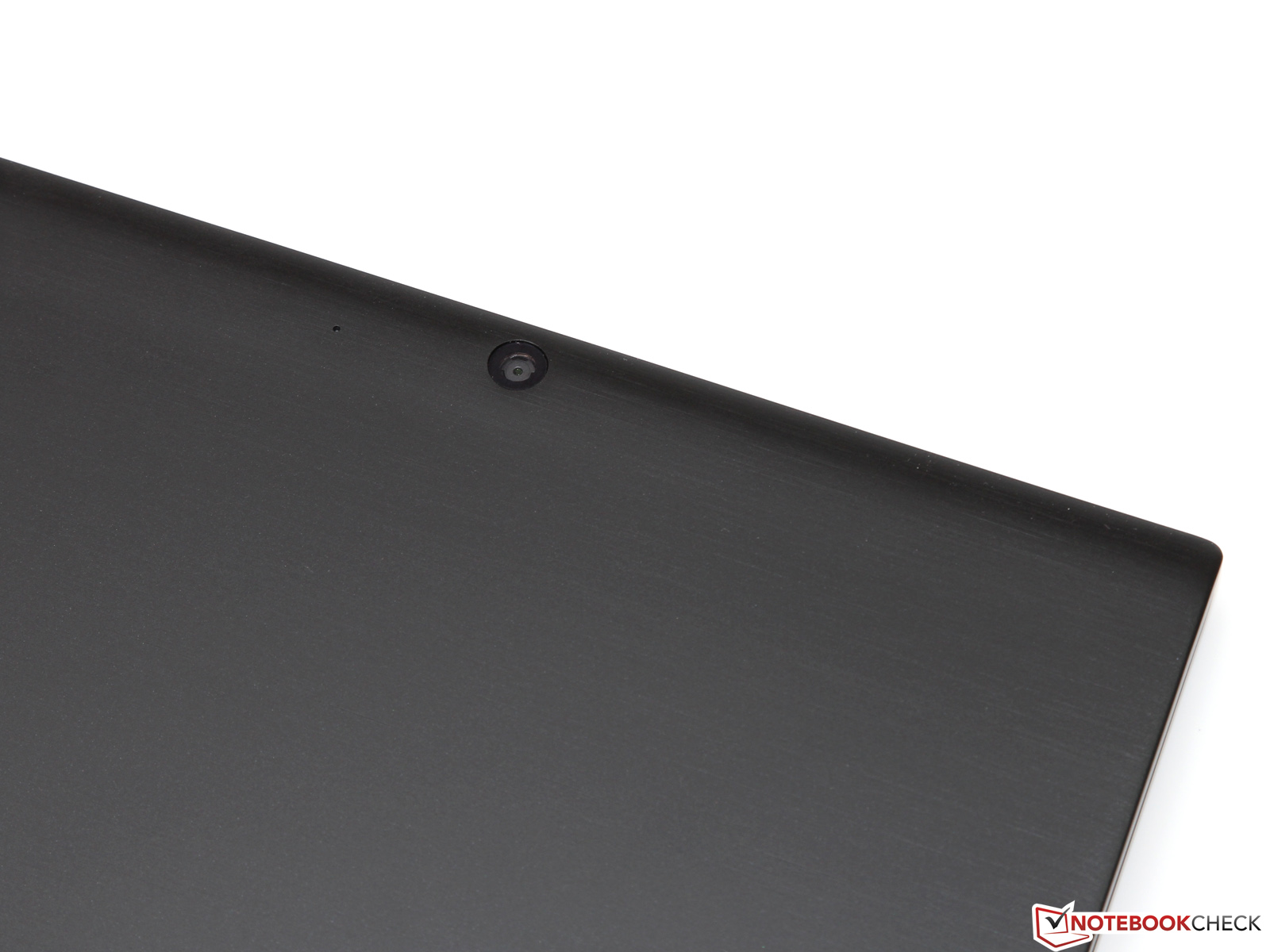

Webcam: 2.0 MP (voorzijde) + 5.0 MP (rugzijde)
Primaire camera: 5 MPix
Secundaire Camera: 2 MPix
Bijkomende functionaliteiten
Luidsprekers: Stereo, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 2x Digitizer + 3 besparingstips, 45-Watt-voeding, brochures, Toshiba System Settings, Toshiba Tempro, Eco Utility, 12 Maanden Garantie, ventilatorloos
Gewicht
1.493 kg, Voeding: 150 g
Prijs
2000 Euro
Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.



310
cd/m²
331
cd/m²
301
cd/m²
314
cd/m²
342
cd/m²
292
cd/m²
282
cd/m²
279
cd/m²
260
cd/m²
Helderheidsverdeling
Toshiba TOS508F tested with X-Rite i1Pro 2
Maximum: 342 cd/m² (Nits) Gemiddelde: 301.2 cd/m²
Helderheidsverdeling: 76 %
Helderheid in Batterij-modus: 341 cd/m²
Contrast: 870:1 (Zwart: 0.393 cd/m²)
ΔE Color 9.69 | 0.5-29.43 Ø5
ΔE Greyscale 9.27 | 0.57-98 Ø5.3
40.4% AdobeRGB 1998 (Argyll 1.6.3 3D)
44.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
63.6% sRGB (Argyll 2.2.0 3D)
42.63% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.95
Toshiba Portege Z20t-B-10C
1.920 x 1.080; IPS-Panel
Lenovo ThinkPad Helix 2
1.920 x 1.080; IPS-Panel
Microsoft Surface Pro 3
2.160 x 1.440; IPS-Panel
Dell Venue 11 Pro 7140
1.920 x 1.080; IPS-Panel
Display
46%
Display P3 Coverage
42.63
63.6
49%
sRGB Coverage
63.6
88.8
40%
AdobeRGB 1998 Coverage
44.1
65.6
49%
Screen
29%
26%
22%
Brightness middle
342
365
7%
355.3
4%
386
13%
Brightness
301
342
14%
338
12%
357
19%
Brightness Distribution
76
86
13%
91
20%
84
11%
Black Level *
0.393
0.329
16%
0.33
16%
0.4
-2%
Contrast
870
1109
27%
1077
24%
965
11%
Colorchecker dE 2000 *
9.69
4.37
55%
4.72
51%
3.71
62%
Greyscale dE 2000 *
9.27
2.8
70%
6.53
30%
5.4
42%
Gamma
2.95 75%
2.3 96%
2.17 101%
2.33 94%
CCT
6010 108%
6595 99%
6707 97%
6666 98%
Color Space (Percent of AdobeRGB 1998)
40.4
59.37
47%
Totaal Gemiddelde (Programma / Instellingen)
29% / 29%
36% / 31%
22% / 22%

* ... kleiner is beter

Cinebench R11.5
CPU Single 64Bit (sorteer op waarde)
Toshiba Portege Z20t-B-10C
Intel Core M-5Y71
1.15 Points
Lenovo ThinkPad Helix 2
Intel Core M-5Y71
1.13 Points -2%
Microsoft Surface Pro 3
Intel Core i5-4300U
1.12 Points -3%
Dell Venue 11 Pro 7140
Intel Core M-5Y10a
0.94 Points -18%
Toshiba Portege Z10t-A2111
Intel Core i7-4610Y
1.24 Points +8%
CPU Multi 64Bit (sorteer op waarde)
Toshiba Portege Z20t-B-10C
Intel Core M-5Y71
2.14 Points
Lenovo ThinkPad Helix 2
Intel Core M-5Y71
2.04 Points -5%
Microsoft Surface Pro 3
Intel Core i5-4300U
2.77 Points +29%
Dell Venue 11 Pro 7140
Intel Core M-5Y10a
2.01 Points -6%
Toshiba Portege Z10t-A2111
Intel Core i7-4610Y
2.15 Points 0%
Cinebench R15
CPU Single 64Bit (sorteer op waarde)
Toshiba Portege Z20t-B-10C
Intel Core M-5Y71
97 Points
Lenovo ThinkPad Helix 2
Intel Core M-5Y71
95 Points -2%
Dell Venue 11 Pro 7140
Intel Core M-5Y10a
83 Points -14%
Toshiba Portege Z10t-A2111
Intel Core i7-4610Y
107 Points +10%
CPU Multi 64Bit (sorteer op waarde)
Toshiba Portege Z20t-B-10C
Intel Core M-5Y71
190 Points
Lenovo ThinkPad Helix 2
Intel Core M-5Y71
184 Points -3%
Dell Venue 11 Pro 7140
Intel Core M-5Y10a
190 Points 0%
Toshiba Portege Z10t-A2111
Intel Core i7-4610Y
192 Points +1%
X264 HD Benchmark 4.0
Pass 1 (sorteer op waarde)
Toshiba Portege Z20t-B-10C
Intel Core M-5Y71
85.1 fps
Lenovo ThinkPad Helix 2
Intel Core M-5Y71
91.2 fps +7%
Microsoft Surface Pro 3
Intel Core i5-4300U
75.5 fps -11%
Toshiba Portege Z10t-A2111
Intel Core i7-4610Y
72.5 fps -15%
Pass 2 (sorteer op waarde)
Toshiba Portege Z20t-B-10C
Intel Core M-5Y71
11.47 fps
Lenovo ThinkPad Helix 2
Intel Core M-5Y71
11.13 fps -3%
Microsoft Surface Pro 3
Intel Core i5-4300U
13.47 fps +17%
Toshiba Portege Z10t-A2111
Intel Core i7-4610Y
12.38 fps +8%
Cinebench R10 Shading 32Bit
4680
Cinebench R10 Rendering Multiple CPUs 32Bit
6606
Cinebench R10 Rendering Single 32Bit
3810
Cinebench R10 Shading 64Bit
3681 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
8486 Points
Cinebench R10 Rendering Single CPUs 64Bit
5068 Points
Cinebench R11.5 CPU Single 64Bit
1.15 Points
Cinebench R11.5 OpenGL 64Bit
17.84 fps
Cinebench R11.5 CPU Multi 64Bit
2.14 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
20.74 fps
Cinebench R15 CPU Multi 64Bit
190 Points
Cinebench R15 CPU Single 64Bit
97 Points
Help
Toshiba HG6 THNSNJ256GVNU
Overdrachtssnelheid Minimum: 253.3 MB/s
Overdrachtssnelheid Maximum: 413.9 MB/s
Overdrachtssnelheid Gemiddeld: 334.2 MB/s
Toegangstijd: 0.1 ms
Pieksnelheid: 200.4 MB/s
CPU-gebruik: 2.5 %
PCMark 7 - Score (sorteer op waarde)
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
4421 Points
Lenovo ThinkPad Helix 2
HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB
4602 Points +4%
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
5066 Points +15%
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
4135 Points -6%
Toshiba Portege Z10t-A2111
HD Graphics 4200, 4610Y, Samsung PM851 Series MZMTE256HMHP
4973 Points +12%
PCMark 8
Home Score Accelerated v2 (sorteer op waarde)
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
2816 Points
Lenovo ThinkPad Helix 2
HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB
2690 Points -4%
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
2480 Points -12%
Toshiba Portege Z10t-A2111
HD Graphics 4200, 4610Y, Samsung PM851 Series MZMTE256HMHP
2282 Points -19%
Work Score Accelerated v2 (sorteer op waarde)
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
3936 Points
Lenovo ThinkPad Helix 2
HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB
3806 Points -3%
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
3291 Points -16%
Toshiba Portege Z10t-A2111
HD Graphics 4200, 4610Y, Samsung PM851 Series MZMTE256HMHP
3441 Points -13%
Creative Score Accelerated v2 (sorteer op waarde)
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
3263 Points
Lenovo ThinkPad Helix 2
HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB
3090 Points -5%
Toshiba Portege Z10t-A2111
HD Graphics 4200, 4610Y, Samsung PM851 Series MZMTE256HMHP
2400 Points -26%
PCMark 7 Score
4421 punten
PCMark 8 Home Score Accelerated v2
2816 punten
PCMark 8 Creative Score Accelerated v2
3263 punten
PCMark 8 Work Score Accelerated v2
3936 punten
Help
3DMark 11 - 1280x720 Performance (sorteer op waarde)
Toshiba Portege Z20t-B-10C
Intel Core M-5Y71, Intel HD Graphics 5300
775 Points
Lenovo ThinkPad Helix 2
Intel Core M-5Y71, Intel HD Graphics 5300
753 Points -3%
Microsoft Surface Pro 3
Intel Core i5-4300U, Intel HD Graphics 4400
877 Points +13%
Dell Venue 11 Pro 7140
Intel Core M-5Y10a, Intel HD Graphics 5300
883 Points +14%
Toshiba Portege Z10t-A2111
Intel Core i7-4610Y, Intel HD Graphics 4200
784 Points +1%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
1251 Points +61%
3DMark
1280x720 Ice Storm Standard Score (sorteer op waarde)
Toshiba Portege Z20t-B-10C
Intel Core M-5Y71, Intel HD Graphics 5300
35835 Points
Lenovo ThinkPad Helix 2
Intel Core M-5Y71, Intel HD Graphics 5300
35119 Points -2%
Microsoft Surface Pro 3
Intel Core i5-4300U, Intel HD Graphics 4400
29229 Points -18%
Dell Venue 11 Pro 7140
Intel Core M-5Y10a, Intel HD Graphics 5300
38912 Points +9%
Toshiba Portege Z10t-A2111
Intel Core i7-4610Y, Intel HD Graphics 4200
32971 Points -8%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
55793 Points +56%
1280x720 Cloud Gate Standard Score (sorteer op waarde)
Toshiba Portege Z20t-B-10C
Intel Core M-5Y71, Intel HD Graphics 5300
3585 Points
Lenovo ThinkPad Helix 2
Intel Core M-5Y71, Intel HD Graphics 5300
3522 Points -2%
Microsoft Surface Pro 3
Intel Core i5-4300U, Intel HD Graphics 4400
4146 Points +16%
Dell Venue 11 Pro 7140
Intel Core M-5Y10a, Intel HD Graphics 5300
3484 Points -3%
Toshiba Portege Z10t-A2111
Intel Core i7-4610Y, Intel HD Graphics 4200
3754 Points +5%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
5782 Points +61%
1920x1080 Fire Strike Score (sorteer op waarde)
Toshiba Portege Z20t-B-10C
Intel Core M-5Y71, Intel HD Graphics 5300
453 Points
Lenovo ThinkPad Helix 2
Intel Core M-5Y71, Intel HD Graphics 5300
450 Points -1%
Microsoft Surface Pro 3
Intel Core i5-4300U, Intel HD Graphics 4400
483 Points +7%
Dell Venue 11 Pro 7140
Intel Core M-5Y10a, Intel HD Graphics 5300
466 Points +3%
Toshiba Portege Z10t-A2111
Intel Core i7-4610Y, Intel HD Graphics 4200
495 Points +9%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
753 Points +66%
3DMark 06 Standard Score
5273 punten
3DMark 11 Performance
775 punten
3DMark Ice Storm Standard Score
35835 punten
3DMark Cloud Gate Standard Score
3585 punten
3DMark Fire Strike Score
453 punten
Help
lage gem. hoge ultra
Tomb Raider (2013) 40.3 20.5 13.5
Alien: Isolation (2014) 23.9 15.9 8.5
F1 2014 (2014) 39 25 14
 23.3 °C25.7 °C27.4 °C
 23.9 °C26.2 °C28.8 °C
 26 °C28.9 °C28 °C
Maximum: 28.9 °C
Gemiddelde: 26.5 °C
26.9 °C25.7 °C23.9 °C
27.7 °C25.9 °C24.2 °C
26.9 °C26 °C25.3 °C
Maximum: 27.7 °C
Gemiddelde: 25.8 °C
Stroomadapter (max.)  31.3 °C | Kamertemperatuur 20.1 °C | Fluke 62 Max
(±) De gemiddelde temperatuur voor de bovenzijde bij maximale belasting bedraagt 35.2 °C / 95 F, vergeleken met het gemiddelde van 30.2 °C / ###class_avg_f## F voor de apparaten van de klasse Convertible.
(-) De maximumtemperatuur aan de bovenzijde bedraagt 48.3 °C / 119 F, vergeleken met het gemiddelde van 35.3 °C / 96 F, variërend van 19.6 tot 55.7 °C voor de klasse Convertible.
(±) De bodem warmt op tot een maximum van 43.2 °C / 110 F, vergeleken met een gemiddelde van 36.7 °C / 98 F
(+) Bij onbelast gebruik bedraagt de gemiddelde temperatuur voor de bovenzijde 26.5 °C / 80 F, vergeleken met het apparaatgemiddelde van 30.2 °C / 86 F.
(-) De palmsteunen en het touchpad kunnen zeer heet aanvoelen met een maximum van ###max## °C / 109.4 F.
(-) De gemiddelde temperatuur van de handpalmsteun van soortgelijke toestellen bedroeg 28.1 °C / 82.6 F (-14.9 °C / -26.8 F).
Stroomgebruik
Uit / Standbydarklight 0 / 0.1 Watt
Inactiefdarkmidlight 2.4 / 4.6 / 5.6 Watt
Belasting midlight 15.6 / 30.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Extech Power Analyzer 380803
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Toshiba Portege Z20t-B-10C
72 Wh
Lenovo ThinkPad Helix 2
35 Wh
Microsoft Surface Pro 3
42 Wh
Dell Venue 11 Pro 7140
38 Wh
Batterijduur
-46%
-48%
-41%
Reader / Idle
1616
964
-40%
1096
-32%
777
-52%
H.264
787
360
-54%
WiFi v1.3
760
Load
348
197
-43%
124
-64%
244
-30%
WiFi
396
504
562
Batterijduur
Inactief (zonder WLAN, minimale helderheid)
26h 56min
WiFi Websurfing
12h 40min
Big Buck Bunny H.264 1080p
13h 07min
Belast (maximale helderheid)
5h 48min

Pro

+ Nauwgezette bouwkwaliteit
+ Hoogwaarde invoerapparatuur
+ Ondersteuning voor digitizer
+ Ontspiegeld IPS-paneel met smetteloze beeldkwaliteit
+ Uitstekende prestaties bij alledaags gebruik
+ Passieve koeling
+ Indrukwekkende batterijduur

Contra

- Slechts 12 maanden garantie
- Geen upgrade-mogelijkheden
- Geen vingerafdruklezer
- Extreem hoge prijse

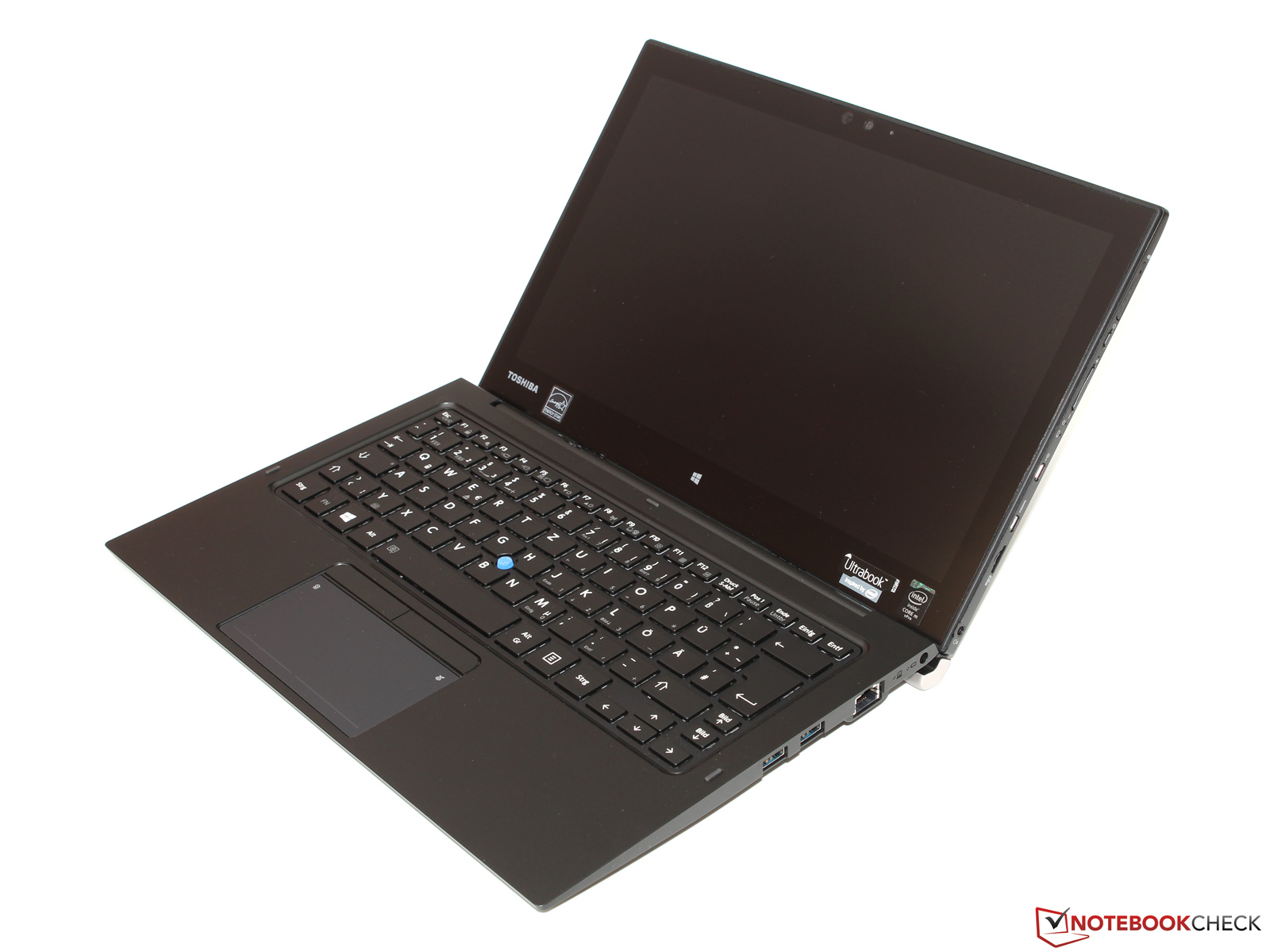

Toshiba Portege Z20t
Toshiba Portege Z20t

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Het is altijd verrassend hoe mobiel en krachtig moderne convertibles tegenwoordig zijn geworden - een passief gekoeld Core M-toestel is nauwelijks trager dan een echte desktop-PC in veel alledaagse situaties. Echter: naast Toshiba slagen concurrenten als Lenovo of Dell hier ook in en maken ze gebruik van hetzelfde hardware-platform voor hun toestellen.

Waarom zou je dan bijna 2000 euro (~$2138) betalen voor de Portege Z20t als je ook een ThinkPad Helix 2 of Venue 11 Pro kan krijgen voor een veel lagere prijs? We moeten eerlijk zijn en benadrukken dat de Toshiba veel accessoires heeft die in het geval van de concurrenten apart moeten aangekocht worden. Naast de twee digitizers en de geïntegreerde LTE-module bedoelen we hier het toetsenbord-dock met de secundaire batterij, die een extreem lange batterijduur toelaat. Het ontspiegelde touchscreen van de Portege is nog een uniek eigenschap dat extreem handig is buitenshuis. De kwaliteit van de 2-in-1-notebook laat nergens te wensen over: bouwkaliteit is erg goed en de invoerapparatuur is geschikt voor wie veel typt.

Al bij al is de Portege Z20t een interessant toestel voor welgestelde zakelijke klanten die op zoek zijn naar een veelzijdig werktoestel dat extreem mobiel is. Privé-gebruikers die het zonder bepaalde features en beveiligingsmogelijkheden kunnen stellen zullen echter concurrenten met een lagere prijs vinden.

Toshiba Portege Z20t-B-10C - 18-04-2016 v5.1(old)
Till Schönborn

Behuizing
82 / 98 → 83%
Toetsenbord
84%
Aanwijsapparaat
93%
Aansluitmogelijkheden
69 / 80 → 86%
Gewicht
69 / 35-78 → 79%
Batterij
95%
Beeldscherm
84%
Gaming-performance
53 / 68 → 78%
Applicatie-performance
73 / 87 → 84%
Temperatuur
88%
Luidheid
100%
Audio
44 / 91 → 48%
Camera
61 / 85 → 71%
Gemiddelde
76%
85%
Convertible - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Toshiba Portege Z20t-B Convertible
Till Schönborn, 2015-04-30 (Update: 2015-04-30)
