Kort testrapport Schenker XMG Apex 15 (Clevo N950TP6) Laptop

GTX 1060 ontketend. Intels gloednieuwe desktop hexa-core Core i7-8700 is de ster van Schenker's nieuwe 15 inch Apex notebook. Het apparaat is enigszins overmaats voor een gaming notebook en bevat een snelle GeForce GTX 1060 GPU. De laptop mist G-Sync ondersteuning maar biedt in ruil daarvoor vele aansluitingen. Helaas wordt het apparaat geplaagd door een probleem niet gerelateerd aan gamen.
Sven Kloevekorn, 👁 Florian Glaser, ✓ Stefanie Voigt, 🇺🇸 🇩🇪 ...
Gaming Geforce Laptop / Notebook Windows
Schenker XMG Apex 15 (XMG Apex Serie)

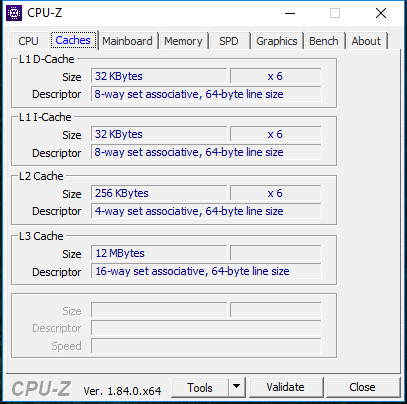

Processor
Intel Core i7-8700 6 x 3.2 - 4.6 GHz, Coffee Lake-S

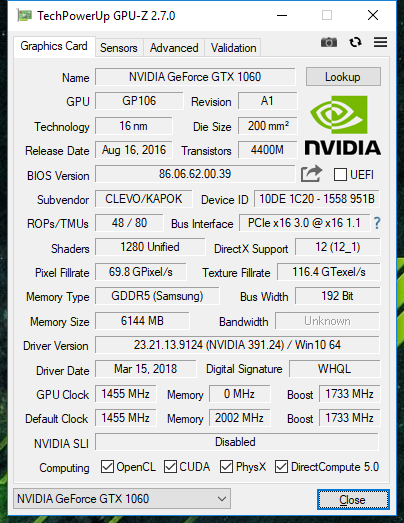

Grafische kaart
NVIDIA GeForce GTX 1060 Mobile - 6144 MB, Core: 1455 MHz, Geheugen: 8000 MHz, GDDR5, ForceWare 391.24, Nvidia Optimus

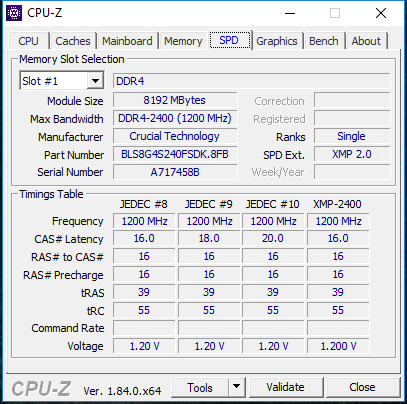

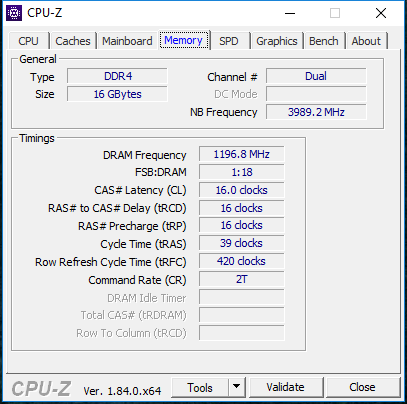

Geheugen
16384 MB
, 2x 8 GB DDR4, 2400 MHz, Dual-Channel, 2 van 2 slots bezet, max. 32 GB
Beeldscherm
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, LG Philips LP156WF6 (LGD046F), IPS, FHD, 60 Hz, glimmend: nee

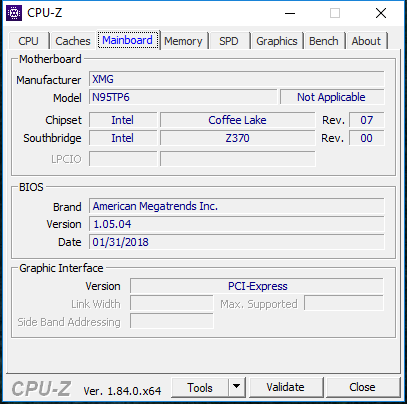

Moederbord
Intel Z370 (Kaby Lake)
Opslag
Samsung SSD 960 Evo 250GB m.2 NVMe, 250 GB
, + Seagate ST1000LM048-2E7172, 1 TB HDD, 5,400 rpm. Slots: 2x M.2-2280 & 1x 2.5-inch
Geluidskaart
Realtek ALC269 @ Intel Union Point PCH - High Definition Audio Controller
Verbindingen
1 USB 2.0, 1 USB 3.0, 2 USB 3.1 Gen2, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 1x audio in (3.5 mm), 1x audio uit (3.5 mm), Card Reader: SD/SDHC/SDXC, Brightness Sensor
Netwerkmogelijkheden
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 30 x 378 x 267
Batterij
62 Wh Lithium-Ion, removeable, 6 cellen
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: FHD
Bijkomende functionaliteiten

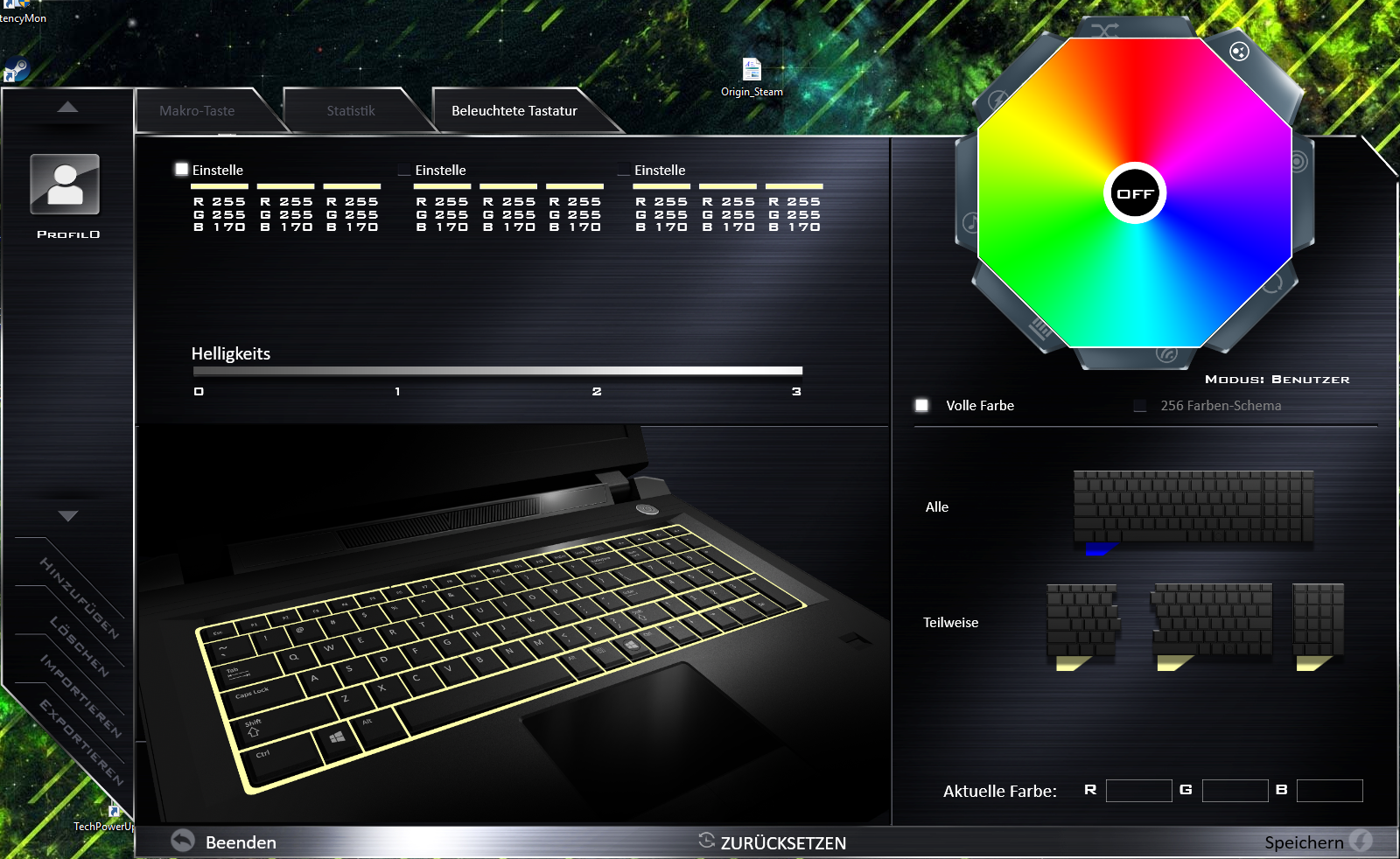

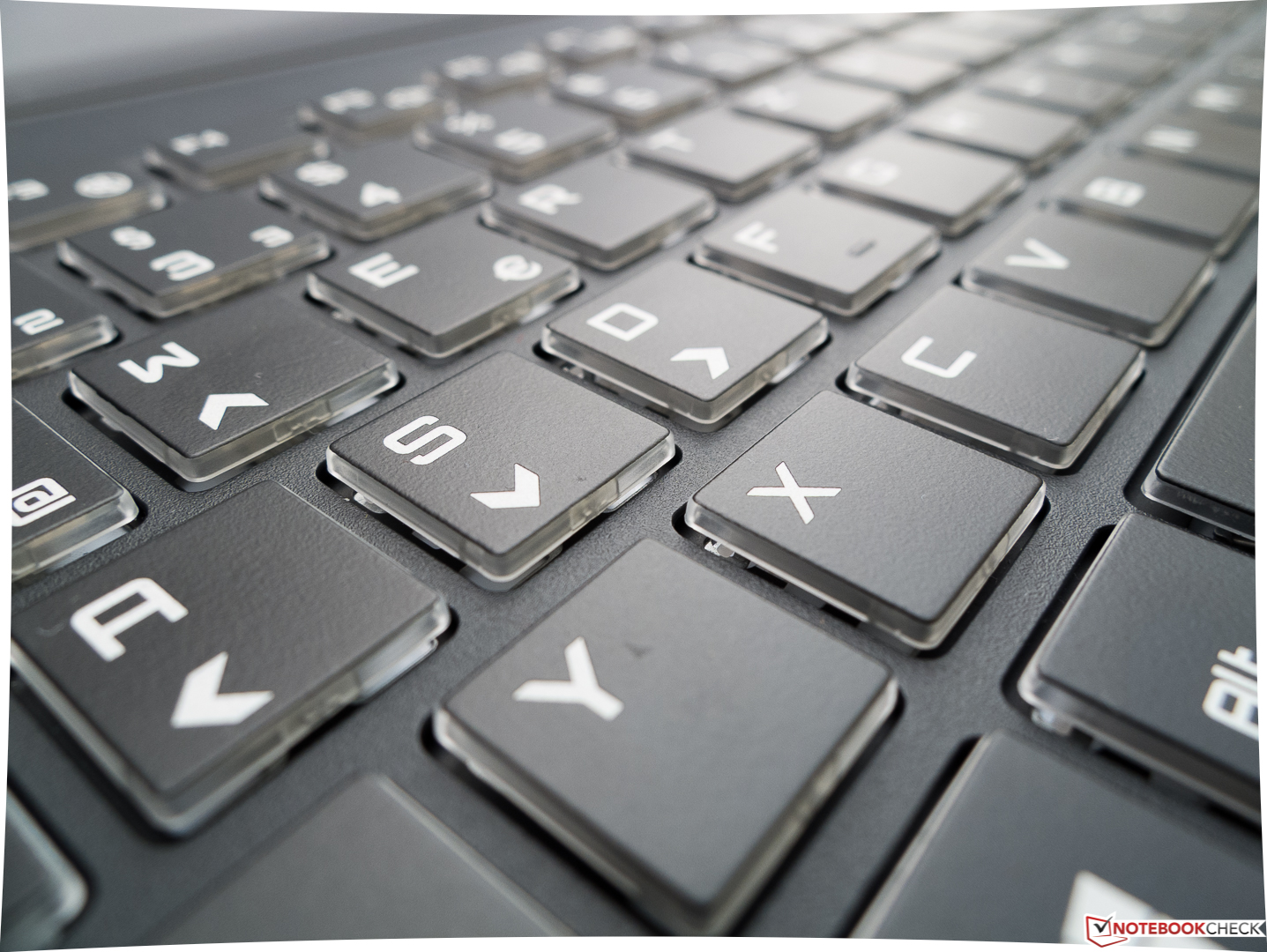

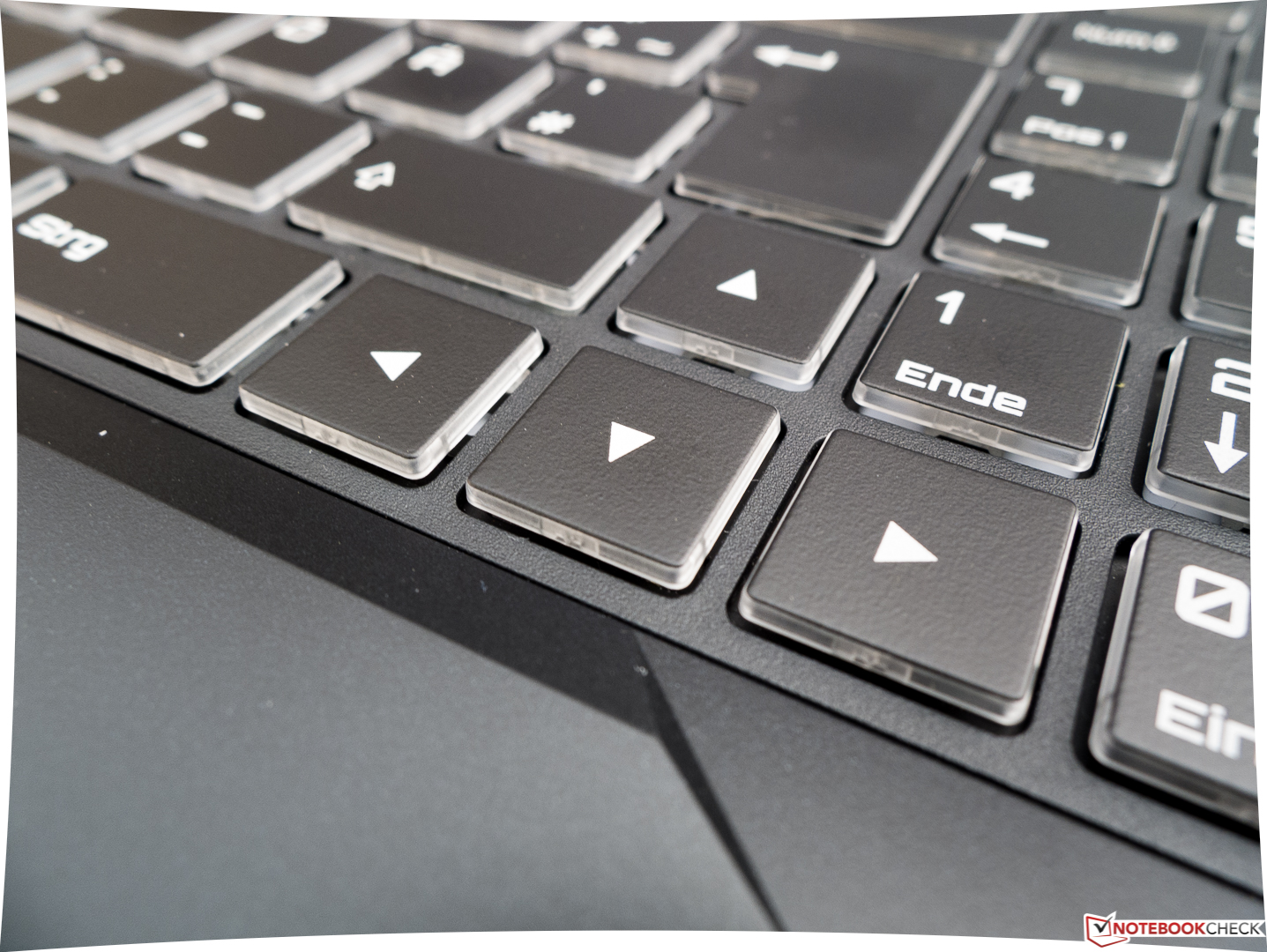

Luidsprekers: 2.0, Toetsenbord: Chiclet, 3-zone RGB, Toetsenbordverlichting: ja, 250 Watt stroomadapter, 16 GB USB stick met drivers en handleidingen, externe herstelschijf, "Device Drivers & Utilities + User's Manual" disk, XMG stickers, snelstartgids, garantiekaart, reserveschroeven, Control Center, 24 Maanden Garantie
Gewicht
2.79 kg, Voeding: 898 g
Prijs
1659 EUR
Links
Schenker startpagina
Schenker laptopsectie
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Schenker XMG Apex 15
Schenker XMG Apex 15
Schenker XMG Apex 15
Schenker XMG Apex 15
Schenker XMG Apex 15
Schenker XMG Apex 15
Schenker XMG Apex 15
Schenker XMG Apex 15

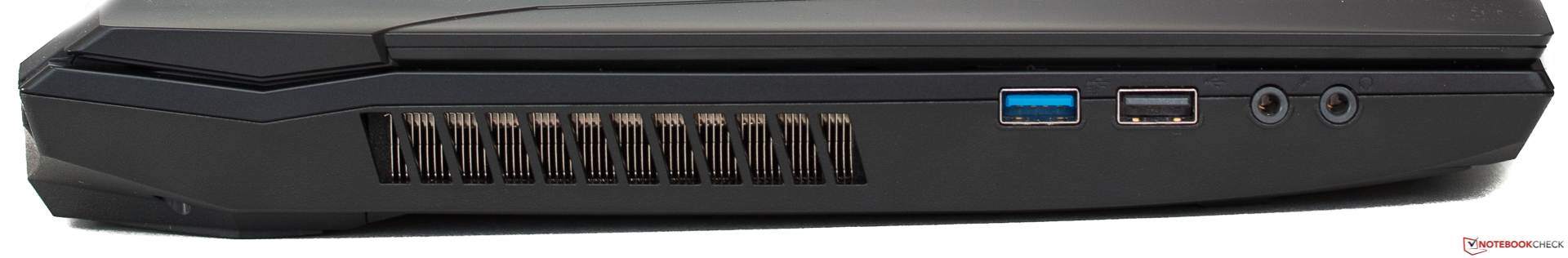

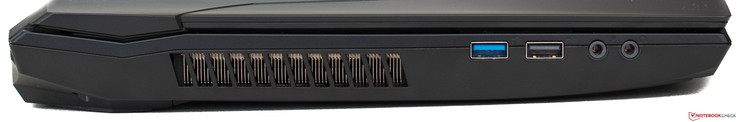

Linkerkant: ventilatoropeningen, USB 3.1 Gen 2, USB 2.0, audio-in (microfoon), audio-uit (koptelefoon)
Linkerkant: ventilatoropeningen, USB 3.1 Gen 2, USB 2.0, audio-in (microfoon), audio-uit (koptelefoon)

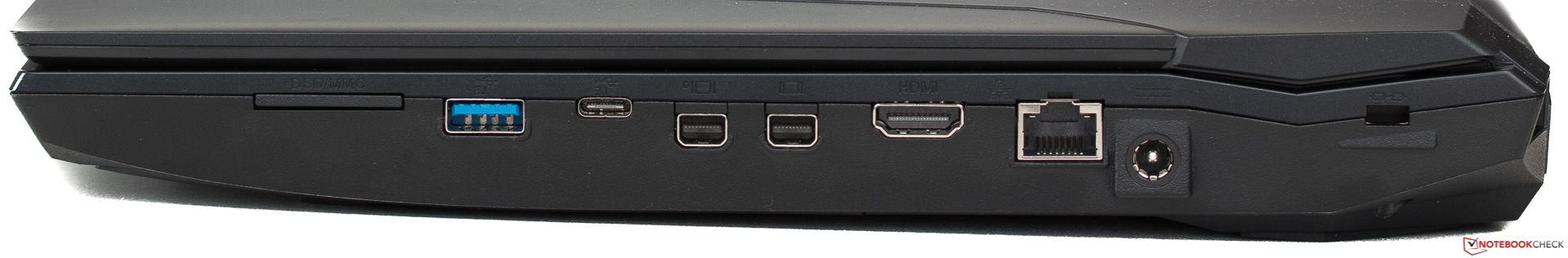

Rechterkant: kaartlezer, USB 3.1 Gen 1, USB 3.1 Gen 2 Type-C, 2x Mini DisplayPort, HDMI 2.0, Ethernet, stroomaansluiting, Kensington lock
Rechterkant: kaartlezer, USB 3.1 Gen 1, USB 3.1 Gen 2 Type-C, 2x Mini DisplayPort, HDMI 2.0, Ethernet, stroomaansluiting, Kensington lock
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
MSI GE63VR 7RF Raider
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
178 MB/s ∼100% +114%
Average of class Gaming
  (11.7 - 218, n=307)
94 MB/s ∼53% +13%
Schenker XMG Apex 15
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
83 MB/s ∼47%
Schenker XMG Core 15
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
80 MB/s ∼45% -4%
HP Omen 15t-ce000
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
73.5 MB/s ∼41% -11%
maximum AS SSD Seq Read Test (1GB)
MSI GE63VR 7RF Raider
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
200 MB/s ∼100% +127%
Average of class Gaming
  (13.4 - 257, n=305)
111 MB/s ∼56% +26%
Schenker XMG Apex 15
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
88 MB/s ∼44%
HP Omen 15t-ce000
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.5 MB/s ∼44% -1%
Schenker XMG Core 15
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87 MB/s ∼44% -1%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Average of class Gaming
  (141 - 1670, n=365)
755 MBit/s ∼100% +12%
MSI GE63VR 7RF Raider
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
685 MBit/s ∼91% +2%
Schenker XMG Apex 15
Intel Dual Band Wireless-AC 8265
672 MBit/s ∼89%
Schenker XMG Core 15
Intel Dual Band Wireless-AC 8265
664 MBit/s ∼88% -1%
HP Omen 15t-ce000
Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC
546 MBit/s ∼72% -19%
iperf3 Client (transmit) TCP 1 m 4M x10
Average of class Gaming
  (144 - 1645, n=365)
696 MBit/s ∼100% +39%
HP Omen 15t-ce000
Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC
633 MBit/s ∼91% +27%
MSI GE63VR 7RF Raider
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
540 MBit/s ∼78% +8%
Schenker XMG Apex 15
Intel Dual Band Wireless-AC 8265
499 MBit/s ∼72%
Schenker XMG Core 15
Intel Dual Band Wireless-AC 8265
373 MBit/s ∼54% -25%
267
cd/m²		279
cd/m²		290
cd/m²
264
cd/m²		269
cd/m²		285
cd/m²
263
cd/m²		272
cd/m²		281
cd/m²
Helderheidsverdeling
LG Philips LP156WF6 (LGD046F)
X-Rite i1Pro 2
Maximum: 290 cd/m² Gemiddelde: 274.4 cd/m² Minimum: 23 cd/m²
Helderheidsverdeling: 91 %
Helderheid in Batterij-modus: 269 cd/m²
Contrast: 1170:1 (Zwart: 0.23 cd/m²)
ΔE Color 4.25 | 0.6-29.43 Ø5.7, calibrated: 2.51
ΔE Greyscale 3.11 | 0.64-98 Ø5.9
83% sRGB (Argyll 3D) 54% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.36
Schenker XMG Apex 15
LG Philips LP156WF6 (LGD046F), IPS, 1920x1080		MSI GE63VR 7RF Raider
Chi Mei N156HHE-GA1 (CMN15F4), TN LED, 1920x1080		HP Omen 15t-ce000
AU Optronics AUO23EB, IPS, 3840x2160		Schenker XMG Core 15
LG Philips LP156WF6 (LGD046F), IPS, 1920x1080
Response Times
60%
17%
3%
Response Time Grey 50% / Grey 80% *
42.4 (20.4, 22)
9.6 (5.2, 4.4)
77%
37.6 (19.6, 18)
11%
40.8 (20.4, 20.4)
4%
Response Time Black / White *
32 (18, 14)
7.2 (5, 2.2)
77%
24.8 (12.4, 12.4)
22%
30.4 (16.4, 14)
5%
PWM Frequency
20490 (99)
26000 (25)
27%
20490 (95)
0%
Screen
12%
-5%
-11%
Brightness middle
269
285
6%
358.5
33%
297
10%
Brightness
274
273
0%
350
28%
276
1%
Brightness Distribution
91
84
-8%
95
4%
87
-4%
Black Level *
0.23
0.23
-0%
0.39
-70%
0.3
-30%
Contrast
1170
1239
6%
919
-21%
990
-15%
Colorchecker DeltaE2000 *
4.25
3.52
17%
4.6
-8%
5.25
-24%
Colorchecker DeltaE2000 max. *
10.39
5.18
50%
8.5
18%
10.3
1%
Colorchecker DeltaE2000 calibrated *
2.51
Greyscale DeltaE2000 *
3.11
3.41
-10%
5.2
-67%
4.64
-49%
Gamma
2.36 93%
2.05 107%
2.28 96%
2.39 92%
CCT
6851 95%
7077 92%
6410 101%
6600 98%
Color Space (Percent of AdobeRGB 1998)
54
77
43%
66.9
24%
54
0%
Color Space (Percent of sRGB)
83
100
20%
91.8
11%
83
0%
Totaal Gemiddelde (Programma / Instellingen)
36% / 23%
6% / -1%
-4% / -8%

* ... kleiner is beter

Responstijd Scherm

ℹ
De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

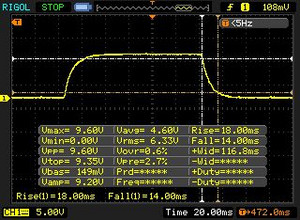

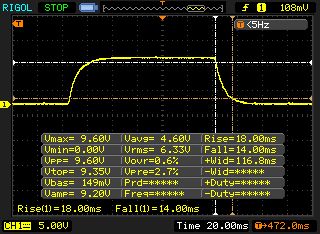

   ↔    Responstijd Zwart naar Wit
32 ms ... stijging ↗ en daling ↘ gecombineerd↗ 18 ms stijging
↘ 14 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 81 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (24.4 ms) van alle geteste toestellen.

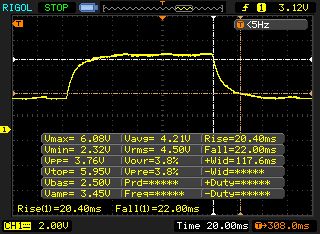

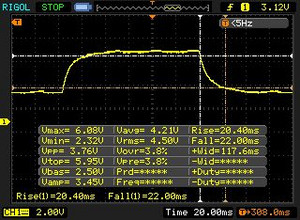

   ↔    Responstijd 50% Grijs naar 80% Grijs
42.4 ms ... stijging ↗ en daling ↘ gecombineerd↗ 20.4 ms stijging
↘ 22 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 59 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (38.7 ms) van alle geteste toestellen.

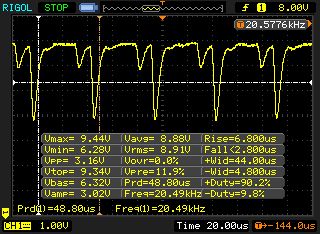

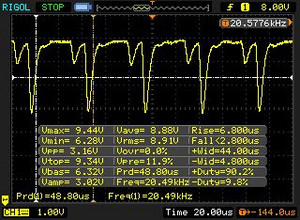

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 20490 Hz ≤ 99 % helderheid instelling

Het backlight van het scherm flikkert aan 20490 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 99 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 20490 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9725 (minimum: 5 - maximum: 142900) Hz waargenomen.


010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130114011501160117011801190120012101220Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Schenker XMG Apex 15
Intel Core i7-8700
197 Points ∼100%
Average Intel Core i7-8700
  (190 - 197, n=3)
193 Points ∼98% -2%
Average of class Gaming
  (77 - 220, n=637)
163 Points ∼83% -17%
HP Omen 15t-ce000
Intel Core i7-7700HQ
161 Points ∼82% -18%
MSI GE63VR 7RF Raider
Intel Core i7-7700HQ
160 Points ∼81% -19%
Schenker XMG Core 15
Intel Core i7-7700HQ
160 Points ∼81% -19%
CPU Multi 64Bit
Schenker XMG Apex 15
Intel Core i7-8700
1215 Points ∼100%
Average Intel Core i7-8700
  (1167 - 1215, n=3)
1194 Points ∼98% -2%
Average of class Gaming
  (196 - 2804, n=645)
938 Points ∼77% -23%
HP Omen 15t-ce000
Intel Core i7-7700HQ
730 Points ∼60% -40%
MSI GE63VR 7RF Raider
Intel Core i7-7700HQ
729 Points ∼60% -40%
Schenker XMG Core 15
Intel Core i7-7700HQ
722 Points ∼59% -41%
Cinebench R10 Rendering Single 32Bit
7257
Cinebench R10 Rendering Multiple CPUs 32Bit
38543
Cinebench R15 CPU Single 64Bit
197 Points
Cinebench R15 CPU Multi 64Bit
1215 Points
Help
PCMark 8
Work Score Accelerated v2
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700, Samsung SSD 960 Evo 250GB m.2 NVMe
5653 Points ∼100%
Average Intel Core i7-8700, NVIDIA GeForce GTX 1060 Mobile

5653 Points ∼100% 0%
Schenker XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SSD 960 Evo 250GB m.2 NVMe
5332 Points ∼94% -6%
MSI GE63VR 7RF Raider
GeForce GTX 1070 Mobile, i7-7700HQ, Toshiba HG6 THNSNJ256G8NY
5270 Points ∼93% -7%
Average of class Gaming
  (2484 - 6825, n=466)
5126 Points ∼91% -9%
HP Omen 15t-ce000
GeForce GTX 1060 Max-Q, i7-7700HQ, Samsung PM961 NVMe MZVLW128HEGR
2484 Points ∼44% -56%
Home Score Accelerated v2
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700, Samsung SSD 960 Evo 250GB m.2 NVMe
4697 Points ∼100%
Average Intel Core i7-8700, NVIDIA GeForce GTX 1060 Mobile

4697 Points ∼100% 0%
Schenker XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SSD 960 Evo 250GB m.2 NVMe
4626 Points ∼98% -2%
MSI GE63VR 7RF Raider
GeForce GTX 1070 Mobile, i7-7700HQ, Toshiba HG6 THNSNJ256G8NY
4406 Points ∼94% -6%
HP Omen 15t-ce000
GeForce GTX 1060 Max-Q, i7-7700HQ, Samsung PM961 NVMe MZVLW128HEGR
4325 Points ∼92% -8%
Average of class Gaming
  (2554 - 6093, n=483)
4290 Points ∼91% -9%
PCMark 8 Home Score Accelerated v2
4697 punten
PCMark 8 Work Score Accelerated v2
5653 punten
PCMark 10 Score
5732 punten
Help
Schenker XMG Apex 15
Samsung SSD 960 Evo 250GB m.2 NVMe		MSI GE63VR 7RF Raider
Toshiba HG6 THNSNJ256G8NY		HP Omen 15t-ce000
Samsung PM961 NVMe MZVLW128HEGR		Schenker XMG Core 15
Samsung SSD 960 Evo 250GB m.2 NVMe		Average Samsung SSD 960 Evo 250GB m.2 NVMe

CrystalDiskMark 3.0
-59%
-40%
-12%
-4%
Write 4k QD32
570.7
190.3
-67%
173.9
-70%
481.9
-16%
511 (410 - 579, n=6)
-10%
Read 4k QD32
675.6
368.8
-45%
517.6
-23%
577.2
-15%
617 (481 - 711, n=6)
-9%
Write 4k
164.1
88.91
-46%
130.7
-20%
134
-18%
142 (77.5 - 174, n=6)
-13%
Read 4k
59.96
21.77
-64%
46.09
-23%
58.35
-3%
54.2 (34.4 - 60, n=6)
-10%
Write 512
1007
409.9
-59%
174
-83%
1006
0%
1065 (860 - 1246, n=6)
6%
Read 512
791.8
411.9
-48%
503.3
-36%
779.8
-2%
880 (710 - 1088, n=6)
11%
Write Seq
1375
441.4
-68%
748.8
-46%
1188
-14%
1408 (1188 - 1563, n=6)
2%
Read Seq
1751
506.6
-71%
1411
-19%
1338
-24%
1642 (1338 - 1920, n=6)
-6%
CrystalDiskMark 3.0
AS SSD
hddimg
Samsung SSD 960 Evo 250GB m.2 NVMe
Sequential Read: 1751 MB/s
Sequential Write: 1375 MB/s
512K Read: 791.8 MB/s
512K Write: 1007 MB/s
4K Read: 59.96 MB/s
4K Write: 164.1 MB/s
4K QD32 Read: 675.6 MB/s
4K QD32 Write: 570.7 MB/s
3DMark - 1920x1080 Fire Strike Graphics
MSI GE63VR 7RF Raider
NVIDIA GeForce GTX 1070 Mobile
17793 Points ∼100% +47%
Average of class Gaming
  (385 - 40636, n=658)
12424 Points ∼70% +2%
Schenker XMG Apex 15
NVIDIA GeForce GTX 1060 Mobile
12138 Points ∼68%
Average NVIDIA GeForce GTX 1060 Mobile
  (10708 - 12298, n=77)
11547 Points ∼65% -5%
Schenker XMG Core 15
NVIDIA GeForce GTX 1060 Mobile
11322 Points ∼64% -7%
HP Omen 15t-ce000
NVIDIA GeForce GTX 1060 Max-Q
9992 Points ∼56% -18%
3DMark 11 - 1280x720 Performance GPU
MSI GE63VR 7RF Raider
NVIDIA GeForce GTX 1070 Mobile
23246 Points ∼100% +53%
Schenker XMG Apex 15
NVIDIA GeForce GTX 1060 Mobile
15149 Points ∼65%
Average of class Gaming
  (513 - 50983, n=734)
14980 Points ∼64% -1%
Average NVIDIA GeForce GTX 1060 Mobile
  (12620 - 15607, n=77)
14692 Points ∼63% -3%
Schenker XMG Core 15
NVIDIA GeForce GTX 1060 Mobile
14471 Points ∼62% -4%
HP Omen 15t-ce000
NVIDIA GeForce GTX 1060 Max-Q
12970 Points ∼56% -14%
3DMark 11 Performance
14618 punten
3DMark Cloud Gate Standard Score
36010 punten
3DMark Fire Strike Score
10794 punten
Help
0123456789101112131415161718192021222324252627282930313233343536373839404142Tooltip
The Witcher 3 ultra
The Witcher 3 | Rise of the Tomb Raider | The Division | For Honor | Ghost Recon Wildlands | Assassin´s Creed Origins | Final Fantasy XV Benchmark | Far Cry 5
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
MSI GE63VR 7RF Raider
GeForce GTX 1070 Mobile, i7-7700HQ
62.2 fps ∼100% +48%
Average of class Gaming
  (12.6 - 115, n=426)
54.3 fps ∼87% +30%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
41.9 fps ∼67%
Average NVIDIA GeForce GTX 1060 Mobile
  (24 - 42.3, n=60)
38.6 fps ∼62% -8%
Schenker XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ
38.2 fps ∼61% -9%
HP Omen 15t-ce000
GeForce GTX 1060 Max-Q, i7-7700HQ
35 fps ∼56% -16%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Average of class Gaming
  (11.1 - 223, n=360)
95.9 fps ∼100% +24%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
77.6 fps ∼81%
Schenker XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ
69.57 fps ∼73% -10%
HP Omen 15t-ce000
GeForce GTX 1060 Max-Q, i7-7700HQ
68.5 fps ∼71% -12%
Average NVIDIA GeForce GTX 1060 Mobile
  (52.6 - 80.6, n=49)
68 fps ∼71% -12%
Rise of the Tomb Raider
1920x1080 Very High Preset AA:FX AF:16x
MSI GE63VR 7RF Raider
GeForce GTX 1070 Mobile, i7-7700HQ
102.5 fps ∼100% +51%
Average of class Gaming
  (8.9 - 159, n=173)
69 fps ∼67% +2%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
67.9 fps ∼66%
Average NVIDIA GeForce GTX 1060 Mobile
  (51 - 68.8, n=37)
61.3 fps ∼60% -10%
Schenker XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ
59.36 fps ∼58% -13%
HP Omen 15t-ce000
GeForce GTX 1060 Max-Q, i7-7700HQ
54.6 fps ∼53% -20%
1920x1080 High Preset AA:FX AF:4x
MSI GE63VR 7RF Raider
GeForce GTX 1070 Mobile, i7-7700HQ
118.8 fps ∼100% +56%
Average of class Gaming
  (11.6 - 189, n=136)
78.1 fps ∼66% +3%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
76.1 fps ∼64%
Average NVIDIA GeForce GTX 1060 Mobile
  (65.3 - 82, n=24)
73.3 fps ∼62% -4%
Schenker XMG Core 15
GeForce GTX 1060 Mobile, i7-7700HQ
71.05 fps ∼60% -7%
HP Omen 15t-ce000
GeForce GTX 1060 Max-Q, i7-7700HQ
67.6 fps ∼57% -11%
The Division
1920x1080 Ultra Preset AF:16x
Average of class Gaming
  (7.6 - 124, n=40)
60.8 fps ∼100% +7%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
56.7 fps ∼93%
Average NVIDIA GeForce GTX 1060 Mobile
  (37.8 - 57.4, n=7)
50.7 fps ∼83% -11%
1920x1080 High Preset AF:8x
Average of class Gaming
  (10.1 - 138, n=40)
75.9 fps ∼100% +4%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
72.8 fps ∼96%
Average NVIDIA GeForce GTX 1060 Mobile
  (46.9 - 73.3, n=6)
64.3 fps ∼85% -12%
For Honor
1920x1080 Extreme Preset AA:T AF:16x
MSI GE63VR 7RF Raider
GeForce GTX 1070 Mobile, i7-7700HQ
113 fps ∼100% +43%
Average of class Gaming
  (34.9 - 182, n=34)
97 fps ∼86% +23%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
78.9 fps ∼70%
Average NVIDIA GeForce GTX 1060 Mobile
  (42.4 - 78.9, n=8)
68.6 fps ∼61% -13%
1920x1080 High Preset AA:T AF:8x
MSI GE63VR 7RF Raider
GeForce GTX 1070 Mobile, i7-7700HQ
144.4 fps ∼100% +40%
Average of class Gaming
  (13.8 - 194, n=35)
122 fps ∼84% +18%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
103.2 fps ∼71%
Average NVIDIA GeForce GTX 1060 Mobile
  (56.3 - 103, n=7)
92.6 fps ∼64% -10%
Ghost Recon Wildlands
1920x1080 Ultra Preset AA:T AF:16x
MSI GE63VR 7RF Raider
GeForce GTX 1070 Mobile, i7-7700HQ
52.2 fps ∼100% +35%
Average of class Gaming
  (2.4 - 82.7, n=35)
42.6 fps ∼82% +10%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
38.7 fps ∼74%
Average NVIDIA GeForce GTX 1060 Mobile
  (34.5 - 38.7, n=6)
36.9 fps ∼71% -5%
1920x1080 High Preset AA:T AF:4x
MSI GE63VR 7RF Raider
GeForce GTX 1070 Mobile, i7-7700HQ
90.8 fps ∼100% +34%
Average of class Gaming
  (9.8 - 122, n=35)
74.9 fps ∼82% +10%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
67.8 fps ∼75%
Average NVIDIA GeForce GTX 1060 Mobile
  (60.1 - 67.8, n=6)
64.8 fps ∼71% -4%
Assassin´s Creed Origins
1920x1080 Ultra High Preset
Average of class Gaming
  (28 - 86, n=23)
57.3 fps ∼100% +2%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
56 fps ∼98%
Average NVIDIA GeForce GTX 1060 Mobile
  (42 - 56, n=5)
49.8 fps ∼87% -11%
1920x1080 High Preset
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
66 fps ∼100%
Average of class Gaming
  (10 - 107, n=24)
64.5 fps ∼98% -2%
Average NVIDIA GeForce GTX 1060 Mobile
  (49 - 66, n=5)
59.4 fps ∼90% -10%
Final Fantasy XV Benchmark
1920x1080 High Quality
Average of class Gaming
  (11.8 - 108, n=61)
57.4 fps ∼100% +21%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
47.3 fps ∼82%
Average NVIDIA GeForce GTX 1060 Mobile
  (37.2 - 47.3, n=5)
41.5 fps ∼72% -12%
1920x1080 Standard Quality
Average of class Gaming
  (27.2 - 140, n=44)
75.2 fps ∼100% +21%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
62.4 fps ∼83%
Average NVIDIA GeForce GTX 1060 Mobile
  (58.6 - 62.4, n=2)
60.5 fps ∼80% -3%
Far Cry 5
1920x1080 Ultra Preset AA:T
Average of class Gaming
  (10 - 113, n=62)
74.8 fps ∼100% +17%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
64 fps ∼86%
Average NVIDIA GeForce GTX 1060 Mobile
  (59 - 65, n=5)
63.2 fps ∼84% -1%
1920x1080 High Preset AA:T
Average of class Gaming
  (10 - 120, n=55)
77.1 fps ∼100% +12%
Schenker XMG Apex 15
GeForce GTX 1060 Mobile, i7-8700
69 fps ∼89%
Average NVIDIA GeForce GTX 1060 Mobile
  (62 - 69, n=5)
67.2 fps ∼87% -3%
lage gem. hoge ultra
The Witcher 3 (2015) 77.6 41.9 fps
Rainbow Six Siege (2015) 118 fps
Rise of the Tomb Raider (2016) 76.1 67.9 fps
The Division (2016) 72.8 56.7 fps
For Honor (2017) 108.3 103.2 78.9 fps
Ghost Recon Wildlands (2017) 67.8 38.7 fps
Assassin´s Creed Origins (2017) 74 66 56 fps
Final Fantasy XV Benchmark (2018) 62.4 47.3 fps
Far Cry 5 (2018) 75 69 64 fps

Geluidsniveau

Onbelast
32 / 33 / 38 dB (A)
HDD
33 dB (A)
Belasting
47 / 52 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 30 dB(A)
Max. Belasting
 46 °C50 °C45 °C
 47 °C50 °C45 °C
 41 °C43 °C40 °C
Maximum: 50 °C
Gemiddelde: 45.2 °C
44 °C48 °C47 °C
42 °C49 °C47 °C
32 °C34 °C31 °C
Maximum: 49 °C
Gemiddelde: 41.6 °C
Stroomadapter (max.)  45 °C | Kamertemperatuur 20 °C | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 45.2 °C / 113 F, compared to the average of 33.4 °C / 92 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 50 °C / 122 F, compared to the average of 39.8 °C / 104 F, ranging from 21.6 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 49 °C / 120 F, compared to the average of 42.6 °C / 109 F
(+) In idle usage, the average temperature for the upper side is 25.6 °C / 78 F, compared to the device average of 33.4 °C / 92 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 42.7 °C / 109 F, compared to the device average of 33.4 °C / 92 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 43 °C / 109.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-14.2 °C / -25.6 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2040.342.82536.940.53130.833.54032.738.75026.829.56326.628.28030.135.410029.23812526.135.416023.629.620025.732.125027.840.331521.249.540019.955.850018.455.563018.357.880017.761.9100018.768.4125018.373.7160017.373.6200017.469.3250017.468.4315017.567.6400017.367.7500017.566.9630017.466.1800017.567.81000017.460.41250017.361.71600017.254.9SPL30.480.8N1.545median 17.7median 61.7Delta2.610.743.951.139.24631.940.637.443.928.8412845.528.654.226.168.123.164.822.272.223.274.8237319.872.51975.817.67317.877.817.682.817.182.717.380.217.283.816.98417.582.117.981.317.877.517.476.517.681.917.479.917.775.518.873.617.368.529.9931.3107.1median 17.7median 76.51.64.334.839.136.636.533.434.832.933.631.832.230.831.129.731.729.630.128.529.227.438.827.153.226.458.32657.42558.924.353.524.360.724.365.524.262.923.960.723.561.523.257.223.15822.754.423.155.522.963.222.764.722.463.322.56222.465.122.554.335.673.42.533.1median 23.9median 58.31.34.74345.436.739.929.431.834.140.527.23024.829.525.738.825.439.822.234.221.644.222.748.822.452.519.853.118.350.817.361.117.269.517.172.716.866.316.863.516.960.416.858.717.155.51751.216.95317.153.517.156.617.258.517.554.117.843.417.134.929.475.31.232.1median 17.2median 53.51.95.2hearing rangehide median Pink NoiseSchenker XMG Apex 15MSI GE63VR 7RF RaiderHP Omen 15t-ce000Schenker XMG Core 15
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Schenker XMG Apex 15 audio analysis

(±) | speaker loudness is average but good (81 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.2% lower than median
(±) | linearity of bass is average (11.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.8% higher than median
(±) | linearity of mids is average (8.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.1% higher than median
(+) | highs are linear (4.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.9% difference to median)
Compared to same class
» 86% of all tested devices in this class were better, 4% similar, 10% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 69% of all tested devices were better, 8% similar, 24% worse
» The best had a delta of 3%, average was 21%, worst was 65%

MSI GE63VR 7RF Raider audio analysis

(+) | speakers can play relatively loud (93 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 5.6% lower than median
(±) | linearity of bass is average (8.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.6% away from median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.1% away from median
(+) | highs are linear (4.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (7.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 1% similar, 99% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 99% worse
» The best had a delta of 3%, average was 21%, worst was 65%

HP Omen 15t-ce000 audio analysis

(-) | not very loud speakers (65.45 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.8% lower than median
(-) | bass is not linear (15.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.3% away from median
(±) | linearity of mids is average (10.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.8% away from median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.5% difference to median)
Compared to same class
» 61% of all tested devices in this class were better, 7% similar, 32% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 35% of all tested devices were better, 7% similar, 58% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Schenker XMG Core 15 audio analysis

(±) | speaker loudness is average but good (75 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 8% lower than median
(±) | linearity of bass is average (11.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 10.1% higher than median
(±) | linearity of mids is average (13.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(±) | linearity of highs is average (7.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.5% difference to median)
Compared to same class
» 72% of all tested devices in this class were better, 8% similar, 20% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 47% of all tested devices were better, 9% similar, 44% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Stroomgebruik
Uit / Standbydarklight 0.4 / 1.1 Watt
Inactiefdarkmidlight 7 / 10 / 14 Watt
Belasting midlight 114 / 164 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Schenker XMG Apex 15
i7-8700, GeForce GTX 1060 Mobile		MSI GE63VR 7RF Raider
i7-7700HQ, GeForce GTX 1070 Mobile		HP Omen 15t-ce000
i7-7700HQ, GeForce GTX 1060 Max-Q		Schenker XMG Core 15
i7-7700HQ, GeForce GTX 1060 Mobile		Average of class Gaming

Power Consumption
-38%
-38%
-57%
-84%
Idle Minimum *
7
11
-57%
15.4
-120%
18
-157%
18.7 (1.9 - 113, n=801)
-167%
Idle Average *
10
16
-60%
22.4
-124%
22
-120%
24.1 (6 - 119, n=801)
-141%
Idle Maximum *
14
21
-50%
22.4
-60%
26
-86%
29.7 (8.3 - 122, n=801)
-112%
Load Average *
114
92
19%
78.1
31%
93
18%
104 (14.1 - 319, n=793)
9%
Witcher 3 ultra *
131
185
-41%
97.5
26%
119
9%
Load Maximum *
164
224
-37%
133.52
19%
175
-7%
177 (21.9 - 590, n=792)
-8%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
9h 35min
NBC WiFi Websurfing Battery Test 1.3
5h 34min
Big Buck Bunny H.264 1080p
5h 04min
Belast (maximale helderheid)
1h 50min
Schenker XMG Apex 15
i7-8700, GeForce GTX 1060 Mobile, 62 Wh		MSI GE63VR 7RF Raider
i7-7700HQ, GeForce GTX 1070 Mobile, 51 Wh		HP Omen 15t-ce000
i7-7700HQ, GeForce GTX 1060 Max-Q, 70 Wh		Schenker XMG Core 15
i7-7700HQ, GeForce GTX 1060 Mobile, 82 Wh		Average of class Gaming

Batterijduur
-49%
-37%
-29%
-23%
Reader / Idle
575
323
-44%
298
-48%
300
-48%
367 (39 - 1399, n=742)
-36%
H.264
304
234
-23%
278 (88 - 860, n=175)
-9%
WiFi v1.3
334
201
-40%
208
-38%
282
-16%
271 (62 - 683, n=467)
-19%
Load
110
42
-62%
83
-25%
80
-27%
80.1 (18 - 243, n=710)
-27%

Pro

+ Uitgebreid te configureren
+ Vele aansluitingen

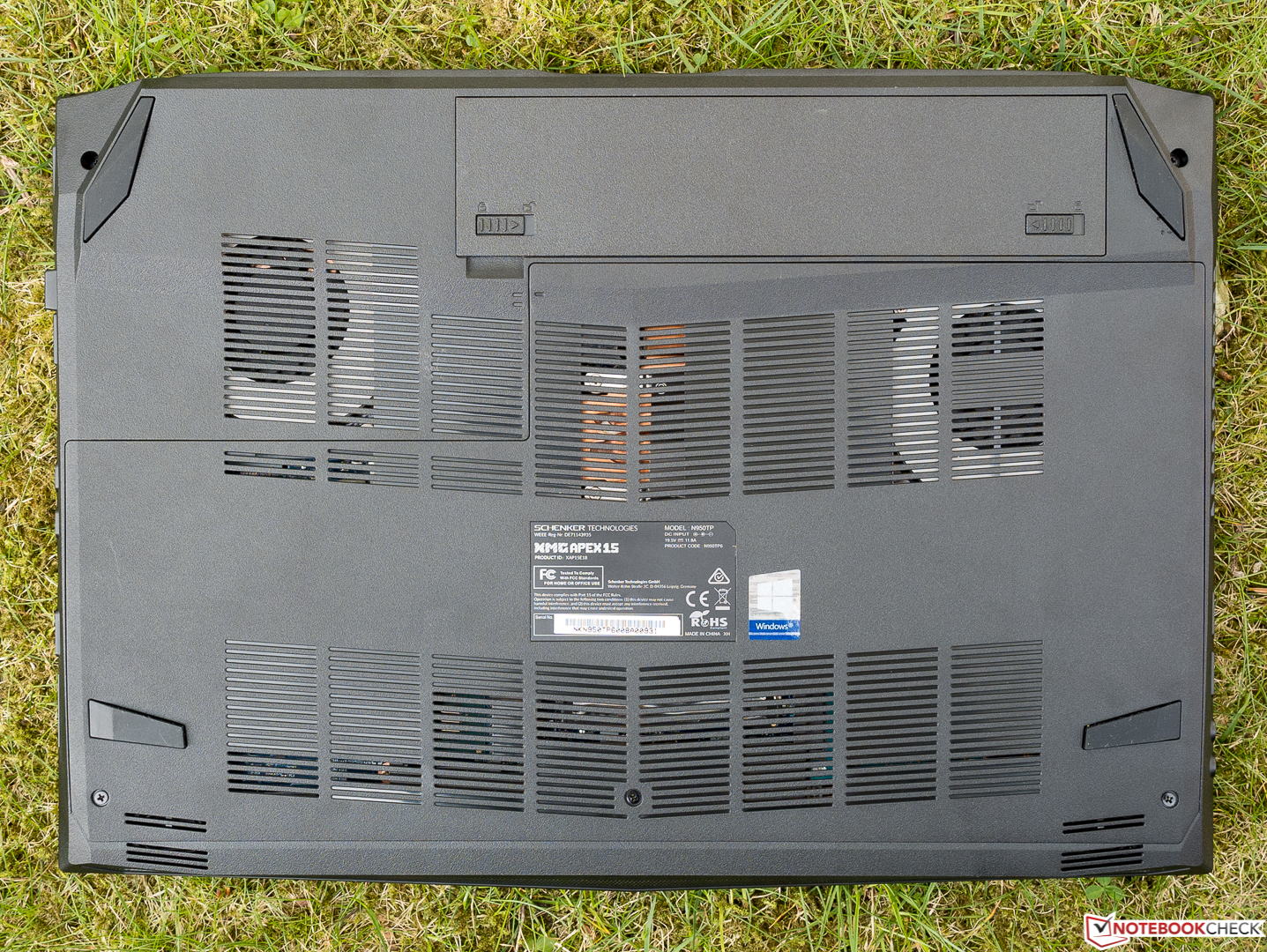

+ Eenvoudig onderhoud

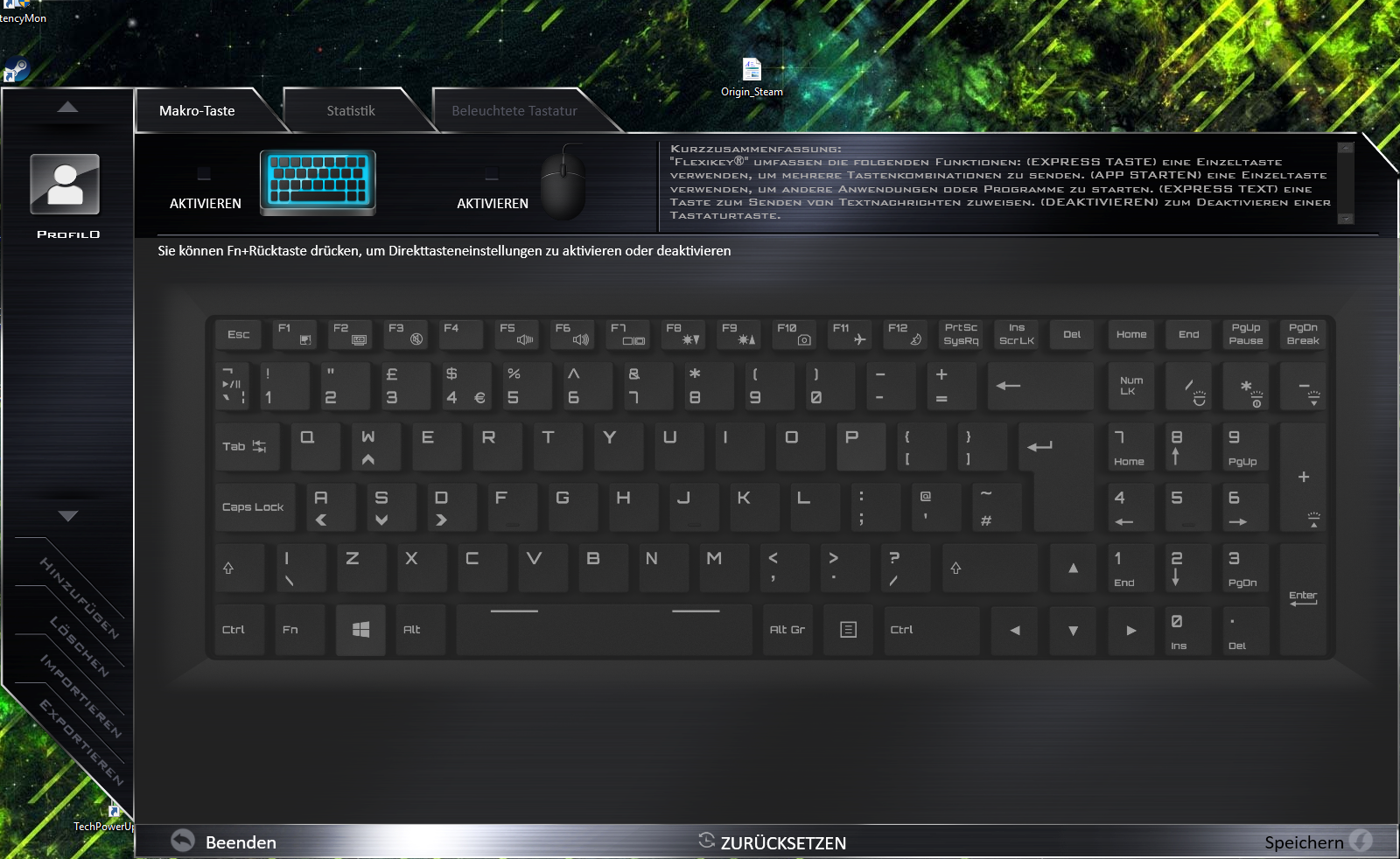

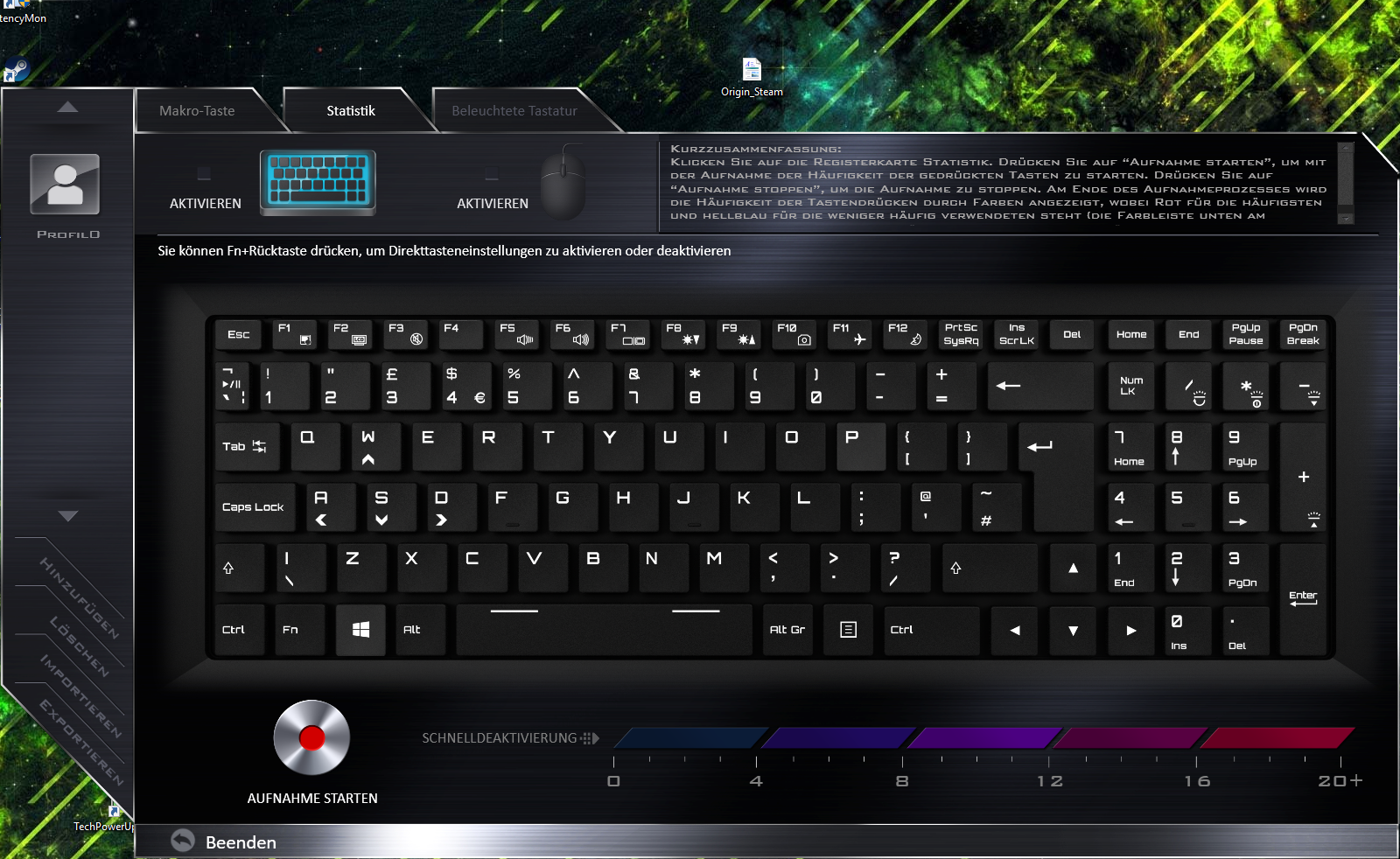

+ Stijlvol gaming toetsenbord met RGB verlichting, effecten en macrotoetsen
+ Lage zwartwaardes, contrastrijk
+ Brede kijkhoeken
+ Snelle SSD
+ GTX 1060 prestaties zijn bovengemiddeld
+ Laag energieverbruik wanneer inactief
+ Degelijke looptijden voor een gaming notebook

Contra

- Relatief groot en zwaar
- Beeldscherm niet bijzonder stevig
- Bleeding
- Vertekeningen op het beeldscherm bij aanrakingen
- Langzame responstijden
- Slechte geluidskwaliteit

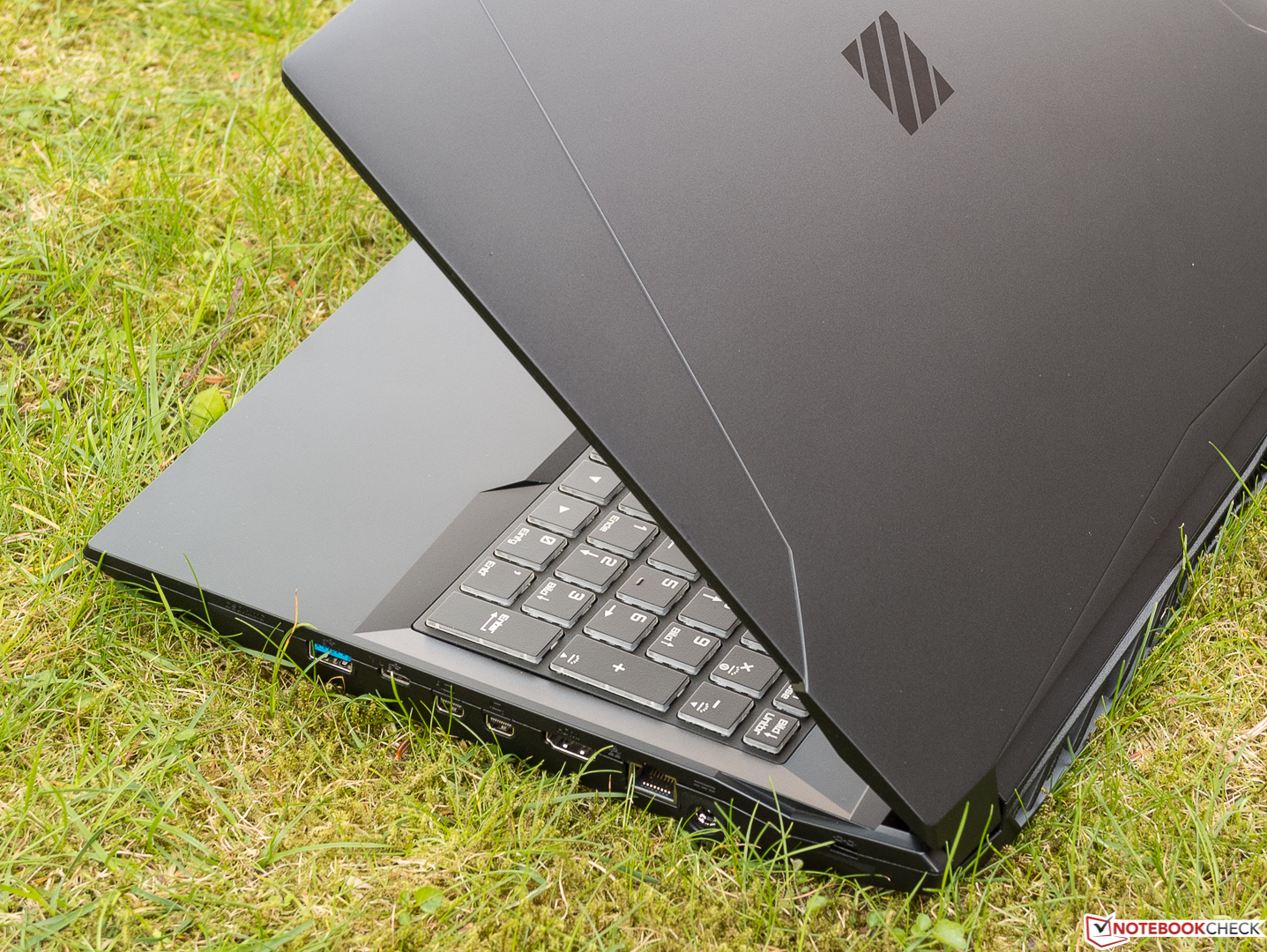

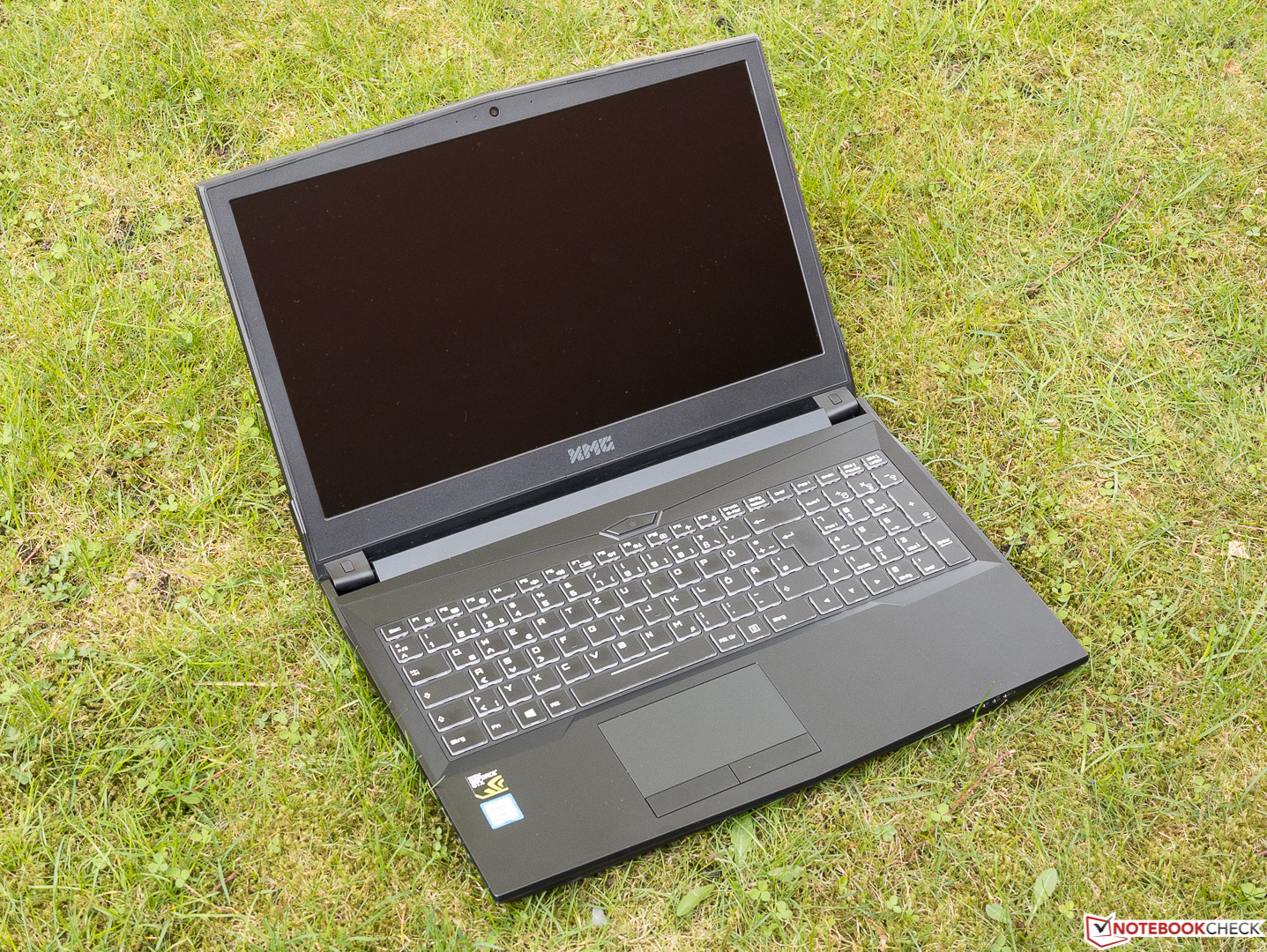

Schenker XMG Apex 15. Testmodel geleverd door Schenker Germany.
Schenker XMG Apex 15. Testmodel geleverd door Schenker Germany.

Voor het volledige, Engelse testrapport, klik hier.

Toegegeven, de Core i7-8700 CPU is overmatig krachtig voor gamen alleen. Echter, dit hoeft geen slechte eigenschap te zijn aangezien de gebruikelijke nadelen zoals een hoog energieverbruik en luid koelsysteem nu ontbreken.

Alles bij elkaar is de Apex 15 een aantrekkelijke notebook. Echter, het slecht ontworpen beeldscherm gooit roet in het eten.

Voor een prijskaartje van €1700 krijg je een solide gaming notebook zonder extra's zoals G-Sync of Thunderbolt 3. Als je niet van plan bent om een hogere resolutie dan FHD te gebruiken, zal de GTX 1060 de komende jaren nog voldoen, vooral aangezien de Apex 15 het maximale uit de grafische kaart weet te halen.

De verbindingsmogelijkheden laten de notebook opvallen tussen de concurrenten en ook de onderhoudsmogelijkheden zijn praktisch perfect. Inderdaad, het beeldscherm is niet volledig geschikt voor gamen, maar het paneel vervult z'n rol. De snelle CPU wordt vergezeld door een vlotte SSD en het lage energieverbruik resulteert in lange looptijden. De meeste kritiek betreft het beeldscherm, in het bijzonder de beeldschermdeksel. Hoewel we simpelweg niet begrijpen welke keuzes hebben geleid tot het huidige ontwerp, verdient de notebook nog steeds onze volledige steun. Als je meer grafische rekenkracht nodig hebt, is MSI notebook met GTX 1070 wellicht een betere keuze. Echter, wees bewust van het TN beeldscherm.





Schenker XMG Apex 15 - 28-04-2018 v6(old)
Sven Kloevekorn

Behuizing
74 / 98 → 75%
Toetsenbord
85%
Aanwijsapparaat
83%
Aansluitmogelijkheden
64 / 81 → 79%
Gewicht
58 / 10-66 → 86%
Batterij
83%
Beeldscherm
86%
Gaming-performance
94%
Applicatie-performance
99%
Temperatuur
81 / 95 → 85%
Luidheid
67 / 90 → 74%
Audio
50%
Camera
63 / 85 → 74%
Gemiddelde
76%
84%
Gaming - Gewogen Gemiddelde

Linked Articles

Schenker XMG Apex 15 (XMG Apex Serie)
Testrapport
•
Kort testrapport Schenker XMG ...

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Schenker XMG Apex 15 (Clevo N950TP6) Laptop
Sven Kloevekorn, 2018-05- 5 (Update: 2018-05- 5)
