Kort testrapport MSI Bravo 17 laptop: AMD-gebaseerde gaming-machine

Alleskunner. Terwijl Intel en Nvidia de afgelopen jaren de markt van de gaming-laptops domineerden, verschijnen er steeds meer toestellen die uitsluitend op AMD-componenten zijn gebaseerd. De Bravo 17 van MSI pakt uit met moderne 7-nm-componenten. Een Ryzen 7 4800H wordt gebruikt als processor, terwijl een Radeon RX 5500M voor de graphics zorgt.
Florian Glaser, 👁 Florian Glaser, Felicitas Krohn,

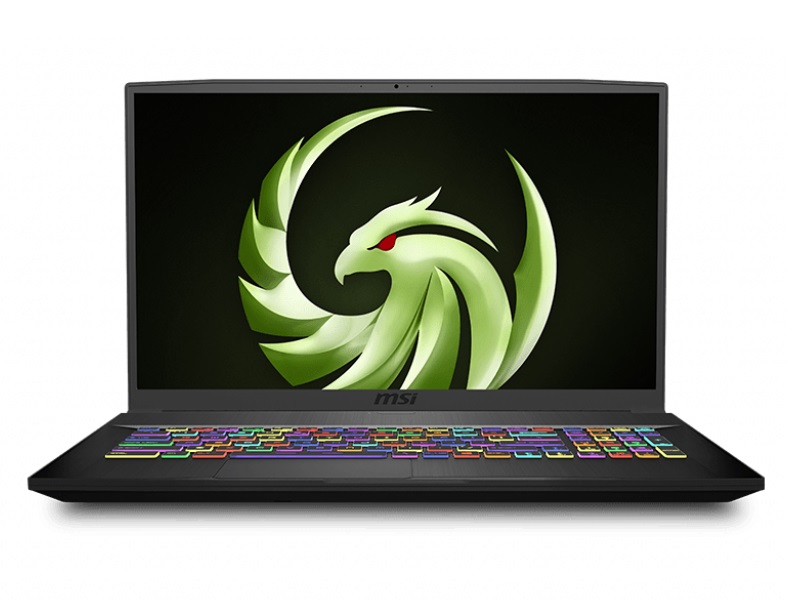

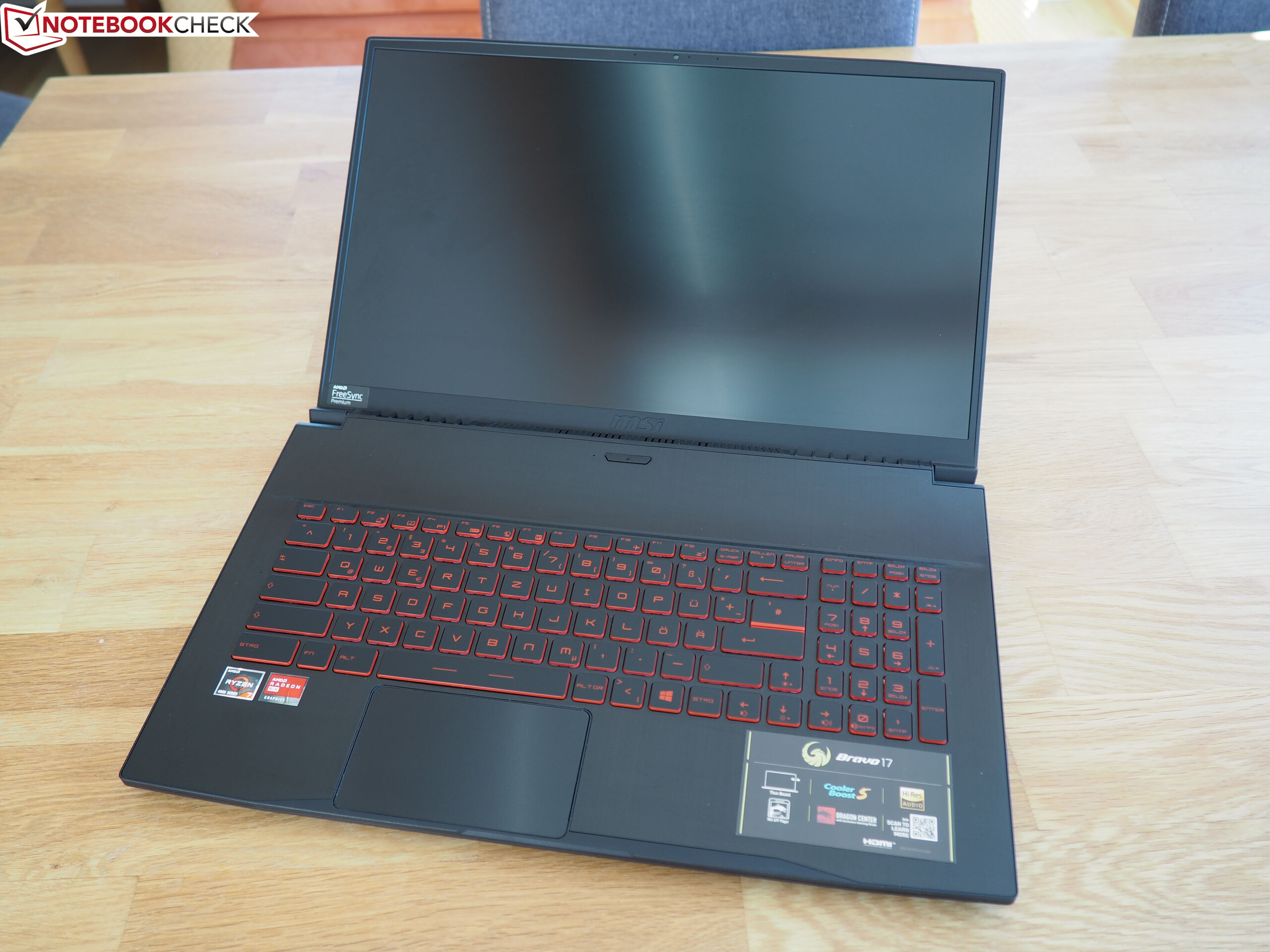

MSI Bravo 17 A4DDR (Bravo 17 Serie)
Processor
AMD Ryzen 7 4800H 8 x 2.9 - 4.2 GHz, Renoir (Zen 2)
Grafische kaart
AMD Radeon RX 5500M - 4096 MB, Core: 1448 MHz, Geheugen: 1750 MHz, GDDR6, Adrenalin 19.40.30, Switchable Graphics
Geheugen
16384 MB
, 2x 8 GB SO-DIMM DDR4 3200, dual-channel, alle sleuven bezet, max. 64 GB
Beeldscherm
17.3 inch 16:9, 1920 x 1080 pixel 127 PPI, AU Optronics B173HAN04.7 (AUO479D), IPS, Full HD, FreeSync, glimmend: nee, 120 Hz
Moederbord
AMD Promontory/Bixby FCH
Opslag
Toshiba KBG30ZMV512G, 512 GB
, PCIe-SSD, sleuven: 1x M.2 type 2280 en 1x 2.5-inch (vrij)
Geluidskaart
Realtek ALC233 @ AMD K17.6 - Audio Processor

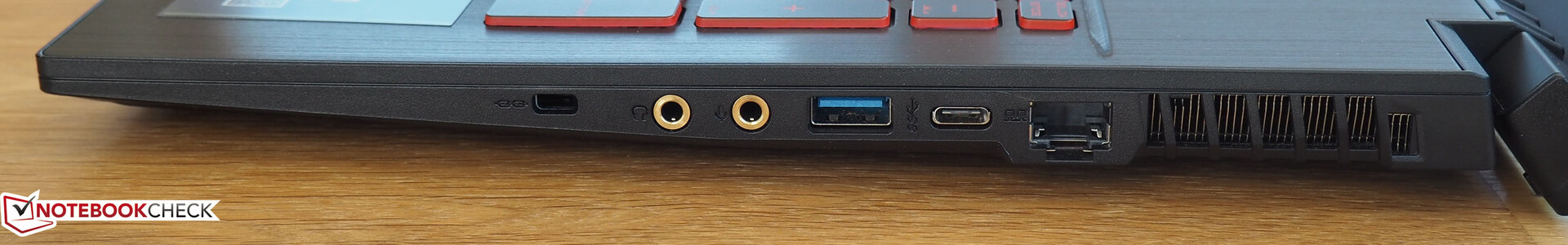

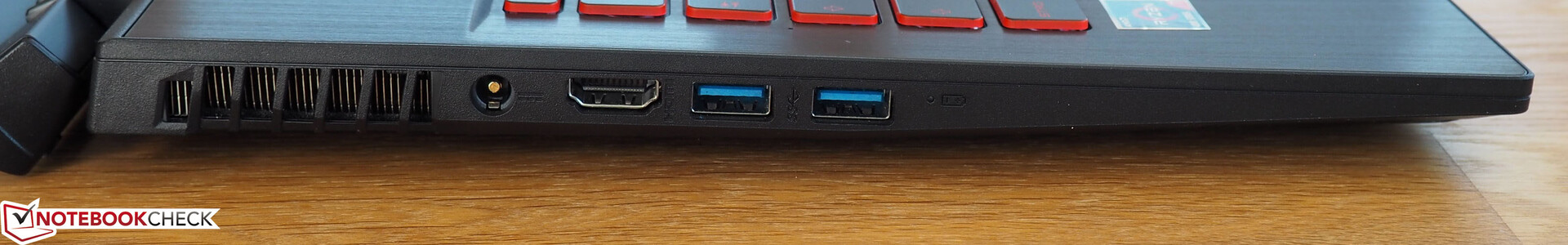

Verbindingen
4 USB 3.0, 1 HDMI, 1 Kensington Lock, Audio Verbindingen: 1 koptelefoon, 1 microfoon
Netwerkmogelijkheden
Realtek PCIe GBE Family Controller (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Afmetingen
hoogte x breedte x diepte (in mm): 23 x 397 x 260
Batterij
51 Wh Lithium-Ion, 3 cells
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD 720p
Bijkomende functionaliteiten
Luidsprekers: 2x 2W, Toetsenbord: chiclet, Toetsenbordverlichting: ja, 180-Watt-voeding, quick-start-handleiding, recovery-informatie, Dragon Center, 24 Maanden Garantie
Gewicht

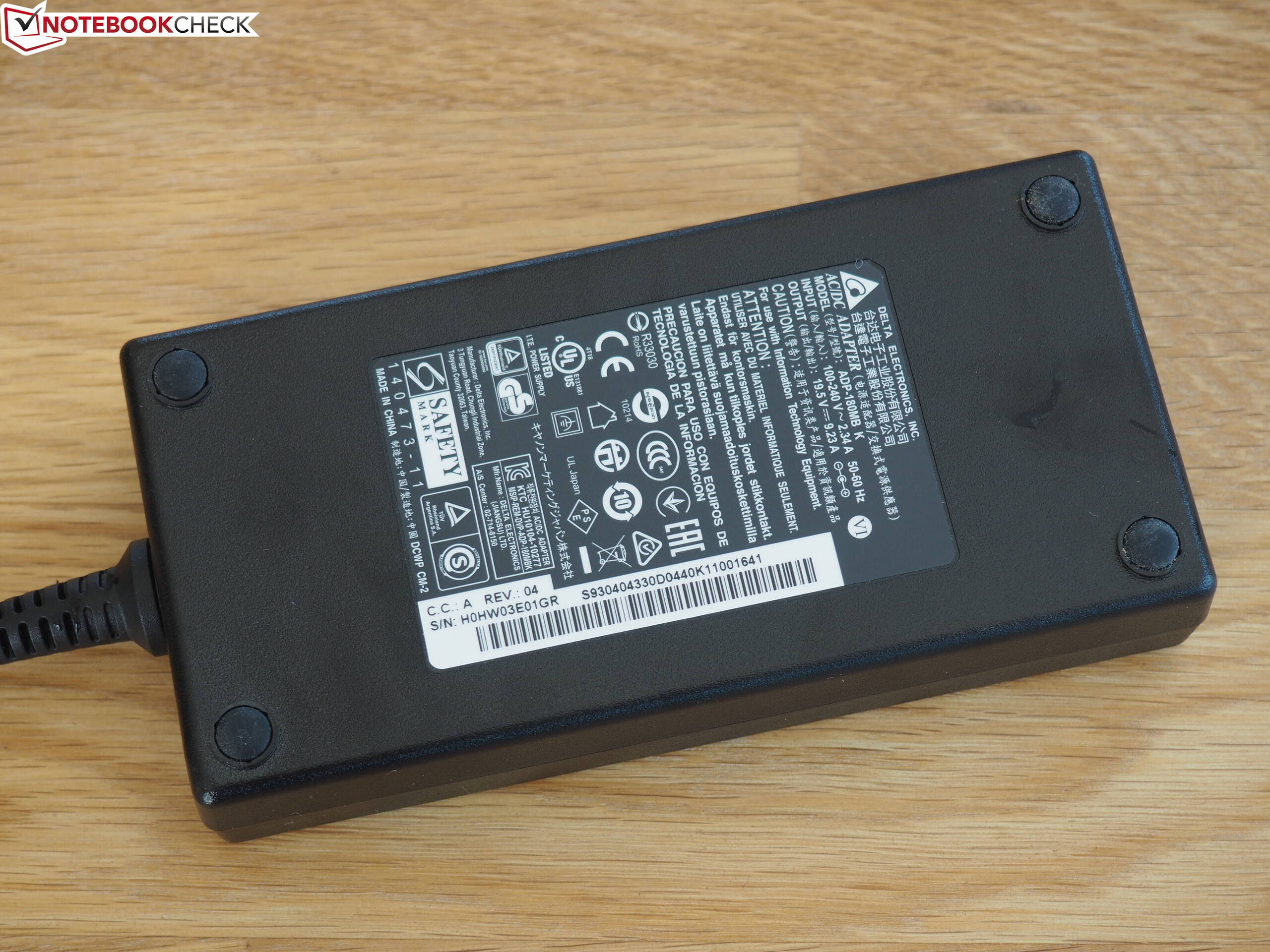

2.244 kg, Voeding: 590 g
Prijs
1300 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Evaluatie
Datum
Model
Gewicht
Hoogte
Formaat
Resolutie
Best Price
81 %
07-2020
MSI Bravo 17 A4DDR
R7 4800H, Radeon RX 5500M
2.2 kg23 mm17.3"1920x1080
79 %
02-2020
MSI Alpha 15 A3DDK-034
R7 3750H, Radeon RX 5500M
2.3 kg27.5 mm15.6"1920x1080
78 %
MSI GF75 Thin 9SC
i7-9750H, GeForce GTX 1650 Mobile
2.3 kg23.1 mm17.3"1920x1080
78 %
06-2019
Asus TUF FX705DT-AU068T
R5 3550H, GeForce GTX 1650 Mobile
2.7 kg26.6 mm17.3"1920x1080
83 %
05-2020
Asus TUF A17 FA706IU-AS76
R7 4800H, GeForce GTX 1660 Ti Mobile
2.6 kg26 mm17.3"1920x1080
82 %
08-2019
Lenovo Legion Y540-17IRH
i5-9300H, GeForce GTX 1660 Ti Mobile
2.8 kg26.3 mm17.3"1920x1080

Formaat Vergelijking

399.8 mm 279.4 mm 26.6 mm 2.7 kg399 mm 290 mm 26.3 mm 2.8 kg399 mm 269 mm 26 mm 2.6 kg397 mm 260 mm 23.1 mm 2.3 kg397 mm 260 mm 23 mm 2.2 kg357.7 mm 248 mm 27.5 mm 2.3 kg
Networking
iperf3 Client (receive) TCP 1 m 4M x10
MSI Bravo 17 A4DDR
Intel Wi-Fi 6 AX200
1520 MBit/s ∼100%
Lenovo Legion Y540-17IRH
Intel Wireless-AC 9560
680 MBit/s ∼45% -55%
MSI Alpha 15 A3DDK-034
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
665 MBit/s ∼44% -56%
MSI GF75 Thin 9SC
Intel Wireless-AC 9560
649 MBit/s ∼43% -57%
Asus TUF A17 FA706IU-AS76
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
634 (min: 621, max: 646) MBit/s ∼42% -58%
Asus TUF FX705DT-AU068T
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
215 (min: 199, max: 221) MBit/s ∼14% -86%
iperf3 Client (transmit) TCP 1 m 4M x10
MSI Bravo 17 A4DDR
Intel Wi-Fi 6 AX200
880 MBit/s ∼100%
Lenovo Legion Y540-17IRH
Intel Wireless-AC 9560
684 MBit/s ∼78% -22%
MSI GF75 Thin 9SC
Intel Wireless-AC 9560
658 MBit/s ∼75% -25%
MSI Alpha 15 A3DDK-034
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
634 MBit/s ∼72% -28%
Asus TUF A17 FA706IU-AS76
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
623 (min: 577, max: 656) MBit/s ∼71% -29%
Asus TUF FX705DT-AU068T
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
201 (min: 89, max: 272) MBit/s ∼23% -77%
ColorChecker
20.5 ∆E
17.5 ∆E
9.6 ∆E
12 ∆E
12.4 ∆E
13.1 ∆E
11.9 ∆E
12.9 ∆E
12.6 ∆E
12.6 ∆E
7.1 ∆E
9.7 ∆E
11.7 ∆E
9.4 ∆E
11.9 ∆E
12.5 ∆E
12.7 ∆E
14.6 ∆E
12.8 ∆E
15.8 ∆E
14.6 ∆E
15.1 ∆E
14.5 ∆E
14 ∆E
ColorChecker MSI Bravo 17 A4DDR: 12.99 ∆E min: 7.14 - max: 20.5 ∆E
MSI Bravo 17
MSI Bravo 17
MSI Bravo 17
MSI Bravo 17
MSI Bravo 17
243
cd/m²
236
cd/m²
242
cd/m²
250
cd/m²
264
cd/m²
242
cd/m²
246
cd/m²
237
cd/m²
233
cd/m²
Helderheidsverdeling
AU Optronics B173HAN04.7 (AUO479D)
X-Rite i1Pro 2
Maximum: 264 cd/m² Gemiddelde: 243.7 cd/m² Minimum: 11 cd/m²
Helderheidsverdeling: 88 %
Helderheid in Batterij-modus: 264 cd/m²
Contrast: 1148:1 (Zwart: 0.23 cd/m²)
ΔE Color 3.85 | 0.6-29.43 Ø5.8, calibrated: 3.4
ΔE Greyscale 1.95 | 0.64-98 Ø6
60% sRGB (Argyll 3D) 42% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.52
MSI Bravo 17 A4DDR
AU Optronics B173HAN04.7 (AUO479D), IPS, 1920x1080
MSI Alpha 15 A3DDK-034
AU Optronics B156HAN08.0 (AUO80ED), IPS, 1920x1080
MSI GF75 Thin 9SC
AU Optronics B173HAN04.2, IPS, 1920x1080
Asus TUF FX705DT-AU068T
AU Optronics B173HAN04.2, IPS, 1920x1080
Asus TUF A17 FA706IU-AS76
BOE NV173FHM-NX1, IPS, 1920x1080
Lenovo Legion Y540-17IRH
AU Optronics B173HAN04.4 (AUO449D), IPS, 1920x1080
Response Times
74%
6%
-2%
40%
56%
Response Time Grey 50% / Grey 80% *
40 (19.2, 20.8)
7 (3.4, 3.6)
82%
34 (17.6, 16.4)
15%
41 (20, 21)
-3%
22.4 (11.6, 10.8)
44%
18 (8.4, 9.6)
55%
Response Time Black / White *
29.6 (16.4, 13.2)
10.4 (5.2, 5.2)
65%
30.4 (18, 12.4)
-3%
30 (16, 14)
-1%
19.2 (9.6, 9.6)
35%
12.8 (7.6, 5.2)
57%
PWM Frequency
Screen
-2%
9%
7%
-18%
13%
Brightness middle
264
310
17%
344.7
31%
316
20%
264.8
0%
286
8%
Brightness
244
310
27%
332
36%
294
20%
253
4%
282
16%
Brightness Distribution
88
86
-2%
91
3%
84
-5%
90
2%
87
-1%
Black Level *
0.23
0.29
-26%
0.3
-30%
0.32
-39%
0.31
-35%
0.19
17%
Contrast
1148
1069
-7%
1149
0%
988
-14%
854
-26%
1505
31%
Colorchecker DeltaE2000 *
3.85
4.78
-24%
3.08
20%
3.39
12%
4.73
-23%
3.57
7%
Colorchecker DeltaE2000 max. *
9.13
8.1
11%
6.32
31%
5.56
39%
18.89
-107%
7.5
18%
Colorchecker DeltaE2000 calibrated *
3.4
2.36
31%
2.94
14%
2.14
37%
4.64
-36%
1.31
61%
Greyscale DeltaE2000 *
1.95
4.78
-145%
3.8
-95%
3.17
-63%
1.4
28%
4.51
-131%
Gamma
2.52 87%
2.43 91%
2.17 101%
2.39 92%
2.16 102%
2.36 93%
CCT
6371 102%
7739 84%
7284 89%
7098 92%
6641 98%
7411 88%
Color Space (Percent of AdobeRGB 1998)
42
59
40%
58
38%
51
21%
38.4
-9%
64
52%
Color Space (Percent of sRGB)
60
91
52%
89.6
49%
89
48%
59.3
-1%
98
63%
Totaal Gemiddelde (Programma / Instellingen)
36% / 9%
8% / 8%
3% / 6%
11% / -10%
35% / 19%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

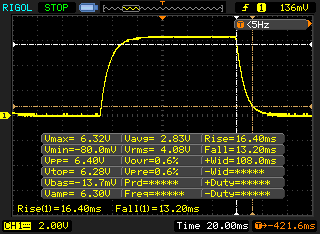

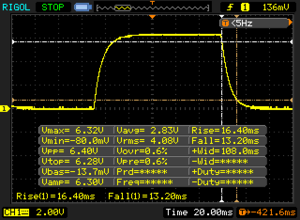

       Responstijd Zwart naar Wit
29.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 16.4 ms stijging
↘ 13.2 ms daling
Het scherm vertoonde relatief trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 71 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (24.6 ms) van alle geteste toestellen.

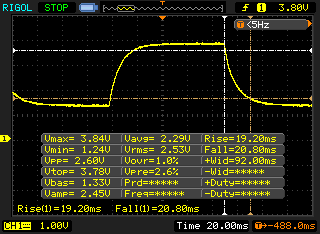

       Responstijd 50% Grijs naar 80% Grijs
40 ms ... stijging ↗ en daling ↘ gecombineerd↗ 19.2 ms stijging
↘ 20.8 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 45 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (39 ms) van alle geteste toestellen.

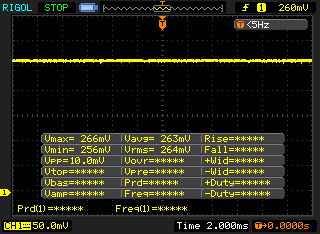

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 17901 (minimum: 5 - maximum: 2500000) Hz waargenomen.

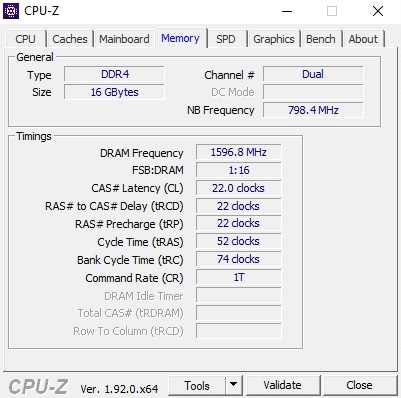

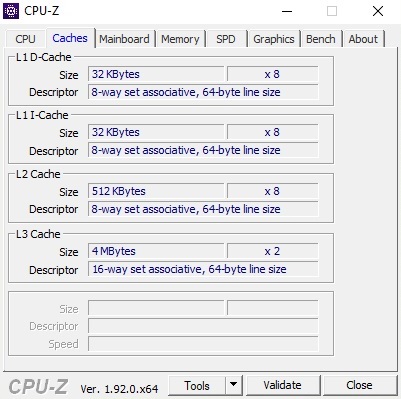

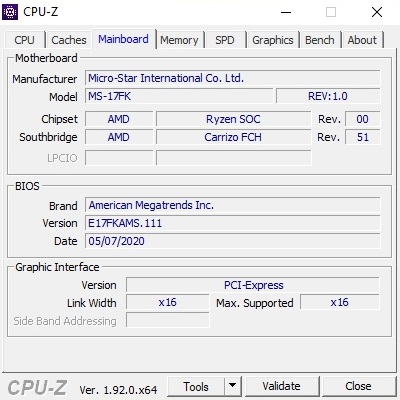

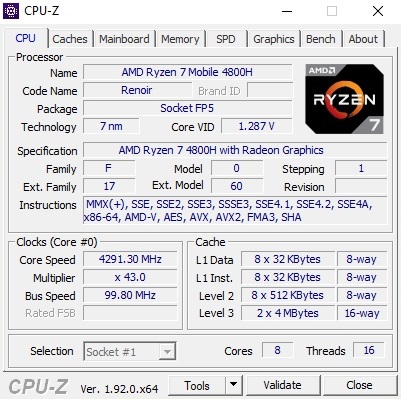

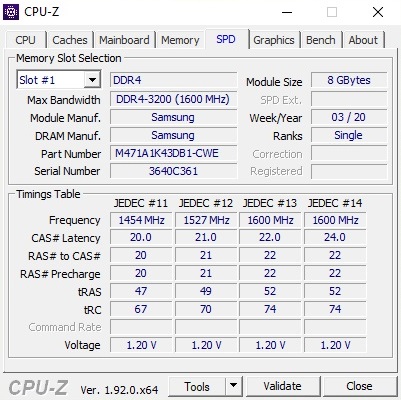

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

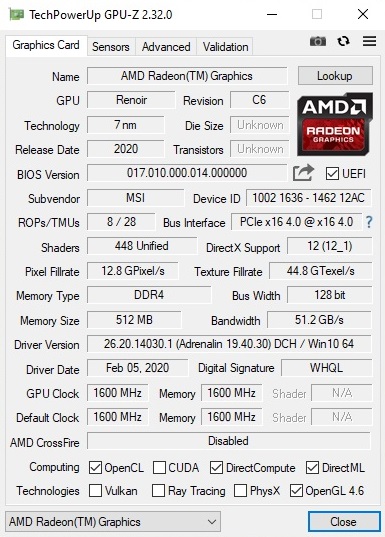

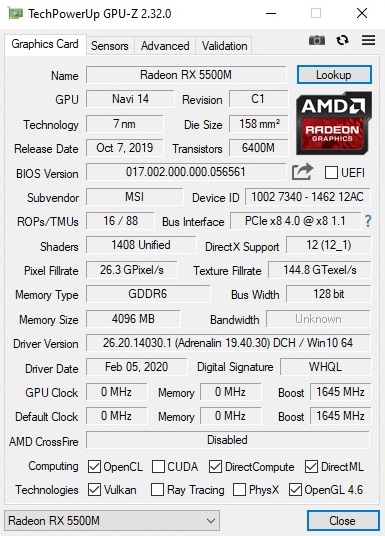

GPU-Z
GPU-Z

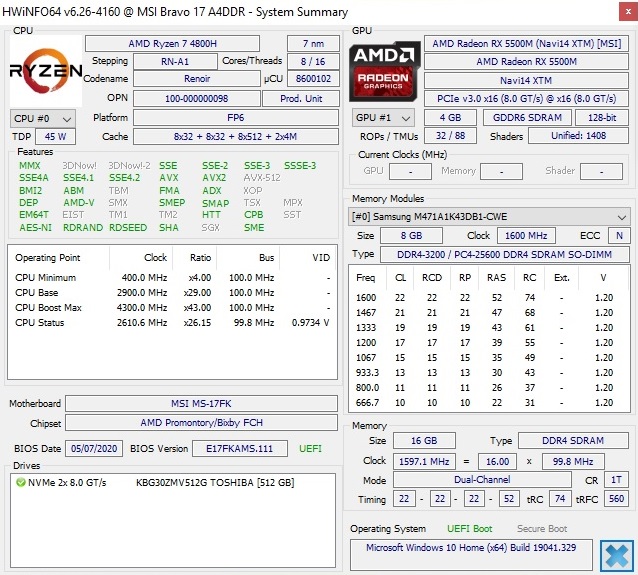

HWiNFO

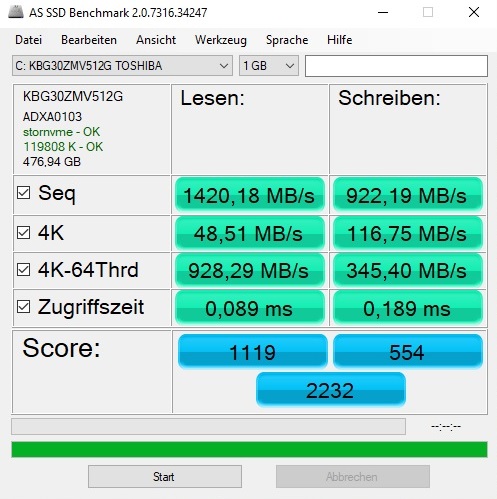

AS SSD benchmark

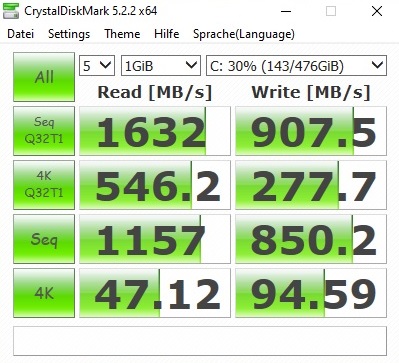

CrystalDiskMark
01020304050607080901001101201301401501601701801902002102202302402502602702802903003103203303403503603703803904004104204304404504604704804905005105205305405505605705805906006106206306406506606706806907007107207307407507607707807908008108208308408508608708808909009109209309409509609709809901000101010201030104010501060107010801090110011101120113011401150116011701180119012001210122012301240125012601270128012901300131013201330134013501360137013801390140014101420143014401450146014701480149015001510152015301540155015601570158015901600161016201630164016501660167016801690170017101720173017401750176017701780179018001810182018301840185018601870188018901900Tooltip
MSI Bravo 17 A4DDR AMD Ryzen 7 4800H, AMD Ryzen 7 4800H: Ø1847 (1814.88-1892.51)
Asus TUF A17 FA706IU-AS76 AMD Ryzen 7 4800H, AMD Ryzen 7 4800H: Ø1773 (1724.58-1815.79)
Cinebench R15
CPU Single 64Bit
MSI GF75 Thin 9SC
Intel Core i7-9750H
189 Points ∼100% 0%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
189 Points ∼100% 0%
MSI Bravo 17 A4DDR
AMD Ryzen 7 4800H
189 Points ∼100%
Lenovo Legion Y540-17IRH
Intel Core i5-9300H
171 Points ∼90% -10%
Asus TUF FX705DT-AU068T
AMD Ryzen 5 3550H
144 Points ∼76% -24%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H
143 Points ∼76% -24%
CPU Multi 64Bit
MSI Bravo 17 A4DDR
AMD Ryzen 7 4800H
1892 (min: 1814.88, max: 1892.51) Points ∼100%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
1816 (min: 1724.58, max: 1815.79) Points ∼96% -4%
MSI GF75 Thin 9SC
Intel Core i7-9750H
1071 Points ∼57% -43%
Lenovo Legion Y540-17IRH
Intel Core i5-9300H
850 Points ∼45% -55%
Asus TUF FX705DT-AU068T
AMD Ryzen 5 3550H
742 Points ∼39% -61%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H
734 Points ∼39% -61%
Blender 2.79 - BMW27 CPU
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
271 Seconds * ∼100% -3%
MSI Bravo 17 A4DDR
AMD Ryzen 7 4800H
262 Seconds * ∼97%
7-Zip 18.03
7z b 4
MSI Bravo 17 A4DDR
AMD Ryzen 7 4800H
51468 MIPS ∼100%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
48837 MIPS ∼95% -5%
7z b 4 -mmt1
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
4717 MIPS ∼100% 0%
MSI Bravo 17 A4DDR
AMD Ryzen 7 4800H
4699 MIPS ∼100%
Cinebench R20
CPU (Single Core)
MSI Bravo 17 A4DDR
AMD Ryzen 7 4800H
481 Points ∼100%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
477 Points ∼99% -1%
Lenovo Legion Y540-17IRH
Intel Core i5-9300H
427 Points ∼89% -11%
Asus TUF FX705DT-AU068T
AMD Ryzen 5 3550H
361 Points ∼75% -25%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H
352 Points ∼73% -27%
CPU (Multi Core)
MSI Bravo 17 A4DDR
AMD Ryzen 7 4800H
4339 Points ∼100%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
4132 Points ∼95% -5%
Lenovo Legion Y540-17IRH
Intel Core i5-9300H
1877 Points ∼43% -57%
Asus TUF FX705DT-AU068T
AMD Ryzen 5 3550H
1659 Points ∼38% -62%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H
1633 Points ∼38% -62%
Geekbench 5.1 / 5.2
64 Bit Multi-Core Score
MSI Bravo 17 A4DDR
AMD Ryzen 7 4800H
8068 Points ∼100%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
7782 Points ∼96% -4%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H
3537 Points ∼44% -56%
64 Bit Single-Core Score
MSI Bravo 17 A4DDR
AMD Ryzen 7 4800H
1197 Points ∼100%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
1189 Points ∼99% -1%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H
874 Points ∼73% -27%
HWBOT x265 Benchmark v2.2 - 4k Preset
MSI Bravo 17 A4DDR
AMD Ryzen 7 4800H
13.1 fps ∼100%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
12.2 fps ∼93% -7%
LibreOffice - 20 Documents To PDF
MSI Bravo 17 A4DDR
AMD Ryzen 7 4800H
95.8 s ∼100%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
61.4 s ∼64% -36%
R Benchmark 2.5 - Overall mean
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
0.596 sec * ∼100% -5%
MSI Bravo 17 A4DDR
AMD Ryzen 7 4800H
0.568 sec * ∼95%

* ... kleiner is beter

Cinebench R15 CPU Multi 64Bit
1892 Points
Cinebench R15 OpenGL 64Bit
123 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
189 Points
Help
PCMark 10 - Score
MSI Bravo 17 A4DDR
Radeon RX 5500M, R7 4800H, Toshiba KBG30ZMV512G
5970 Points ∼100%
Asus TUF A17 FA706IU-AS76
GeForce GTX 1660 Ti Mobile, R7 4800H, Intel SSD 660p 1TB SSDPEKNW010T8
5617 Points ∼94% -6%
Lenovo Legion Y540-17IRH
GeForce GTX 1660 Ti Mobile, i5-9300H, WDC PC SN520 SDAPNUW-512G
5613 Points ∼94% -6%
MSI GF75 Thin 9SC
GeForce GTX 1650 Mobile, i7-9750H, Crucial P1 SSD CT1000P1SSD8
5249 Points ∼88% -12%
MSI Alpha 15 A3DDK-034
Radeon RX 5500M, R7 3750H, Kingston RBUSNS8154P3512GJ
4605 Points ∼77% -23%
Asus TUF FX705DT-AU068T
GeForce GTX 1650 Mobile, R5 3550H, WDC PC SN520 SDAPNUW-256G
4339 Points ∼73% -27%
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus TUF A17 FA706IU-AS76
GeForce GTX 1660 Ti Mobile, R7 4800H, Intel SSD 660p 1TB SSDPEKNW010T8
8851.6 μs * ∼100% -868%
MSI Bravo 17 A4DDR
Radeon RX 5500M, R7 4800H, Toshiba KBG30ZMV512G
914.1 μs * ∼10%

* ... kleiner is beter

MSI Bravo 17 A4DDR
Toshiba KBG30ZMV512G
MSI Alpha 15 A3DDK-034
Kingston RBUSNS8154P3512GJ
MSI GF75 Thin 9SC
Crucial P1 SSD CT1000P1SSD8
Asus TUF FX705DT-AU068T
WDC PC SN520 SDAPNUW-256G
Asus TUF A17 FA706IU-AS76
Intel SSD 660p 1TB SSDPEKNW010T8
Lenovo Legion Y540-17IRH
WDC PC SN520 SDAPNUW-512G
CrystalDiskMark 5.2 / 6
-1%
43%
15%
56%
8%
Write 4K
94.59
105.4
11%
133
41%
145
53%
189.7
101%
105.1
11%
Read 4K
47.12
33.24
-29%
55.58
18%
45.28
-4%
62.25
32%
34.41
-27%
Write Seq
850.2
1029
21%
1623
91%
1301
53%
1681
98%
1298
53%
Read Seq
1157
1098
-5%
1386
20%
1362
18%
1608
39%
1099
-5%
Write 4K Q32T1
277.7
322.1
16%
500.8
80%
249.1
-10%
468.6
69%
335.7
21%
Read 4K Q32T1
546.2
352
-36%
584.2
7%
342.1
-37%
540.6
-1%
231.4
-58%
Write Seq Q32T1
907.5
1036
14%
1696
87%
1301
43%
1770
95%
1454
60%
Read Seq Q32T1
1632
1606
-2%
1572
-4%
1732
6%
1898
16%
1740
7%
Toshiba KBG30ZMV512G
CDM 5/6 Read Seq Q32T1: 1632 MB/s
CDM 5/6 Write Seq Q32T1: 907.5 MB/s
CDM 5/6 Read 4K Q32T1: 546.2 MB/s
CDM 5/6 Write 4K Q32T1: 277.7 MB/s
CDM 5 Read Seq: 1157 MB/s
CDM 5 Write Seq: 850.2 MB/s
CDM 5/6 Read 4K: 47.12 MB/s
CDM 5/6 Write 4K: 94.59 MB/s

Continuous load read: DiskSpd Read Loop, Queue Depth 8

010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130114011501160117011801190120012101220123012401250126012701280129013001310132013301340135013601370138013901400141014201430144014501460147014801490150015101520153015401550156015701580159016001610162016301640Tooltip
: Ø1628 (1434.31-1634.19)
3DMark
2560x1440 Time Spy Graphics
Asus TUF A17 FA706IU-AS76
NVIDIA GeForce GTX 1660 Ti Mobile
5744 Points ∼100% +33%
Lenovo Legion Y540-17IRH
NVIDIA GeForce GTX 1660 Ti Mobile
5590 Points ∼97% +29%
MSI Bravo 17 A4DDR
AMD Radeon RX 5500M
4331 Points ∼75%
MSI Alpha 15 A3DDK-034
AMD Radeon RX 5500M
4298 Points ∼75% -1%
Asus TUF FX705DT-AU068T
NVIDIA GeForce GTX 1650 Mobile
3506 Points ∼61% -19%
MSI GF75 Thin 9SC
NVIDIA GeForce GTX 1650 Mobile
3470 Points ∼60% -20%
1920x1080 Fire Strike Graphics
Asus TUF A17 FA706IU-AS76
NVIDIA GeForce GTX 1660 Ti Mobile
15334 Points ∼100% +20%
Lenovo Legion Y540-17IRH
NVIDIA GeForce GTX 1660 Ti Mobile
14186 Points ∼93% +11%
MSI Bravo 17 A4DDR
AMD Radeon RX 5500M
12753 Points ∼83%
MSI Alpha 15 A3DDK-034
AMD Radeon RX 5500M
12441 Points ∼81% -2%
MSI GF75 Thin 9SC
NVIDIA GeForce GTX 1650 Mobile
9350 Points ∼61% -27%
Asus TUF FX705DT-AU068T
NVIDIA GeForce GTX 1650 Mobile
9274 Points ∼60% -27%
3DMark 11 - 1280x720 Performance GPU
Asus TUF A17 FA706IU-AS76
NVIDIA GeForce GTX 1660 Ti Mobile
20793 Points ∼100% +23%
Lenovo Legion Y540-17IRH
NVIDIA GeForce GTX 1660 Ti Mobile
19733 Points ∼95% +17%
MSI Bravo 17 A4DDR
AMD Radeon RX 5500M
16937 Points ∼81%
MSI Alpha 15 A3DDK-034
AMD Radeon RX 5500M
16335 Points ∼79% -4%
Asus TUF FX705DT-AU068T
NVIDIA GeForce GTX 1650 Mobile
13337 Points ∼64% -21%
MSI GF75 Thin 9SC
NVIDIA GeForce GTX 1650 Mobile
13143 Points ∼63% -22%
3DMark 11 Performance
16271 punten
3DMark Cloud Gate Standard Score
39492 punten
3DMark Fire Strike Score
11461 punten
3DMark Time Spy Score
4712 punten
Help
0510152025303540455055Tooltip
MSI Bravo 17 A4DDR Radeon RX 5500M, R7 4800H, Toshiba KBG30ZMV512G: Ø45.3 (41-47)
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Asus TUF A17 FA706IU-AS76
GeForce GTX 1660 Ti Mobile, R7 4800H
55.6 (min: 53, max: 60) fps ∼100% +22%
Lenovo Legion Y540-17IRH
GeForce GTX 1660 Ti Mobile, i5-9300H
55.1 fps ∼99% +21%
MSI Bravo 17 A4DDR
Radeon RX 5500M, R7 4800H
45.4 (min: 38) fps ∼82%
MSI Alpha 15 A3DDK-034
Radeon RX 5500M, R7 3750H
44.7 fps ∼80% -2%
MSI GF75 Thin 9SC
GeForce GTX 1650 Mobile, i7-9750H
37.7 fps ∼68% -17%
Asus TUF FX705DT-AU068T
GeForce GTX 1650 Mobile, R5 3550H
33.3 fps ∼60% -27%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Lenovo Legion Y540-17IRH
GeForce GTX 1660 Ti Mobile, i5-9300H
109.6 fps ∼100% +52%
Asus TUF A17 FA706IU-AS76
GeForce GTX 1660 Ti Mobile, R7 4800H
103 (min: 98, max: 108) fps ∼94% +43%
MSI Alpha 15 A3DDK-034
Radeon RX 5500M, R7 3750H
73.3 fps ∼67% +2%
MSI Bravo 17 A4DDR
Radeon RX 5500M, R7 4800H
72 (min: 55) fps ∼66%
MSI GF75 Thin 9SC
GeForce GTX 1650 Mobile, i7-9750H
67.6 fps ∼62% -6%
Asus TUF FX705DT-AU068T
GeForce GTX 1650 Mobile, R5 3550H
59.1 fps ∼54% -18%
lage gem. hoge ultra
GTA V (2015) 168 104 53.1 fps
The Witcher 3 (2015) 72 45.4 fps
Dota 2 Reborn (2015) 120 113 106 103 fps
X-Plane 11.11 (2018) 49.4 37.9 34.1 fps
Shadow of the Tomb Raider (2018) 65 54 fps
Battlefield V (2018) 93 88.2 fps
Borderlands 3 (2019) 47.9 35.9 fps
Escape from Tarkov (2020) 81.5 64.5 fps
Hunt Showdown (2020) 56.5 fps
Doom Eternal (2020) 0 game wont start 0 game wont start fps
Gears Tactics (2020) 78.5 55.1 fps
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.529.830.328.737.32540.633.83429.7413131.730.430.528.233.84035.735.137.432.734.95042.236.337.432.140.86333.330.528.227.832.68029.325.627.827.232.810028.626.22925.329.412525.725.4262426.7160292830.825.428.920032.730.630.322.227.725028.425.228.420.928.631530.629.524.72029.640034.62221.718.636.25002622.22318.34063027.521.520.717.837.880025.522.420.917.636.4100028.724.222.717.541.3125029.726.123.717.842160029.52521.717.642.3200028.523.522.217.944.7250025.321.619.818.242.5315022.519.218.117.939.7400020.818.918.417.836.7500020.118.217.717.734.8630018.817.817.717.731.8800017.817.717.617.627.91000017.717.617.517.825.91250017.617.617.517.622.41600017.717.617.517.519.3SPL38.734.533.230.151.9N3.12.221.47.5median 26median 22.2median 21.7median 17.8median 34.8Delta4.23.23.91.36hearing rangehide median Fan NoiseMSI Bravo 17 A4DDR

Geluidsniveau

Onbelast
33 / 34 / 35 dB (A)
Belasting
39 / 52 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 30 dB(A)
MSI Bravo 17 A4DDR
R7 4800H, Radeon RX 5500M
MSI Alpha 15 A3DDK-034
R7 3750H, Radeon RX 5500M
MSI GF75 Thin 9SC
i7-9750H, GeForce GTX 1650 Mobile
Asus TUF FX705DT-AU068T
R5 3550H, GeForce GTX 1650 Mobile
Asus TUF A17 FA706IU-AS76
R7 4800H, GeForce GTX 1660 Ti Mobile
Lenovo Legion Y540-17IRH
i5-9300H, GeForce GTX 1660 Ti Mobile
Noise
-13%
6%
6%
3%
0%
off / environment *
30
29
3%
28.2
6%
30.8
-3%
28.7
4%
30
-0%
Idle Minimum *
33
36
-9%
33.6
-2%
30.8
7%
28.7
13%
30
9%
Idle Average *
34
37
-9%
33.6
1%
30.8
9%
30.5
10%
32
6%
Idle Maximum *
35
46
-31%
33.8
3%
32.2
8%
32.5
7%
34
3%
Load Average *
39
50
-28%
37.2
5%
38.6
1%
42.5
-9%
44
-13%
Witcher 3 ultra *
48
51
-6%
40.6
15%
50.1
-4%
50
-4%
Load Maximum *
52
57
-10%
44.4
15%
44.8
14%
53.4
-3%
52
-0%

* ... kleiner is beter

Max. Belasting
 48 °C45 °C46 °C
 41 °C43 °C41 °C
 33 °C33 °C31 °C
Maximum: 48 °C
Gemiddelde: 40.1 °C
44 °C50 °C49 °C
42 °C49 °C36 °C
28 °C29 °C26 °C
Maximum: 50 °C
Gemiddelde: 39.2 °C
Stroomadapter (max.)  49 °C | Kamertemperatuur 20 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 40.1 °C / 104 F, compared to the average of 33.3 °C / 92 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 48 °C / 118 F, compared to the average of 39.8 °C / 104 F, ranging from 21.6 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 50 °C / 122 F, compared to the average of 42.5 °C / 109 F
(+) In idle usage, the average temperature for the upper side is 24 °C / 75 F, compared to the device average of 33.3 °C / 92 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 40.3 °C / 105 F, compared to the device average of 33.3 °C / 92 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33 °C / 91.4 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-4.2 °C / -7.6 F).
MSI Bravo 17 A4DDR
R7 4800H, Radeon RX 5500M
MSI Alpha 15 A3DDK-034
R7 3750H, Radeon RX 5500M
MSI GF75 Thin 9SC
i7-9750H, GeForce GTX 1650 Mobile
Asus TUF FX705DT-AU068T
R5 3550H, GeForce GTX 1650 Mobile
Asus TUF A17 FA706IU-AS76
R7 4800H, GeForce GTX 1660 Ti Mobile
Lenovo Legion Y540-17IRH
i5-9300H, GeForce GTX 1660 Ti Mobile
Heat
-1%
-15%
-1%
-11%
-26%
Maximum Upper Side *
48
44
8%
47.8
-0%
41.6
13%
47.6
1%
48
-0%
Maximum Bottom *
50
49
2%
57
-14%
38
24%
50.8
-2%
56
-12%
Idle Upper Side *
25
26
-4%
30.2
-21%
31.7
-27%
33
-32%
36
-44%
Idle Bottom *
26
28
-8%
32
-23%
29.5
-13%
29
-12%
38
-46%

* ... kleiner is beter

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2028.729.32529.730.23128.227.34032.731.25032.137.46327.832.28027.232.910025.332.9125243616025.442.320022.25225020.967.6315206740018.667.850018.367.463017.869.880017.672100017.569.7125017.874.7160017.674.3200017.972.8250018.274.2315017.972.8400017.869500017.764.4630017.767.8800017.669.51000017.869.31250017.666.91600017.563SPL30.183.7N1.459.7median 17.8median 67.8Delta1.35.729.74037.146.830.541.932.738.829.635.227.835.425.831.423.732.924.835.625.84822.249.22150.120.551.919.25918.957.817.670.317.177.117.185.417.981.517.576.517.377.617.374.317.178.61778.217.675.317.175.31779.117.279.51777.416.876.129.790.61.383.1median 17.5median 75.31.911.2hearing rangehide median Pink NoiseMSI Bravo 17 A4DDRMSI Alpha 15 A3DDK-034
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
MSI Bravo 17 A4DDR audio analysis

(+) | speakers can play relatively loud (84 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.2% lower than median
(±) | linearity of bass is average (11.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.3% away from median
(+) | mids are linear (3.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(+) | highs are linear (4.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14% difference to median)
Compared to same class
» 28% of all tested devices in this class were better, 7% similar, 66% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 11% of all tested devices were better, 3% similar, 86% worse
» The best had a delta of 3%, average was 21%, worst was 65%

MSI Alpha 15 A3DDK-034 audio analysis

(+) | speakers can play relatively loud (91 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 30.7% lower than median
(+) | bass is linear (5.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 7.6% lower than median
(±) | linearity of mids is average (10% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (3.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.8% difference to median)
Compared to same class
» 66% of all tested devices in this class were better, 8% similar, 26% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 41% of all tested devices were better, 8% similar, 51% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Stroomgebruik
Uit / Standbydarklight 0.5 / 0.8 Watt
Inactiefdarkmidlight 9 / 10 / 13 Watt
Belasting midlight 69 / 214 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
MSI Bravo 17 A4DDR
R7 4800H, Radeon RX 5500M
MSI Alpha 15 A3DDK-034
R7 3750H, Radeon RX 5500M
MSI GF75 Thin 9SC
i7-9750H, GeForce GTX 1650 Mobile
Asus TUF FX705DT-AU068T
R5 3550H, GeForce GTX 1650 Mobile
Asus TUF A17 FA706IU-AS76
R7 4800H, GeForce GTX 1660 Ti Mobile
Lenovo Legion Y540-17IRH
i5-9300H, GeForce GTX 1660 Ti Mobile
Power Consumption
-44%
-13%
29%
-9%
-63%
Idle Minimum *
9
14
-56%
6.1
32%
3.9
57%
7.4
18%
19
-111%
Idle Average *
10
18
-80%
11.2
-12%
9.6
4%
10.5
-5%
22
-120%
Idle Maximum *
13
32
-146%
24.5
-88%
12.2
6%
17
-31%
30
-131%
Load Average *
69
64
7%
94.7
-37%
59
14%
103.7
-50%
79
-14%
Witcher 3 ultra *
128
123
4%
105.8
17%
128.1
-0%
134
-5%
Load Maximum *
214
193
10%
192.2
10%
80
63%
183.2
14%
201
6%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
7h 44min
NBC WiFi Websurfing Battery Test 1.3
5h 14min
Belast (maximale helderheid)
1h 15min
MSI Bravo 17 A4DDR
R7 4800H, Radeon RX 5500M, 51 Wh
MSI Alpha 15 A3DDK-034
R7 3750H, Radeon RX 5500M, 51 Wh
MSI GF75 Thin 9SC
i7-9750H, GeForce GTX 1650 Mobile, 51 Wh
Asus TUF FX705DT-AU068T
R5 3550H, GeForce GTX 1650 Mobile, 64 Wh
Asus TUF A17 FA706IU-AS76
R7 4800H, GeForce GTX 1660 Ti Mobile, 90 Wh
Lenovo Legion Y540-17IRH
i5-9300H, GeForce GTX 1660 Ti Mobile, 57 Wh
Batterijduur
-27%
-10%
63%
80%
-24%
Reader / Idle
464
349
-25%
815
76%
543
17%
311
-33%
WiFi v1.3
314
245
-22%
284
-10%
469
49%
512
63%
220
-30%
Load
75
49
-35%
124
65%
196
161%
68
-9%
H.264
234
485
202

Pro

+ relatief compact en licht voor een 17-inch-toestel
+ uitstekende CPU-prestaties

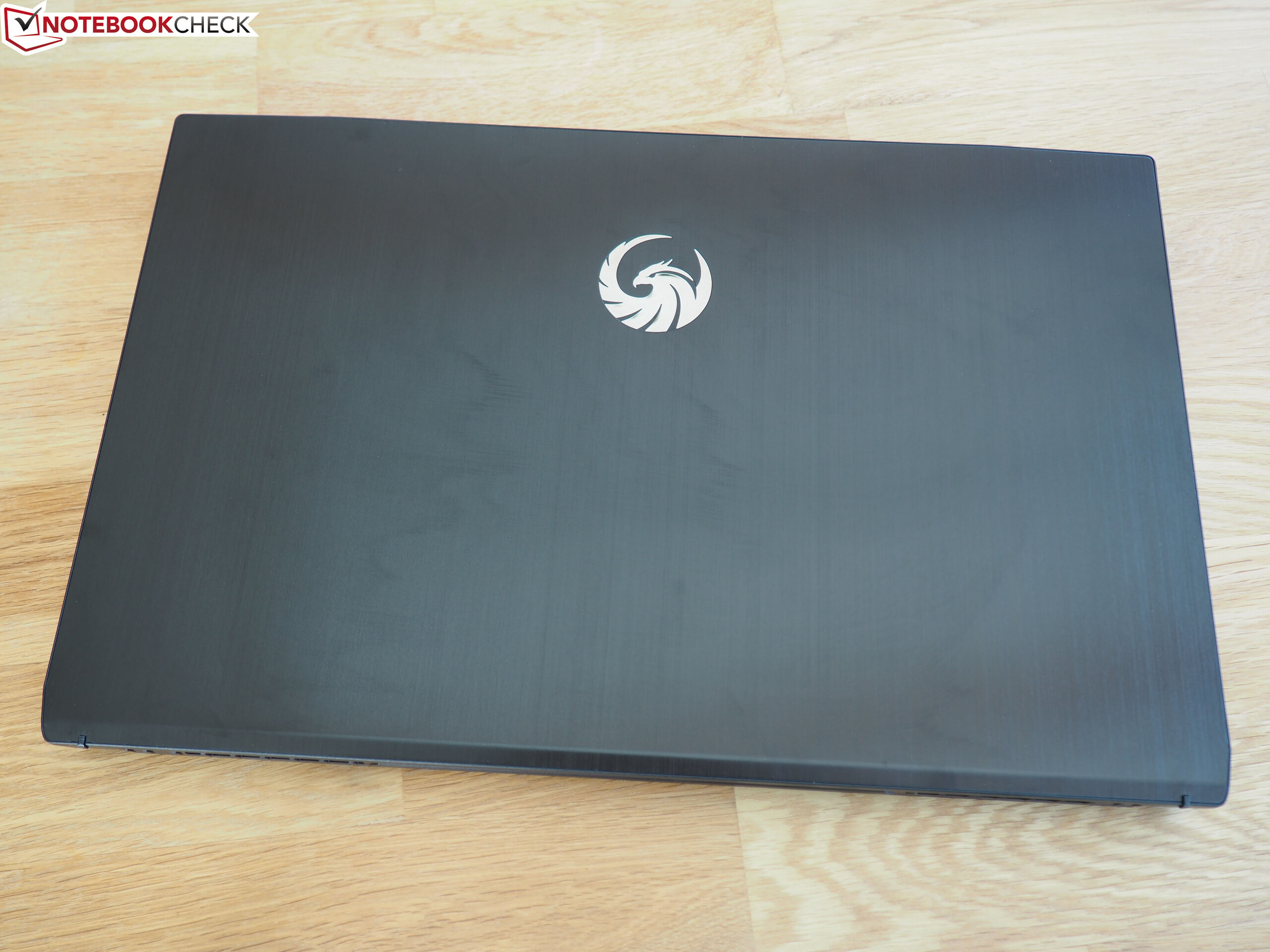

+ metalen oppervlakken

Contra

- scherm zou beter mogen (helderheid, kleurruimte, reactietijd)
- hoge geluidsemissie in 3D-toepassingen

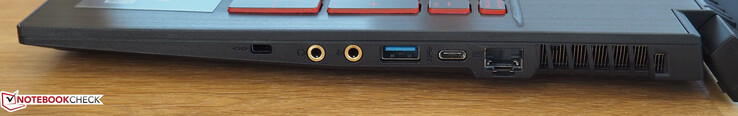

- slechte poortconfiguratie
MSI Bravo 17 A4DDR. Testtoestel voorzien door MSI Germany.
MSI Bravo 17 A4DDR. Testtoestel voorzien door MSI Germany.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

AMD is terug - en met een knal: niet per se aan de GPU-kant, maar zeker aan de CPU-kant.

De Ryzen 7 4800H maakt indruk met zeer hoge prestaties die de vergelijkbaar geprijsde concurrentie van Intel (bijvoorbeeld de Core i7-9750H) op zijn plaats zet. Dergelijke CPU-performance was vroeger voorbehouden voor gaming-laptops van meer dan 1.500 euro.

Met uitzondering van de slechte connectiviteit, de lage schermhelderheid en de luidruchtige ventilatoren onder belasting, maakt ook de rest van de Bravo 17 een goede indruk. AMD-fans, die op hun budget moeten/willen letten, kunnen met vertrouwen de trekker overhalen.

MSI Bravo 17 A4DDR - 02-07-2020 v7
Florian Glaser

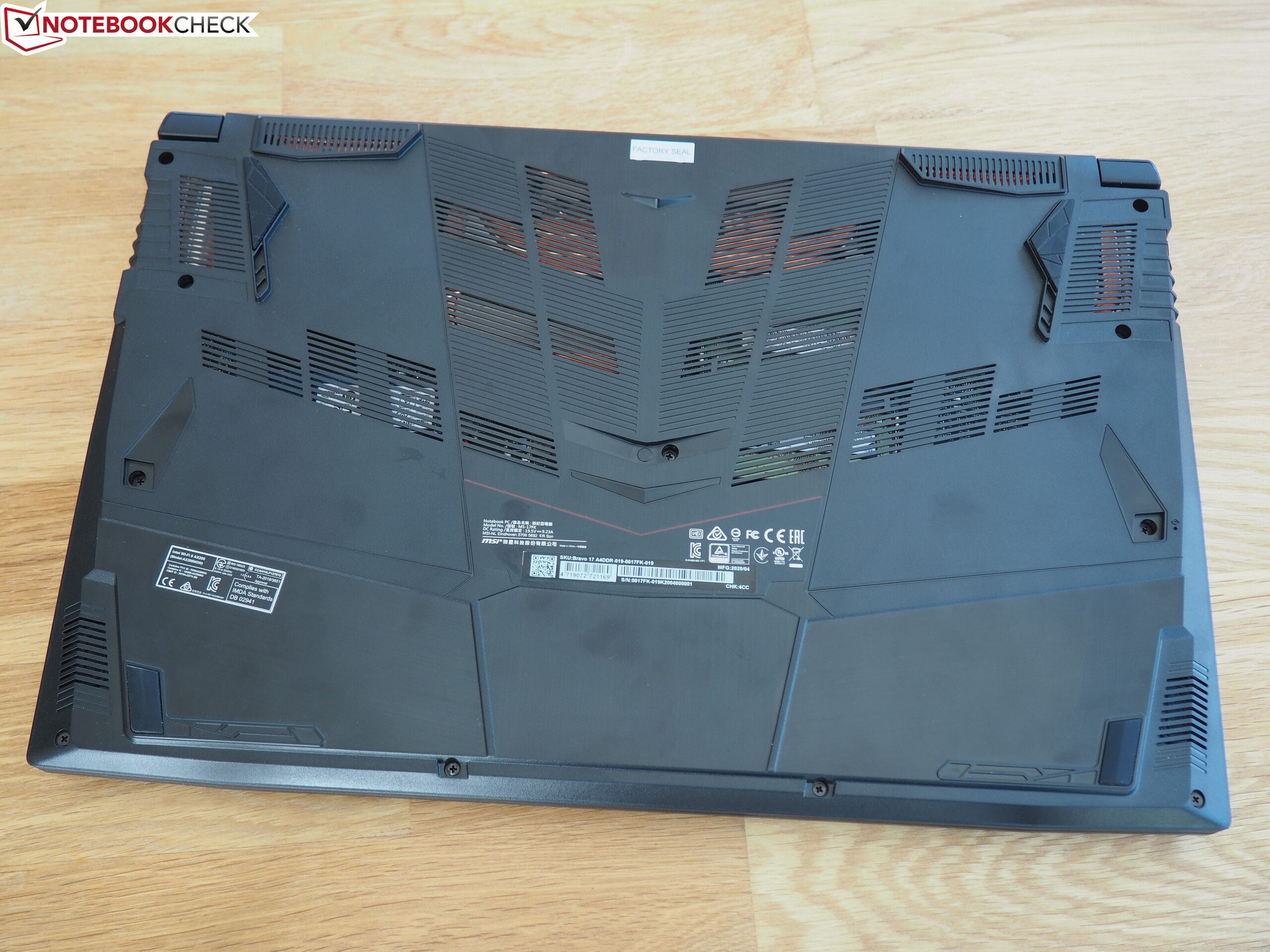

Behuizing
76 / 98 → 78%

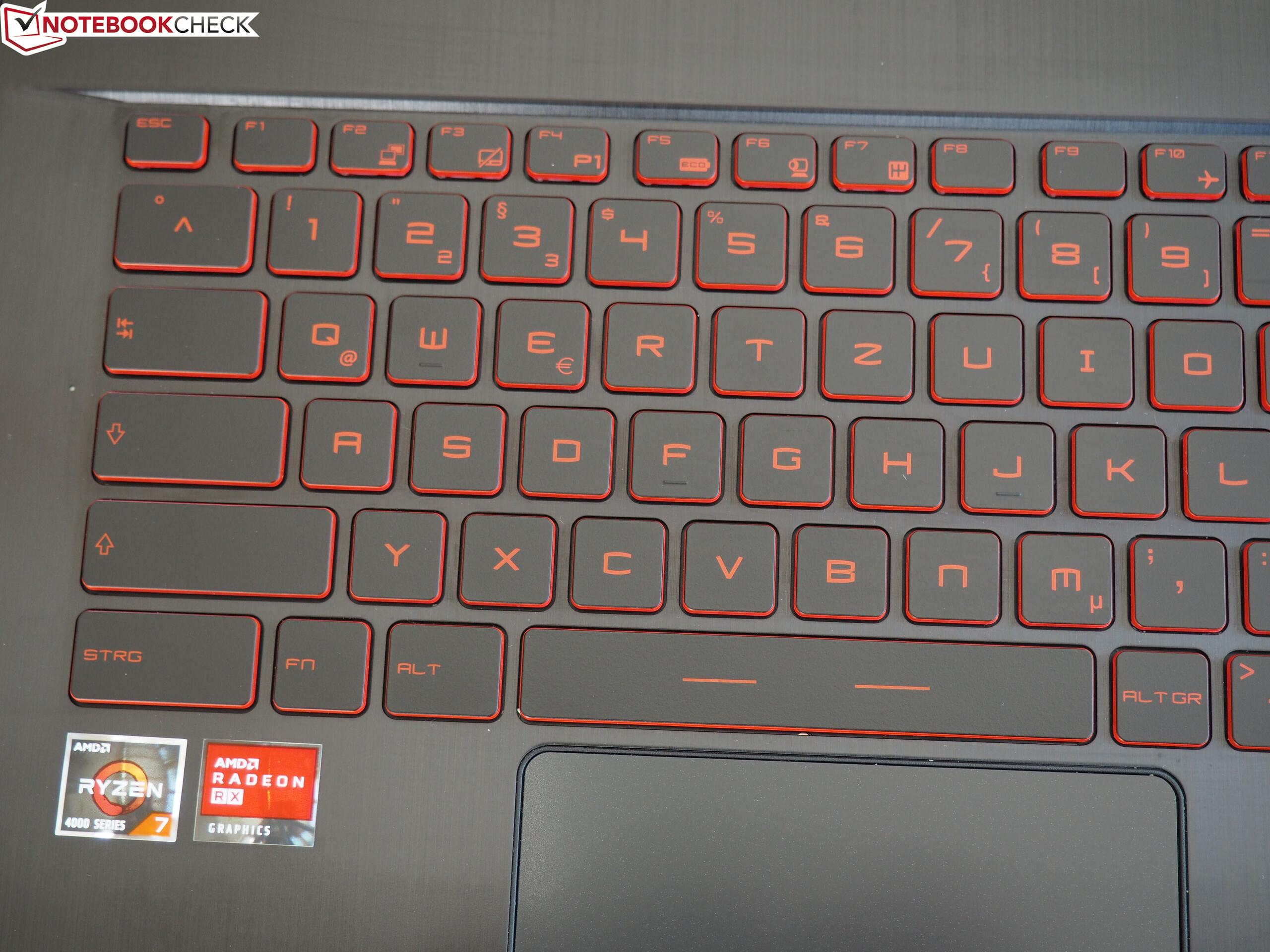

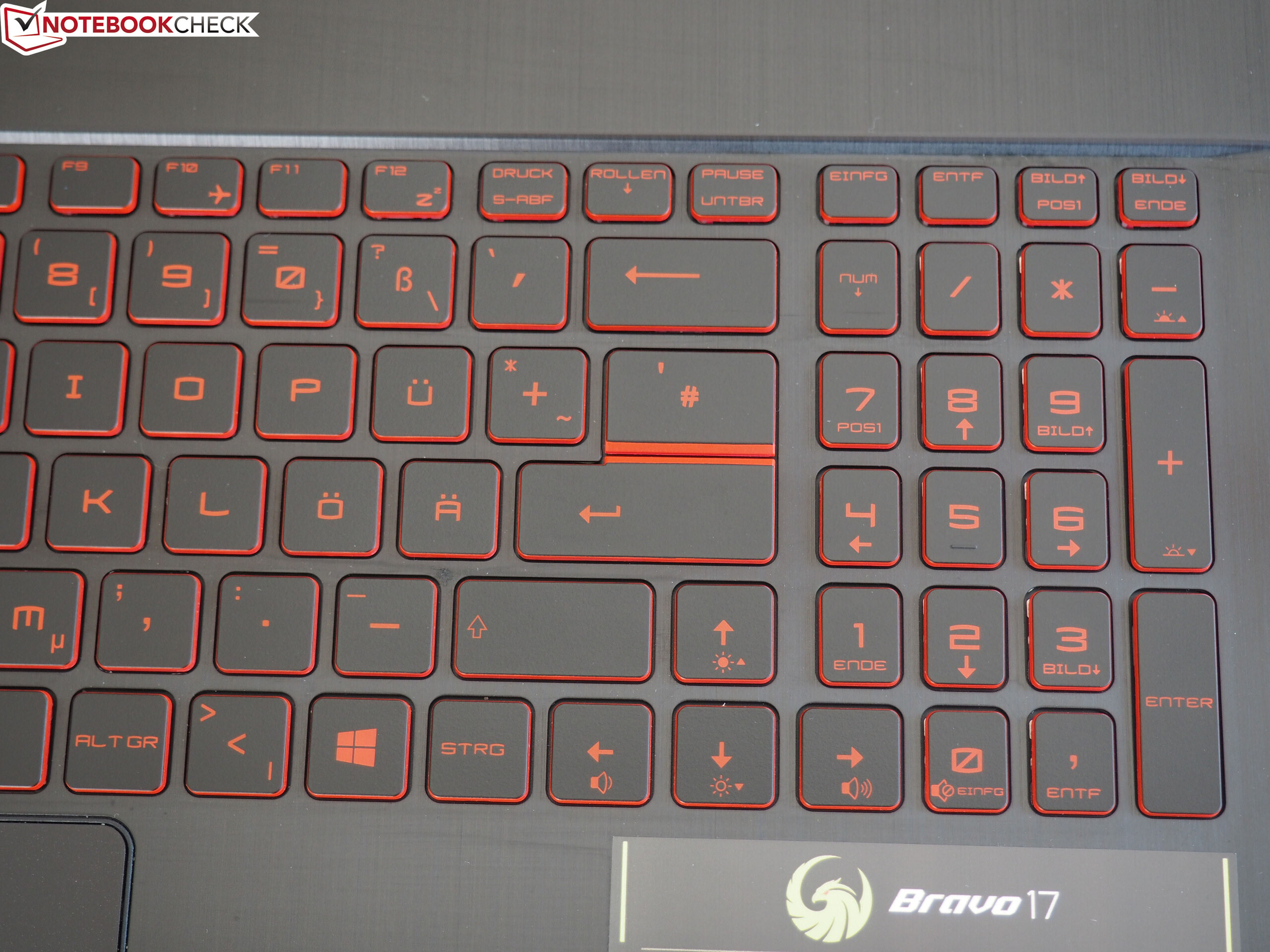

Toetsenbord
77%

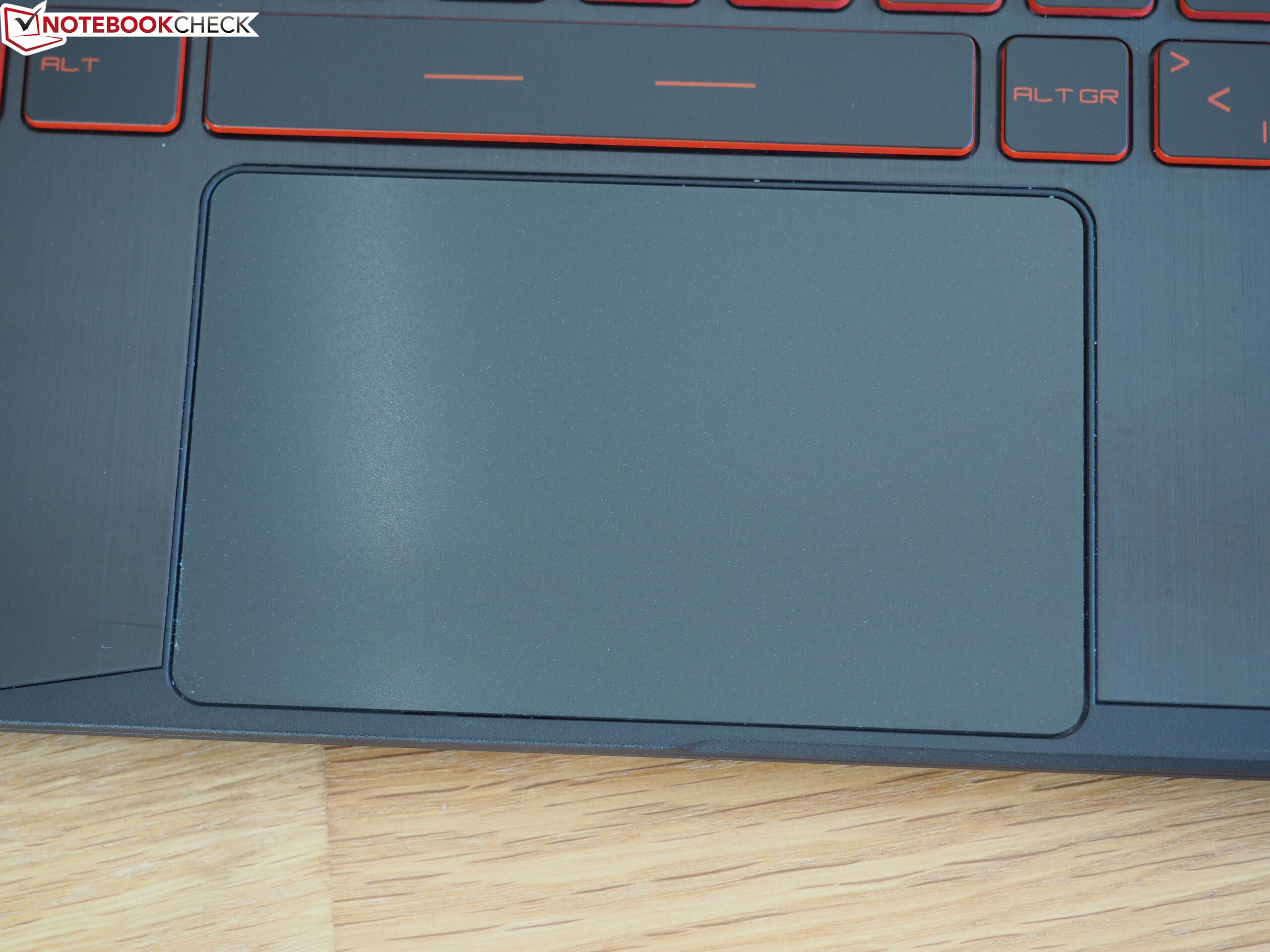

Aanwijsapparaat
81%
Aansluitmogelijkheden
53 / 80 → 66%
Gewicht
61 / 10-66 → 92%
Batterij
65 / 95 → 68%

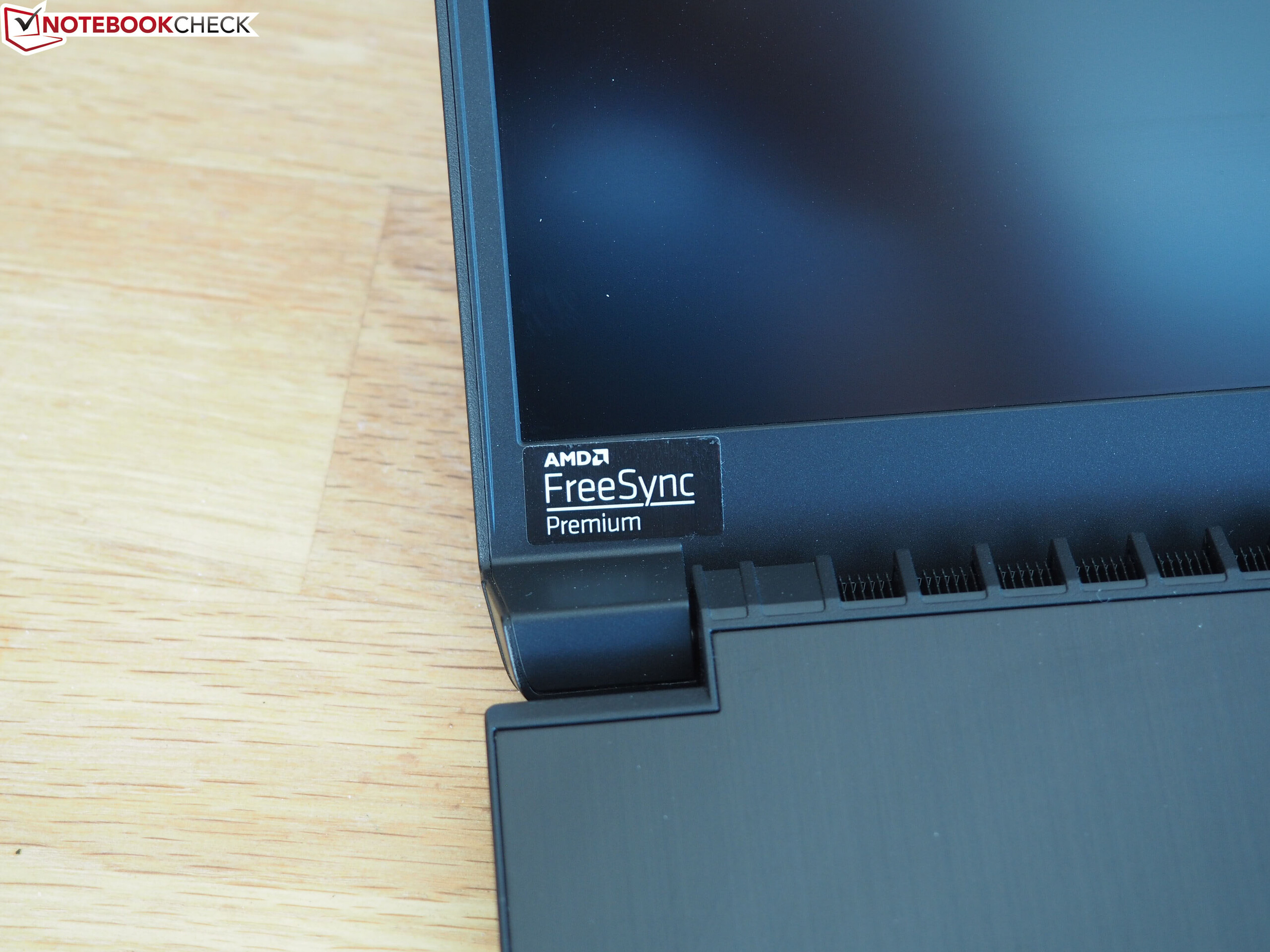

Beeldscherm
83%
Gaming-performance
89%
Applicatie-performance
90%
Temperatuur
85 / 95 → 89%
Luidheid
72 / 90 → 80%
Audio
82%
Camera
35 / 85 → 41%
Gemiddelde
73%
81%
Gaming - Gewogen Gemiddelde

Pricecompare

MSI Bravo 17
MSI Bravo 17
MSI Bravo 17
MSI Bravo 17
MSI Bravo 17
MSI Bravo 17
MSI Bravo 17
MSI Bravo 17
MSI Bravo 17
MSI Bravo 17
Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport MSI Bravo 17 laptop: AMD-gebaseerde gaming-machine
Florian Glaser, 2020-07- 8 (Update: 2020-07- 8)
