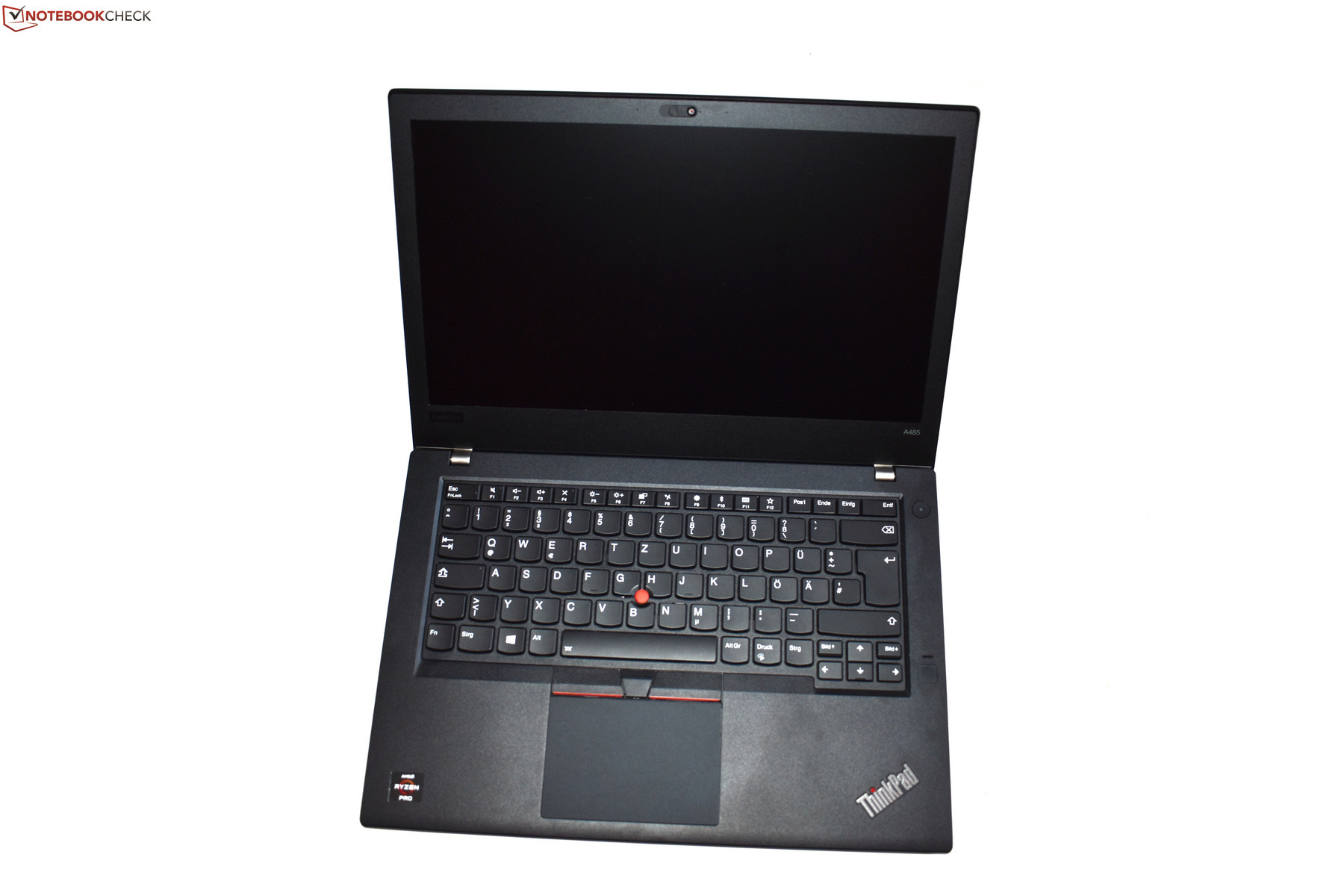

Kort testrapport Lenovo ThinkPad A485 (Ryzen 5 Pro) Laptop

Benjamin Herzig, 👁 Andreas Osthoff, Tanja Hinum-Balaz, 30-09-2018

Worse alternative. Een combinatie van Lenovo's welbekende T-series en AMD Ryzen processoren: dit kan enkel goed aflopen, of niet? In ons testrapport lees je waarom uiteindelijk het ThinkPad T480 Intel model een betere keuze is dan het AMD model, de ThinkPad A485! Update 9/27/2018: UEFI versie 1.02

Lenovo ThinkPad A485-20MU000CGE
Processor
AMD Ryzen 5 PRO 2500U
Grafische kaart
AMD Radeon RX Vega 8
Geheugen
8192 MB
, DDR4-2400, 1 van 2 sloten leeg, max. 32 GB
Beeldscherm
14 inch 16:9, 1920 x 1080 pixel 157 PPI, NV140FHM-N46, IPS LED, glimmend: nee
Moederbord
AMD CZ FCH
Opslag
Samsung SSD PM981 MZVLB256HAHQ, 256 GB
, M.2 2280 PCIe NVMe SSD, 214 GB beschikbaar
Geluidskaart
Realtek ALC3287
Verbindingen
1 USB 3.0, 3 USB 3.1 Gen2, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Verbindingen: Audio combo poort, Card Reader: 4-in-1 SD-kaartlezer, 1 SmartCard, 1 Vingerafdruklezer
Netwerkmogelijkheden
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter (a/b/g/n/ac), Bluetooth 4.1
Afmetingen
hoogte x breedte x diepte (in mm): 19.95 x 336.6 x 232.5
Batterij
48 Wh Lithium-Ion, removeable, Externe 24 Wh batterij plus interne 24 Wh batterij
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p met ThinkShutter
Bijkomende functionaliteiten
Luidsprekers: 2 W stereo luidsprekers, Toetsenbord: 6-rij chiclet, Toetsenbordverlichting: ja, Lenovo Vantage, Microsoft Office trial, 36 Maanden Garantie
Gewicht
1.636 kg, Voeding: 356 g
Prijs
1369 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

Connections

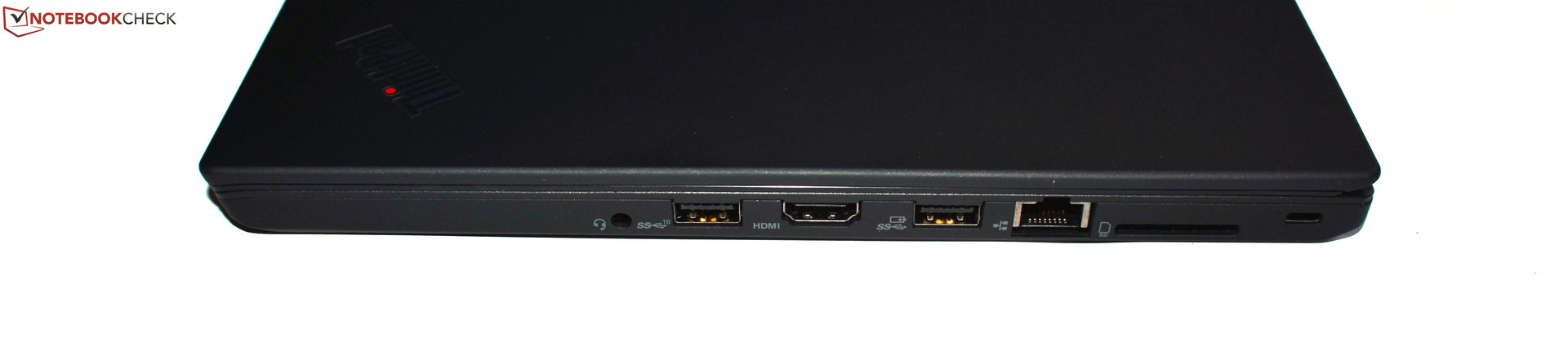

Right: audio combo, USB 3.1 Gen2 Type-A, HDMI, USB 3.0 Type-A, RJ45 Ethernet, SD card reader, Kensington lock
Right: audio combo, USB 3.1 Gen2 Type-A, HDMI, USB 3.0 Type-A, RJ45 Ethernet, SD card reader, Kensington lock

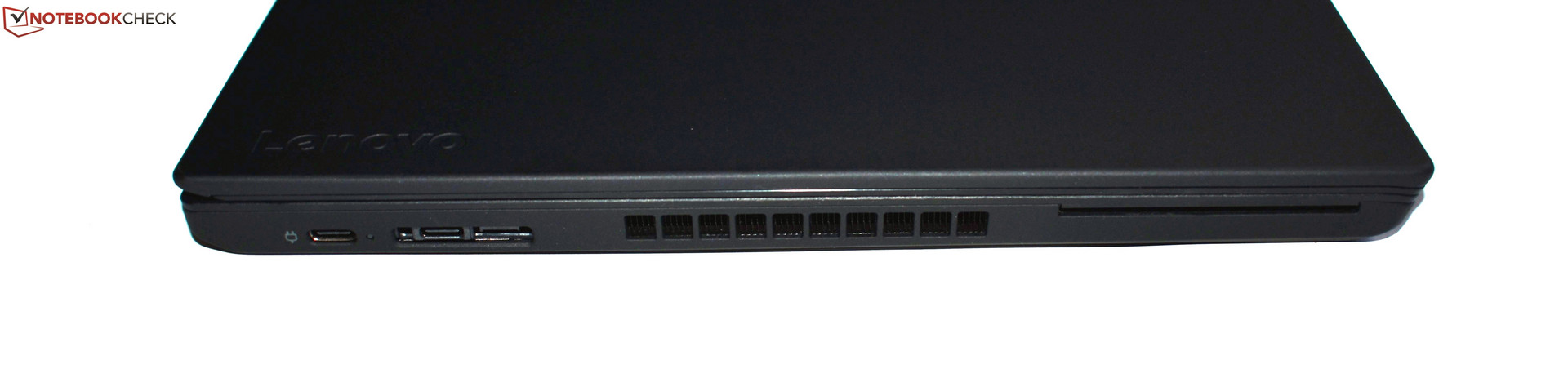

Left: 2x USB 3.1 Gen2 Type-C, Mini-Ethernet/Dockingport, smart card reader
Left: 2x USB 3.1 Gen2 Type-C, Mini-Ethernet/Dockingport, smart card reader
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Latitude 5490-TD70X
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
166.4 MB/s ∼100% +124%
Lenovo ThinkPad T480-20L6S01V00
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
77.8 MB/s ∼47% +5%
Lenovo ThinkPad A485-20MU000CGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
74.2 MB/s ∼45%
Average of class Office
  (10.2 - 191, n=231)
60.9 MB/s ∼37% -18%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 5490-TD70X
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
208.2 MB/s ∼100% +143%
Lenovo ThinkPad T480-20L6S01V00
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
86.4 MB/s ∼41% +1%
Lenovo ThinkPad A485-20MU000CGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
85.6 MB/s ∼41%
Average of class Office
  (9.5 - 255, n=208)
78.2 MB/s ∼38% -9%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad T480-20L6S01V00
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
625 MBit/s ∼100% +17%
Dell Latitude 5490-TD70X
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
607 MBit/s ∼97% +13%
Lenovo ThinkPad A485-20MU000CGE
Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter
536 MBit/s ∼86%
Average of class Office
  (5 - 688, n=173)
459 MBit/s ∼73% -14%
HP EliteBook 745 G5 3UN74EA
Intel Dual Band Wireless-AC 8265
409 MBit/s ∼65% -24%
iperf3 Client (transmit) TCP 1 m 4M x10
HP EliteBook 745 G5 3UN74EA
Intel Dual Band Wireless-AC 8265
593 MBit/s ∼100% +2%
Lenovo ThinkPad A485-20MU000CGE
Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter
581 MBit/s ∼98%
Lenovo ThinkPad T480-20L6S01V00
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
520 MBit/s ∼88% -10%
Dell Latitude 5490-TD70X
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
511 MBit/s ∼86% -12%
Average of class Office
  (34 - 688, n=173)
426 MBit/s ∼72% -27%
288
cd/m²
280
cd/m²
288
cd/m²
274
cd/m²
275
cd/m²
263
cd/m²
263
cd/m²
269
cd/m²
246
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 288 cd/m² Gemiddelde: 271.8 cd/m² Minimum: 3.2 cd/m²
Helderheidsverdeling: 85 %
Helderheid in Batterij-modus: 273 cd/m²
Contrast: 1058:1 (Zwart: 0.26 cd/m²)
ΔE Color 5.9 | 0.4-29.43 Ø6.2, calibrated: 4.9
ΔE Greyscale 3.6 | 0.64-98 Ø6.5
59.6% sRGB (Argyll 3D) 38.1% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.36
Lenovo ThinkPad A485-20MU000CGE
NV140FHM-N46, , 1920x1080, 14
Lenovo ThinkPad T480-20L6S01V00
Lenovo LP140WF6-SPB7, , 1920x1080, 14
Dell Latitude 5490-TD70X
AU Optronics AUO263D, , 1920x1080, 14
HP EliteBook 745 G5 3UN74EA
AUO383D, , 1920x1080, 14
Lenovo ThinkPad T480s-20L8S02D00
LP140QH2-SPB1, , 2560x1440, 14
Response Times
26%
3%
26%
17%
Response Time Grey 50% / Grey 80% *
44.8 (22.8, 22)
35.6 (17.6, 18)
21%
46.9 (23.6, 23.3)
-5%
35 (17, 18)
22%
38.4 (19.6, 18.8)
14%
Response Time Black / White *
35.2 (19.6, 15.6)
24.8 (13.2, 11.6)
30%
31.2 (18, 13.2)
11%
25 (15, 10)
29%
28.4 (15.6, 12.8)
19%
PWM Frequency
1000 (99)
Screen
4%
1%
35%
16%
Brightness middle
275
307
12%
227
-17%
421
53%
352
28%
Brightness
272
295
8%
211
-22%
398
46%
343
26%
Brightness Distribution
85
90
6%
88
4%
86
1%
91
7%
Black Level *
0.26
0.25
4%
0.19
27%
0.27
-4%
0.46
-77%
Contrast
1058
1228
16%
1195
13%
1559
47%
765
-28%
Colorchecker DeltaE2000 *
5.9
5.7
3%
5.6
5%
4.08
31%
3.3
44%
Colorchecker DeltaE2000 max. *
20
21.3
-7%
22.4
-12%
7.48
63%
7.3
63%
Colorchecker DeltaE2000 calibrated *
4.9
4.7
4%
Greyscale DeltaE2000 *
3.6
3.7
-3%
2.4
33%
2.92
19%
5.3
-47%
Gamma
2.36 93%
2.11 104%
2.44 90%
2.32 95%
2.22 99%
CCT
6798 96%
7353 88%
6506 100%
7043 92%
6452 101%
Color Space (Percent of AdobeRGB 1998)
38.1
37.4
-2%
34.5
-9%
57
50%
68.4
80%
Color Space (Percent of sRGB)
59.6
58.7
-2%
54.4
-9%
87
46%
98
64%
Totaal Gemiddelde (Programma / Instellingen)
15% / 7%
2% / 2%
31% / 34%
17% / 16%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

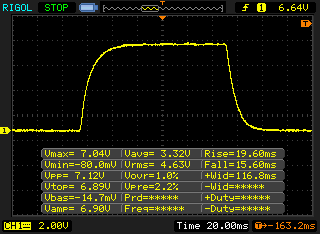

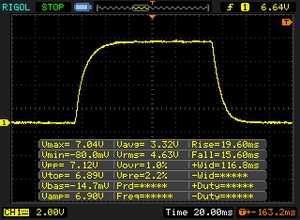

       Responstijd Zwart naar Wit
35.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 19.6 ms stijging
↘ 15.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 91 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (25.6 ms) van alle geteste toestellen.

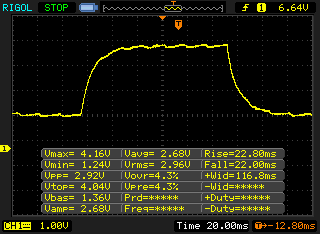

       Responstijd 50% Grijs naar 80% Grijs
44.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 22.8 ms stijging
↘ 22 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 68 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (41 ms) van alle geteste toestellen.

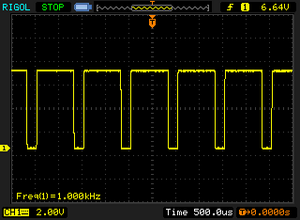

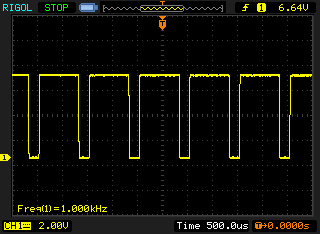

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 1000 Hz ≤ 99 % helderheid instelling

Het backlight van het scherm flikkert aan 1000 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 99 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 1000 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 52 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8964 (minimum: 43 - maximum: 142900) Hz waargenomen.

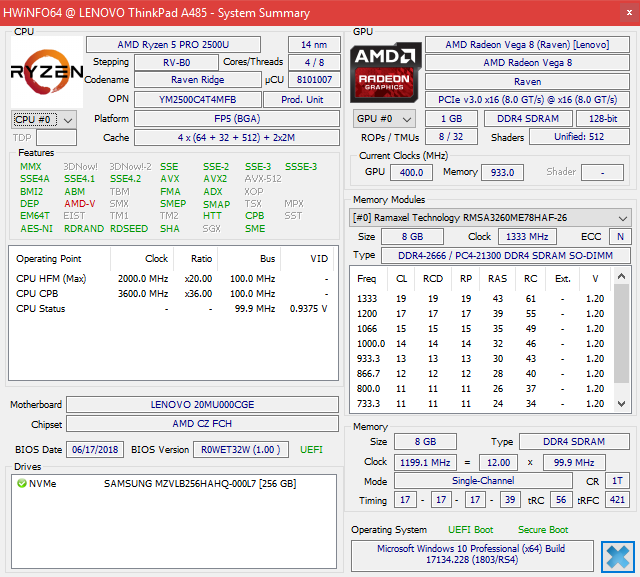

HWiNFO
HWiNFO

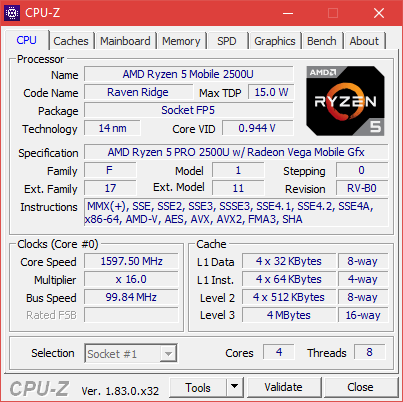

CPU-Z
CPU-Z

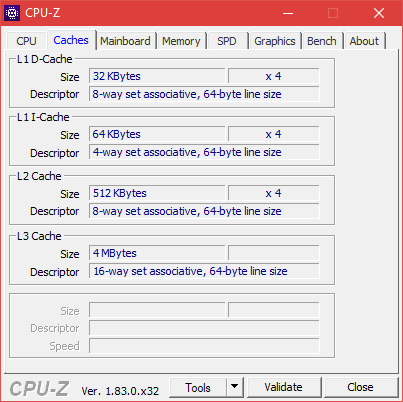

CPU-Z Caches
CPU-Z Caches

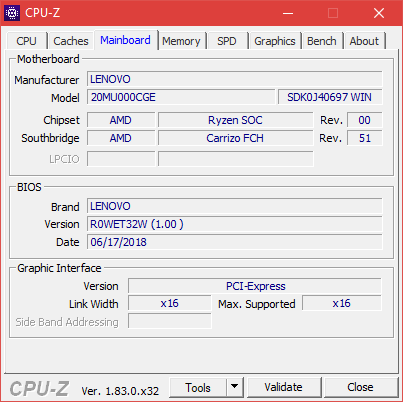

CPU-Z Mainboard
CPU-Z Mainboard

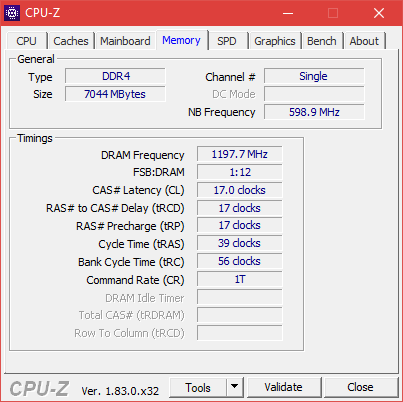

CPU-Z Memory
CPU-Z Memory

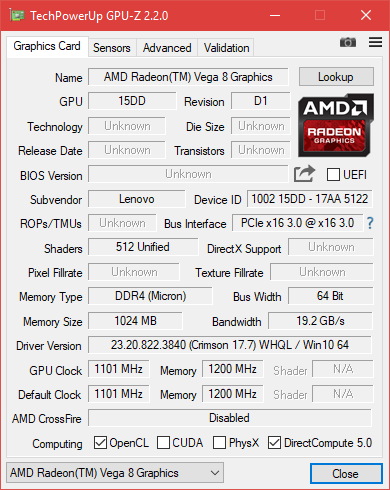

GPU-Z
GPU-Z

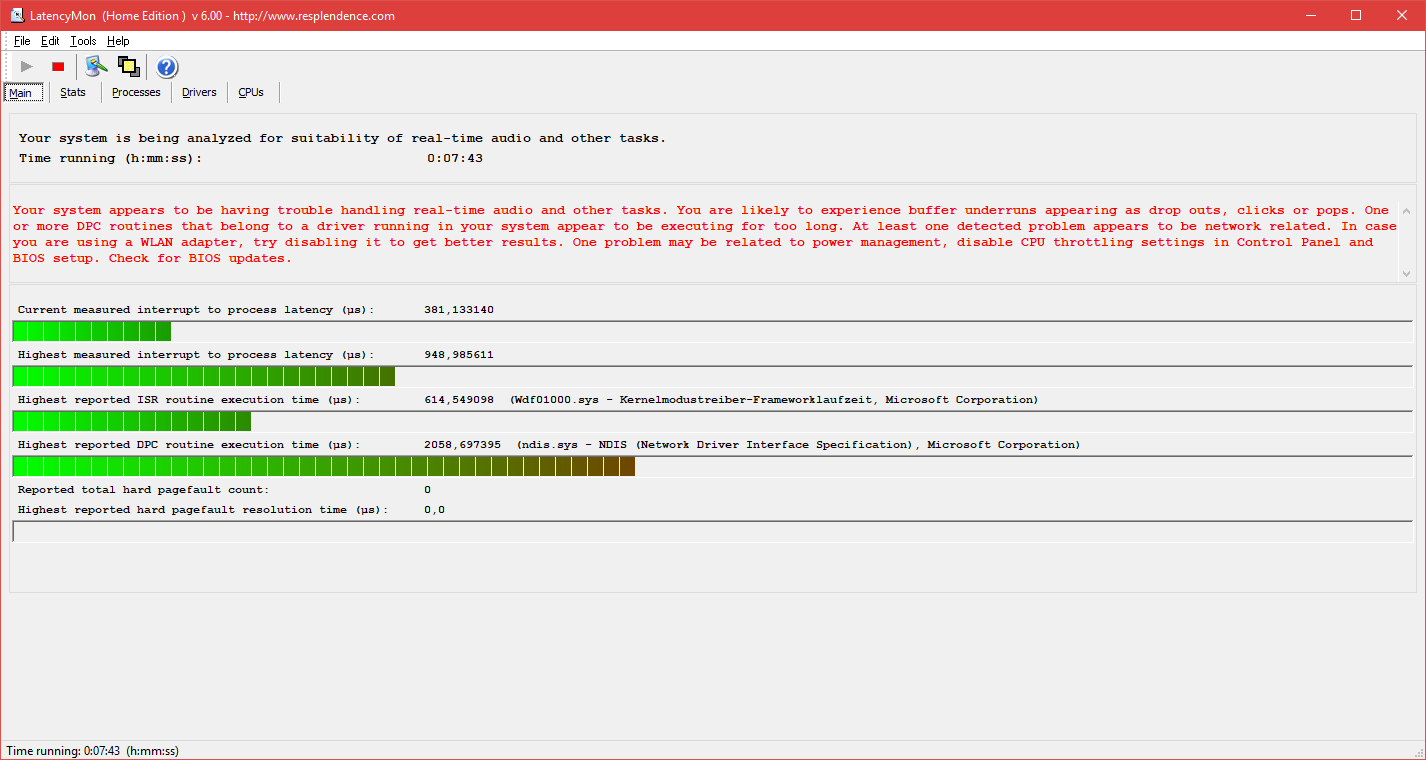

LatencyMon
LatencyMon

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660Tooltip
Lenovo ThinkPad A485-20MU000CGE Vega 8, PRO 2500U, Samsung SSD PM981 MZVLB256HAHQ: Ø504 (495-536)
Lenovo ThinkPad T480-20L6S01V00 GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ: Ø628 (624.25-657.27)
HP EliteBook 745 G5 3UN74EA Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G: Ø539 (523-626)
HP ProBook 645 G4 3UP62EA Vega 8, PRO 2500U, Toshiba XG5 KXG50ZNV256G: Ø510 (500.53-589.09)
Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad T480-20L6S01V00
Intel Core i7-8550U
161 Points ∼100% +20%
Lenovo ThinkPad T480s-20L8S02D00
Intel Core i5-8250U
143 Points ∼89% +7%
HP EliteBook 745 G5 3UN74EA
AMD Ryzen 7 2700U
143 Points ∼89% +7%
Dell Latitude 5490-TD70X
Intel Core i5-8350U
142 Points ∼88% +6%
Average AMD Ryzen 5 PRO 2500U
  (134 - 139, n=2)
137 Points ∼85% +2%
Lenovo ThinkPad A485-20MU000CGE
AMD Ryzen 5 PRO 2500U
134 Points ∼83%
Average of class Office
  (20 - 178, n=475)
108 Points ∼67% -19%
CPU Multi 64Bit
Lenovo ThinkPad T480s-20L8S02D00
Intel Core i5-8250U
724 Points ∼100% +31%
Lenovo ThinkPad T480s-20L8S02D00
Intel Core i5-8250U
716 Points ∼99% +29%
Lenovo ThinkPad T480-20L6S01V00
Intel Core i7-8550U
657 Points ∼91% +19%
HP EliteBook 745 G5 3UN74EA
AMD Ryzen 7 2700U
630 Points ∼87% +14%
Dell Latitude 5490-TD70X
Intel Core i5-8350U
599 Points ∼83% +8%
Average AMD Ryzen 5 PRO 2500U
  (553 - 589, n=2)
571 Points ∼79% +3%
Lenovo ThinkPad A485-20MU000CGE
AMD Ryzen 5 PRO 2500U
553 Points ∼76%
Average of class Office
  (36 - 1050, n=479)
316 Points ∼44% -43%
Cinebench R10 Rendering Multiple CPUs 64Bit
20209 Points
Cinebench R10 Shading 64Bit
8209 Points
Cinebench R10 Rendering Single 32Bit
4204
Cinebench R10 Rendering Multiple CPUs 32Bit
14336
Cinebench R10 Shading 32Bit
6955
Cinebench R10 Rendering Single CPUs 64Bit
6921 Points
Cinebench R11.5 CPU Single 64Bit
1.5 Points
Cinebench R11.5 OpenGL 32Bit
30.42 fps
Cinebench R11.5 CPU Multi 32Bit
5.54 Points
Cinebench R11.5 CPU Multi 64Bit
6.04 Points
Cinebench R11.5 OpenGL 64Bit
30.22 fps
Cinebench R11.5 CPU Single 32Bit
1.38 Points
Cinebench R15 CPU Single 64Bit
134 Points
Cinebench R15 CPU Multi 64Bit
553 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
24.5 fps
Help
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
5025 Points ∼100% +22%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
4774 Points ∼95% +16%
Lenovo ThinkPad T480s-20L8S02D00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
4508 Points ∼90% +9%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
4403 Points ∼88% +7%
Average AMD Ryzen 5 PRO 2500U, AMD Radeon RX Vega 8
  (4123 - 4647, n=2)
4385 Points ∼87% +6%
Lenovo ThinkPad A485-20MU000CGE
Vega 8, PRO 2500U, Samsung SSD PM981 MZVLB256HAHQ
4123 Points ∼82%
Average of class Office
  (1226 - 5428, n=302)
3950 Points ∼79% -4%
Home Score Accelerated v2
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
3695 Points ∼100% +26%
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3675 Points ∼99% +25%
Lenovo ThinkPad T480s-20L8S02D00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
3503 Points ∼95% +19%
Average AMD Ryzen 5 PRO 2500U, AMD Radeon RX Vega 8
  (2937 - 3594, n=2)
3266 Points ∼88% +11%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
3155 Points ∼85% +7%
Average of class Office
  (1169 - 4458, n=353)
3007 Points ∼81% +2%
Lenovo ThinkPad A485-20MU000CGE
Vega 8, PRO 2500U, Samsung SSD PM981 MZVLB256HAHQ
2937 Points ∼79%
PCMark 10
Digital Content Creation
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3258 Points ∼100% +38%
Lenovo ThinkPad T480s-20L8S02D00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
3004 Points ∼92% +27%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
2772 Points ∼85% +18%
Average AMD Ryzen 5 PRO 2500U, AMD Radeon RX Vega 8
  (2359 - 2924, n=2)
2642 Points ∼81% +12%
Average of class Office
  (320 - 3503, n=95)
2518 Points ∼77% +7%
Lenovo ThinkPad A485-20MU000CGE
Vega 8, PRO 2500U, Samsung SSD PM981 MZVLB256HAHQ
2359 Points ∼72%
Productivity
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
6500 Points ∼100% +73%
Lenovo ThinkPad T480s-20L8S02D00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
5739 Points ∼88% +53%
Average of class Office
  (1444 - 7142, n=95)
5377 Points ∼83% +43%
Average AMD Ryzen 5 PRO 2500U, AMD Radeon RX Vega 8
  (3759 - 5235, n=2)
4497 Points ∼69% +20%
Lenovo ThinkPad A485-20MU000CGE
Vega 8, PRO 2500U, Samsung SSD PM981 MZVLB256HAHQ
3759 Points ∼58%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
3408 Points ∼52% -9%
Essentials
Lenovo ThinkPad T480s-20L8S02D00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
7358 Points ∼100% +26%
Average of class Office
  (2683 - 8787, n=95)
6791 Points ∼92% +16%
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
6423 Points ∼87% +10%
Average AMD Ryzen 5 PRO 2500U, AMD Radeon RX Vega 8
  (5848 - 6825, n=2)
6337 Points ∼86% +8%
Lenovo ThinkPad A485-20MU000CGE
Vega 8, PRO 2500U, Samsung SSD PM981 MZVLB256HAHQ
5848 Points ∼79%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
5732 Points ∼78% -2%
Score
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3686 Points ∼100% +38%
Lenovo ThinkPad T480s-20L8S02D00
UHD Graphics 620, 8250U, Samsung SSD PM981 MZVLB512HAJQ
3602 Points ∼98% +35%
Average of class Office
  (803 - 4269, n=96)
3129 Points ∼85% +17%
Average AMD Ryzen 5 PRO 2500U, AMD Radeon RX Vega 8
  (2673 - 3376, n=2)
3025 Points ∼82% +13%
HP EliteBook 745 G5 3UN74EA
Vega 10, 2700U, Toshiba XG5 KXG50ZNV256G
2712 Points ∼74% +1%
Lenovo ThinkPad A485-20MU000CGE
Vega 8, PRO 2500U, Samsung SSD PM981 MZVLB256HAHQ
2673 Points ∼73%
PCMark 8 Home Score Accelerated v2
2937 punten
PCMark 8 Work Score Accelerated v2
4123 punten
Help
Lenovo ThinkPad A485-20MU000CGE
Samsung SSD PM981 MZVLB256HAHQ
HP EliteBook 745 G5 3UN74EA
Toshiba XG5 KXG50ZNV256G
Lenovo ThinkPad T480s-20L8S02D00
Samsung SSD PM981 MZVLB512HAJQ
Dell Latitude 5490-TD70X
Toshiba KSG60ZMV512G
Lenovo ThinkPad T480-20L6S01V00
Samsung SSD PM981 MZVLB512HAJQ
Average Samsung SSD PM981 MZVLB256HAHQ

CrystalDiskMark 3.0
-19%
43%
-30%
-3%
16%
Write 4k QD32
205.6
208.4
1%
342.95
67%
300.2
46%
271.4
32%
265 (206 - 325, n=2)
29%
Read 4k QD32
286.5
310.6
8%
444.91
55%
295.6
3%
383.4
34%
344 (287 - 402, n=2)
20%
Write 4k
89.65
97.08
8%
160.65
79%
88.96
-1%
108
20%
115 (89.7 - 140, n=2)
28%
Read 4k
52.15
24.9
-52%
66.88
28%
27.34
-48%
64.39
23%
57.2 (52.2 - 62.3, n=2)
10%
Write 512
1169
298.1
-74%
1715.92
47%
360.7
-69%
566.8
-52%
1283 (1169 - 1396, n=2)
10%
Read 512
764.7
823.4
8%
834.67
9%
410.1
-46%
561.1
-27%
720 (675 - 765, n=2)
-6%
Write Seq
1280
269.7
-79%
1613.2
26%
425
-67%
927.8
-28%
1363 (1280 - 1445, n=2)
6%
Read Seq
1193
1549
30%
1540
29%
465.1
-61%
922
-23%
1535 (1193 - 1876, n=2)
29%
Samsung SSD PM981 MZVLB256HAHQ
Sequential Read: 1193 MB/s
Sequential Write: 1280 MB/s
512K Read: 764.7 MB/s
512K Write: 1169 MB/s
4K Read: 52.15 MB/s
4K Write: 89.65 MB/s
4K QD32 Read: 286.5 MB/s
4K QD32 Write: 205.6 MB/s
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad T480-20L6S01V00
NVIDIA GeForce MX150, Intel Core i7-8550U
4300 Points ∼100% +54%
HP ProBook 645 G4 3UP62EA
AMD Radeon RX Vega 8, AMD Ryzen 5 PRO 2500U
3608 Points ∼84% +29%
Lenovo ThinkPad T480s-20L8S02E00
NVIDIA GeForce MX150, Intel Core i7-8550U
3551 Points ∼83% +27%
Average AMD Radeon RX Vega 8
  (1668 - 4317, n=14)
3181 Points ∼74% +14%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
2885 Points ∼67% +3%
Lenovo ThinkPad A485-20MU000CGE
AMD Radeon RX Vega 8, AMD Ryzen 5 PRO 2500U
2794 Points ∼65%
HP EliteBook 840 G5-3JX66EA
Intel UHD Graphics 620, Intel Core i5-8250U
1653 Points ∼38% -41%
Lenovo ThinkPad T480s-20L8S02D00
Intel UHD Graphics 620, Intel Core i5-8250U
1633 Points ∼38% -42%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, Intel Core i5-8350U
1617 Points ∼38% -42%
Average of class Office
  (185 - 4967, n=601)
1219 Points ∼28% -56%
3DMark
1920x1080 Fire Strike Graphics
Lenovo ThinkPad T480-20L6S01V00
NVIDIA GeForce MX150, Intel Core i7-8550U
3585 Points ∼100% +104%
Lenovo ThinkPad T480s-20L8S02E00
NVIDIA GeForce MX150, Intel Core i7-8550U
2807 Points ∼78% +60%
HP ProBook 645 G4 3UP62EA
AMD Radeon RX Vega 8, AMD Ryzen 5 PRO 2500U
2472 Points ∼69% +41%
Average AMD Radeon RX Vega 8
  (1095 - 2901, n=12)
1980 Points ∼55% +13%
Lenovo ThinkPad A485-20MU000CGE
AMD Radeon RX Vega 8, AMD Ryzen 5 PRO 2500U
1757 Points ∼49%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
1738 Points ∼48% -1%
HP EliteBook 840 G5-3JX66EA
Intel UHD Graphics 620, Intel Core i5-8250U
1009 Points ∼28% -43%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, Intel Core i5-8350U
981 Points ∼27% -44%
Lenovo ThinkPad T480s-20L8S02D00
Intel UHD Graphics 620, Intel Core i5-8250U
963 Points ∼27% -45%
Average of class Office
  (138 - 4109, n=429)
937 Points ∼26% -47%
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad T480-20L6S01V00
NVIDIA GeForce MX150, Intel Core i7-8550U
21893 Points ∼100% +111%
Lenovo ThinkPad T480s-20L8S02E00
NVIDIA GeForce MX150, Intel Core i7-8550U
17743 Points ∼81% +71%
HP ProBook 645 G4 3UP62EA
AMD Radeon RX Vega 8, AMD Ryzen 5 PRO 2500U
15770 Points ∼72% +52%
Average AMD Radeon RX Vega 8
  (7309 - 18177, n=12)
12904 Points ∼59% +24%
HP EliteBook 745 G5 3UN74EA
AMD Radeon RX Vega 10, AMD Ryzen 7 2700U
10604 Points ∼48% +2%
Lenovo ThinkPad A485-20MU000CGE
AMD Radeon RX Vega 8, AMD Ryzen 5 PRO 2500U
10370 Points ∼47%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, Intel Core i5-8350U
8226 Points ∼38% -21%
HP EliteBook 840 G5-3JX66EA
Intel UHD Graphics 620, Intel Core i5-8250U
8181 Points ∼37% -21%
Lenovo ThinkPad T480s-20L8S02D00
Intel UHD Graphics 620, Intel Core i5-8250U
7658 Points ∼35% -26%
Average of class Office
  (1208 - 27117, n=473)
6549 Points ∼30% -37%
3DMark 06 Standard
10336 punten
3DMark 11 Performance
2875 punten
3DMark Cloud Gate Standard Score
8192 punten
3DMark Fire Strike Score
1585 punten
Help
Rise of the Tomb Raider - 1024x768 Lowest Preset
Lenovo ThinkPad T480-20L6S01V00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
70.5 fps ∼100% +106%
Lenovo ThinkPad T480s-20L8S02E00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
54.6 fps ∼77% +60%
HP ProBook 645 G4 3UP62EA
Vega 8, PRO 2500U
42.6 fps ∼60% +25%
Average AMD Radeon RX Vega 8
  (27.7 - 49.3, n=8)
36.2 fps ∼51% +6%
Lenovo ThinkPad A485-20MU000CGE
Vega 8, PRO 2500U, Samsung SSD PM981 MZVLB256HAHQ
34.2 fps ∼49%
Average of class Office
  (6.2 - 111, n=94)
26.8 fps ∼38% -22%
HP EliteBook 840 G5-3JX66EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
18.1 fps ∼26% -47%
lage gem. hoge ultra
The Witcher 3 (2015) 29.59.8fps
Rise of the Tomb Raider (2016) 34.210.9fps
Civilization VI (2016) 43.611.1fps

Geluidsniveau

Onbelast
29.3 / 29.3 / 29.6 dB (A)
Belasting
31.6 / 31.6 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.330.130.32524.627.226.23124.824.626.14022.124.625.35024.323.423.36325.623.321.88022.120.521.810021.620.620.712521.419.720.616020.620.12120020.519.821.125020.519.42231519.320.220.34002019.820.550020.219.420.763019.619.420.680019.31920.410001918.820.3125018.418.120.8160017.817.321200017.516.821.1250016.816.420.3315016.315.920.4400015.915.818500015.715.516.8630015.515.315.9800015.415.315.4100001515.115.21250014.814.814.91600014.714.714.6SPL29.629.331.6N1.31.21.5median 18.4median 18.1median 20.4Delta2.21.81.839.336.332.739.339.237.53539.248.443.237.248.435.337.531.835.332.732.230.332.730.129.230.830.12730.126.62727.227.827.527.226.728.225.526.72525.124.32523.124.723.323.123.724.422.623.722.723.721.822.72222.220.7222121.519.92120.921.719.420.923.623.718.623.624.224.518.424.223.924.117.823.925.725.417.625.7262617.72626.326.517.626.326.12618.126.122.722.918.222.721.721.918.521.719.819.918.519.819.11918.719.11919.118.81919.119.118.919.119.820.219.119.835.93630.735.92.22.21.32.2median 23.1median 23.7median 18.8median 23.12.12.11.82.131.531.131.134.128.93229.334.830.833.331.131.727.129.331.129.226.925.929.728.524.8262626.326.125.626.625.725.625.825.725.624.524.123.924.324.224.223.825.923.622.922.624.721.622.322.424.1212120.422.819.920.918.921.120.421.518.121.920.82317.72320.922.316.722.220.923.216.722.521.323.416.123.521.823.415.722.62123.415.922.521.225.515.923.421.928.215.927.219.32316.322.618.321.316.620.518.12116.920.217.718.517.218.217.718.217.217.918.419.417.317.718.519.517.417.532.535.62934.91.72.21.22.2median 20.9median 22.9median 17.2median 22.61.11.41.71.6hearing rangehide median Fan NoiseLenovo ThinkPad A485-20MU000CGEHP EliteBook 745 G5 3UN74EALenovo ThinkPad T480-20L6S01V00
Max. Belasting
 38.6 °C38.8 °C36.2 °C
 28.7 °C39.1 °C36.5 °C
 32.3 °C32 °C31.3 °C
Maximum: 39.1 °C
Gemiddelde: 34.8 °C
37.1 °C43.2 °C45.1 °C
35.3 °C49.9 °C45.9 °C
27.6 °C31.3 °C34.5 °C
Maximum: 49.9 °C
Gemiddelde: 38.9 °C
Stroomadapter (max.)  38.6 °C | Kamertemperatuur 22.3 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 34.8 °C / 95 F, compared to the average of 29.4 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 39.1 °C / 102 F, compared to the average of 33.9 °C / 93 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 49.9 °C / 122 F, compared to the average of 36.4 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 29.4 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.3 °C / 90.1 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-4 °C / -7.2 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.130.82527.227.43124.6264024.625.15023.424.36323.323.68020.52310020.623.712519.724.716020.127.520019.835.225019.44331520.252.240019.859.350019.458.863019.459.18001967.7100018.867.1125018.162.5160017.361200016.859.5250016.461.3315015.963.4400015.859.4500015.558630015.360.1800015.361.81000015.155.31250014.852.51600014.749.8SPL29.374.1N1.233median 18.1median 59.1Delta1.8837.932.737.935.83535.840.137.240.133.231.833.232.630.332.628.730.828.729.326.629.329.227.529.232.725.532.736.524.336.544.323.344.341.622.641.654.821.854.86820.76863.919.963.965.319.465.363.318.663.368.718.468.771.217.871.270.817.670.866.917.766.970.917.670.970.118.170.167.518.267.570.118.570.169.818.569.86618.76670.818.870.86718.96758.119.158.18130.78147.71.347.7median 66.9median 18.8median 66.99.81.89.8hearing rangehide median Pink NoiseLenovo ThinkPad A485-20MU000CGEHP EliteBook 745 G5 3UN74EA
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad A485-20MU000CGE audio analysis

(±) | speaker loudness is average but good (74.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.7% lower than median
(±) | linearity of bass is average (11.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.9% away from median
(±) | linearity of mids is average (7.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (6.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.5% difference to median)
Compared to same class
» 57% of all tested devices in this class were better, 13% similar, 31% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 51% of all tested devices were better, 8% similar, 41% worse
» The best had a delta of 3%, average was 21%, worst was 53%

HP EliteBook 745 G5 3UN74EA audio analysis

(-) | not very loud speakers (71.23 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 27.1% lower than median
(±) | linearity of bass is average (10.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(±) | linearity of mids is average (8.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(+) | highs are linear (5.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.9% difference to median)
Compared to same class
» 37% of all tested devices in this class were better, 9% similar, 55% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 36% of all tested devices were better, 6% similar, 58% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.31 / 0.69 Watt
Inactiefdarkmidlight 5.3 / 8.3 / 11.4 Watt
Belasting midlight 42 / 48.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad A485-20MU000CGE
PRO 2500U, Vega 8, Samsung SSD PM981 MZVLB256HAHQ, IPS LED, 1920x1080, 14
HP EliteBook 745 G5 3UN74EA
2700U, Vega 10, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 14
Lenovo ThinkPad T480s-20L8S02D00
8250U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS, 2560x1440, 14
Dell Latitude 5490-TD70X
8350U, UHD Graphics 620, Toshiba KSG60ZMV512G, IPS, 1920x1080, 14
Lenovo ThinkPad T480-20L6S01V00
8550U, GeForce MX150, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 14
Average AMD Radeon RX Vega 8

Average of class Office

Power Consumption
11%
4%
15%
-5%
-0%
-19%
Idle Minimum *
5.3
4.9
8%
3.1
42%
3.3
38%
3.6
32%
5.99 (4.5 - 7.6, n=11)
-13%
7.78 (0.77 - 32, n=912)
-47%
Idle Average *
8.3
8.1
2%
6.8
18%
5.54
33%
7.1
14%
9.01 (7 - 12.9, n=11)
-9%
11.6 (4.2 - 42, n=912)
-40%
Idle Maximum *
11.4
10.6
7%
10.1
11%
6.59
42%
9.5
17%
10.8 (8.1 - 13.7, n=11)
5%
14.1 (5 - 67, n=912)
-24%
Load Average *
42
32.2
23%
48.4
-15%
42.4
-1%
63.9
-52%
38.9 (24.1 - 45.7, n=11)
7%
37.3 (7.43 - 99.3, n=897)
11%
Load Maximum *
48.8
42.3
13%
67.1
-38%
67.6
-39%
67.3
-38%
44.4 (26.5 - 57.1, n=11)
9%
45.8 (12.2 - 129, n=899)
6%
Witcher 3 ultra *
53.9

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
11h 11min
NBC WiFi Websurfing Battery Test 1.3 (Edge)
5h 30min
Big Buck Bunny H.264 1080p
6h 08min
Belast (maximale helderheid)
1h 08min
Lenovo ThinkPad A485-20MU000CGE
PRO 2500U, Vega 8, 48 Wh
HP EliteBook 745 G5 3UN74EA
2700U, Vega 10, 50 Wh
Dell Latitude 5490-TD70X
8350U, UHD Graphics 620, 68 Wh
Lenovo ThinkPad T480-20L6S01V00
8550U, GeForce MX150, 72 Wh
Lenovo ThinkPad T480s-20L8S02D00
8250U, UHD Graphics 620, 57 Wh
Average of class Office

Batterijduur
18%
116%
124%
80%
17%
Reader / Idle
671
639
-5%
1556
132%
1671
149%
557 (101 - 1857, n=768)
-17%
H.264
368
426
16%
791
115%
638
73%
721
96%
412 (139 - 791, n=148)
12%
WiFi v1.3
330
394
19%
897
172%
794
141%
537
63%
405 (105 - 964, n=292)
23%
Load
68
95
40%
97
43%
159
134%
124
82%
101 (37 - 259, n=713)
49%

Pro

+ erg goede invoerapparatuur
+ robuuste behuizing
+ uitgebreid pakket
+ bijna stille werking
+ flexibel PowerBridge batterijsysteem

Contra

- CPU prestaties slechter dan de ThinkPad T480
- geen Thunderbolt 3
- QHD beelschermoptie ontbreekt
- slechte batterijduur

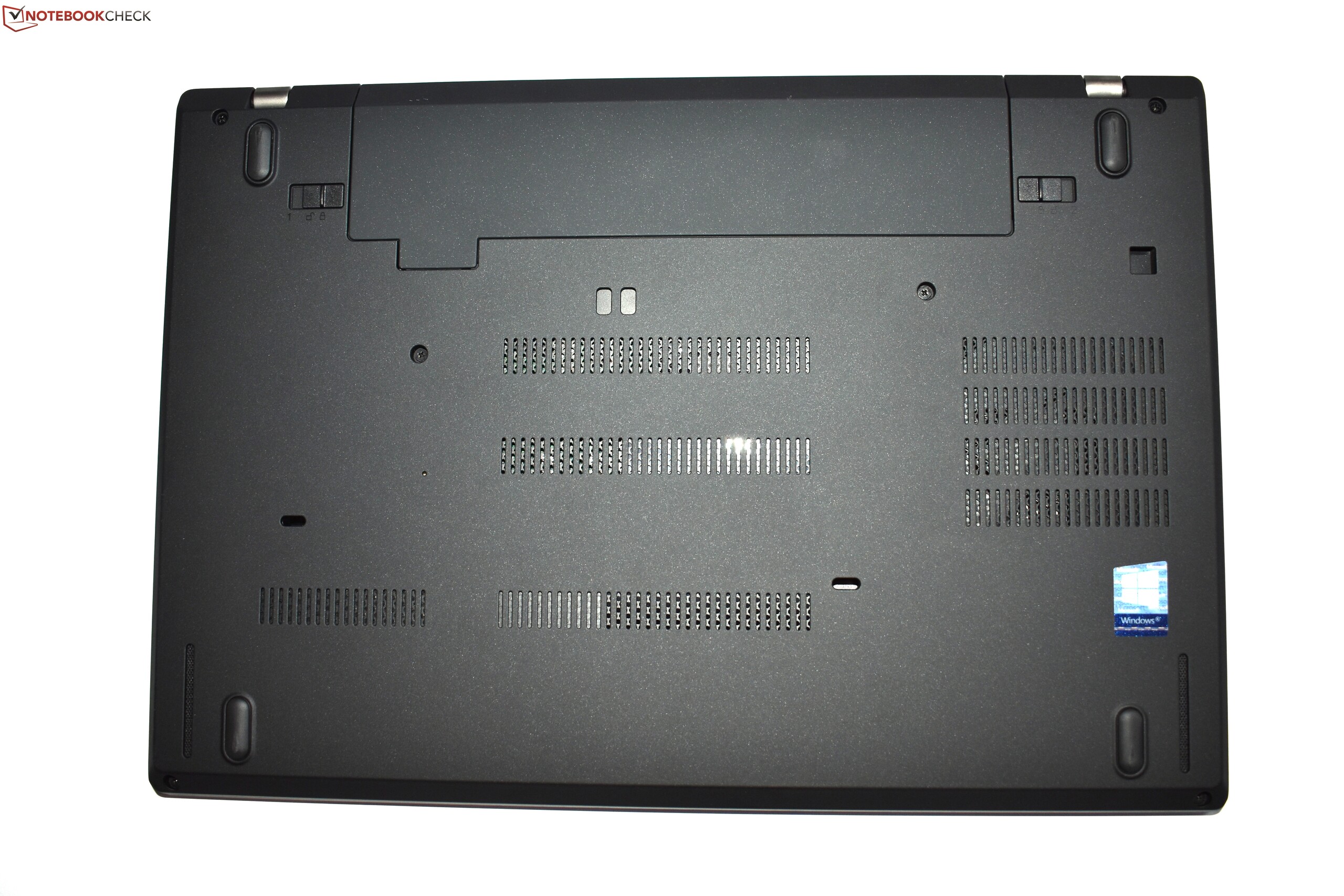

- onderzijde lastig open te maken
- slecht kleurbereik
Lenovo ThinkPad A485, provided by campuspoint.de
Lenovo ThinkPad A485, provided by campuspoint.de

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

De Lenovo ThinkPad A485 bracht hoge verwachtingen: de ThinkPad T-serie, waar de ThinkPad A-serie op gebaseerd is, is extreem populair en er is behoorlijk wat vraag naar goede Ryzen laptops. Deze Ryzen ThinkPad stelt ons echter teleur in de tests.

Zo biedt Lenovo geen QHD beeldscherm voor de ThinkPad A485 en ontbreekt ook Thunderbolt 3. Verder blijven de CPU prestaties ver achter bij het ThinkPad T480 Intel zustermodel. En erger nog, het stroomverbruik is hoger, waardoor de batterijduur extreem slecht is. Dit is slechts gedeeltelijk Lenovo te verwijten daar Ryzen laptops in het algemeen een hoger stroomverbruik hebben dan Intel-gebaseerde modellen.

Natuurlijk zijn heeft de Lenovo ThinkPad A485 ook veel goede eigenschappen, wat in een goed eindoordeel resulteert. Zo zijn er bijvoorbeeld de robuuste behuizing, de uitstekende invoerapparaten en het uitgebreide aanbod aansluitingen. Maar dat krijg je ook allemaal met de ThinkPad 480. Enkel qua grafische prestaties doet de A485 het beter, maar dan enkel in vergelijking met de T480 met geïntegreerde GPU. Het model met de GeForce MX150 doet het ook op dit gebied beter.

Niet aan te raden: de ThinkPad T480 heeft alles wat de ThinkPad A485 een goede laptop maakt, en heeft daarnaast betere CPU prestaties en batterijduur dan de A485.

Onder aan de streep kunnen we de ThinkPad A485 niet aanraden. In praktisch alle opzichten is de Lenovo ThinkPad T480 de betere keuze. Aan de andere kant, als je liever geen Intel CPU's hebt, dan kun je beter kiezen voor de HP EliteBook 745 G5, die een minder slechte batterijduur heeft en wiens beeldscherm ook wat beter is.

Update UEFI versie 1.02: we konden de ThinkPad A485 hertesten met een nieuwere versie van de UEFI BIOS. De batterijduur is nu iets verbeterd, en ook de CPU prestaties bij belasting zijn nu hoger. We hebben de scores dan ook iets herzien en het eindoordeel iets aangepast. Hoewel de ThinkPad T480 nog steeds beter is dan de A485, kan de ThinkPad A485 een interessante optie zijn door zijn relatief betaalbare prijs, zeker als je veel waarde hecht aan GPU prestaties.

Lenovo ThinkPad A485-20MU000CGE - 27-09-2018 v6
Benjamin Herzig

Behuizing
87 / 98 → 89%
Toetsenbord
94%
Aanwijsapparaat
89%
Aansluitmogelijkheden
67 / 80 → 84%
Gewicht
67 / 20-67 → 100%
Batterij
86%
Beeldscherm
85%
Gaming-performance
64 / 68 → 94%
Applicatie-performance
81 / 92 → 88%
Temperatuur
90%
Luidheid
96%
Audio
62%
Camera
39 / 85 → 46%
Gemiddelde
77%
89%
Office - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Lenovo ThinkPad A485 (Ryzen 5 Pro) Laptop
Benjamin Herzig, 2018-09-30 (Update: 2018-09-30)
