Kort testrapport Lenovo ThinkCentre M920z All-in-One Desktop

Mike Wobker, 👁 J. Simon Leitner (vertaald door Siemon Boes), 24-02-2019

All-in-one. Lenovo verkoopt niet alleen business-laptops van zijn ThinkPad-serie, maar ook desktop-PC's van zijn ThinkCentre-productlijn. De Lenovo ThinkCentre M920z is een all-in-one-PC. In dit testrapport onderzoeken we wat gebruikers kunnen verwachten van dit toestel van 1300 euro.

Lenovo ThinkCentre M920z
Processor
Intel Core i5-8500
Grafische kaart
Intel UHD Graphics 630
Geheugen
8192 MB
, DDR4 SDRAM, Single-Channel
Beeldscherm
23.5 inch 16:9, 1920 x 1080 pixel 93 PPI, LEN0920, IPS, glimmend: nee
Opslag
Samsung SSD PM981 MZVLB256HAHQ, 256 GB
, 200 GB beschikbaar
Geluidskaart
Intel Cannon Lake-H/S - cAVS (Audio, Voice, Speech)
Verbindingen
6 USB 3.0, 1 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5-mm gecombineerde audioklink, Card Reader: SD
Netwerkmogelijkheden
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Wireless-AC 9560 (a/b/g/n/ac), Bluetooth 5.0
Optische drive
HL-DT-ST DVDRAM GUE0N
Afmetingen
hoogte x breedte x diepte (in mm): 46 x 542 x 349
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 2 MP, 16:9, 1920x1080
Bijkomende functionaliteiten
Luidsprekers: Stereo, 2x 3 Watt, Toetsenbord: Standaard, Toetsenbordverlichting: nee, oplaadkabel, stand, toetsenbord, muis, 72 Maanden Garantie
Gewicht
6.1 kg
Prijs
1300 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Lenovo ThinkCentre M920z AIO
Lenovo ThinkCentre M920z AIO
Lenovo ThinkCentre M920z AIO
Lenovo ThinkCentre M920z AIO
Lenovo ThinkCentre M920z AIO
Lenovo ThinkCentre M920z AIO
Lenovo ThinkCentre M920z AIO
Lenovo ThinkCentre M920z AIO
Lenovo ThinkCentre M920z AIO

Formaat Vergelijking

542 mm 349 mm 46 mm 6.1 kg

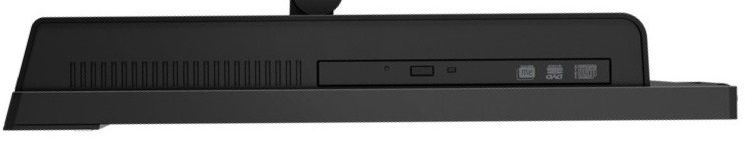

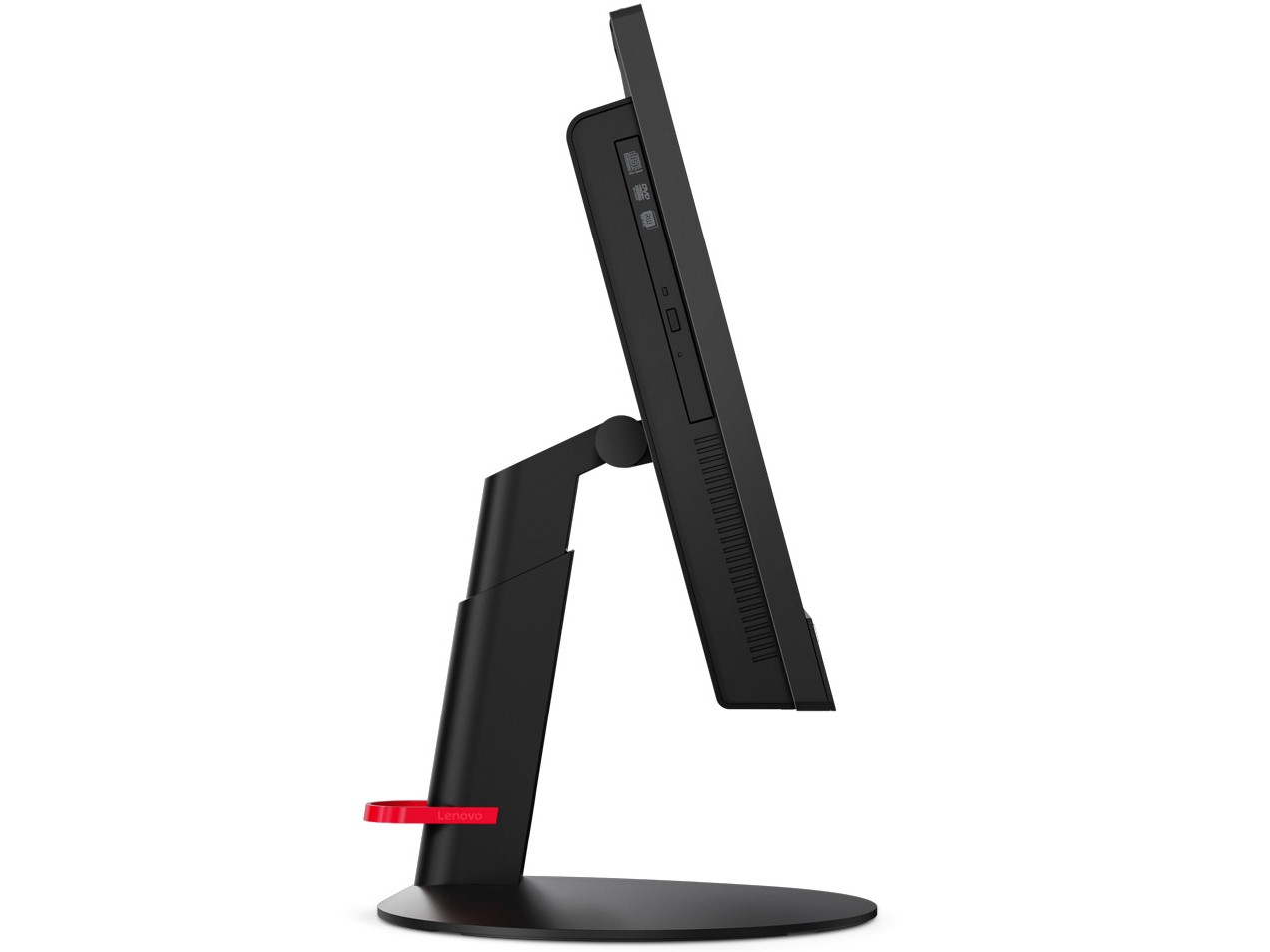

Links: DVD-RW-drive
Links: DVD-RW-drive

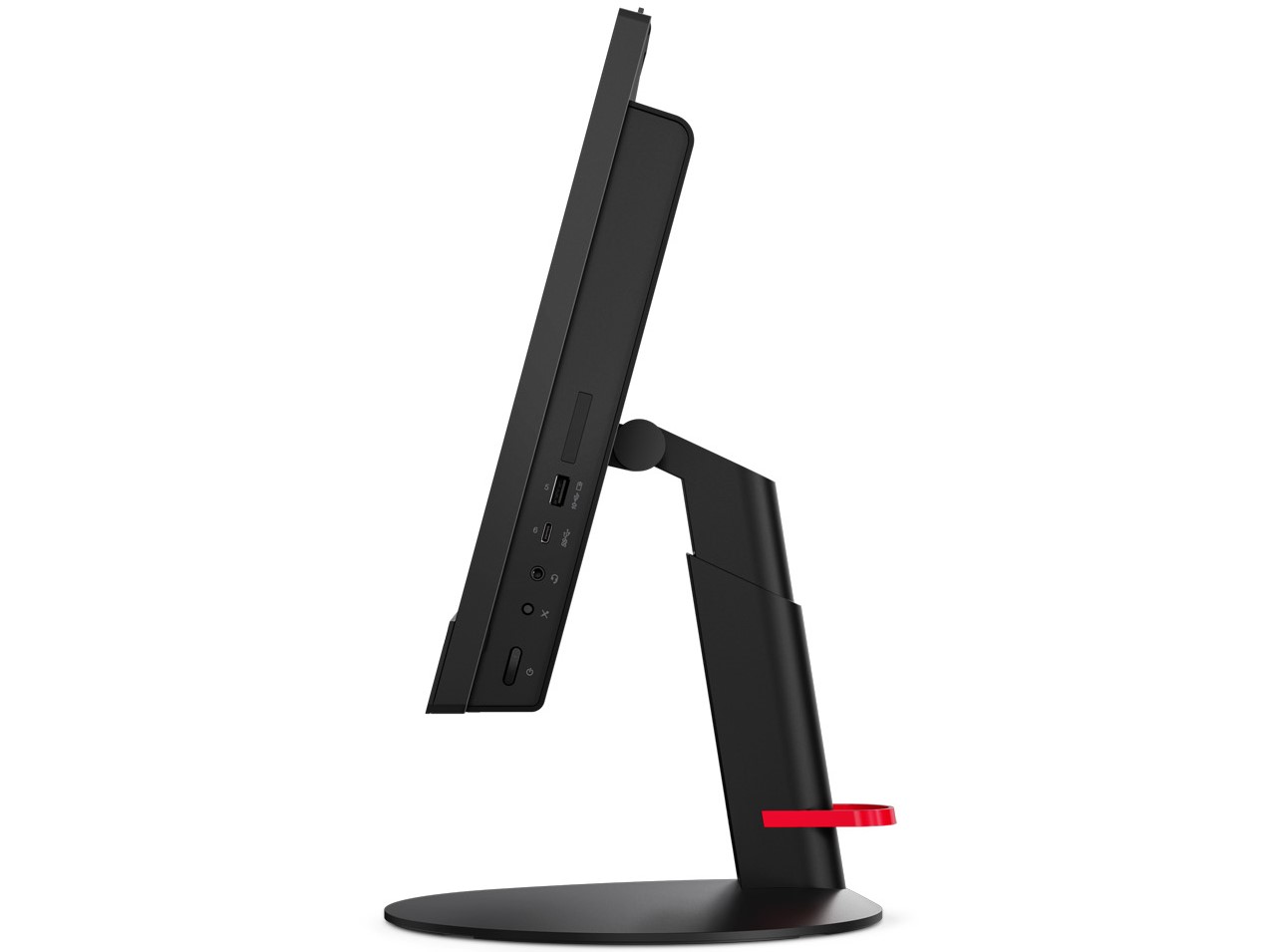

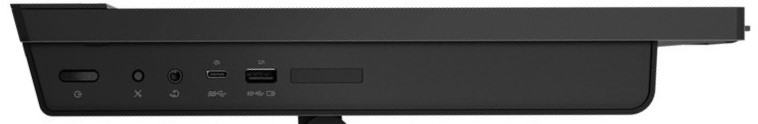

Rechts: power-knop, mute-knop, gecombineerde audio-klink, USB 3.1 Gen1 Type-C-poort, USB 3.1 Gen2-poort met Rapid Charge, SD-kaartlezer
Rechts: power-knop, mute-knop, gecombineerde audio-klink, USB 3.1 Gen1 Type-C-poort, USB 3.1 Gen2-poort met Rapid Charge, SD-kaartlezer

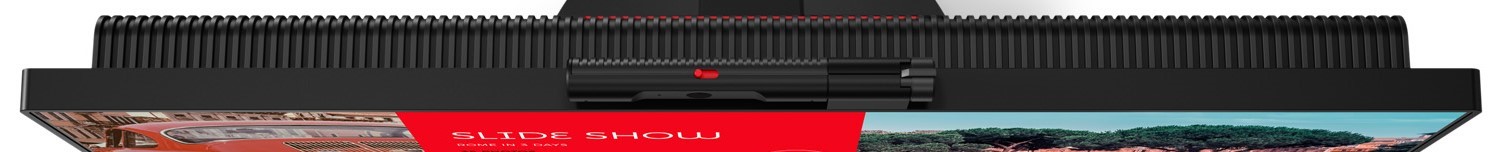

Boven: webcam
Boven: webcam

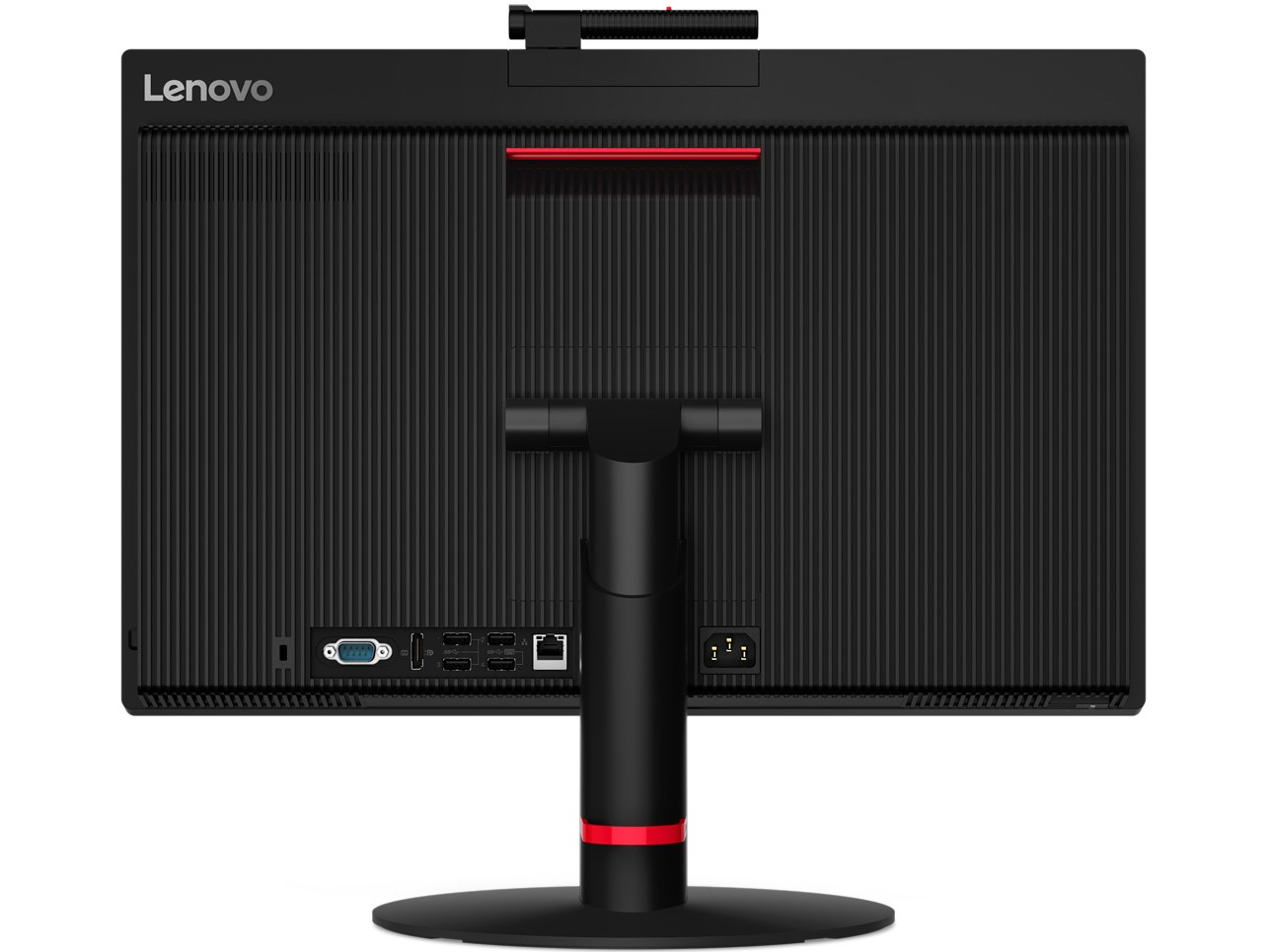

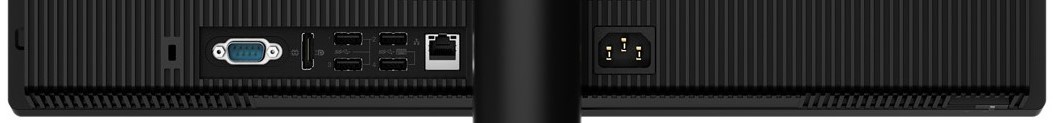

Achter: Kensington-lock, optionele COM-poort, DisplayPort, vier USB 3.1 Gen1-poorten, RJ45 Gigabit LAN-port, power
Achter: Kensington-lock, optionele COM-poort, DisplayPort, vier USB 3.1 Gen1-poorten, RJ45 Gigabit LAN-port, power
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Average of class Desktop
  (18.6 - 85.6, n=9)
50.4 MB/s ∼100% +171%
Lenovo ThinkCentre M910z-10NR000KUS
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
22.32 MB/s ∼44% +20%
Lenovo ThinkCentre M920z

18.61 MB/s ∼37%
maximum AS SSD Seq Read Test (1GB)
Average of class Desktop
  (20.1 - 88.3, n=9)
55 MB/s ∼100% +79%
Lenovo ThinkCentre M920z

30.7 MB/s ∼56%
Lenovo ThinkCentre M910z-10NR000KUS
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
20.06 MB/s ∼36% -35%

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870880890900910920930940950960Tooltip
Lenovo ThinkCentre M920z Intel Core i5-8500, Intel Core i5-8500: Ø945 (939.39-951.02)
Lenovo ThinkCentre M910z-10NR000KUS Intel Core i5-7500, Intel Core i5-7500: Ø590 (587.63-593.08)
Cinebench R15
CPU Single 64Bit
Lenovo ThinkCentre M920z
Intel Core i5-8500
172 Points ∼100%
Average Intel Core i5-8500

172 Points ∼100% 0%
Lenovo ThinkCentre M910z-10NR000KUS
Intel Core i5-7500
159 Points ∼92% -8%
Average of class Desktop
  (68 - 218, n=25)
146 Points ∼85% -15%
CPU Multi 64Bit
Lenovo ThinkCentre M920z
Intel Core i5-8500
950 Points ∼100%
Average Intel Core i5-8500

950 Points ∼100% 0%
Average of class Desktop
  (176 - 2021, n=27)
702 Points ∼74% -26%
Lenovo ThinkCentre M910z-10NR000KUS
Intel Core i5-7500
585 Points ∼62% -38%
Cinebench R10 Rendering Single CPUs 64Bit
8515 Points
Cinebench R10 Shading 32Bit
6430
Cinebench R10 Shading 64Bit
6807 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
39357 Points
Cinebench R10 Rendering Multiple CPUs 32Bit
40829
Cinebench R10 Rendering Single 32Bit
8606
Cinebench R11.5 CPU Multi 64Bit
10.21 Points
Cinebench R11.5 CPU Single 64Bit
1.96 Points
Cinebench R11.5 OpenGL 64Bit
45.46 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
51.13 fps
Cinebench R15 CPU Multi 64Bit
950 Points
Cinebench R15 CPU Single 64Bit
172 Points
Help
PCMark 10
Digital Content Creation
Average of class Desktop
  (972 - 8141, n=16)
4010 Points ∼100% +21%
Lenovo ThinkCentre M920z
UHD Graphics 630, 8500, Samsung SSD PM981 MZVLB256HAHQ
3308 Points ∼82%
Average Intel Core i5-8500, Intel UHD Graphics 630

3308 Points ∼82% 0%
Lenovo ThinkCentre M910z-10NR000KUS
HD Graphics 630, 7500, Toshiba NVMe THNSF5512GPUK
3023 Points ∼75% -9%
Productivity
Lenovo ThinkCentre M920z
UHD Graphics 630, 8500, Samsung SSD PM981 MZVLB256HAHQ
6770 Points ∼100%
Average Intel Core i5-8500, Intel UHD Graphics 630

6770 Points ∼100% 0%
Lenovo ThinkCentre M910z-10NR000KUS
HD Graphics 630, 7500, Toshiba NVMe THNSF5512GPUK
6761 Points ∼100% 0%
Average of class Desktop
  (2883 - 8515, n=16)
6264 Points ∼93% -7%
Essentials
Lenovo ThinkCentre M920z
UHD Graphics 630, 8500, Samsung SSD PM981 MZVLB256HAHQ
8566 Points ∼100%
Average Intel Core i5-8500, Intel UHD Graphics 630

8566 Points ∼100% 0%
Lenovo ThinkCentre M910z-10NR000KUS
HD Graphics 630, 7500, Toshiba NVMe THNSF5512GPUK
7940 Points ∼93% -7%
Average of class Desktop
  (4418 - 9689, n=16)
7511 Points ∼88% -12%
Score
Lenovo ThinkCentre M920z
UHD Graphics 630, 8500, Samsung SSD PM981 MZVLB256HAHQ
4134 Points ∼100%
Average Intel Core i5-8500, Intel UHD Graphics 630

4134 Points ∼100% 0%
Average of class Desktop
  (1658 - 6100, n=16)
4062 Points ∼98% -2%
Lenovo ThinkCentre M910z-10NR000KUS
HD Graphics 630, 7500, Toshiba NVMe THNSF5512GPUK
3910 Points ∼95% -5%
PCMark 8
Work Score Accelerated v2
Lenovo ThinkCentre M910z-10NR000KUS
HD Graphics 630, 7500, Toshiba NVMe THNSF5512GPUK
5053 Points ∼100% 0%
Lenovo ThinkCentre M920z
UHD Graphics 630, 8500, Samsung SSD PM981 MZVLB256HAHQ
5052 Points ∼100%
Average Intel Core i5-8500, Intel UHD Graphics 630

5052 Points ∼100% 0%
Average of class Desktop
  (3732 - 5454, n=14)
4632 Points ∼92% -8%
Home Score Accelerated v2
Lenovo ThinkCentre M910z-10NR000KUS
HD Graphics 630, 7500, Toshiba NVMe THNSF5512GPUK
3916 Points ∼100% +9%
Average of class Desktop
  (2062 - 4939, n=20)
3809 Points ∼97% +6%
Lenovo ThinkCentre M920z
UHD Graphics 630, 8500, Samsung SSD PM981 MZVLB256HAHQ
3586 Points ∼92%
Average Intel Core i5-8500, Intel UHD Graphics 630

3586 Points ∼92% 0%
PCMark 8 Home Score Accelerated v2
3586 punten
PCMark 8 Work Score Accelerated v2
5052 punten
Help
Lenovo ThinkCentre M920z
Samsung SSD PM981 MZVLB256HAHQ
Lenovo ThinkCentre M910z-10NR000KUS
Toshiba NVMe THNSF5512GPUK
Average Samsung SSD PM981 MZVLB256HAHQ

CrystalDiskMark 5.2 / 6
-28%
-10%
Write 4K
130.6
43.62
-67%
108 (81 - 131, n=15)
-17%
Read 4K
41.78
49.85
19%
40.1 (36 - 43.1, n=15)
-4%
Write Seq
1419
1021
-28%
1420 (1218 - 1687, n=15)
0%
Read Seq
1517
1101
-27%
1569 (755 - 2089, n=15)
3%
Write 4K Q32T1
459.2
120.9
-74%
331 (205 - 543, n=15)
-28%
Read 4K Q32T1
522.4
591.4
13%
349 (229 - 522, n=15)
-33%
Write Seq Q32T1
1417
1062
-25%
1511 (1380 - 1712, n=15)
7%
Read Seq Q32T1
3436
2154
-37%
3279 (1529 - 3516, n=15)
-5%
AS SSD
-9%
30%
Score Total
1832
1886
3%
2600 (1663 - 3230, n=15)
42%
Score Write
607
587
-3%
1209 (514 - 1752, n=15)
99%
Score Read
842
888
5%
932 (724 - 1078, n=15)
11%
Access Time Write *
0.034
0.051
-50%
0.0374 (0.026 - 0.049, n=15)
-10%
Access Time Read *
0.107
0.075
30%
0.0733 (0.041 - 0.113, n=15)
31%
4K-64 Write
365.04
451.87
24%
971 (274 - 1501, n=15)
166%
4K-64 Read
529.52
678.44
28%
692 (530 - 786, n=15)
31%
4K Write
107
74.04
-31%
104 (77.4 - 144, n=15)
-3%
4K Read
51.09
41.14
-19%
45 (32.4 - 53.8, n=15)
-12%
Seq Write
1345.38
611.04
-55%
1341 (1017 - 1646, n=15)
0%
Seq Read
2614.08
1684.86
-36%
1958 (864 - 2724, n=15)
-25%
Totaal Gemiddelde (Programma / Instellingen)
-19% / -17%
10% / 13%

* ... kleiner is beter

Samsung SSD PM981 MZVLB256HAHQ
Sequential Read: 1700 MB/s
Sequential Write: 1407 MB/s
512K Read: 564.2 MB/s
512K Write: 406.7 MB/s
4K Read: 15.32 MB/s
4K Write: 29.35 MB/s
4K QD32 Read: 369.1 MB/s
4K QD32 Write: 287.1 MB/s
3DMark 11 - 1280x720 Performance GPU
Average of class Desktop
  (484 - 31656, n=21)
9278 Points ∼100% +423%
Average Intel UHD Graphics 630
  (1708 - 2012, n=4)
1825 Points ∼20% +3%
Lenovo ThinkCentre M920z
Intel UHD Graphics 630, Intel Core i5-8500
1774 Points ∼19%
Lenovo ThinkCentre M910z-10NR000KUS
Intel HD Graphics 630, Intel Core i5-7500
1604 Points ∼17% -10%
3DMark
1920x1080 Fire Strike Graphics
Average of class Desktop
  (603 - 22887, n=19)
7187 Points ∼100% +529%
Average Intel UHD Graphics 630
  (1143 - 1439, n=4)
1280 Points ∼18% +12%
Lenovo ThinkCentre M920z
Intel UHD Graphics 630, Intel Core i5-8500
1143 Points ∼16%
Lenovo ThinkCentre M910z-10NR000KUS
Intel HD Graphics 630, Intel Core i5-7500
969 Points ∼13% -15%
1280x720 Cloud Gate Standard Graphics
Average of class Desktop
  (5027 - 110542, n=16)
28654 Points ∼100% +204%
Average Intel UHD Graphics 630
  (9422 - 11199, n=3)
10245 Points ∼36% +9%
Lenovo ThinkCentre M920z
Intel UHD Graphics 630, Intel Core i5-8500
9422 Points ∼33%
Lenovo ThinkCentre M910z-10NR000KUS
Intel HD Graphics 630, Intel Core i5-7500
7943 Points ∼28% -16%
3DMark 06 Standard
11920 punten
3DMark 11 Performance
1990 punten
3DMark Cloud Gate Standard Score
9000 punten
3DMark Fire Strike Score
1063 punten
Help
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF)
Average of class Desktop
  (8 - 123, n=9)
49.1 fps ∼100% +506%
Average Intel UHD Graphics 630
  (8.1 - 15, n=3)
11.3 fps ∼23% +40%
Lenovo ThinkCentre M920z
Intel Core i5-8500, Intel UHD Graphics 630
8.1 fps ∼16%
Lenovo ThinkCentre M910z-10NR000KUS
Intel Core i5-7500, Intel HD Graphics 630
8 fps ∼16% -1%
1366x768 High Preset
Average of class Desktop
  (23 - 214, n=8)
108 fps ∼100% +296%
Average Intel UHD Graphics 630
  (27.3 - 37.1, n=3)
32.8 fps ∼30% +20%
Lenovo ThinkCentre M920z
Intel Core i5-8500, Intel UHD Graphics 630
27.3 fps ∼25%
Lenovo ThinkCentre M910z-10NR000KUS
Intel Core i5-7500, Intel HD Graphics 630
23 fps ∼21% -16%
1366x768 Medium Preset
Average of class Desktop
  (34.4 - 239, n=7)
113 fps ∼100% +228%
Average Intel UHD Graphics 630
  (34.4 - 41.8, n=4)
39.5 fps ∼35% +15%
Lenovo ThinkCentre M910z-10NR000KUS
Intel Core i5-7500, Intel HD Graphics 630
35 fps ∼31% +2%
Lenovo ThinkCentre M920z
Intel Core i5-8500, Intel UHD Graphics 630
34.4 fps ∼30%
1280x720 Very Low Preset
Average of class Desktop
  (52 - 304, n=8)
175 fps ∼100% +171%
Average Intel UHD Graphics 630
  (64.6 - 82.4, n=3)
72.3 fps ∼41% +12%
Lenovo ThinkCentre M920z
Intel Core i5-8500, Intel UHD Graphics 630
64.6 fps ∼37%
Lenovo ThinkCentre M910z-10NR000KUS
Intel Core i5-7500, Intel HD Graphics 630
52 fps ∼30% -20%
lage gem. hoge ultra
BioShock Infinite (2013) 64.634.427.38.1fps

Pro

+ elegant design
+ onderhoudsvriendelijk
+ prima systeemprestaties
+ optionele COM-poort

Contra

- wankele webcam
- USB Type-C zonder DP-functionaliteit
- matige invoerapparatuur
- 'coil whine'
Getest: Lenovo ThinkCentre M920z. Testtoestel voorzien door: Lenovo Germany
Getest: Lenovo ThinkCentre M920z. Testtoestel voorzien door: Lenovo Germany

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

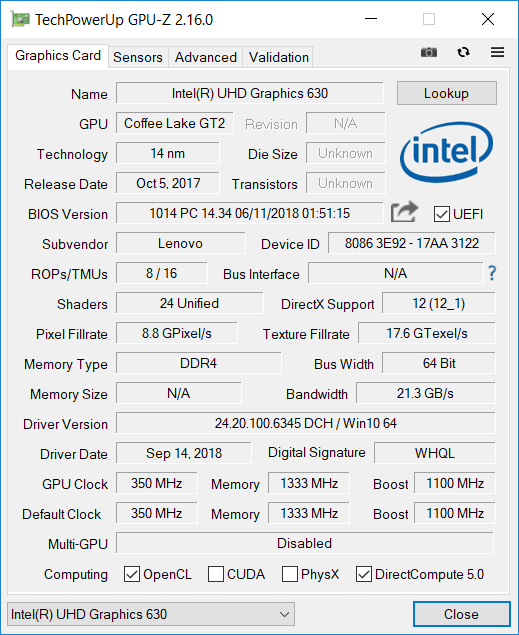

De Lenovo ThinkCentre M920z toonde zich in onze tests een degelijke all-in-one-PC voor kantoorwerk. De algemene prestaties zijn eveneens prima. Lenovo's desktop is krachtig genoeg voor de meeste office-applicaties en eenvoudige fotobewerking. De geïntegreerde GPU is minder geschikt voor veeleisende games, maar volstaat voor oude, simpele games. De optionele Wi-Fi-module ondersteunt de snelle Wireless AC-standaard en maakt de Gigabit Ethernet-poort onder sommige omstandigheden dus overbodig. Lenovo biedt ook een optionele COM-poort voor exotische applicaties. We zouden echter liever een HDMI-poort hebben gekregen in plaats van de DP-poort.

De Lenovo ThinkCentre M920z is onderhoudsvriendelijk en biedt prima prestaties.

Naast de goede prestaties is de desktop ook uiterst onderhoudsvriendelijk. Componenten als RAM, SSD en CPU kunnen vervangen worden. De stille ventilator draagt eveneens bij tot de positieve algemene indruk, al wordt dit deels teniet gedaan door vervelende 'coil whine'. De webcam met zijn mechanische slider is slim bedacht. Helaas is het wel wat aan de onstabiele kant. Wie met deze kleine minpunten kan leven krijgt voor de rest een uitstekende desktop met de Lenovo ThinkCentre M920z.

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Lenovo ThinkCentre M920z All-in-One Desktop
Mike Wobker, 2019-02-24 (Update: 2019-02-24)
