Kort testrapport Lenovo Legion C530 Cube (i5-8300, GTX 1050 Ti) Mini PC

Allen Ngo, 👁 Allen Ngo (vertaald door Siemon Boes), 20-11-2018

Kant-en-klaar. Lenovo maakt het wel erg gemakkelijk voor gamers die op zoek zijn naar een simpele, betaalbare gaming-PC die gewoon werkt. Beginnende PC-bouwers zullen heel wat positieve punten vinden in de Legion C530, al ontbreken er ook een aantal gebruikelijke features.

Lenovo Legion C530-90JX003AUS

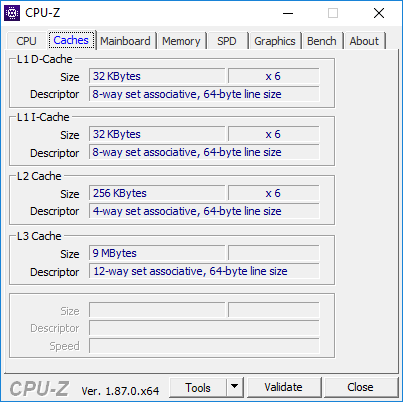

Processor

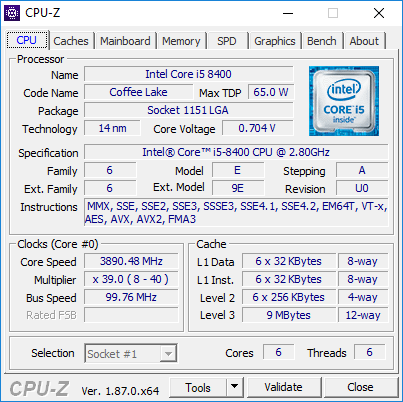

Intel Core i5-8400

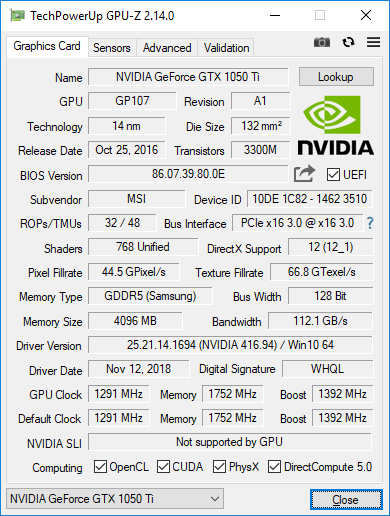

Grafische kaart
NVIDIA GeForce GTX 1050 Ti (Desktop) - 4096 MB, Core: 1290 MHz, Geheugen: 7008 MHz, GDDR5, 416.94
Geheugen
8192 MB

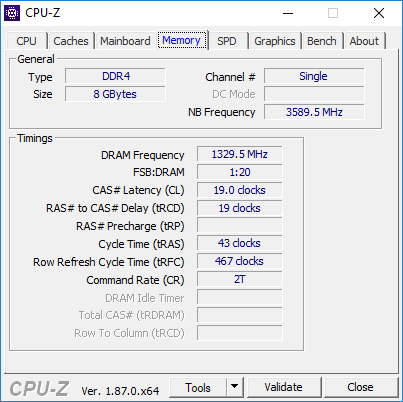

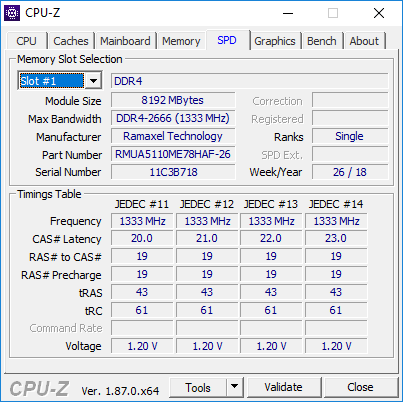

, DDR4, PC4-21300, 19-19-19-32, Single-Channel

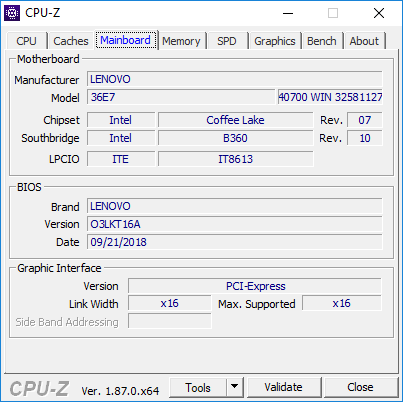

Moederbord
Intel B360 (Cannon Lake-H)
Opslag
Seagate Desktop HDD 1TB ST1000DM003, 1024 GB
, 7200 rpm
Geluidskaart
Nvidia GP107 - High Definition Audio Controller
Netwerkmogelijkheden
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n/ac)
Afmetingen
hoogte x breedte x diepte (in mm): 231 x 332 x 242
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Bijkomende functionaliteiten
12 Maanden Garantie
Gewicht
8.9 kg
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

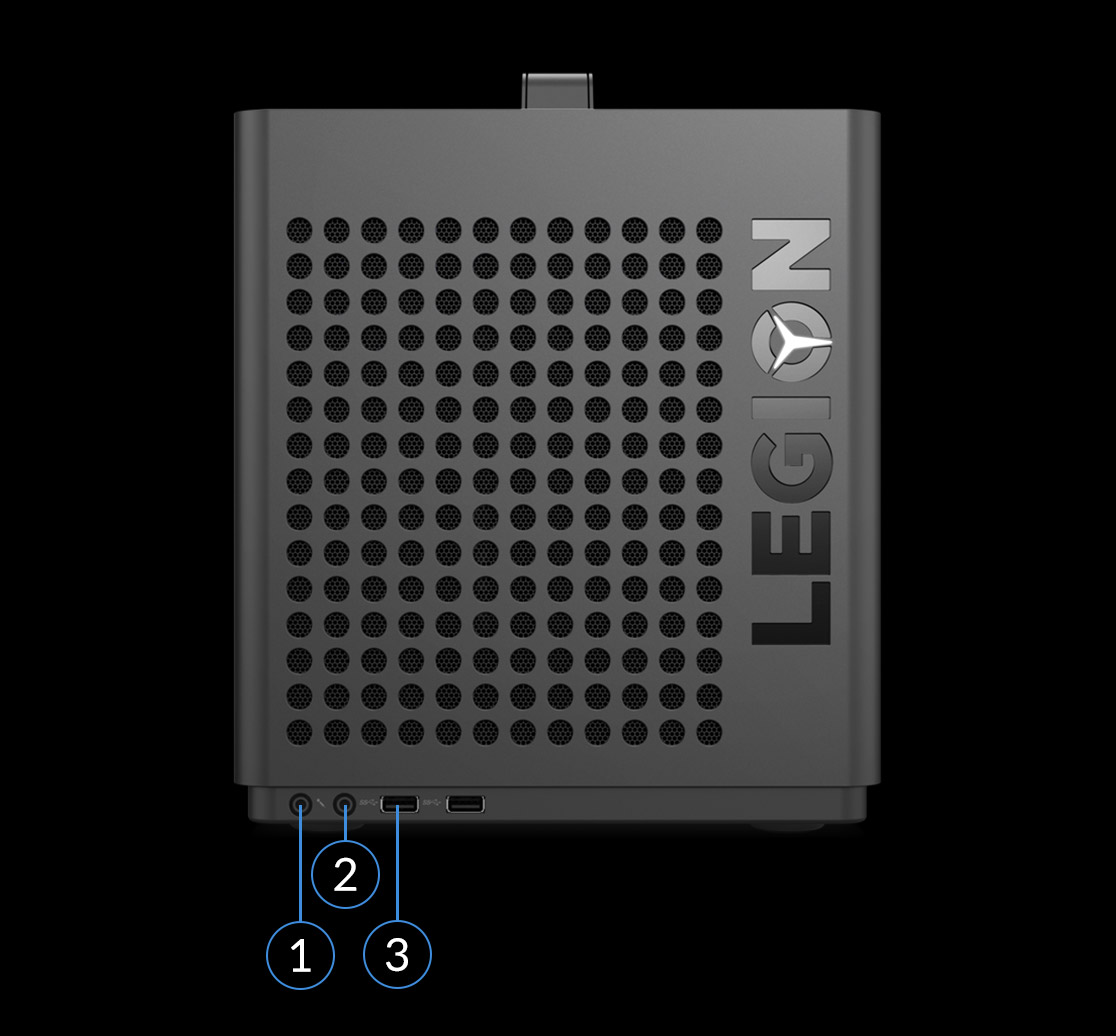

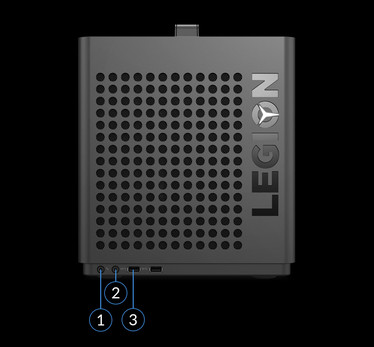

Voor: 3.5 mm mic-in, koptelefoon-in, 2x USB 3.0
Voor: 3.5 mm mic-in, koptelefoon-in, 2x USB 3.0

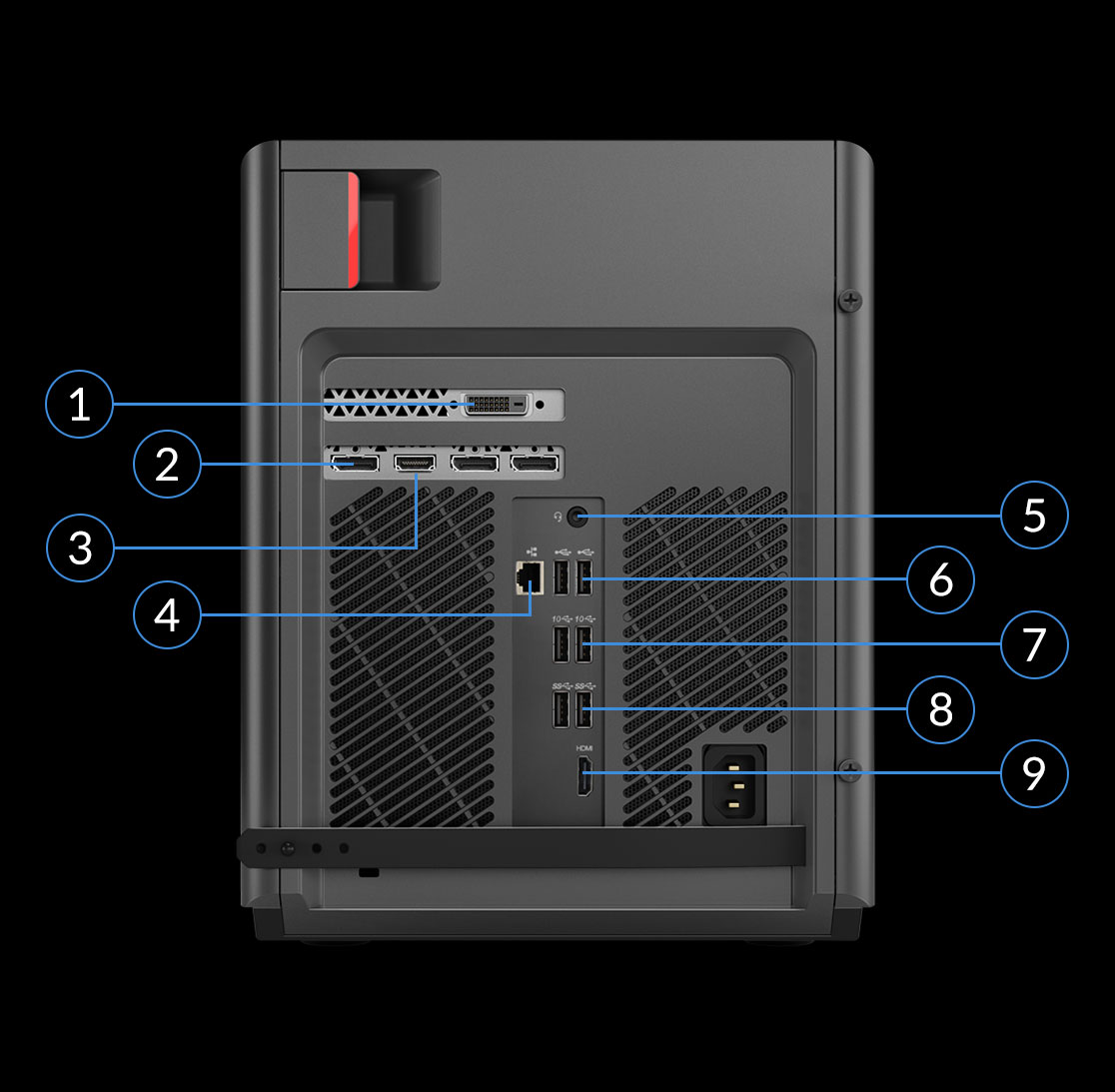

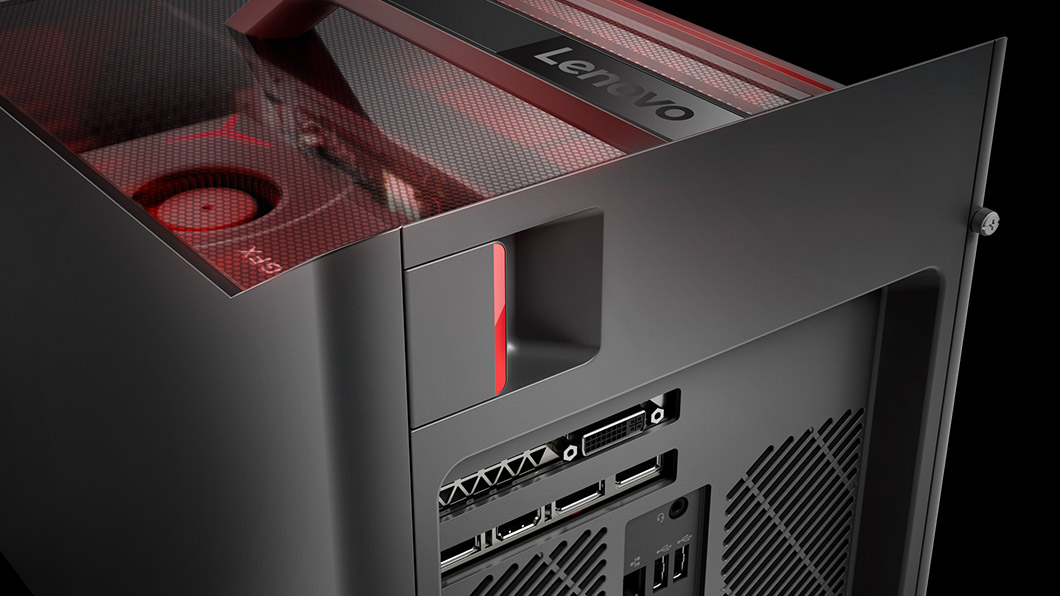

Achter: DVI, DisplayPort, HDMI, 3.5-mm-audio, RJ-45, 2x USB 2.0, 2 x USB 3.1 Gen. 2, 2 x USB 3.1 Gen. 1, AC-kabel
Achter: DVI, DisplayPort, HDMI, 3.5-mm-audio, RJ-45, 2x USB 2.0, 2 x USB 3.1 Gen. 2, 2 x USB 3.1 Gen. 1, AC-kabel
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Asus ROG Strix GL702ZC-GC204T
Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC
632 MBit/s ∼100% +9%
Intel NUC8i7BE
Intel Wireless-AC 9560
602 MBit/s ∼95% +4%
Intel Hades Canyon NUC8i7HVK
Intel Dual Band Wireless-AC 8265
591 MBit/s ∼94% +2%
Lenovo Legion C530-90JX003AUS
Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC
580 MBit/s ∼92%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus ROG Strix GL702ZC-GC204T
Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC
670 MBit/s ∼100% +3%
Lenovo Legion C530-90JX003AUS
Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC
651 MBit/s ∼97%
Intel NUC8i7BE
Intel Wireless-AC 9560
553 MBit/s ∼83% -15%
Intel Hades Canyon NUC8i7HVK
Intel Dual Band Wireless-AC 8265
376 MBit/s ∼56% -42%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870880890900910920930940Tooltip
Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), 8400, Seagate Desktop HDD 1TB ST1000DM003; CPU Multi 64Bit: Ø929 (917.45-937.25)
Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti (Laptop), 8300H, Toshiba KBG30ZMT128G; CPU Multi 64Bit: Ø817 (804.93-829.48)
Cinebench R15
CPU Single 64Bit
Eurocom Sky X4C
Intel Core i7-8700K
192 Points ∼88% +12%
Schenker XMG Ultra 17
Intel Core i7-8700
190 Points ∼87% +10%
Aorus X9 DT
Intel Core i9-8950HK
185 Points ∼85% +8%
Schenker XMG Ultra 15
Intel Core i5-8600K
181 Points ∼83% +5%
Intel NUC8i7BE
Intel Core i7-8559U
180 Points ∼83% +5%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
178 Points ∼82% +3%
Lenovo Legion Y730-17ICH, i7-8750H
Intel Core i7-8750H
173 Points ∼79% +1%
Lenovo Legion C530-90JX003AUS
Intel Core i5-8400
172 Points ∼79%
Lenovo Legion Y530-15ICH
Intel Core i5-8300H
171 Points ∼78% -1%
MSI Prestige PS42 8RB-059
Intel Core i7-8550U
162 Points ∼74% -6%
Lenovo Lenovo Legion Y720 80VR002XGE
Intel Core i7-7700HQ
160 Points ∼73% -7%
Lenovo Legion Y520-15IKBM 80YY001APB
Intel Core i5-7300HQ
149 Points ∼68% -13%
CPU Multi 64Bit
Aorus X9 DT
Intel Core i9-8950HK
1388 Points ∼32% +48%
Eurocom Sky X4C
Intel Core i7-8700K
1359 Points ∼31% +45%
Lenovo Legion Y730-17ICH, i7-8750H
Intel Core i7-8750H
1220 Points ∼28% +30%
Schenker XMG Ultra 17
Intel Core i7-8700
1167 Points ∼27% +24%
Schenker XMG Ultra 15
Intel Core i5-8600K
991 Points ∼23% +6%
Lenovo Legion C530-90JX003AUS
Intel Core i5-8400
939 Points ∼21%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
864 Points ∼20% -8%
Lenovo Legion Y530-15ICH
Intel Core i5-8300H
818 Points ∼19% -13%
Lenovo Lenovo Legion Y720 80VR002XGE
Intel Core i7-7700HQ
737 Points ∼17% -22%
Intel NUC8i7BE
Intel Core i7-8559U
672 Points ∼15% -28%
Lenovo Legion Y520-15IKBM 80YY001APB
Intel Core i5-7300HQ
517 Points ∼12% -45%
MSI Prestige PS42 8RB-059
Intel Core i7-8550U
502 Points ∼11% -47%
Cinebench R11.5
CPU Single 64Bit
Schenker XMG Ultra 17
Intel Core i7-8700
2.18 Points ∼89%
Intel NUC8i7BE
Intel Core i7-8559U
2.17 Points ∼89%
Eurocom Sky X4C
Intel Core i7-8700K
2.16 Points ∼89%
Aorus X9 DT
Intel Core i9-8950HK
2.1 Points ∼86%
Schenker XMG Ultra 15
Intel Core i5-8600K
2.07 Points ∼85%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
1.99 Points ∼82%
CPU Multi 64Bit
Aorus X9 DT
Intel Core i9-8950HK
15.13 Points ∼56%
Eurocom Sky X4C
Intel Core i7-8700K
14.98 Points ∼55%
Schenker XMG Ultra 17
Intel Core i7-8700
12.9 Points ∼48%
Schenker XMG Ultra 15
Intel Core i5-8600K
10.76 Points ∼40%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
9.41 Points ∼35%
Intel NUC8i7BE
Intel Core i7-8559U
7.32 Points ∼27%
Cinebench R10
Rendering Single 32Bit
Intel NUC8i7BE
Intel Core i7-8559U
7249 Points ∼67%
Eurocom Sky X4C
Intel Core i7-8700K
7243 Points ∼67%
Schenker XMG Ultra 17
Intel Core i7-8700
7171 Points ∼66%
Aorus X9 DT
Intel Core i9-8950HK
6978 Points ∼64%
Schenker XMG Ultra 15
Intel Core i5-8600K
6875 Points ∼63%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
6668 Points ∼62%
Rendering Multiple CPUs 32Bit
Aorus X9 DT
Intel Core i9-8950HK
39380 Points ∼79%
Eurocom Sky X4C
Intel Core i7-8700K
38810 Points ∼78%
Schenker XMG Ultra 17
Intel Core i7-8700
34532 Points ∼69%
Schenker XMG Ultra 15
Intel Core i5-8600K
32863 Points ∼66%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
25809 Points ∼52%
Intel NUC8i7BE
Intel Core i7-8559U
23215 Points ∼47%
wPrime 2.0x - 1024m
Lenovo Legion Y520-15IKBM 80YY001APB
Intel Core i5-7300HQ
348.084 s * ∼4%
Intel NUC8i7BE
Intel Core i7-8559U
234.569 s * ∼3%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
186.66 s * ∼2%
Eurocom Sky X4C
Intel Core i7-8700K
120.923 s * ∼1%
Super Pi Mod 1.5 XS 32M - ---
Lenovo Legion Y520-15IKBM 80YY001APB
Intel Core i5-7300HQ
597.553 Seconds * ∼3%
Schenker XMG Ultra 15
Intel Core i5-8600K
503.9 Seconds * ∼2%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
484.864 Seconds * ∼2%
Aorus X9 DT
Intel Core i9-8950HK
481.1 Seconds * ∼2%
Schenker XMG Ultra 17
Intel Core i7-8700
475.7 Seconds * ∼2%
Eurocom Sky X4C
Intel Core i7-8700K
465.128 Seconds * ∼2%
Intel NUC8i7BE
Intel Core i7-8559U
464.06 Seconds * ∼2%

* ... kleiner is beter

Cinebench R15 CPU Single 64Bit
172 Points
Cinebench R15 CPU Multi 64Bit
939 Points
Cinebench R15 OpenGL 64Bit
134.72 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Help
PCMark 10
Digital Content Creation
Intel Hades Canyon NUC8i7HVK
Vega M GH, 8809G, Intel Optane 120 GB SSDPEK1W120GA
5598 Points ∼56% +3%
Lenovo Legion C530-90JX003AUS
GeForce GTX 1050 Ti (Desktop), 8400, Seagate Desktop HDD 1TB ST1000DM003
5430 Points ∼55%
Lenovo Legion Y730-17ICH, i7-8750H
GeForce GTX 1050 Ti (Laptop), 8750H, Toshiba KBG30ZMT128G
5290 Points ∼53% -3%
Lenovo Legion Y530-15ICH
GeForce GTX 1050 Ti (Laptop), 8300H, Toshiba KBG30ZMT128G
4959 Points ∼50% -9%
Average of class Desktop
  (972 - 8141, n=13)
4019 Points ∼40% -26%
Intel NUC8i7BE
Iris Plus Graphics 655, 8559U
4007 Points ∼40% -26%
Productivity
Intel Hades Canyon NUC8i7HVK
Vega M GH, 8809G, Intel Optane 120 GB SSDPEK1W120GA
7915 Points ∼82% +28%
Lenovo Legion Y530-15ICH
GeForce GTX 1050 Ti (Laptop), 8300H, Toshiba KBG30ZMT128G
7246 Points ∼75% +17%
Intel NUC8i7BE
Iris Plus Graphics 655, 8559U
7236 Points ∼75% +17%
Lenovo Legion Y730-17ICH, i7-8750H
GeForce GTX 1050 Ti (Laptop), 8750H, Toshiba KBG30ZMT128G
7057 Points ∼73% +14%
Average of class Desktop
  (2883 - 8515, n=13)
6250 Points ∼64% +1%
Lenovo Legion C530-90JX003AUS
GeForce GTX 1050 Ti (Desktop), 8400, Seagate Desktop HDD 1TB ST1000DM003
6192 Points ∼64%
Essentials
Intel Hades Canyon NUC8i7HVK
Vega M GH, 8809G, Intel Optane 120 GB SSDPEK1W120GA
9125 Points ∼86% +32%
Intel NUC8i7BE
Iris Plus Graphics 655, 8559U
8994 Points ∼84% +30%
Lenovo Legion Y730-17ICH, i7-8750H
GeForce GTX 1050 Ti (Laptop), 8750H, Toshiba KBG30ZMT128G
8989 Points ∼84% +30%
Lenovo Legion Y530-15ICH
GeForce GTX 1050 Ti (Laptop), 8300H, Toshiba KBG30ZMT128G
8418 Points ∼79% +21%
Average of class Desktop
  (4418 - 9689, n=13)
7492 Points ∼70% +8%
Lenovo Legion C530-90JX003AUS
GeForce GTX 1050 Ti (Desktop), 8400, Seagate Desktop HDD 1TB ST1000DM003
6931 Points ∼65%
Score
Intel Hades Canyon NUC8i7HVK
Vega M GH, 8809G, Intel Optane 120 GB SSDPEK1W120GA
5301 Points ∼68% +20%
Lenovo Legion Y730-17ICH, i7-8750H
GeForce GTX 1050 Ti (Laptop), 8750H, Toshiba KBG30ZMT128G
4982 Points ∼64% +13%
Lenovo Legion Y530-15ICH
GeForce GTX 1050 Ti (Laptop), 8300H, Toshiba KBG30ZMT128G
4812 Points ∼62% +9%
Intel NUC8i7BE
Iris Plus Graphics 655, 8559U
4580 Points ∼59% +4%
Lenovo Legion C530-90JX003AUS
GeForce GTX 1050 Ti (Desktop), 8400, Seagate Desktop HDD 1TB ST1000DM003
4411 Points ∼57%
Average of class Desktop
  (1658 - 6100, n=13)
4053 Points ∼52% -8%
PCMark 8 - Home Score Accelerated v2
Lenovo Legion C530-90JX003AUS
GeForce GTX 1050 Ti (Desktop), 8400, Seagate Desktop HDD 1TB ST1000DM003
4939 Points ∼81%
Intel Hades Canyon NUC8i7HVK
Vega M GH, 8809G, Intel Optane 120 GB SSDPEK1W120GA
4833 Points ∼79% -2%
Intel NUC8i7BE
Iris Plus Graphics 655, 8559U
4674 Points ∼77% -5%
Lenovo Legion Y730-17ICH, i7-8750H
GeForce GTX 1050 Ti (Laptop), 8750H, Toshiba KBG30ZMT128G
4148 Points ∼68% -16%
Lenovo Legion Y530-15ICH
GeForce GTX 1050 Ti (Laptop), 8300H, Toshiba KBG30ZMT128G
4129 Points ∼68% -16%
Average of class Desktop
  (2062 - 4939, n=19)
3821 Points ∼63% -23%
PCMark 8 Home Score Accelerated v2
4939 punten
Help
Lenovo Legion C530-90JX003AUS
Seagate Desktop HDD 1TB ST1000DM003
Panasonic Toughbook CF-54G2999VM
Seagate BarraCuda Compute 1TB ST1000LM048
Lenovo IdeaPad 330-15ARR-81D2005JGE
Seagate Mobile HDD 1TB ST1000LM035
HP 15-db0500ng
Seagate Mobile HDD 1TB ST1000LM035
MSI GF63 8RC
Seagate BarraCuda Pro Compute 1TB ST1000LM049
Asus VivoBook 15 F510UF-ES71
Seagate Mobile HDD 1TB ST1000LM035
CrystalDiskMark 5.2 / 6
-6%
-44%
-32%
2%
3%
Write 4K
0.942
1.145
22%
0.217
-77%
0.727
-23%
1.244
32%
1.283
36%
Read 4K
0.472
0.453
-4%
0.367
-22%
0.379
-20%
0.544
15%
0.493
4%
Write Seq
128.3
52.22
-59%
98.79
-23%
85.14
-34%
97.1
-24%
79.27
-38%
Read Seq
183.7
122.7
-33%
131.1
-29%
95.63
-48%
162.1
-12%
136.7
-26%
Write 4K Q32T1
1.061
2.428
129%
0.222
-79%
0.99
-7%
1.674
58%
2.266
114%
Read 4K Q32T1
1.192
1.063
-11%
0.781
-34%
0.869
-27%
0.998
-16%
1.068
-10%
Write Seq Q32T1
177.6
73.66
-59%
97
-45%
92.24
-48%
134.8
-24%
108.7
-39%
Read Seq Q32T1
174.1
120.4
-31%
93.25
-46%
91.82
-47%
154.8
-11%
143.7
-17%
Seagate Desktop HDD 1TB ST1000DM003
Overdrachtssnelheid Minimum: 96.4 MB/s
Overdrachtssnelheid Maximum: 212.2 MB/s
Overdrachtssnelheid Gemiddeld: 162 MB/s
Toegangstijd: 14.3 ms
Pieksnelheid: 124.7 MB/s
CPU-gebruik: 4.2 %
3DMark 11
1280x720 Performance Combined
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop), 6700K
11160 Points ∼62% +26%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
10391 Points ∼57% +17%
Lenovo IdeaPad Y900
NVIDIA GeForce GTX 980M, 6820HK
9842 Points ∼54% +11%
Lenovo Legion C530-90JX003AUS
NVIDIA GeForce GTX 1050 Ti (Desktop), 8400
8854 Points ∼49%
Dell XPS 15 9570 Core i9 UHD
NVIDIA GeForce GTX 1050 Ti Max-Q, 8950HK
8450 Points ∼47% -5%
Lenovo Legion Y530-15ICH
NVIDIA GeForce GTX 1050 Ti (Laptop), 8300H
7363 Points ∼41% -17%
Lenovo Legion Y520-15IKBM 80YY001APB
NVIDIA GeForce GTX 1060 Max-Q, 7300HQ
6212 Points ∼34% -30%
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030
NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4
4378 Points ∼24% -51%
MSI Prestige PS42 8RB-059
NVIDIA GeForce MX150, 8550U
4354 Points ∼24% -51%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, 8559U
2583 Points ∼14% -71%
1280x720 Performance GPU
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop), 6700K
17401 Points ∼34% +89%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
14302 Points ∼28% +55%
Lenovo Legion Y520-15IKBM 80YY001APB
NVIDIA GeForce GTX 1060 Max-Q, 7300HQ
13388 Points ∼26% +45%
Lenovo IdeaPad Y900
NVIDIA GeForce GTX 980M, 6820HK
13168 Points ∼26% +43%
Lenovo Legion Y530-15ICH
NVIDIA GeForce GTX 1050 Ti (Laptop), 8300H
9909 Points ∼19% +8%
Lenovo Legion C530-90JX003AUS
NVIDIA GeForce GTX 1050 Ti (Desktop), 8400
9212 Points ∼18%
Dell XPS 15 9570 Core i9 UHD
NVIDIA GeForce GTX 1050 Ti Max-Q, 8950HK
9032 Points ∼18% -2%
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030
NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4
4751 Points ∼9% -48%
MSI Prestige PS42 8RB-059
NVIDIA GeForce MX150, 8550U
4686 Points ∼9% -49%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, 8559U
3081 Points ∼6% -67%
3DMark
2560x1440 Time Spy Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
2908 Points ∼22%
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030
NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4
1088 Points ∼8%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, 8559U
633 Points ∼5%
1920x1080 Fire Strike Graphics
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop), 6700K
12984 Points ∼32% +73%
Lenovo Legion Y520-15IKBM 80YY001APB
NVIDIA GeForce GTX 1060 Max-Q, 7300HQ
10338 Points ∼25% +38%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
10248 Points ∼25% +37%
Lenovo IdeaPad Y900
NVIDIA GeForce GTX 980M, 6820HK
9888 Points ∼24% +32%
Lenovo Legion Y730-17ICH, i7-8750H
NVIDIA GeForce GTX 1050 Ti (Laptop), 8750H
7860 Points ∼19% +5%
Lenovo Legion Y530-15ICH
NVIDIA GeForce GTX 1050 Ti (Laptop), 8300H
7740 Points ∼19% +3%
Lenovo Legion C530-90JX003AUS
NVIDIA GeForce GTX 1050 Ti (Desktop), 8400
7485 Points ∼18%
Dell XPS 15 9570 Core i9 UHD
NVIDIA GeForce GTX 1050 Ti Max-Q, 8950HK
7374 Points ∼18% -1%
MSI Prestige PS42 8RB-059
NVIDIA GeForce MX150, 8550U
3712 Points ∼9% -50%
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030
NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4
3585 Points ∼9% -52%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, 8559U
2260 Points ∼6% -70%
1280x720 Cloud Gate Standard Graphics
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop), 6700K
80879 Points ∼44%
Lenovo IdeaPad Y900
NVIDIA GeForce GTX 980M, 6820HK
67779 Points ∼37%
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
59162 Points ∼32%
Lenovo Legion Y520-15IKBM 80YY001APB
NVIDIA GeForce GTX 1060 Max-Q, 7300HQ
57208 Points ∼31%
Lenovo Legion Y730-17ICH, i7-8750H
NVIDIA GeForce GTX 1050 Ti (Laptop), 8750H
50732 Points ∼27%
Lenovo Legion Y530-15ICH
NVIDIA GeForce GTX 1050 Ti (Laptop), 8300H
50387 Points ∼27%
Dell XPS 15 9570 Core i9 UHD
NVIDIA GeForce GTX 1050 Ti Max-Q, 8950HK
42202 Points ∼23%
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030
NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4
22171 Points ∼12%
MSI Prestige PS42 8RB-059
NVIDIA GeForce MX150, 8550U
21586 Points ∼12%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, 8559U
16698 Points ∼9%
1920x1080 Ice Storm Extreme Graphics
Intel Hades Canyon NUC8i7HVK
AMD Radeon RX Vega M GH, 8809G
282345 Points ∼39%
Lenovo IdeaPad Y900
NVIDIA GeForce GTX 980M, 6820HK
215674 Points ∼30%
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030
NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4
100969 Points ∼14%
Lenovo Legion Y520-15IKBM 80YY001APB
NVIDIA GeForce GTX 1060 Max-Q, 7300HQ
71289 Points ∼10%
3DMark 11 Performance
9151 punten
3DMark Fire Strike Score
6644 punten
Help
0102030
