Kort testrapport Lenovo Ideapad 530S-15IKB (i5-8250U, FHD) Laptop

Steve Schardein, 02-09-2018

Premium voor minder? Met de IdeaPad 530S heeft Lenovo het model nog verder afgeslankt en verbeterd door de nieuwste generatie van de componenten te gebruiken: een Core i5-8250U, 8 GB RAM en een FHD anti-glans beeldscherm. Is dit de XPS voor de rest?

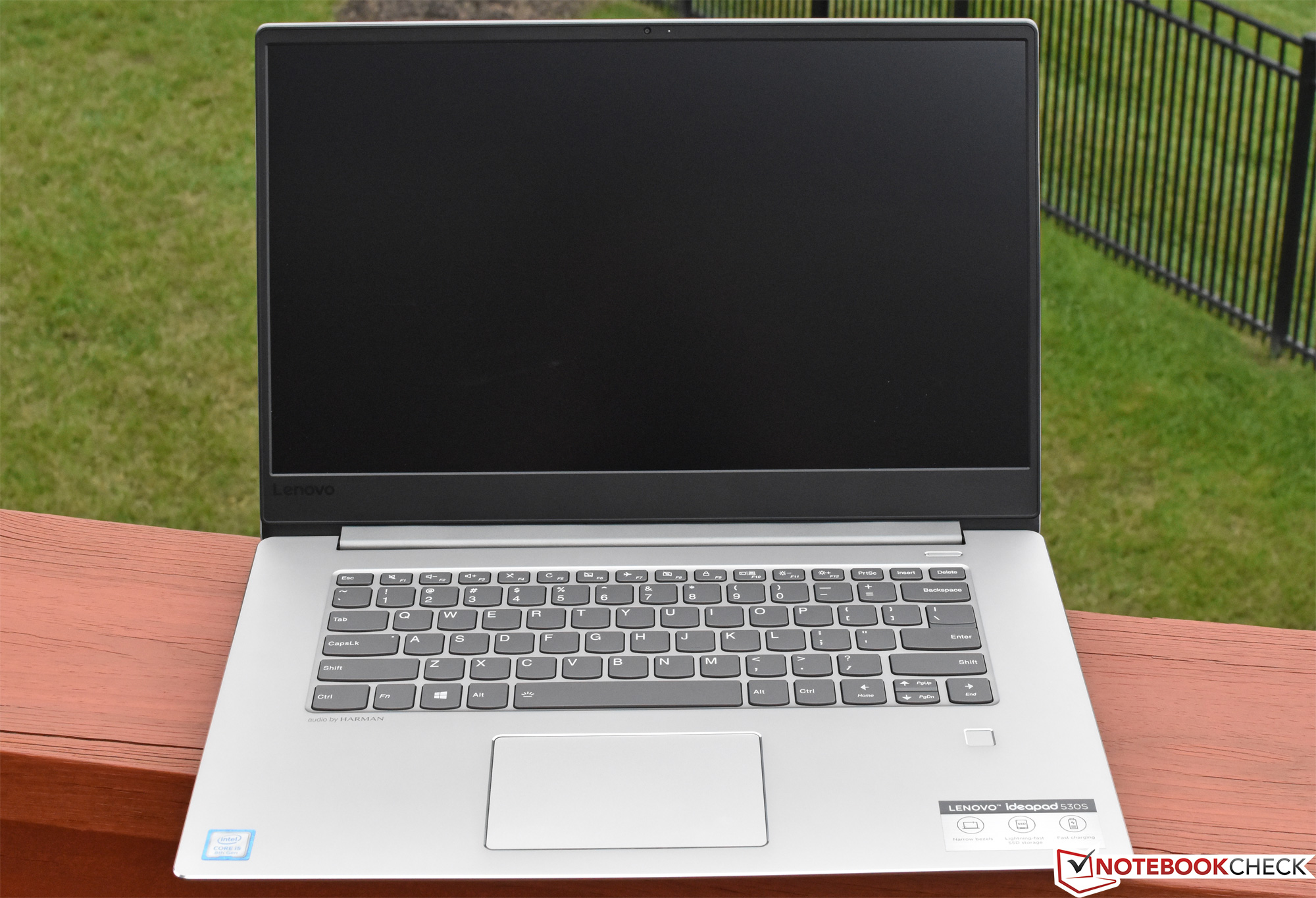

Lenovo Ideapad 530S-15IKB
Processor
Intel Core i5-8250U
Grafische kaart
Intel UHD Graphics 620, Core: 300 - 1100 MHz, Geheugen: 1200 MHz, 23.20.16.4905
Geheugen
8192 MB
, DDR4-2400 MHz
Beeldscherm
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, N156HCA-EAB, IPS, glimmend: nee
Moederbord
Intel Sunrise Point-LP
Opslag
SK hynix PC401 HFS256GD9TNG, 256 GB
Geluidskaart
Realtek ALC236 @ Intel Sunrise Point-LP PCH - High Definition Audiocontroller
Verbindingen
3 USB 3.0, 1 HDMI, Audio Verbindingen: 3.5 mm combo audio, Card Reader: SD, 1 Vingerafdruklezer
Netwerkmogelijkheden
Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.1
Afmetingen
hoogte x breedte x diepte (in mm): 17 x 359 x 245
Batterij
45 Wh Lithium-Polymer, 4-cellen
Besturingssysteem
Microsoft Windows 10 Home 64 Bit

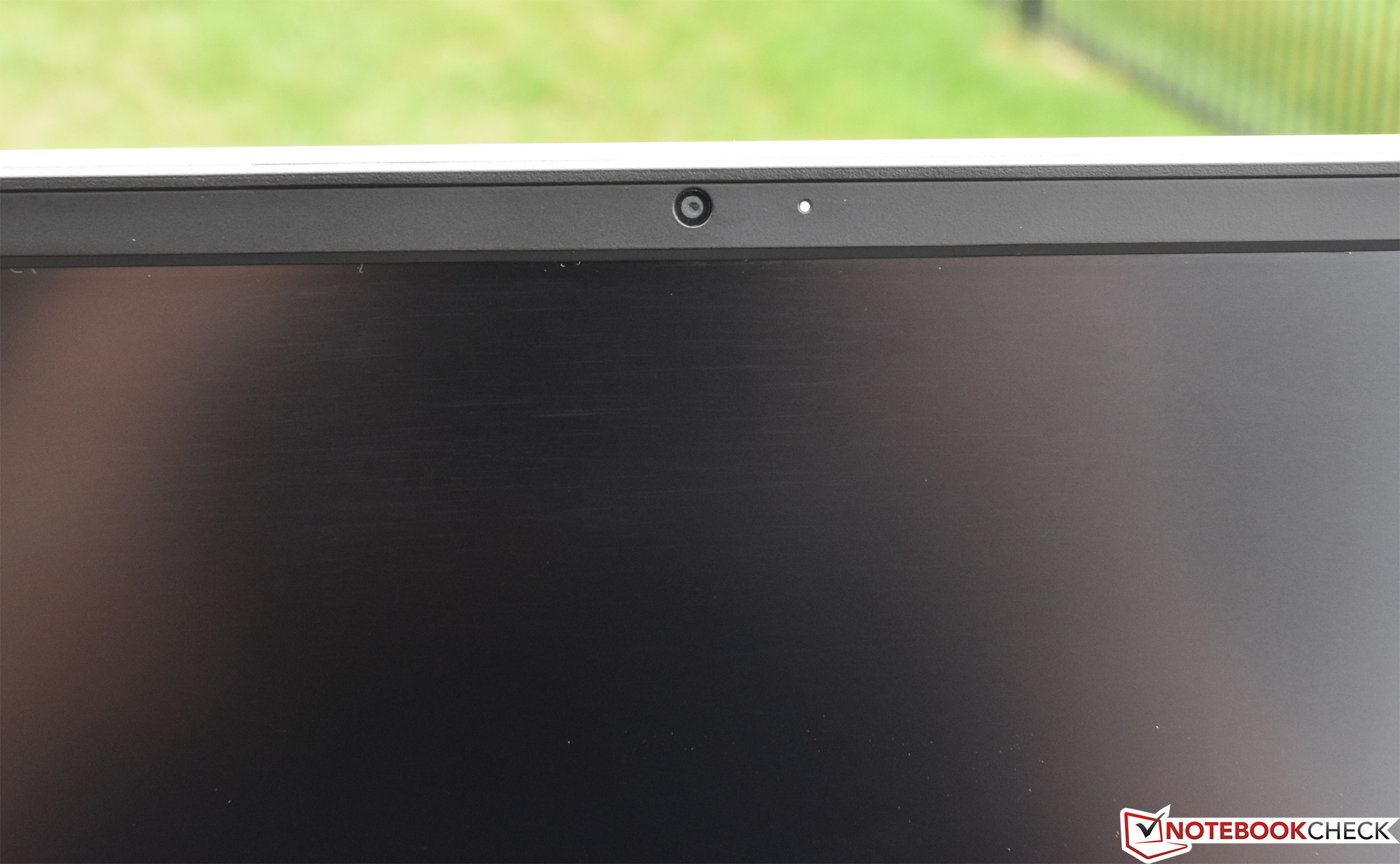

Camera
Webcam: 720p
Primary Camera: 1 MPix
Bijkomende functionaliteiten
Luidsprekers: 2.0, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 12 Maanden Garantie
Gewicht

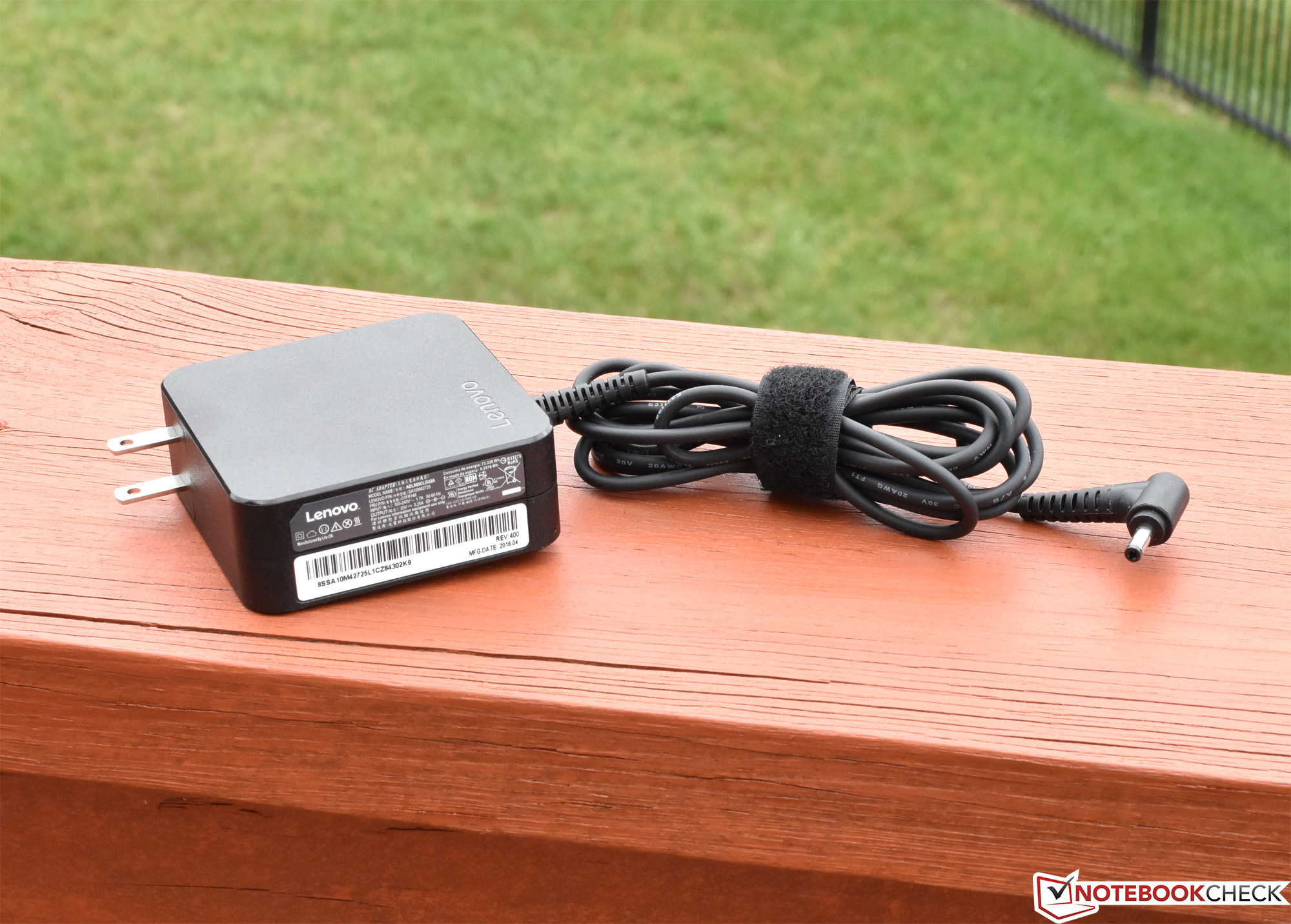

1.676 kg, Voeding: 214 g

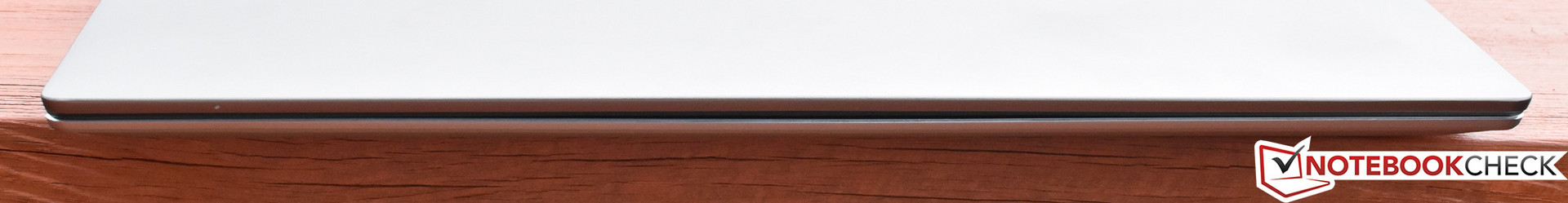

Front: No connections
Front: No connections

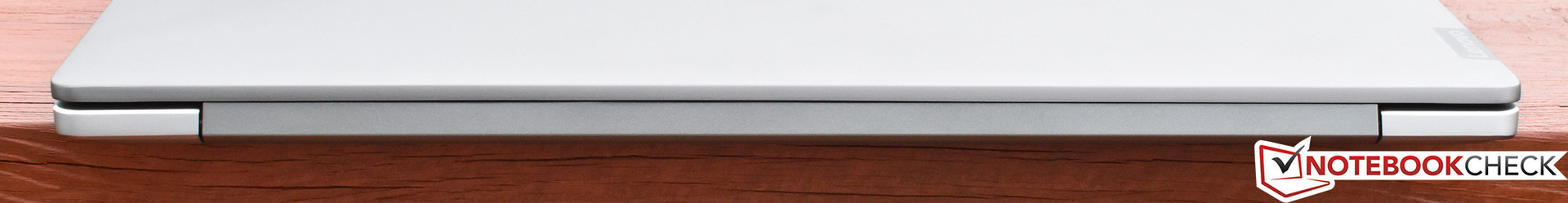

Rear: No connections
Rear: No connections

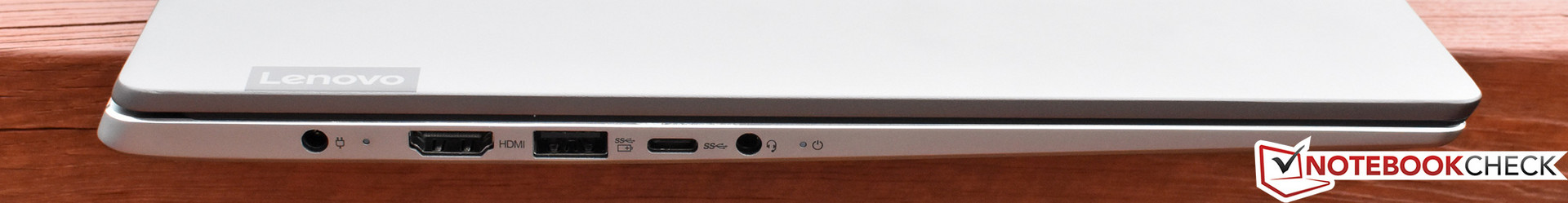

Left: Charging port, HDMI, USB 3.0, USB 3.1 Gen 1, 3.5 mm combo audio
Left: Charging port, HDMI, USB 3.0, USB 3.1 Gen 1, 3.5 mm combo audio

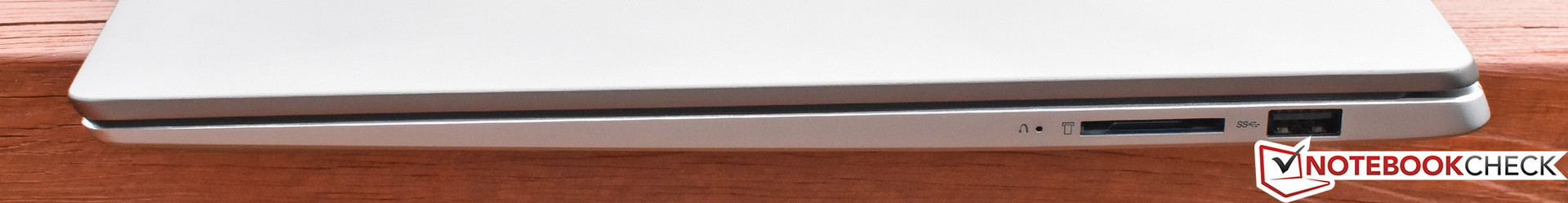

Lenovo OneKey Recovery, card reader, USB 3.0
Lenovo OneKey Recovery, card reader, USB 3.0
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell XPS 15 2018 i5 FHD 97Wh

123 MB/s ∼100% +350%
Acer Aspire 3 A315-41-R7BM
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
75.9 MB/s ∼62% +178%
Asus VivoBook 15 X570UD
  (Toshiba Exceria Pro M501 UHS-II)
73.1 MB/s ∼59% +167%
Average of class Multimedia
  (11.2 - 178, n=139)
54.4 MB/s ∼44% +99%
HP Pavilion 15-cs0053cl
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
36.31 MB/s ∼30% +33%
Lenovo Ideapad 530S-15IKB
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
27.35 MB/s ∼22%
Dell Inspiron 15 5579-9672
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
26.3 MB/s ∼21% -4%
maximum AS SSD Seq Read Test (1GB)
Dell XPS 15 2018 i5 FHD 97Wh

199.7 MB/s ∼100% +590%
Acer Aspire 3 A315-41-R7BM
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
86.2 MB/s ∼43% +198%
Asus VivoBook 15 X570UD
  (Toshiba Exceria Pro M501 UHS-II)
86.2 MB/s ∼43% +198%
Average of class Multimedia
  (10.2 - 253, n=136)
71.9 MB/s ∼36% +148%
HP Pavilion 15-cs0053cl
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
38.56 MB/s ∼19% +33%
Dell Inspiron 15 5579-9672
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
29.7 MB/s ∼15% +3%
Lenovo Ideapad 530S-15IKB
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
28.95 MB/s ∼14%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo Ideapad 530S-15IKB
Intel Dual Band Wireless-AC 8265
652 MBit/s ∼100%
Asus VivoBook 15 X570UD
Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter
623 MBit/s ∼96% -4%
Dell Inspiron 15 5579-9672
Qualcomm Atheros QCA61x4
612 MBit/s ∼94% -6%
Dell XPS 15 2018 i5 FHD 97Wh
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
542 MBit/s ∼83% -17%
Average of class Multimedia
  (44 - 949, n=98)
503 MBit/s ∼77% -23%
Acer Aspire 3 A315-41-R7BM
Qualcomm Atheros QCA9377 Wireless Network Adapter
338 MBit/s ∼52% -48%
HP Pavilion 15-cs0053cl
RealTek Semiconductor, Device ID: C821
245 MBit/s ∼38% -62%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell Inspiron 15 5579-9672
Qualcomm Atheros QCA61x4
657 MBit/s ∼100% +24%
Asus VivoBook 15 X570UD
Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter
589 MBit/s ∼90% +11%
Dell XPS 15 2018 i5 FHD 97Wh
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
539 MBit/s ∼82% +2%
Lenovo Ideapad 530S-15IKB
Intel Dual Band Wireless-AC 8265
530 MBit/s ∼81%
Average of class Multimedia
  (46.1 - 949, n=98)
466 MBit/s ∼71% -12%
Acer Aspire 3 A315-41-R7BM
Qualcomm Atheros QCA9377 Wireless Network Adapter
345 MBit/s ∼53% -35%
HP Pavilion 15-cs0053cl
RealTek Semiconductor, Device ID: C821
280 MBit/s ∼43% -47%

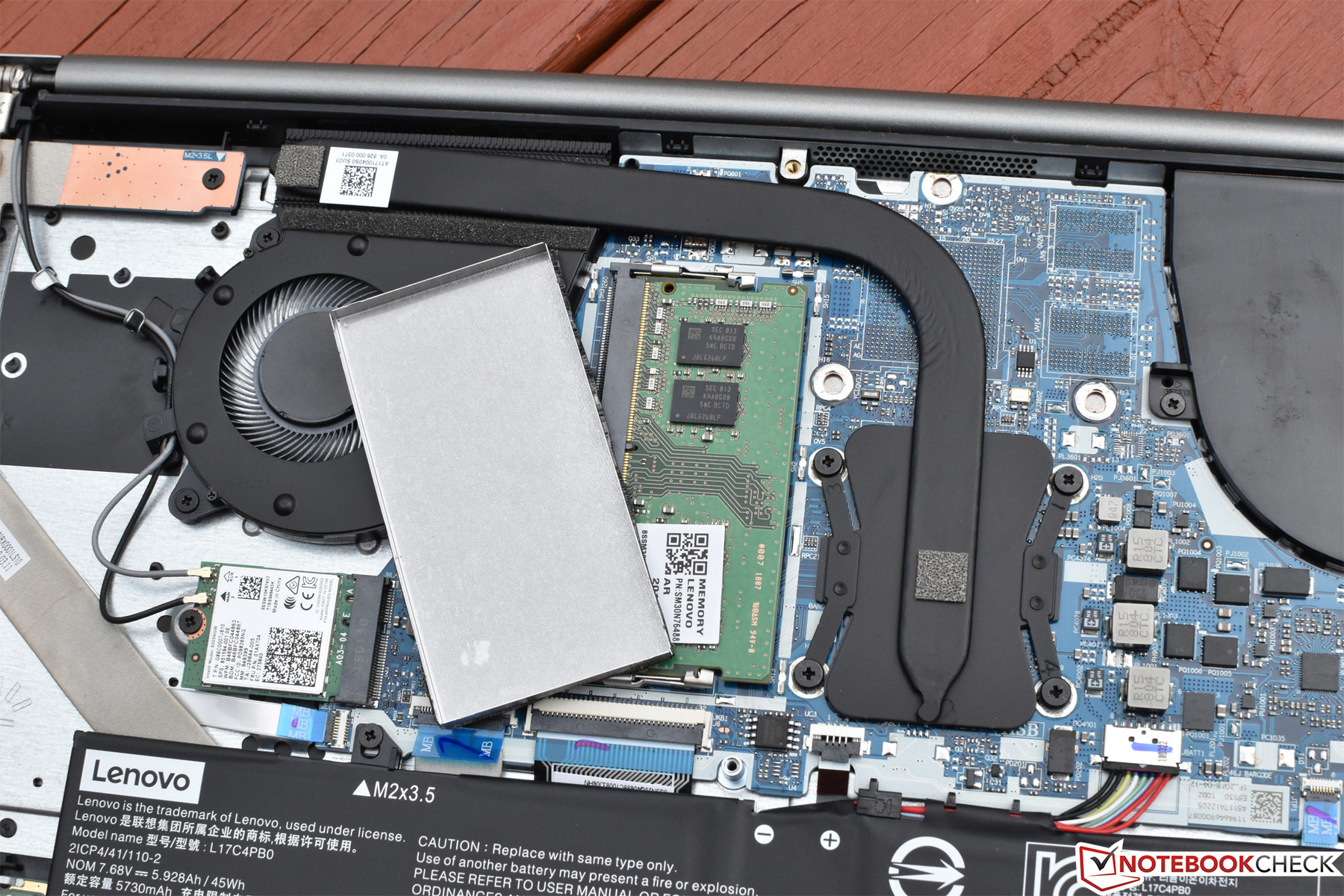

The RAM is indeed replaceable...
The RAM is indeed replaceable...

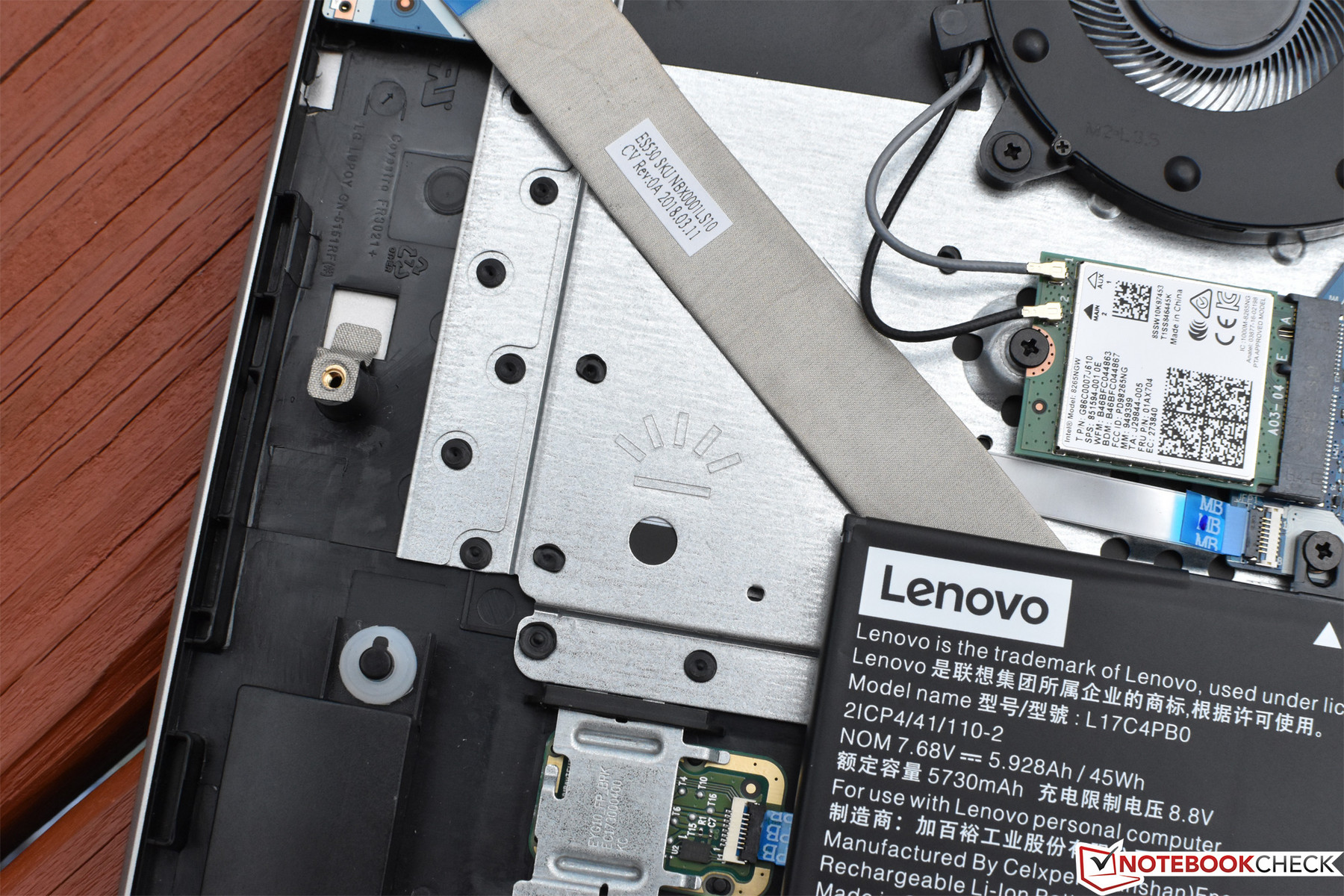

...following removal of the delicate heat shield.
...following removal of the delicate heat shield.
The keyboard, meanwhile, is permanently affixed to the top cover via plastic spot welds.
The keyboard, meanwhile, is permanently affixed to the top cover via plastic spot welds.
284.5
cd/m²
276.8
cd/m²
265.5
cd/m²
272.4
cd/m²
285.1
cd/m²
258.8
cd/m²
260.2
cd/m²
282.4
cd/m²
251.3
cd/m²
Helderheidsverdeling
X-Rite i1Pro Basic 2
Maximum: 285.1 cd/m² Gemiddelde: 270.8 cd/m² Minimum: 0.1 cd/m²
Helderheidsverdeling: 88 %
Helderheid in Batterij-modus: 285.1 cd/m²
Contrast: 1018:1 (Zwart: 0.28 cd/m²)
ΔE Color 4.38 | 0.4-29.43 Ø6.3, calibrated: 3.95
ΔE Greyscale 3.1 | 0.64-98 Ø6.5
62% sRGB (Argyll 3D) 40% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.24
Lenovo Ideapad 530S-15IKB
N156HCA-EAB, IPS, 15.6, 1920x1080
HP Pavilion 15-cs0053cl
AU Optronics B156XW02 V0, TN LED, 15.6, 1366x768
Asus VivoBook 15 X570UD
AU Optronics B156HAN06.1, IPS, 15.6, 1920x1080
Dell Inspiron 15 5579-9672
AUO, B156HW01, IPS, 15.6, 1920x1080
Acer Aspire 3 A315-41-R7BM
Chi Mei CMN15D5, TN LED, 15.6, 1920x1080
Dell XPS 15 2018 i5 FHD 97Wh
Sharp SHP149A LQ156M1, LED IGZO IPS InfinityEdge, 15.6, 1920x1080
Response Times
18%
12%
0%
12%
-40%
Response Time Grey 50% / Grey 80% *
37.2 (19.6, 17.6)
43.6 (20, 23.6)
-17%
32 (19.2, 12.8)
14%
41 (19, 22)
-10%
44 (23, 21)
-18%
49 (25, 40)
-32%
Response Time Black / White *
32.4 (18.4, 14)
15.2 (10, 5.2)
53%
29.2 (17.2, 12)
10%
29 (17, 12)
10%
14 (10, 4)
57%
30 (16, 14)
7%
PWM Frequency
25770 (67)
25000 (10)
-3%
961 (10)
-96%
Screen
-49%
2%
3%
-56%
37%
Brightness middle
285.1
220.1
-23%
240.1
-16%
251
-12%
234
-18%
413
45%
Brightness
271
210
-23%
233
-14%
240
-11%
211
-22%
378
39%
Brightness Distribution
88
93
6%
91
3%
84
-5%
83
-6%
86
-2%
Black Level *
0.28
0.29
-4%
0.23
18%
0.2
29%
0.43
-54%
0.29
-4%
Contrast
1018
759
-25%
1044
3%
1255
23%
544
-47%
1424
40%
Colorchecker DeltaE2000 *
4.38
11.4
-160%
4.25
3%
5.25
-20%
11.27
-157%
2.44
44%
Colorchecker DeltaE2000 max. *
24.07
25.96
-8%
17.84
26%
10.04
58%
18.03
25%
4.46
81%
Colorchecker DeltaE2000 calibrated *
3.95
4.09
-4%
4
-1%
2.48
37%
Greyscale DeltaE2000 *
3.1
12
-287%
2.8
10%
3.28
-6%
11.54
-272%
2.48
20%
Gamma
2.24 107%
2.09 115%
2.3 104%
2.15 112%
2.09 115%
2.43 99%
CCT
6705 97%
12625 51%
6503 100%
6502 100%
11607 56%
7006 93%
Color Space (Percent of AdobeRGB 1998)
40
36.5
-9%
36.8
-8%
35
-12%
38
-5%
62
55%
Color Space (Percent of sRGB)
62
57.5
-7%
57.8
-7%
55
-11%
60
-3%
96
55%
Totaal Gemiddelde (Programma / Instellingen)
-16% / -39%
7% / 3%
2% / 3%
-22% / -40%
-2% / 21%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

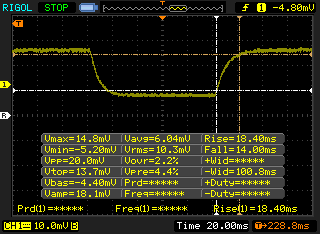

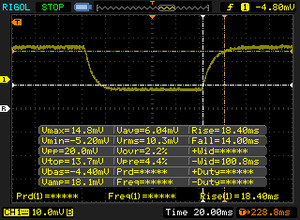

       Responstijd Zwart naar Wit
32.4 ms ... stijging ↗ en daling ↘ gecombineerd↗ 18.4 ms stijging
↘ 14 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 85 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (25.8 ms) van alle geteste toestellen.

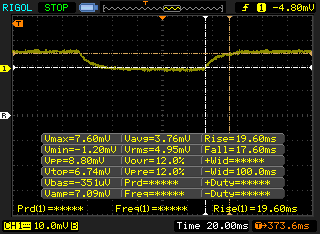

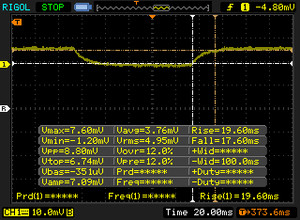

       Responstijd 50% Grijs naar 80% Grijs
37.2 ms ... stijging ↗ en daling ↘ gecombineerd↗ 19.6 ms stijging
↘ 17.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 33 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (41.3 ms) van alle geteste toestellen.

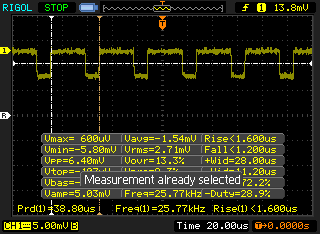

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 25770 Hz ≤ 67 % helderheid instelling

Het backlight van het scherm flikkert aan 25770 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 67 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 25770 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 53 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8813 (minimum: 43 - maximum: 142900) Hz waargenomen.

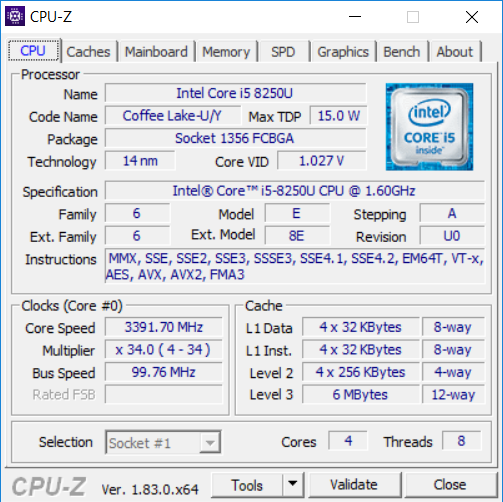

CPU-Z CPU
CPU-Z CPU

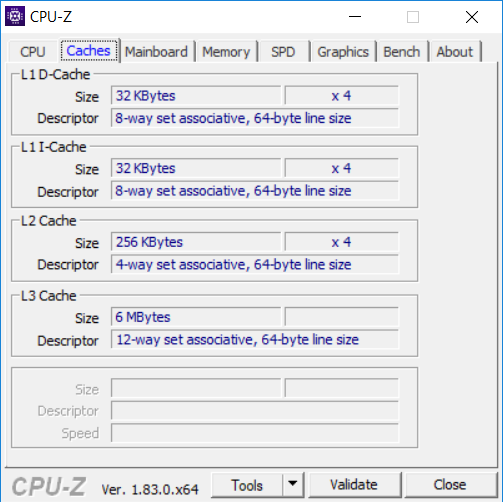

CPU-Z Caches
CPU-Z Caches

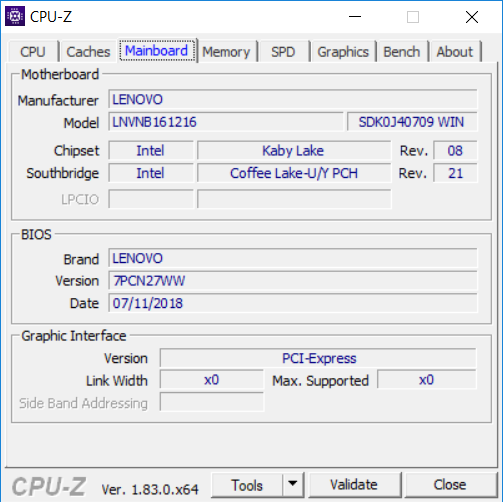

CPU-Z Mainboard
CPU-Z Mainboard
CPU-Z Memory
CPU-Z Memory

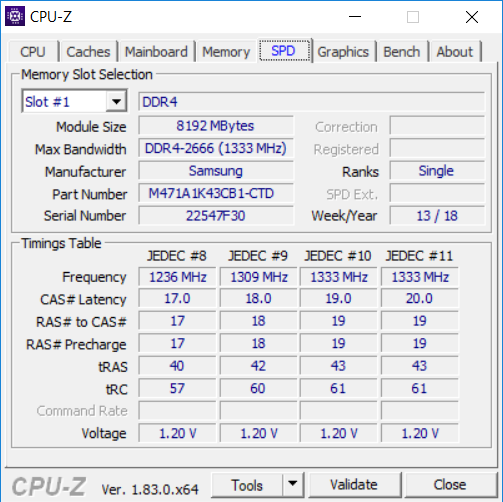

CPU-Z RAM SPD
CPU-Z RAM SPD

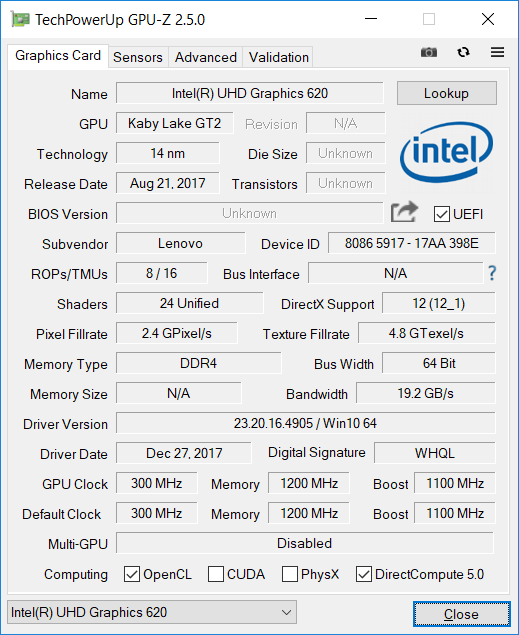

GPU-Z
GPU-Z

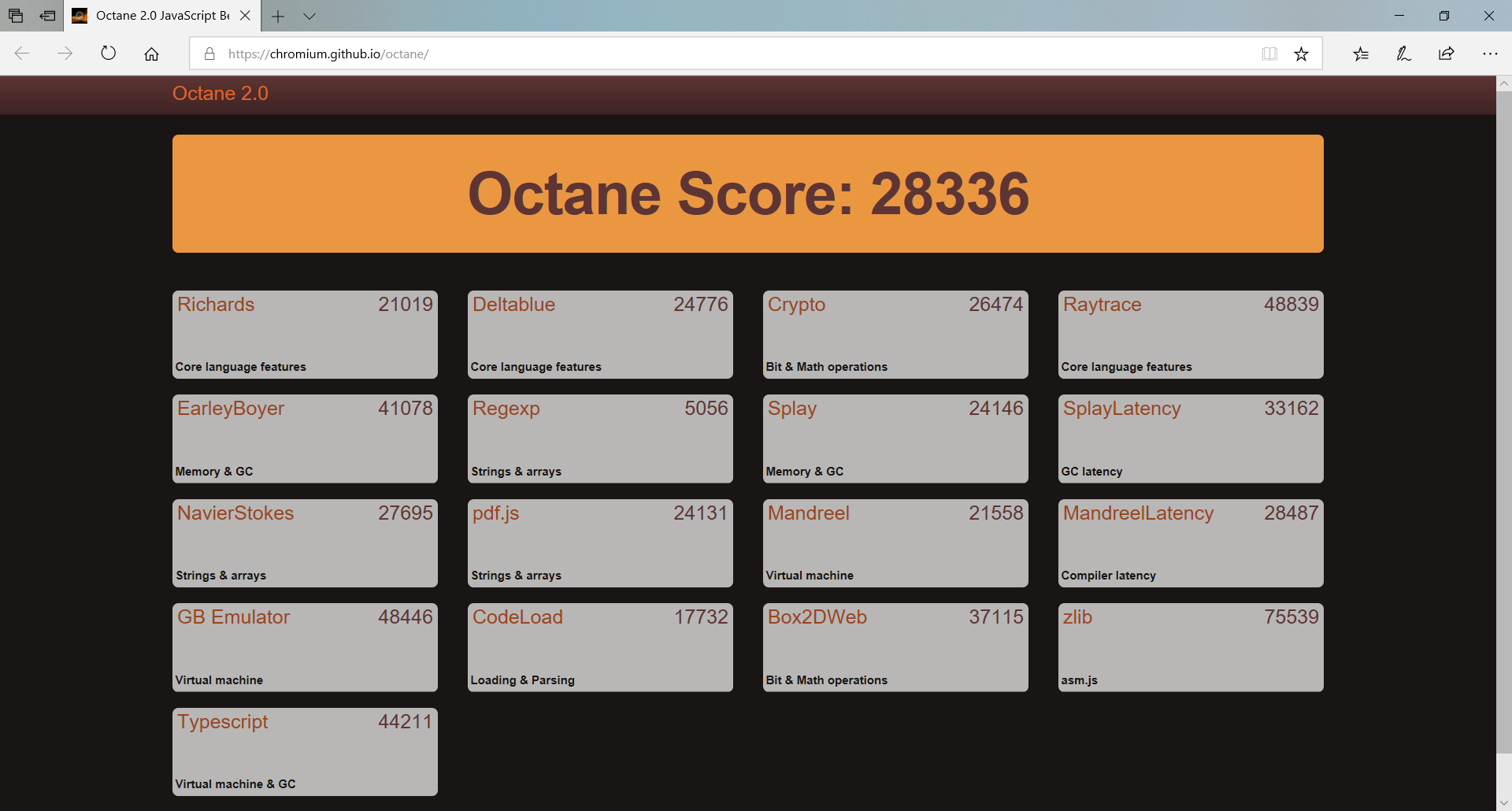

Octane v2
Octane v2

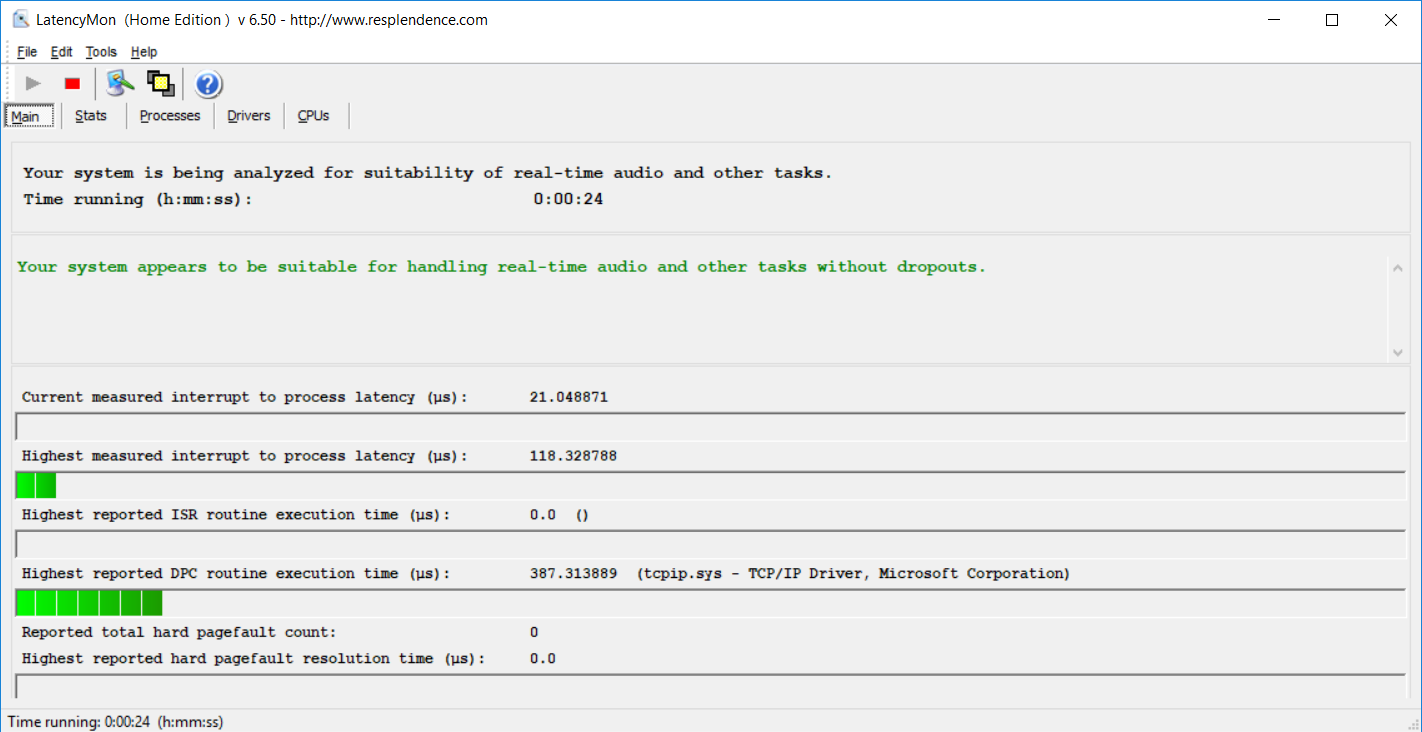

LatencyMon
LatencyMon
Cinebench R15
CPU Single 64Bit
Asus VivoBook 15 X570UD
Intel Core i7-8550U
172 Points ∼83% +19%
Dell XPS 15 2018 i5 FHD 97Wh
Intel Core i5-8300H
167 Points ∼81% +16%
HP Pavilion 15-cs0053cl
Intel Core i5-8250U
144 Points ∼70% 0%
Lenovo Ideapad 530S-15IKB
Intel Core i5-8250U
144 Points ∼70%
Average Intel Core i5-8250U
  (81 - 147, n=72)
141 Points ∼68% -2%
Dell Inspiron 15 5579-9672
Intel Core i5-8250U
140 Points ∼68% -3%
Acer Aspire 3 A315-41-R7BM
AMD Ryzen 3 2200U
128 Points ∼62% -11%
Average of class Multimedia
  (36 - 191, n=322)
123 Points ∼59% -15%
CPU Multi 64Bit
Dell XPS 15 2018 i5 FHD 97Wh
Intel Core i5-8300H
840 Points ∼27% +71%
Asus VivoBook 15 X570UD
Intel Core i7-8550U
663 Points ∼21% +35%
Average Intel Core i5-8250U
  (320 - 730, n=75)
569 Points ∼18% +16%
Dell Inspiron 15 5579-9672
Intel Core i5-8250U
557 Points ∼18% +14%
HP Pavilion 15-cs0053cl
Intel Core i5-8250U
536 Points ∼17% +9%
Lenovo Ideapad 530S-15IKB
Intel Core i5-8250U
490 Points ∼16%
Average of class Multimedia
  (73 - 1550, n=331)
439 Points ∼14% -10%
Acer Aspire 3 A315-41-R7BM
AMD Ryzen 3 2200U
318 Points ∼10% -35%
Cinebench R15 CPU Single 64Bit
144 Points
Cinebench R15 CPU Multi 64Bit
490 Points
Cinebench R15 OpenGL 64Bit
40.97 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530Tooltip
Cinebench R15 CPU Multi 64 Bit
PCMark 8
Work Score Accelerated v2
Dell XPS 15 2018 i5 FHD 97Wh
GeForce GTX 1050 (Notebook), 8300H, Lite-On CA3-8D256-Q11
5271 Points ∼81% +11%
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
4762 Points ∼73%
HP Pavilion 15-cs0053cl
UHD Graphics 620, 8250U, Toshiba MQ04ABF100
4654 Points ∼71% -2%
Average Intel Core i5-8250U, Intel UHD Graphics 620
  (2699 - 5106, n=43)
4653 Points ∼71% -2%
Acer Aspire 3 A315-41-R7BM
Vega 3, 2200U, SK Hynix HFS256G39TND-N210A
4592 Points ∼70% -4%
Dell Inspiron 15 5579-9672
UHD Graphics 620, 8250U, SK hynix SC311 SATA
4556 Points ∼70% -4%
Average of class Multimedia
  (2213 - 5343, n=241)
4207 Points ∼65% -12%
Home Score Accelerated v2
Asus VivoBook 15 X570UD
GeForce GTX 1050 (Notebook), 8550U, SK hynix PC300 HFS512GD9MND
4188 Points ∼69% +17%
Dell XPS 15 2018 i5 FHD 97Wh
GeForce GTX 1050 (Notebook), 8300H, Lite-On CA3-8D256-Q11
4030 Points ∼66% +12%
HP Pavilion 15-cs0053cl
UHD Graphics 620, 8250U, Toshiba MQ04ABF100
3675 Points ∼60% +3%
Average Intel Core i5-8250U, Intel UHD Graphics 620
  (3076 - 4458, n=51)
3625 Points ∼59% +1%
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
3585 Points ∼59%
Acer Aspire 3 A315-41-R7BM
Vega 3, 2200U, SK Hynix HFS256G39TND-N210A
3457 Points ∼57% -4%
Dell Inspiron 15 5579-9672
UHD Graphics 620, 8250U, SK hynix SC311 SATA
3370 Points ∼55% -6%
Average of class Multimedia
  (1740 - 4693, n=260)
3332 Points ∼55% -7%
PCMark 8 Home Score Accelerated v2
3585 punten
PCMark 8 Work Score Accelerated v2
4762 punten
Help
Lenovo Ideapad 530S-15IKB
SK hynix PC401 HFS256GD9TNG
Asus VivoBook 15 X570UD
SK hynix PC300 HFS512GD9MND
Dell Inspiron 15 5579-9672
SK hynix SC311 SATA
Acer Aspire 3 A315-41-R7BM
SK Hynix HFS256G39TND-N210A
Dell XPS 15 2018 i5 FHD 97Wh
Lite-On CA3-8D256-Q11
Average SK hynix PC401 HFS256GD9TNG

AS SSD
38%
-45%
-83%
-155%
0%
Copy Game MB/s
301.11
791.97
163%
231.61
-23%
145.42
-52%
465.85
55%
301
0%
Copy Program MB/s
233.52
334.26
43%
166.43
-29%
93.97
-60%
117.21
-50%
234
0%
Copy ISO MB/s
868.11
1265.27
46%
301.27
-65%
199.76
-77%
632.4
-27%
868
0%
Score Total
1387
2249
62%
910
-34%
594
-57%
750
-46%
1387
0%
Score Write
415
836
101%
330
-20%
210
-49%
58
-86%
415
0%
Score Read
690
968
40%
383
-44%
256
-63%
492
-29%
690
0%
Access Time Write *
0.051
0.127
-149%
0.075
-47%
0.225
-341%
0.889
-1643%
0.051
-0%
Access Time Read *
0.06
0.059
2%
0.142
-137%
0.136
-127%
0.086
-43%
0.06
-0%
4K-64 Write
271.59
676.75
149%
246.99
-9%
145.01
-47%
19.19
-93%
272
0%
4K-64 Read
431.26
755.54
75%
309.7
-28%
187.89
-56%
301.79
-30%
431
0%
4K Write
88.45
85.79
-3%
47.64
-46%
40.46
-54%
5.12
-94%
88.5
0%
4K Read
38.69
30.78
-20%
23.71
-39%
22.24
-43%
32.5
-16%
38.7
0%
Seq Write
549.75
734.97
34%
356.2
-35%
241.77
-56%
340.31
-38%
550
0%
Seq Read
2205.34
1816.52
-18%
497.48
-77%
457.6
-79%
1573.62
-29%
2205
0%

* ... kleiner is beter

SK hynix PC401 HFS256GD9TNG
CDM 5/6 Read Seq Q32T1: 2606 MB/s
CDM 5/6 Write Seq Q32T1: 669.3 MB/s
CDM 5/6 Read 4K Q32T1: 267 MB/s
CDM 5/6 Write 4K Q32T1: 201.8 MB/s
CDM 5 Read Seq: 1677 MB/s
CDM 5 Write Seq: 804.2 MB/s
CDM 5/6 Read 4K: 40.46 MB/s
CDM 5/6 Write 4K: 93.78 MB/s
3DMark 11
1280x720 Performance Combined
Dell XPS 15 2018 i5 FHD 97Wh
NVIDIA GeForce GTX 1050 (Notebook), 8300H
7607 Points ∼43% +498%
Asus VivoBook 15 X570UD
NVIDIA GeForce GTX 1050 (Notebook), 8550U
7414 Points ∼42% +483%
Average of class Multimedia
  (375 - 8966, n=587)
2246 Points ∼13% +77%
Acer Aspire 3 A315-41-R7BM
AMD Radeon RX Vega 3, 2200U
1940 Points ∼11% +53%
HP Pavilion 15-cs0053cl
Intel UHD Graphics 620, 8250U
1501 Points ∼9% +18%
Average Intel UHD Graphics 620
  (959 - 1891, n=83)
1459 Points ∼8% +15%
Lenovo Ideapad 530S-15IKB
Intel UHD Graphics 620, 8250U
1272 Points ∼7%
Dell Inspiron 15 5579-9672
Intel UHD Graphics 620, 8250U
1249 Points ∼7% -2%
1280x720 Performance GPU
Dell XPS 15 2018 i5 FHD 97Wh
NVIDIA GeForce GTX 1050 (Notebook), 8300H
7790 Points ∼15% +404%
Asus VivoBook 15 X570UD
NVIDIA GeForce GTX 1050 (Notebook), 8550U
7563 Points ∼15% +389%
Average of class Multimedia
  (352 - 15256, n=590)
2688 Points ∼5% +74%
Acer Aspire 3 A315-41-R7BM
AMD Radeon RX Vega 3, 2200U
1908 Points ∼4% +23%
HP Pavilion 15-cs0053cl
Intel UHD Graphics 620, 8250U
1666 Points ∼3% +8%
Average Intel UHD Graphics 620
  (1235 - 1915, n=83)
1650 Points ∼3% +7%
Lenovo Ideapad 530S-15IKB
Intel UHD Graphics 620, 8250U
1547 Points ∼3%
Dell Inspiron 15 5579-9672
Intel UHD Graphics 620, 8250U
1529 Points ∼3% -1%
3DMark
1920x1080 Fire Strike Graphics
Dell XPS 15 2018 i5 FHD 97Wh
NVIDIA GeForce GTX 1050 (Notebook), 8300H
6216 Points ∼15% +519%
Average of class Multimedia
  (337 - 11850, n=368)
2575 Points ∼6% +156%
Acer Aspire 3 A315-41-R7BM
AMD Radeon RX Vega 3, 2200U
1388 Points ∼3% +38%
Average Intel UHD Graphics 620
  (819 - 1336, n=72)
1070 Points ∼3% +7%
Lenovo Ideapad 530S-15IKB
Intel UHD Graphics 620, 8250U
1004 Points ∼2%
Dell Inspiron 15 5579-9672
Intel UHD Graphics 620, 8250U
997 Points ∼2% -1%
1280x720 Cloud Gate Standard Graphics
Dell XPS 15 2018 i5 FHD 97Wh
NVIDIA GeForce GTX 1050 (Notebook), 8300H
39896 Points ∼22% +426%
Average of class Multimedia
  (2468 - 77755, n=371)
15366 Points ∼8% +103%
Acer Aspire 3 A315-41-R7BM
AMD Radeon RX Vega 3, 2200U
10053 Points ∼5% +33%
Average Intel UHD Graphics 620
  (6910 - 10493, n=76)
8674 Points ∼5% +14%
HP Pavilion 15-cs0053cl
Intel UHD Graphics 620, 8250U
8567 Points ∼5% +13%
Dell Inspiron 15 5579-9672
Intel UHD Graphics 620, 8250U
8112 Points ∼4% +7%
Lenovo Ideapad 530S-15IKB
Intel UHD Graphics 620, 8250U
7581 Points ∼4%
1920x1080 Ice Storm Extreme Graphics
Average of class Multimedia
  (3538 - 171011, n=73)
65989 Points ∼9%
Acer Aspire 3 A315-41-R7BM
AMD Radeon RX Vega 3, 2200U
54893 Points ∼8%
Average Intel UHD Graphics 620
  (30939 - 55131, n=25)
44159 Points ∼6%
Dell Inspiron 15 5579-9672
Intel UHD Graphics 620, 8250U
39688 Points ∼5%
3DMark 11 Performance
1690 punten
3DMark Cloud Gate Standard Score
6844 punten
3DMark Fire Strike Score
936 punten
Help
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sorteer op waarde)
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
7 fps ∼3%
Asus VivoBook 15 X570UD
GeForce GTX 1050 (Notebook), 8550U, SK hynix PC300 HFS512GD9MND
61.3 fps ∼23% +776%
Dell Inspiron 15 5579-9672
UHD Graphics 620, 8250U, SK hynix SC311 SATA
7.4 fps ∼3% +6%
Acer Aspire 3 A315-41-R7BM
Vega 3, 2200U, SK Hynix HFS256G39TND-N210A
10 fps ∼4% +43%
Dell XPS 15 2018 i5 FHD 97Wh
GeForce GTX 1050 (Notebook), 8300H, Lite-On CA3-8D256-Q11
67.5 fps ∼25% +864%
Average Intel UHD Graphics 620
  (6.2 - 11, n=68)
8.6 fps ∼3% +23%
Average of class Multimedia
  (3.62 - 92.5, n=189)
24.7 fps ∼9% +253%
1366x768 High Preset (sorteer op waarde)
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
19 fps ∼6%
HP Pavilion 15-cs0053cl
UHD Graphics 620, 8250U, Toshiba MQ04ABF100
15.7 fps ∼5% -17%
Asus VivoBook 15 X570UD
GeForce GTX 1050 (Notebook), 8550U, SK hynix PC300 HFS512GD9MND
152.9 fps ∼50% +705%
Dell Inspiron 15 5579-9672
UHD Graphics 620, 8250U, SK hynix SC311 SATA
22.4 fps ∼7% +18%
Acer Aspire 3 A315-41-R7BM
Vega 3, 2200U, SK Hynix HFS256G39TND-N210A
31 fps ∼10% +63%
Average Intel UHD Graphics 620
  (15.6 - 34.3, n=74)
25.3 fps ∼8% +33%
Average of class Multimedia
  (11.9 - 189, n=224)
55.8 fps ∼18% +194%
1366x768 Medium Preset (sorteer op waarde)
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
21 fps ∼6%
HP Pavilion 15-cs0053cl
UHD Graphics 620, 8250U, Toshiba MQ04ABF100
18.3 fps ∼5% -13%
Asus VivoBook 15 X570UD
GeForce GTX 1050 (Notebook), 8550U, SK hynix PC300 HFS512GD9MND
172.2 fps ∼50% +720%
Dell Inspiron 15 5579-9672
UHD Graphics 620, 8250U, SK hynix SC311 SATA
27.1 fps ∼8% +29%
Acer Aspire 3 A315-41-R7BM
Vega 3, 2200U, SK Hynix HFS256G39TND-N210A
46.2 fps ∼13% +120%
Average Intel UHD Graphics 620
  (18.3 - 40.4, n=74)
30.3 fps ∼9% +44%
Average of class Multimedia
  (14.2 - 214, n=215)
61.9 fps ∼18% +195%
1280x720 Very Low Preset (sorteer op waarde)
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
47 fps ∼12%
HP Pavilion 15-cs0053cl
UHD Graphics 620, 8250U, Toshiba MQ04ABF100
39.2 fps ∼10% -17%
Asus VivoBook 15 X570UD
GeForce GTX 1050 (Notebook), 8550U, SK hynix PC300 HFS512GD9MND
227 fps ∼57% +383%
Dell Inspiron 15 5579-9672
UHD Graphics 620, 8250U, SK hynix SC311 SATA
48.1 fps ∼12% +2%
Acer Aspire 3 A315-41-R7BM
Vega 3, 2200U, SK Hynix HFS256G39TND-N210A
90.5 fps ∼23% +93%
Average Intel UHD Graphics 620
  (32.6 - 80.3, n=74)
56.1 fps ∼14% +19%
Average of class Multimedia
  (19.5 - 297, n=208)
96.2 fps ∼24% +105%
Rise of the Tomb Raider
1920x1080 Very High Preset AA:FX AF:16x (sorteer op waarde)
Dell XPS 15 2018 i5 FHD 97Wh
GeForce GTX 1050 (Notebook), 8300H, Lite-On CA3-8D256-Q11
33.2 fps ∼21%
Average Intel UHD Graphics 620
  (3 - 14.5, n=4)
6.13 fps ∼4%
Average of class Multimedia
  (1.8 - 62.8, n=68)
22.2 fps ∼14%
1920x1080 High Preset AA:FX AF:4x (sorteer op waarde)
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
6 fps ∼3%
Dell Inspiron 15 5579-9672
UHD Graphics 620, 8250U, SK hynix SC311 SATA
6.5 fps ∼4% +8%
Acer Aspire 3 A315-41-R7BM
Vega 3, 2200U, SK Hynix HFS256G39TND-N210A
6.6 fps ∼4% +10%
Dell XPS 15 2018 i5 FHD 97Wh
GeForce GTX 1050 (Notebook), 8300H, Lite-On CA3-8D256-Q11
40.6 fps ∼23% +577%
Average Intel UHD Graphics 620
  (4.9 - 32, n=21)
7.69 fps ∼4% +28%
Average of class Multimedia
  (2.5 - 74.5, n=85)
24 fps ∼13% +300%
1366x768 Medium Preset AF:2x (sorteer op waarde)
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
11 fps ∼5%
HP Pavilion 15-cs0053cl
UHD Graphics 620, 8250U, Toshiba MQ04ABF100
6.5 fps ∼3% -41%
Dell Inspiron 15 5579-9672
UHD Graphics 620, 8250U, SK hynix SC311 SATA
11.4 fps ∼5% +4%
Acer Aspire 3 A315-41-R7BM
Vega 3, 2200U, SK Hynix HFS256G39TND-N210A
16 fps ∼7% +45%
Dell XPS 15 2018 i5 FHD 97Wh
GeForce GTX 1050 (Notebook), 8300H, Lite-On CA3-8D256-Q11
73.2 fps ∼33% +565%
Average Intel UHD Graphics 620
  (6.5 - 49.3, n=31)
12.8 fps ∼6% +16%
Average of class Multimedia
  (5.3 - 111, n=95)
33.5 fps ∼15% +205%
1024x768 Lowest Preset (sorteer op waarde)
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
17 fps ∼6%
HP Pavilion 15-cs0053cl
UHD Graphics 620, 8250U, Toshiba MQ04ABF100
10.4 fps ∼4% -39%
Dell Inspiron 15 5579-9672
UHD Graphics 620, 8250U, SK hynix SC311 SATA
18.6 fps ∼6% +9%
Acer Aspire 3 A315-41-R7BM
Vega 3, 2200U, SK Hynix HFS256G39TND-N210A
25.6 fps ∼9% +51%
Average Intel UHD Graphics 620
  (10.4 - 111, n=40)
21.8 fps ∼8% +28%
Average of class Multimedia
  (9.4 - 158, n=90)
51.1 fps ∼18% +201%
Metro: Last Light
1920x1080 Very High (DX11) AF:16x (sorteer op waarde)
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
6 fps ∼3%
Average Intel UHD Graphics 620
  (6 - 6, n=2)
6 fps ∼3% 0%
Average of class Multimedia
  (4 - 45.1, n=58)
17.9 fps ∼10% +198%
1366x768 High (DX11) AF:16x (sorteer op waarde)
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
13 fps ∼7%
Average Intel UHD Graphics 620
  (13 - 15, n=2)
14 fps ∼7% +8%
Average of class Multimedia
  (6 - 83.9, n=85)
28.9 fps ∼15% +122%
1366x768 Medium (DX10) AF:4x (sorteer op waarde)
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
22 fps ∼11%
HP Pavilion 15-cs0053cl
UHD Graphics 620, 8250U, Toshiba MQ04ABF100
16.4 fps ∼8% -25%
Average Intel UHD Graphics 620
  (16.4 - 23, n=3)
20.5 fps ∼11% -7%
Average of class Multimedia
  (10 - 126, n=85)
38.4 fps ∼20% +75%
1024x768 Low (DX10) AF:4x (sorteer op waarde)
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
25 fps ∼13%
HP Pavilion 15-cs0053cl
UHD Graphics 620, 8250U, Toshiba MQ04ABF100
23.3 fps ∼12% -7%
Average Intel UHD Graphics 620
  (23.3 - 31, n=3)
26.4 fps ∼13% +6%
Average of class Multimedia
  (10.6 - 135, n=83)
42.5 fps ∼22% +70%
lage gem. hoge ultra
BioShock Infinite (2013) 4721197fps
Metro: Last Light (2013) 2522136fps
Rise of the Tomb Raider (2016) 17116fps

Geluidsniveau

Onbelast
28 / 28 / 30.1 dB (A)
Belasting
30.2 / 33.2 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   BK Precision 732A (15 cm afstand)   environment noise: 28 dB(A)
Lenovo Ideapad 530S-15IKB
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
HP Pavilion 15-cs0053cl
UHD Graphics 620, 8250U, Toshiba MQ04ABF100
Asus VivoBook 15 X570UD
GeForce GTX 1050 (Notebook), 8550U, SK hynix PC300 HFS512GD9MND
Dell Inspiron 15 5579-9672
UHD Graphics 620, 8250U, SK hynix SC311 SATA
Acer Aspire 3 A315-41-R7BM
Vega 3, 2200U, SK Hynix HFS256G39TND-N210A
Dell XPS 15 2018 i5 FHD 97Wh
GeForce GTX 1050 (Notebook), 8300H, Lite-On CA3-8D256-Q11
Noise
-8%
-16%
-5%
-12%
-13%
off / environment *
28
28.2
-1%
29.2
-4%
30.4
-9%
30.3
-8%
30.3
-8%
Idle Minimum *
28
31.7
-13%
29.3
-5%
30.4
-9%
30.3
-8%
30.3
-8%
Idle Average *
28
31.7
-13%
29.5
-5%
30.4
-9%
30.3
-8%
30.3
-8%
Idle Maximum *
30.1
32
-6%
30.5
-1%
31.2
-4%
30.9
-3%
30.3
-1%
Load Average *
30.2
32.8
-9%
41.2
-36%
31.5
-4%
37.8
-25%
37.1
-23%
Load Maximum *
33.2
35
-5%
47.2
-42%
31.5
5%
40.6
-22%
43
-30%
Witcher 3 ultra *
44
34.3
43.3

* ... kleiner is beter

Max. Belasting
 32 °C33.6 °C28.6 °C
 32.4 °C33.8 °C27 °C
 28.2 °C25.2 °C25 °C
Maximum: 33.8 °C
Gemiddelde: 29.5 °C
31.8 °C43 °C38 °C
29.4 °C37 °C38.6 °C
28.2 °C31.4 °C33.8 °C
Maximum: 43 °C
Gemiddelde: 34.6 °C
Stroomadapter (max.)  31 °C | Kamertemperatuur 20 °C | Fluke 62 Mini IR Thermometer

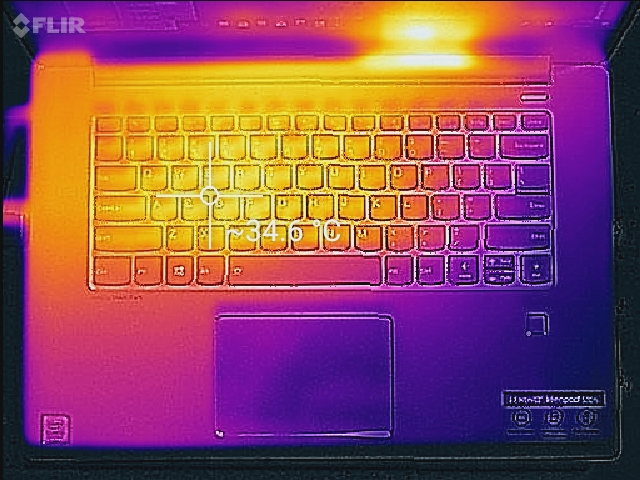

Thermal profile, top of base unit (max load)
Thermal profile, top of base unit (max load)

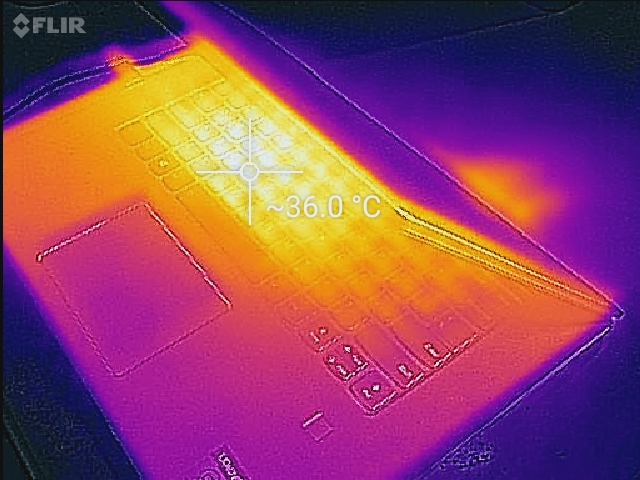

Thermal profile, side of base unit (max load)
Thermal profile, side of base unit (max load)

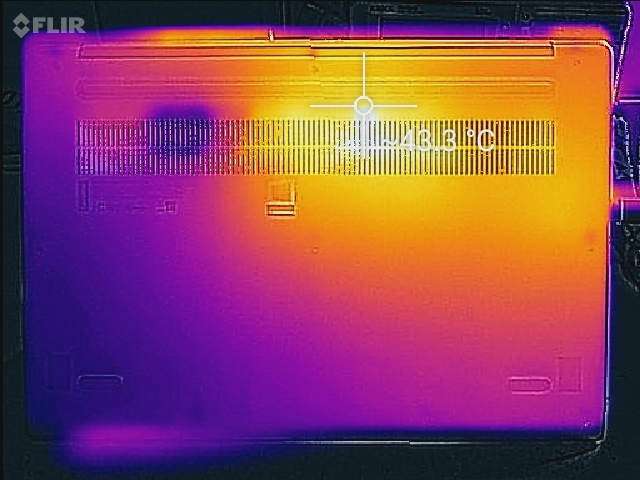

Thermal profile, underside (max load)
Thermal profile, underside (max load)

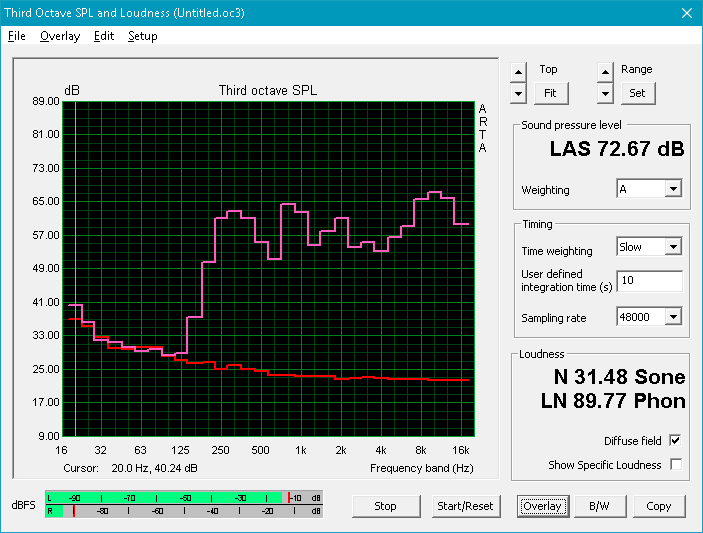

Sound profile
Sound profile
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2040.23740.22536.235.336.2313232.7324031.429.931.45030.229.730.26329.430.229.48029.830.329.810028.328.128.312528.82728.816037.526.637.520050.726.750.725061.22561.231562.725.962.740061.124.961.150055.324.655.363051.223.651.280064.423.764.4100062.523.362.5125054.623.254.6160057.923.357.920006122.761250054.222.954.2315055.32355.3400053.222.953.2500056.522.556.5630059.222.759.2800065.522.665.51000067.222.567.21250065.822.465.81600059.622.559.6SPL72.735.372.7N31.52.431.5median 57.9Lenovo Ideapad 530S-15IKBmedian 23.3median 57.9Delta61.3638.239.934.73932.735.531.734.333.133.232.832.131.131.330.330.528.62927.932.126.645.926.756.826.162.725.365.124.965.824.265.924.861.624.764.62470.325.972.12465.723.960.624.362.523.967.123.364.523.36323.159.523.16023.261.323.256.736.478.22.742.3median 24.3HP Pavilion 15-cs0053clmedian 62.51.16.6hearing rangehide median Pink Noise
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo Ideapad 530S-15IKB audio analysis

(±) | speaker loudness is average but good (72.67 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.7% lower than median
(-) | bass is not linear (17.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(±) | linearity of mids is average (14.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(±) | linearity of highs is average (9.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.7% difference to median)
Compared to same class
» 62% of all tested devices in this class were better, 10% similar, 28% worse
» The best had a delta of 3%, average was 18%, worst was 41%
Compared to all devices tested
» 46% of all tested devices were better, 9% similar, 46% worse
» The best had a delta of 3%, average was 21%, worst was 53%

HP Pavilion 15-cs0053cl audio analysis

(±) | speaker loudness is average but good (72.06 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.7% lower than median
(-) | bass is not linear (15.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(±) | linearity of mids is average (7.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(±) | linearity of highs is average (7.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.6% difference to median)
Compared to same class
» 56% of all tested devices in this class were better, 7% similar, 37% worse
» The best had a delta of 3%, average was 18%, worst was 41%
Compared to all devices tested
» 40% of all tested devices were better, 6% similar, 54% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.24 / 0.37 Watt
Inactiefdarkmidlight 3.5 / 5.6 / 10.3 Watt
Belasting midlight 30.5 / 33.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo Ideapad 530S-15IKB
8250U, UHD Graphics 620, SK hynix PC401 HFS256GD9TNG, IPS, 1920x1080, 15.6
HP Pavilion 15-cs0053cl
8250U, UHD Graphics 620, Toshiba MQ04ABF100, TN LED, 1366x768, 15.6
Asus VivoBook 15 X570UD
8550U, GeForce GTX 1050 (Notebook), SK hynix PC300 HFS512GD9MND, IPS, 1920x1080, 15.6
Dell Inspiron 15 5579-9672
8250U, UHD Graphics 620, SK hynix SC311 SATA, IPS, 1920x1080, 15.6
Acer Aspire 3 A315-41-R7BM
2200U, Vega 3, SK Hynix HFS256G39TND-N210A, TN LED, 1920x1080, 15.6
Dell XPS 15 2018 i5 FHD 97Wh
8300H, GeForce GTX 1050 (Notebook), Lite-On CA3-8D256-Q11, LED IGZO IPS InfinityEdge, 1920x1080, 15.6
Power Consumption
-12%
-87%
-3%
-32%
-66%
Idle Minimum *
3.5
5.6
-60%
5.1
-46%
3.9
-11%
5.6
-60%
2.9
17%
Idle Average *
5.6
7.1
-27%
6.3
-13%
6.6
-18%
8.5
-52%
5.8
-4%
Idle Maximum *
10.3
7.9
23%
10.5
-2%
9.3
10%
8.4
18%
7.5
27%
Load Average *
30.5
32.8
-8%
82.2
-170%
30.2
1%
41
-34%
77.5
-154%
Load Maximum *
33.8
30.5
10%
103.2
-205%
33.2
2%
44.2
-31%
107
-217%
Witcher 3 ultra *
85.9
32
84

* ... kleiner is beter

Batterijduur
NBC WiFi Websurfing Battery Test 1.3
6h 31min
Lenovo Ideapad 530S-15IKB
8250U, UHD Graphics 620, 45 Wh
HP Pavilion 15-cs0053cl
8250U, UHD Graphics 620, 41 Wh
Asus VivoBook 15 X570UD
8550U, GeForce GTX 1050 (Notebook), 48 Wh
Dell Inspiron 15 5579-9672
8250U, UHD Graphics 620, 42 Wh
Acer Aspire 3 A315-41-R7BM
2200U, Vega 3, 37 Wh
Dell XPS 15 2018 i5 FHD 97Wh
8300H, GeForce GTX 1050 (Notebook), 97 Wh
Batterijduur
7%
-19%
11%
-12%
141%
Reader / Idle
722
671
536
WiFi v1.3
391
419
7%
318
-19%
435
11%
344
-12%
942
141%
Load
134
110
83
114
Witcher 3 ultra
62

Pro

+ slank ontwerp met fantastisch vakmanschap voor deze prijs
+ relatief stabiele behuizing
+ erg goede algemene prestaties
+ grootste deel simpel onderhoud
+ stil in de meeste situaties
+ goede temperaturen bij belasting
+ fatsoenlijk anti-glans IPS beeldscherm
+ erg redelijk geprijsd

Contra

- ietwat teleurstellende CPU en GPU prestaties
- aanbod poorten is wat mager (en poorten ietwat dicht op elkaar)
- stevigheid behuizing legt het af tegen duurdere rivalen
- slechts een aansluiting opslagmedium
- geen mogelijkheid voor dual-channel RAM
- langzame kaartlezer waar geheugenkaart slechts voor de helft in past
- verhoogde temperaturen bij idle
- matige luidsprekers

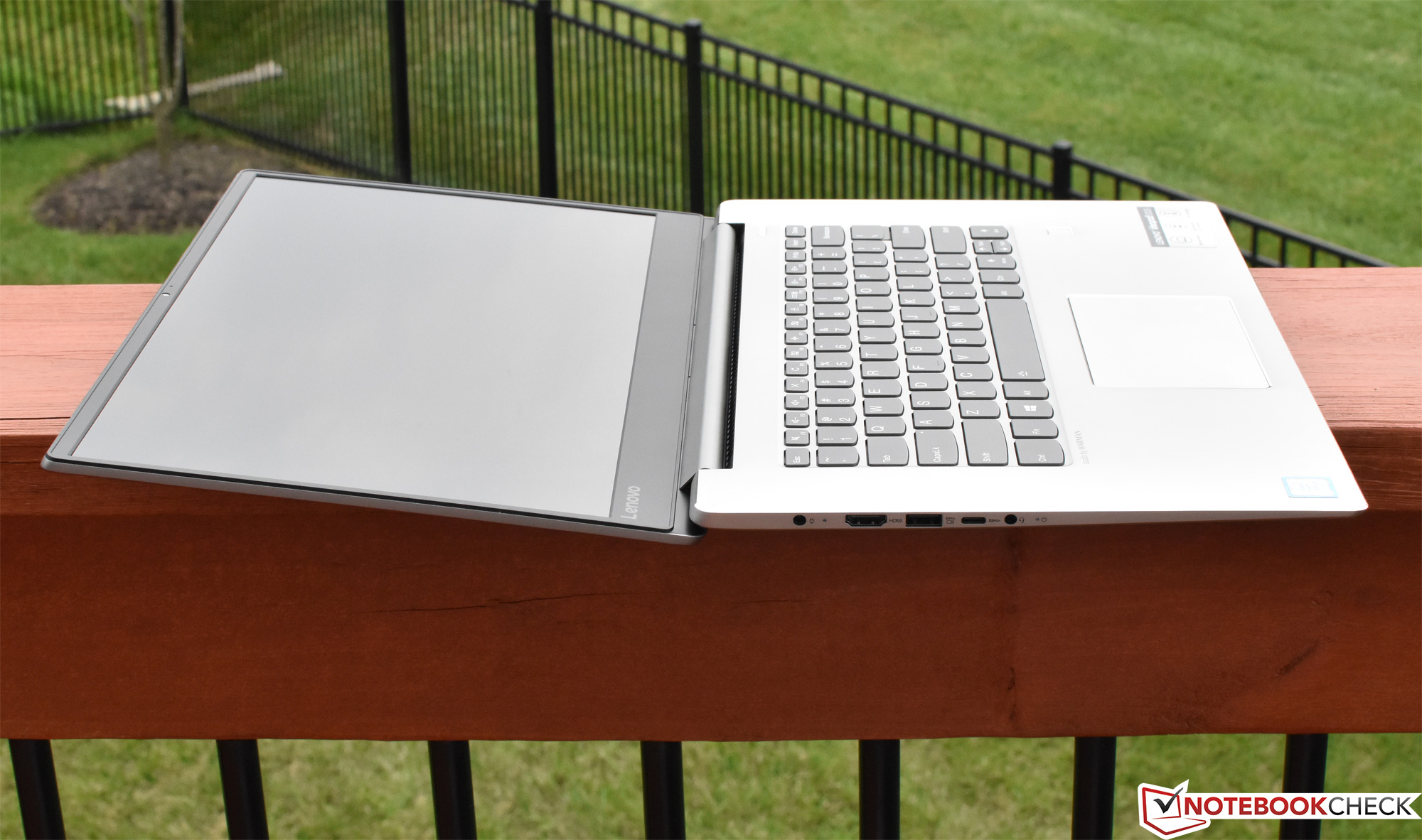

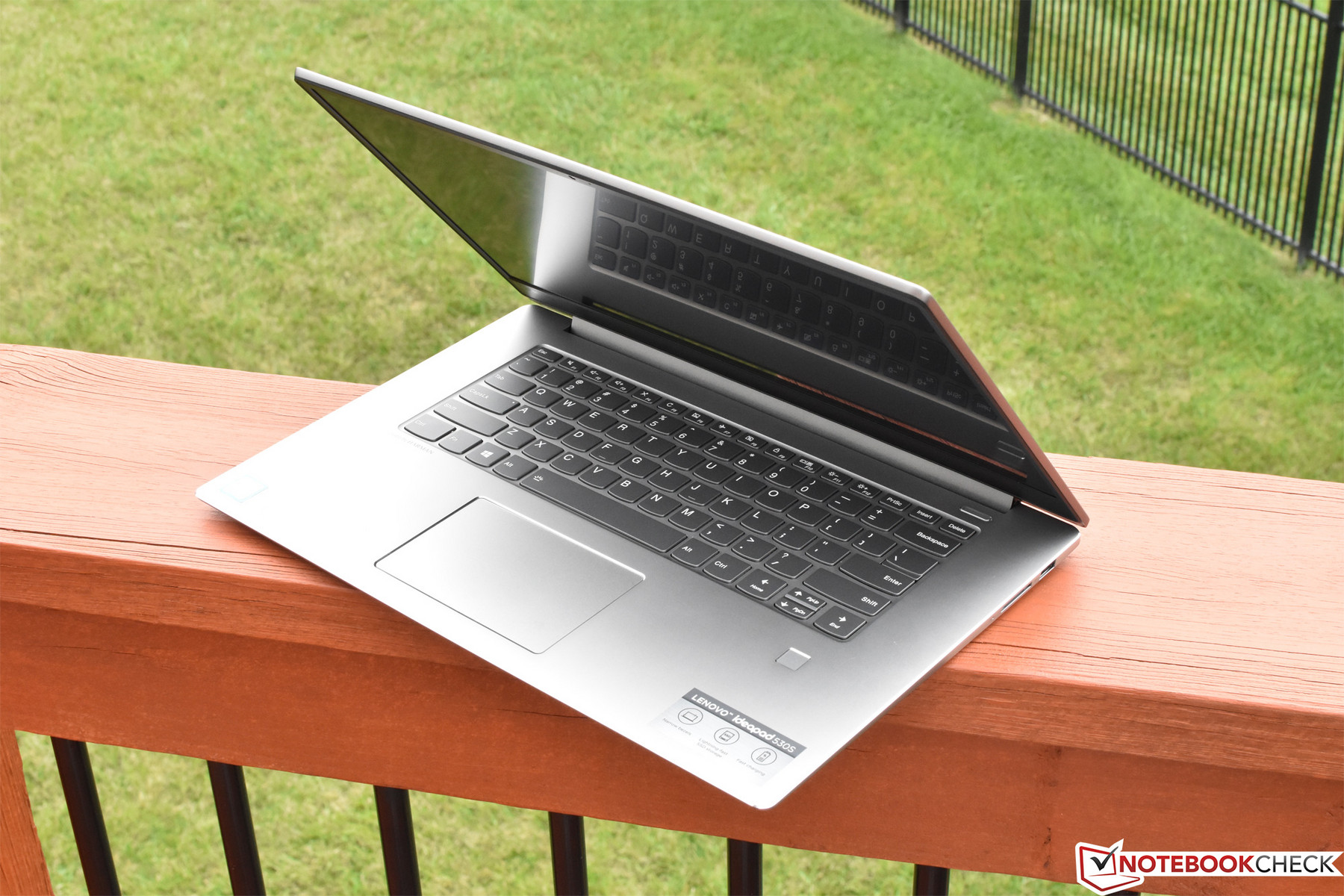

The Lenovo IdeaPad 530S (review unit courtesy of Lenovo)
The Lenovo IdeaPad 530S (review unit courtesy of Lenovo)

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

Voor een ieder die geïnteresseerd is in een aantrekkelijke, relatief stevige, voor het meeste uitgebalanceerde entertainment notebook die geen gat in je beurs slaat, is de $ 699 IdeaPad 530S het overwegen absoluut waard. Dankzij de kundige i5-8250U CPU, voldoende RAM en snelle NVMe opslag, haalt ons testmodel erg goede algemene prestaties in onze tests. Hoewel de CPU benchmarks iets achterblijven bij vergelijkbaar uitgeruste concurrenten, zijn de verschillen klein en het lage systeemgeluid en warmteontwikkeling zullen voor de meeste gebruikers zwaarder wegen.

De bouwkwaliteit is ook van het hoogste niveau, gebruik makend van CNC-gefabriceerd aluminium oppervlakken en superdunne randen die doen denken aan HP Spectre en Dell XPS laptops - voor een fractie van de kosten. De invoerapparaten zijn ook redelijk goed, hoewel de leiders in dit marktsegment eigenlijk een klasse beter zijn.

Wat de IdeaPad 530S bewerkstelligd is behoorlijk waardevol. Op zijn minst wordt een perfect acceptabele optie getoond die zich een stap onder de ultra-premium machines plaatst, door voorzichtig en subtiel perfectie in te ruilen voor waarde.

De grootspraak kan natuurlijk niet eeuwig volgehouden worden en het uiterlijk van een $1k+ notebook wordt toch snel doorprikt. Hoewel gemaakt van metaal, zijn de oppervlakken toch merkbaar dunner dan bijvoorbeeld de XPS 15 en dit is het duidelijkst in de buigzaamheid van de basiseenheid. De invoerapparaten zijn ook goed, maar niet fantastisch. De grafische prestaties zijn duidelijk niet een aandachtspunt voor dit model, en de audio ontbeert ook de balans en volheid van de XPS 15. Het beeldscherm (zij het in het algemeen goed) blijft ook achter bij een XPS-klasse notebook. Er is geen optie voor dubbele opslag, of dual-channel RAM en de kaartlezer is een van de langzaamste die we ooit tegenkwamen. Geen van deze minpunten zijn kritiek en de meeste zelfs relatief klein, zeker in de context van de prijs. Maar alles bij elkaar onderstrepen ze toch dat er ergens op bespaard moest worden. Met dat in het achterhoofd (en de verwachtingen dus niet te hoog), levert de IdeaPad 530S erg veel waarde.

Lenovo Ideapad 530S-15IKB - 27-08-2018 v6
Steve Schardein

Behuizing
82 / 98 → 83%
Toetsenbord
79%
Aanwijsapparaat
81%
Aansluitmogelijkheden
45 / 81 → 56%
Gewicht
67 / 20-67 → 100%
Batterij
89%
Beeldscherm
86%
Gaming-performance
56 / 85 → 66%
Applicatie-performance
89 / 92 → 97%
Temperatuur
92%
Luidheid
97 / 95 → 100%
Audio
54%
Camera
55 / 85 → 65%
Gemiddelde
75%
82%
Multimedia - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Lenovo Ideapad 530S-15IKB (i5-8250U, FHD) Laptop
Steve Schardein, 2018-09- 2 (Update: 2018-09- 2)
