Kort testrapport Jumper EZbook X3: oude technologie in een gammele behuizing

Sebastian Jentsch, 👁 Sebastian Jentsch, 11-04-2020

Soms houd je je geld beter op zak. Het spreek voor zich dat je voor weinig geld ook weinig notebook krijgt. De creatie van Jumper, die voor minder dan 300 euro te koop is, kan op geen enkel gebied schitteren. De zwakke afwerking, slechte invoerapparaten en trage hardware zijn slechts enkele aspecten die we niemand zouden toewensen.

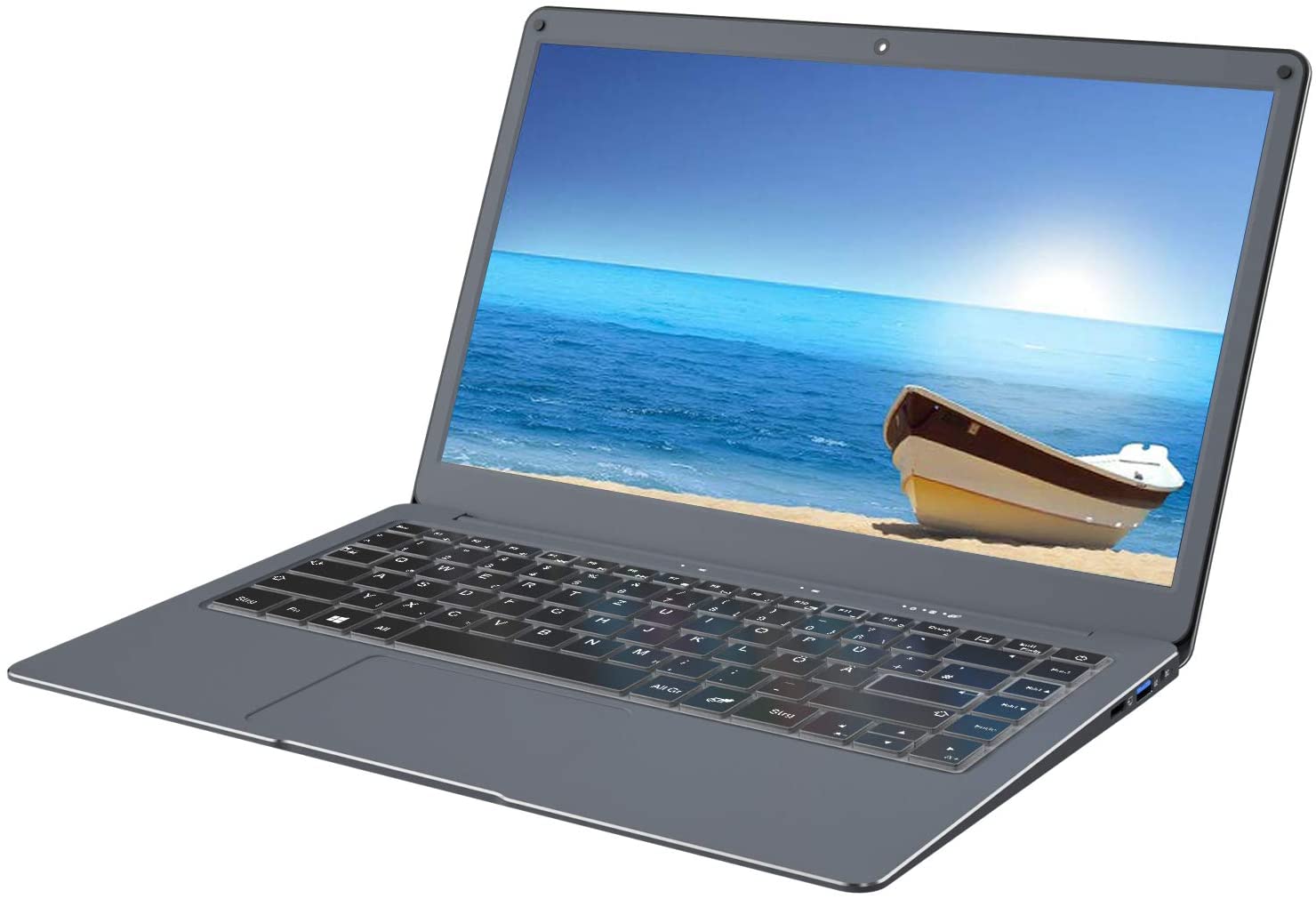

Jumper EZbook X3 (EZbook Serie)
Grafische kaart
Geheugen
6144 MB
, DDR3 SDRAM Single Channel
Beeldscherm
13.3 inch 16:9, 1920 x 1080 pixel 166 PPI, PBTB133F006 A, IPS, glimmend: nee, 60 Hz
Moederbord
Apollo Lake
Opslag
64 GB eMMC Flash, 64 GB
Verbindingen
2 USB 3.0, 1 HDMI, Audio Verbindingen: gecombineerd, Card Reader: Micro SD, M.2 2280 S-ATA port onder klep
Netwerkmogelijkheden
Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.1
Afmetingen
hoogte x breedte x diepte (in mm): 18 x 315 x 208
Batterij
34.9 Wh, 7516 mAh Lithium-Polymer, Batterijduur: 5.5 h
Besturingssysteem
Microsoft Windows 10 Home 32 Bit
Camera
Webcam: 720p
Bijkomende functionaliteiten
Luidsprekers: Stereo, Toetsenbord: Chiclet, , Toetsenbordverlichting: nee, 12 Maanden Garantie, fanless
Gewicht
1.264 kg, Voeding: 152 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Evaluatie
Datum
Model
Gewicht
Hoogte
Formaat
Resolutie
Best Price
68 %
04-2020
Jumper EZbook X3
Celeron N3350, HD Graphics 500
1.3 kg18 mm13.3"1920x1080
80 %
Medion Akoya E4253-30025387
Pentium N5000, UHD Graphics 605
1.4 kg15 mm14"1920x1080
74 %
Lenovo IdeaPad Slim 1-14AST-05
A6-9220e, Radeon R4 (Stoney Ridge)
1.4 kg20.9 mm14"1920x1080
79 %
08-2019
Chuwi LapBook Pro
Celeron N4100, UHD Graphics 600
1.4 kg13.4 mm14"1920x1080
75 %
LincPlus P1
Celeron N4000, UHD Graphics 600
1.4 kg16 mm13.3"1920x1080

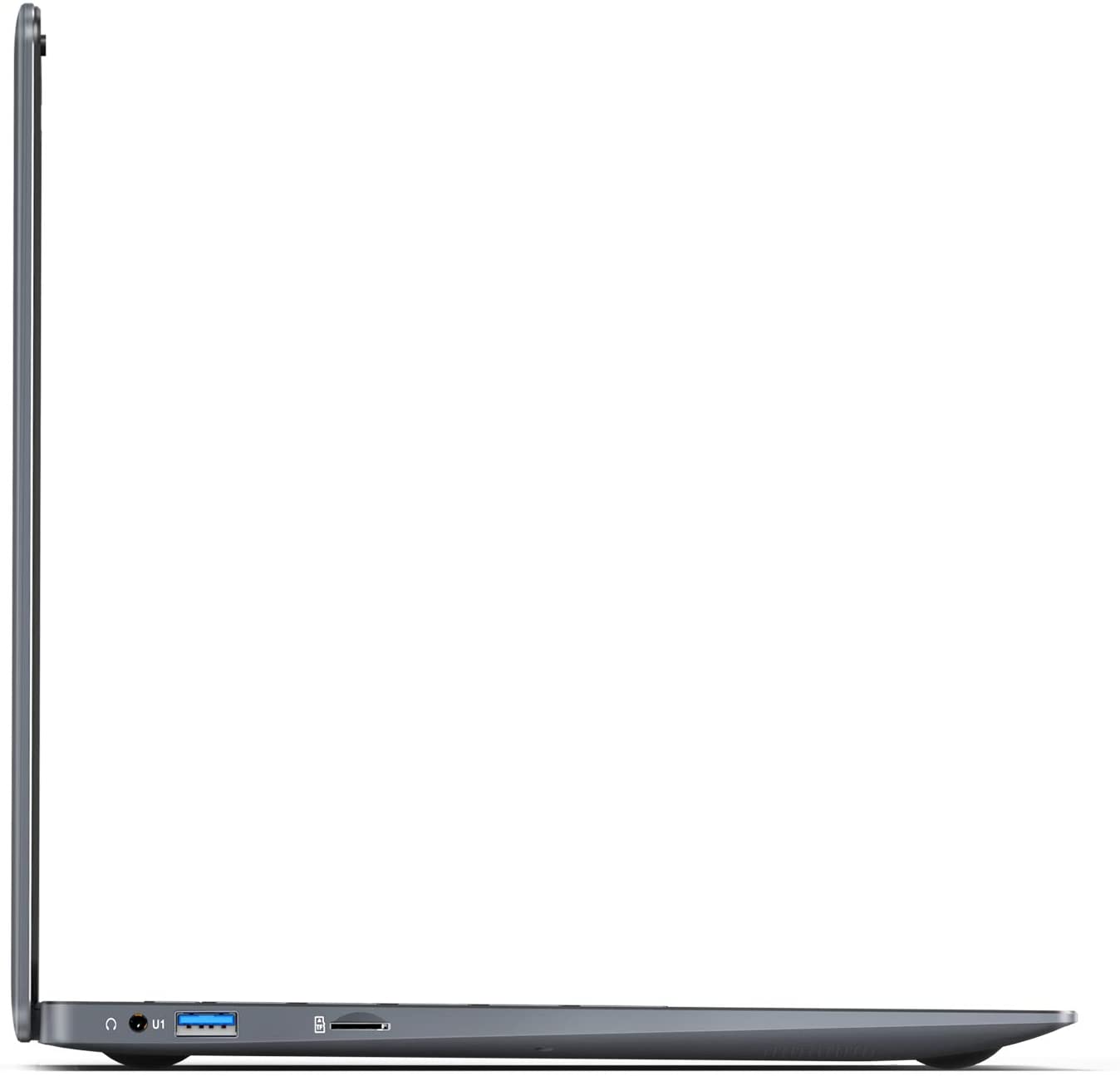

Port Selection

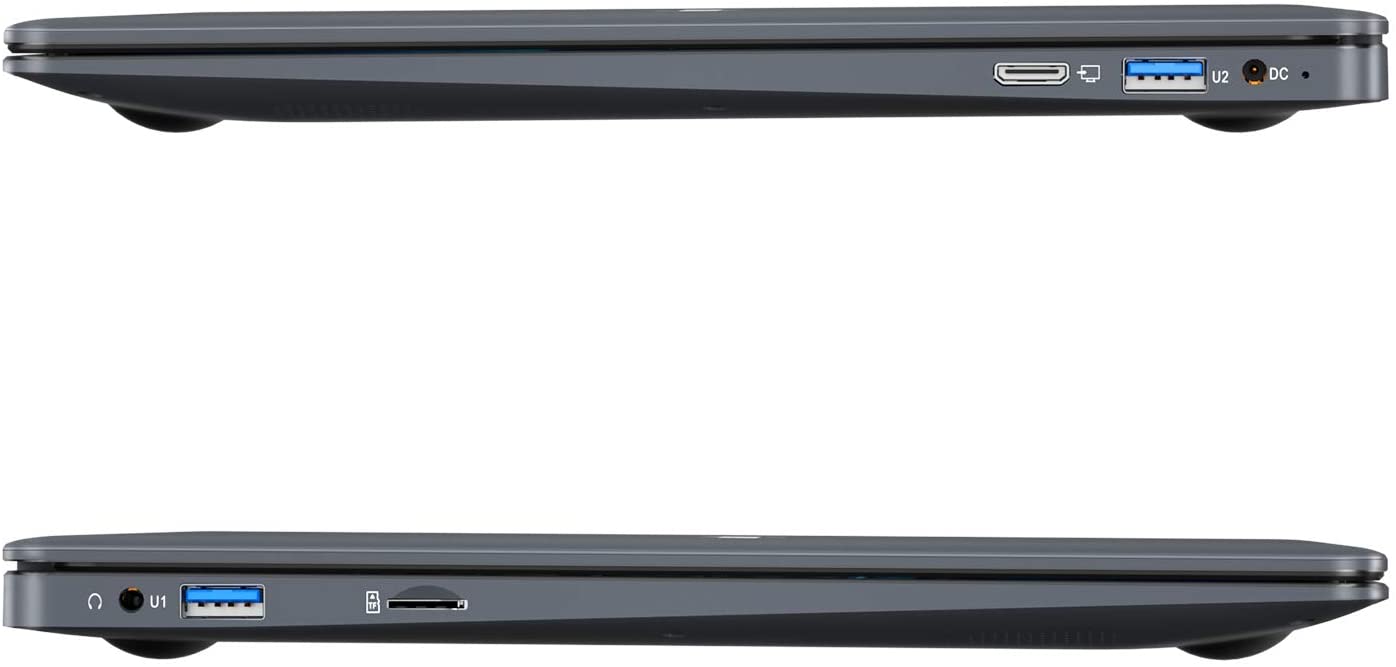

Jumper EZbook X3 poorten: Mini HDMI, USB 3.1 2x, audio-klink, kaartlezer
Jumper EZbook X3 poorten: Mini HDMI, USB 3.1 2x, audio-klink, kaartlezer
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Average of class Subnotebook
  (8 - 186, n=130)
63.3 MB/s ∼100% +160%
Lenovo IdeaPad Slim 1-14AST-05
  (Toshiba Exceria Pro M501 microSDXC 64GB)
29.5 MB/s ∼47% +21%
Jumper EZbook X3

24.3 MB/s ∼38%
LincPlus P1

18.1 MB/s ∼29% -26%
maximum AS SSD Seq Read Test (1GB)
Average of class Subnotebook
  (17.7 - 251, n=132)
80 MB/s ∼100% +196%
Medion Akoya E4253-30025387
  (Toshiba Exceria Pro M501 microSDXC 64GB)
33.9 MB/s ∼42% +26%
Lenovo IdeaPad Slim 1-14AST-05
  (Toshiba Exceria Pro M501 microSDXC 64GB)
32 MB/s ∼40% +19%
Jumper EZbook X3

27 MB/s ∼34%
LincPlus P1

27 MB/s ∼34% 0%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Medion Akoya E4253-30025387
Intel Wireless AC 9462
348 (min: 332, max: 353) MBit/s ∼100% +15%
LincPlus P1
Intel Dual Band Wireless-AC 3165
305 (min: 296, max: 314) MBit/s ∼88% +1%
Average Intel Dual Band Wireless-AC 3165
  (54 - 360, n=62)
304 MBit/s ∼87% 0%
Jumper EZbook X3
Intel Dual Band Wireless-AC 3165
303 (min: 296, max: 313) MBit/s ∼87%
Chuwi LapBook Pro
Intel Dual Band Wireless-AC 3165
284 (min: 200, max: 301) MBit/s ∼82% -6%
Lenovo IdeaPad Slim 1-14AST-05
Qualcomm Atheros QCA9377 Wireless Network Adapter
258 (min: 160, max: 297) MBit/s ∼74% -15%
iperf3 Client (transmit) TCP 1 m 4M x10
Medion Akoya E4253-30025387
Intel Wireless AC 9462
326 (min: 274, max: 361) MBit/s ∼100% +4%
LincPlus P1
Intel Dual Band Wireless-AC 3165
318 (min: 271, max: 364) MBit/s ∼98% +2%
Jumper EZbook X3
Intel Dual Band Wireless-AC 3165
312 (min: 251, max: 338) MBit/s ∼96%
Lenovo IdeaPad Slim 1-14AST-05
Qualcomm Atheros QCA9377 Wireless Network Adapter
309 (min: 261, max: 336) MBit/s ∼95% -1%
Chuwi LapBook Pro
Intel Dual Band Wireless-AC 3165
306 (min: 239, max: 358) MBit/s ∼94% -2%
Average Intel Dual Band Wireless-AC 3165
  (48 - 346, n=62)
284 MBit/s ∼87% -9%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370Tooltip
Jumper EZbook X3 Intel Celeron N3350, Intel HD Graphics 500; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø302 (296-313)
Medion Akoya E4253-30025387 Intel Pentium Silver N5000, Intel UHD Graphics 605; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø347 (332-353)
Lenovo IdeaPad Slim 1-14AST-05 AMD A6-9220e, AMD Radeon R4 (Stoney Ridge); iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø258 (160-297)
Chuwi LapBook Pro Intel Celeron N4100, Intel UHD Graphics 600; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø283 (200-301)
LincPlus P1 Intel Celeron N4000, Intel UHD Graphics 600; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø305 (296-314)
Jumper EZbook X3 Intel Celeron N3350, Intel HD Graphics 500; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø313 (251-338)
Medion Akoya E4253-30025387 Intel Pentium Silver N5000, Intel UHD Graphics 605; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø326 (274-361)
Lenovo IdeaPad Slim 1-14AST-05 AMD A6-9220e, AMD Radeon R4 (Stoney Ridge); iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø309 (261-336)
Chuwi LapBook Pro Intel Celeron N4100, Intel UHD Graphics 600; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø306 (239-358)
LincPlus P1 Intel Celeron N4000, Intel UHD Graphics 600; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø318 (271-364)

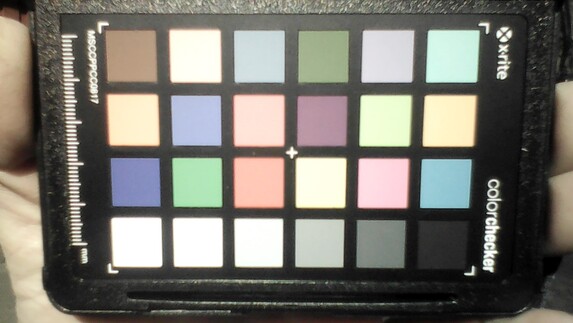

ColorChecker
28.6 ∆E
29.1 ∆E
31.5 ∆E
25.1 ∆E
29.2 ∆E
18.1 ∆E
31.5 ∆E
35.2 ∆E
35.7 ∆E
35.7 ∆E
22.5 ∆E
23.8 ∆E
28.5 ∆E
25.5 ∆E
39.6 ∆E
26.2 ∆E
34 ∆E
22.7 ∆E
2.3 ∆E
11.8 ∆E
16.4 ∆E
25 ∆E
21.5 ∆E
3.1 ∆E
ColorChecker Jumper EZbook X3: 25.11 ∆E min: 2.33 - max: 39.6 ∆E
204
cd/m²
205
cd/m²
199
cd/m²
206
cd/m²
209
cd/m²
199
cd/m²
203
cd/m²
200
cd/m²
205
cd/m²
Helderheidsverdeling
PBTB133F006 A
X-Rite i1Pro 2
Maximum: 209 cd/m² Gemiddelde: 203.3 cd/m² Minimum: 17.4 cd/m²
Helderheidsverdeling: 95 %
Helderheid in Batterij-modus: 210 cd/m²
Contrast: 1045:1 (Zwart: 0.2 cd/m²)
ΔE Color 8.43 | 0.6-29.43 Ø5.9, calibrated: 1.68
ΔE Greyscale 9.81 | 0.64-98 Ø6.1
89% sRGB (Argyll 3D) 57% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.46
Jumper EZbook X3
PBTB133F006 A, IPS, 1920x1080, 13.3
Medion Akoya E4253-30025387
Chi Mei N140HCA-EAB, IPS, 1920x1080, 14
Lenovo IdeaPad Slim 1-14AST-05
Chi Mei N140HGA-EA1, TN LED, 1920x1080, 14
Chuwi LapBook Pro
BOE CQ HV140FHNM-N61, IPS, 1920x1080, 14
LincPlus P1
LC133LF2L03, IPS, 1920x1080, 13.3
Response Times
-5%
15%
-6%
3%
Response Time Grey 50% / Grey 80% *
34 (22, 12)
42 (23, 19)
-24%
44 (24, 20)
-29%
42 (21, 21)
-24%
36 (20, 16)
-6%
Response Time Black / White *
33 (21, 12)
28 (16, 12)
15%
14 (10, 4)
58%
29 (15, 14)
12%
29 (17, 12)
12%
PWM Frequency
24500 (20)
147 (60)
200 (90)
250 (20)
Screen
-12%
-49%
-9%
4%
Brightness middle
209
262
25%
245
17%
297
42%
264
26%
Brightness
203
242
19%
226
11%
268
32%
256
26%
Brightness Distribution
95
87
-8%
86
-9%
77
-19%
84
-12%
Black Level *
0.2
0.505
-153%
0.445
-123%
0.625
-213%
0.25
-25%
Contrast
1045
519
-50%
551
-47%
475
-55%
1056
1%
Colorchecker DeltaE2000 *
8.43
5.49
35%
10.75
-28%
5.23
38%
7.36
13%
Colorchecker DeltaE2000 max. *
14.77
10.63
28%
20.82
-41%
9.53
35%
12.72
14%
Colorchecker DeltaE2000 calibrated *
1.68
5.48
-226%
2.12
-26%
Greyscale DeltaE2000 *
9.81
4.84
51%
12.85
-31%
6.72
31%
8.74
11%
Gamma
2.46 89%
2.3 96%
2.42 91%
2.38 92%
2.41 91%
CCT
10135 64%
6347 102%
15973 41%
7015 93%
8741 74%
Color Space (Percent of AdobeRGB 1998)
57
39
-32%
39
-32%
63
11%
62
9%
Color Space (Percent of sRGB)
89
61
-31%
62
-30%
96
8%
95
7%
Totaal Gemiddelde (Programma / Instellingen)
-9% / -10%
-17% / -39%
-8% / -9%
4% / 4%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

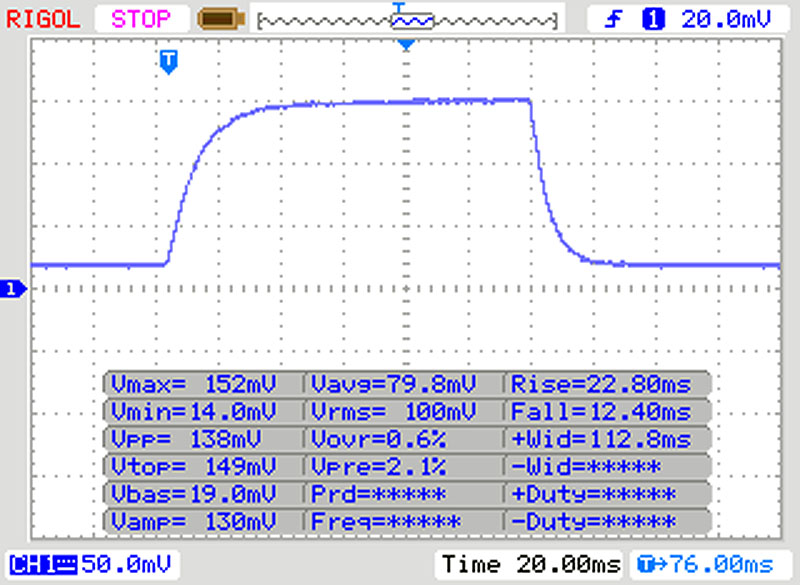

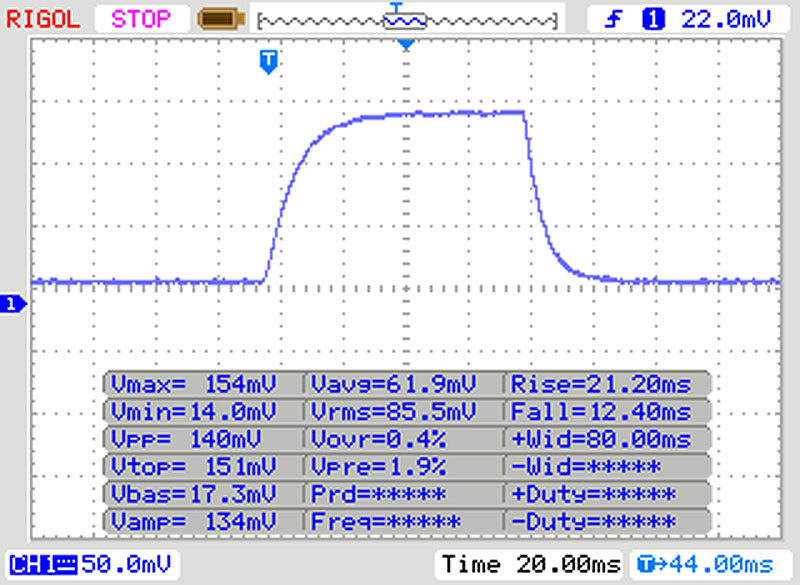

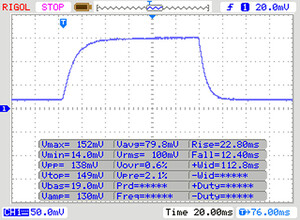

       Responstijd Zwart naar Wit
33 ms ... stijging ↗ en daling ↘ gecombineerd↗ 21 ms stijging
↘ 12 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 85 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (24.8 ms) van alle geteste toestellen.
       Responstijd 50% Grijs naar 80% Grijs
34 ms ... stijging ↗ en daling ↘ gecombineerd↗ 22 ms stijging
↘ 12 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 26 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (39.4 ms) van alle geteste toestellen.

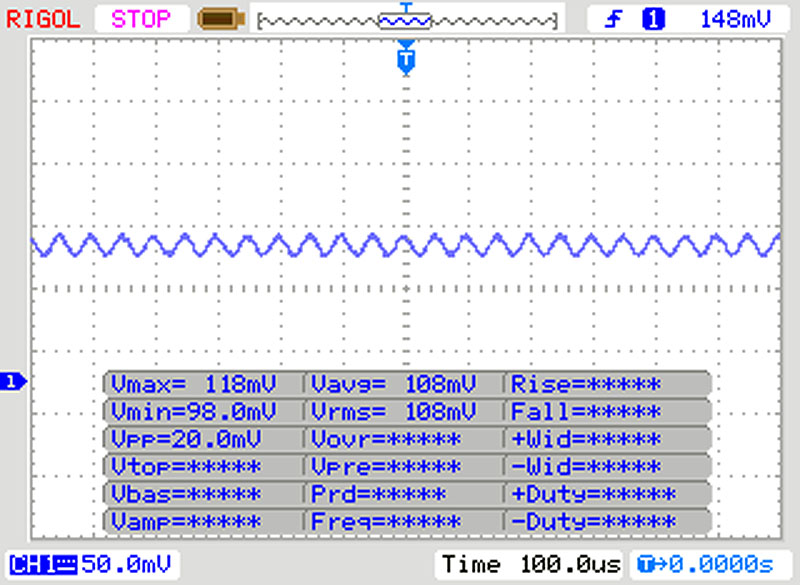

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 18254 (minimum: 5 - maximum: 2500000) Hz waargenomen.

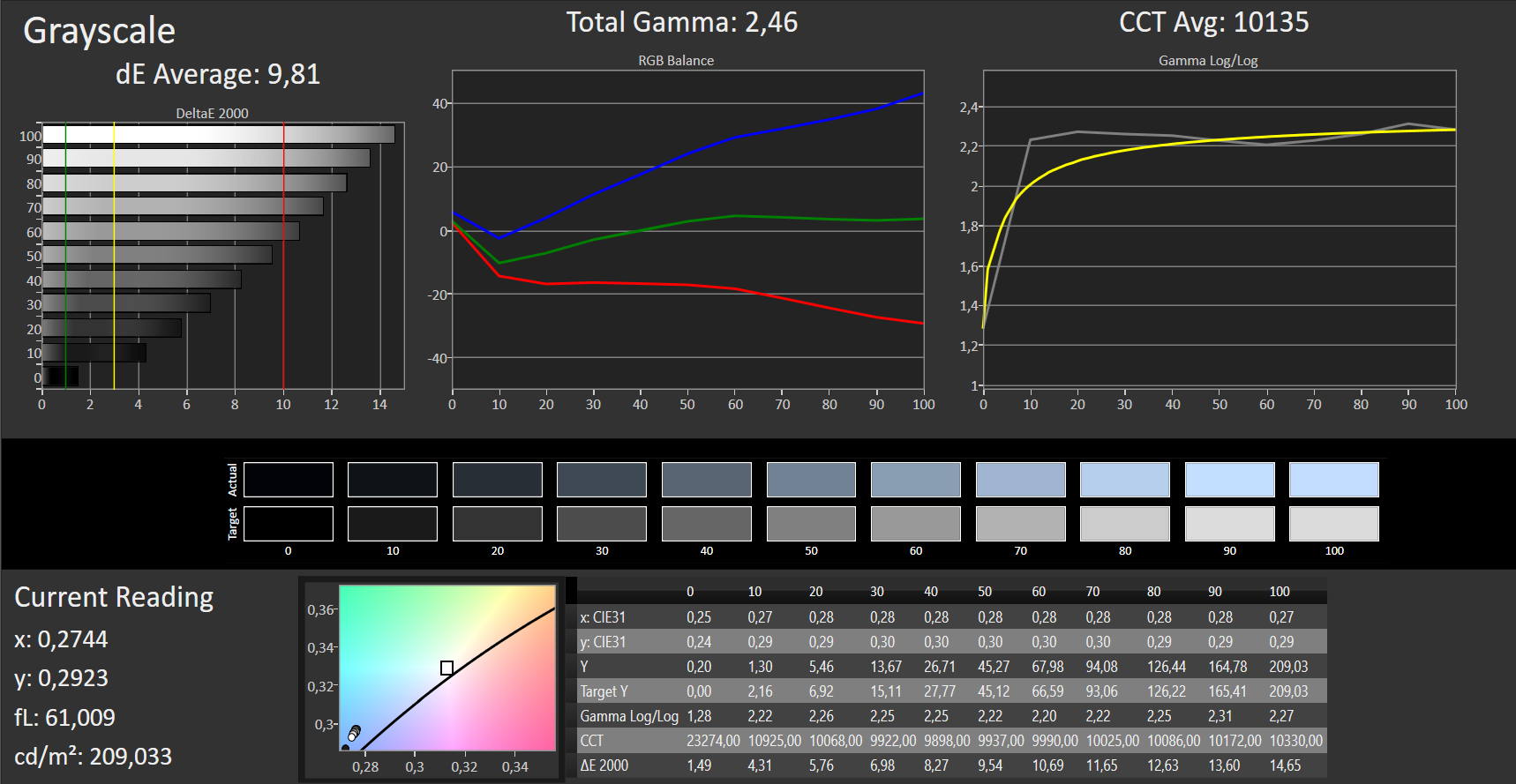

CalMAN Grayscales
CalMAN Grayscales

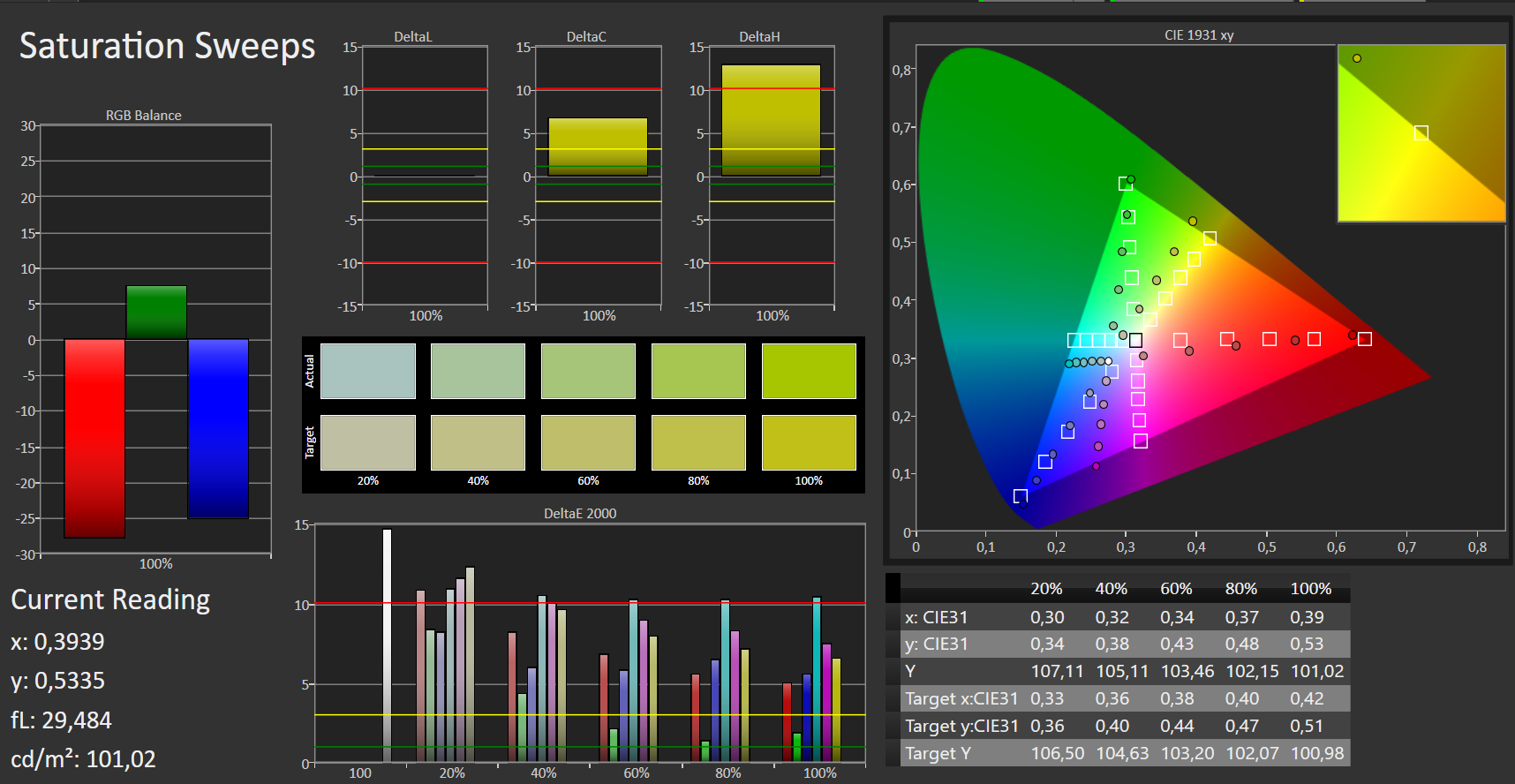

CalMAN Saturation
CalMAN Saturation

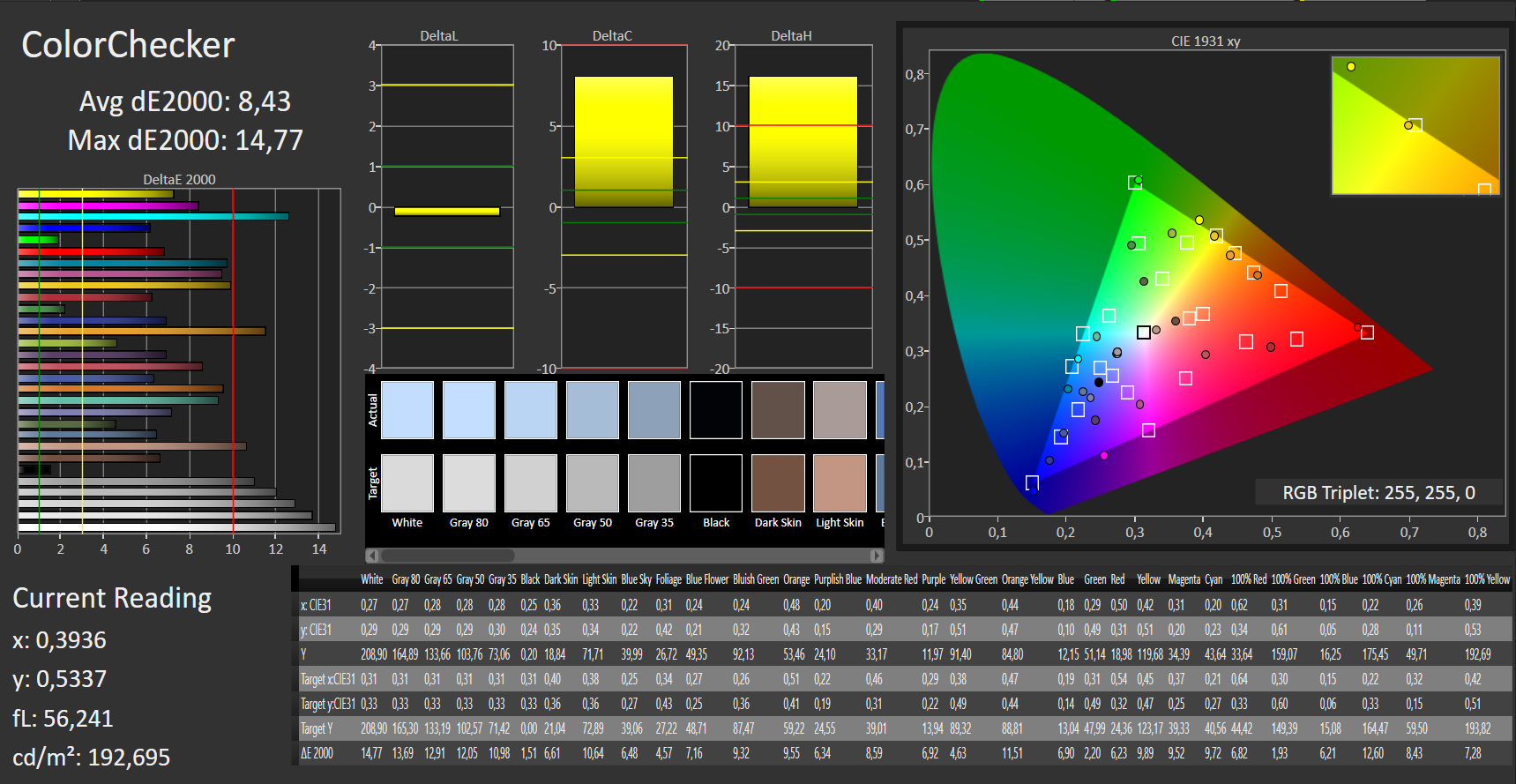

CalMAN ColorChecker
CalMAN ColorChecker

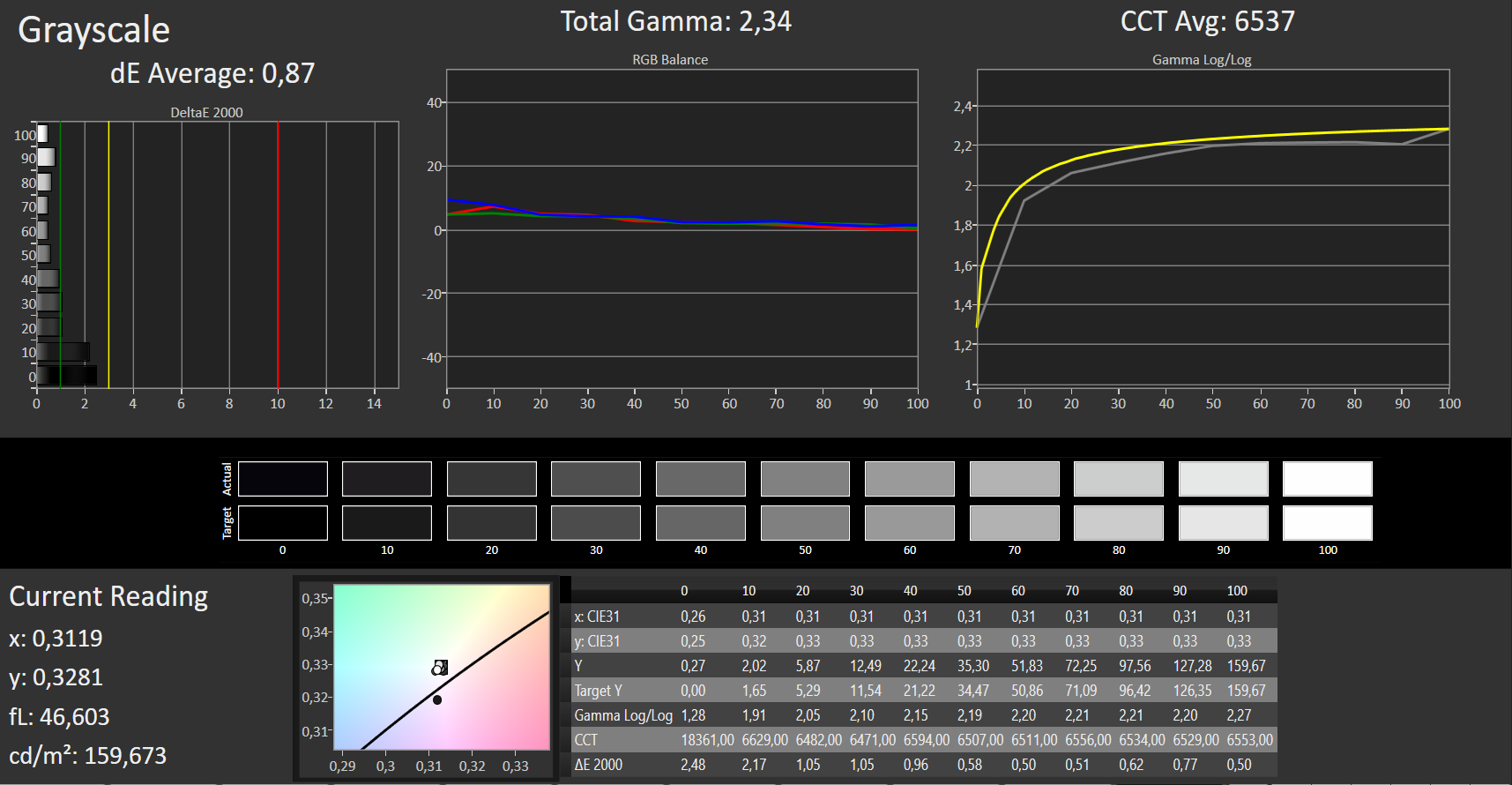

CalMAN Grayscales na kalibratie
CalMAN Grayscales na kalibratie

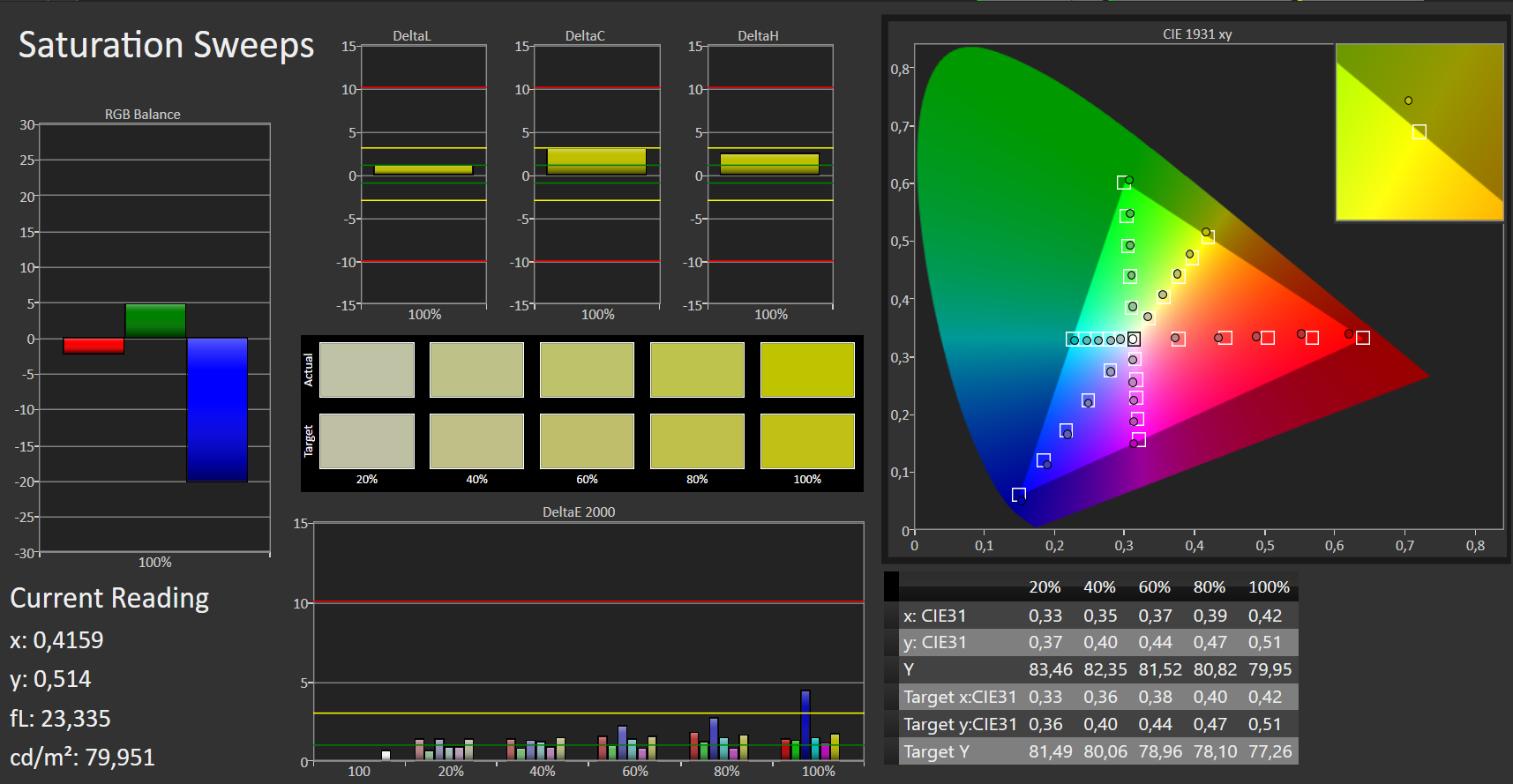

CalMAN Saturation na kalibratie
CalMAN Saturation na kalibratie

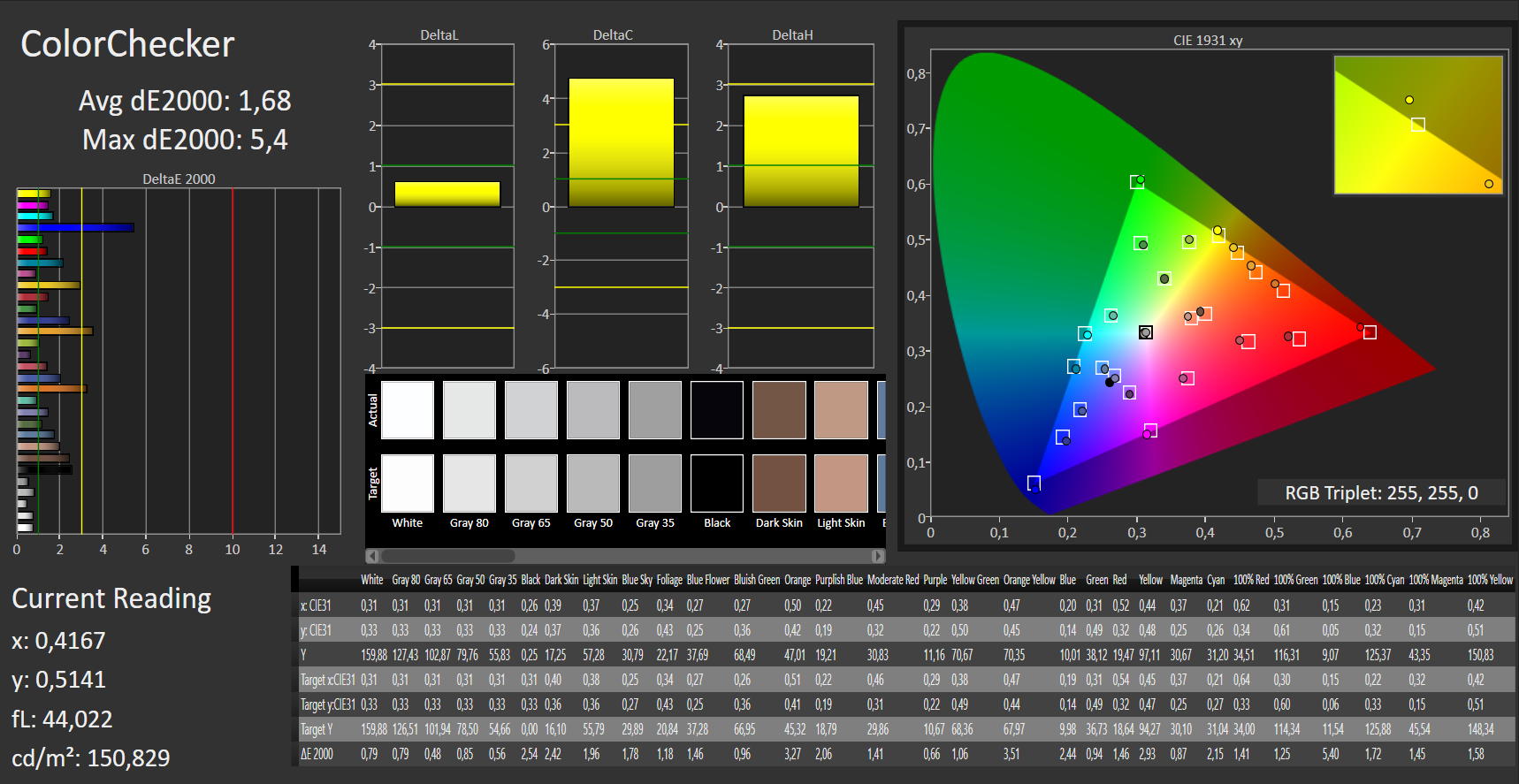

CalMAN ColorChecker na kalibratie
CalMAN ColorChecker na kalibratie

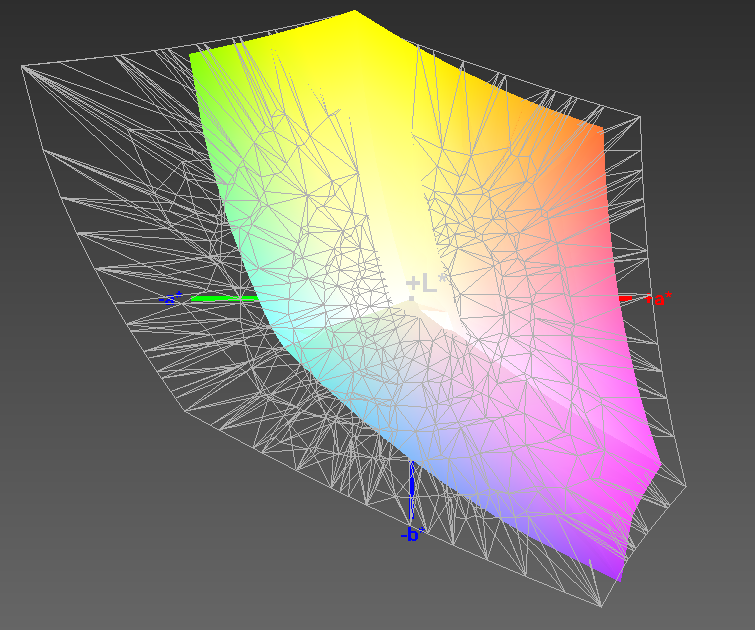

Kleurruimte AdobeRGB 57%
Kleurruimte AdobeRGB 57%

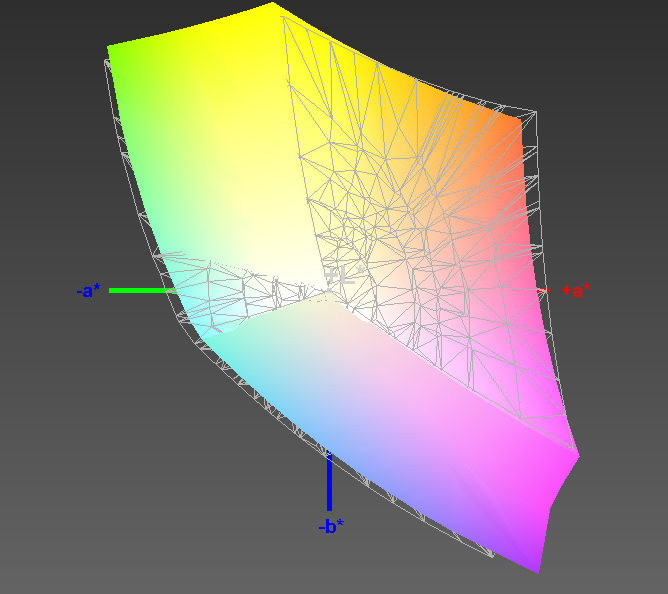

Kleurruimte sRGB 89%
Kleurruimte sRGB 89%
0102030405060708090100110120130140150160170180190200210220230240250260Tooltip
Jumper EZbook X3 Intel Celeron N3350, Intel Celeron N3350: Ø81.8 (81.02-82.28)
Medion Akoya E4253-30025387 Intel Pentium Silver N5000, Intel Pentium Silver N5000: Ø227 (224.67-233.04)
Lenovo IdeaPad Slim 1-14AST-05 AMD A6-9220e, AMD A6-9220e: Ø40.5 (32.79-86.07)
Chuwi LapBook Pro Intel Celeron N4100, Intel Celeron N4100: Ø251 (249.39-252.12)
LincPlus P1 Intel Celeron N4000, Intel Celeron N4000: Ø120 (118.17-121.14)
Cinebench R15
CPU Single 64Bit
Average of class Subnotebook
  (20 - 185, n=303)
118 Points ∼53% +172%
Medion Akoya E4253-30025387
Intel Pentium Silver N5000
76 Points ∼34% +75%
LincPlus P1
Intel Celeron N4000
70.9 Points ∼32% +63%
Chuwi LapBook Pro
Intel Celeron N4100
69 Points ∼31% +59%
Average Intel Celeron N3350
  (43 - 48, n=9)
45.7 Points ∼20% +5%
Jumper EZbook X3
Intel Celeron N3350
43.4 Points ∼19%
Lenovo IdeaPad Slim 1-14AST-05
AMD A6-9220e
31 Points ∼14% -29%
CPU Multi 64Bit
Average of class Subnotebook
  (32 - 1051, n=315)
358 Points ∼8% +335%
Chuwi LapBook Pro
Intel Celeron N4100
251 Points ∼6% +205%
Medion Akoya E4253-30025387
Intel Pentium Silver N5000
233 Points ∼5% +183%
LincPlus P1
Intel Celeron N4000
121 (min: 118.17, max: 121.14) Points ∼3% +47%
Lenovo IdeaPad Slim 1-14AST-05
AMD A6-9220e
86 Points ∼2% +4%
Average Intel Celeron N3350
  (81 - 92, n=9)
85.4 Points ∼2% +4%
Jumper EZbook X3
Intel Celeron N3350
82.3 (min: 81.02, max: 82.28) Points ∼2%
Cinebench R15 CPU Multi 64Bit
82.3 Points
Cinebench R15 OpenGL 64Bit
13.5 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
43.4 Points
Help
PCMark 10
Digital Content Creation
Average of class Subnotebook
  (405 - 4338, n=116)
2545 Points ∼20% +205%
Medion Akoya E4253-30025387
UHD Graphics 605, Pentium N5000, 64 GB eMMC Flash
1378 Points ∼11% +65%
LincPlus P1
UHD Graphics 600, Celeron N4000, 64 GB eMMC Flash
861 Points ∼7% +3%
Jumper EZbook X3
HD Graphics 500, Celeron N3350, 64 GB eMMC Flash
835 Points ∼6%
Average Intel Celeron N3350, Intel HD Graphics 500
  (678 - 835, n=7)
761 Points ∼6% -9%
Lenovo IdeaPad Slim 1-14AST-05
Radeon R4 (Stoney Ridge), A6-9220e, 64 GB eMMC Flash
405 Points ∼3% -51%
Productivity
Average of class Subnotebook
  (1014 - 7334, n=116)
5256 Points ∼50% +179%
Medion Akoya E4253-30025387
UHD Graphics 605, Pentium N5000, 64 GB eMMC Flash
2966 Points ∼28% +57%
LincPlus P1
UHD Graphics 600, Celeron N4000, 64 GB eMMC Flash
2638 Points ∼25% +40%
Jumper EZbook X3
HD Graphics 500, Celeron N3350, 64 GB eMMC Flash
1885 Points ∼18%
Average Intel Celeron N3350, Intel HD Graphics 500
  (1690 - 1974, n=7)
1842 Points ∼18% -2%
Lenovo IdeaPad Slim 1-14AST-05
Radeon R4 (Stoney Ridge), A6-9220e, 64 GB eMMC Flash
1304 Points ∼13% -31%
Essentials
Average of class Subnotebook
  (2062 - 9664, n=116)
6926 Points ∼60% +144%
Medion Akoya E4253-30025387
UHD Graphics 605, Pentium N5000, 64 GB eMMC Flash
4570 Points ∼40% +61%
LincPlus P1
UHD Graphics 600, Celeron N4000, 64 GB eMMC Flash
3889 Points ∼34% +37%
Average Intel Celeron N3350, Intel HD Graphics 500
  (2833 - 3510, n=7)
3160 Points ∼28% +12%
Jumper EZbook X3
HD Graphics 500, Celeron N3350, 64 GB eMMC Flash
2833 Points ∼25%
Lenovo IdeaPad Slim 1-14AST-05
Radeon R4 (Stoney Ridge), A6-9220e, 64 GB eMMC Flash
2544 Points ∼22% -10%
Score
Average of class Subnotebook
  (743 - 4609, n=119)
3210 Points ∼40% +172%
Medion Akoya E4253-30025387
UHD Graphics 605, Pentium N5000, 64 GB eMMC Flash
1902 Points ∼23% +61%
LincPlus P1
UHD Graphics 600, Celeron N4000, 64 GB eMMC Flash
1482 Points ∼18% +26%
Jumper EZbook X3
HD Graphics 500, Celeron N3350, 64 GB eMMC Flash
1179 Points ∼15%
Average Intel Celeron N3350, Intel HD Graphics 500
  (1102 - 1220, n=7)
1175 Points ∼14% 0%
Lenovo IdeaPad Slim 1-14AST-05
Radeon R4 (Stoney Ridge), A6-9220e, 64 GB eMMC Flash
790 Points ∼10% -33%
Jumper EZbook X3
64 GB eMMC Flash
Medion Akoya E4253-30025387
64 GB eMMC Flash
Lenovo IdeaPad Slim 1-14AST-05
64 GB eMMC Flash
Chuwi LapBook Pro
64 GB eMMC Flash
LincPlus P1
64 GB eMMC Flash
Average 64 GB eMMC Flash

Average of class Subnotebook

CrystalDiskMark 5.2 / 6
-27%
-50%
-12%
-3%
-10%
821%
Write 4K
19.21
6.435
-67%
4.58
-76%
13.46
-30%
20.32
6%
13.4 (1.95 - 26.9, n=14)
-30%
97.8 (3.23 - 191, n=121)
409%
Read 4K
7.435
5.91
-21%
7.106
-4%
7.071
-5%
10.69
44%
9.42 (4.94 - 19.7, n=14)
27%
64.4 (5.37 - 3738, n=121)
766%
Write Seq
138.8
66.69
-52%
37.33
-73%
105.3
-24%
98.56
-29%
90.3 (27.9 - 150, n=14)
-35%
890 (37.3 - 2730, n=120)
541%
Read Seq
219.8
268.9
22%
143
-35%
235.5
7%
217.7
-1%
194 (74.7 - 271, n=14)
-12%
1158 (142 - 2760, n=120)
427%
Write 4K Q32T1
24.39
7.795
-68%
5.623
-77%
14.68
-40%
23.81
-2%
18.7 (2.17 - 62.9, n=14)
-23%
294 (3.6 - 868, n=121)
1105%
Read 4K Q32T1
22.2
22.76
3%
9.663
-56%
24.31
10%
21.84
-2%
27 (9.66 - 48.6, n=14)
22%
332 (9.66 - 1580, n=121)
1395%
Write Seq Q32T1
122.3
82.99
-32%
41.03
-66%
114.2
-7%
79.55
-35%
87.9 (18.4 - 137, n=14)
-28%
1034 (16.7 - 3007, n=121)
745%
Read Seq Q32T1
147.6
150
2%
128.3
-13%
140.7
-5%
140.8
-5%
150 (68.9 - 259, n=14)
2%
1891 (113 - 3569, n=121)
1181%
AS SSD
-1%
-33%
523%
Score Total
163
163
0%
124 (36 - 225, n=7)
-24%
1407 (28 - 5191, n=269)
763%
Score Write
60
62
3%
42.4 (4 - 92, n=7)
-29%
495 (8 - 2379, n=269)
725%
Score Read
65
64
-2%
52.4 (21 - 88, n=7)
-19%
611 (12 - 2339, n=269)
840%
Access Time Write *
0.621
0.774
-25%
1.318 (0.233 - 3.33, n=7)
-112%
0.855 (0.021 - 30.3, n=332)
-38%
Access Time Read *
0.246
0.23
7%
0.3558 (0.151 - 0.86, n=6)
-45%
0.883 (0.032 - 23, n=327)
-259%
4K-64 Write
22.73
23.41
3%
15.3 (1.16 - 44.5, n=8)
-33%
306 (0.22 - 2105, n=342)
1246%
4K-64 Read
22.45
21.08
-6%
20.6 (6.95 - 40.3, n=8)
-8%
419 (0.41 - 2011, n=342)
1766%
4K Write
22
23.21
6%
17.5 (1.31 - 35.1, n=8)
-20%
64.5 (0.2 - 180, n=342)
193%
4K Read
18.41
19.26
5%
20.9 (5.78 - 78.5, n=8)
14%
26.1 (0.35 - 63.8, n=342)
42%
Seq Write
155.78
151.4
-3%
81.3 (18.5 - 156, n=9)
-48%
514 (14 - 2564, n=343)
230%
Seq Read
246.2
236.1
-4%
160 (74.2 - 290, n=9)
-35%
853 (50.5 - 2934, n=343)
246%
Totaal Gemiddelde (Programma / Instellingen)
-27% / -27%
-50% / -50%
-12% / -12%
-2% / -2%
-22% / -23%
672% / 649%

* ... kleiner is beter

64 GB eMMC Flash
CDM 5/6 Read Seq Q32T1: 147.6 MB/s
CDM 5/6 Write Seq Q32T1: 122.3 MB/s
CDM 5/6 Read 4K Q32T1: 22.2 MB/s
CDM 5/6 Write 4K Q32T1: 24.39 MB/s
CDM 5 Read Seq: 219.8 MB/s
CDM 5 Write Seq: 138.8 MB/s
CDM 5/6 Read 4K: 7.435 MB/s
CDM 5/6 Write 4K: 19.21 MB/s
3DMark - 1920x1080 Fire Strike Graphics
Average of class Subnotebook
  (222 - 3726, n=269)
1131 Points ∼100% +211%
Medion Akoya E4253-30025387
Intel UHD Graphics 605, Intel Pentium Silver N5000
576 Points ∼51% +58%
Chuwi LapBook Pro
Intel UHD Graphics 600, Intel Celeron N4100
430 Points ∼38% +18%
LincPlus P1
Intel UHD Graphics 600, Intel Celeron N4000
386 Points ∼34% +6%
Jumper EZbook X3
Intel HD Graphics 500, Intel Celeron N3350
364 Points ∼32%
Average Intel HD Graphics 500
  (293 - 444, n=8)
356 Points ∼31% -2%
Lenovo IdeaPad Slim 1-14AST-05
AMD Radeon R4 (Stoney Ridge), AMD A6-9220e
313 Points ∼28% -14%
3DMark Fire Strike Score
349 punten
Help
X-Plane 11.11
1920x1080 med (fps_test=2)
Average of class Subnotebook
  (3.42 - 48.3, n=26)
20.7 fps ∼100% +427%
Chuwi LapBook Pro
Intel Celeron N4100, Intel UHD Graphics 600
5.3 fps ∼26% +35%
Average Intel HD Graphics 500
  (3.93 - 4.7, n=2)
4.32 fps ∼21% +10%
Jumper EZbook X3
Intel Celeron N3350, Intel HD Graphics 500
3.93 fps ∼19%
LincPlus P1
Intel Celeron N4000, Intel UHD Graphics 600
3.42 fps ∼17% -13%
1280x720 low (fps_test=1)
Average of class Subnotebook
  (5.04 - 59.8, n=28)
27.6 fps ∼100% +402%
Chuwi LapBook Pro
Intel Celeron N4100, Intel UHD Graphics 600
7.7 fps ∼28% +40%
Average Intel HD Graphics 500
  (5.3 - 7.6, n=3)
6.13 fps ∼22% +11%
Jumper EZbook X3
Intel Celeron N3350, Intel HD Graphics 500
5.5 fps ∼20%
LincPlus P1
Intel Celeron N4000, Intel UHD Graphics 600
5.04 fps ∼18% -8%
lage gem. hoge ultra
X-Plane 11.11 (2018) 5.5 3.93 3.61 fps
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.531.133.52530.331.330.33133.430.233.44028.52928.55028.428.728.46326.527.126.58025.225.525.210024.524.224.512523.62423.616022.92322.920022.822.422.825021.321.421.331520.320.120.340019.719.319.75001918.81963018.118.518.180017.717.617.710001716.917125016.617.116.6160016.516.516.5200016.616.716.6250016.616.916.6315016.917.216.940001717.317500017.317.717.3630017.617.717.6800017.617.917.61000017.617.817.61250017.917.817.91600018.11818.1SPL29.629.729.6N1.31.31.3median 17.7median 17.8median 17.7Delta21.8230.429.130.429.629.729.63129.73128.425.928.426.825.626.825.624.125.623.522.923.523.423.523.42423.42423.923.223.923.622.323.622.32222.322.22122.221.820.821.821.719.921.720.520.420.520202019.719.419.719.218.719.218.41818.418.217.818.218.117.418.117.61717.617.316.817.31716.71716.916.416.916.816.216.81716.21716.916.116.917.11617.130.830.230.81.31.21.3median 19.2median 18.7median 19.22.42.22.432.833.733.733.831.93434.133.83333.730.931.529.431292928.628.82931.427.527.827.228.626.127.226.426.925.424.924.226.324.524.724.52624.223.824.524.222.421.822.522.4222121.721.320.920.820.22119.719.519.220.419.319.218.519.418.218.618.818.818.218.21818.417.517.717.418.317.217.217.31816.917.41717.616.916.917.117.917.217.216.917.717.517.117.217.917.317.417.418.217.517.517.618.917.717.617.720.317.817.617.820.217.717.817.719.217.817.617.518.617.617.617.518.629.929.929.930.91.31.31.31.5median 17.8median 17.7median 17.7median 18.91.61.61.61.633.531.133.530.331.330.333.430.233.428.52928.528.428.728.426.527.126.525.225.525.224.524.224.523.62423.622.92322.922.822.422.821.321.421.320.320.120.319.719.319.71918.81918.118.518.117.717.617.71716.91716.617.116.616.516.516.516.616.716.616.616.916.616.917.216.91717.31717.317.717.317.617.717.617.617.917.617.617.817.617.917.817.918.11818.129.629.729.61.31.31.3median 17.7median 17.8median 17.721.8233.531.133.530.331.330.333.430.233.428.52928.528.428.728.426.527.126.525.225.525.224.524.224.523.62423.622.92322.922.822.422.821.321.421.320.320.120.319.719.319.71918.81918.118.518.117.717.617.71716.91716.617.116.616.516.516.516.616.716.616.616.916.616.917.216.91717.31717.317.717.317.617.717.617.617.917.617.617.817.617.917.817.918.11818.129.629.729.61.31.31.3median 0median 0median 021.82hearing rangehide median Fan NoiseJumper EZbook X3Chuwi LapBook ProLenovo IdeaPad Slim 1-14AST-05LincPlus P1
Max. Belasting
 24.2 °C37.5 °C40.1 °C
 24 °C32.7 °C33.6 °C
 23.2 °C25.7 °C25.9 °C
Maximum: 40.1 °C
Gemiddelde: 29.7 °C
40.4 °C39.5 °C24.3 °C
31.5 °C29.7 °C24.7 °C
28.5 °C27.9 °C24.8 °C
Maximum: 40.4 °C
Gemiddelde: 30.1 °C
Stroomadapter (max.)  34 °C | Kamertemperatuur 21.8 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 29.7 °C / 85 F, compared to the average of 30.6 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 40.1 °C / 104 F, compared to the average of 35.8 °C / 96 F, ranging from 22 to 57 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 40.4 °C / 105 F, compared to the average of 39.8 °C / 104 F
(+) In idle usage, the average temperature for the upper side is 25.4 °C / 78 F, compared to the device average of 30.6 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 25.9 °C / 78.6 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.5 °C / 83.3 F (+2.6 °C / 4.7 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.931.131.92531.331.331.33128.830.228.84030.32930.3502928.7296327.427.127.48026.225.526.210025.324.225.312524.72424.716025.12325.120023.622.423.62502821.42831536.120.136.140042.219.342.250048.218.848.263049.918.549.980062.617.662.6100067.316.967.3125066.217.166.2160061.716.561.7200058.716.758.7250055.516.955.5315054.117.254.1400056.917.356.9500054.217.754.2630053.117.753.1800054.817.954.81000058.817.858.8125006117.8611600050.61850.6SPL72.629.772.6N26.11.326.1median 54.1median 17.8median 54.1Delta9.81.89.831.931.131.931.331.331.328.830.228.830.32930.32928.72927.427.127.426.225.526.225.324.225.324.72424.725.12325.123.622.423.62821.42836.120.136.142.219.342.248.218.848.249.918.549.962.617.662.667.316.967.366.217.166.261.716.561.758.716.758.755.516.955.554.117.254.156.917.356.954.217.754.253.117.753.154.817.954.858.817.858.86117.86150.61850.672.629.772.626.11.326.1median 0median 0median 09.81.89.834.333.934.33631.33636.932.836.932.329.932.332.728.432.732.52932.528.825.628.831.625.431.634.724.434.733.323.833.333.922.733.942.221.842.248.420.448.452.419.452.458.319.158.361.618.561.668.818.268.868.517.668.568.217.668.266.817.266.869.717.269.772.517.372.571.617.471.669.517.669.564.217.764.255.417.855.453.117.853.158.417.858.455.617.755.655.117.855.180.13080.1421.442median 58.3median 17.8median 58.312.21.412.2hearing rangehide median Pink NoiseJumper EZbook X3Medion Akoya E4253-30025387
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Jumper EZbook X3 audio analysis

(±) | speaker loudness is average but good (72.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.9% lower than median
(±) | linearity of bass is average (7.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 8.5% higher than median
(±) | linearity of mids is average (13.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.5% away from median
(+) | highs are linear (6.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (30.1% difference to median)
Compared to same class
» 88% of all tested devices in this class were better, 4% similar, 8% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 88% of all tested devices were better, 4% similar, 8% worse
» The best had a delta of 3%, average was 21%, worst was 65%

<
Medion Akoya E4253-30025387 audio analysis

(±) | speaker loudness is average but good (72.46 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21% lower than median
(±) | linearity of bass is average (9.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.4% higher than median
(±) | linearity of mids is average (7.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.5% higher than median
(±) | linearity of highs is average (9.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (26.2% difference to median)
Compared to same class
» 81% of all tested devices in this class were better, 4% similar, 15% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 77% of all tested devices were better, 5% similar, 18% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Stroomgebruik
Uit / Standbydarklight 1 / 0.85 Watt
Inactiefdarkmidlight 3.3 / 6.4 / 7 Watt
Belasting midlight 13.4 / 14 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Battery Runtime - WiFi Websurfing 1.3
Medion Akoya E4253-30025387
Pentium N5000, UHD Graphics 605, 41 Wh
555 min ∼21% +18%
Chuwi LapBook Pro
Celeron N4100, UHD Graphics 600, 38 Wh
491 min ∼19% +4%
Average of class Subnotebook
  (206 - 991, n=246)
489 min ∼19% +4%
Jumper EZbook X3
Celeron N3350, HD Graphics 500, 34.9 Wh
472 min ∼18%
LincPlus P1
Celeron N4000, UHD Graphics 600, 34 Wh
370 min ∼14% -22%
Lenovo IdeaPad Slim 1-14AST-05
A6-9220e, Radeon R4 (Stoney Ridge), 35 Wh
339 min ∼13% -28%
Batterijduur
NBC WiFi Websurfing Battery Test 1.3
7h 52min

Pro

+ stil
+ ontspiegeld scherm
+ kan worden uitgebreid met M.2 SSD

Contra

- onstabiele, krakende behuizing
- zwakke invoerapparaten
- langzame processor beperkt systeemprestaties
- slechte webcam
- lage helderheid
- geen Type-C USB

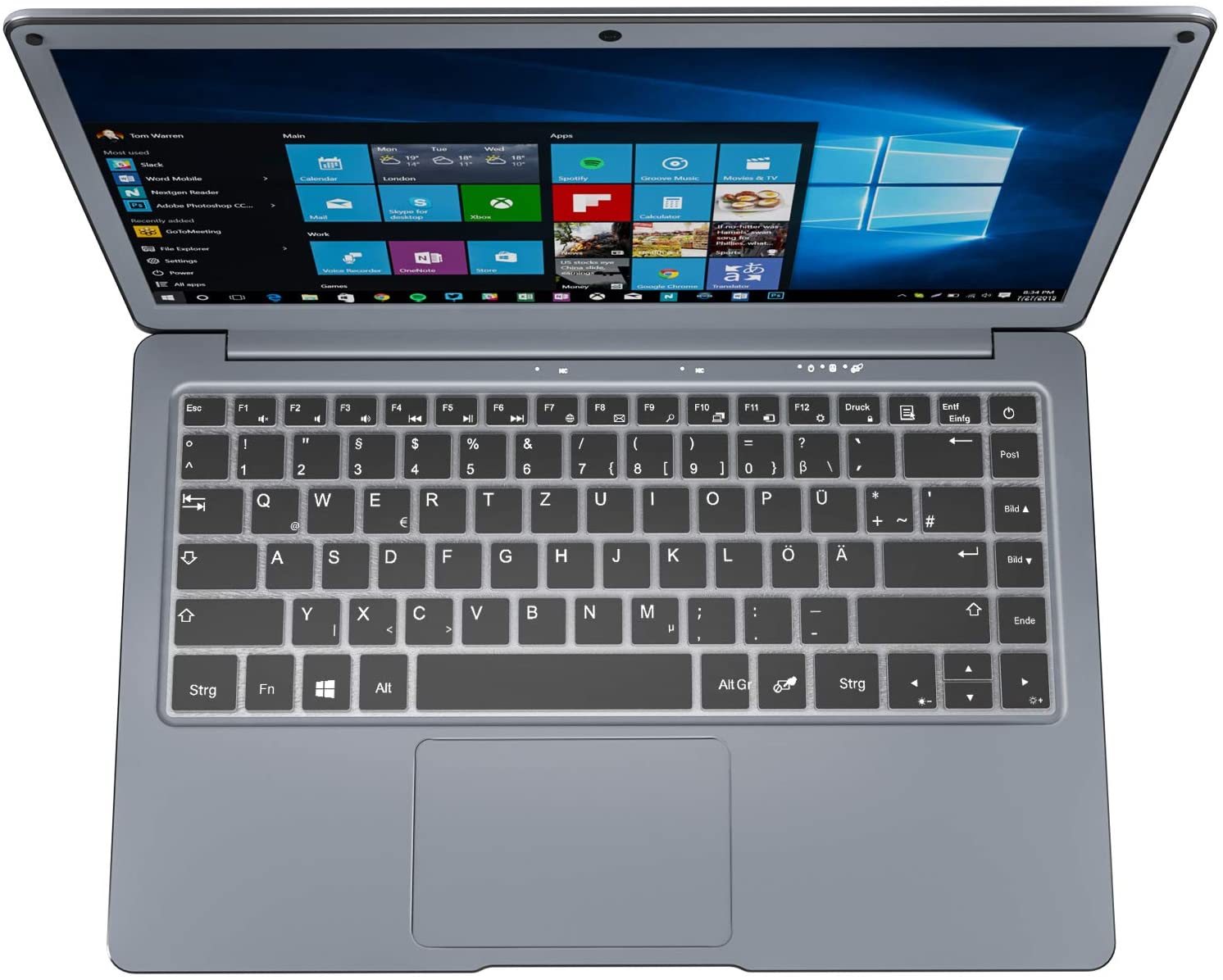

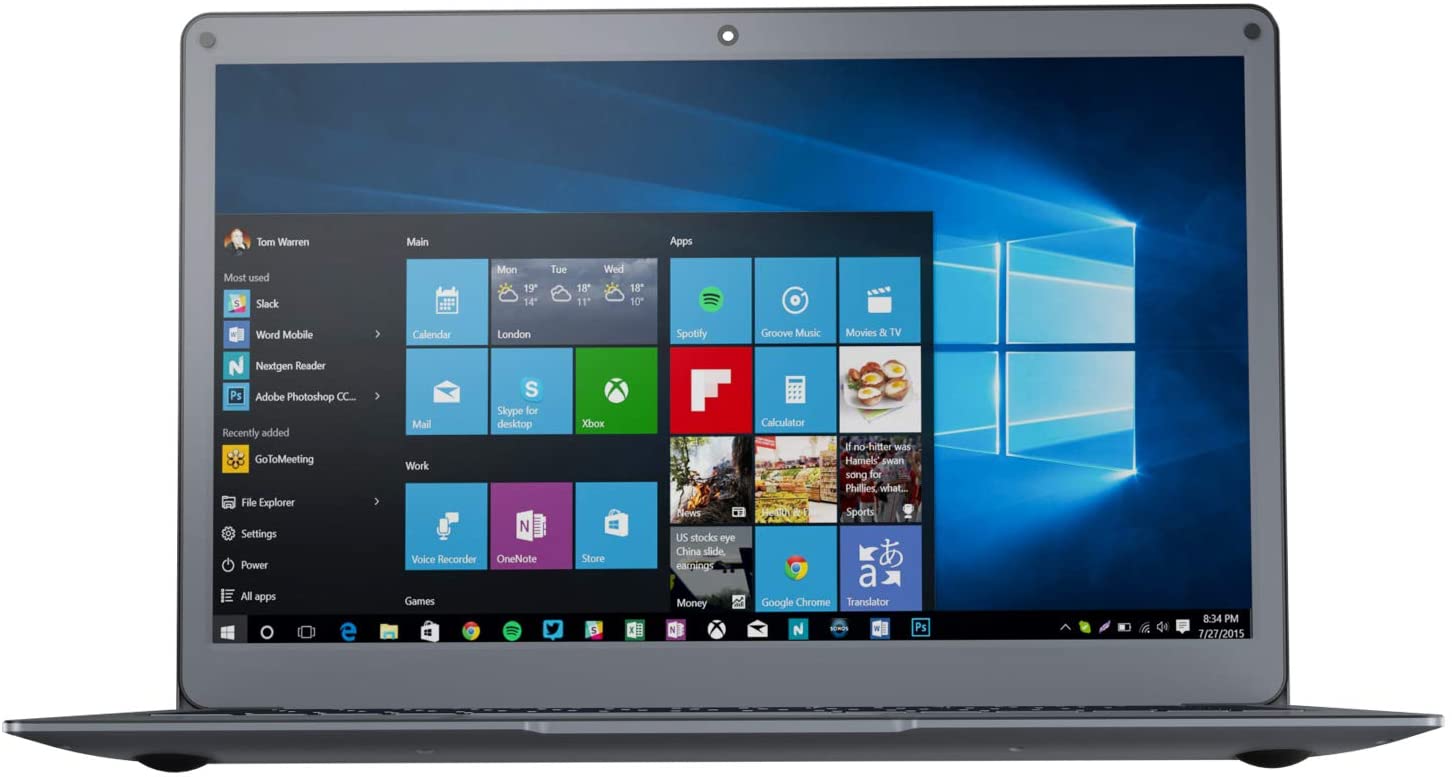

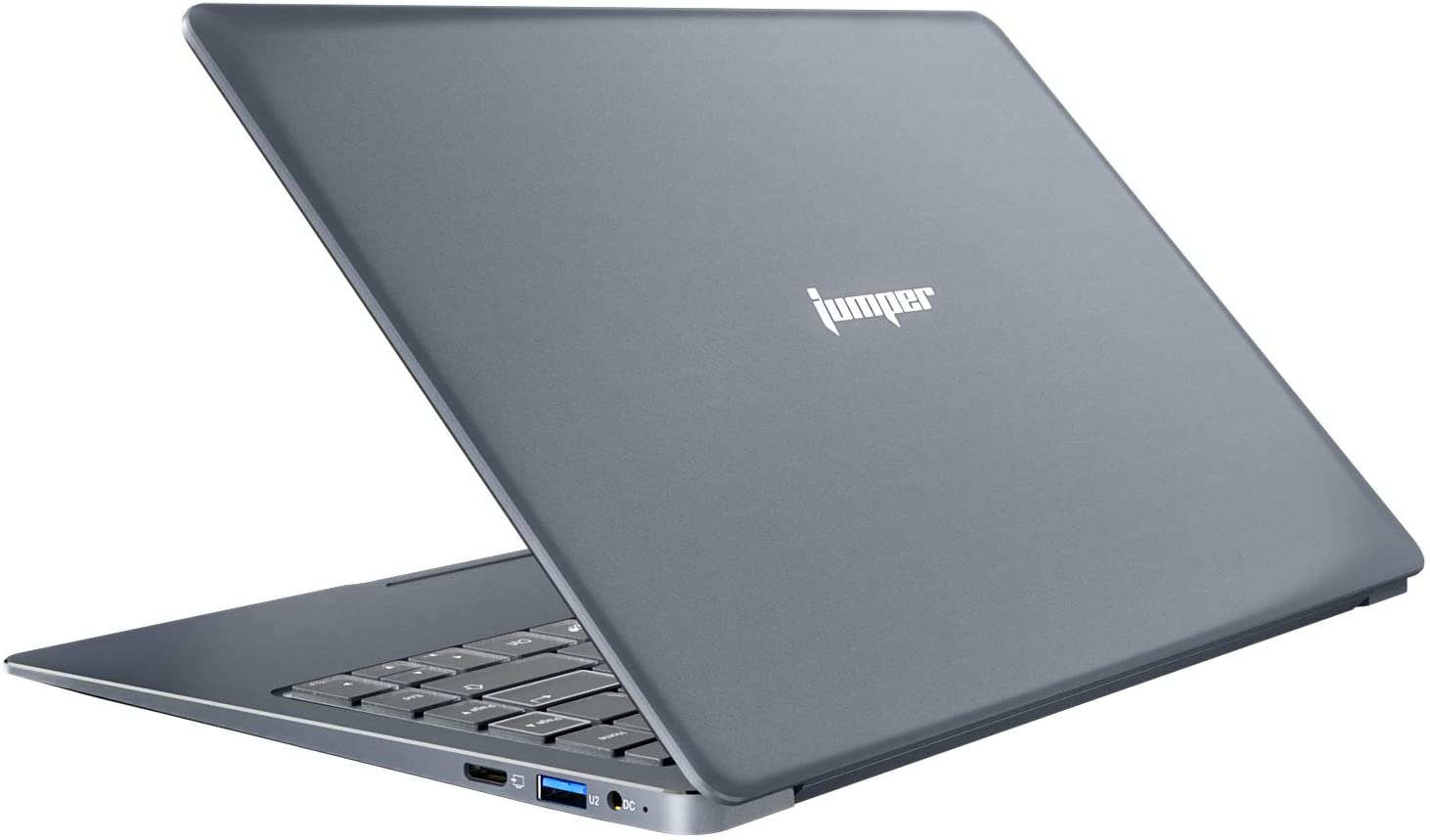

Jumper EZbook X3 13.3-inch
Jumper EZbook X3 13.3-inch

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

De Jumper EZBook X3 bevindt zich in het laagst mogelijke prijssegment. Het toestel is momenteel verkrijgbaar voor 250 euro - inclusief een Windows-licentie. Het mag niet verrassen dat de processor van 2016 dateert. Op zijn minst is er een ontspiegeld Full-HD IPS-scherm en een M.2 2280-slot voor uitbreiding van opslagcapaciteit.

Dus wat kan er misgaan? Nou ... de benchmarks werden erg moeizaam doorlopen en de stabiliteit van de behuizing laat veel te wensen over, wat ook een negatieve impact heeft op de invoerapparatuur.

We kunnen deze goedkope laptop dan ook niet aanbevelen. De concurrentie van Chuwi, Medion en LincPlus kosten allemaal slechts iets meer, maar zijn stabieler, bieden betere prestaties en betere invoerapparaten.

Dit is een van de meest gammele, onstabiele behuizingen die we ooit hebben gezien. Koop dit apparaat niet.

Wat we wel kunnen aanbevelen is de Medion Akoya E4253, uitgerust met een Pentium N5000. Dit 14-inch-toestel heeft ook een ontspiegeld scherm en is een stuk sneller.

Jumper EZbook X3 - 06-04-2020 v7
Sebastian Jentsch

Behuizing
46 / 98 → 47%
Toetsenbord
52%
Aanwijsapparaat
57%
Aansluitmogelijkheden
33 / 75 → 44%
Gewicht
72 / 20-75 → 94%
Batterij
79%
Beeldscherm
78%
Gaming-performance
18 / 78 → 22%
Applicatie-performance
45 / 85 → 52%
Temperatuur
93%
Luidheid
100%
Audio
56 / 91 → 61%
Camera
20 / 85 → 24%
Gemiddelde
58%
68%
Subnotebook - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Jumper EZbook X3: oude technologie in een gammele behuizing
Sebastian Jentsch, 2020-04-11 (Update: 2020-04-12)
