Kort testrapport Dell G5 15 5587 (i5-8300H, GTX 1060 Max-Q, SSD, IPS) Laptop

Die ken ik! Met Coffee Lake en een goede middenklasse GPU, presenteert Dell de G5 15 als gaming notebook voor het kleinere budget. Als opvolger van de Inspiron 15 7577 lijken de apparaten veel op elkaar. Lees hier welke verbeteringen de G5 te bieden heeft en hoe het apparaat zich houdt in onze tests.
Sebastian Bade, ✓ Felicitas Krohn, 🇺🇸 🇩🇪 ...
Coffee Lake Gaming Geforce Linux / Unix Laptop / Notebook Windows
, , , , , ,
zoekrelatie.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

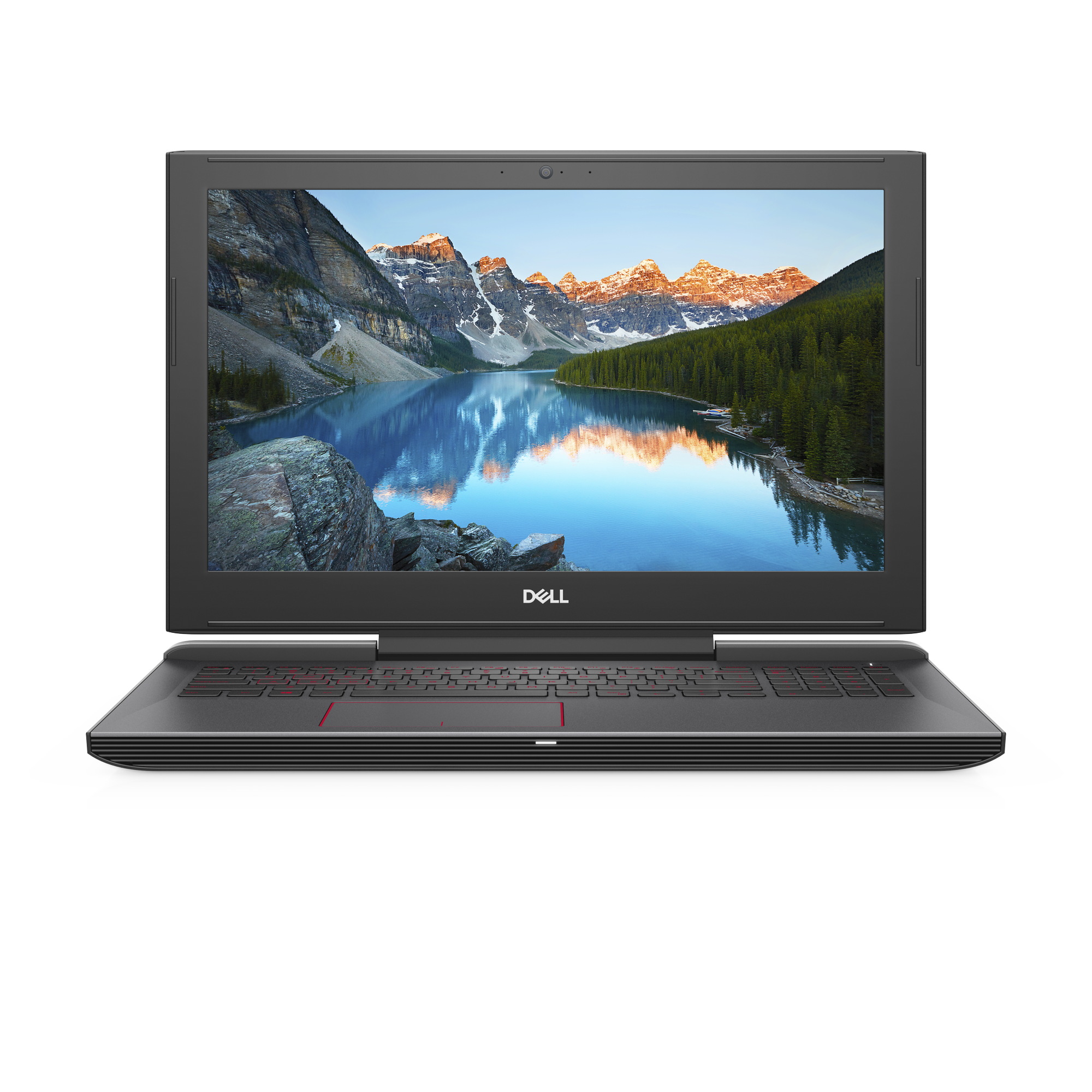

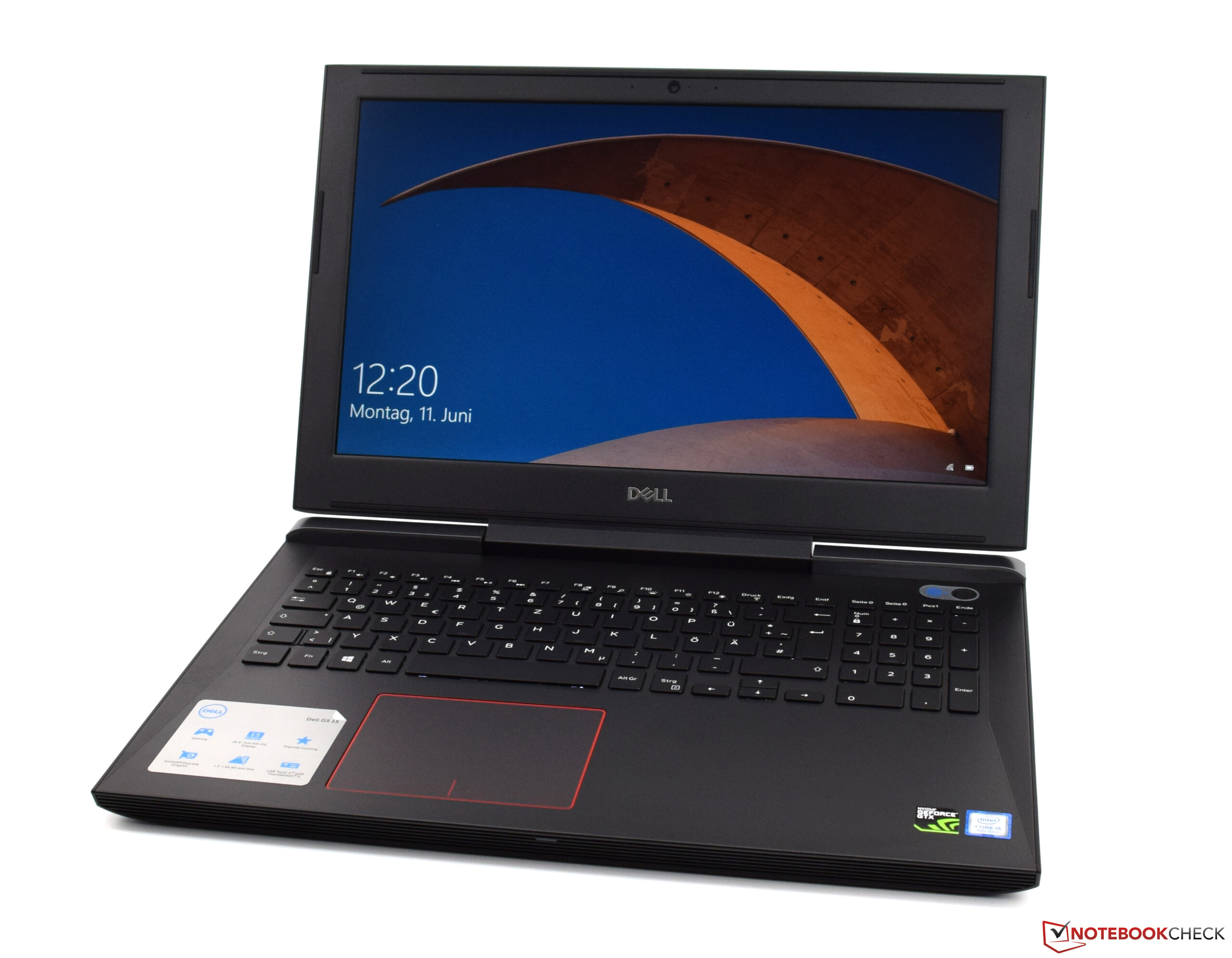

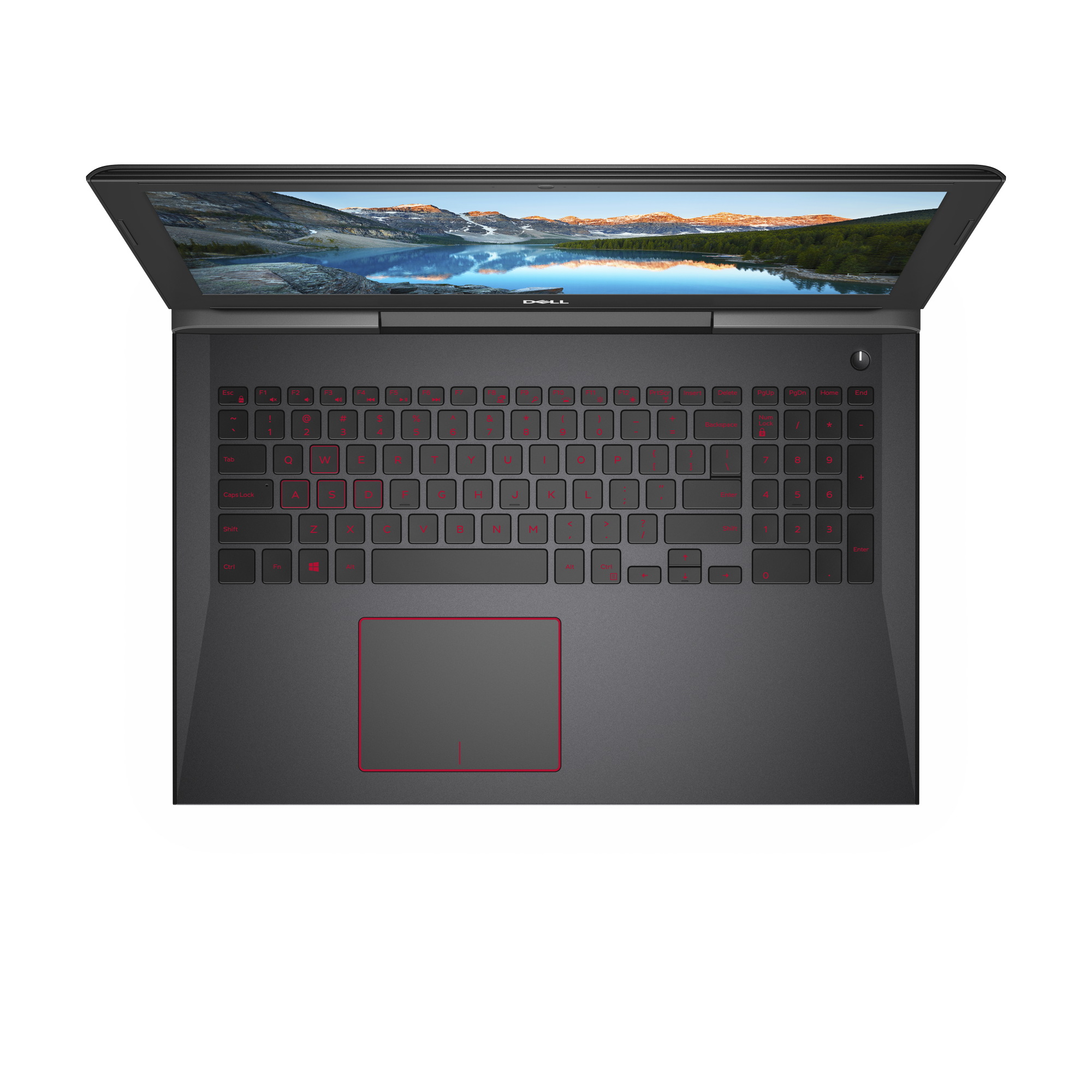

Dell G5 15 5587
Processor
Intel Core i5-8300H 4 x 2.3 - 4 GHz, Coffee Lake-H
Grafische kaart
NVIDIA GeForce GTX 1060 Max-Q - 6144 MB, Core: 1480 MHz, Geheugen: 8008 MHz, GDDR5 (Hynix), 398.11, Nvidia Optimus

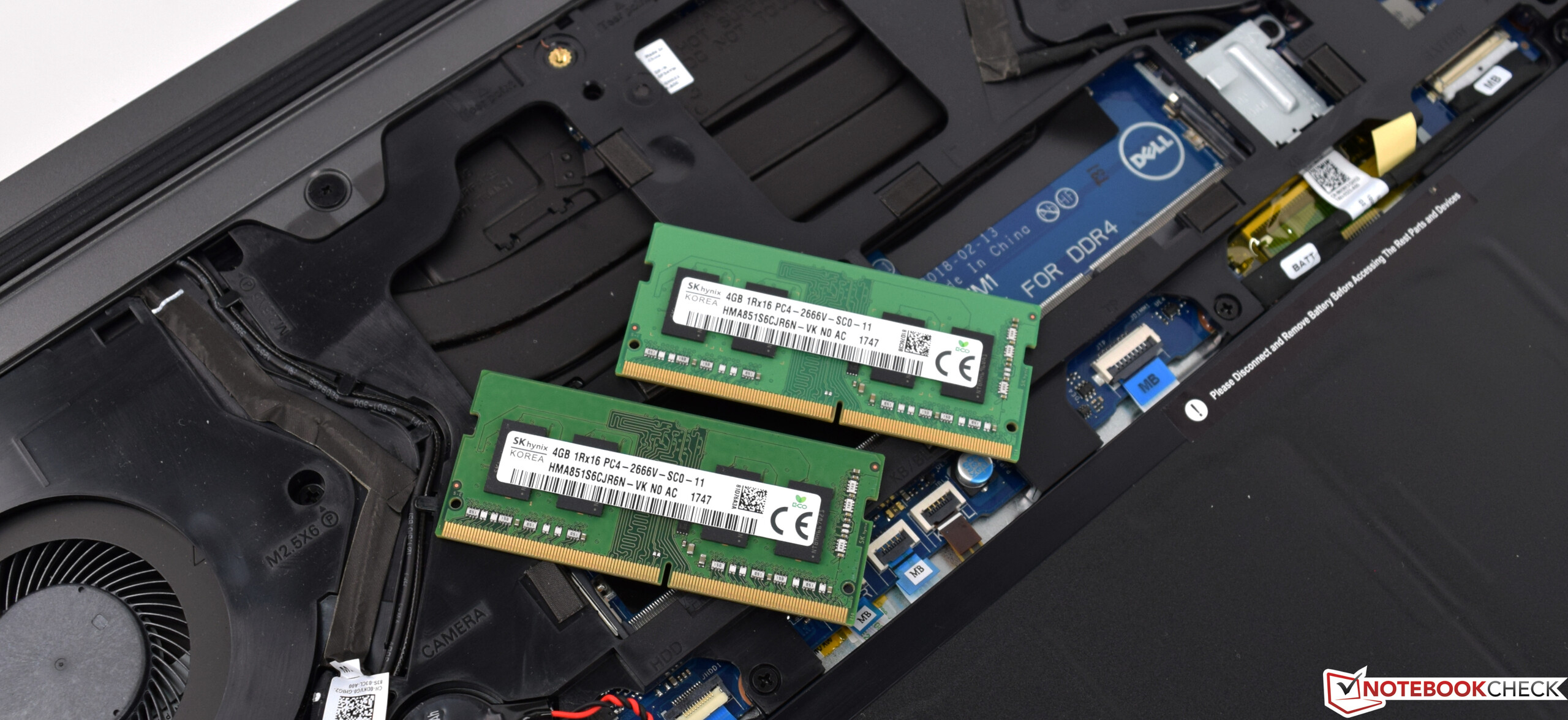

Geheugen
8192 MB
, DDR4, 2 van 2 slots bezet, dual channel
Beeldscherm
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, LGD053F, 156WF6, IPS, glimmend: nee
Moederbord
Intel HM370
Opslag
SK hynix SC311 M.2, 128 GB
, M.2 SSD + 2.5 inch HDD (WDC WD 10SPZX-78Z10T1), 1050 GB beschikbaar
Geluidskaart
Realtek Audio
Verbindingen
3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, Audio Verbindingen: Stereo, Card Reader: 2-in-1 SD / MicroMedia Card, 1 Vingerafdruklezer
Netwerkmogelijkheden
Killer E2400 Gigabit Ethernet Controller (10/100/1000/2500/5000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5.0
Afmetingen
hoogte x breedte x diepte (in mm): 24.95 x 389 x 274.7
Batterij
56 Wh, 3500 mAh Lithium-Ion, 4 cellen
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Camera

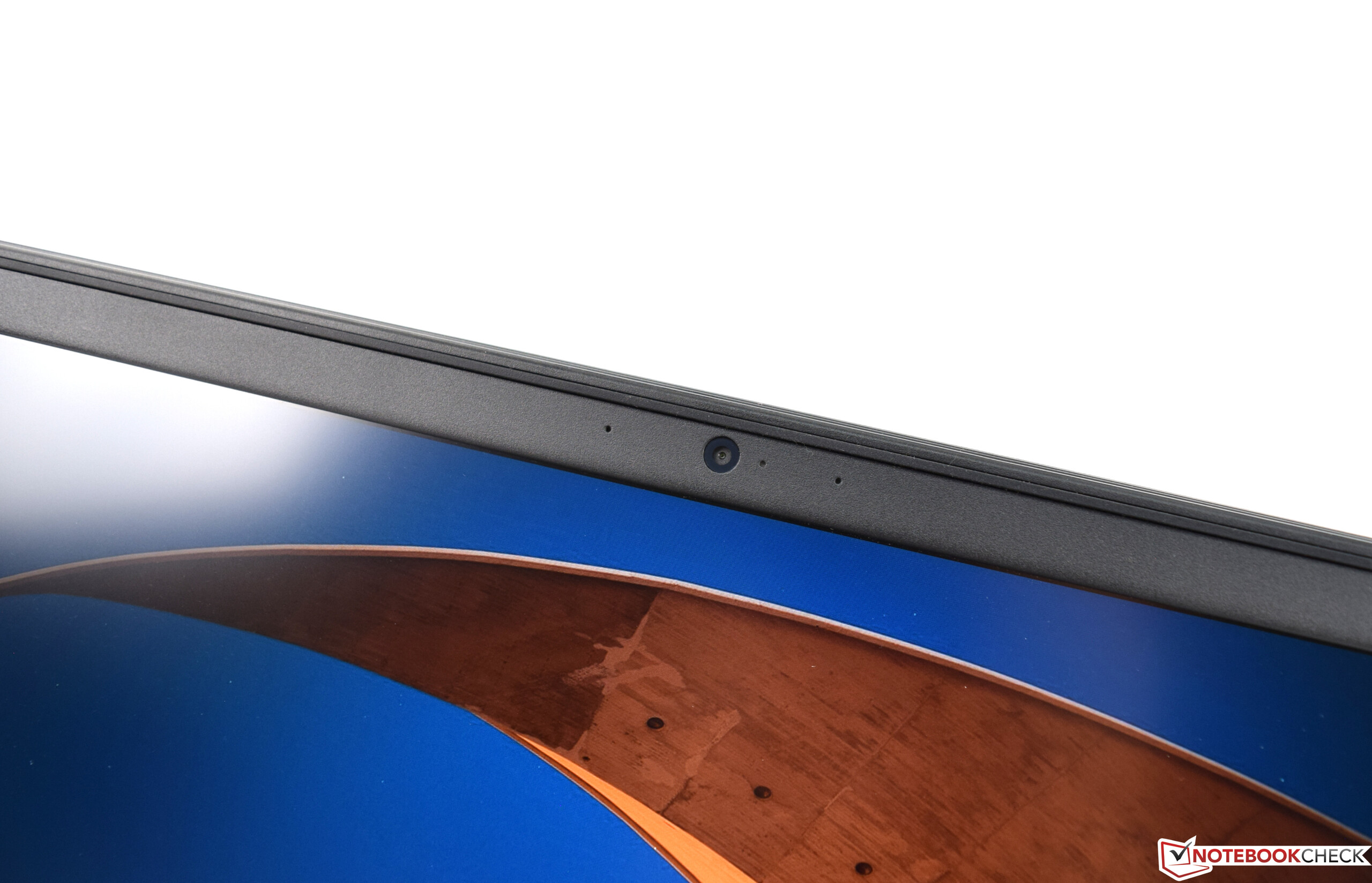

Webcam: 720p
Bijkomende functionaliteiten
Luidsprekers: Stereo, Toetsenbord: Chiclet, Toetsenbordverlichting: ja, 180 Watt stroomadapter, McAfee LiveSafe, Dell Updater, 12 Maanden Garantie
Gewicht
2.853 kg, Voeding: 699 g
Prijs
1150 EUR
Links
Dell startpagina
Dell laptopsectie
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587
Dell G5 15 5587

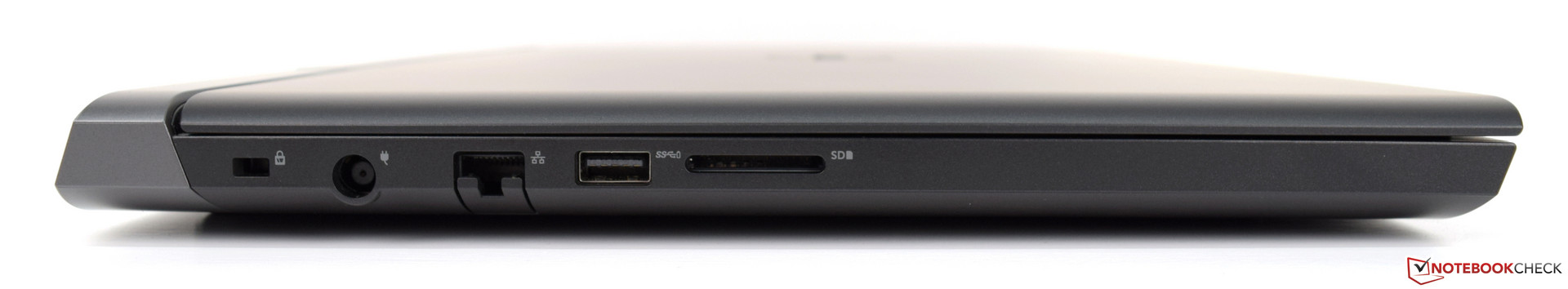

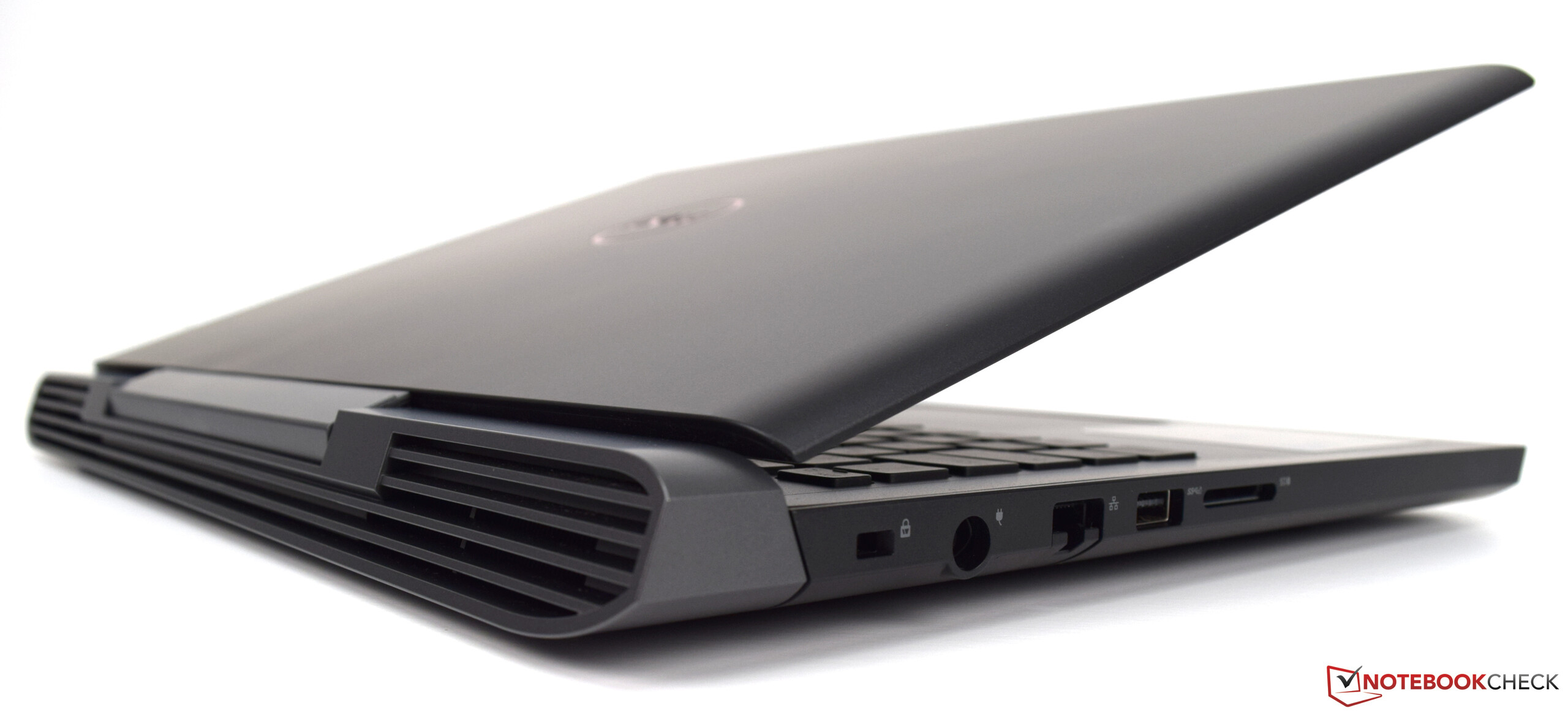

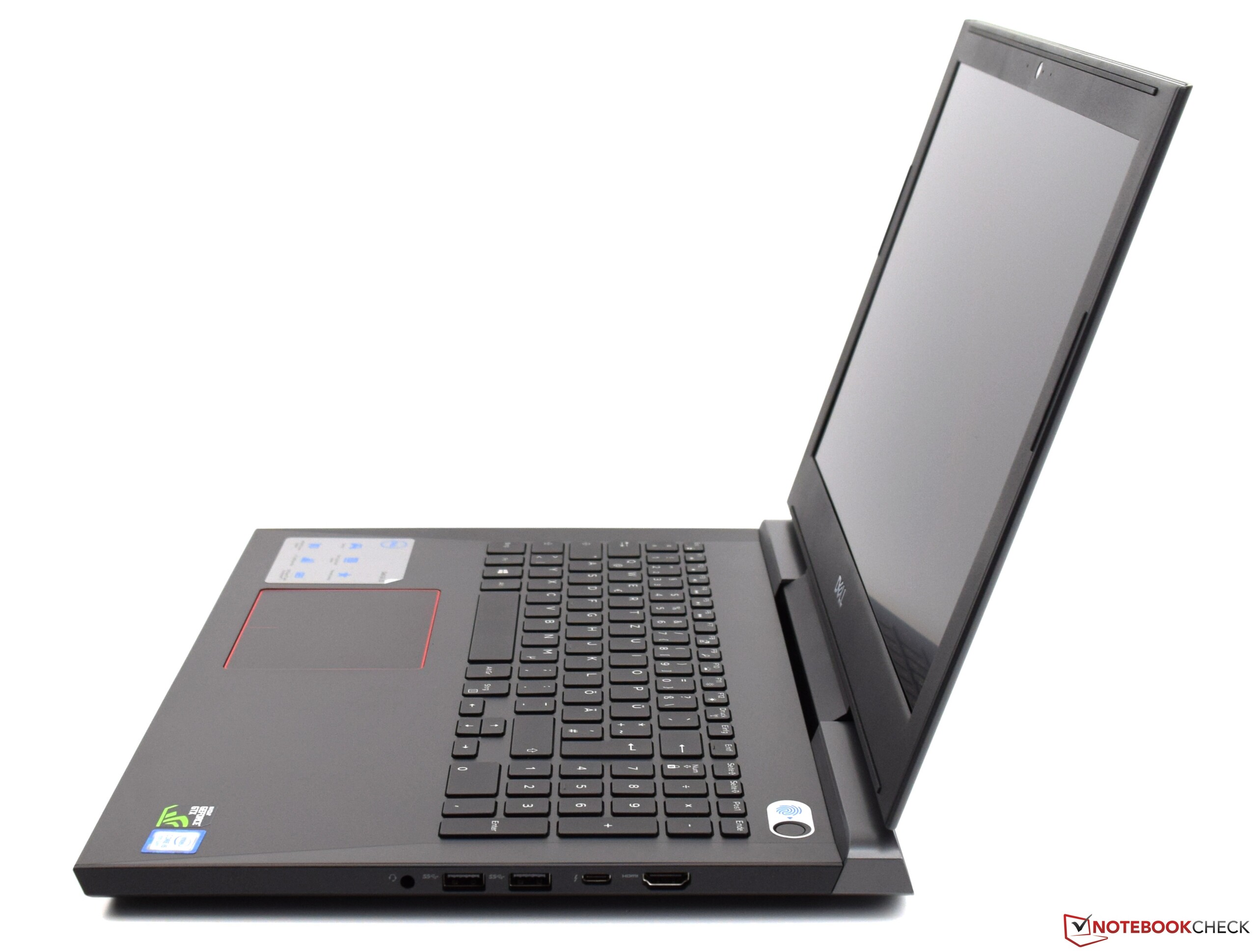

Linkerkant: Noble Lock, stroomvoorziening, Gigabit Ethernet, USB 3.1, SD kaartlezer
Linkerkant: Noble Lock, stroomvoorziening, Gigabit Ethernet, USB 3.1, SD kaartlezer

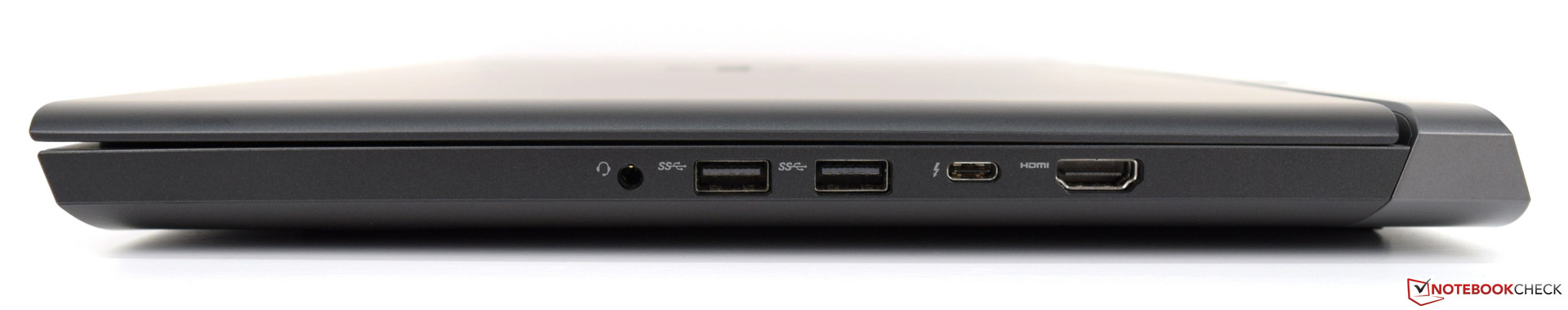

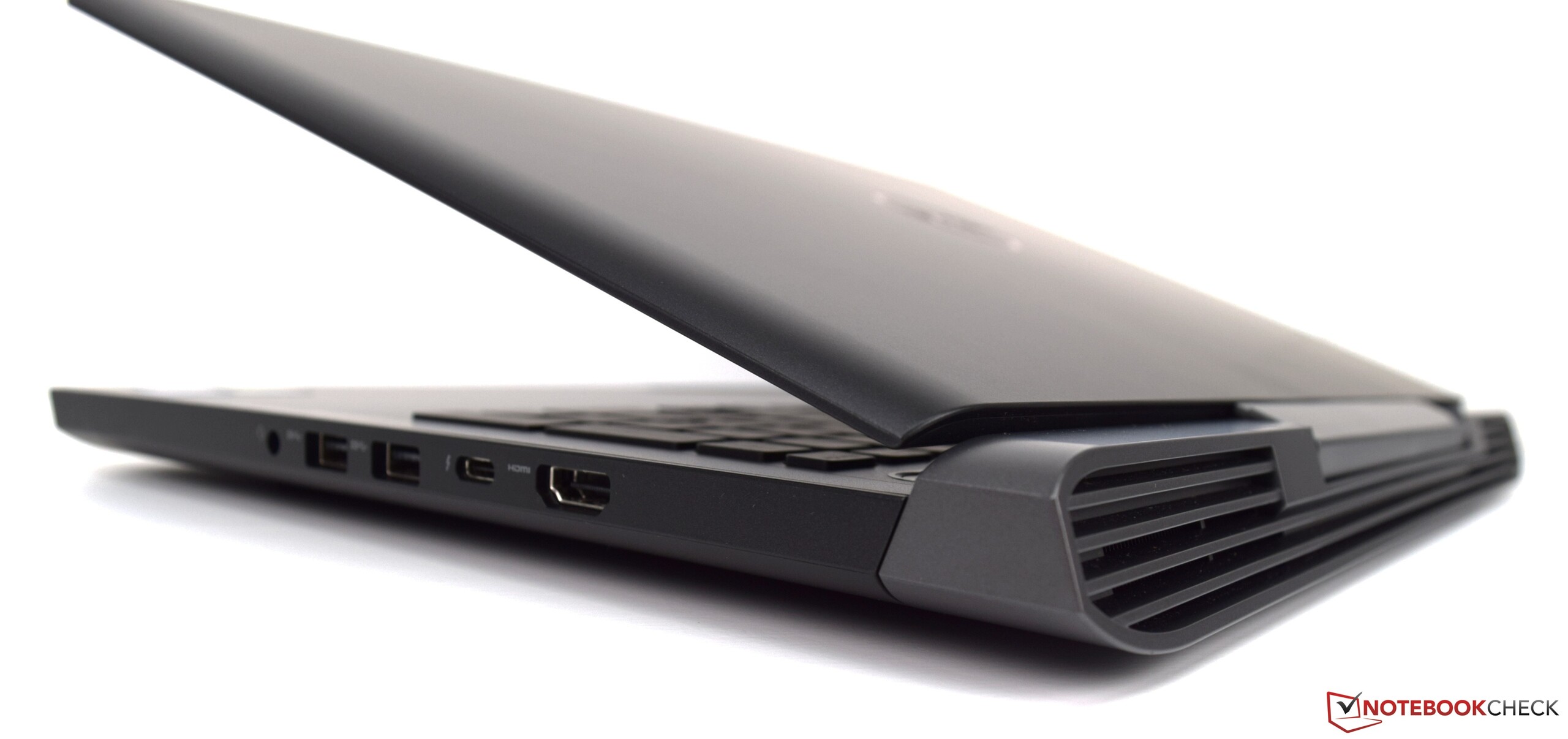

Rechterkant: 3.5 mm audiopoort, 2x USB 3.1, USB Type-C met Thunderbolt 3 @ 40 Gbps, HDMI 2.0
Rechterkant: 3.5 mm audiopoort, 2x USB 3.1, USB Type-C met Thunderbolt 3 @ 40 Gbps, HDMI 2.0

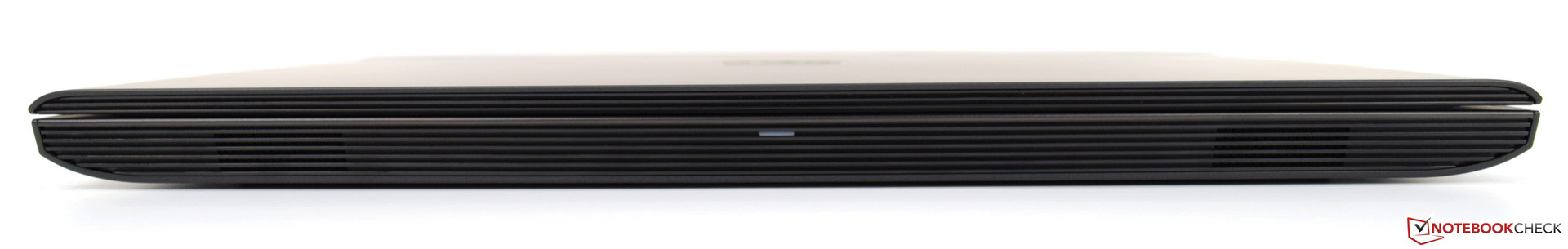

Voorkant: status LED
Voorkant: status LED

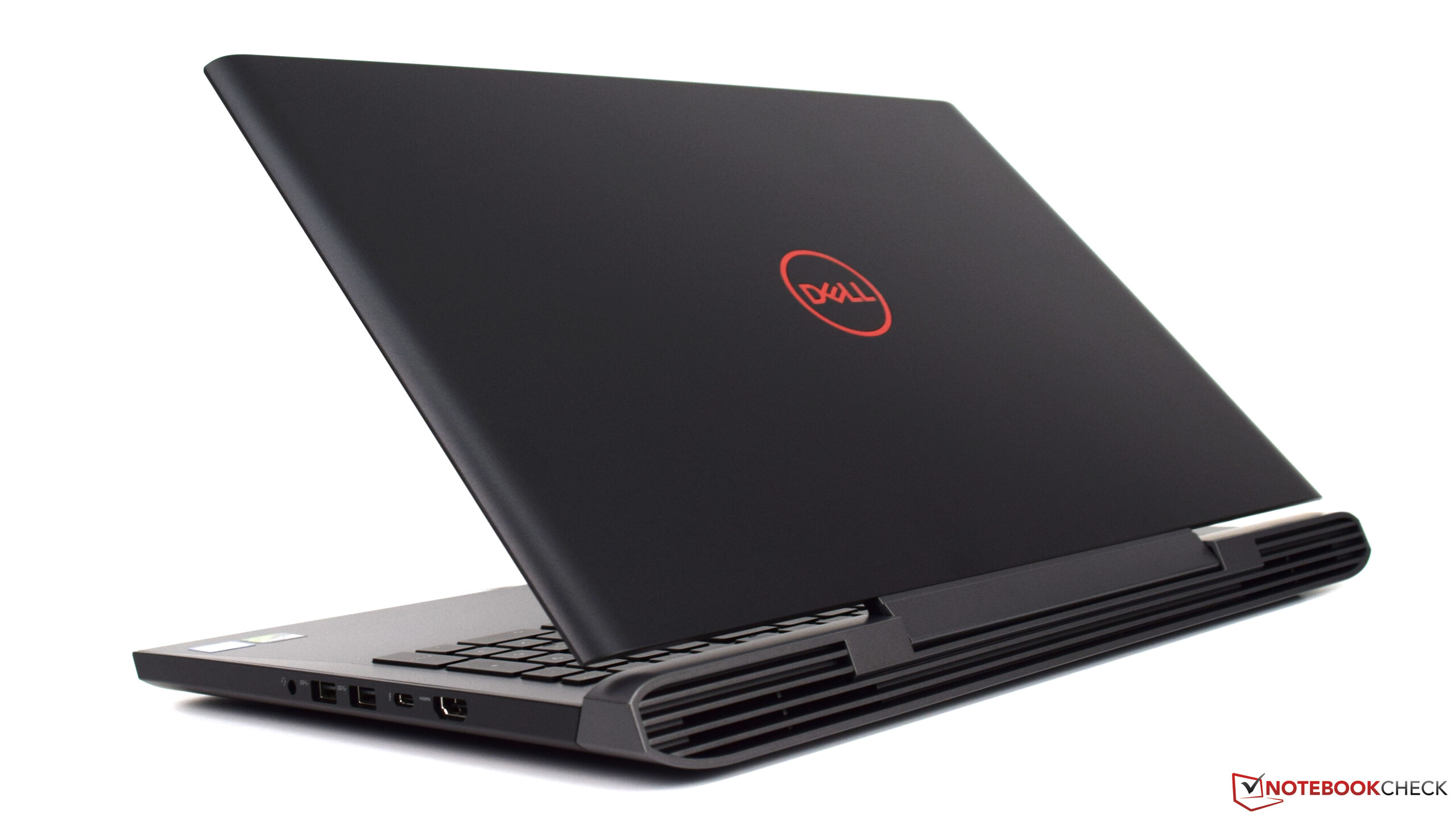

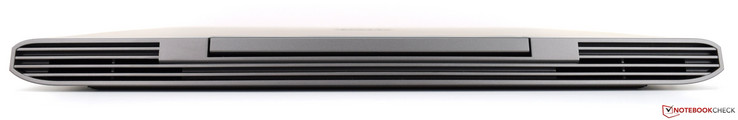

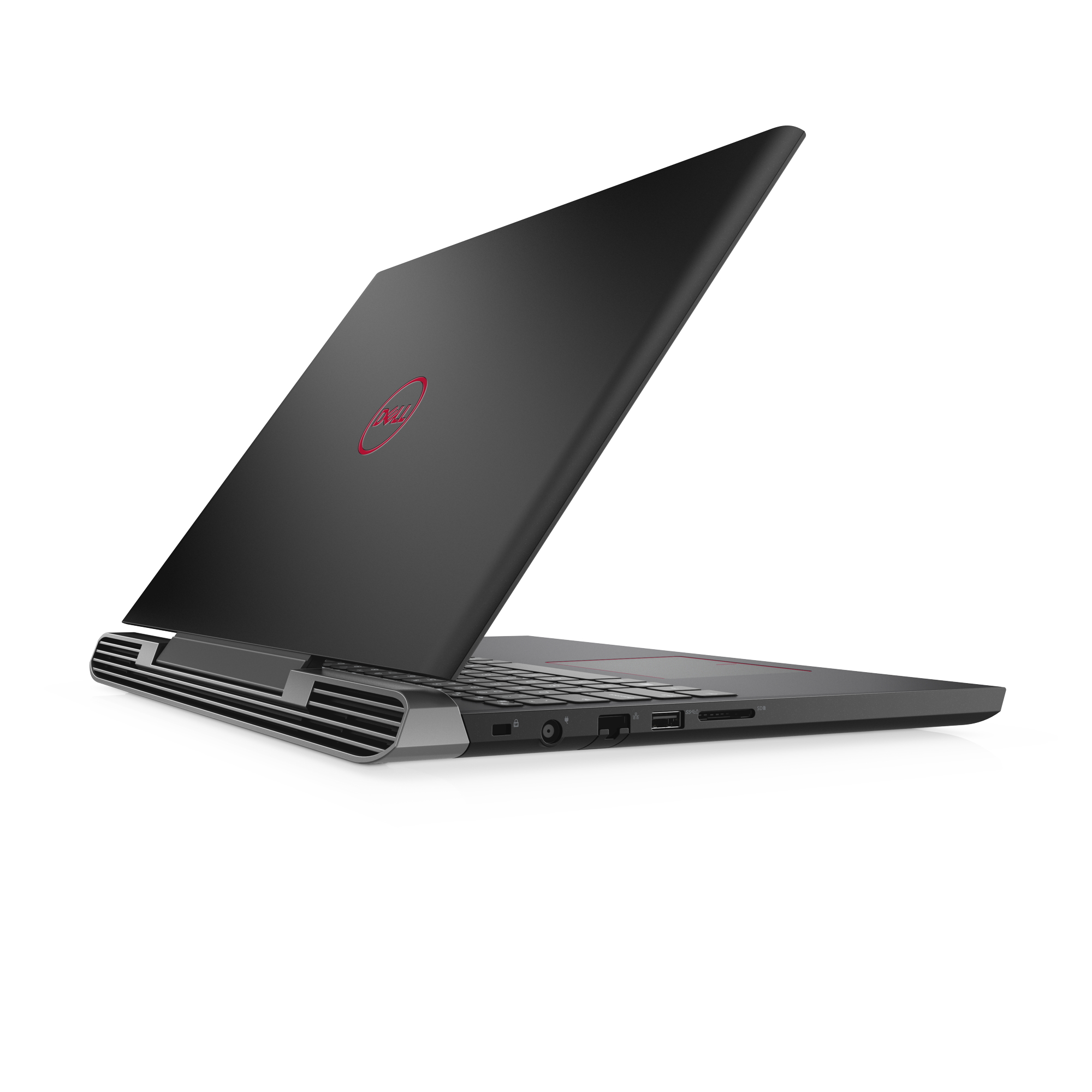

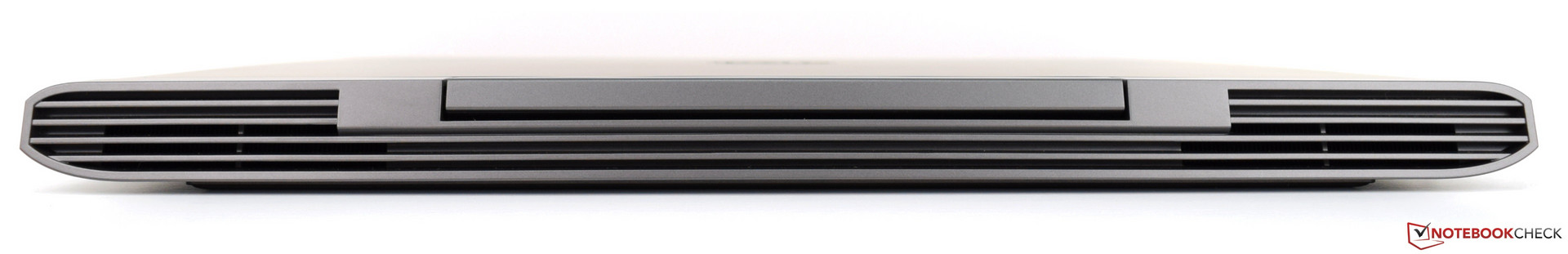

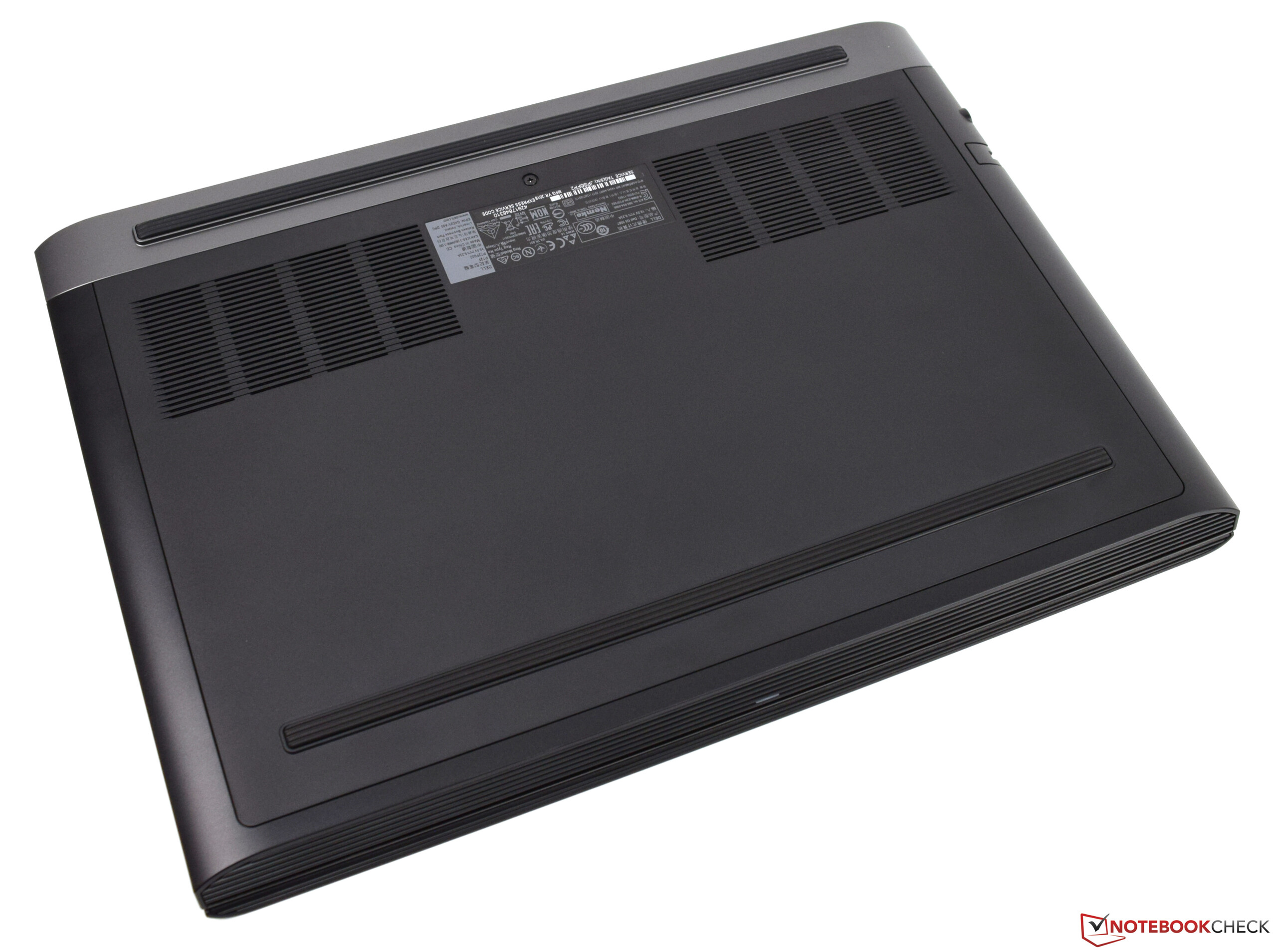

Achterkant: ventilatoropening
Achterkant: ventilatoropening

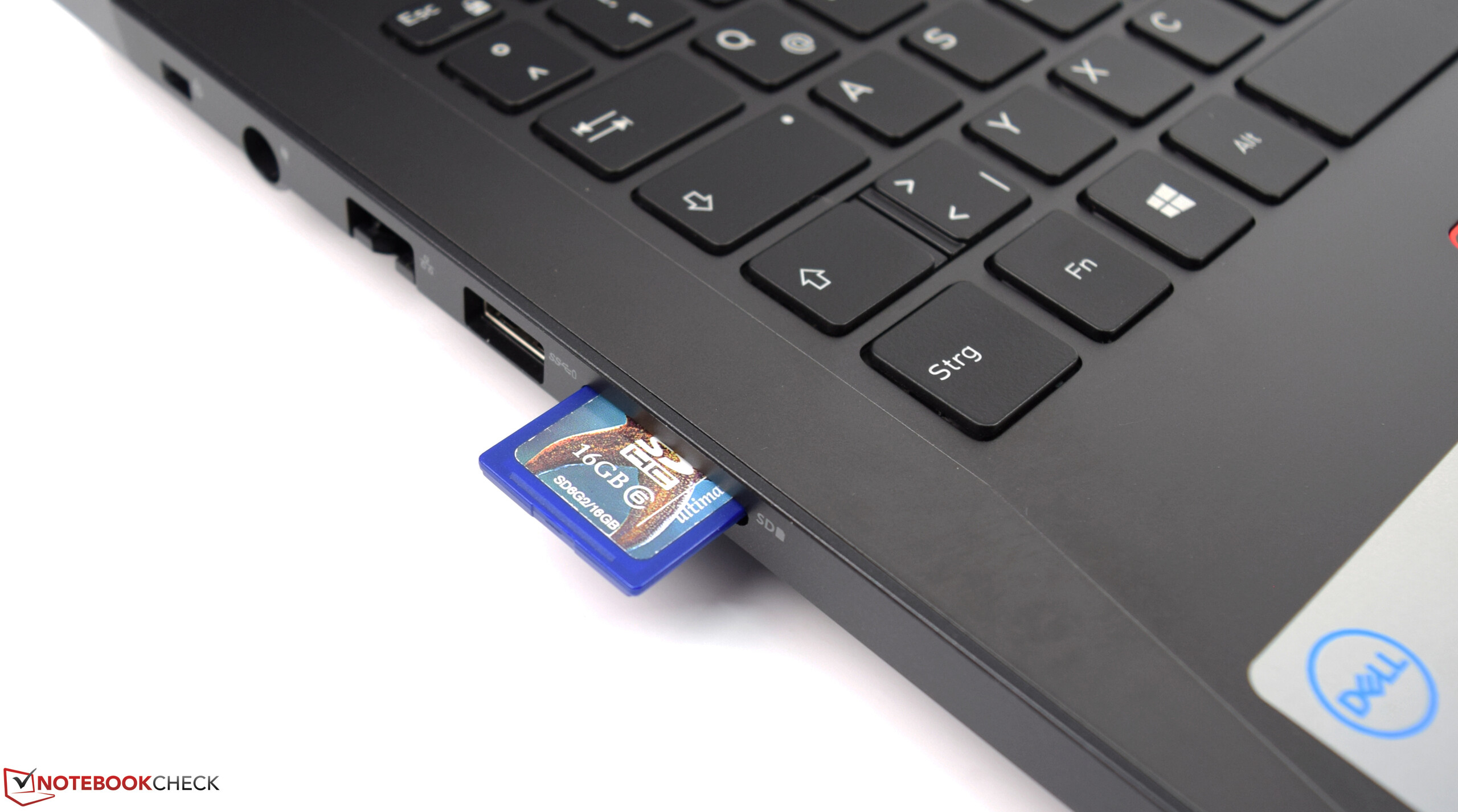

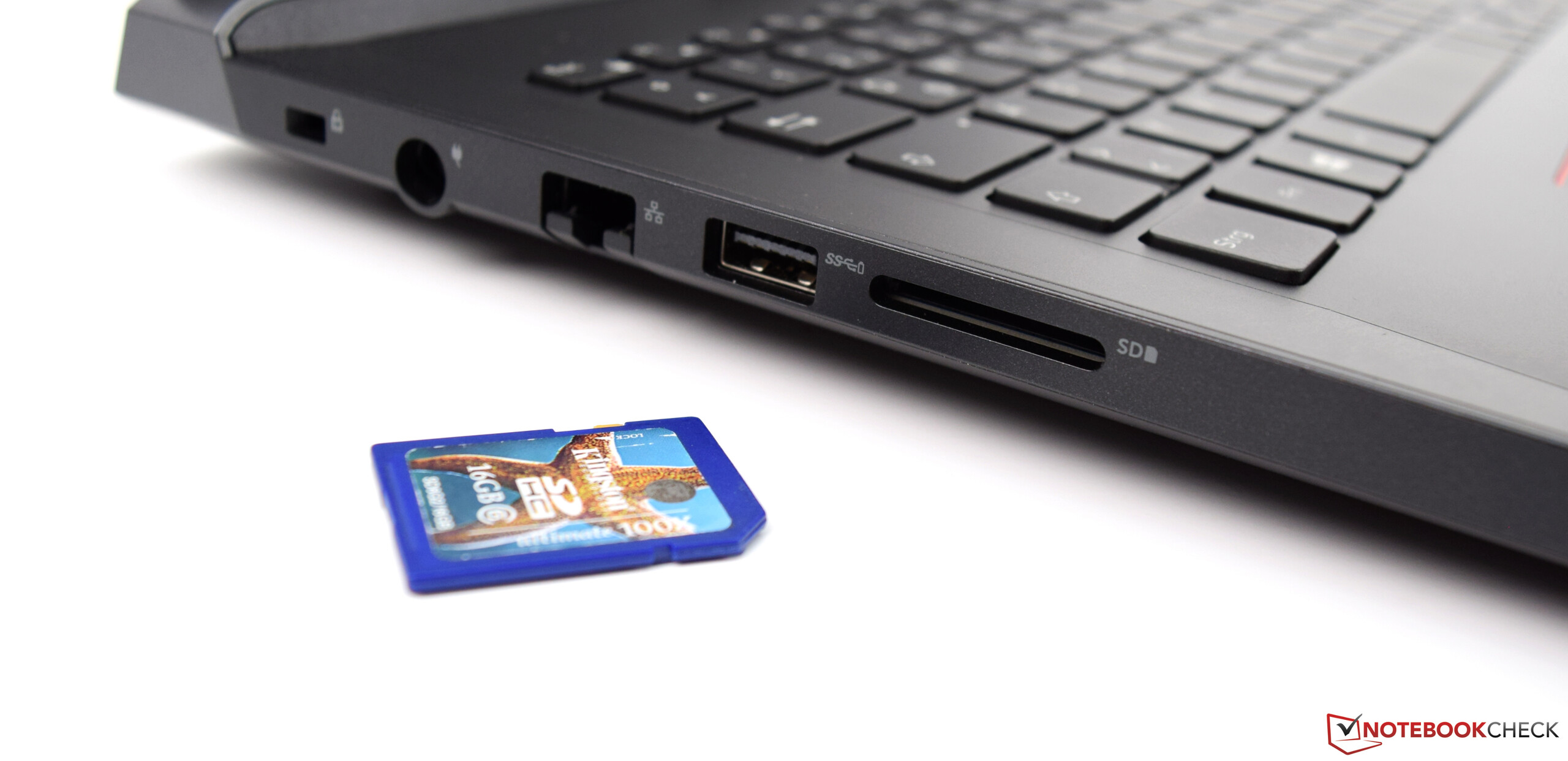

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Gaming
  (18 - 222, n=93, last 2 years)
117 MB/s ∼100% +485%
PC Zentrum Proteus V
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
85 MB/s ∼73% +325%
Asus FX503VM-EH73
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
76.47 MB/s ∼65% +282%
Acer Predator Helios 300 PH317-52-51M6
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
76 MB/s ∼65% +280%
Dell Inspiron 15 7000 7577
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
26.95 MB/s ∼23% +35%
Acer Nitro 5 Spin NP515-51-86CX
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
24.4 MB/s ∼21% +22%
Dell G5 15 5587
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
20 MB/s ∼17%
Dell Inspiron 15 7000 7577
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
18 MB/s ∼15% -10%
maximum AS SSD Seq Read Test (1GB)
Average of class Gaming
  (20.5 - 257, n=93, last 2 years)
131 MB/s ∼100% +274%
PC Zentrum Proteus V
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
89 MB/s ∼68% +154%
Asus FX503VM-EH73
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
86.87 MB/s ∼66% +148%
Acer Predator Helios 300 PH317-52-51M6
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
86 MB/s ∼66% +146%
Dell G5 15 5587
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
35 MB/s ∼27%
Dell Inspiron 15 7000 7577
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
30.25 MB/s ∼23% -14%
Dell Inspiron 15 7000 7577
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
29.44 MB/s ∼22% -16%
Acer Nitro 5 Spin NP515-51-86CX
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
27.1 MB/s ∼21% -23%
Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Average of class Gaming
  (496 - 1645, n=160, last 2 years)
1154 MBit/s ∼100% +98%
Dell Inspiron 15 7000 7577
Intel Dual Band Wireless-AC 8265
666 MBit/s ∼58% +14%
Acer Nitro 5 Spin NP515-51-86CX
Atheros/Qualcomm QCA6174
665 MBit/s ∼58% +14%
Acer Predator Helios 300 PH317-52-51M6
Intel Wireless-AC 9560
640 MBit/s ∼55% +10%
Dell G5 15 5587
Intel Wireless-AC 9560
582 MBit/s ∼50%
Dell Inspiron 15 7000 7577
Intel Dual Band Wireless-AC 8265
522 MBit/s ∼45% -10%
PC Zentrum Proteus V
Intel Dual Band Wireless-AC 8260
520 MBit/s ∼45% -11%
Asus FX503VM-EH73
Intel Dual Band Wireless-AC 8265
458 MBit/s ∼40% -21%
iperf3 Client (receive) TCP 1 m 4M x10
Average of class Gaming
  (90 - 1743, n=160, last 2 years)
1217 MBit/s ∼100% +151%
Acer Predator Helios 300 PH317-52-51M6
Intel Wireless-AC 9560
692 MBit/s ∼57% +43%
PC Zentrum Proteus V
Intel Dual Band Wireless-AC 8260
686 MBit/s ∼56% +41%
Dell Inspiron 15 7000 7577
Intel Dual Band Wireless-AC 8265
654 MBit/s ∼54% +35%
Acer Nitro 5 Spin NP515-51-86CX
Atheros/Qualcomm QCA6174
519 MBit/s ∼43% +7%
Asus FX503VM-EH73
Intel Dual Band Wireless-AC 8265
513 MBit/s ∼42% +6%
Dell Inspiron 15 7000 7577
Intel Dual Band Wireless-AC 8265
512 MBit/s ∼42% +6%
Dell G5 15 5587
Intel Wireless-AC 9560
485 MBit/s ∼40%
232
cd/m²		239
cd/m²		234
cd/m²
218
cd/m²		229
cd/m²		233
cd/m²
207
cd/m²		208
cd/m²		218
cd/m²
Helderheidsverdeling
LGD053F, 156WF6
X-Rite i1Pro 2
Maximum: 239 cd/m² Gemiddelde: 224.2 cd/m² Minimum: 13.8 cd/m²
Helderheidsverdeling: 87 %
Helderheid in Batterij-modus: 229 cd/m²
Contrast: 818:1 (Zwart: 0.28 cd/m²)
ΔE Color 6.1 | 0.59-29.43 Ø5.5, calibrated: 6.12
ΔE Greyscale 5.68 | 0.64-98 Ø5.7
57% sRGB (Argyll 1.6.3 3D)
36% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.47% AdobeRGB 1998 (Argyll 2.2.0 3D)
56.82% sRGB (Argyll 2.2.0 3D)
38.13% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.4
Dell G5 15 5587
LGD053F, 156WF6, 1920x1080, 15.60		Dell Inspiron 15 7000 7577
ID: LG Philips LGD053F, Name: 156WF6, Dell P/N: 4XK13, 1920x1080, 15.60		Dell Inspiron 15 7000 7577
ID: LG Philips LGD053F, Name: 156WF6, Dell P/N: 4XK13, 1920x1080, 15.60		PC Zentrum Proteus V
BOEhydis NV156FHM-N42 (BOE06C6), 1920x1080, 15.60		Asus FX503VM-EH73
AU Optronics B156HAN06.1, 1920x1080, 15.60		Acer Nitro 5 Spin NP515-51-86CX
Chi Mei CMN15D7, 1920x1080, 15.60		Acer Predator Helios 300 PH317-52-51M6
LG Philips LP173WF4-SPF5 (LGD056D), 1920x1080, 17.30
Display
6%
-3%
2%
-2%
67%
63%
Display P3 Coverage
38.13
40.4
6%
37.07
-3%
39.13
3%
37.48
-2%
64.89
70%
67.11
76%
sRGB Coverage
56.82
60.54
7%
55.62
-2%
58.01
2%
56.33
-1%
92.56
63%
86.12
52%
AdobeRGB 1998 Coverage
39.47
41.77
6%
38.32
-3%
40.42
2%
38.72
-2%
66.34
68%
62.99
60%
Response Times
-21%
-12%
-63%
-22%
-9%
-1%
Response Time Grey 50% / Grey 80% *
33 ?(16, 17)
41 ?(20, 21)
-24%
35.6 ?(20, 15.6)
-8%
52.8 ?(25.2, 27.6)
-60%
36.8 ?(19.6, 17.2)
-12%
36 ?(18, 18)
-9%
36 ?(18.8, 17.2)
-9%
Response Time Black / White *
24 ?(14, 10)
28 ?(15, 13)
-17%
27.6 ?(15.6, 12)
-15%
39.6 ?(22.4, 17.2)
-65%
31.6 ?(18.4, 13.2)
-32%
26 ?(15, 11)
-8%
22 ?(10.4, 11.6)
8%
PWM Frequency
21930 ?(95)
122000 ?(95)
Screen
19%
-2%
21%
1%
25%
23%
Brightness middle
229
257
12%
235.4
3%
242
6%
235.9
3%
345
51%
365
59%
Brightness
224
229
2%
223
0%
235
5%
235
5%
332
48%
341
52%
Brightness Distribution
87
84
-3%
91
5%
85
-2%
91
5%
92
6%
89
2%
Black Level *
0.28
0.17
39%
0.28
-0%
0.21
25%
0.27
4%
0.28
-0%
0.32
-14%
Contrast
818
1512
85%
841
3%
1152
41%
874
7%
1232
51%
1141
39%
Colorchecker DeltaE2000 *
6.1
5.34
12%
5.6
8%
4.27
30%
4.81
21%
5.85
4%
6.51
-7%
Colorchecker DeltaE2000 max. *
12.2
9.99
18%
20.3
-66%
7.09
42%
21.55
-77%
11.87
3%
12.32
-1%
Colorchecker DeltaE2000 calibrated *
6.12
2.9
53%
Greyscale DeltaE2000 *
5.68
4.82
15%
3.6
37%
2.17
62%
3.1
45%
8.11
-43%
7.65
-35%
Gamma
2.4 92%
2.46 89%
2.23 99%
2.38 92%
2.31 95%
2.48 89%
2.64 83%
CCT
6989 93%
6587 99%
7214 90%
6912 94%
6984 93%
6741 96%
8066 81%
Color Space (Percent of AdobeRGB 1998)
36
38
6%
35.2
-2%
37
3%
36
0%
60
67%
56
56%
Color Space (Percent of sRGB)
57
60
5%
55.4
-3%
58
2%
56
-2%
93
63%
86
51%
Totaal Gemiddelde (Programma / Instellingen)
1% / 11%
-6% / -3%
-13% / 6%
-8% / -3%
28% / 29%
28% / 28%

* ... kleiner is beter

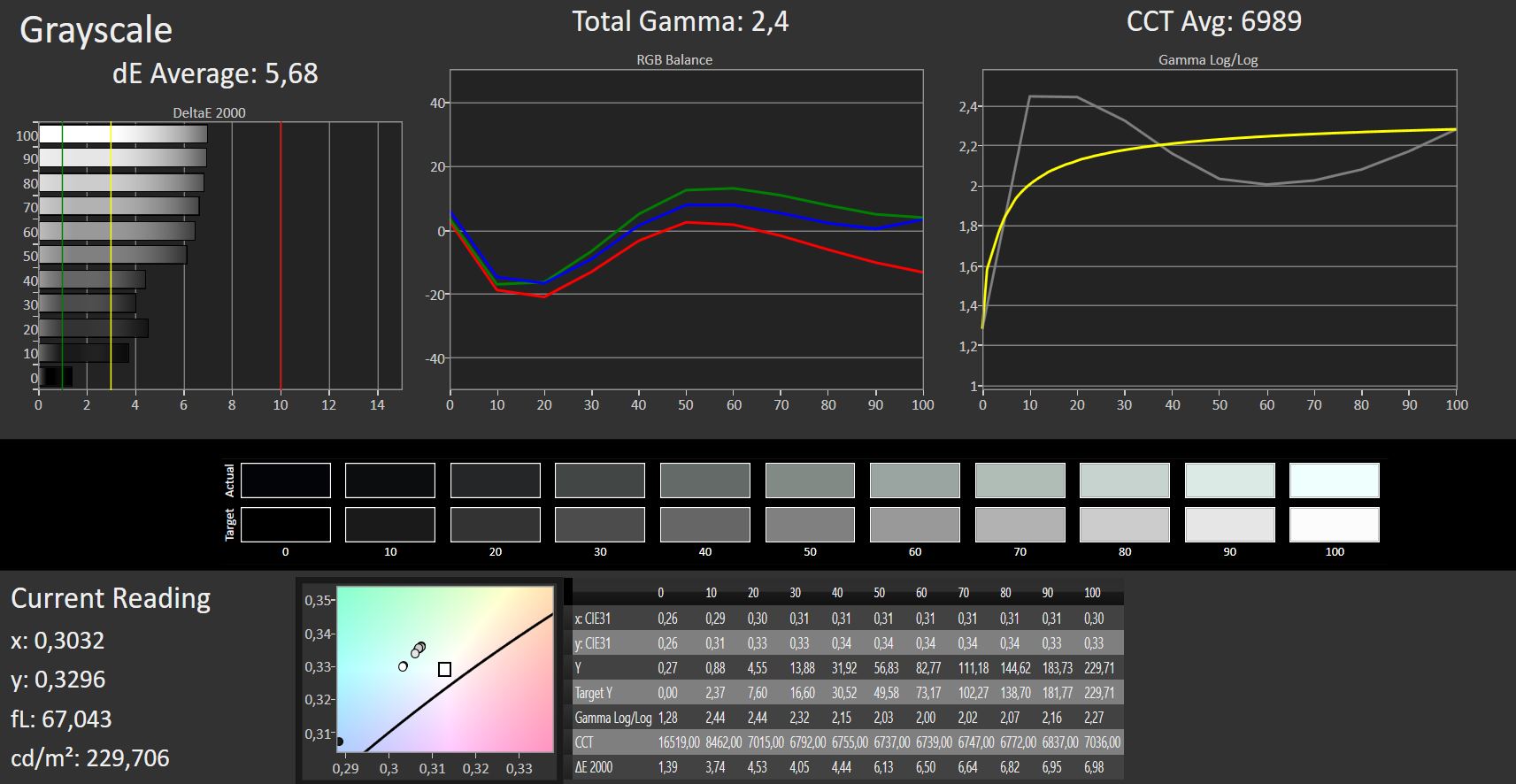

CalMAN: Grayscales (niet gekalibreerd)
CalMAN: Grayscales (niet gekalibreerd)

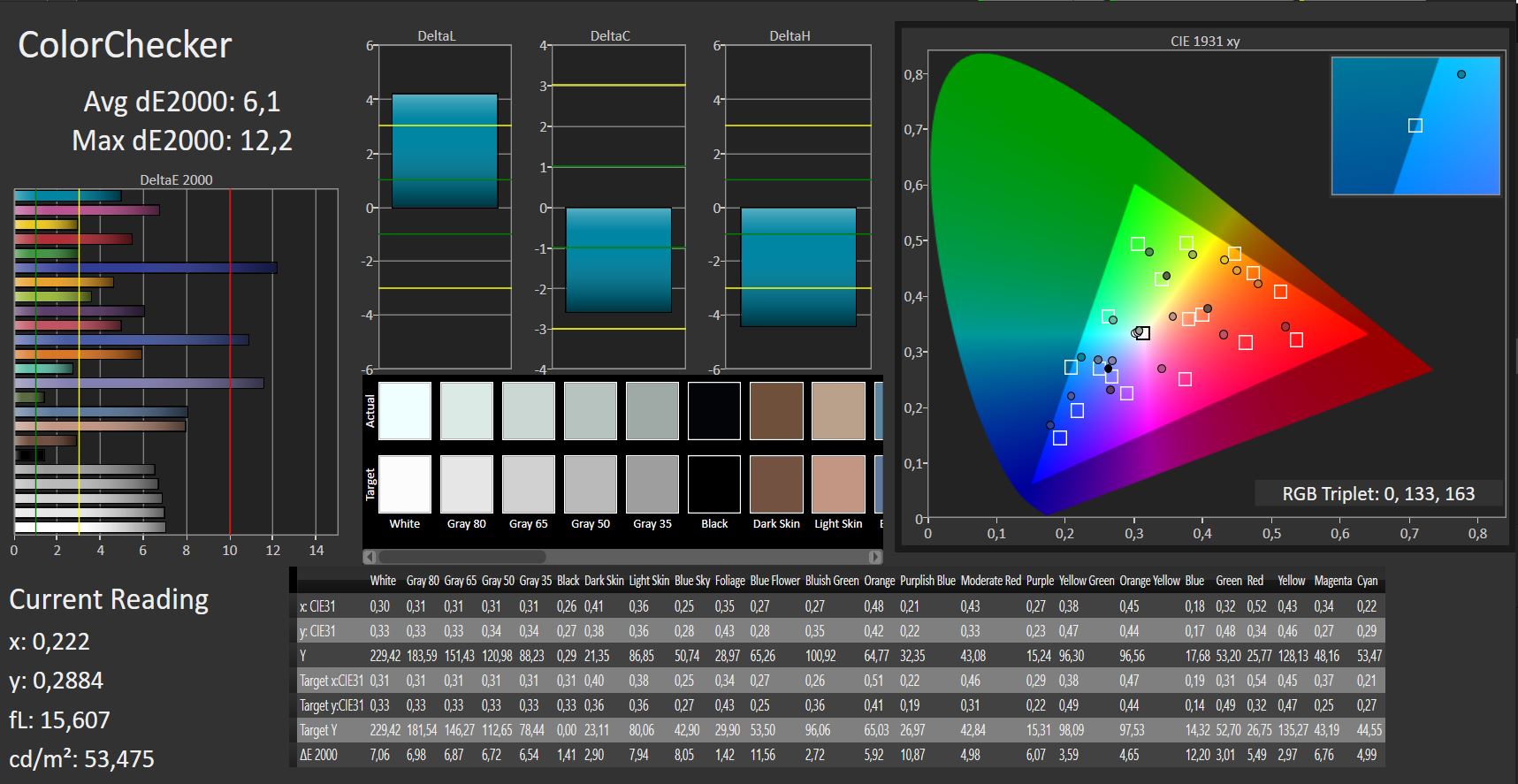

CalMAN: ColorChecker (niet gekalibreerd)
CalMAN: ColorChecker (niet gekalibreerd)

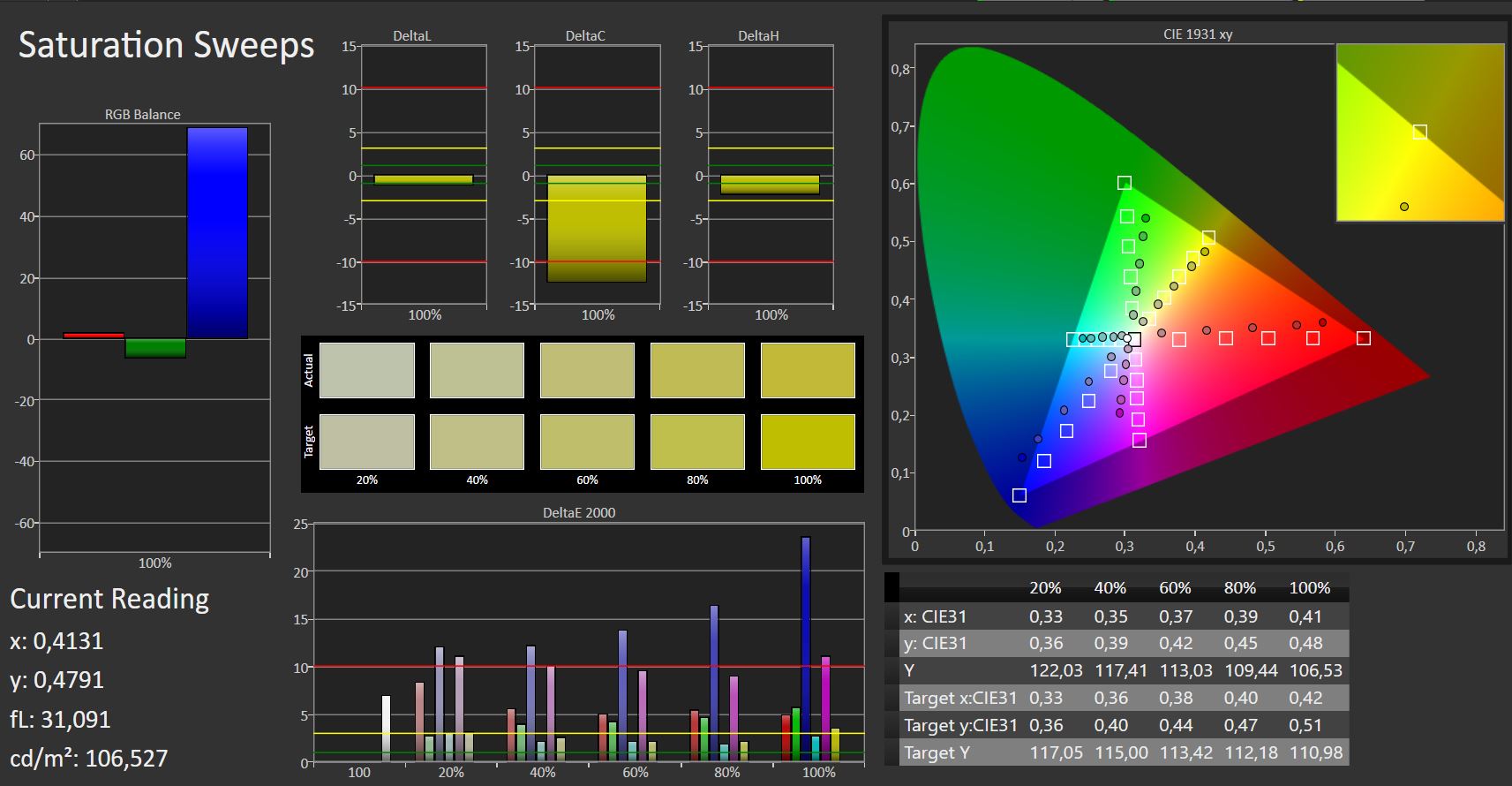

CalMAN: Saturation (niet gekalibreerd)
CalMAN: Saturation (niet gekalibreerd)

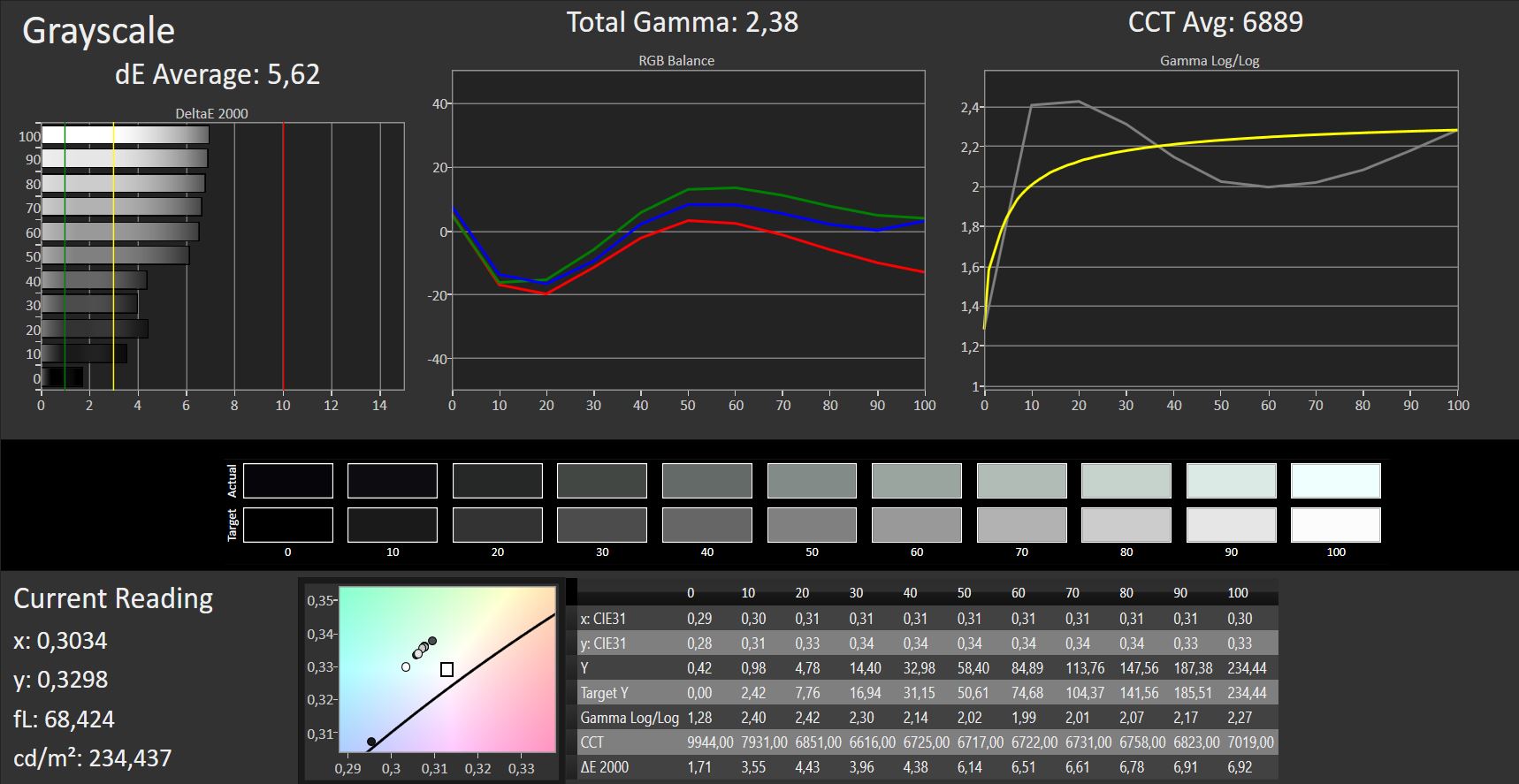

CalMAN: Grayscales (gekalibreerd)
CalMAN: Grayscales (gekalibreerd)
CalMAN: ColorChecker (gekalibreerd)
CalMAN: ColorChecker (gekalibreerd)
CalMAN: Saturation (gekalibreerd)
CalMAN: Saturation (gekalibreerd)

Responstijd Scherm

ℹ
De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

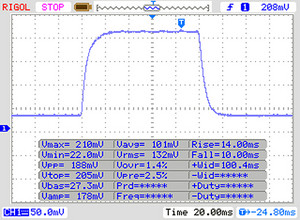

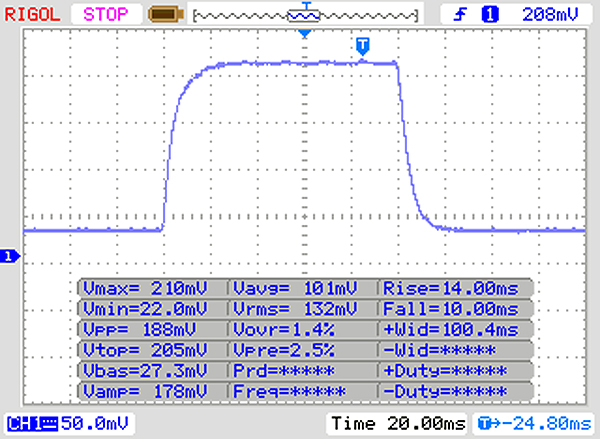

   ↔    Responstijd Zwart naar Wit
24 ms ... stijging ↗ en daling ↘ gecombineerd↗ 14 ms stijging
↘ 10 ms daling
Het scherm vertoonde prima responstijden in onze tests maar is misschien wat te traag voor competitieve games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 38 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (23.8 ms) van alle geteste toestellen.

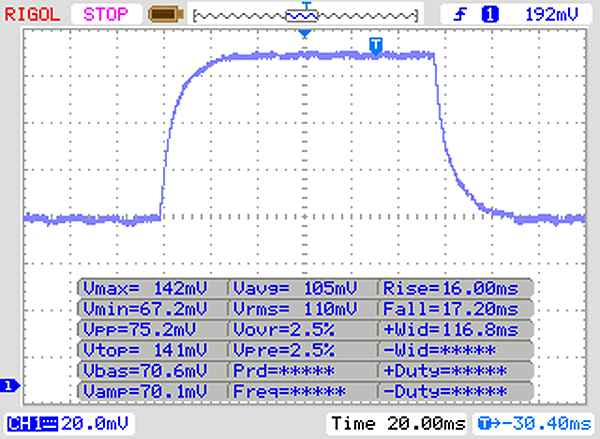

   ↔    Responstijd 50% Grijs naar 80% Grijs
33 ms ... stijging ↗ en daling ↘ gecombineerd↗ 16 ms stijging
↘ 17 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 28 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (37.7 ms) van alle geteste toestellen.

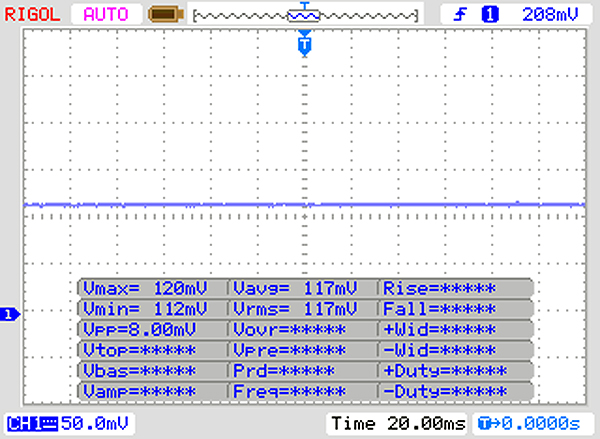

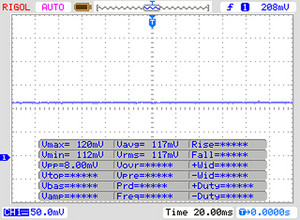

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 52 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 17043 (minimum: 5 - maximum: 2500000) Hz waargenomen.

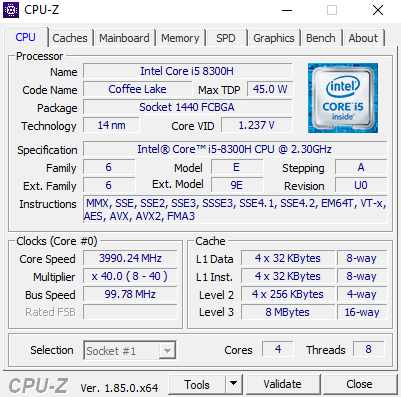

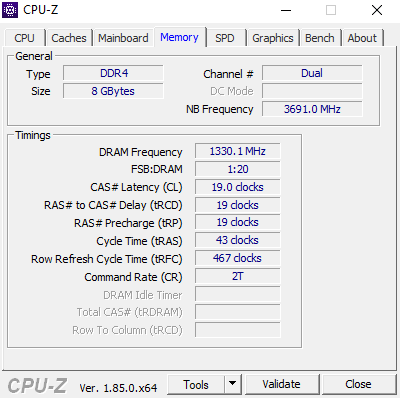

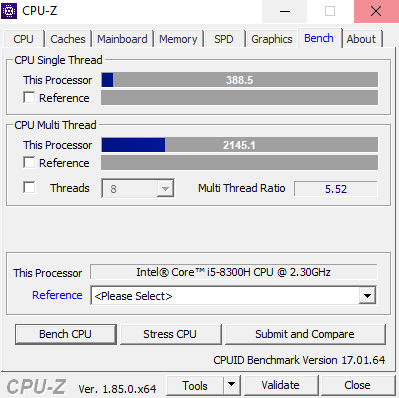

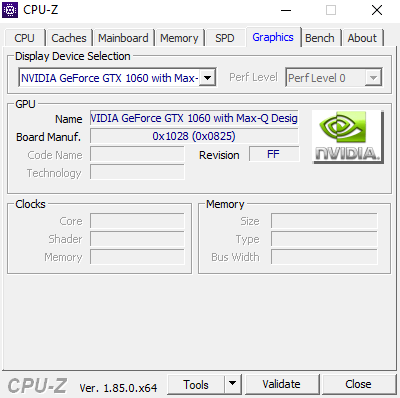

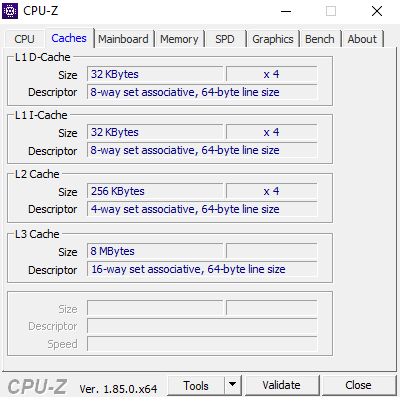

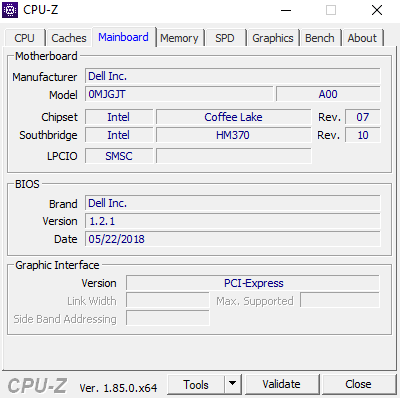

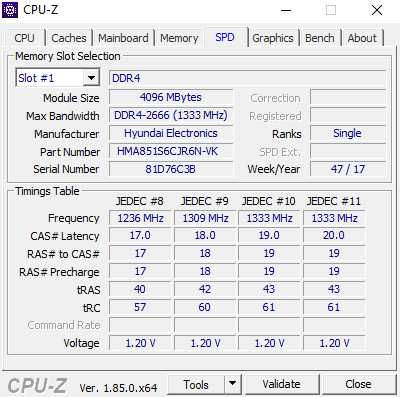

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

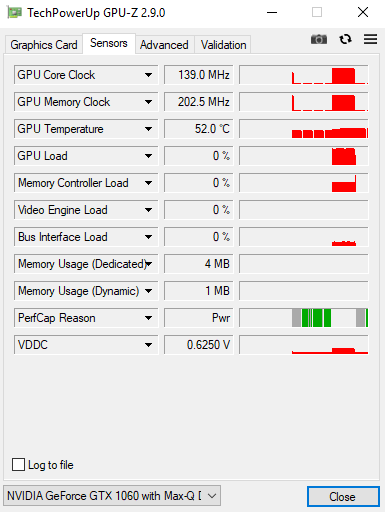

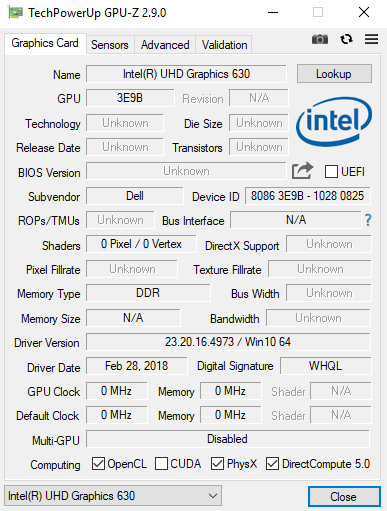

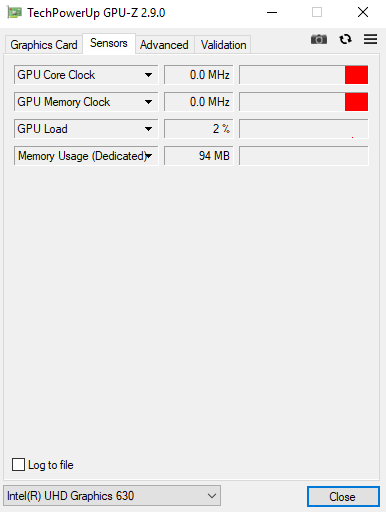

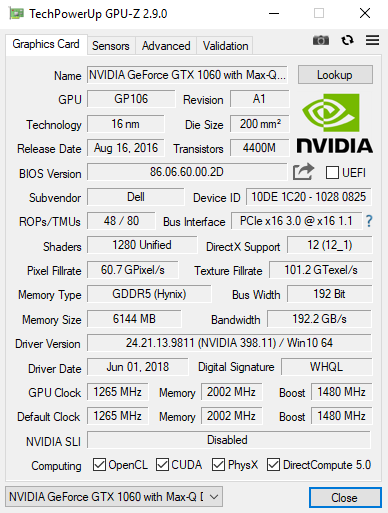

GPU-Z
GPU-Z
GPU-Z
GPU-Z

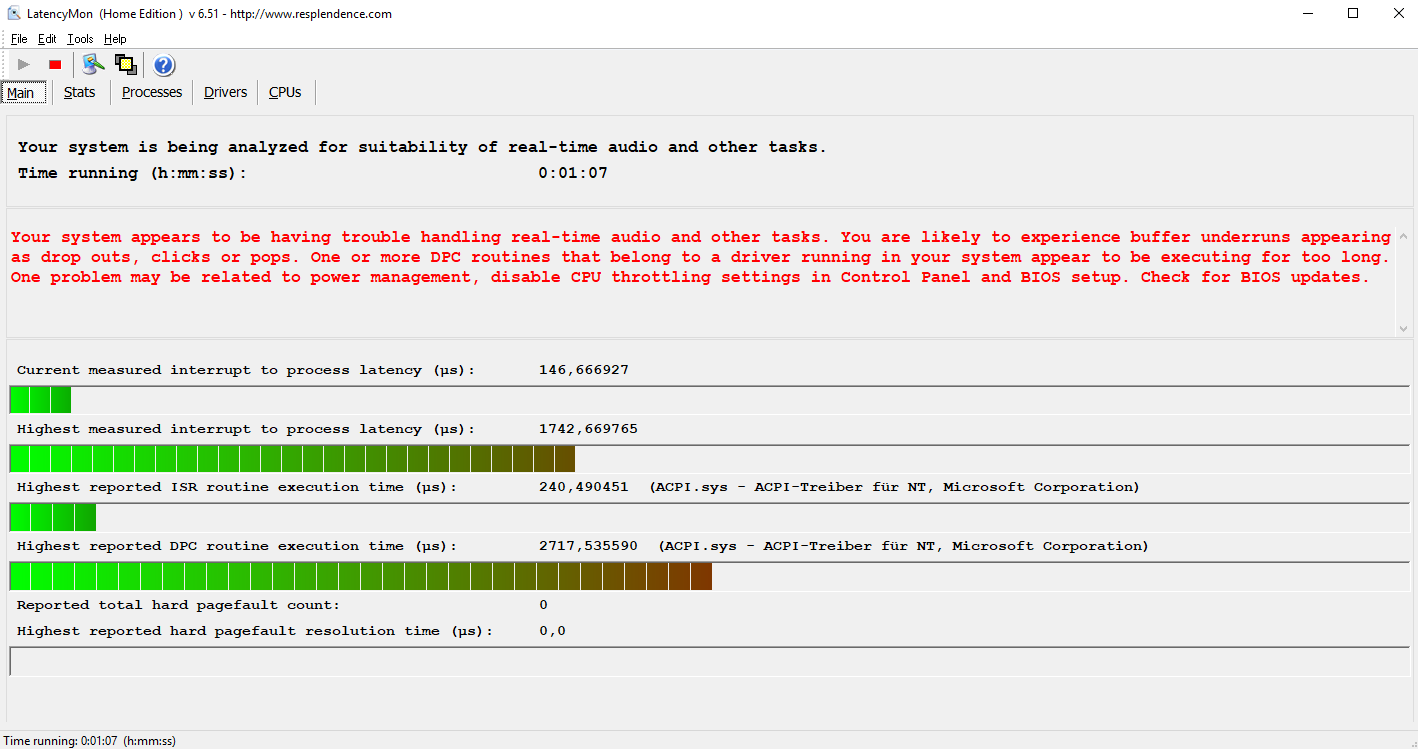

DPC latencies

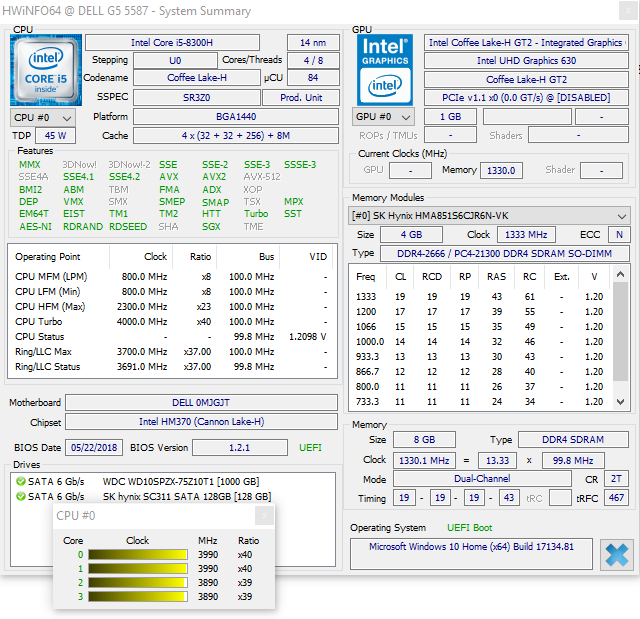

HWiNFO

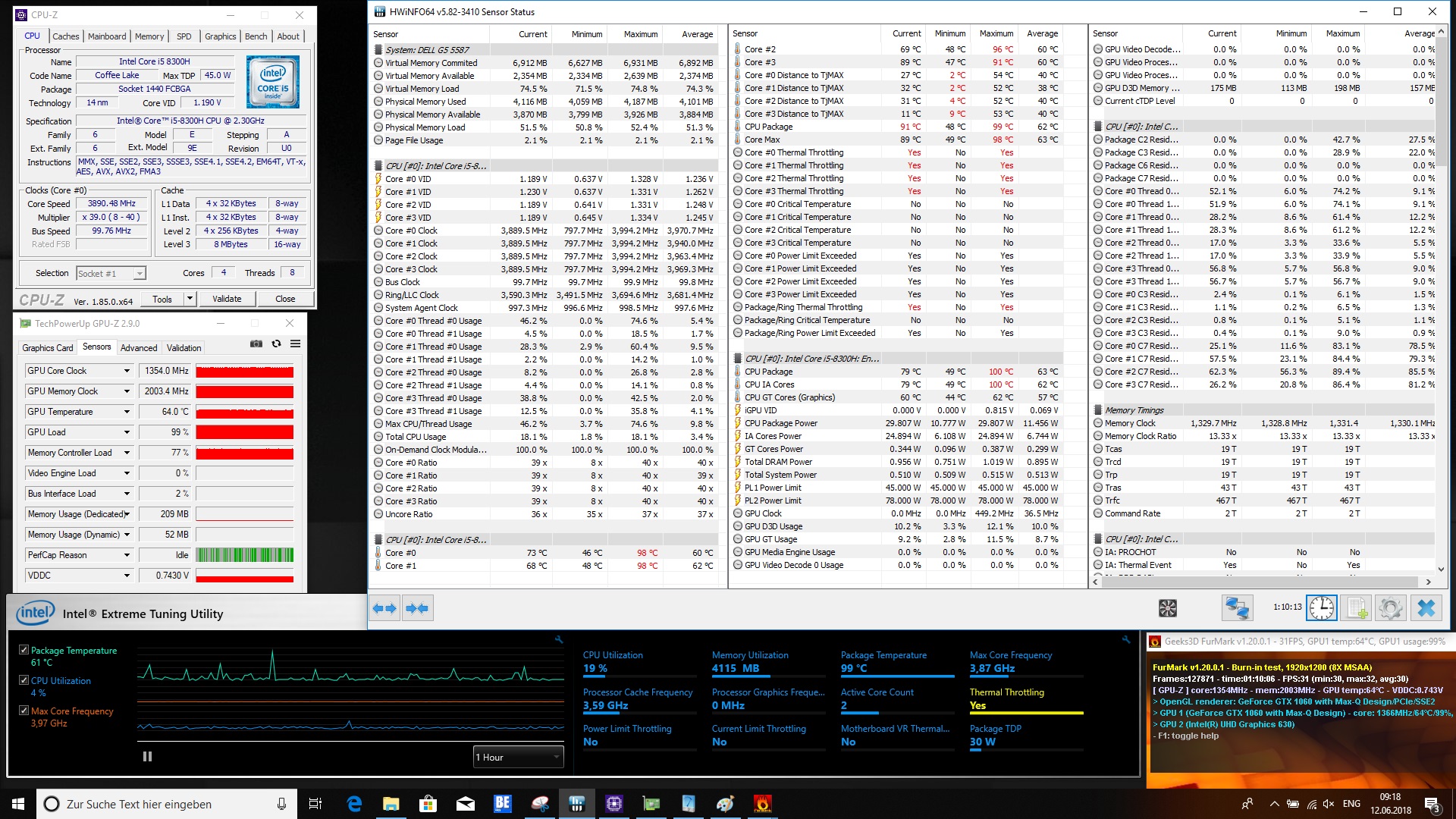

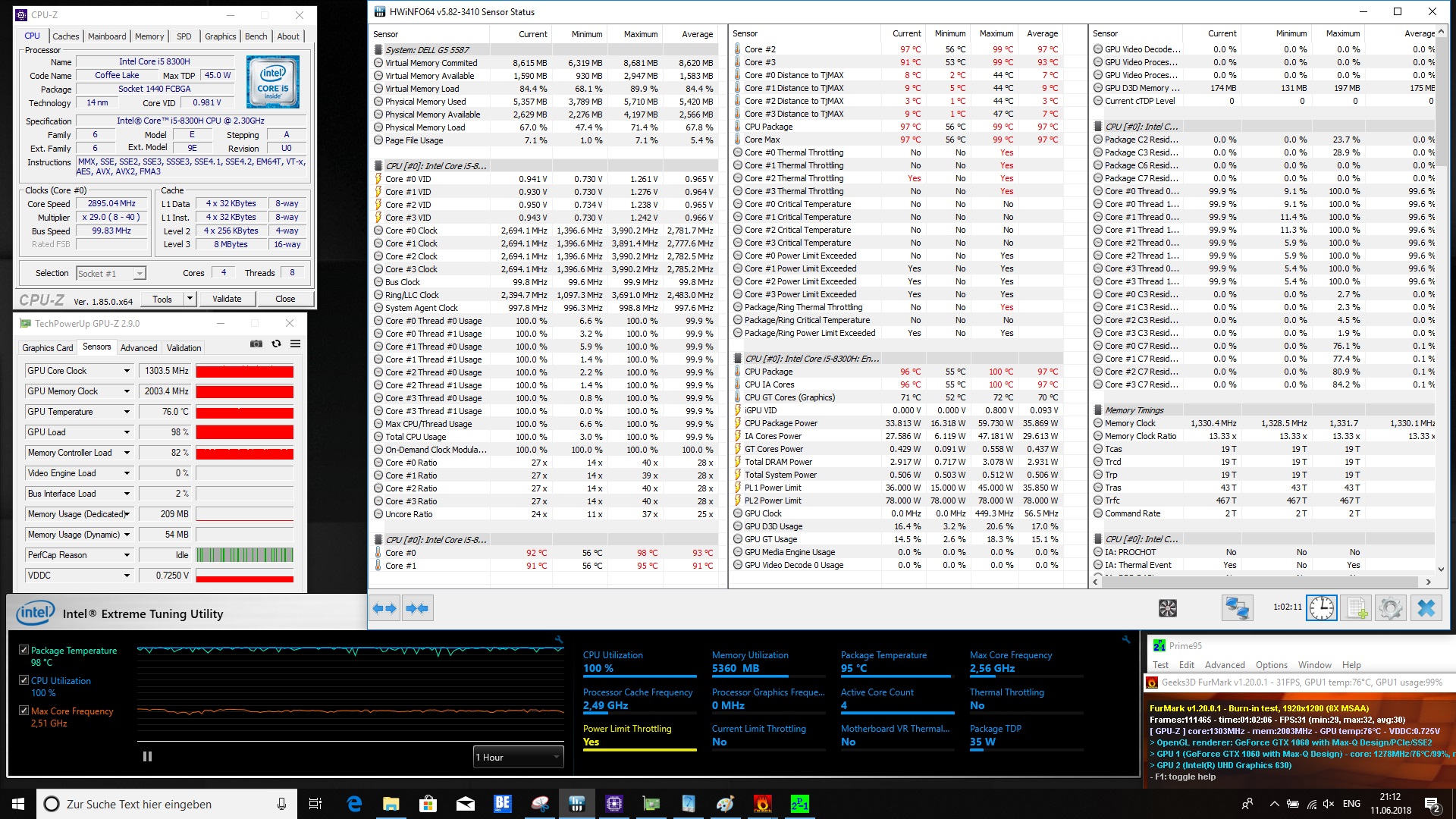

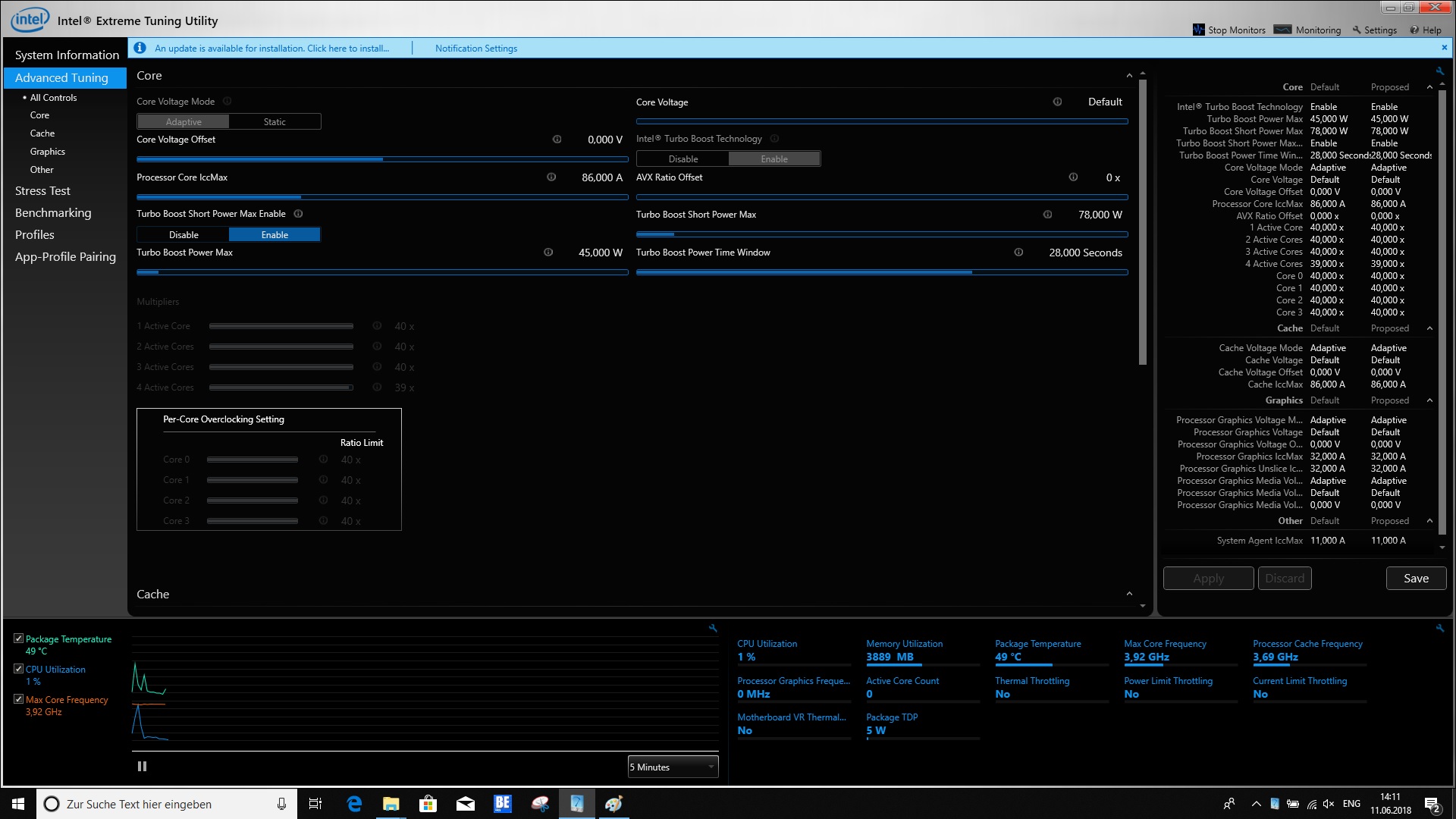

Intel Extreme Utility

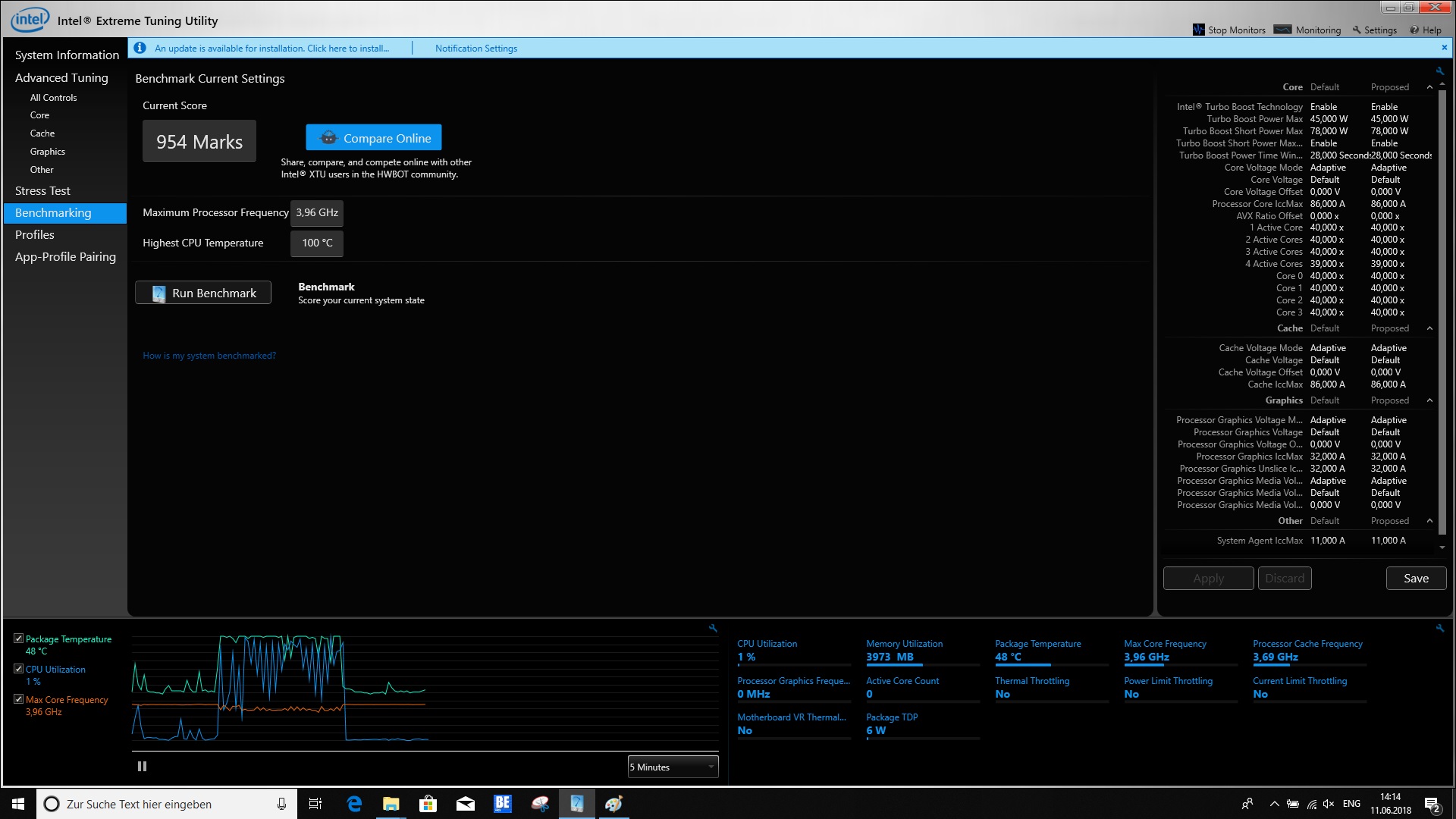

Intel Extreme Utility (benchmark)

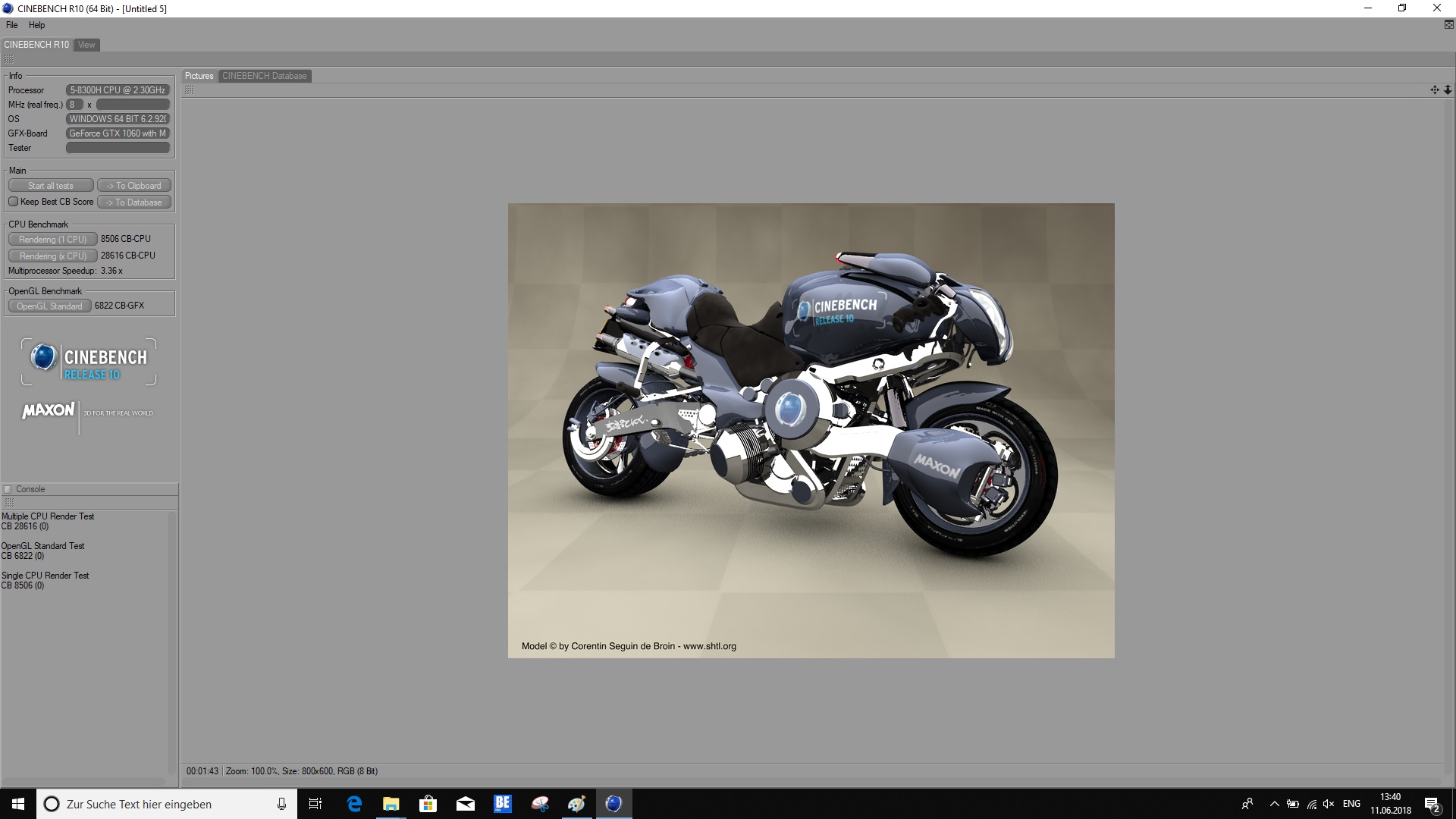

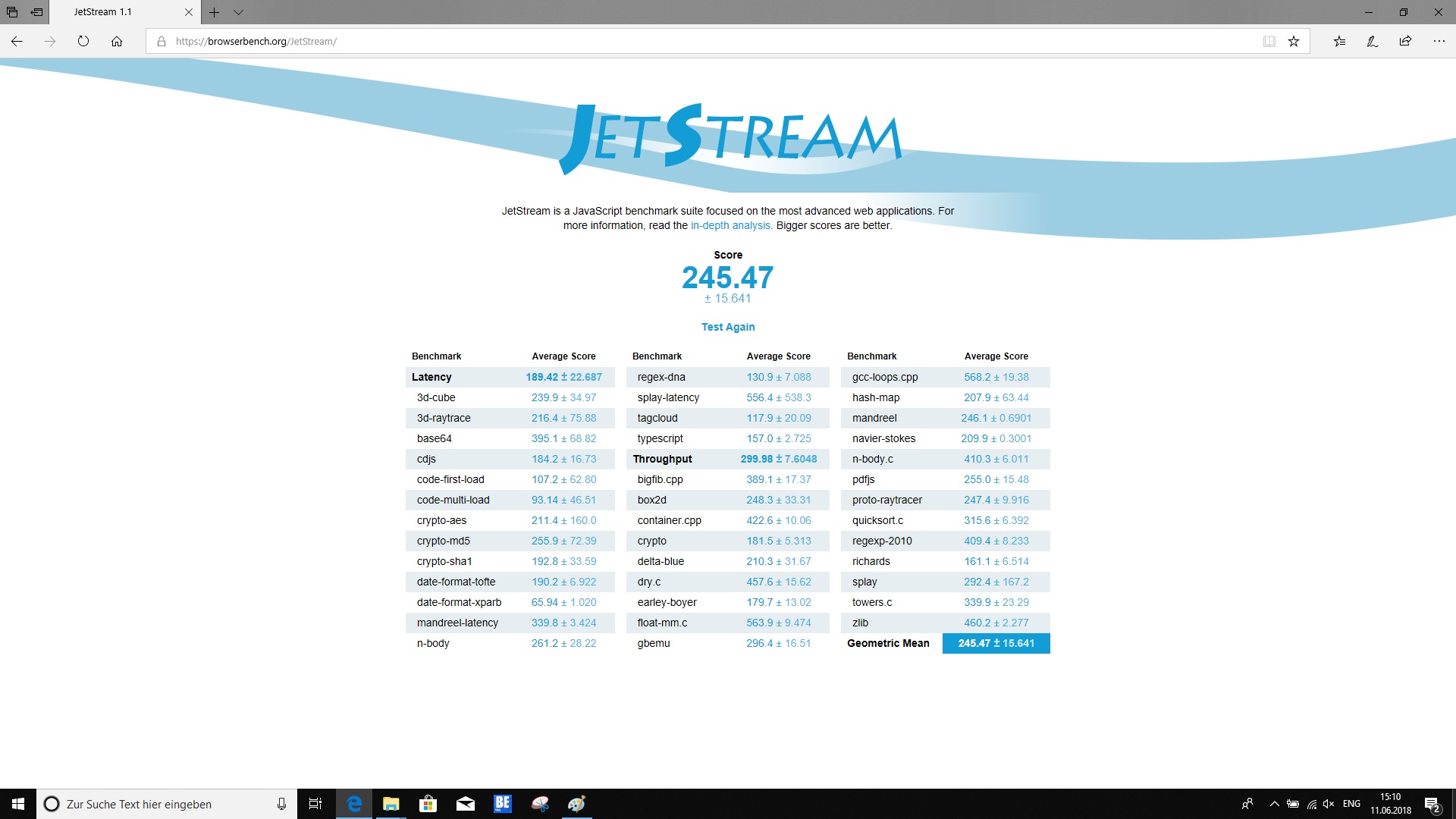

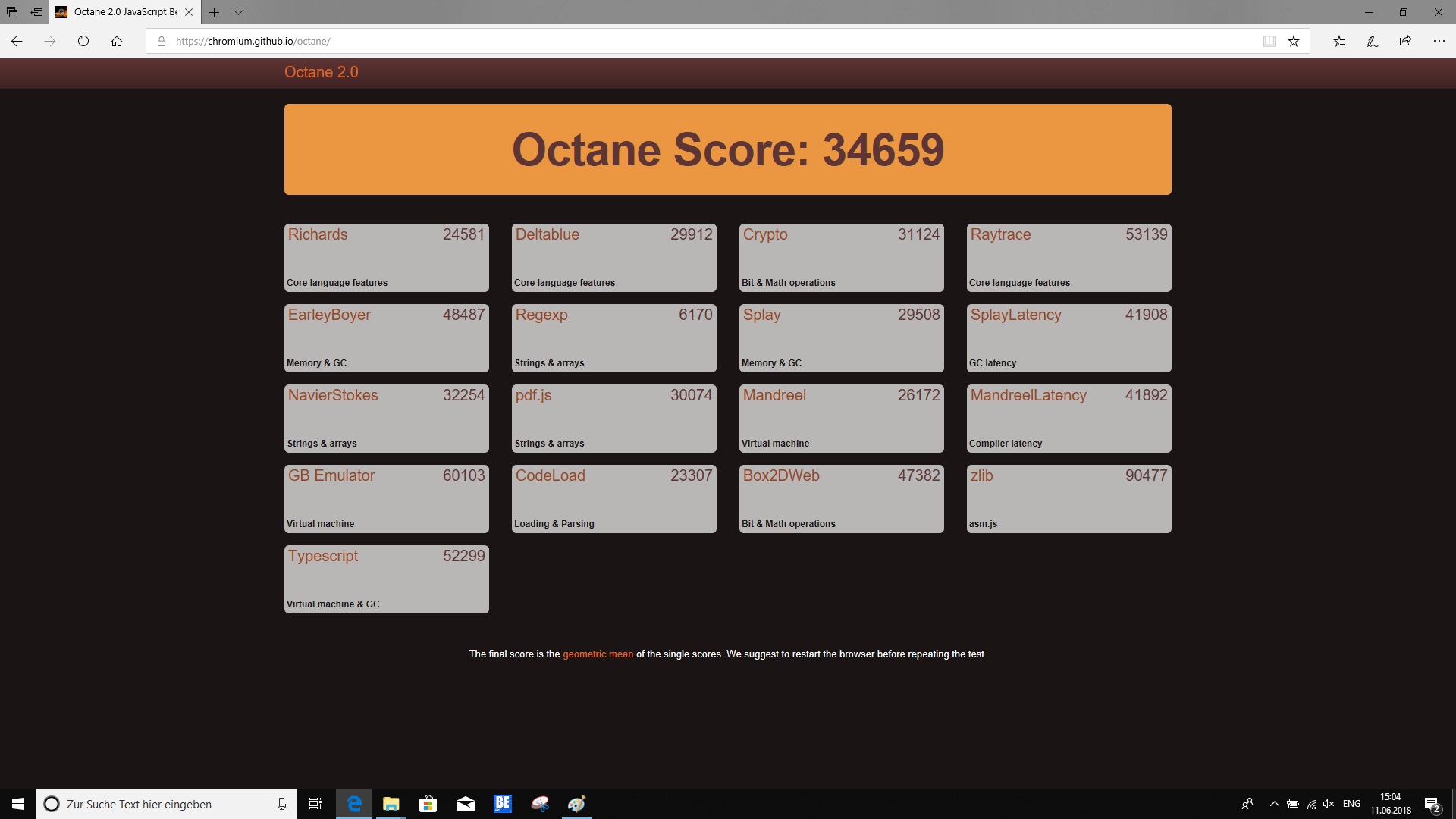

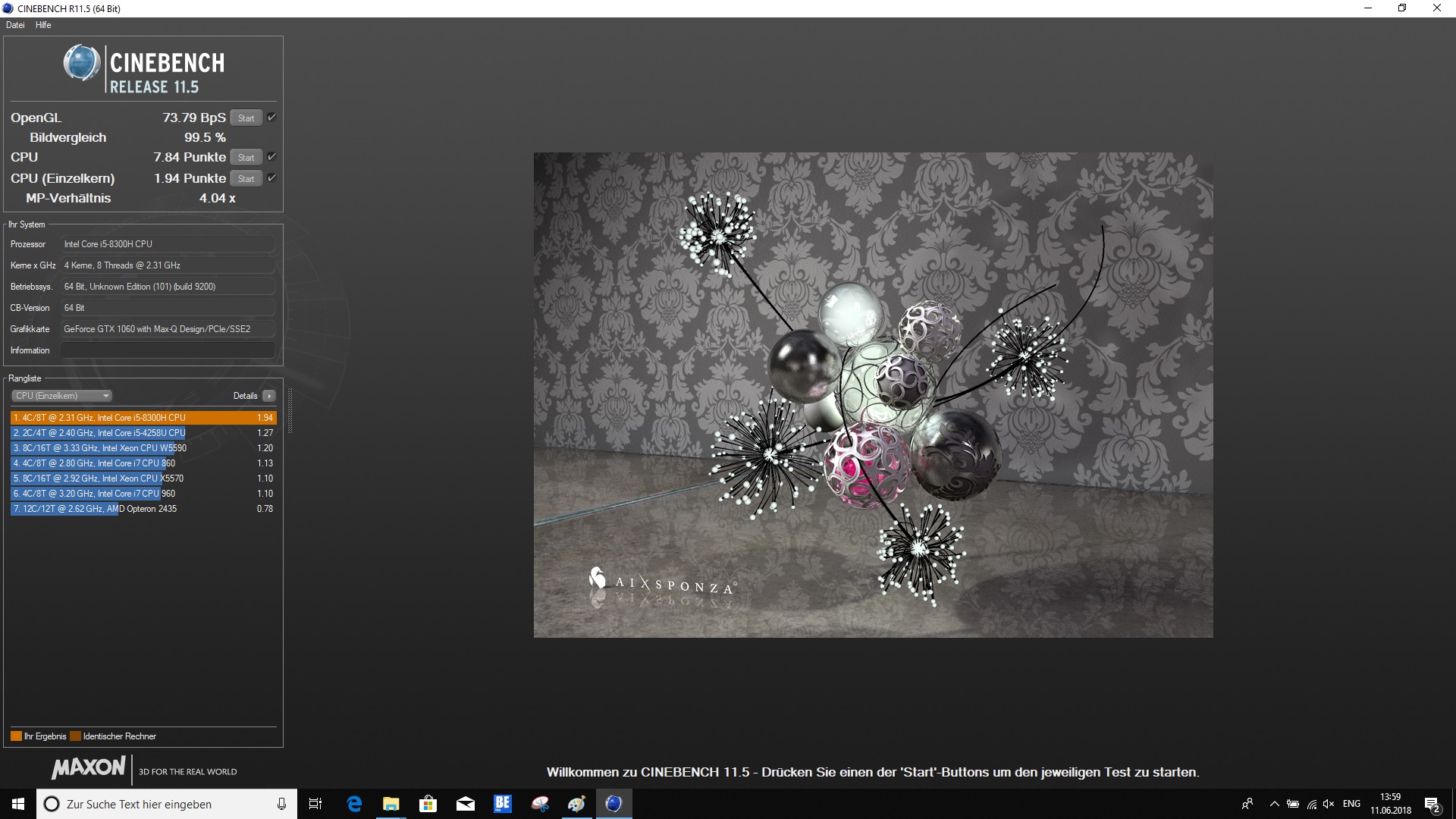

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | JetStream 1.1 | Octane V2 | Mozilla Kraken 1.1

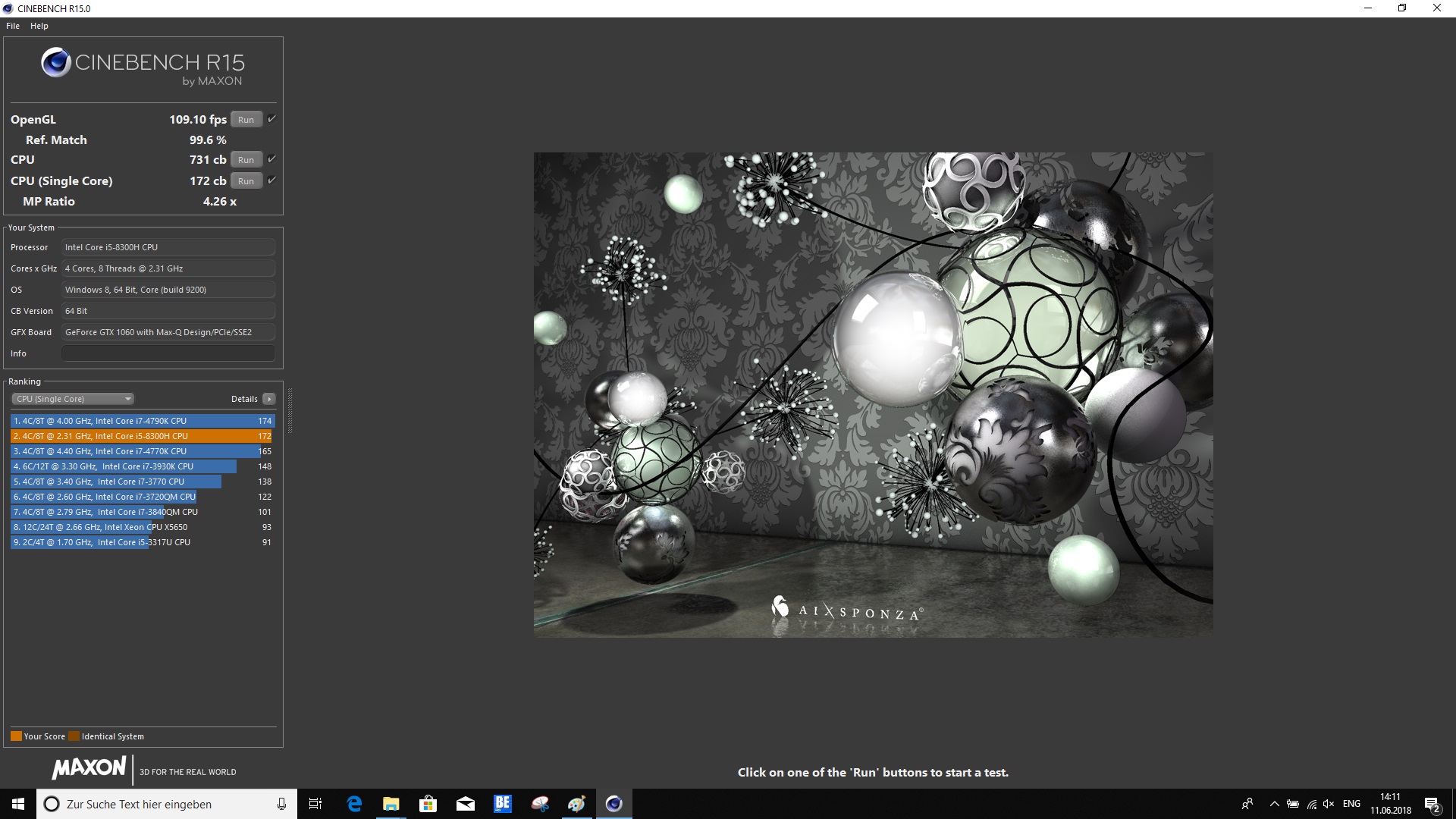

Cinebench R15
CPU Single 64Bit
Average of class Gaming
  (108 - 254, n=196, last 2 years)
203 Points ∼100% +18%
Acer Predator Helios 300 PH317-52-51M6
Intel Core i5-8300H
173 Points ∼85% +1%
Dell G5 15 5587
Intel Core i5-8300H
172 Points ∼85%
Average Intel Core i5-8300H
  (151 - 174, n=17)
169 Points ∼83% -2%
Acer Nitro 5 Spin NP515-51-86CX
Intel Core i7-8550U
161 Points ∼79% -6%
Asus FX503VM-EH73
Intel Core i7-7700HQ
156 Points ∼77% -9%
PC Zentrum Proteus V
Intel Core i7-7700HQ
146 Points ∼72% -15%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
134 Points ∼66% -22%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
131 Points ∼65% -24%
CPU Multi 64Bit
Average of class Gaming
  (536 - 2804, n=207, last 2 years)
1599 Points ∼100% +118%
Acer Predator Helios 300 PH317-52-51M6
Intel Core i5-8300H
807 Points ∼50% +10%
Average Intel Core i5-8300H
  (609 - 850, n=17)
793 Points ∼50% +8%
Dell G5 15 5587
Intel Core i5-8300H
735 Points ∼46%
PC Zentrum Proteus V
Intel Core i7-7700HQ
734 Points ∼46% 0%
Asus FX503VM-EH73
Intel Core i7-7700HQ
733 Points ∼46% 0%
Acer Nitro 5 Spin NP515-51-86CX
Intel Core i7-8550U
529 (481.46min - 529.01max) Points ∼33% -28%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
514 Points ∼32% -30%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
507 Points ∼32% -31%
Cinebench R11.5
CPU Multi 64Bit
Average of class Gaming
  (9.87 - 31, n=21, last 2 years)
17.9 Points ∼100% +128%
Acer Predator Helios 300 PH317-52-51M6
Intel Core i5-8300H
8.79 Points ∼49% +12%
Asus FX503VM-EH73
Intel Core i7-7700HQ
8.17 Points ∼46% +4%
PC Zentrum Proteus V
Intel Core i7-7700HQ
8.16 Points ∼46% +4%
Average Intel Core i5-8300H
  (6.2 - 8.79, n=7)
7.93 Points ∼44% +1%
Dell G5 15 5587
Intel Core i5-8300H
7.84 Points ∼44%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
5.92 Points ∼33% -24%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
5.85 Points ∼33% -25%
Acer Nitro 5 Spin NP515-51-86CX
Intel Core i7-8550U
5.72 Points ∼32% -27%
CPU Single 64Bit
Average of class Gaming
  (1.99 - 2.85, n=21, last 2 years)
2.31 Points ∼100% +19%
Acer Predator Helios 300 PH317-52-51M6
Intel Core i5-8300H
1.96 Points ∼85% +1%
Dell G5 15 5587
Intel Core i5-8300H
1.94 Points ∼84%
Average Intel Core i5-8300H
  (1.72 - 1.96, n=7)
1.87 Points ∼81% -4%
Acer Nitro 5 Spin NP515-51-86CX
Intel Core i7-8550U
1.85 Points ∼80% -5%
Asus FX503VM-EH73
Intel Core i7-7700HQ
1.83 Points ∼79% -6%
PC Zentrum Proteus V
Intel Core i7-7700HQ
1.66 Points ∼72% -14%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
1.53 Points ∼66% -21%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
1.52 Points ∼66% -22%
Cinebench R10
Rendering Single CPUs 64Bit
Average of class Gaming
  (9326 - 12076, n=8, last 2 years)
10633 Points ∼100% +25%
Dell G5 15 5587
Intel Core i5-8300H
8506 Points ∼80%
Average Intel Core i5-8300H
  (8277 - 8506, n=2)
8392 Points ∼79% -1%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
6700 Points ∼63% -21%
Rendering Multiple CPUs 64Bit
Average of class Gaming
  (35899 - 72790, n=8, last 2 years)
58677 Points ∼100% +105%
Average Intel Core i5-8300H
  (28616 - 32021, n=2)
30319 Points ∼52% +6%
Dell G5 15 5587
Intel Core i5-8300H
28616 Points ∼49%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
22845 Points ∼39% -20%
JetStream 1.1 - Total Score
Average of class Gaming
  (205 - 324, n=33, last 2 years)
265 Points ∼100% +8%
Dell G5 15 5587
Intel Core i5-8300H
245.47 Points ∼93%
Average Intel Core i5-8300H
  (208 - 251, n=10)
237 Points ∼89% -3%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
229.06 Points ∼86% -7%
Acer Nitro 5 Spin NP515-51-86CX
Intel Core i7-8550U
223.7 Points ∼84% -9%
Asus FX503VM-EH73
Intel Core i7-7700HQ
216.54 Points ∼82% -12%
Octane V2 - Total Score
Average of class Gaming
  (29361 - 69280, n=22, last 2 years)
45792 Points ∼100% +32%
Dell G5 15 5587
Intel Core i5-8300H
34659 Points ∼76%
Average Intel Core i5-8300H
  (30806 - 34659, n=10)
32869 Points ∼72% -5%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
32676 Points ∼71% -6%
Asus FX503VM-EH73
Intel Core i7-7700HQ
30332 Points ∼66% -12%

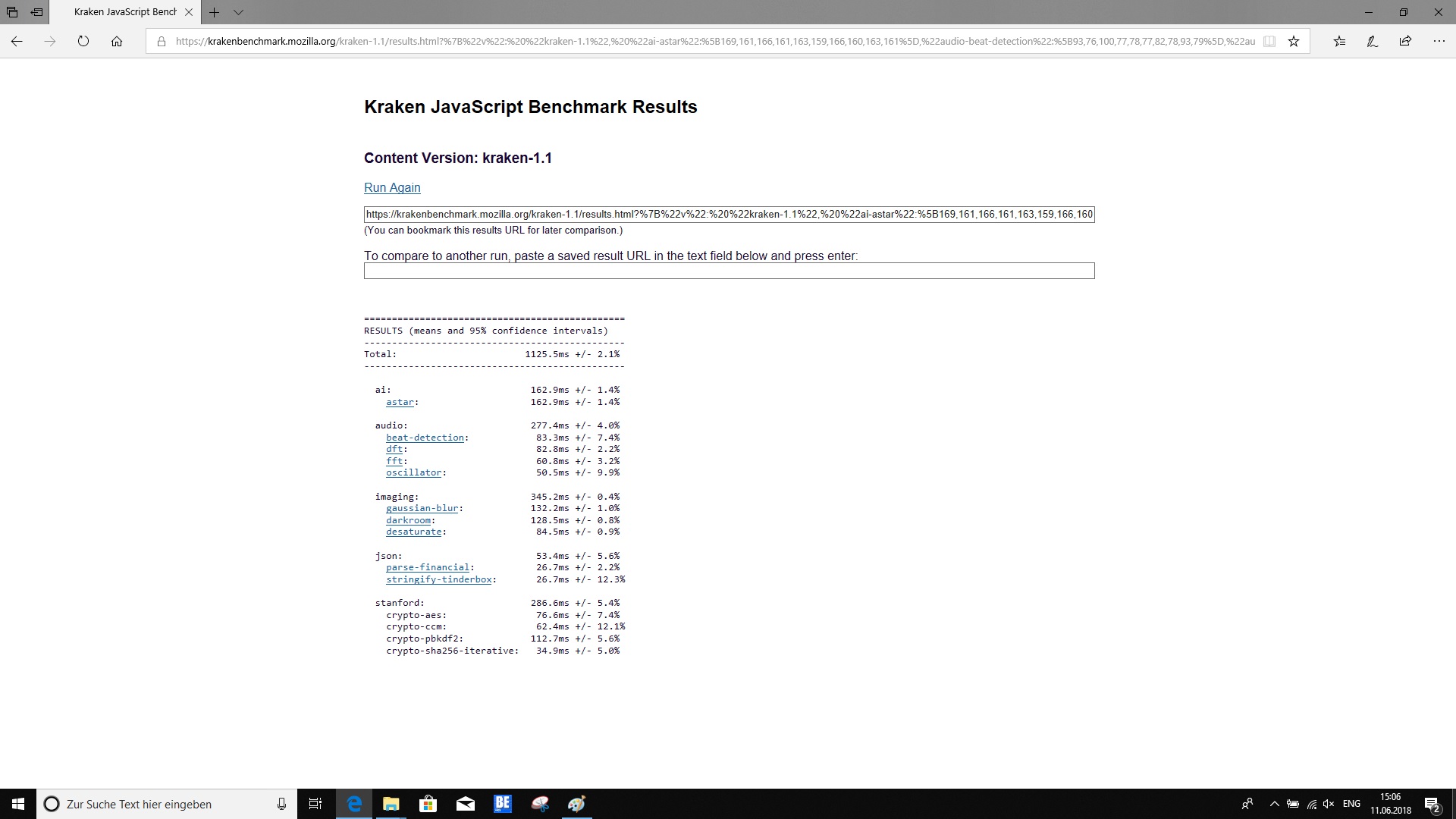

Mozilla Kraken 1.1 - Total Score
Asus FX503VM-EH73
Intel Core i7-7700HQ
1243.8 ms * ∼100% -11%
Average Intel Core i5-8300H
  (1095 - 1209, n=9)
1146 ms * ∼92% -2%
Acer Nitro 5 Spin NP515-51-86CX
Intel Core i7-8550U
1133 ms * ∼91% -1%
Dell Inspiron 15 7000 7577
Intel Core i5-7300HQ
1131.7 ms * ∼91% -1%
Dell G5 15 5587
Intel Core i5-8300H
1125.5 ms * ∼90%
Average of class Gaming
  (568 - 1366, n=174, last 2 years)
760 ms * ∼61% +32%

* ... kleiner is beter

Cinebench R10
Cinebench R10
Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15
Jetstream 1.1
Jetstream 1.1
Octane V2
Octane V2
Mozilla Kraken 1.1
Mozilla Kraken 1.1
04590135180225270315360405450495540585630675720765735.2727.27725.41725.62723.58726.44712.48722.35697.18717.9722.3722.14719.71725.22722.14724.39723.58725.83725.41724.6724.81723.98717.68724.19725.23720.72723.37723.77722.56724.39725.01723.58724.95722.96727.27724.81716.9717.28705.82719.71721.96720.51722.77720.32720.72724.81724.39724.99724.6723.98726.45724.6722.54723.17725.2506.73501.76511.59502.65510.47511.18508.5504.24503.84507.03501.66504.62506.63510.88509.55501.57508.13509.65508.34501.76509.35502.35499.61510.37506.73510.63501.96506.82501.96500.97506.23510.17508.84507.23511.99509.35509.66513.43512510.56510.26513.44513.12503.84508.84512.72509.55508.94513.43507.23510.67505.93514503.04504.73504.93504.63503.84505.23504.83505.82499.12498.63498.63506.53509.04506.73508.14508.64508.23506.83508.14503.84503.34502.35506.33505.73506.33509.55508.74508.43509.05508.54501.17502.65502.83504.43507.33508.08506.66505.83508.04509.76506.32504.93504.53504.33505.32505.03494.68506.44493.44734.93733.25732.4732.82733.03731.14735.13731.77733.43732.6732.4733.25734.08734.93733.02733.02733.65733.66733.86734.92728.85732.19734.71734.5731.98729.47735.33733.86736.82731.77731.36735.33735.97733.02736.4732.82734.3734.93712.77713.33715.03714.12712.31714.03710.83715.42716.27714.82710.67714.89714.16713.74712.71714.02711.44713.93714.46714.29716.36715.38714.26714.46715.17716.15716712.29713.08716.17713.74715.08718.16711.86714.08714.07716.46716.91714.58712.42714.8712.94716.14714.41715.97713.46711.74713.97716.42711.59529.01504.13505.12501.03502.15505.32502.35504.32503.04502.64504.62503.33503.04503.13501.36503.23505.02505.32503.92504.42482.11502.05501.55502.24498.91508.83505.92487.96484.47482.73482.28486.03482.64481.46482.55481.82483.74485.57483.1483.1807.05765.74765.96768.23767.58764.82765.04767.56765.96738.02768.71769.2742.96767.11767.09763.66767.56766.42767.78767.78767.33769.42768770.07767.81768.49768.71766.4765.05768.03765.71768.92765.93764.6768.49766.43769.42767.55765.49763.9Tooltip
Dell G5 15 5587 Intel Core i5-8300H: Ø723 (697.18-735.2)
Dell Inspiron 15 7000 7577 Intel Core i5-7300HQ: Ø508 (499.61-513.44)
Dell Inspiron 15 7000 7577 Intel Core i5-7300HQ: Ø505 (493.44-514)
PC Zentrum Proteus V Intel Core i7-7700HQ: Ø733 (728.85-736.82)
Asus FX503VM-EH73 Intel Core i7-7700HQ: Ø714 (710.67-718.16)
Acer Nitro 5 Spin NP515-51-86CX Intel Core i7-8550U: Ø497 (481.46-529.01)
Acer Predator Helios 300 PH317-52-51M6 Intel Core i5-8300H: Ø767 (738.02-807.05)
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R10 Shading 32Bit
6822
Cinebench R10 Rendering Single CPUs 64Bit
8506 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
28616 Points
Cinebench R10 Shading 64Bit
6822 Points
Cinebench R10 Rendering Single 32Bit
6524
Cinebench R10 Rendering Multiple CPUs 32Bit
22781
Cinebench R11.5 CPU Multi 32Bit
7.4 Points
Cinebench R11.5 OpenGL 32Bit
73.69 fps
Cinebench R11.5 CPU Single 64Bit
1.94 Points
Cinebench R11.5 CPU Multi 64Bit
7.84 Points
Cinebench R11.5 OpenGL 64Bit
73.79 fps
Cinebench R11.5 CPU Single 32Bit
1.73 Points
Cinebench R15 CPU Single 64Bit
172 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
109.1 fps
Cinebench R15 CPU Multi 64Bit
735 Points
Help

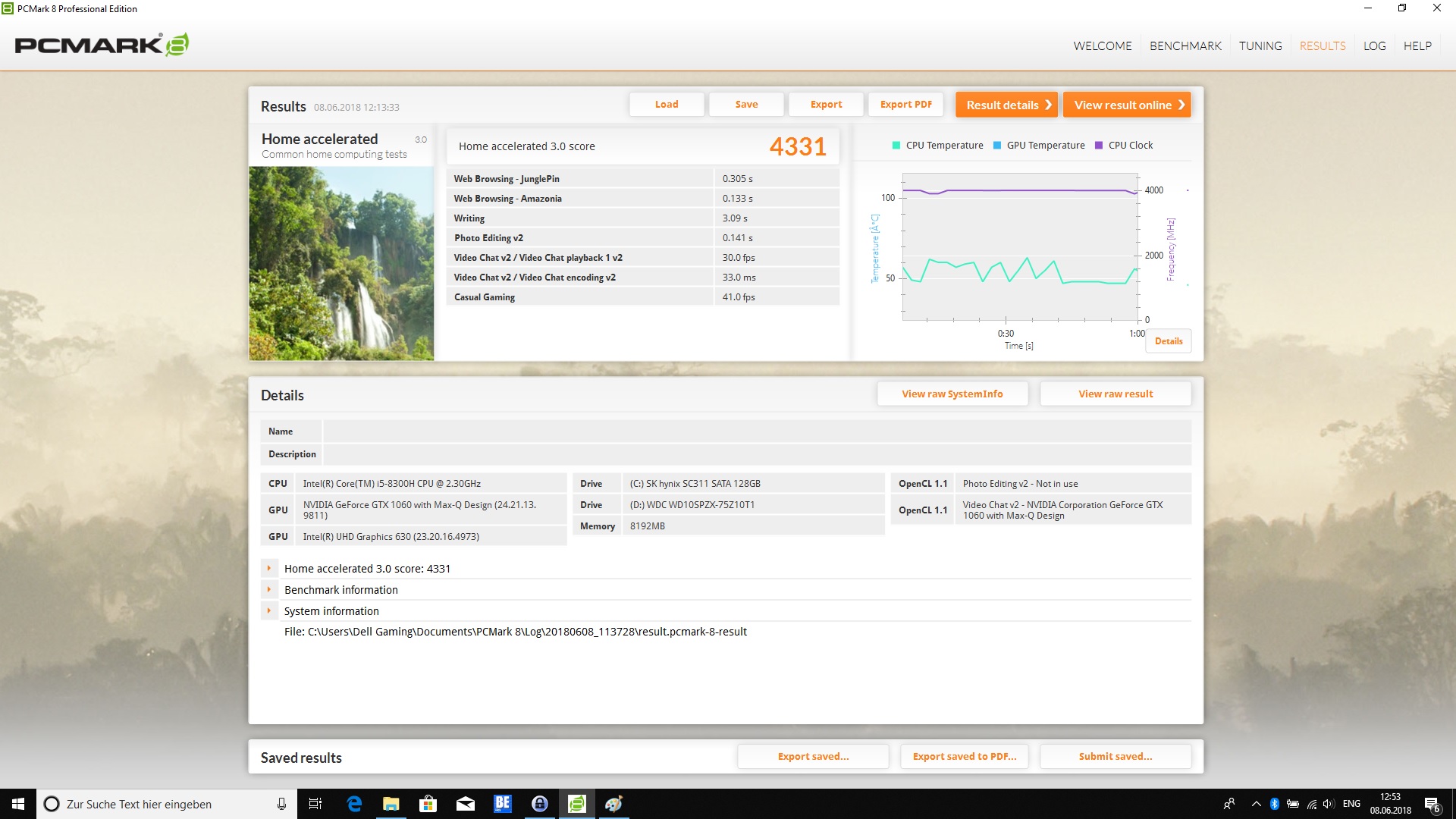

PCMark 8 Home
PCMark 8 Home
PCMark 8 Work
PCMark 8 Work

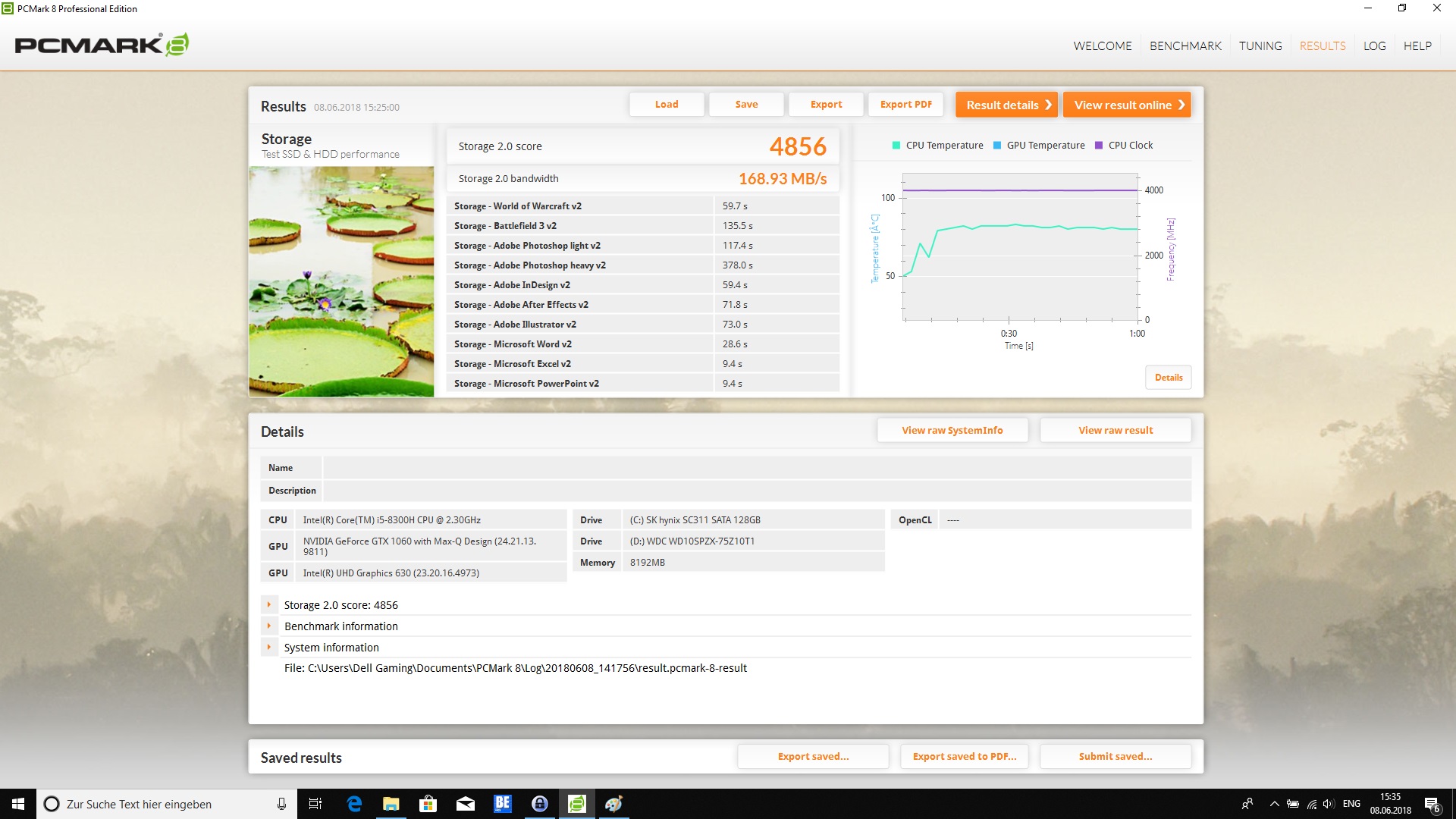

PCMark 8 Storage
PCMark 8 Storage
PCMark 10
PCMark 10
PCMark 8 | PCMark 10
PCMark 8
Home Score Accelerated v2
Asus FX503VM-EH73
GeForce GTX 1060 Mobile, i7-7700HQ, SanDisk SD8SN8U128G1002
4940 Points ∼100% +14%
PC Zentrum Proteus V
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
4916 Points ∼100% +14%
Average of class Gaming
  (2832 - 6277, n=85, last 2 years)
4583 Points ∼93% +6%
Dell G5 15 5587
GeForce GTX 1060 Max-Q, i5-8300H, SK hynix SC311 M.2
4331 Points ∼88%
Average Intel Core i5-8300H, NVIDIA GeForce GTX 1060 Max-Q

4331 Points ∼88% 0%
Acer Predator Helios 300 PH317-52-51M6
GeForce GTX 1050 Ti Mobile, i5-8300H, Hynix HFS128G39TND
4253 Points ∼86% -2%
Acer Nitro 5 Spin NP515-51-86CX
GeForce GTX 1050 Mobile, i5-8550U, Micron 1100 MTFDDAV256TBN
3975 Points ∼80% -8%
Dell Inspiron 15 7000 7577
GeForce GTX 1050 Mobile, i5-7300HQ, Seagate Mobile HDD 1TB ST1000LX015-1U7172
3807 Points ∼77% -12%
Dell Inspiron 15 7000 7577
GeForce GTX 1060 Max-Q, i5-7300HQ, Samsung PM961 MZVLW256HEHP
3759 Points ∼76% -13%
Work Score Accelerated v2
Average of class Gaming
  (4265 - 7104, n=85, last 2 years)
5697 Points ∼100% +7%
Acer Predator Helios 300 PH317-52-51M6
GeForce GTX 1050 Ti Mobile, i5-8300H, Hynix HFS128G39TND
5347 Points ∼94% 0%
Dell G5 15 5587
GeForce GTX 1060 Max-Q, i5-8300H, SK hynix SC311 M.2
5339 Points ∼94%
Average Intel Core i5-8300H, NVIDIA GeForce GTX 1060 Max-Q

5339 Points ∼94% 0%
Acer Nitro 5 Spin NP515-51-86CX
GeForce GTX 1050 Mobile, i5-8550U, Micron 1100 MTFDDAV256TBN
5202 Points ∼91% -3%
Asus FX503VM-EH73
GeForce GTX 1060 Mobile, i7-7700HQ, SanDisk SD8SN8U128G1002
5174 Points ∼91% -3%
Dell Inspiron 15 7000 7577
GeForce GTX 1060 Max-Q, i5-7300HQ, Samsung PM961 MZVLW256HEHP
4856 Points ∼85% -9%
Dell Inspiron 15 7000 7577
GeForce GTX 1050 Mobile, i5-7300HQ, Seagate Mobile HDD 1TB ST1000LX015-1U7172
4849 Points ∼85% -9%

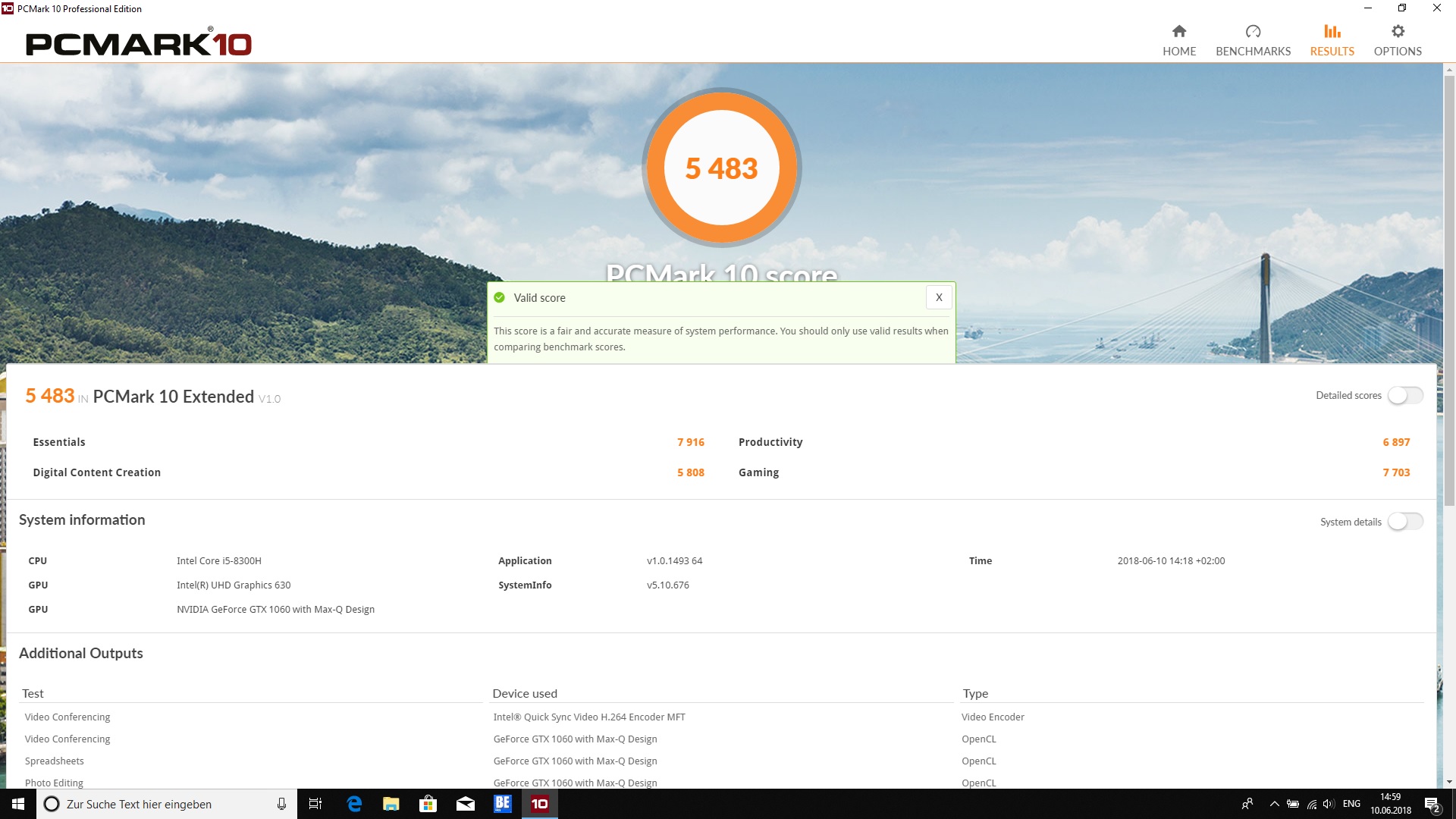

PCMark 10
Score
Average of class Gaming
  (3952 - 7884, n=175, last 2 years)
6131 Points ∼100% +12%
Dell G5 15 5587
GeForce GTX 1060 Max-Q, i5-8300H, SK hynix SC311 M.2
5483 Points ∼89%
Average Intel Core i5-8300H, NVIDIA GeForce GTX 1060 Max-Q

5483 Points ∼89% 0%
Asus FX503VM-EH73
GeForce GTX 1060 Mobile, i7-7700HQ, SanDisk SD8SN8U128G1002
4856 Points ∼79% -11%
Dell Inspiron 15 7000 7577
GeForce GTX 1060 Max-Q, i5-7300HQ, Samsung PM961 MZVLW256HEHP
4406 Points ∼72% -20%
PC Zentrum Proteus V
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
3904 Points ∼64% -29%
Acer Nitro 5 Spin NP515-51-86CX
GeForce GTX 1050 Mobile, i5-8550U, Micron 1100 MTFDDAV256TBN
3835 Points ∼63% -30%
Dell Inspiron 15 7000 7577
GeForce GTX 1050 Mobile, i5-7300HQ, Seagate Mobile HDD 1TB ST1000LX015-1U7172
3380 Points ∼55% -38%
Essentials
Average of class Gaming
  (7148 - 11266, n=174, last 2 years)
9656 Points ∼100% +22%
PC Zentrum Proteus V
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
8390 Points ∼87% +6%
Asus FX503VM-EH73
GeForce GTX 1060 Mobile, i7-7700HQ, SanDisk SD8SN8U128G1002
8003 Points ∼83% +1%
Dell G5 15 5587
GeForce GTX 1060 Max-Q, i5-8300H, SK hynix SC311 M.2
7916 Points ∼82%
Average Intel Core i5-8300H, NVIDIA GeForce GTX 1060 Max-Q

7916 Points ∼82% 0%
Acer Nitro 5 Spin NP515-51-86CX
GeForce GTX 1050 Mobile, i5-8550U, Micron 1100 MTFDDAV256TBN
7617 Points ∼79% -4%
Dell Inspiron 15 7000 7577
GeForce GTX 1060 Max-Q, i5-7300HQ, Samsung PM961 MZVLW256HEHP
7364 Points ∼76% -7%
Dell Inspiron 15 7000 7577
GeForce GTX 1050 Mobile, i5-7300HQ, Seagate Mobile HDD 1TB ST1000LX015-1U7172
4908 Points ∼51% -38%
PCMark 8 Home Score Accelerated v2
4331 punten

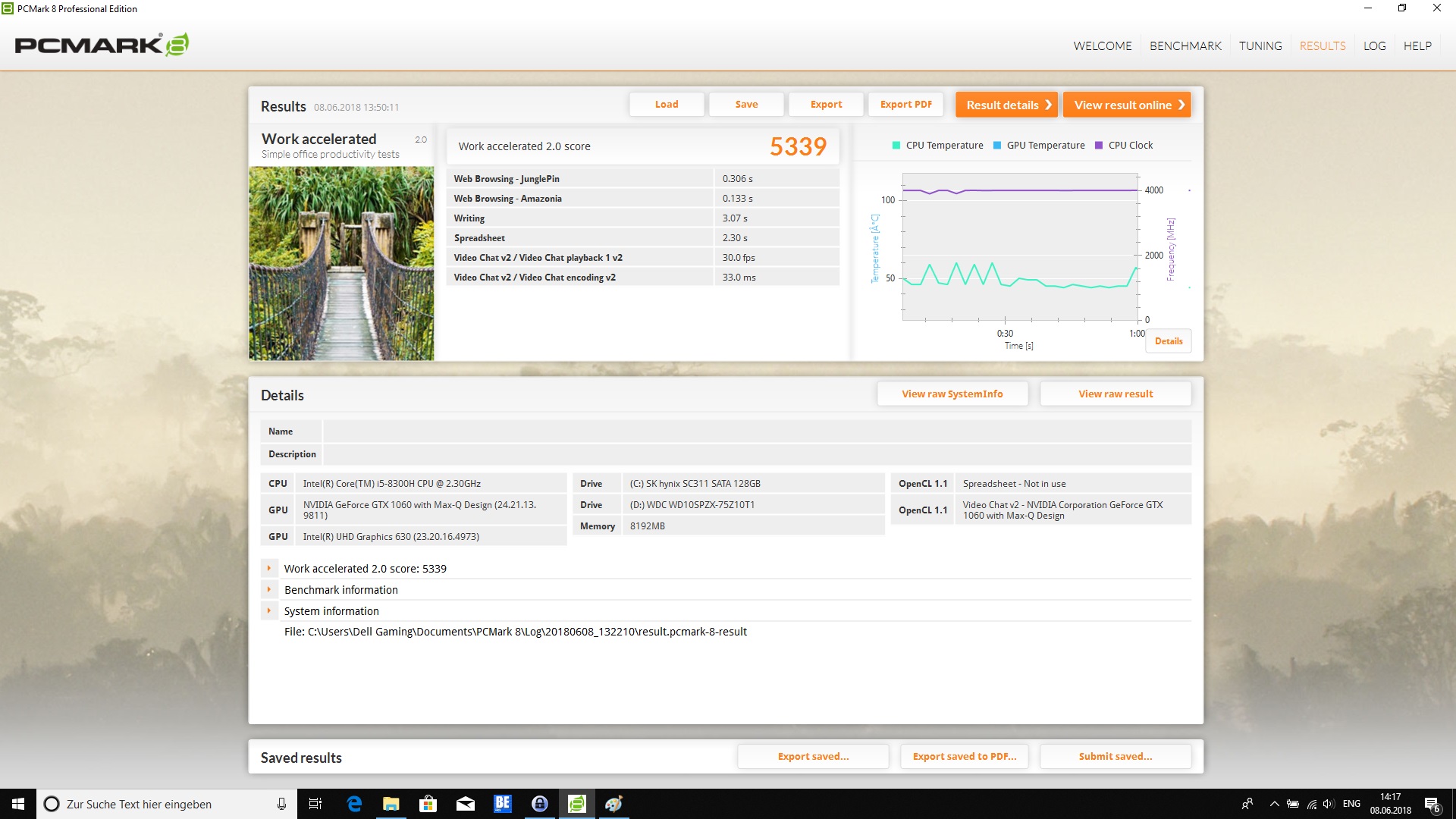

PCMark 8 Work Score Accelerated v2
5339 punten
PCMark 10 Score
5483 punten
Help
AS SSD
AS SSD

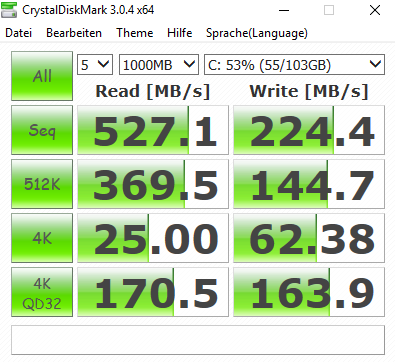

CrystalDiskMark 3 (SSD)
CrystalDiskMark 3 (SSD)

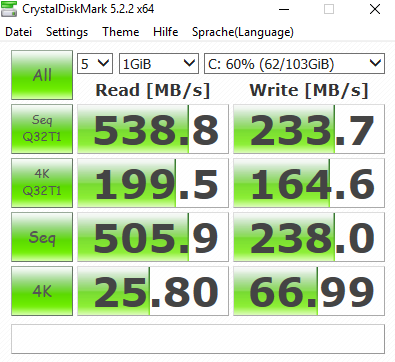

CrystalDiskMark 5 (SSD)
CrystalDiskMark 5 (SSD)

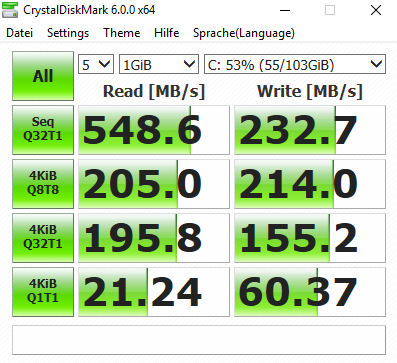

CrystalDiskMark 6 (SSD)
CrystalDiskMark 6 (SSD)

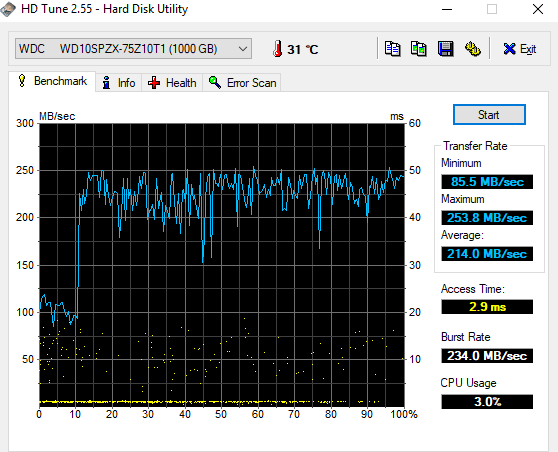

HD Tune
HD Tune

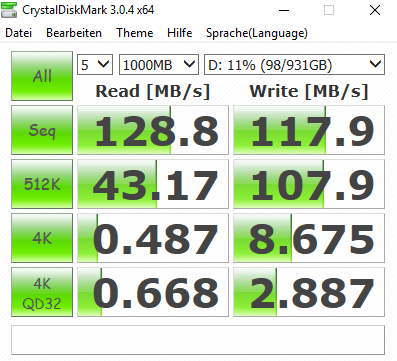

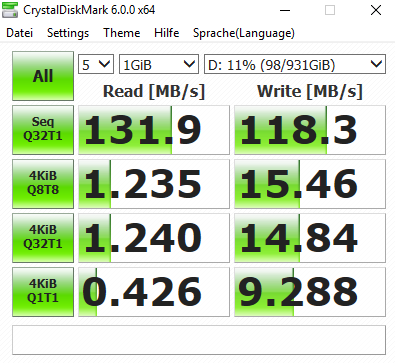

CrystalDiskMark 3 (HDD)
CrystalDiskMark 3 (HDD)

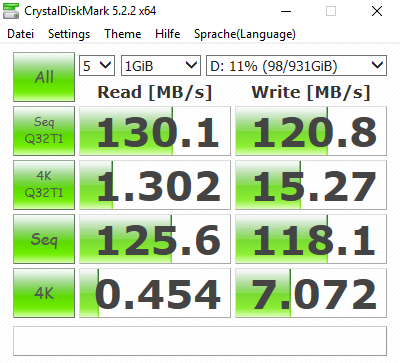

CrystalDiskMark 5 (HDD)
CrystalDiskMark 5 (HDD)
CrystalDiskMark 6 (HDD)
CrystalDiskMark 6 (HDD)
Dell G5 15 5587
SK hynix SC311 M.2		Dell Inspiron 15 7000 7577
Samsung PM961 MZVLW256HEHP		PC Zentrum Proteus V
Samsung PM961 MZVLW256HEHP		Asus FX503VM-EH73
SanDisk SD8SN8U128G1002		Acer Nitro 5 Spin NP515-51-86CX
Micron 1100 MTFDDAV256TBN		Acer Predator Helios 300 PH317-52-51M6
Hynix HFS128G39TND

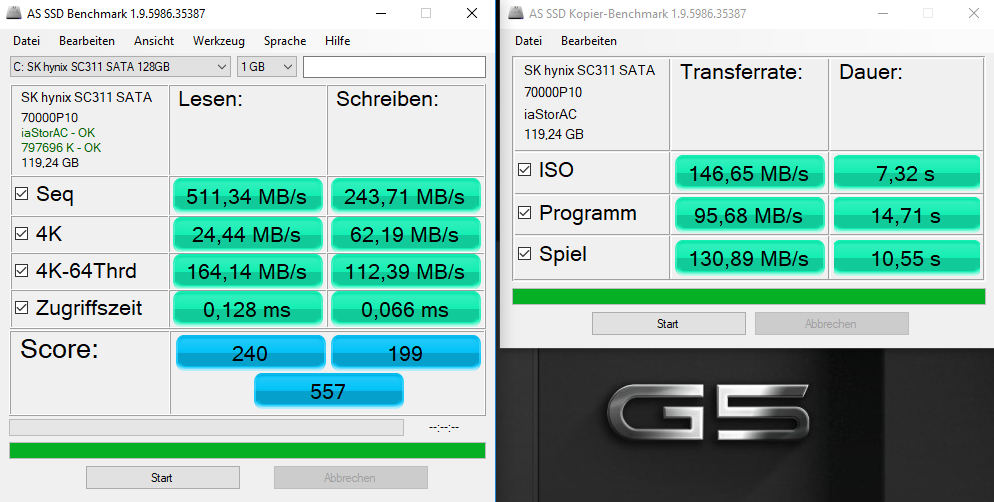

AS SSD
198%
220%
-6%
22%
-47%
Seq Read
511.34
2651.5
419%
2541.27
397%
476.33
-7%
490.07
-4%
512.95
0%
Seq Write
243.71
1180.85
385%
1180.47
384%
328.42
35%
335.16
38%
128.2
-47%
4K Read
24.44
46.95
92%
51
109%
20.44
-16%
25.86
6%
26.5
8%
4K Write
62.19
100.19
61%
136.43
119%
46.48
-25%
78.1
26%
62.73
1%
Access Time Read *
0.128
0.058
55%
0.045
65%
0.17
-33%
0.085
34%
Access Time Write *
0.066
0.037
44%
0.028
58%
0.09
-36%
0.065
2%
0.259
-292%
Score Total
557
2405
332%
2842
410%
798
43%
835
50%
811
46%

* ... kleiner is beter

HD Tune
CrystalDiskMark 3.0
CrystalDiskMark 5.2 / 6
hddimg
SK hynix SC311 M.2
Overdrachtssnelheid Minimum: 85.5 MB/s
Overdrachtssnelheid Maximum: 253.8 MB/s
Overdrachtssnelheid Gemiddeld: 214 MB/s
Toegangstijd: 2.9 ms
Pieksnelheid: 234 MB/s
CPU-gebruik: 3 %
3DMark | 3DMark 11
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Gaming
  (23059 - 192950, n=162, last 2 years)
105563 Points ∼100% +33%
PC Zentrum Proteus V
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
81918 Points ∼78% +3%
Asus FX503VM-EH73
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
80542 Points ∼76% +1%
Dell G5 15 5587
NVIDIA GeForce GTX 1060 Max-Q, Intel Core i5-8300H
79420 Points ∼75%
Dell Inspiron 15 7000 7577
NVIDIA GeForce GTX 1060 Max-Q, Intel Core i5-7300HQ
73603 Points ∼70% -7%
Average NVIDIA GeForce GTX 1060 Max-Q
  (42781 - 81720, n=10)
71376 Points ∼68% -10%
Acer Predator Helios 300 PH317-52-51M6
NVIDIA GeForce GTX 1050 Ti Mobile, Intel Core i5-8300H
51038 Points ∼48% -36%
Dell Inspiron 15 7000 7577
NVIDIA GeForce GTX 1050 Mobile, Intel Core i5-7300HQ
39511 Points ∼37% -50%
Acer Nitro 5 Spin NP515-51-86CX
NVIDIA GeForce GTX 1050 Mobile, Intel Core i7-8550U
35788 Points ∼34% -55%
1920x1080 Fire Strike Graphics
Average of class Gaming
  (1360 - 34993, n=194, last 2 years)
20253 Points ∼100% +85%
PC Zentrum Proteus V
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
11920 Points ∼59% +9%
Asus FX503VM-EH73
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
11483 Points ∼57% +5%
Dell G5 15 5587
NVIDIA GeForce GTX 1060 Max-Q, Intel Core i5-8300H
10970 Points ∼54%
Average NVIDIA GeForce GTX 1060 Max-Q
  (9992 - 11366, n=10)
10659 Points ∼53% -3%
Dell Inspiron 15 7000 7577
NVIDIA GeForce GTX 1060 Max-Q, Intel Core i5-7300HQ
10263 Points ∼51% -6%
Acer Predator Helios 300 PH317-52-51M6
NVIDIA GeForce GTX 1050 Ti Mobile, Intel Core i5-8300H
7610 Points ∼38% -31%
Dell Inspiron 15 7000 7577
NVIDIA GeForce GTX 1050 Mobile, Intel Core i5-7300HQ
6375 Points ∼31% -42%
Acer Nitro 5 Spin NP515-51-86CX
NVIDIA GeForce GTX 1050 Mobile, Intel Core i7-8550U
5373 Points ∼27% -51%
3DMark 11 - 1280x720 Performance GPU
Average of class Gaming
  (1925 - 43077, n=186, last 2 years)
26874 Points ∼100% +94%
PC Zentrum Proteus V
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
15386 Points ∼57% +11%
Asus FX503VM-EH73
NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-7700HQ
14550 Points ∼54% +5%
Dell G5 15 5587
NVIDIA GeForce GTX 1060 Max-Q, Intel Core i5-8300H
13871 Points ∼52%
Average NVIDIA GeForce GTX 1060 Max-Q
  (12970 - 14487, n=10)
13581 Points ∼51% -2%
Dell Inspiron 15 7000 7577
NVIDIA GeForce GTX 1060 Max-Q, Intel Core i5-7300HQ
13075 Points ∼49% -6%
Acer Predator Helios 300 PH317-52-51M6
NVIDIA GeForce GTX 1050 Ti Mobile, Intel Core i5-8300H
9147 Points ∼34% -34%
Dell Inspiron 15 7000 7577
NVIDIA GeForce GTX 1050 Mobile, Intel Core i5-7300HQ
8047 Points ∼30% -42%
Acer Nitro 5 Spin NP515-51-86CX
NVIDIA GeForce GTX 1050 Mobile, Intel Core i7-8550U
6744 Points ∼25% -51%

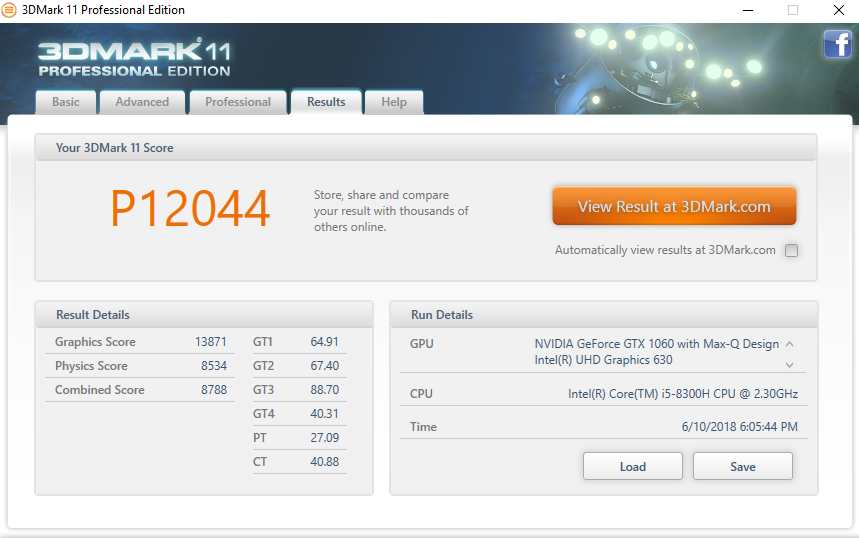

3DMark 11 Performance
12044 punten
3DMark Ice Storm Standard Score
94815 punten

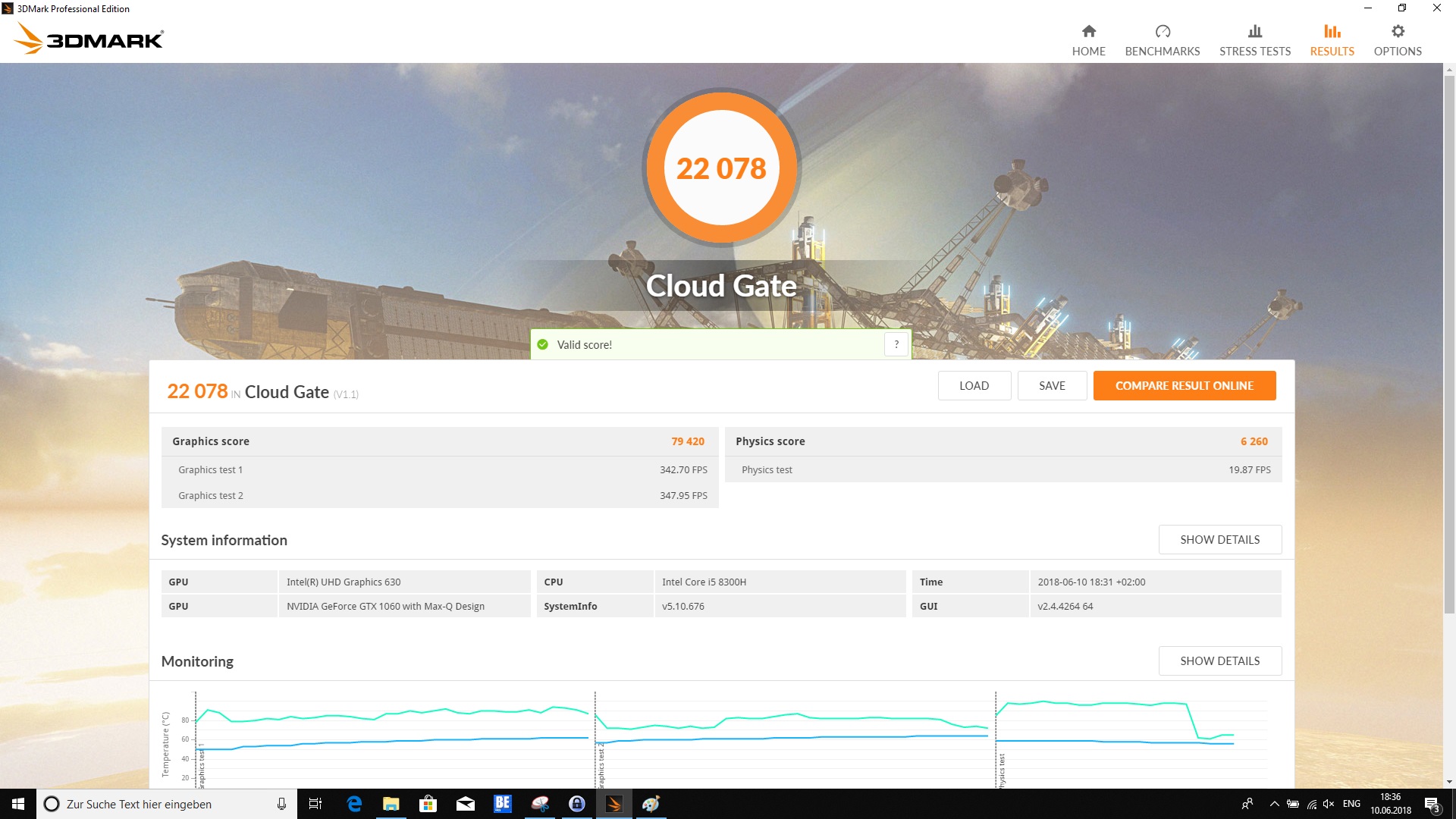

3DMark Cloud Gate Standard Score
22078 punten

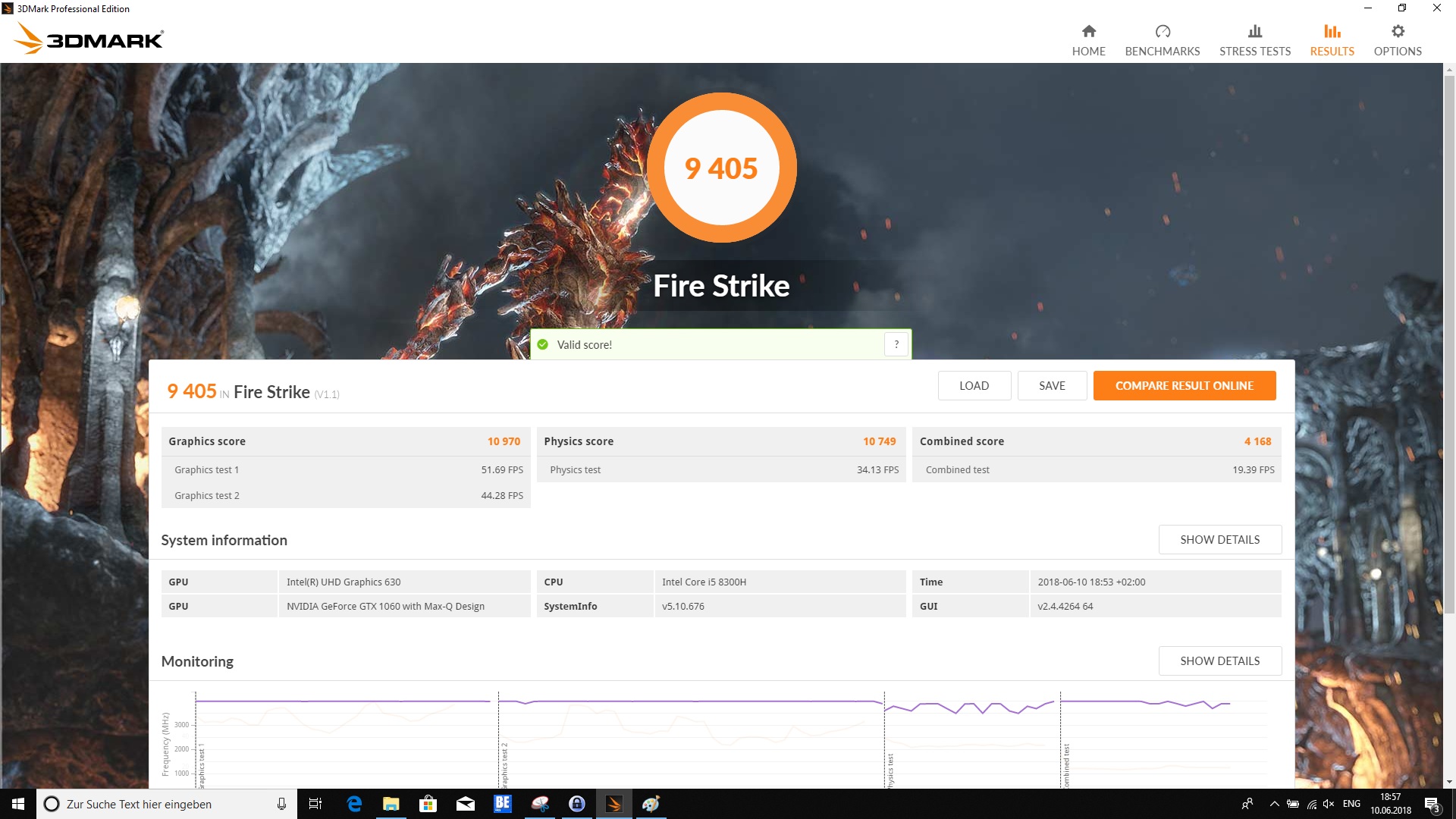

3DMark Fire Strike Score
9405 punten

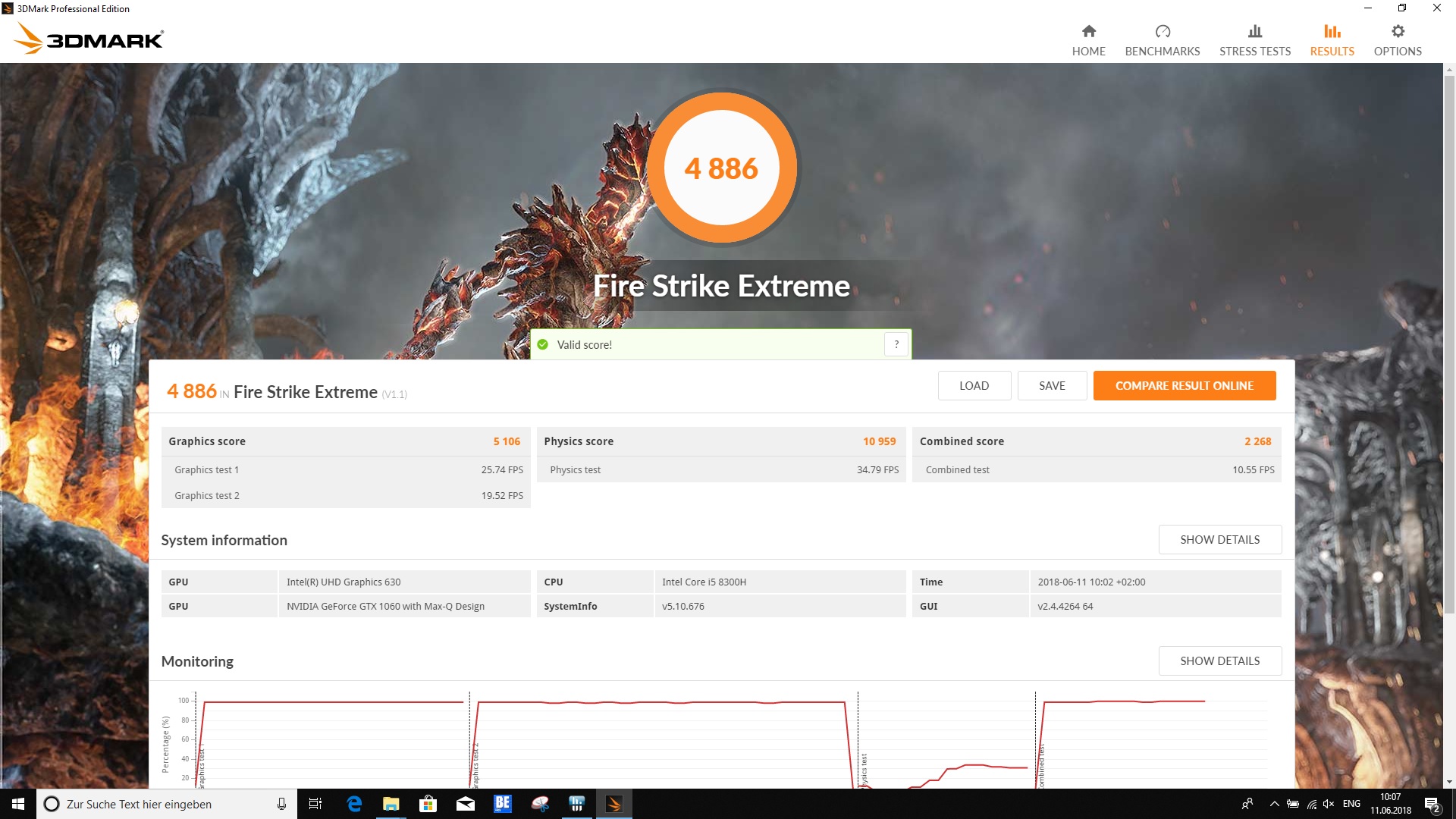

3DMark Fire Strike Extreme Score
4886 punten

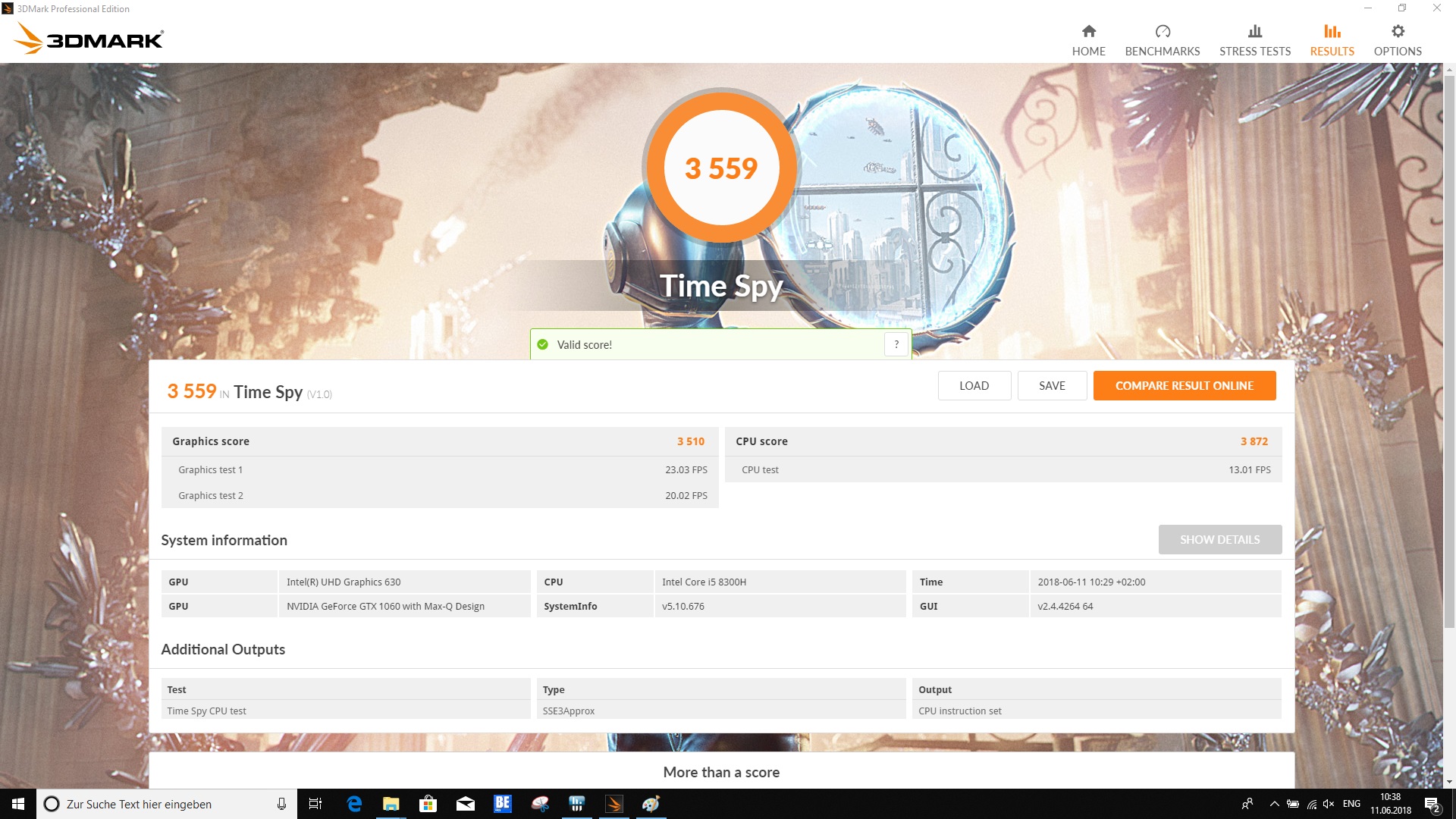

3DMark Time Spy Score
3559 punten
Help
01234567891011121314151617181920212223242526272829303132333435363738Tooltip
The Witcher 3 ultra
BioShock Infinite | Rise of the Tomb Raider | The Witcher 3
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
Average of class Gaming
  (61.4 - 208, n=41, last 2 years)
142 fps ∼100% +32%
Dell G5 15 5587
GeForce GTX 1060 Max-Q, i5-8300H, SK hynix SC311 M.2
107.5 fps ∼76%
Average NVIDIA GeForce GTX 1060 Max-Q
  (87.2 - 112, n=8)
102 fps ∼72% -5%
Dell Inspiron 15 7000 7577
GeForce GTX 1060 Max-Q, i5-7300HQ, Samsung PM961 MZVLW256HEHP
95.3 fps ∼67% -11%
Dell Inspiron 15 7000 7577
GeForce GTX 1050 Mobile, i5-7300HQ, Seagate Mobile HDD 1TB ST1000LX015-1U7172
64.3 (20.9min - 125.4max) fps ∼45% -40%
Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x
Average of class Gaming
  (58.9 - 140, n=7, last 2 years)
106 fps ∼100% +75%
Dell G5 15 5587
GeForce GTX 1060 Max-Q, i5-8300H, SK hynix SC311 M.2
60.5 (53min - 68max) fps ∼57%
Asus FX503VM-EH73
GeForce GTX 1060 Mobile, i7-7700HQ, SanDisk SD8SN8U128G1002
57 fps ∼54% -6%
Average NVIDIA GeForce GTX 1060 Max-Q
  (45.3 - 66.4, n=8)
55.5 fps ∼52% -8%
Dell Inspiron 15 7000 7577
GeForce GTX 1060 Max-Q, i5-7300HQ, Samsung PM961 MZVLW256HEHP
55.4 fps ∼52% -8%
Dell Inspiron 15 7000 7577
GeForce GTX 1050 Mobile, i5-7300HQ, Seagate Mobile HDD 1TB ST1000LX015-1U7172
33.1 (28min - 37max) fps ∼31% -45%
Acer Nitro 5 Spin NP515-51-86CX
GeForce GTX 1050 Mobile, i5-8550U, Micron 1100 MTFDDAV256TBN
30 (28min - 34max) fps ∼28% -50%
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Average of class Gaming
  (24.3 - 123, n=196, last 2 years)
77.8 fps ∼100% +123%
PC Zentrum Proteus V
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP
39.9 fps ∼51% +14%
Asus FX503VM-EH73
GeForce GTX 1060 Mobile, i7-7700HQ, SanDisk SD8SN8U128G1002
37 fps ∼48% +6%
Average NVIDIA GeForce GTX 1060 Max-Q
  (34.6 - 38.5, n=9)
36 fps ∼46% +3%
Dell Inspiron 15 7000 7577
GeForce GTX 1060 Max-Q, i5-7300HQ, Samsung PM961 MZVLW256HEHP
35.2 fps ∼45% +1%
Dell G5 15 5587
GeForce GTX 1060 Max-Q, i5-8300H, SK hynix SC311 M.2
34.9 (29min - 39max) fps ∼45%
Acer Predator Helios 300 PH317-52-51M6
GeForce GTX 1050 Ti Mobile, i5-8300H, Hynix HFS128G39TND
26 fps ∼33% -26%
Dell Inspiron 15 7000 7577
GeForce GTX 1050 Mobile, i5-7300HQ, Seagate Mobile HDD 1TB ST1000LX015-1U7172
22.6 (18min - 28max) fps ∼29% -35%
lage gem. hoge ultra4K
BioShock Infinite (2013) 264 233.1 213.3 107.5 fps
GTA V (2015) 156.8 151.6 106.5 61.8 53.7 fps
The Witcher 3 (2015) 172.2 122.3 58.3 34.9 23.3 fps
Rise of the Tomb Raider (2016) 160.9 128.1 72.7 60.5 24.6 fps
Playerunknown's Battlegrounds (PUBG) (2017) 141.9 92.5 85.6 63.3 12.9 fps
FIFA 18 (2017) 290.6 277.9 252.3 245.7 130 fps
Assassin´s Creed Origins (2017) 77 67 62 52 21 fps
Call of Duty WWII (2017) 174.9 163.3 91.9 70.9 31.3 fps
Need for Speed Payback (2017) 117.9 89.1 78.5 66.6 23.8 fps
Star Wars Battlefront 2 (2017) 135.5 93.4 81.5 62.2 fps
Fortnite (2018) 178 132.6 115.7 72.8 fps
Kingdom Come: Deliverance (2018) 110 66.8 52.7 38 12 fps
Far Cry 5 (2018) 110 70 65 48 20 fps

Geluidsniveau

Onbelast
31.1 / 31.1 / 34.2 dB (A)
Belasting
34.9 / 44 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 30.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.833.737.82534.134.134.13132.235.732.24031.430.531.45030.637.630.6633128.7318027.926.227.910028.22628.212527.126.727.116027.624.827.620027.723.627.725029.223.229.23153022.63040030.622.730.650028.22028.263028.419.328.480030.418.730.4100031.518.131.5125031.11831.1160033.517.933.5200033.11833.1250033.517.933.5315031.518.231.5400029.118.529.1500027.718.627.7630026.418.726.4800024.218.924.21000021.71921.71250019.419.119.41600018.819.418.8SPL42.73142.7N3.91.43.9median 28.4median 19median 28.4Delta2.41.92.4hearing rangehide median Fan NoiseDell G5 15 5587
Dell G5 15 5587
GeForce GTX 1060 Max-Q, i5-8300H, SK hynix SC311 M.2		Dell Inspiron 15 7000 7577
GeForce GTX 1050 Mobile, i5-7300HQ, Seagate Mobile HDD 1TB ST1000LX015-1U7172		Dell Inspiron 15 7000 7577
GeForce GTX 1060 Max-Q, i5-7300HQ, Samsung PM961 MZVLW256HEHP		PC Zentrum Proteus V
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP		Asus FX503VM-EH73
GeForce GTX 1060 Mobile, i7-7700HQ, SanDisk SD8SN8U128G1002		Acer Nitro 5 Spin NP515-51-86CX
GeForce GTX 1050 Mobile, i5-8550U, Micron 1100 MTFDDAV256TBN		Acer Predator Helios 300 PH317-52-51M6
GeForce GTX 1050 Ti Mobile, i5-8300H, Hynix HFS128G39TND
Noise
-2%
9%
-16%
-2%
-2%
-5%
off / environment *
30.3
31
-2%
28
8%
31
-2%
27.8
8%
30.4
-0%
29
4%
Idle Minimum *
31.1
32.7
-5%
28
10%
37
-19%
29.6
5%
30.9
1%
29
7%
Idle Average *
31.1
32.7
-5%
28
10%
38
-22%
29.6
5%
30.9
1%
31
-0%
Idle Maximum *
34.2
32.7
4%
28
18%
39
-14%
29.6
13%
30.9
10%
33
4%
Load Average *
34.9
38.7
-11%
30.3
13%
47
-35%
37.3
-7%
42.6
-22%
45
-29%
Witcher 3 ultra *
42.7
39
9%
39.5
7%
43
-1%
49.8
-17%
45
-5%
Load Maximum *
44
44.6
-1%
46.5
-6%
52
-18%
53.7
-22%
45
-2%
51
-16%

* ... kleiner is beter

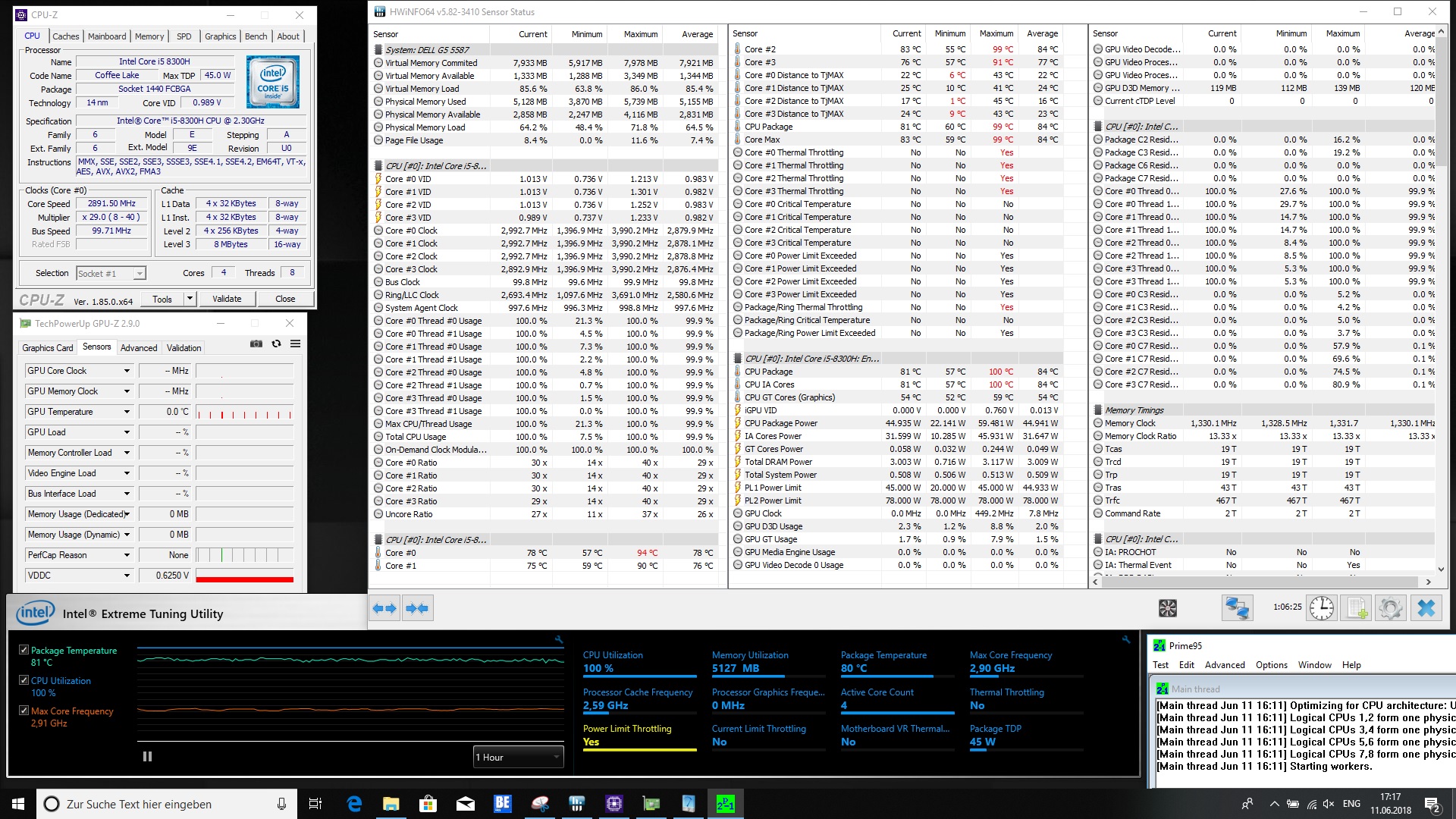

Stresstest: alleen Prime95
Stresstest: alleen Prime95
Stresstest: alleen FurMark
Stresstest: alleen FurMark
Stresstest: FurMark + Prime95
Stresstest: FurMark + Prime95
Max. Belasting
 43.4 °C50.2 °C46.2 °C
 33.6 °C44.7 °C38 °C
 28.5 °C27.4 °C30.9 °C
Maximum: 50.2 °C
Gemiddelde: 38.1 °C
53 °C57 °C51.8 °C
29.2 °C32.8 °C30.4 °C
27.9 °C26.8 °C25.9 °C
Maximum: 57 °C
Gemiddelde: 37.2 °C
Stroomadapter (max.)  45.1 °C | Kamertemperatuur 23.7 °C | FIRT 550-Pocket
(-) The average temperature for the upper side under maximal load is 38.1 °C / 101 F, compared to the average of 33.7 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 50.2 °C / 122 F, compared to the average of 40.1 °C / 104 F, ranging from 21.6 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 57 °C / 135 F, compared to the average of 43 °C / 109 F
(+) In idle usage, the average temperature for the upper side is 27.3 °C / 81 F, compared to the device average of 33.7 °C / 93 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 38.5 °C / 101 F, compared to the device average of 33.7 °C / 93 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.7 °C / 92.7 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 29 °C / 84.2 F (-4.7 °C / -8.5 F).
Dell G5 15 5587
GeForce GTX 1060 Max-Q, i5-8300H, SK hynix SC311 M.2		Dell Inspiron 15 7000 7577
GeForce GTX 1050 Mobile, i5-7300HQ, Seagate Mobile HDD 1TB ST1000LX015-1U7172		Dell Inspiron 15 7000 7577
GeForce GTX 1060 Max-Q, i5-7300HQ, Samsung PM961 MZVLW256HEHP		PC Zentrum Proteus V
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung PM961 MZVLW256HEHP		Asus FX503VM-EH73
GeForce GTX 1060 Mobile, i7-7700HQ, SanDisk SD8SN8U128G1002		Acer Nitro 5 Spin NP515-51-86CX
GeForce GTX 1050 Mobile, i5-8550U, Micron 1100 MTFDDAV256TBN		Acer Predator Helios 300 PH317-52-51M6
GeForce GTX 1050 Ti Mobile, i5-8300H, Hynix HFS128G39TND
Heat
13%
12%
5%
-20%
10%
-3%
Maximum Upper Side *
50.2
35.9
28%
44
12%
44
12%
59.6
-19%
46
8%
50
-0%
Maximum Bottom *
57
41.6
27%
43.8
23%
53
7%
56
2%
47
18%
52
9%
Idle Upper Side *
28.6
27.9
2%
26
9%
29
-1%
37
-29%
29.6
-3%
33
-15%
Idle Bottom *
28.9
30.5
-6%
28
3%
29
-0%
38.6
-34%
24.6
15%
30
-4%

* ... kleiner is beter

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.533.737.52539.434.139.43137.235.737.24039.630.539.65040.437.640.46340.828.740.88042.126.242.110043.12643.112544.826.744.816048.424.848.420052.823.652.825056.223.256.231557.622.657.640056.722.756.750060.52060.56306719.36780068.518.768.510006718.167125068.31868.3160068.517.968.5200066.31866.3250064.717.964.731506418.264400065.718.565.750006318.663630064.618.764.6800062.818.962.81000063.71963.71250061.919.161.91600057.119.457.1SPL77.83177.8N40.11.440.1median 63median 19median 63Delta4.71.94.734.935.337.134.234.232.33333.831.533.332.232.930.73130.131.428.639.52850.527.659.226.56426.66425.362.224.760.224.860.825.166.524.465.423.560.823.562.423.459.82365.723.267.322.968.222.965.722.861.322.759.322.756.822.750.422.640.735.876.42.539.7median 23.5median 60.826hearing rangehide median Pink NoiseDell G5 15 5587Asus FX503VM-EH73
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Dell G5 15 5587 audio analysis

(-) | not very loud speakers (68.54 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.5% lower than median
(+) | bass is linear (5.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.6% away from median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.1% away from median
(+) | highs are linear (3.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.5% difference to median)
Compared to same class
» 18% of all tested devices in this class were better, 5% similar, 77% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 9% of all tested devices were better, 2% similar, 89% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Asus FX503VM-EH73 audio analysis

(-) | not very loud speakers (68.21 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.5% lower than median
(±) | linearity of bass is average (14.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.9% away from median
(+) | mids are linear (6.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.2% away from median
(±) | linearity of highs is average (7.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.8% difference to median)
Compared to same class
» 47% of all tested devices in this class were better, 13% similar, 40% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 26% of all tested devices were better, 8% similar, 67% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Stroomgebruik
Uit / Standbydarklight 0.22 / 0.2 Watt
Inactiefdarkmidlight 4.9 / 8.5 / 9.1 Watt
Belasting midlight 90.7 / 144 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Dell G5 15 5587
i5-8300H, GeForce GTX 1060 Max-Q, SK hynix SC311 M.2, IPS, 1920x1080, 15.60		Dell Inspiron 15 7000 7577
i5-7300HQ, GeForce GTX 1050 Mobile, Seagate Mobile HDD 1TB ST1000LX015-1U7172, IPS, 1920x1080, 15.60		Dell Inspiron 15 7000 7577
i5-7300HQ, GeForce GTX 1060 Max-Q, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 15.60		PC Zentrum Proteus V
i7-7700HQ, GeForce GTX 1060 Mobile, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 15.60		Asus FX503VM-EH73
i7-7700HQ, GeForce GTX 1060 Mobile, SanDisk SD8SN8U128G1002, IPS, 1920x1080, 15.60		Acer Nitro 5 Spin NP515-51-86CX
i5-8550U, GeForce GTX 1050 Mobile, Micron 1100 MTFDDAV256TBN, IPS, 1920x1080, 15.60		Acer Predator Helios 300 PH317-52-51M6
i5-8300H, GeForce GTX 1050 Ti Mobile, Hynix HFS128G39TND, IPS, 1920x1080, 17.30		Average NVIDIA GeForce GTX 1060 Max-Q
 		Average of class Gaming

Power Consumption
3%
8%
-181%
-50%
20%
-10%
-40%
-113%
Idle Minimum *
4.9
5.3
-8%
7.1
-45%
28
-471%
12.8
-161%
4.1
16%
6
-22%
9.14 ?(3.9 - 18, n=10)
-87%
13.8 ?(1.9 - 62, n=168, last 2 years)
-182%
Idle Average *
8.5
8.8
-4%
7.6
11%
32
-276%
15.4
-81%
7.4
13%
9
-6%
13.2 ?(7.6 - 23, n=10)
-55%
18.4 ?(6 - 64, n=168, last 2 years)
-116%
Idle Maximum *
9.1
9.7
-7%
8.6
5%
38
-318%
15.9
-75%
8.6
5%
13
-43%
15.1 ?(8.6 - 30, n=10)
-66%
27.3 ?(8.7 - 69.6, n=168, last 2 years)
-200%
Load Average *
90.7
100
-10%
59.5
34%
91
-0%
78
14%
66
27%
95
-5%
88.3 ?(59.5 - 112, n=10)
3%
107 ?(55.1 - 183, n=169, last 2 years)
-18%
Witcher 3 ultra *
110
87
21%
89
19%
124
-13%
107.3
2%
102
7%
Load Maximum *
144
109
24%
112.8
22%
152
-6%
143.4
-0%
87
40%
134
7%
135 ?(113 - 158, n=10)
6%
216 ?(124 - 512, n=169, last 2 years)
-50%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
11h 45min
NBC WiFi Websurfing Battery Test 1.3 (Edge 42.17134.1.0)
6h 31min
Big Buck Bunny H.264 1080p
5h 25min
Belast (maximale helderheid)
2h 13min
Dell G5 15 5587
i5-8300H, GeForce GTX 1060 Max-Q, 56 Wh		Dell Inspiron 15 7000 7577
i5-7300HQ, GeForce GTX 1050 Mobile, 56 Wh		Dell Inspiron 15 7000 7577
i5-7300HQ, GeForce GTX 1060 Max-Q, 56 Wh		PC Zentrum Proteus V
i7-7700HQ, GeForce GTX 1060 Mobile,  Wh		Asus FX503VM-EH73
i7-7700HQ, GeForce GTX 1060 Mobile, 64 Wh		Acer Nitro 5 Spin NP515-51-86CX
i5-8550U, GeForce GTX 1050 Mobile, 48 Wh		Acer Predator Helios 300 PH317-52-51M6
i5-8300H, GeForce GTX 1050 Ti Mobile, 48 Wh		Average of class Gaming

Batterijduur
-6%
-10%
-48%
-44%
2%
-11%
-11%
Reader / Idle
705
665
-6%
659
-7%
221
-69%
340
-52%
750
6%
710
1%
575 ?(73 - 1399, n=127, last 2 years)
-18%
H.264
325
312
-4%
200
-38%
371
14%
391 ?(92 - 860, n=55, last 2 years)
20%
WiFi v1.3
391
405
4%
416
6%
196
-50%
276
-29%
397
2%
354
-9%
344 ?(62 - 710, n=171, last 2 years)
-12%
Load
133
108
-19%
96
-28%
89
-33%
67
-50%
113
-15%
100
-25%
88.9 ?(30 - 243, n=143, last 2 years)
-33%

Pro

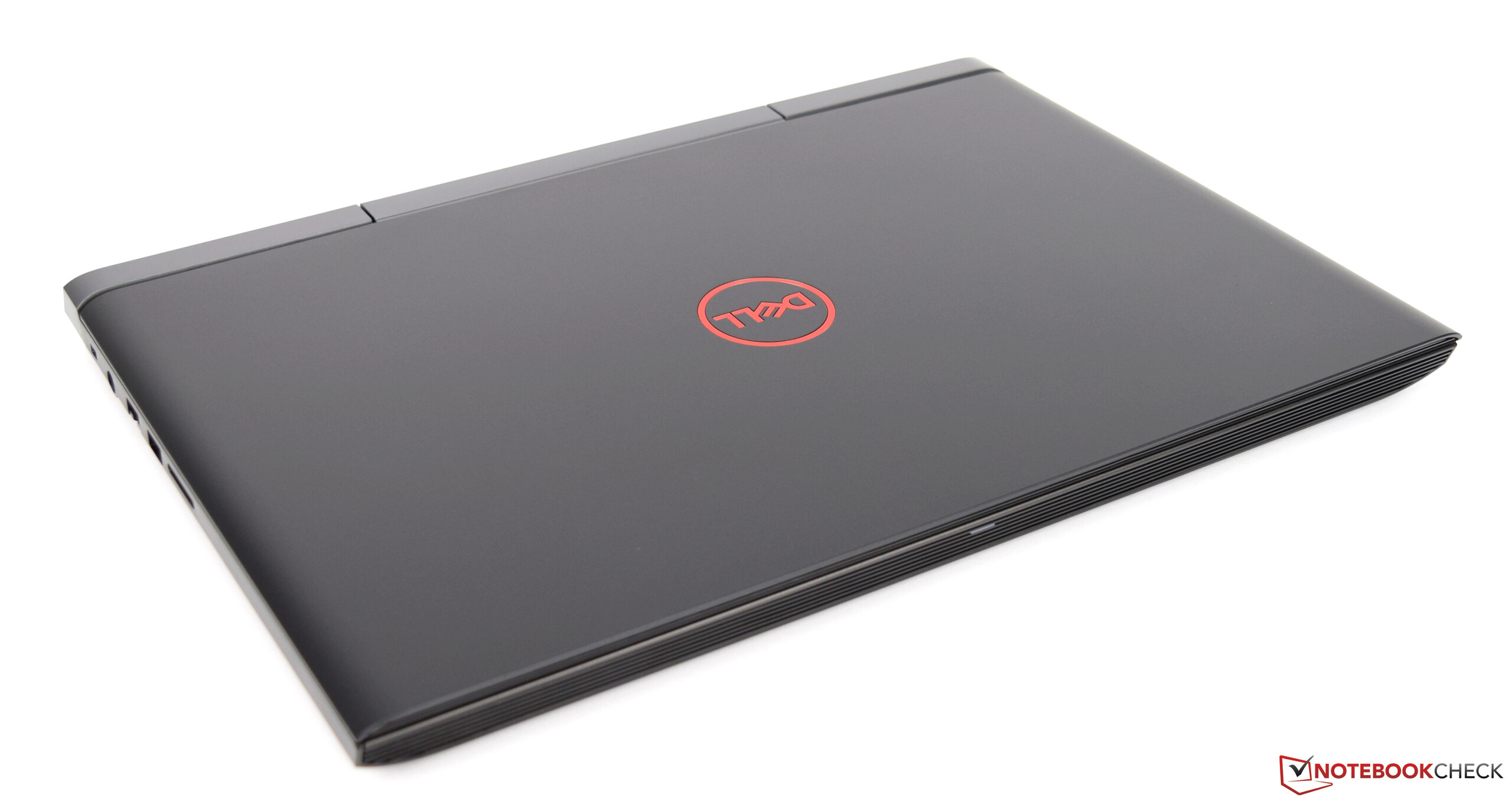

+ Robuuste behuizing
+ Lage startprijs
+ Snelle CPU
+ IPS beeldscherm met brede kijkhoeken en zonder PWM
+ GeForce GTX 1060 Max-Q met 6 GB GDDR5-VRAM
+ Thunderbolt 3

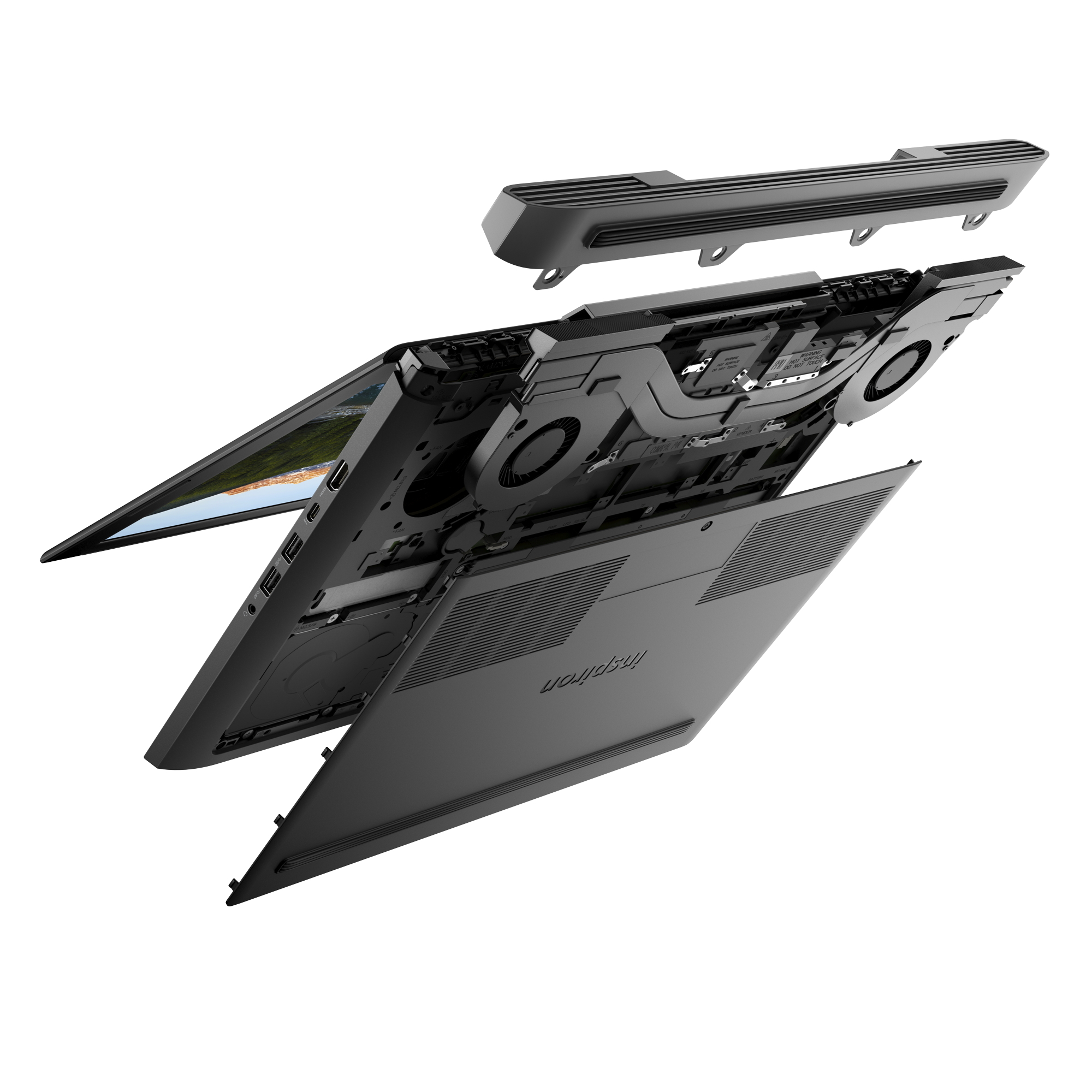

+ Groot onderhoudspaneel

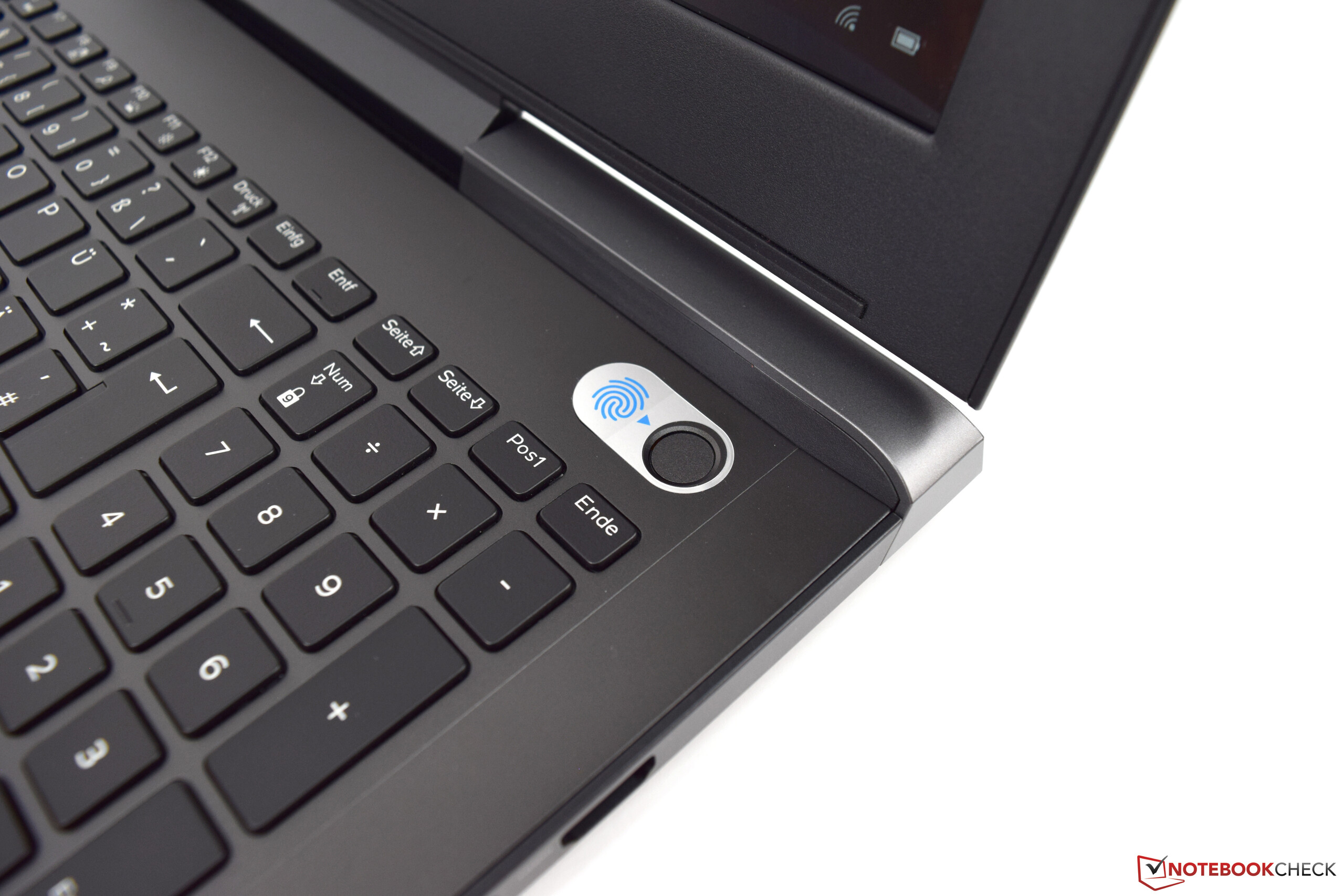

+ Vingerafdruksensor
+ Lange looptijden
+ Verlicht toetsenbord
+ SSD + HDD
+ M.2-NVMe ondersteuning

Contra

- Extreme prestatiebeperkingen op accustroom
- Hoge temperaturen onder belasting
- Beeldscherm is te donker
- Zeer langzame kaartlezer
- Geen optie voor G-Sync

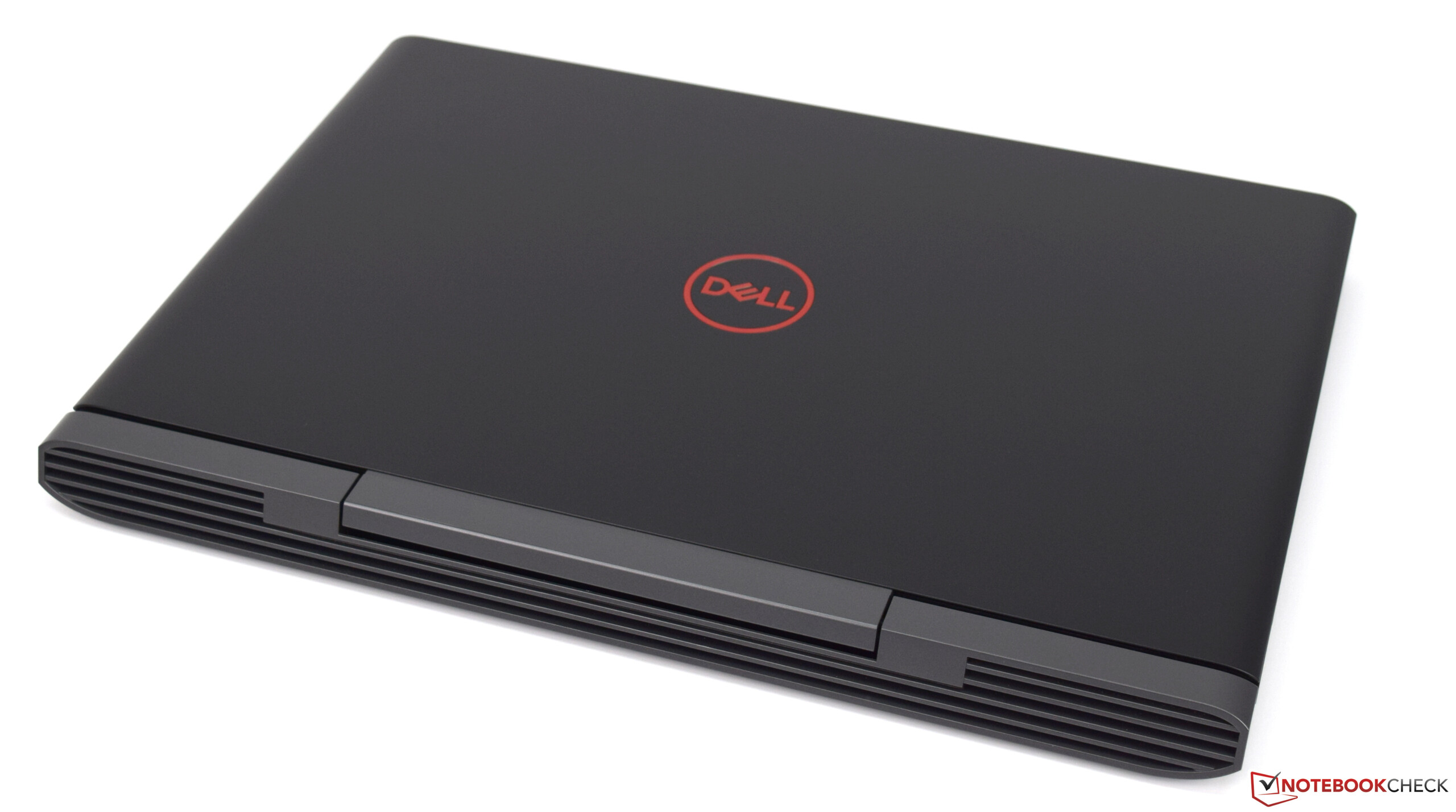

De Dell G5 15 5587, geleverd door Dell Germany
De Dell G5 15 5587, geleverd door Dell Germany

Voor het volledige, Engelse testrapport, klik hier.

De Dell G5 5587 blijft een goede gaming notebook voor een aantrekkelijke prijs. We waren overtuigd door de robuuste behuizing met scharnieren in het midden, waardoor het beeldscherm zeer stabiel is. Dankzij de gloednieuwe CPU is het apparaat sneller dan z'n voorganger, welke nog het label 'Inspiron' droeg. Voor degenen die de Intel Core i5-8300H niet afdoende vinden, is er ook de optie voor een Intel Core i7-8750H, waarmee multi-thread prestaties dankzij de zes cores nog eenvoudiger worden. Echter, voor de meeste taken is de kleinere i5 in ons testmodel krachtig genoeg.

Wat betreft warmteontwikkeling blijkt dat onze configuratie al snel aan de limieten zit, hoewel de CPU daar weinig last van lijkt te hebben.

De Nvidia GeForce GTX 1060 Max-Q is de krachtigste GPU die Dell in deze gaming notebook stopt. De prestaties liegen er niet om en het apparaat is in staat om alle moderne games op de volledige resolutie te spelen.

De Dell G5 15 5587 is een goed uitgeruste gaming notebook met een moderne CPU, snelle grafische kaart en zeer aantrekkelijke prijs.

Het beeldscherm heeft ons echter niet kunnen overtuigen, hoewel het paneel ook sterke kanten heeft. Een matte afwerking en het niet gebruiken van PWM is niet altijd voldoende om ons tevreden te stellen. Dit model mist gewoonweg contrast en helderheid. Ook zou Dell moeten overwegen of een USB 2.0 snelheid voor de kaartlezer voldoende is.

Ook wat betreft geluid hadden we meer verwacht, aangezien de huidige luidsprekers in de G5 15 5587 niet geschikt zijn voor een pure gaming notebook. Een aparte sub-woofer zou veel waarde toevoegen. Een ander punt van kritiek is het gewicht: 3 kg voor een 15.6 inch apparaat kan niet gemakkelijk worden genegeerd.

Hoewel de initiële opslagcapaciteit voldoende is, raden we aan om te investeren in een grotere SSD om maximaal gebruik te maken van het snelheidsvoordeel.

Dell G5 15 5587 - 21-06-2018 v6(old)
Sebastian Bade

Behuizing
84 / 98 → 85%
Toetsenbord
84%
Aanwijsapparaat
85%
Aansluitmogelijkheden
61 / 81 → 75%
Gewicht
58 / 10-66 → 85%
Batterij
85%
Beeldscherm
83%
Gaming-performance
93%
Applicatie-performance
93%
Temperatuur
84 / 95 → 89%
Luidheid
85 / 90 → 94%
Audio
56%
Camera
42 / 85 → 50%
Gemiddelde
76%
84%
Gaming - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Dell G5 15 5587 (i5-8300H, GTX 1060 Max-Q, SSD, IPS) Laptop
Sebastian Bade, 2018-06-29 (Update: 2018-06-29)
