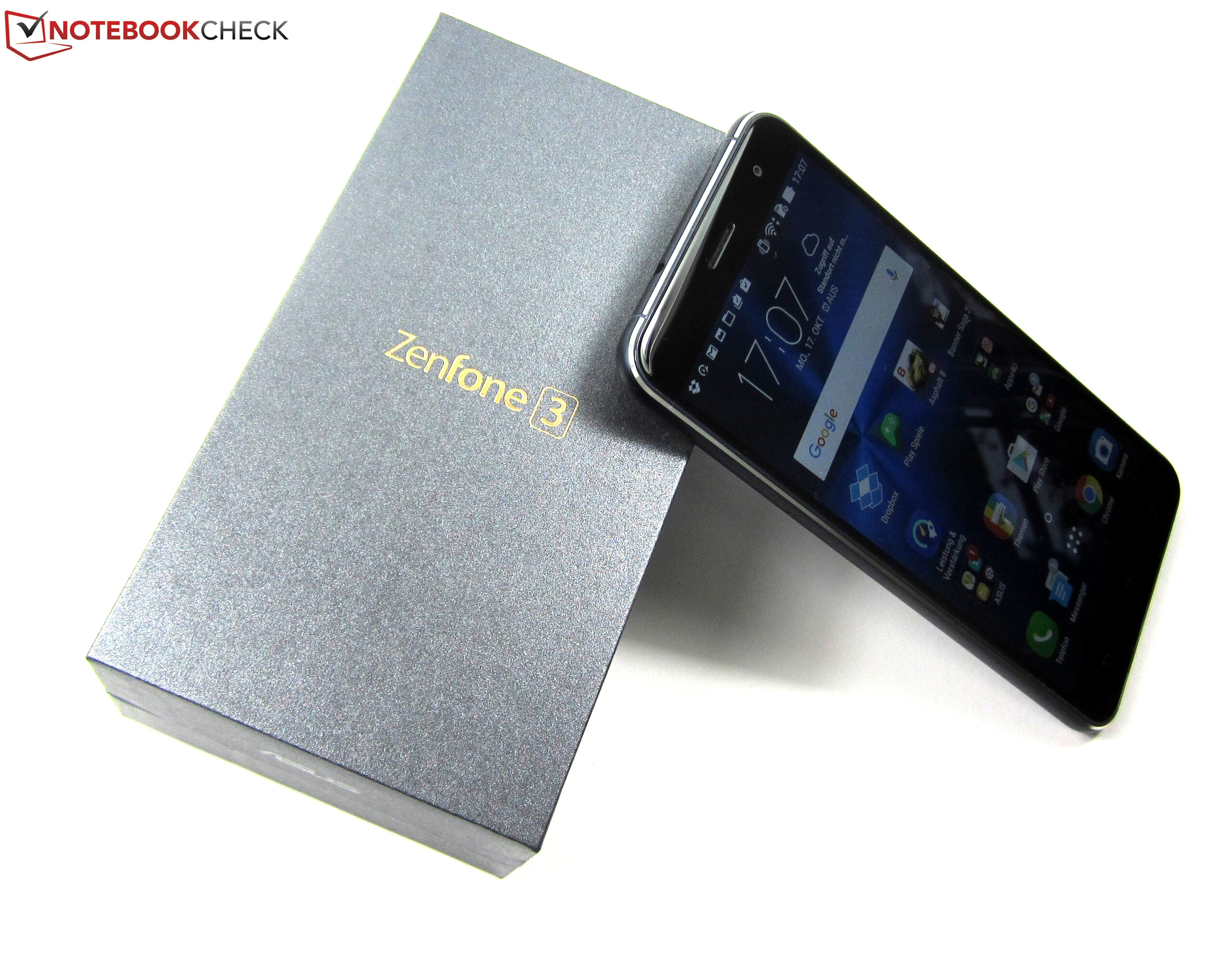

Kort testrapport Asus ZenFone 3 ZE552KL Smartphone

Designer-stuk. Asus heeft de 5.5-inch ZenFone 3 getrakteerd op een premium uiterlijk, zonder performance en specificaties te verwaarlozen. Het resultaat is een goede en betaalbare mid-range smartphone die nauwelijks tekortkomingen vertoont in onze tests.
Manuel Masiero, ✓ Stefanie Voigt (vertaald door Siemon Boes), 🇺🇸 🇩🇪 ...
Android Smartphone Touchscreen

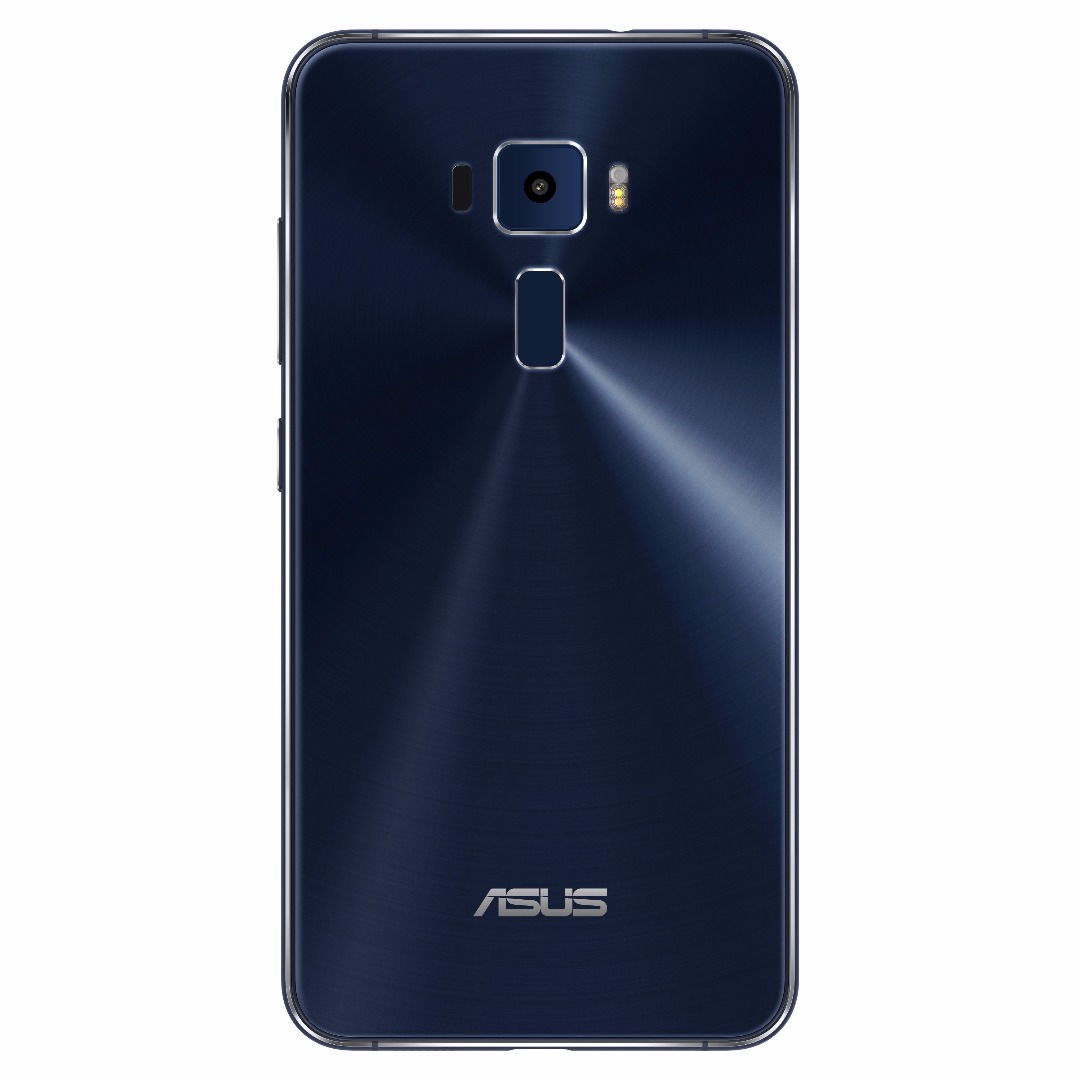

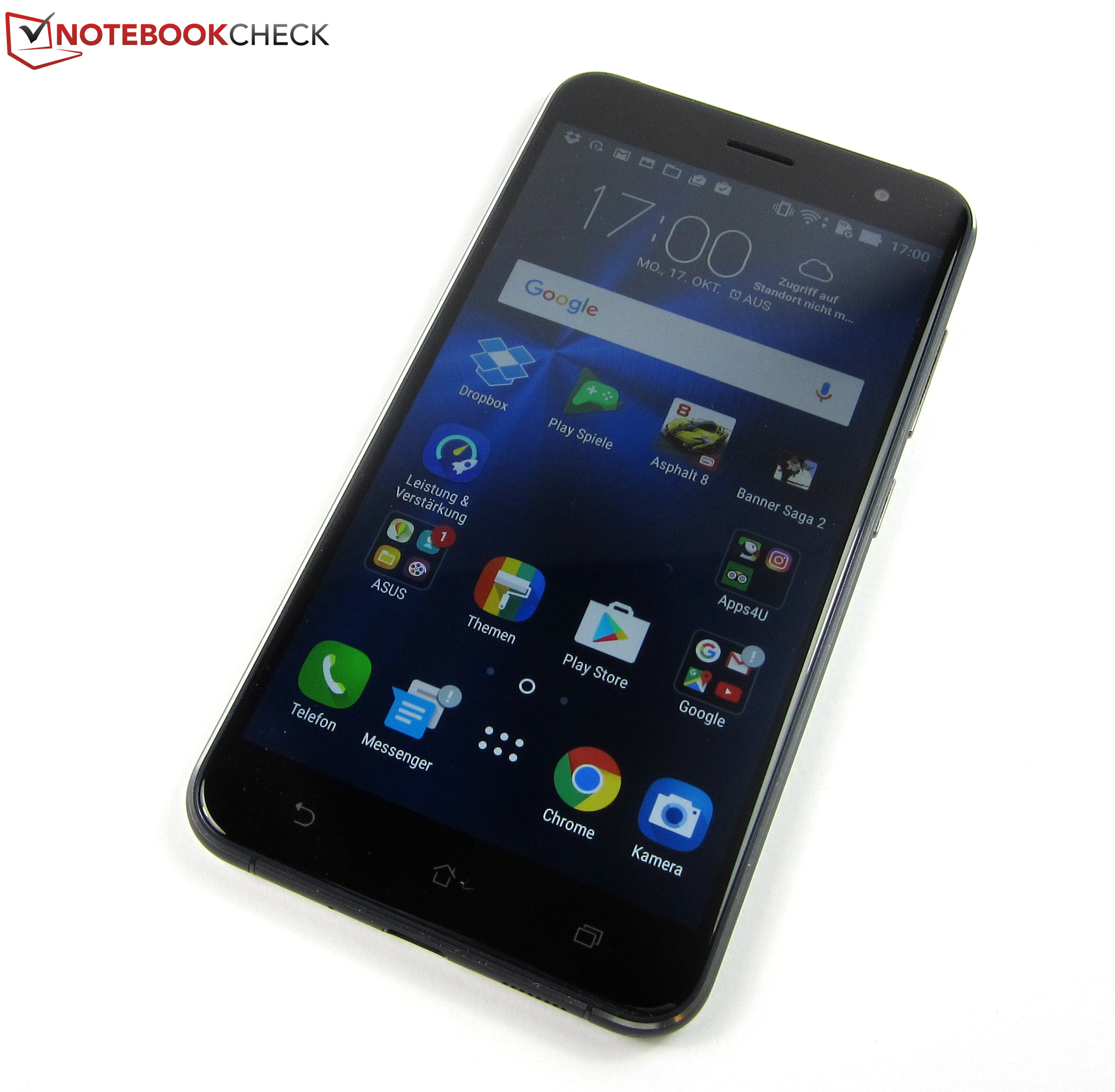

Asus Zenfone 3 ZE552KL (Zenfone Serie)
Processor
Qualcomm Snapdragon 625 8 x 2 GHz, Cortex-A53
Grafische kaart
Qualcomm Adreno 506, Core: 650 MHz
Geheugen
4096 MB
, LPDDR3
Beeldscherm
5.50 inch 16:9, 1920 x 1080 pixel 401 PPI, 10 vinger-touchscreen, Glove Touch, IPS, Bluelight filter, glimmend: ja
Opslag
64 GB eMMC Flash, 64 GB
, 51.7 GB beschikbaar
Verbindingen
1 USB 2.0, 1 Infrared, Audio Verbindingen: 3.5 mm hoofdtelefoonklink, Card Reader: micro-SD max. 2 TB, 1 Vingerafdruklezer, Brightness Sensor, Sensoren: accelerometer, gyroscoop, afstandssensor, kompas, Wi-Fi Direct, USB-OTG, DLNA, Miracast, Qualcomm Quick Charge 3.0
Netwerkmogelijkheden
802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2, GSM (850, 900, 1800, 1900 MHz), UMTS (850, ​900, ​1900, ​2100 MHz), LTE Cat. 4 (800, 850, 900, 1800, 1900, 2100, 2600 MHz), max. download 150 MBit/s, max. upload 50 MBit/s, SAR: 0.493 W/kg, Dual SIM, LTE, GPS
Afmetingen
hoogte x breedte x diepte (in mm): 7.7 x 152.6 x 77.4
Batterij
3000 mAh Lithium-Ion
Besturingssysteem
Android 6.0 Marshmallow

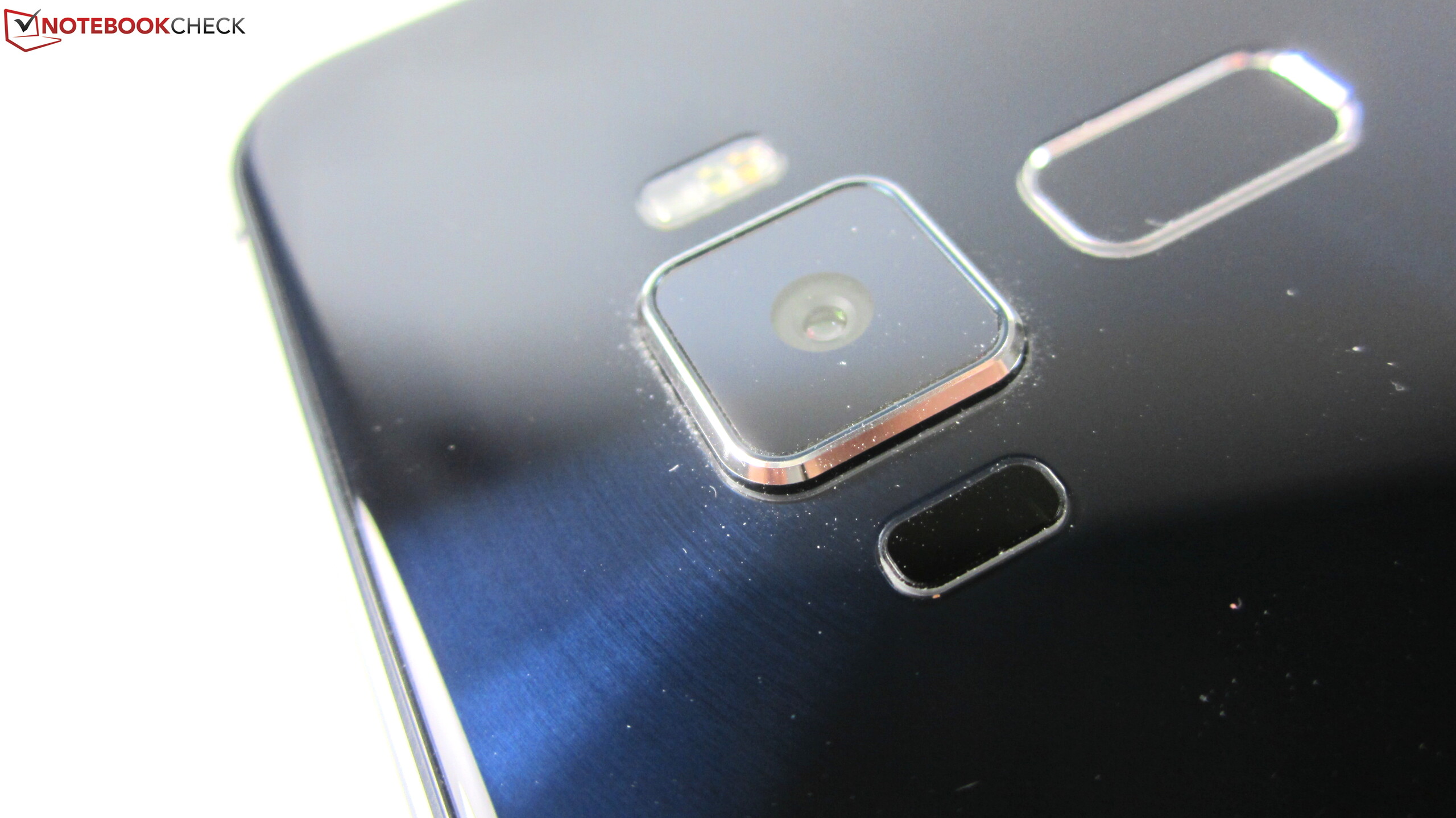

Camera
Primary Camera: 16 MPix f/2.0, dual-LED-flash, autofocus, HDR, optische beeldstabilisator, 4K-video-opname (3840 x 2160 Pixel)/1080p/720p aan 30 FPS
Secondary Camera: 8 MPix f/2.0, max. video-opname 1080p aan 30 fps
Bijkomende functionaliteiten
Luidsprekers: mono, Toetsenbord: virtueel, Toetsenbordverlichting: ja, USB Type-C-kabel, modulaire voeding, in-ear-hoofdtelefoon, quick-start-handleiding, Asus ZenUI 3.0, 24 Maanden Garantie, USB Type-C, fanless
Gewicht
155 g, Voeding: 35 g
Prijs
359 Euro
Links
Asus startpagina
Asus laptopsectie
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Networking
iperf3 Client (receive) TCP 1 m 4M x10
ZTE Axon 7
Adreno 530, 820 MSM8996, 64 GB eMMC Flash
337 MBit/s ∼100% +924%
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
320 MBit/s ∼95% +873%
Asus Zenfone 3 ZE552KL
Adreno 506, 625, 64 GB eMMC Flash
32.9 MBit/s ∼10%
iperf3 Client (transmit) TCP 1 m 4M x10
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
323 MBit/s ∼100% +935%
ZTE Axon 7
Adreno 530, 820 MSM8996, 64 GB eMMC Flash
298 MBit/s ∼92% +855%
Asus Zenfone 3 ZE552KL
Adreno 506, 625, 64 GB eMMC Flash
31.2 MBit/s ∼10%

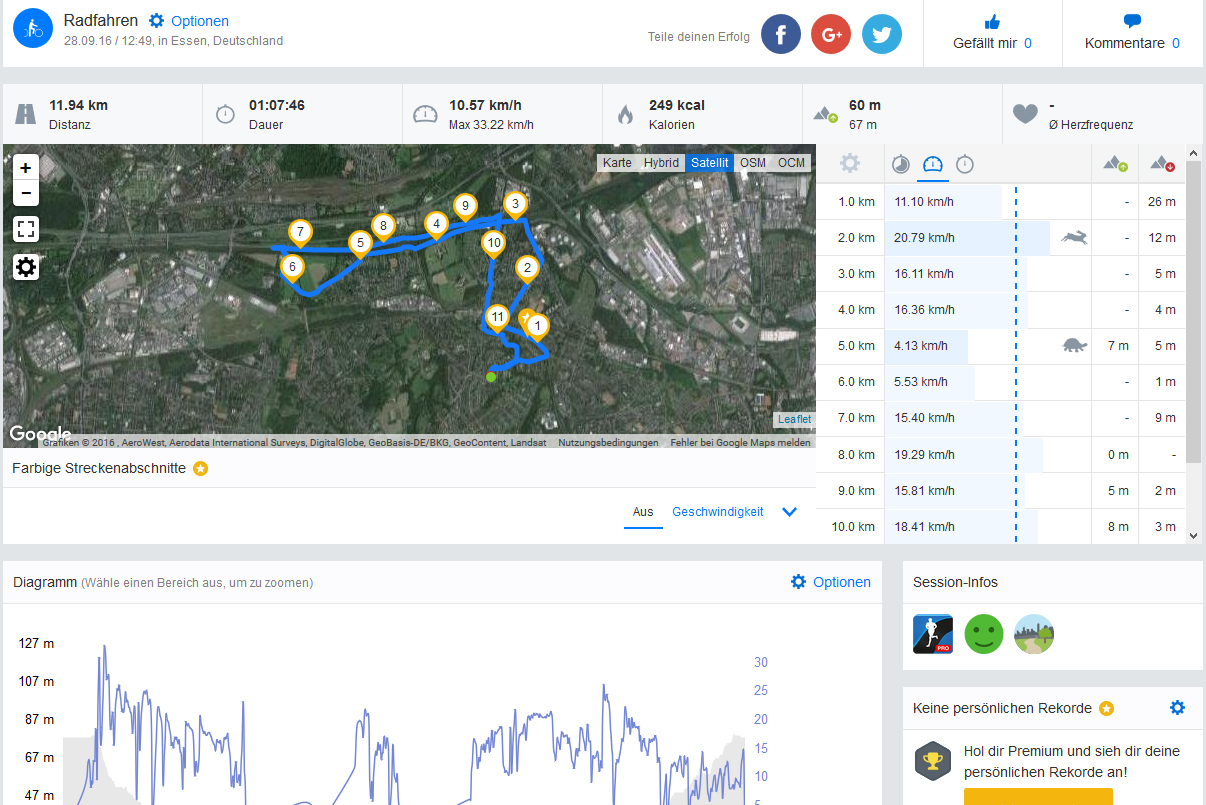

Asus Zenfone 3: Total route
Asus Zenfone 3: Total route

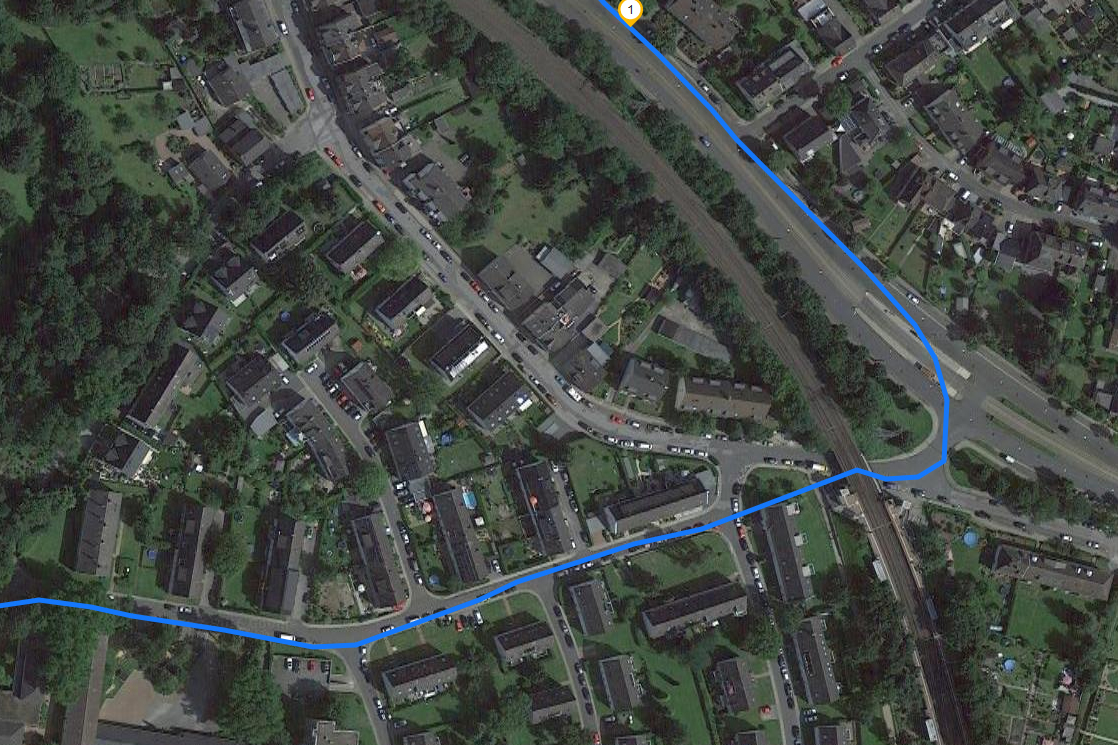

Asus Zenfone 3: Turning point
Asus Zenfone 3: Turning point

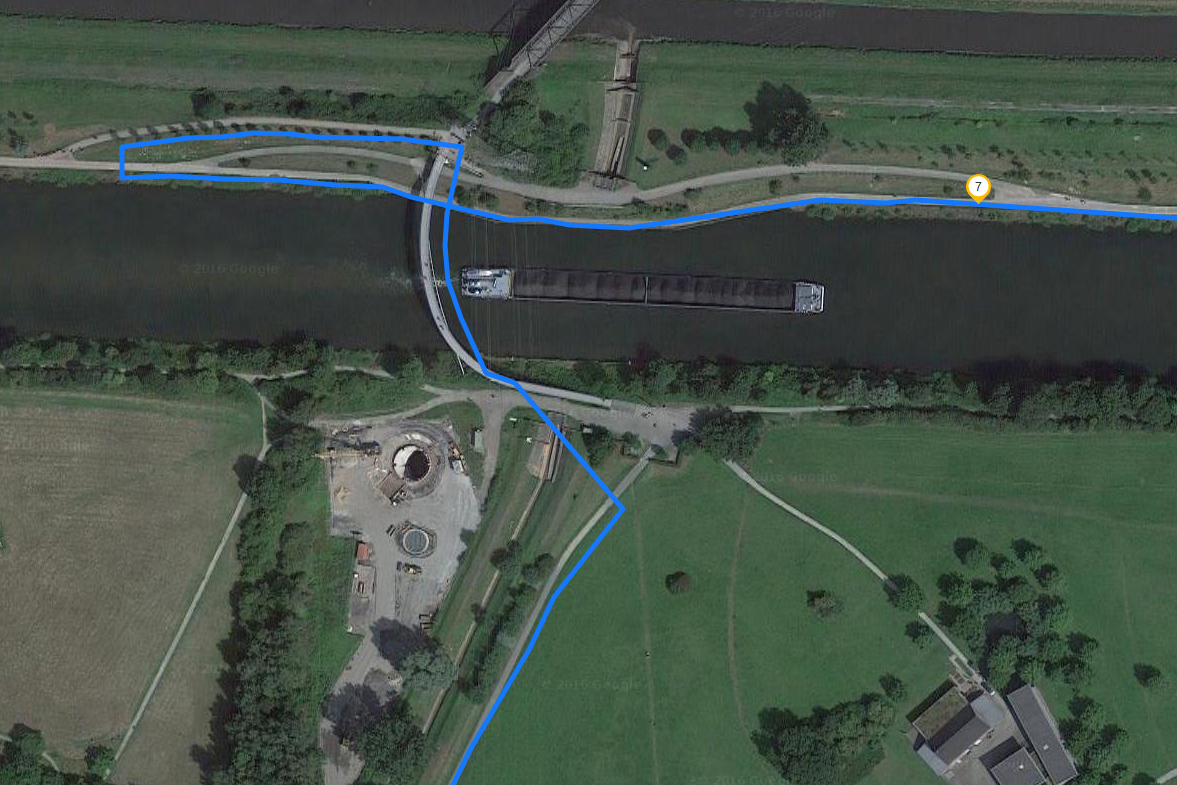

Asus Zenfone 3: Bridge
Asus Zenfone 3: Bridge

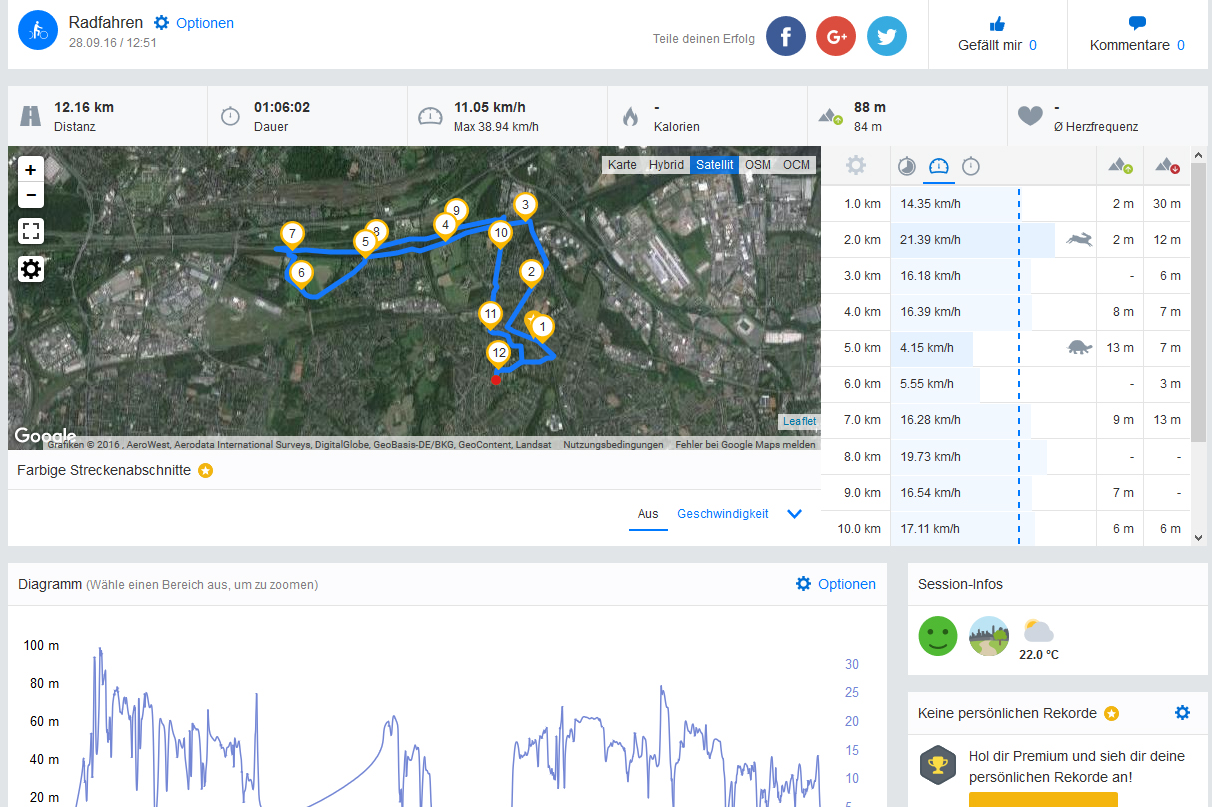

Garmin Edge 500: Total route
Garmin Edge 500: Total route

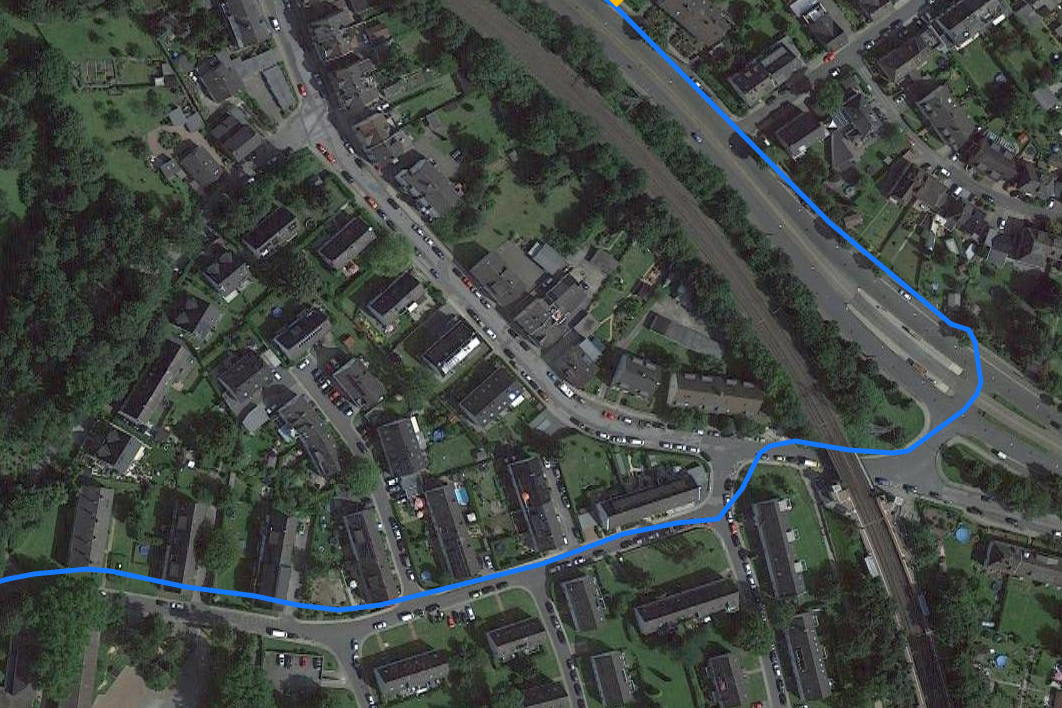

Garmin Edge 500: Turning point
Garmin Edge 500: Turning point

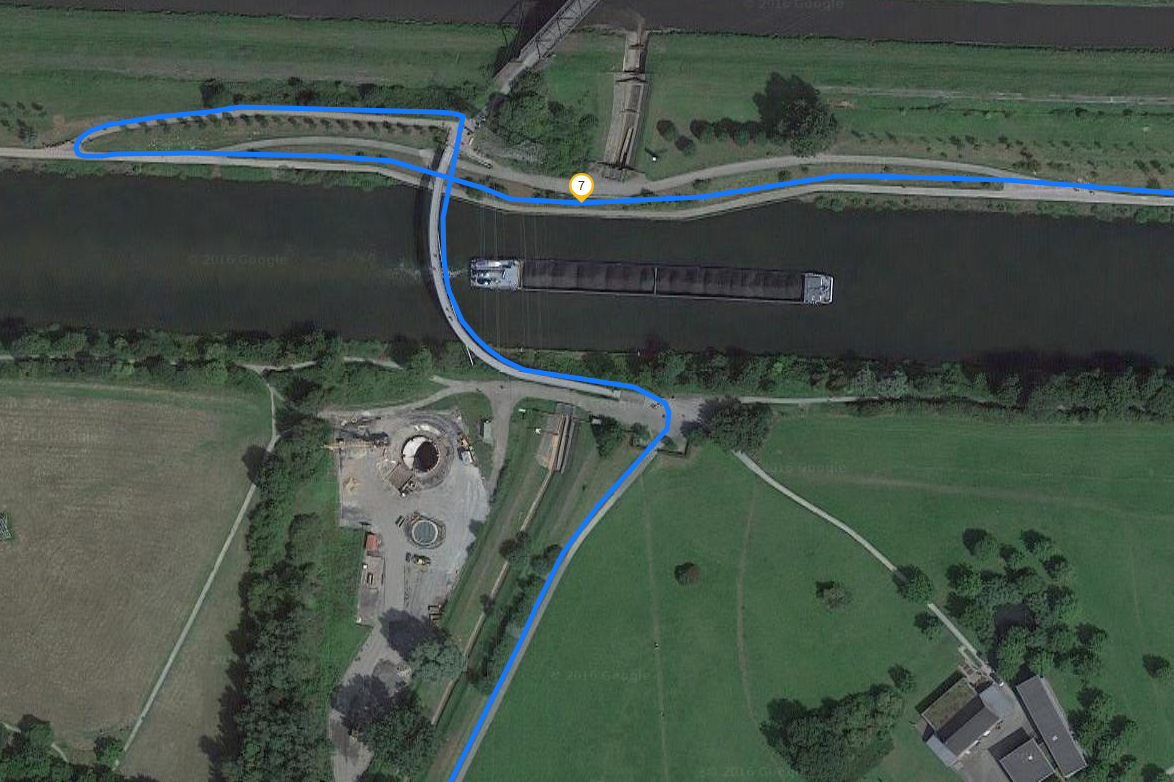

Garmin Edge 500: Bridge
Garmin Edge 500: Bridge

Beeldvergelijking

Bekijk een scène en navigeer binnen het eerste beeld. Eén klik wijzigt het zoomniveau. Eén klik op het ingezoomde beeld opent het origineel in een nieuw venster. Het eerste beeld toont de verschaalde foto van het testtoestel.

Scene 1Scene 2Scene 3
klik om beelden te laden
635
cd/m²		634
cd/m²		651
cd/m²
630
cd/m²		658
cd/m²		636
cd/m²
625
cd/m²		610
cd/m²		620
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 658 cd/m² Gemiddelde: 633.2 cd/m² Minimum: 5.22 cd/m²
Helderheidsverdeling: 93 %
Helderheid in Batterij-modus: 658 cd/m²
Contrast: 997:1 (Zwart: 0.66 cd/m²)
ΔE Color 4.9 | 0.59-29.43 Ø5.6
ΔE Greyscale 5.8 | 0.64-98 Ø5.9
Gamma: 2.26
Asus Zenfone 3 ZE552KL
IPS, 1920x1080, 5.50		OnePlus 3
Optic-AMOLED, 1920x1080, 5.50		Samsung Galaxy A5 2016
Super AMOLED, 1920x1080, 5.20		Honor 8
IPS, 1920x1080, 5.20		ZTE Axon 7
AMOLED, 2560x1440, 5.50
Screen
-9%
18%
-6%
-18%
Brightness middle
658
419
-36%
378
-43%
451
-31%
328
-50%
Brightness
633
431
-32%
380
-40%
443
-30%
334
-47%
Brightness Distribution
93
84
-10%
91
-2%
93
0%
88
-5%
Black Level *
0.66
0.4
39%
Contrast
997
1128
13%
Colorchecker DeltaE2000 *
4.9
4.1
16%
1.95
60%
5.4
-10%
4.6
6%
Colorchecker DeltaE2000 max. *
9.1
12
-32%
3.09
66%
9.9
-9%
14.7
-62%
Greyscale DeltaE2000 *
5.8
3.3
43%
1.86
68%
6.7
-16%
2.8
52%
Gamma
2.26 97%
2.1 105%
2.13 103%
2.33 94%
2.29 96%
CCT
7840 83%
6550 99%
6376 102%
8262 79%
6612 98%
Color Space (Percent of AdobeRGB 1998)
89.38
Color Space (Percent of sRGB)
100

* ... kleiner is beter

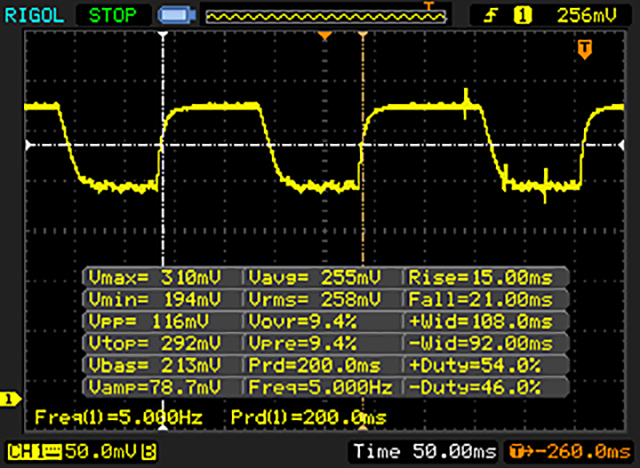

Responstijd Scherm

ℹ
De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

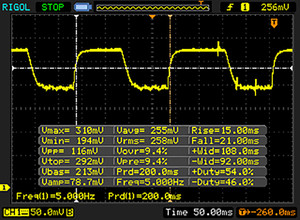

   ↔    Responstijd Zwart naar Wit
36 ms ... stijging ↗ en daling ↘ gecombineerd↗ 15 ms stijging
↘ 21 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 91 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (24.3 ms) van alle geteste toestellen.

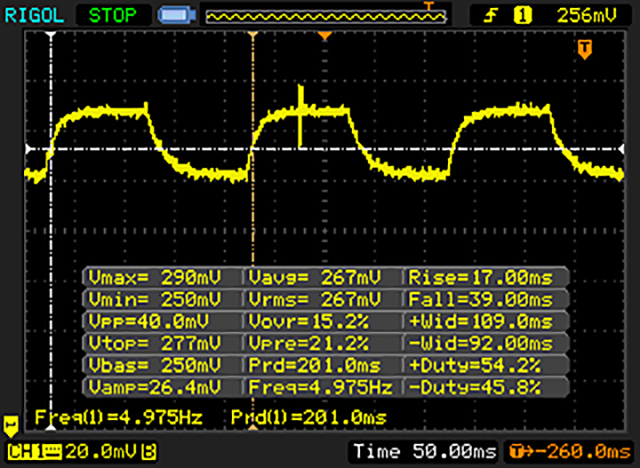

   ↔    Responstijd 50% Grijs naar 80% Grijs
56 ms ... stijging ↗ en daling ↘ gecombineerd↗ 17 ms stijging
↘ 39 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 636 (maximum) ms. » 90 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (38.5 ms) van alle geteste toestellen.

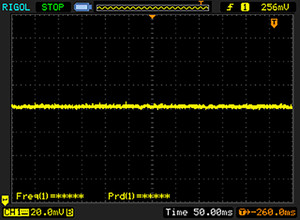

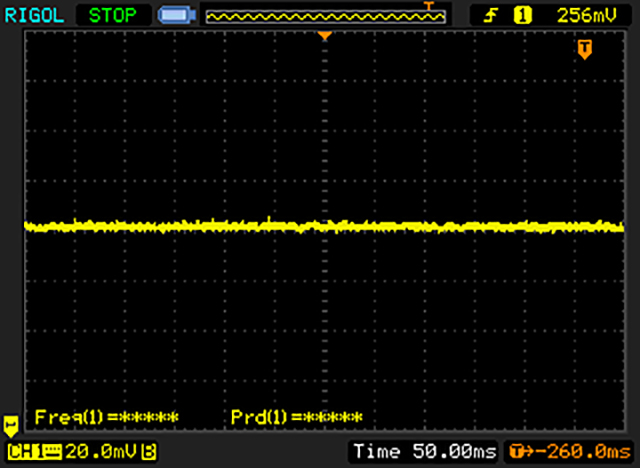

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9732 (minimum: 5 - maximum: 151500) Hz waargenomen.

AnTuTu v6 | Geekbench 4.0 | 3DMark | GFXBench (DX / GLBenchmark) 2.7 | GFXBench 3.0 | GFXBench 3.1 | PCMark for Android | BaseMark OS II
AnTuTu v6 - Total Score (sorteer op waarde)
Asus Zenfone 3 ZE552KL
62484 Points ∼21%
ZTE Axon 7
122524 Points ∼42% +96%
Honor 8
94671 Points ∼32% +52%
Samsung Galaxy A5 2016
41676 Points ∼14% -33%
OnePlus 3
142090 Points ∼48% +127%
Geekbench 4.0
64 Bit Multi-Core Score (sorteer op waarde)
Asus Zenfone 3 ZE552KL
4042 Points ∼10%
ZTE Axon 7
3867 Points ∼9% -4%
Honor 8
5481 Points ∼13% +36%
OnePlus 3
4097 Points ∼10% +1%
64 Bit Single-Core Score (sorteer op waarde)
Asus Zenfone 3 ZE552KL
820 Points ∼13%
ZTE Axon 7
1280 Points ∼20% +56%
Honor 8
1726 Points ∼27% +110%
OnePlus 3
1754 Points ∼27% +114%
3DMark
2560x1440 Sling Shot OpenGL ES 3.0 Physics (sorteer op waarde)
Asus Zenfone 3 ZE552KL
2112 Points ∼40%
ZTE Axon 7
1099 Points ∼21% -48%
Honor 8
2587 Points ∼49% +22%
Samsung Galaxy A5 2016
1479 Points ∼28% -30%
OnePlus 3
1789 Points ∼34% -15%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics (sorteer op waarde)
Asus Zenfone 3 ZE552KL
719 Points ∼4%
ZTE Axon 7
4619 Points ∼28% +542%
Honor 8
1112 Points ∼7% +55%
Samsung Galaxy A5 2016
275 Points ∼2% -62%
OnePlus 3
4633 Points ∼28% +544%
2560x1440 Sling Shot OpenGL ES 3.0 (sorteer op waarde)
Asus Zenfone 3 ZE552KL
842 Points ∼7%
ZTE Axon 7
2698 Points ∼24% +220%
Honor 8
1273 Points ∼11% +51%
Samsung Galaxy A5 2016
336 Points ∼3% -60%
OnePlus 3
3424 Points ∼30% +307%
1280x720 offscreen Ice Storm Unlimited Physics (sorteer op waarde)
Asus Zenfone 3 ZE552KL
15984 Points ∼17%
ZTE Axon 7
20408 Points ∼21% +28%
Honor 8
15531 Points ∼16% -3%
Samsung Galaxy A5 2016
9495 Points ∼10% -41%
OnePlus 3
21771 Points ∼23% +36%
1280x720 offscreen Ice Storm Unlimited Graphics Score (sorteer op waarde)
Asus Zenfone 3 ZE552KL
13466 Points ∼2%
ZTE Axon 7
24310 Points ∼4% +81%
Honor 8
22157 Points ∼3% +65%
Samsung Galaxy A5 2016
7542 Points ∼1% -44%
OnePlus 3
34023 Points ∼5% +153%
1280x720 offscreen Ice Storm Unlimited Score (sorteer op waarde)
Asus Zenfone 3 ZE552KL
13955 Points ∼5%
ZTE Axon 7
23319 Points ∼8% +67%
Honor 8
20235 Points ∼7% +45%
Samsung Galaxy A5 2016
7903 Points ∼3% -43%
OnePlus 3
30241 Points ∼11% +117%
GFXBench (DX / GLBenchmark) 2.7
1920x1080 T-Rex HD Offscreen C24Z16 (sorteer op waarde)
Asus Zenfone 3 ZE552KL
23 fps ∼0%
ZTE Axon 7
88 fps ∼1% +283%
Honor 8
41 fps ∼0% +78%
Samsung Galaxy A5 2016
14 fps ∼0% -39%
OnePlus 3
89 fps ∼1% +287%
T-Rex HD Onscreen C24Z16 (sorteer op waarde)
Asus Zenfone 3 ZE552KL
21 fps ∼1%
ZTE Axon 7
53 fps ∼2% +152%
Honor 8
43 fps ∼1% +105%
Samsung Galaxy A5 2016
14 fps ∼0% -33%
OnePlus 3
60 fps ∼2% +186%
GFXBench 3.0
off screen Manhattan Offscreen OGL (sorteer op waarde)
Asus Zenfone 3 ZE552KL
9.9 fps ∼1%
ZTE Axon 7
39 fps ∼4% +294%
Honor 8
19 fps ∼2% +92%
Samsung Galaxy A5 2016
3.8 fps ∼0% -62%
OnePlus 3
47 fps ∼5% +375%
on screen Manhattan Onscreen OGL (sorteer op waarde)
Asus Zenfone 3 ZE552KL
9.7 fps ∼3%
ZTE Axon 7
28 fps ∼8% +189%
Honor 8
19 fps ∼5% +96%
Samsung Galaxy A5 2016
3.8 fps ∼1% -61%
OnePlus 3
46 fps ∼13% +374%
GFXBench 3.1
off screen Manhattan ES 3.1 Offscreen (sorteer op waarde)
Asus Zenfone 3 ZE552KL
6.2 fps ∼0%
ZTE Axon 7
31 fps ∼1% +400%
Honor 8
10 fps ∼0% +61%
OnePlus 3
31 fps ∼1% +400%
on screen Manhattan ES 3.1 Onscreen (sorteer op waarde)
Asus Zenfone 3 ZE552KL
6.1 fps ∼0%
ZTE Axon 7
16 fps ∼0% +162%
Honor 8
11 fps ∼0% +80%
OnePlus 3
30 fps ∼1% +392%
PCMark for Android - Work performance score (sorteer op waarde)
Asus Zenfone 3 ZE552KL
6785 Points ∼34%
ZTE Axon 7
4970 Points ∼25% -27%
Honor 8
6735 Points ∼34% -1%
Samsung Galaxy A5 2016
4008 Points ∼20% -41%
OnePlus 3
7101 Points ∼36% +5%
BaseMark OS II
Web (sorteer op waarde)
Asus Zenfone 3 ZE552KL
702 Points ∼32%
ZTE Axon 7
963 Points ∼44% +37%
Honor 8
994 Points ∼46% +42%
Samsung Galaxy A5 2016
741 Points ∼34% +6%
OnePlus 3
1112 Points ∼51% +58%
Graphics (sorteer op waarde)
Asus Zenfone 3 ZE552KL
1019 Points ∼4%
ZTE Axon 7
4631 Points ∼16% +354%
Honor 8
1703 Points ∼6% +67%
Samsung Galaxy A5 2016
488 Points ∼2% -52%
OnePlus 3
4813 Points ∼17% +372%
Memory (sorteer op waarde)
Asus Zenfone 3 ZE552KL
1042 Points ∼12%
ZTE Axon 7
1489 Points ∼16% +43%
Honor 8
2556 Points ∼28% +145%
Samsung Galaxy A5 2016
554 Points ∼6% -47%
OnePlus 3
2052 Points ∼23% +97%
System (sorteer op waarde)
Asus Zenfone 3 ZE552KL
2923 Points ∼18%
ZTE Axon 7
3307 Points ∼20% +13%
Honor 8
3952 Points ∼24% +35%
Samsung Galaxy A5 2016
2153 Points ∼13% -26%
OnePlus 3
3537 Points ∼21% +21%
Overall (sorteer op waarde)
Asus Zenfone 3 ZE552KL
1215 Points ∼14%
ZTE Axon 7
2165 Points ∼26% +78%
Honor 8
2034 Points ∼24% +67%
Samsung Galaxy A5 2016
810 Points ∼10% -33%
OnePlus 3
2496 Points ∼30% +105%

Legende


Asus Zenfone 3 ZE552KL Qualcomm Snapdragon 625, Qualcomm Adreno 506, 64 GB eMMC Flash

ZTE Axon 7 Qualcomm Snapdragon 820 MSM8996, Qualcomm Adreno 530, 64 GB eMMC Flash

Honor 8 HiSilicon Kirin 950, ARM Mali-T880 MP4, 32 GB eMMC Flash

Samsung Galaxy A5 2016 Samsung Exynos 7580 Octa, ARM Mali-T720 MP2, 16 GB eMMC Flash

OnePlus 3 Qualcomm Snapdragon 820 MSM8996, Qualcomm Adreno 530, 64 GB UFS 2.0 Flash
Octane V2 | Mozilla Kraken 1.1 | WebXPRT 2015 | JetStream 1.1
Octane V2 - Total Score (sorteer op waarde)
Asus Zenfone 3 ZE552KL
4905 Points ∼7%
OnePlus 3
9155 Points ∼14% +87%
Samsung Galaxy A5 2016
3611 Points ∼5% -26%
Honor 8
10692 Points ∼16% +118%
ZTE Axon 7
8062 Points ∼12% +64%
Mozilla Kraken 1.1 - Total Score (sorteer op waarde)
Asus Zenfone 3 ZE552KL
8041.4 ms * ∼14%
OnePlus 3
2920.7 ms * ∼5% +64%
Samsung Galaxy A5 2016
11887 ms * ∼20% -48%
Honor 8
2979 ms * ∼5% +63%
ZTE Axon 7
3096.5 ms * ∼5% +61%
WebXPRT 2015 - Overall Score (sorteer op waarde)
Asus Zenfone 3 ZE552KL
84 Points ∼10%
OnePlus 3
122 Points ∼15% +45%
Samsung Galaxy A5 2016
64 Points ∼8% -24%
Honor 8
138 Points ∼17% +64%
ZTE Axon 7
111 Points ∼14% +32%
JetStream 1.1 - Total Score (sorteer op waarde)
Asus Zenfone 3 ZE552KL
31.118 Points ∼8%
OnePlus 3
54.4 Points ∼13% +75%
Samsung Galaxy A5 2016
22 Points ∼5% -29%
Honor 8
64.046 Points ∼16% +106%
ZTE Axon 7
44.754 Points ∼11% +44%

* ... kleiner is beter

AndroBench 3-5
Sequential Write 256KB SDCard (sorteer op waarde)
Asus Zenfone 3 ZE552KL
50.07 MB/s ∼57%
Honor 8
23.59 MB/s ∼27% -53%
ZTE Axon 7
51.34 MB/s ∼59% +3%
Sequential Read 256KB SDCard (sorteer op waarde)
Asus Zenfone 3 ZE552KL
79.22 MB/s ∼52%
Honor 8
53.68 MB/s ∼35% -32%
ZTE Axon 7
78.39 MB/s ∼51% -1%
Random Write 4KB (sorteer op waarde)
Asus Zenfone 3 ZE552KL
7.4 MB/s ∼2%
OnePlus 3
18.23 MB/s ∼6% +146%
Samsung Galaxy A5 2016
11.2 MB/s ∼4% +51%
Honor 8
31.5 MB/s ∼10% +326%
ZTE Axon 7
16.22 MB/s ∼5% +119%
Random Read 4KB (sorteer op waarde)
Asus Zenfone 3 ZE552KL
74 MB/s ∼20%
OnePlus 3
137.62 MB/s ∼37% +86%
Samsung Galaxy A5 2016
22.9 MB/s ∼6% -69%
Honor 8
34.16 MB/s ∼9% -54%
ZTE Axon 7
121.07 MB/s ∼33% +64%
Sequential Write 256KB (sorteer op waarde)
Asus Zenfone 3 ZE552KL
188 MB/s ∼14%
OnePlus 3
153.3 MB/s ∼12% -18%
Samsung Galaxy A5 2016
60.4 MB/s ∼5% -68%
Honor 8
119.25 MB/s ∼9% -37%
ZTE Axon 7
150.92 MB/s ∼11% -20%
Sequential Read 256KB (sorteer op waarde)
Asus Zenfone 3 ZE552KL
282 MB/s ∼14%
OnePlus 3
408.71 MB/s ∼20% +45%
Samsung Galaxy A5 2016
209.4 MB/s ∼10% -26%
Honor 8
247.46 MB/s ∼12% -12%
ZTE Axon 7
406.49 MB/s ∼20% +44%
Asphalt 8: Airborne
 InstellingenWaarde
 high29 fps
 very low29 fps
Max. Belasting
 37.8 °C38.2 °C38.6 °C
 37.3 °C36.8 °C37.9 °C
 36 °C36.3 °C36.4 °C
Maximum: 38.6 °C
Gemiddelde: 37.3 °C
34.6 °C36.2 °C39.1 °C
35.1 °C35.9 °C38 °C
34.5 °C34.9 °C36 °C
Maximum: 39.1 °C
Gemiddelde: 36 °C
Stroomadapter (max.)  33 °C | Kamertemperatuur 21.5 °C | Voltcraft IR-260
(±) The average temperature for the upper side under maximal load is 37.3 °C / 99 F, compared to the average of 32.9 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 38.6 °C / 101 F, compared to the average of 35.2 °C / 95 F, ranging from 22.4 to 51.7 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 39.1 °C / 102 F, compared to the average of 33.8 °C / 93 F
(±) In idle usage, the average temperature for the upper side is 33 °C / 91 F, compared to the device average of 32.9 °C / 91 F.
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.640.52525.432.93125.334.14032.932.95033.635.96331.633.68028.430.7100272612520.826.81602229.520021.336.925020.846.931521.251.840019.456.950019.561.663017.76480017.969.3100017.869.5125017.372.9160017.471.1200016.770.6250017.268.9315018.273.8400017.976500017.669.4630017.771.6800017.873.51000017.971.11250018.170.41600018.268.2SPL3083.7N1.356.5median 17.9median 69.3Delta1.310.131.636.725.432.825.32932.935.233.649.731.632.328.429.32725.720.8282239.121.346.820.855.621.259.419.463.219.569.417.772.517.973.717.875.117.375.917.476.116.777.917.277.518.277.717.976.517.673.717.768.217.861.217.953.518.156.118.2513087.11.366.1median 17.9median 68.21.311.731.632.825.430.425.332.132.933.333.63631.630.128.427.82725.420.825.62229.121.339.620.848.321.254.219.456.819.559.117.758.117.961.117.864.417.365.817.467.416.770.317.27118.277.117.979.117.673.517.772.117.87117.966.418.157.518.253.13084.71.353.4median 17.9median 61.11.310.736.634.435.736.63032.332.43031.235.627.531.230.530.927.530.537.739.235.437.733.240.129.733.228.53029.228.526.32725.326.324.42724.124.430.926.42330.939.222.923.139.247.927.618.547.955.633.520.555.655.837.918.755.862.444.618.162.469.250.618.269.271.255.719.171.272.356.31772.371.156.617.371.172.753.317.472.775.95217.575.979.155.617.379.174.452.417.274.4714817.27171.348.217.271.382.458.717.682.478.555.317.778.573.849.817.873.866.543.11866.572.248.817.972.287.76629.987.768.919.11.368.9median 71.1median 48.8median 17.9median 71.19.710.31.59.740.136.832.440.1382731.33834.330.631.734.334.529.72634.544.138.139.444.140.529.736.240.53331.428.63326.827.625.426.826.924.421.326.93724.823.33745.529.522.545.551.636.222.451.657.341.721.357.359.746.618.459.766.452.517.566.468.45217.568.469.952.517.269.971.853.816.871.872.554.817.372.575.256.917.475.278.459.716.678.477.659.717.377.678.260.817.678.281.363.817.681.378.561.817.778.575.958.817.475.976.259.417.776.274.357.517.974.370.354.818.170.354.437.618.154.488.671.129.888.67325.81.373median 70.3median 53.8median 17.7median 70.311.910.41.611.9hearing rangehide median Pink NoiseAsus Zenfone 3 ZE552KLZTE Axon 7Honor 8Samsung Galaxy A5 2016OnePlus 3
Asus Zenfone 3 ZE552KL audio analysis

(+) | speakers can play relatively loud (83.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 33% lower than median
(±) | linearity of bass is average (9.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4% away from median
(+) | mids are linear (5.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.8% away from median
(+) | highs are linear (6.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.3% difference to median)
Compared to same class
» 27% of all tested devices in this class were better, 12% similar, 61% worse
» The best had a delta of 12%, average was 24%, worst was 65%
Compared to all devices tested
» 54% of all tested devices were better, 8% similar, 38% worse
» The best had a delta of 3%, average was 21%, worst was 65%

ZTE Axon 7 audio analysis

(+) | speakers can play relatively loud (87.05 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.8% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6% higher than median
(+) | mids are linear (4.6% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.7% higher than median
(±) | linearity of highs is average (7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.7% difference to median)
Compared to same class
» 58% of all tested devices in this class were better, 10% similar, 32% worse
» The best had a delta of 12%, average was 24%, worst was 65%
Compared to all devices tested
» 74% of all tested devices were better, 6% similar, 20% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Honor 8 audio analysis

(+) | speakers can play relatively loud (84.66 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24% lower than median
(±) | linearity of bass is average (12.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(+) | mids are linear (5.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 11.8% higher than median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (27.3% difference to median)
Compared to same class
» 74% of all tested devices in this class were better, 8% similar, 18% worse
» The best had a delta of 12%, average was 24%, worst was 65%
Compared to all devices tested
» 83% of all tested devices were better, 5% similar, 12% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Samsung Galaxy A5 2016 audio analysis

(+) | speakers can play relatively loud (87.68 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 33.7% lower than median
(±) | linearity of bass is average (11.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(+) | mids are linear (5.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.7% away from median
(±) | linearity of highs is average (8.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.5% difference to median)
Compared to same class
» 38% of all tested devices in this class were better, 13% similar, 49% worse
» The best had a delta of 12%, average was 24%, worst was 65%
Compared to all devices tested
» 61% of all tested devices were better, 8% similar, 31% worse
» The best had a delta of 3%, average was 21%, worst was 65%

OnePlus 3 audio analysis

(+) | speakers can play relatively loud (88.61 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.5% lower than median
(±) | linearity of bass is average (11.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(+) | mids are linear (5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.1% higher than median
(+) | highs are linear (3.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.8% difference to median)
Compared to same class
» 41% of all tested devices in this class were better, 12% similar, 47% worse
» The best had a delta of 12%, average was 24%, worst was 65%
Compared to all devices tested
» 63% of all tested devices were better, 8% similar, 29% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Stroomgebruik
Uit / Standbydarklight 0.06 / 0.24 Watt
Inactiefdarkmidlight 0.83 / 2.11 / 2.12 Watt
Belasting midlight 3.41 / 5.46 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Asus Zenfone 3 ZE552KL
3000 mAh		OnePlus 3
3000 mAh		Samsung Galaxy A5 2016
2900 mAh		Honor 8
3000 mAh		ZTE Axon 7
3250 mAh
Power Consumption
-12%
9%
-7%
-5%
Idle Minimum *
0.83
0.57
31%
0.96
-16%
0.78
6%
0.64
23%
Idle Average *
2.11
1.24
41%
1.64
22%
1.89
10%
0.84
60%
Idle Maximum *
2.12
1.36
36%
1.71
19%
2.02
5%
0.87
59%
Load Average *
3.41
5.92
-74%
2.98
13%
5.28
-55%
6.02
-77%
Load Maximum *
5.46
10.53
-93%
5.08
7%
5.44
-0%
10.45
-91%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
25h 02min
NBC WiFi Websurfing Battery Test 1.3
13h 17min
Big Buck Bunny H.264 1080p
15h 05min
Belast (maximale helderheid)
5h 52min
Asus Zenfone 3 ZE552KL
3000 mAh		OnePlus 3
3000 mAh		Samsung Galaxy A5 2016
2900 mAh		Honor 8
3000 mAh		ZTE Axon 7
3250 mAh
Batterijduur
-9%
11%
-27%
-21%
Reader / Idle
1502
1338
-11%
2323
55%
1487
-1%
1735
16%
H.264
905
847
-6%
672
-26%
526
-42%
704
-22%
WiFi v1.3
797
840
5%
626
-21%
499
-37%
411
-48%
Load
352
268
-24%
483
37%
255
-28%
245
-30%

Pro

+ hoogwaardige bouwkwaliteit
+ vingerafdruksensor
+ erg helder Full-HD-paneel
+ Android 6.0
+ USB Type-C-poort
+ LTE en dual-SIM
+ lange batterijduur
+ degelijke camera
+ Quick Charge 3.0

Contra

- zwakke WiFi-performance
- LTE niet aan volle snelheid
- veel bloatware
- geen App2SD
- geen NFC

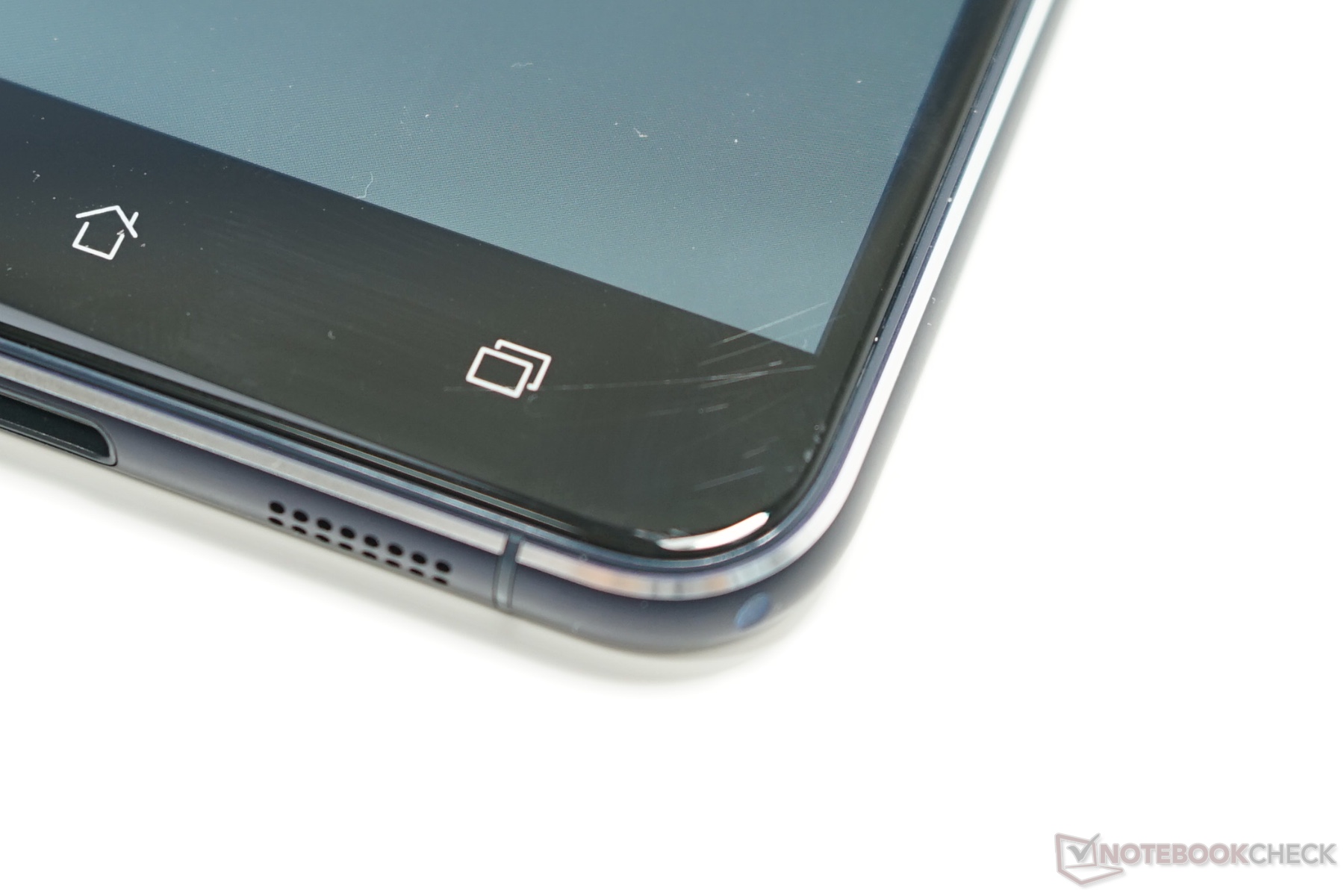

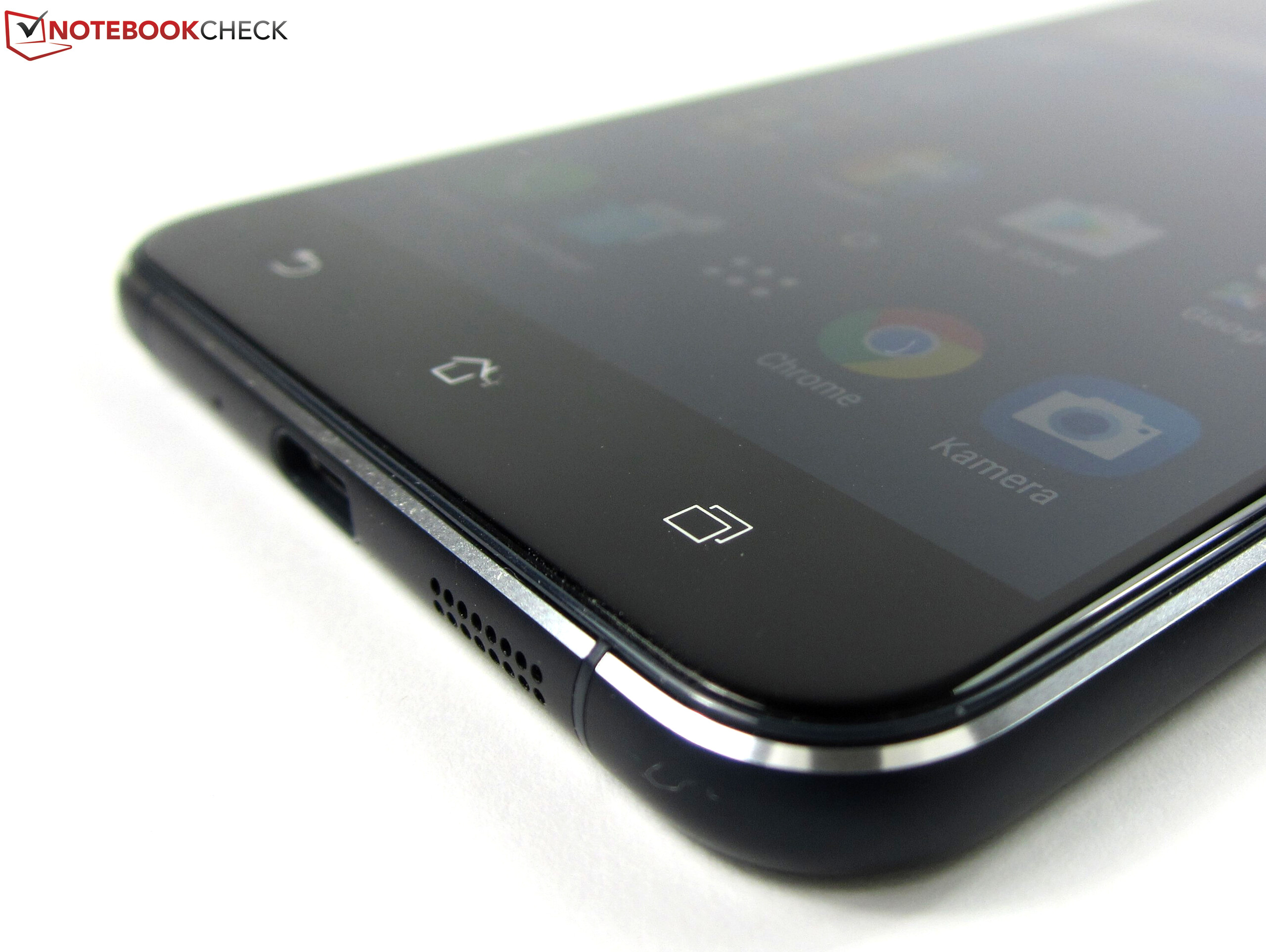

- Android-knoppen zonder backlight
In review: Asus Zenfone 3. Review sample courtesy of Asus Germany
In review: Asus Zenfone 3. Review sample courtesy of Asus Germany

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

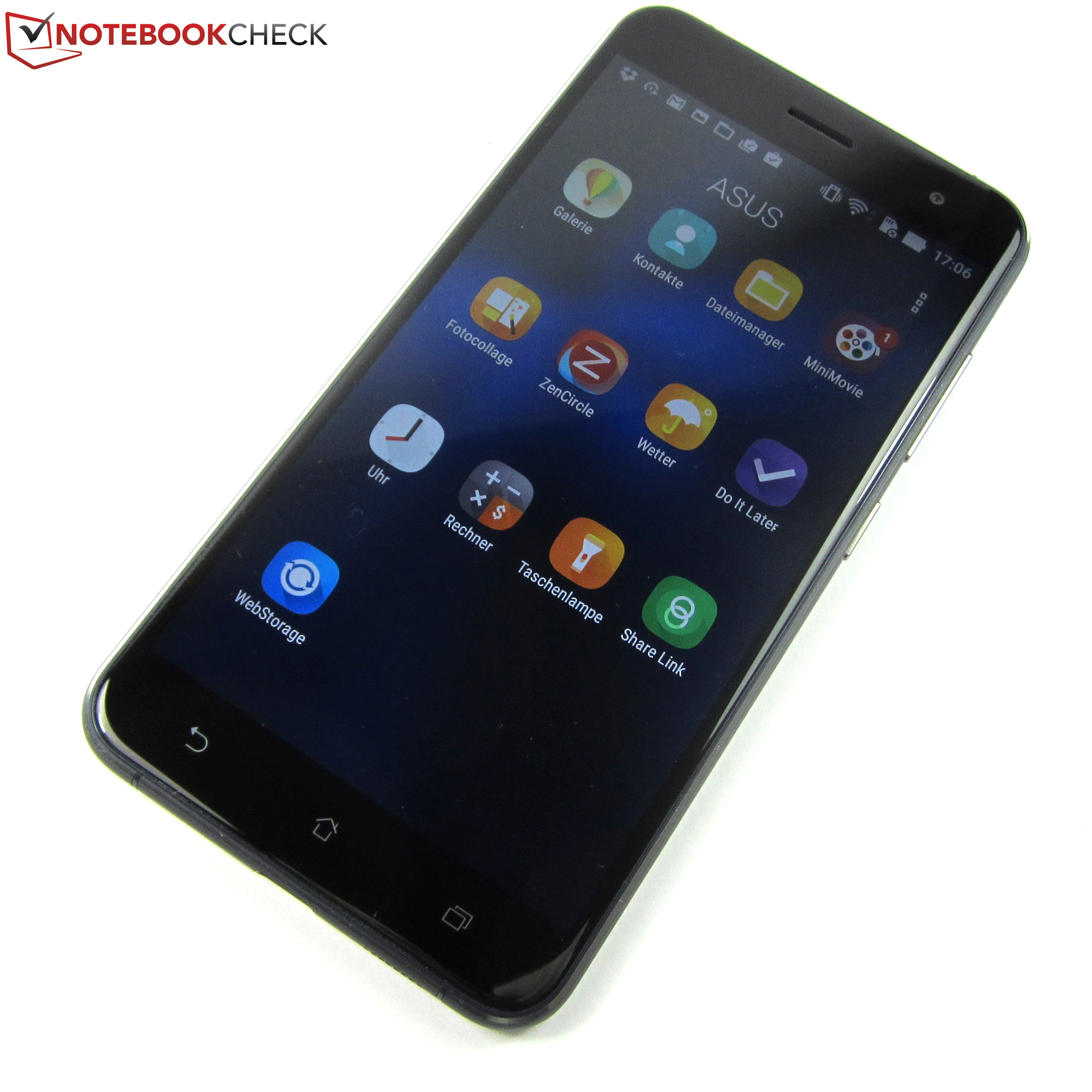

Asus legt een erg stijlvolle 5.5-inch-smartphone op tafel die ook met zijn interne onderdelen weet te overtuigen. Met Qualcomm's Snapdragon 625 octa-core-processor en 4 GB RAM heeft de ZenFone meer dan genoeg rekenkracht voor alle moderne applicaties en games. Daarnaast beschikt het toestel over een erg helder Full-HD-scherm met stabiele kijkhoeken en een 16-megapixel-camera die prima foto's maakt. Andere features zijn LTE, een dual-SIM-slot, Type-C-USB-poort met Quick Charge-technologie en een vingerafdruklezer. Asus vervolledigt het succesvolle totaalpakket met het nieuwste Android 6.0.1 Marshmallow onder een laagje van de nieuwe versie van zijn ZenUI-interface. De lange batterijduur en beperkte temperatuurontwikkeling bij gebruik zijn eveneens vermeldenswaardig.

Asus heeft met zijn ZenFone 3 een designer-stuk ontwikkeld. De mid-range smartphone ziet er veel duurder uit dan hij in werkelijkheid is.

Er valt weinig te bekritiseren. De Android-knoppen onder het scherm hebben geen backlight en de overdracht van data via WiFi voelt redelijk traag aan. Asus is ook iets te royaal met de software-configuratie en installeert onnodig veel apps op de smartphone. In onze test slaagden we er niet in om apps te verplaatsen naar onze micro-SD-kaarten aangezien deze niet geformatteerd konden worden als intern geheugen.

Asus Zenfone 3 ZE552KL - 21-10-2016 v5.1(old)
Manuel Masiero

Behuizing
91%
Toetsenbord
72 / 75 → 96%
Aanwijsapparaat
89%
Aansluitmogelijkheden
46 / 60 → 76%
Gewicht
92%
Batterij
96%
Beeldscherm
85%
Gaming-performance
32 / 63 → 51%
Applicatie-performance
52 / 70 → 74%
Temperatuur
89%
Luidheid
100%
Audio
73 / 91 → 80%
Camera
72%
Gemiddelde
76%
86%
Smartphone - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Asus ZenFone 3 ZE552KL Smartphone
Manuel Masiero, 2016-10-31 (Update: 2016-10-31)
