Kort testrapport Asus TUF A15 met AMD Renoir en Nvidia Grafische Kaart

Uitstekende waarde! Met zijn nieuwste TUF gaming-laptops vertrouwt Asus op AMD's gloednieuwe Renoir SoC. Als we de prestatieresultaten nader bekijken, blijkt dat dit in combinatie met de Nvidia GPU een krachtige gaming notebook is. In dit artikel zullen we bepalen of onze evaluatie van de Asus TUF A15 FA506 dit bevestigt.
Sebastian Bade, 👁 Sebastian Jentsch, Felicitas Krohn,

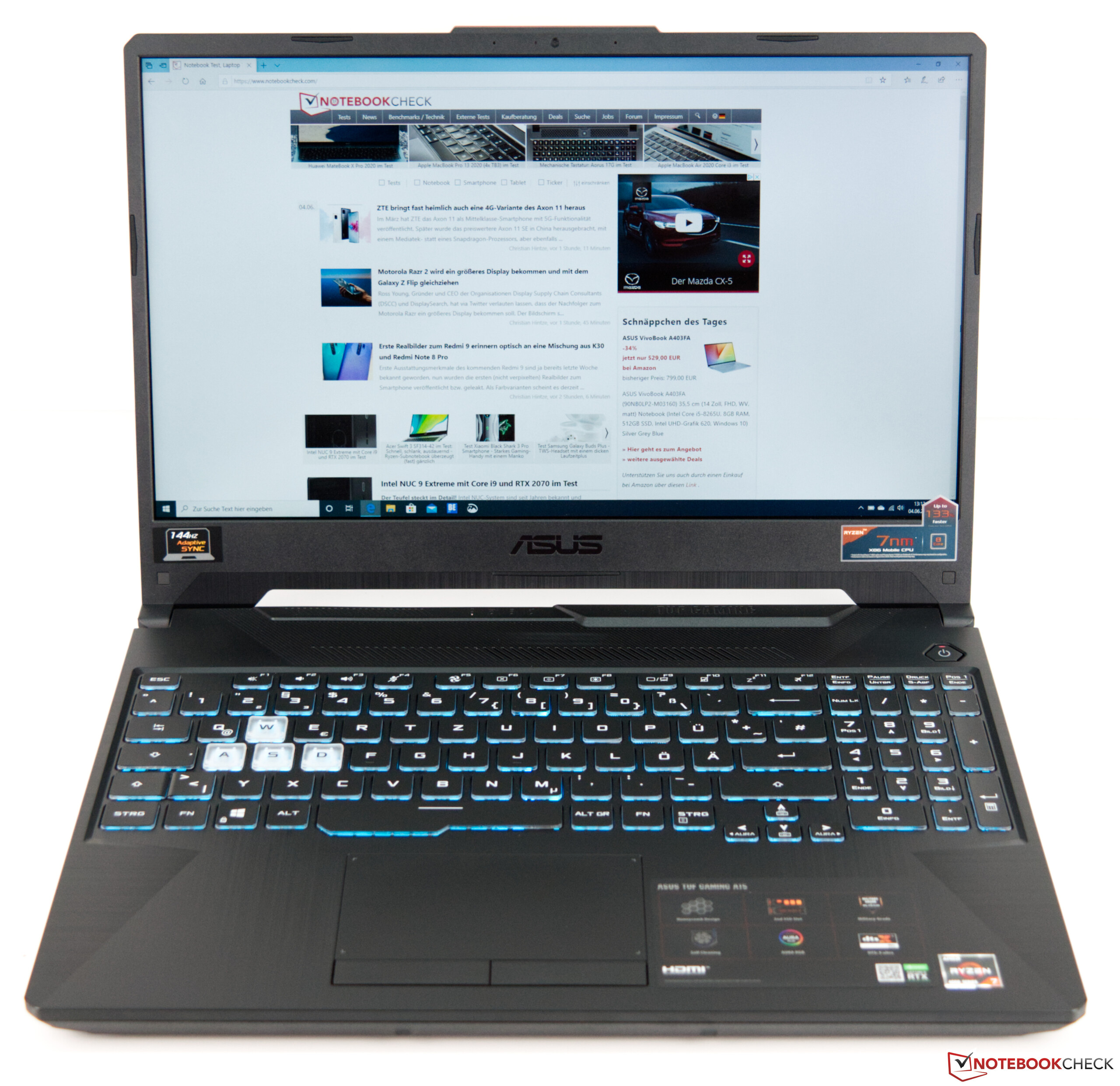

Asus TUF A15 FA506IV-HN172
Processor
AMD Ryzen 7 4800H 8 x 2.9 - 4.2 GHz, Renoir (Zen 2)
Grafische kaart
NVIDIA GeForce RTX 2060 Mobile - 6144 MB, Core: 1005 - 1350 MHz, Geheugen: 5500 MHz, GDDR6, Nvidia 442.53
Geheugen
8192 MB
, DDR4
Beeldscherm
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, LM156LF-2F01, IPS, glimmend: nee, 144 Hz
Moederbord
AMD Promontory/Bixby FCH
Opslag
Kingston OM8PCP3512F-AB, 512 GB
, M.2 2280 SSD, 450 GB beschikbaar
Geluidskaart
Realtek Audio
Verbindingen
1 USB 2.0, 2 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Verbindingen: 3.5-mm audiopoort
Netwerkmogelijkheden
Realtek PCIe GBE Family Controller (10/100/1000/2500/5000MBit/s), Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5
Afmetingen
hoogte x breedte x diepte (in mm): 24.9 x 359 x 256
Batterij
48 Wh, 4110 mAh Lithium-Ion
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Bijkomende functionaliteiten

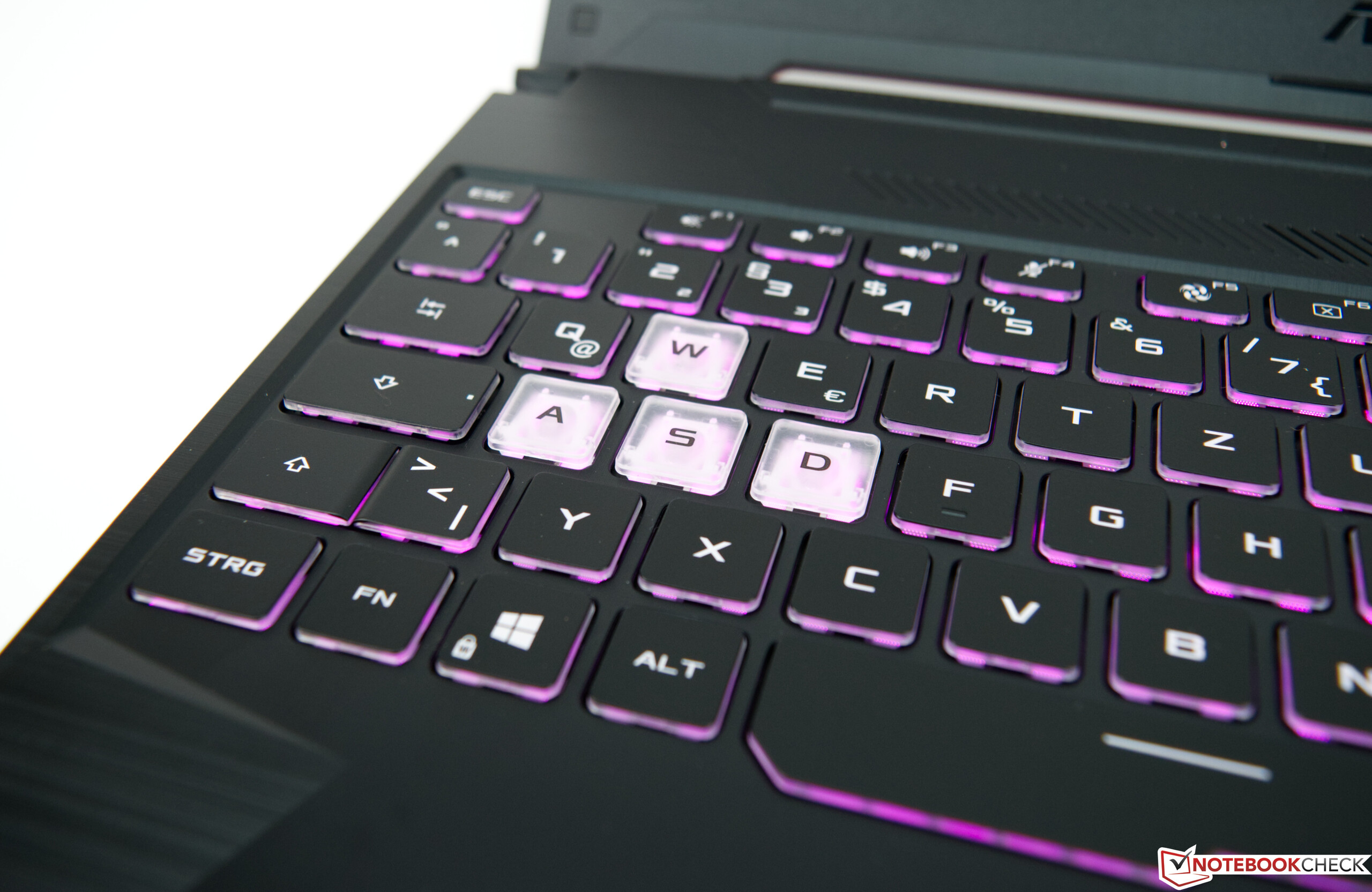

Luidsprekers: Stereo, Toetsenbord: 6-rijen chiclet, 230-Watt stroomadapter, 24 Maanden Garantie
Gewicht
2.175 kg, Voeding: 754 g
Prijs
1299 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Evaluatie
Datum
Model
Gewicht
Hoogte
Formaat
Resolutie
Best Price
83 %
07-2020
Asus TUF A15 FA506IV-HN172
R7 4800H, GeForce RTX 2060 Mobile
2.2 kg24.9 mm15.6"1920x1080
82 %
08-2019
Lenovo Legion Y540-15IRH-81SX00B2GE
i7-9750H, GeForce GTX 1660 Ti Mobile
2.2 kg26 mm15.6"1920x1080
79 %
02-2020
MSI Alpha 15 A3DDK-034
R7 3750H, Radeon RX 5500M
2.3 kg27.5 mm15.6"1920x1080
81 %
10-2019
MSI GL65 9SEK
i7-9750H, GeForce RTX 2060 Mobile
2.3 kg27.5 mm15.6"1920x1080
82 %
07-2019
HP Omen 15-dc1020ng
i5-9300H, GeForce GTX 1650 Mobile
2.3 kg25 mm15.6"1920x1080
83 %
05-2019
Asus ROG GA502DU
R7 3750H, GeForce GTX 1660 Ti Max-Q
2.1 kg20.4 mm15.6"1920x1080
Asus TUF FA506IV-HN172
Asus TUF FA506IV-HN172
Asus TUF FA506IV-HN172
Asus TUF FA506IV-HN172
Asus TUF FA506IV-HN172
Asus TUF FA506IV-HN172
Asus TUF FA506IV-HN172
Asus TUF FA506IV-HN172
Asus TUF FA506IV-HN172
Asus TUF FA506IV-HN172
Asus TUF FA506IV-HN172
Asus TUF FA506IV-HN172

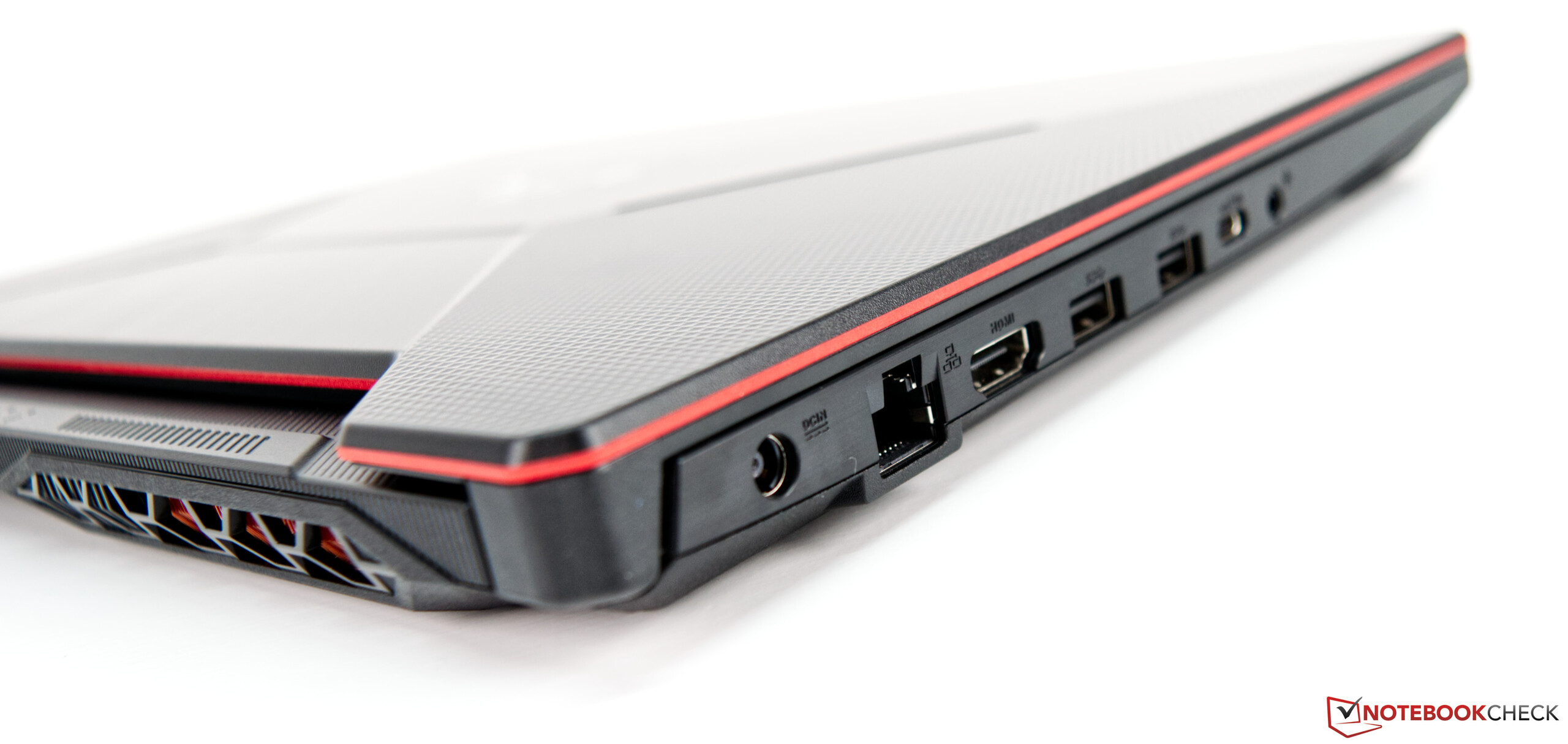

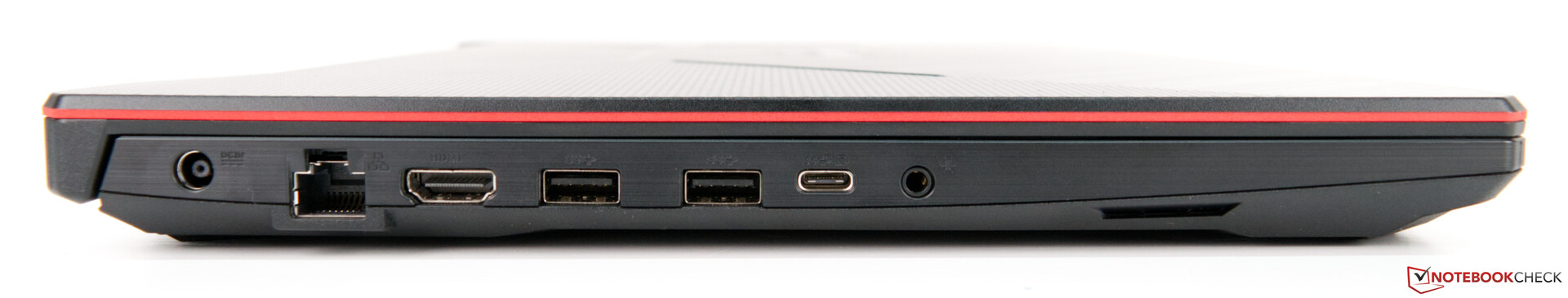

Linkerkant: stroomadapter, HDMI 2.0b, RJ45, 2x Type-A USB 3.2 (Gen 1), Type-C USB 3.2 (Gen 2) met beeldschermondersteuning DP1.4, audiopoort
Linkerkant: stroomadapter, HDMI 2.0b, RJ45, 2x Type-A USB 3.2 (Gen 1), Type-C USB 3.2 (Gen 2) met beeldschermondersteuning DP1.4, audiopoort

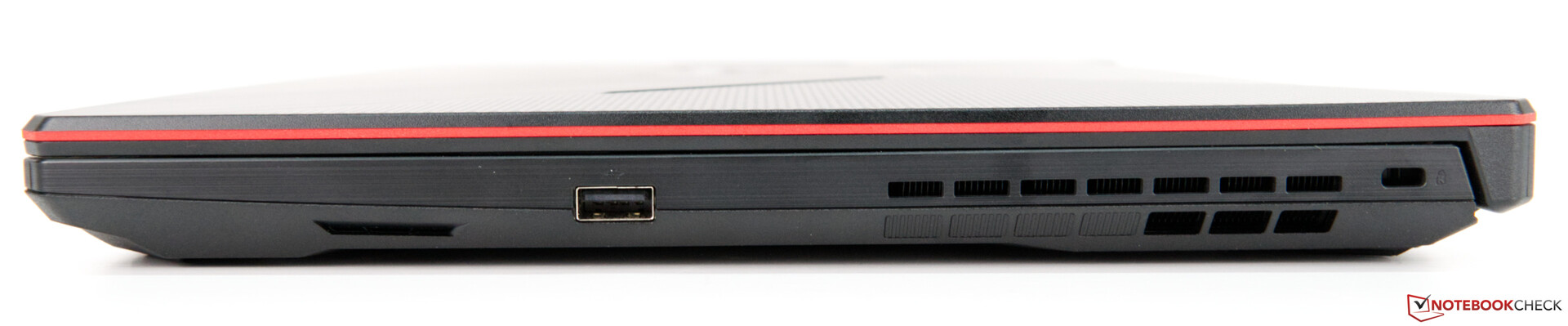

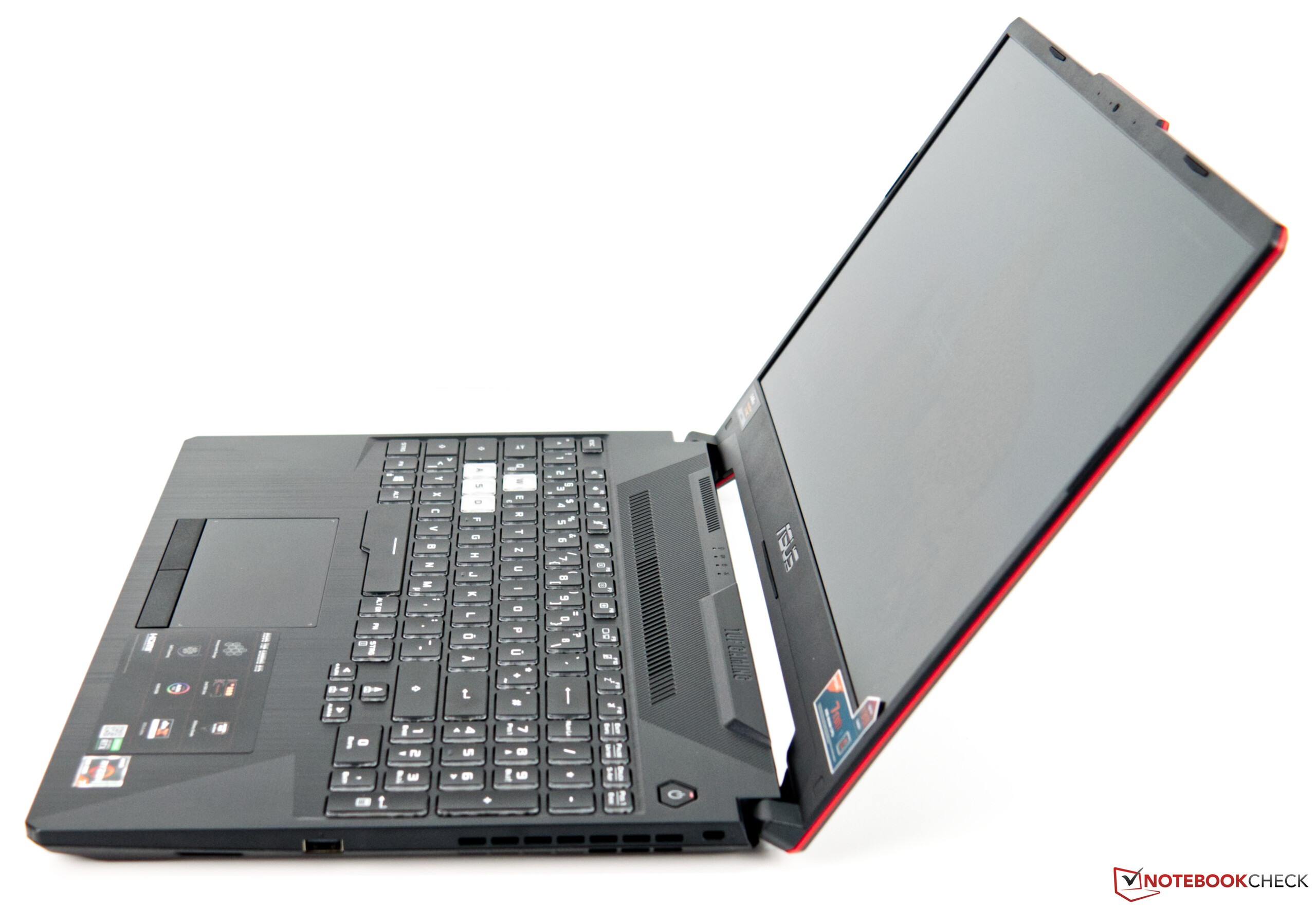

Rechterkant: 1x Type-A USB 2.0, ventilatoropeningen
Rechterkant: 1x Type-A USB 2.0, ventilatoropeningen

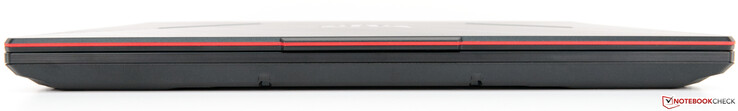

Voorkant: geen aansluitingen
Voorkant: geen aansluitingen

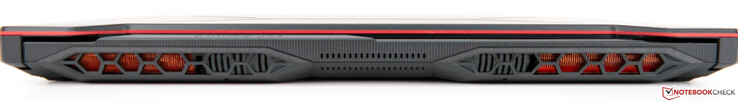

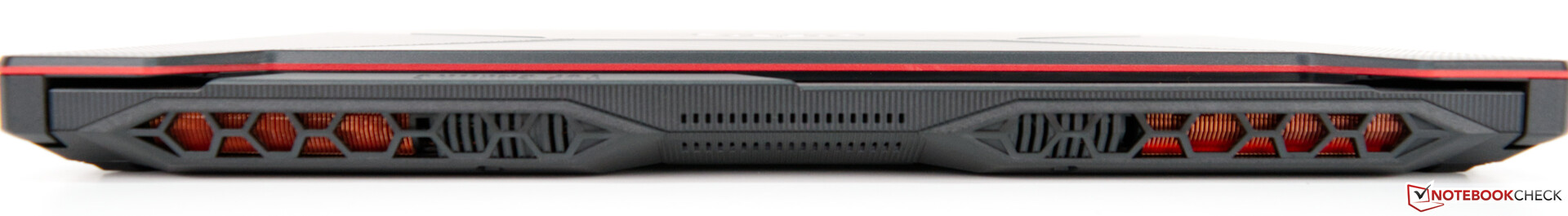

Achterkant: ventilatoropeningen
Achterkant: ventilatoropeningen
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Average of class Gaming
  (141 - 1670, n=331)
697 MBit/s ∼100% +11%
MSI Alpha 15 A3DDK-034
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
665 MBit/s ∼95% +6%
HP Omen 15-dc1020ng
Intel Wireless-AC 9560
646 MBit/s ∼93% +3%
MSI GL65 9SEK
Intel Wireless-AC 9560
637 MBit/s ∼91% +1%
Asus TUF A15 FA506IV-HN172
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
630 (min: 571, max: 641) MBit/s ∼90%
Lenovo Legion Y540-15IRH-81SX00B2GE
Intel Wireless-AC 9560
619 MBit/s ∼89% -2%
Average Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
  (486 - 685, n=14)
619 MBit/s ∼89% -2%
Asus ROG GA502DU
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
332 MBit/s ∼48% -47%
iperf3 Client (transmit) TCP 1 m 4M x10
HP Omen 15-dc1020ng
Intel Wireless-AC 9560
680 MBit/s ∼100% +3%
Asus TUF A15 FA506IV-HN172
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
662 (min: 553, max: 769) MBit/s ∼97%
Average of class Gaming
  (144 - 1645, n=331)
650 MBit/s ∼96% -2%
Average Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
  (588 - 690, n=14)
648 MBit/s ∼95% -2%
MSI Alpha 15 A3DDK-034
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
634 MBit/s ∼93% -4%
Lenovo Legion Y540-15IRH-81SX00B2GE
Intel Wireless-AC 9560
630 MBit/s ∼93% -5%
MSI GL65 9SEK
Intel Wireless-AC 9560
355 MBit/s ∼52% -46%
Asus ROG GA502DU
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
252 MBit/s ∼37% -62%
050100150200250300350400450500550600650700750Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø629 (571-641)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø661 (553-769)
ColorChecker
14.8 ∆E
12.7 ∆E
18.3 ∆E
15.8 ∆E
17.6 ∆E
14.6 ∆E
12.4 ∆E
24.2 ∆E
13.6 ∆E
11.1 ∆E
13.5 ∆E
11.9 ∆E
15.1 ∆E
14.1 ∆E
12.1 ∆E
6.9 ∆E
15.9 ∆E
18.8 ∆E
2.3 ∆E
12 ∆E
14.8 ∆E
14.5 ∆E
11.2 ∆E
4.2 ∆E
ColorChecker Asus TUF A15 FA506IV-HN172: 13.44 ∆E min: 2.33 - max: 24.17 ∆E
252
cd/m²
247
cd/m²
251
cd/m²
253
cd/m²
280
cd/m²
246
cd/m²
249
cd/m²
260
cd/m²
251
cd/m²
Helderheidsverdeling
LM156LF-2F01
Xrite i1 Pro
Maximum: 280 cd/m² Gemiddelde: 254.3 cd/m² Minimum: 12 cd/m²
Helderheidsverdeling: 88 %
Helderheid in Batterij-modus: 280 cd/m²
Contrast: 1867:1 (Zwart: 0.15 cd/m²)
ΔE Color 5.89 | 0.6-29.43 Ø5.8, calibrated: 4.79
ΔE Greyscale 4.08 | 0.64-98 Ø6.1
58% sRGB (Argyll 3D) 37% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.33
Asus TUF A15 FA506IV-HN172
LM156LF-2F01, IPS, 1920x1080, 15.6
Lenovo Legion Y540-15IRH-81SX00B2GE
BOE 084D, IPS, 1920x1080, 15.6
MSI Alpha 15 A3DDK-034
AU Optronics B156HAN08.0 (AUO80ED), IPS, 1920x1080, 15.6
MSI GL65 9SEK
AU Optronics B156HAN13.0, IPS, 1920x1080, 15.6
HP Omen 15-dc1020ng
LGD05CE, IPS, 1920x1080, 15.6
Asus ROG GA502DU
Panda LM156LF-CL03, IPS, 1920x1080, 15.6
Response Times
62%
68%
-2%
-21%
-9%
Response Time Grey 50% / Grey 80% *
34 (16, 18)
8.8 (4, 4.4)
74%
7 (3.4, 3.6)
79%
26.4 (13.2, 13.2)
22%
40 (21.2, 18.8)
-18%
34 (17.2, 16.8)
-0%
Response Time Black / White *
24 (13, 11)
12 (6.8, 5.2)
50%
10.4 (5.2, 5.2)
57%
30 (17.6, 12.4)
-25%
29.6 (17.2, 12.4)
-23%
28 (17.2, 10.8)
-17%
PWM Frequency
21280 (34)
Screen
15%
11%
-4%
-7%
-11%
Brightness middle
280
299
7%
310
11%
277.3
-1%
251
-10%
240.1
-14%
Brightness
254
290
14%
310
22%
256
1%
232
-9%
231
-9%
Brightness Distribution
88
89
1%
86
-2%
86
-2%
76
-14%
85
-3%
Black Level *
0.15
0.29
-93%
0.29
-93%
0.2
-33%
0.17
-13%
0.34
-127%
Contrast
1867
1031
-45%
1069
-43%
1387
-26%
1476
-21%
706
-62%
Colorchecker DeltaE2000 *
5.89
3.7
37%
4.78
19%
5.25
11%
6.2
-5%
4.2
29%
Colorchecker DeltaE2000 max. *
19
7
63%
8.1
57%
19.43
-2%
18.6
2%
17.8
6%
Colorchecker DeltaE2000 calibrated *
4.79
2
58%
2.36
51%
4.39
8%
4.8
-0%
4.09
15%
Greyscale DeltaE2000 *
4.08
4.1
-0%
4.78
-17%
3.5
14%
4.2
-3%
2.8
31%
Gamma
2.33 94%
2.19 100%
2.43 91%
2.1 105%
2.32 95%
2.2 100%
CCT
7303 89%
7166 91%
7739 84%
6895 94%
7454 87%
6925 94%
Color Space (Percent of AdobeRGB 1998)
37
59.3
60%
59
59%
35
-5%
36.5
-1%
38.4
4%
Color Space (Percent of sRGB)
58
91.5
58%
91
57%
55
-5%
57.4
-1%
60.4
4%
Totaal Gemiddelde (Programma / Instellingen)
39% / 22%
40% / 20%
-3% / -3%
-14% / -9%
-10% / -11%

* ... kleiner is beter

CalMAN: Grayscale
CalMAN: Grayscale

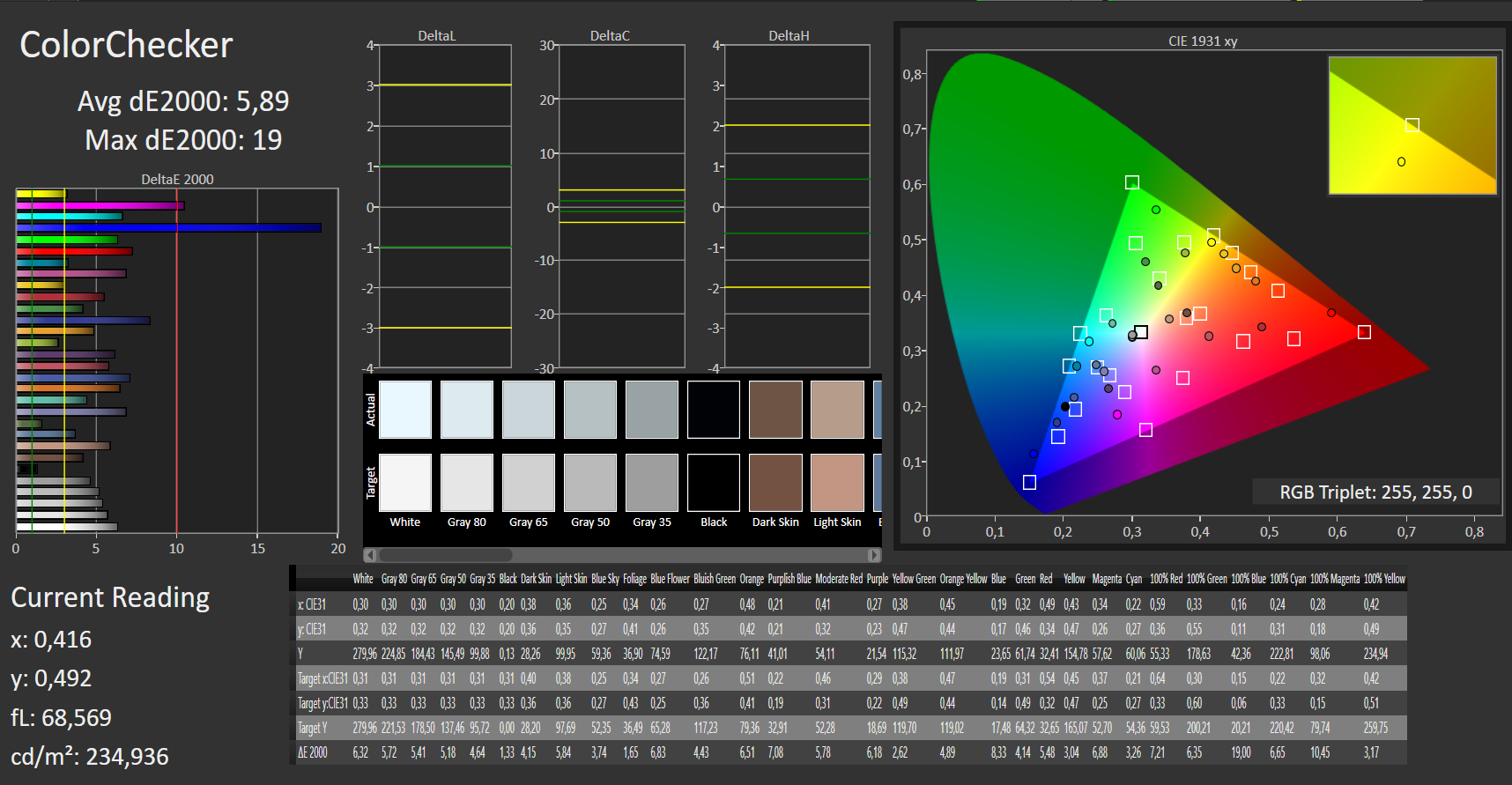

CalMAN: ColorChecker
CalMAN: ColorChecker

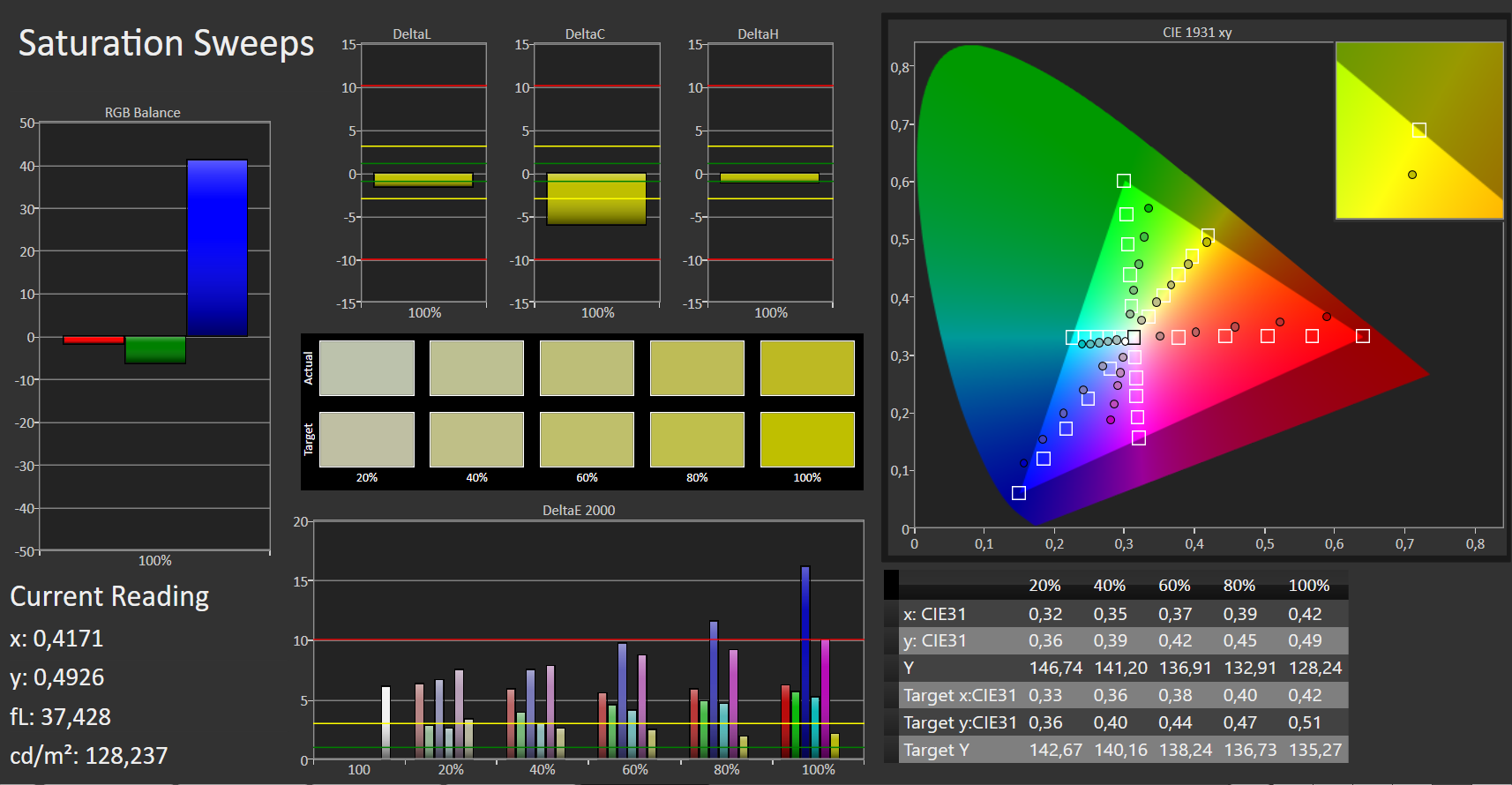

CalMAN: Saturation sweeps
CalMAN: Saturation sweeps

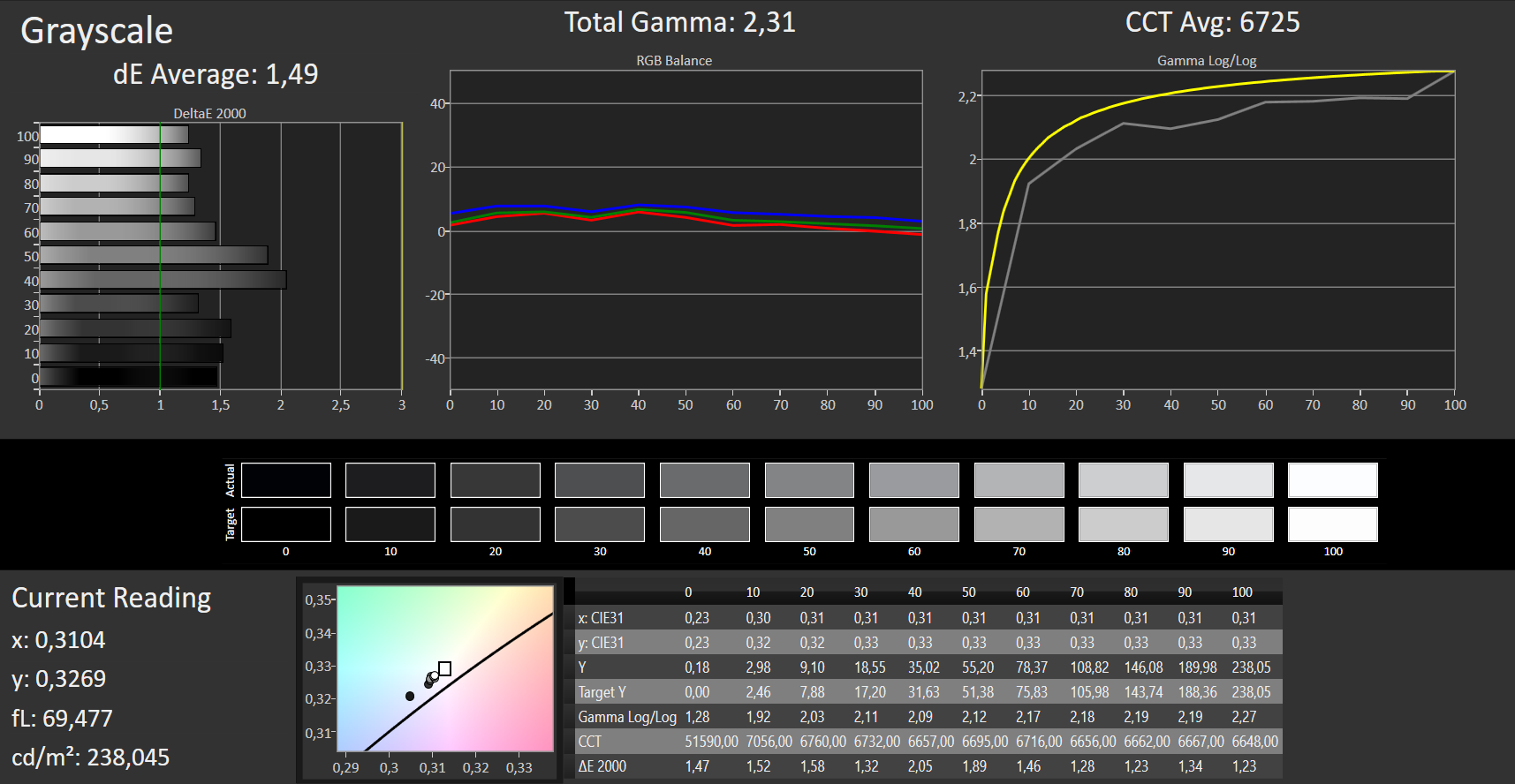

CalMAN: Grayscale (gekalibreerd)
CalMAN: Grayscale (gekalibreerd)

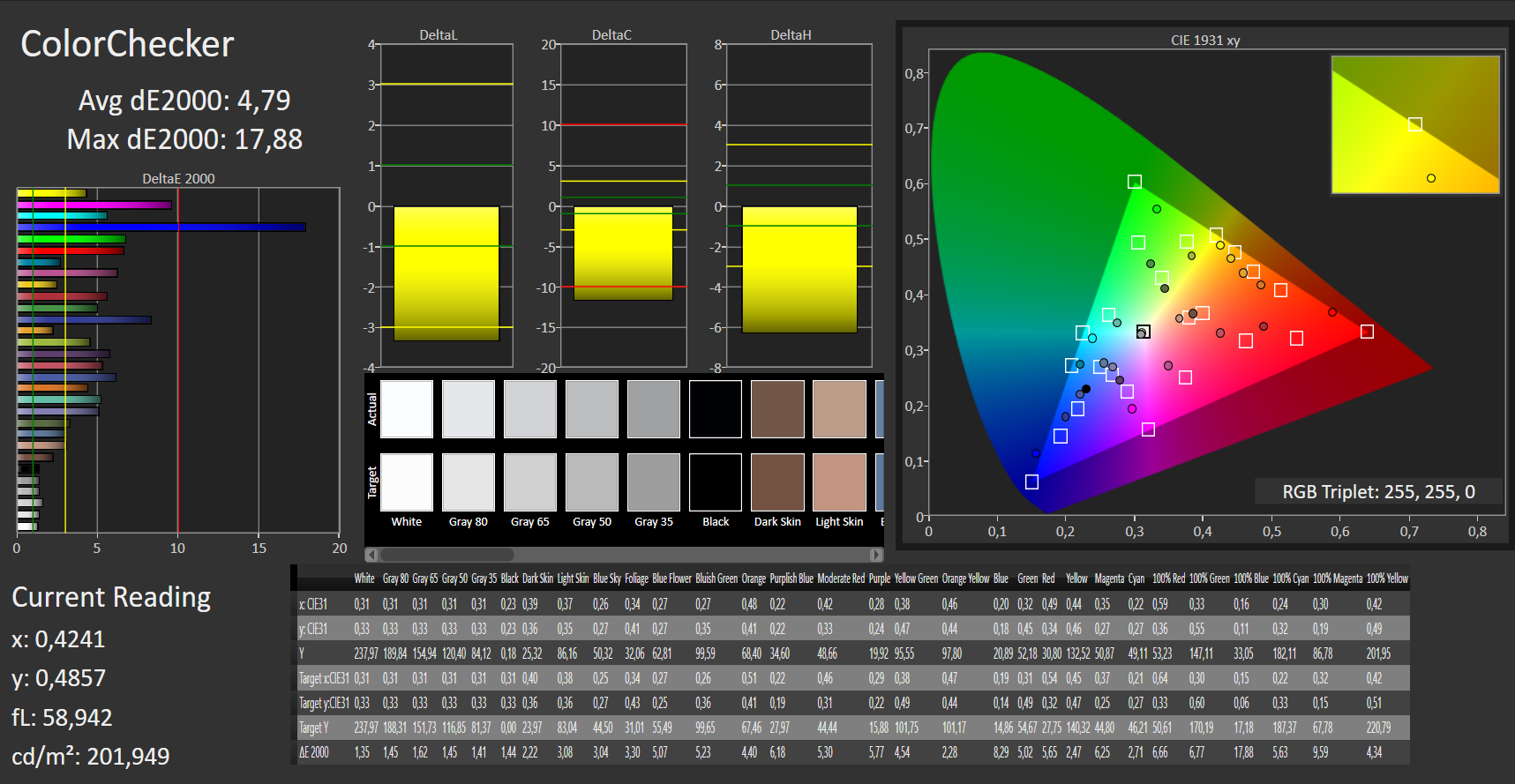

CalMAN: ColorChecker (gekalibreerd)
CalMAN: ColorChecker (gekalibreerd)

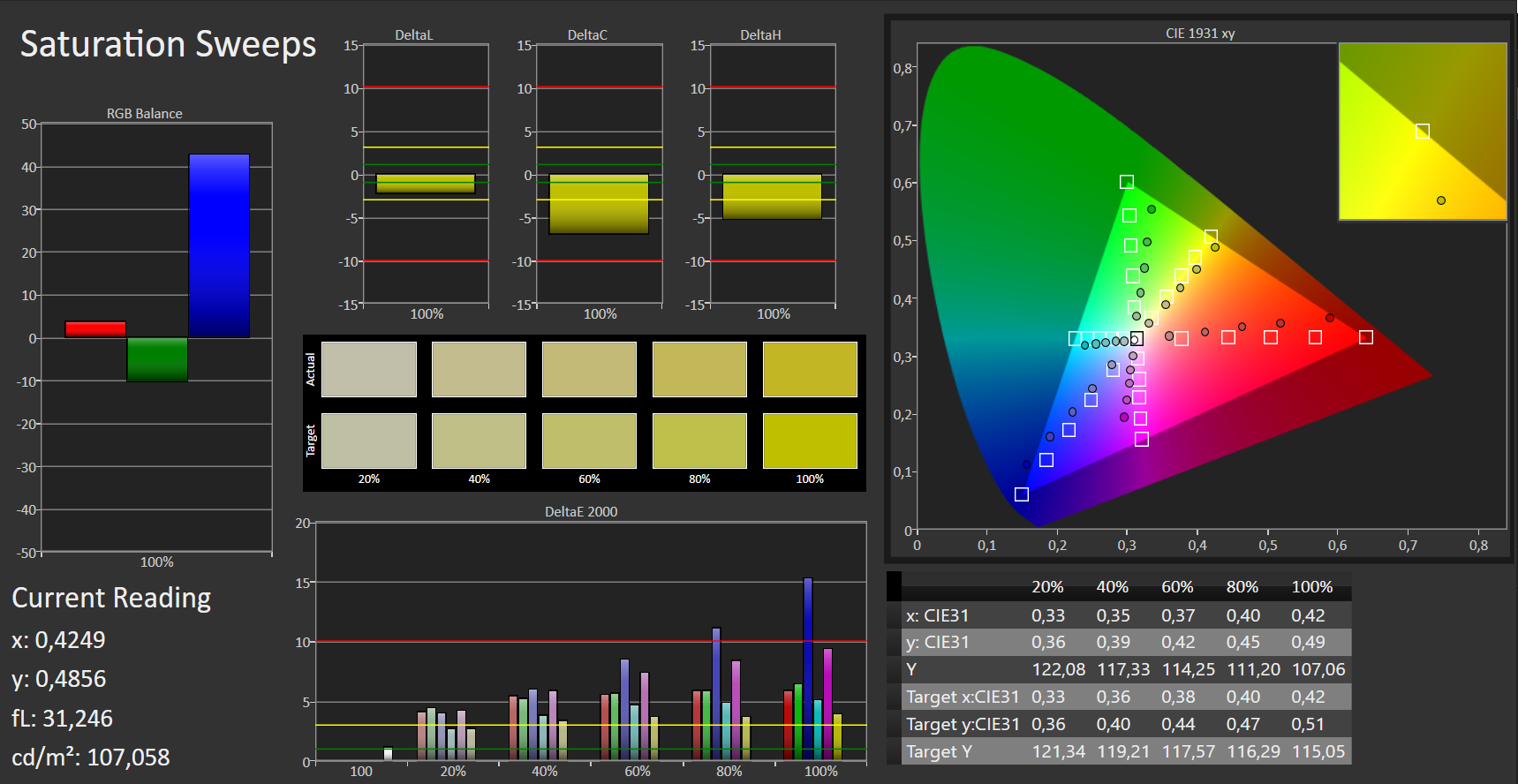

CalMAN: Saturation sweeps (gekalibreerd)
CalMAN: Saturation sweeps (gekalibreerd)

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

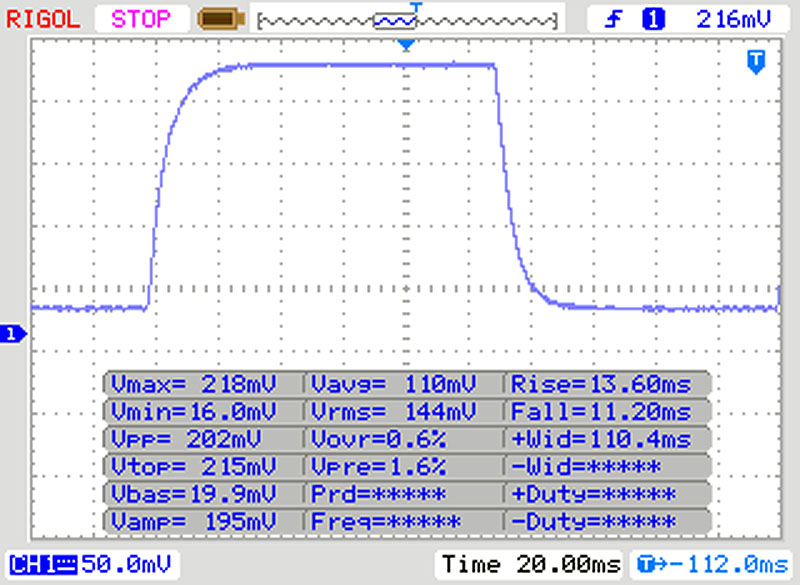

       Responstijd Zwart naar Wit
24 ms ... stijging ↗ en daling ↘ gecombineerd↗ 13 ms stijging
↘ 11 ms daling
Het scherm vertoonde prima responstijden in onze tests maar is misschien wat te traag voor competitieve games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 35 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (24.6 ms) van alle geteste toestellen.

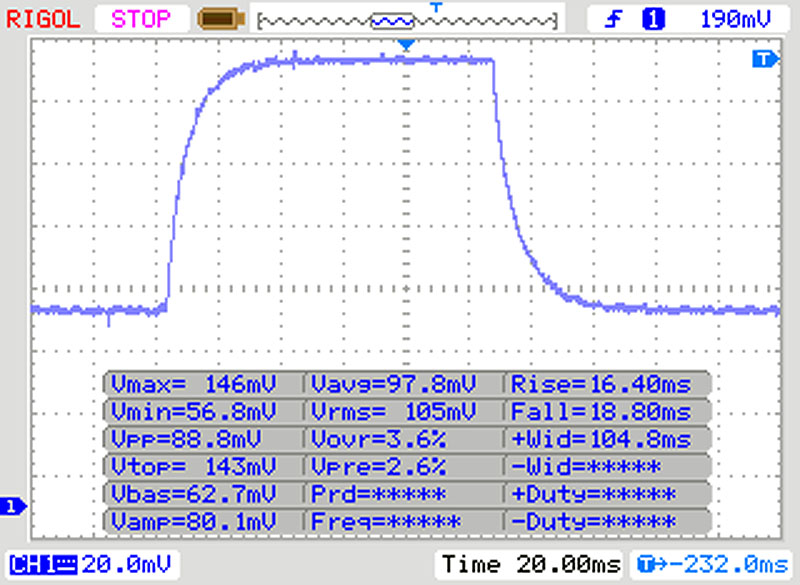

       Responstijd 50% Grijs naar 80% Grijs
34 ms ... stijging ↗ en daling ↘ gecombineerd↗ 16 ms stijging
↘ 18 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 27 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (39 ms) van alle geteste toestellen.

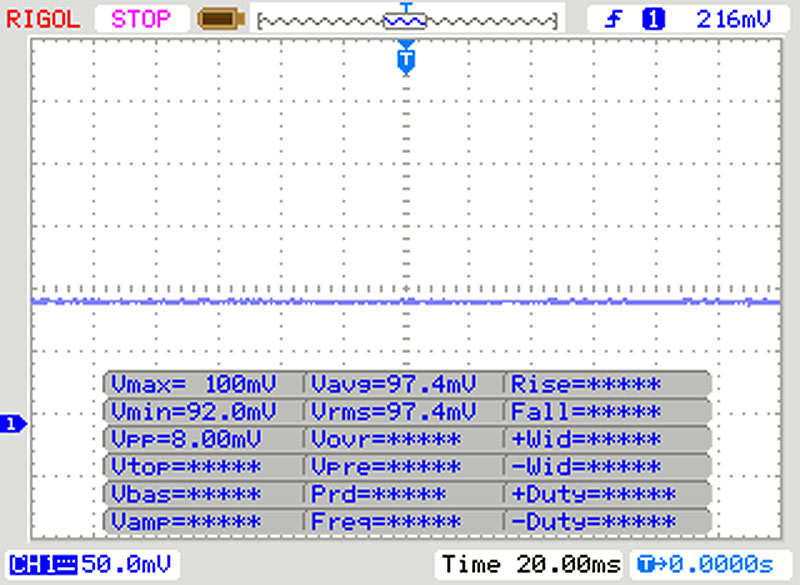

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 17916 (minimum: 5 - maximum: 2500000) Hz waargenomen.

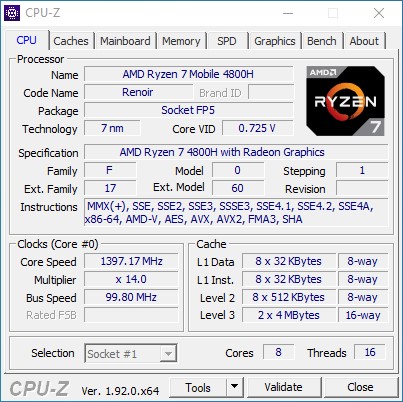

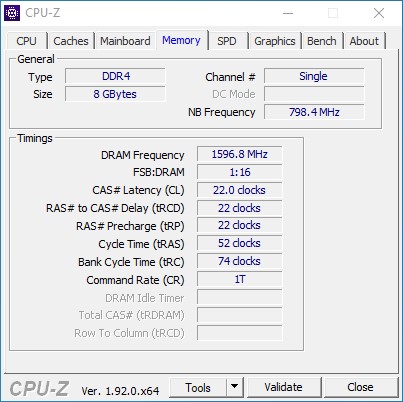

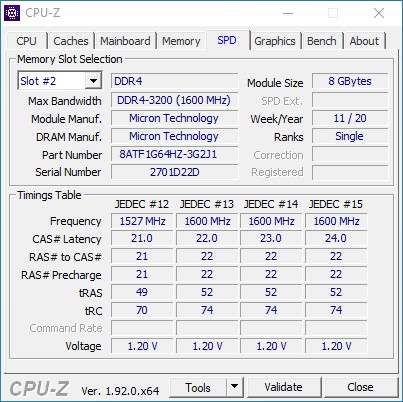

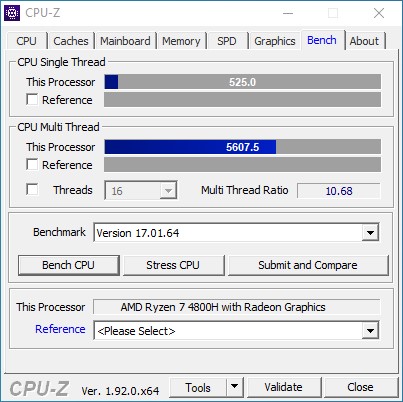

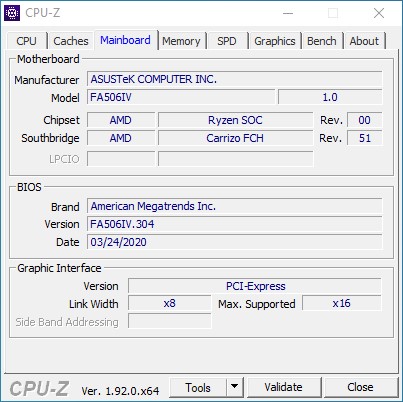

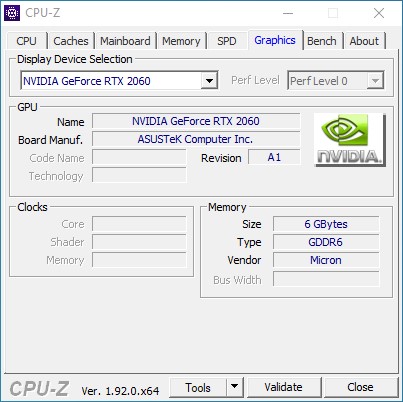

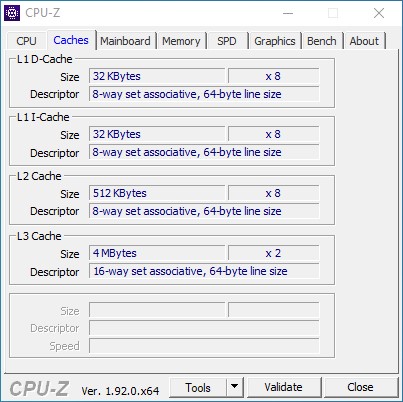

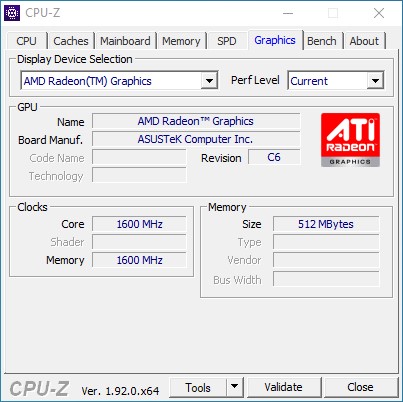

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

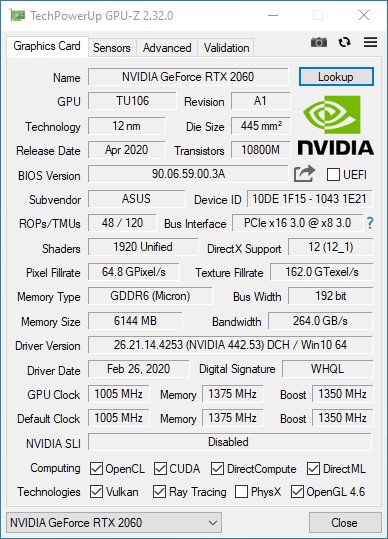

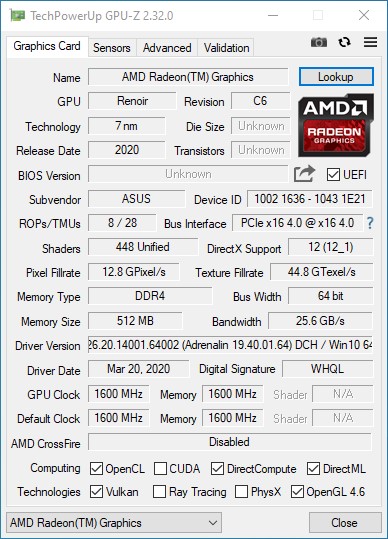

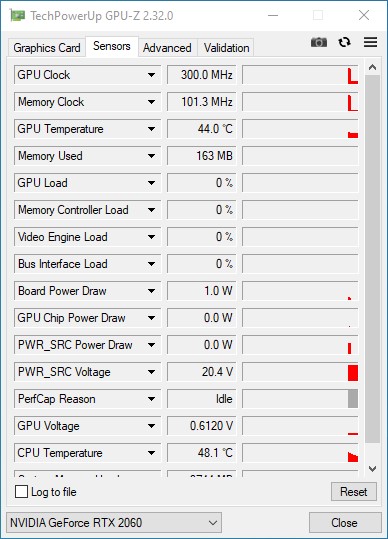

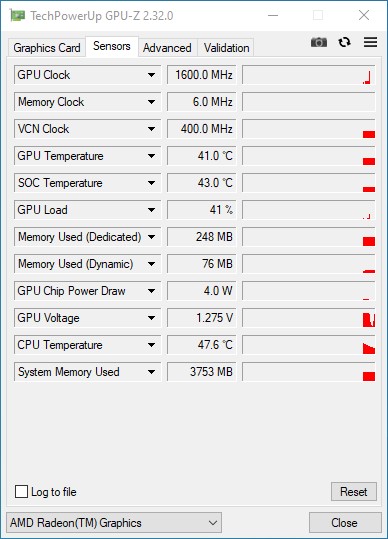

GPU-Z
GPU-Z
GPU-Z
GPU-Z

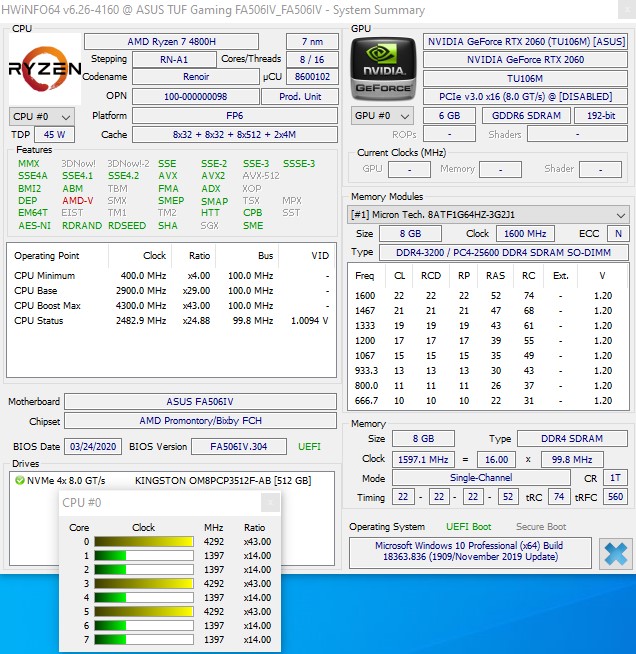

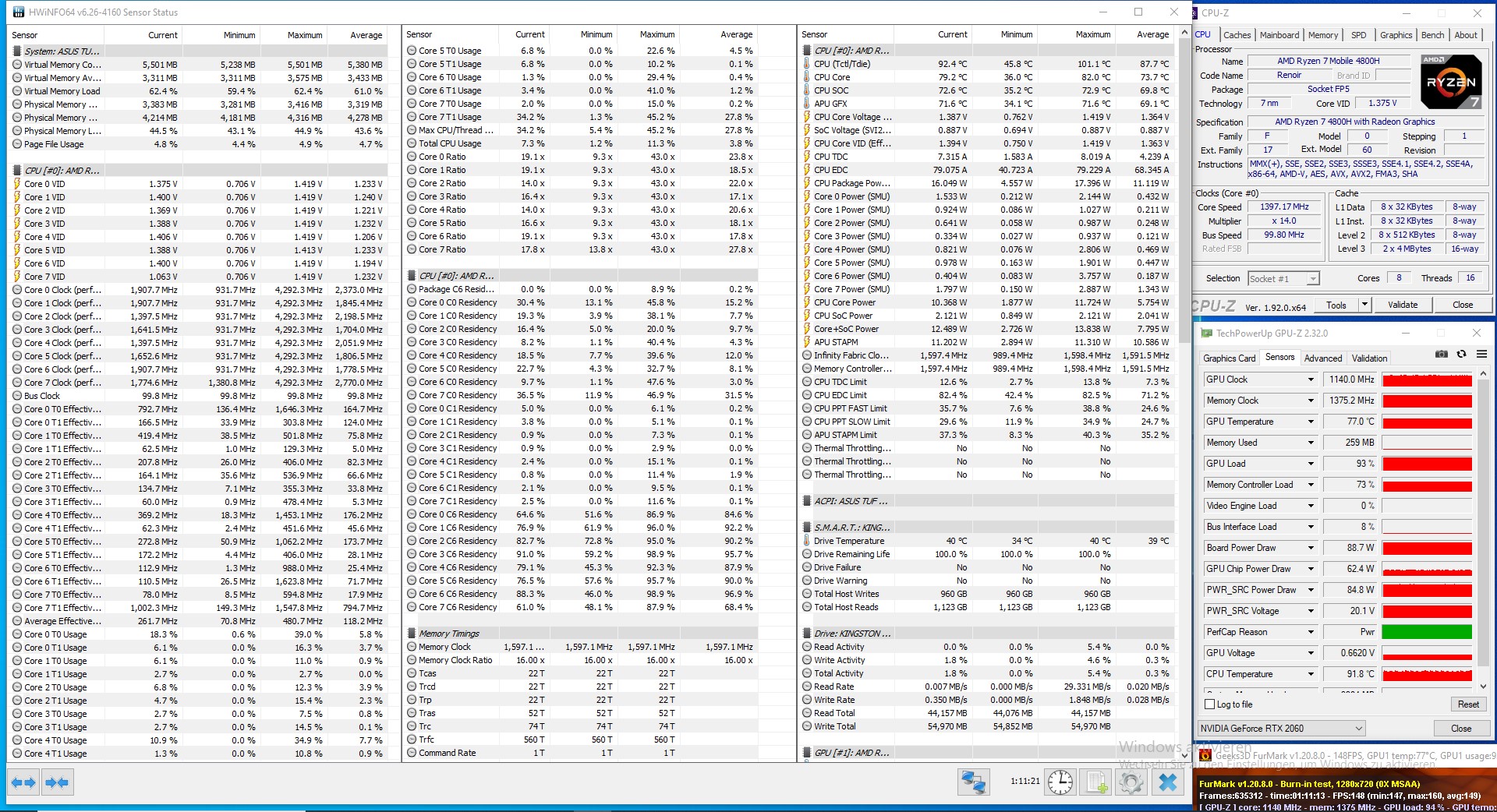

HWiNFO

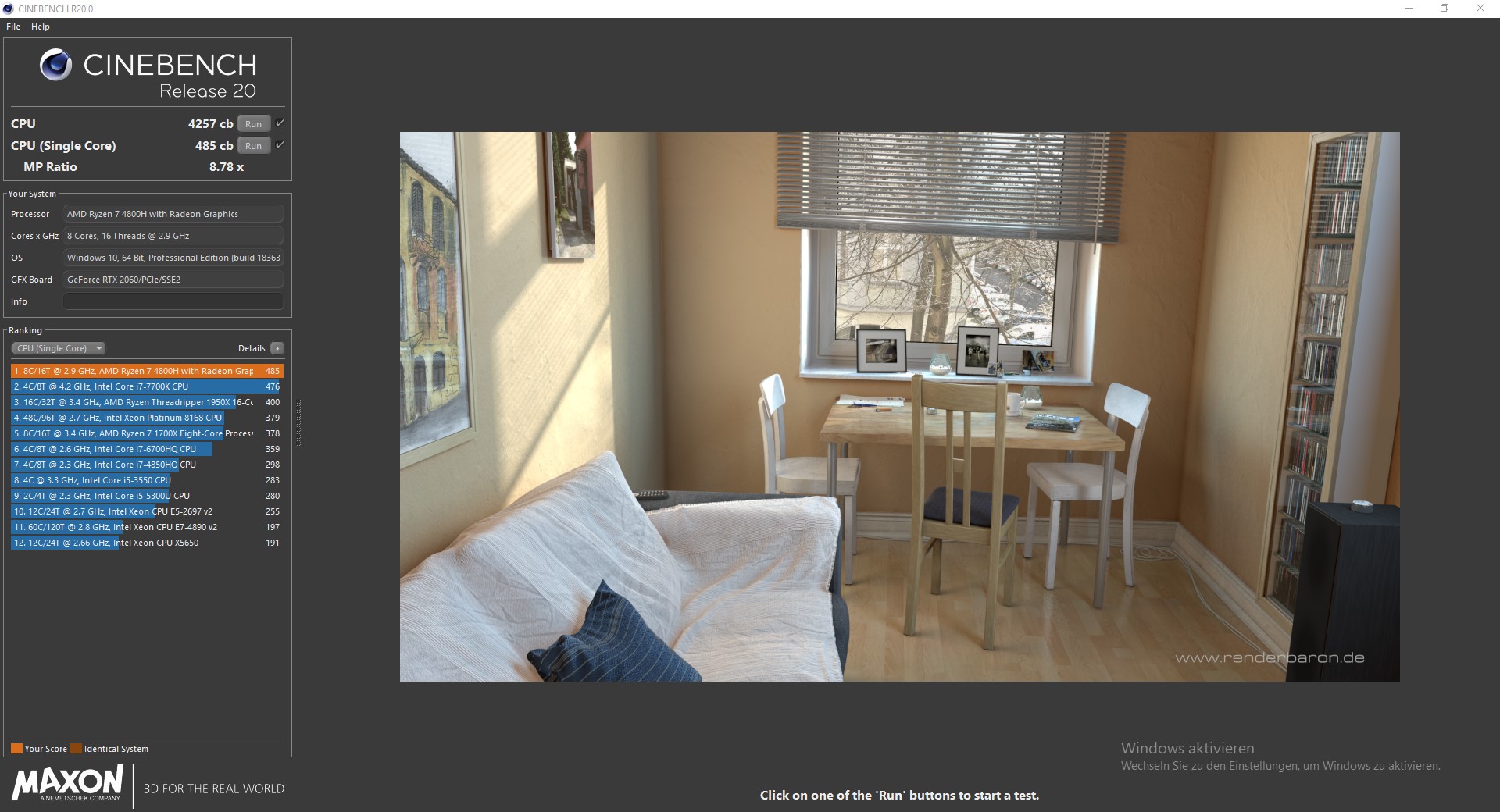

Cinebench R20: CPU (Single Core) | CPU (Multi Core)

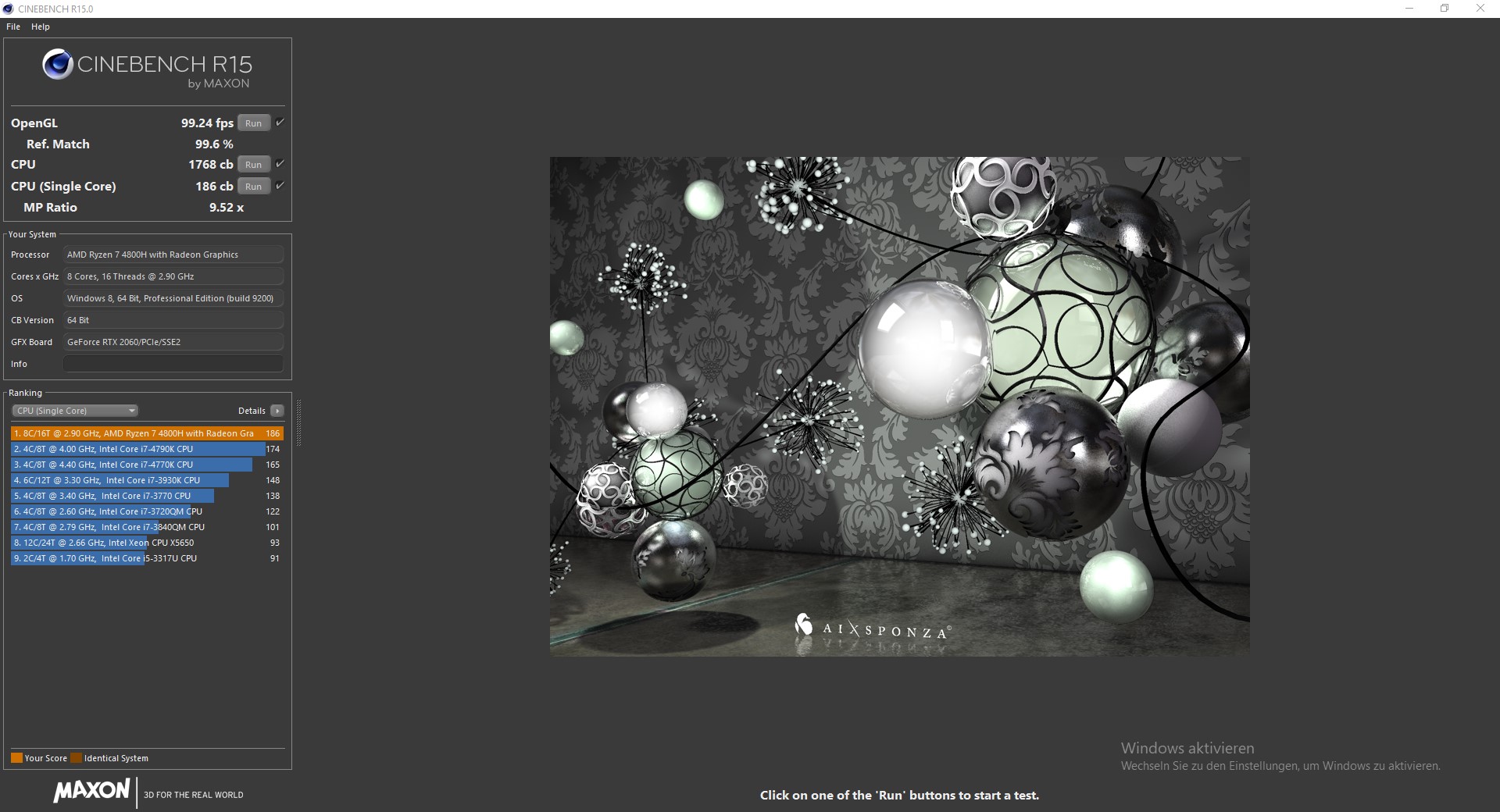

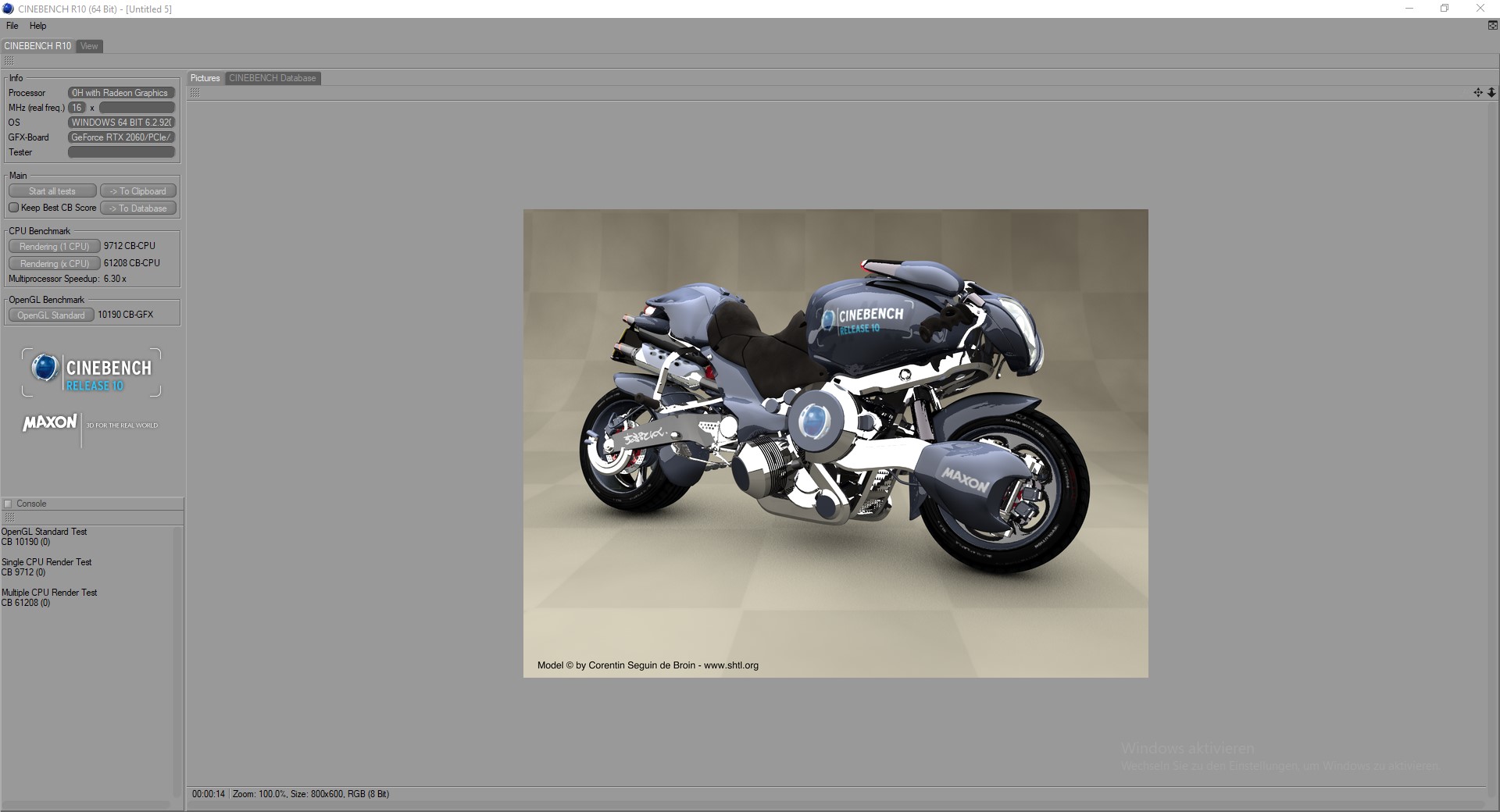

Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.1 / 5.2: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Single Core) - CPU (Single Core)
Average Intel Core i7-10875H
  (473 - 511, n=11)
490 Points ∼100% +1%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H
485 Points ∼99%
MSI GL65 9SEK
Intel Core i7-9750H
465 Points ∼95% -4%
Lenovo Legion Y540-15IRH-81SX00B2GE
Intel Core i7-9750H
458 Points ∼93% -6%
Average of class Gaming
  (340 - 511, n=104)
444 Points ∼91% -8%
HP Omen 15-dc1020ng
Intel Core i5-9300H
419 Points ∼86% -14%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H
352 Points ∼72% -27%
Asus ROG GA502DU
AMD Ryzen 7 3750H
340 Points ∼69% -30%
Cinebench R20 / CPU (Multi Core) - CPU (Multi Core)
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H
4257 Points ∼100%
Average Intel Core i7-10875H
  (2800 - 3885, n=11)
3417 Points ∼80% -20%
Average of class Gaming
  (1530 - 6321, n=105)
2887 Points ∼68% -32%
MSI GL65 9SEK
Intel Core i7-9750H
2785 Points ∼65% -35%
Lenovo Legion Y540-15IRH-81SX00B2GE
Intel Core i7-9750H
2595 Points ∼61% -39%
Asus ROG GA502DU
AMD Ryzen 7 3750H
1825 Points ∼43% -57%
HP Omen 15-dc1020ng
Intel Core i5-9300H
1723 Points ∼40% -60%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H
1633 Points ∼38% -62%
Cinebench R15 / CPU Single 64Bit - CPU Single 64Bit
Average Intel Core i7-10875H
  (190 - 214, n=15)
204 Points ∼100% +10%
MSI GL65 9SEK
Intel Core i7-9750H
188 Points ∼92% +1%
Lenovo Legion Y540-15IRH-81SX00B2GE
Intel Core i7-9750H
187 Points ∼92% +1%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H
186 Points ∼91%
HP Omen 15-dc1020ng
Intel Core i5-9300H
171 Points ∼84% -8%
Average of class Gaming
  (77 - 219, n=588)
160 Points ∼78% -14%
Asus ROG GA502DU
AMD Ryzen 7 3750H
144 Points ∼71% -23%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H
143 Points ∼70% -23%
Cinebench R15 / CPU Multi 64Bit - CPU Multi 64Bit
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H
1850 Points ∼100%
Average Intel Core i7-10875H
  (1111 - 1833, n=15)
1600 Points ∼86% -14%
MSI GL65 9SEK
Intel Core i7-9750H
1281 Points ∼69% -31%
Lenovo Legion Y540-15IRH-81SX00B2GE
Intel Core i7-9750H
1155 (min: 899.54, max: 1211.72) Points ∼62% -38%
Average of class Gaming
  (196 - 2804, n=592)
896 Points ∼48% -52%
Asus ROG GA502DU
AMD Ryzen 7 3750H
805 Points ∼44% -56%
HP Omen 15-dc1020ng
Intel Core i5-9300H
769 Points ∼42% -58%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H
734 Points ∼40% -60%
Blender 2.79 / BMW27 CPU - BMW27 CPU
HP Omen 15-dc1020ng
Intel Core i5-9300H
643 Seconds * ∼100% -145%
Asus ROG GA502DU
AMD Ryzen 7 3750H
584.19 Seconds * ∼91% -123%
Lenovo Legion Y540-15IRH-81SX00B2GE
Intel Core i7-9750H
410 Seconds * ∼64% -56%
Average of class Gaming
  (179 - 901, n=58)
403 Seconds * ∼63% -54%
Average Intel Core i7-10875H
  (280 - 386, n=9)
325 Seconds * ∼51% -24%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H
262.5 Seconds * ∼41%
7-Zip 18.03 / 7z b 4 -mmt1 - 7z b 4 -mmt1
Average Intel Core i7-10875H
  (5232 - 5457, n=9)
5326 MIPS ∼100% +14%
Lenovo Legion Y540-15IRH-81SX00B2GE
Intel Core i7-9750H
4962 MIPS ∼93% +6%
Average of class Gaming
  (2480 - 5674, n=58)
4820 MIPS ∼90% +3%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H
4666 MIPS ∼88%
HP Omen 15-dc1020ng
Intel Core i5-9300H
4626 MIPS ∼87% -1%
Asus ROG GA502DU
AMD Ryzen 7 3750H
3511 MIPS ∼66% -25%
7-Zip 18.03 / 7z b 4 - 7z b 4
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H
45679 MIPS ∼100%
Average Intel Core i7-10875H
  (33674 - 48397, n=9)
41895 MIPS ∼92% -8%
Average of class Gaming
  (3034 - 75612, n=58)
35882 MIPS ∼79% -21%
Lenovo Legion Y540-15IRH-81SX00B2GE
Intel Core i7-9750H
34458 MIPS ∼75% -25%
HP Omen 15-dc1020ng
Intel Core i5-9300H
20736 MIPS ∼45% -55%
Asus ROG GA502DU
AMD Ryzen 7 3750H
18689 MIPS ∼41% -59%
Geekbench 5.1 / 5.2 / 64 Bit Single-Core Score - 64 Bit Single-Core Score
Average Intel Core i7-10875H
  (1233 - 1347, n=9)
1291 Points ∼100% +11%
Average of class Gaming
  (874 - 1401, n=39)
1199 Points ∼93% +3%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H
1166 Points ∼90%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H
874 Points ∼68% -25%
Geekbench 5.1 / 5.2 / 64 Bit Multi-Core Score - 64 Bit Multi-Core Score
Average Intel Core i7-10875H
  (6988 - 8363, n=9)
7706 Points ∼100% +30%
Average of class Gaming
  (3448 - 10190, n=39)
6557 Points ∼85% +11%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H
5920 Points ∼77%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H
3537 Points ∼46% -40%
HWBOT x265 Benchmark v2.2 / 4k Preset - 4k Preset
Average Intel Core i7-10875H
  (10.1 - 13, n=8)
11.6 fps ∼100% +7%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H
10.8 fps ∼93%
Average of class Gaming
  (1.7 - 18.9, n=58)
9.78 fps ∼84% -9%
Lenovo Legion Y540-15IRH-81SX00B2GE
Intel Core i7-9750H
9.2 fps ∼79% -15%
HP Omen 15-dc1020ng
Intel Core i5-9300H
5.7 fps ∼49% -47%
Asus ROG GA502DU
AMD Ryzen 7 3750H
4.352 fps ∼38% -60%
LibreOffice / 20 Documents To PDF - 20 Documents To PDF
Average of class Gaming
  (28.6 - 95.8, n=34)
59.5 s ∼100% +108%
Average Intel Core i7-10875H
  (47.1 - 84.3, n=9)
55.5 s ∼93% +94%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H
28.6 s ∼48%
R Benchmark 2.5 / Overall mean - Overall mean
Average of class Gaming
  (0.546 - 0.761, n=39)
0.621 sec * ∼100% -3%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H
0.603 sec * ∼97%
Average Intel Core i7-10875H
  (0.547 - 0.59, n=8)
0.577 sec * ∼93% +4%

* ... kleiner is beter

Cinebench R15 Multi-Thread Loop

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870880890900910920930940950960970980990100010101020103010401050106010701080109011001110112011301140115011601170118011901200121012201230124012501260127012801290130013101320133013401350136013701380139014001410142014301440145014601470148014901500151015201530154015501560157015801590160016101620163016401650166016701680169017001710172017301740175017601770178017901800181018201830184018501860Tooltip
: Ø1753 (1601.6-1850.14)
Cinebench R10
Cinebench R10
Cinebench R11
Cinebench R11
Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20

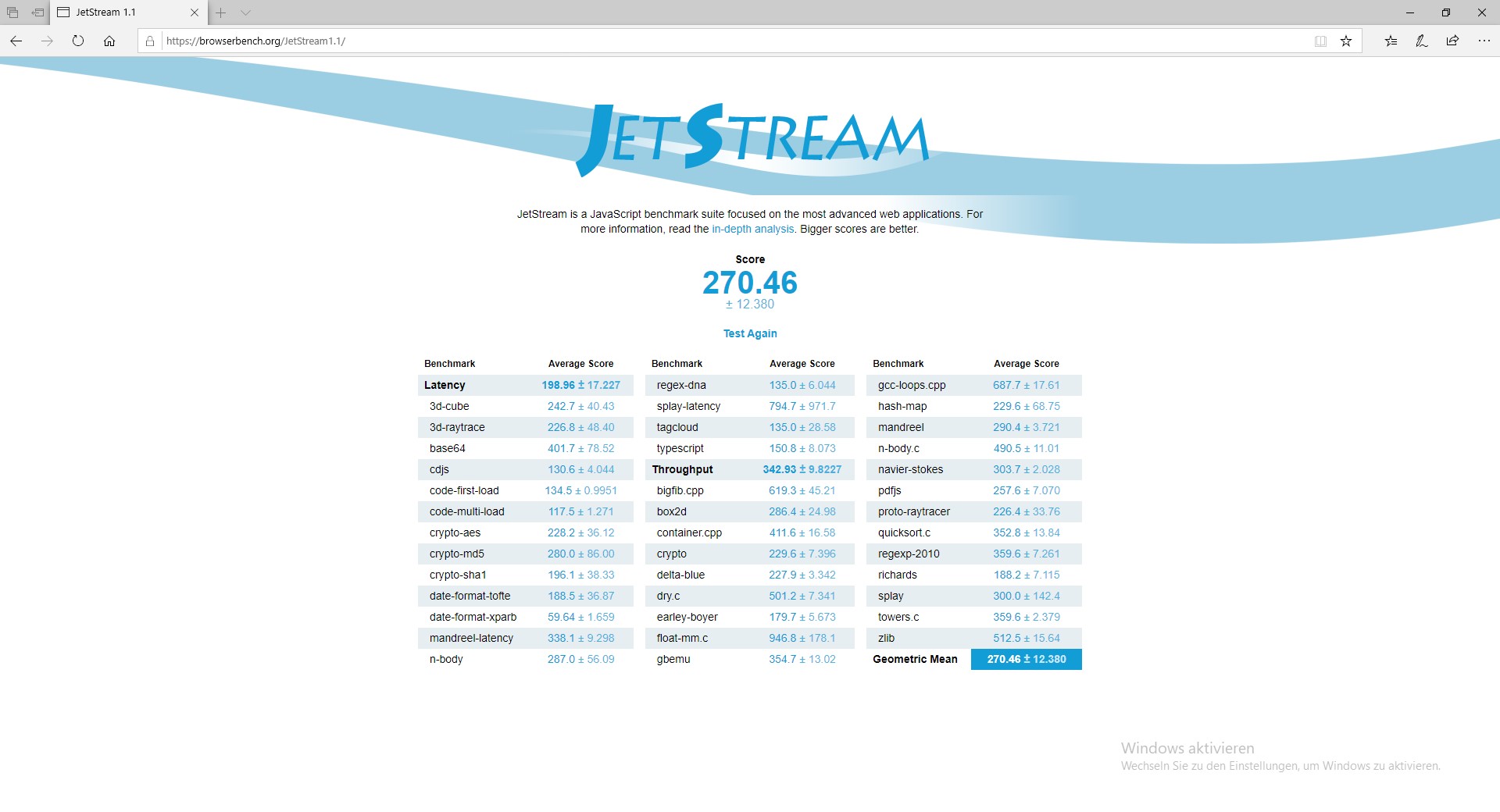

Jetstream 1.1
Jetstream 1.1

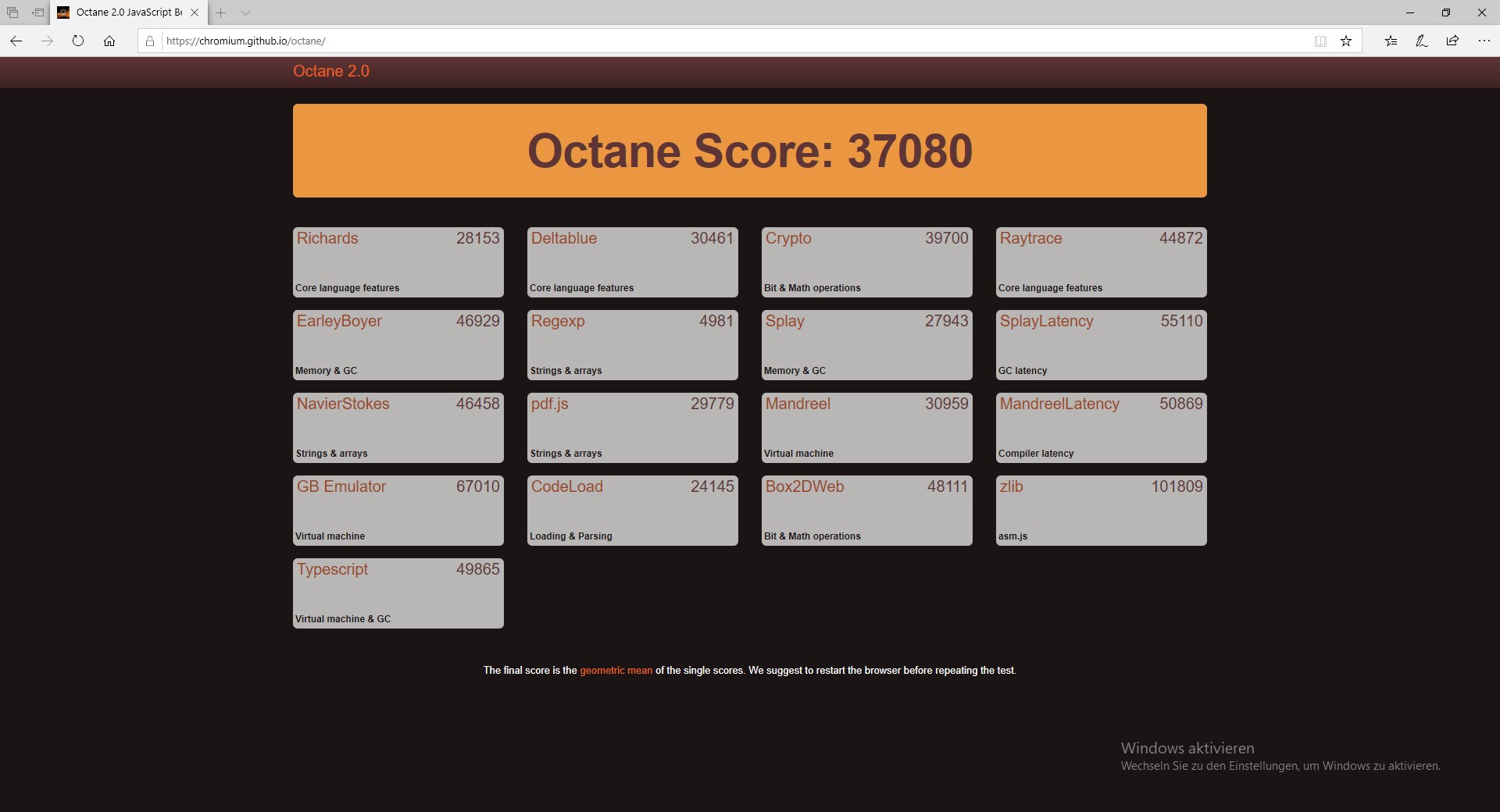

Octane V2
Octane V2
Cinebench R10 Shading 32Bit
10064
Cinebench R10 Rendering Single CPUs 64Bit
9712 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
61208 Points
Cinebench R10 Shading 64Bit
10190 Points
Cinebench R10 Rendering Single 32Bit
5643
Cinebench R10 Rendering Multiple CPUs 32Bit
37236

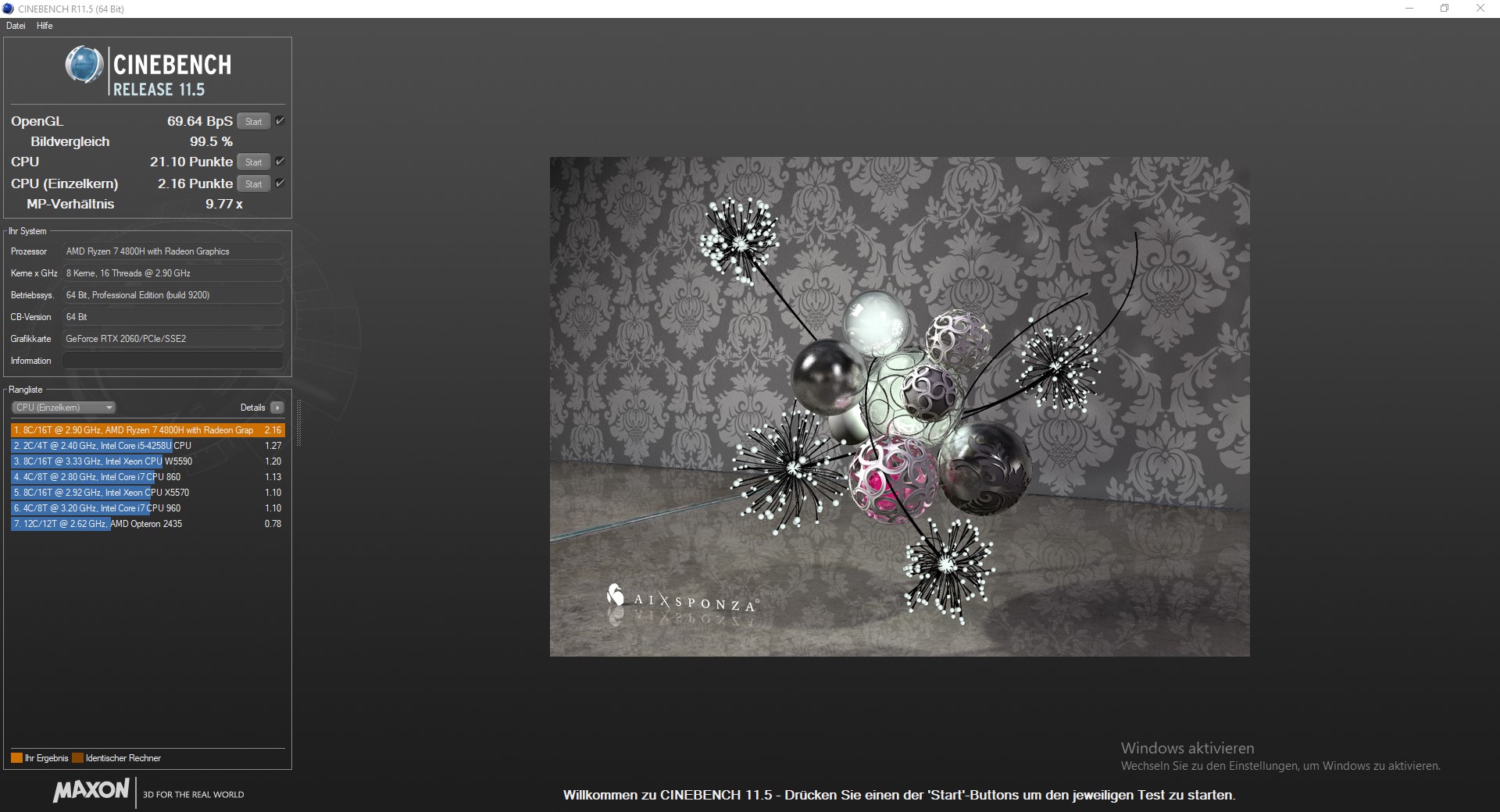

Cinebench R11.5 CPU Multi 32Bit
19.85 Points
Cinebench R11.5 OpenGL 32Bit
71.68 fps
Cinebench R11.5 CPU Single 64Bit
2.16 Points
Cinebench R11.5 CPU Multi 64Bit
21.1 Points
Cinebench R11.5 OpenGL 64Bit
69.64 fps
Cinebench R11.5 CPU Single 32Bit
2.04 Points
Cinebench R15 CPU Single 64Bit
186 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
99.24 fps
Cinebench R15 CPU Multi 64Bit
1850 Points
Help
PCMark 10
Digital Content Creation
Lenovo Legion Y540-15IRH-81SX00B2GE
GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN720 SDAPNTW-512G
7564 Points ∼100% +33%
MSI GL65 9SEK
GeForce RTX 2060 Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G
7104 Points ∼94% +25%
Average of class Gaming
  (1764 - 11245, n=272)
6464 Points ∼85% +14%
Average AMD Ryzen 7 4800H, NVIDIA GeForce RTX 2060 Mobile
  (5695 - 6808, n=3)
6406 Points ∼85% +12%
Asus TUF A15 FA506IV-HN172
GeForce RTX 2060 Mobile, R7 4800H, Kingston OM8PCP3512F-AB
5695 Points ∼75%
MSI Alpha 15 A3DDK-034
Radeon RX 5500M, R7 3750H, Kingston RBUSNS8154P3512GJ
5344 Points ∼71% -6%
HP Omen 15-dc1020ng
GeForce GTX 1650 Mobile, i5-9300H, WDC PC SN720 SDAQNTW-512G
5044 Points ∼67% -11%
Asus ROG GA502DU
GeForce GTX 1660 Ti Max-Q, R7 3750H, Intel SSD 660p SSDPEKNW512G8
4682 Points ∼62% -18%
Productivity
MSI GL65 9SEK
GeForce RTX 2060 Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G
7748 Points ∼100% +8%
Lenovo Legion Y540-15IRH-81SX00B2GE
GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN720 SDAPNTW-512G
7430 Points ∼96% +4%
Average AMD Ryzen 7 4800H, NVIDIA GeForce RTX 2060 Mobile
  (7156 - 7586, n=3)
7350 Points ∼95% +3%
Average of class Gaming
  (4175 - 9077, n=273)
7283 Points ∼94% +2%
HP Omen 15-dc1020ng
GeForce GTX 1650 Mobile, i5-9300H, WDC PC SN720 SDAQNTW-512G
7261 Points ∼94% +1%
Asus TUF A15 FA506IV-HN172
GeForce RTX 2060 Mobile, R7 4800H, Kingston OM8PCP3512F-AB
7156 Points ∼92%
Asus ROG GA502DU
GeForce GTX 1660 Ti Max-Q, R7 3750H, Intel SSD 660p SSDPEKNW512G8
6305 Points ∼81% -12%
MSI Alpha 15 A3DDK-034
Radeon RX 5500M, R7 3750H, Kingston RBUSNS8154P3512GJ
6067 Points ∼78% -15%
Essentials
Average AMD Ryzen 7 4800H, NVIDIA GeForce RTX 2060 Mobile
  (8806 - 9784, n=3)
9452 Points ∼100% +7%
MSI GL65 9SEK
GeForce RTX 2060 Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G
9431 Points ∼100% +7%
Lenovo Legion Y540-15IRH-81SX00B2GE
GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN720 SDAPNTW-512G
9020 Points ∼95% +2%
Asus TUF A15 FA506IV-HN172
GeForce RTX 2060 Mobile, R7 4800H, Kingston OM8PCP3512F-AB
8806 Points ∼93%
Average of class Gaming
  (4892 - 11266, n=274)
8726 Points ∼92% -1%
HP Omen 15-dc1020ng
GeForce GTX 1650 Mobile, i5-9300H, WDC PC SN720 SDAQNTW-512G
8575 Points ∼91% -3%
MSI Alpha 15 A3DDK-034
Radeon RX 5500M, R7 3750H, Kingston RBUSNS8154P3512GJ
8174 Points ∼86% -7%
Asus ROG GA502DU
GeForce GTX 1660 Ti Max-Q, R7 3750H, Intel SSD 660p SSDPEKNW512G8
7424 Points ∼79% -16%
Score
MSI GL65 9SEK
GeForce RTX 2060 Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G
5761 Points ∼100% +13%
Lenovo Legion Y540-15IRH-81SX00B2GE
GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN720 SDAPNTW-512G
5716 Points ∼99% +12%
Average AMD Ryzen 7 4800H, NVIDIA GeForce RTX 2060 Mobile
  (5095 - 5706, n=3)
5472 Points ∼95% +7%
Average of class Gaming
  (2603 - 7511, n=276)
5312 Points ∼92% +4%
Asus TUF A15 FA506IV-HN172
GeForce RTX 2060 Mobile, R7 4800H, Kingston OM8PCP3512F-AB
5095 Points ∼88%
HP Omen 15-dc1020ng
GeForce GTX 1650 Mobile, i5-9300H, WDC PC SN720 SDAQNTW-512G
4873 Points ∼85% -4%
MSI Alpha 15 A3DDK-034
Radeon RX 5500M, R7 3750H, Kingston RBUSNS8154P3512GJ
4605 Points ∼80% -10%
Asus ROG GA502DU
GeForce GTX 1660 Ti Max-Q, R7 3750H, Intel SSD 660p SSDPEKNW512G8
4322 Points ∼75% -15%
PCMark 8
Work Score Accelerated v2
Average AMD Ryzen 7 4800H, NVIDIA GeForce RTX 2060 Mobile
  (5773 - 5969, n=2)
5871 Points ∼100% +2%
Asus TUF A15 FA506IV-HN172
GeForce RTX 2060 Mobile, R7 4800H, Kingston OM8PCP3512F-AB
5773 Points ∼98%
MSI GL65 9SEK
GeForce RTX 2060 Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G
5287 Points ∼90% -8%
HP Omen 15-dc1020ng
GeForce GTX 1650 Mobile, i5-9300H, WDC PC SN720 SDAQNTW-512G
5107 Points ∼87% -12%
Average of class Gaming
  (2484 - 6593, n=435)
5094 Points ∼87% -12%
MSI Alpha 15 A3DDK-034
Radeon RX 5500M, R7 3750H, Kingston RBUSNS8154P3512GJ
5045 Points ∼86% -13%
Lenovo Legion Y540-15IRH-81SX00B2GE
GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN720 SDAPNTW-512G
5041 Points ∼86% -13%
Asus ROG GA502DU
GeForce GTX 1660 Ti Max-Q, R7 3750H, Intel SSD 660p SSDPEKNW512G8
4956 Points ∼84% -14%
Home Score Accelerated v2
Average AMD Ryzen 7 4800H, NVIDIA GeForce RTX 2060 Mobile
  (4698 - 4937, n=2)
4818 Points ∼100% +3%
Asus TUF A15 FA506IV-HN172
GeForce RTX 2060 Mobile, R7 4800H, Kingston OM8PCP3512F-AB
4698 Points ∼98%
Lenovo Legion Y540-15IRH-81SX00B2GE
GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN720 SDAPNTW-512G
4507 Points ∼94% -4%
Average of class Gaming
  (2554 - 6093, n=452)
4281 Points ∼89% -9%
MSI GL65 9SEK
GeForce RTX 2060 Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G
4136 Points ∼86% -12%
MSI Alpha 15 A3DDK-034
Radeon RX 5500M, R7 3750H, Kingston RBUSNS8154P3512GJ
4121 Points ∼86% -12%
HP Omen 15-dc1020ng
GeForce GTX 1650 Mobile, i5-9300H, WDC PC SN720 SDAQNTW-512G
3691 Points ∼77% -21%
Asus ROG GA502DU
GeForce GTX 1660 Ti Max-Q, R7 3750H, Intel SSD 660p SSDPEKNW512G8
3642 Points ∼76% -22%
PCMark 8 Home Score Accelerated v2
4698 punten
PCMark 8 Creative Score Accelerated v2
7841 punten
PCMark 8 Work Score Accelerated v2
5773 punten
Help
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus TUF A15 FA506IV-HN172
GeForce RTX 2060 Mobile, R7 4800H, Kingston OM8PCP3512F-AB
797.4 μs * ∼100%

* ... kleiner is beter

Asus TUF A15 FA506IV-HN172
Kingston OM8PCP3512F-AB
Lenovo Legion Y540-15IRH-81SX00B2GE
WDC PC SN720 SDAPNTW-512G
MSI Alpha 15 A3DDK-034
Kingston RBUSNS8154P3512GJ
MSI GL65 9SEK
WDC PC SN520 SDAPNUW-512G
HP Omen 15-dc1020ng
WDC PC SN720 SDAQNTW-512G
Asus ROG GA502DU
Intel SSD 660p SSDPEKNW512G8
Average Kingston OM8PCP3512F-AB

CrystalDiskMark 5.2 / 6
30%
-20%
10%
35%
-17%
0%
Write 4K
219.8
158.8
-28%
105.4
-52%
150.2
-32%
112.1
-49%
132.2
-40%
220
0%
Read 4K
50.16
29.11
-42%
33.24
-34%
43.46
-13%
42.01
-16%
55.5
11%
50.2
0%
Write Seq
978.7
1584
62%
1029
5%
1412
44%
1964
101%
986.2
1%
979
0%
Read Seq
1990
1694
-15%
1098
-45%
1340
-33%
2065
4%
1318
-34%
1990
0%
Write 4K Q32T1
515.8
535.7
4%
322.1
-38%
482.2
-7%
318.2
-38%
220.3
-57%
516
0%
Read 4K Q32T1
298.3
363.9
22%
352
18%
534.6
79%
406.7
36%
315.5
6%
298
0%
Write Seq Q32T1
981.7
2536
158%
1036
6%
1454
48%
2534
158%
986.6
0%
982
0%
Read Seq Q32T1
1907.2
3458
81%
1606
-16%
1744
-9%
3438
80%
1416
-26%
1907
0%
Write 4K Q8T8
980.5
981
0%
Read 4K Q8T8
300.9
301
0%
AS SSD
63%
-9%
10%
66%
-10%
0%
Copy Game MB/s
534.73
483.58
-10%
1217.53
128%
907.05
70%
818.54
53%
535
0%
Copy Program MB/s
248.35
252.67
2%
889.12
258%
392.55
58%
496.94
100%
248
0%
Copy ISO MB/s
674.64
1043.29
55%
1278.63
90%
1417.66
110%
905.3
34%
675
0%
Score Total
2143
4208
96%
2365
10%
2485
16%
4323
102%
1641
-23%
2143
0%
Score Write
1101
1794
63%
885
-20%
976
-11%
1901
73%
927
-16%
1101
0%
Score Read
701
1621
131%
991
41%
996
42%
1619
131%
459
-35%
701
0%
Access Time Write *
0.02
0.026
-30%
0.047
-135%
0.091
-355%
0.032
-60%
0.045
-125%
0.02
-0%
Access Time Read *
0.087
0.065
25%
0.1
-15%
0.116
-33%
0.084
3%
0.064
26%
0.087
-0%
4K-64 Write
845.47
1432.15
69%
708.26
-16%
720.16
-15%
1538.26
82%
735.67
-13%
845
0%
4K-64 Read
472.49
1285.67
172%
815.95
73%
838.68
78%
1282.6
171%
321.47
-32%
472
0%
4K Write
164.78
147.12
-11%
80.65
-51%
118.19
-28%
118.58
-28%
98.74
-40%
165
0%
4K Read
60.21
42.43
-30%
33.2
-45%
25.31
-58%
40.56
-33%
47.26
-22%
60.2
0%
Seq Write
904
2148.72
138%
958.11
6%
1378.16
52%
2439.74
170%
926.26
2%
904
0%
Seq Read
1682
2927.09
74%
1422.58
-15%
1315.25
-22%
2955.46
76%
906.87
-46%
1682
0%
Totaal Gemiddelde (Programma / Instellingen)
47% / 49%
-15% / -13%
10% / 10%
51% / 55%
-14% / -13%
0% / 0%

* ... kleiner is beter

Kingston OM8PCP3512F-AB
Sequential Read: 1136 MB/s
Sequential Write: 979.4 MB/s
512K Read: 892.4 MB/s
512K Write: 977.5 MB/s
4K Read: 38.53 MB/s
4K Write: 121.2 MB/s
4K QD32 Read: 297.9 MB/s
4K QD32 Write: 495.7 MB/s

Continuous read performance: DiskSpd Read Loop, Queue Depth 8

0102030405060708090100110120130140150160170180190200210220230240250260Tooltip
: Ø255 (246.21-255.55)
3DMark 11 - 1280x720 Performance GPU
Asus TUF A15 FA506IV-HN172
NVIDIA GeForce RTX 2060 Mobile, AMD Ryzen 7 4800H
21480 Points ∼100%
Average NVIDIA GeForce RTX 2060 Mobile
  (19513 - 24617, n=26)
21077 Points ∼98% -2%
MSI GL65 9SEK
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-9750H
21075 Points ∼98% -2%
Lenovo Legion Y540-15IRH-81SX00B2GE
NVIDIA GeForce GTX 1660 Ti Mobile, Intel Core i7-9750H
19553 Points ∼91% -9%
Asus ROG GA502DU
NVIDIA GeForce GTX 1660 Ti Max-Q, AMD Ryzen 7 3750H
17170 Points ∼80% -20%
MSI Alpha 15 A3DDK-034
AMD Radeon RX 5500M, AMD Ryzen 7 3750H
16335 Points ∼76% -24%
Average of class Gaming
  (513 - 50983, n=687)
14394 Points ∼67% -33%
HP Omen 15-dc1020ng
NVIDIA GeForce GTX 1650 Mobile, Intel Core i5-9300H
13447 Points ∼63% -37%
3DMark
2560x1440 Time Spy Graphics
Average NVIDIA GeForce RTX 2060 Mobile
  (5660 - 6910, n=28)
6177 Points ∼100% +2%
MSI GL65 9SEK
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-9750H
6159 Points ∼100% +2%
Asus TUF A15 FA506IV-HN172
NVIDIA GeForce RTX 2060 Mobile, AMD Ryzen 7 4800H
6043 Points ∼98%
Average of class Gaming
  (368 - 13013, n=223)
5948 Points ∼96% -2%
Asus ROG GA502DU
NVIDIA GeForce GTX 1660 Ti Max-Q, AMD Ryzen 7 3750H
4867 Points ∼79% -19%
MSI Alpha 15 A3DDK-034
AMD Radeon RX 5500M, AMD Ryzen 7 3750H
4298 Points ∼70% -29%
HP Omen 15-dc1020ng
NVIDIA GeForce GTX 1650 Mobile, Intel Core i5-9300H
3565 Points ∼58% -41%
1920x1080 Fire Strike Graphics
MSI GL65 9SEK
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-9750H
16331 Points ∼100% +2%
Average NVIDIA GeForce RTX 2060 Mobile
  (14768 - 18114, n=30)
16215 Points ∼99% +2%
Asus TUF A15 FA506IV-HN172
NVIDIA GeForce RTX 2060 Mobile, AMD Ryzen 7 4800H
15967 Points ∼98%
Lenovo Legion Y540-15IRH-81SX00B2GE
NVIDIA GeForce GTX 1660 Ti Mobile, Intel Core i7-9750H
14288 Points ∼87% -11%
Asus ROG GA502DU
NVIDIA GeForce GTX 1660 Ti Max-Q, AMD Ryzen 7 3750H
13355 Points ∼82% -16%
MSI Alpha 15 A3DDK-034
AMD Radeon RX 5500M, AMD Ryzen 7 3750H
12441 Points ∼76% -22%
Average of class Gaming
  (385 - 40636, n=610)
12036 Points ∼74% -25%
HP Omen 15-dc1020ng
NVIDIA GeForce GTX 1650 Mobile, Intel Core i5-9300H
9536 Points ∼58% -40%
1280x720 Cloud Gate Standard Graphics
MSI GL65 9SEK
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-9750H
107016 Points ∼100% +93%
Average NVIDIA GeForce RTX 2060 Mobile
  (55324 - 116593, n=26)
96220 Points ∼90% +74%
Lenovo Legion Y540-15IRH-81SX00B2GE
NVIDIA GeForce GTX 1660 Ti Mobile, Intel Core i7-9750H
92951 Points ∼87% +68%
Average of class Gaming
  (5761 - 184578, n=588)
70801 Points ∼66% +28%
HP Omen 15-dc1020ng
NVIDIA GeForce GTX 1650 Mobile, Intel Core i5-9300H
57365 Points ∼54% +4%
Asus TUF A15 FA506IV-HN172
NVIDIA GeForce RTX 2060 Mobile, AMD Ryzen 7 4800H
55325 Points ∼52%
MSI Alpha 15 A3DDK-034
AMD Radeon RX 5500M, AMD Ryzen 7 3750H
46119 Points ∼43% -17%
Asus ROG GA502DU
NVIDIA GeForce GTX 1660 Ti Max-Q, AMD Ryzen 7 3750H
44557 Points ∼42% -19%
3DMark 11 Performance
17390 punten
3DMark Ice Storm Standard Score
72466 punten
3DMark Cloud Gate Standard Score
34649 punten
3DMark Fire Strike Score
14757 punten
3DMark Fire Strike Extreme Score
7382 punten
3DMark Time Spy Score
6256 punten
Help
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Average NVIDIA GeForce RTX 2060 Mobile
  (55.1 - 68.9, n=27)
60.6 fps ∼100% 0%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H, NVIDIA GeForce RTX 2060 Mobile
60.5 (min: 51, max: 68) fps ∼100%
MSI GL65 9SEK
Intel Core i7-9750H, NVIDIA GeForce RTX 2060 Mobile
58.7 fps ∼97% -3%
Lenovo Legion Y540-15IRH-81SX00B2GE
Intel Core i7-9750H, NVIDIA GeForce GTX 1660 Ti Mobile
53.1 (min: 50, max: 58, 99th percentile: 51) fps ∼88% -12%
Average of class Gaming
  (12.6 - 115, n=383)
52.4 fps ∼86% -13%
Asus ROG GA502DU
AMD Ryzen 7 3750H, NVIDIA GeForce GTX 1660 Ti Max-Q
48.8 fps ∼81% -19%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H, AMD Radeon RX 5500M
44.7 fps ∼74% -26%
HP Omen 15-dc1020ng
Intel Core i5-9300H, NVIDIA GeForce GTX 1650 Mobile
37 fps ∼61% -39%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
MSI GL65 9SEK
Intel Core i7-9750H, NVIDIA GeForce RTX 2060 Mobile
117.5 fps ∼100% +12%
Average NVIDIA GeForce RTX 2060 Mobile
  (74.4 - 131, n=25)
111 fps ∼94% +6%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H, NVIDIA GeForce RTX 2060 Mobile
105 (min: 90, max: 115) fps ∼89%
Average of class Gaming
  (11.1 - 194, n=327)
92.9 fps ∼79% -12%
Asus ROG GA502DU
AMD Ryzen 7 3750H, NVIDIA GeForce GTX 1660 Ti Max-Q
83.9 fps ∼71% -20%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H, AMD Radeon RX 5500M
73.3 fps ∼62% -30%
HP Omen 15-dc1020ng
Intel Core i5-9300H, NVIDIA GeForce GTX 1650 Mobile
62.2 fps ∼53% -41%
1366x768 Medium Graphics & Postprocessing
MSI GL65 9SEK
Intel Core i7-9750H, NVIDIA GeForce RTX 2060 Mobile
204 fps ∼100% +28%
Average NVIDIA GeForce RTX 2060 Mobile
  (158 - 215, n=19)
188 fps ∼92% +18%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H, NVIDIA GeForce RTX 2060 Mobile
160 (min: 142, max: 179) fps ∼78%
Average of class Gaming
  (20.9 - 284, n=204)
153 fps ∼75% -4%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H, AMD Radeon RX 5500M
129 fps ∼63% -19%
HP Omen 15-dc1020ng
Intel Core i5-9300H, NVIDIA GeForce GTX 1650 Mobile
109.6 fps ∼54% -31%
1024x768 Low Graphics & Postprocessing
MSI GL65 9SEK
Intel Core i7-9750H, NVIDIA GeForce RTX 2060 Mobile
286 fps ∼100% +50%
Average NVIDIA GeForce RTX 2060 Mobile
  (189 - 295, n=20)
262 fps ∼92% +37%
Average of class Gaming
  (17 - 414, n=190)
216 fps ∼76% +13%
Asus TUF A15 FA506IV-HN172
AMD Ryzen 7 4800H, NVIDIA GeForce RTX 2060 Mobile
191 (min: 167, max: 211) fps ∼67%
MSI Alpha 15 A3DDK-034
AMD Ryzen 7 3750H, AMD Radeon RX 5500M
173.6 fps ∼61% -9%
HP Omen 15-dc1020ng
Intel Core i5-9300H, NVIDIA GeForce GTX 1650 Mobile
157.1 fps ∼55% -18%
Asus ROG GA502DU
AMD Ryzen 7 3750H, NVIDIA GeForce GTX 1660 Ti Max-Q
138.4 fps ∼48% -28%
0510152025303540455055606570Tooltip
Asus TUF A15 FA506IV-HN172 GeForce RTX 2060 Mobile, R7 4800H, Kingston OM8PCP3512F-AB: Ø58.6 (54-62)
lage gem. hoge ultra
BioShock Infinite (2013) 232 209 189 119 fps
The Witcher 3 (2015) 191 160 105 60.5 fps
Dota 2 Reborn (2015) 103.8 94.7 85.4 81.3 fps
Rise of the Tomb Raider (2016) 99.7 124 85.2 fps
X-Plane 11.11 (2018) 69.9 63.9 55.6 fps

Geluidsniveau

Onbelast
30.2 / 30.2 / 30.2 dB (A)
Belasting
40 / 49 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 30.2 dB(A)

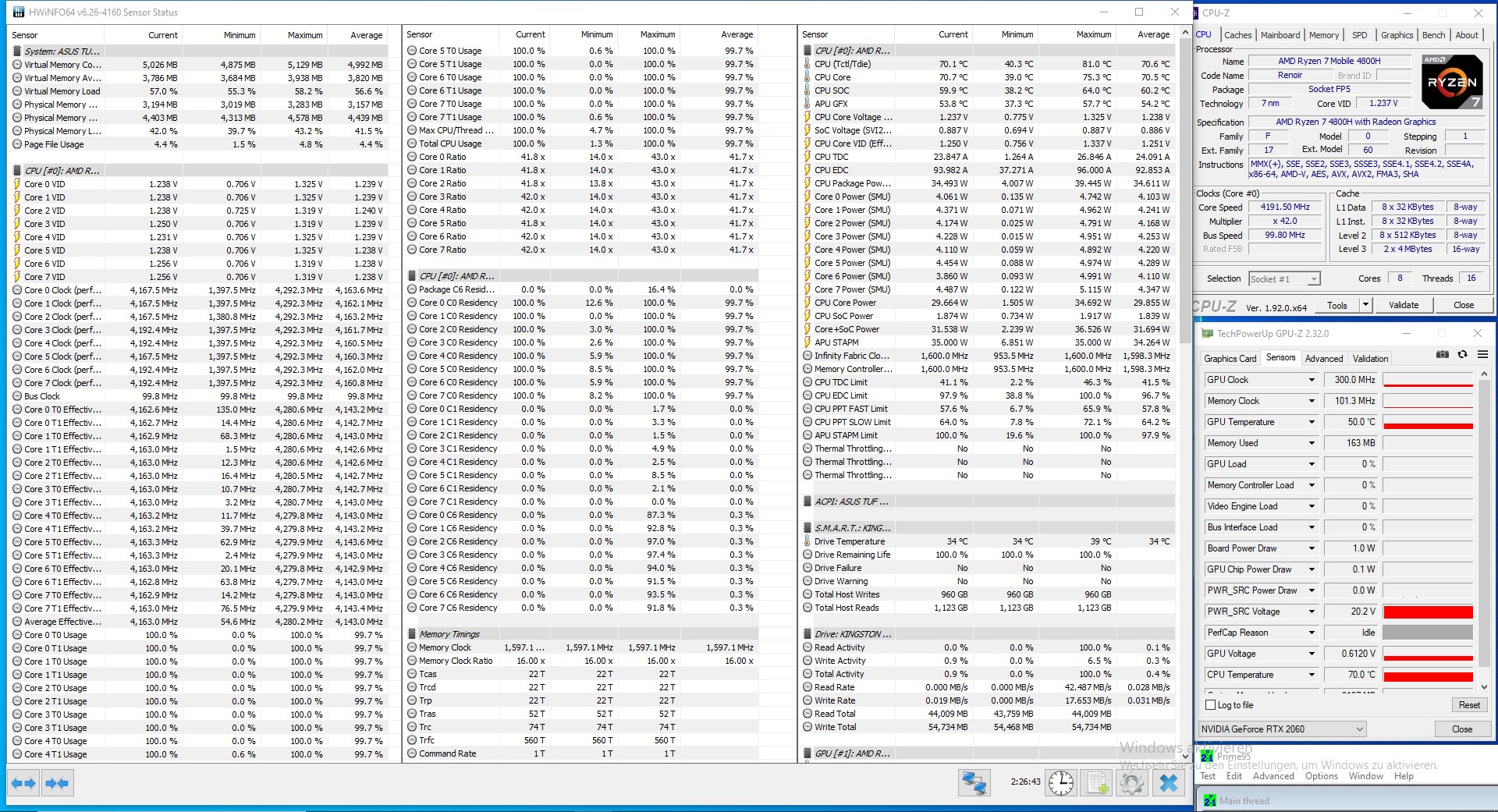

Stresstest: alleen Prime95
Stresstest: alleen Prime95
Stresstest: alleen FurMark
Stresstest: alleen FurMark
Max. Belasting
 37.8 °C42.9 °C42.6 °C
 30.3 °C41.9 °C38.4 °C
 26.2 °C26.9 °C26.9 °C
Maximum: 42.9 °C
Gemiddelde: 34.9 °C
49.9 °C42.2 °C44.2 °C
34 °C35.5 °C27.2 °C
27 °C26.4 °C26.4 °C
Maximum: 49.9 °C
Gemiddelde: 34.8 °C
Stroomadapter (max.)  39.2 °C | Kamertemperatuur 23.7 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 34.9 °C / 95 F, compared to the average of 33.3 °C / 92 F for the devices in the class Gaming.
(±) The maximum temperature on the upper side is 42.9 °C / 109 F, compared to the average of 39.7 °C / 103 F, ranging from 21.6 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 49.9 °C / 122 F, compared to the average of 42.5 °C / 109 F
(+) In idle usage, the average temperature for the upper side is 26.4 °C / 80 F, compared to the device average of 33.3 °C / 92 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 32.9 °C / 91 F, compared to the device average of 33.3 °C / 92 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.9 °C / 80.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (+1.9 °C / 3.4 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.533.22528.530.83127.430.34026.528.75024.927.86325.327.4802328.51002228.512522.328.816022.239.920022.151.325020.958.231520.657.640020.357.650019.660.463019.365.580018.766.3100018.463.8125018.166.4160017.265.5200016.766.5250016.468.3315015.667.7400015.565.4500015.661.7630015.564.2800015.561.81000015.357.11250014.960.9160001560.4SPL29.377.4N1.240.7median 18.1median 61.7Delta2.56.7hearing rangehide median Pink NoiseLenovo Legion Y540-15IRH-81SX00B2GE
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo Legion Y540-15IRH-81SX00B2GE audio analysis

(±) | speaker loudness is average but good (77.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.7% lower than median
(±) | linearity of bass is average (11.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (4.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(+) | highs are linear (5.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16% difference to median)
Compared to same class
» 40% of all tested devices in this class were better, 7% similar, 53% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 19% of all tested devices were better, 4% similar, 77% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Stroomgebruik
Uit / Standbydarklight 0.5 / 0.7 Watt
Inactiefdarkmidlight 5.4 / 10 / 10.5 Watt
Belasting midlight 135 / 147 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus TUF A15 FA506IV-HN172
R7 4800H, GeForce RTX 2060 Mobile, Kingston OM8PCP3512F-AB, IPS, 1920x1080, 15.6
Lenovo Legion Y540-15IRH-81SX00B2GE
i7-9750H, GeForce GTX 1660 Ti Mobile, WDC PC SN720 SDAPNTW-512G, IPS, 1920x1080, 15.6
MSI Alpha 15 A3DDK-034
R7 3750H, Radeon RX 5500M, Kingston RBUSNS8154P3512GJ, IPS, 1920x1080, 15.6
MSI GL65 9SEK
i7-9750H, GeForce RTX 2060 Mobile, WDC PC SN520 SDAPNUW-512G, IPS, 1920x1080, 15.6
HP Omen 15-dc1020ng
i5-9300H, GeForce GTX 1650 Mobile, WDC PC SN720 SDAQNTW-512G, IPS, 1920x1080, 15.6
Asus ROG GA502DU
R7 3750H, GeForce GTX 1660 Ti Max-Q, Intel SSD 660p SSDPEKNW512G8, IPS, 1920x1080, 15.6
Average NVIDIA GeForce RTX 2060 Mobile

Average of class Gaming

Power Consumption
-56%
-68%
-230%
20%
-36%
-72%
-116%
Idle Minimum *
5.4
14.5
-169%
14
-159%
41
-659%
4.04
25%
7.4
-37%
12.8 (3.2 - 41, n=25)
-137%
19 (1.9 - 113, n=767)
-252%
Idle Average *
10
18.5
-85%
18
-80%
45.3
-353%
7.2
28%
8.6
14%
18 (6.9 - 45.3, n=25)
-80%
24.4 (6 - 119, n=767)
-144%
Idle Maximum *
10.5
20
-90%
32
-205%
47.1
-349%
11.4
-9%
39.1
-272%
24.6 (8.5 - 47.1, n=25)
-134%
30 (8.3 - 122, n=767)
-186%
Load Average *
135
81.6
40%
64
53%
94.9
30%
80.8
40%
65.9
51%
104 (82 - 135, n=25)
23%
104 (14.1 - 319, n=758)
23%
Witcher 3 ultra *
144
132
8%
123
15%
149.4
-4%
93.6
35%
106.9
26%
Load Maximum *
147
208.1
-42%
193
-31%
214.2
-46%
144.5
2%
141.3
4%
196 (145 - 243, n=25)
-33%
175 (21.9 - 590, n=757)
-19%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
9h 47min
NBC WiFi Websurfing Battery Test 1.3 (EDGE: 44.18362.449.0)
6h 10min
NBC WiFi Websurfing Battery Test 1.3 max Brightness (EDGE: 44.18362.449.0)
5h 29min
Big Buck Bunny H.264 1080p
5h 22min
Belast (maximale helderheid)
1h 56min
Asus TUF A15 FA506IV-HN172
R7 4800H, GeForce RTX 2060 Mobile, 48 Wh
Lenovo Legion Y540-15IRH-81SX00B2GE
i7-9750H, GeForce GTX 1660 Ti Mobile, 57 Wh
MSI Alpha 15 A3DDK-034
R7 3750H, Radeon RX 5500M, 51 Wh
MSI GL65 9SEK
i7-9750H, GeForce RTX 2060 Mobile, 51 Wh
HP Omen 15-dc1020ng
i5-9300H, GeForce GTX 1650 Mobile, 52.5 Wh
Asus ROG GA502DU
R7 3750H, GeForce GTX 1660 Ti Max-Q, 76 Wh
Average of class Gaming

Batterijduur
-51%
-40%
-47%
19%
31%
-30%
Reader / Idle
587
240
-59%
349
-41%
262
-55%
951
62%
916
56%
357 (39 - 1174, n=714)
-39%
H.264
322
234
-27%
482
50%
262 (88 - 554, n=158)
-19%
WiFi v1.3
370
145
-61%
245
-34%
230
-38%
385
4%
482
30%
264 (62 - 622, n=426)
-29%
Load
116
76
-34%
49
-58%
60
-48%
71
-39%
123
6%
79.6 (18 - 243, n=681)
-31%
Witcher 3 ultra
59
56.5 (50 - 66, n=6)
Maximale batterijlevensduur
Maximale batterijlevensduur

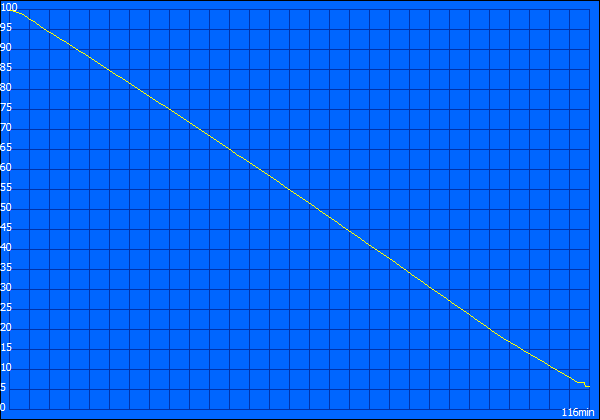

Minimale batterijlevensduur
Minimale batterijlevensduur
Wi-Fi looptijden (70% helderheid)
Wi-Fi looptijden (70% helderheid)

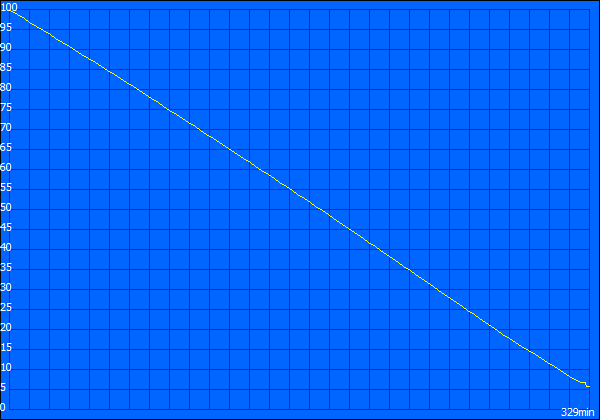

Wi-Fi looptijden (100% helderheid)
Wi-Fi looptijden (100% helderheid)

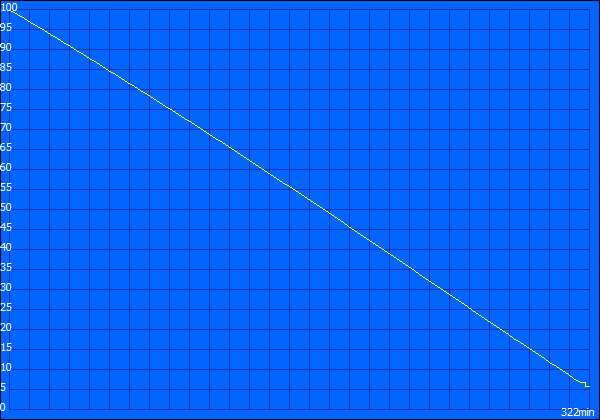

H.264 batterijlevensduur
H.264 batterijlevensduur

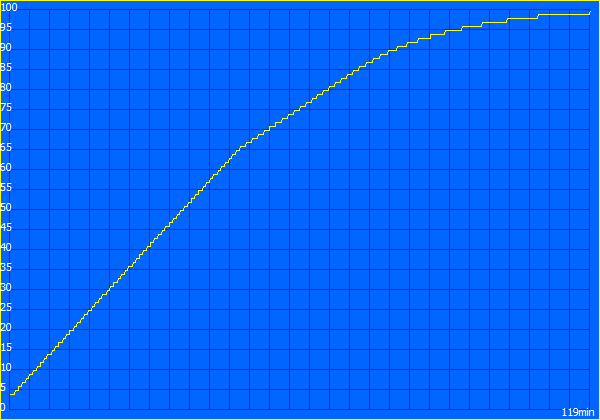

Laadtijden
Laadtijden

Pro

+ Ryzen 7 4800H biedt snellere multithread-prestaties dan de Core i7-10875H
+ GeForce RTX 2060 met 6 GB VRAM
+ 144-Hz scherm met goede contrastverhouding
+ speciale muisknoppen en geïntegreerde USB Type-C-poort
+ goede onderhoudsopties; 3x massaopslag, 2x SODIMM
+ goede batterijduur

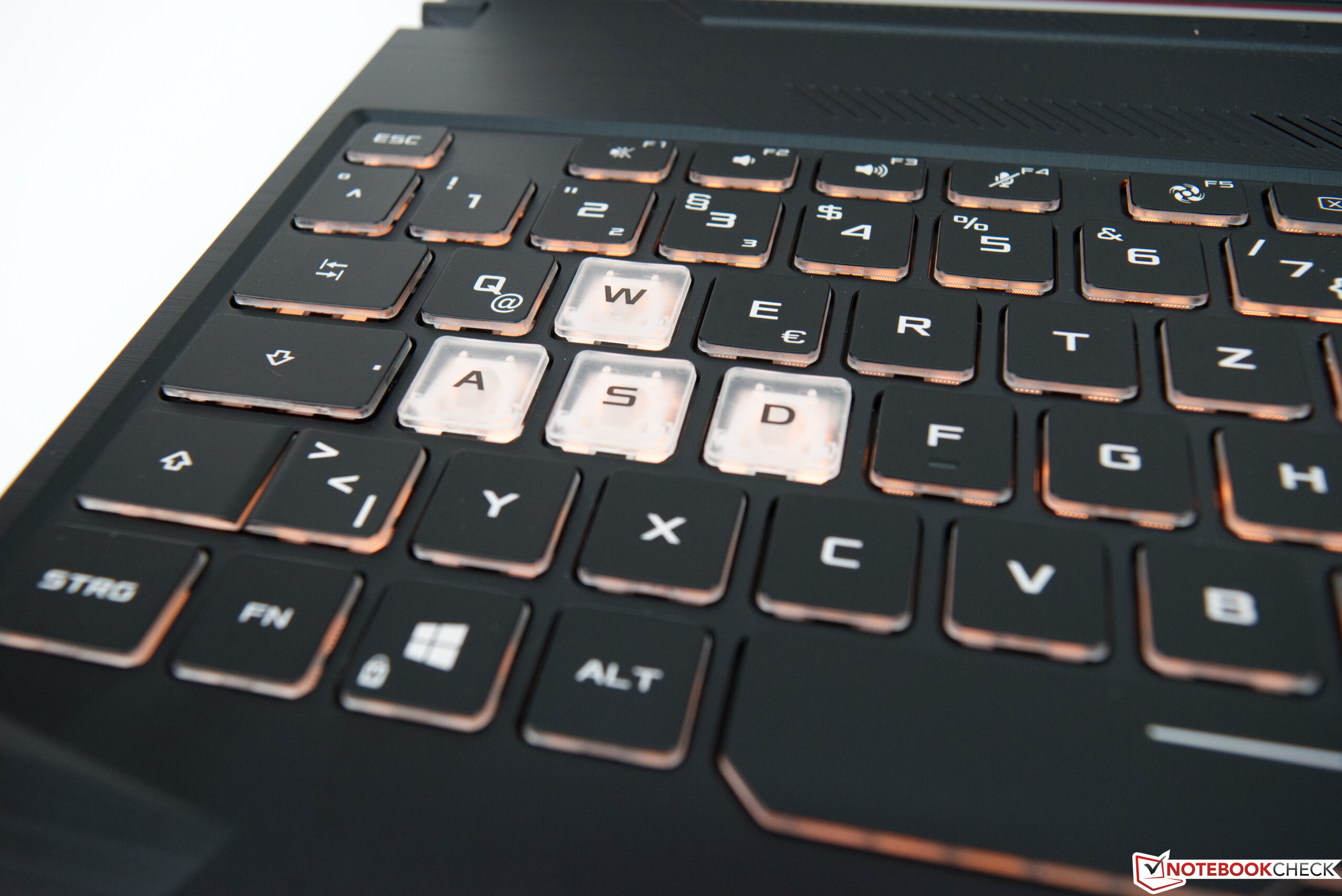

+ verlicht toetsenbord

Contra

- geen webcam-schuifregelaar, IR of vingerafdruksensor
- geen RGB-verlichting per toets, geen Thunderbolt 3
- geen SD-kaartlezer
- kleine pijltoetsen
- slecht kleurengamma
- geen wifi 6
- slechts 8 GB RAM

Verdict - Competitive Price and Solid Performance

Getest: Asus TUF A15 FA506, geleverd door Asus Germany
Getest: Asus TUF A15 FA506, geleverd door Asus Germany

Voor het volledige, Engelse testrapport, klik hier.

De Asus TUF A15 FA506 is een gaming-laptop met geweldige hardware voor een eerlijke prijs. Het apparaat kan worden gekocht bij verschillende online winkels voor minder dan 1300 euro en wordt geleverd met de gloednieuwe AMD Ryzen 7 4800H CPU, die dankzij zijn acht cores beter presteert dan zijn Intel-tegenhanger. Deze processor is een solide gaming-CPU en geschikt als basis voor een gaming-machine, die zelfs zeer veeleisende games met maximale details draait in combinatie met de Nvidia GeForce RTX 2060.

Over weergavekwaliteit gesproken, het geïnstalleerde scherm biedt een geweldige contrastverhouding en een snelle verversingssnelheid van 144 Hz. Verder is er geen PWM en dus ook geen extra vermoeide ogen bij langdurig gebruik. Dat gezegd hebbende, waren we teleurgesteld over het kleine kleurengamma. De behuizing is redelijk, hoewel het ons vanwege de volledig plastic constructie niet volledig weet te overtuigen. Daarentegen hebben we helemaal geen klachten als het gaat om ruwe prestaties, die gedeeltelijk kunnen worden toegeschreven aan de AMD SoC. Vergelijkbare apparaten in deze prijsklasse zijn doorgaans beperkt tot 6-core processors. Het is moeilijk om te klagen over twee extra cores voor dezelfde prijs.

Met goede prestaties en een scherpe prijs is de Asus TUF A15 FA506 zeker het overwegen waard als je op zoek bent naar een goedkope gaming laptop.

Verder is de accuduur verrassend goed, wat niet vanzelfsprekend is, zeker niet op een gaming-notebook. Als je geïnteresseerd bent in dit systeem, zijn RAM en opslagupgrade-opties de moeite van overwegen waard. Helaas is ons model alleen uitgerust met de absolute minimale geheugenconfiguratie voor een gaming-laptop. Dat gezegd hebbende, 8 GB RAM en 512 GB SSD-opslag zijn nog steeds voldoende voor veel taken en applicaties.

Asus TUF A15 FA506IV-HN172 - 09-06-2020 v7
Sebastian Bade

Behuizing
81 / 98 → 83%
Toetsenbord
81%
Aanwijsapparaat
86%
Aansluitmogelijkheden
58 / 80 → 72%
Gewicht
62 / 10-66 → 93%
Batterij
66 / 95 → 69%
Beeldscherm
81%
Gaming-performance
91%
Applicatie-performance
86%
Temperatuur
89 / 95 → 93%
Luidheid
83 / 90 → 93%
Audio
70%
Camera
39 / 85 → 46%
Gemiddelde
75%
83%
Gaming - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Asus TUF A15 met AMD Renoir en Nvidia Grafische Kaart
Sebastian Bade, 2020-07-14 (Update: 2020-07-14)
