Kort testrapport Acer Switch 7 Black Edition (i7-8550U, MX150) Convertible

Mike Wobker, 👁 Sebastian Jentsch, 07-12-2018

2 in 1 met een MX150. Het vlaggenschip van Acer, de Switch 7 Black Edition, biedt krachtige hardware en een innovatieve ventilatorloze koeloplossing. Zowel de Intel Core i7-8550U als de Nvidia GeForce MX150 worden gekoeld zonder ventilatoren. Lees hier hoe dit in het dagelijks leven werkt.

Acer Switch 7 BE SW713-51GNP (Switch 7 Serie)
Grafische kaart

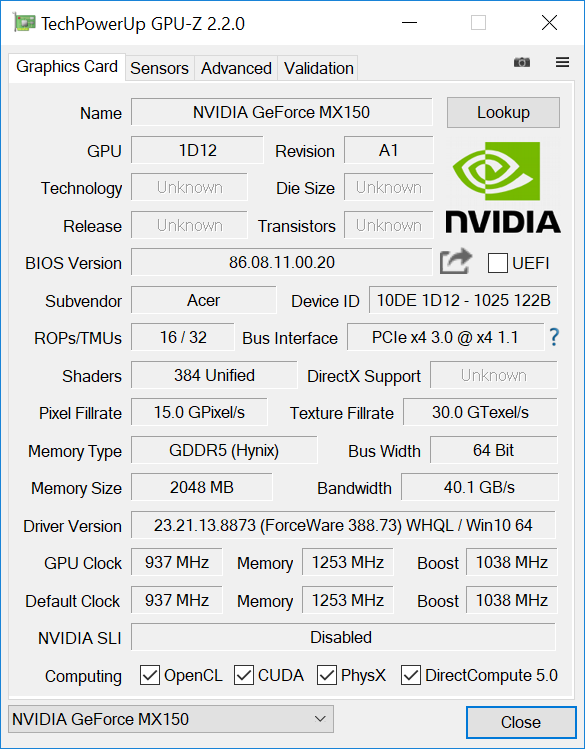

NVIDIA GeForce MX150 - 2048 MB, Core: 936 MHz, Geheugen: 5010 MHz, GDDR 5, GPU versie 1D12, 388.73, Intel UHD Graphics 620
Geheugen
16384 MB
, DDR3L
Beeldscherm
13.5 inch 7:5, 2256 x 1504 pixel 201 PPI, capacitief, native pen support, KL.1350W.001, IPS, glimmend: ja
Moederbord

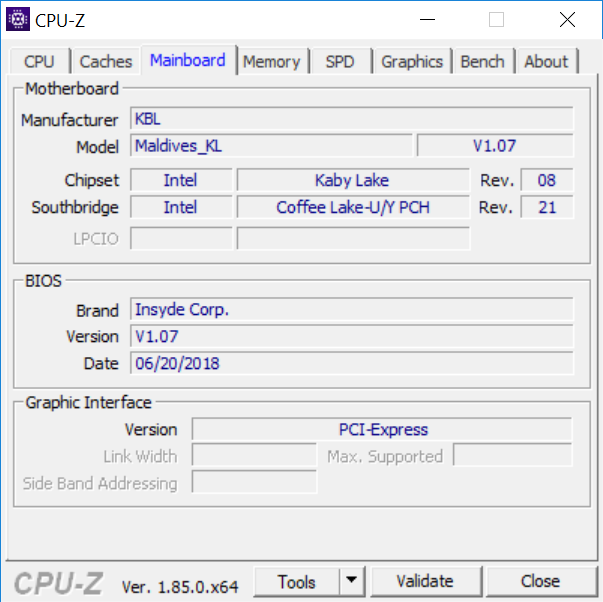

Intel Kaby Lake-U + iHDCP 2.2 Premium PCH
Opslag
Liteonit CV3-SD512, 512 GB
, LITEON CV3-SD512, 430 GB beschikbaar
Geluidskaart
Intel Kaby Lake-U/Y PCH - High Definition Audio
Verbindingen
1 USB 3.0, 1 Thunderbolt, Audio Verbindingen: gecombineerde audiopoort, Card Reader: microSD, 1 Vingerafdruklezer, USB Type-C
Netwerkmogelijkheden
Intel Dual Band Wireless-AC 7265 (a/b/g/h/n/ac), Bluetooth 4.0
Afmetingen
hoogte x breedte x diepte (in mm): 15.29 x 329.4 x 236.4
Batterij
4870 mAh Lithium-Polymer, Batterijduur: 10 h
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera

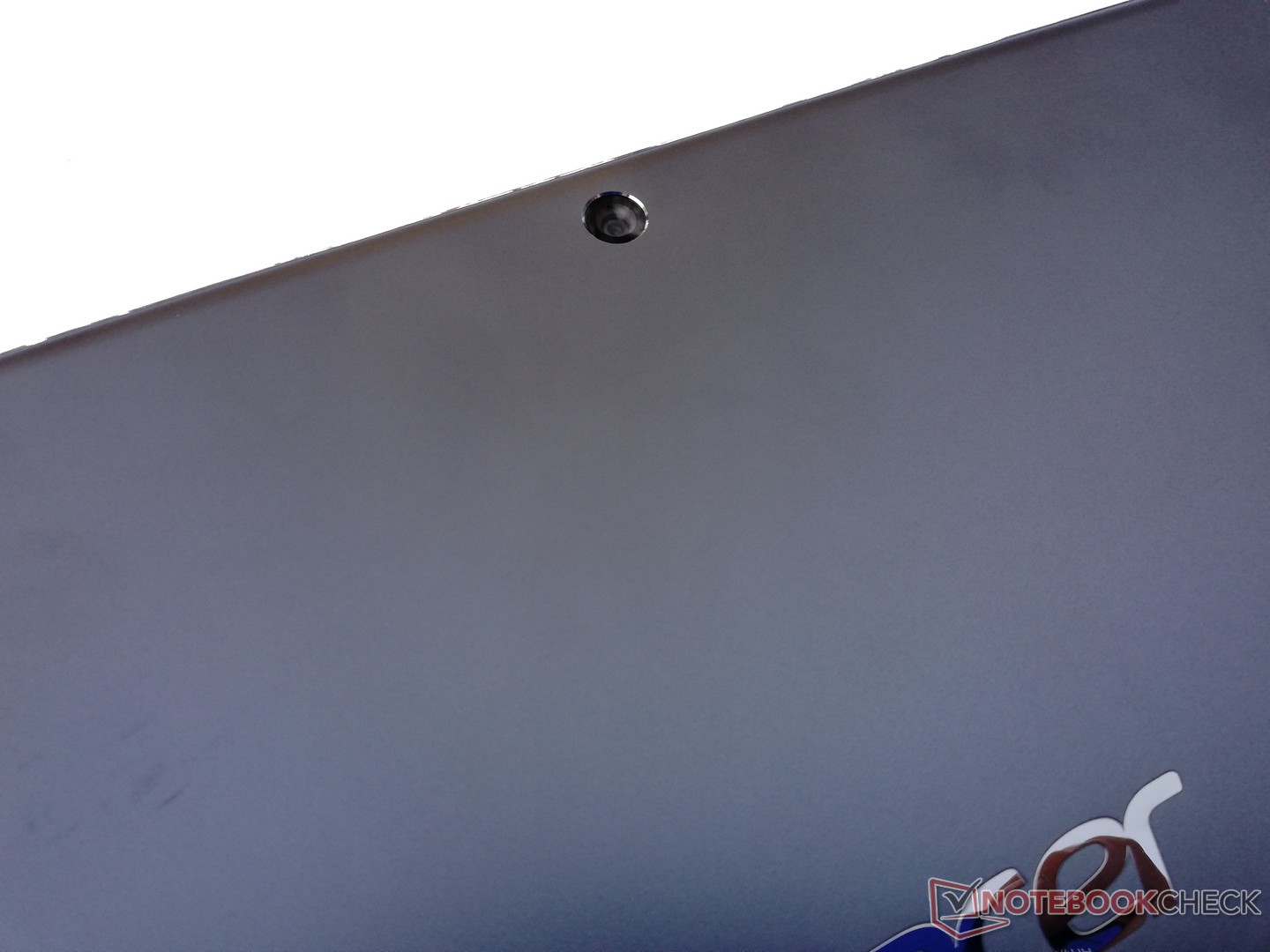

Primary Camera: 5 MPix
Secondary Camera: 2 MPix
Bijkomende functionaliteiten
Luidsprekers: stereo, Toetsenbord: chiclet-style, Toetsenbordverlichting: ja, Toetsenbordbedekking, Acer Active Pen, Norton Security, Acer Collection S, 24 Maanden Garantie, fanless
Gewicht
1.55 kg, Voeding: 335 g
Prijs
2000 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

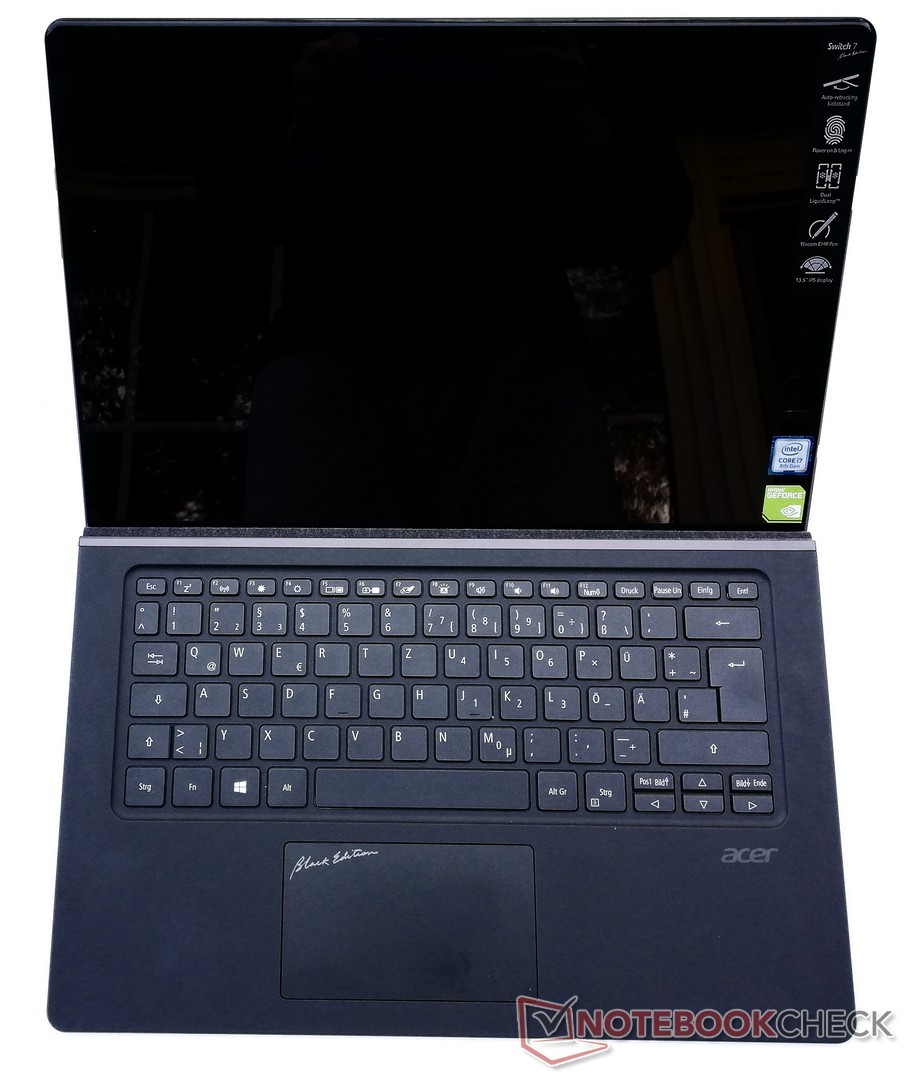

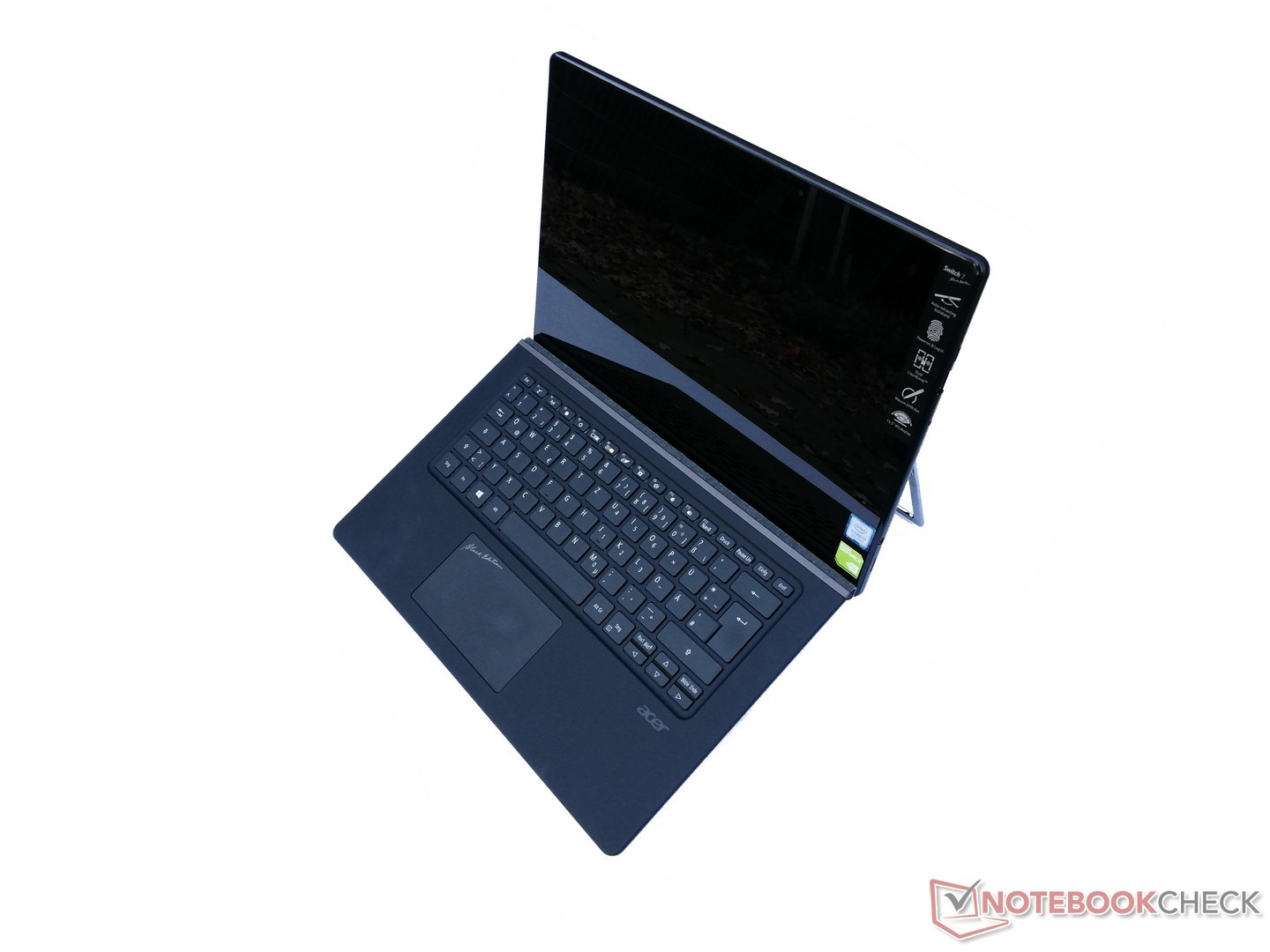

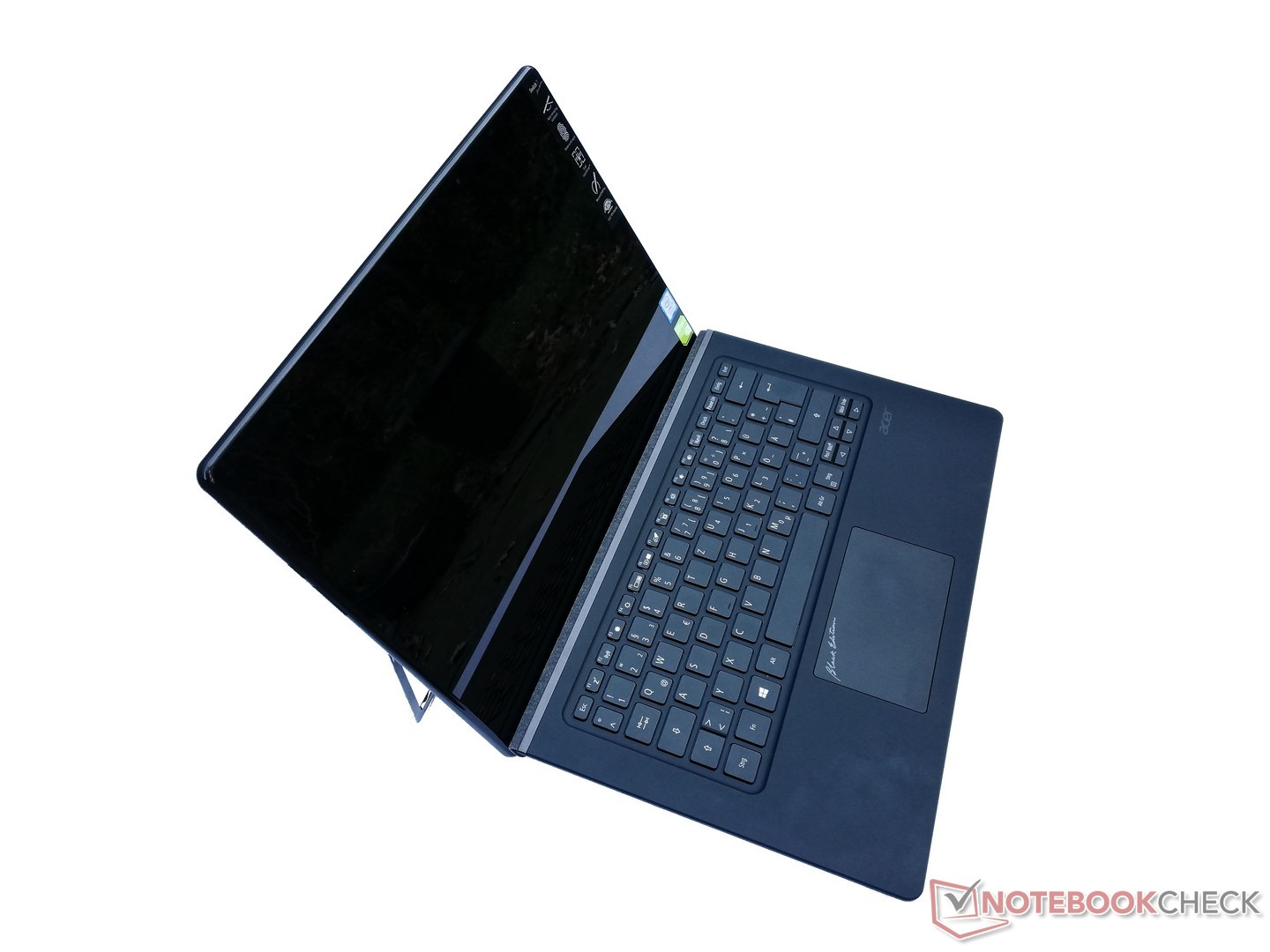

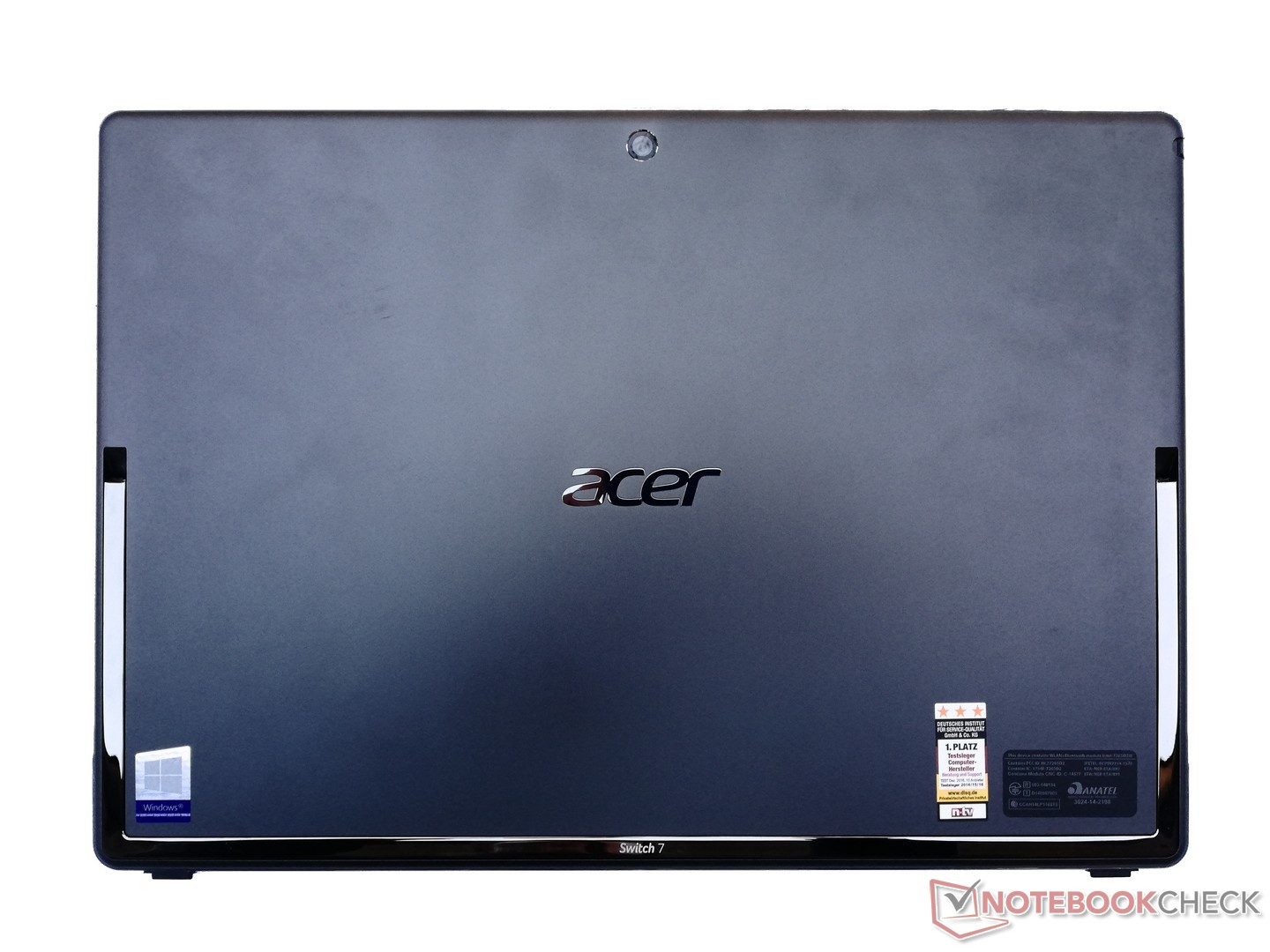

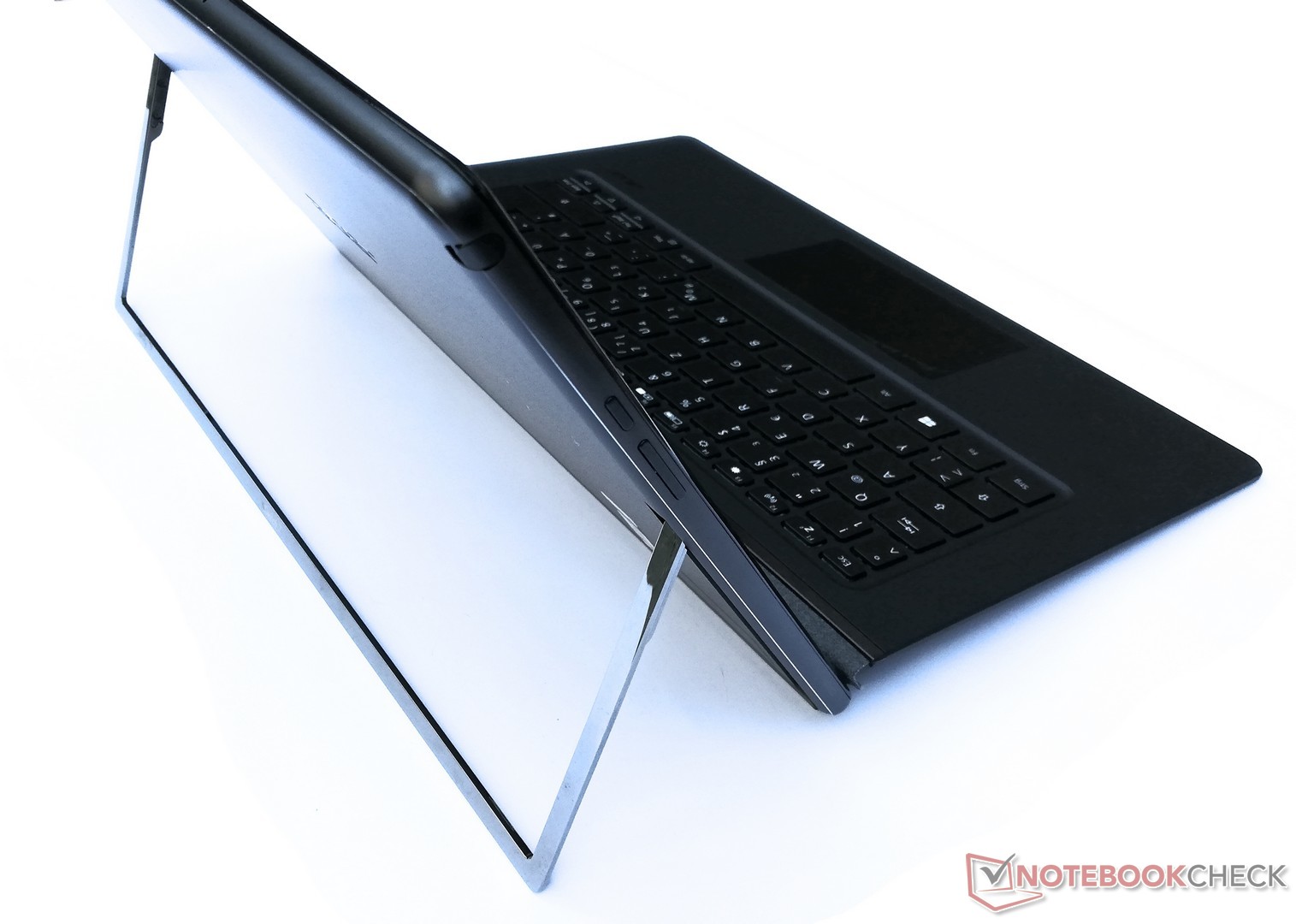

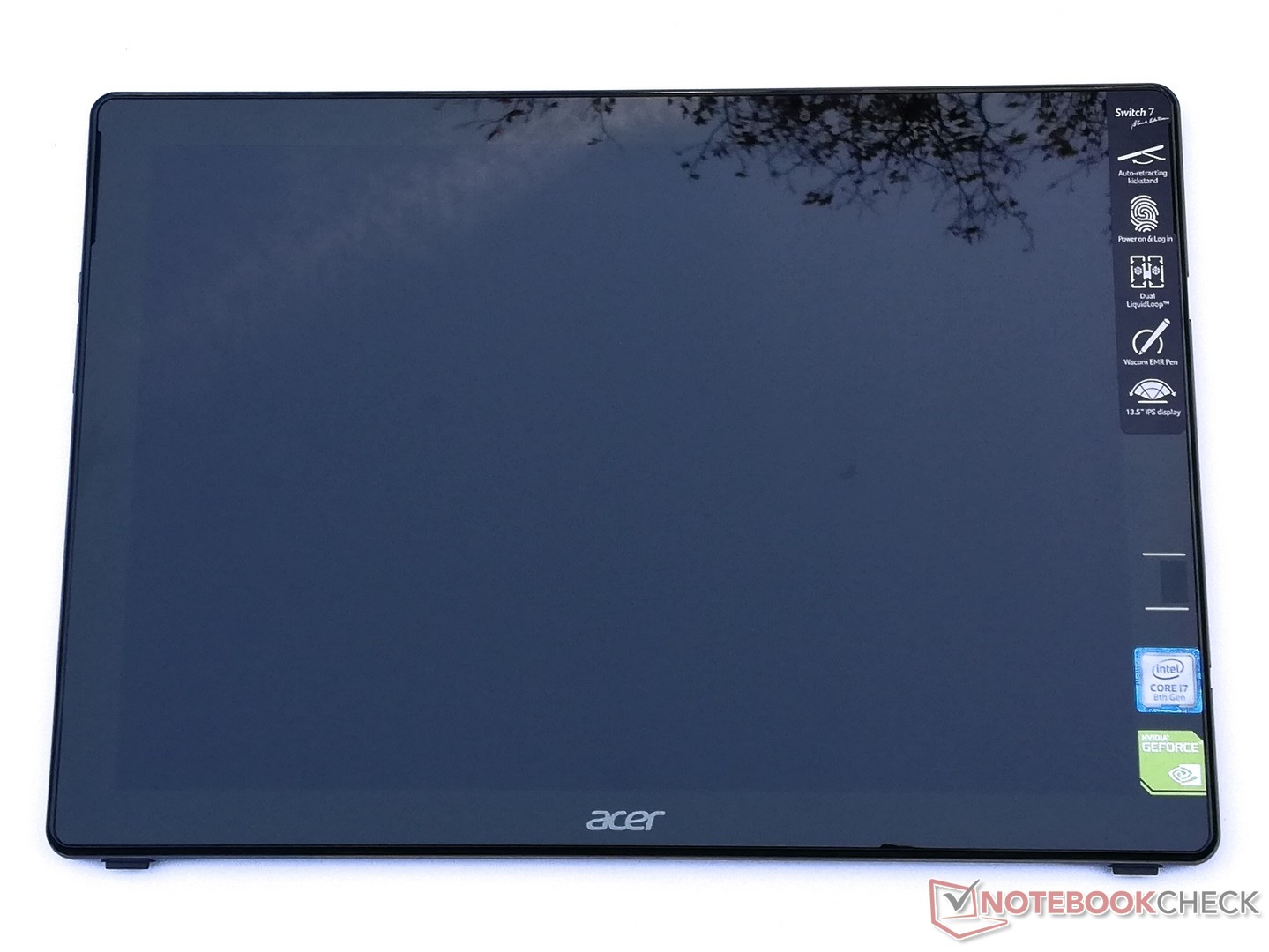

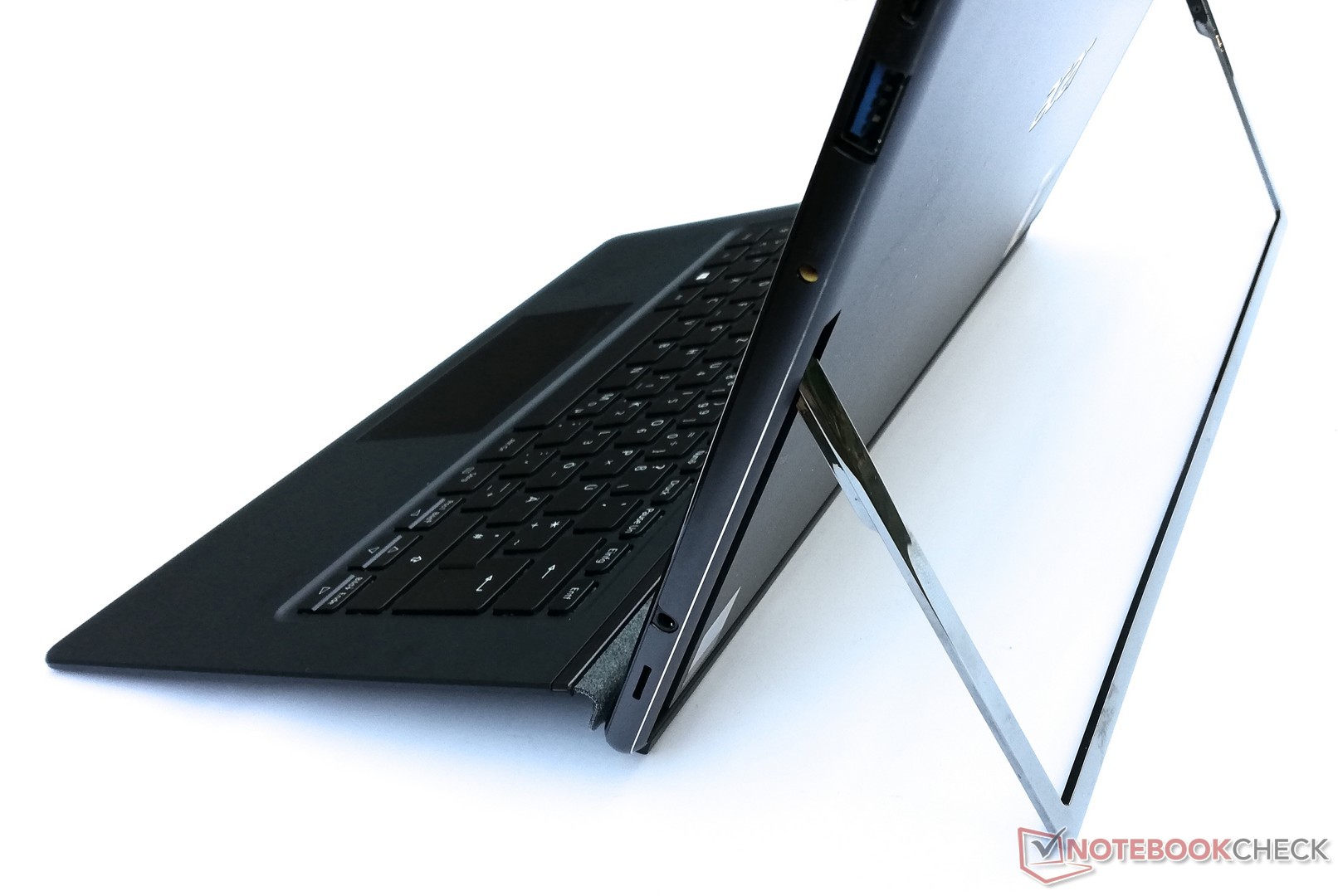

Acer Switch 7 Black Edition
Acer Switch 7 Black Edition
Acer Switch 7 Black Edition
Acer Switch 7 Black Edition
Acer Switch 7 Black Edition
Acer Switch 7 Black Edition
Acer Switch 7 Black Edition
Acer Switch 7 Black Edition
Acer Switch 7 Black Edition

Size Comparison

333 mm 229 mm 17.05 mm 1.4 kg329.4 mm 236.4 mm 15.29 mm 1.6 kg315 mm 250 mm 18 mm 1.4 kg300 mm 231.5 mm 7.9 mm 1.2 kg292 mm 201 mm 8.5 mm 1.1 kg

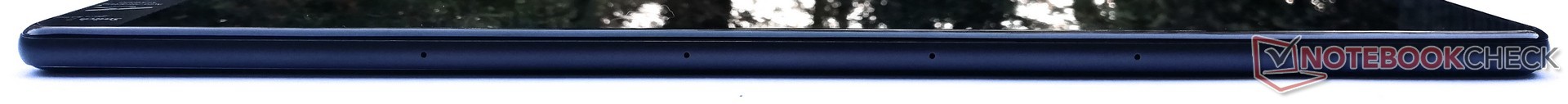

Onderkant: aansluitingen voor toetsenbordbedekking
Onderkant: aansluitingen voor toetsenbordbedekking

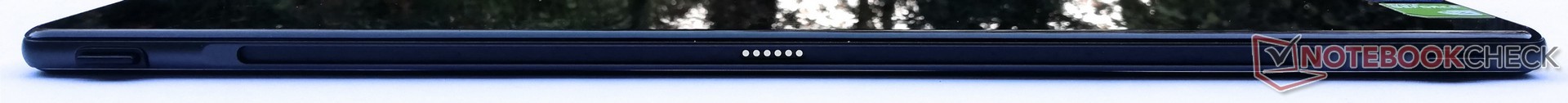

Bovenkant: microfoon
Bovenkant: microfoon

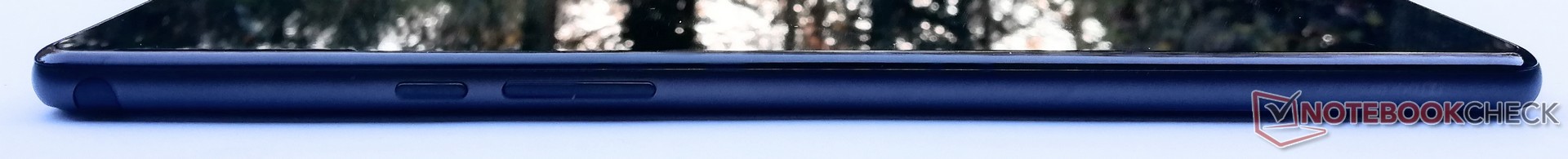

Linkerkant: Active Pen, aan/uitknop, volumeknop
Linkerkant: Active Pen, aan/uitknop, volumeknop

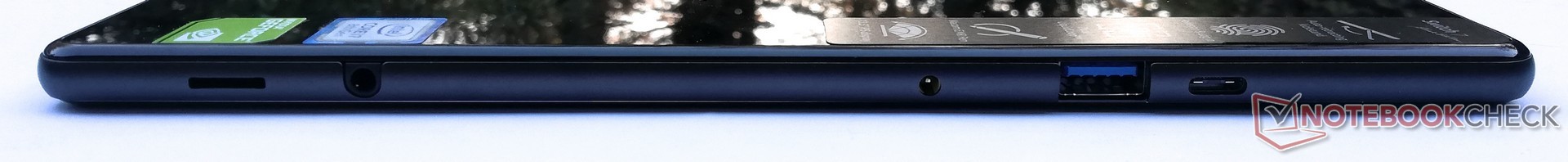

Rechterkant: microSD kaartslot, audiopoort, stroomaansluiting, USB 3.1 Type-A port, Thunderbolt poort
Rechterkant: microSD kaartslot, audiopoort, stroomaansluiting, USB 3.1 Type-A port, Thunderbolt poort
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
  (Toshiba Exceria Pro M501)
191.1 MB/s ∼100% +172%
Microsoft Surface Pro 6, Core i7, 512 GB
  (Toshiba Exceria Pro M501 microSDXC 64GB)
78.5 MB/s ∼41% +12%
Fujitsu Stylistic Q738
  (Toshiba Exceria Pro M501 microSDXC 64GB)
77.8 MB/s ∼41% +11%
Acer Switch 7 BE SW713-51GNP
  (Toshiba Exceria Pro M501 microSDXC 64GB)
70.2 MB/s ∼37%
Average of class Convertible
  (7.5 - 197, n=120)
59 MB/s ∼31% -16%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
  (Toshiba Exceria Pro M501)
223.9 MB/s ∼100% +168%
Microsoft Surface Pro 6, Core i7, 512 GB
  (Toshiba Exceria Pro M501 microSDXC 64GB)
86.4 MB/s ∼39% +4%
Acer Switch 7 BE SW713-51GNP
  (Toshiba Exceria Pro M501 microSDXC 64GB)
83.4 MB/s ∼37%
Fujitsu Stylistic Q738
  (Toshiba Exceria Pro M501 microSDXC 64GB)
76.3 MB/s ∼34% -9%
Average of class Convertible
  (21.7 - 246, n=118)
73.3 MB/s ∼33% -12%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Dual Band Wireless-AC 8265
633 MBit/s ∼100% +74%
Microsoft Surface Pro 6, Core i7, 512 GB
Marvell AVASTAR Wireless-AC Network Controller
593 (min: 560, max: 611) MBit/s ∼94% +63%
Average of class Convertible
  (28.7 - 678, n=133)
483 MBit/s ∼76% +33%
Acer Switch 7 BE SW713-51GNP
Intel Dual Band Wireless-AC 7265
364 (min: 233, max: 410) MBit/s ∼58%
HP Elite x2 1013 G3-2TT14EA
Intel Dual Band Wireless-AC 8265
314 MBit/s ∼50% -14%
iperf3 Client (transmit) TCP 1 m 4M x10
HP Elite x2 1013 G3-2TT14EA
Intel Dual Band Wireless-AC 8265
598 MBit/s ∼100% +169%
Microsoft Surface Pro 6, Core i7, 512 GB
Marvell AVASTAR Wireless-AC Network Controller
559 (min: 519, max: 577) MBit/s ∼93% +152%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Dual Band Wireless-AC 8265
511 MBit/s ∼85% +130%
Average of class Convertible
  (36.4 - 685, n=133)
492 MBit/s ∼82% +122%
Acer Switch 7 BE SW713-51GNP
Intel Dual Band Wireless-AC 7265
222 (min: 110, max: 353) MBit/s ∼37%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø363 (233-410)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø222 (110-353)
338
cd/m²
336
cd/m²
315
cd/m²
371
cd/m²
382
cd/m²
319
cd/m²
369
cd/m²
349
cd/m²
317
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 382 cd/m² Gemiddelde: 344 cd/m² Minimum: 20.7 cd/m²
Helderheidsverdeling: 82 %
Helderheid in Batterij-modus: 379 cd/m²
Contrast: 868:1 (Zwart: 0.44 cd/m²)
ΔE Color 6.23 | 0.6-29.43 Ø6.1, calibrated: 2.62
ΔE Greyscale 8.34 | 0.64-98 Ø6.3
95% sRGB (Argyll 3D) 61% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.43
Acer Switch 7 BE SW713-51GNP
KL.1350W.001, , 2256x1504, 13.5
Microsoft Surface Pro 6, Core i7, 512 GB
LGPhilips LP123WQ112604, , 2736x1824, 12.3
HP Elite x2 1013 G3-2TT14EA
AU Optronics AUO101A, , 3000x2000, 13
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Lenovo 40AE / B140QAN02.0, , 2560x1440, 14
Fujitsu Stylistic Q738
Sharp SHP149B, , 1920x1080, 13.3
Response Times
32%
28%
22%
43%
Response Time Grey 50% / Grey 80% *
59 (29, 30)
43 (21, 22)
27%
47 (23, 24)
20%
56.8 (21.2, 35.6)
4%
35 (17, 18)
41%
Response Time Black / White *
40 (22, 18)
25 (13, 12)
37%
26 (14, 12)
35%
24 (6.8, 17.2)
40%
22 (12, 10)
45%
PWM Frequency
22000 (50)
208 (10)
Screen
32%
19%
46%
14%
Brightness middle
382
484
27%
452
18%
562
47%
292
-24%
Brightness
344
473
38%
412
20%
522
52%
277
-19%
Brightness Distribution
82
91
11%
85
4%
86
5%
90
10%
Black Level *
0.44
0.33
25%
0.48
-9%
0.3
32%
0.32
27%
Contrast
868
1467
69%
942
9%
1873
116%
913
5%
Colorchecker DeltaE2000 *
6.23
4.29
31%
4.05
35%
2.8
55%
3.69
41%
Colorchecker DeltaE2000 max. *
12.41
6.46
48%
6.64
46%
5.8
53%
6.9
44%
Colorchecker DeltaE2000 calibrated *
2.62
1.34
49%
1.56
40%
Greyscale DeltaE2000 *
8.34
4.3
48%
4.87
42%
4.5
46%
4.11
51%
Gamma
2.43 91%
2.51 88%
2.71 81%
2.16 102%
2.3 96%
CCT
7853 83%
7315 89%
7160 91%
7205 90%
7140 91%
Color Space (Percent of AdobeRGB 1998)
61
62
2%
62
2%
88.9
46%
63
3%
Color Space (Percent of sRGB)
95
95
0%
97
2%
100
5%
97
2%
Totaal Gemiddelde (Programma / Instellingen)
32% / 32%
24% / 20%
34% / 42%
29% / 19%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

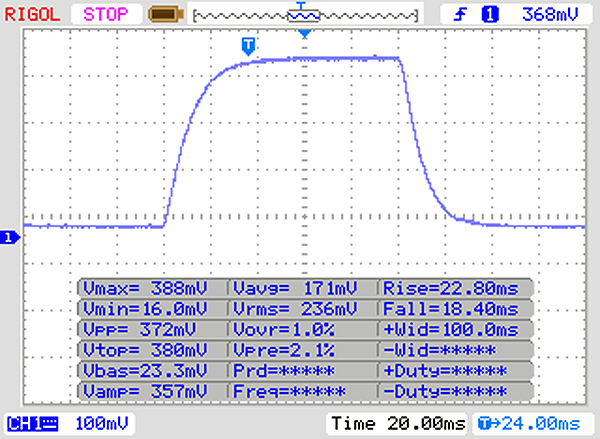

       Responstijd Zwart naar Wit
40 ms ... stijging ↗ en daling ↘ gecombineerd↗ 22 ms stijging
↘ 18 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 96 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (25.3 ms) van alle geteste toestellen.

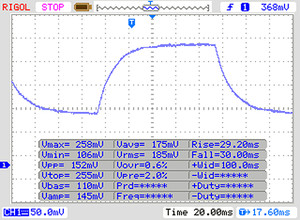

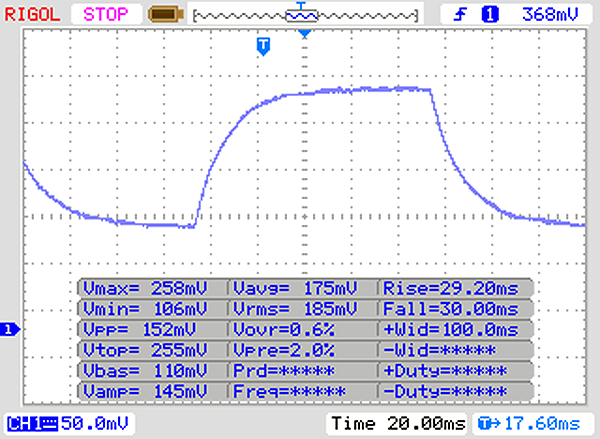

       Responstijd 50% Grijs naar 80% Grijs
59 ms ... stijging ↗ en daling ↘ gecombineerd↗ 29 ms stijging
↘ 30 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 94 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (40.4 ms) van alle geteste toestellen.

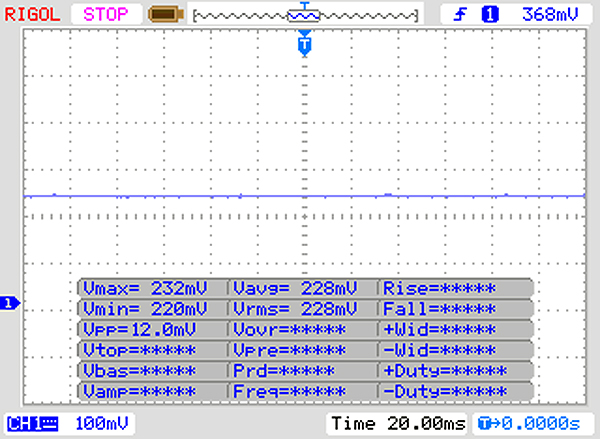

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9524 (minimum: 43 - maximum: 142900) Hz waargenomen.


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680Tooltip
Acer Switch 7 BE SW713-51GNP Intel Core i7-8550U, Intel Core i7-8550U: Ø435 (390.78-511.9)
Microsoft Surface Pro 6, Core i7, 512 GB Intel Core i7-8650U, Intel Core i7-8650U: Ø571 (559.56-638.59)
HP Elite x2 1013 G3-2TT14EA Intel Core i5-8350U, Intel Core i5-8350U: Ø486 (481.08-516.94)
Lenovo ThinkPad X1 Yoga 2018-20LES01W00 Intel Core i7-8550U, Intel Core i7-8550U: Ø607 (551.32-678.21)
Fujitsu Stylistic Q738 Intel Core i5-8350U, Intel Core i5-8350U: Ø330 (326.69-345.98)
Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Core i7-8550U
168 Points ∼100% +1%
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U
166 Points ∼99%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U
163 Points ∼97% -2%
Average Intel Core i7-8550U
  (108 - 172, n=74)
160 Points ∼95% -4%
HP Elite x2 1013 G3-2TT14EA
Intel Core i5-8350U
147 Points ∼88% -11%
Fujitsu Stylistic Q738
Intel Core i5-8350U
128 Points ∼76% -23%
Average of class Convertible
  (19 - 179, n=288)
103 Points ∼61% -38%
CPU Multi 64Bit
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Core i7-8550U
699 Points ∼100% +37%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U
639 Points ∼91% +25%
Average Intel Core i7-8550U
  (301 - 761, n=76)
570 Points ∼82% +11%
HP Elite x2 1013 G3-2TT14EA
Intel Core i5-8350U
517 Points ∼74% +1%
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U
512 Points ∼73%
Fujitsu Stylistic Q738
Intel Core i5-8350U
332 Points ∼47% -35%
Average of class Convertible
  (33 - 761, n=295)
288 Points ∼41% -44%
Cinebench R15 CPU Single 64Bit
166 Points
Cinebench R15 CPU Multi 64Bit
512 Points
Cinebench R15 OpenGL 64Bit
91.03 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Help
PCMark 10
Digital Content Creation
Average Intel Core i7-8550U, NVIDIA GeForce MX150
  (2036 - 3518, n=19)
2984 Points ∼100% +12%
Microsoft Surface Pro 6, Core i7, 512 GB
UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G
2952 Points ∼99% +11%
HP Elite x2 1013 G3-2TT14EA
UHD Graphics 620, 8350U, Samsung PM961 MZVLW256HEHP
2714 Points ∼91% +2%
Acer Switch 7 BE SW713-51GNP
GeForce MX150, 8550U, Liteonit CV3-SD512
2665 Points ∼89%
Average of class Convertible
  (605 - 4342, n=85)
2425 Points ∼81% -9%
Fujitsu Stylistic Q738
UHD Graphics 620, 8350U, Samsung SSD PM871b MZNLN256HAJQ
2103 Points ∼70% -21%
Productivity
Average Intel Core i7-8550U, NVIDIA GeForce MX150
  (4779 - 7244, n=19)
6104 Points ∼100% +28%
HP Elite x2 1013 G3-2TT14EA
UHD Graphics 620, 8350U, Samsung PM961 MZVLW256HEHP
5698 Points ∼93% +19%
Microsoft Surface Pro 6, Core i7, 512 GB
UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G
5353 Points ∼88% +12%
Average of class Convertible
  (1121 - 7077, n=87)
5139 Points ∼84% +8%
Fujitsu Stylistic Q738
UHD Graphics 620, 8350U, Samsung SSD PM871b MZNLN256HAJQ
5004 Points ∼82% +5%
Acer Switch 7 BE SW713-51GNP
GeForce MX150, 8550U, Liteonit CV3-SD512
4779 Points ∼78%
Essentials
HP Elite x2 1013 G3-2TT14EA
UHD Graphics 620, 8350U, Samsung PM961 MZVLW256HEHP
7919 Points ∼100% +30%
Average Intel Core i7-8550U, NVIDIA GeForce MX150
  (5448 - 8412, n=19)
7198 Points ∼91% +18%
Microsoft Surface Pro 6, Core i7, 512 GB
UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G
7039 Points ∼89% +16%
Fujitsu Stylistic Q738
UHD Graphics 620, 8350U, Samsung SSD PM871b MZNLN256HAJQ
6994 Points ∼88% +15%
Average of class Convertible
  (2489 - 9291, n=87)
6799 Points ∼86% +12%
Acer Switch 7 BE SW713-51GNP
GeForce MX150, 8550U, Liteonit CV3-SD512
6084 Points ∼77%
Score
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3829 Points ∼100% +25%
Average Intel Core i7-8550U, NVIDIA GeForce MX150
  (3056 - 4106, n=19)
3631 Points ∼95% +19%
HP Elite x2 1013 G3-2TT14EA
UHD Graphics 620, 8350U, Samsung PM961 MZVLW256HEHP
3559 Points ∼93% +16%
Microsoft Surface Pro 6, Core i7, 512 GB
UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G
3448 Points ∼90% +13%
Average of class Convertible
  (872 - 4347, n=88)
3095 Points ∼81% +1%
Acer Switch 7 BE SW713-51GNP
GeForce MX150, 8550U, Liteonit CV3-SD512
3056 Points ∼80%
Fujitsu Stylistic Q738
UHD Graphics 620, 8350U, Samsung SSD PM871b MZNLN256HAJQ
3004 Points ∼78% -2%
PCMark 8
Work Score Accelerated v2
Average Intel Core i7-8550U, NVIDIA GeForce MX150
  (4063 - 5228, n=20)
4771 Points ∼100% +7%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
4719 Points ∼99% +6%
Acer Switch 7 BE SW713-51GNP
GeForce MX150, 8550U, Liteonit CV3-SD512
4450 Points ∼93%
Microsoft Surface Pro 6, Core i7, 512 GB
UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G
4262 Points ∼89% -4%
HP Elite x2 1013 G3-2TT14EA
UHD Graphics 620, 8350U, Samsung PM961 MZVLW256HEHP
4200 Points ∼88% -6%
Average of class Convertible
  (1007 - 5281, n=217)
3683 Points ∼77% -17%
Home Score Accelerated v2
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
UHD Graphics 620, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3824 Points ∼100% +16%
Average Intel Core i7-8550U, NVIDIA GeForce MX150
  (3145 - 4130, n=21)
3656 Points ∼96% +11%
HP Elite x2 1013 G3-2TT14EA
UHD Graphics 620, 8350U, Samsung PM961 MZVLW256HEHP
3413 Points ∼89% +3%
Acer Switch 7 BE SW713-51GNP
GeForce MX150, 8550U, Liteonit CV3-SD512
3306 Points ∼86%
Microsoft Surface Pro 6, Core i7, 512 GB
UHD Graphics 620, 8650U, Toshiba KBG30ZPZ512G
3281 Points ∼86% -1%
Fujitsu Stylistic Q738
UHD Graphics 620, 8350U, Samsung SSD PM871b MZNLN256HAJQ
3063 Points ∼80% -7%
Average of class Convertible
  (741 - 4741, n=264)
2761 Points ∼72% -16%
PCMark 8 Home Score Accelerated v2
3306 punten
PCMark 8 Work Score Accelerated v2
4450 punten
Help
Acer Switch 7 BE SW713-51GNP
Liteonit CV3-SD512
Microsoft Surface Pro 6, Core i7, 512 GB
Toshiba KBG30ZPZ512G
HP Elite x2 1013 G3-2TT14EA
Samsung PM961 MZVLW256HEHP
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Samsung SSD PM981 MZVLB512HAJQ
Fujitsu Stylistic Q738
Samsung SSD PM871b MZNLN256HAJQ
Average Liteonit CV3-SD512

CrystalDiskMark 5.2 / 6
69%
173%
260%
1%
0%
Write 4K
61.38
83.23
36%
90.97
48%
138.8
126%
79.5
30%
61.4
0%
Read 4K
29.98
43.84
46%
36.84
23%
45.21
51%
19.71
-34%
30
0%
Write Seq
432.8
636.4
47%
1197
177%
1896
338%
385.2
-11%
433
0%
Read Seq
448
899.7
101%
1705
281%
2070
362%
435.9
-3%
448
0%
Write 4K Q32T1
226.7
192.9
-15%
355.8
57%
483.3
113%
222.4
-2%
227
0%
Read 4K Q32T1
302.2
247.36
-18%
256.9
-15%
451.8
50%
212.8
-30%
302
0%
Write Seq Q32T1
353
861.1
144%
1222
246%
2066
485%
533.8
51%
353
0%
Read Seq Q32T1
521.3
1615
210%
3460
564%
3423
557%
543.5
4%
521
0%
AS SSD
4%
126%
13%
0%
Copy Game MB/s
676.35
512.25
Copy Program MB/s
143.11
237.29
Copy ISO MB/s
984.55
760.7
Score Total
941
1225
30%
2105
124%
1052
12%
941
0%
Score Write
333
280
-16%
770
131%
384
15%
333
0%
Score Read
399
644
61%
917
130%
444
11%
399
0%
Access Time Write *
0.08
0.3
-275%
0.041
49%
0.046
42%
0.08
-0%
Access Time Read *
0.213
0.063
0.148
4K-64 Write
243.69
171.3
-30%
596.11
145%
282.06
16%
244
0%
4K-64 Read
325.55
494.14
52%
669.32
106%
377.84
16%
326
0%
4K Write
43.98
68.95
57%
91.09
107%
76.73
74%
44
0%
4K Read
22.65
34.42
52%
41.45
83%
22.47
-1%
22.7
0%
Seq Write
456.86
393.6
-14%
831.85
82%
253.65
-44%
457
0%
Seq Read
508.5
1154.2
127%
2062.08
306%
432.89
-15%
509
0%
Totaal Gemiddelde (Programma / Instellingen)
37% / 33%
150% / 147%
260% / 260%
7% / 7%
0% / 0%

* ... kleiner is beter

Liteonit CV3-SD512
Sequential Read: 511.4 MB/s
Sequential Write: 389.8 MB/s
512K Read: 206 MB/s
512K Write: 237.8 MB/s
4K Read: 24.08 MB/s
4K Write: 51.36 MB/s
4K QD32 Read: 313.9 MB/s
4K QD32 Write: 221.1 MB/s
3DMark 11 - 1280x720 Performance GPU
Average NVIDIA GeForce MX150
  (2796 - 4905, n=47)
4191 Points ∼100% +20%
Acer Switch 7 BE SW713-51GNP
NVIDIA GeForce MX150, Intel Core i7-8550U
3486 Points ∼83%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel UHD Graphics 620, Intel Core i7-8650U
1977 Points ∼47% -43%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel UHD Graphics 620, Intel Core i7-8550U
1869 Points ∼45% -46%
HP Elite x2 1013 G3-2TT14EA
Intel UHD Graphics 620, Intel Core i5-8350U
1660 Points ∼40% -52%
Fujitsu Stylistic Q738
Intel UHD Graphics 620, Intel Core i5-8350U
1235 Points ∼29% -65%
Average of class Convertible
  (173 - 7483, n=316)
1217 Points ∼29% -65%
3DMark
2560x1440 Time Spy Graphics
Average NVIDIA GeForce MX150
  (830 - 1085, n=15)
985 Points ∼100%
Average of class Convertible
  (85 - 1682, n=27)
460 Points ∼47%
HP Elite x2 1013 G3-2TT14EA
Intel UHD Graphics 620, Intel Core i5-8350U
335 Points ∼34%
1920x1080 Fire Strike Graphics
Average NVIDIA GeForce MX150
  (2323 - 3739, n=44)
3310 Points ∼100% +17%
Acer Switch 7 BE SW713-51GNP
NVIDIA GeForce MX150, Intel Core i7-8550U
2837 Points ∼86%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel UHD Graphics 620, Intel Core i7-8550U
1288 Points ∼39% -55%
HP Elite x2 1013 G3-2TT14EA
Intel UHD Graphics 620, Intel Core i5-8350U
1131 Points ∼34% -60%
Average of class Convertible
  (132 - 5965, n=225)
984 Points ∼30% -65%
1280x720 Cloud Gate Standard Graphics
Average NVIDIA GeForce MX150
  (16227 - 22183, n=43)
19512 Points ∼100% +7%
Acer Switch 7 BE SW713-51GNP
NVIDIA GeForce MX150, Intel Core i7-8550U
18258 Points ∼94%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel UHD Graphics 620, Intel Core i7-8550U
10493 Points ∼54% -43%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel UHD Graphics 620, Intel Core i7-8650U
10213 Points ∼52% -44%
HP Elite x2 1013 G3-2TT14EA
Intel UHD Graphics 620, Intel Core i5-8350U
8330 Points ∼43% -54%
Average of class Convertible
  (1023 - 37388, n=276)
6547 Points ∼34% -64%
3DMark 11 Performance
3800 punten
3DMark Cloud Gate Standard Score
12420 punten
3DMark Fire Strike Score
2575 punten
Help
01020Tooltip
Acer Switch 7 BE SW713-51GNP GeForce MX150, 8550U, Liteonit CV3-SD512: Ø17.8 (17-19)
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF)
Average NVIDIA GeForce MX150
  (27.8 - 35.2, n=33)
31.8 fps ∼100% +6%
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U, NVIDIA GeForce MX150
30 fps ∼94%
Average of class Convertible
  (2.7 - 60, n=137)
10.5 fps ∼33% -65%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U, Intel UHD Graphics 620
10.2 fps ∼32% -66%
HP Elite x2 1013 G3-2TT14EA
Intel Core i5-8350U, Intel UHD Graphics 620
8.7 fps ∼27% -71%
Fujitsu Stylistic Q738
Intel Core i5-8350U, Intel UHD Graphics 620
7.4 fps ∼23% -75%
1366x768 High Preset
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U, NVIDIA GeForce MX150
88 fps ∼100%
Average NVIDIA GeForce MX150
  (59.7 - 98, n=33)
83.5 fps ∼95% -5%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U, Intel UHD Graphics 620
33.7 fps ∼38% -62%
HP Elite x2 1013 G3-2TT14EA
Intel Core i5-8350U, Intel UHD Graphics 620
26.8 fps ∼30% -70%
Average of class Convertible
  (2.1 - 149, n=182)
25.1 fps ∼29% -71%
Fujitsu Stylistic Q738
Intel Core i5-8350U, Intel UHD Graphics 620
20.9 fps ∼24% -76%
1366x768 Medium Preset
Average NVIDIA GeForce MX150
  (60 - 115, n=33)
98.1 fps ∼100% +5%
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U, NVIDIA GeForce MX150
93 fps ∼95%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U, Intel UHD Graphics 620
40.9 fps ∼42% -56%
HP Elite x2 1013 G3-2TT14EA
Intel Core i5-8350U, Intel UHD Graphics 620
31.1 fps ∼32% -67%
Average of class Convertible
  (5.2 - 168, n=198)
28.7 fps ∼29% -69%
Fujitsu Stylistic Q738
Intel Core i5-8350U, Intel UHD Graphics 620
24.5 fps ∼25% -74%
1280x720 Very Low Preset
Average NVIDIA GeForce MX150
  (98.1 - 203, n=33)
163 fps ∼100% +30%
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U, NVIDIA GeForce MX150
125 fps ∼77%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U, Intel UHD Graphics 620
78.1 fps ∼48% -38%
HP Elite x2 1013 G3-2TT14EA
Intel Core i5-8350U, Intel UHD Graphics 620
60.6 fps ∼37% -52%
Average of class Convertible
  (8.35 - 247, n=199)
49.1 fps ∼30% -61%
Fujitsu Stylistic Q738
Intel Core i5-8350U, Intel UHD Graphics 620
43.8 fps ∼27% -65%
Thief
1920x1080 Very High Preset AA:FXAA & High SS AF:8x
Average NVIDIA GeForce MX150
  (16 - 23.2, n=6)
18.5 fps ∼100% +16%
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U, NVIDIA GeForce MX150
16 fps ∼86%
Average of class Convertible
  (1.2 - 40, n=22)
8.14 fps ∼44% -49%
1366x768 High Preset AA:FXAA & Low SS AF:4x
Average NVIDIA GeForce MX150
  (30.2 - 44.1, n=6)
33.8 fps ∼100% +6%
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U, NVIDIA GeForce MX150
32 fps ∼95%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U, Intel UHD Graphics 620
12.1 fps ∼36% -62%
Average of class Convertible
  (4 - 32, n=30)
11.6 fps ∼34% -64%
1366x768 Normal Preset AA:FX
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U, NVIDIA GeForce MX150
43 fps ∼100%
Average NVIDIA GeForce MX150
  (32.5 - 51.9, n=6)
39.5 fps ∼92% -8%
Average of class Convertible
  (5 - 43, n=38)
13.4 fps ∼31% -69%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U, Intel UHD Graphics 620
13.3 fps ∼31% -69%
1024x768 Very Low Preset
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U, NVIDIA GeForce MX150
70 fps ∼100%
Average NVIDIA GeForce MX150
  (41.5 - 79.2, n=6)
59.5 fps ∼85% -15%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U, Intel UHD Graphics 620
26.5 fps ∼38% -62%
Average of class Convertible
  (3.1 - 70, n=41)
21.2 fps ∼30% -70%
Rise of the Tomb Raider
1920x1080 Very High Preset AA:FX AF:16x
Average NVIDIA GeForce MX150
  (14.8 - 26, n=23)
18 fps ∼100% +20%
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U, NVIDIA GeForce MX150
15 fps ∼83%
Average of class Convertible
  (3 - 32.4, n=16)
14.3 fps ∼79% -5%
HP Elite x2 1013 G3-2TT14EA
Intel Core i5-8350U, Intel UHD Graphics 620
3.1 fps ∼17% -79%
1920x1080 High Preset AA:FX AF:4x
Average NVIDIA GeForce MX150
  (14.8 - 27, n=28)
20.9 fps ∼100% +16%
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U, NVIDIA GeForce MX150
18 fps ∼86%
Average of class Convertible
  (4.1 - 37.8, n=38)
11.1 fps ∼53% -38%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U, Intel UHD Graphics 620
7.5 fps ∼36% -58%
HP Elite x2 1013 G3-2TT14EA
Intel Core i5-8350U, Intel UHD Graphics 620
6 fps ∼29% -67%
1366x768 Medium Preset AF:2x
Average NVIDIA GeForce MX150
  (28.2 - 60, n=29)
38.7 fps ∼100% +14%
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U, NVIDIA GeForce MX150
34 fps ∼88%
Average of class Convertible
  (3.9 - 66.4, n=59)
14.6 fps ∼38% -57%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U, Intel UHD Graphics 620
14 fps ∼36% -59%
HP Elite x2 1013 G3-2TT14EA
Intel Core i5-8350U, Intel UHD Graphics 620
11.4 fps ∼29% -66%
1024x768 Lowest Preset
Average NVIDIA GeForce MX150
  (41.6 - 86, n=28)
64.6 fps ∼100% +9%
Acer Switch 7 BE SW713-51GNP
Intel Core i7-8550U, NVIDIA GeForce MX150
59 fps ∼91%
Microsoft Surface Pro 6, Core i7, 512 GB
Intel Core i7-8650U, Intel UHD Graphics 620
21.7 fps ∼34% -63%
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
Intel Core i7-8550U, Intel UHD Graphics 620
21.3 fps ∼33% -64%
Average of class Convertible
  (5.3 - 99.4, n=79)
21.2 fps ∼33% -64%
HP Elite x2 1013 G3-2TT14EA
Intel Core i5-8350U, Intel UHD Graphics 620
17.2 fps ∼27% -71%
lage gem. hoge ultra
BioShock Infinite (2013) 125938830fps
Thief (2014) 70433216fps
The Witcher 3 (2015) 19fps
Rise of the Tomb Raider (2016) 59341815fps
Max. Belasting
 34.3 °C40.2 °C43.4 °C
 33.5 °C40.9 °C42.6 °C
 36 °C41.9 °C42.2 °C
Maximum: 43.4 °C
Gemiddelde: 39.4 °C
43.9 °C43.8 °C39 °C
45.3 °C44 °C38.5 °C
43.4 °C41.7 °C38 °C
Maximum: 45.3 °C
Gemiddelde: 42 °C
Stroomadapter (max.)  43.2 °C | Kamertemperatuur 23.2 °C | FIRT 550-Pocket
(-) The average temperature for the upper side under maximal load is 39.4 °C / 103 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 43.4 °C / 110 F, compared to the average of 35.4 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 45.3 °C / 114 F, compared to the average of 36.5 °C / 98 F
(-) In idle usage, the average temperature for the upper side is 52 °C / 126 F, compared to the device average of 30.3 °C / 87 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 42.2 °C / 108 F.
(-) The average temperature of the palmrest area of similar devices was 29 °C / 84.2 F (-13.2 °C / -23.8 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper HighsAF(Hz)02043.539.443.52539.634.239.63138.931.238.94038.832.338.85041.333.141.36340.633.840.68039.328.839.310041.228.341.212542.825.442.816044.725.344.720047.226.147.225050.52450.531554.423.554.44005421.85450053.821.553.863060.220.460.280065.219.365.2100067.51967.5125059.618.559.6160060.31860.3200062.217.962.2250062.217.462.2315056.817.456.8400053.21753.2500050.917.350.9630047.517.347.5800046.717.346.71000046.317.246.31250049.41749.41600045.817.145.8SPL72.430.872.4N26.11.326.1median 53.2median 18.5median 53.2Delta6.62.76.635.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseAcer Switch 7 BE SW713-51GNPApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer Switch 7 BE SW713-51GNP audio analysis

(-) | not very loud speakers (67.5 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 6.8% lower than median
(±) | linearity of bass is average (7.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.2% higher than median
(±) | linearity of mids is average (8.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (6.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18% difference to median)
Compared to same class
» 28% of all tested devices in this class were better, 9% similar, 63% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 30% of all tested devices were better, 7% similar, 64% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.37 / 1.65 Watt
Inactiefdarkmidlight 4.5 / 7.6 / 10.2 Watt
Belasting midlight 48 / 50.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Acer Switch 7 BE SW713-51GNP
8550U, GeForce MX150, Liteonit CV3-SD512, IPS, 2256x1504, 13.5
Microsoft Surface Pro 6, Core i7, 512 GB
8650U, UHD Graphics 620, Toshiba KBG30ZPZ512G, IPS, 2736x1824, 12.3
HP Elite x2 1013 G3-2TT14EA
8350U, UHD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 3000x2000, 13
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
8550U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS Dolby Vision HDR, 2560x1440, 14
Fujitsu Stylistic Q738
8350U, UHD Graphics 620, Samsung SSD PM871b MZNLN256HAJQ, IPS, 1920x1080, 13.3
Average NVIDIA GeForce MX150

Average of class Convertible

Power Consumption
14%
5%
-11%
31%
-8%
17%
Idle Minimum *
4.5
3.2
29%
4.9
-9%
3.4
24%
4.2
7%
4.48 (2.2 - 11.6, n=45)
-0%
4.68 (1 - 23, n=364)
-4%
Idle Average *
7.6
8.7
-14%
8.9
-17%
8.8
-16%
7
8%
7.88 (5 - 13.8, n=45)
-4%
7.84 (1.3 - 32.3, n=364)
-3%
Idle Maximum *
10.2
10.4
-2%
11
-8%
11.9
-17%
7.9
23%
9.76 (6.2 - 14.7, n=45)
4%
9.35 (1.8 - 61, n=364)
8%
Load Average *
48
29.2
39%
32
33%
50.4
-5%
19.8
59%
54.7 (33 - 75, n=44)
-14%
26.2 (1.4 - 94, n=362)
45%
Load Maximum *
50.3
40.8
19%
36
28%
71.2
-42%
22
56%
63.5 (40.4 - 89.2, n=45)
-26%
31.1 (6.8 - 117, n=363)
38%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
3h 13min
NBC WiFi Websurfing Battery Test 1.3
4h 04min
Belast (maximale helderheid)
1h 46min
Acer Switch 7 BE SW713-51GNP
8550U, GeForce MX150,  Wh
Microsoft Surface Pro 6, Core i7, 512 GB
8650U, UHD Graphics 620, 45 Wh
HP Elite x2 1013 G3-2TT14EA
8350U, UHD Graphics 620, 50 Wh
Lenovo ThinkPad X1 Yoga 2018-20LES01W00
8550U, UHD Graphics 620, 54 Wh
Fujitsu Stylistic Q738
8350U, UHD Graphics 620,  Wh
Average of class Convertible

Batterijduur
198%
141%
207%
57%
140%
Reader / Idle
193
1083
461%
781
305%
1203
523%
765 (117 - 1985, n=285)
296%
WiFi v1.3
244
509
109%
459
88%
517
112%
383
57%
452 (153 - 1010, n=238)
85%
Load
106
131
24%
137
29%
91
-14%
147 (49 - 677, n=275)
39%

Pro

+ goede systeemprestaties
+ Thunderbolt-poort
+ Actieve pen inbegrepen
+ passieve vloeistofkoeling

Contra

- niet veel poorten
- oververhitting
- lage schermhelderheid
- korte batterijlevensduur
- ernstige prestatiebeperkingen onder continue belasting
Getest: Acer Switch 7 Black Edition. Testmodel geleverd door notebooksbilliger.de
Getest: Acer Switch 7 Black Edition. Testmodel geleverd door notebooksbilliger.de

Voor het volledige, Engelse testrapport, klik hier.

In ons testrapport bewijst de Acer Switch 7 Black Edition zichzelf als een krachtige Windows convertible. De systeemprestaties zijn op een hoog niveau en de hardware geeft de concurrentie het nakijken. Er zijn echter enkele compromissen gesloten met betrekking tot de selectie van poorten. Dat gezegd hebbende, kunt u een dockingstation via de Thunderbolt-poort verbinden om alle ontbrekende poorten opnieuw aan te maken.

Dankzij de aparte GeForce MX150 van Nvidia biedt de Switch 7 veel betere gamingprestaties dan concurrenten met geïntegreerde GPU's. De Switch 7 kan echter behoorlijk heet worden. Dit leidt tot thermische prestatiebeperking en hoe hoger de belasting, hoe meer moeite de Switch 7 er mee krijgt. Creatieve professionals die veel beeldbewerking uitvoeren en een stylus nodig hebben, zouden de Switch 7 moeten overwegen. Dat gezegd hebbende, kan het hoge gewicht van de tablet het in sommige omstandigheden moeilijk maken om ermee te werken.

De Acer Switch 7 Black Edition is een zeer krachtige Windows convertible die geschikt is voor vele verschillende taken.

Acer Switch 7 BE SW713-51GNP - 19-11-2018 v6
Mike Wobker

Behuizing
83 / 98 → 85%
Toetsenbord
82%
Aanwijsapparaat
92%
Aansluitmogelijkheden
43 / 80 → 54%
Gewicht
68 / 35-78 → 78%
Batterij
75%
Beeldscherm
82%
Gaming-performance
73 / 68 → 100%
Applicatie-performance
81 / 87 → 93%
Temperatuur
88%
Luidheid
100%
Audio
56 / 91 → 62%
Camera
45 / 85 → 53%
Gemiddelde
74%
82%
Convertible - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Acer Switch 7 Black Edition (i7-8550U, MX150) Convertible
Mike Wobker, 2018-12- 7 (Update: 2018-12- 7)
