Kort testraport Lenovo IdeaPad S540 Laptop: AMD of Intel? Lenovo geeft consumenten de keuze en we vergelijken beide opties.

Sebastian Bade, 👁 Andreas Osthoff, T. Hinum, 13-07-2019

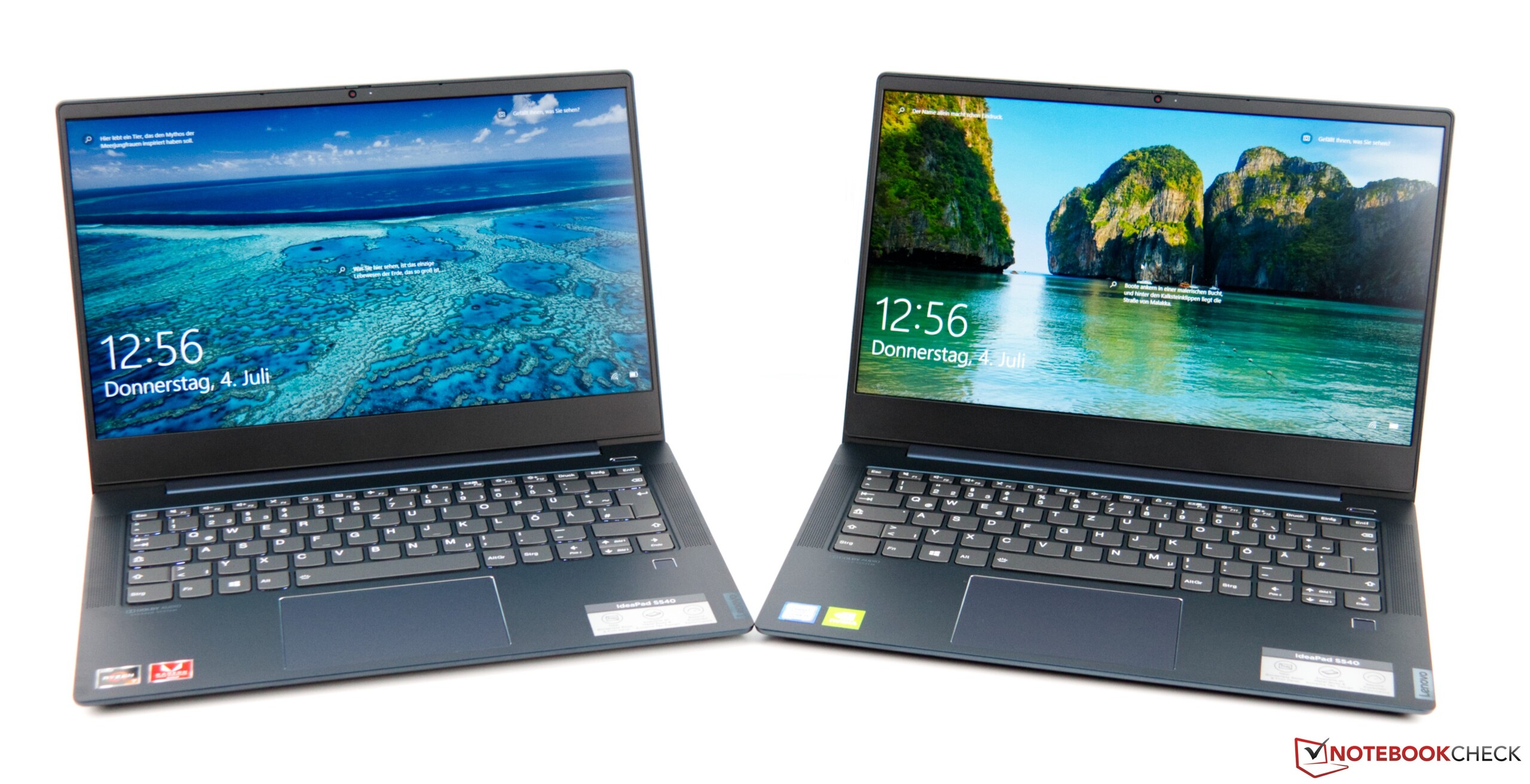

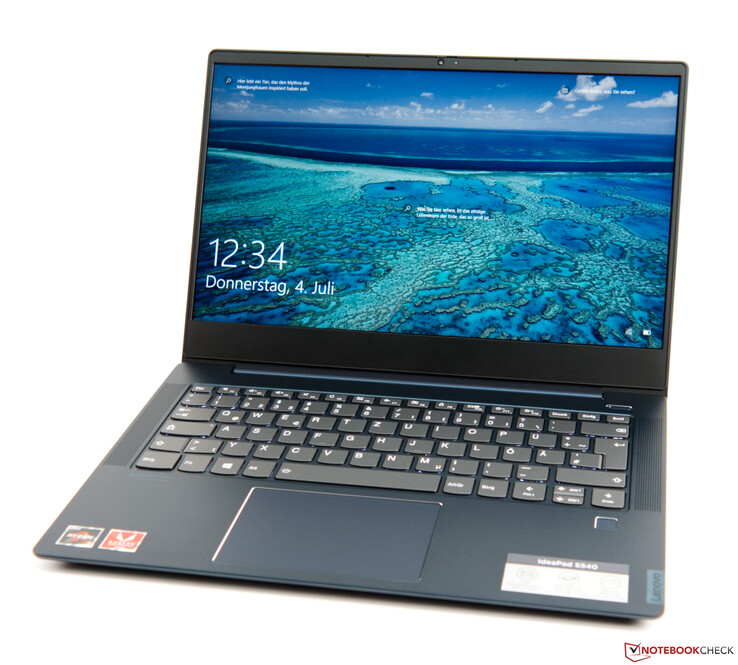

An understated multimedia laptop. De Lenovo IdeaPad S540 belooft een compacte 14-inch multimedia-laptop te worden. Het apparaat moet ook een goede batterijlevensduur hebben, hoewel er enkele opvallende verschillen zijn tussen de AMD- en Intel-modellen. We hebben ze allebei beoordeeld om te zien welke variant het beste uit de tests komt. Lees verder om erachter te komen hoe de twee modellen tegen elkaar en andere vergelijkbare laptops presteren.

Lenovo IdeaPad S540-14IWL (Ideapad S540 Serie)
Processor
Intel Core i5-8265U
Grafische kaart

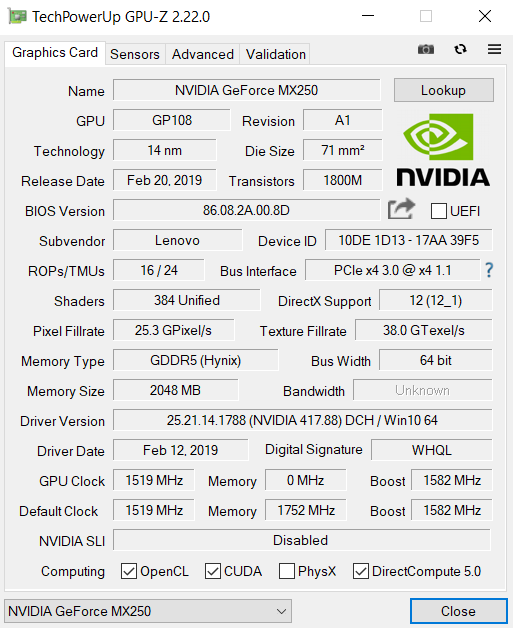

NVIDIA GeForce MX250 - 2048 MB, Core: 1519 MHz, Geheugen: 1752 MHz, GDDR5, Nvidia 217.88, Nvidia Optimus
Geheugen
8192 MB
, Dual-channel, 4 GB gesoldeerd & 4 GB SO-DIMM. Maximum van 20 GB
Beeldscherm
14 inch 16:9, 1920 x 1080 pixel 157 PPI, NV140FHM-N48, IPS, glimmend: nee
Moederbord
Intel Cannon Lake-U PCH-LP Premium
Opslag
Samsung SSD PM981 MZVLB512HAJQ, 512 GB
, 512 GB beschikbaar
Geluidskaart
Intel Cannon Lake-LP - cAVS
Verbindingen
3 USB 3.0, 1 HDMI, Audio Verbindingen: 3.5 mm audiopoort, Card Reader: 4-in-1 kaartlezer (MMC, SD, SDHC, SDXC), 1 Vingerafdruklezer
Netwerkmogelijkheden
Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 15.9 x 323 x 227
Batterij
48 Wh, 3145 mAh Lithium-Ion
Camera

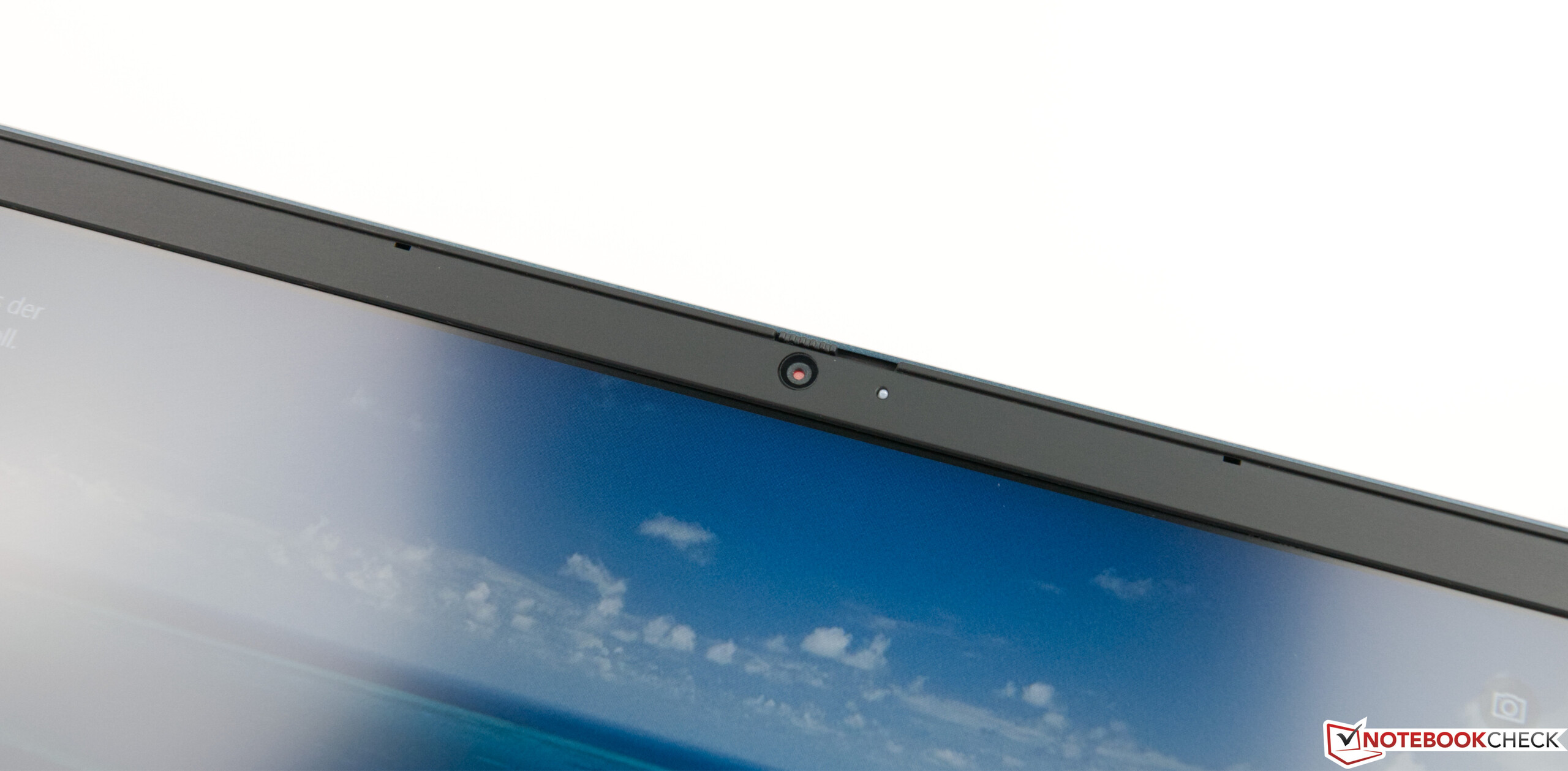

Webcam: HD
Primary Camera: 0.9 MPix
Bijkomende functionaliteiten
Luidsprekers: Dolby Audio Stereo, Toetsenbord: 6-rijen chiclet, Toetsenbordverlichting: ja, 65 Watt stroomadapter, 24 Maanden Garantie
Gewicht
1.412 kg, Voeding: 358 g
Prijs
699 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Lenovo IdeaPad S540-14API (Ideapad S540 Serie)
Processor
AMD Ryzen 7 3700U
Grafische kaart
AMD Radeon RX Vega 10 - 2048 MB, Core: 1401 MHz, Geheugen: 1200 MHz, DDR4 (shared Memory), Adrenalin 18.41.18
Geheugen
8192 MB
, Dual-Channel, 4 GB fest verlötet + 4 GB Modul, max. 20 GB
Beeldscherm
14 inch 16:9, 1920 x 1080 pixel 157 PPI, LP140WFA-SPD1, IPS, glimmend: nee
Moederbord
AMD CZ FCH
Opslag
Samsung SSD PM981 MZVLB512HAJQ, 512 GB
, 475 GB beschikbaar
Geluidskaart
AMD Raven - Audio Processor - HD Audio Controller
Verbindingen
3 USB 3.0, 1 HDMI, Audio Verbindingen: 3,5mm Klinke, Card Reader: 4-in-1 media reader (MMC, SD, SDHC, SDXC), 1 Vingerafdruklezer
Netwerkmogelijkheden
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Afmetingen
hoogte x breedte x diepte (in mm): 15.9 x 323 x 227
Batterij
48 Wh, 3145 mAh Lithium-Ion
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Bijkomende functionaliteiten
Luidsprekers: Dolby Audio Stereo, Toetsenbord: 6-Zeilen-Chiclet, Toetsenbordverlichting: ja, 65-Watt-Netzteil, 24 Maanden Garantie
Gewicht
1.386 kg, Voeding: 350 g
Prijs
749 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540
Lenovo IdeaPad S540 (Ryzen 7 3700U)
Lenovo IdeaPad S540 (GeFoce MX250)
Lenovo IdeaPad S540 (Core i5-8265U)
326.8 mm 225.5 mm 17.9 mm 1.7 kg322 mm 212 mm 19 mm 1.5 kg323 mm 231 mm 17.9 mm 1.6 kg323 mm 227 mm 15.9 mm 1.4 kg323 mm 227 mm 15.9 mm 1.4 kg

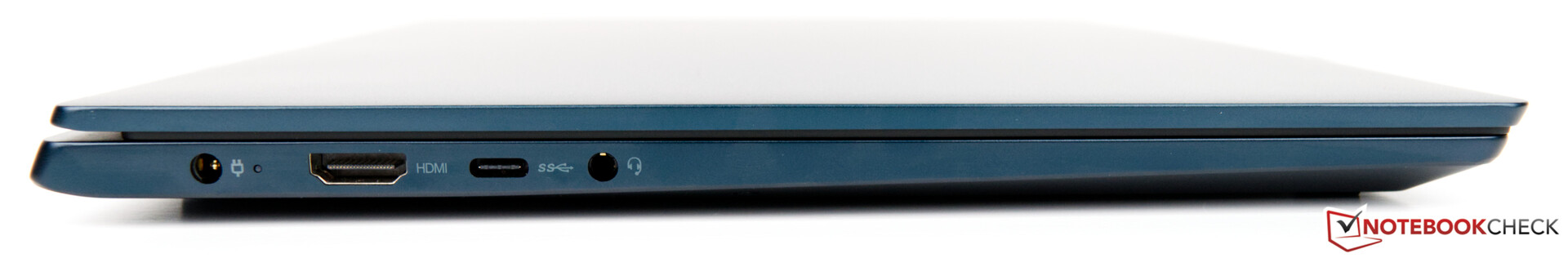

Left-hand side: Power connector, HDMI 1.4b, USB 3.1 Gen1 Type-C, 3.5 mm headphone and microphone combined jack
Left-hand side: Power connector, HDMI 1.4b, USB 3.1 Gen1 Type-C, 3.5 mm headphone and microphone combined jack

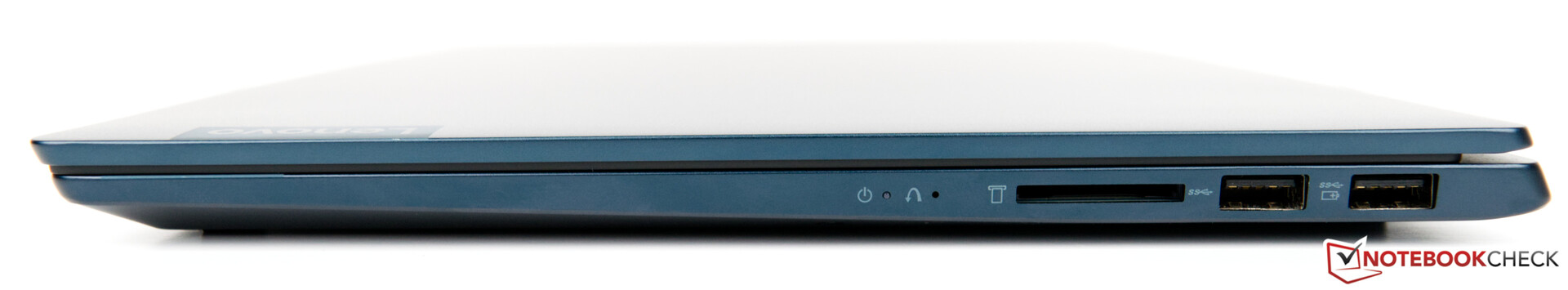

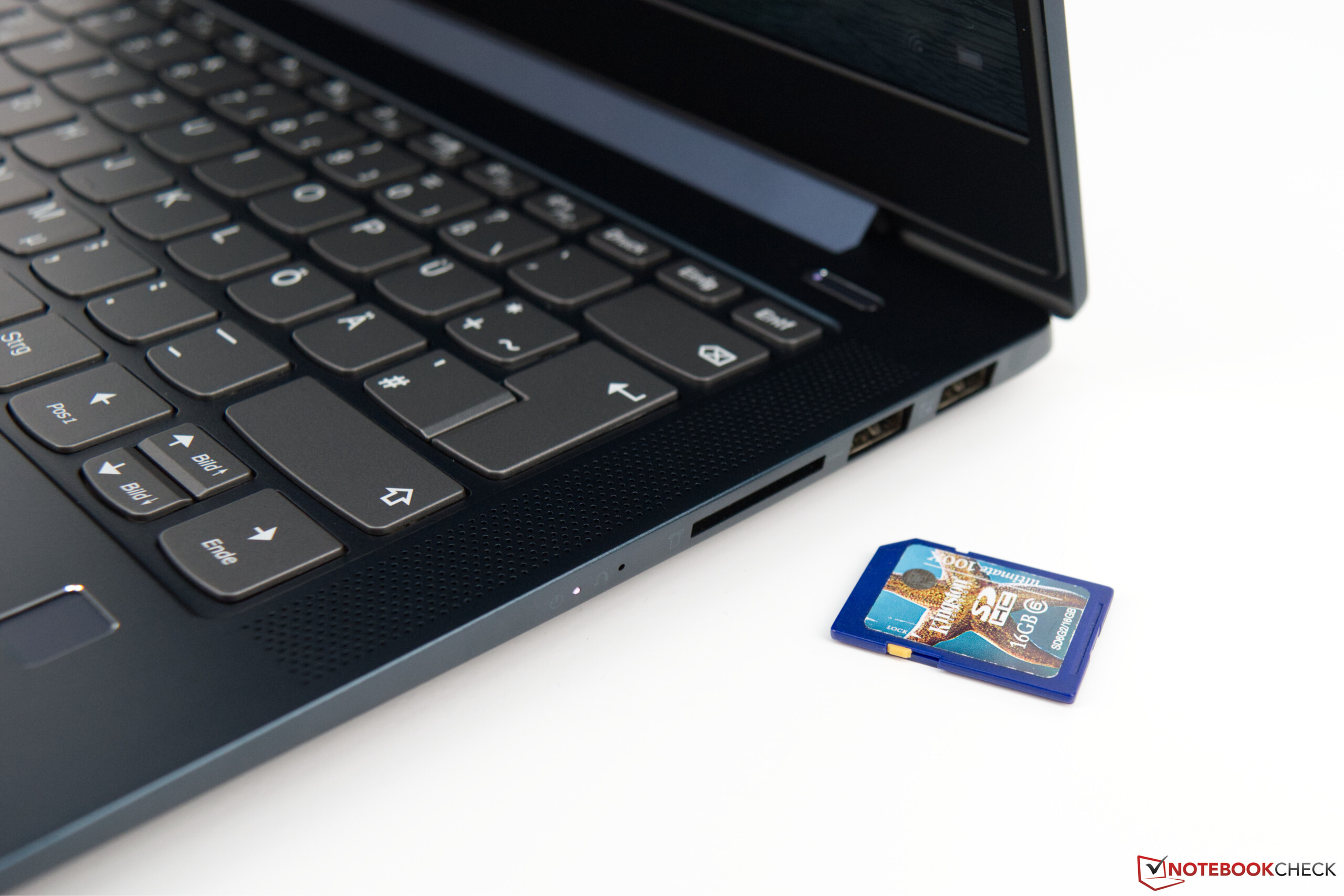

Right-hand side: SD card reader, 2x USB 3.1 Gen 1 Type-A ports
Right-hand side: SD card reader, 2x USB 3.1 Gen 1 Type-A ports

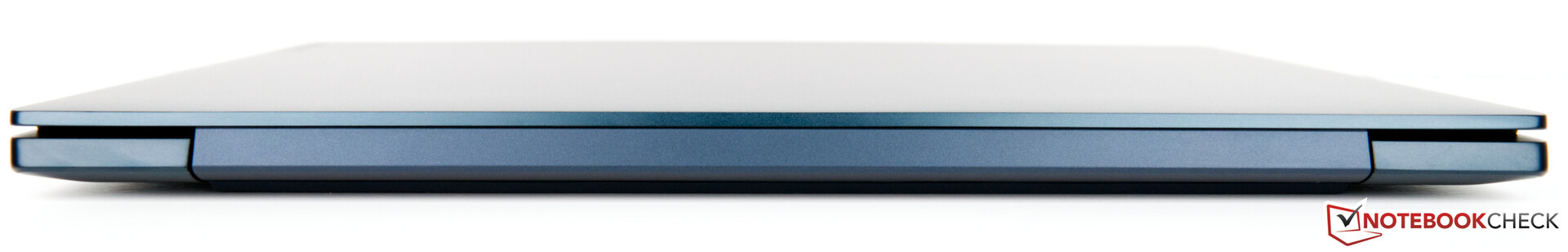

Rear: No connections
Rear: No connections

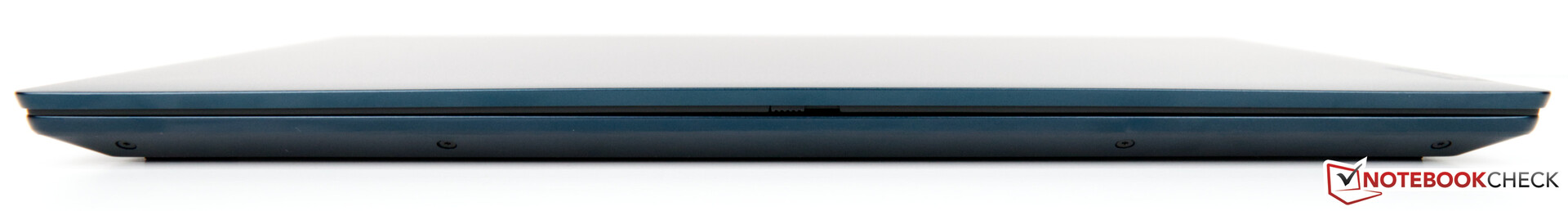

Front: No connections
Front: No connections

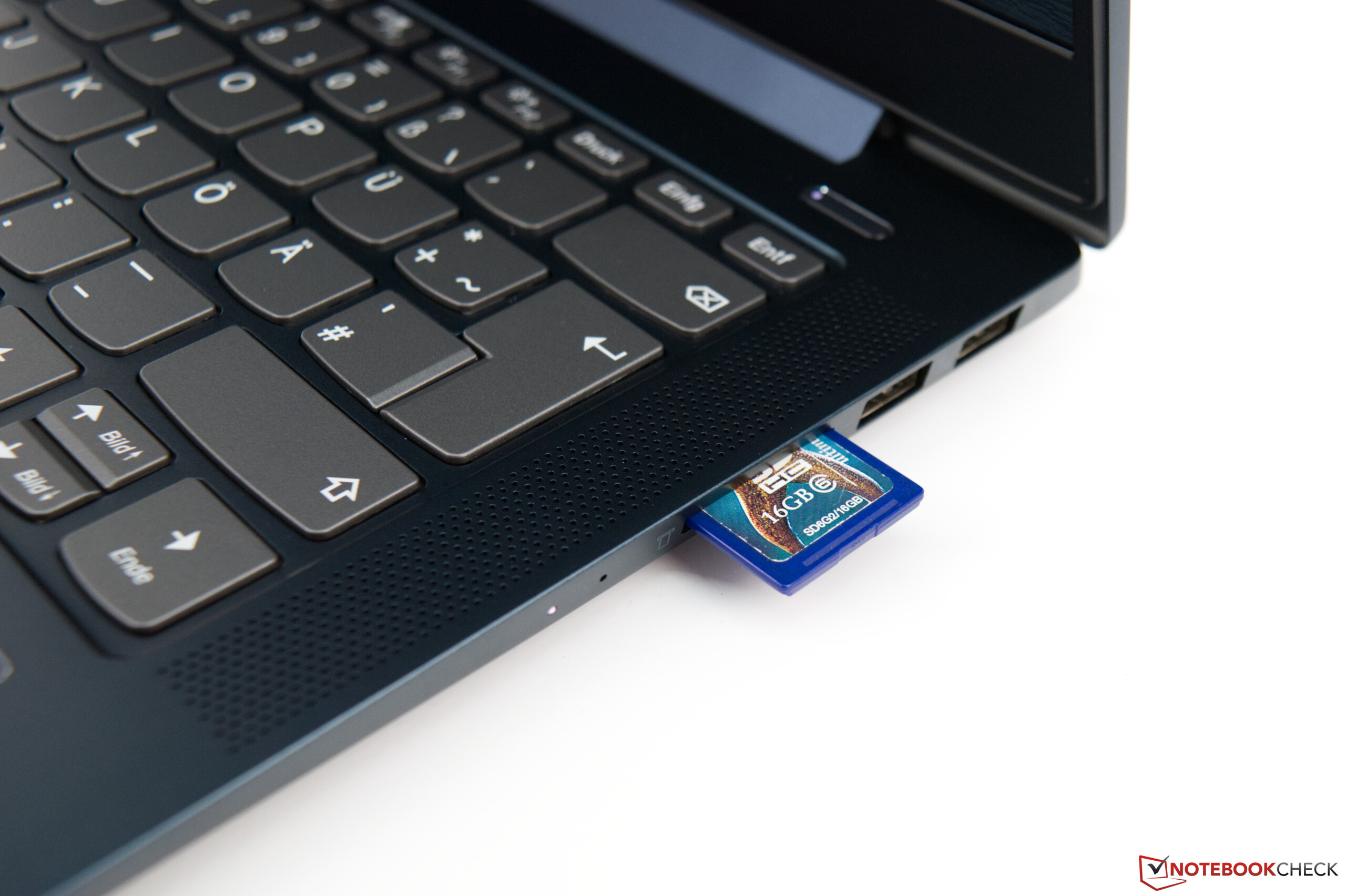

SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
82.9 MB/s ∼100%
Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
77.8 MB/s ∼94% -6%
Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
71.6 MB/s ∼86% -14%
Average of class Multimedia
  (11.2 - 190, n=174)
57 MB/s ∼69% -31%
HP Pavilion 14-ce0002ng, Intel Core i7-8550U
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
39.6 MB/s ∼48% -52%
Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U
  (Toshiba Exceria Pro M501 microSDXC 64GB)
17.3 MB/s ∼21% -79%
maximum AS SSD Seq Read Test (1GB)
Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
89.9 MB/s ∼100%
Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
88.2 MB/s ∼98% -2%
Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
83.7 MB/s ∼93% -7%
Average of class Multimedia
  (10.2 - 253, n=171)
73.2 MB/s ∼81% -19%
HP Pavilion 14-ce0002ng, Intel Core i7-8550U
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
36.7 MB/s ∼41% -59%
Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U
  (Toshiba Exceria Pro M501 microSDXC 64GB)
25.2 MB/s ∼28% -72%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U
Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC
616 (min: 569, max: 634) MBit/s ∼100% +5%
Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U
Intel Wireless-AC 9560
587 MBit/s ∼95%
Average of class Multimedia
  (44 - 949, n=135)
498 MBit/s ∼81% -15%
Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
335 MBit/s ∼54% -43%
HP Pavilion 14-ce0002ng, Intel Core i7-8550U
RealTek Semiconductor, Device ID: C821
281 MBit/s ∼46% -52%
Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U
Intel Cannon Lake-H/S CNVi: WiFi
251 (min: 184, max: 354) MBit/s ∼41% -57%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U
Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC
675 (min: 561, max: 737) MBit/s ∼100% 0%
Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U
Intel Wireless-AC 9560
672 MBit/s ∼100%
Average of class Multimedia
  (46.1 - 949, n=134)
476 MBit/s ∼71% -29%
Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U
Intel Cannon Lake-H/S CNVi: WiFi
321 (min: 249, max: 389) MBit/s ∼48% -52%
HP Pavilion 14-ce0002ng, Intel Core i7-8550U
RealTek Semiconductor, Device ID: C821
287 MBit/s ∼43% -57%
Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
276 MBit/s ∼41% -59%
317
cd/m²
305
cd/m²
308
cd/m²
304
cd/m²
316
cd/m²
297
cd/m²
281
cd/m²
299
cd/m²
280
cd/m²
Helderheidsverdeling
NV140FHM-N48
X-Rite i1Pro 2
Maximum: 317 cd/m² Gemiddelde: 300.8 cd/m² Minimum: 5 cd/m²
Helderheidsverdeling: 88 %
Helderheid in Batterij-modus: 318 cd/m²
Contrast: 1129:1 (Zwart: 0.28 cd/m²)
ΔE Color 5.3 | 0.6-29.43 Ø6, calibrated: 4.8
ΔE Greyscale 2.4 | 0.64-98 Ø6.3
58.3% sRGB (Argyll 3D) 37.6% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.05
251
cd/m²
248
cd/m²
247
cd/m²
266
cd/m²
271
cd/m²
254
cd/m²
257
cd/m²
265
cd/m²
255
cd/m²
Helderheidsverdeling
LP140WFA-SPD1
X-Rite i1Pro 2
Maximum: 271 cd/m² Gemiddelde: 257.1 cd/m² Minimum: 24.6 cd/m²
Helderheidsverdeling: 91 %
Helderheid in Batterij-modus: 273 cd/m²
Contrast: 1004:1 (Zwart: 0.27 cd/m²)
ΔE Color 6.8 | 0.6-29.43 Ø6, calibrated: 4.2
ΔE Greyscale 6.3 | 0.64-98 Ø6.3
58.3% sRGB (Argyll 3D) 36.9% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.49
Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U
NV140FHM-N48, IPS, 1920x1080, 14
Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U
LP140WFA-SPD1, IPS, 1920x1080, 14
Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U
LG Philips LP140WFA-SPD1, IPS, 1920x1080, 14
HP Pavilion 14-ce0002ng, Intel Core i7-8550U
BOE072C, IPS, 1920x1080, 14
Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U
AU Optronics AUO403D B140HAN04.0, IPS, 1920x1080, 14
Response Times
12%
13%
-14%
4%
Response Time Grey 50% / Grey 80% *
39.6 (21.6, 18)
38.8 (21.2, 17.6)
2%
36 (20, 16)
9%
40 (21, 19)
-1%
40 (19, 21)
-1%
Response Time Black / White *
32 (18, 14)
24.8 (14.8, 10)
22%
27 (16, 11)
16%
31 (18, 13)
3%
29 (17, 12)
9%
PWM Frequency
352.1 (99)
200 (90)
-43%
Screen
-17%
-14%
-13%
13%
Brightness middle
316
271
-14%
260
-18%
239
-24%
267
-16%
Brightness
301
257
-15%
250
-17%
223
-26%
257
-15%
Brightness Distribution
88
91
3%
87
-1%
88
0%
91
3%
Black Level *
0.28
0.27
4%
0.29
-4%
0.27
4%
0.2
29%
Contrast
1129
1004
-11%
897
-21%
885
-22%
1335
18%
Colorchecker DeltaE2000 *
5.3
6.8
-28%
6.29
-19%
5.3
-0%
3.79
28%
Colorchecker DeltaE2000 max. *
18.5
14.2
23%
14.77
20%
10.03
46%
8.18
56%
Colorchecker DeltaE2000 calibrated *
4.8
4.2
12%
4.51
6%
3.64
24%
4.71
2%
Greyscale DeltaE2000 *
2.4
6.3
-163%
4.65
-94%
5.85
-144%
1.49
38%
Gamma
2.05 107%
2.49 88%
2.73 81%
2.45 90%
2.48 89%
CCT
6644 98%
7845 83%
7331 89%
7169 91%
6659 98%
Color Space (Percent of AdobeRGB 1998)
37.6
36.9
-2%
37
-2%
38
1%
38
1%
Color Space (Percent of sRGB)
58.3
58.3
0%
58
-1%
59
1%
59
1%
Totaal Gemiddelde (Programma / Instellingen)
-3% / -13%
-1% / -10%
-14% / -13%
9% / 12%

* ... kleiner is beter

Lenovo IdeaPad S540-14IWL

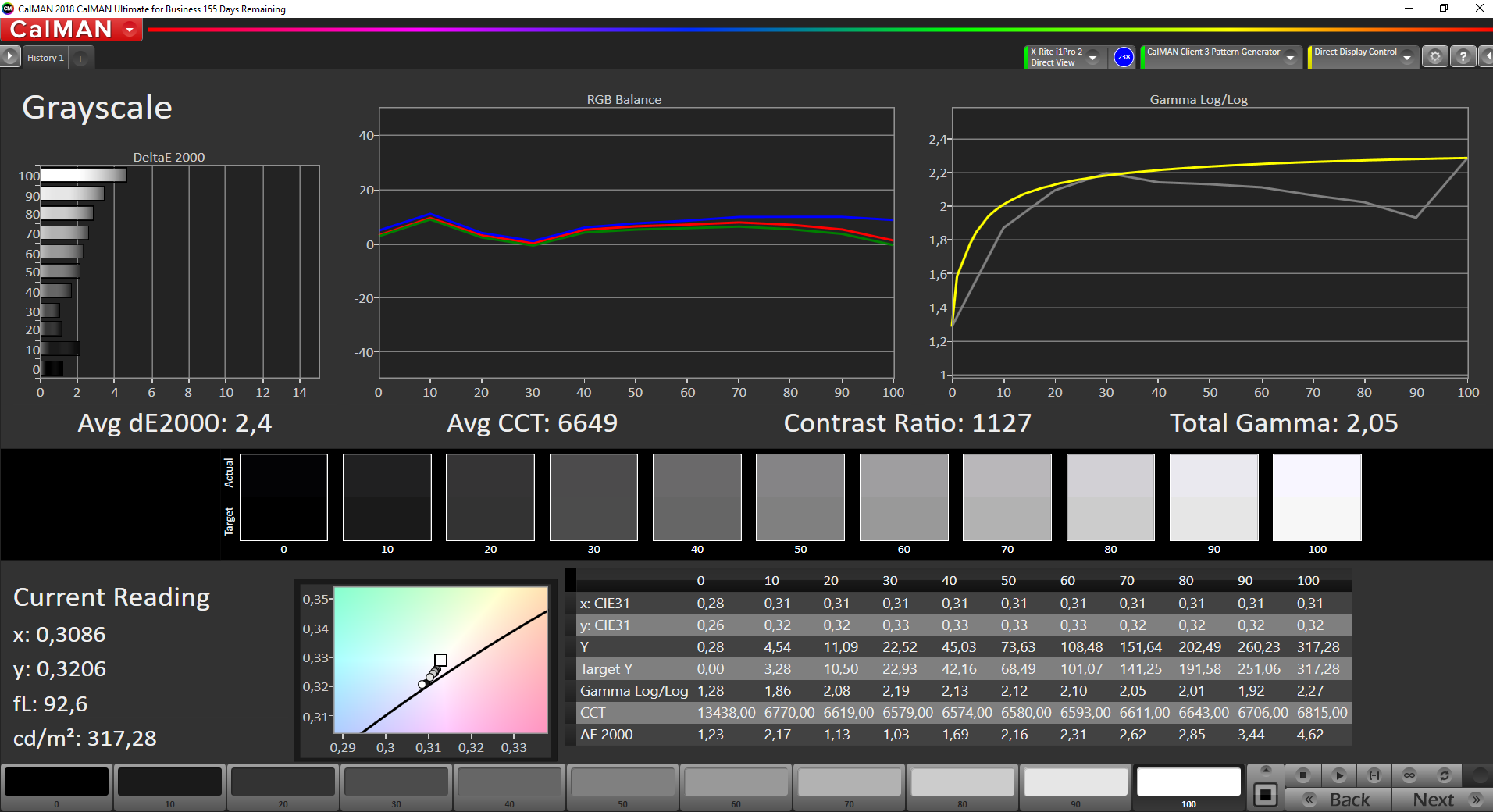

CalMAN: Grayscale - ongekalibreerd
CalMAN: Grayscale - ongekalibreerd

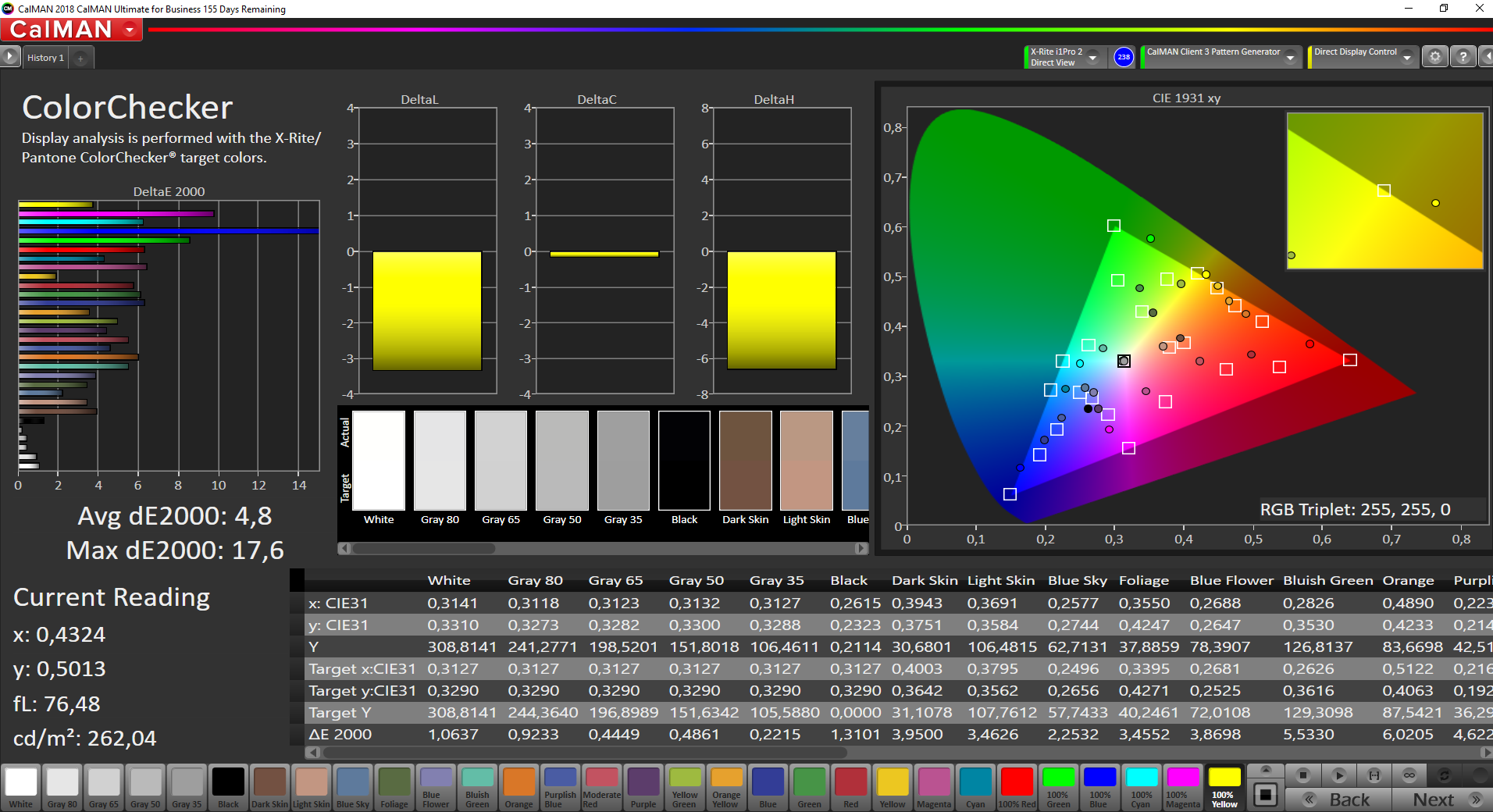

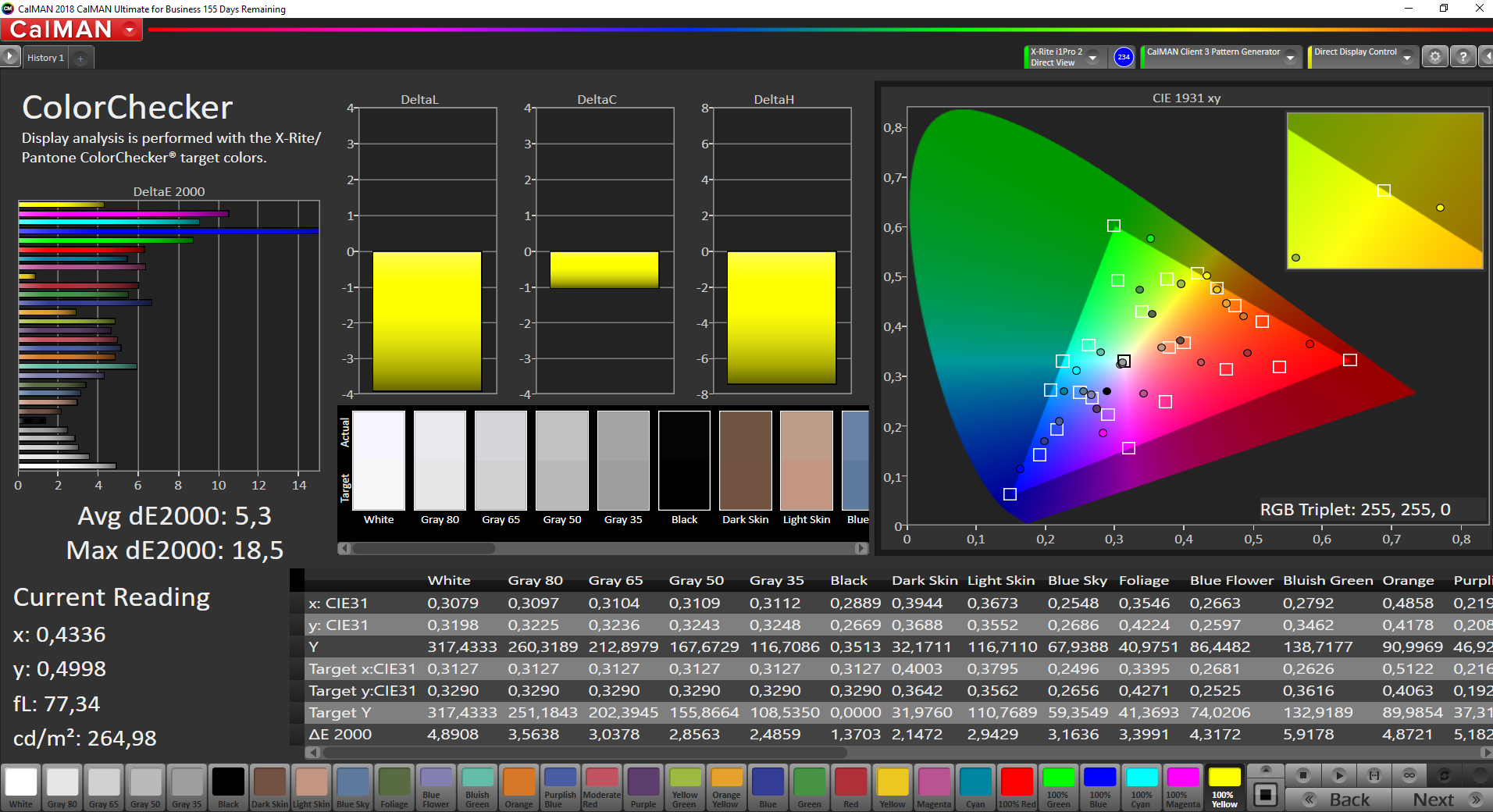

CalMAN: ColorChecker - ongekalibreerd
CalMAN: ColorChecker - ongekalibreerd
CalMAN: Colour Saturation - ongekalibreerd
CalMAN: Colour Saturation - ongekalibreerd

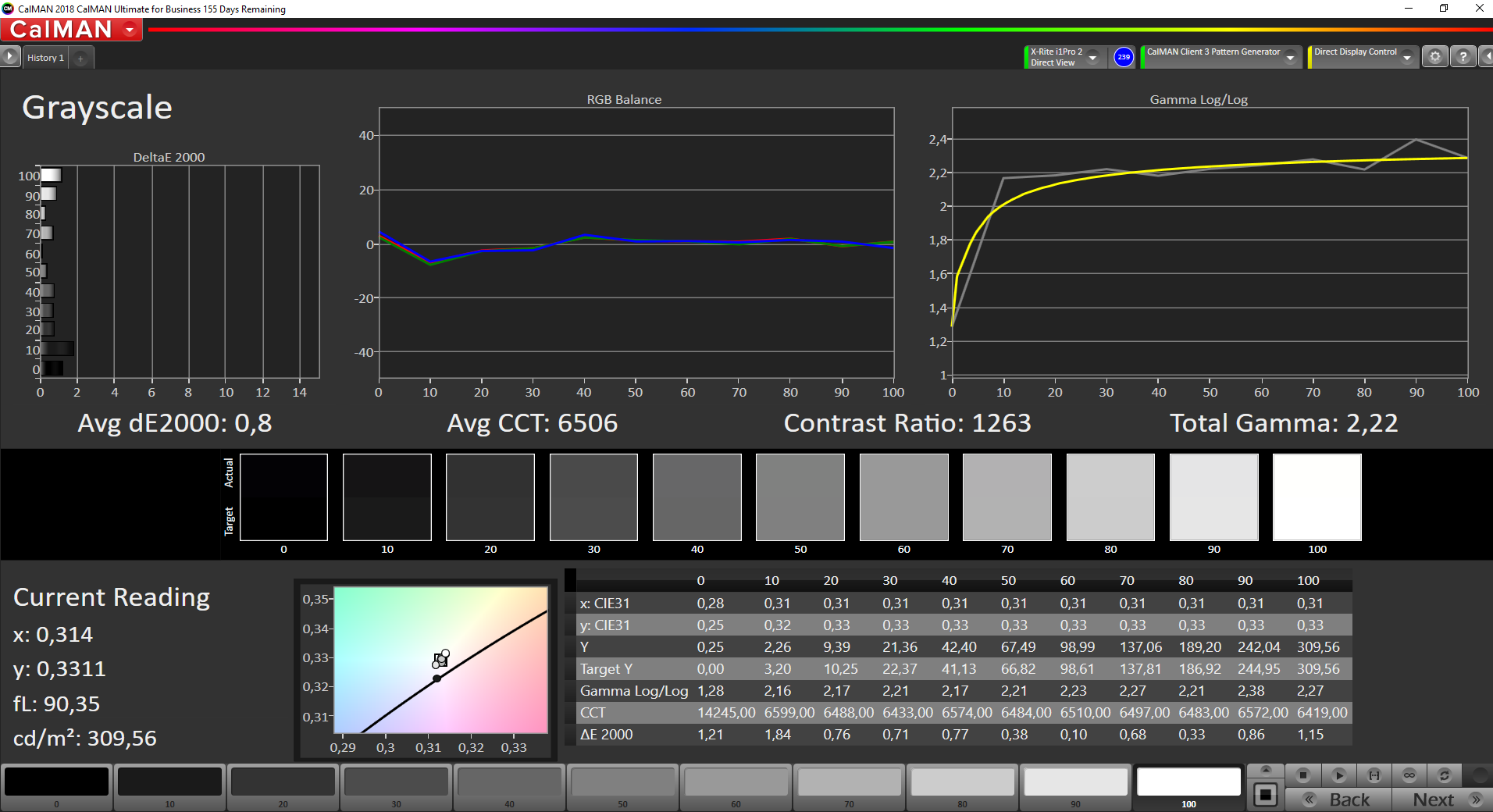

CalMAN: Grayscale - gekalibreerd
CalMAN: Grayscale - gekalibreerd
CalMAN: ColorChecker - gekalibreerd
CalMAN: ColorChecker - gekalibreerd

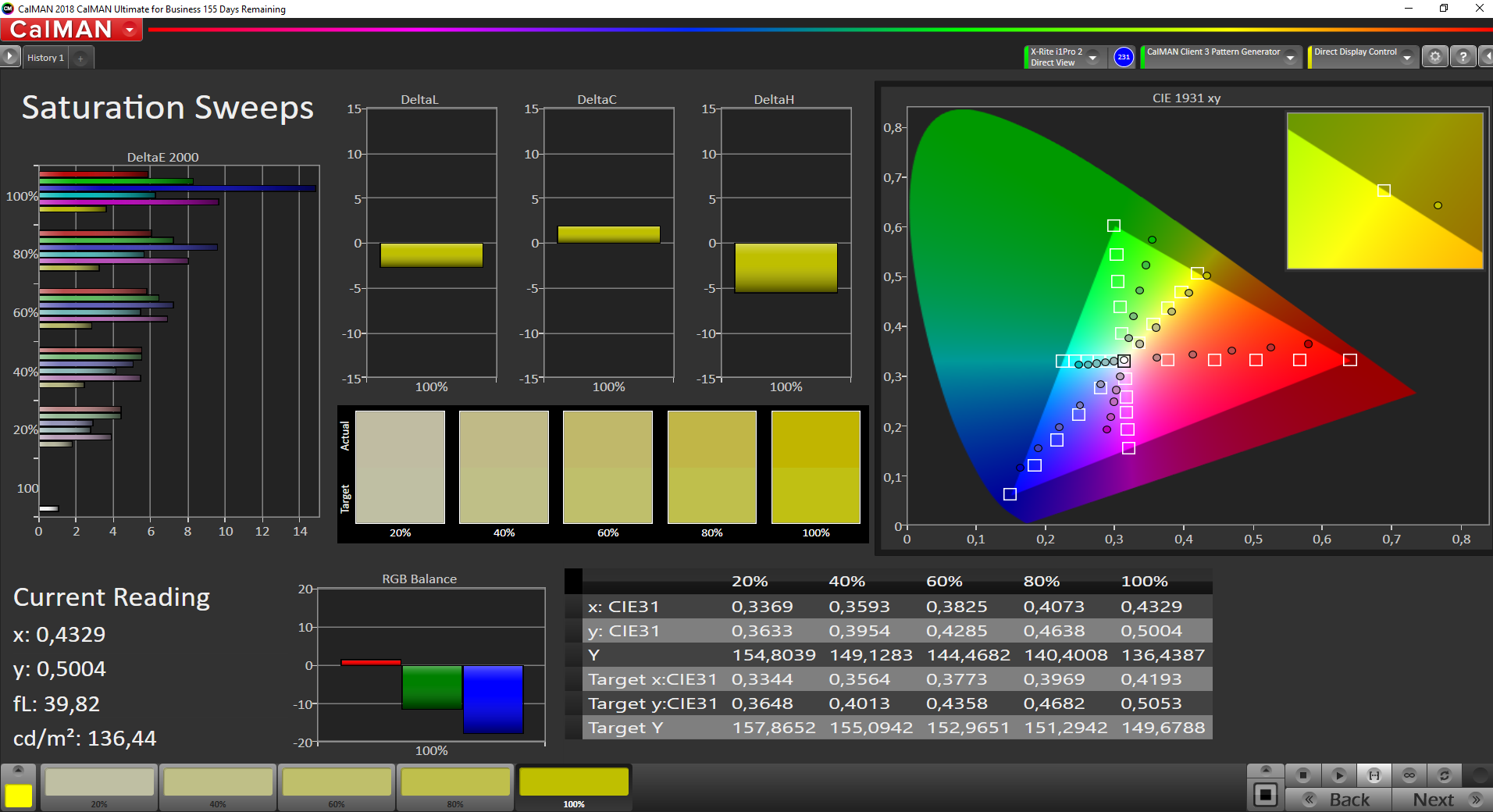

CalMAN: Colour Saturation - gekalibreerd
CalMAN: Colour Saturation - gekalibreerd

Lenovo IdeaPad S540-14IWL

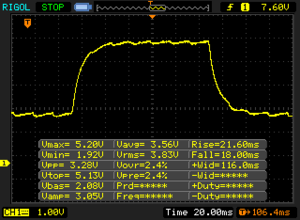

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

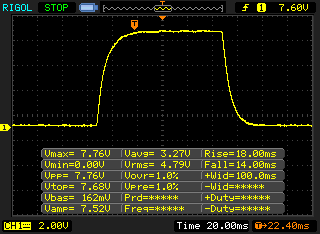

       Responstijd Zwart naar Wit
32 ms ... stijging ↗ en daling ↘ gecombineerd↗ 18 ms stijging
↘ 14 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 82 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd slechter is dan het gemiddelde (25 ms) van alle geteste toestellen.
       Responstijd 50% Grijs naar 80% Grijs
39.6 ms ... stijging ↗ en daling ↘ gecombineerd↗ 21.6 ms stijging
↘ 18 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 45 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (39.7 ms) van alle geteste toestellen.

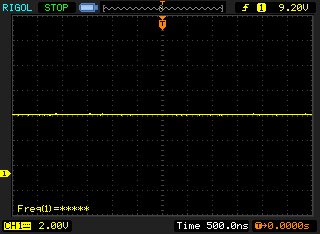

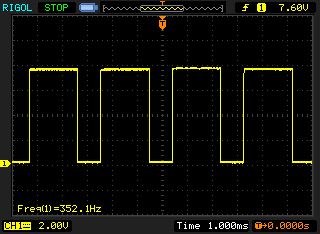

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 352.1 Hz ≤ 99 % helderheid instelling

Het backlight van het scherm flikkert aan 352.1 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 99 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 352.1 Hz is relatief hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen. Er zijn echter rapporten die beweren dat sommige mensen toch flickering met 500 Hz en hoger kunnen waarnemen: opgelet dus.

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9409 (minimum: 43 - maximum: 142900) Hz waargenomen.

Lenovo IdeaPad S540-14API

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

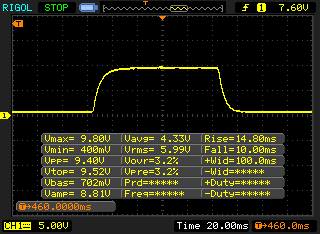

       Responstijd Zwart naar Wit
24.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 14.8 ms stijging
↘ 10 ms daling
Het scherm vertoonde prima responstijden in onze tests maar is misschien wat te traag voor competitieve games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 40 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (25 ms) van alle geteste toestellen.
       Responstijd 50% Grijs naar 80% Grijs
38.8 ms ... stijging ↗ en daling ↘ gecombineerd↗ 21.2 ms stijging
↘ 17.6 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 41 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (39.7 ms) van alle geteste toestellen.

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM niet waargenomen

Ter vergelijking: 51 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 9409 (minimum: 43 - maximum: 142900) Hz waargenomen.

Lenovo IdeaPad S540-14IWL

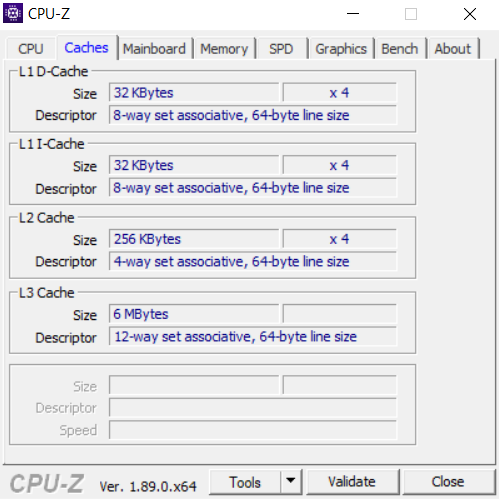

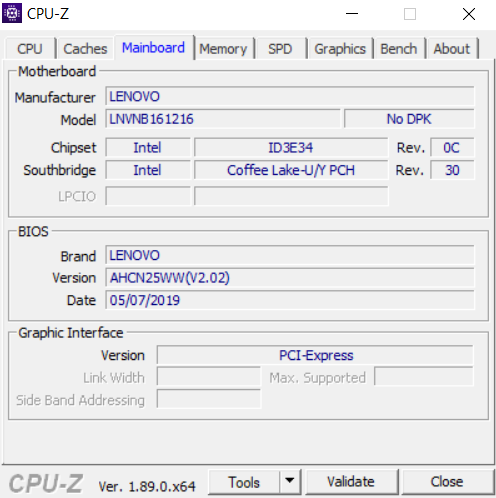

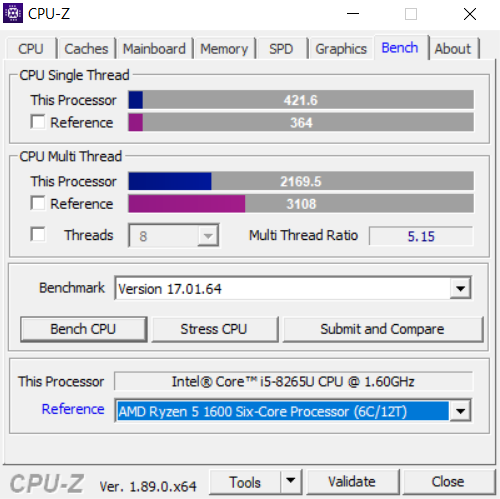

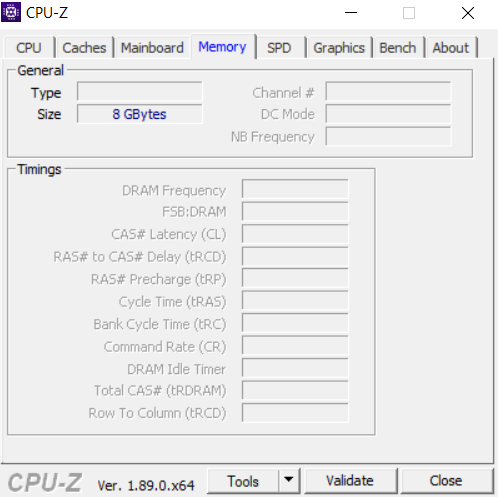

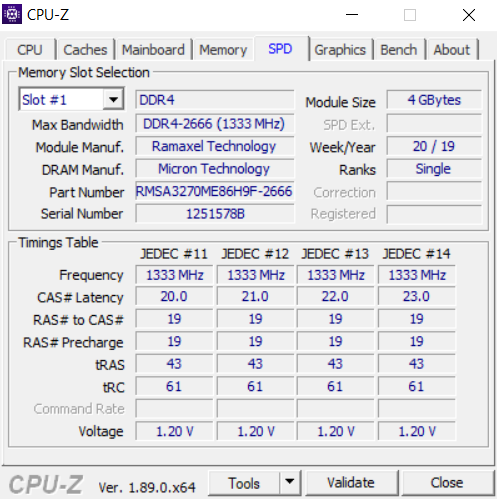

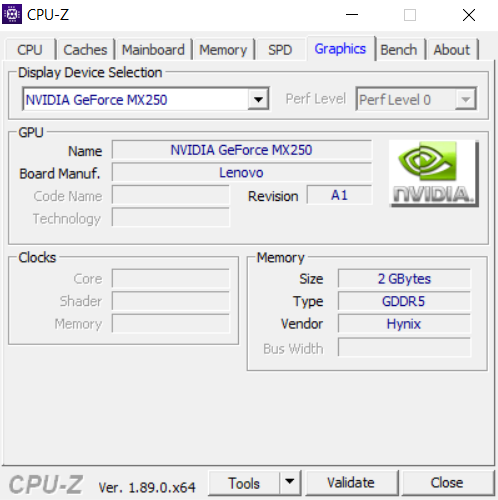

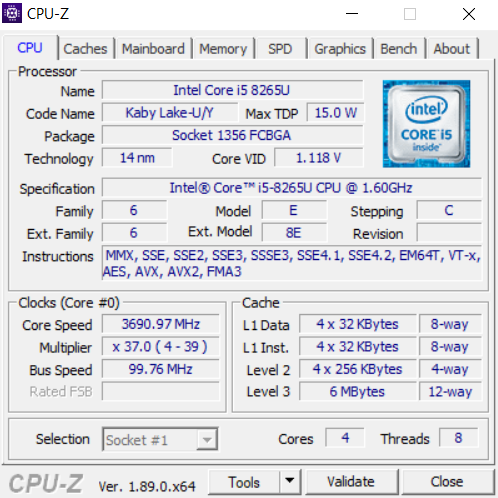

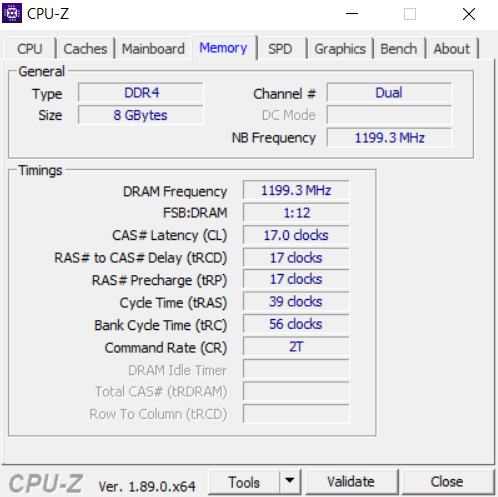

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

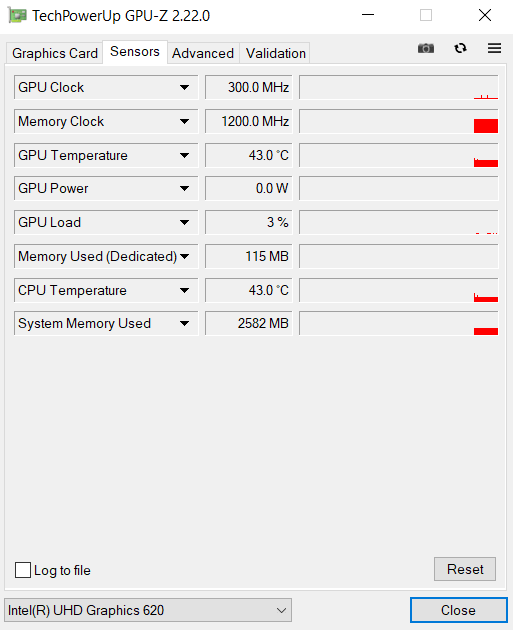

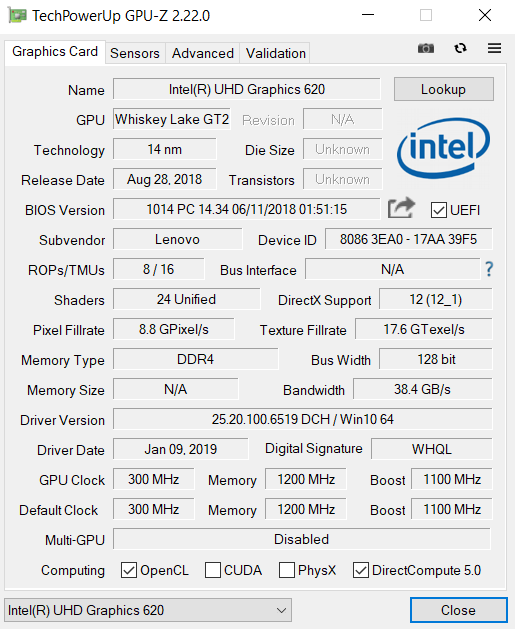

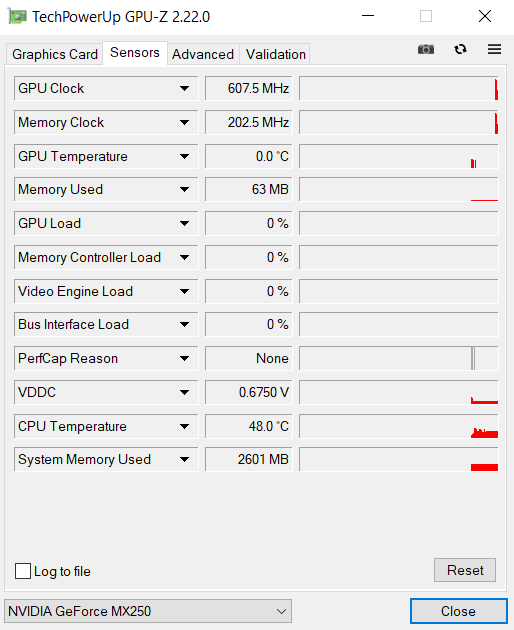

GPU-Z
GPU-Z
GPU-Z
GPU-Z

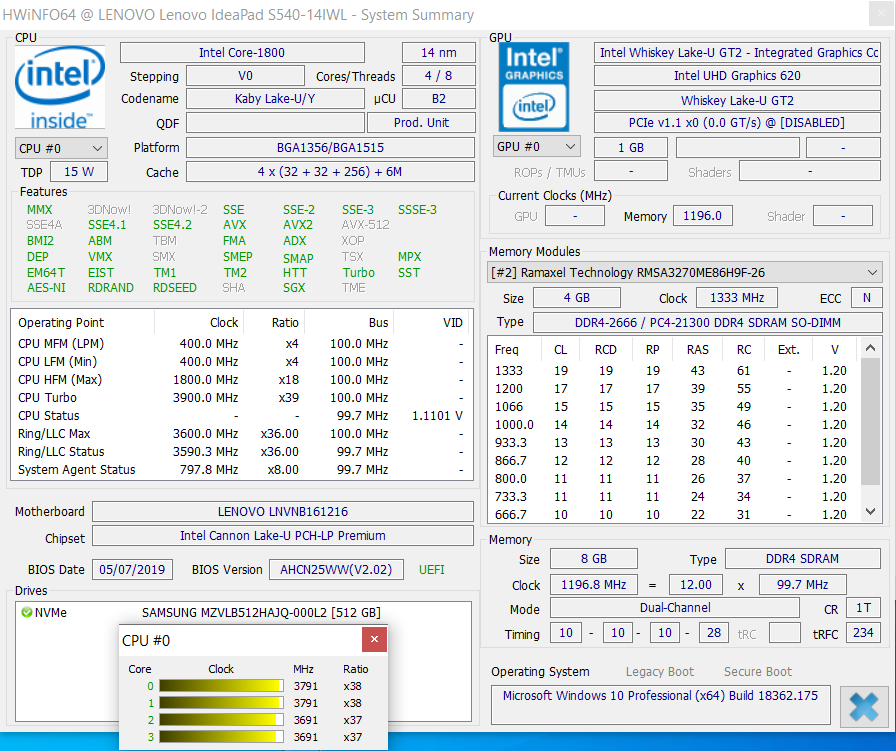

HWiNFO

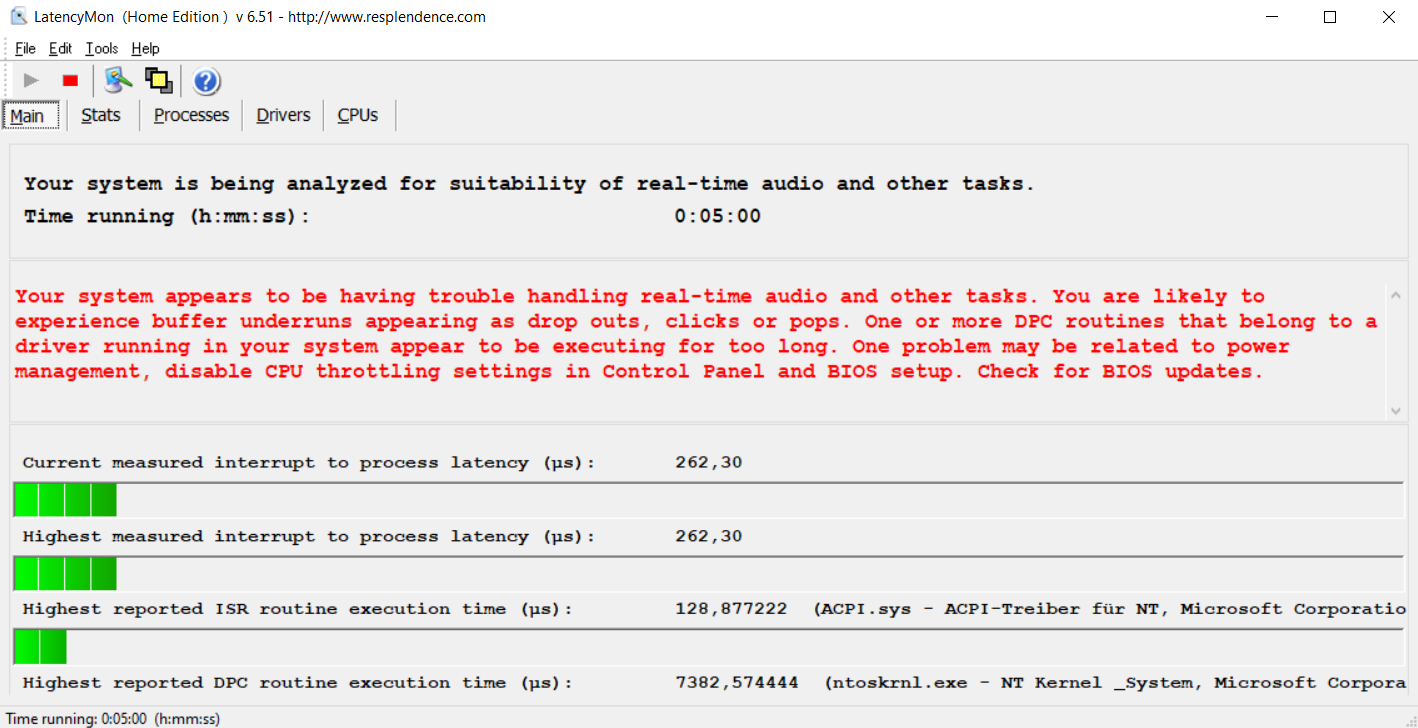

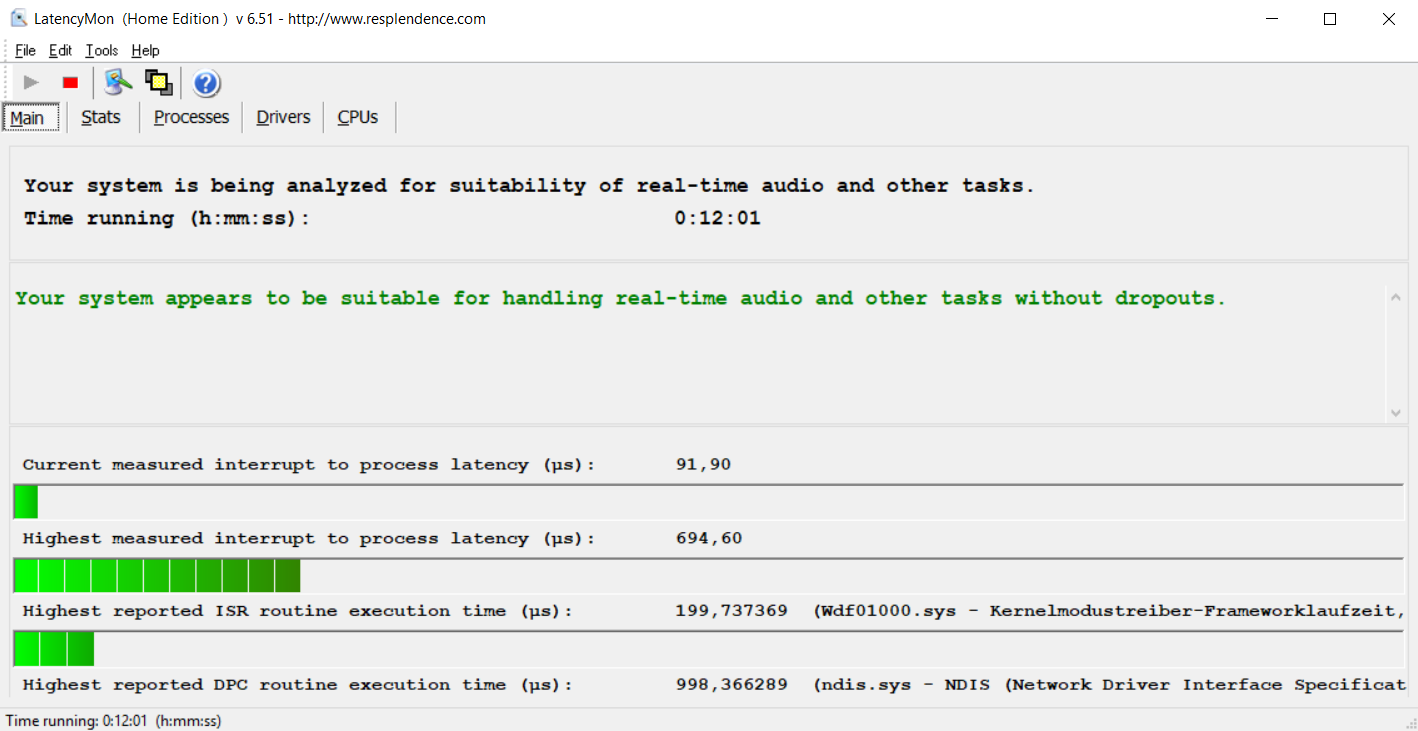

DPC latencies

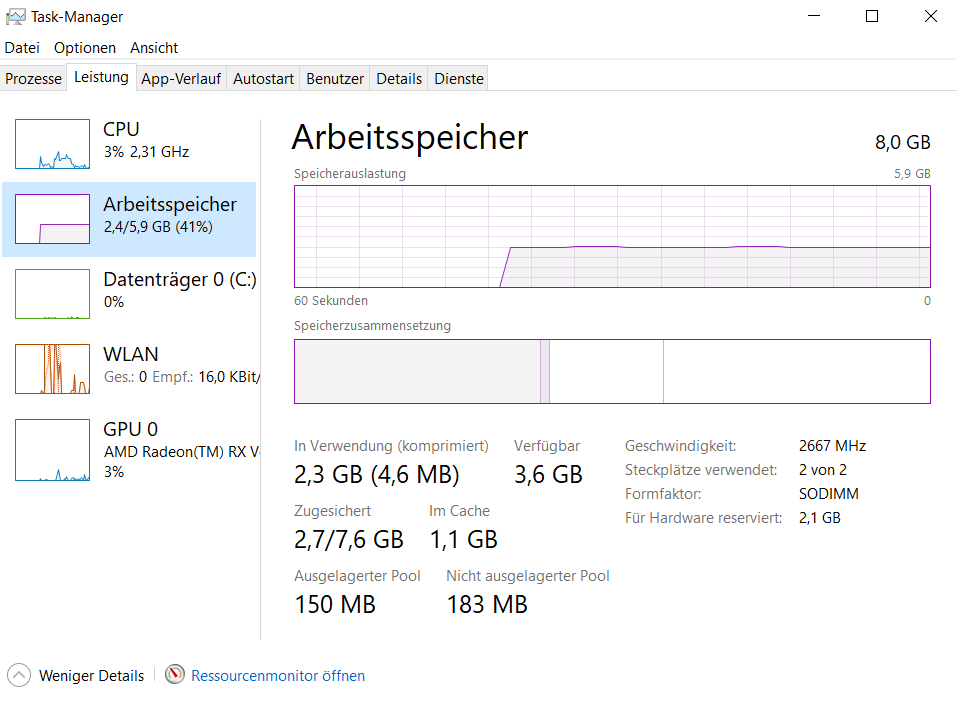

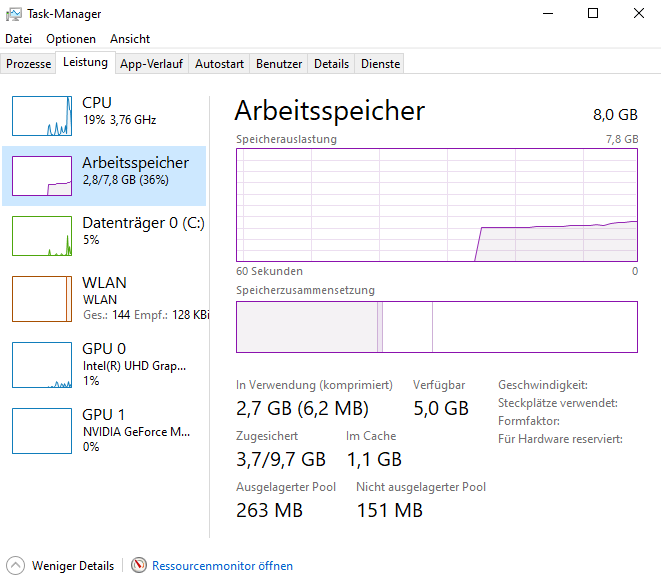

Task Manager

IdeaPad S540-14API

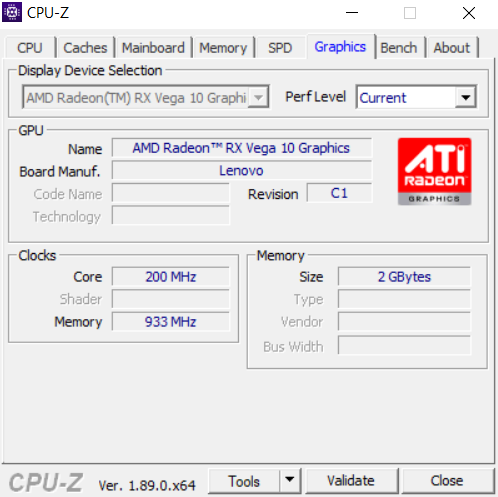

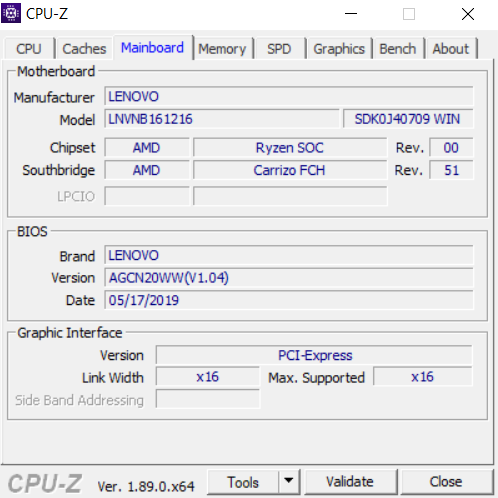

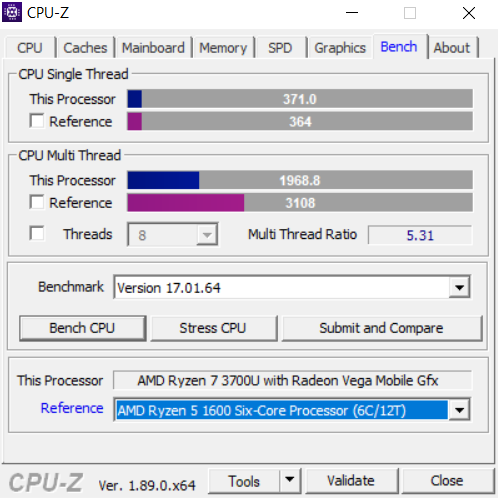

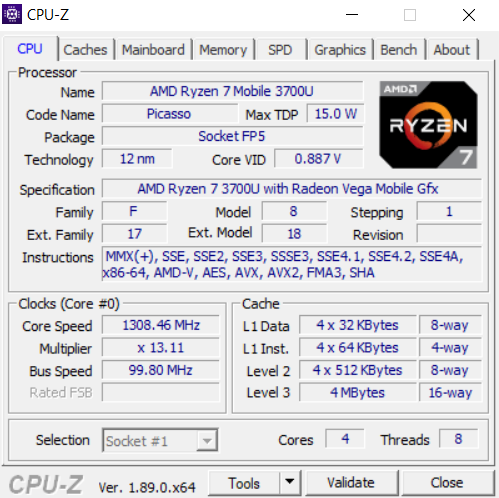

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

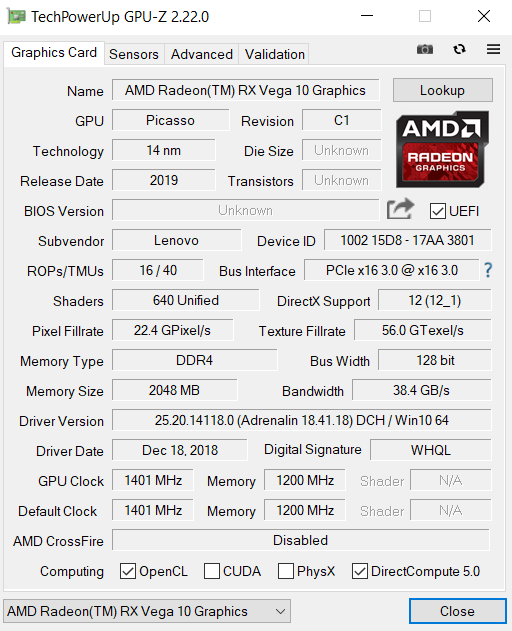

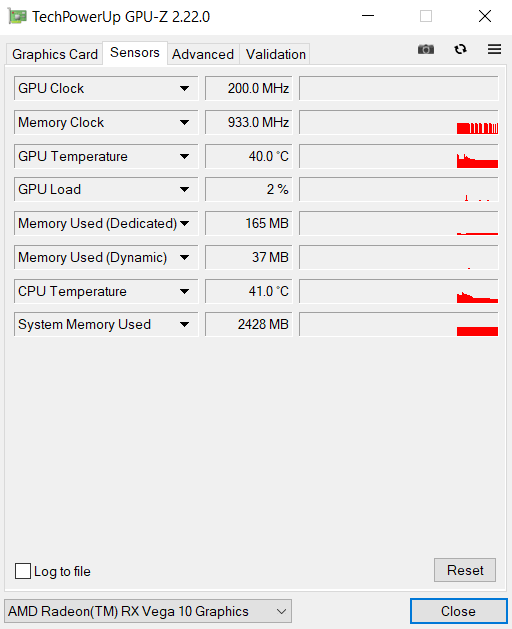

GPU-Z
GPU-Z

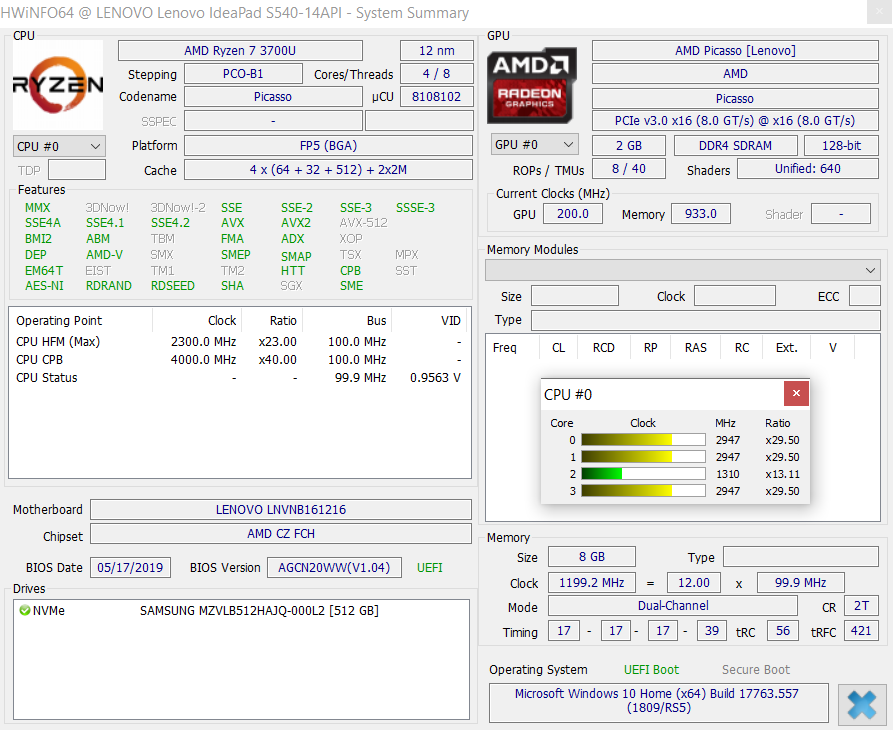

HWiNFO
DPC latencies
Task Manager



0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770Tooltip
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, Intel Core i5-8265U: Ø548 (543.22-613.69)
Lenovo Ideapad S340-14IWL-81N70056GE Intel Core i7-8565U, Intel Core i7-8565U: Ø654 (578.9-760.2)
HP Pavilion 14-ce0002ng Intel Core i7-8550U, Intel Core i7-8550U: Ø512 (505.84-527.4)
Asus VivoBook 14 F412FJ-EB084T Intel Core i5-8265U, Intel Core i5-8265U: Ø503 (492.9-621.35)
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Ryzen 7 3700U: Ø640 (634.34-662.55)

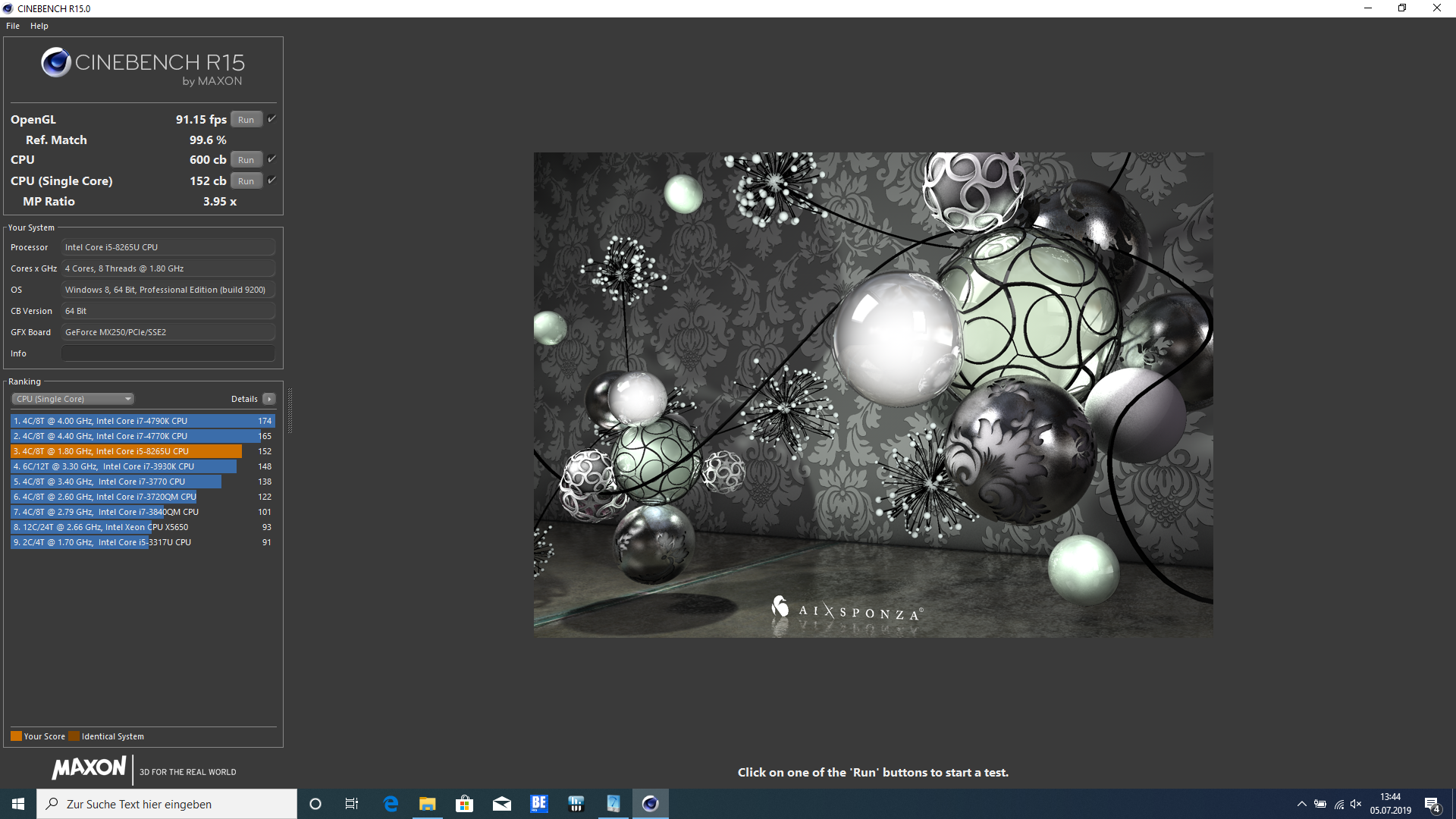

Cinebench R15
CPU Single 64Bit
Lenovo Ideapad S340-14IWL-81N70056GE
Intel Core i7-8565U
175 Points ∼100% +15%
HP Pavilion 14-ce0002ng
Intel Core i7-8550U
166 Points ∼95% +9%
Asus VivoBook 14 F412FJ-EB084T
Intel Core i5-8265U
161 Points ∼92% +6%
Average Intel Core i5-8265U
  (111 - 164, n=26)
154 Points ∼88% +1%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
152 Points ∼87%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U
146 Points ∼83% -4%
Average of class Multimedia
  (36 - 201, n=363)
127 Points ∼73% -16%
CPU Multi 64Bit
Lenovo Ideapad S340-14IWL-81N70056GE
Intel Core i7-8565U
760 Points ∼100% +27%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U
675 (min: 643.4, max: 674.64) Points ∼89% +13%
Asus VivoBook 14 F412FJ-EB084T
Intel Core i5-8265U
623 Points ∼82% +4%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
600 (min: 548.41, max: 619.74) Points ∼79%
Average Intel Core i5-8265U
  (457 - 750, n=28)
598 Points ∼79% 0%
HP Pavilion 14-ce0002ng
Intel Core i7-8550U
527.4 (min: 505.84, max: 527.4) Points ∼69% -12%
Average of class Multimedia
  (73 - 1550, n=379)
484 Points ∼64% -19%

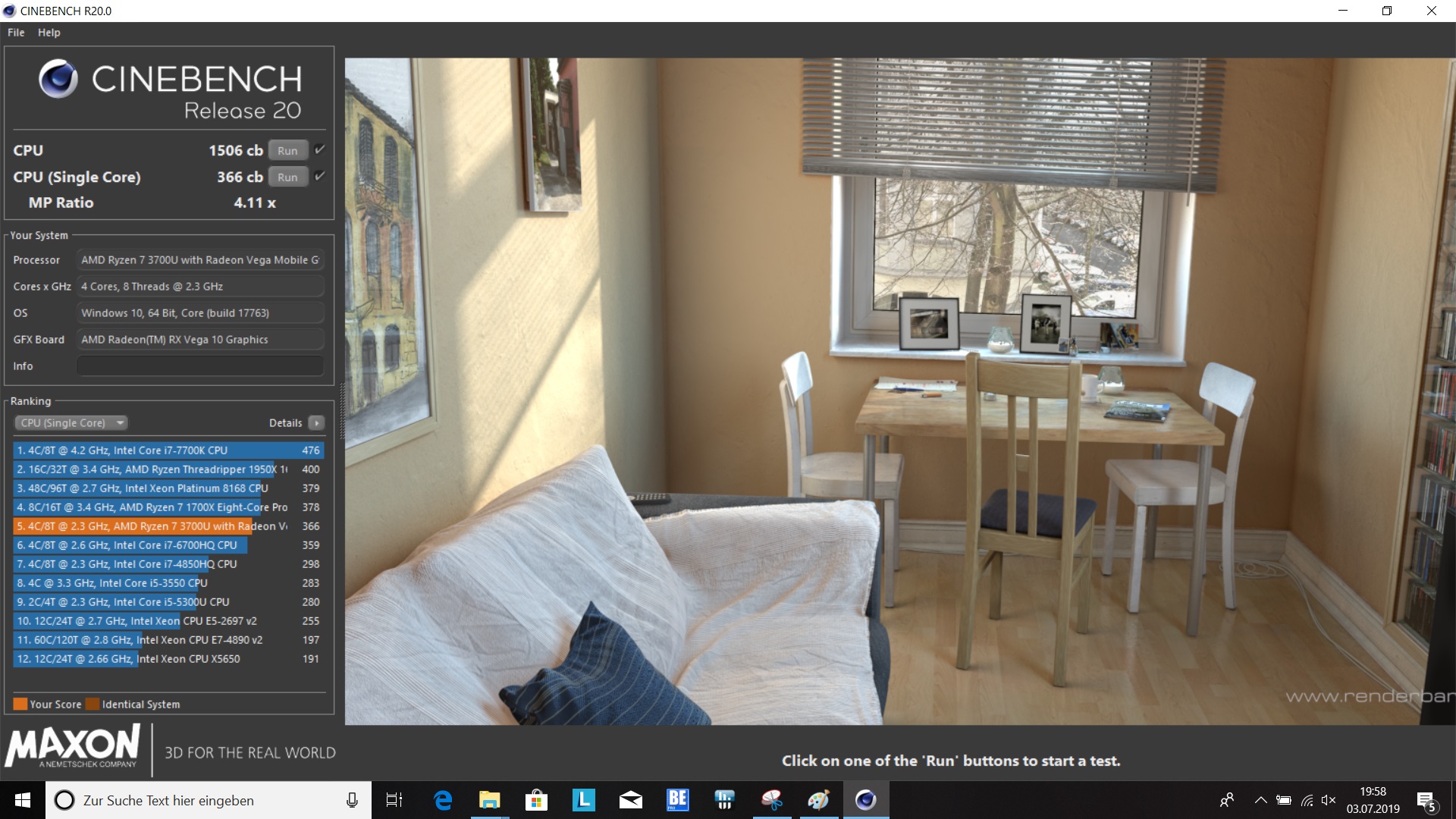

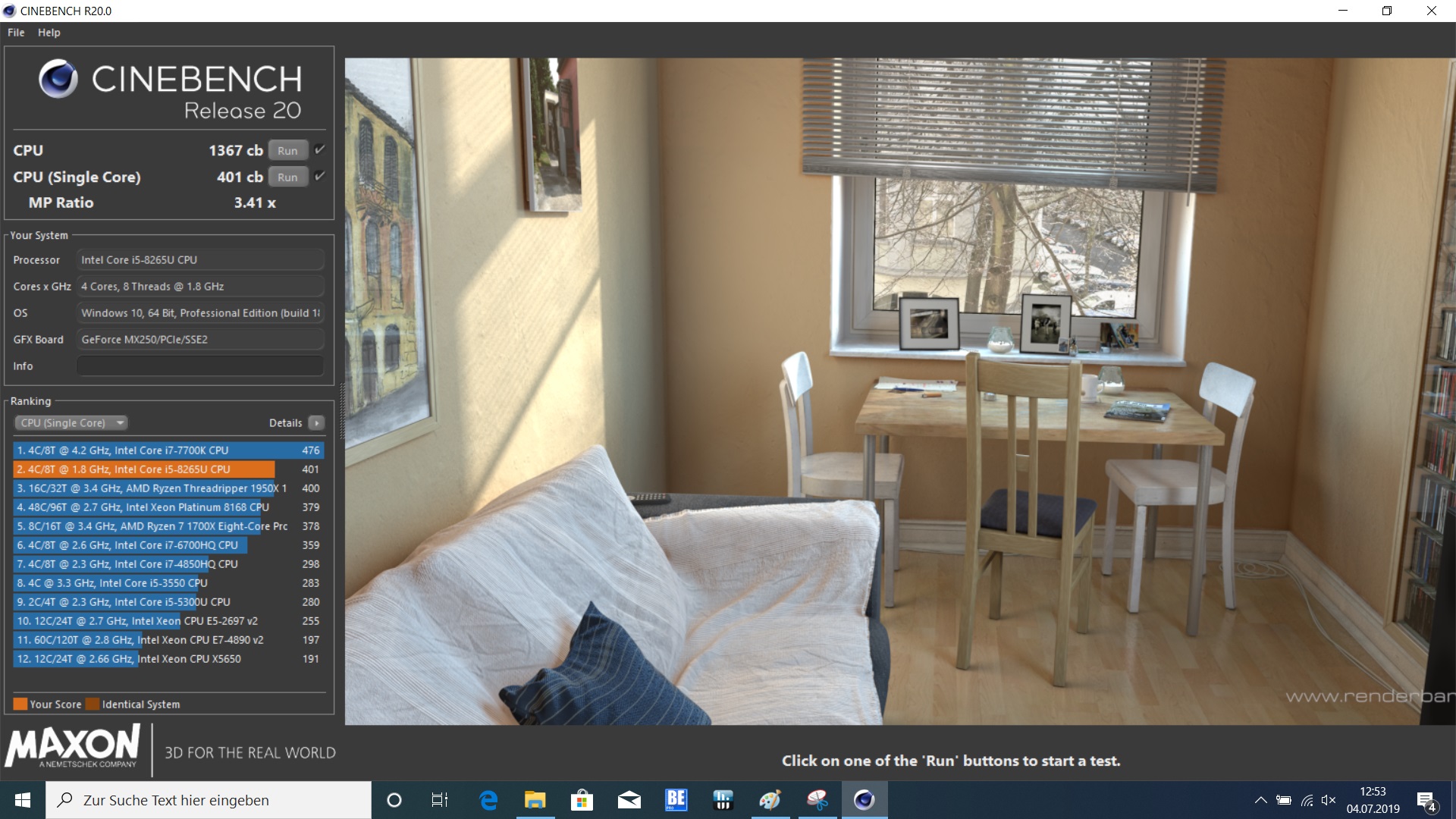

Cinebench R20
CPU (Single Core)
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
401 Points ∼100%
Average Intel Core i5-8265U
  (325 - 403, n=8)
388 Points ∼97% -3%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U
366 Points ∼91% -9%
Average of class Multimedia
  (84 - 457, n=13)
336 Points ∼84% -16%
CPU (Multi Core)
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U
1506 Points ∼100% +10%
Average of class Multimedia
  (160 - 3293, n=13)
1417 Points ∼94% +4%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
1367 Points ∼91%
Average Intel Core i5-8265U
  (1103 - 1486, n=8)
1344 Points ∼89% -2%

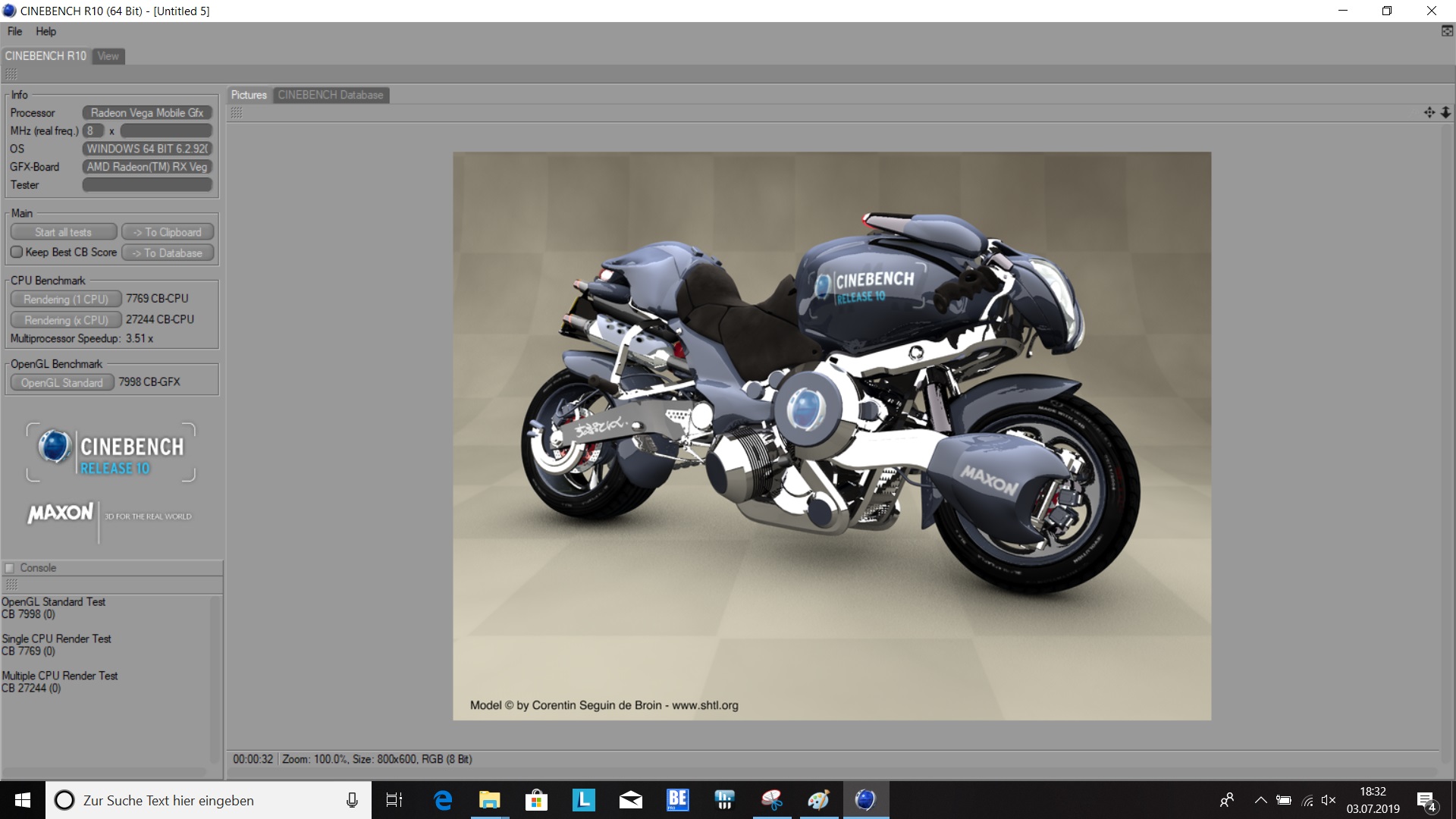

Cinebench R10
Rendering Single CPUs 64Bit
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
7975 Points ∼100%
Average Intel Core i5-8265U
  (7705 - 7975, n=4)
7880 Points ∼99% -1%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U
7769 Points ∼97% -3%
Average of class Multimedia
  (1011 - 8665, n=511)
4441 Points ∼56% -44%
Rendering Multiple CPUs 64Bit
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U
27244 Points ∼100% +7%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
25361 Points ∼93%
Average Intel Core i5-8265U
  (18924 - 25361, n=4)
21959 Points ∼81% -13%
Average of class Multimedia
  (1968 - 45795, n=511)
11971 Points ∼44% -53%

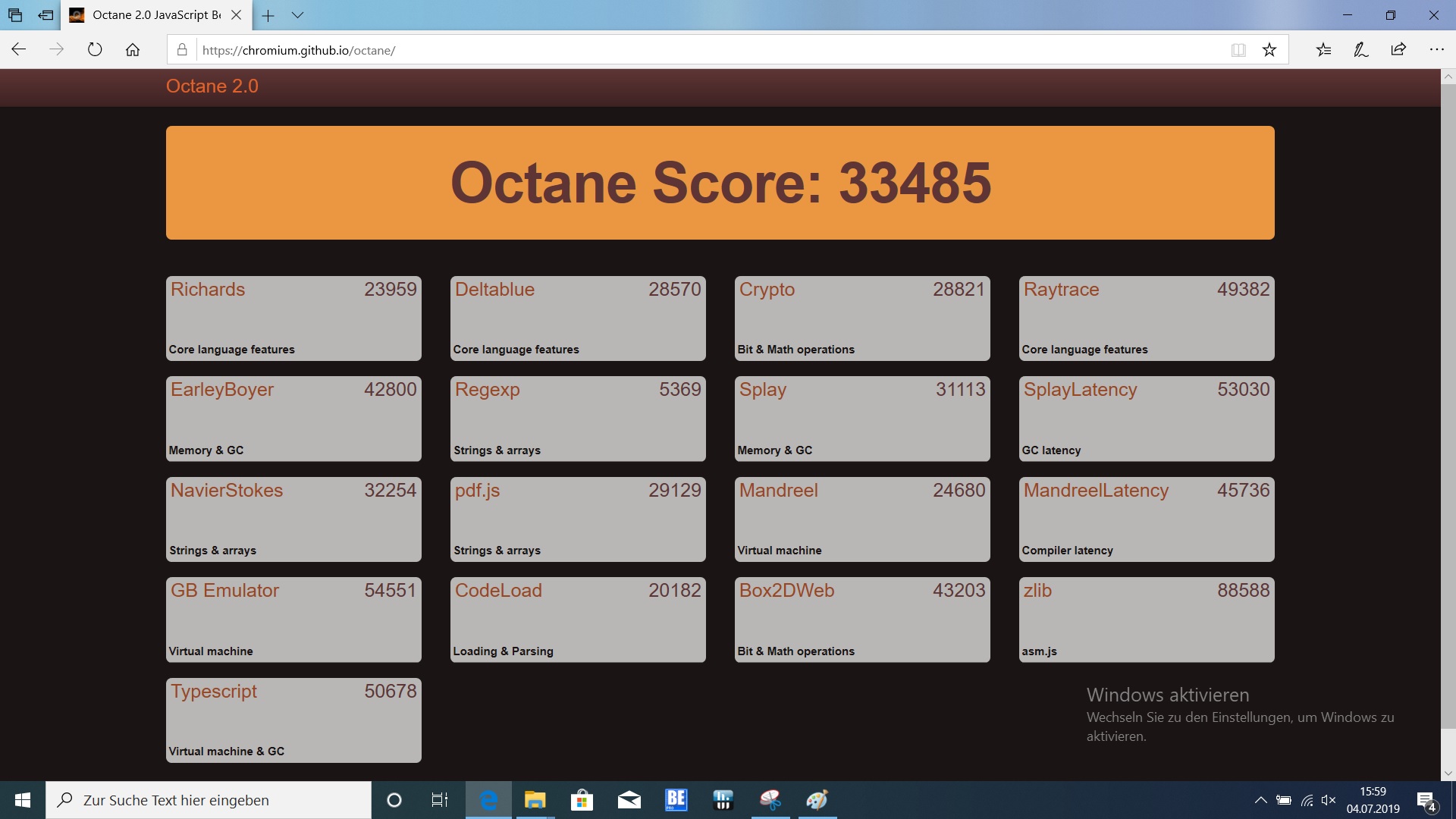

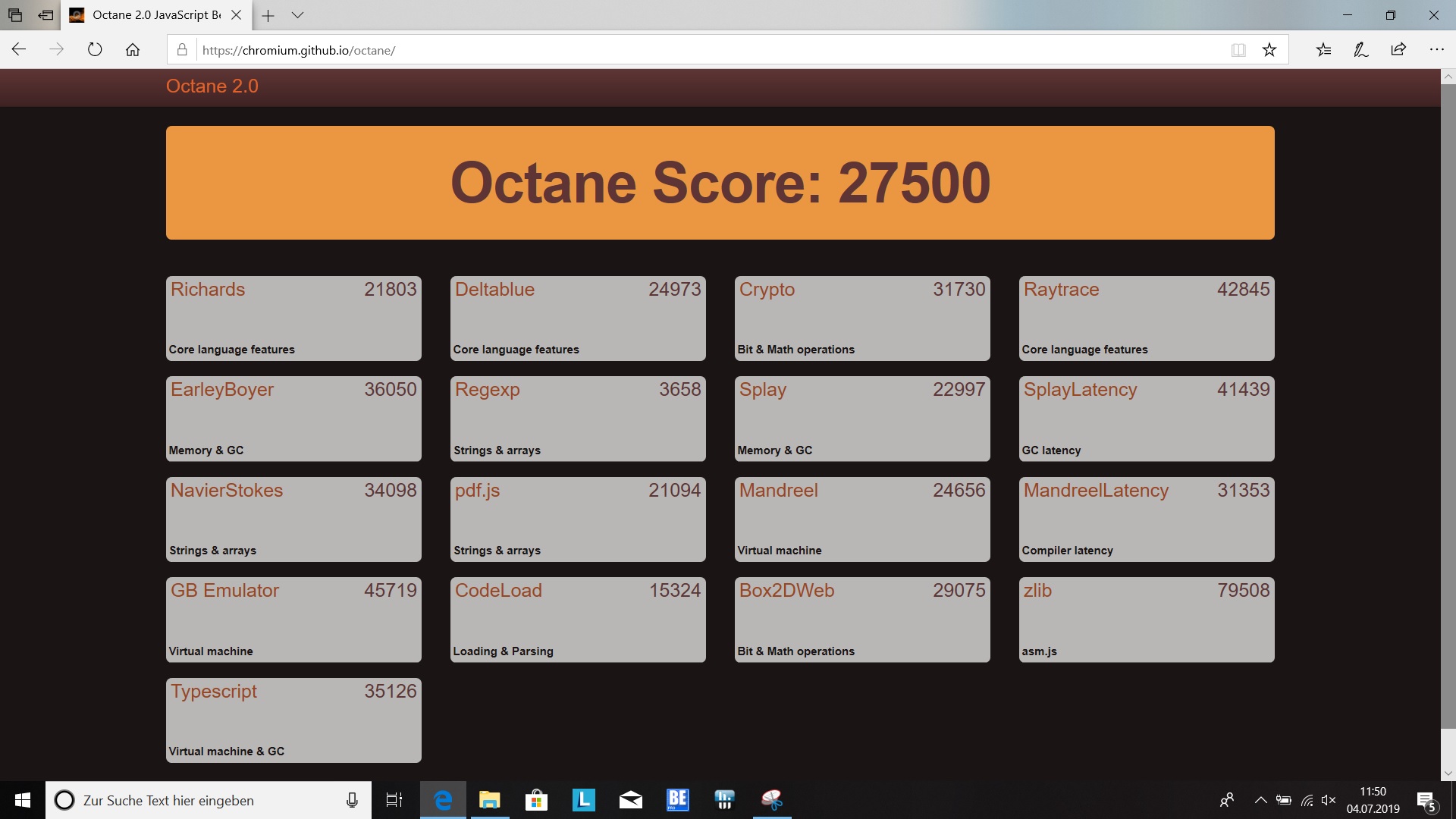

Octane V2 - Total Score
Lenovo Ideapad S340-14IWL-81N70056GE
Intel Core i7-8565U
43069 Points ∼100% +29%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
33485 Points ∼78%
Average Intel Core i5-8265U
  (12842 - 34055, n=17)
30894 Points ∼72% -8%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U
27500 Points ∼64% -18%
Average of class Multimedia
  (1895 - 52403, n=174)
25808 Points ∼60% -23%

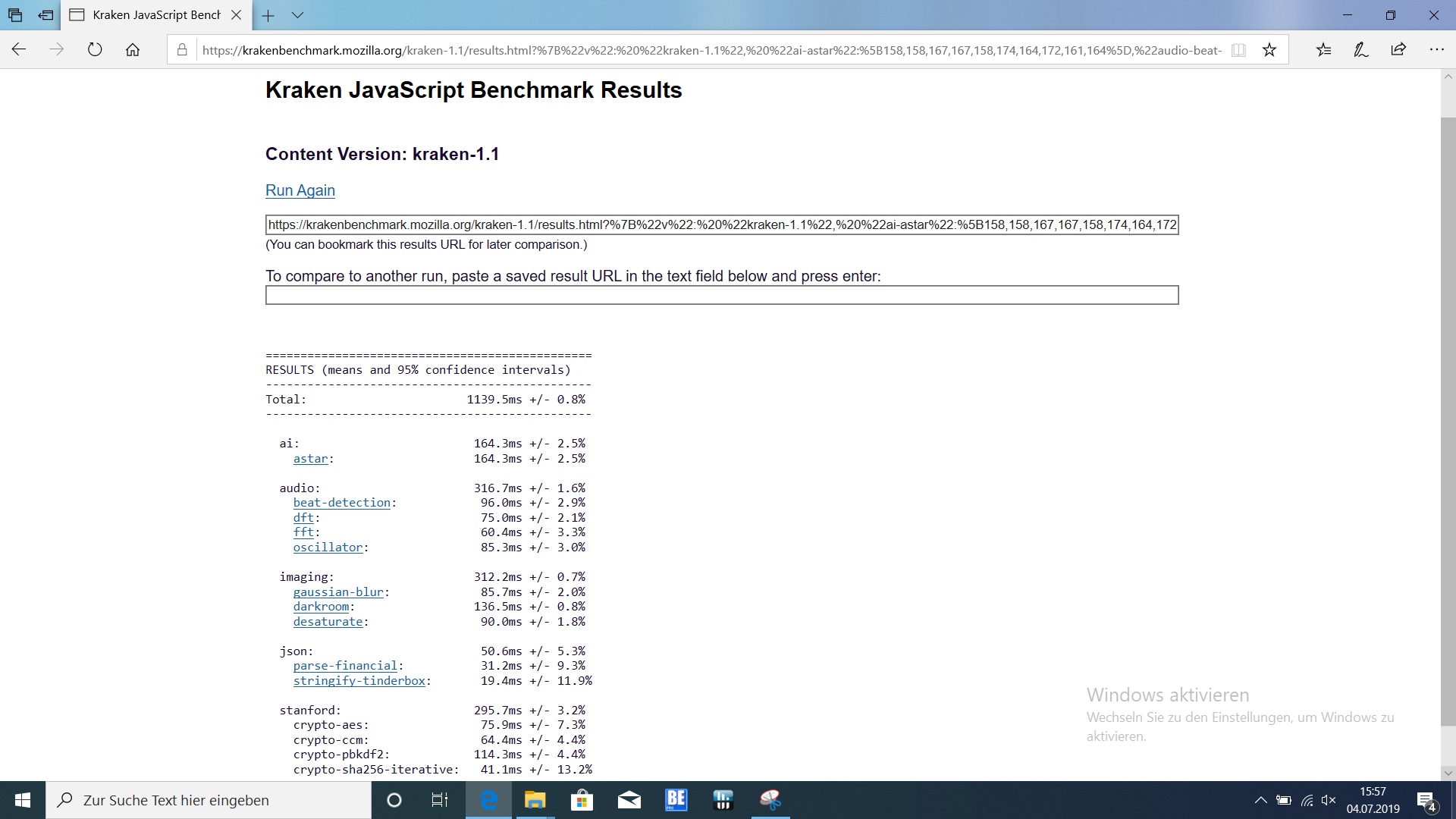

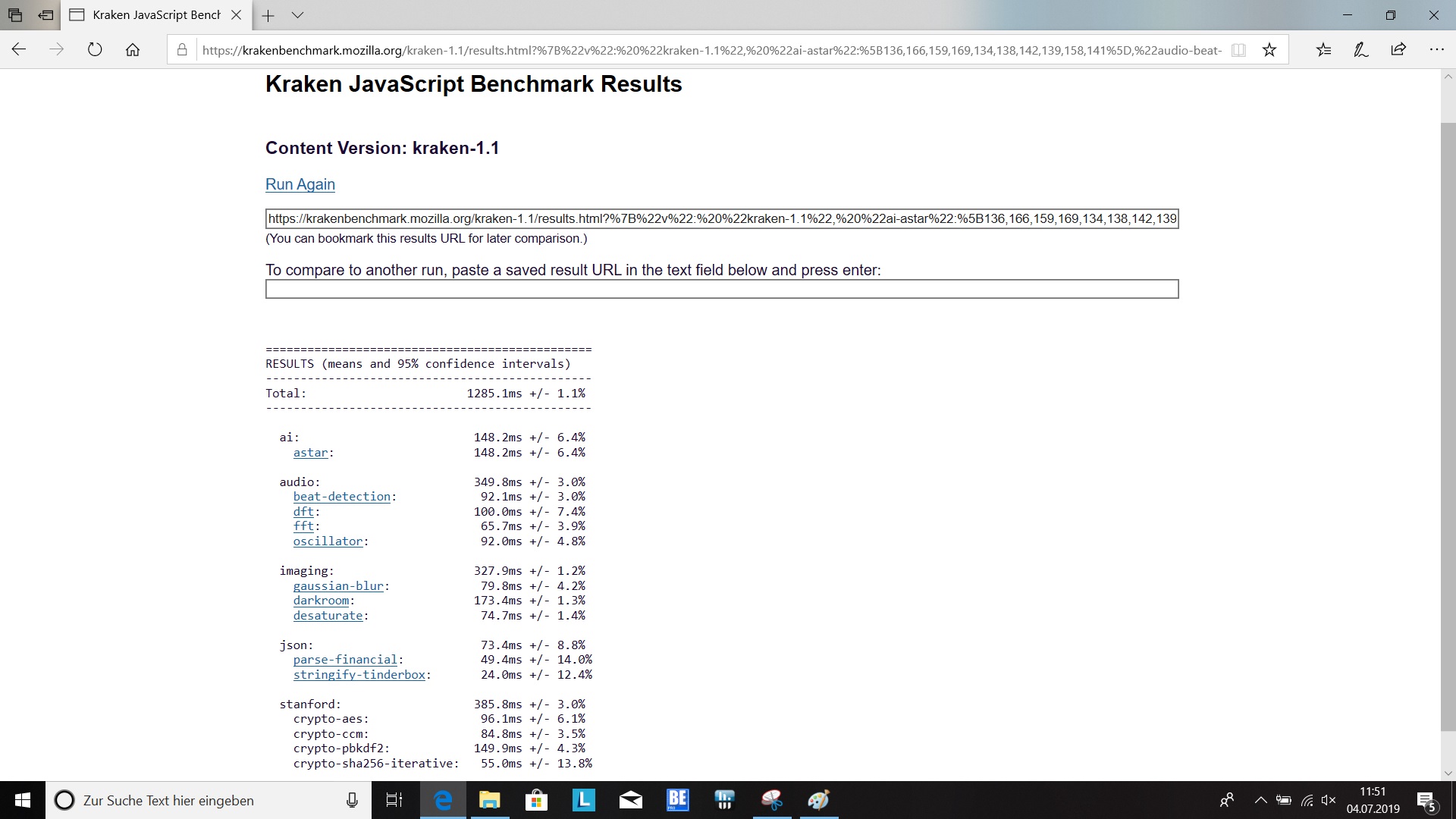

Mozilla Kraken 1.1 - Total Score
Average of class Multimedia
  (598 - 23050, n=178)
1891 ms * ∼100% -66%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U
1285.1 ms * ∼68% -13%
Average Intel Core i5-8265U
  (851 - 1245, n=17)
1172 ms * ∼62% -3%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
1139.5 ms * ∼60%
HP Pavilion 14-ce0002ng
Intel Core i7-8550U
1138.7 ms * ∼60% -0%
Lenovo Ideapad S340-14IWL-81N70056GE
Intel Core i7-8565U
730.3 ms * ∼39% +36%
HWBOT x265 Benchmark v2.2 - 4k Preset
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
4.7 fps ∼100%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
4.69 fps ∼100% 0%
Average Intel Core i5-8265U
  (3.9 - 4.8, n=9)
4.44 fps ∼94% -6%
Average of class Multimedia
  (0.46 - 7.56, n=13)
4.43 fps ∼94% -6%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U
3.9 fps ∼83% -17%
Blender 2.79 - ---
Average of class Multimedia
  (466 - 8409, n=12)
1899 Seconds * ∼100% -139%
Average Intel Core i5-8265U
  (769 - 937, n=9)
832 Seconds * ∼44% -5%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
793 Seconds * ∼42%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
792.9 Seconds * ∼42% -0%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U
703 Seconds * ∼37% +11%
7-Zip 18.03
7z b 4
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
17606 MIPS ∼100%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
17606 MIPS ∼100% 0%
Average of class Multimedia
  (4569 - 30851, n=8)
17550 MIPS ∼100% 0%
Average Intel Core i5-8265U
  (15292 - 18802, n=9)
17077 MIPS ∼97% -3%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U
16931 MIPS ∼96% -4%
7z b 4 -mmt1
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
4193 MIPS ∼100%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
4193 MIPS ∼100% 0%
Average Intel Core i5-8265U
  (3872 - 4195, n=9)
4105 MIPS ∼98% -2%
Average of class Multimedia
  (1454 - 4689, n=8)
3860 MIPS ∼92% -8%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U
3638 MIPS ∼87% -13%

* ... kleiner is beter

IdeaPad S540-14IWL

Cinebench R10
Cinebench R10
Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Octane V2
Octane V2
Mozilla Kraken 1.1
Mozilla Kraken 1.1

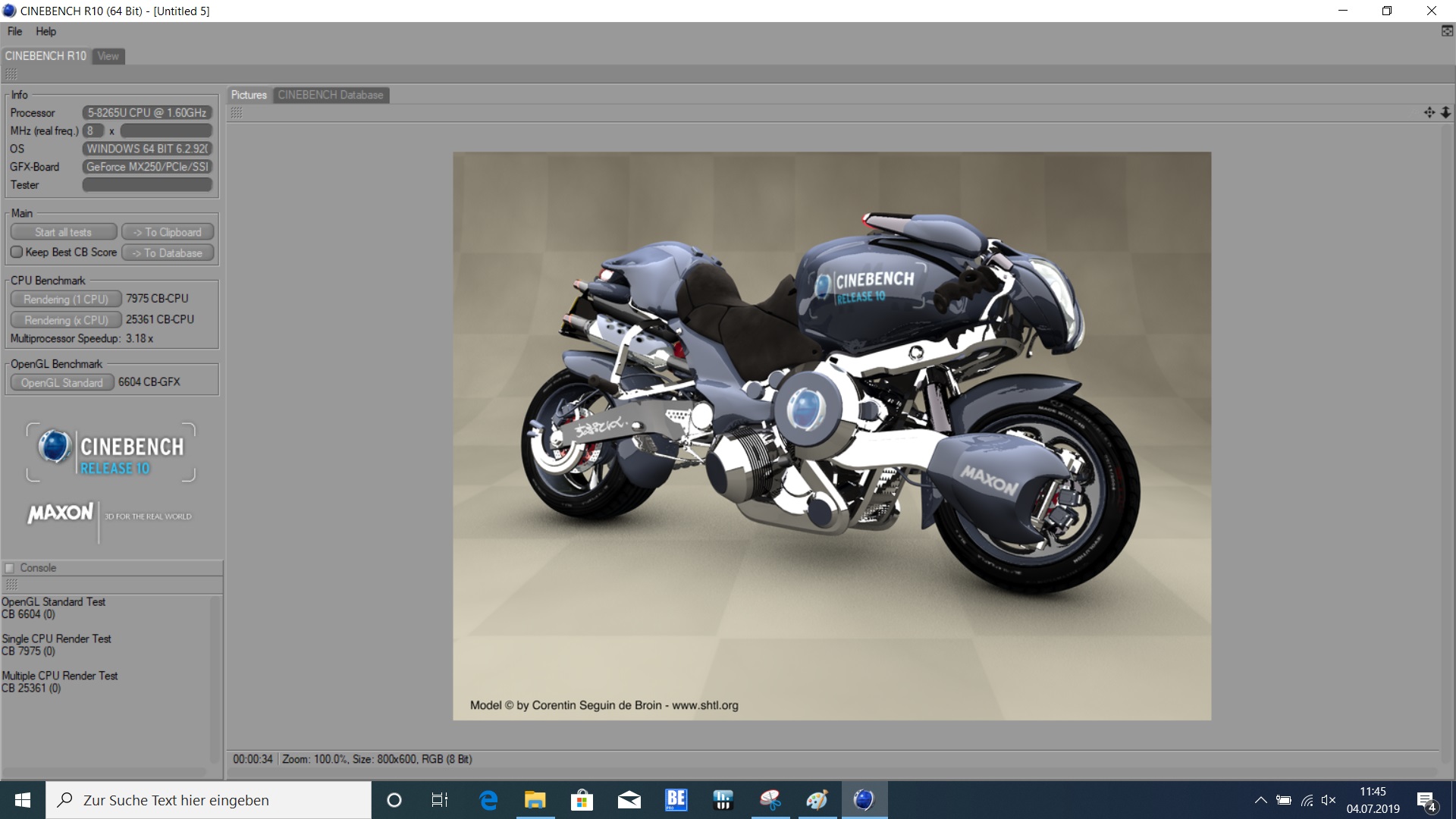

Cinebench R10 Rendering Multiple CPUs 64Bit
25361 Points
Cinebench R10 Shading 64Bit
6604 Points
Cinebench R10 Rendering Single 32Bit
6102
Cinebench R10 Rendering Multiple CPUs 32Bit
19418
Cinebench R10 Shading 32Bit
6527
Cinebench R10 Rendering Single CPUs 64Bit
7975 Points

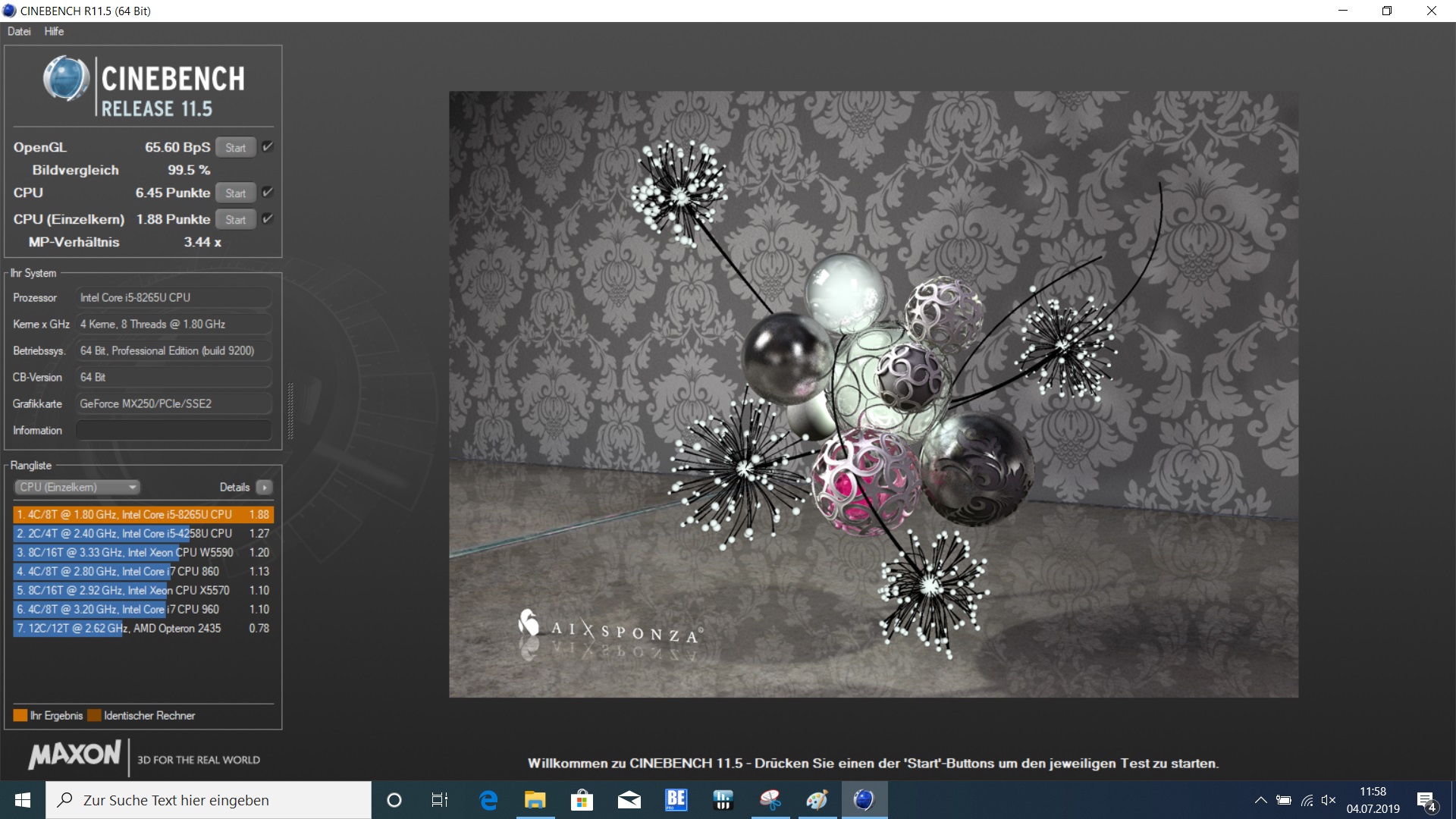

Cinebench R11.5 CPU Single 64Bit
1.88 Points
Cinebench R11.5 OpenGL 32Bit
66.94 fps
Cinebench R11.5 CPU Multi 32Bit
5.88 Points
Cinebench R11.5 CPU Multi 64Bit
6.45 Points
Cinebench R11.5 OpenGL 64Bit
65.6 fps
Cinebench R11.5 CPU Single 32Bit
1.66 Points
Cinebench R15 CPU Single 64Bit
152 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
91.15 fps
Cinebench R15 CPU Multi 64Bit
600 Points
Help

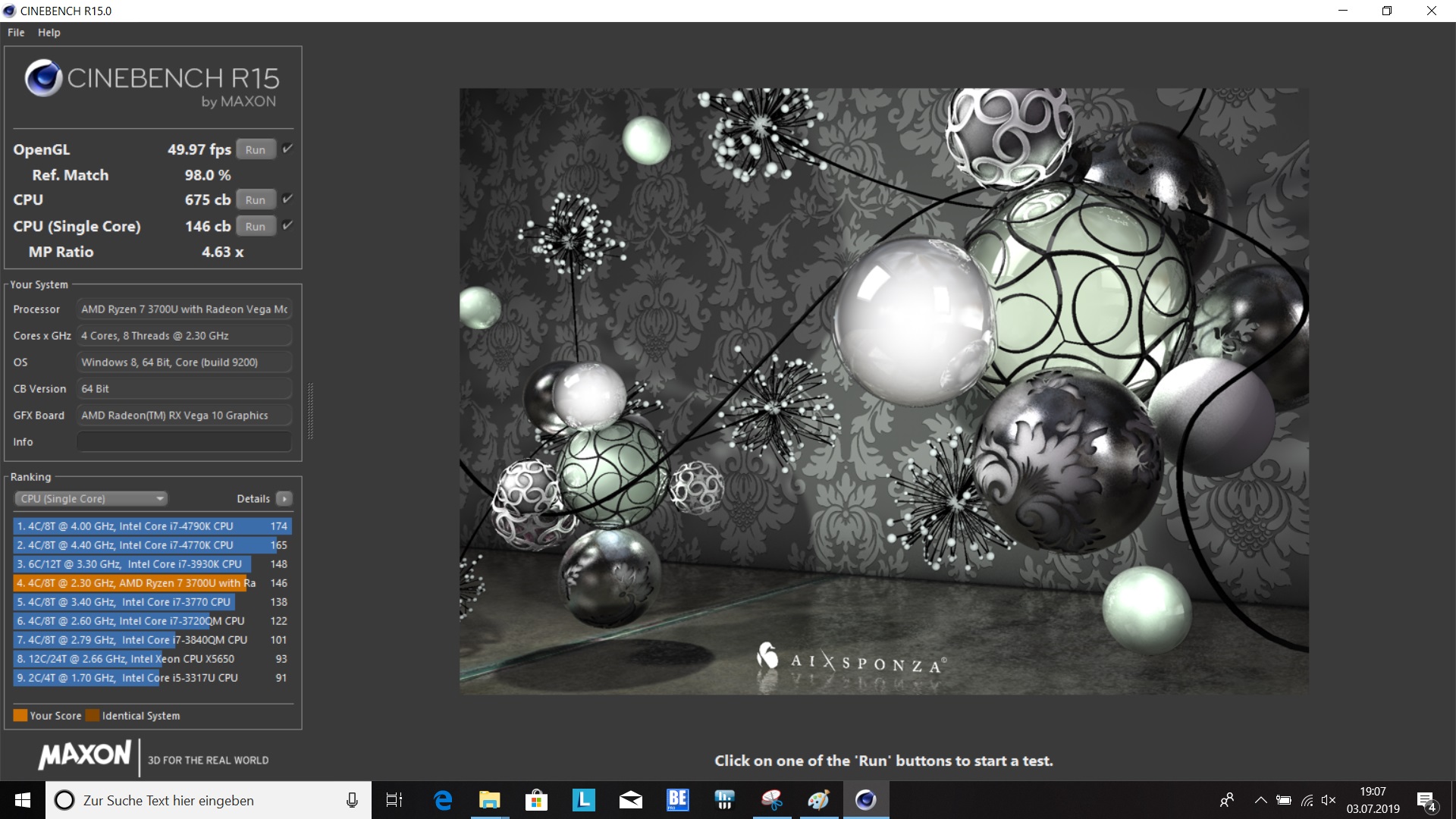

IdeaPad S540-14API

Cinebench R10
Cinebench R10

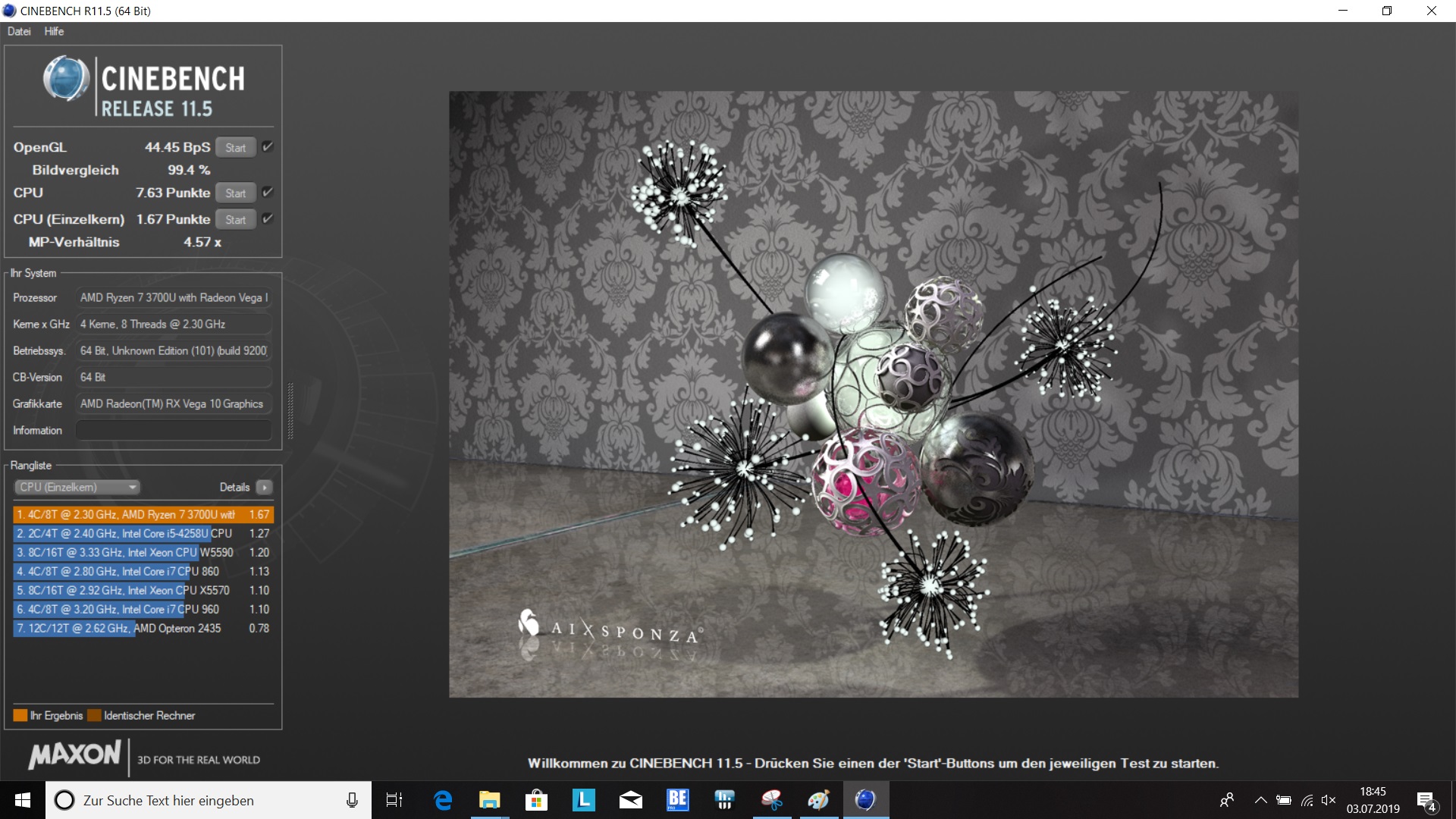

Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Octane V2
Octane V2
Mozilla Kraken 1.1
Mozilla Kraken 1.1


Cinebench R10 Rendering Multiple CPUs 64Bit
27244 Points
Cinebench R10 Shading 64Bit
7998 Points
Cinebench R10 Rendering Single 32Bit
4776
Cinebench R10 Rendering Multiple CPUs 32Bit
18041
Cinebench R10 Shading 32Bit
7856
Cinebench R10 Rendering Single CPUs 64Bit
7769 Points
Cinebench R11.5 CPU Single 64Bit
1.67 Points
Cinebench R11.5 OpenGL 32Bit
45.91 fps
Cinebench R11.5 CPU Multi 32Bit
6.94 Points
Cinebench R11.5 CPU Multi 64Bit
7.63 Points
Cinebench R11.5 OpenGL 64Bit
44.45 fps
Cinebench R11.5 CPU Single 32Bit
1.53 Points
Cinebench R15 CPU Single 64Bit
146 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
49.97 fps
Cinebench R15 CPU Multi 64Bit
675 Points
Help
PCMark 10
Digital Content Creation
Average of class Multimedia
  (1001 - 7161, n=95)
3721 Points ∼100% +2%
Lenovo IdeaPad S540-14IWL
GeForce MX250, 8265U, Samsung SSD PM981 MZVLB512HAJQ
3637 Points ∼98%
Average Intel Core i5-8265U, NVIDIA GeForce MX250
  (3604 - 3637, n=2)
3621 Points ∼97% 0%
Lenovo IdeaPad S540-14API
Vega 10, 3700U, Samsung SSD PM981 MZVLB512HAJQ
3501 Points ∼94% -4%
Lenovo Ideapad S340-14IWL-81N70056GE
GeForce MX230, 8565U, WDC PC SN520 SDAPNUW-512G
3344 Points ∼90% -8%
Asus VivoBook 14 F412FJ-EB084T
GeForce MX230, 8265U, Kingston RBU-SNS8180DS3512GJ
2685 Points ∼72% -26%
Productivity
Asus VivoBook 14 F412FJ-EB084T
GeForce MX230, 8265U, Kingston RBU-SNS8180DS3512GJ
6755 Points ∼100% +2%
Lenovo IdeaPad S540-14IWL
GeForce MX250, 8265U, Samsung SSD PM981 MZVLB512HAJQ
6654 Points ∼99%
Average Intel Core i5-8265U, NVIDIA GeForce MX250
  (6604 - 6654, n=2)
6629 Points ∼98% 0%
Lenovo Ideapad S340-14IWL-81N70056GE
GeForce MX230, 8565U, WDC PC SN520 SDAPNUW-512G
6373 Points ∼94% -4%
Average of class Multimedia
  (1407 - 8020, n=96)
6150 Points ∼91% -8%
Lenovo IdeaPad S540-14API
Vega 10, 3700U, Samsung SSD PM981 MZVLB512HAJQ
5952 Points ∼88% -11%
Essentials
Average Intel Core i5-8265U, NVIDIA GeForce MX250
  (8264 - 8394, n=2)
8329 Points ∼100% +1%
Lenovo IdeaPad S540-14IWL
GeForce MX250, 8265U, Samsung SSD PM981 MZVLB512HAJQ
8264 Points ∼99%
Lenovo Ideapad S340-14IWL-81N70056GE
GeForce MX230, 8565U, WDC PC SN520 SDAPNUW-512G
8222 Points ∼99% -1%
Asus VivoBook 14 F412FJ-EB084T
GeForce MX230, 8265U, Kingston RBU-SNS8180DS3512GJ
7981 Points ∼96% -3%
Average of class Multimedia
  (2891 - 9829, n=96)
7480 Points ∼90% -9%
Lenovo IdeaPad S540-14API
Vega 10, 3700U, Samsung SSD PM981 MZVLB512HAJQ
7312 Points ∼88% -12%
Score
Lenovo IdeaPad S540-14IWL
GeForce MX250, 8265U, Samsung SSD PM981 MZVLB512HAJQ
4192 Points ∼100%
Average Intel Core i5-8265U, NVIDIA GeForce MX250
  (4190 - 4192, n=2)
4191 Points ∼100% 0%
Lenovo Ideapad S340-14IWL-81N70056GE
GeForce MX230, 8565U, WDC PC SN520 SDAPNUW-512G
4011 Points ∼96% -4%
Average of class Multimedia
  (1144 - 5469, n=96)
3942 Points ∼94% -6%
Lenovo IdeaPad S540-14API
Vega 10, 3700U, Samsung SSD PM981 MZVLB512HAJQ
3829 Points ∼91% -9%
Asus VivoBook 14 F412FJ-EB084T
GeForce MX230, 8265U, Kingston RBU-SNS8180DS3512GJ
3764 Points ∼90% -10%
PCMark 8
Work Score Accelerated v2
Lenovo Ideapad S340-14IWL-81N70056GE
GeForce MX230, 8565U, WDC PC SN520 SDAPNUW-512G
5133 Points ∼100% +3%
Average Intel Core i5-8265U, NVIDIA GeForce MX250
  (4965 - 5223, n=2)
5094 Points ∼99% +3%
Lenovo IdeaPad S540-14IWL
GeForce MX250, 8265U, Samsung SSD PM981 MZVLB512HAJQ
4965 Points ∼97%
Lenovo IdeaPad S540-14API
Vega 10, 3700U, Samsung SSD PM981 MZVLB512HAJQ
4839 Points ∼94% -3%
HP Pavilion 14-ce0002ng
GeForce MX150, 8550U, SanDisk X600 SD9SN8W-128G
4456 Points ∼87% -10%
Average of class Multimedia
  (2213 - 5651, n=278)
4294 Points ∼84% -14%
Home Score Accelerated v2
Lenovo IdeaPad S540-14IWL
GeForce MX250, 8265U, Samsung SSD PM981 MZVLB512HAJQ
4220 Points ∼100%
Lenovo IdeaPad S540-14API
Vega 10, 3700U, Samsung SSD PM981 MZVLB512HAJQ
3993 Points ∼95% -5%
Average Intel Core i5-8265U, NVIDIA GeForce MX250
  (3603 - 4220, n=2)
3912 Points ∼93% -7%
Lenovo Ideapad S340-14IWL-81N70056GE
GeForce MX230, 8565U, WDC PC SN520 SDAPNUW-512G
3641 Points ∼86% -14%
HP Pavilion 14-ce0002ng
GeForce MX150, 8550U, SanDisk X600 SD9SN8W-128G
3379 Points ∼80% -20%
Average of class Multimedia
  (1371 - 4693, n=299)
3379 Points ∼80% -20%
PCMark 8 Home Score Accelerated v2
4220 punten
PCMark 8 Creative Score Accelerated v2
5959 punten
PCMark 8 Work Score Accelerated v2
4965 punten
Help
Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U
Samsung SSD PM981 MZVLB512HAJQ
Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U
Samsung SSD PM981 MZVLB512HAJQ
Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U
WDC PC SN520 SDAPNUW-512G
HP Pavilion 14-ce0002ng, Intel Core i7-8550U
SanDisk X600 SD9SN8W-128G
Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U
Kingston RBU-SNS8180DS3512GJ
Average Samsung SSD PM981 MZVLB512HAJQ

AS SSD
5%
-24%
-340%
-272%
-14%
Copy Game MB/s
736.27
546.51
-26%
111.46
-85%
990 (547 - 1584, n=34)
34%
Copy Program MB/s
350.42
206.06
-41%
80.65
-77%
429 (206 - 713, n=34)
22%
Copy ISO MB/s
1133.97
934.1
-18%
135.24
-88%
1679 (917 - 3259, n=34)
48%
Score Total
3955
5316
34%
3255
-18%
570
-86%
782
-80%
3940 (2348 - 5316, n=45)
0%
Score Write
1645
2992
82%
1383
-16%
120
-93%
153
-91%
1747 (147 - 2992, n=45)
6%
Score Read
1526
1564
2%
1241
-19%
301
-80%
411
-73%
1458 (820 - 2125, n=45)
-4%
Access Time Write *
0.028
0.04
-43%
0.027
4%
0.845
-2918%
0.4
-1329%
0.0954 (0.026 - 2.52, n=45)
-241%
Access Time Read *
0.04
0.047
-18%
0.086
-115%
0.394
-885%
0.432
-980%
0.0494 (0.029 - 0.073, n=45)
-24%
4K-64 Write
1330.25
2716.39
104%
1112.53
-16%
46.82
-96%
87.19
-93%
1480 (96.2 - 2716, n=45)
11%
4K-64 Read
1271.04
1241.75
-2%
1038.17
-18%
221.79
-83%
325.38
-74%
1212 (530 - 1823, n=45)
-5%
4K Write
138.94
94.26
-32%
136.15
-2%
62.61
-55%
26.46
-81%
108 (1.76 - 142, n=45)
-22%
4K Read
61
47.69
-22%
44.47
-27%
31.49
-48%
36.4
-40%
49.7 (31.7 - 61, n=45)
-19%
Seq Write
1755.35
1813.13
3%
1345.48
-23%
110.07
-94%
392.72
-78%
1591 (487 - 2330, n=45)
-9%
Seq Read
1938.67
2749.45
42%
1582.61
-18%
481.4
-75%
487.61
-75%
1964 (1049 - 2806, n=45)
1%

* ... kleiner is beter

Samsung SSD PM981 MZVLB512HAJQ
Sequential Read: 1273 MB/s
Sequential Write: 1244 MB/s
512K Read: 617.9 MB/s
512K Write: 1826 MB/s
4K Read: 66.37 MB/s
4K Write: 156.9 MB/s
4K QD32 Read: 458.1 MB/s
4K QD32 Write: 363.8 MB/s
3DMark 11 - 1280x720 Performance GPU
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
4942 Points ∼100%
Average NVIDIA GeForce MX250
  (3593 - 4942, n=11)
4415 Points ∼89% -11%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
3968 Points ∼80% -20%
Lenovo Ideapad S340-14IWL-81N70056GE
NVIDIA GeForce MX230, Intel Core i7-8565U
3582 Points ∼72% -28%
Asus VivoBook 14 F412FJ-EB084T
NVIDIA GeForce MX230, Intel Core i5-8265U
3318 Points ∼67% -33%
Average of class Multimedia
  (352 - 20837, n=632)
2951 Points ∼60% -40%
HP Pavilion 14-ce0002ng
NVIDIA GeForce MX150, Intel Core i7-8550U
2945 Points ∼60% -40%
3DMark
1920x1080 Fire Strike Graphics
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
3720 Points ∼100%
HP Pavilion 14-ce0002ng
NVIDIA GeForce MX150, Intel Core i7-8550U
3561 Points ∼96% -4%
Average NVIDIA GeForce MX250
  (2977 - 3863, n=11)
3536 Points ∼95% -5%
Average of class Multimedia
  (337 - 16100, n=406)
2846 Points ∼77% -23%
Lenovo Ideapad S340-14IWL-81N70056GE
NVIDIA GeForce MX230, Intel Core i7-8565U
2729 Points ∼73% -27%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
2568 Points ∼69% -31%
Asus VivoBook 14 F412FJ-EB084T
NVIDIA GeForce MX230, Intel Core i5-8265U
2369 Points ∼64% -36%
1280x720 Cloud Gate Standard Graphics
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
23643 Points ∼100%
Average NVIDIA GeForce MX250
  (20283 - 23748, n=11)
21984 Points ∼93% -7%
HP Pavilion 14-ce0002ng
NVIDIA GeForce MX150, Intel Core i7-8550U
19698 Points ∼83% -17%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
18581 Points ∼79% -21%
Lenovo Ideapad S340-14IWL-81N70056GE
NVIDIA GeForce MX230, Intel Core i7-8565U
17999 Points ∼76% -24%
Average of class Multimedia
  (2468 - 77755, n=411)
16818 Points ∼71% -29%
Asus VivoBook 14 F412FJ-EB084T
NVIDIA GeForce MX230, Intel Core i5-8265U
15299 Points ∼65% -35%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Average of class Multimedia
  (4.41 - 70.7, n=30)
25.6 fps ∼100% +54%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
23.86 fps ∼93% +43%
Average NVIDIA GeForce MX250

16.7 fps ∼65% 0%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
16.67 fps ∼65%
1900x1060 Siemens NX (snx-02)
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
8.77 fps ∼100% +318%
Average of class Multimedia
  (1.26 - 85.3, n=30)
8.1 fps ∼92% +286%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
2.1 fps ∼24%
Average NVIDIA GeForce MX250

2.1 fps ∼24% 0%
1900x1060 Showcase (showcase-01)
Average of class Multimedia
  (8.5 - 71.6, n=30)
20.9 fps ∼100% +25%
Average NVIDIA GeForce MX250

16.7 fps ∼80% 0%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
16.66 fps ∼80%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
11.34 fps ∼54% -32%
1900x1060 Medical (medical-01)
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
18.12 fps ∼100%
Average NVIDIA GeForce MX250

18.1 fps ∼100% 0%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
12.09 fps ∼67% -33%
Average of class Multimedia
  (1.35 - 32.7, n=30)
10.5 fps ∼58% -42%
1900x1060 Maya (maya-04)
Average of class Multimedia
  (3.01 - 83.5, n=29)
28.3 fps ∼100% +840%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
5.99 fps ∼21% +99%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
3.01 fps ∼11%
Average NVIDIA GeForce MX250

3.01 fps ∼11% 0%
1900x1060 Energy (energy-01)
Average of class Multimedia
  (0.11 - 19.5, n=30)
5.87 fps ∼100% +444%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
1.08 fps ∼18%
Average NVIDIA GeForce MX250

1.08 fps ∼18% 0%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
0.8 fps ∼14% -26%
1900x1060 Creo (creo-01)
Average of class Multimedia
  (6.78 - 51.4, n=30)
24.6 fps ∼100% +131%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
16.26 fps ∼66% +53%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
10.63 fps ∼43%
Average NVIDIA GeForce MX250

10.6 fps ∼43% 0%
1900x1060 Catia (catia-04)
Average of class Multimedia
  (7.02 - 78.4, n=30)
24.2 fps ∼100% +164%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
11.1 fps ∼46% +21%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
9.15 fps ∼38%
Average NVIDIA GeForce MX250

9.15 fps ∼38% 0%
1900x1060 3ds Max (3dsmax-05)
Average of class Multimedia
  (23.9 - 97.4, n=7)
36.2 fps ∼100% +30%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
27.9 fps ∼77%
Average NVIDIA GeForce MX250

27.9 fps ∼77% 0%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
24.67 fps ∼68% -12%
SPECviewperf 13
Solidworks (sw-04)
Average of class Multimedia
  (3.69 - 68.3, n=5)
39 fps ∼100% +12%
Average NVIDIA GeForce MX250

34.8 fps ∼89% 0%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
34.75 fps ∼89%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
3.69 fps ∼9% -89%
Siemens NX (snx-03)
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
18.43 fps ∼100% +203%
Average of class Multimedia
  (5.87 - 36.3, n=5)
15.5 fps ∼84% +155%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
6.09 fps ∼33%
Average NVIDIA GeForce MX250

6.09 fps ∼33% 0%
Showcase (showcase-02)
Average of class Multimedia
  (11.3 - 44.5, n=5)
24.4 fps ∼100% +46%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
16.72 fps ∼69%
Average NVIDIA GeForce MX250

16.7 fps ∼68% 0%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
11.34 fps ∼46% -32%
Medical (medical-02)
Average of class Multimedia
  (7.96 - 22.8, n=5)
13.2 fps ∼100% +21%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
10.9 fps ∼83%
Average NVIDIA GeForce MX250

10.9 fps ∼83% 0%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
7.96 fps ∼60% -27%
Maya (maya-05)
Average of class Multimedia
  (27 - 120, n=5)
67.8 fps ∼100% +37%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
49.53 fps ∼73%
Average NVIDIA GeForce MX250

49.5 fps ∼73% 0%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
27.03 fps ∼40% -45%
Energy (energy-02)
Average of class Multimedia
  (0.48 - 11.8, n=3)
4.31 fps ∼100% +798%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
0.63 fps ∼15% +31%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
0.48 fps ∼11%
Average NVIDIA GeForce MX250

0.48 fps ∼11% 0%
Creo (creo-02)
Average of class Multimedia
  (25.2 - 74.1, n=5)
44.4 fps ∼100% +66%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
26.72 fps ∼60%
Average NVIDIA GeForce MX250

26.7 fps ∼60% 0%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
25.18 fps ∼57% -6%
Catia (catia-05)
Average of class Multimedia
  (25.8 - 111, n=5)
49.4 fps ∼100% +88%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
30.21 fps ∼61% +15%
Average NVIDIA GeForce MX250

26.3 fps ∼53% 0%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
26.27 fps ∼53%
3ds Max (3dsmax-06)
Average of class Multimedia
  (23.3 - 71.3, n=5)
43.2 fps ∼100% +56%
Average NVIDIA GeForce MX250

27.7 fps ∼64% 0%
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
27.65 fps ∼64%
Lenovo IdeaPad S540-14API
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
24.81 fps ∼57% -10%
3DMark 11 Performance
4950 punten
3DMark Ice Storm Standard Score
64303 punten
3DMark Cloud Gate Standard Score
10508 punten
3DMark Fire Strike Score
3254 punten
3DMark Fire Strike Extreme Score
1689 punten
Help
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
12 fps ∼100%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
11 fps ∼92% -8%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
19.8 fps ∼100%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
15 fps ∼76% -24%
1024x768 Low Graphics & Postprocessing
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
47.4 fps ∼100%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
43 fps ∼91% -9%
F1 2019
1920x1080 High Preset AA:T AF:16x
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
25 fps ∼100%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
18 fps ∼72% -28%
1920x1080 Medium Preset AA:T AF:16x
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
30 fps ∼100%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
21 fps ∼70% -30%
1280x720 Ultra Low Preset
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
66 fps ∼100%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
51 fps ∼77% -23%
Rocket League
1920x1080 High Quality AA:High FX
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
80 (min: 35, max: 113) fps ∼100%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
35.3 fps ∼44% -56%
1920x1080 Quality AA:Medium FX
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
109 (min: 43, max: 154) fps ∼100%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
62.5 fps ∼57% -43%
1280x720 Performance
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
176 (min: 41, max: 235) fps ∼100%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
106.5 fps ∼61% -39%
FIFA 19
1920x1080 High Preset AA:2x MS
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
42.9 (min: 22, max: 44) fps ∼100%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
33 fps ∼77% -23%
1920x1080 Medium Preset
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
45.7 (min: 24, max: 52) fps ∼100%
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
44.5 fps ∼97% -3%
1280x720 Low Preset
Lenovo IdeaPad S540-14API
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
74.1 fps ∼100% +43%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
52 (min: 34, max: 76) fps ∼70%
05101520Tooltip
Lenovo IdeaPad S540-14IWL GeForce MX250, 8265U, Samsung SSD PM981 MZVLB512HAJQ: Ø10.2 (1-12)
Lenovo IdeaPad S540-14API Vega 10, 3700U, Samsung SSD PM981 MZVLB512HAJQ: Ø10.2 (9-11)

IdeaPad S540-14IWL

lage gem. hoge ultra
BioShock Infinite (2013) 197.7105.696.937.6fps
Battlefield 4 (2013) 88686329.9fps
The Witcher 3 (2015) 47.434.519.812fps
Dota 2 Reborn (2015) 1189967.360.3fps
Rise of the Tomb Raider (2016) 53.139.92117.5fps
Rocket League (2017) 17610980fps
Playerunknown's Battlegrounds (PUBG) (2017) 57.328.423.218.7fps
Fortnite (2018) 14055.425.222fps
X-Plane 11.11 (2018) 59.542.940fps
F1 2018 (2018) 65372616fps
FIFA 19 (2018) 5245.742.940.1fps
Anno 1800 (2019) 43.318.212.97.2fps
Rage 2 (2019) 32.621.219.418.9fps
F1 2019 (2019) 66302514fps

IdeaPad S540-14API

lage gem. hoge ultra
BioShock Infinite (2013) 11021.3fps
The Witcher 3 (2015) 431511fps
Dota 2 Reborn (2015) 656136.233.4fps
Rise of the Tomb Raider (2016) 44.416.413fps
Rocket League (2017) 106.562.535.3fps
Playerunknown's Battlegrounds (PUBG) (2017) 37.51512.3fps
Fortnite (2018) 56.23315.5fps
X-Plane 11.11 (2018) 25.419.417.9fps
F1 2018 (2018) 462418fps
FIFA 19 (2018) 74.144.533fps
Anno 1800 (2019) 32.9137.6fps
Rage 2 (2019) 25.111.87.3fps
F1 2019 (2019) 512118fps

Geluidsniveau

Onbelast
29.3 / 29.3 / 29.3 dB (A)
Belasting
34.4 / 34.9 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29.3 dB(A)
Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U
GeForce MX250, 8265U, Samsung SSD PM981 MZVLB512HAJQ
Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U
Vega 10, 3700U, Samsung SSD PM981 MZVLB512HAJQ
Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U
GeForce MX230, 8565U, WDC PC SN520 SDAPNUW-512G
HP Pavilion 14-ce0002ng, Intel Core i7-8550U
GeForce MX150, 8550U, SanDisk X600 SD9SN8W-128G
Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U
GeForce MX230, 8265U, Kingston RBU-SNS8180DS3512GJ
Noise
1%
-6%
-16%
-2%
off / environment *
29.3
29.3
-0%
30.6
-4%
30.5
-4%
29.9
-2%
Idle Minimum *
29.3
29.3
-0%
30.6
-4%
32.7
-12%
30
-2%
Idle Average *
29.3
29.3
-0%
30.6
-4%
32.7
-12%
30
-2%
Idle Maximum *
29.3
29.6
-1%
31.2
-6%
32.7
-12%
30
-2%
Load Average *
34.4
31.9
7%
36.5
-6%
42.9
-25%
33.5
3%
Witcher 3 ultra *
34.4
34.3
-0%
Load Maximum *
34.9
34.8
-0%
39.7
-14%
45
-29%
38
-9%

* ... kleiner is beter

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2027.832.627.32526.428.6293127.526.828.84025.827.828.65026.324.3256322.423.223.28023.123.522.410024.523.223.212522.62122.816022.320.622.520022.321.122.225022.220.622.231522.520.422.44002320.523.950024.819.824.463024.519.524.180021.918.821.4100022.518.422.3125022.117.523.716002317.323.420002316.824.3250022.716.223.1315023.615.924.5400023.915.624.5500021.615.622.3630018.215.418.4800016.815.216.81000016.115.215.91250015.71515.41600015.614.715SPL34.429.334.9N2.11.22.1median 22.5median 17.5median 22.5Delta12.41.7hearing rangehide median Fan NoiseLenovo IdeaPad S540-14IWL

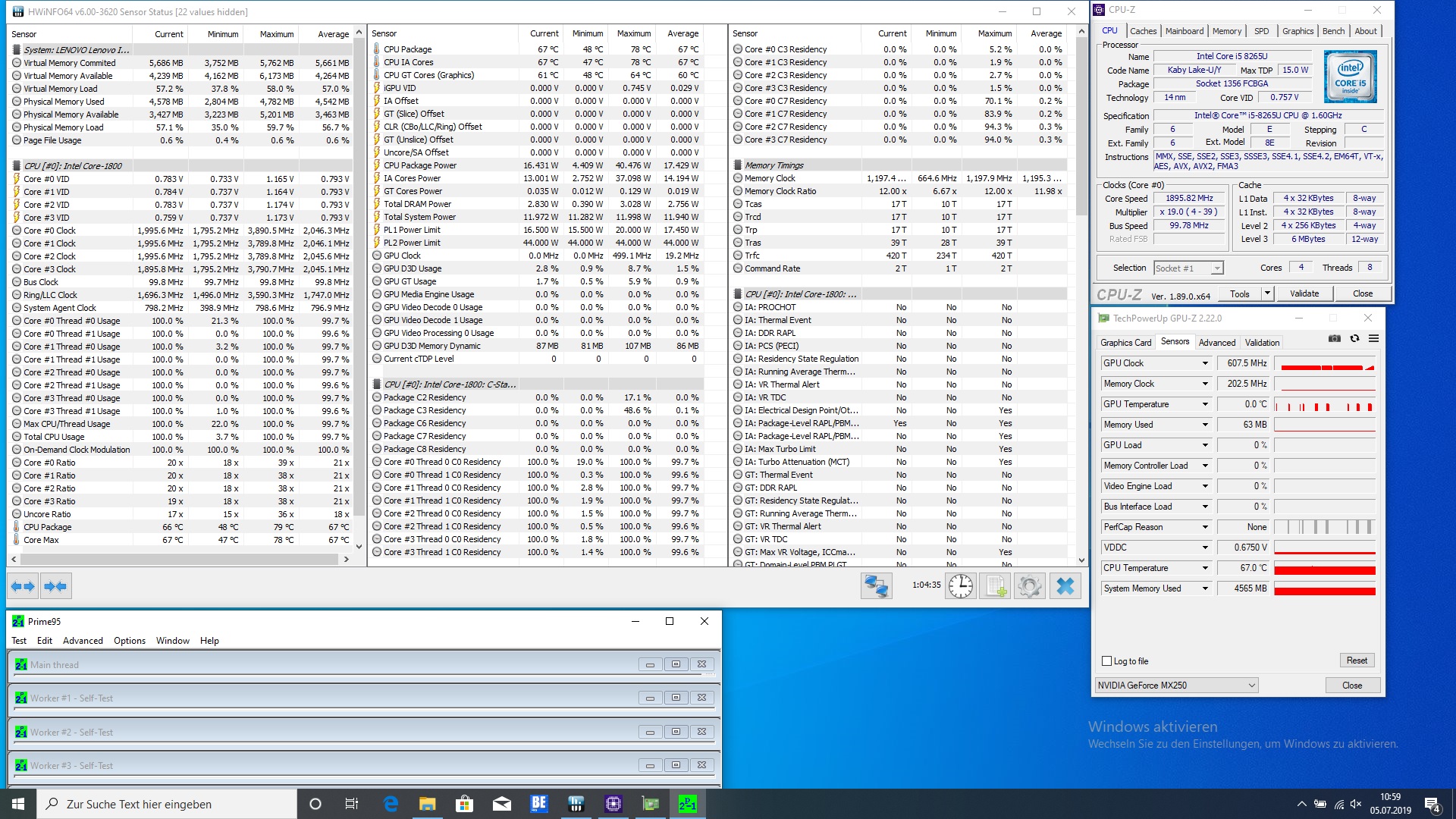

IdeaPad S540-14IWL: Prime95 stresstest
IdeaPad S540-14IWL: Prime95 stresstest

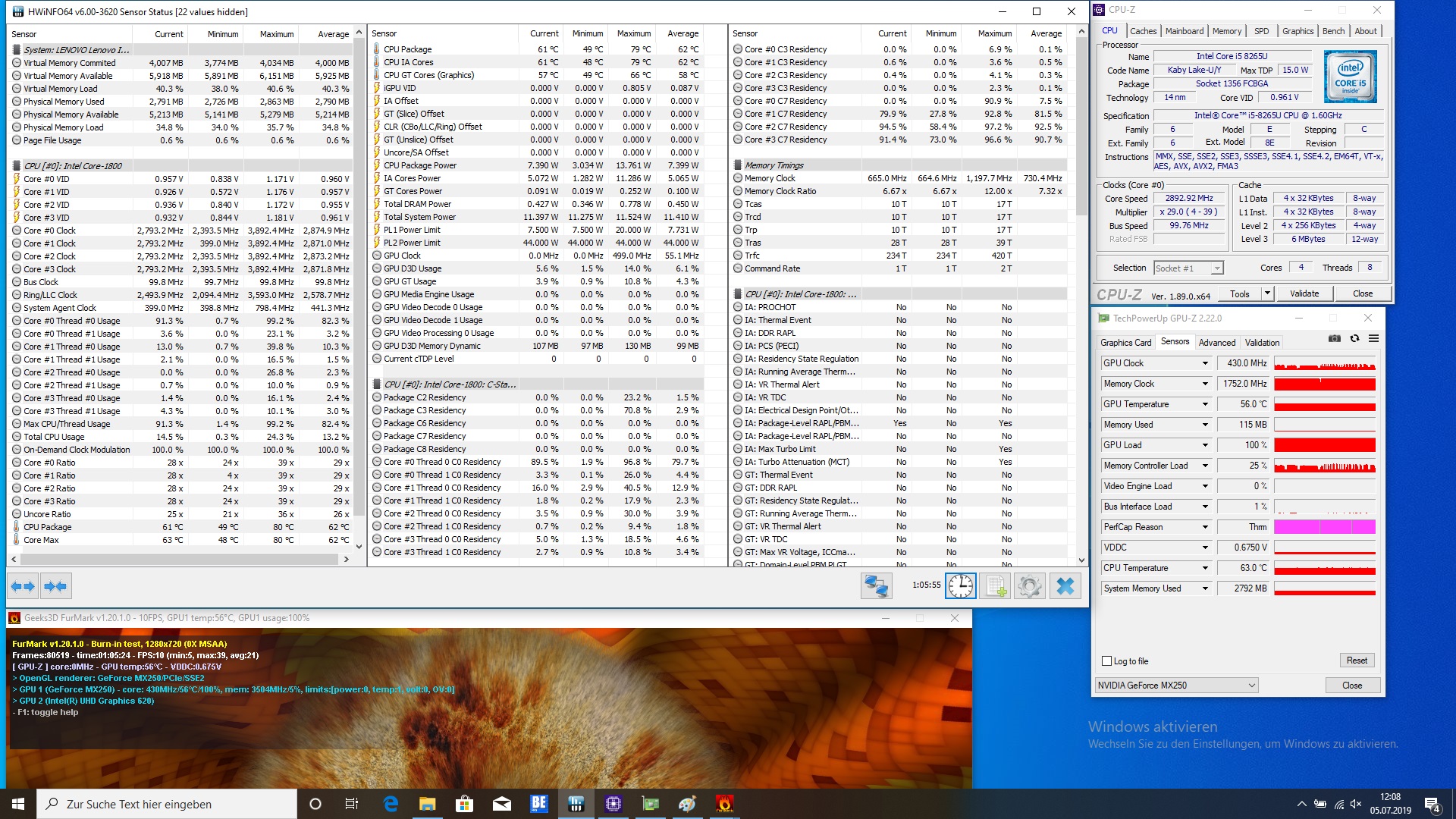

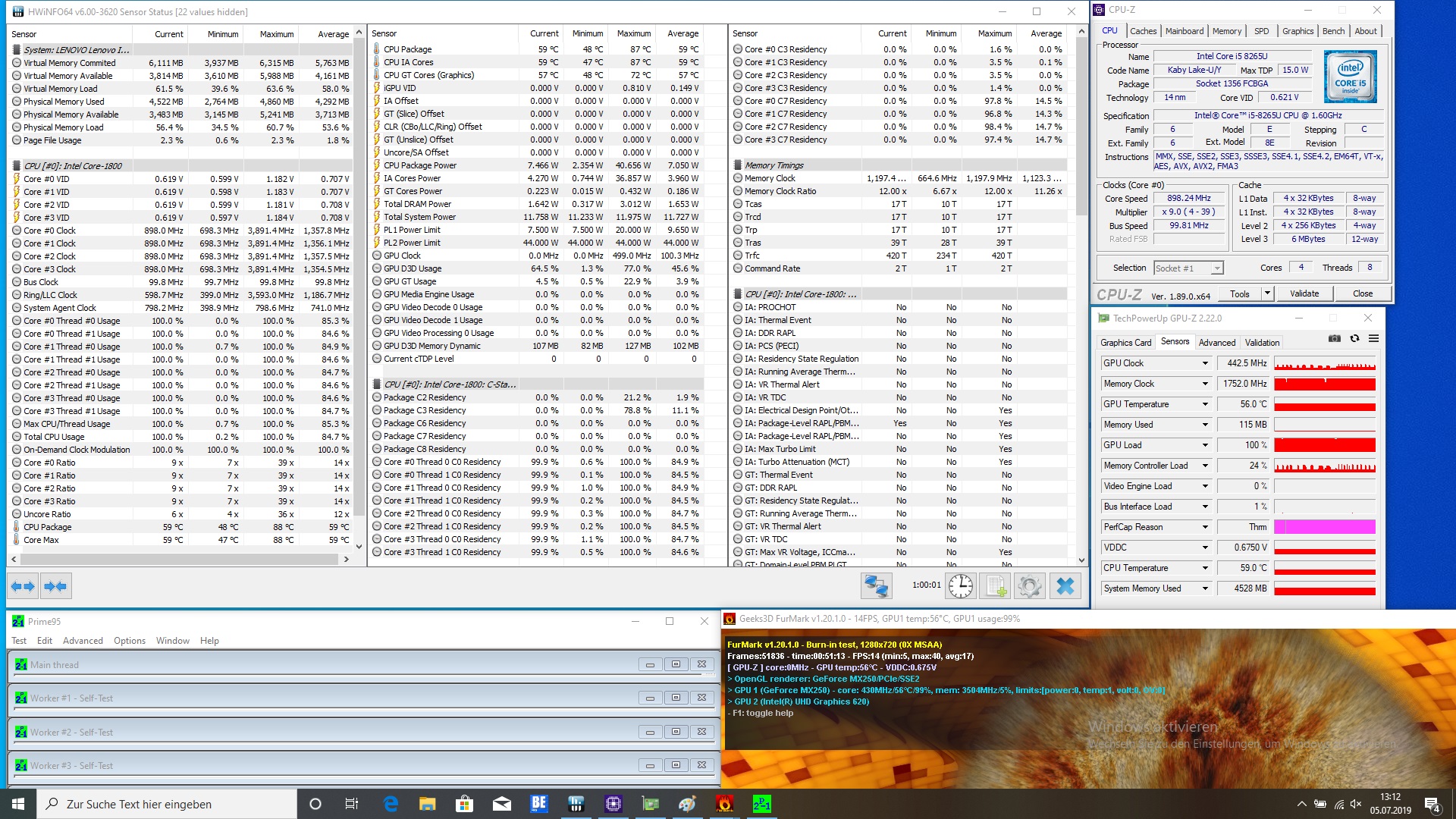

IdeaPad S540-14IWL: FurMark & Prime95 stresstest
IdeaPad S540-14IWL: FurMark & Prime95 stresstest
IdeaPad S540-14API: Prime95 stresstest
IdeaPad S540-14API: Prime95 stresstest

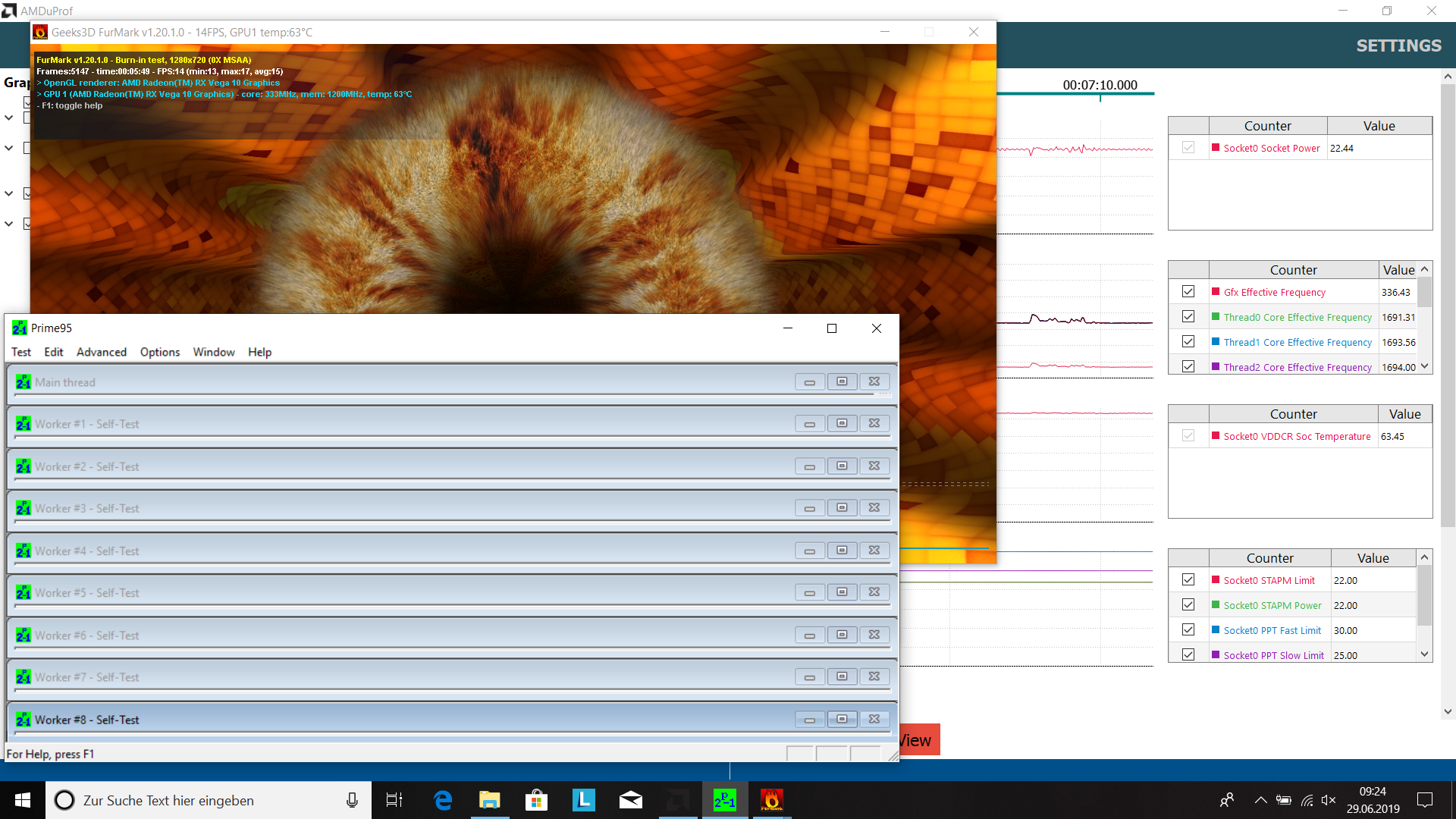

IdeaPad S540-14API: FurMark & Prime95 stresstest
IdeaPad S540-14API: FurMark & Prime95 stresstest
Max. Belasting
 38.5 °C41.8 °C40.1 °C
 34.4 °C40.3 °C38.8 °C
 27.5 °C27.9 °C28 °C
Maximum: 41.8 °C
Gemiddelde: 35.3 °C
41.7 °C43.3 °C35.2 °C
34 °C35.6 °C31.4 °C
28.2 °C28.9 °C28.5 °C
Maximum: 43.3 °C
Gemiddelde: 34.1 °C
Stroomadapter (max.)  40.6 °C | Kamertemperatuur 23.1 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 35.3 °C / 96 F, compared to the average of 30.9 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 41.8 °C / 107 F, compared to the average of 36.5 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 43.3 °C / 110 F, compared to the average of 38.8 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 30.9 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 34.9 °C / 95 F, compared to the device average of 30.9 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.3 °C / 82.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 29.1 °C / 84.4 F (+0.8 °C / 1.5 F).
Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U
GeForce MX250, 8265U, Samsung SSD PM981 MZVLB512HAJQ
Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U
Vega 10, 3700U, Samsung SSD PM981 MZVLB512HAJQ
Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U
GeForce MX230, 8565U, WDC PC SN520 SDAPNUW-512G
HP Pavilion 14-ce0002ng, Intel Core i7-8550U
GeForce MX150, 8550U, SanDisk X600 SD9SN8W-128G
Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U
GeForce MX230, 8265U, Kingston RBU-SNS8180DS3512GJ
Heat
-7%
-8%
-2%
-6%
Maximum Upper Side *
41.8
40.4
3%
45.2
-8%
49.2
-18%
45.4
-9%
Maximum Bottom *
43.3
40.2
7%
43.8
-1%
47
-9%
44.4
-3%
Idle Upper Side *
25.1
30.6
-22%
27.4
-9%
22.5
10%
26.9
-7%
Idle Bottom *
25.4
29.7
-17%
28.7
-13%
23.1
9%
26.5
-4%

* ... kleiner is beter

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.6302528.626.63126.826.54027.828.15024.3286323.225.28023.52510023.232.21252135.116020.641.120021.150.725020.653.131520.453.640020.558.950019.861.463019.560.380018.857100018.462.1125017.561.2160017.362.5200016.857250016.257.1315015.956.2400015.660500015.655.1630015.449.2800015.241.91000015.243.6125001538.71600014.742.3SPL29.370.5N1.226.6median 17.5
