Korte preview Korte Asus ROG GX800 Notebook

Prestige slag. We zijn één van de eerste redacties die de aankomend GX800 nader kunnen bekijken. Vergeleken met zijn voorganger, heeft Asus niet enkel de prestaties en afmetingen vergroot, maar heeft het apparaat ook uitgerust met een 4K beeldscherm en G-Sync ondersteuning. Is de koeling voldoende voor de componenten? Onze preview beantwoord de eerste vragen die er zijn.
Asus GX800 Prototype (GX800 Serie)

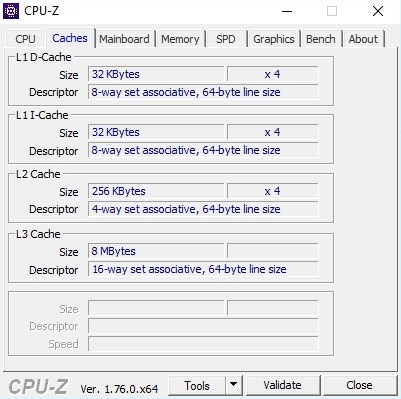

Processor
Intel Core i7-6820HK 4 x 2.7 - 3.6 GHz @ 4.4 GHz, Skylake

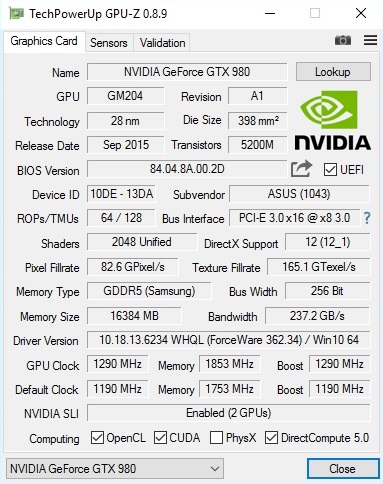

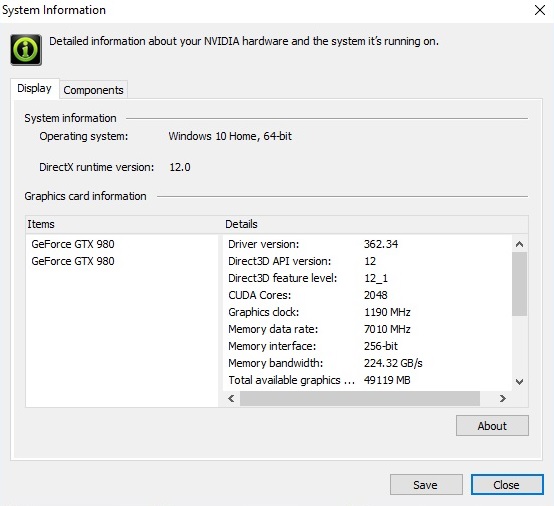

Grafische kaart
NVIDIA GeForce GTX 980 SLI (Laptop) - 16 GB VRAM, Core: 1328 MHz, Geheugen: 3700 MHz, GDDR5, ForceWare 362.34 (368.39 for Games)

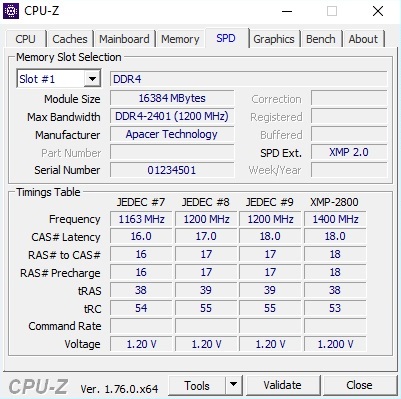

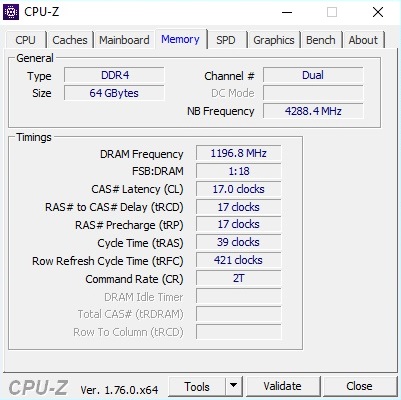

Geheugen
64 GB
, 4x 16 GB DDR4-2400, 4/4 sloten bezet, dual-channel, tot max. 64 GB
Beeldscherm
18.40 inch 16:9, 1920 x 1080 pixel 120 PPI, Samsung 184HL (SDC4C48) , Super PLS, Full HD, glimmend: nee

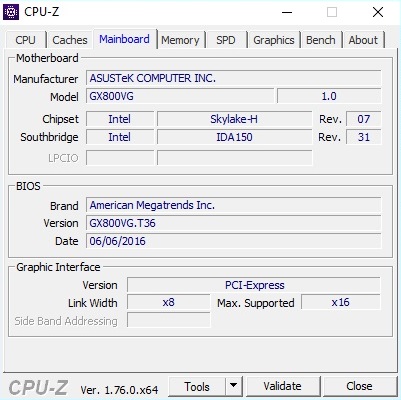

Moederbord
Intel CM236 (Skylake PCH-H)
Opslag
3x Samsung SM951 512 GB NVMe M.2 (RAID 0), 1536 GB
Geluidskaart
Realtek ALC286 @ Intel Sunrise Point PCH - High Definition Audio Controller

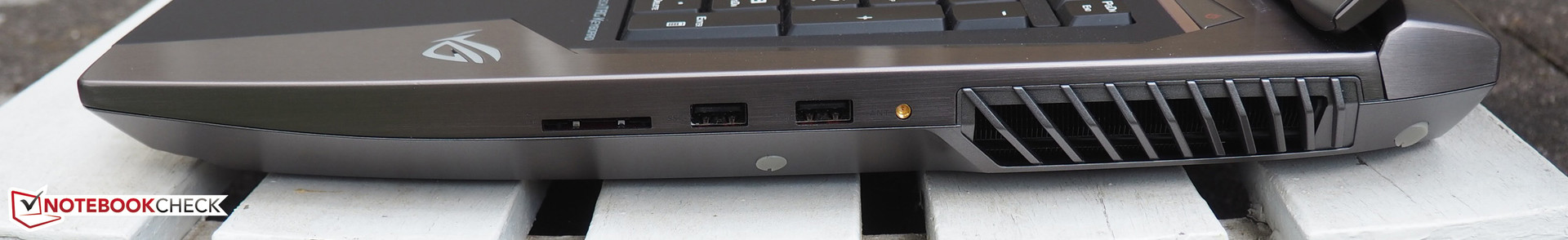

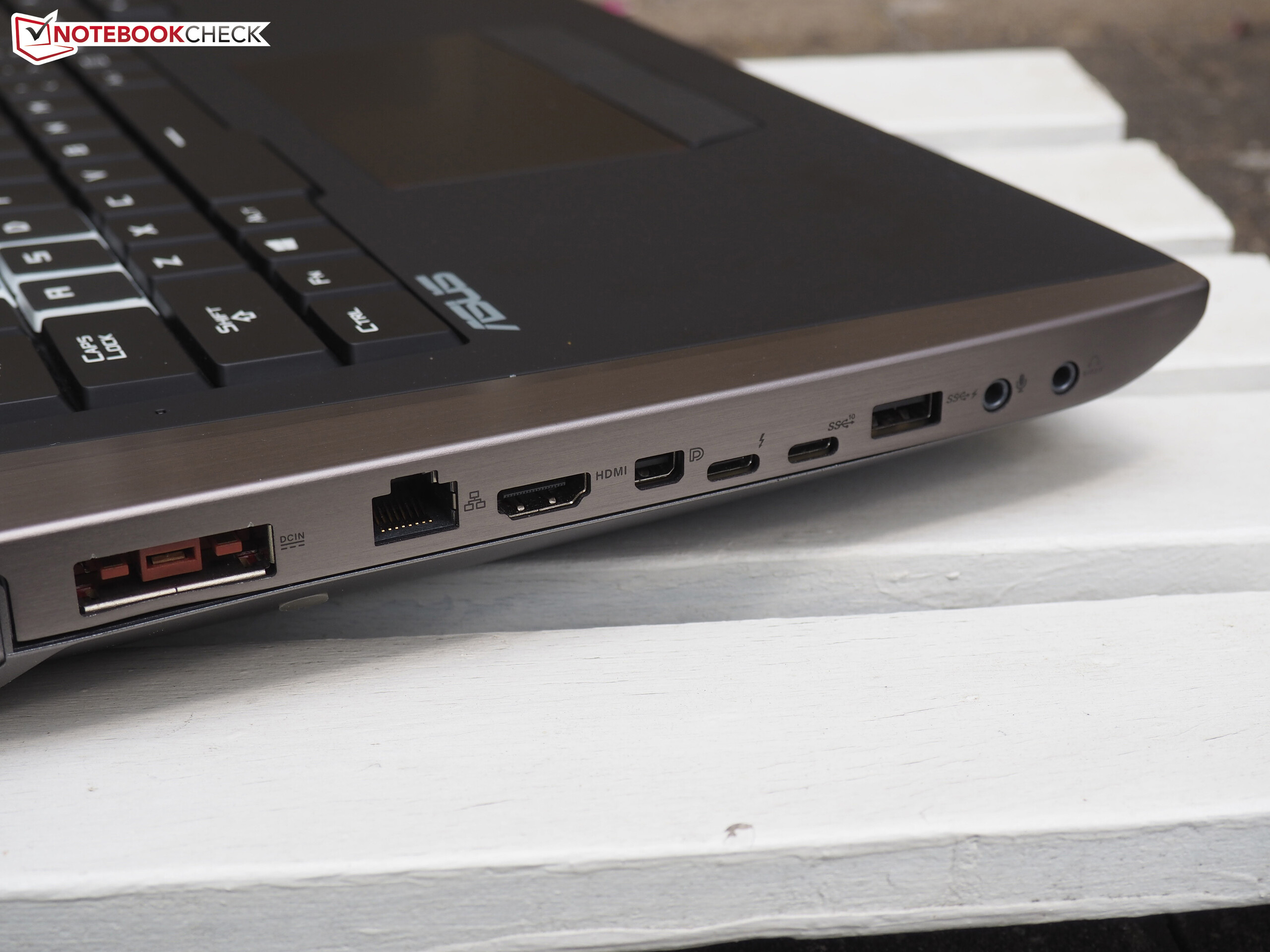

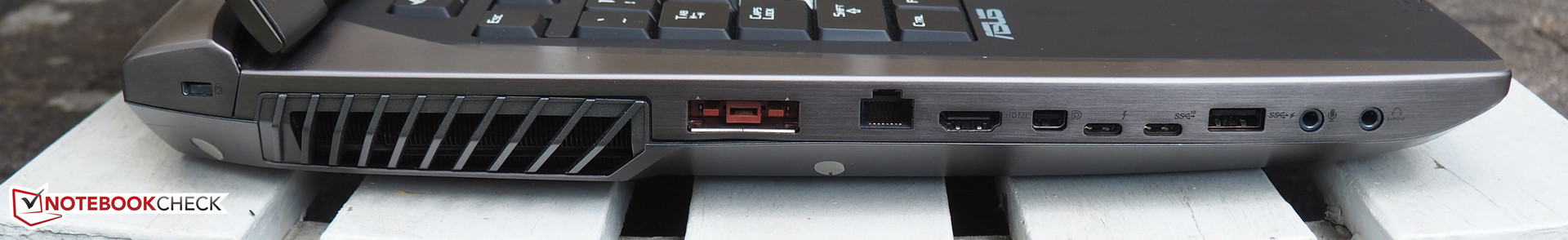

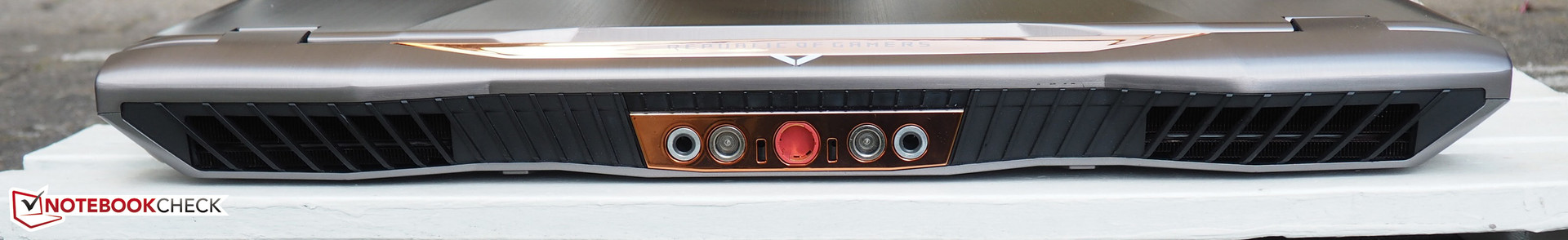

Verbindingen

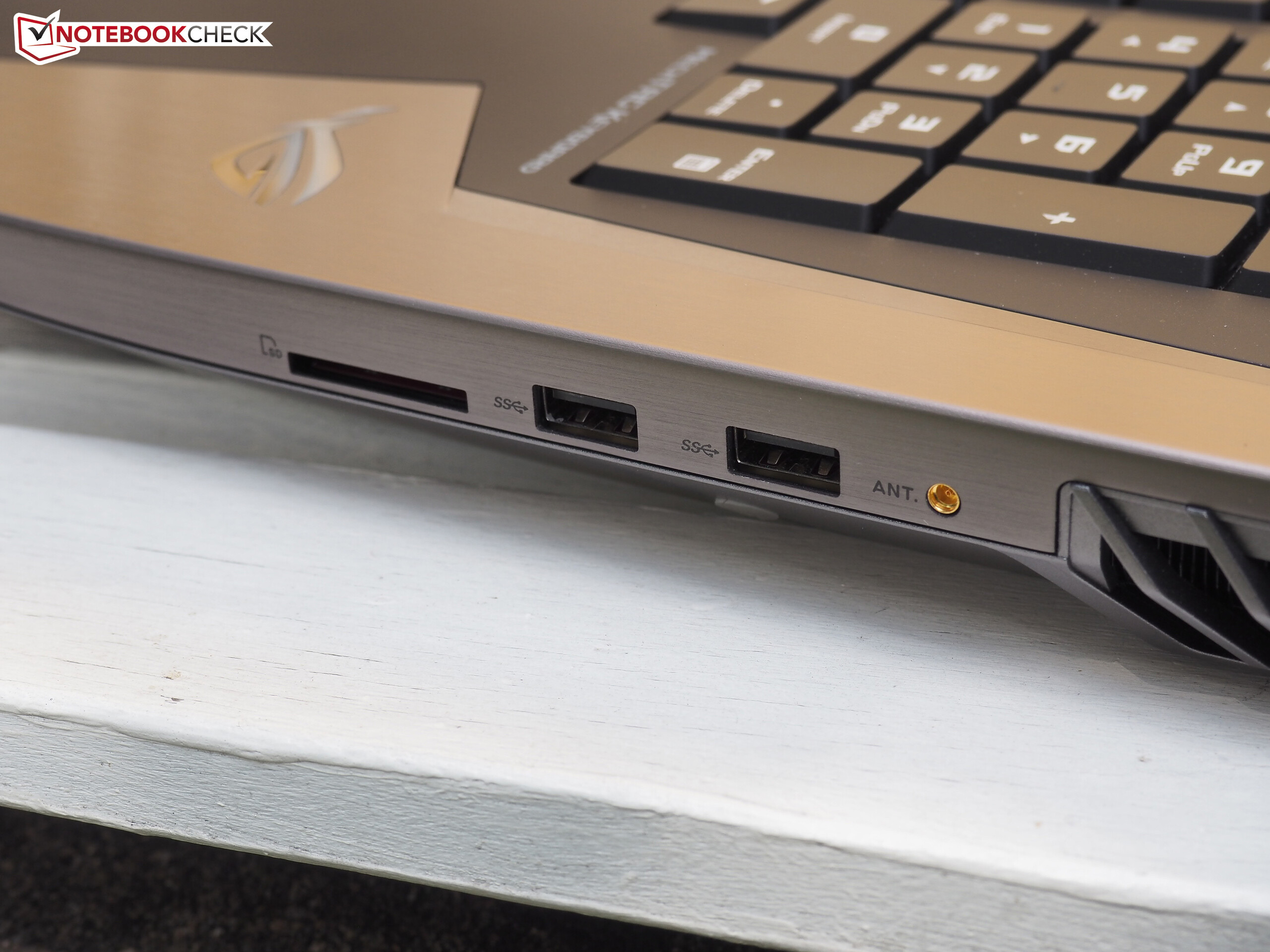

3 USB 3.0, 2 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Verbindingen: koptelefoon, microfoon, Card Reader: SD,SDHC,SDXC, WiFi antenne
Netwerkmogelijkheden
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Afmetingen
hoogte x breedte x diepte (in mm): 45 x 458 x 338
Batterij
76 Wh Lithium-Ion, 8-cellen
Besturingssysteem
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD (720p @ 30 fps)
Bijkomende functionaliteiten

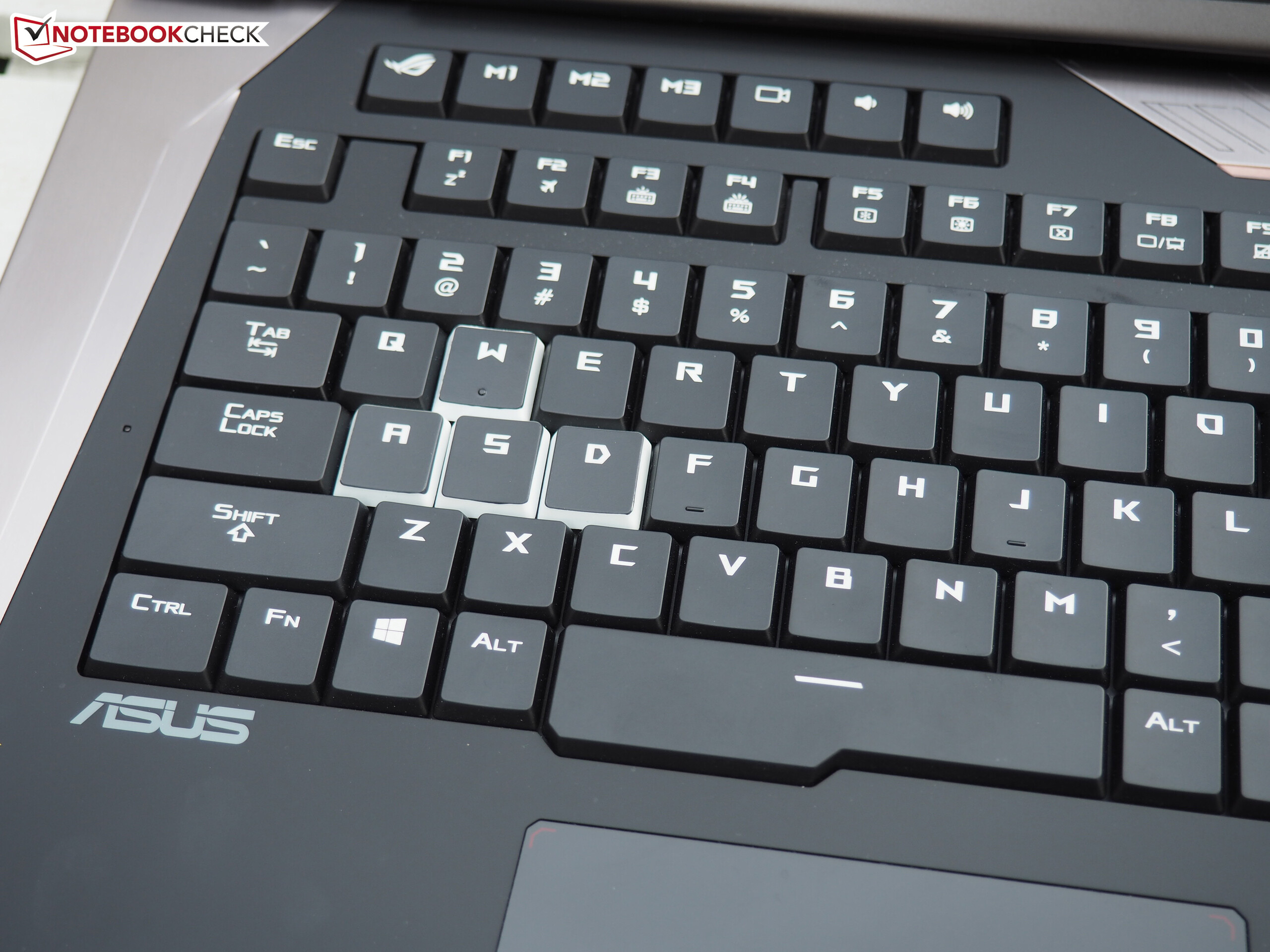

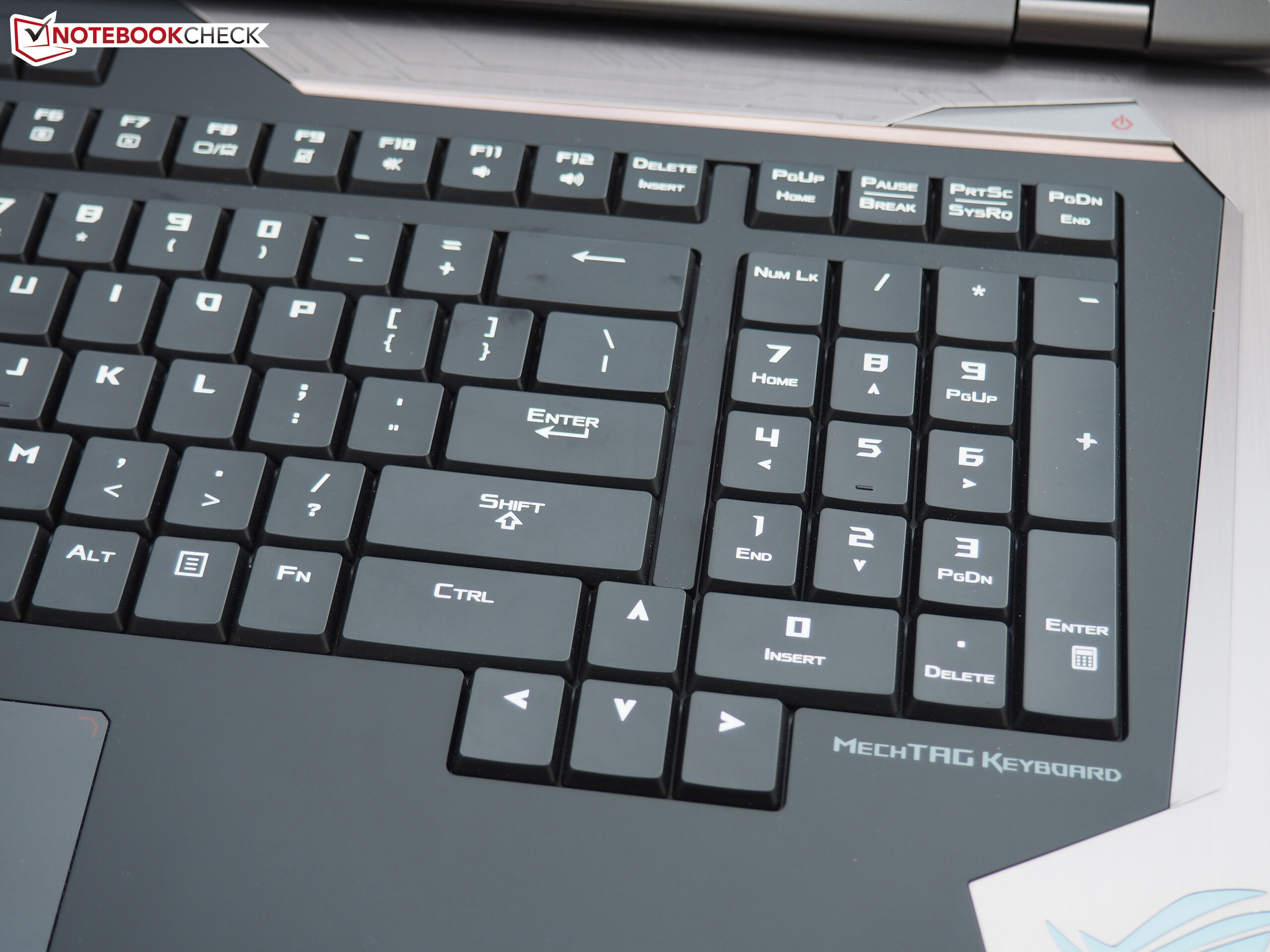

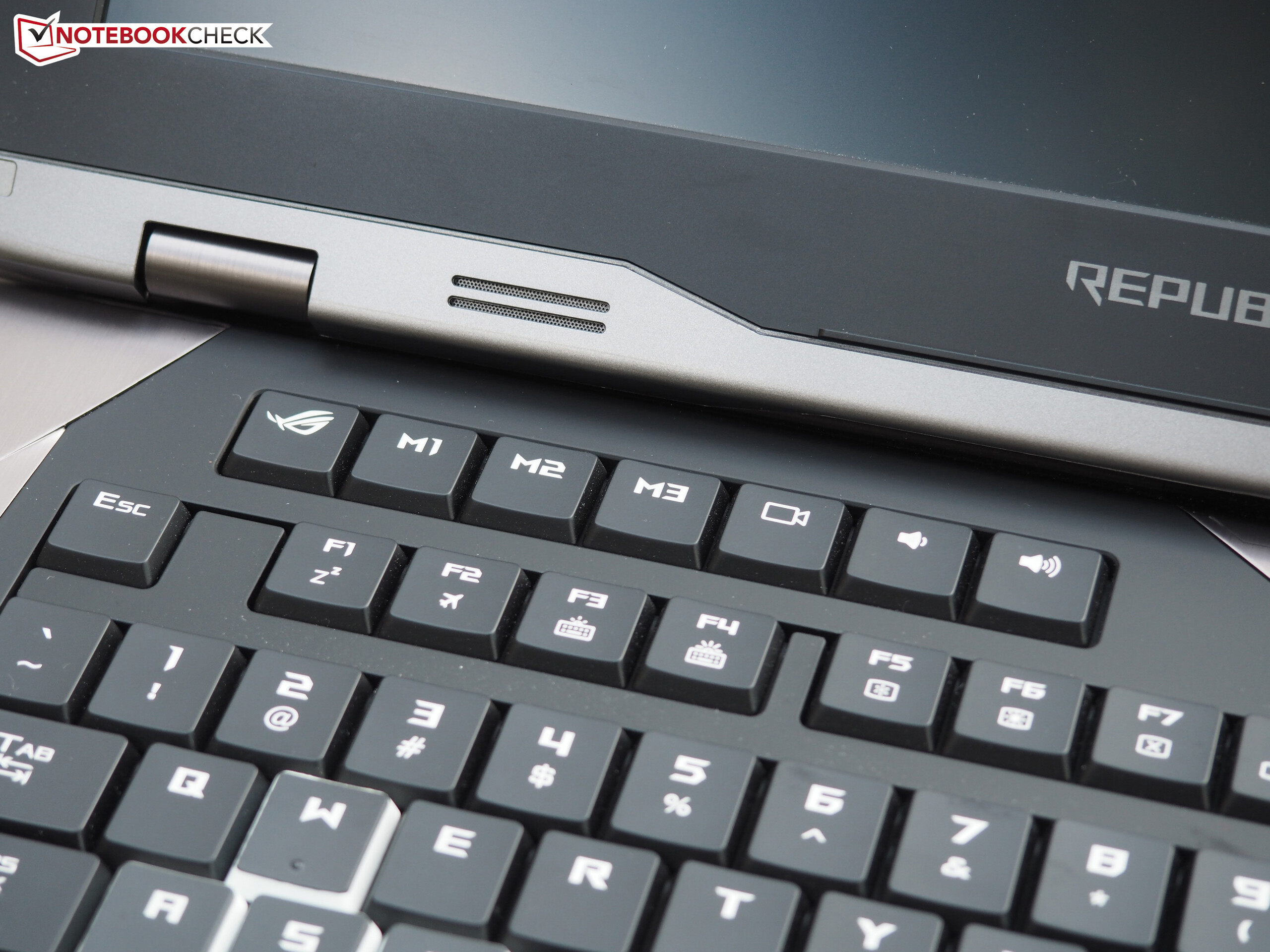

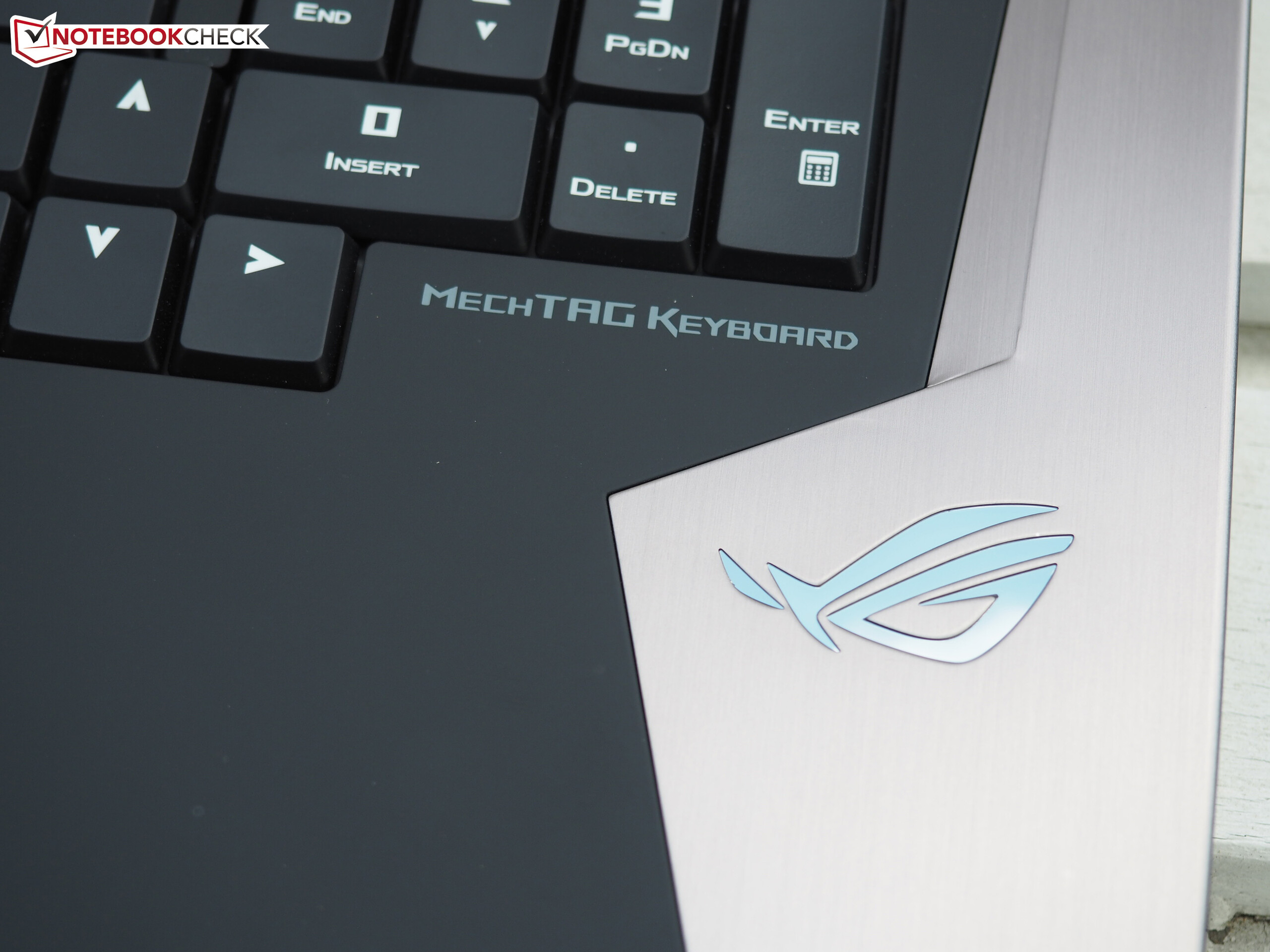

Luidsprekers: 4.0, Toetsenbord: mechanisch, Toetsenbordverlichting: ja, Stroomadapter: 2x 330 Watts, waterkoeling: Hydro Overclocking System, McAfee Security Paket, MS Office 365 Trial, verschillende Asus tools, 24 Maanden Garantie
Gewicht

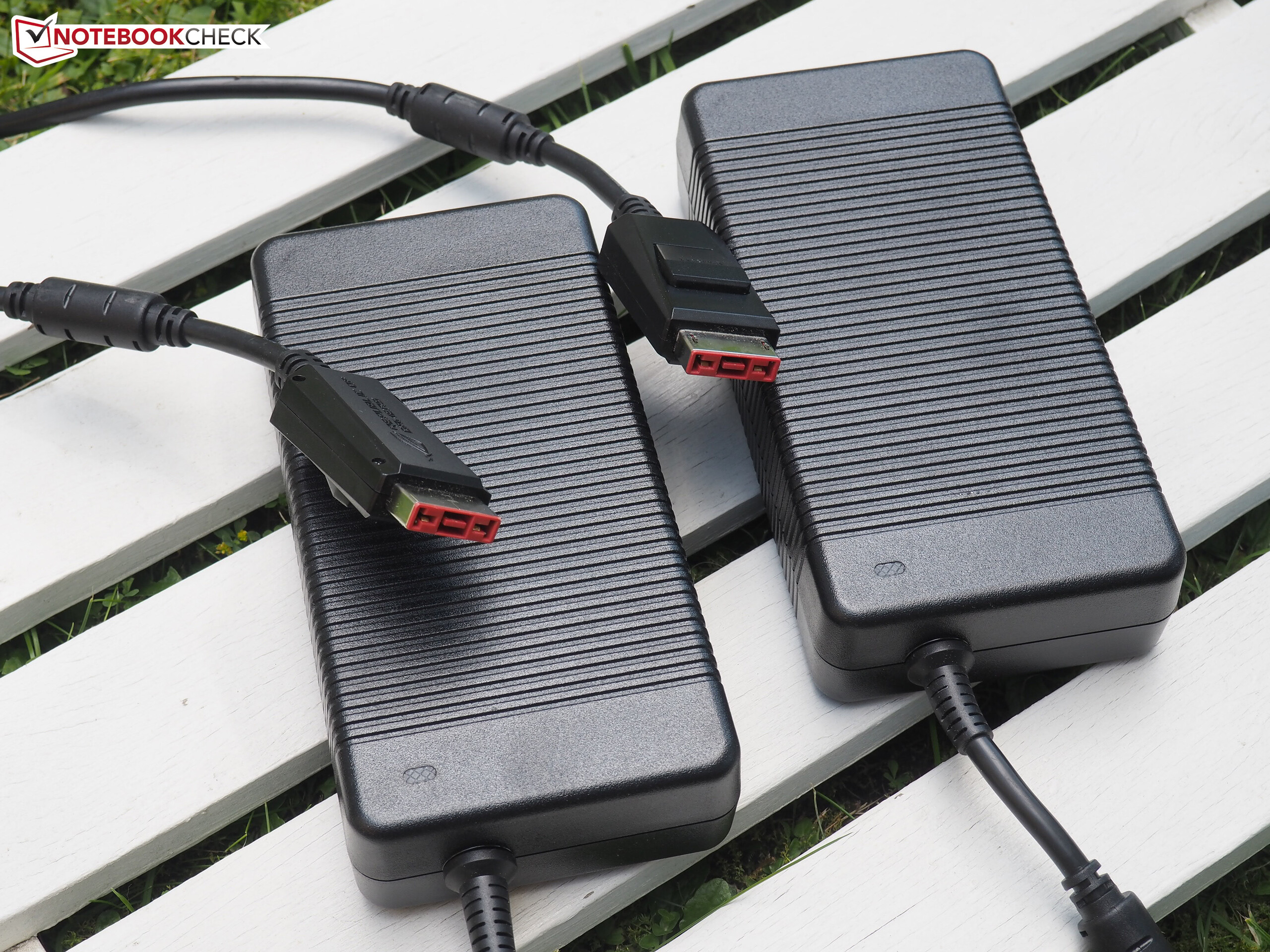

5.69 kg, Voeding: 2 g
Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.



Size Comparison

456 mm 330 mm 49 mm 5 kg458 mm 338 mm 45 mm 5.7 kg428 mm 308 mm 45 mm 5 kg430 mm 312 mm 38 mm 3.9 kg297 mm 210 mm 1 mm 5.7 g

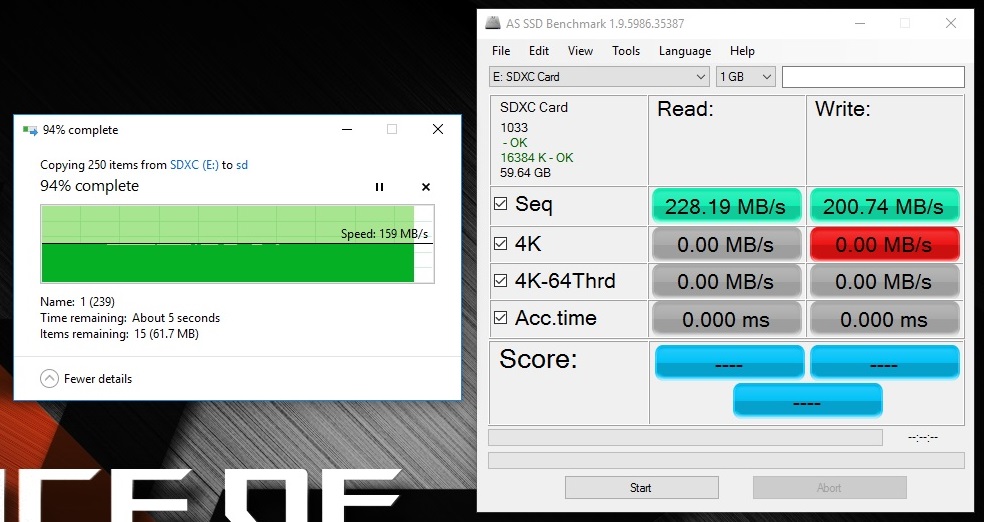

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Asus GX700
Asus GX700
170 MB/s +7%
SCHENKER XMG U726
SCHENKER XMG U726
161.1 MB/s +1%
Asus GX800 Prototype
Asus GX800 Prototype
159 MB/s
MSI GT80S 6QF
MSI GT80S 6QF
145 MB/s -9%
maximum AS SSD Seq Read Test (1GB)
Asus GX700
Asus GX700
236 MB/s +4%
Asus GX800 Prototype
Asus GX800 Prototype
228 MB/s
SCHENKER XMG U726
SCHENKER XMG U726
203.4 MB/s -11%
MSI GT80S 6QF
MSI GT80S 6QF
179 MB/s -21%
Cinebench R11.5 CPU Single 64Bit
2.08 Points
Cinebench R11.5 OpenGL 64Bit
85.9 fps
Cinebench R15 CPU Single 64Bit
185 Points
Cinebench R15 OpenGL 64Bit
133.8 fps
Help
Cinebench R15 - CPU Single 64Bit
Asus GX800 Prototype
Intel Core i7-6820HK
185 Points
MSI GT80S 6QF
Intel Core i7-6820HK
174 Points -6%
Asus GX700
Intel Core i7-6820HK
173 Points -6%
SCHENKER XMG U726
Intel Core i7-6700
171 Points -8%
Cinebench R11.5 - CPU Single 64Bit
Asus GX800 Prototype
Intel Core i7-6820HK
2.08 Points
MSI GT80S 6QF
Intel Core i7-6820HK
1.98 Points -5%
Asus GX700
Intel Core i7-6820HK
1.95 Points -6%
SCHENKER XMG U726
Intel Core i7-6700
1.91 Points -8%
PCMark 7 Score
8047 punten
Help
PCMark 7 - Score
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK, 3x Samsung SM951 512 GB NVMe M.2 (RAID 0)
8047 Points
Asus GX700
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
7933 Points -1%
MSI GT80S 6QF
GeForce GTX 980 SLI (Laptop), 6820HK, 2x Samsung SM951 MZVPV256HDGL (RAID 0)
7386 Points -8%
SCHENKER XMG U726
GeForce GTX 980 (Laptop), 6700, Samsung SM951 MZHPV512HDGL m.2 PCI-e
7093 Points -12%

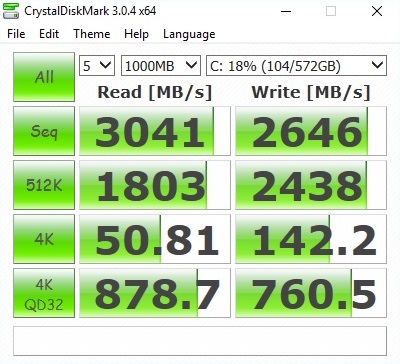

3x Samsung SM951 512 GB NVMe M.2 (RAID 0)
Sequential Read: 3041 MB/s
Sequential Write: 2646 MB/s
512K Read: 1803 MB/s
512K Write: 2438 MB/s
4K Read: 50.8 MB/s
4K Write: 142.2 MB/s
4K QD32 Read: 879 MB/s
4K QD32 Write: 761 MB/s
Asus GX800 Prototype
3x Samsung SM951 512 GB NVMe M.2 (RAID 0)
MSI GT80S 6QF
2x Samsung SM951 MZVPV256HDGL (RAID 0)
Asus GX700
2x Samsung SM951 MZVPV512HDGL (RAID 0)
SCHENKER XMG U726
Samsung SM951 MZHPV512HDGL m.2 PCI-e

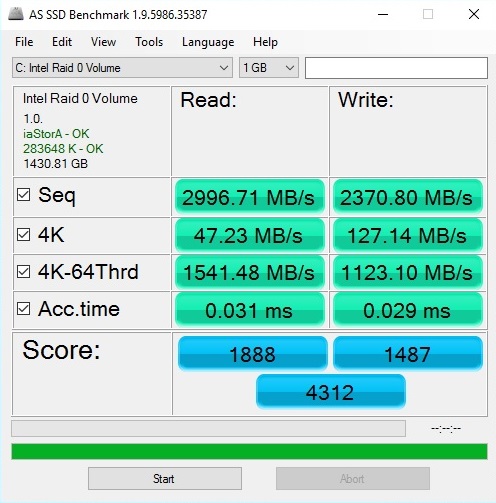

AS SSD
-9%
-4%
-32%
Seq Read
2997
2892
-4%
2964
-1%
1943
-35%
Seq Write
2371
2408
2%
2525
6%
1500
-37%
4K Read
47.23
44.96
-5%
46.43
-2%
40.45
-14%
4K Write
127.1
109.9
-14%
119.6
-6%
103.6
-18%
Score Total
4312
3336
-23%
3655
-15%
1930
-55%
3DMark 11 Performance
22627 punten
3DMark Ice Storm Standard Score
197819 punten
3DMark Cloud Gate Standard Score
35100 punten
3DMark Fire Strike Score
19513 punten
Help
3DMark
1920x1080 Fire Strike Score
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
19513 Points
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
17165 Points -12%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
11440 Points -41%
SCHENKER XMG U726
NVIDIA GeForce GTX 980 (Laptop)
11096 Points -43%
1920x1080 Fire Strike Graphics
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
27555 Points
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
23351 Points -15%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
13382 Points -51%
SCHENKER XMG U726
NVIDIA GeForce GTX 980 (Laptop)
13047 Points -53%
3DMark 11
1280x720 Performance
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
22627 Points
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
20055 Points -11%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
15462 Points -32%
SCHENKER XMG U726
NVIDIA GeForce GTX 980 (Laptop)
14925 Points -34%
1280x720 Performance GPU
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
36293 Points
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
30045 Points -17%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
17864 Points -51%
SCHENKER XMG U726
NVIDIA GeForce GTX 980 (Laptop)
17474 Points -52%
Unigine Heaven 4.0 - Extreme Preset DX11
Asus GX800 Prototype
NVIDIA GeForce GTX 980 SLI (Laptop)
149.5 fps
MSI GT80S 6QF
NVIDIA GeForce GTX 980 SLI (Laptop)
129.5 fps -13%
SCHENKER XMG U726
NVIDIA GeForce GTX 980 (Laptop)
78.7 fps -47%
Asus GX700
NVIDIA GeForce GTX 980 (Laptop)
78.3 fps -48%
Mirror's Edge Catalyst
3840x2160 High Preset AF:16x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
48.3 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
47 (44min - 50max) fps -3%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
31 fps -36%
1920x1080 Ultra Preset AF:16x
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
121 (108min - 131max) fps +1%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
119.3 fps
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
81.9 fps -31%
Overwatch
3840x2160 High (Render Scale 100 %) AA:SM AF:4x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
143 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
104 (88min - 121max) fps -27%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
69.4 fps -51%
1920x1080 Epic (Render Scale 100 %) AA:SM AF:16x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
297.4 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
196 (164min - 231max) fps -34%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
125.9 fps -58%
Doom
3840x2160 High Preset AA:FX
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
70.3 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
56.5 fps -20%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
41.4 fps -41%
1920x1080 Ultra Preset AA:SM
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
160.3 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
137 (112min - 191max) fps -15%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
116 fps -28%
Need for Speed 2016
3840x2160 High / On AA:FX
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
75.1 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
61 (47min - 75max) fps -19%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
40.5 fps -46%
1920x1080 Ultra / On AA:T
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
104 (64min - 148max) fps +12%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
93.1 fps
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
77.3 fps -17%
Hitman 2016
3840x2160 High / On AA:FX AF:8x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
54.6 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
42 (34min - 53max) fps -23%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
28.8 fps -47%
1920x1080 Ultra / On AA:SM AF:16x
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
78 (61min - 96max) fps +10%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
70.6 fps
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
61.3 fps -13%
The Division
3840x2160 High Preset AF:8x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
55.1 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
48.5 (19min - 65max) fps -12%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
33.3 fps -40%
1920x1080 Ultra Preset AF:16x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
100.6 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
95 (55min - 125max) fps -6%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
64.6 fps -36%
Far Cry Primal
3840x2160 High Preset AA:SM
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
56 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
49 (46min - 53max) fps -12%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
32 fps -43%
1920x1080 Ultra Preset AA:SM
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
106 (80min - 125max) fps +25%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
85 fps
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
68 fps -20%
XCOM 2
3840x2160 High Preset AA:FX AF:8x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
39 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
30.4 (27min - 34max) fps -22%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
20.1 fps -48%
1920x1080 Maximum Preset (8xMSAA instead of FXAA) AA:8xMS AF:16x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
59.9 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
48 (43min - 52max) fps -20%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
33.4 fps -44%
Rise of the Tomb Raider
3840x2160 High Preset AA:FX AF:4x
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
60.9 fps
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
50 fps -18%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
47.8 (43min - 54max) fps -22%
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
33.7 fps -45%
1920x1080 Very High Preset AA:FX AF:16x
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
112 (105min - 124max) fps +19%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
112 (105min) fps +19%
Nvidia GeForce GTX 1080 Founders Edition
GeForce GTX 1080 (Desktop), 4790K
112 fps +19%
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
94.4 fps
Asus GX800 Prototype
GeForce GTX 980 (Laptop), 6820HK
77.1 fps -18%
lage gem. hoge ultra4K
Rise of the Tomb Raider (2016) 107.3 95 94.7 94.4 60.9
XCOM 2 (2016) 129.6 109.5 108 59.9 39
Far Cry Primal (2016) 98 97 86 85 56
The Division (2016) 226 189.9 126.5 100.6 55.1
Hitman 2016 (2016) 84.8 79.7 72 70.6 54.6
Need for Speed 2016 (2016) 133.4 122.4 121.4 93.1 75.1
Doom (2016) 192.7 189.8 168.7 160.3 70.3
Overwatch (2016) 299.9 299.8 299.8 297.4 143
Mirror's Edge Catalyst (2016) 197.4 145.4 124.4 119.3 48.3
Stroomgebruik
Uit / Standbydarklight 2.8 / 5.2 Watt
Inactiefdarkmidlight 58 / 68 / 74 Watt
Belasting midlight 200 / 590 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Asus GX800 Prototype
GeForce GTX 980 SLI (Laptop), 6820HK
MSI GT80S 6QF
GeForce GTX 980 SLI (Laptop), 6820HK
Asus GX700
GeForce GTX 980 (Laptop), 6820HK
SCHENKER XMG U726
GeForce GTX 980 (Laptop), 6700
Power Consumption
22%
34%
36%
Idle Minimum *
58
44
24%
40
31%
36
38%
Idle Average *
68
53
22%
45
34%
45
34%
Idle Maximum *
74
62
16%
51
31%
53
28%
Load Average *
200
163
18%
149
25%
139
30%
Load Maximum *
590
411
30%
313
47%
306
48%

* ... kleiner is beter

Pro

+ mechanisch toetsenbord met uitgebreide verlichting
+ extra overclocken van processor en grafische kaart
+ uiteindelijke product met 4K beeldscherm en G-Sync
+ vele aansluitingen (zoals Thunderbolt)
+ 3 NVMe-SSDs in RAID 0
+ uitstekende prestaties
+ comfortabel touchpad
+ 64 GB DDR4-RAM
+ gewaagd concept
+ fraai design
+ krachtige tools

Contra

- typische dual-GPU problemen (driver afhankelijkheden, micro stotteringen, ...)
- twee voedingen zijn vereist voor gebruik met waterkoeling
- hoog stroomverbruik
- onhandig onderhoud
- zware behuizing
- beperkte mobiliteit

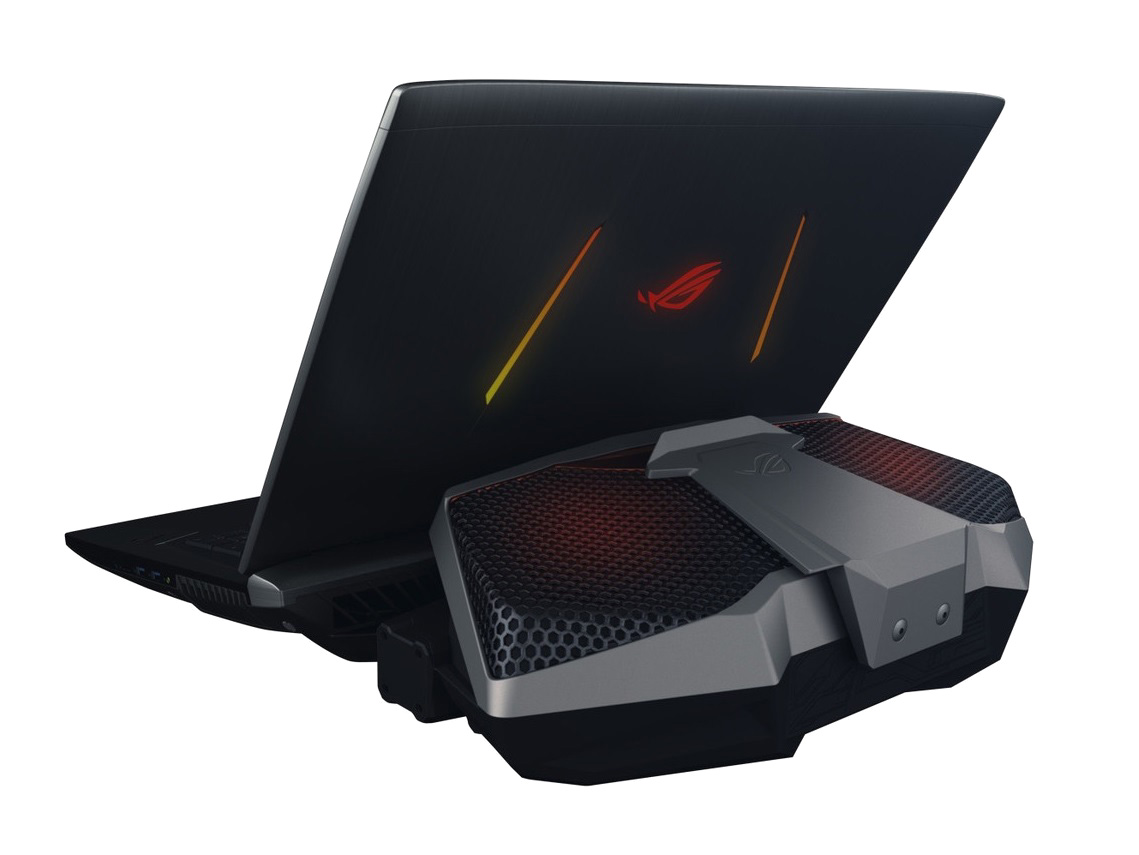

Asus GX800. Prototype courtesy of Asus Taiwan.
Asus GX800. Prototype courtesy of Asus Taiwan.

Voor het volledige, Engelse testrapport, klik hier.

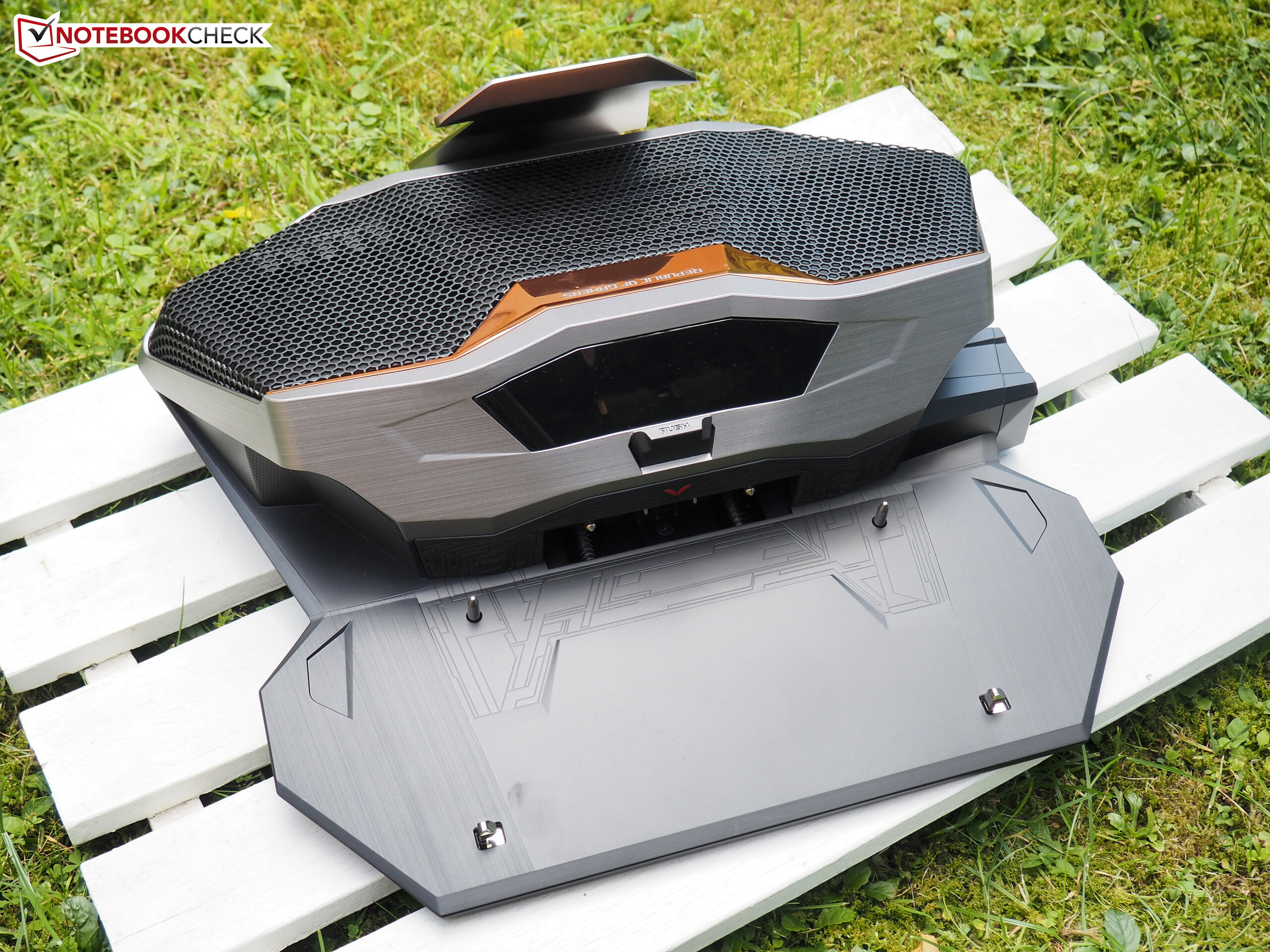

Dankzij de externe waterkoeling is het notebook van Asus waarschijnlijk een van de meest interessante concepten van de afgelopen paar jaar. De GX700 was al een uniek product, die in de GX800 een waardige opvolger krijgt.

De grootste focus ligt op de prestaties en features. Niet alleen het aantal en de capaciteit van de Solid State Drives is vergoot, ook het aantal GPU's is toegenomen. Volgens het concept "twee is beter dan een", is het notebook nu uitgerust met twee high-end GPU's van nVidia. Dankzij overklokken kunnen zij framerates produceren die voorheen niet mogelijk waren en maken gamen op 4K mogelijk.

Het SLI systeem heeft echter wel zijn invloed op het gewicht en stroomverbruik, welke beide nogal hoog zijn. Het UHD beeldscherm met G-Sync ondersteuning en de uitgebreide selectie aansluitingen (USB 3.1 Type-C, Thunderbolt 3, HDMI 2.0, etc.) zijn een ander groot voordeel.

De GX800 gaat nek-aan-nek met zijn dual-GPU rivaal MSI GT80s (of diens opvolger eigenlijk), welke zijn eigen set voor- en nadelen heeft, maar klassieke koeling gebruikt in plaats van waterkoeling.

Zodra we het uiteindelijke, productie-af, model kunnen testen zullen we uiteraard een "echt" testrapport publiceren.

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Korte preview Korte Asus ROG GX800 Notebook
Florian Glaser, 2016-07-23 (Update: 2016-07-23)
