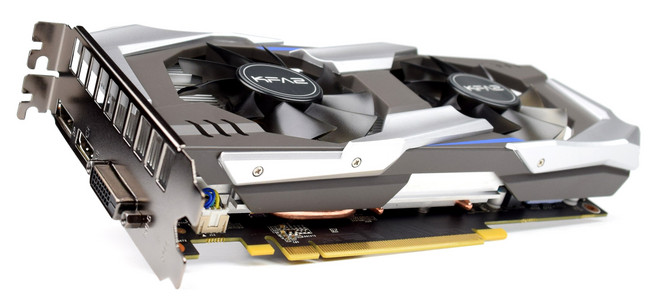

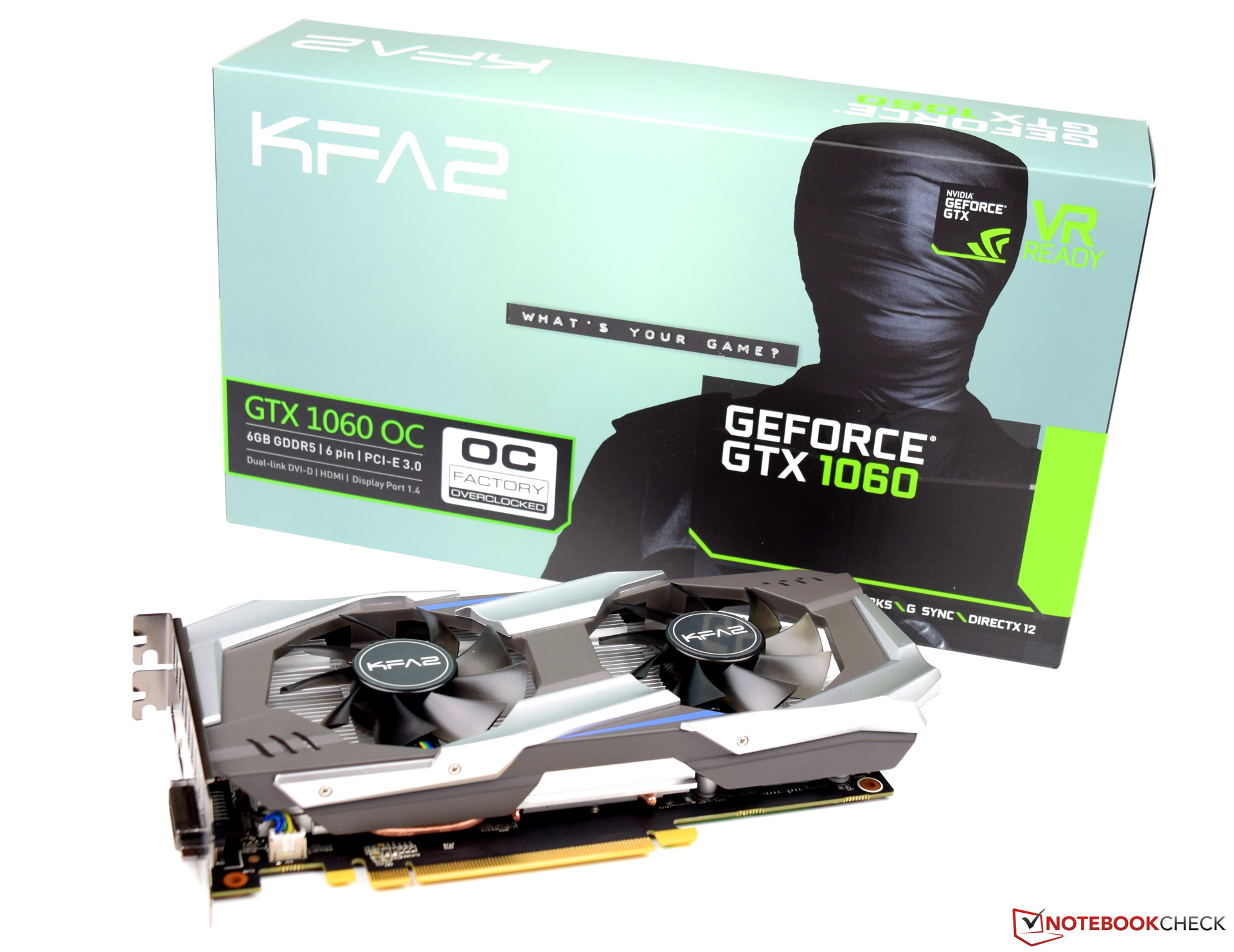

Kort testrapport KFA² GeForce GTX 1060 6 GB EX OC

Snelle mid-range Pascal-GPU Nvidia's Pascal-generatie heeft veel veranderingen teweeg gebracht op de de GPU-markt. We nemen nu een snelle mid-range GPU met een speciaal ontwikkelde koeling van KFA² onder de loep. Ons testmodel is eveneens uitgerust met 6 GB GDDR5 VRAM. Lees verder om te ontdekken hoe effectief deze koeling is en of de grafische kaart zijn prijs waard is.

Sebastian Bade, 👁 Klaus Hinum, ✓ Stefanie Voigt (vertaald door Siemon Boes), Published 04-07-2017 🇺🇸 🇩🇪 ...

Specifications	GTX 1050 Mini	GTX 1050 Ti	KFA2 GTX 1060 6 GB	GTX 1070 FE	GTX 1080 FE
Chip	GP107	GP107	GP106	GP104	GP104
Manufactured	14 nm	14 nm	16 nm	16 nm	16 nm
Shader	640	768	1.280	1.920	2.560
Texture Units	40	48	80	120	160
GPU Base Clock	1.354 MHz	1.290 MHz	1.518 MHz	1.506 MHz	1.607 MHz
GPU Boost Clock	1.455 MHz	1.392 MHz	1.733 MHz	1.683 MHz	1.733 MHz
Memory Bus	128 Bit	128 Bit	192 Bit	256 Bit	256 Bit
Memory Bandwidth	112 GB/s	112 GB/s	192 GB/s	256 GB/s	320 GB/s
Memory Size	2 GB	4 GB	6 GB	8 GB	8 GB
Power (Watt)	75 W	75 W	120 W	150 W	180 W

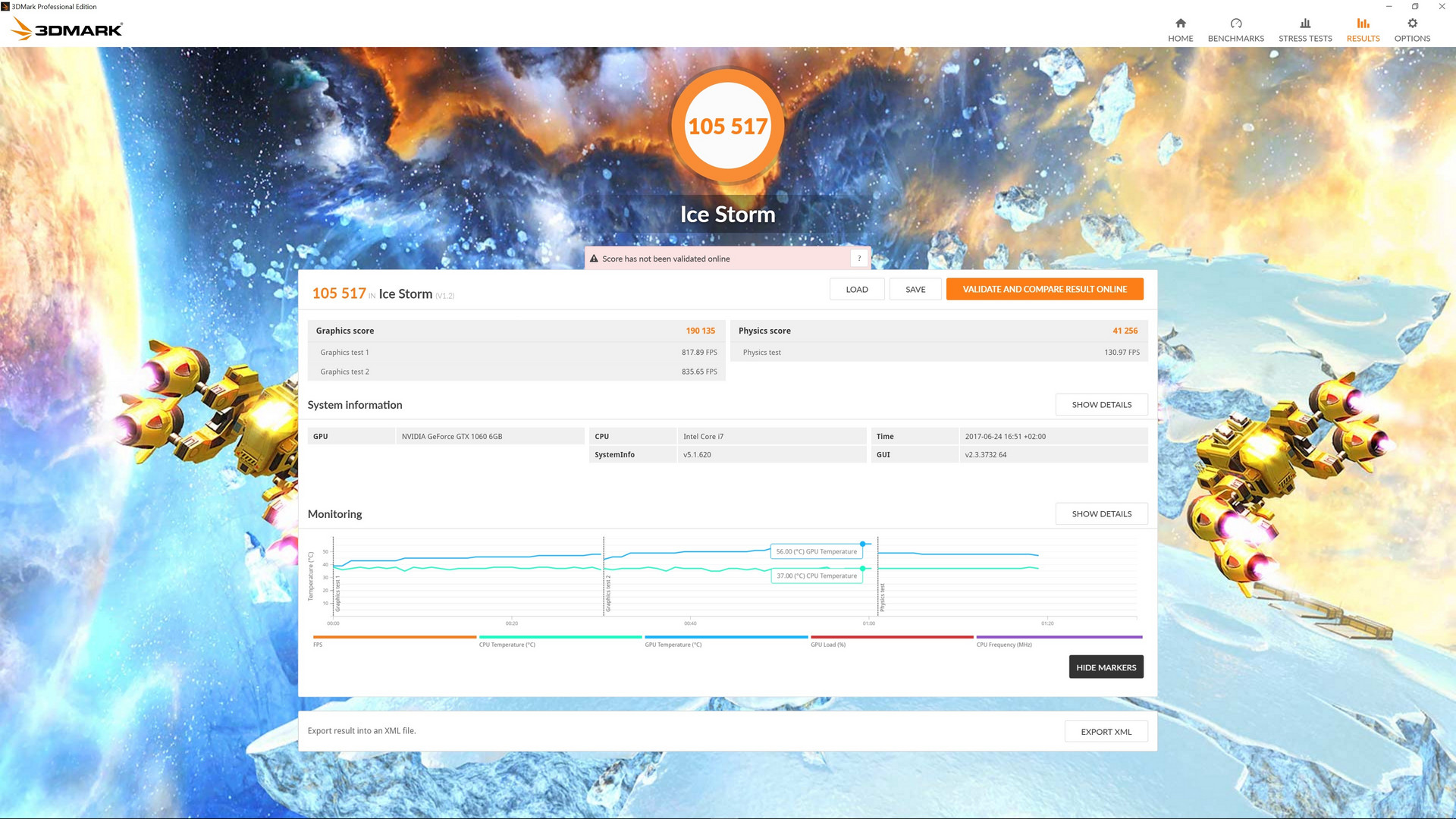

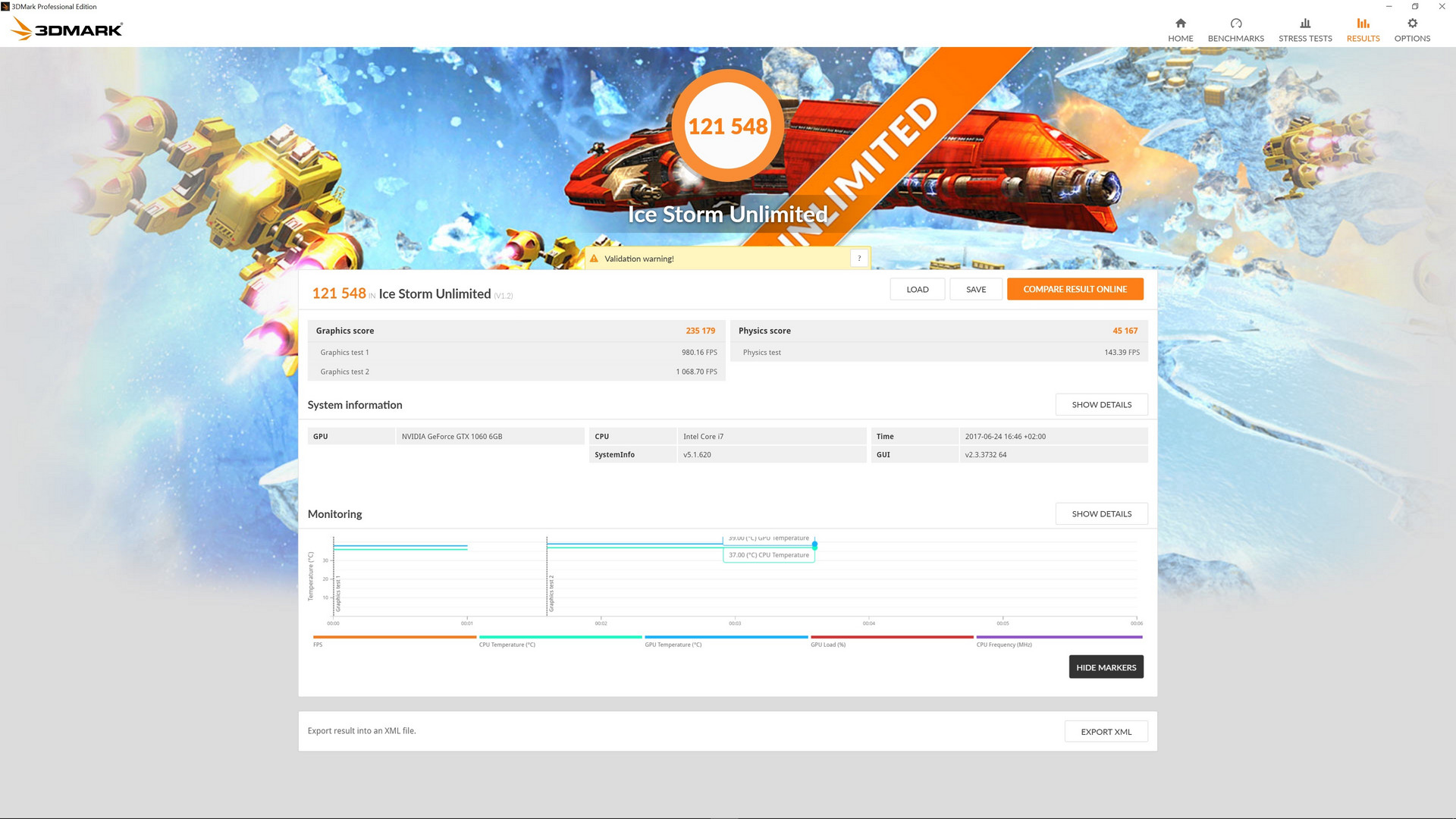

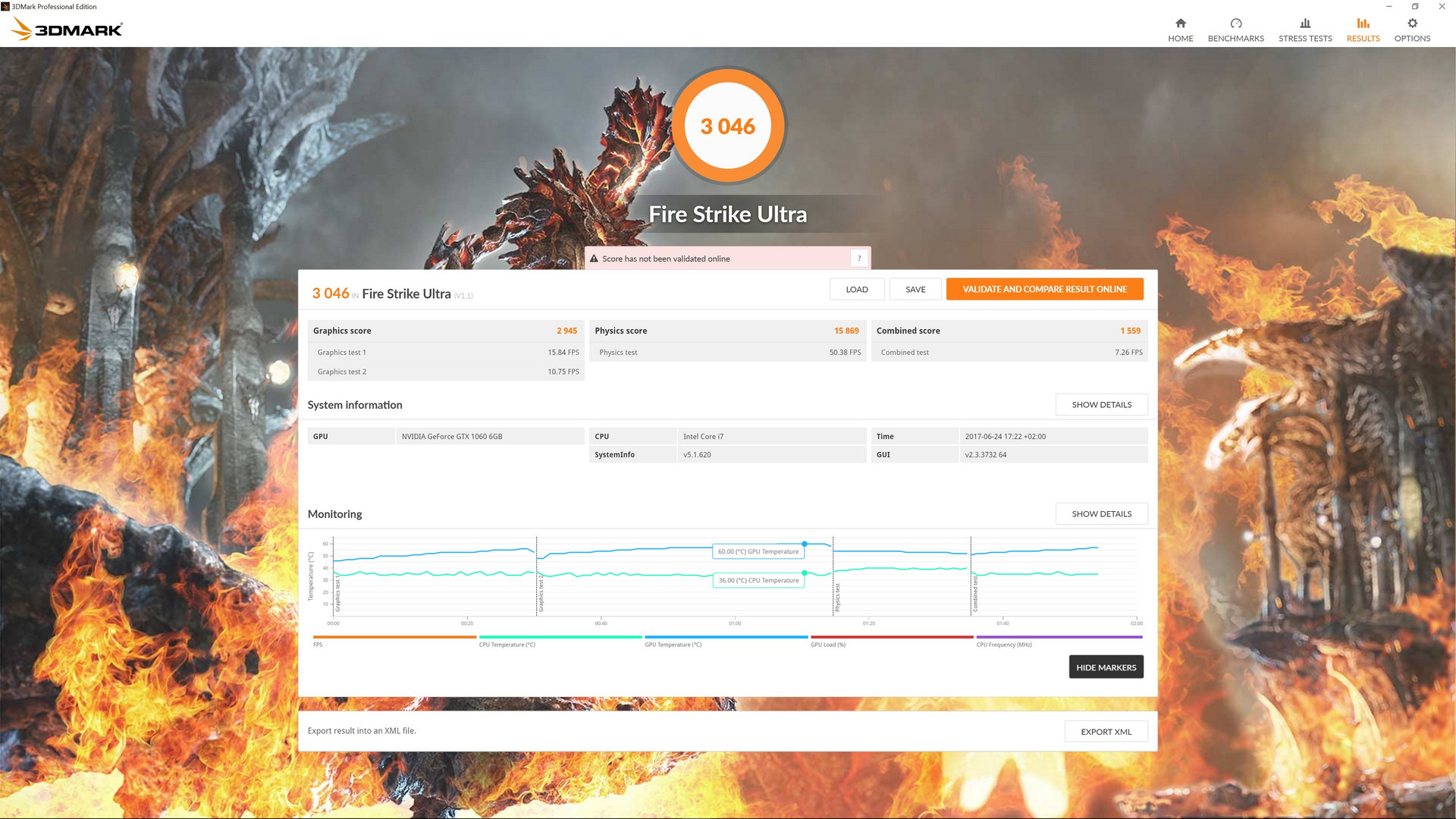

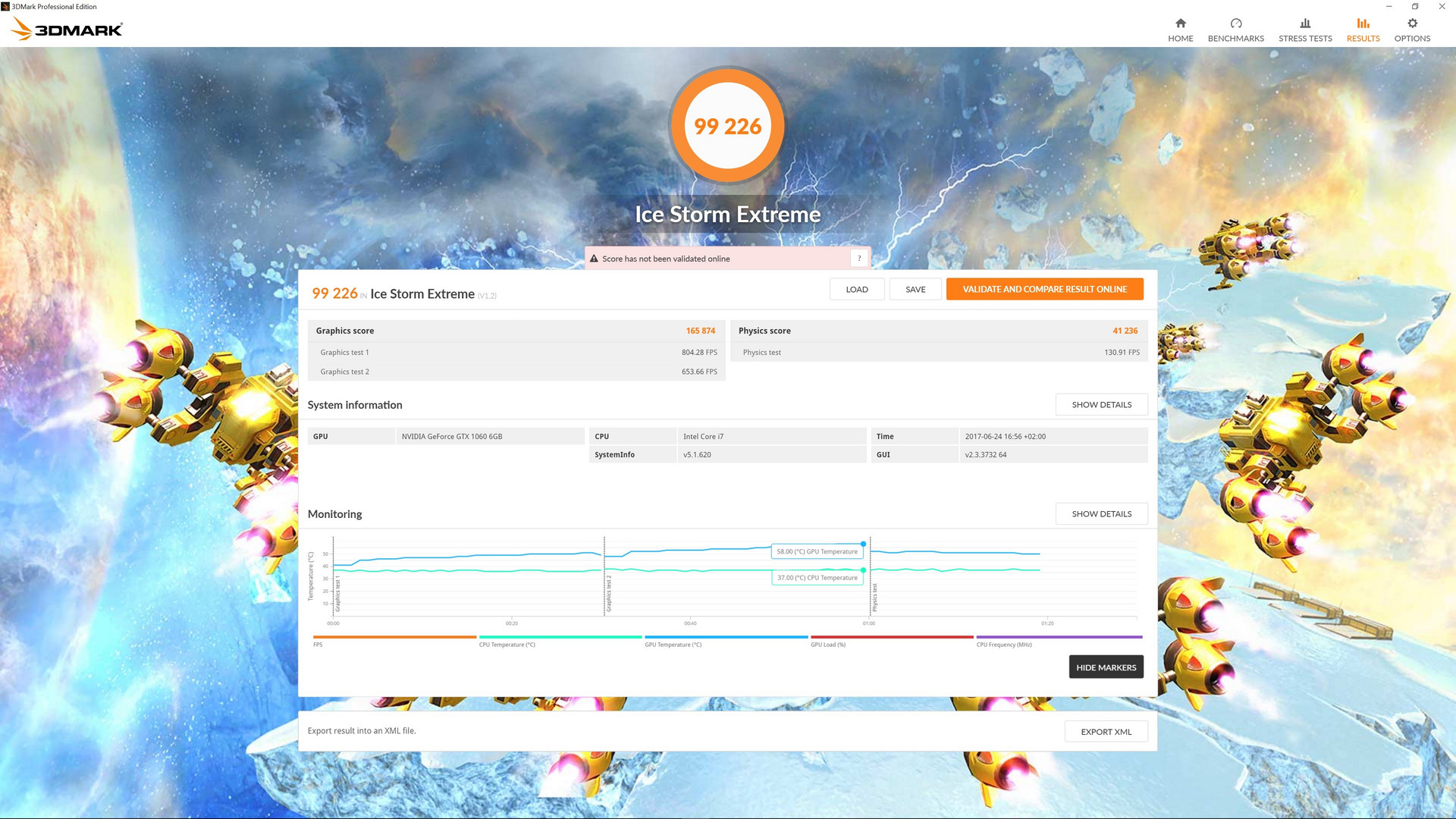

3DMark | 3DMark 11

3DMark

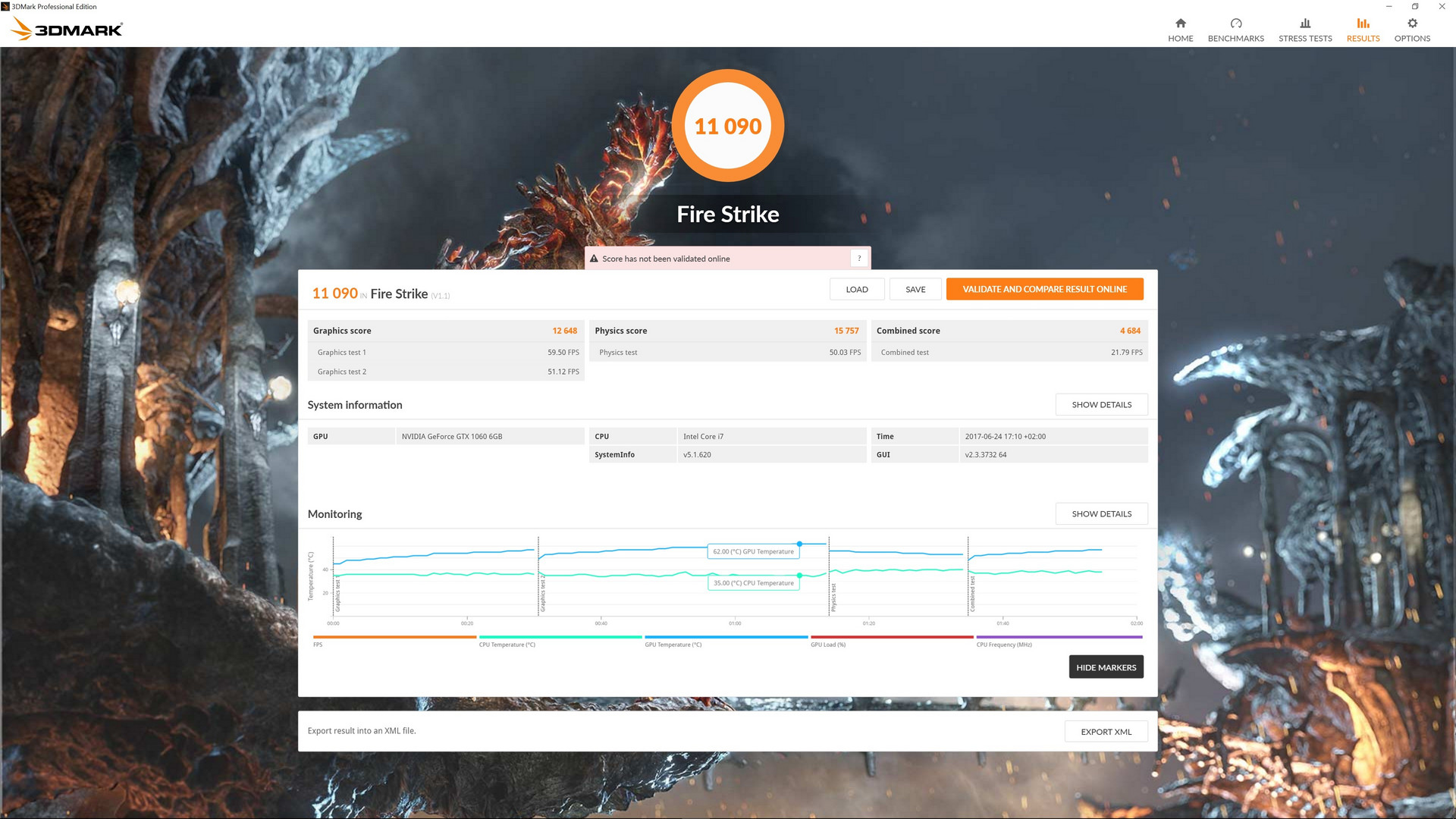

1920x1080 Fire Strike Graphics
Nvidia GeForce GTX 1070 Founders Edition	16685 Points +32%
Nvidia GeForce GTX 1060 Founders Edition 6 GB	12984 Points +3%
Desktop PC Intel Xeon E5 2680v4 KFA2 GTX 1060 6GB	12648 Points
AMD Radeon RX 480 8 GB Reference	12186 Points -4%
MSI RX 470 Gaming X 4GB	11869 Points -6%
MSI GeForce GTX 1050 Ti	7696 Points -39%
Zotac GeForce GTX 1050 2GB	6797 Points -46%

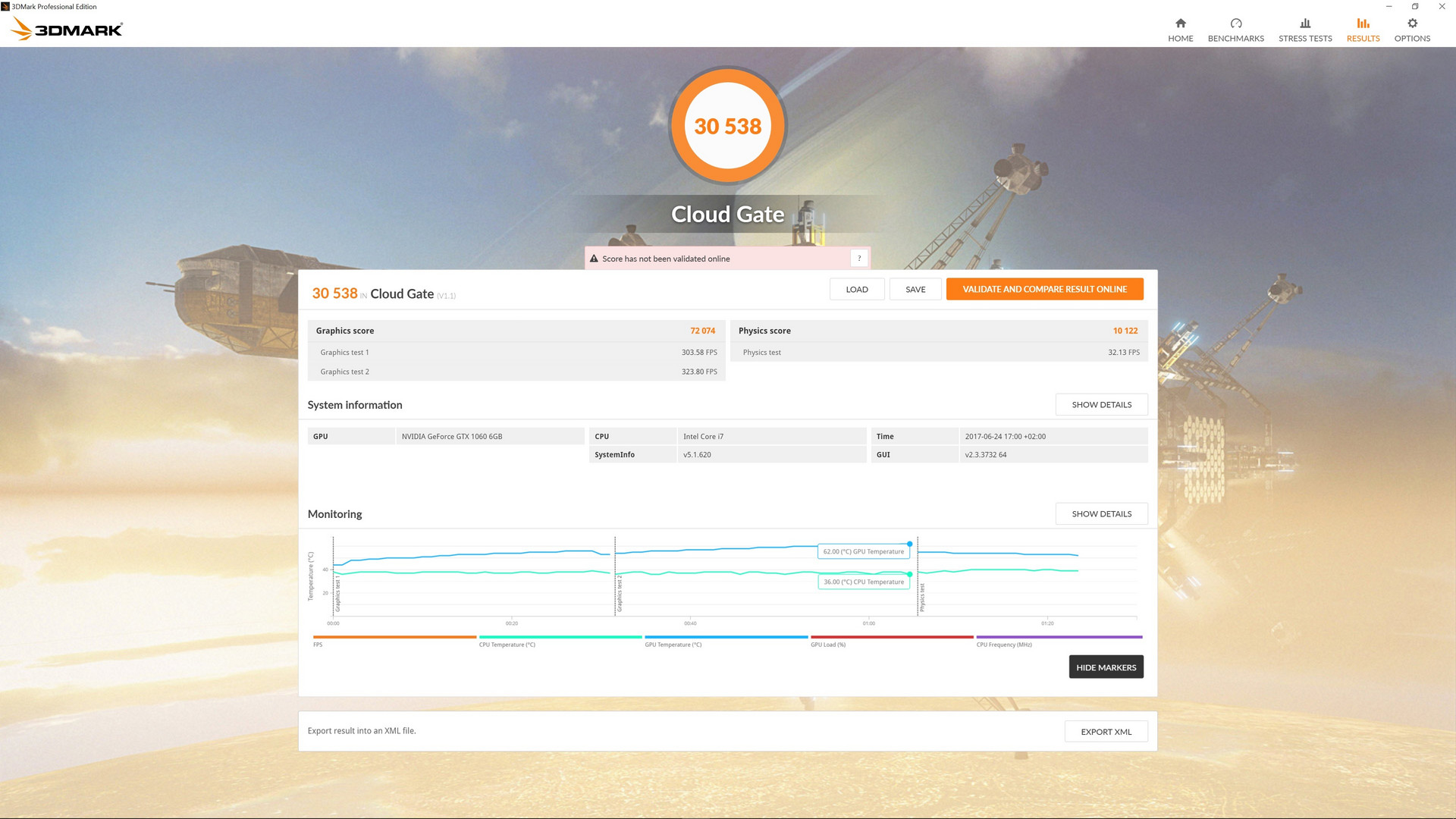

1280x720 Cloud Gate Standard Graphics
Nvidia GeForce GTX 1070 Founders Edition	104764 Points +45%
Nvidia GeForce GTX 1060 Founders Edition 6 GB	80879 Points +12%
AMD Radeon RX 480 8 GB Reference	72213 Points 0%
Desktop PC Intel Xeon E5 2680v4 KFA2 GTX 1060 6GB	72074 Points
MSI RX 470 Gaming X 4GB	66398 Points -8%
MSI GeForce GTX 1050 Ti	50939 Points -29%
Zotac GeForce GTX 1050 2GB	40922 Points -43%

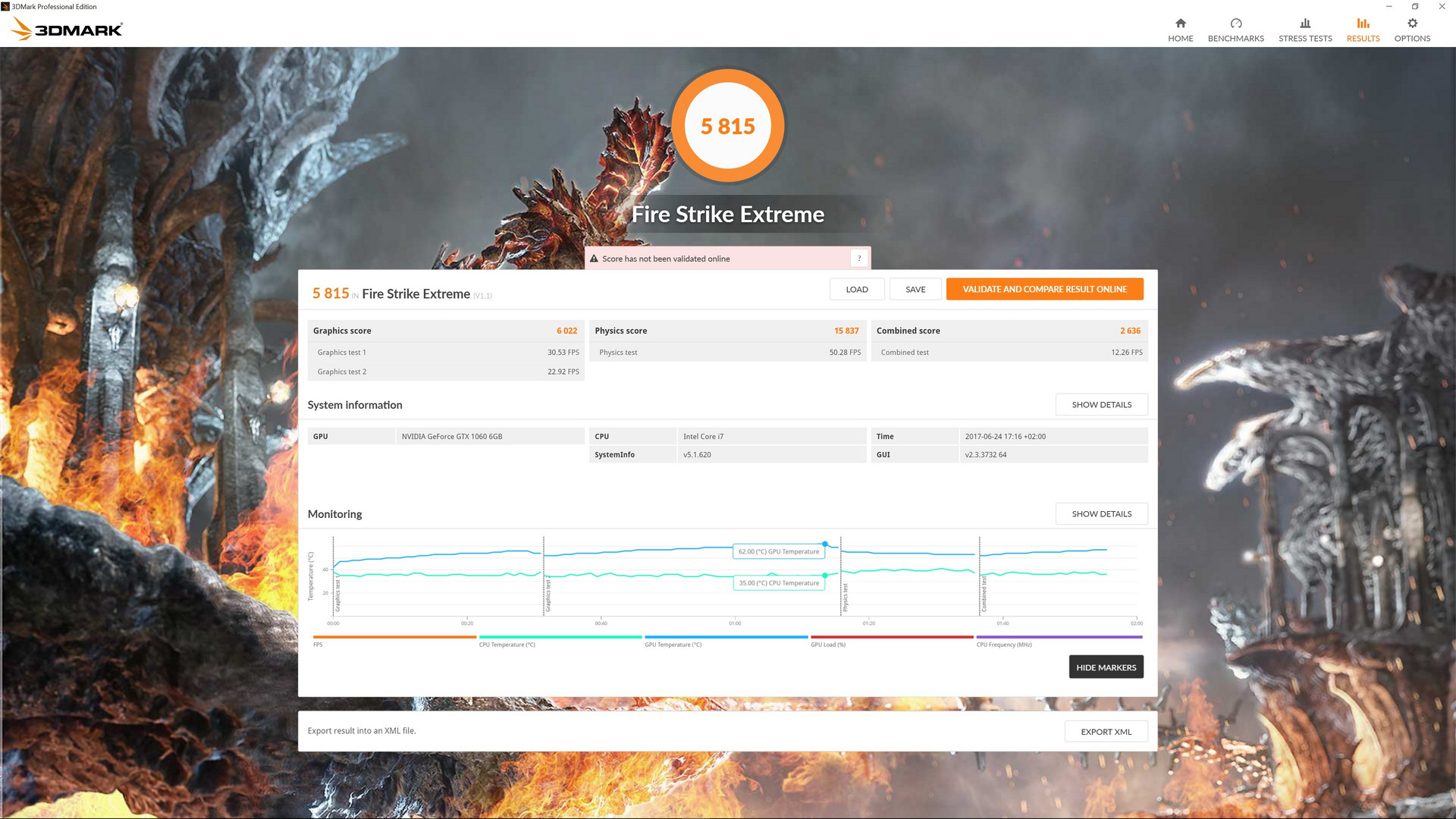

Fire Strike Extreme Graphics
Desktop PC Intel Xeon E5 2680v4 KFA2 GTX 1060 6GB	6022 Points
AMD Radeon RX 480 8 GB Reference	5444 Points -10%
Zotac GeForce GTX 1050 2GB	3199 Points -47%

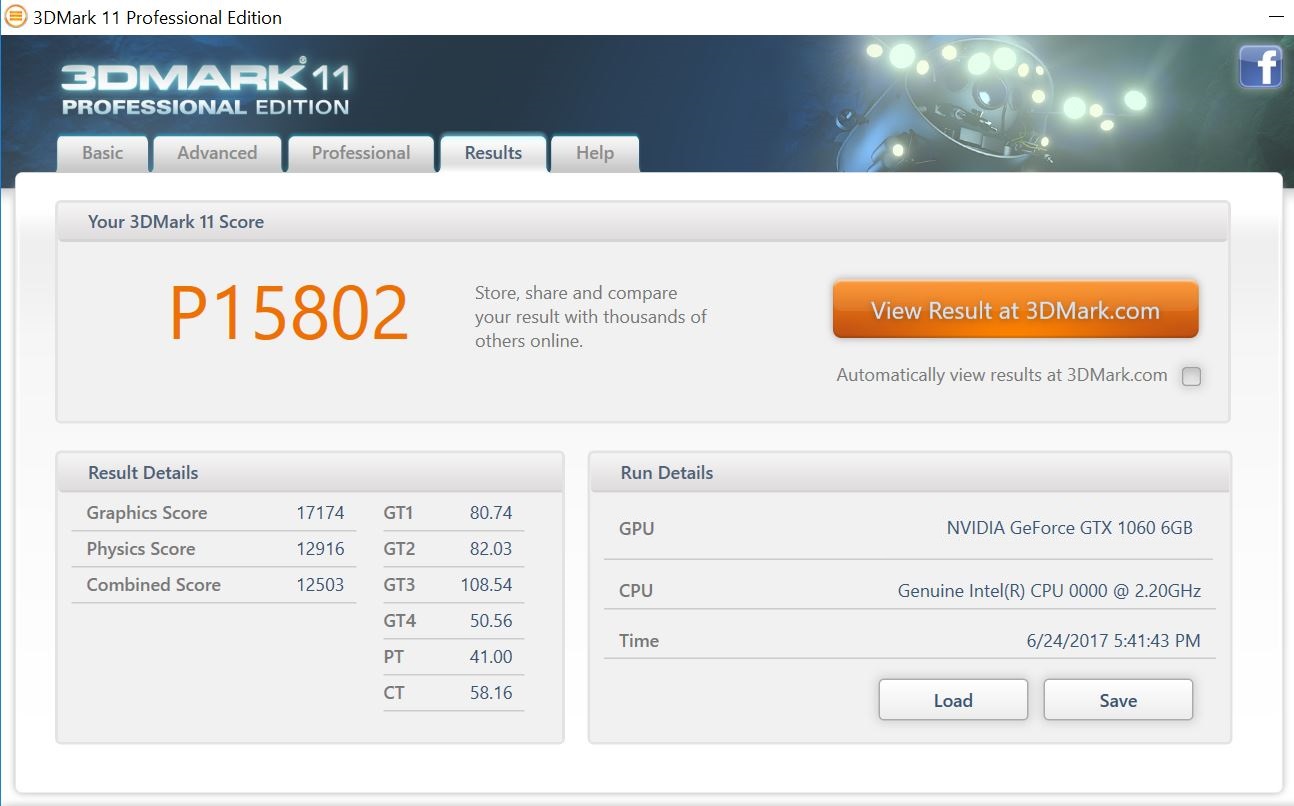

3DMark 11 - 1280x720 Performance GPU
Nvidia GeForce GTX 1070 Founders Edition	23990 Points +40%
AMD Radeon RX 480 8 GB Reference	17919 Points +4%
MSI RX 470 Gaming X 4GB	17738 Points +3%
Nvidia GeForce GTX 1060 Founders Edition 6 GB	17401 Points +1%
Desktop PC Intel Xeon E5 2680v4 KFA2 GTX 1060 6GB	17174 Points
MSI GeForce GTX 1050 Ti	9694 Points -44%
Zotac GeForce GTX 1050 2GB	8571 Points -50%

Legende

Desktop PC Intel Xeon E5 2680v4 KFA2 GTX 1060 6GB Intel Xeon E5-2680 v4, NVIDIA GeForce GTX 1060 (Desktop), Samsung SM951 MZHPV512HDGL m.2 PCI-e

AMD Radeon RX 480 8 GB Reference Intel Core i7-4790K, AMD Radeon RX 480 (Desktop), Intel SSD 530 Series SSDSC2BW240A

MSI RX 470 Gaming X 4GB Intel Core i7-4790K, AMD Radeon RX 470 (Desktop), Intel SSD 530 Series SSDSC2BW240A

MSI GeForce GTX 1050 Ti Intel Core i7-4790K, NVIDIA GeForce GTX 1050 Ti (Desktop), Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000

Zotac GeForce GTX 1050 2GB Intel Core i7-4790K, NVIDIA GeForce GTX 1050 (Desktop), Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000

Nvidia GeForce GTX 1070 Founders Edition Intel Core i7-4790K, NVIDIA GeForce GTX 1070 (Desktop), Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000

Nvidia GeForce GTX 1060 Founders Edition 6 GB Intel Core i7-6700K, NVIDIA GeForce GTX 1060 (Desktop),

Far Cry Primal - 1920x1080 Ultra Preset AA:SM
NVIDIA GeForce GTX 1070 (Desktop) GeForce GTX 1070 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	90 (72^min - 105^max) fps +25%
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), E5-2680 v4, Samsung SM951 MZHPV512HDGL m.2 PCI-e	72 (53^min - 84^max) fps
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), 6700K	67 fps -7%
AMD Radeon RX 480 (Desktop) Radeon RX 480, 4790K, Intel SSD 530 Series SSDSC2BW240A	59 (47^min - 76^max) fps -18%
AMD Radeon RX 470 (Desktop) Radeon RX 470 (Desktop), 4790K, Intel SSD 530 Series SSDSC2BW240A	54 (43^min - 67^max) fps -25%
NVIDIA GeForce GTX 1050 Ti (Desktop) GeForce GTX 1050 Ti (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	41 (32^min - 49^max) fps -43%
NVIDIA GeForce GTX 1050 (Desktop) GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	38 (30^min - 46^max) fps -47%

BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
NVIDIA GeForce GTX 1070 (Desktop) GeForce GTX 1070 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	152 fps +34%
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), E5-2680 v4, Samsung SM951 MZHPV512HDGL m.2 PCI-e	113.5 (21.4^min - 246^max) fps
AMD Radeon RX 480 (Desktop) Radeon RX 480, 4790K, Intel SSD 530 Series SSDSC2BW240A	110 (20^min - 177^max) fps -3%
NVIDIA GeForce GTX 1050 Ti (Desktop) GeForce GTX 1050 Ti (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	79 (45^min - 130^max) fps -30%
NVIDIA GeForce GTX 1050 (Desktop) GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	71.6 (46^min - 124^max) fps -37%

Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x
NVIDIA GeForce GTX 1070 (Desktop) GeForce GTX 1070 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	94 (85^min - 104^max) fps +39%
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), E5-2680 v4, Samsung SM951 MZHPV512HDGL m.2 PCI-e	67.7 (61^min - 76^max) fps
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), 6700K	66.9 fps -1%
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), 6700K	66.5 fps -2%
AMD Radeon RX 480 (Desktop) Radeon RX 480, 4790K, Intel SSD 530 Series SSDSC2BW240A	57 (49^min - 65^max) fps -16%
AMD Radeon RX 470 (Desktop) Radeon RX 470 (Desktop), 4790K, Intel SSD 530 Series SSDSC2BW240A	54.3 (49^min - 59^max) fps -20%
NVIDIA GeForce GTX 1050 Ti (Desktop) GeForce GTX 1050 Ti (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	40.7 (37^min - 45^max) fps -40%
NVIDIA GeForce GTX 1050 (Desktop) GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	36.9 (34^min - 40^max) fps -45%

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
NVIDIA GeForce GTX 1070 (Desktop) GeForce GTX 1070 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	62 fps +44%
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), 6700K	44.4 fps +3%
AMD Radeon RX 480 (Desktop) Radeon RX 480, 4790K, Intel SSD 530 Series SSDSC2BW240A	43.9 (40^min - 49^max) fps +2%
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), E5-2680 v4, Samsung SM951 MZHPV512HDGL m.2 PCI-e	43 (34^min - 50^max) fps
AMD Radeon RX 470 (Desktop) Radeon RX 470 (Desktop), 4790K, Intel SSD 530 Series SSDSC2BW240A	40.7 (35^min - 45^max) fps -5%
NVIDIA GeForce GTX 1050 Ti (Desktop) GeForce GTX 1050 Ti (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	27.5 (22^min - 32^max) fps -36%
NVIDIA GeForce GTX 1050 (Desktop) GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	24.1 (18^min - 28^max) fps -44%

Deus Ex Mankind Divided - 1920x1080 Ultra Preset AA:2xMS AF:8x
AMD Radeon RX 480 (Desktop) Radeon RX 480, 4790K, Intel SSD 530 Series SSDSC2BW240A	33.4 (26^min - 43^max) fps +2%
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), E5-2680 v4, Samsung SM951 MZHPV512HDGL m.2 PCI-e	32.9 (25.3^min - 42.1^max) fps
AMD Radeon RX 470 (Desktop) Radeon RX 470 (Desktop), 4790K, Intel SSD 530 Series SSDSC2BW240A	28.4 (22^min - 37^max) fps -14%
NVIDIA GeForce GTX 1050 Ti (Desktop) GeForce GTX 1050 Ti (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	22.8 (18^min - 28^max) fps -31%
NVIDIA GeForce GTX 1050 (Desktop) GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	21.4 (14^min - 29^max) fps -35%
NVIDIA GeForce GTX 1050 (Desktop) GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	12 fps -64%

Watch Dogs 2 - 1920x1080 Ultra Preset
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), E5-2680 v4, Samsung SM951 MZHPV512HDGL m.2 PCI-e	50 (41^min - 57^max) fps
AMD Radeon RX 480 (Desktop) Radeon RX 480, 4790K, Intel SSD 530 Series SSDSC2BW240A	40.6 (32^min - 49^max) fps -19%
AMD Radeon RX 470 (Desktop) Radeon RX 470 (Desktop), 4790K, Intel SSD 530 Series SSDSC2BW240A	37.4 (29^min - 46^max) fps -25%
NVIDIA GeForce GTX 1050 Ti (Desktop) GeForce GTX 1050 Ti (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	28.5 (22^min - 34^max) fps -43%
NVIDIA GeForce GTX 1050 (Desktop) GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	20 (16^min - 24^max) fps -60%

Dirt 4 - 1920x1080 Ultra Preset AA:4xMS AF:16x
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), E5-2680 v4, Samsung SM951 MZHPV512HDGL m.2 PCI-e	64.8 fps
AMD Radeon RX 480 (Desktop) Radeon RX 480, 4790K, Intel SSD 530 Series SSDSC2BW240A	64.3 (55^min - 83^max) fps -1%
AMD Radeon RX 470 (Desktop) Radeon RX 470 (Desktop), 4790K, Intel SSD 530 Series SSDSC2BW240A	59.4 (51^min - 76^max) fps -8%

Battlefield 1 - 1920x1080 Ultra Preset AA:T
AMD Radeon RX 480 (Desktop) Radeon RX 480, 4790K, Intel SSD 530 Series SSDSC2BW240A	89.4 (76^min - 96^max) fps +8%
AMD Radeon RX 480 (Desktop) Radeon RX 480, 4790K, Intel SSD 530 Series SSDSC2BW240A	88.5 (72^min - 96^max) fps +7%
AMD Radeon RX 470 (Desktop) Radeon RX 470 (Desktop), 4790K, Intel SSD 530 Series SSDSC2BW240A	83 (73^min - 88^max) fps 0%
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), E5-2680 v4, Samsung SM951 MZHPV512HDGL m.2 PCI-e	82.6 fps
NVIDIA GeForce GTX 1050 Ti (Desktop) GeForce GTX 1050 Ti (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	62.4 (53^min - 68^max) fps -24%
NVIDIA GeForce GTX 1050 (Desktop) GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	39 (34^min - 42^max) fps -53%

Titanfall 2 - 1920x1080 Very High (Insane Texture Quality) / Enabled AA:TS AF:16x
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), E5-2680 v4, Samsung SM951 MZHPV512HDGL m.2 PCI-e	136 fps
NVIDIA GeForce GTX 1070 (Desktop) GeForce GTX 1070 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	122 (103^min - 145^max) fps -10%
AMD Radeon RX 470 (Desktop) Radeon RX 470 (Desktop), 4790K, Intel SSD 530 Series SSDSC2BW240A	97 (81^min - 116^max) fps -29%
NVIDIA GeForce GTX 1050 Ti (Desktop) GeForce GTX 1050 Ti (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	56.6 (46^min - 72^max) fps -58%
NVIDIA GeForce GTX 1050 (Desktop) GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	45.7 (34^min - 57^max) fps -66%

Resident Evil 7 - 1920x1080 Very High / On AA:FXAA+T
AMD Radeon RX 480 (Desktop) Radeon RX 480, 4790K, Intel SSD 530 Series SSDSC2BW240A	112 (90^min - 128^max) fps +6%
NVIDIA GeForce GTX 1060 (Desktop) GeForce GTX 1060 (Desktop), E5-2680 v4, Samsung SM951 MZHPV512HDGL m.2 PCI-e	106 (88^min - 131^max) fps
NVIDIA GeForce GTX 1050 Ti (Desktop) GeForce GTX 1050 Ti (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	58.4 (48^min - 68^max) fps -45%
NVIDIA GeForce GTX 1050 (Desktop) GeForce GTX 1050 (Desktop), 4790K, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000	47.5 (33^min - 62^max) fps -55%
AMD Radeon RX 470 (Desktop) Radeon RX 470 (Desktop), 4790K, Intel SSD 530 Series SSDSC2BW240A	37.6 (25^min - 66^max) fps -65%

	lage	gem.	hoge	ultra	4K
BioShock Infinite (2013)	253.9	217.6	205.1	113.5
The Witcher 3 (2015)	216.4	144.2	70.5	43	28.8
Rise of the Tomb Raider (2016)	213.1	148.5	83.4	67.7	27.5
Far Cry Primal (2016)	105	90	81	72	28
Deus Ex Mankind Divided (2016)	141.1	109	61.9	32.9	20.6
Battlefield 1 (2016)	149.2	138	91.9	82.6	33.7
Titanfall 2 (2016)	144	144	144	136
Watch Dogs 2 (2016)	141.4	127.1	70	50	24.5
Resident Evil 7 (2017)	392	206	149	106	33
Dirt 4 (2017)	314.9	182.9	119.1	64.8	38.2

	NVIDIA GeForce GTX 1060 (Desktop) Desktop PC Intel Xeon E5 2680v4 KFA2 GTX 1060 6GB, E5-2680 v4	AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, 4790K	AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, 4790K	NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, 4790K	NVIDIA GeForce GTX 1050 (Desktop) Zotac GeForce GTX 1050 2GB, 4790K	NVIDIA GeForce GTX 1070 (Desktop) Nvidia GeForce GTX 1070 Founders Edition, 4790K	NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K
LuxMark v2.0 64Bit		-5%	-18%	-37%	-45%	40%	-15%
Room GPUs-only	1837	1661 -10%	1440 -22%	1175 -36%	1037 -44%	2474 35%	1773 -3%
Sala GPUs-only	3475	3468 0%	3020 -13%	2156 -38%	1864 -46%	5012 44%	2584 -26%
ComputeMark v2.1		8%	1%	-41%	-48%	41%	-0%
1024x600 Normal, QJuliaRayTrace	3313	2746 -17%	2475 -25%	1931 -42%	1572 -53%	4761 44%	3322 0%
1024x600 Normal, Mandel Scalar	1980	2539 28%	2447 24%	1092 -45%	968 -51%	2861 44%	2002 1%
1024x600 Normal, Mandel Vector	1987	2162 9%	2172 9%	1277 -36%	1100 -45%	2706 36%	1994 0%
1024x600 Normal, Fluid 2DTexArr	981	991 1%	911 -7%	596 -39%	555 -43%	1390 42%	963 -2%
1024x600 Normal, Fluid 3DTex	998	1220 22%	1039 4%	597 -40%	554 -44%	1402 40%	985 -1%
1024x600 Normal, Score	9259	9659 4%	9044 -2%	5493 -41%	4749 -49%	13121 42%	9266 0%
Totaal Gemiddelde (Programma / Instellingen)		2% / 5%	-9% / -4%	-39% / -40%	-47% / -47%	41% / 41%	-8% / -4%

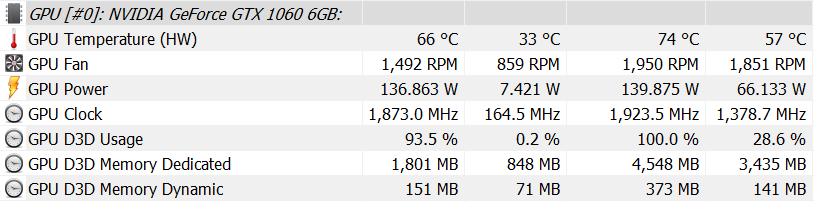

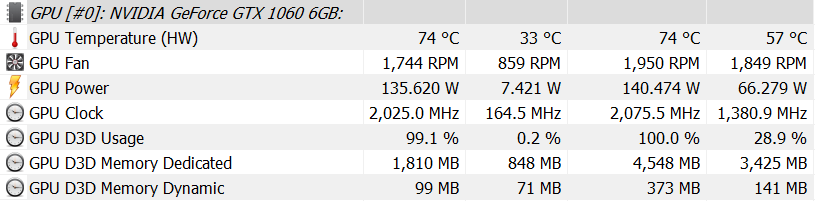

Power consumption under load and with overclocking (PT 116 %)

Besluit

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

De KFA² GeForce GTX 1060 6 GB EX OC is een desktop-GPU van de snellere middenklasse en is het overwegen waard voor £280 (~$360). Vergelijkbare modellen van andere fabrikanten zijn vaak duurder. Wat prestaties betreft ligt de GTX 1060 juist tussen de aanzienlijk duurdere GTX 1070 en de iets goedkopere GTX 1050 Ti. Dankzij de 6GB GDDR5 VRAM heeft de KFA² GeForce GTX 1060 GB EX OC genoeg reserve om moderne games vlot te spelen met maximale instellingen en in 1080p. De performance schiet tekort voor gaming in 4K aan aanvaardbare frame rates.

De KFA² GeForce GTX 1060 6 GB EX OC weet te overtuigen met zijn goede prestaties en lage stroomverbruik. De GPU is ook uitgerust met een betrouwbare en stille koeling.

Als je de grafische kaarten van AMD liever vermijdt en de GTX 1070 te duur is voor jou, is het de moeite waard om eens te kijken naar de KFA² GeForce GTX 1060 6 GB EX OC. Deze grafische kaart biedt betrouwbare prestaties zonder vervelende geluidsontwikkeling onder belasting. De GPU ondersteunt ook overclocking en kan met zijn boost eenvoudig de 2-GHz-grens voorbijsteken. De KFA² GeForce GTX 1060 6 GB EX OC is even snel als de Founder's Edition, wat Nvidia's referentieontwerp is. Accessoires stellen echter wat teleur. De fabrikant biedt alleen een driver-CD en voeding. Niettemin is de KFA² GeForce GTX 1060 6 GB EX OC een prima grafische kaart met een eerlijke prijs.
