Kort testrapport Dell Vostro 15 5568 (i7-7500U, 940MX) Laptop

Mike Wobker, 09-12-2017

Nieuwe componenten, oude tekortkomingen. We hebben in januari al aangekondigd dat Dell van plan is om de Vostro 15 5568 met andere processoren en een aparte grafische kaart uit te brengen. Deze configuratie is nu beschikbaar en we testen wat dit instapmodel zakelijk notebook met Intel Core i7-7500U en nVidia GeForce 940MX te bieden heeft.

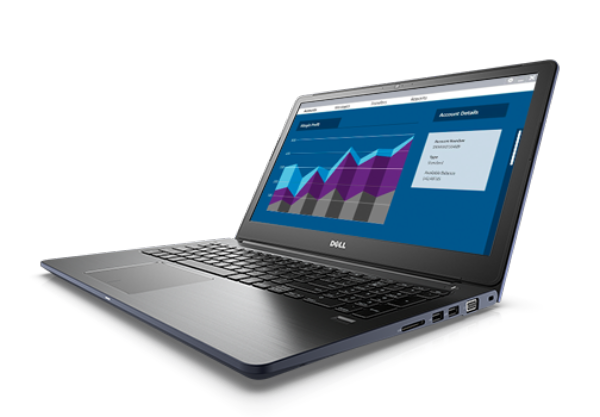

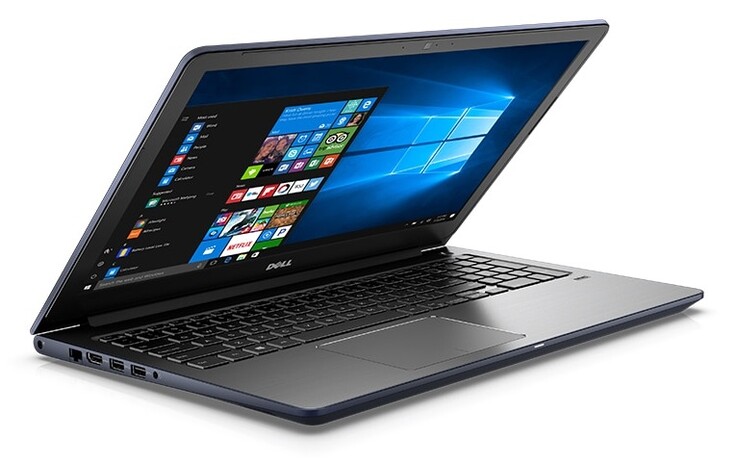

Dell Vostro 15-5568 (Vostro 15 Serie)
Grafische kaart
NVIDIA GeForce 940MX - 4096 MB, GDDR5, Nvidia 376.54
Geheugen
8192 MB
Beeldscherm
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, Chi Mei CMN15C4, TN LED, glimmend: nee
Moederbord
Intel Kaby Lake-U Premium PCH
Opslag
Micron SSD 1100 (MTFDDAV256TBN), 256 GB
, 170 GB beschikbaar
Geluidskaart
Intel Kaby Lake-U/Y PCH - High Definition Audio
Verbindingen
1 USB 2.0, 2 USB 3.0, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Verbindingen: kombinierter Anschluss, Card Reader: SD, 1 Vingerafdruklezer
Netwerkmogelijkheden
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Intel Dual Band Wireless-AC 3165 (a/b/g/n/ac), Bluetooth 4.0
Afmetingen
hoogte x breedte x diepte (in mm): 19.2 x 380 x 252.5
Batterij
42 Wh Lithium-Ion, Batterijduur: 8.5 h
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 1 MP HD (1.280 x 720)
Bijkomende functionaliteiten
Luidsprekers: Stereo, Toetsenbord: Chiclet, Toetsenbordverlichting: nee, 12 Maanden Garantie
Gewicht
1.88 kg, Voeding: 280 g
Prijs
879 Euro



Size Comparison

left side: power-in, LAN, HDMI, 1x USB 3.0 with PowerShare, 1x USB 3.0, audio combo
left side: power-in, LAN, HDMI, 1x USB 3.0 with PowerShare, 1x USB 3.0, audio combo
right side: SD card reader, 1x USB 2.0, 1x USB 3.0, VGA, Kensington lock
right side: SD card reader, 1x USB 2.0, 1x USB 3.0, VGA, Kensington lock
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
HP Spectre x360 15-bl002xx
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
126.3 MB/s ∼100% +474%
Acer TravelMate P658-G2-MG-7327
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
88.1 MB/s ∼70% +300%
Lenovo ThinkPad T570-20HAS01E00
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
76.3 MB/s ∼60% +247%
Dell Vostro 15-5568
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
25.2 MB/s ∼20% +15%
Dell Vostro 15-5568
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
22 MB/s ∼17%
maximum AS SSD Seq Read Test (1GB)
HP Spectre x360 15-bl002xx
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
250.6 MB/s ∼100% +2538%
Lenovo ThinkPad T570-20HAS01E00
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
90.7 MB/s ∼36% +855%
Acer TravelMate P658-G2-MG-7327
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
77.8 MB/s ∼31% +719%
Dell Vostro 15-5568
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
25.5 MB/s ∼10% +168%
Dell Vostro 15-5568
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
9.5 MB/s ∼4%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Huawei MateBook D
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
670 MBit/s ∼100% +1141%
Lenovo ThinkPad T570-20HAS01E00
Intel Dual Band Wireless-AC 8265
667 MBit/s ∼100% +1135%
HP Spectre x360 15-bl002xx
Intel Dual Band Wireless-AC 8265
625 MBit/s ∼93% +1057%
Acer TravelMate P658-G2-MG-7327
Intel Dual Band Wireless-AC 7265
377 MBit/s ∼56% +598%
Dell Vostro 15-5568
Intel Dual Band Wireless-AC 3165
205 MBit/s ∼31% +280%
Dell Vostro 15-5568
Intel Dual Band Wireless-AC 3165
54 MBit/s ∼8%
iperf3 Client (transmit) TCP 1 m 4M x10
Huawei MateBook D
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
534 MBit/s ∼100% +990%
HP Spectre x360 15-bl002xx
Intel Dual Band Wireless-AC 8265
503 MBit/s ∼94% +927%
Lenovo ThinkPad T570-20HAS01E00
Intel Dual Band Wireless-AC 8265
498 MBit/s ∼93% +916%
Dell Vostro 15-5568
Intel Dual Band Wireless-AC 3165
268 MBit/s ∼50% +447%
Dell Vostro 15-5568
Intel Dual Band Wireless-AC 3165
49 MBit/s ∼9%
Acer TravelMate P658-G2-MG-7327
Intel Dual Band Wireless-AC 7265
34 MBit/s ∼6% -31%
208
cd/m²
208
cd/m²
210
cd/m²
206
cd/m²
239
cd/m²
227
cd/m²
211
cd/m²
234
cd/m²
228
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 239 cd/m² Gemiddelde: 219 cd/m² Minimum: 12.2 cd/m²
Helderheidsverdeling: 86 %
Helderheid in Batterij-modus: 242 cd/m²
Contrast: 556:1 (Zwart: 0.43 cd/m²)
ΔE Color 10.11 | 0.8-23.34 Ø6.5
ΔE Greyscale 10.88 | 0.64-98 Ø6.7
60% sRGB (Argyll) 38% AdobeRGB 1998 (Argyll)
Gamma: 2.33
Dell Vostro 15-5568
Chi Mei CMN15C4, , 1920x1080, 15.6
HP Spectre x360 15-bl002xx
UHD UWVA eDP BrightView WLED-backlit , , 3840x2160, 15.6
Acer TravelMate P658-G2-MG-7327
LG Philips LP156WF6-SPP1, , 1920x1080, 15.6
Huawei MateBook D
BOE070C, , 1920x1080, 15.6
Lenovo ThinkPad T570-20HAS01E00
BOE NV156QUM-N44, , 3840x2160, 15.6
Dell Vostro 15-5568
Chi Mei CMN154C-8KV42 , , 1920x1080, 15.6
Response Times
-87%
-33%
-59%
-33%
-49%
Response Time Grey 50% / Grey 80% *
41 (24, 17)
44 (20.4, 23.6)
-7%
38 (20, 18)
7%
46.4 (23.2, 23.2)
-13%
41.6 (13.2, 28.4)
-1%
47.6 (24.4, 23.2)
-16%
Response Time Black / White *
15 (11, 4)
38.8 (6.4, 32.4)
-159%
28 (17, 11)
-87%
36.8 (22.4, 14.4)
-145%
15.2 (2, 13.2)
-1%
27.2 (10, 17.2)
-81%
PWM Frequency
26000 (20)
1000 (99)
-96%
21000 (90)
-19%
21190
-18%
925.9 (90)
-96%
Screen
65%
43%
18%
44%
-8%
Brightness
219
336
53%
276
26%
258
18%
314
43%
222
1%
Brightness Distribution
86
83
-3%
82
-5%
92
7%
89
3%
82
-5%
Black Level *
0.43
0.24
44%
0.295
31%
0.47
-9%
0.36
16%
0.56
-30%
Contrast
556
1465
163%
963
73%
570
3%
942
69%
409
-26%
Colorchecker DeltaE2000 *
10.11
3.3
67%
4.07
60%
5.7
44%
4.2
58%
10.36
-2%
Greyscale DeltaE2000 *
10.88
1.9
83%
3.13
71%
4.2
61%
5.1
53%
10.9
-0%
Gamma
2.33 103%
2.09 115%
2.41 100%
2.3 104%
2.16 111%
2.21 109%
CCT
11924 55%
6784 96%
7082 92%
6820 95%
6569 99%
10084 64%
Color Space (Percent of AdobeRGB 1998)
38
64.4
69%
56
47%
43.2
14%
59.4
56%
37.69
-1%
Color Space (Percent of sRGB)
60
88.2
47%
86
43%
61.5
3%
91
52%
57.92
-3%
Totaal Gemiddelde (Programma / Instellingen)
-11% / 24%
5% / 22%
-21% / -3%
6% / 23%
-29% / -16%

* ... kleiner is beter

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

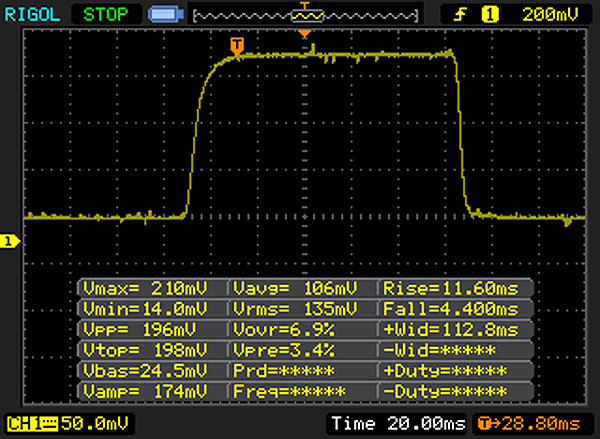

       Responstijd Zwart naar Wit
15 ms ... stijging ↗ en daling ↘ gecombineerd↗ 11 ms stijging
↘ 4 ms daling
Het scherm vertoonde prima responstijden in onze tests maar is misschien wat te traag voor competitieve games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 9 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd beter is dan het gemiddelde (26.5 ms) van alle geteste toestellen.

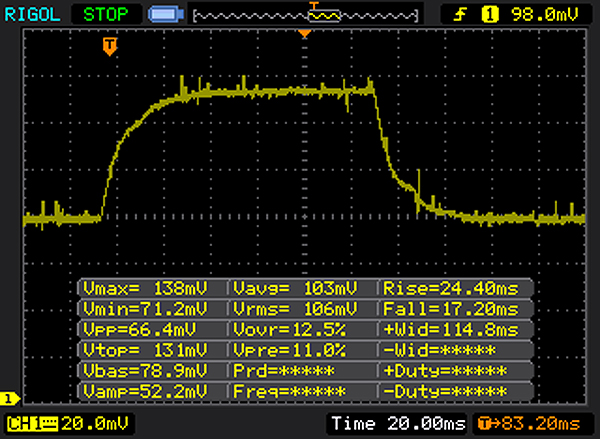

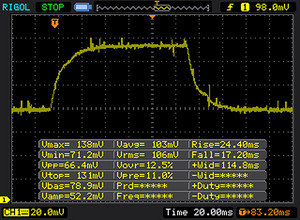

       Responstijd 50% Grijs naar 80% Grijs
41 ms ... stijging ↗ en daling ↘ gecombineerd↗ 24 ms stijging
↘ 17 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 47 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (42.3 ms) van alle geteste toestellen.

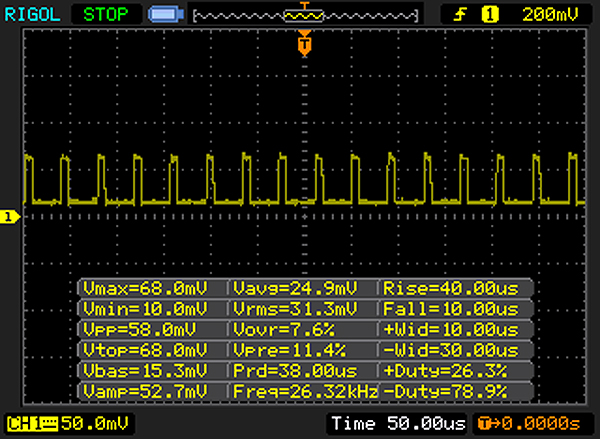

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 26000 Hz20 % helderheid instelling

Het backlight van het scherm flikkert aan 26000 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 20 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 26000 Hz is redelijk hoog en de meeste mensen die gevoelig zijn aan flickering zouden dit dus niet mogen waarnemen of geïrriteerde ogen krijgen.

Ter vergelijking: 54 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 8582 (minimum: 43 - maximum: 142900) Hz waargenomen.


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Huawei MateBook D
Intel Core i7-7500U
149 Points ∼100% +1%
Acer TravelMate P658-G2-MG-7327
Intel Core i7-7500U
147 Points ∼99% 0%
Dell Vostro 15-5568
Intel Core i7-7500U
147 Points ∼99%
HP Spectre x360 15-bl002xx
Intel Core i7-7500U
146 Points ∼98% -1%
Lenovo ThinkPad T570-20HAS01E00
Intel Core i7-7500U
146 Points ∼98% -1%
Dell Vostro 15-5568
Intel Core i5-7200U
129 Points ∼87% -12%
CPU Multi 64Bit
Acer TravelMate P658-G2-MG-7327
Intel Core i7-7500U
376 Points ∼100% +10%
Lenovo ThinkPad T570-20HAS01E00
Intel Core i7-7500U
373 Points ∼99% +9%
Huawei MateBook D
Intel Core i7-7500U
343 Points ∼91% 0%
Dell Vostro 15-5568
Intel Core i7-7500U
342 Points ∼91%
HP Spectre x360 15-bl002xx
Intel Core i7-7500U
339 Points ∼90% -1%
Dell Vostro 15-5568
Intel Core i5-7200U
319 Points ∼85% -7%
Cinebench R15 CPU Single 64Bit
147 Points
Cinebench R15 CPU Multi 64Bit
342 Points
Cinebench R15 OpenGL 64Bit
70.9 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Help
PCMark 8
Work Score Accelerated v2
Acer TravelMate P658-G2-MG-7327
GeForce 940MX, 7500U, Liteonit CV3-8D512
4910 Points ∼100% +2%
Huawei MateBook D
GeForce 940MX, 7500U, SanDisk SD8SN8U128G1027
4860 Points ∼99% +1%
Dell Vostro 15-5568
GeForce 940MX, 7500U, Micron SSD 1100 (MTFDDAV256TBN)
4821 Points ∼98%
Dell Vostro 15-5568
HD Graphics 620, 7200U, SanDisk X400 256GB, SATA (SD8SB8U-256G)
4573 Points ∼93% -5%
HP Spectre x360 15-bl002xx
GeForce 940MX, 7500U, Toshiba XG4 NVMe (THNSN5512GPUK)
4016 Points ∼82% -17%
Lenovo ThinkPad T570-20HAS01E00
GeForce 940MX, 7500U, Samsung PM961 NVMe MZVLW512HMJP
3892 Points ∼79% -19%
Home Score Accelerated v2
Acer TravelMate P658-G2-MG-7327
GeForce 940MX, 7500U, Liteonit CV3-8D512
3948 Points ∼100% +8%
Huawei MateBook D
GeForce 940MX, 7500U, SanDisk SD8SN8U128G1027
3721 Points ∼94% +1%
Dell Vostro 15-5568
GeForce 940MX, 7500U, Micron SSD 1100 (MTFDDAV256TBN)
3672 Points ∼93%
Dell Vostro 15-5568
HD Graphics 620, 7200U, SanDisk X400 256GB, SATA (SD8SB8U-256G)
3331 Points ∼84% -9%
HP Spectre x360 15-bl002xx
GeForce 940MX, 7500U, Toshiba XG4 NVMe (THNSN5512GPUK)
3249 Points ∼82% -12%
Lenovo ThinkPad T570-20HAS01E00
GeForce 940MX, 7500U, Samsung PM961 NVMe MZVLW512HMJP
3049 Points ∼77% -17%
PCMark 8 Home Score Accelerated v2
3672 punten
PCMark 8 Work Score Accelerated v2
4821 punten
Help
Dell Vostro 15-5568
Micron SSD 1100 (MTFDDAV256TBN)
HP Spectre x360 15-bl002xx
Toshiba XG4 NVMe (THNSN5512GPUK)
Acer TravelMate P658-G2-MG-7327
Liteonit CV3-8D512
Huawei MateBook D
SanDisk SD8SN8U128G1027
Lenovo ThinkPad T570-20HAS01E00
Samsung PM961 NVMe MZVLW512HMJP
Dell Vostro 15-5568
SanDisk X400 256GB, SATA (SD8SB8U-256G)
CrystalDiskMark 3.0
184%
24%
24%
222%
44%
Write 4k QD32
161.2
395.2
145%
248.8
54%
123.2
-24%
474.4
194%
229.4
42%
Read 4k QD32
172.8
527.2
205%
354.8
105%
368.5
113%
558.9
223%
296
71%
Write 4k
93.58
139.4
49%
68.78
-27%
82.72
-12%
144.1
54%
55.97
-40%
Read 4k
21.87
40.72
86%
25.74
18%
36.84
68%
58.42
167%
29.02
33%
Write 512
161.7
713.9
341%
246.3
52%
181.4
12%
903.4
459%
368.5
128%
Read 512
312.9
834.2
167%
227.1
-27%
331.2
6%
788.7
152%
363.4
16%
Write Seq
238.7
981.5
311%
256.9
8%
314.9
32%
1134
375%
466.8
96%
Read Seq
476.2
1266
166%
526.3
11%
478.4
0%
1210
154%
497.8
5%
Micron SSD 1100 (MTFDDAV256TBN)
Sequential Read: 476.2 MB/s
Sequential Write: 238.7 MB/s
512K Read: 312.9 MB/s
512K Write: 161.7 MB/s
4K Read: 21.87 MB/s
4K Write: 93.58 MB/s
4K QD32 Read: 172.8 MB/s
4K QD32 Write: 161.2 MB/s
3DMark 11 - 1280x720 Performance GPU
Huawei MateBook D
NVIDIA GeForce 940MX, Intel Core i7-7500U
2910 Points ∼100% +13%
Lenovo ThinkPad T570-20HAS01E00
NVIDIA GeForce 940MX, Intel Core i7-7500U
2727 Points ∼94% +6%
Dell Vostro 15-5568
NVIDIA GeForce 940MX, Intel Core i7-7500U
2583 Points ∼89%
HP Spectre x360 15-bl002xx
NVIDIA GeForce 940MX, Intel Core i7-7500U
2576 Points ∼89% 0%
Acer TravelMate P658-G2-MG-7327
NVIDIA GeForce 940MX, Intel Core i7-7500U
2556 Points ∼88% -1%
Dell Vostro 15-5568
Intel HD Graphics 620, Intel Core i5-7200U
1384 Points ∼48% -46%
3DMark
1920x1080 Fire Strike Graphics
Huawei MateBook D
NVIDIA GeForce 940MX, Intel Core i7-7500U
2376 Points ∼100% +14%
Lenovo ThinkPad T570-20HAS01E00
NVIDIA GeForce 940MX, Intel Core i7-7500U
2294 Points ∼97% +10%
HP Spectre x360 15-bl002xx
NVIDIA GeForce 940MX, Intel Core i7-7500U
2115 Points ∼89% +1%
Dell Vostro 15-5568
NVIDIA GeForce 940MX, Intel Core i7-7500U
2085 Points ∼88%
Dell Vostro 15-5568
Intel HD Graphics 620, Intel Core i5-7200U
763 Points ∼32% -63%
1280x720 Cloud Gate Standard Graphics
Huawei MateBook D
NVIDIA GeForce 940MX, Intel Core i7-7500U
13199 Points ∼100% +16%
Lenovo ThinkPad T570-20HAS01E00
NVIDIA GeForce 940MX, Intel Core i7-7500U
13181 Points ∼100% +16%
HP Spectre x360 15-bl002xx
NVIDIA GeForce 940MX, Intel Core i7-7500U
11821 Points ∼90% +4%
Dell Vostro 15-5568
NVIDIA GeForce 940MX, Intel Core i7-7500U
11406 Points ∼86%
Dell Vostro 15-5568
Intel HD Graphics 620, Intel Core i5-7200U
6554 Points ∼50% -43%
3DMark 11 Performance
2769 punten
3DMark Cloud Gate Standard Score
8208 punten
3DMark Fire Strike Score
1905 punten
Help
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF)
Huawei MateBook D
GeForce 940MX, 7500U, SanDisk SD8SN8U128G1027
23.4 fps ∼100% +15%
HP Spectre x360 15-bl002xx
GeForce 940MX, 7500U, Toshiba XG4 NVMe (THNSN5512GPUK)
21.6 fps ∼92% +6%
Lenovo ThinkPad T570-20HAS01E00
GeForce 940MX, 7500U, Samsung PM961 NVMe MZVLW512HMJP
21.5 fps ∼92% +6%
Dell Vostro 15-5568
GeForce 940MX, 7500U, Micron SSD 1100 (MTFDDAV256TBN)
20.29 fps ∼87%
Acer TravelMate P658-G2-MG-7327
GeForce 940MX, 7500U, Liteonit CV3-8D512
14.8 fps ∼63% -27%
Dell Vostro 15-5568
HD Graphics 620, 7200U, SanDisk X400 256GB, SATA (SD8SB8U-256G)
6 fps ∼26% -70%
1366x768 High Preset
Lenovo ThinkPad T570-20HAS01E00
GeForce 940MX, 7500U, Samsung PM961 NVMe MZVLW512HMJP
64.3 fps ∼100% +23%
HP Spectre x360 15-bl002xx
GeForce 940MX, 7500U, Toshiba XG4 NVMe (THNSN5512GPUK)
59 fps ∼92% +13%
Huawei MateBook D
GeForce 940MX, 7500U, SanDisk SD8SN8U128G1027
54.4 fps ∼85% +4%
Dell Vostro 15-5568
GeForce 940MX, 7500U, Micron SSD 1100 (MTFDDAV256TBN)
52.38 fps ∼81%
Acer TravelMate P658-G2-MG-7327
GeForce 940MX, 7500U, Liteonit CV3-8D512
42.7 fps ∼66% -18%
Dell Vostro 15-5568
HD Graphics 620, 7200U, SanDisk X400 256GB, SATA (SD8SB8U-256G)
18.8 fps ∼29% -64%
1366x768 Medium Preset
Lenovo ThinkPad T570-20HAS01E00
GeForce 940MX, 7500U, Samsung PM961 NVMe MZVLW512HMJP
72.45 fps ∼100% +17%
HP Spectre x360 15-bl002xx
GeForce 940MX, 7500U, Toshiba XG4 NVMe (THNSN5512GPUK)
69.8 fps ∼96% +13%
Huawei MateBook D
GeForce 940MX, 7500U, SanDisk SD8SN8U128G1027
64.5 fps ∼89% +4%
Dell Vostro 15-5568
GeForce 940MX, 7500U, Micron SSD 1100 (MTFDDAV256TBN)
61.93 fps ∼85%
Acer TravelMate P658-G2-MG-7327
GeForce 940MX, 7500U, Liteonit CV3-8D512
53.8 fps ∼74% -13%
Dell Vostro 15-5568
HD Graphics 620, 7200U, SanDisk X400 256GB, SATA (SD8SB8U-256G)
23 fps ∼32% -63%
1280x720 Very Low Preset
Lenovo ThinkPad T570-20HAS01E00
GeForce 940MX, 7500U, Samsung PM961 NVMe MZVLW512HMJP
137.9 fps ∼100% +23%
HP Spectre x360 15-bl002xx
GeForce 940MX, 7500U, Toshiba XG4 NVMe (THNSN5512GPUK)
127.5 fps ∼92% +14%
Dell Vostro 15-5568
GeForce 940MX, 7500U, Micron SSD 1100 (MTFDDAV256TBN)
112.12 fps ∼81%
Huawei MateBook D
GeForce 940MX, 7500U, SanDisk SD8SN8U128G1027
101.6 fps ∼74% -9%
Acer TravelMate P658-G2-MG-7327
GeForce 940MX, 7500U, Liteonit CV3-8D512
96.2 fps ∼70% -14%
Dell Vostro 15-5568
HD Graphics 620, 7200U, SanDisk X400 256GB, SATA (SD8SB8U-256G)
39.9 fps ∼29% -64%
lage gem. hoge ultra
BioShock Infinite (2013) 112.1261.9352.3820.29fps
Thief (2014) 43.324.317.212.5fps
Dragon Age: Inquisition (2014) 61.842.19.6fps

Geluidsniveau

Onbelast
30.2 / 30.2 / 30.2 dB (A)
Belasting
40.4 / 40.6 dB (A)



30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 30.2 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.132.431.733.12531.431.535.131.43131.831.134.731.84028.731.734.628.75034.535.937.634.5632826.228288028.127.127.128.110026.527.425.226.512524.325.223.824.316024.124.223.524.120023.323.722.623.325023.3232223.331527.927.720.727.940023.927.820.223.950022.222.619.222.263026.626.61826.680025.926.917.825.9100033.131.318.133.1125030.830.917.530.8160030.730.817.230.7200030.431.117.530.4250030.431.517.630.4315028.829.617.528.8400024.725.417.924.7500022231822630022.423.318.122.4800021.622.218.321.61000020.320.518.320.31250018.91918.218.91600018.618.518.318.6SPL40.440.630.240.4N3.23.41.43.2median 24.3Dell Vostro 15-5568median 25.4median 18.2median 24.3Delta2.931.32.934.533.23036.234.53230.732.232.23230.630.631.431.730.63133.830.3293130.536.531.428.830.530.831.230.630.830.828.328.927.828.328.327.928.526.628.927.926.926.925.624.526.925.426.124.72425.427.626.524.124.627.628.92422.422.128.930.124.421.92230.128.525.420.420.828.525.923.419.720.325.925.52219.519.325.527.722.818.818.627.729.323.117.817.929.329.52317.617.729.532.523.117.41732.53322.31717.1333521.916.816.93531.720.216.81731.7321917.116.93228.718.81716.928.726.318.817.11726.321.618.817.117.221.620.31917.317.120.320.122.217.317.220.119.422.317.717.419.442.733.9303042.7421.41.44median 27.9Acer TravelMate P658-G2-MG-7327median 22.8median 17.7median 17.7median 27.92.11.41.922.131.333.234.632.432.432.73337.330.330.932.733.828.328.829.930.126.127.828.730.525.427.928.428.326.527.827.428.125.725.925.526.224.725.724.726.923.22322.924.422.722.522.724.821.822.220.924.521.721.520.524.820.520.219.622.620.219.918.922.821.619.618.225.322.619.917.627.123.920.9172823.419.416.527.324.62016.129.523.318.515.828.824.518.515.830.426.319.416.135.323.11816.430.720.51716.626.42016.916.725.718.916.916.921.919.316.916.920.920.6171722.622.317.317.42135.231.129.241.32.21.51.23.4median 22.6Lenovo ThinkPad T570-20HAS01E00median 19.6median 17median 25.71.52.12.32hearing rangehide median Fan Noise
Max. Belasting
 37.7 °C43.5 °C38.1 °C
 34 °C39 °C31.3 °C
 28.4 °C28.4 °C27.9 °C
Maximum: 43.5 °C
Gemiddelde: 34.3 °C
36.8 °C56.2 °C42.3 °C
27.6 °C45.6 °C37 °C
24.7 °C26.1 °C26.1 °C
Maximum: 56.2 °C
Gemiddelde: 35.8 °C
Stroomadapter (max.)  47.6 °C | Kamertemperatuur 22.6 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.931.733.92529.935.129.93132.234.732.24030.234.630.25033.537.633.56328.22828.28027.127.127.110026.525.226.512526.123.826.116025.623.525.62003422.63425047.32247.331551.620.751.640051.720.251.750050.419.250.463054.91854.980067.517.867.5100067.518.167.5125064.817.564.8160063.617.263.6200064.517.564.5250059.517.659.5315056.717.556.7400056.617.956.6500054.51854.563005818.158800054.818.354.81000052.518.352.51250050.418.250.41600053.318.353.3SPL73.930.273.9N29.81.429.8median 54.5Dell Vostro 15-5568median 18.2median 54.5Delta4.71.34.735.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.4hearing rangehide median Pink Noise
Dell Vostro 15-5568 audio analysis

(-) | not very loud speakers (67.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.3% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.9% higher than median
(±) | linearity of mids is average (8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(±) | linearity of highs is average (7.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.8% difference to median)
Compared to same class
» 69% of all tested devices in this class were better, 8% similar, 23% worse
» The best had a delta of 11%, average was 21%, worst was 48%
Compared to all devices tested
» 62% of all tested devices were better, 8% similar, 30% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 9%, average was 20%, worst was 47%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Stroomgebruik
Uit / Standbydarklight 0.35 / 0.76 Watt
Inactiefdarkmidlight 3.1 / 6.3 / 6.5 Watt
Belasting midlight 46 / 54 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Dell Vostro 15-5568
7500U, GeForce 940MX, Micron SSD 1100 (MTFDDAV256TBN), TN LED, 1920x1080, 15.6
HP Spectre x360 15-bl002xx
7500U, GeForce 940MX, Toshiba XG4 NVMe (THNSN5512GPUK), IPS, 3840x2160, 15.6
Acer TravelMate P658-G2-MG-7327
7500U, GeForce 940MX, Liteonit CV3-8D512, IPS, 1920x1080, 15.6
Huawei MateBook D
7500U, GeForce 940MX, SanDisk SD8SN8U128G1027, IPS, 1920x1080, 15.6
Lenovo ThinkPad T570-20HAS01E00
7500U, GeForce 940MX, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 15.6
Dell Vostro 15-5568
7200U, HD Graphics 620, SanDisk X400 256GB, SATA (SD8SB8U-256G), TN LED, 1920x1080, 15.6
Power Consumption
-73%
-28%
-27%
-48%
5%
Idle Minimum *
3.1
8.14
-163%
3.9
-26%
5.14
-66%
4.7
-52%
3.3
-6%
Idle Average *
6.3
10.91
-73%
7.9
-25%
9.07
-44%
9.9
-57%
6.8
-8%
Idle Maximum *
6.5
12.26
-89%
11.3
-74%
9.33
-44%
10.9
-68%
7.7
-18%
Load Average *
46
45.67
1%
47
-2%
46.76
-2%
56.1
-22%
30.9
33%
Load Maximum *
54
74.94
-39%
62
-15%
42.59
21%
75
-39%
40.3
25%
Witcher 3 ultra *
40.18

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
13h 20min
Surfen met WLAN v1.3
4h 20min
Belast (maximale helderheid)
1h 19min
Dell Vostro 15-5568
7500U, GeForce 940MX, 42 Wh
HP Spectre x360 15-bl002xx
7500U, GeForce 940MX, 79.2 Wh
Acer TravelMate P658-G2-MG-7327
7500U, GeForce 940MX, 55 Wh
Huawei MateBook D
7500U, GeForce 940MX, 43.3 Wh
Lenovo ThinkPad T570-20HAS01E00
7500U, GeForce 940MX, 56 Wh
Dell Vostro 15-5568
7200U, HD Graphics 620, 42 Wh
Batterijduur
67%
95%
36%
58%
34%
Reader / Idle
800
866
8%
956
20%
799
0%
1011
26%
WiFi v1.3
260
535
106%
506
95%
441
70%
414
59%
357
37%
Load
79
148
87%
93
18%
171
116%
110
39%
H.264
484
512

Pro

+ goede systeemprestaties
+ goede uitbreidbaarheid

Contra

- slecht beeldscherm
- toetsenbord ongeschikt voor frequent typen
- beperkte zakelijke features
- slechte luidsprekers
The Dell Vostro 15 5568, courtesy of Cyberport.
The Dell Vostro 15 5568, courtesy of Cyberport.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

De Vostra 15 5568 is nog steeds een goedkope zakelijke notebook. De geboden prestaties passen bij de lage prijs. De lage WLAN prestaties en het slechte toetsenbord zijn met name afknappers voor potentiële kopers. Of de minimale beveiligingseigenschappen ook meegenomen worden in de aankoopbeslissing is iets dat kopers zelf moeten afwegen.

Met de Vostro 15 5568 biedt Dell een laaggeprijsde en visueel aantrekkelijke zakelijke notebook. De WLAN en beveiligingseigenschappen hebben echter enkele gebreken.

De Vostro 15 5568 is zeker nog geschikt voor kopers die geïnteresseerd zijn in een goedkope zakelijke notebook. Het notebook draait standaard kantoorsoftware (presentaties, spreadsheets en e-mails) zonder problemen. Het slechte beeldscherm moet echter wel in acht genomen worden, zeker voor 3D toepassingen die de aparte videokaart vereisen. Als de geboden kijkhoeken en het kleurbereik voldoende zijn, dan is deze notebook een potentiële optie.

Dell Vostro 15-5568 - 04-12-2017 v6
Mike Wobker

Behuizing
80 / 98 → 82%
Toetsenbord
74%
Aanwijsapparaat
77%
Aansluitmogelijkheden
45 / 80 → 56%
Gewicht
64 / 67 → 94%
Batterij
77%
Beeldscherm
77%
Gaming-performance
67 / 68 → 98%
Applicatie-performance
88 / 92 → 96%
Temperatuur
89%
Luidheid
89%
Audio
50%
Camera
35 / 85 → 42%
Gemiddelde
70%
79%
Office - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Dell Vostro 15 5568 (i7-7500U, 940MX) Laptop
Mike Wobker, 2017-12- 9 (Update: 2017-12- 9)
