Kort testrapport HP Pavilion 17-x110ng Notebook

Sebastian Bade (vertaald door Siemon Boes), 29-01-2017

17-inch multimedia-notebook! Multimedia-laptops zijn erg veelzijdige systemen. HP bouwt verder op de stevige basis van een Kaby Lake-processor en een discrete GPU. Is het totaalpakket een succes?

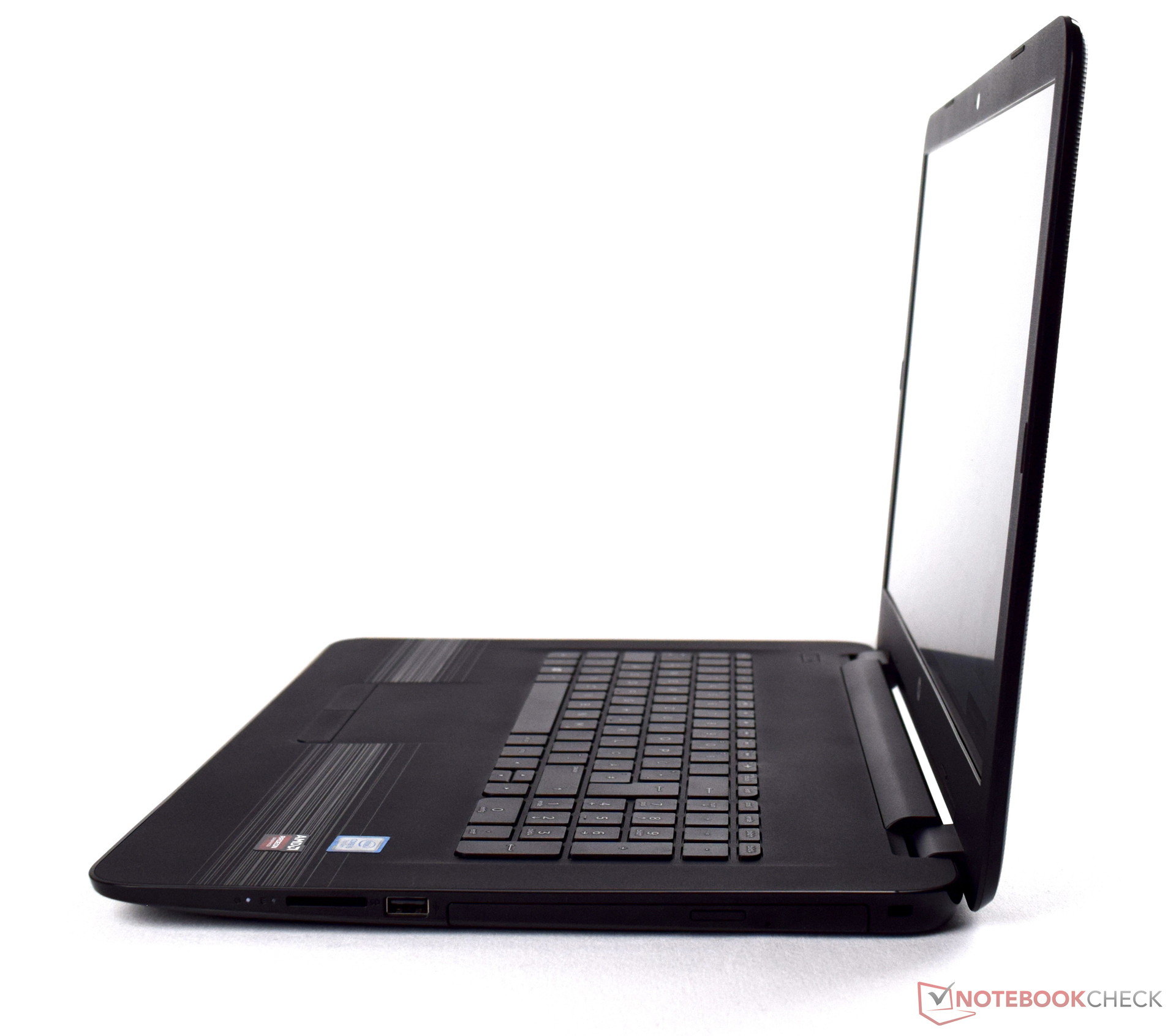

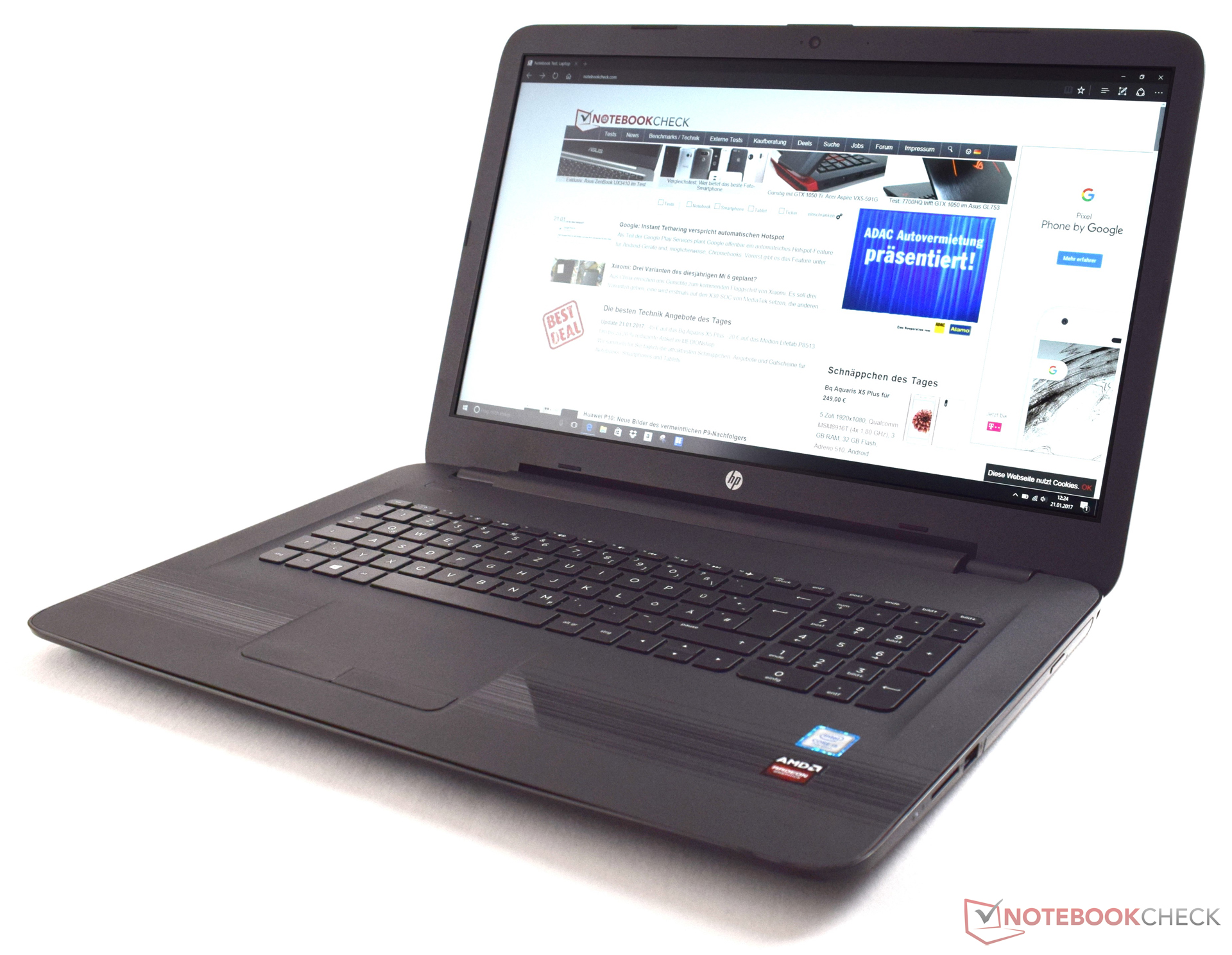

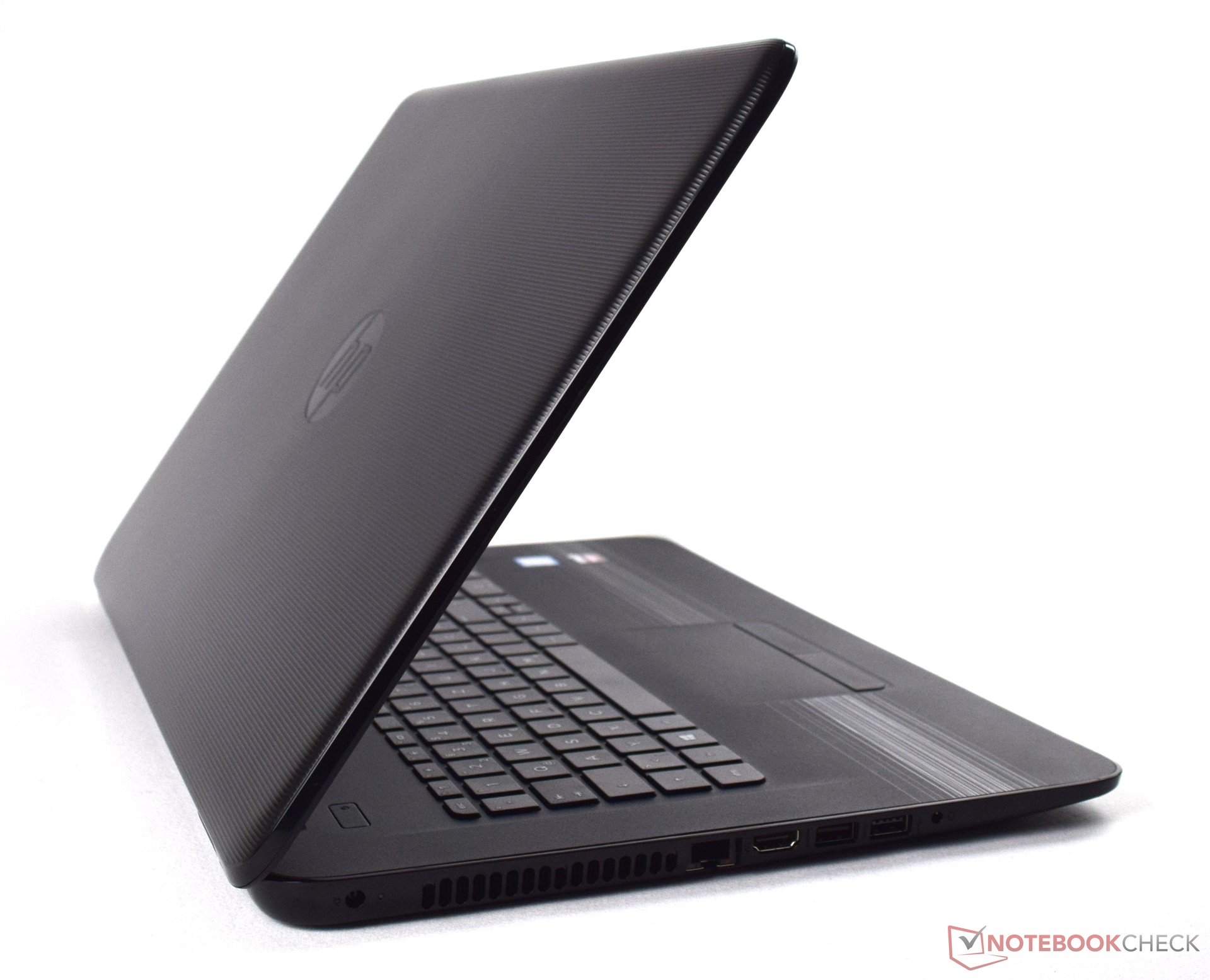

HP Pavilion 17-x110ng
Processor
Intel Core i5-7200U 2.5 GHz
Grafische kaart
AMD Radeon R7 M440 - 2048 MB, Core: 1021 MHz, Geheugen: 1000 MHz, DDR3 (Samsung), AMD: Crimson 16.5; Intel: 21.20.16.4471, Intel HD Graphics 620
Geheugen
8192 MB
, DDR4, 2133 MHz, Single-Channel
Beeldscherm
17.3 inch 16:9, 1920x1080 pixel 127 PPI, Chi Mei CMN1738, IPS, WLED, glimmend: nee
Moederbord
Intel Kaby Lake-Y Premium PCH
Opslag
SanDisk Z400s SD8SNAT-256G, 256 GB
, M.2 2280, 180 GB beschikbaar
Geluidskaart
Intel Kaby Lake-U/Y PCH - High Definition Audio

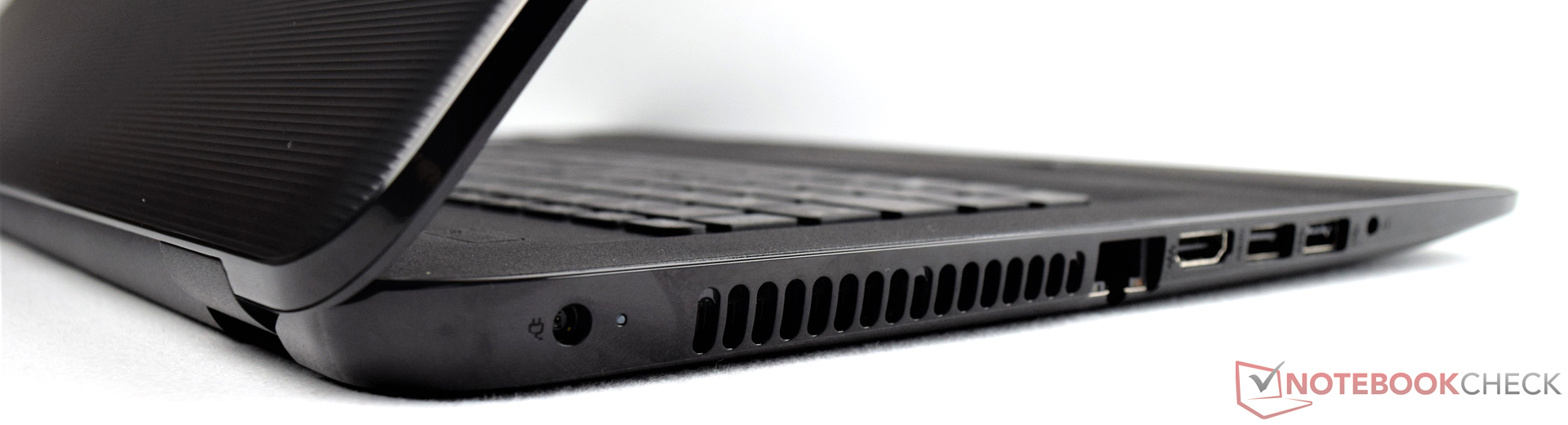

Verbindingen
2 USB 2.0, 1 USB 3.0, 1 HDMI, 1 Kensington Lock, Audio Verbindingen: Hoofdtelefoon/microfoon-combinatie, Card Reader: SD/SDHC/SDXC, Brightness Sensor
Netwerkmogelijkheden
Realtek PCIe FE Family Controller 10/100 (10MBit), Realtek RTL8723BE Wireless LAN 802.11n PCI-E NIC (b/g/n), Bluetooth 4.0
Optische drive

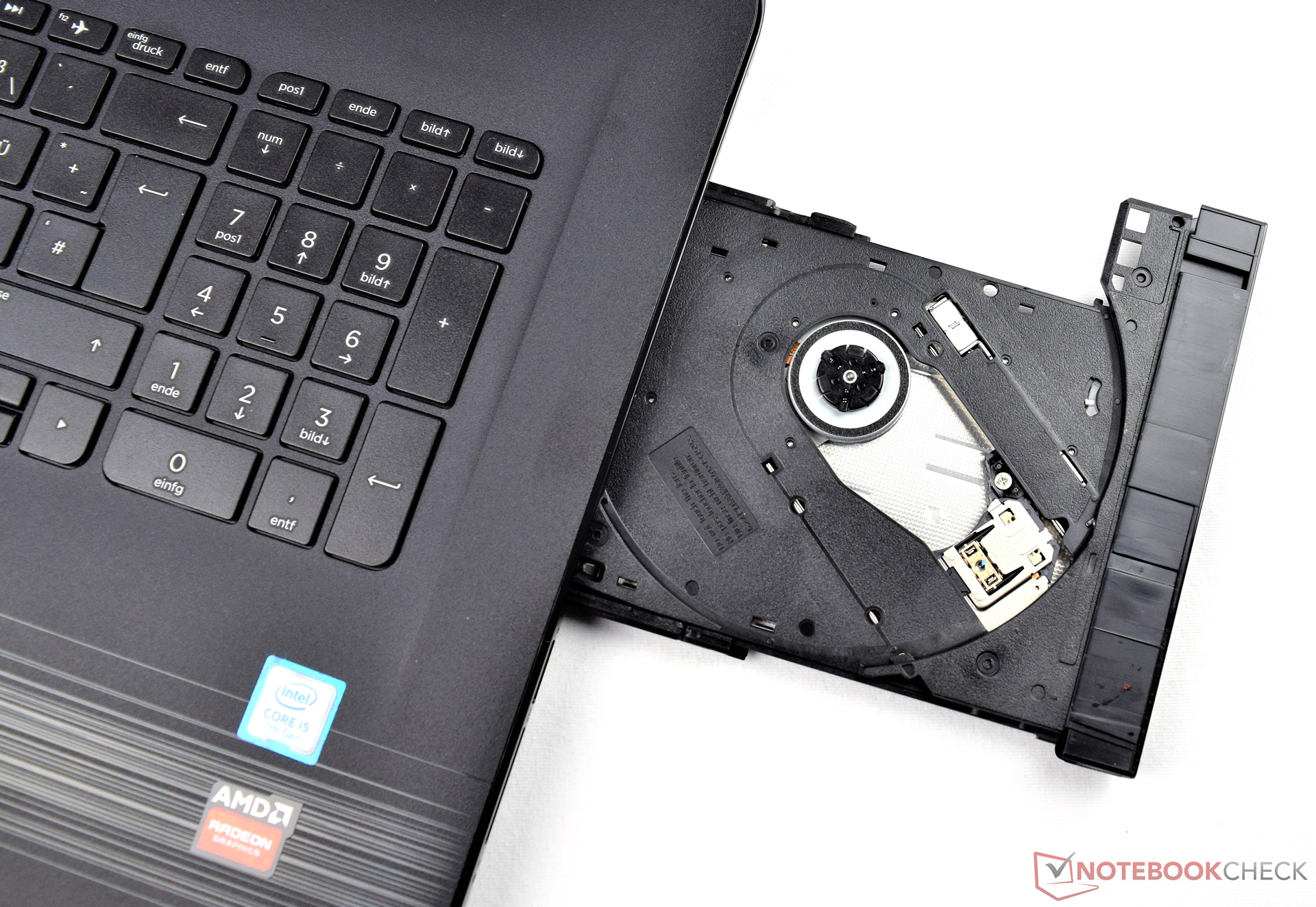

HP DVDRW GUD1N
Afmetingen
hoogte x breedte x diepte (in mm): 24.9 x 417 x 279

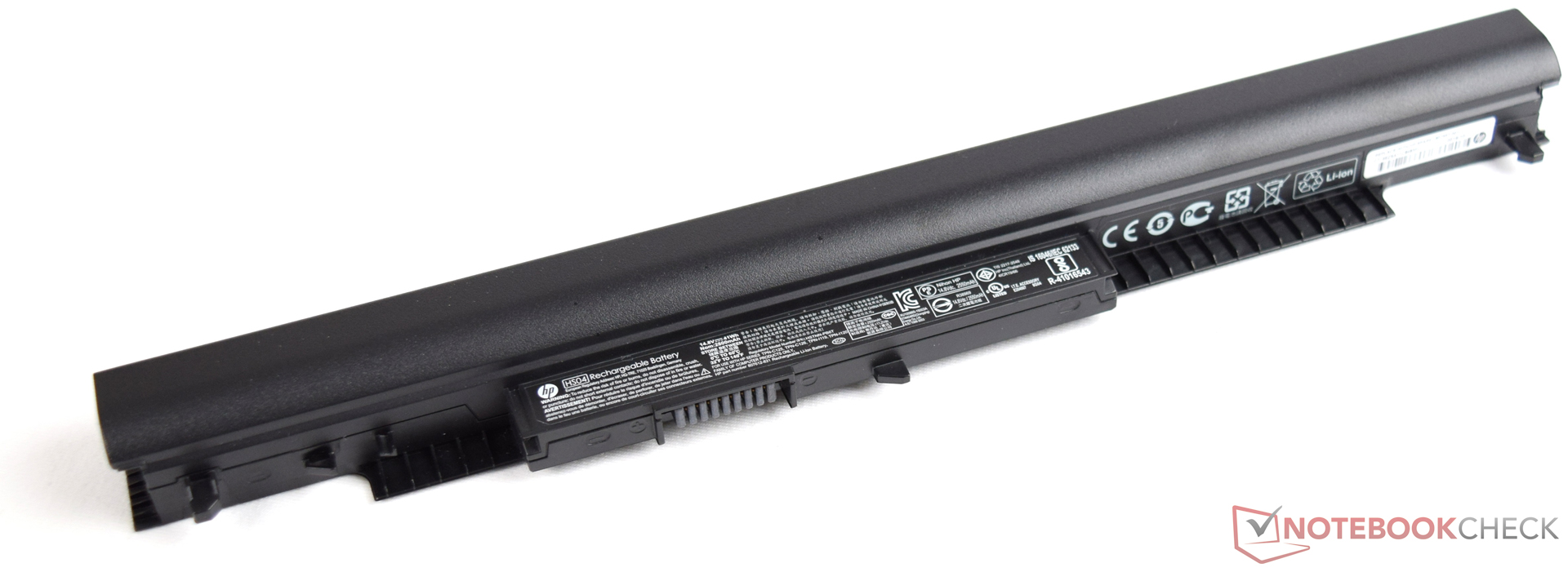

Batterij

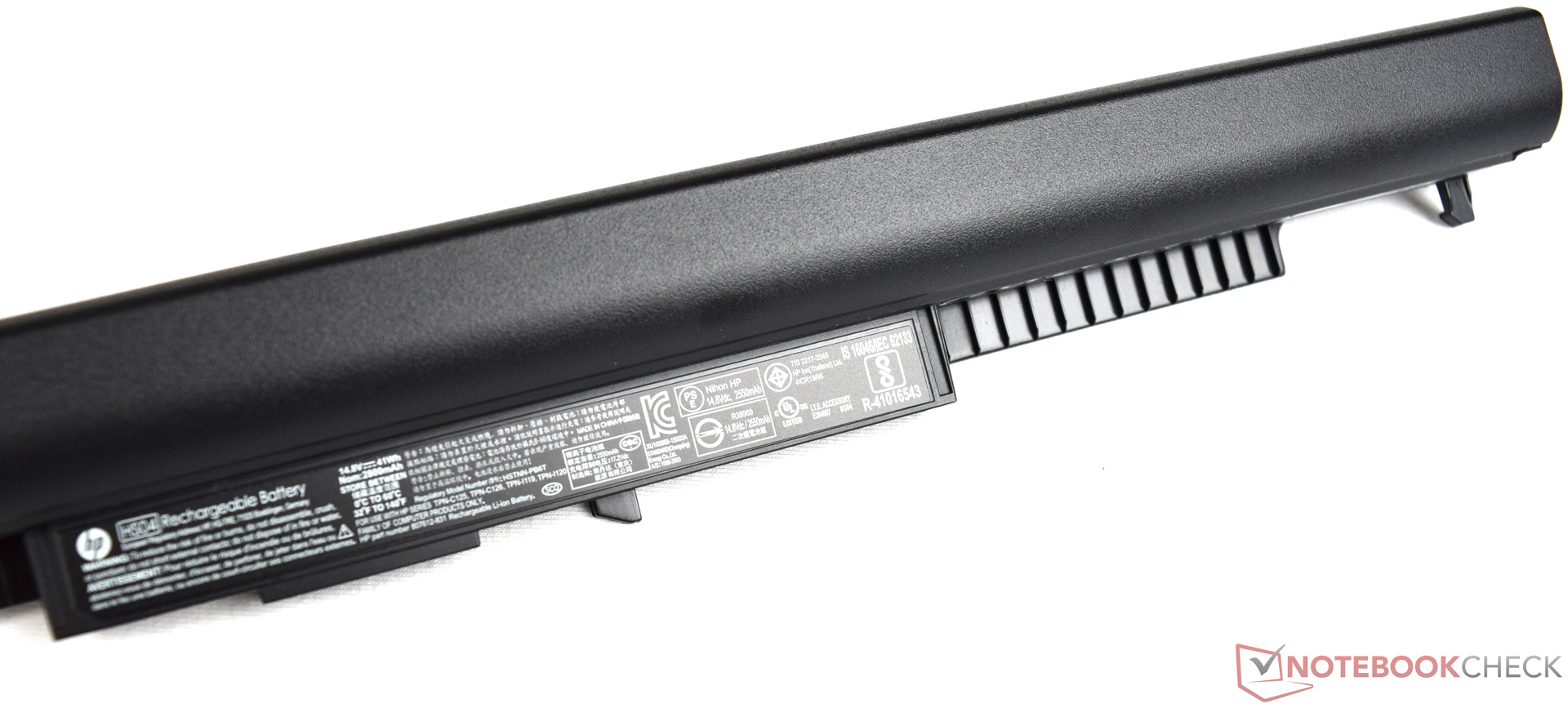

41 Wh, 2550 mAh Lithium-Ion, removeable, vervangbaar
Besturingssysteem
Microsoft Windows 10 Home 64 Bit

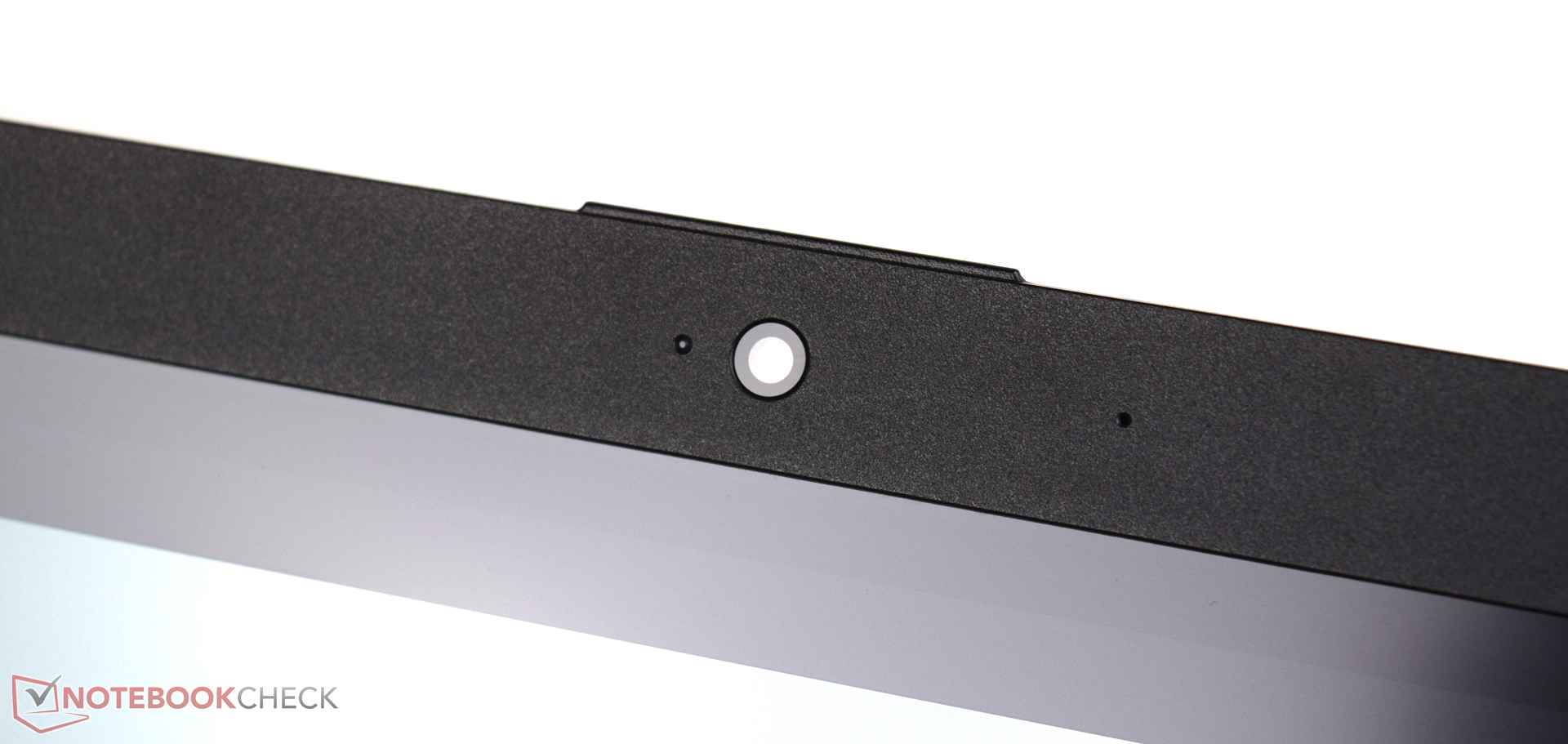

Camera
Webcam: HD
Bijkomende functionaliteiten
Luidsprekers: stereo, onderzijde, Toetsenbord: chiclet, Toetsenbordverlichting: nee, Voeding, HP Audio Switch, HP JumpStart, HP Lounge, McAfee LiveSafe (testversie 30 dagen), CyberLink PowerDirector, Netflix, 12 Maanden Garantie
Gewicht
2.514 kg, Voeding: 345 g
Prijs
699 Euro



Top 10 Testrapporten

» Top 10 Multimedia Notebooks
» Top 10 Gaming-Notebooks
» Top 10 Budget Office/Business-Notebooks
» Top 10 Premium Office/Business-Notebooks
» Top 10 Workstation-Laptops
» Top 10 Subnotebooks
» Top 10 Ultrabooks
» Top 10 Convertibles
» Top 10 Tablets
» Top 10 Smartphones
» Notebookcheck's Best Geteste Notebook Beeldschermen
» Notebookcheck's Top 10 Notebooks tot €500
» Notebookcheck's Top 10 Notebooks tot €300

SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad E470-20H2S00400
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
67.3 MB/s ∼100% +254%
Lenovo IdeaPad 510-15IKB 80SV0087GE
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
59 MB/s ∼88% +211%
Acer Aspire F15 F5-573G-53V1
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
57.36 MB/s ∼85% +202%
HP Pavilion 15-aw004ng W8Y60EA
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
57.3 MB/s ∼85% +202%
Acer Aspire E5-575G-549D
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
52.6 MB/s ∼78% +177%
HP Pavilion 17-x110ng
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
19 MB/s ∼28%
maximum AS SSD Seq Read Test (1GB)
HP Pavilion 15-aw004ng W8Y60EA
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
85.3 MB/s ∼100% +316%
Lenovo ThinkPad E470-20H2S00400
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
81.04 MB/s ∼95% +295%
Acer Aspire E5-575G-549D
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
80.9 MB/s ∼95% +295%
Lenovo IdeaPad 510-15IKB 80SV0087GE
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
24.9 MB/s ∼29% +21%
HP Pavilion 17-x110ng
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
20.5 MB/s ∼24%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad E470-20H2S00400
Atheros/Qualcomm QCA6174
621 MBit/s ∼100% +1311%
HP Pavilion 17-x110ng
Realtek RTL8723BE Wireless LAN 802.11n PCI-E NIC (I210-T1)
44 MBit/s ∼7%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkPad E470-20H2S00400
Atheros/Qualcomm QCA6174
413 MBit/s ∼100% +710%
HP Pavilion 17-x110ng
Realtek RTL8723BE Wireless LAN 802.11n PCI-E NIC (I210-T1)
51 MBit/s ∼12%
273
cd/m²
298
cd/m²
265
cd/m²
281
cd/m²
288
cd/m²
285
cd/m²
283
cd/m²
290
cd/m²
302
cd/m²
Helderheidsverdeling
X-Rite i1Pro 2
Maximum: 302 cd/m² Gemiddelde: 285 cd/m²
Helderheidsverdeling: 88 %
Helderheid in Batterij-modus: 288 cd/m²
Contrast: 472:1 (Zwart: 0.61 cd/m²)
ΔE Color 4.56 | - Ø
ΔE Greyscale 4.95 | - Ø
93% sRGB (Argyll)
Gamma: 2.48
HP Pavilion 17-x110ng
Chi Mei CMN1738, , 1920x1080, 17.3
Acer Aspire E5-575G-549D
Chi Mei CMN15C4, , 1920x1080, 15.6
Lenovo IdeaPad 510-15IKB 80SV0087GE
BOE HF NV156FHM-N42, , 1920x1080, 15.6
Acer Aspire F15 F5-573G-53V1
Innolux N156HGE-EAL, , 1920x1080, 15.6
Lenovo ThinkPad E470-20H2S00400
N140HCA-EAB, , 1920x1080, 14
HP Pavilion 15-aw004ng W8Y60EA
Chi Mei, , 1920x1080, 15.6
Response Times
13%
-42%
139%
-1%
12%
Response Time Grey 50% / Grey 80% *
41
39
5%
51
-24%
44
-7%
40.8
-0%
41
-0%
Response Time Black / White *
30
24
20%
38
-27%
23
23%
30.4
-1%
23
23%
PWM Frequency
200
50
-75%
1000
400%
Screen
-36%
31%
-47%
-5%
-43%
Brightness
285
169
-41%
265
-7%
219
-23%
231
-19%
228
-20%
Brightness Distribution
88
91
3%
86
-2%
80
-9%
89
1%
89
1%
Black Level *
0.61
0.47
23%
0.23
62%
0.48
21%
0.37
39%
0.49
20%
Contrast
472
374
-21%
1265
168%
488
3%
659
40%
490
4%
Colorchecker DeltaE2000 *
4.56
8.83
-94%
4.78
-5%
11.8
-159%
6.41
-41%
10.96
-140%
Greyscale DeltaE2000 *
4.95
8.97
-81%
3.49
29%
13.3
-169%
5.94
-20%
11.34
-129%
Gamma
2.48 97%
2.43 99%
2.58 93%
2.47 97%
2.28 105%
2.27 106%
CCT
7669 85%
10234 64%
6013 108%
17098 38%
6101 107%
12292 53%
Color Space (Percent of sRGB)
93
57.3
-38%
64
-31%
100
8%
61.1
-34%
60
-35%
Color Space (Percent of AdobeRGB 1998)
36.8
40
74
39.3
39
Totaal Gemiddelde (Programma / Instellingen)
-12% / -25%
-6% / 9%
46% / 9%
-3% / -4%
-16% / -31%

* ... kleiner is beter

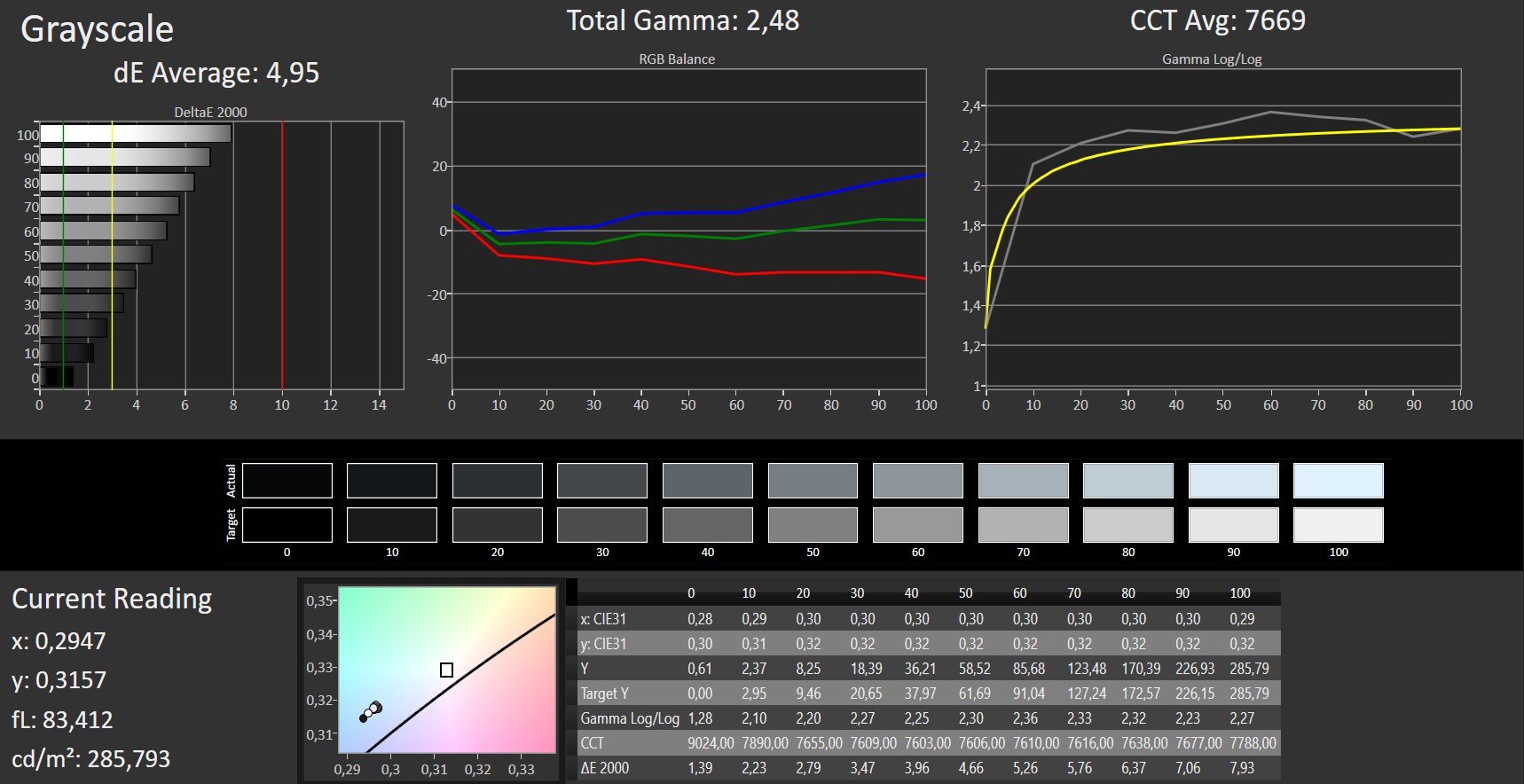

Grayscale
Grayscale

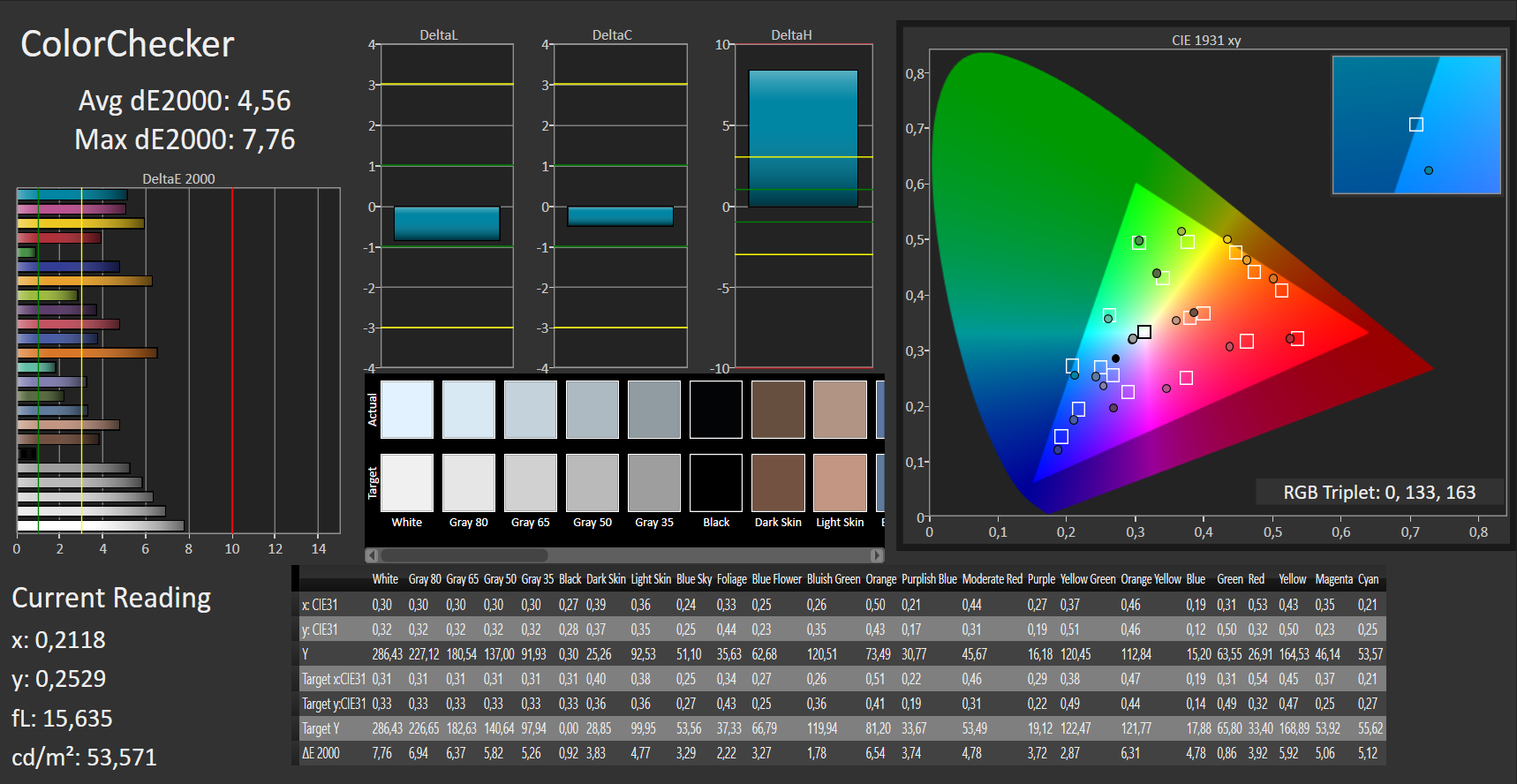

ColorChecker
ColorChecker

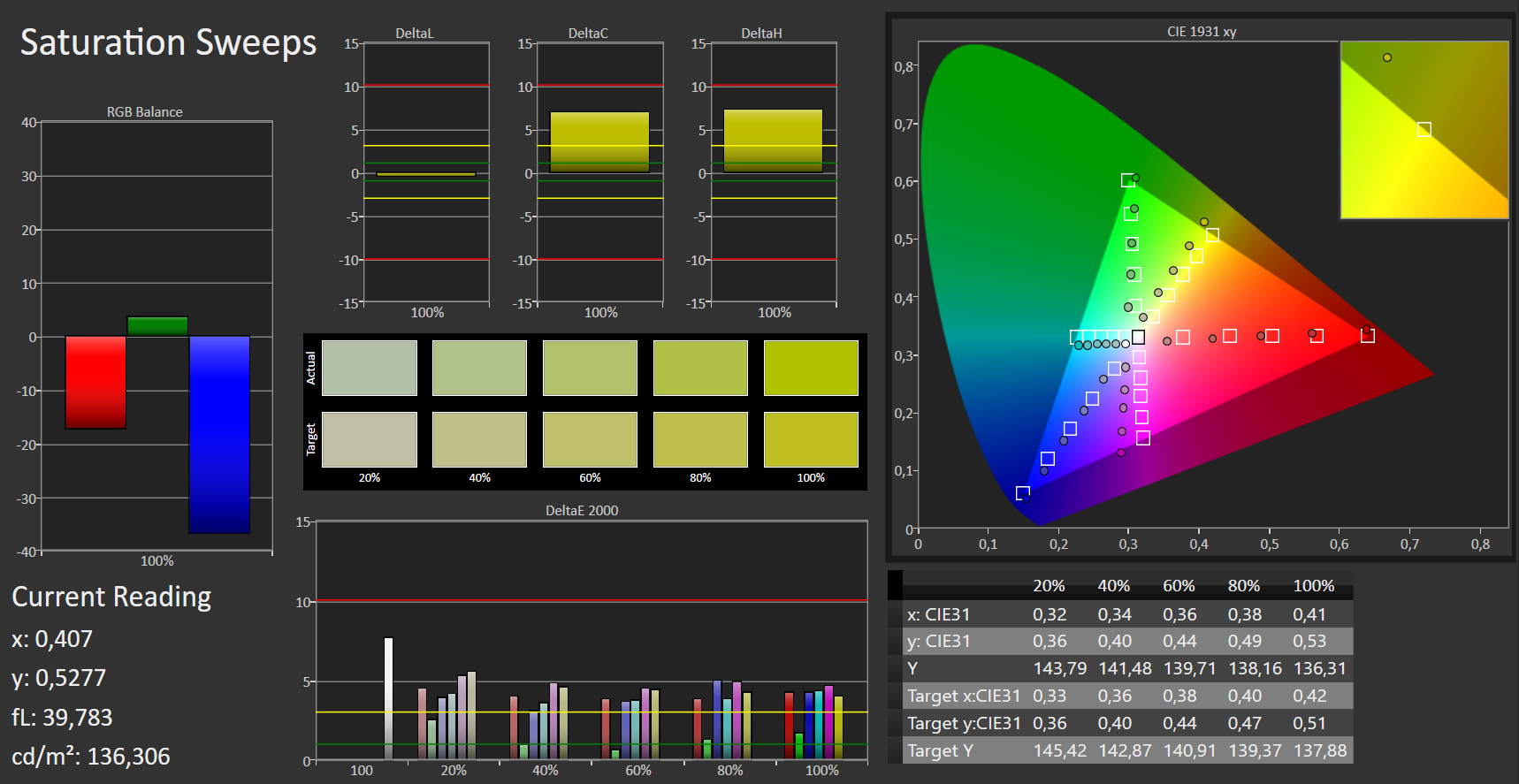

Saturation Sweeps
Saturation Sweeps

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.

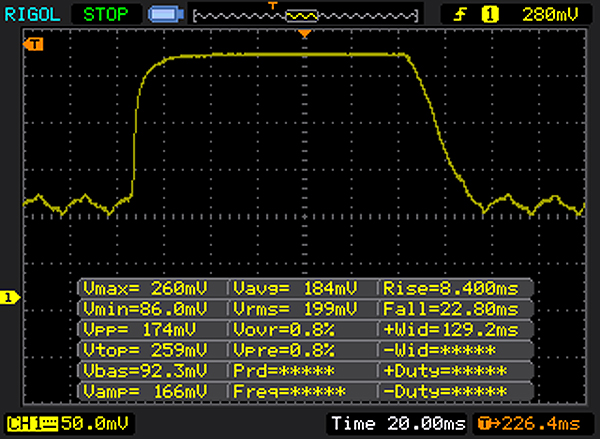

       Responstijd Zwart naar Wit
30 ms ... stijging ↗ en daling ↘ gecombineerd↗ 8 ms stijging
↘ 22 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.8 (minimum) tot 240 (maximum) ms. » 70 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (27.4 ms) van alle geteste toestellen.

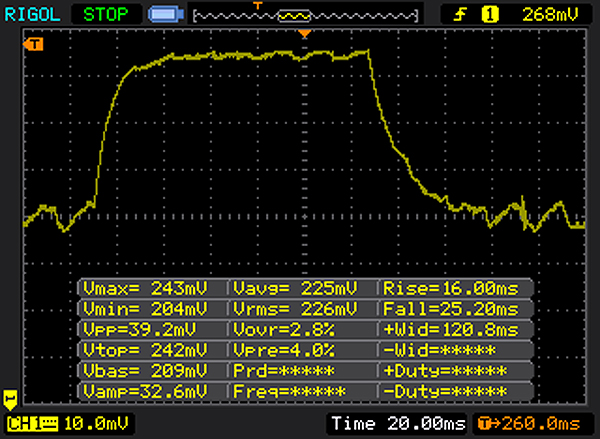

       Responstijd 50% Grijs naar 80% Grijs
41 ms ... stijging ↗ en daling ↘ gecombineerd↗ 16 ms stijging
↘ 25 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.9 (minimum) tot 636 (maximum) ms. » 44 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (44.5 ms) van alle geteste toestellen.

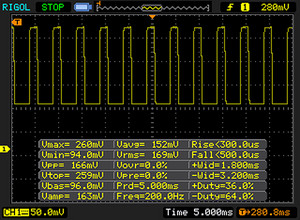

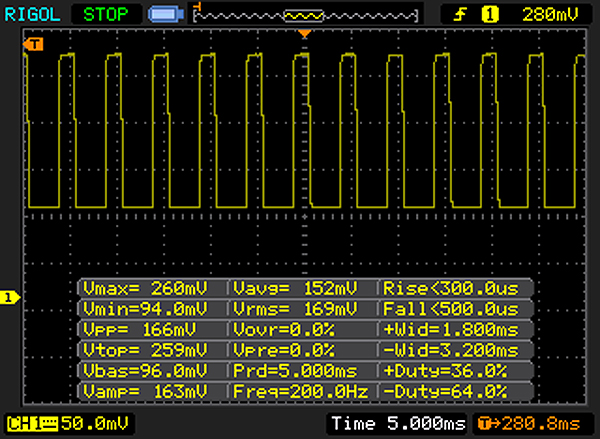

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 200 Hz90 % helderheid instelling

Het backlight van het scherm flikkert aan 200 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 90 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 200 Hz is redelijk laag en de meeste mensen die gevoelig zijn aan flickering kunnen dit dus waarnemen of geïrriteerde ogen krijgen (gebruikmakend van de vermelde helderheid en lager).

Ter vergelijking: 59 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 655 (minimum: 43 - maximum: 28740) Hz waargenomen.

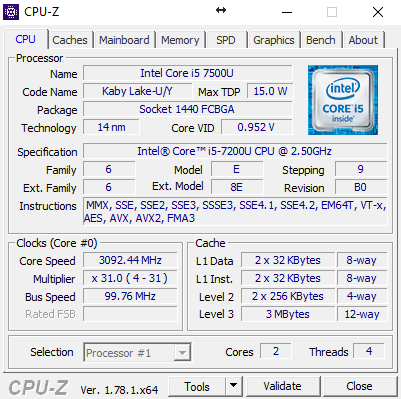

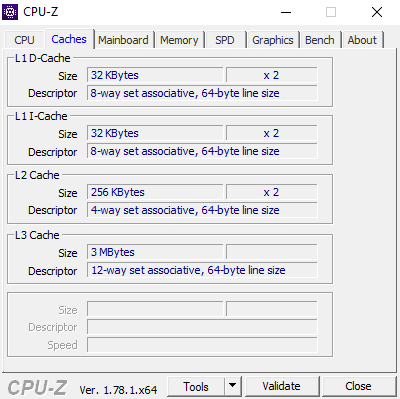

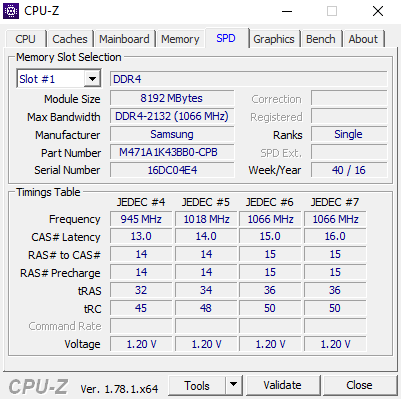

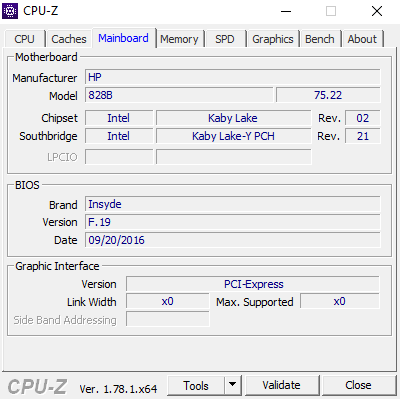

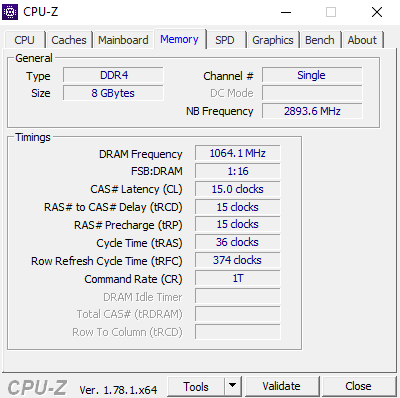

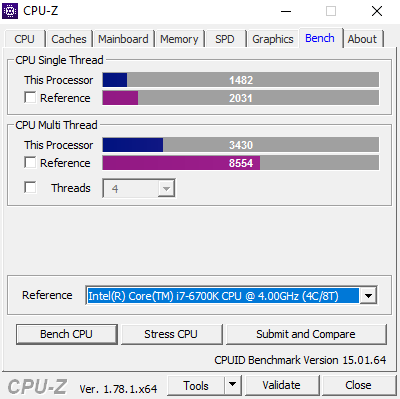

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

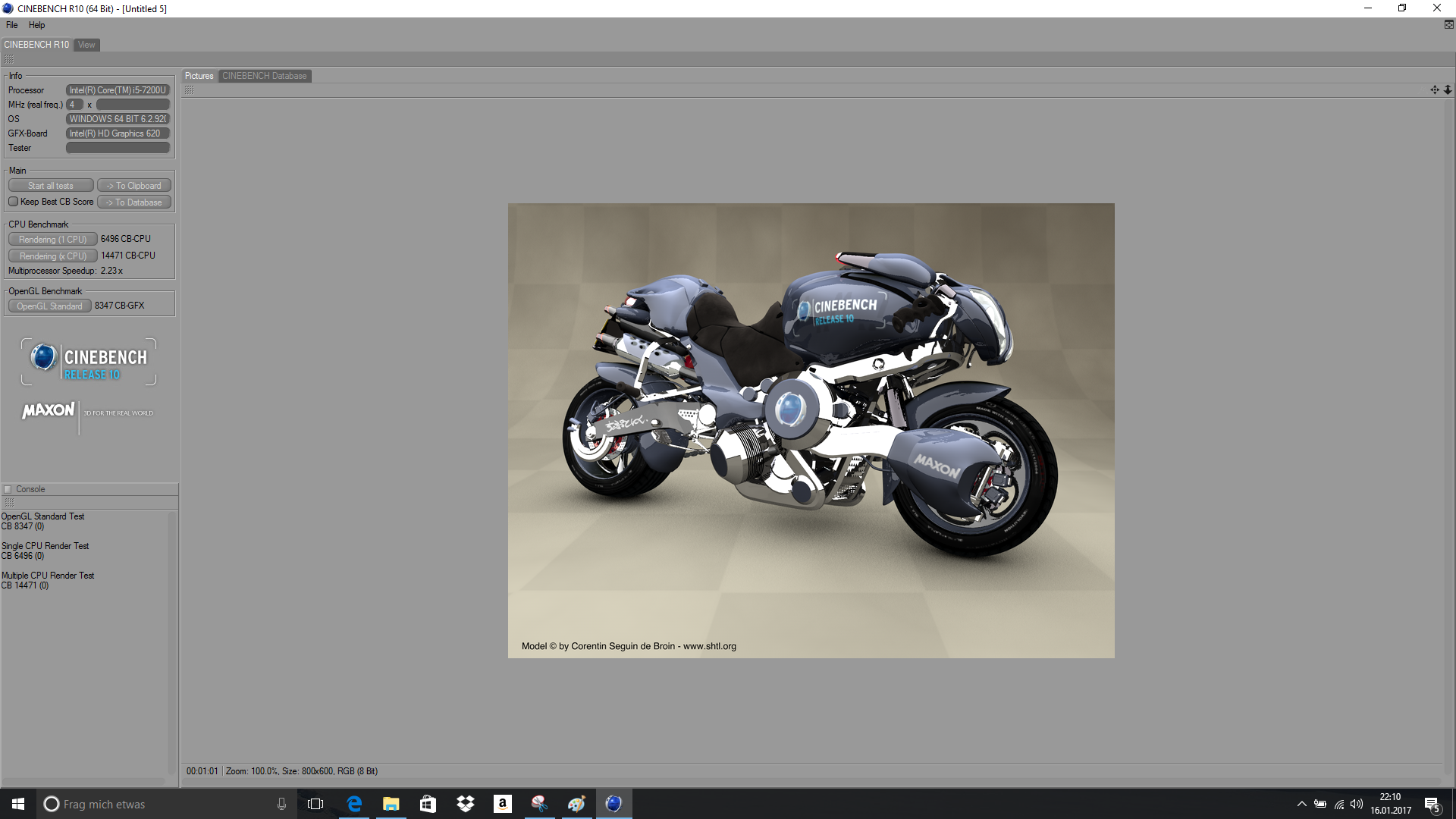

Cinebench R10
Cinebench R10

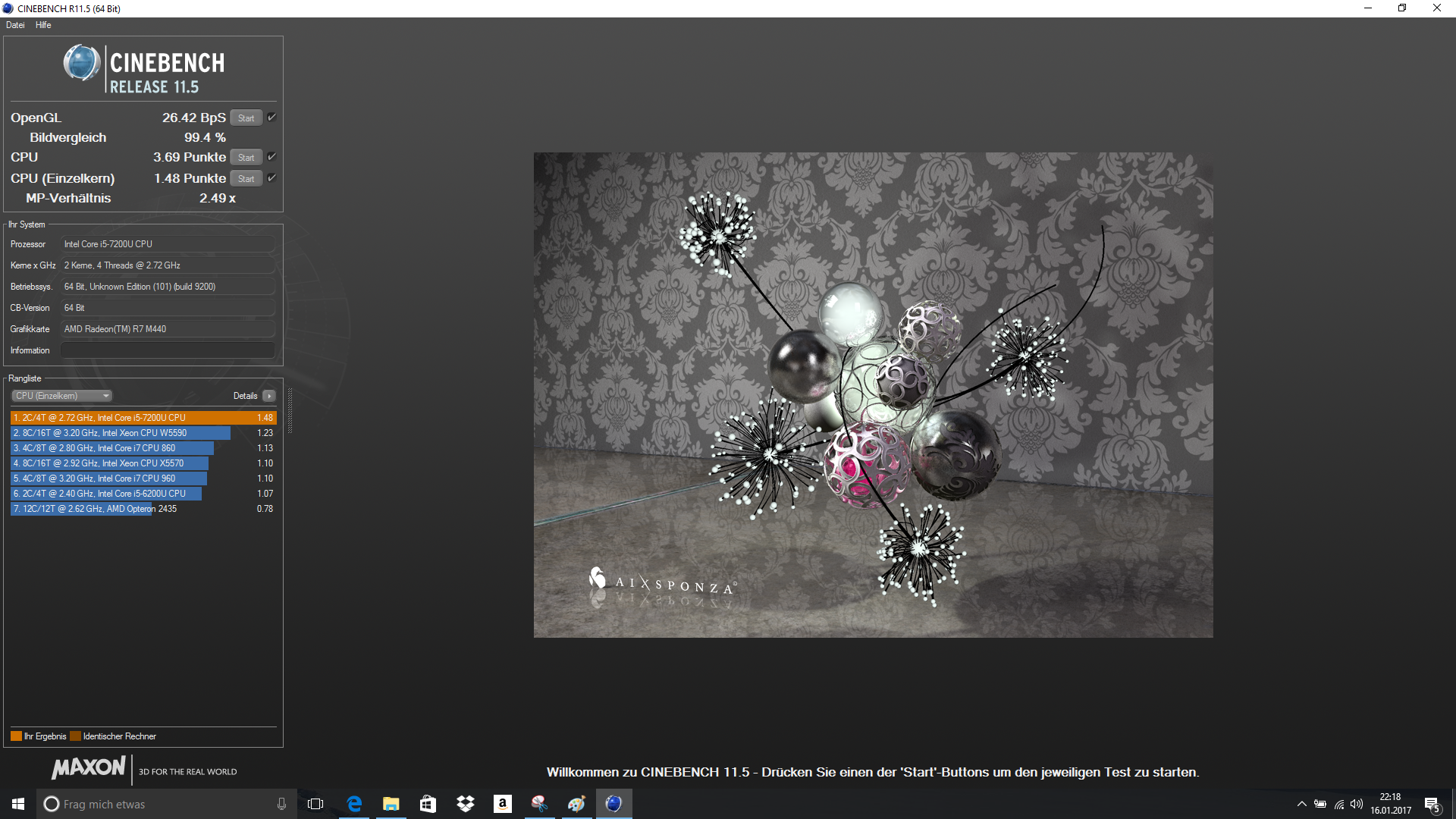

Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15

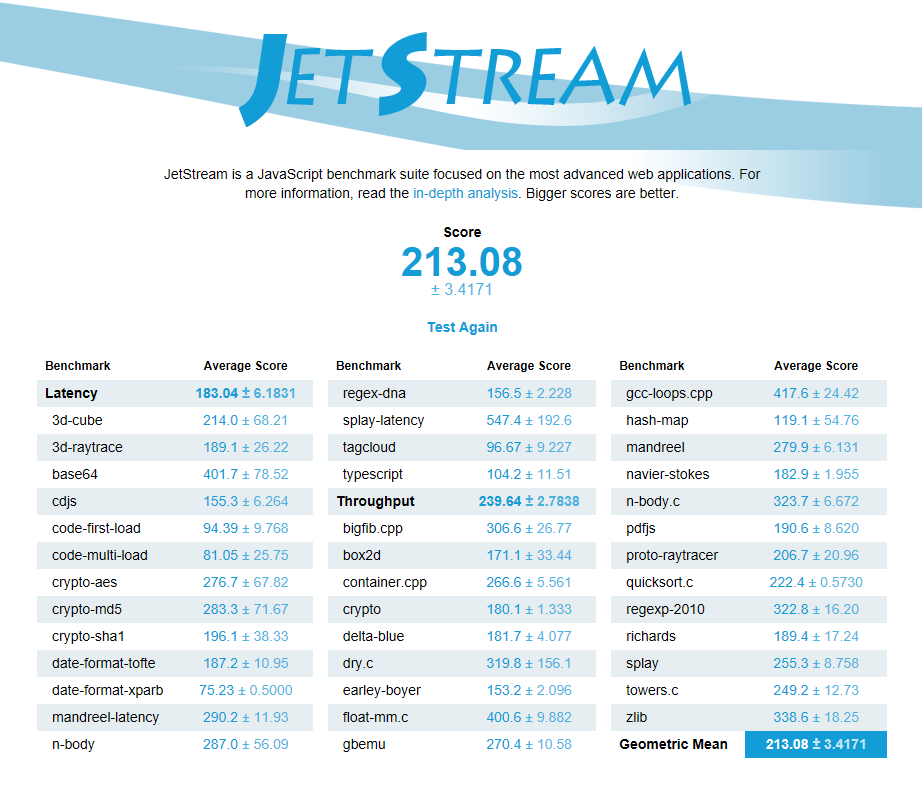

Jetstream 1.1
Jetstream 1.1
Octane V2
Octane V2
Mozilla Kraken 1.1
Mozilla Kraken 1.1
Cinebench R15
CPU Single 64Bit
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U
148 Points ∼78% +14%
HP Pavilion 17-x110ng
Intel Core i5-7200U
130 Points ∼68%
Acer Aspire E5-575G-549D
Intel Core i5-7200U
129 Points ∼68% -1%
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U
129 Points ∼68% -1%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U
119 Points ∼63% -8%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
75 Points ∼39% -42%
CPU Multi 64Bit
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U
338 Points ∼20% +2%
Acer Aspire E5-575G-549D
Intel Core i5-7200U
331 Points ∼20% 0%
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U
331 Points ∼20% 0%
HP Pavilion 17-x110ng
Intel Core i5-7200U
331 Points ∼20%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U
295 Points ∼18% -11%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
215 Points ∼13% -35%
Cinebench R11.5
CPU Single 64Bit
Acer Aspire E5-575G-549D
Intel Core i5-7200U
1.48 Points ∼18% 0%
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U
1.48 Points ∼18% 0%
HP Pavilion 17-x110ng
Intel Core i5-7200U
1.48 Points ∼18%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U
1.35 Points ∼17% -9%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
0.87 Points ∼11% -41%
CPU Multi 64Bit
Acer Aspire E5-575G-549D
Intel Core i5-7200U
3.7 Points ∼21% 0%
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U
3.7 Points ∼21% 0%
HP Pavilion 17-x110ng
Intel Core i5-7200U
3.69 Points ∼21%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U
3.24 Points ∼18% -12%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
2.59 Points ∼15% -30%
Cinebench R10
Rendering Single CPUs 64Bit
HP Pavilion 17-x110ng
Intel Core i5-7200U
6496 Points ∼72%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U
5829 Points ∼64% -10%
Rendering Multiple CPUs 64Bit
HP Pavilion 17-x110ng
Intel Core i5-7200U
14471 Points ∼35%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U
13058 Points ∼32% -10%
JetStream 1.1 - 1.1 Total Score
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U (Edge 38)
244.58 Points ∼77% +15%
Acer Aspire E5-575G-549D
Intel Core i5-7200U (Edge 25)
220.75 Points ∼69% +4%
HP Pavilion 17-x110ng
Intel Core i5-7200U (EDGE: 38.14393.0.0)
213.08 Points ∼67%
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U (Edge 38)
207.21 Points ∼65% -3%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U (EDGE: 25.10586.0.0)
201.52 Points ∼63% -5%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P (Edge 38)
127.57 Points ∼40% -40%

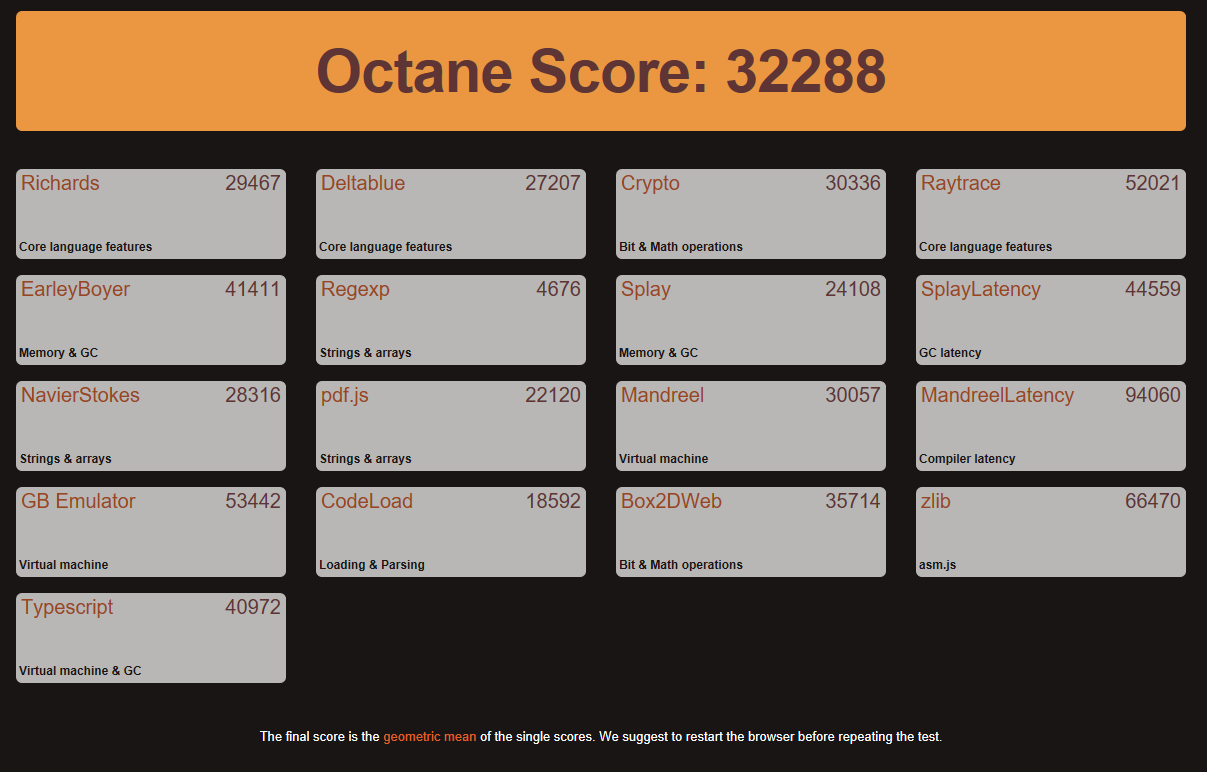

Octane V2 - Total Score
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U (Edge 38)
32356 Points ∼72% 0%
HP Pavilion 17-x110ng
Intel Core i5-7200U (EDGE: 38.14393.0.0)
32288 Points ∼71%
Acer Aspire E5-575G-549D
Intel Core i5-7200U (Edge 25)
32242 Points ∼71% 0%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U (EDGE: 25.10586.0.0)
30546 Points ∼68% -5%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P (Edge 38)
18921 Points ∼42% -41%

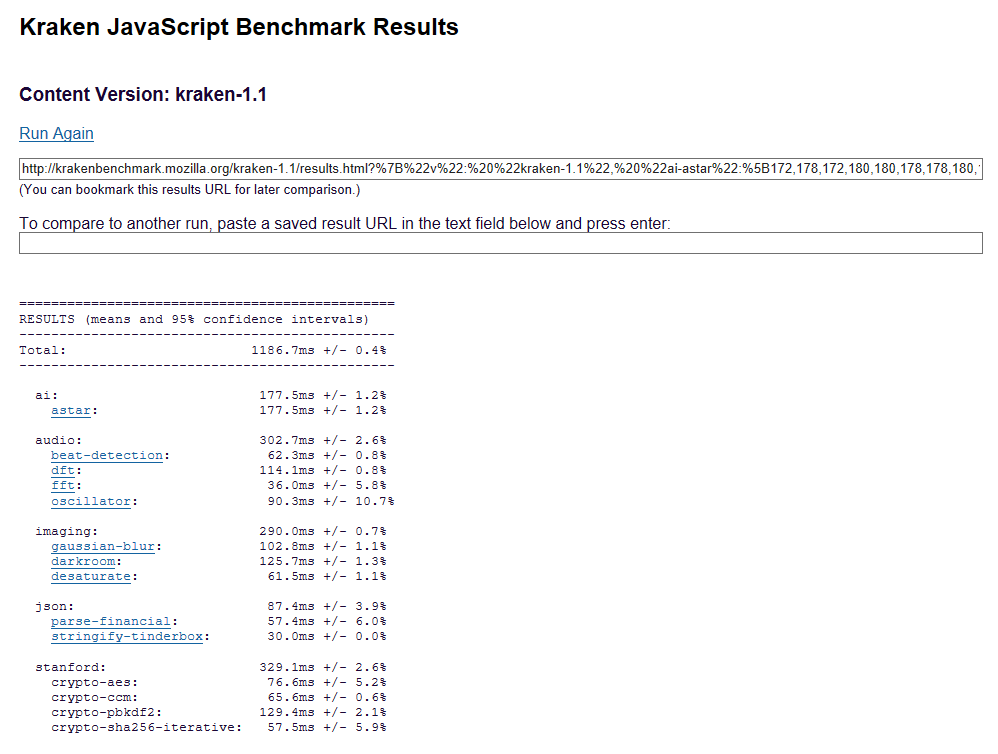

Mozilla Kraken 1.1 - Total Score
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P (Edge 38)
2098.3 ms * ∼4% -77%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U (EDGE: 25.10586.0.0)
1216.2 ms * ∼2% -2%
HP Pavilion 17-x110ng
Intel Core i5-7200U (EDGE: 38.14393.0.0)
1186.7 ms * ∼2%
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U (Edge 38)
1163.8 ms * ∼2% +2%
Acer Aspire E5-575G-549D
Intel Core i5-7200U (Edge 25)
1139.5 ms * ∼2% +4%

* ... kleiner is beter

Cinebench R10 Shading 32Bit
8207
Cinebench R10 Rendering Multiple CPUs 32Bit
11318
Cinebench R10 Rendering Single 32Bit
5001
Cinebench R10 Shading 64Bit
8347 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
14471 Points
Cinebench R10 Rendering Single CPUs 64Bit
6496 Points
Cinebench R11.5 CPU Multi 64Bit
3.69 Points
Cinebench R11.5 OpenGL 64Bit
26.42 fps
Cinebench R11.5 CPU Single 64Bit
1.48 Points

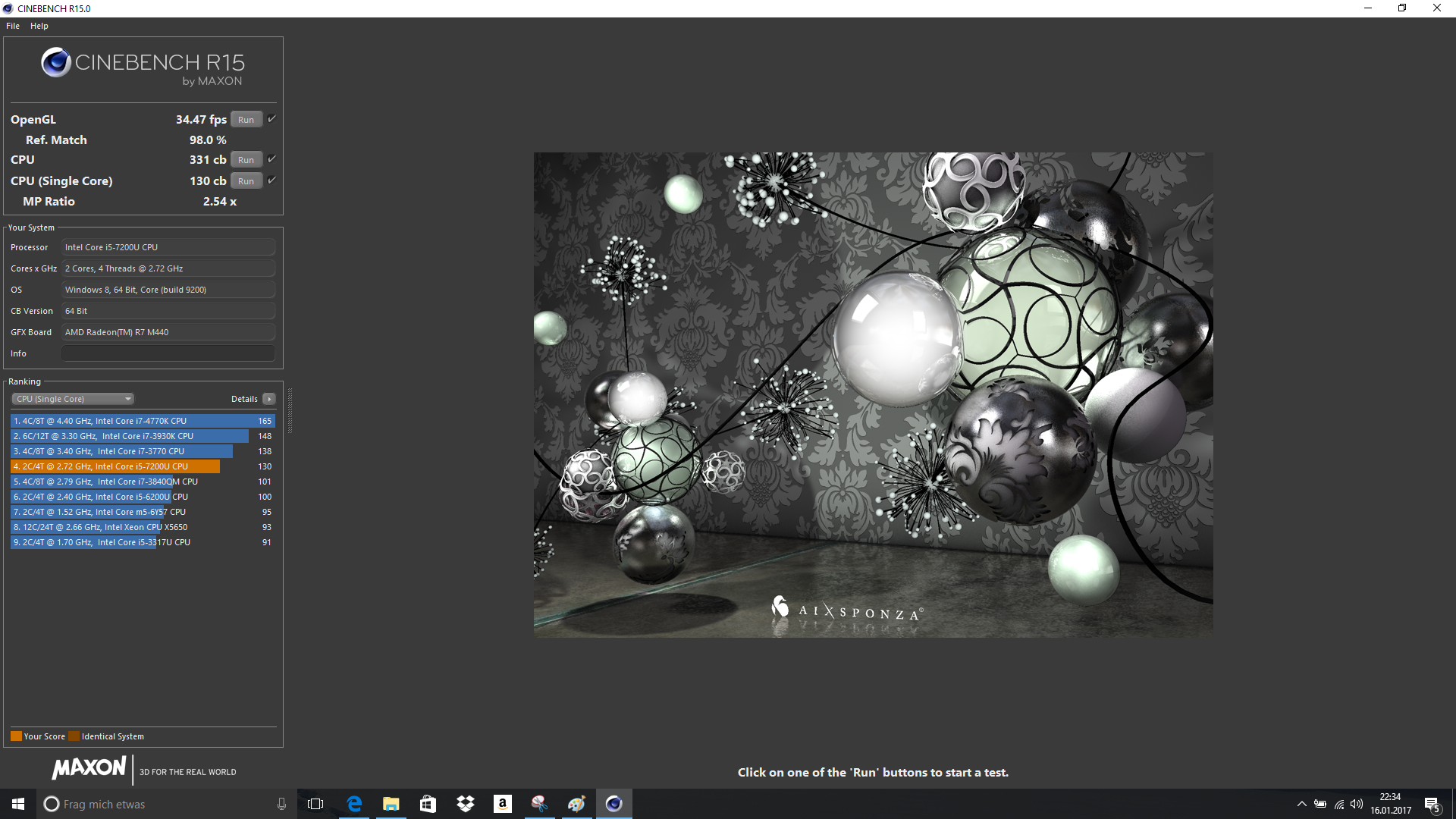

Cinebench R15 CPU Multi 64Bit
331 Points
Cinebench R15 CPU Single 64Bit
130 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
34.47 fps
Help

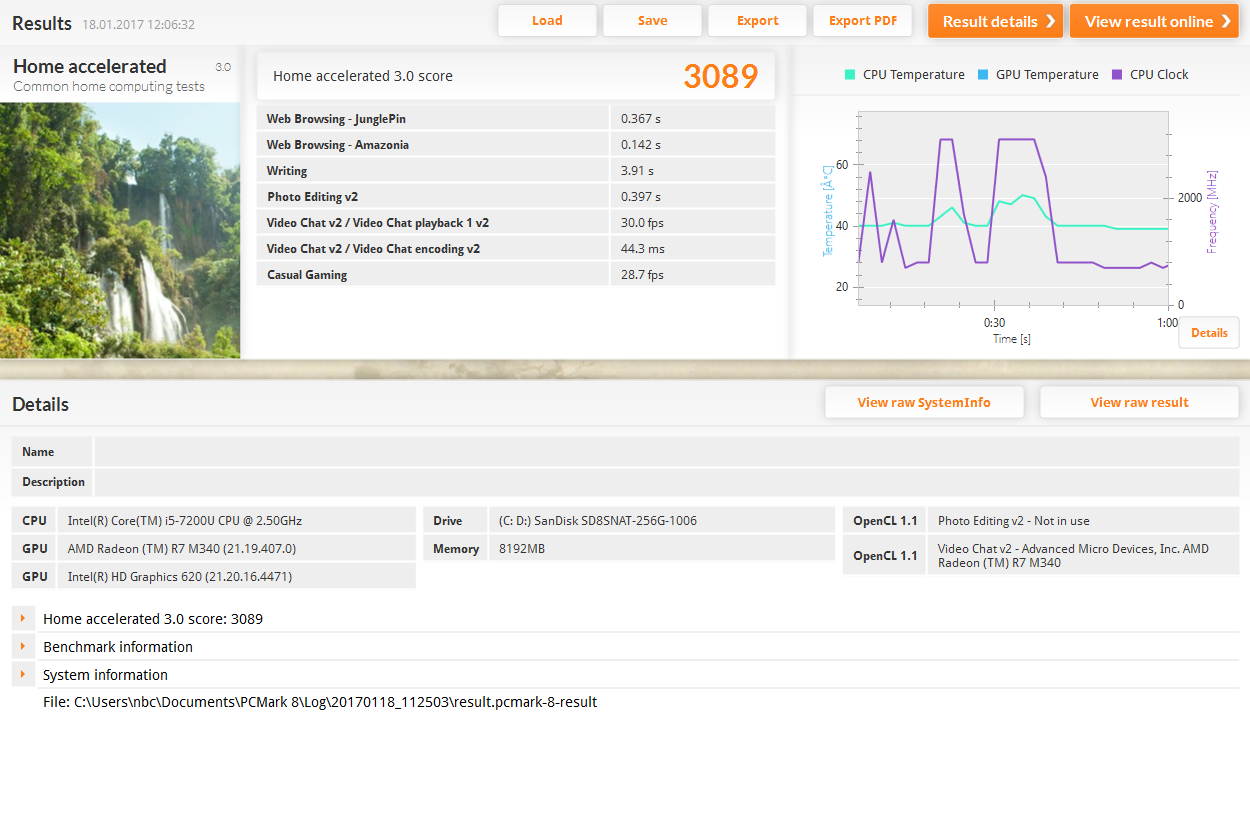

PCMark 8 Home
PCMark 8 Creative
PCMark 7
PCMark 8
Storage Score v2
HP Pavilion 17-x110ng
Intel Core i5-7200U, 2500, SanDisk Z400s SD8SNAT-256G
4841 Points ∼95%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U, 2300, WDC Scorpio Blue WD10JPVX-22JC3T0
2112 Points ∼41% -56%
Acer Aspire E5-575G-549D
Intel Core i5-7200U, 2500, Toshiba MQ01ABD100
1874 Points ∼37% -61%
Creative Score Accelerated v2
HP Pavilion 17-x110ng
Intel Core i5-7200U, 2500, SanDisk Z400s SD8SNAT-256G
4429 Points ∼52%
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U, 2500, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
4389 Points ∼51% -1%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U, 2300, WDC Scorpio Blue WD10JPVX-22JC3T0
3872 Points ∼45% -13%
Acer Aspire E5-575G-549D
Intel Core i5-7200U, 2500, Toshiba MQ01ABD100
3696 Points ∼43% -17%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P, 2400,
3569 Points ∼42% -19%
Home Score Accelerated v2
Lenovo IdeaPad 510-15IKB 80SV0087GE
Intel Core i7-7500U, 2700, Liteonit CV3-DE256
3778 Points ∼67% +22%
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U, 2500, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
3546 Points ∼63% +14%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U, 2300, WDC Scorpio Blue WD10JPVX-22JC3T0
3390 Points ∼60% +9%
Acer Aspire E5-575G-549D
Intel Core i5-7200U, 2500, Toshiba MQ01ABD100
3162 Points ∼56% +2%
HP Pavilion 17-x110ng
Intel Core i5-7200U, 2500, SanDisk Z400s SD8SNAT-256G
3102 Points ∼55%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P, 2400,
2904 Points ∼51% -6%
PCMark 7
Productivity
HP Pavilion 17-x110ng
Intel Core i5-7200U, 2500, SanDisk Z400s SD8SNAT-256G
3953 Points ∼36%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P, 2400,
3062 Points ∼28% -23%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U, 2300, WDC Scorpio Blue WD10JPVX-22JC3T0
1591 Points ∼15% -60%
Score
HP Pavilion 17-x110ng
Intel Core i5-7200U, 2500, SanDisk Z400s SD8SNAT-256G
5035 Points ∼63%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P, 2400,
4340 Points ∼54% -14%
Acer Aspire F15 F5-573G-53V1
Intel Core i5-6200U, 2300, WDC Scorpio Blue WD10JPVX-22JC3T0
3021 Points ∼38% -40%

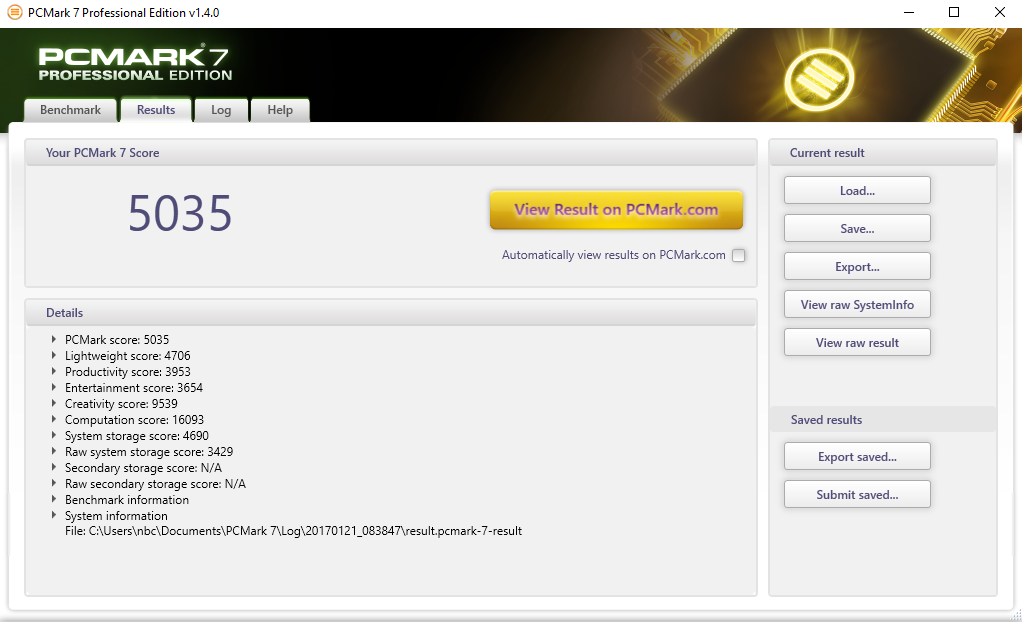

PCMark 7 Score
5035 punten
PCMark 8 Home Score Accelerated v2
3102 punten

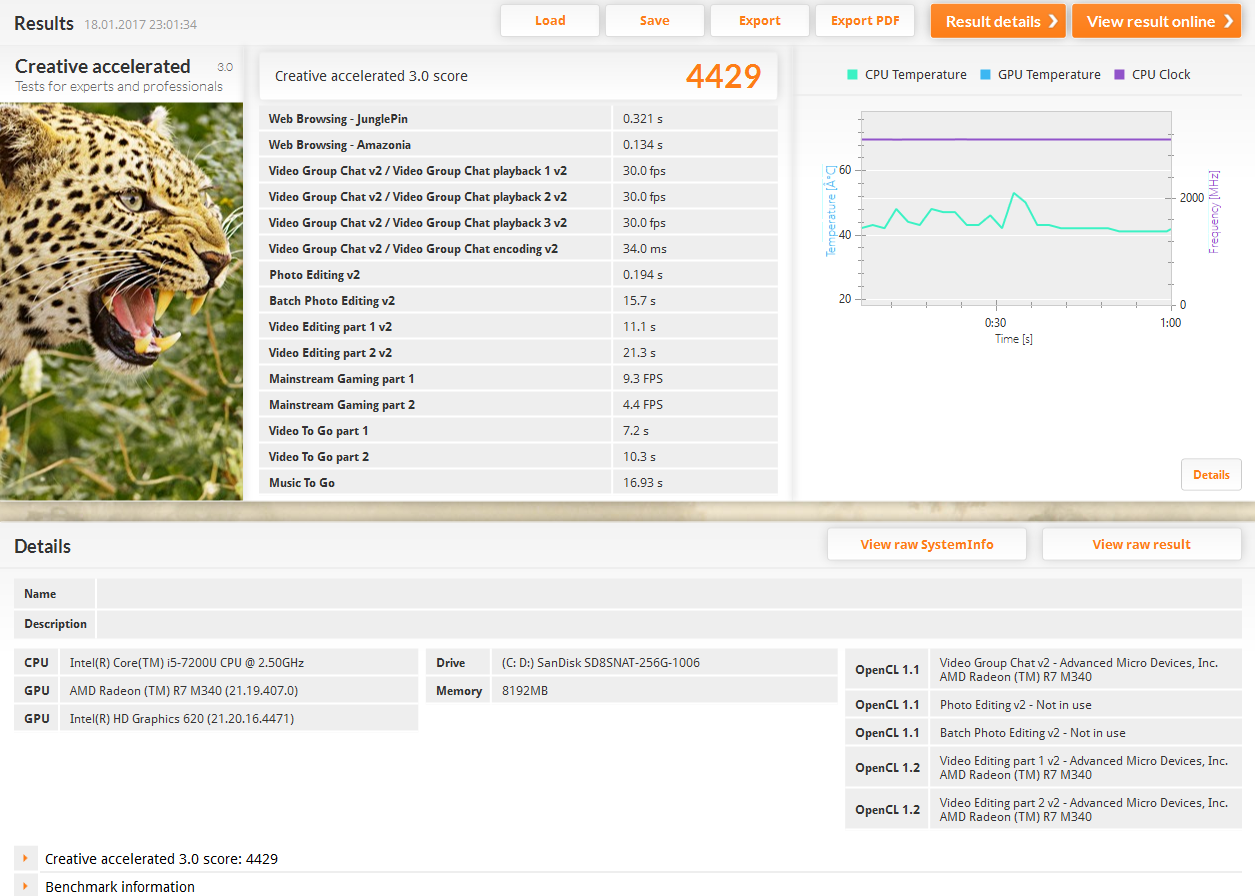

PCMark 8 Creative Score Accelerated v2
4429 punten
Help
CrystalDiskMark
CrystalDiskMark

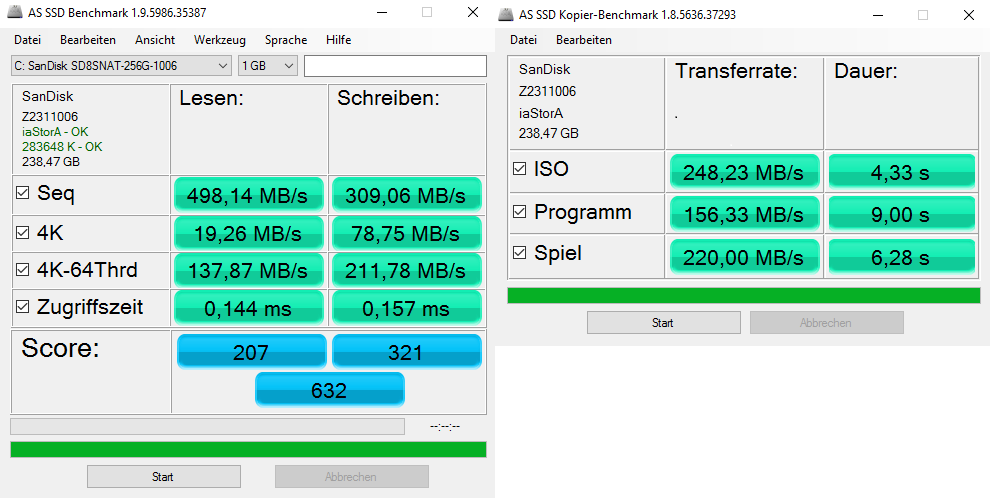

AS SSD
AS SSD

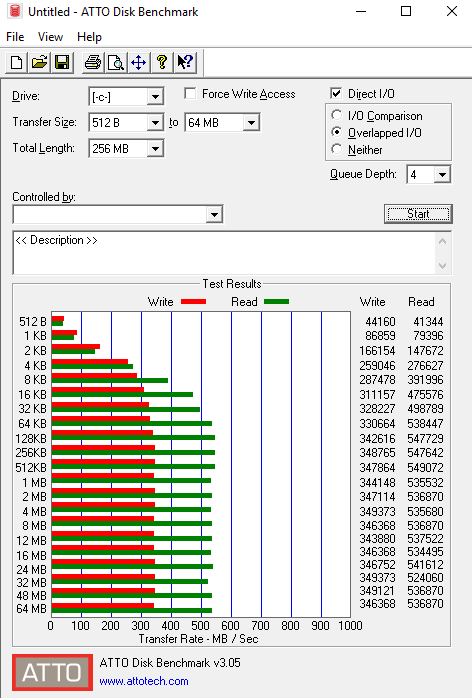

ATTO
ATTO
HP Pavilion 17-x110ng
SanDisk Z400s SD8SNAT-256G
Acer Aspire E5-575G-549D
Toshiba MQ01ABD100
Lenovo IdeaPad 510-15IKB 80SV0087GE
Liteonit CV3-DE256
Acer Aspire F15 F5-573G-53V1
WDC Scorpio Blue WD10JPVX-22JC3T0
Lenovo ThinkPad E470-20H2S00400
SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
HP Pavilion 15-aw004ng W8Y60EA
CrystalDiskMark 3.0
-92%
40%
-89%
39%
-10%
Write 4k QD32
272.7
0.722
-100%
245.9
-10%
0.884
-100%
178.3
-35%
131.4
-52%
Read 4k QD32
145.4
0.647
-100%
364.7
151%
0.895
-99%
276
90%
125
-14%
Write 4k
86.03
0.726
-99%
66.8
-22%
0.9
-99%
78.82
-8%
46.55
-46%
Read 4k
11.24
0.366
-97%
28.68
155%
0.413
-96%
35.15
213%
17.04
52%
Write 512
300.3
25.93
-91%
297.9
-1%
46.13
-85%
291.1
-3%
281.2
-6%
Read 512
290.2
29.32
-90%
338.3
17%
35.32
-88%
346.4
19%
261.9
-10%
Write Seq
325.1
85.61
-74%
431.5
33%
105.6
-68%
458.7
41%
316.6
-3%
Read Seq
500.1
95.33
-81%
469.2
-6%
108.1
-78%
476.5
-5%
502.8
1%

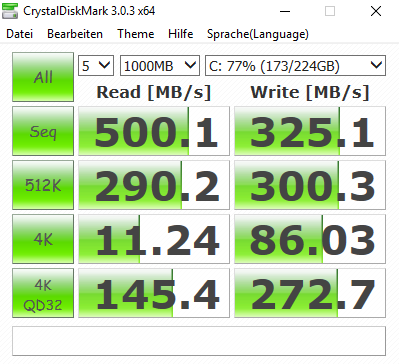

SanDisk Z400s SD8SNAT-256G
Sequential Read: 500.1 MB/s
Sequential Write: 325.1 MB/s
512K Read: 290.2 MB/s
512K Write: 300.3 MB/s
4K Read: 11.24 MB/s
4K Write: 86.03 MB/s
4K QD32 Read: 145.4 MB/s
4K QD32 Write: 272.7 MB/s
3DMark Ice Storm

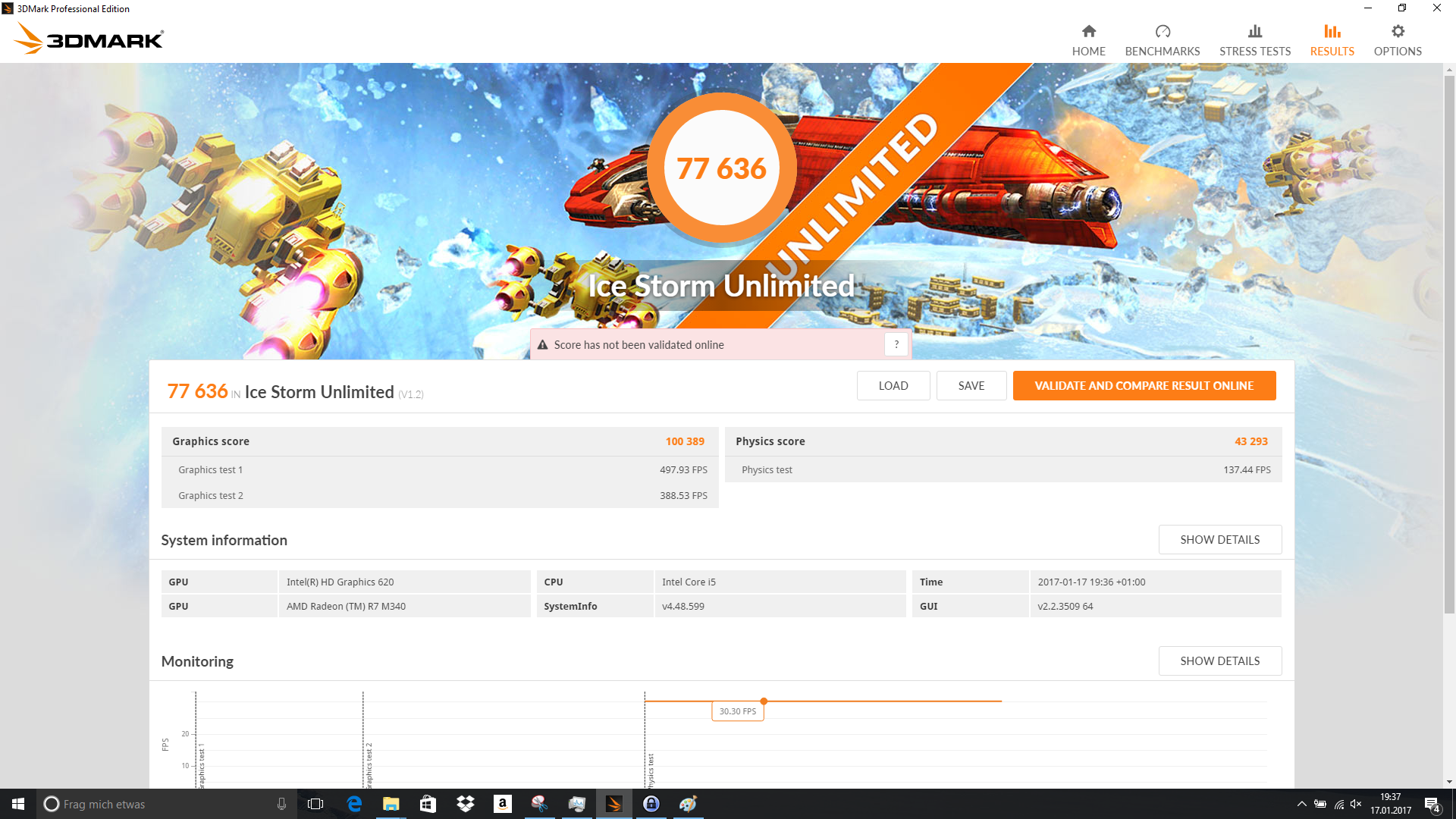

3DMark Ice Storm Unlimited

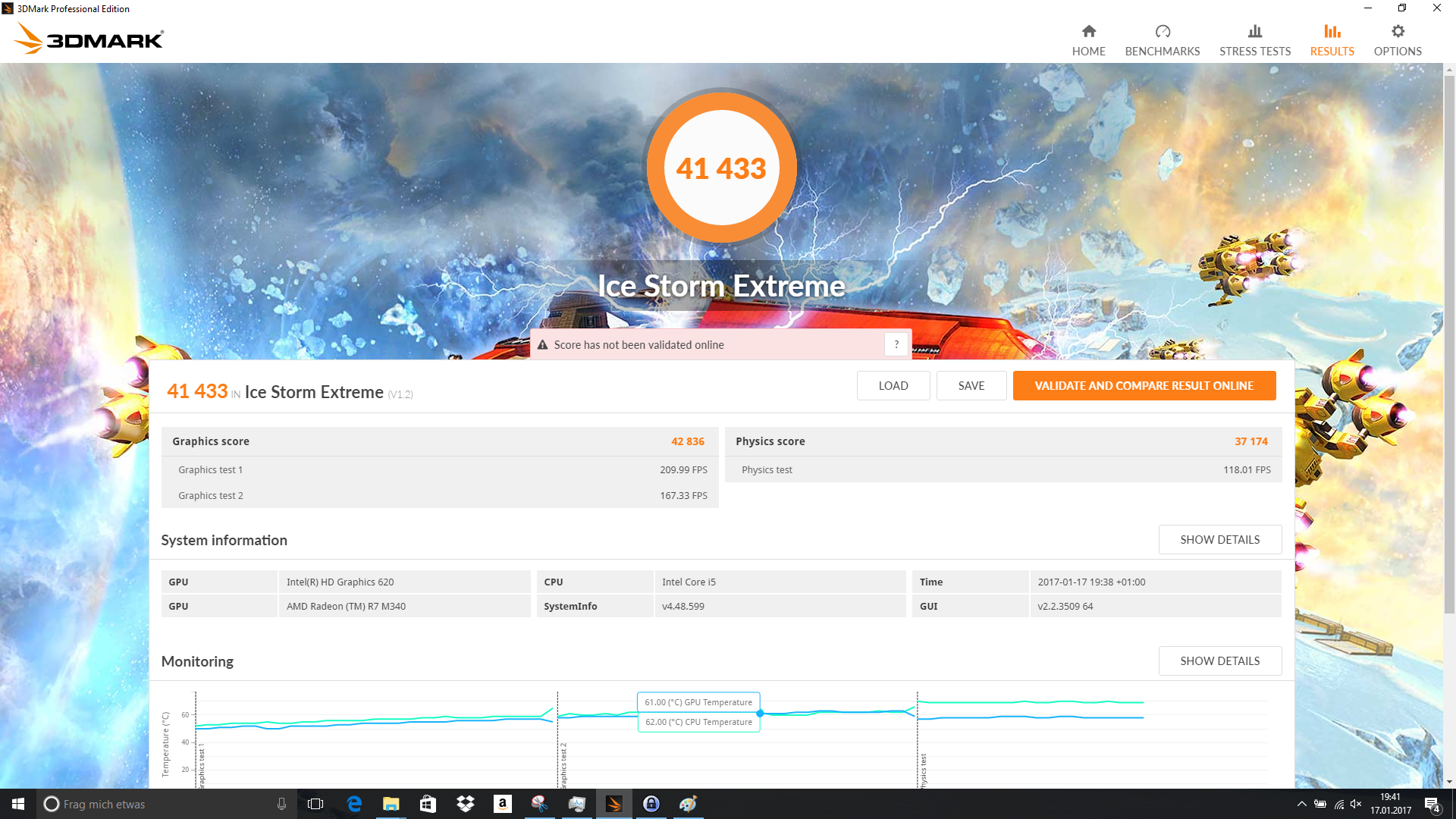

3DMark Ice Storm Extreme
3DMark Cloud Gate

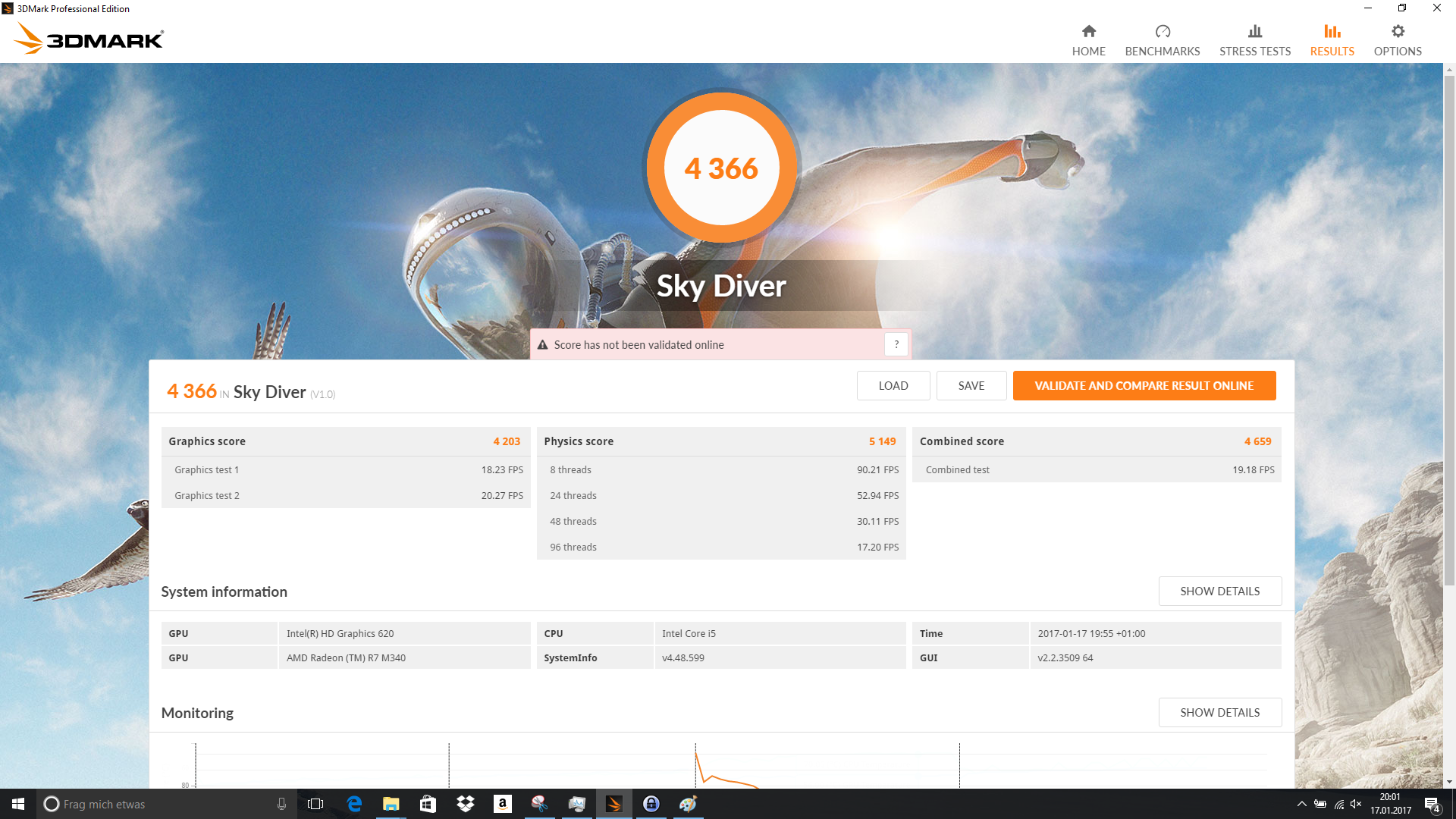

3DMark Sky Diver

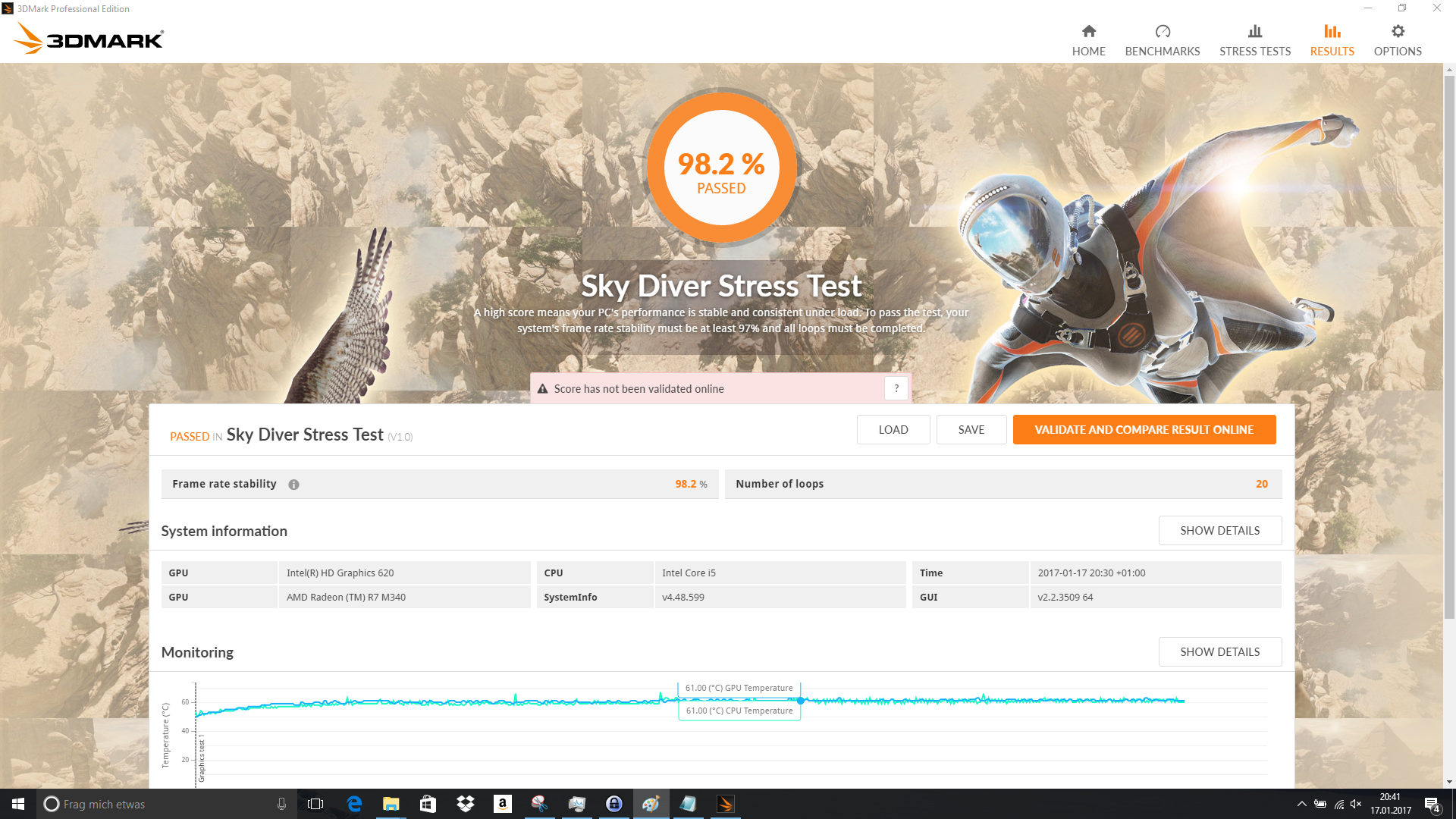

3DMark Sky Diver Stresstest
3DMark Fire Strike
3DMark Fire Strike Extreme

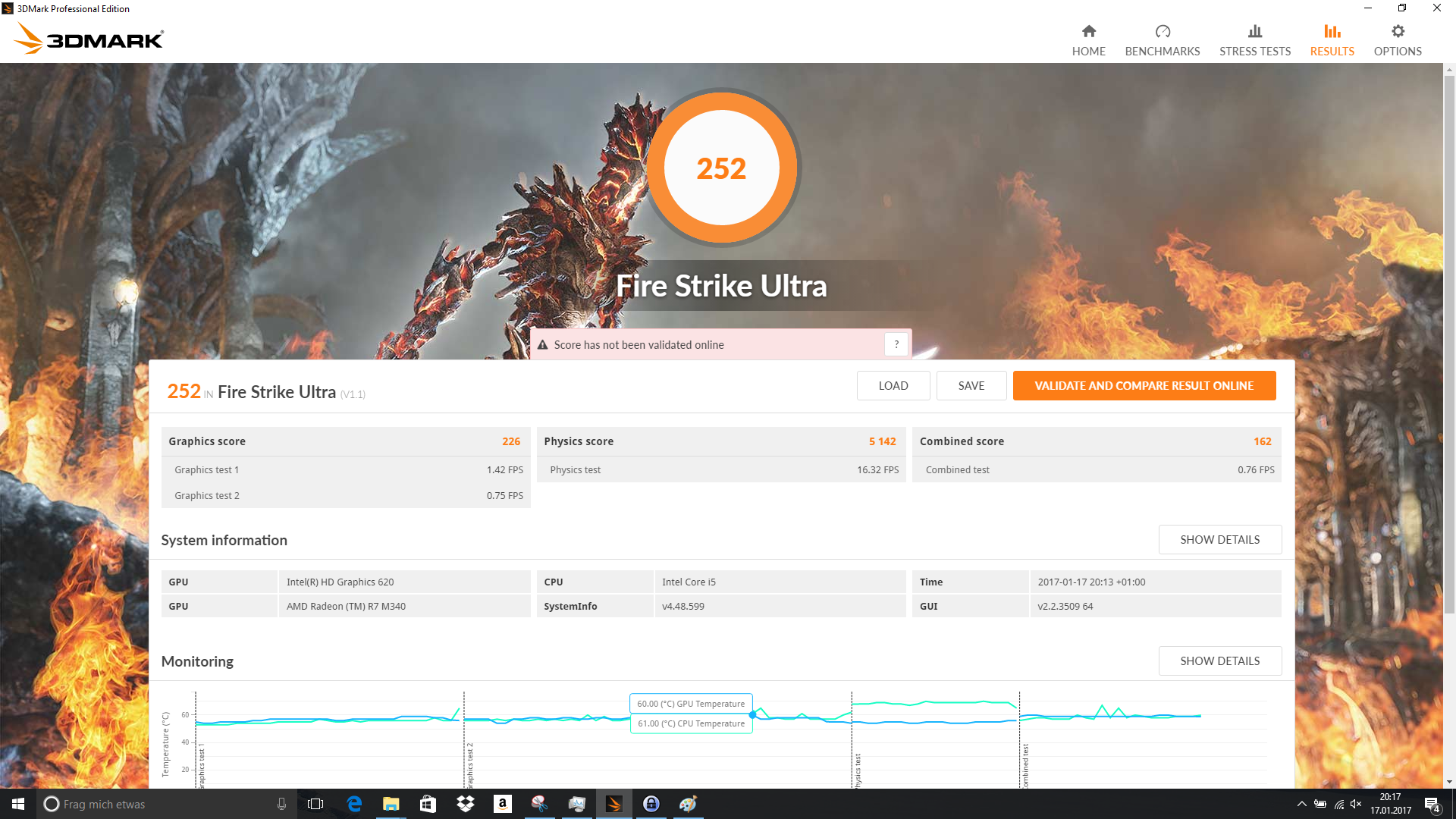

3DMark Fire Strike Ultra
3DMark Time Spy
3DMark 11
3DMark Vantage
3DMark 06
3DMark 05
3DMark 03

3DMark
1920x1080 Fire Strike Graphics
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
3574 Points ∼9% +200%
Acer Aspire F15 F5-573G-53V1
NVIDIA GeForce GTX 950M, Intel Core i5-6200U
3555 Points ∼9% +199%
HP Pavilion 15-aw004ng W8Y60EA
AMD Radeon R8 M445DX, AMD A10-9600P
2209 Points ∼6% +86%
Lenovo ThinkPad E470-20H2S00400
NVIDIA GeForce 940MX, Intel Core i5-7200U
1752 Points ∼4% +47%
HP Pavilion 17-x110ng
AMD Radeon R7 M440, Intel Core i5-7200U
1190 Points ∼3%
1280x720 Cloud Gate Standard Graphics
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
22439 Points ∼14% +277%
Acer Aspire F15 F5-573G-53V1
NVIDIA GeForce GTX 950M, Intel Core i5-6200U
21635 Points ∼13% +263%
HP Pavilion 15-aw004ng W8Y60EA
AMD Radeon R8 M445DX, AMD A10-9600P
12483 Points ∼8% +110%
Lenovo ThinkPad E470-20H2S00400
NVIDIA GeForce 940MX, Intel Core i5-7200U
9501 Points ∼6% +60%
HP Pavilion 17-x110ng
AMD Radeon R7 M440, Intel Core i5-7200U
5953 Points ∼4%
3DMark 11 - 1280x720 Performance GPU
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
4251 Points ∼8% +86%
Acer Aspire F15 F5-573G-53V1
NVIDIA GeForce GTX 950M, Intel Core i5-6200U
4239 Points ∼8% +86%
HP Pavilion 15-aw004ng W8Y60EA
AMD Radeon R8 M445DX, AMD A10-9600P
3775 Points ∼7% +66%
Lenovo ThinkPad E470-20H2S00400
NVIDIA GeForce 940MX, Intel Core i5-7200U
2556 Points ∼5% +12%
Lenovo IdeaPad 510-15IKB 80SV0087GE
NVIDIA GeForce 940MX, Intel Core i7-7500U
2436 Points ∼5% +7%
HP Pavilion 17-x110ng
AMD Radeon R7 M440, Intel Core i5-7200U
2280 Points ∼4%

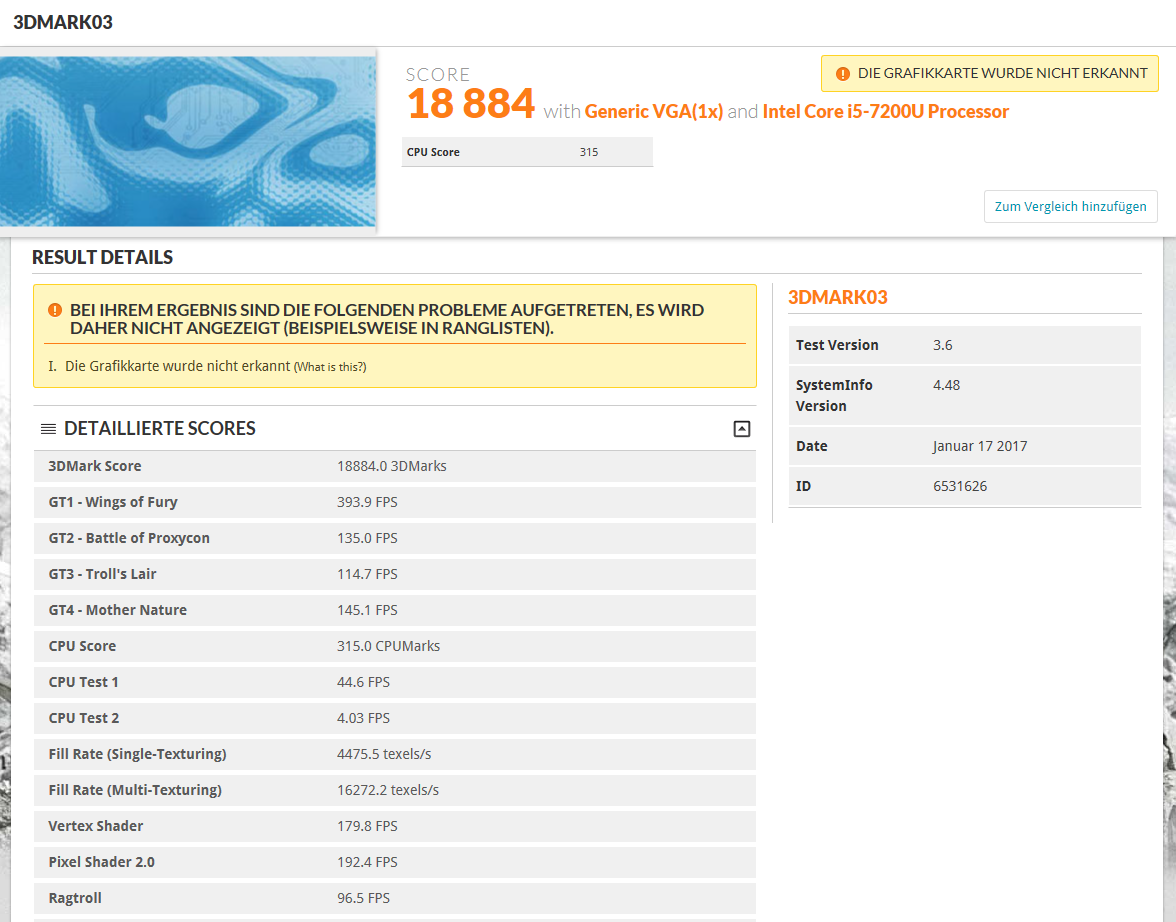

3DMark 03 Standard
18884 punten

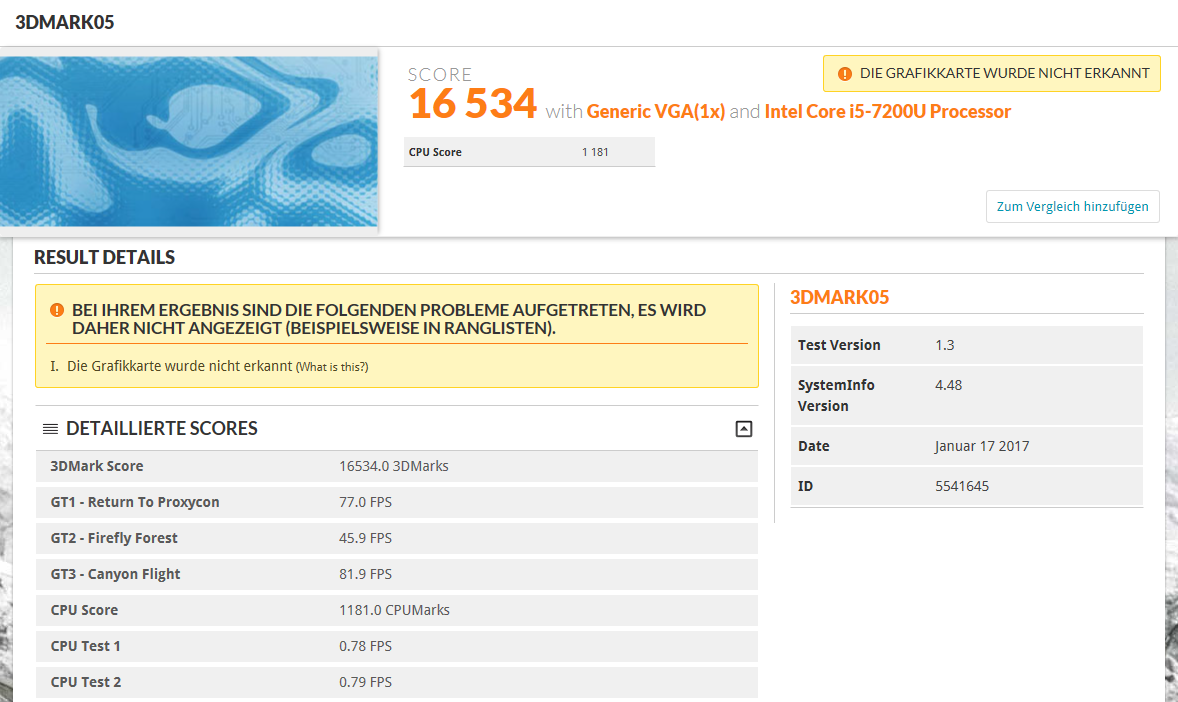

3DMark 05 Standard
16534 punten

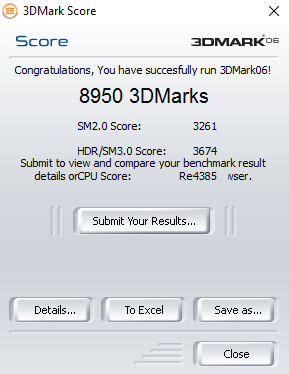

3DMark 06 Standard
8950 punten

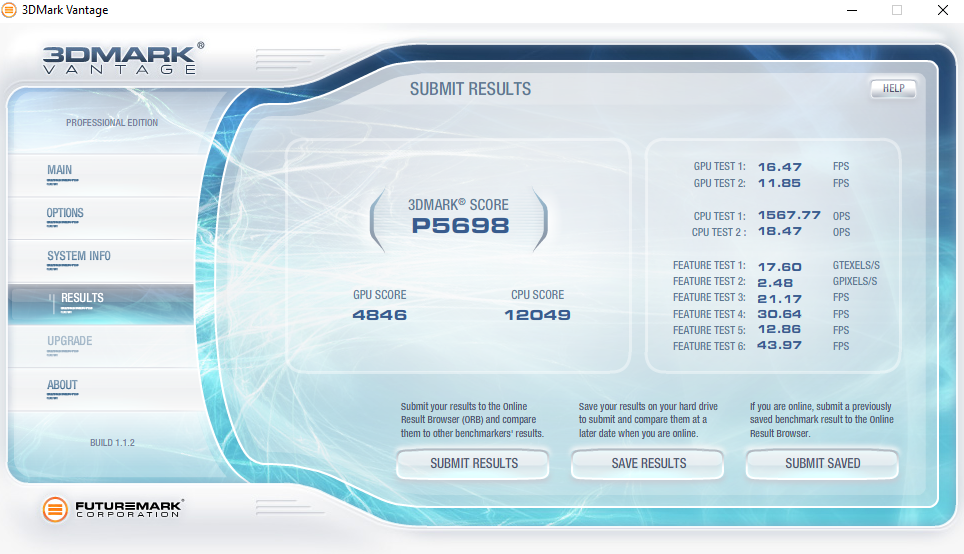

3DMark Vantage P Result
5698 punten

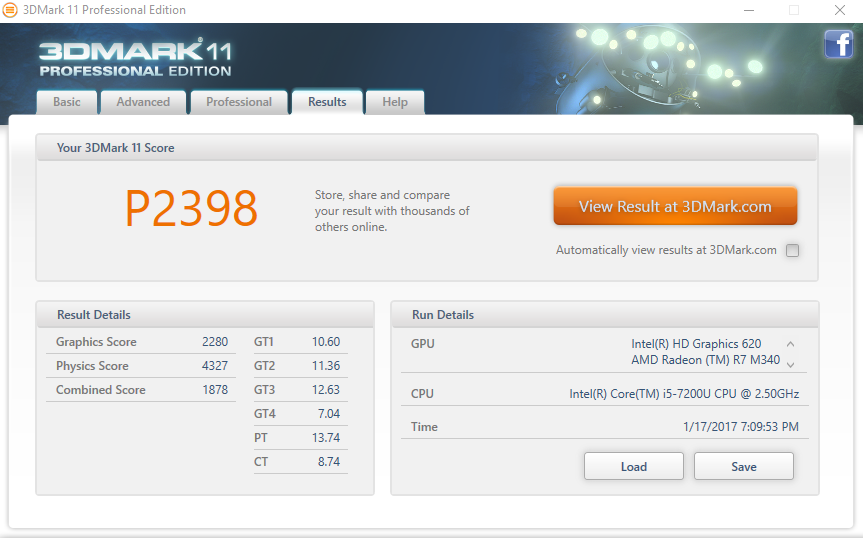

3DMark 11 Performance
2398 punten

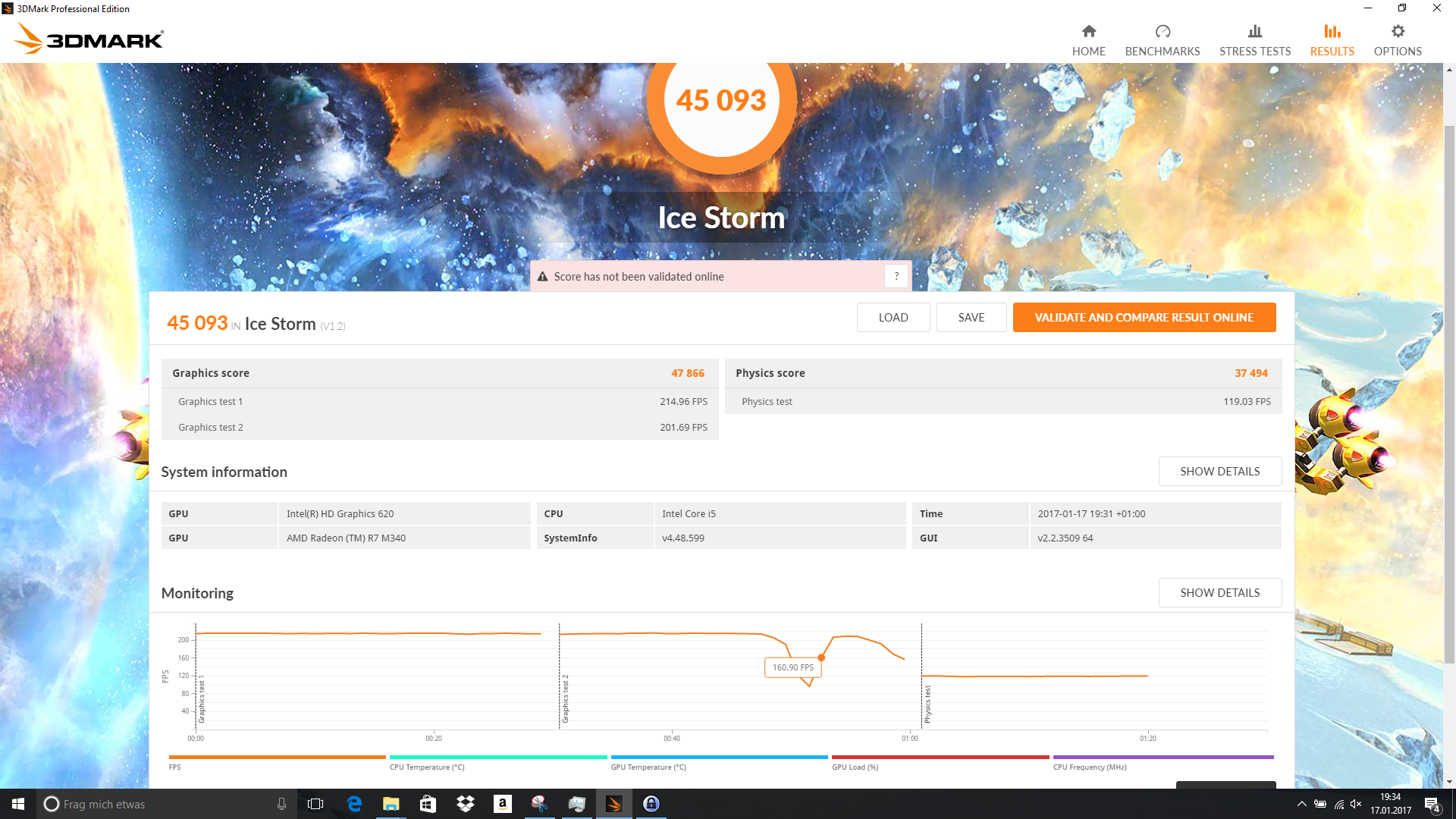

3DMark Ice Storm Standard Score
45093 punten

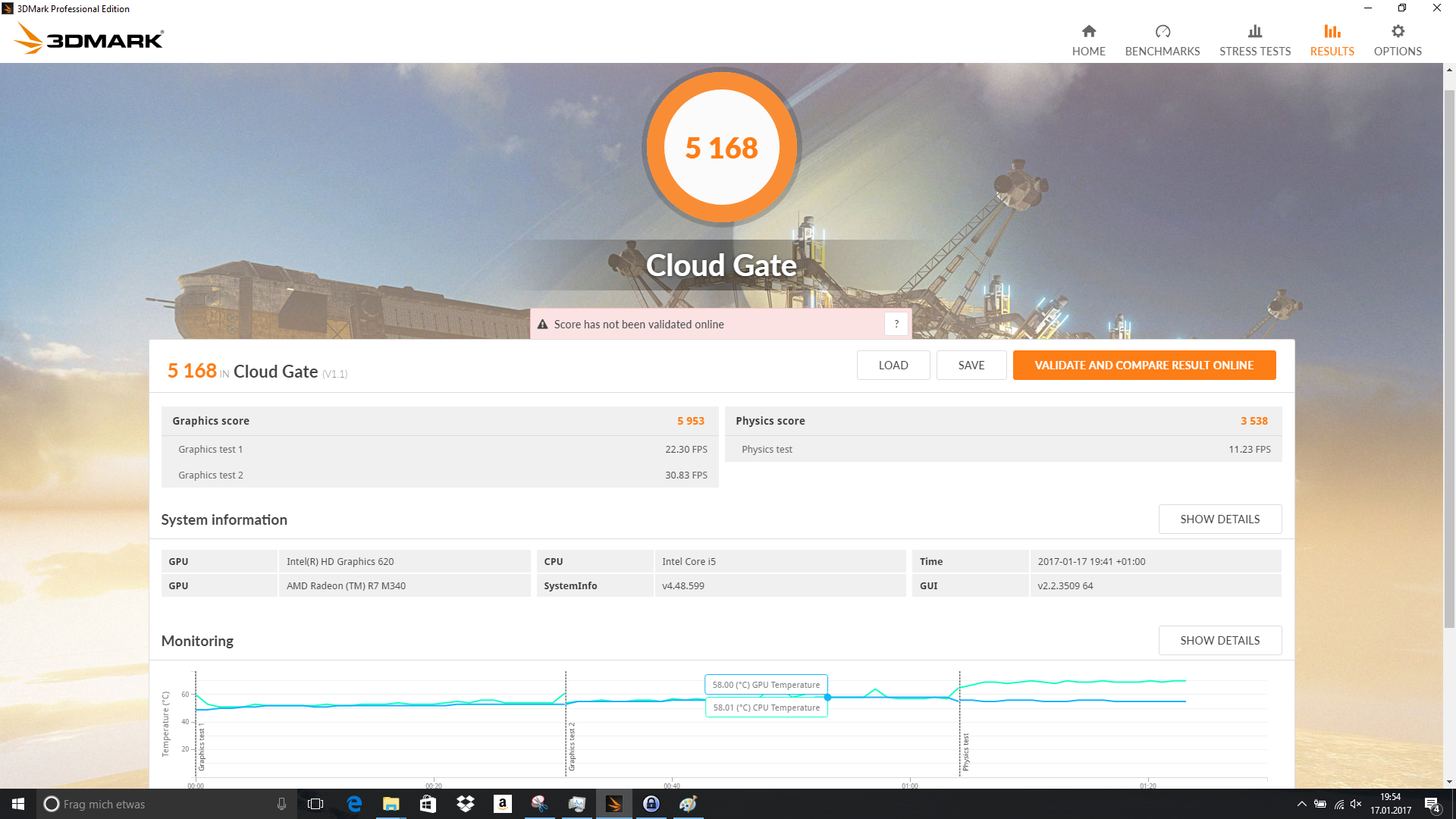

3DMark Cloud Gate Standard Score
5168 punten

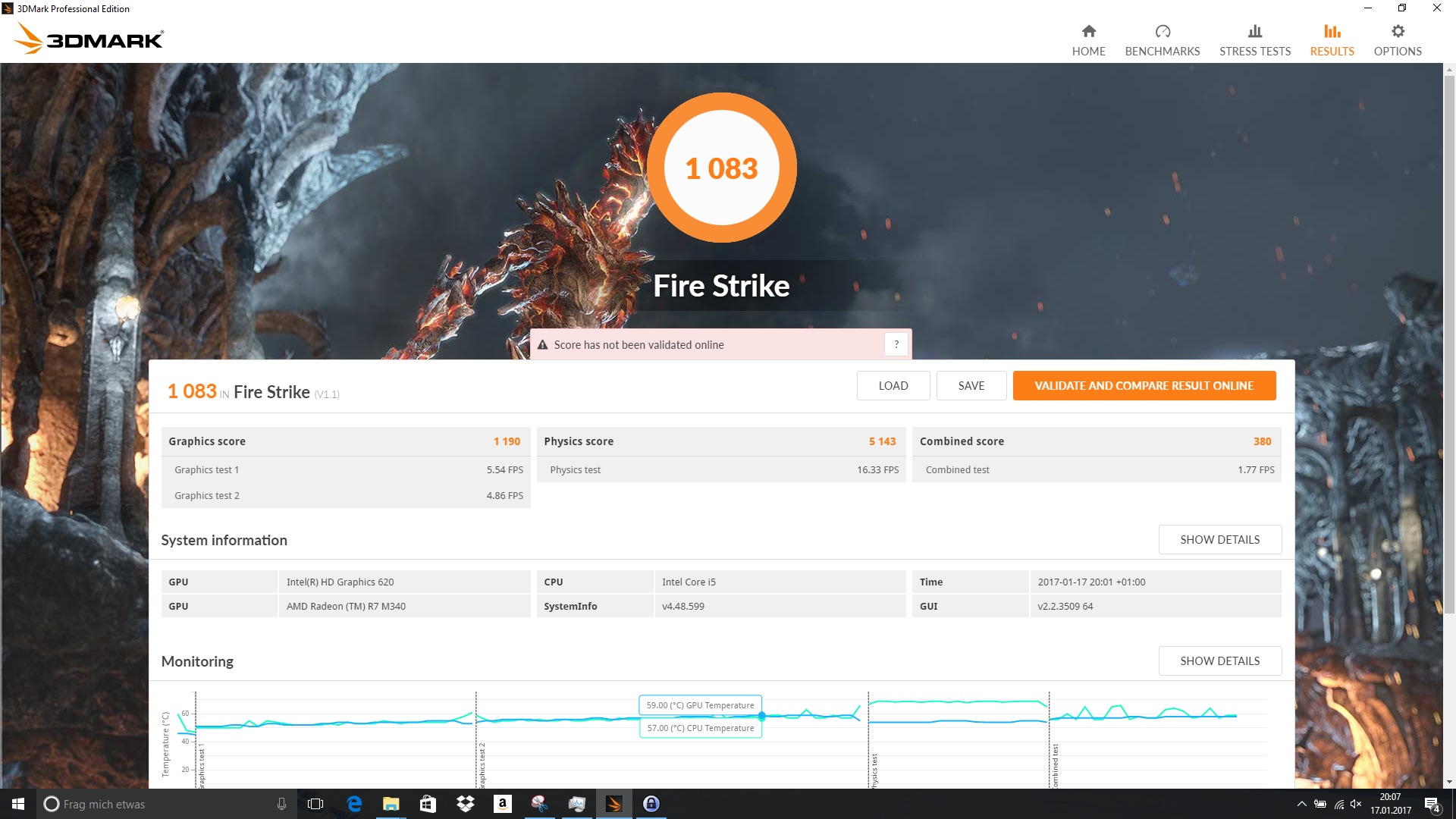

3DMark Fire Strike Score
1083 punten

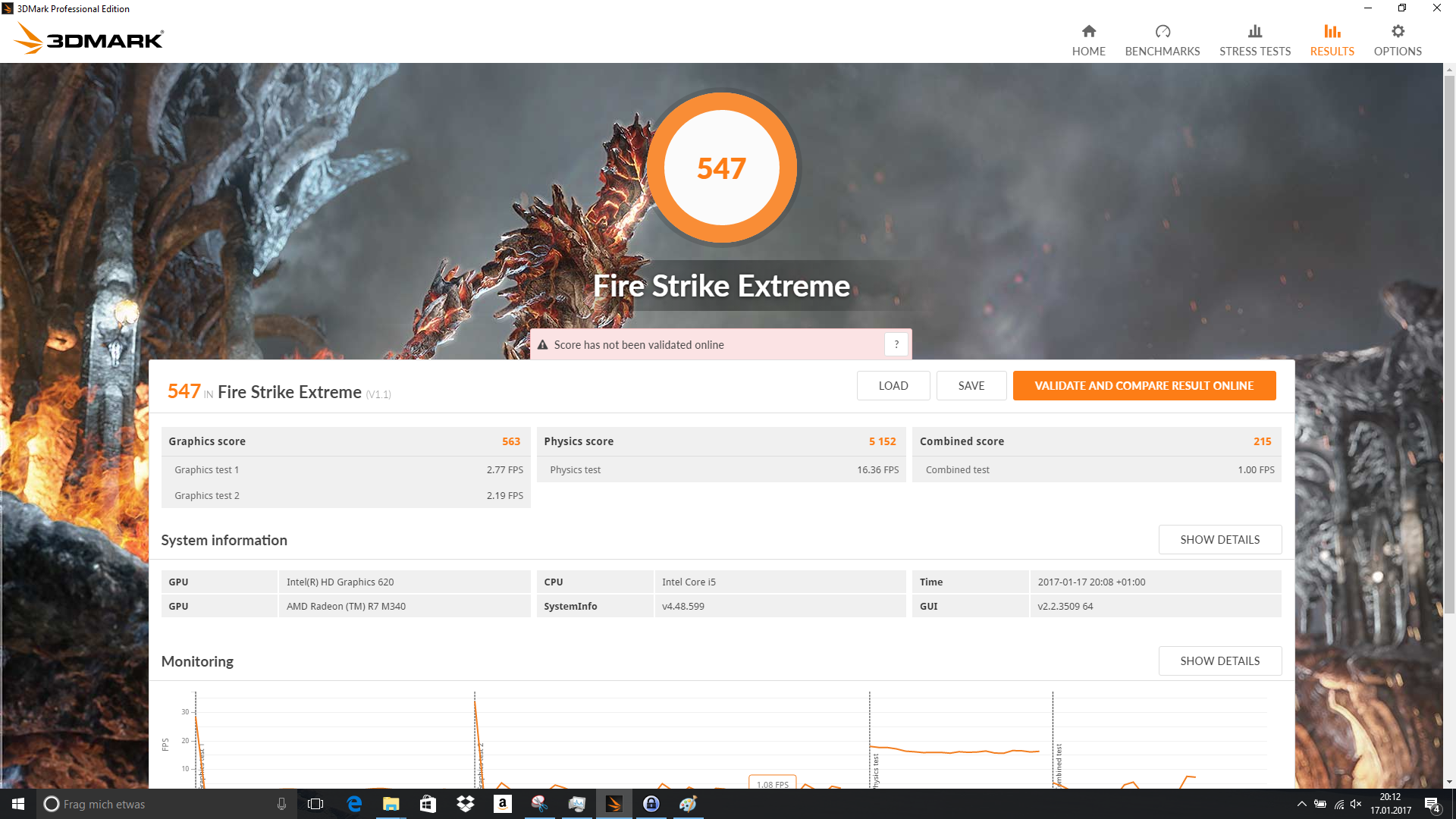

3DMark Fire Strike Extreme Score
547 punten

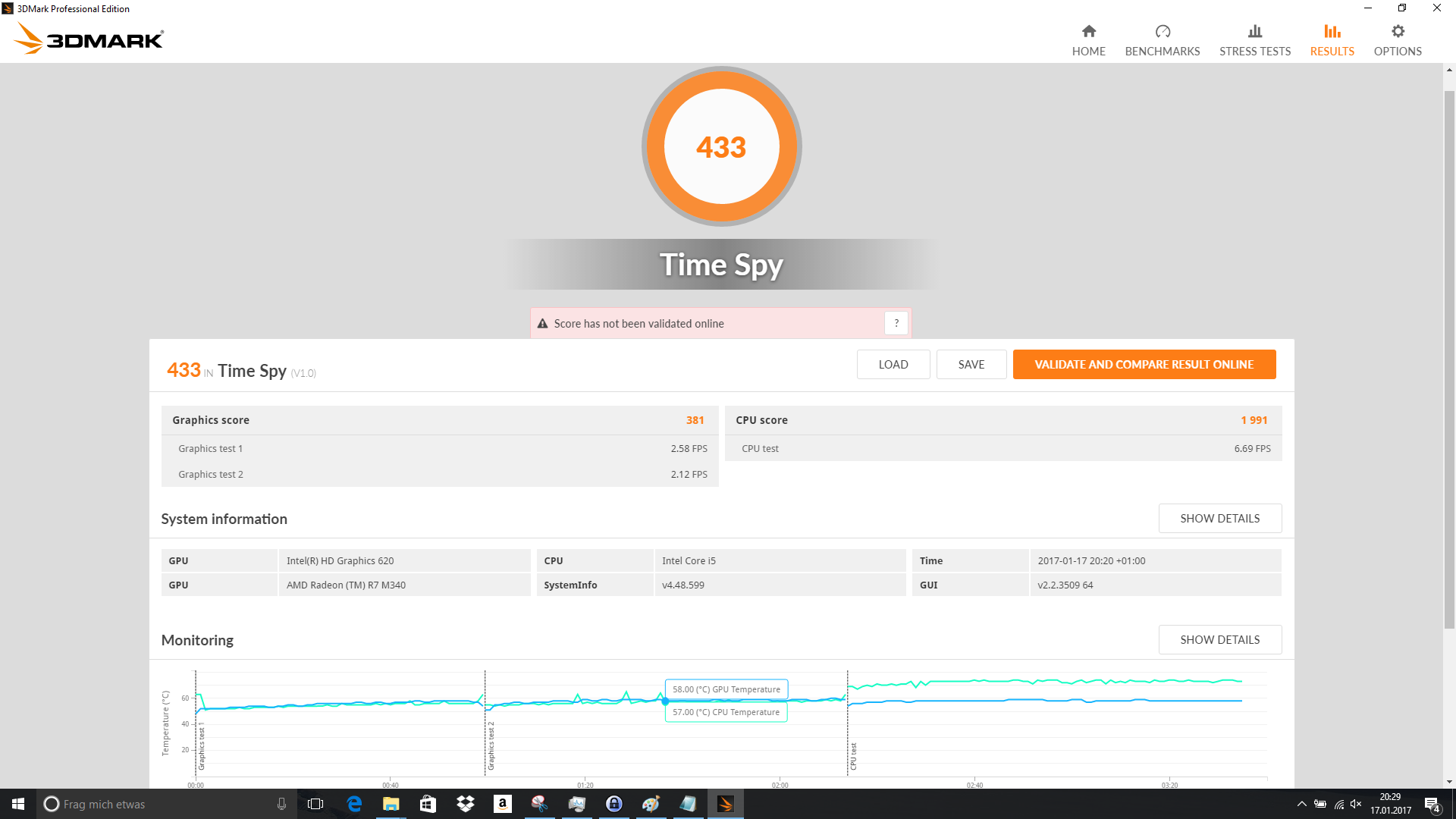

3DMark Time Spy Score
433 punten
Help
BioShock Infinite - 1366x768 Medium Preset
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M
96.8 fps ∼100% +130%
Acer Aspire F15 F5-573G-53V1
NVIDIA GeForce GTX 950M
93.3 (min: 18.33) fps ∼96% +122%
Lenovo ThinkPad E470-20H2S00400
NVIDIA GeForce 940MX
53.1 fps ∼55% +26%
Lenovo IdeaPad 510-15IKB 80SV0087GE
NVIDIA GeForce 940MX
48.6 fps ∼50% +16%
HP Pavilion 15-aw004ng W8Y60EA
AMD Radeon R8 M445DX
42.9 fps ∼44% +2%
HP Pavilion 17-x110ng
AMD Radeon R7 M440
42 fps ∼43%
Rise of the Tomb Raider - 1366x768 Medium Preset AF:2x
Acer Aspire F15 F5-573G-53V1
NVIDIA GeForce GTX 950M
35.8 fps ∼100% +201%
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M
31.6 fps ∼88% +166%
HP Pavilion 15-aw004ng W8Y60EA
AMD Radeon R8 M445DX
13.9 fps ∼39% +17%
HP Pavilion 17-x110ng
AMD Radeon R7 M440
11.9 fps ∼33%
Battlefield 4 - 1366x768 Medium Preset
Acer Aspire F15 F5-573G-53V1
NVIDIA GeForce GTX 950M
81.4 fps ∼100% +121%
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M
78.6 fps ∼97% +113%
Lenovo ThinkPad E470-20H2S00400
NVIDIA GeForce 940MX
46.7 fps ∼57% +27%
HP Pavilion 15-aw004ng W8Y60EA
AMD Radeon R8 M445DX
37.2 fps ∼46% +1%
HP Pavilion 17-x110ng
AMD Radeon R7 M440
36.9 fps ∼45%
lage gem. hoge ultra
BioShock Infinite (2013) 73.64232.69.6fps
Battlefield 4 (2013) 51.236.923.37.6fps
GTA V (2015) 50.743.712.2fps
The Witcher 3 (2015) 21.113.46.9fps
Anno 2205 (2015) 35.317.17fps
Rainbow Six Siege (2015) 5442.926.920.3fps
Rise of the Tomb Raider (2016) 2211.963.5fps
XCOM 2 (2016) 22.87.95.24.9fps
Far Cry Primal (2016) 20.69.98.9fps
The Division (2016) 23.115.66.2fps
Doom (2016) 22138.1fps
Overwatch (2016) 60.542.622.312.4fps
Deus Ex Mankind Divided (2016) 13.910.15.2fps
FIFA 17 (2016) 61.859.734.629.7fps
Mafia 3 (2016) 148.9fps
Battlefield 1 (2016) 31.822.79.69.6fps
Civilization VI (2016) 36.426.19.5fps
Farming Simulator 17 (2016) 69.759.321.1fps
Titanfall 2 (2016) 41.129.811.2fps
Call of Duty Infinite Warfare (2016) 26.422.612.1fps
Dishonored 2 (2016) 10.99.2fps
Watch Dogs 2 (2016) 18.713.6fps
Resident Evil 7 (2017) 40.515.9fps

Geluidsniveau

Onbelast
31 / 31 / 31 dB (A)
DVD
35.8 / dB (A)
Belasting
33.8 / 44.8 dB (A)



30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   environment noise: 29 dB(A)
HP Pavilion 17-x110ng
7200U, Radeon R7 M440
Acer Aspire E5-575G-549D
7200U, GeForce GTX 950M
Lenovo IdeaPad 510-15IKB 80SV0087GE
7500U, GeForce 940MX
Acer Aspire F15 F5-573G-53V1
6200U, GeForce GTX 950M
Lenovo ThinkPad E470-20H2S00400
7200U, GeForce 940MX
HP Pavilion 15-aw004ng W8Y60EA
A10-9600P, Radeon R8 M445DX
Noise
3%
-0%
-2%
5%
-5%
Idle Minimum *
31
30.8
1%
32.6
-5%
32.4
-5%
29
6%
31.7
-2%
Idle Average *
31
30.8
1%
32.6
-5%
33.5
-8%
29
6%
31.9
-3%
Idle Maximum *
31
30.8
1%
32.6
-5%
33.5
-8%
29
6%
31.9
-3%
Load Average *
33.8
33.4
1%
35.3
-4%
35.2
-4%
35.6
-5%
41
-21%
Load Maximum *
44.8
40.1
10%
37.1
17%
38.7
14%
38.5
14%
42.7
5%

* ... kleiner is beter

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.937.135.740.137.92538.736.638.635.538.73132.632.332.631.132.64029.432.33029.829.45029.530.330.129.529.56330.330.132.133.330.38028.228.626.927.828.210027.328.628.32727.312525.726.125.625.325.71602727.126.924.32720024.325.324.524.624.32502424.92422.42431523.224.823.321.823.240022.725.322.620.322.750022.526.221.72022.563022.628.421.218.922.680023.731.320.318.123.7100024.733.819.617.724.7125023.633.718.516.823.6160024.137.818.316.324.1200023.538.518.116.123.5250020.834.417.815.620.8315018.930.217.515.518.9400018.227.117.315.418.2500017.923.717.11517.9630017.821.417.215.317.8800017.619.717.215.217.61000017.318.11714.917.31250017.117.716.914.917.11600017.217.7171517.2SPL33.844.93129.133.8N24.11.61.22median 22.7HP Pavilion 17-x110ngmedian 26.2median 18.5median 16.8median 22.7Delta2.73.32.83.52.7hearing rangehide median Fan Noise

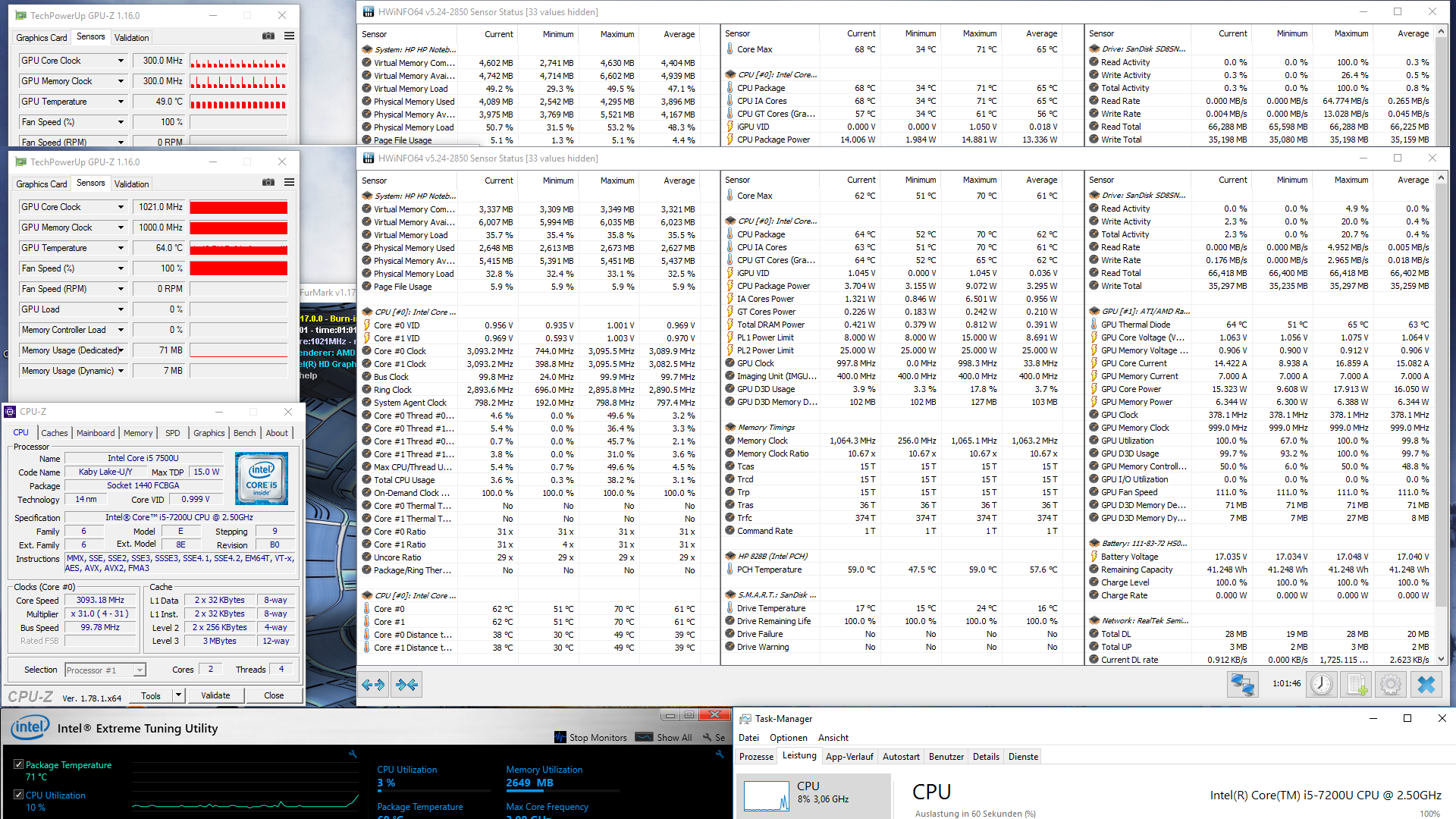

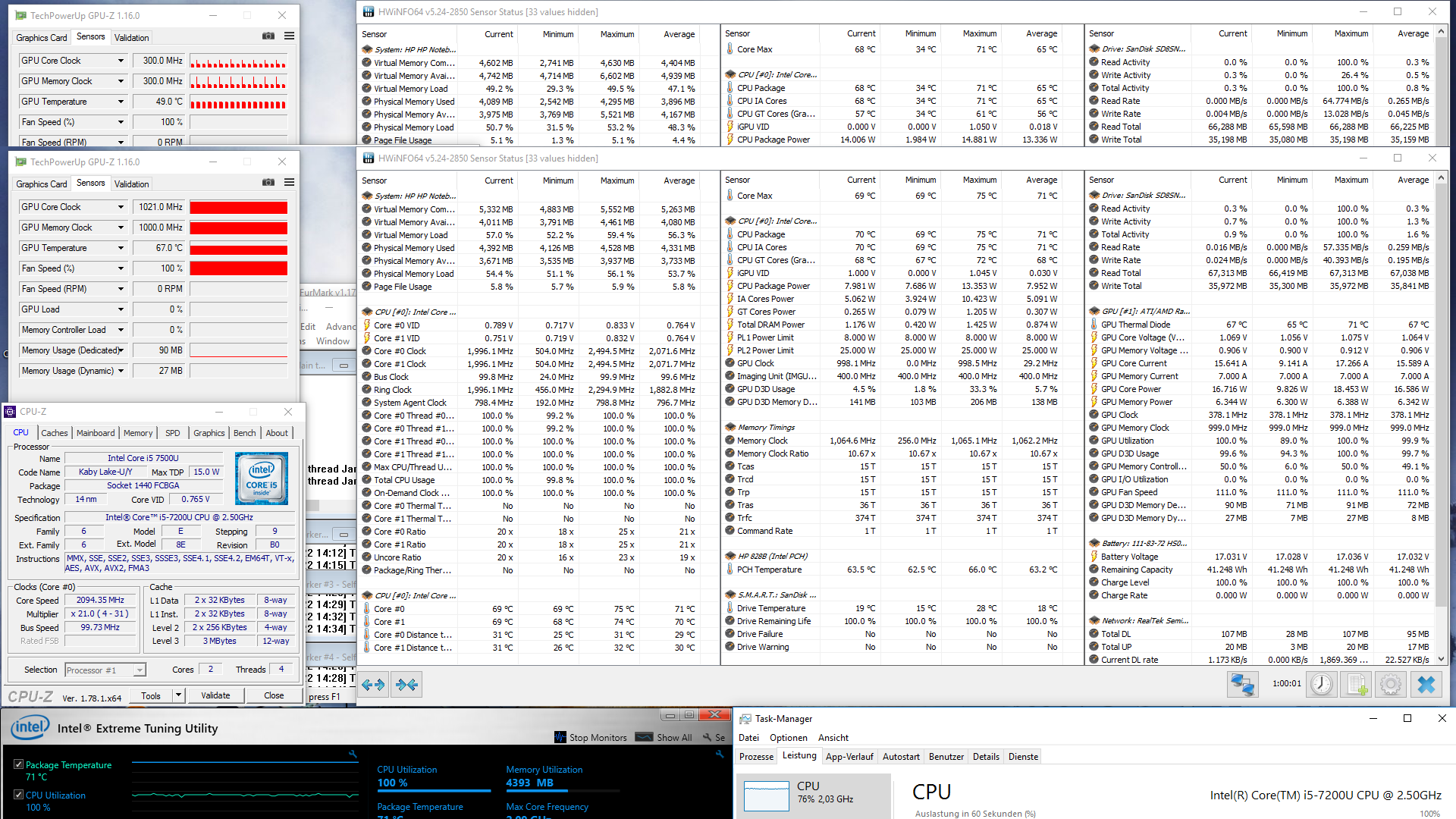

Stress test Prime95 + FurMark
Stress test Prime95 + FurMark
Stress test FurMark
Stress test FurMark

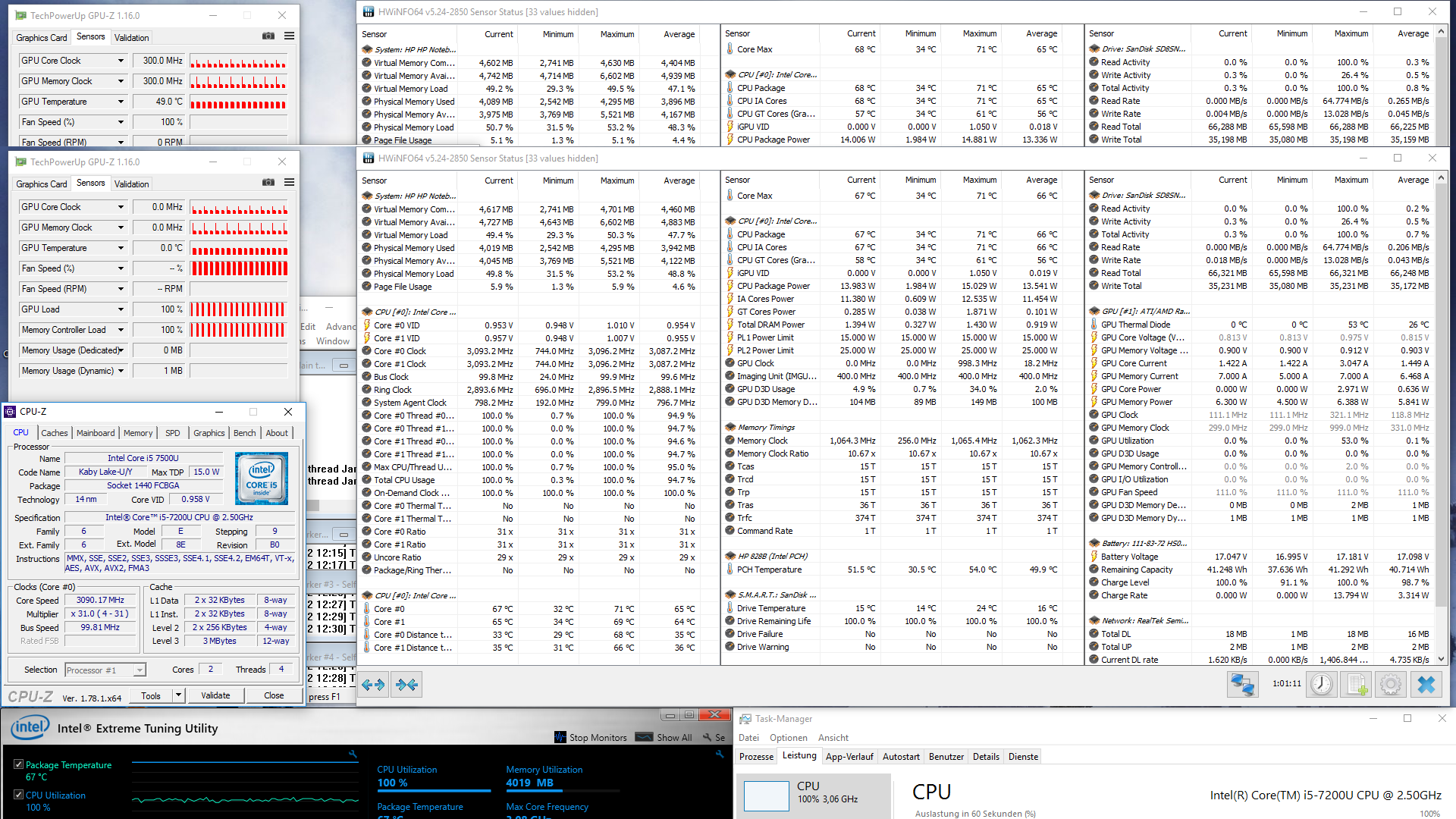

Stress test Prime95
Stress test Prime95
Max. Belasting
 37.5 °C40.2 °C24.9 °C
 40.3 °C37.9 °C25.2 °C
 29.3 °C31.3 °C24.6 °C
Maximum: 40.3 °C
Gemiddelde: 32.4 °C
24 °C42.5 °C46.1 °C
24.3 °C33 °C42 °C
22.8 °C27.3 °C26.6 °C
Maximum: 46.1 °C
Gemiddelde: 32.1 °C
Stroomadapter (max.)  43.1 °C | Kamertemperatuur 22 °C | FIRT 550-Pocket
HP Pavilion 17-x110ng
7200U, Radeon R7 M440
Acer Aspire E5-575G-549D
7200U, GeForce GTX 950M
Lenovo IdeaPad 510-15IKB 80SV0087GE
7500U, GeForce 940MX
Acer Aspire F15 F5-573G-53V1
6200U, GeForce GTX 950M
Lenovo ThinkPad E470-20H2S00400
7200U, GeForce 940MX
HP Pavilion 15-aw004ng W8Y60EA
A10-9600P, Radeon R8 M445DX
Heat
-29%
3%
-27%
-12%
1%
Maximum Upper Side *
40.3
48.1
-19%
38.3
5%
46.6
-16%
43.8
-9%
33.4
17%
Maximum Bottom *
46.1
60.8
-32%
36
22%
65.4
-42%
53
-15%
32.9
29%
Idle Upper Side *
23.8
30.8
-29%
24.9
-5%
28.9
-21%
25.9
-9%
27.7
-16%
Idle Bottom *
23.4
31.9
-36%
25.6
-9%
29.8
-27%
27.1
-16%
29.4
-26%

* ... kleiner is beter

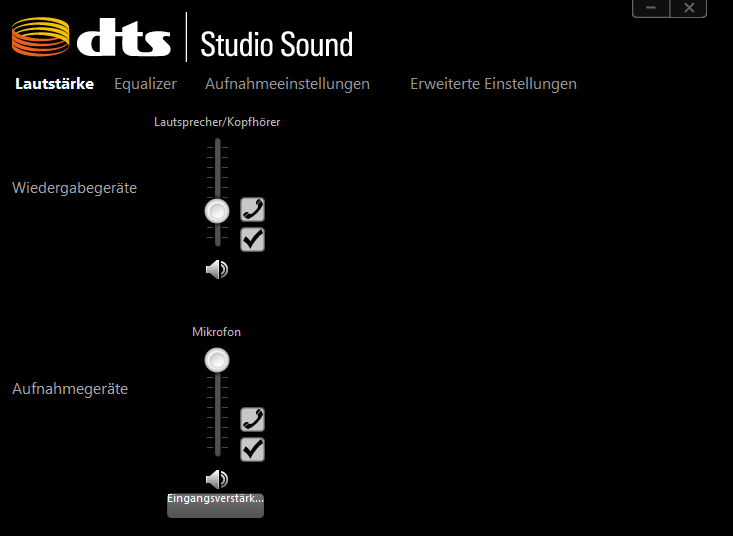

dts Studio Sound
dts Studio Sound

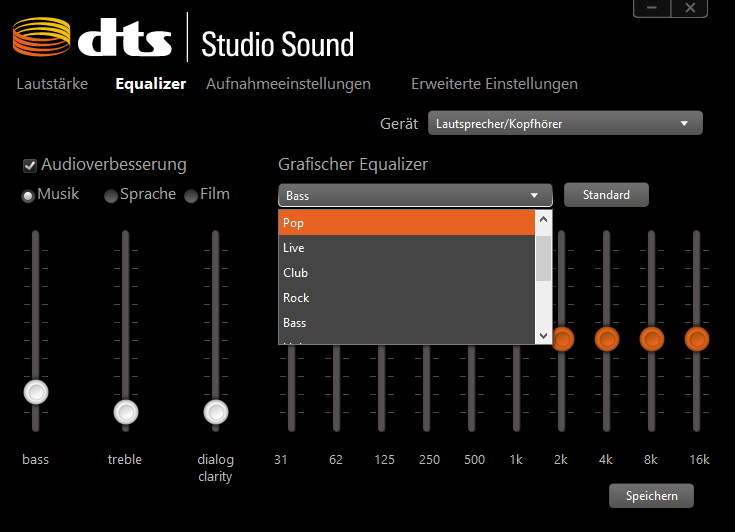

With equalizer
With equalizer
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2040.340.140.3253735.5373135.631.135.64037.429.837.45039.429.539.4634033.340804127.84110040.42740.41254225.34216044.324.344.320048.524.648.525052.722.452.731557.621.857.640057.420.357.450061.62061.663067.618.967.680064.118.164.1100060.317.760.3125059.116.859.1160059.416.359.4200060.816.160.8250064.315.664.3315069.415.569.4400069.215.469.2500066.71566.7630062.915.362.9800060.815.260.81000063.714.963.71250067.514.967.51600069.41569.4SPL77.229.177.2N39.51.239.5median 60.8HP Pavilion 17-x110ngmedian 16.8median 60.8Delta4.33.54.335.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.4hearing rangehide median Pink Noise
HP Pavilion 17-x110ng audio analysis

(-) | not very loud speakers (70 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.2% lower than median
(+) | bass is linear (6.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.2% away from median
(+) | mids are linear (5.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.5% away from median
(+) | highs are linear (6.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.2% difference to median)
Compared to same class
» 21% of all tested devices in this class were better, 7% similar, 71% worse
» The best had a delta of 3%, average was 18%, worst was 35%
Compared to all devices tested
» 12% of all tested devices were better, 3% similar, 86% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 3% of all tested devices in this class were better, 3% similar, 95% worse
» The best had a delta of 9%, average was 18%, worst was 41%
Compared to all devices tested
» 1% of all tested devices were better, 1% similar, 98% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Stroomgebruik
Uit / Standbydarklight 0.1 / 0.5 Watt
Inactiefdarkmidlight 7.7 / 14 / 15.1 Watt
Belasting midlight 33 / 54.6 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
HP Pavilion 17-x110ng
7200U, Radeon R7 M440
Acer Aspire E5-575G-549D
7200U, GeForce GTX 950M
Lenovo IdeaPad 510-15IKB 80SV0087GE
7500U, GeForce 940MX
Acer Aspire F15 F5-573G-53V1
6200U, GeForce GTX 950M
Lenovo ThinkPad E470-20H2S00400
7200U, GeForce 940MX
HP Pavilion 15-aw004ng W8Y60EA
A10-9600P, Radeon R8 M445DX
Power Consumption
-2%
24%
-19%
26%
13%
Idle Minimum *
7.7
6
22%
3.9
49%
8.3
-8%
2.7
65%
5.5
29%
Idle Average *
14
8.1
42%
7.4
47%
12.1
14%
5.5
61%
8.2
41%
Idle Maximum *
15.1
9.8
35%
9.5
37%
15.4
-2%
6.5
57%
9.5
37%
Load Average *
33
52.5
-59%
41
-24%
56
-70%
44.2
-34%
44.5
-35%
Load Maximum *
54.6
81.6
-49%
48
12%
70
-28%
65.2
-19%
58
-6%

* ... kleiner is beter

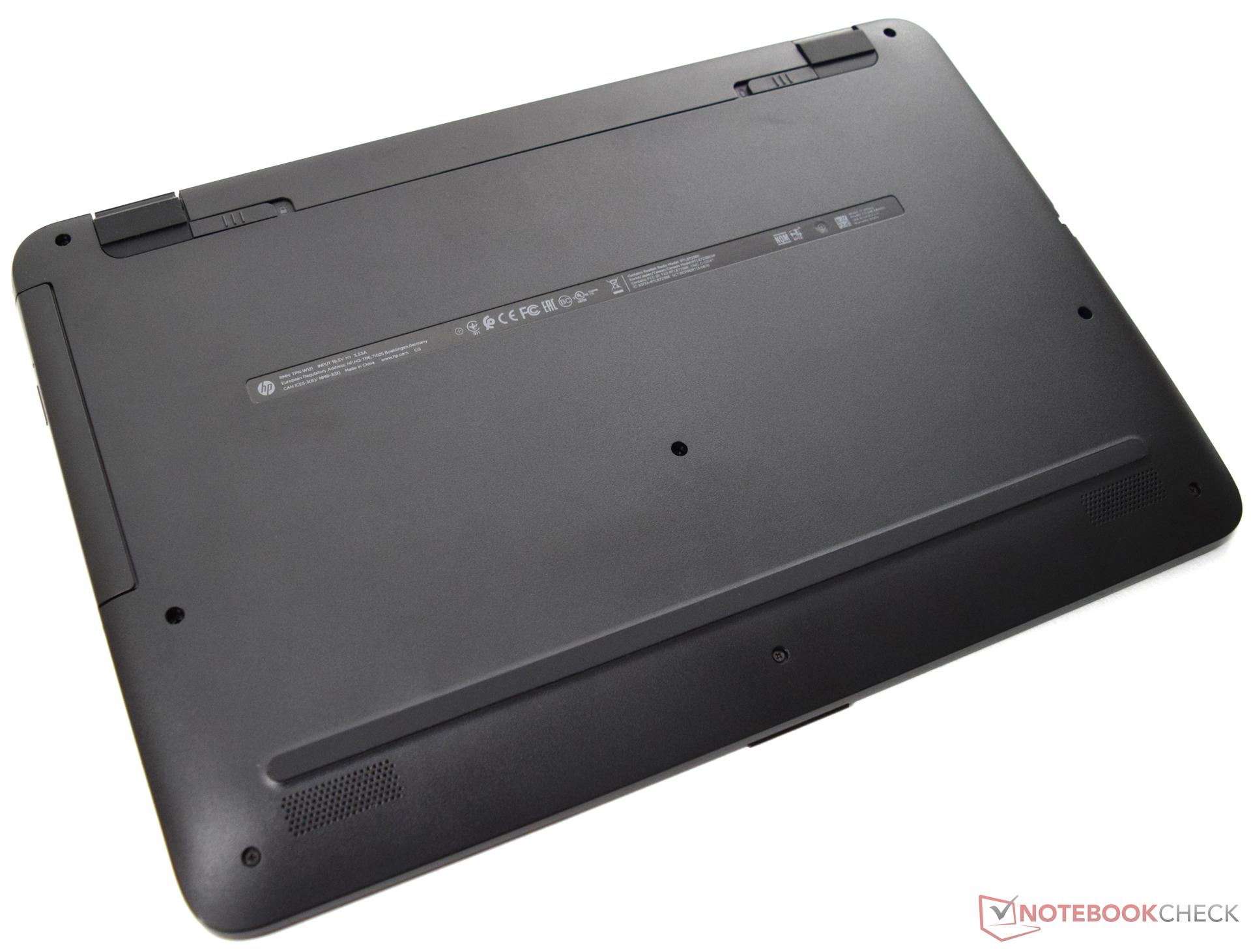

The battery is replaceable and has a capacity of 41 Wh.
The battery is replaceable and ...
The battery is replaceable and has a capacity of 41 Wh.
... has a capacity of 41 Wh.
Maximum battery runtime
Maximum battery runtime
Minimum battery runtime
Minimum battery runtime

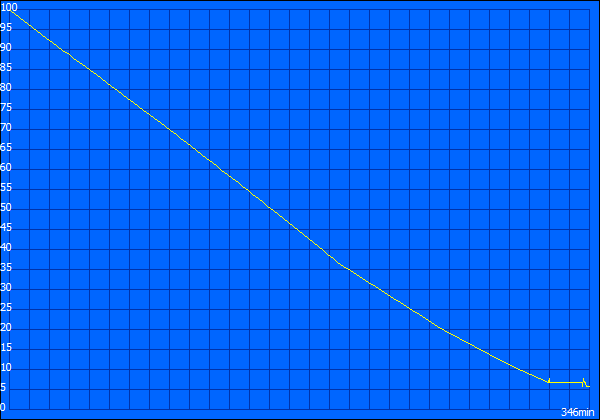

WLAN runtime
WLAN runtime

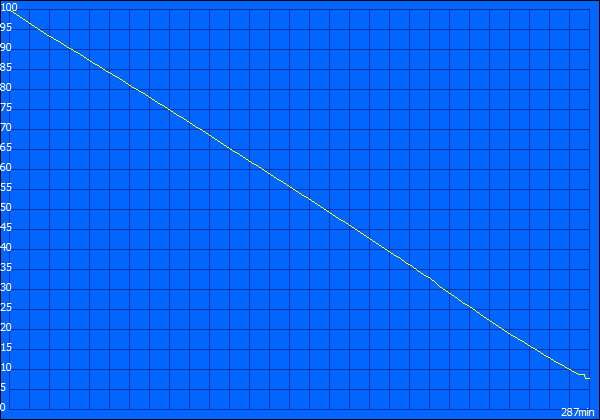

H.264 runtime
H.264 runtime

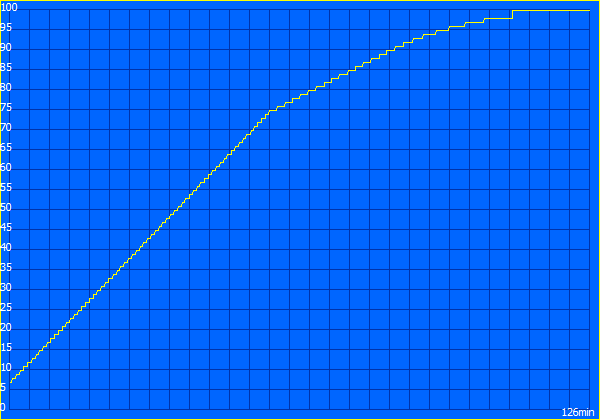

Charging
Charging
Batterijduur
Inactief (zonder WLAN, minimale helderheid)
8h 47min
Surfen met WLAN v1.3 (EDGE: 38.14393.0.0)
5h 46min
Big Buck Bunny H.264 1080p
4h 47min
Belast (maximale helderheid)
1h 30min
HP Pavilion 17-x110ng
41 Wh
Acer Aspire E5-575G-549D
62 Wh
Lenovo IdeaPad 510-15IKB 80SV0087GE
30 Wh
Acer Aspire F15 F5-573G-53V1
62 Wh
Lenovo ThinkPad E470-20H2S00400
45 Wh
HP Pavilion 15-aw004ng W8Y60EA
41 Wh
Batterijduur
30%
-21%
31%
51%
-11%
Reader / Idle
527
767
46%
667
27%
1043
98%
560
6%
Load
90
75
-17%
152
69%
124
38%
95
6%
WiFi
WiFi v1.3
346
451
30%
275
-21%
386
12%
326
-6%
260
-25%
H.264
287
460
60%
335
17%
503
75%
194
-32%

Pro

+ goede systeemprestaties dankzij een snelle processor
+ lage temperatuurontwikkeling
+ geen thermische 'throttling' van de processor
+ scherm met wijde kijkhoeken
+ ontspiegeld scherm
+ matig systeemgeluid
+ laag gewicht ondanks 17-inch-formaat
+ optische drive aanwezig
+ SSD

Contra

- geen toetsenbordverlichting
- kan niet alle games aan ondanks discrete GPU
- ontbreken van onderhoudsklep
- lage WLAN-prestaties
- slechts 256 GB opslagruimte
- geen HDD
- erg trage SD-kaartlezer

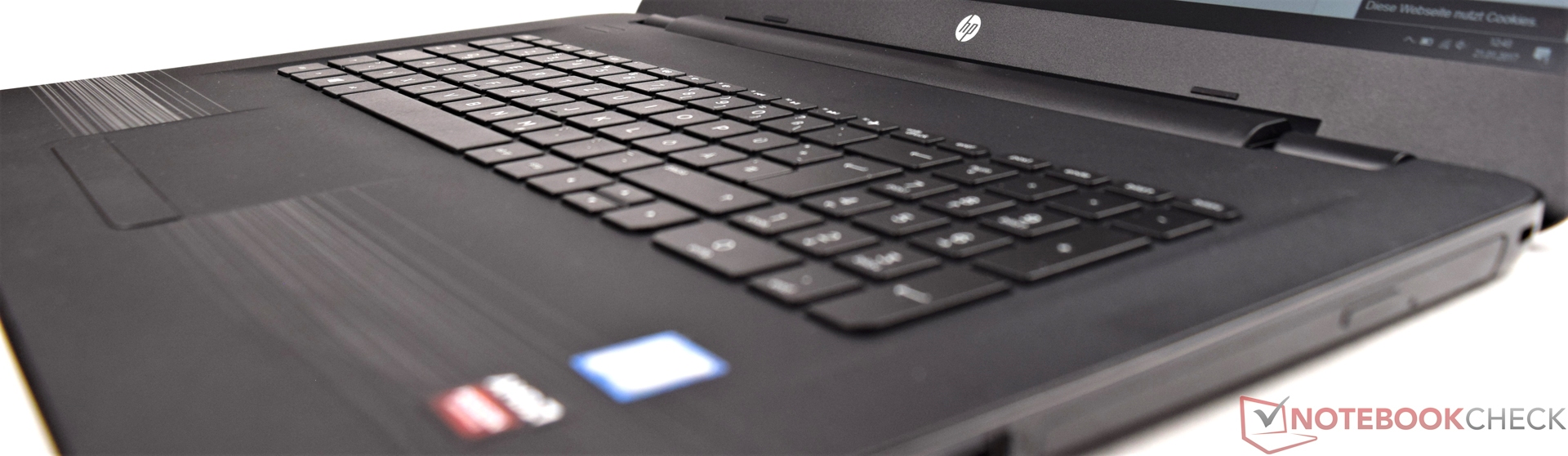

In review: HP Pavilion 17-x110ng. Test model courtesy of Notebooksbilliger.
In review: HP Pavilion 17-x110ng. Test model courtesy of Notebooksbilliger.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

HP's 17-inch multimedia-notebook Pavilion 17-x110ng is momenteel verkrijgbaar voor 699 euro. Het toestel is uitgerust met een combinatie van Intel-processor en grafische kaart van AMD in een onopvallende, zwarte behuizing van plastic. De Intel Core i5-7200U is een moderne Kaby Lake-chip en de efficiënte dual-core biedt voldoende prestaties voor de meeste multimedia-applicaties. 8 GB DDR4-RAM is ook degelijk; je zou dus geen problemen mogen ondervinden bij het gebruik van (veeleisende) applicaties. Het IPS-scherm heeft brede kijkhoeken en we kunnen geen 'backlight bleeding' waarnemen.

De HP Pavilion 17-x110ng weet te overtuigen met goede systeemprestaties, maar de gaming-capaciteiten worden beperkt door de trage grafische kaart.

Een discrete grafische kaart is een leuke toevoeging, maar je kan het best goed nadenken wat je specifieke gebruiksscenario is, aangezien de prestaties alleen toereikend zijn voor vloeiende gameplay in lage resoluties. Het opslagtoestel is zowel een plus- als minpunt. Het is zinvol om een snelle SSD als systeemschijf te gebruiken, maar 256 GB zal niet volstaan voor een multimedia-toestel waar grote hoeveelheden aan data praktisch een gegeven zijn.

HP Pavilion 17-x110ng - 24-01-2017 v6
Sebastian Bade

Behuizing
78 / 98 → 80%
Toetsenbord
78%
Aanwijsapparaat
77%
Aansluitmogelijkheden
40 / 81 → 49%
Gewicht
60 / 67 → 84%
Batterij
82%
Beeldscherm
85%
Gaming-performance
58 / 85 → 69%
Applicatie-performance
83 / 92 → 90%
Temperatuur
93%
Luidheid
87 / 95 → 92%
Audio
59%
Camera
42 / 85 → 50%
Gemiddelde
71%
79%
Multimedia - Gewogen Gemiddelde

Pricecompare

> Laptop Testrapporten, technische Informatie > Testrapporten > Kort testrapport HP Pavilion 17-x110ng Notebook
Sebastian Bade, 2017-01-29 (Update: 2017-01-29)
