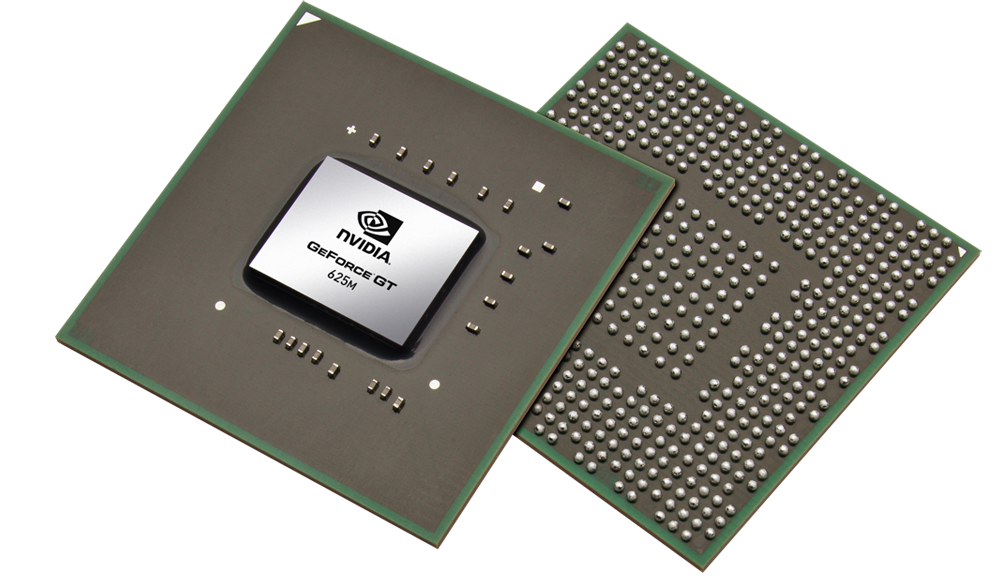

NVIDIA GeForce GT 625M

NVIDIA GeForce GT 625M

The AMD Radeon HD 8550G is a processor graphics card in the AMD Richland APUs (A8-5550M). It offers only 256 VLIW4 shader cores (8650G: 384). The 8550G has no dedicated graphics memory, but shares the main memory with the CPU cores.

De GeForce GT 625M is een processor grafische kaart in de AMD Richland APU's (A8-5550M).
Hij beschikt over slechts 256 VLIW4 shader cores (8650G: 384). De 8550G heeft geen dedicated grafisch geheugen, maar deelt het werkgeheugen met de CPU cores.

The integrated UVD3 video decoder allows the full decoding of Multi-View Codec (MVC), MPEG-4 Part 2 (DivX, xVid), MPEG-4 AVC/H.264 and Adobe Flash HD video’s.

According to the clock rates of 515 - 720 MHz (Turbo), the performance should be only a few percent above a Radeon HD 7640G. Thus, the Radeon HD 8550G performs similar to a dedicated Radeon HD 7570M. Without fast dual-channel memory the performance drops dramatically, however.

The shaders of the chip can also be used for general computing.

The APU is manufactured in 32nm and rated at a TDP of 35 watts. This allows the chip to be used in notebooks from 13 to 14 inches or bigger.

FabrikantNVIDIA
GeForce GT 600M Serie
GeForce GT 650M SLI 768 @ 790 - 835 (Boost) MHz2x 128 bit @ 4000 MHz
GeForce GT 650M 384 @ 735 - 900 (Boost) MHz128 bit @ 1800 - 4000 MHz
GeForce GT 645M 384 @ 710 MHz128 bit @ 1800 MHz
GeForce GT 640M 384 @ 625 - 645 (Boost) MHz128 bit @ 1800 - 4000 MHz
GeForce GT 640M LE 384 @ 500 MHz128 bit @ 1800 - 4000 MHz
GeForce GT 635M 144 @ 660 - 753 (Boost) MHz128/192 bit @ 1800 MHz
GeForce GT 630M 96 @ 672 MHz128 bit @ 1800 MHz
GeForce GT 625M 96 @ 625 MHz64 bit @ 1800 MHz
GeForce GT 620M 96 @ 625 - 715 (Boost) MHz64 / 128 bit @ 1800 MHz
CodenaamN13M-GS
ArchitectuurFermi
Pipelines96 - verenigd
Core-snelheid *625 MHz
Geheugensnelheid *1800 MHz
Geheugenbusbreedte64 bit
GeheugentypeDDR3
Max. hoeveelheid geheugen1024 MB
Gedeeld geheugennee
DirectXDirectX 11, Shader 5.0
Stroomverbruik15 Watt
technologie28 nm
FaciliteitenPhysX, Verde Drivers, CUDA, Play, Optimus
Laptop Groottegemiddeld formaat
Aangekondigde datum01.10.2012
Link naar fabrikanthttp://www.geforce.com/hardware/notebook...
* De gespecificeerde kloksnelheden zijn slechts richtlijnen van de fabrikant en kunnen door hen gewijzigd zijn.

Benchmarks

Geen benchmarks voor deze grafische kaart gevonden.

Voor meer games die mogelijk speelbaar zijn of voor een lijst van alle games en videokaarten, bezoek onze Gaming List

v1.3

#0 Did not recreate cache, as it is less than 5 days old! +0.001s ... 0.001s

#1 Before gaming benchmark output +0.036s ... 0.036s

#2 return log +0.004s ... 0.041s

Notebook-testrapporten met NVIDIA GeForce GT 625M grafische kaart
