Kort testrapport Lenovo Miix 510 Pro 80U10006GE Convertible

Opvolger van de Surface. Het is onvermijdelijk dat een 2-in-1 in de voetsporen van de MS Surface Pro 4 zal worden vergeleken aan dit model. Lenovo biedt betere verbindingsmogelijkheden en snellere SSD, maar het beeldscherm en de camera's blijven achter.
Lenovo Miix 510 Pro 80U10006GE (Miix 510 Serie)
Processor
Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake
Grafische kaart
Geheugen
8 GB
, DDR4 Dual Channel
Beeldscherm
12.20 inch 16:10, 1920 x 1200 pixel 186 PPI, 10-vinger multi-touch, ingebouwde pen ondersteuning, Unknown, IPS, glimmend: ja
Moederbord
Intel Skylake-U Premium PCH
Opslag
Samsung PM951 NVMe MZVLV256, 256 GB
, 185 GB beschikbaar
Geluidskaart
Intel Skylake-U/Y PCH - High Definition Audio
Verbindingen
2 USB 3.0, Audio Verbindingen: Audio combinatiepoort, Helderheidssensor, Micro-SIM (Optioneel LTE)
Netwerkmogelijkheden
Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Afmetingen
hoogte x breedte x diepte (in mm): 9.9 x 300 x 205
Batterij
50 Wh Lithium-Polymer, Intel SR1 Real Battery, Batterijduur: 8 h
Besturingssysteem
Microsoft Windows 10 Pro 64 Bit
Camera
Primaire camera: 2 MPix Voorkant met vaste brandpuntsafstand
Secundaire Camera: 5 MPix Achterkant met autofocus
Bijkomende functionaliteiten
Luidsprekers: Stereo with Dolby Audio, Toetsenbord: Chiclet, Toetsenbordverlichting: nee, Stroomadapter 45W, Active Pen met batterij, houder voor de Active Pen, beschermhoes, Lenovo ID, Always Online, App Explorer voor FPC, CCSDK, WRITEit, PC Manager, Cloud Disk, Microsoft Office Desktop, Yandex, 12 Maanden Garantie
Gewicht
1.236 kg, Voeding: 176 g
Prijs
980 Euro
Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.

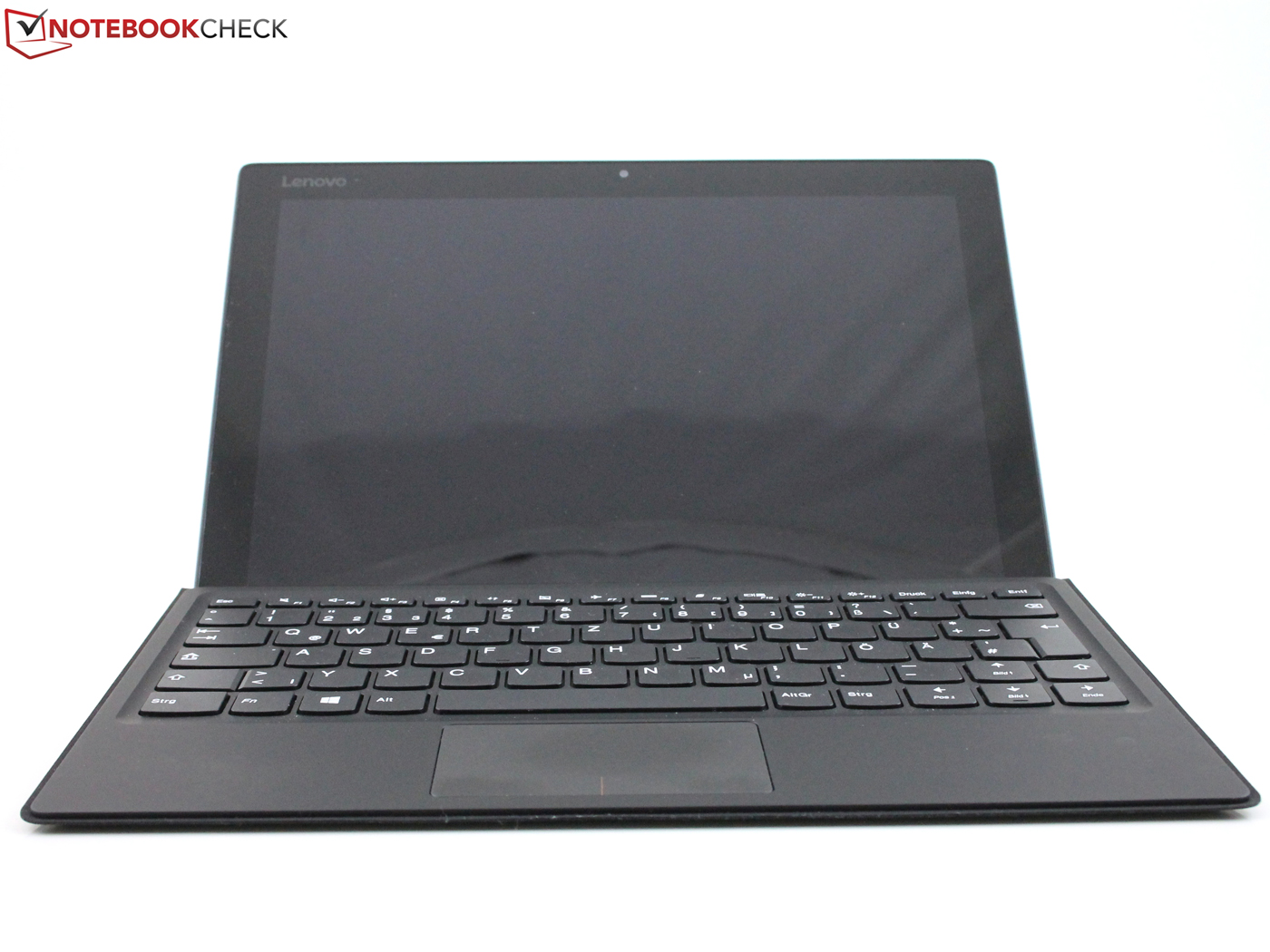

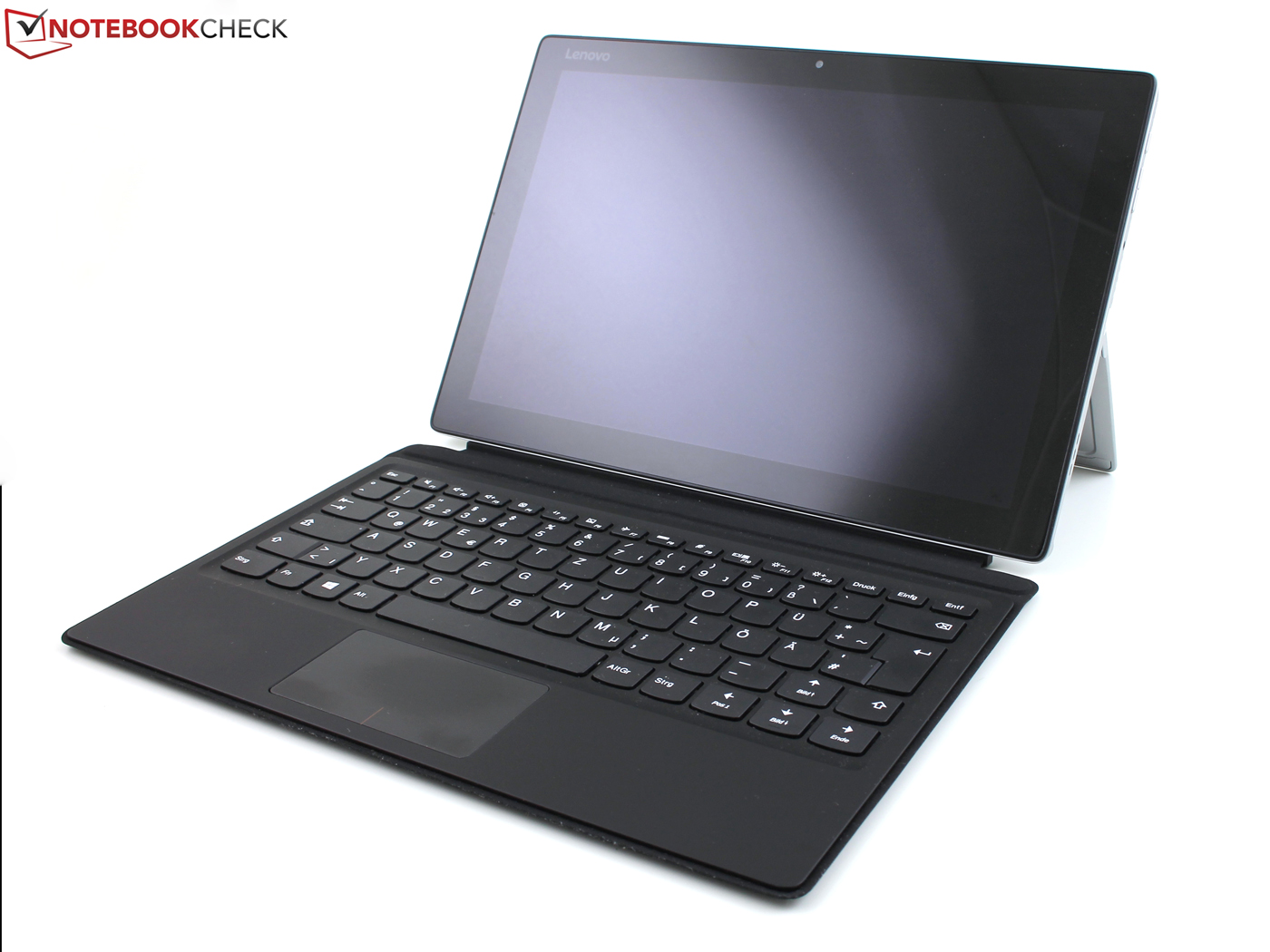

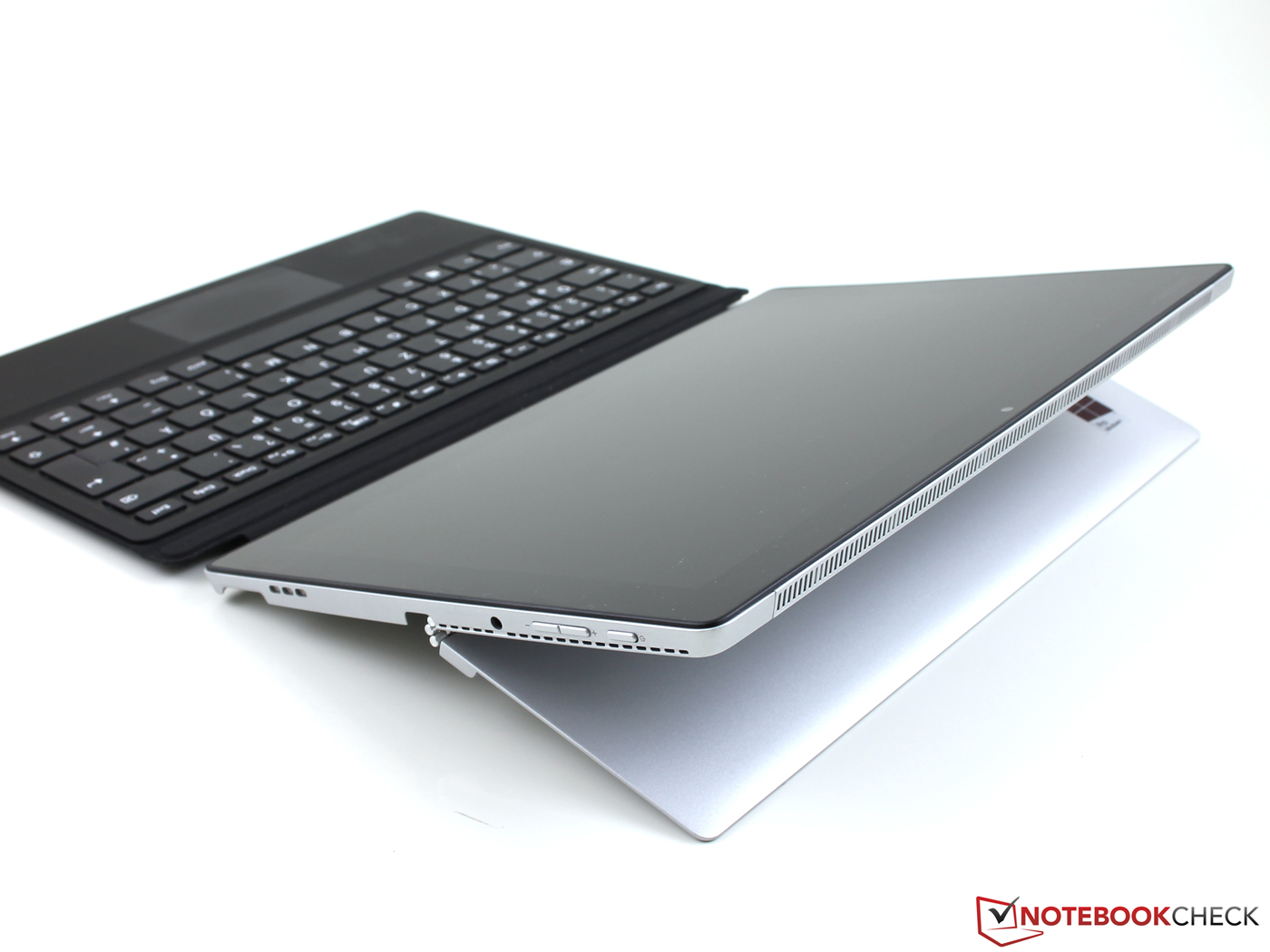

Lenovo IdeaPad Miix 510-12ISK op het toetsenbord dock.

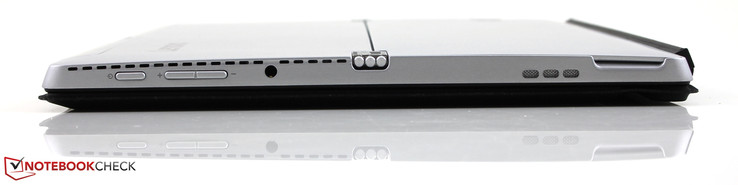

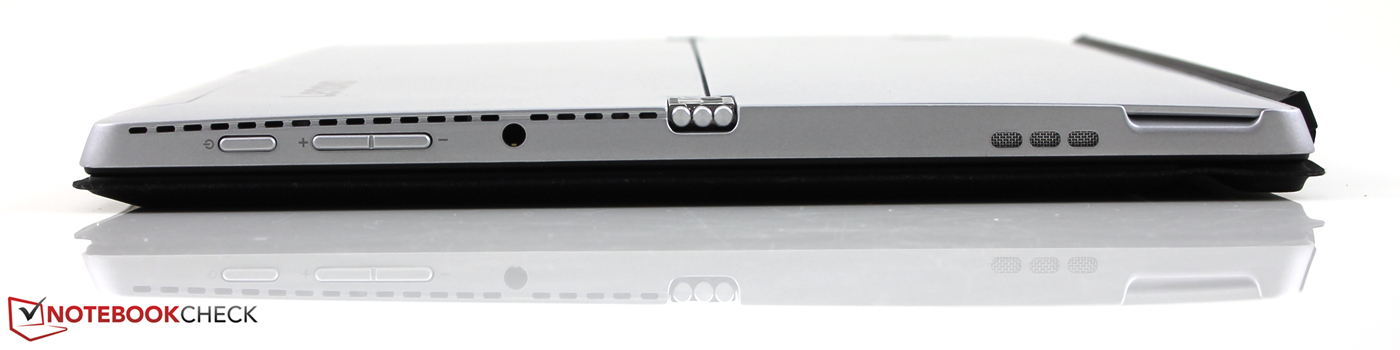

Aan/uit, volume, audiopoort
Aan/uit, volume, audiopoort

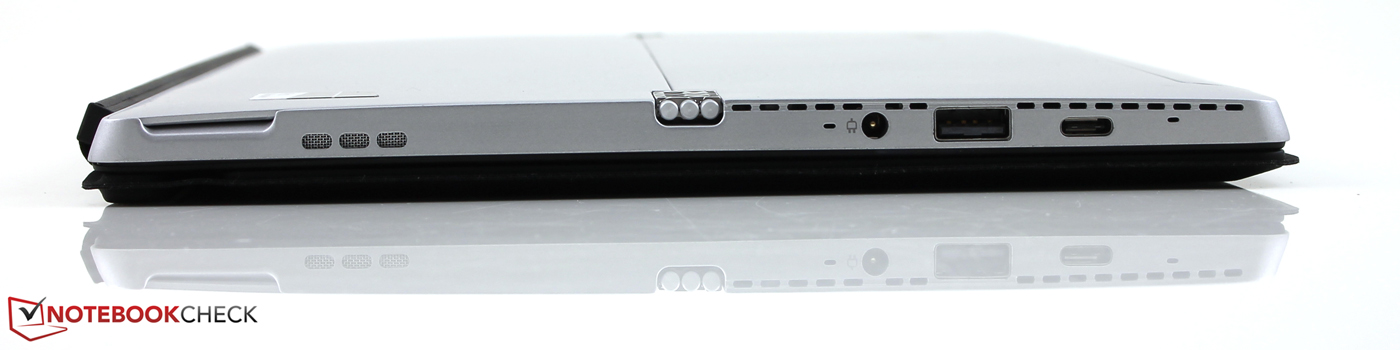

Stroomaansluiting, USB 3.0, USB 3.0 Type-C, rechts + links microfoons
Stroomaansluiting, USB 3.0, USB 3.0 Type-C, rechts + links microfoons
Networking
iperf Server (receive) TCP 1 m
Lenovo Miix 510 Pro 80U10006GE
Intel Dual Band Wireless-AC 8260 (jseb)
638 MBit/s
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Dell Wireless 1820A 802.11ac
579 MBit/s -9%
Huawei MateBook m5-6Y54
Broadcom BCM4356 802.11ac 2x2:2 (876 Mbps)
534 MBit/s -16%
Asus Zenbook UX360UA-C4159T
Intel Dual Band Wireless-AC 7265
505 MBit/s -21%
iperf Client (transmit) TCP 1 m
Asus Zenbook UX360UA-C4159T
Intel Dual Band Wireless-AC 7265
526 MBit/s +5%
Lenovo Miix 510 Pro 80U10006GE
Intel Dual Band Wireless-AC 8260 (jseb)
500 MBit/s
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Dell Wireless 1820A 802.11ac
461 MBit/s -8%
Huawei MateBook m5-6Y54
Broadcom BCM4356 802.11ac 2x2:2 (876 Mbps)
453 MBit/s -9%
331
cd/m²
343
cd/m²
333
cd/m²
323
cd/m²
327
cd/m²
319
cd/m²
315
cd/m²
323
cd/m²
303
cd/m²
Helderheidsverdeling
Unknown tested with X-Rite i1Pro 2
Maximum: 343 cd/m² (Nits) Gemiddelde: 324.1 cd/m² Minimum: 2.7 cd/m²
Helderheidsverdeling: 88 %
Helderheid in Batterij-modus: 327 cd/m²
Contrast: 934:1 (Zwart: 0.35 cd/m²)
ΔE Color 6.54 | 0.5-29.43 Ø5
ΔE Greyscale 9.52 | 0.57-98 Ø5.3
92% sRGB (Argyll 1.6.3 3D)
59% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
92% sRGB (Argyll 2.2.0 3D)
64.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.35
Lenovo Miix 510 Pro 80U10006GE
Unknown, , 1920x1200, 12.20
Microsoft Surface Pro 4, Core i5, 128GB
Samsung 123YL01-001 ID: SDC3853, , 2736x1824, 12.30
HP Elite x2 1012 G1
LG Philips, , 1920x1280, 12.10
Acer Aspire Switch Alpha 12 SA5-271-56HM
Panasonic VVX12T041N00, , 2160x1440, 12.00
Lenovo IdeaPad Miix 700
Samsung L_QLLTN120QL01L01, , 2160x1440, 12.00
Huawei MateBook m5-6Y54
TMA 1200 Unknown Vendor, , 2160x1440, 12.00
Display
3%
-18%
3%
6%
3%
Display P3 Coverage
64.5
65
1%
53.8
-17%
65.5
2%
68.1
6%
65.8
2%
sRGB Coverage
92
96.5
5%
73.7
-20%
96.1
4%
97.4
6%
96.2
5%
AdobeRGB 1998 Coverage
65.5
67
2%
53.8
-18%
66.9
2%
70.2
7%
66.8
2%
Response Times
-45%
0%
230%
33%
25%
Response Time Grey 50% / Grey 80% *
33 ?(21, 12)
46 ?(17.2, 28.8, plateau, spikes in between)
-39%
33.2 ?(15.2, 18)
-1%
20 ?(5, 15, detail 5 schraffiert)
39%
30 ?(11, 19)
9%
25 ?(9, 16)
24%
Response Time Black / White *
23 ?(10, 13)
31.2 ?(6, 25.2, Spikes in between)
-36%
22.8 ?(10.4, 12.4)
1%
34 ?(15, 19, PWM@100% mit/ohne PSU)
-48%
16 ?(4.4, 11.6)
30%
17 ?(4, 13)
26%
PWM Frequency
125 ?(90)
50 ?(50)
-60%
1000 ?(100)
700%
200 ?(18)
60%
Screen
21%
1%
6%
4%
4%
Brightness middle
327
413
26%
322
-2%
345
6%
341
4%
451
38%
Brightness
324
396
22%
319
-2%
328
1%
318
-2%
425
31%
Brightness Distribution
88
87
-1%
97
10%
91
3%
87
-1%
80
-9%
Black Level *
0.35
0.36
-3%
0.42
-20%
0.38
-9%
0.36
-3%
0.37
-6%
Contrast
934
1147
23%
767
-18%
908
-3%
947
1%
1219
31%
Colorchecker dE 2000 *
6.54
3.09
53%
6.02
8%
8.4
-28%
6
8%
11.04
-69%
Colorchecker dE 2000 max. *
15.59
10.06
35%
11.9
24%
14.92
4%
Greyscale dE 2000 *
9.52
3.92
59%
6.29
34%
4.3
55%
8.12
15%
10.45
-10%
Gamma
2.35 94%
2.3 96%
2.4 92%
2.63 84%
2.23 99%
2 110%
CCT
8802 74%
7333 89%
7712 84%
7368 88%
7011 93%
8849 73%
Color Space (Percent of AdobeRGB 1998)
59
61
3%
47.8
-19%
62
5%
63.4
7%
74
25%
Color Space (Percent of sRGB)
92
97
5%
73.2
-20%
97.4
6%
100
9%
Totaal Gemiddelde (Programma / Instellingen)
-7% / 4%
-6% / -3%
80% / 50%
14% / 10%
11% / 7%

* ... kleiner is beter

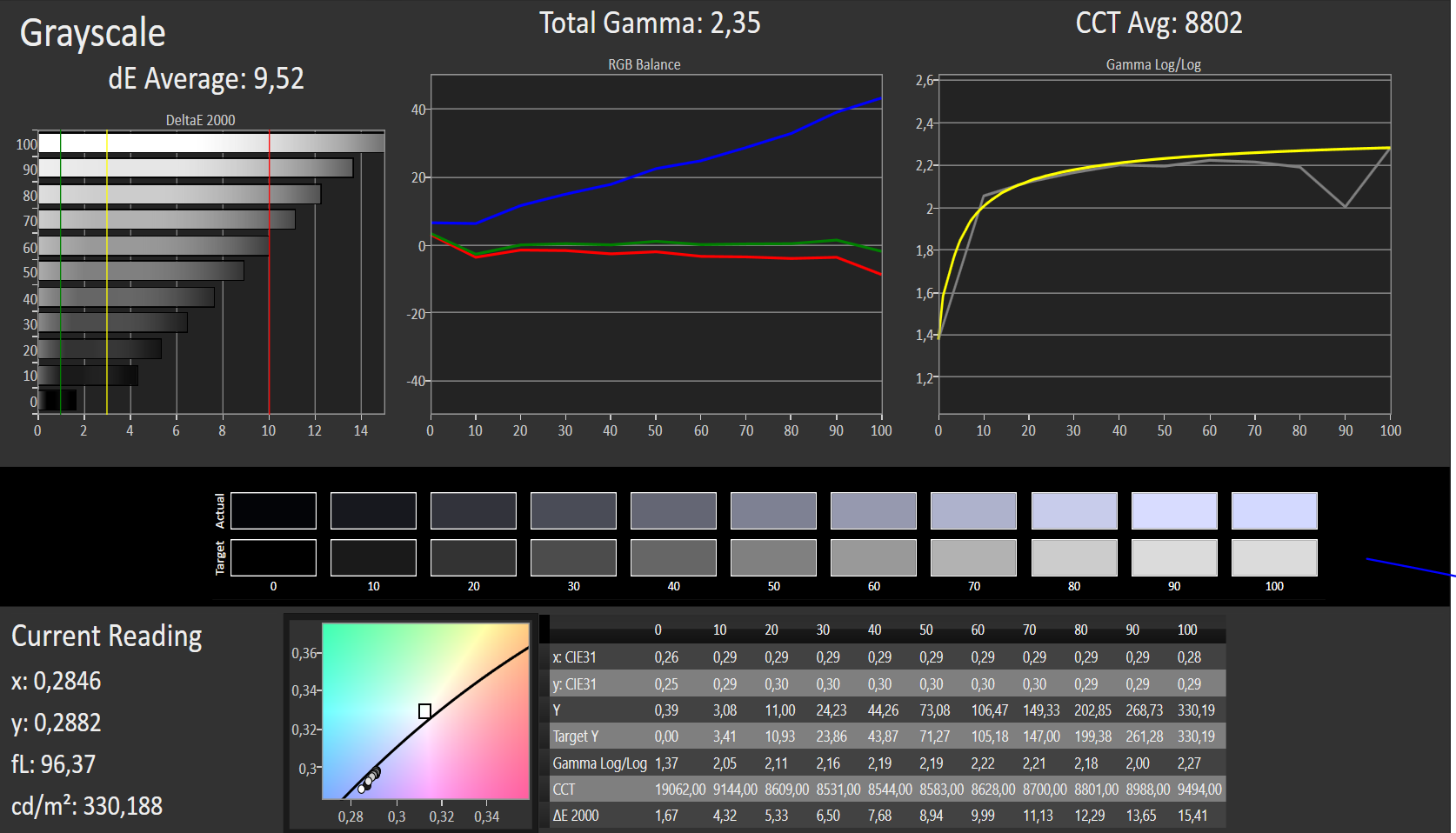

CalMAN Graylevels
CalMAN Graylevels

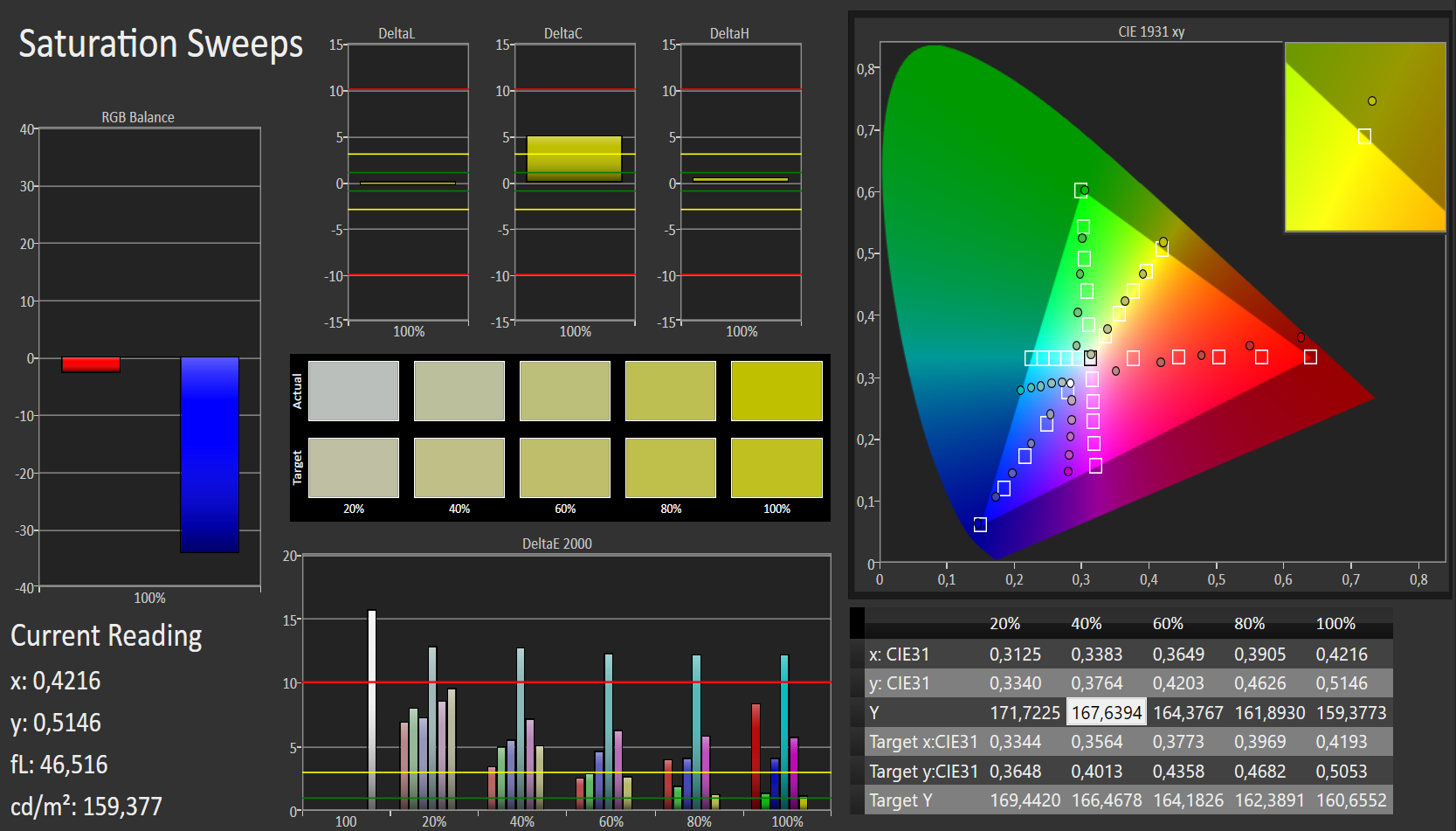

CalMAN Saturation
CalMAN Saturation

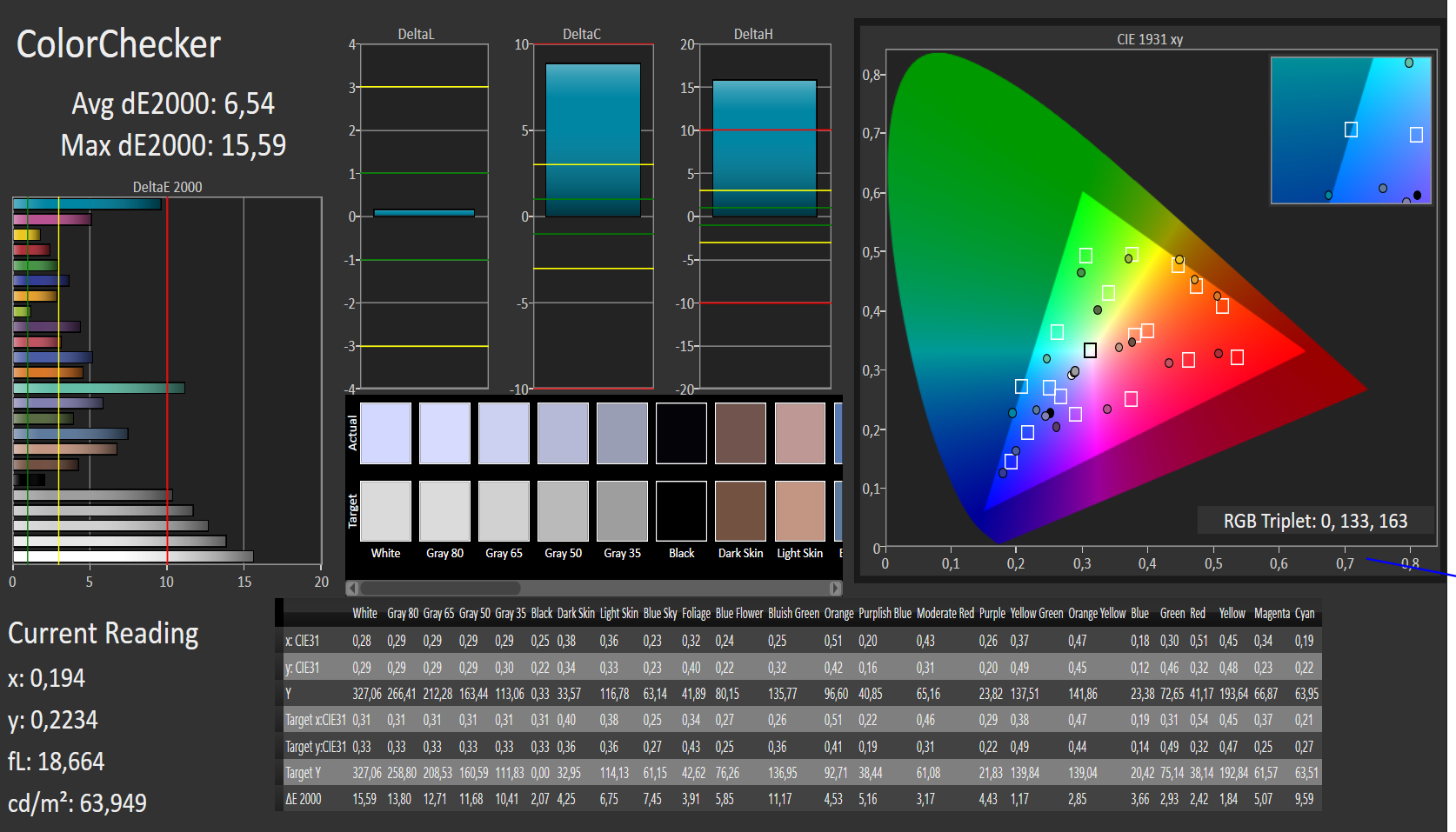

CalMAN ColorChecker
CalMAN ColorChecker

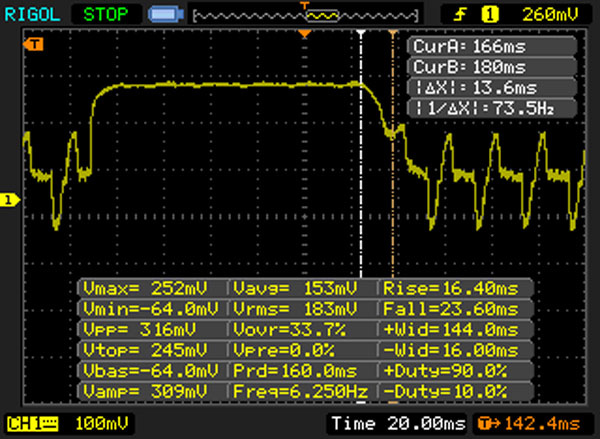

Responstijd Scherm

De responstijden van het scherm tonen hoe snel het scherm in staat is om van één kleur naar de andere te veranderen. Trage responstijden kunnen aanleiding geven tot 'nabeelden' rond bewegende objecten of het scherm wazig maken (blur). Vooral spelers van snelle 3D-games hebben baat bij een scherm met snelle responstijden.
       Responstijd Zwart naar Wit
23 ms ... stijging ↗ en daling ↘ gecombineerd↗ 10 ms stijging
↘ 13 ms daling
Het scherm vertoonde prima responstijden in onze tests maar is misschien wat te traag voor competitieve games.
Ter vergelijking: alle testtoestellen variëren van 0.1 (minimum) tot 240 (maximum) ms. » 45 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (21.6 ms) van alle geteste toestellen.
       Responstijd 50% Grijs naar 80% Grijs
33 ms ... stijging ↗ en daling ↘ gecombineerd↗ 21 ms stijging
↘ 12 ms daling
Het scherm vertoonde trage responstijden in onze tests en is misschien te traag voor games.
Ter vergelijking: alle testtoestellen variëren van 0.2 (minimum) tot 636 (maximum) ms. » 38 % van alle toestellen zijn beter.
Dit betekent dat de gemeten responstijd vergelijkbaar is met het gemiddelde (33.9 ms) van alle geteste toestellen.

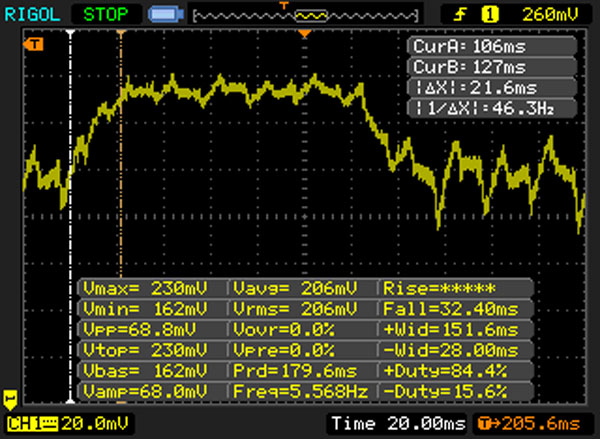

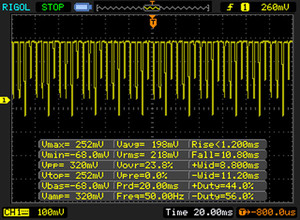

Screen Flickering / PWM (Pulse-Width Modulation)

Om de schermhelderheid te verlagen schakelen sommige laptops het backlight erg snel aan en uit. Dit gebeurt aan een dergelijk hoge frequentie dat het niet zichtbaar is voor het menselijk oog. Als de frequentie te laag is kunnen personen met gevoelige ogen geïrriteerd geraken, hoofdpijn krijgen en zelfs flickering waarnemen.
Screen flickering / PWM waargenomen 125 Hz ≤ 90 % helderheid instelling

Het backlight van het scherm flikkert aan 125 Hz (hoogstwaarschijnlijk met PWM - Pulse-Width Modulation) aan een helderheid van 90 % en lager. Boven deze helderheid zou er geen flickering / PWM mogen optreden.

De frequentie van 125 Hz is erg laag en kan dus aanleiding geven tot geïrriteerde ogen en hoofdpijn bij langer gebruik.

Ter vergelijking: 53 % van alle geteste toestellen maakten geen gebruik van PWM om de schermhelderheid te verlagen. Als het wel werd gebruikt, werd een gemiddelde van 18071 (minimum: 5 - maximum: 3846000) Hz waargenomen.

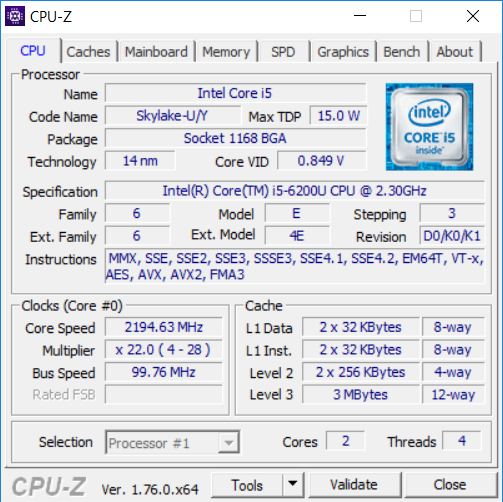

Systeminfo: CPU-Z CPU

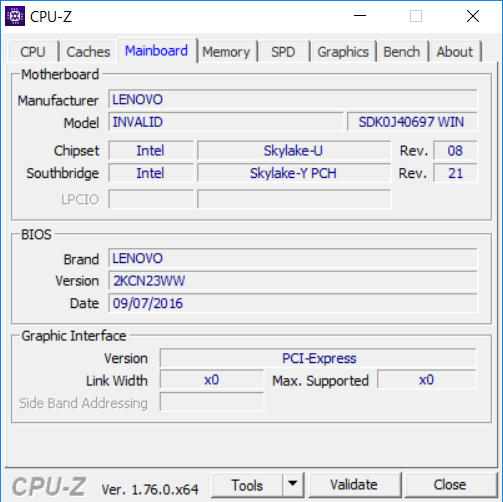

Systeminfo: CPU-Z Mainboard

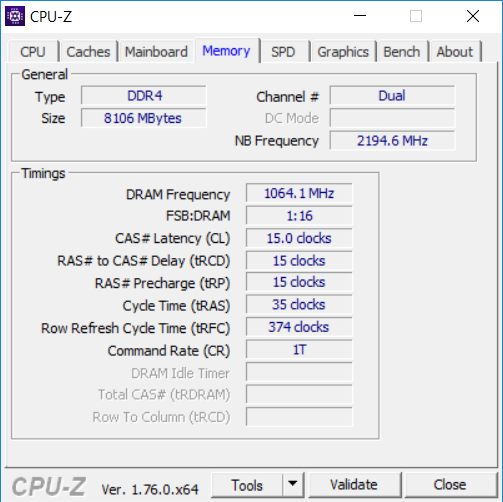

Systeminfo: CPU-Z Memory

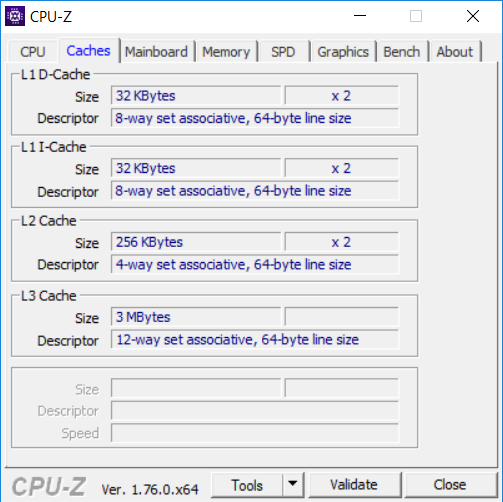

Systeminfo: CPU-Z Cache

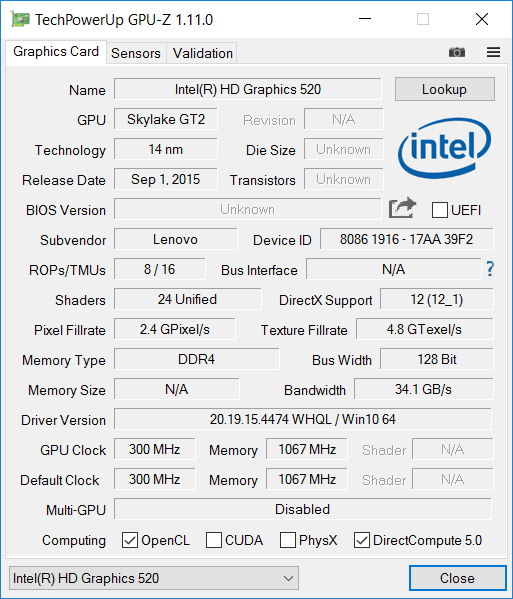

Systeminfo: GPU-Z HD 520

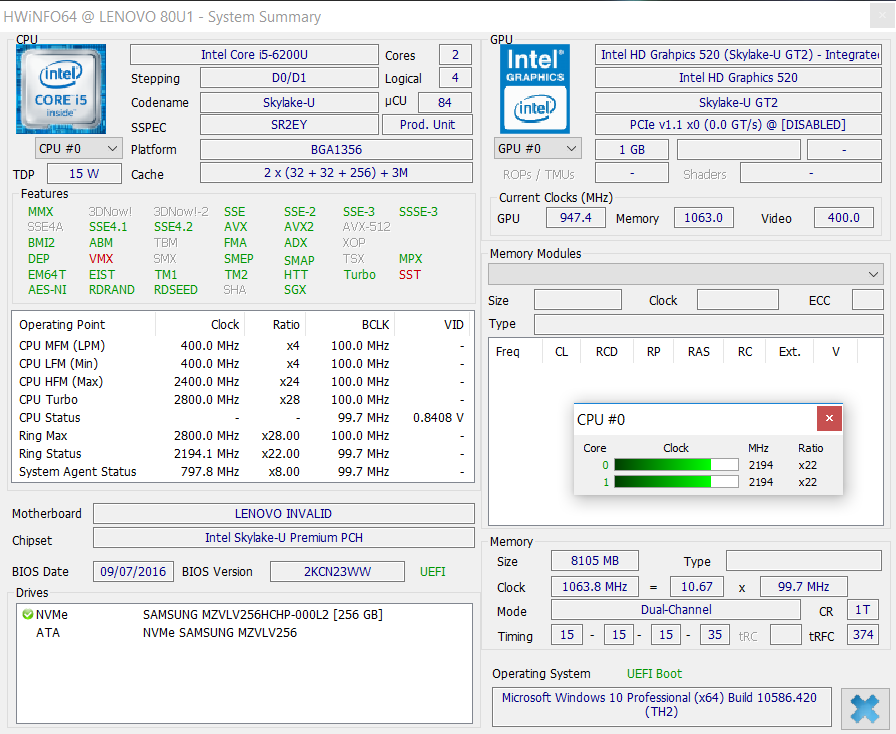

Systeminfo: HWinfo

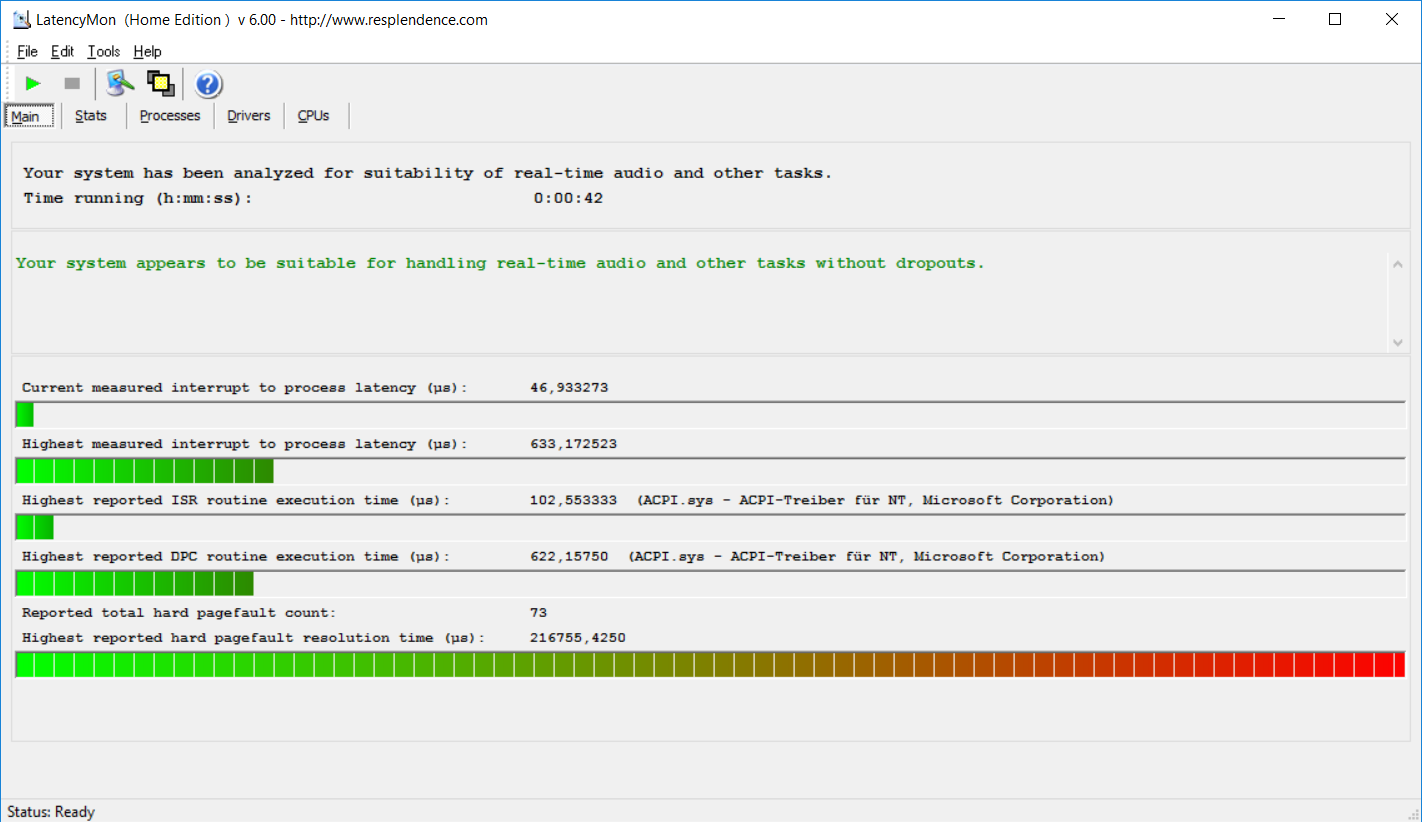

Latency Monitor
Cinebench R15
CPU Single 64Bit
Microsoft Surface Pro 4, Core i5, 128GB
Intel Core i5-6300U
122 Points +5%
Lenovo Miix 510 Pro 80U10006GE
Intel Core i5-6200U
116 Points
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel Core i5-6200U
114 Points -2%
HP Elite x2 1012 G1
Intel Core m5-6Y54
111 Points -4%
Acer Spin 7 SP714-51-M09D
Intel Core i5-7Y54
111 Points -4%
Huawei MateBook m5-6Y54
Intel Core m5-6Y54
107 Points -8%
Lenovo IdeaPad Miix 700
Intel Core m5-6Y54
99 Points -15%
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
88 Points -24%
CPU Multi 64Bit
Microsoft Surface Pro 4, Core i5, 128GB
Intel Core i5-6300U
306 Points +24%
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel Core i5-6200U
289 Points +17%
HP Elite x2 1012 G1
Intel Core m5-6Y54
255 Points +4%
Lenovo Miix 510 Pro 80U10006GE
Intel Core i5-6200U
246 Points
Huawei MateBook m5-6Y54
Intel Core m5-6Y54
232 Points -6%
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
206 Points -16%
Acer Spin 7 SP714-51-M09D
Intel Core i5-7Y54
205 Points -17%
Lenovo IdeaPad Miix 700
Intel Core m5-6Y54
200 Points -19%
Cinebench R15 CPU Single 64Bit
116 Points
Cinebench R15 CPU Multi 64Bit
246 Points
Cinebench R15 OpenGL 64Bit
39.88 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
PCMark 8
Home Score Accelerated v2
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
3281 Points +1%
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
3264 Points
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
2983 Points -9%
Acer Spin 7 SP714-51-M09D
HD Graphics 615, i5-7Y54, Kingston RBUSNS4180S3256GG
2979 Points -9%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
2770 Points -15%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
2733 Points -16%
Huawei MateBook m5-6Y54
HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027
2717 Points -17%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2426 Points -26%
Work Score Accelerated v2
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
4197 Points
Acer Spin 7 SP714-51-M09D
HD Graphics 615, i5-7Y54, Kingston RBUSNS4180S3256GG
4076 Points -3%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
3996 Points -5%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
3932 Points -6%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
3837 Points -9%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3697 Points -12%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
3186 Points -24%
Huawei MateBook m5-6Y54
HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027
2721 Points -35%
PCMark 8 Home Score Accelerated v2
3264 punten
PCMark 8 Work Score Accelerated v2
4197 punten
Help
Lenovo Miix 510 Pro 80U10006GE
Samsung PM951 NVMe MZVLV256
Microsoft Surface Pro 4, Core i5, 128GB
Samsung MZFLV128 NVMe
HP Elite x2 1012 G1
Liteon L8H-256V2G
Acer Aspire Switch Alpha 12 SA5-271-56HM
Kingston RBU-SNS8152S3256GG2
Lenovo IdeaPad Miix 700
Samsung MZNLN128HCGR-000L2
Huawei MateBook m5-6Y54
SanDisk SD8SN8U256G1027
CrystalDiskMark 3.0
-39%
-27%
-38%
-36%
-25%
Read Seq
1271
666
-48%
501
-61%
518
-59%
497.9
-61%
512
-60%
Write Seq
305.4
154.2
-50%
297.2
-3%
199.9
-35%
153.5
-50%
462.1
51%
Read 512
651
266.3
-59%
351.7
-46%
374.9
-42%
401.2
-38%
376
-42%
Write 512
305.2
154.2
-49%
295.7
-3%
201
-34%
154.5
-49%
295.2
-3%
Read 4k
41.07
28.51
-31%
28.31
-31%
29.3
-29%
36.2
-12%
31.83
-22%
Write 4k
122.7
101.5
-17%
90.3
-26%
76.8
-37%
95.5
-22%
64.5
-47%
Read 4k QD32
411.2
368.3
-10%
285
-31%
272
-34%
389.5
-5%
269.6
-34%
Write 4k QD32
305.1
153.6
-50%
268.4
-12%
197.1
-35%
154
-50%
178.2
-42%
Samsung PM951 NVMe MZVLV256
Sequential Read: 1271 MB/s
Sequential Write: 305.4 MB/s
512K Read: 651 MB/s
512K Write: 305.2 MB/s
4K Read: 41.07 MB/s
4K Write: 122.7 MB/s
4K QD32 Read: 411.2 MB/s
4K QD32 Write: 305.1 MB/s
3DMark 11 - 1280x720 Performance GPU
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel HD Graphics 520, Intel Core i5-6200U
1428 Points +9%
Microsoft Surface Pro 4, Core i5, 128GB
Intel HD Graphics 520, Intel Core i5-6300U
1402 Points +7%
Lenovo Miix 510 Pro 80U10006GE
Intel HD Graphics 520, Intel Core i5-6200U
1306 Points
HP Elite x2 1012 G1
Intel HD Graphics 515, Intel Core m5-6Y54
1200 Points -8%
Lenovo IdeaPad Miix 700
Intel HD Graphics 515, Intel Core m5-6Y54
1014 Points -22%
Huawei MateBook m5-6Y54
Intel HD Graphics 515, Intel Core m5-6Y54
781 Points -40%
3DMark
1280x720 Cloud Gate Standard Graphics
Microsoft Surface Pro 4, Core i5, 128GB
Intel HD Graphics 520, Intel Core i5-6300U
7455 Points +19%
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel HD Graphics 520, Intel Core i5-6200U
7307 Points +17%
HP Elite x2 1012 G1
Intel HD Graphics 515, Intel Core m5-6Y54
6308 Points +1%
Lenovo Miix 510 Pro 80U10006GE
Intel HD Graphics 520, Intel Core i5-6200U
6271 Points
Huawei MateBook m5-6Y54
Intel HD Graphics 515, Intel Core m5-6Y54
5638 Points -10%
Lenovo IdeaPad Miix 700
Intel HD Graphics 515, Intel Core m5-6Y54
5259 Points -16%
1920x1080 Fire Strike Graphics
Microsoft Surface Pro 4, Core i5, 128GB
Intel HD Graphics 520, Intel Core i5-6300U
905 Points
HP Elite x2 1012 G1
Intel HD Graphics 515, Intel Core m5-6Y54
797 Points
Lenovo IdeaPad Miix 700
Intel HD Graphics 515, Intel Core m5-6Y54
697 Points
3DMark 11 Performance
1428 punten
3DMark Cloud Gate Standard Score
4755 punten
Help
BioShock Infinite - 1280x720 Very Low Preset
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
58.1 fps +25%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
54.4 fps +17%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
52.4 fps +13%
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
46.3 fps
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
44.1 fps -5%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
33.1 fps -29%
Huawei MateBook m5-6Y54
HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027
26.5 fps -43%
Thief - 1024x768 Very Low Preset
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
18.2 fps
Huawei MateBook m5-6Y54
HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027
13.9 fps -24%
Rise of the Tomb Raider - 1024x768 Lowest Preset
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
17.4 fps
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
17 fps -2%
Huawei MateBook m5-6Y54
HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027
7.3 fps -58%
lage gem. hoge ultra
BioShock Infinite (2013) 46.3 24.9
Thief (2014) 18.2 11.2
Rise of the Tomb Raider (2016) 17.4 9.2

Geluidsniveau

Onbelast
30.15 / 30.8 / 31 dB (A)
Belasting
36.8 / 33.8 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm afstand)   omgevingslawaai: 30.15 dB(A)
 26.3 °C27.6 °C27.2 °C
 26.8 °C27.3 °C27.5 °C
 36.8 °C33.8 °C35.4 °C
Maximum: 36.8 °C
Gemiddelde: 29.9 °C
25.1 °C26.1 °C25 °C
25.4 °C26.2 °C25.5 °C
25.1 °C25.7 °C25.5 °C
Maximum: 26.2 °C
Gemiddelde: 25.5 °C
Stroomadapter (max.)  32.5 °C | Kamertemperatuur 20.6 °C | FIRT 550-Pocket
(±) De gemiddelde temperatuur voor de bovenzijde bij maximale belasting bedraagt 35.8 °C / 96 F, vergeleken met het gemiddelde van 30.2 °C / ###class_avg_f## F voor de apparaten van de klasse Convertible.
(±) De maximumtemperatuur aan de bovenzijde bedraagt 41.4 °C / 107 F, vergeleken met het gemiddelde van 35.3 °C / 96 F, variërend van 19.6 tot 55.7 °C voor de klasse Convertible.
(+) De bodem warmt op tot een maximum van 39.5 °C / 103 F, vergeleken met een gemiddelde van 36.7 °C / 98 F
(+) Bij onbelast gebruik bedraagt de gemiddelde temperatuur voor de bovenzijde 29.9 °C / 86 F, vergeleken met het apparaatgemiddelde van 30.2 °C / 86 F.
(-) De palmsteunen en het touchpad kunnen zeer heet aanvoelen met een maximum van ###max## °C / 104.4 F.
(-) De gemiddelde temperatuur van de handpalmsteun van soortgelijke toestellen bedroeg 28.1 °C / 82.6 F (-12.1 °C / -21.8 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.332.831.32529.532.529.53130.136.930.14028.329.928.35026.631.226.66326.826.326.88026.726.326.710026.526.626.51252824.72816031.224.131.220032.622.232.62503021.53031537.120.737.140053.22053.250053.819.253.863056.618.556.6800541854100056.71856.7125059.517.559.5160060.317.260.3200053.917.553.9250055.917.455.9315063.217.663.2400060.617.860.650006117.861630050.117.950.1800050.117.950.11000055.917.855.91250053.417.753.41600040.722.140.7SPL70.430.270.4N25.31.425.3median 53.8median 18median 53.8Delta10.51.510.531.331.733.430.429.528.926.227.234.531.237.939.536.646.749.358.665.465.259.863.261.764.464.862.763.767.274.668.855.446.97868.73921.8median 59.8median 45.311.223.437.536.637.239.838.639.136.936.639.536.941.746.752.756.261.666.366.164.862.46763.861.562.653.944.646.245.350.355.954.3median 54.38.633.532.233.53231.73235.131.835.131.631.431.632.430.432.430.326.830.328.526.828.529.526.129.533.52633.536253638.224.338.238.922.738.947.22247.25621.35652.520.652.561.419.661.46819.16865.118.865.158.918.658.963.718.863.762.618.362.663.418.663.466.218.666.265.118.765.158.318.858.355.918.955.956.719.156.750.81950.844.818.844.836.318.736.374.931.274.9331.633median 56median 19median 5610.71.310.7hearing rangehide median Pink NoiseLenovo Miix 510 Pro 80U10006GEAcer Aspire Switch Alpha 12 SA5-271-56HMLenovo IdeaPad Miix 700Huawei MateBook m5-6Y54
Lenovo Miix 510 Pro 80U10006GE audioanalyse

(-) | niet erg luide luidsprekers (62 dB)
Bas 100 - 315 Hz
(-) | bijna geen lage tonen - gemiddeld 22.9% lager dan de mediaan
(±) | lineariteit van de lage tonen is gemiddeld (7.4% delta ten opzichte van de vorige frequentie)
Mids 400 - 2000 Hz
(+) | evenwichtige middens - slechts 2.3% verwijderd van de mediaan
(±) | lineariteit van de middentonen is gemiddeld (12.2% delta ten opzichte van de vorige frequentie)
Hoog 2 - 16 kHz
(±) | higher highs - on average 5% higher than median
(±) | lineariteit van de hoogtepunten is gemiddeld (11.5% delta ten opzichte van de vorige frequentie)
Algemeen 100 - 16.000 Hz
(±) | lineariteit van het totale geluid is gemiddeld (27.9% verschil met de mediaan)
Vergeleken met dezelfde klasse
» 83% van alle geteste apparaten in deze klasse waren beter, 3% vergelijkbaar, 15% slechter
» De beste had een delta van 6%, het gemiddelde was 21%, de slechtste was 57%
Vergeleken met alle geteste toestellen
» 82% van alle geteste apparaten waren beter, 3% gelijk, 15% slechter
» De beste had een delta van 4%, het gemiddelde was 25%, de slechtste was 134%

Acer Aspire Switch Alpha 12 SA5-271-56HM audioanalyse

(±) | luidspreker luidheid is gemiddeld maar goed (73 dB)
Analysis not possible as minimum curve is missing or too high

Lenovo IdeaPad Miix 700 audioanalyse

(±) | luidspreker luidheid is gemiddeld maar goed (74.3 dB)
Analysis not possible as minimum curve is missing or too high

Huawei MateBook m5-6Y54 audioanalyse

(-) | niet erg luide luidsprekers (67 dB)
Bas 100 - 315 Hz
(-) | bijna geen lage tonen - gemiddeld 18.8% lager dan de mediaan
(±) | lineariteit van de lage tonen is gemiddeld (8.4% delta ten opzichte van de vorige frequentie)
Mids 400 - 2000 Hz
(±) | hogere middens - gemiddeld 5.9% hoger dan de mediaan
(±) | lineariteit van de middentonen is gemiddeld (14.5% delta ten opzichte van de vorige frequentie)
Hoog 2 - 16 kHz
(±) | higher highs - on average 5% higher than median
(±) | lineariteit van de hoogtepunten is gemiddeld (7.9% delta ten opzichte van de vorige frequentie)
Algemeen 100 - 16.000 Hz
(±) | lineariteit van het totale geluid is gemiddeld (28.9% verschil met de mediaan)
Vergeleken met dezelfde klasse
» 85% van alle geteste apparaten in deze klasse waren beter, 3% vergelijkbaar, 12% slechter
» De beste had een delta van 6%, het gemiddelde was 21%, de slechtste was 57%
Vergeleken met alle geteste toestellen
» 84% van alle geteste apparaten waren beter, 3% gelijk, 13% slechter
» De beste had een delta van 4%, het gemiddelde was 25%, de slechtste was 134%

Stroomgebruik
Uit / Standbydarklight 0.33 / 0.6 Watt
Inactiefdarkmidlight 4.2 / 11.5 / 11.7 Watt
Belasting midlight 31 / 27.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo Miix 510 Pro 80U10006GE
6200U, HD Graphics 520, Samsung PM951 NVMe MZVLV256, IPS, 1920x1200, 12.20
Microsoft Surface Pro 4, Core i5, 128GB
6300U, HD Graphics 520, Samsung MZFLV128 NVMe, IPS, 2736x1824, 12.30
HP Elite x2 1012 G1
6Y54, HD Graphics 515, Liteon L8H-256V2G, IPS, 1920x1280, 12.10
Acer Aspire Switch Alpha 12 SA5-271-56HM
6200U, HD Graphics 520, Kingston RBU-SNS8152S3256GG2, IPS, 2160x1440, 12.00
Huawei MateBook m5-6Y54
6Y54, HD Graphics 515, SanDisk SD8SN8U256G1027, IPS, 2160x1440, 12.00
Power Consumption
18%
18%
-7%
0%
Idle Minimum *
4.2
4.4
-5%
3.7
12%
7.3
-74%
7.4
-76%
Idle Average *
11.5
9
22%
6.8
41%
10
13%
11.6
-1%
Idle Maximum *
11.7
10.7
9%
7.6
35%
10.15
13%
11.6
1%
Load Average *
31
19.6
37%
22.5
27%
25.2
19%
16.8
46%
Load Maximum *
27.4
19.9
27%
34.5
-26%
29.3
-7%
19.1
30%

* ... kleiner is beter

Batterijduur
Inactief (zonder WLAN, minimale helderheid)
11h 36min
WiFi Websurfing
5h 22min
Belast (maximale helderheid)
1h 51min
Lenovo Miix 510 Pro 80U10006GE
6200U, HD Graphics 520, 50 Wh
Microsoft Surface Pro 4, Core i5, 128GB
6300U, HD Graphics 520, 38 Wh
HP Elite x2 1012 G1
6Y54, HD Graphics 515, 37 Wh
Acer Aspire Switch Alpha 12 SA5-271-56HM
6200U, HD Graphics 520, 37 Wh
Lenovo IdeaPad Miix 700
6Y54, HD Graphics 515, 41 Wh
Huawei MateBook m5-6Y54
6Y54, HD Graphics 515, 33 Wh
Batterijduur
21%
20%
-2%
34%
-18%
Reader / Idle
696
899
29%
732
5%
640
-8%
861
24%
478
-31%
WiFi v1.3
322
427
33%
443
38%
321
0%
440
37%
263
-18%
Load
111
111
0%
130
17%
112
1%
157
41%
106
-5%
H.264
432
468
450

Pro

+ Goed toetsenbord
+ Type-A en Type-C USB
+ Stabiele behuizing
+ LTE-optie
+ Bruikbare hoofdcamera
+ Goede microfoon

Contra

- Beeldscherm is niet levendig
- PWM bij 90% helderheid en lager
- Ventilator altijd draaiend op netstroom
- Geen monitoruitgang
- Slechte webcam
- Looptijden zijn krap
Getest: Lenovo Miix 510 Pro 80U10006GE. Testmodel geleverd door campuspoint
Getest: Lenovo Miix 510 Pro 80U10006GE. Testmodel geleverd door campuspoint

Voor het volledige, Engelse testrapport, klik hier.

Is de Lenovo Miix 510 Pro een waardige concurrent voor de Surface Pro 4? Ja, met een aantal kanttekeningen, aangezien de 2-in-1 nét niet kan tippen aan de kwaliteit van de Surface. De Miix heeft langere looptijden, betere hoofdcamera en een levendiger beeldscherm nodig.

We stellen de goede bouwkwaliteit en invoerapparaten op prijs, maar zijn minder onder de indruk van het kleine clickpad. De applicatieprestaties zijn uitstekend, hoewel de CPU niet hoger komt dan de standaard kloksnelheid tijdens benchmarks. Dankzij het toetsenbord, goede microfoon en poorten (Type-A, Type-C) is de Miix 510 een bijna ideale metgezel voor mobiel werk. We hadden ook graag een monitoruitgang gezien, want momenteel moet de gebruiker daarvoor een USB dock aanschaffen.

Lenovo biedt veel verschillende configuraties van de Miix 510, dus gebruikers kunnen een geschikt model kiezen. Acer volgt een gelijksoortige aanpak met de Switch 12 Alpha, die in prijs varieert tussen €650 en €1200.

De Aspire Switch Alpha 12 is zeker een alternatief, vooral indien een hogere resolutie gewenst is. LTE is echter geen optie, maar wel een 512 GB SSD. Alleen specifieke modellen bevatten de stylus, dus dat is iets om rekening mee te houden. Het toetsenbord dock is altijd standaard.

De Microsoft Surface Pro 4 met Type Cover en 256 GB opslag is verkrijgbaar voor €1300. De Core i5 6300U heeft een vergelijkbare rekenkracht. De Surface Pro biedt een hogere resolutie, levendigere kleuren en een stylus, maar mist LTE en een USB Type-C poort. De Miix 510 Pro is slim geprijsd op €980. Het testmodel bevat een Intel Core i5 6200U, 8 GB DDR4 RAM en een 256 GB SSD; toetsenbord wordt ook meegeleverd. De Lenovo 2-in-1 is enigszins hoger geprijsd dan een vergelijkbare Switch 12 Alpha.

Lenovo Miix 510 Pro 80U10006GE - 01-11-2016 v5.1(old)
Sebastian Jentsch

Behuizing
84 / 98 → 86%
Toetsenbord
84%
Aanwijsapparaat
80%
Aansluitmogelijkheden
40 / 80 → 50%
Gewicht
72 / 35-78 → 86%
Batterij
84%
Beeldscherm
81%
Gaming-performance
55 / 68 → 81%
Applicatie-performance
83 / 87 → 96%
Temperatuur
89%
Luidheid
92%
Camera
40 / 85 → 47%
Gemiddelde
74%
82%
Convertible - Gewogen Gemiddelde

Pricecompare

Please share our article, every link counts!
> Overzichten en testrapporten over laptops en mobieltjes > Testrapporten > Kort testrapport Lenovo Miix 510 Pro 80U10006GE Convertible
Sebastian Jentsch, 2016-11- 9 (Update: 2016-11- 9)
