Kort testrapport HP Z1 G2 AIO Workstation

Compacte werkruimte. HP biedt al langer een all-in-one workstation aan in zijn productengamma. Ondanks het compacte formaat is de Z1 bedoeld om conventionele desktops te evenaren in performance, onderhoudbaarheid en flexibiliteit. We achterhalen wat men precies mag verwachten van HP's Z1 G2.
HP Z1 G2 G1X47EA
Processor

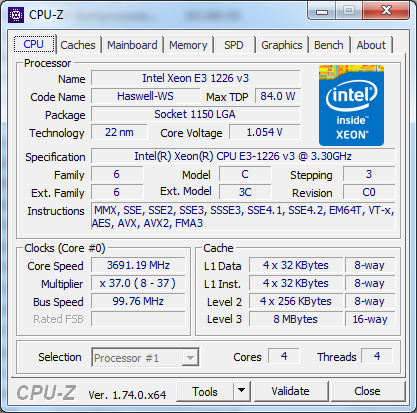

Intel Xeon E3-1226 v3 4 x 3.3 - 3.7 GHz, Haswell
Grafische kaart
NVIDIA Quadro K2100M - 2048 MB VRAM, Core: 667 MHz, Geheugen: 752 MHz, Forceware 354.13 Win7/ 64

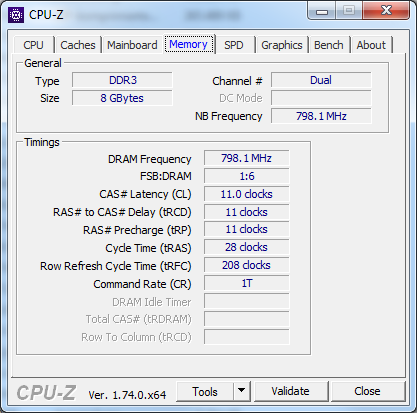

Geheugen
8 GB

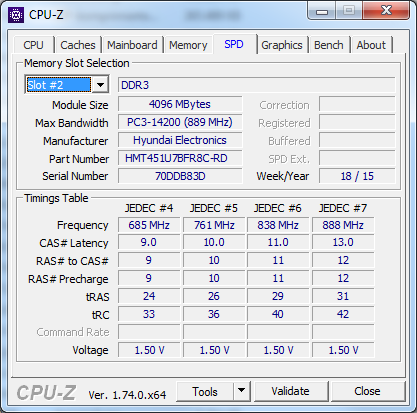

, 2x 4 GB PC3-14200 ECC, 2 lege slots, Hynix HMT451U7BFR8C-RD
Beeldscherm
27.00 inch 16:9, 2560 x 1440 pixel, HWP192F, IPS LED, glimmend: nee
Moederbord

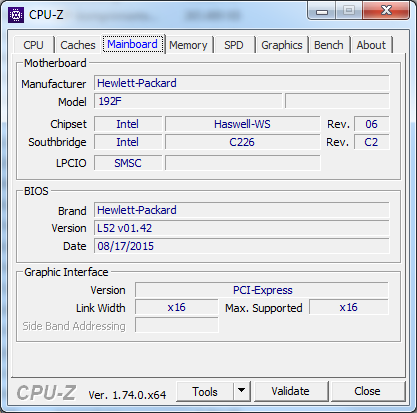

Intel Haswell WS
Opslag
Micron M600 MTFDDAT256MBF mSATA, 256 GB
, approx. 15 GB recovery-partitie
Geluidskaart
Intel IDT High Definition Audio Controller
Verbindingen
4 USB 2.0, 2 USB 3.0, 1 HDMI, Audio Verbindingen: audio in/out, SPDIF, Card Reader: SD, SDXC, SDHC, MXM, 2x mSATA, subwoofer, bay-module, 2x 2.5-inch HDDs of 1x 3.5-inch HDD
Netwerkmogelijkheden
Intel I217-LM Gigabit Network Connection (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Optische drive
HP DVDRAM GTB0N
Afmetingen
hoogte x breedte x diepte (in mm): 528.3 x 660.4 x 419.1
Besturingssysteem
Microsoft Windows 7 Professional 64 Bit
Camera
Webcam: 1080p
Bijkomende functionaliteiten
Luidsprekers: 2 stereo-luidsprekers (4 Watt), DTS Studio Sound, Toetsenbord: desktoptoetsenbord met numpad, Toetsenbordverlichting: nee, muis, 36 Maanden Garantie
Gewicht
21.3 kg
Prijs
3700 Euro
Opmerking: De fabrikant kan onderdelen van verschillende leveranciers gebruiken, waaronder beeldschermen, schijven of geheugensticks met vergelijkbare specificaties.

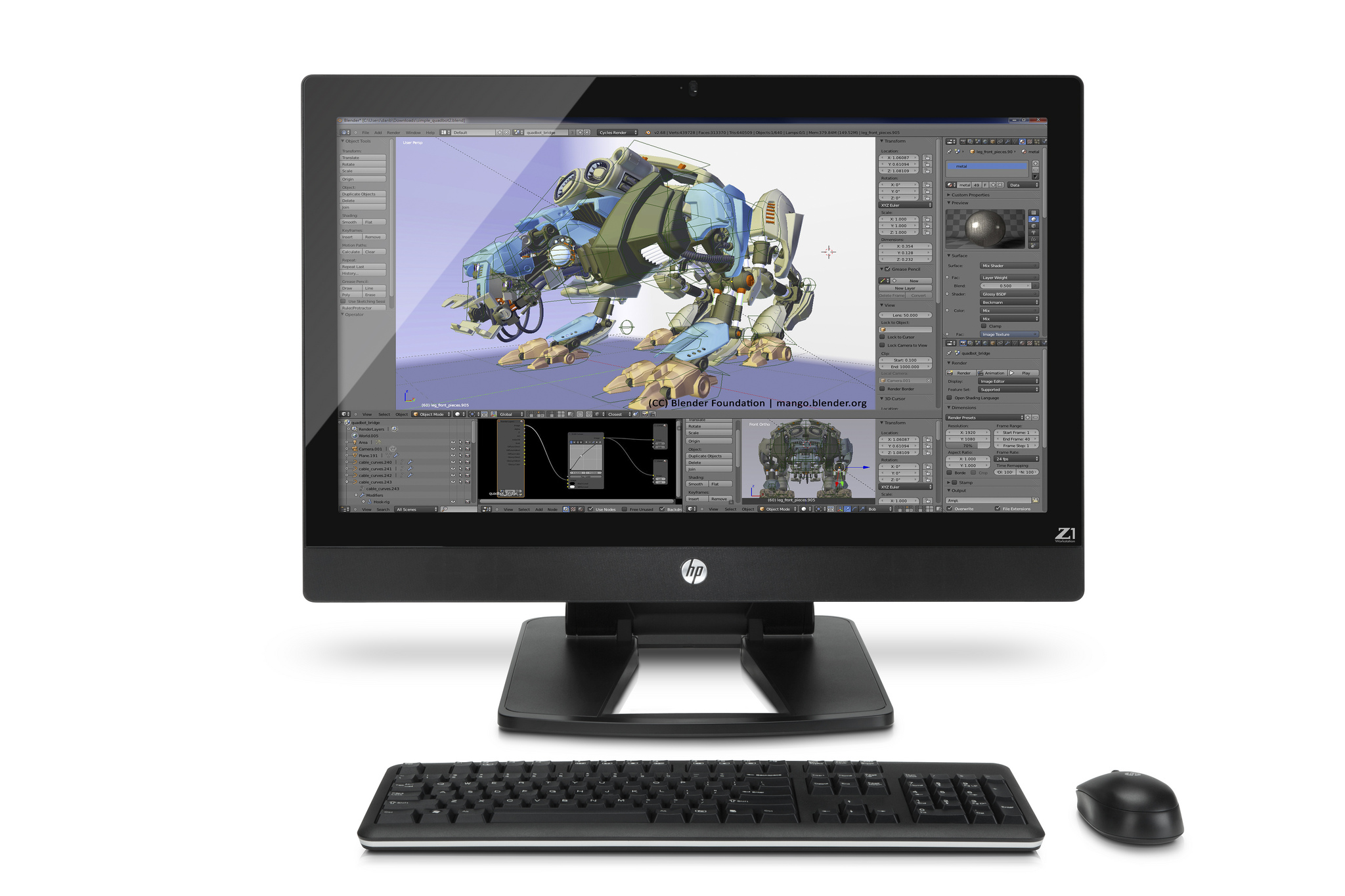

Picture HP: HP Z1 all-in-one workstation in a 27-inch size
Picture HP: HP Z1 all-in-one workstation in a 27-inch size
Picture HP: The Z1 workstation is optionally available with touchscreen

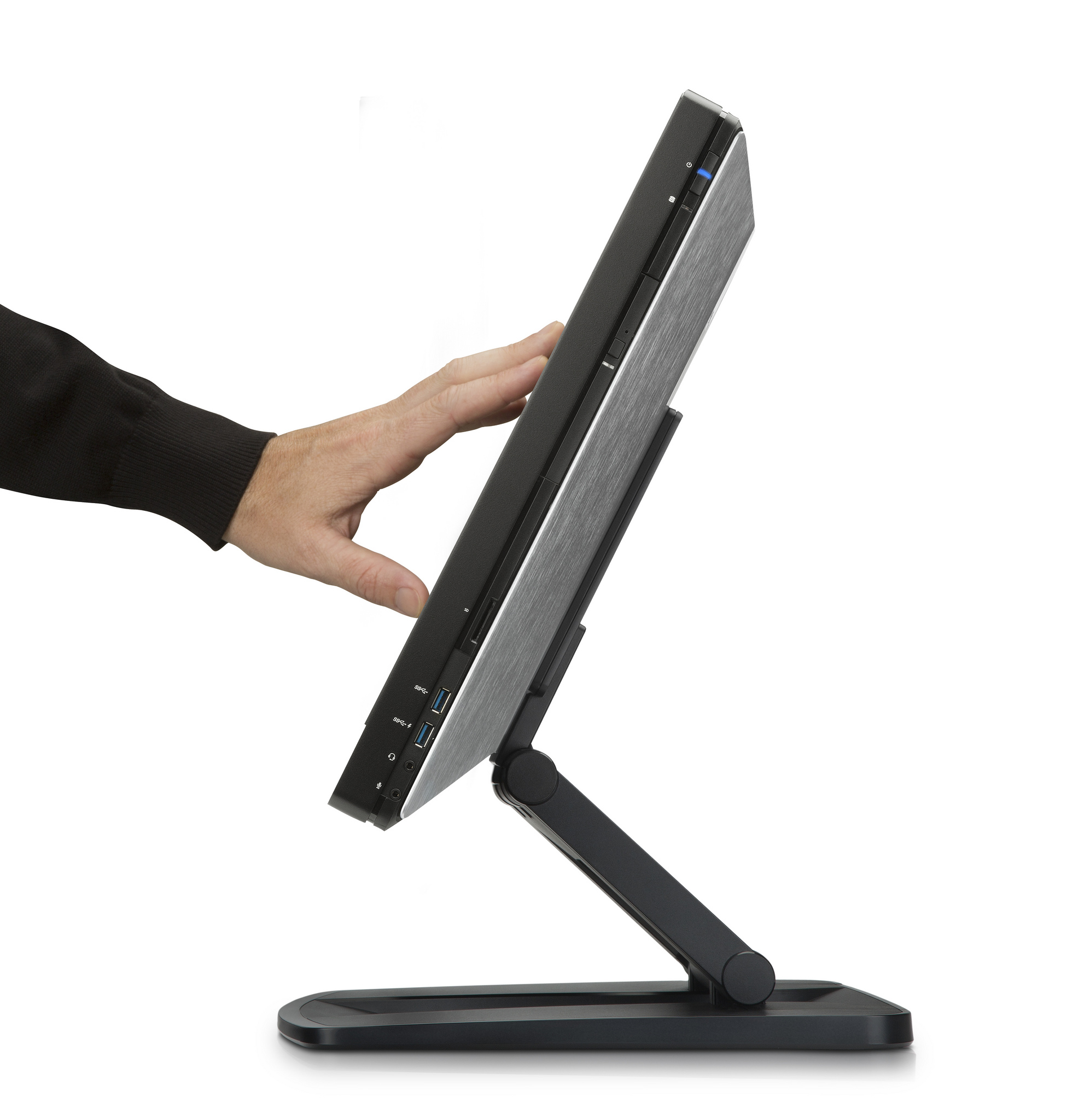

The screen can be tilted in multiple ways

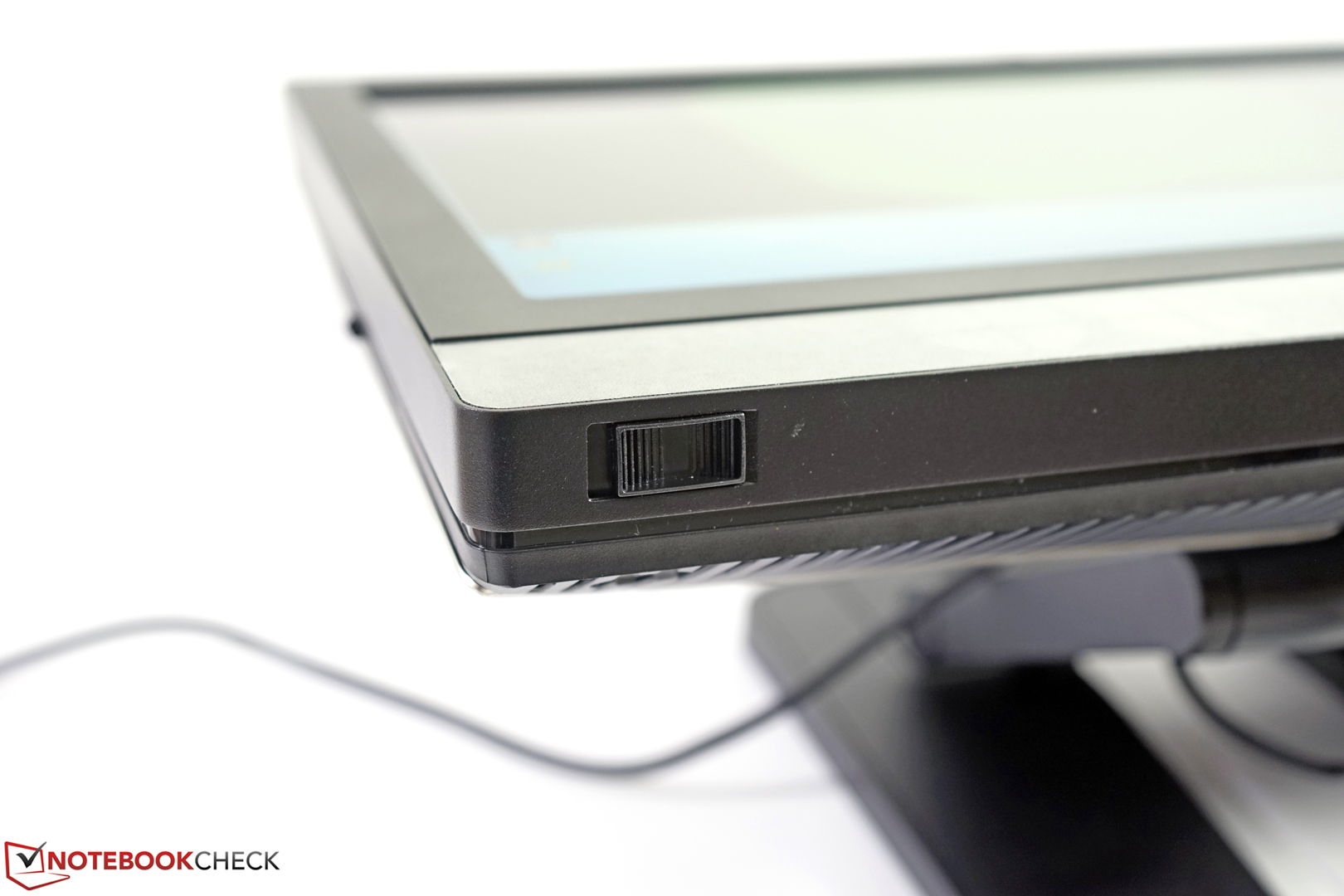

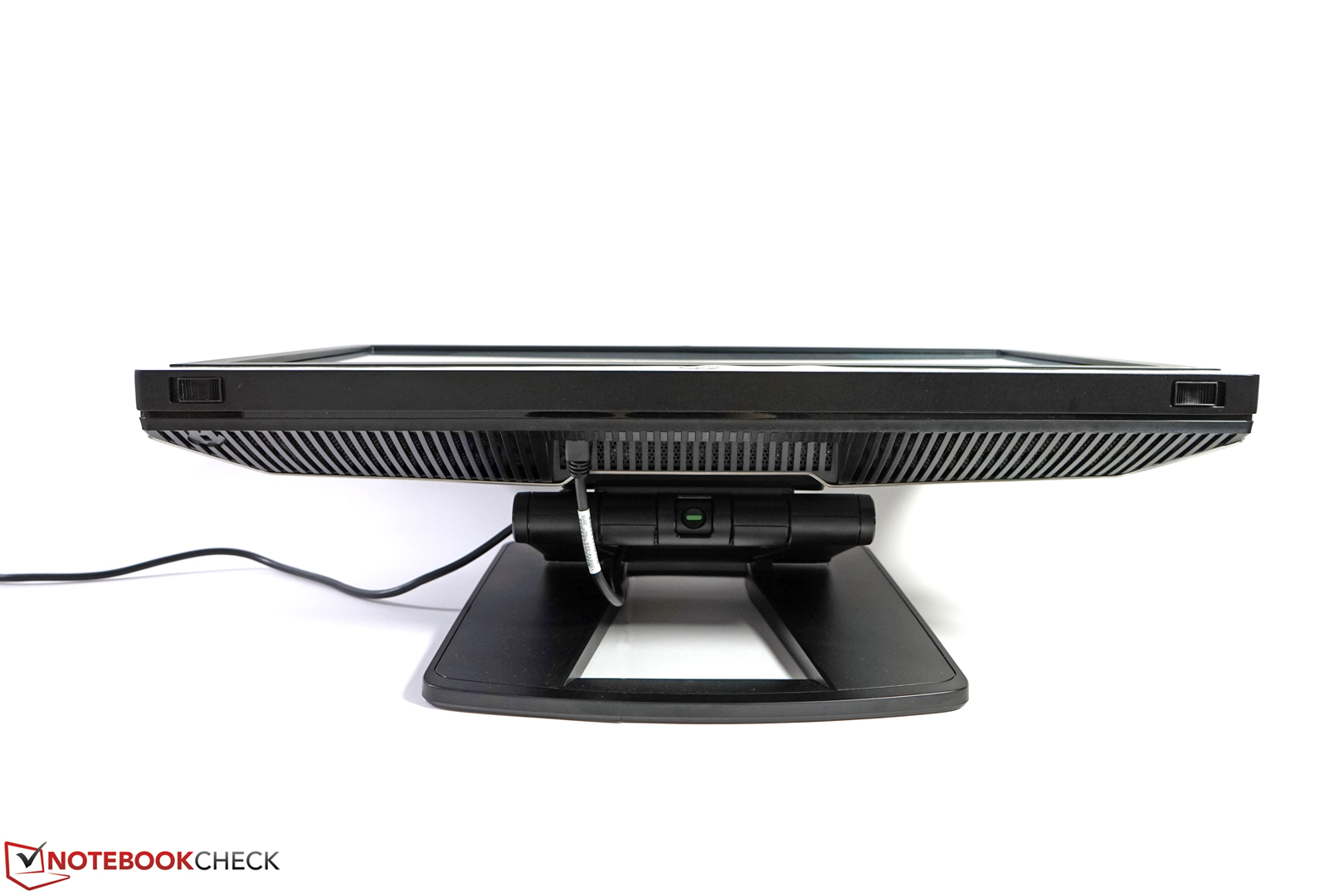

The casing can be opened via two unlocking slides

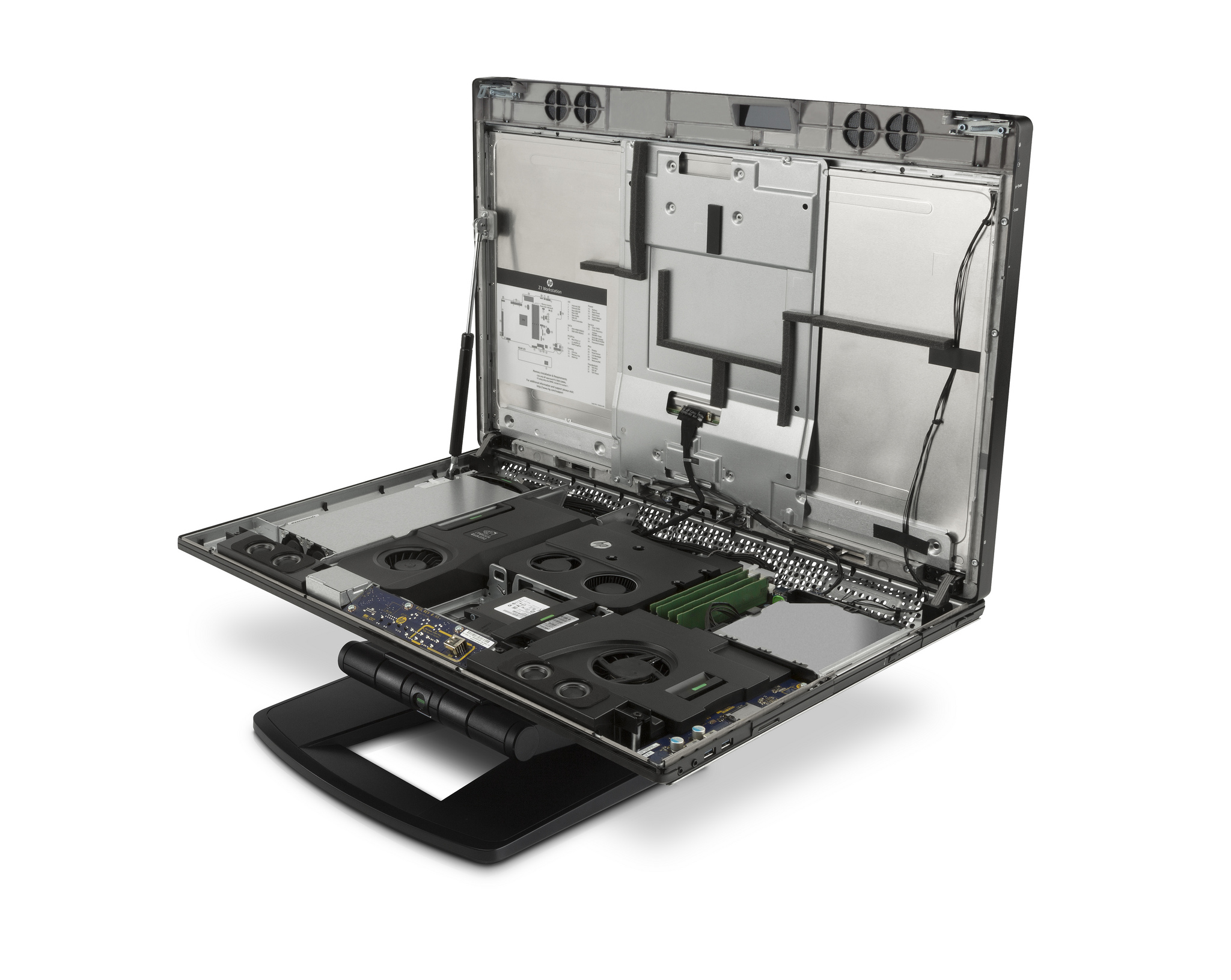

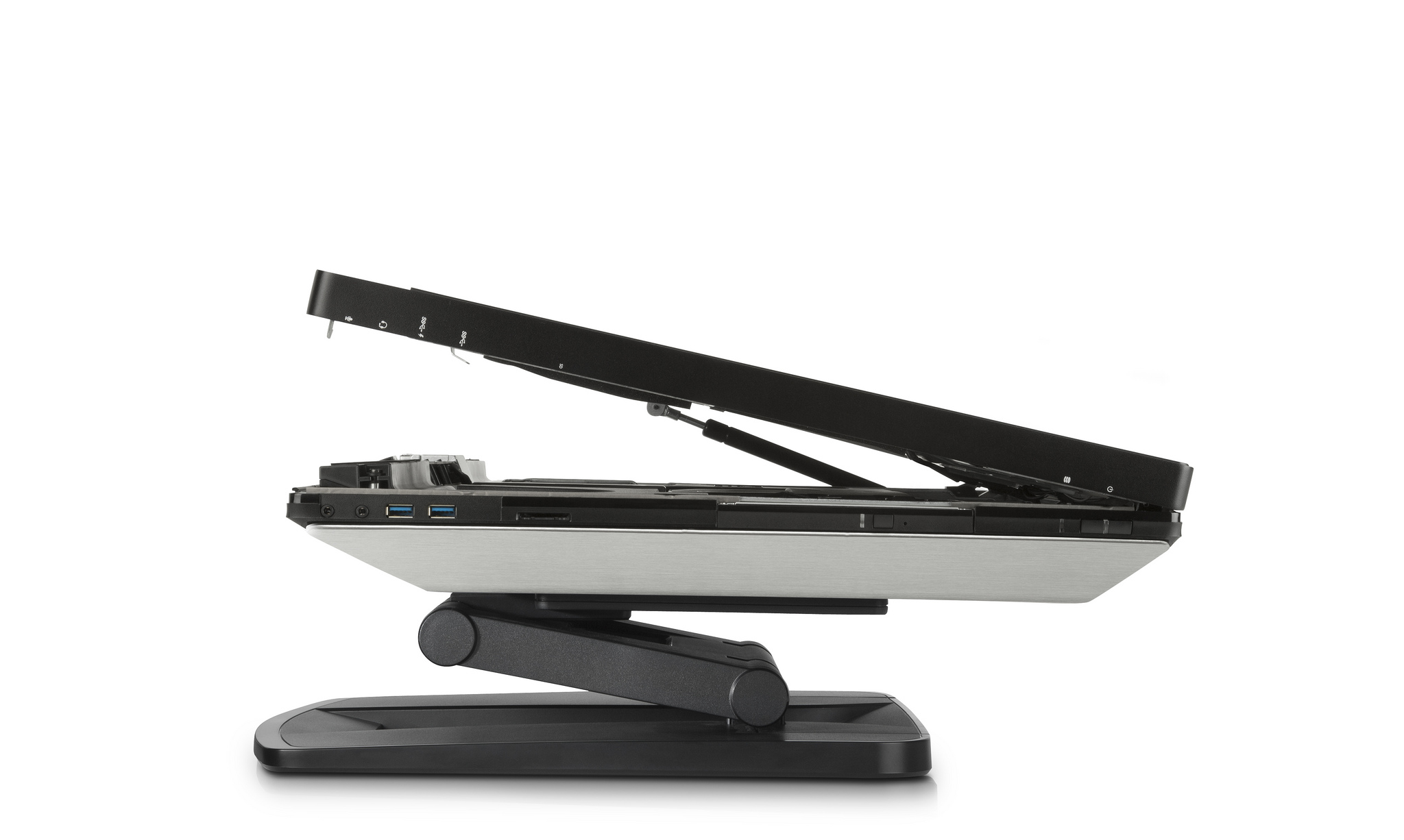

Picture HP: That enables easy access on the components
Picture HP: A lot is integrated in modular design, making it easy to upgrade or replace components
351
cd/m²
371
cd/m²
361
cd/m²
340
cd/m²
365
cd/m²
345
cd/m²
393
cd/m²
388
cd/m²
387
cd/m²
Helderheidsverdeling
HWP192F tested with X-Rite i1Pro 2
Maximum: 393 cd/m² (Nits) Gemiddelde: 366.8 cd/m²
Helderheidsverdeling: 87 %
Contrast: 913:1 (Zwart: 0.4 cd/m²)
ΔE Color 4.68 | 0.5-29.43 Ø5
ΔE Greyscale 6.6 | 0.57-98 Ø5.3
99.69% sRGB (Argyll 1.6.3 3D)
66.26% AdobeRGB 1998 (Argyll 1.6.3 3D)
74.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.7% sRGB (Argyll 2.2.0 3D)
76.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34
Cinebench R10 Shading 32Bit
6848
Cinebench R10 Rendering Single CPUs 64Bit
7066 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
24495 Points
Cinebench R10 Shading 64Bit
6820 Points
Cinebench R10 Rendering Single 32Bit
5335
Cinebench R10 Rendering Multiple CPUs 32Bit
18972
Cinebench R15 OpenGL 64Bit
68.3 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Multi 64Bit
534 Points
Cinebench R15 CPU Single 64Bit
145 Points
Help
PCMark 7 Score
4808 punten
PCMark 8 Home Score Accelerated v2
3396 punten
PCMark 8 Creative Score Accelerated v2
3014 punten
PCMark 8 Work Score Accelerated v2
4379 punten
Help

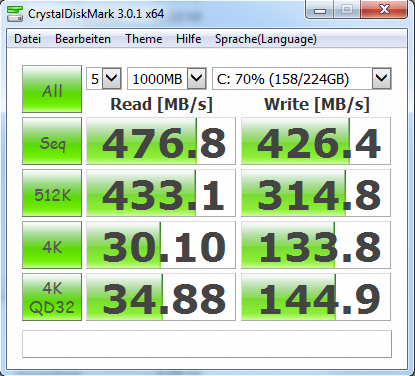

Micron M600 MTFDDAT256MBF mSATA
Sequential Read: 476 MB/s
Sequential Write: 426 MB/s
512K Read: 433 MB/s
512K Write: 314 MB/s
4K Read: 30.1 MB/s
4K Write: 133.8 MB/s
4K QD32 Read: 34.9 MB/s
4K QD32 Write: 144.9 MB/s
SPECviewperf 11
1920x1080 Siemens NX (sorteer op waarde)
HP Z1 G2 G1X47EA
31 fps
Lenovo ThinkPad W541 20EF000SGE
30.87 fps 0%
HP ZBook 15 G2
26.63 fps -14%
MSI WT72-2OL32SR311BW
45 fps +45%
1920x1080 Tcvis (sorteer op waarde)
HP Z1 G2 G1X47EA
35 fps
Lenovo ThinkPad W541 20EF000SGE
34.34 fps -2%
HP ZBook 15 G2
21.43 fps -39%
MSI WT72-2OL32SR311BW
50 fps +43%
1920x1080 SolidWorks (sorteer op waarde)
HP Z1 G2 G1X47EA
46 fps
Lenovo ThinkPad W541 20EF000SGE
41.64 fps -9%
HP ZBook 15 G2
56.1 fps +22%
MSI WT72-2OL32SR311BW
54 fps +17%
1920x1080 Pro/ENGINEER (sorteer op waarde)
HP Z1 G2 G1X47EA
18 fps
Lenovo ThinkPad W541 20EF000SGE
15.96 fps -11%
HP ZBook 15 G2
10.64 fps -41%
MSI WT72-2OL32SR311BW
24 fps +33%
1920x1080 Maya (sorteer op waarde)
HP Z1 G2 G1X47EA
53 fps
Lenovo ThinkPad W541 20EF000SGE
52 fps -2%
HP ZBook 15 G2
60.3 fps +14%
MSI WT72-2OL32SR311BW
58 fps +9%
1920x1080 Lightwave (sorteer op waarde)
HP Z1 G2 G1X47EA
51 fps
Lenovo ThinkPad W541 20EF000SGE
47.6 fps -7%
HP ZBook 15 G2
75.8 fps +49%
MSI WT72-2OL32SR311BW
53 fps +4%
1920x1080 Ensight (sorteer op waarde)
HP Z1 G2 G1X47EA
28 fps
Lenovo ThinkPad W541 20EF000SGE
24.64 fps -12%
HP ZBook 15 G2
25.07 fps -10%
MSI WT72-2OL32SR311BW
52 fps +86%
1920x1080 Catia (sorteer op waarde)
HP Z1 G2 G1X47EA
43 fps
Lenovo ThinkPad W541 20EF000SGE
39.12 fps -9%
HP ZBook 15 G2
35.61 fps -17%
MSI WT72-2OL32SR311BW
57 fps +33%

Legende


HP Z1 G2 G1X47EA Intel Xeon E3-1226 v3, NVIDIA Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

MSI WT72-2OL32SR311BW Intel Core i7-4980HQ, NVIDIA Quadro K4100M, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
SPECviewperf 12
1900x1060 Solidworks (sw-03) (sorteer op waarde)
HP Z1 G2 G1X47EA
34 fps
Lenovo ThinkPad W541 20EF000SGE
22.41 fps -34%
HP ZBook 15 G2
39.72 fps +17%
MSI WT72-2OL32SR311BW
83 fps +144%
1900x1060 Siemens NX (snx-02) (sorteer op waarde)
HP Z1 G2 G1X47EA
20.5 fps
Lenovo ThinkPad W541 20EF000SGE
21.35 fps +4%
HP ZBook 15 G2
29.69 fps +45%
MSI WT72-2OL32SR311BW
45 fps +120%
1900x1060 Showcase (showcase-01) (sorteer op waarde)
HP Z1 G2 G1X47EA
10.7 fps
Lenovo ThinkPad W541 20EF000SGE
11.23 fps +5%
HP ZBook 15 G2
16.36 fps +53%
MSI WT72-2OL32SR311BW
23 fps +115%
1900x1060 Medical (medical-01) (sorteer op waarde)
HP Z1 G2 G1X47EA
6 fps
Lenovo ThinkPad W541 20EF000SGE
2.16 fps -64%
HP ZBook 15 G2
7.82 fps +30%
MSI WT72-2OL32SR311BW
14 fps +133%
1900x1060 Maya (maya-04) (sorteer op waarde)
HP Z1 G2 G1X47EA
18.5 fps
Lenovo ThinkPad W541 20EF000SGE
15.82 fps -14%
HP ZBook 15 G2
24.92 fps +35%
MSI WT72-2OL32SR311BW
39 fps +111%
1900x1060 Energy (energy-01) (sorteer op waarde)
HP Z1 G2 G1X47EA
0.34 fps
Lenovo ThinkPad W541 20EF000SGE
0.17 fps -50%
HP ZBook 15 G2
0.44 fps +29%
MSI WT72-2OL32SR311BW
2.12 fps +524%
1900x1060 Creo (creo-01) (sorteer op waarde)
HP Z1 G2 G1X47EA
20 fps
Lenovo ThinkPad W541 20EF000SGE
19.14 fps -4%
HP ZBook 15 G2
19.64 fps -2%
MSI WT72-2OL32SR311BW
38 fps +90%
1900x1060 Catia (catia-04) (sorteer op waarde)
HP Z1 G2 G1X47EA
20.5 fps
Lenovo ThinkPad W541 20EF000SGE
19.6 fps -4%
HP ZBook 15 G2
23.62 fps +15%
MSI WT72-2OL32SR311BW
48 fps +134%

Legende


HP Z1 G2 G1X47EA Intel Xeon E3-1226 v3, NVIDIA Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

MSI WT72-2OL32SR311BW Intel Core i7-4980HQ, NVIDIA Quadro K4100M, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)
LuxMark v2.0 64Bit
Room GPUs-only (sorteer op waarde)
HP Z1 G2 G1X47EA
74 Samples/s
MSI WT72-2OL32SR311BW
325 Samples/s +339%
HP ZBook 15 G2
375 Samples/s +407%
Sala GPUs-only (sorteer op waarde)
HP Z1 G2 G1X47EA
158 Samples/s
MSI WT72-2OL32SR311BW
648 Samples/s +310%
HP ZBook 15 G2
675 Samples/s +327%

Legende


HP Z1 G2 G1X47EA Intel Xeon E3-1226 v3, NVIDIA Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA

MSI WT72-2OL32SR311BW Intel Core i7-4980HQ, NVIDIA Quadro K4100M, 4x Toshiba HG6 THNSNJ256G8NU (RAID 0)

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006
3DMark Ice Storm Standard Score
80055 punten
3DMark Cloud Gate Standard Score
9273 punten
3DMark Fire Strike Score
1738 punten
Help
lage gem. hoge ultra
GRID: Autosport (2014) 268 102 40 21
Middle-earth: Shadow of Mordor (2014) 67 34 17 16
Dirt Rally (2015) 225 60 25
The Witcher 3 (2015) 26 18 9
Anno 2205 (2015) 54 33 14

Geluidsniveau

Onbelast
32.4 / 32.4 / 32.4 dB (A)
Belasting
33.7 / 33.7 dB (A)
  red to green bar


30 dB
stil
40 dB(A)
hoorbaar
50 dB(A)
luid

min: dark, med: mid, max: light   Audix TM1 Arta (15 cm afstand)
Max. Belasting
 28 °C27 °C26 °C
 26 °C26 °C26 °C
 25 °C25 °C25 °C
Maximum: 28 °C
Gemiddelde: 26 °C
29.5 °C31.4 °C28.7 °C
27 °C26 °C28 °C
25 °C26 °C26 °C
Maximum: 31.4 °C
Gemiddelde: 27.5 °C
Kamertemperatuur 20 °C | Fennel FIRT 550-Pocket
(+) De gemiddelde temperatuur voor de bovenzijde bij maximale belasting bedraagt 26 °C / 79 F, vergeleken met het gemiddelde van 29.7 °C / ###class_avg_f## F voor de apparaten van de klasse Desktop.
(+) De maximumtemperatuur aan de bovenzijde bedraagt 28 °C / 82 F, vergeleken met het gemiddelde van 34.4 °C / 94 F, variërend van 25 tot 47 °C voor de klasse Desktop.
(+) De bodem warmt op tot een maximum van 31.4 °C / 89 F, vergeleken met een gemiddelde van 34 °C / 93 F
(+) Bij onbelast gebruik bedraagt de gemiddelde temperatuur voor de bovenzijde 27.3 °C / 81 F, vergeleken met het apparaatgemiddelde van 29.7 °C / 85 F.
Stroomgebruik
Uit / Standbydarklight 0.9 / 1.85 Watt
Inactiefdarkmidlight 36.8 / 65.3 / 67 Watt
Belasting midlight 114 / 142 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Pro

+ stabiliteit van behuizing
+ bouwkwaliteit
+ onderhouds- en upgrademogelijheden
+ snelle kaartlezer en USB 3.0-poorten
+ type en aantal audio-aansluitingen
+ schermkwaliteit
+ systeemprestaties
+ CAD-prestaties
+ relatief stil onder belasting
+ 36 maanden garantie
+

Contra

- zwaar en omvangrijk
- relatief luid in inactieve toestand
- scherminstellingen
- toegankelijkheid van poorten aan achterkant
- DisplayPort 1.1 ondersteunt geen 4K-resolutie
- prijs
In review: HP Z1 G2 workstation.
In review: HP Z1 G2 workstation.

Dit is de verkorte versie van het originele artikel. Het volledige, Engelse testrapport vind je hier.

De all-in-one Z1 G2 workstation van HP belichaamt een compacte computer met zowel een aantrekkelijk uiterlijk als hoge prestaties en zou uitstekend tot zijn recht komen in een nette werkomgeving. Dankzij het modulaire design en de goed ontworpen behuizing moet de gebruiker geen vaarwel zeggen aan eventuele onderhouds- en upgrademogelijkheden.

De prestaties liggen in lijn van de verwachtingen voor de geïnstalleerde componenten en kunnen afhankelijk van de vereisten zelfs nog verhoogd worden, mits een meerprijs. De koper heeft echter weinig invloed op de keuze van het scherm. Afgezien van de optionele touch-functionaliteit moet men zich noodgedwongen tevreden stellen met het scherm en zijn bijhorende resolutie (en relatief beperkte instellingen). Het scherm weet gelukkig te overtuigen met prima meetwaarden en over het algemeen goede kwaliteiten voor professionele toepassingen.

We waren niet erg opgezet met de slechte toegankelijkheid van de poorten aan de achterkant, de DisplayPort 1.1 zonder ondersteuning voor 4K en het relatief hoge geluidsniveau in inactieve toestand.

Of het nu uiteindelijk dit all-in-one toestel zal worden of een desktop-workstation of een laptop hangt af van persoonlijke criteria, de benodigde hardware en de financiële middelen. Met een prijskaartje van ongeveer 3800 euro (~$4171) is de HP Z1 G2 in ieder geval geen koopje.

HP Z1 G2 G1X47EA - 16-12-2015 v4(old)
Tobias Winkler

Behuizing
93 / 98 → 95%
Toetsenbord
90%
Aanwijsapparaat
85%
Aansluitmogelijkheden
90 / 81 → 100%
Gewicht
0%
Batterij
0%
Beeldscherm
88%
Gaming-performance
82%
Applicatie-performance
89%
Temperatuur
94%
Luidheid
90%
Audio
77%
Camera
60 / 85 → 71%
Gemiddelde
85%
88%
Desktop - Gewogen Gemiddelde
