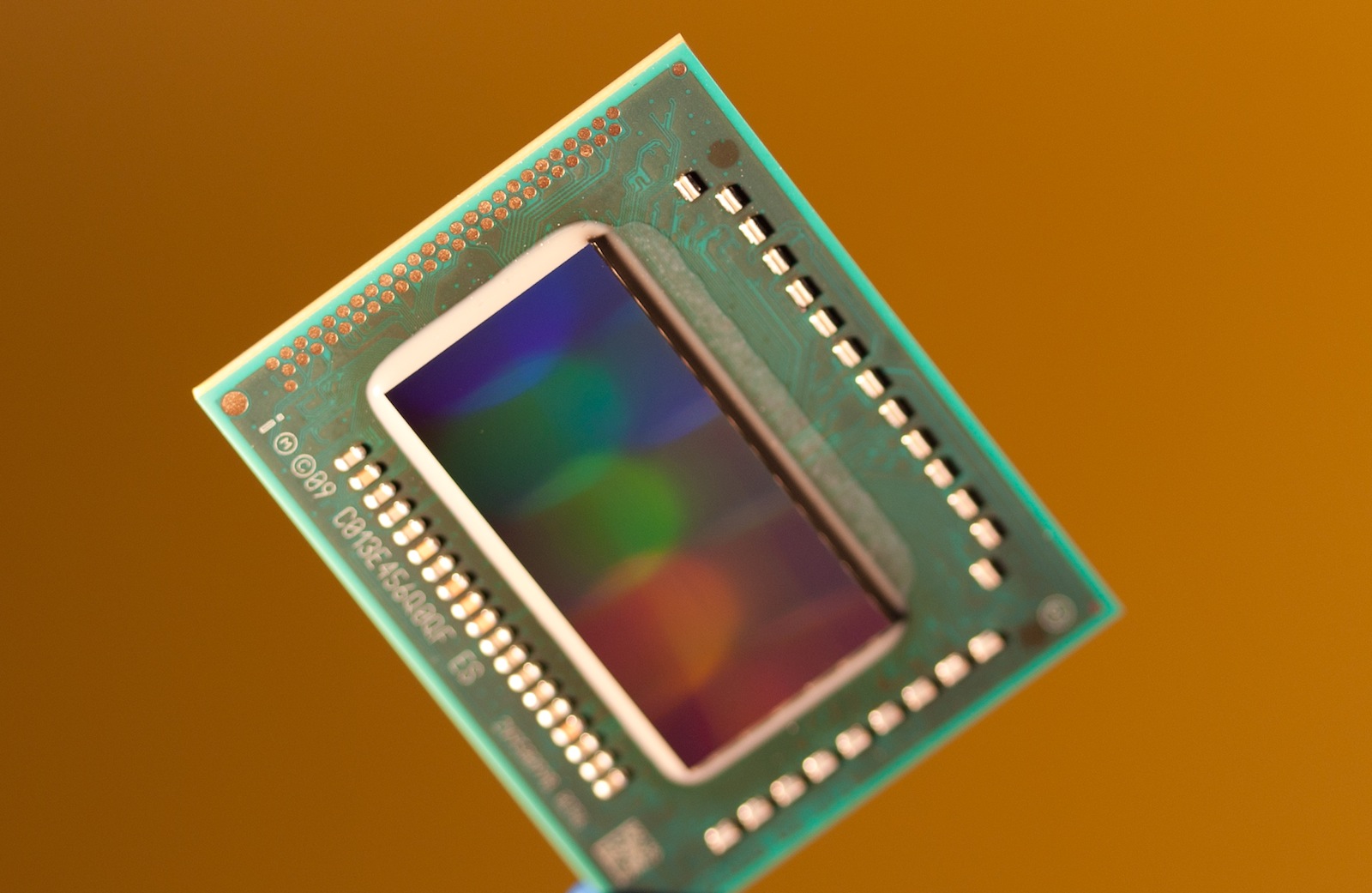

Intel Core i7-2820QM

Intel 2820QM

De Intel Core i7-2820QM is een snelle high-end quad-core processor voor laptops. Op het moment van aankondiging (januari 2011) is het de snelste 45 Watt processor. Deze is gebaseerd op de Sandy Bridge architectuur en biedt Hyper-Threading zodat er tegelijkertijd 8 threads verwerkt kunnen worden (een efficiënter gebruik van de pipeline). In tegenstelling tot de vorige generatie Clarksdale quad-core processoren, wordt de i7-2820QM nu gefabriceerd op 32nm, biedt een geïntegreerde grafische kaart en AES-functionaliteit. Vergeleken met de langzamer geklokte 2720QM heeft de 2820QM meer Level 3 cache (8 MB vs. 6 MB).

Sandy Bridge is de evolutionaire opvolger van de Arrandale architectuur. De meest opvallende verbeteringen zijn de nieuwe 264-bit AVX instructies, de verbeterde TurboBoost en de integratie van de grafische kaart op de 32nm CPU core zelf. Verder is de geïntegreerde geheugencontroller verbeterd en ondersteund nu tot 8 GB DDR3-1333.

De Core i7-2820QM biedt een geïntegreerde grafische kaart (Intel HD Graphics 3000) die aanzienlijk sneller blijkt te zijn dan de oudere Intel HD Graphics in de Arrandale CPU's en vergelijkbaar presteert met instapmodellen dedicated grafische kaarten zoals de GeForce 310M. De HD Graphics 3000 ondersteund ook TurboBoost en heeft een kloksnelheid tussen de 650 MHz en 1300 MHz. Omdat de grafische kaart het snelle Level 3 cache deelt, is de processor iets langzamer wanneer de GPU actief is.

De prestaties van de Core i7-2820QM zijn zichtbaar beter (bijv. Cinebench verscheidene versies) dan de vorige generatie Core i7-940XM quad-core processor. De prestaties zouden dan ook voldoende moeten zijn voor zelfs de meest veeleisende taken zoals HD videobewerking of 3D games. Dankzij de snelle TurboBoost 2.0 worden zelfs single threaded applicaties snel uitgevoerd. Uitgebreide benchmarks kunnen aan het einde van de pagina gevonden worden.

De relatief hoge TDP waarde van de 2820QM van 45 Watt maakt het gebruik van deze quad-core slechts in 15” laptops en groter mogelijk. Vergeleken met de vorige generatie quad-cores is het TDP echter verbetert, gezien het TDP nu inclusief een geïntegreerde GPU is.

SerieIntel Core i7
CodenaamSandy Bridge

Serie: Core i7 Sandy Bridge

Intel Core i7-2960XM2.7 - 3.7 GHz4 / 8 cores8 MB L3
Intel Core i7-2860QM2.5 - 3.6 GHz4 / 8 cores8 MB L3
Intel Core i7-2920XM2.5 - 3.5 GHz4 / 8 cores8 MB L3
Intel Core i7-2760QM2.4 - 3.5 GHz4 / 8 cores6 MB L3
Intel Core i7-2820QM « 2.3 - 3.4 GHz4 / 8 cores8 MB L3
Intel Core i7-2720QM2.2 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-2675QM2.2 - 3.1 GHz4 / 8 cores6 MB L3
Intel Core i7-2670QM2.2 - 3.1 GHz4 / 8 cores6 MB L3
Intel Core i7-2635QM2 - 2.9 GHz4 / 8 cores6 MB L3
Intel Core i7-2630QM2 - 2.9 GHz4 / 8 cores6 MB L3
Intel Core i7-2640M2.8 - 3.5 GHz2 / 4 cores4 MB L3
Intel Core i7-2620M2.7 - 3.4 GHz2 / 4 cores4 MB L3
Intel Core i7-2649M2.3 - 3.2 GHz2 / 4 cores4 MB L3
Intel Core i7-2629M2.1 - 3 GHz2 / 4 cores4 MB L3
Intel Core i7-2677M1.8 - 2.9 GHz2 / 4 cores4 MB L3
Intel Core i7-2637M1.7 - 2.8 GHz2 / 4 cores4 MB L3
Intel Core i7-2657M1.6 - 2.7 GHz2 / 4 cores4 MB L3
Intel Core i7-2617M1.5 - 2.6 GHz2 / 4 cores4 MB L3
Kloksnelheid2300 - 3400 MHz
Level 1 Cache256 KB
Level 2 Cache1 MB
Level 3 Cache8 MB
Aantal Cores / Threads4 / 8
Stroomverbruik (TDP = Thermal Design Power)45 Watt
Aantal Transistoren995 miljoen
Productietechnologie32 nm
Chipgrootte216 mm2
Max. Temperatuur100 °C
SocketFCBGA1224, FCPGA988
FeaturesHD Graphics 3000 (650-1300MHz), DDR-1066/1333/1600 Memory Controller, HyperThreading, AVX, Quick Sync, Virtualization
GPUIntel HD Graphics 3000 (650 - 1300 MHz)
64-Bit64-Bit-ondersteuning
Architecturex86
Startprijs$568 U.S.
Aankondigingsdatum03-01-2011
Productlink (extern)ark.intel.com

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 4.41     gem: 5.2     mediaan: 5.5 (7%)     max: 5.81 Points
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 4200     gem: 4274     mediaan: 4249.5 (26%)     max: 4365 punten
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 12641     gem: 14782     mediaan: 15043.5 (11%)     max: 16105 punten
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 16327     gem: 18631     mediaan: 19316 (13%)     max: 20393 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 5232     gem: 5368     mediaan: 5372 (7%)     max: 5468 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 281     gem: 366.3     mediaan: 360.2 (4%)     max: 458.6 s
wPrime 2.10 - wPrime 2.0 32m *
min: 8.27     gem: 10.7     mediaan: 10 (2%)     max: 13.64 s
3DMark 06 - CPU - 3DMark 06 - CPU
min: 4427     gem: 5486     mediaan: 5818.5 (12%)     max: 5923 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 11     gem: 11.2     mediaan: 11 (2%)     max: 11.6 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 23.1     gem: 29.7     mediaan: 25 (1%)     max: 54 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 618     gem: 628     mediaan: 625 (3%)     max: 644 s
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
min: 83000     gem: 90497     mediaan: 87000 (41%)     max: 101490 MIPS
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
min: 23590     gem: 53623     mediaan: 66280 (51%)     max: 71000 MFLOPS
PCMark 05 - PCMark 05 - Standard
13842 Points (29%)
Windows 7 Experience Index - Win7 CPU
min: 7.4     gem: 7.5     mediaan: 7.5 (96%)     max: 7.5 Points
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 16115     gem: 18441     mediaan: 18520 (16%)     max: 20526 Points
3DMark 11 - 3DM11 Performance Physics
min: 5165     gem: 6335     mediaan: 6724 (18%)     max: 7245 Points
- Benchmarkresultaten voor deze videokaart
- Gemiddelde benchmarkresultaten voor deze videokaart
* Kleinere getallen betekenen een hogere prestatie
